USER MANUAL BC 16.12 SIGMA

DINE COMPUTER TOOLING SIGMA® STANDARD VOCO TUTORIAL INSTALLATION VIDEO 8C 16.12 / BC 16.12 STS/CAD 16 STANDARD

    M["English"] --> N["English"]
    N --> O["Enrolled"]
    O --> P["Set Itc"]
    P --> Q["Enrolled"]

    R["To not set rules, prices and hold back them left button for 3 sec."] --> S
    T["English"] --> U["x1"]
    U --> V["English"]
    V --> W["x1"]
    W --> X["+8"]
    X --> Y["Enrolled"]
    Y --> Z["x1"]
    Z --> AA["Enrolled"]

    AB["Press & Hold for 4 sec. to open set menu"] --> AC["x1"]
    AC --> AD["English"]
    AD --> AE["x1"]
    AE --> AF["+8"]
    AF --> AG["Enrolled"]
    AG --> AH["x1"]
    AH --> AI["Enrolled"]

    AJ["To not set rules, prices and hold back them left button for 3 sec."] --> AK["x1"]
    AK --> AL["English"]
    AL --> AM["x1"]
    AM --> AN["+8"]
    AN --> AO["Enrolled"]
    AO --> AP["x1"]
    AP --> AQ["Enrolled"]

    AR["Press & Hold for 4 sec. to open set menu"] --> AS["x1"]
    AS --> AT["English"]
    AT --> AU["x1"]
    AU --> AV["+8"]
    AV --> AW["Enrolled"]
    AW --> AX["x1"]
    AX --> AY["Enrolled"]

    AZ["To not set rules, prices and hold back them left button for 3 sec."] --> BA["x1"]
    BA --> BB["English"]
    BB --> BC["x1"]
    BC --> BD["+8"]
    BD --> BE["Enrolled"]
    BE --> BF["x1"]
    BF --> BG["Enrolled"]

    BH["Press & Hold for 4 sec. to open set menu"] --> BI["x1"]
    BI --> BJ["English"]
    BJ --> BK["x1"]
    BK --> BL["x1"]
    BL --> BM["x1"]
    BM --> BN["Enrolled"]
    BN --> BO["x1"]
    BO --> BP["Enrolled"]

    BQ["Press & Hold for 4 sec. to open set menu"] --> BR["x1"]
    BR --> BS["English"]
    BS --> BT["x1"]
    BT --> BU["x1"]
    BU --> BV["x1"]

Set unit of measure / Definiti l'unité / Determinar unidad
KMAH → MPH

Set wheel size / Réglage de la circonférence de la roue / Introducción de las dimensiones de la ruede

2155→2138

Set clock / Régier l'haure / Ajustar hors

00:00 → 3:26 pm

Set total distance / Régler la distance totale / Ajuster trames totales

0 > 2,325 INale: 18,320 - 2,320 miles


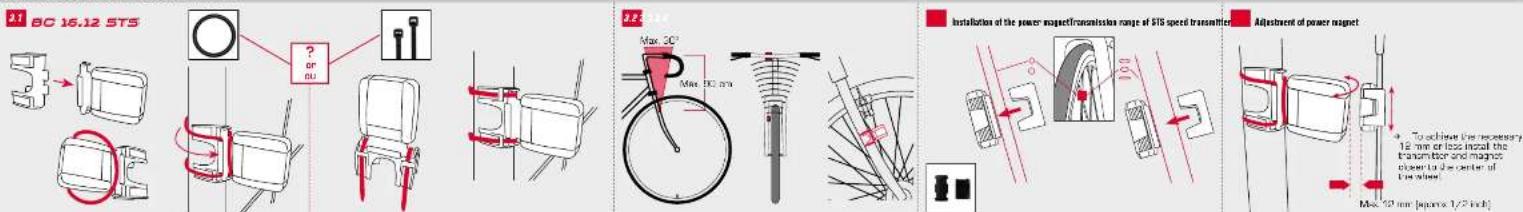

1. INSTALLATION OF THE WIRELESS SPEED TRANSMITTER

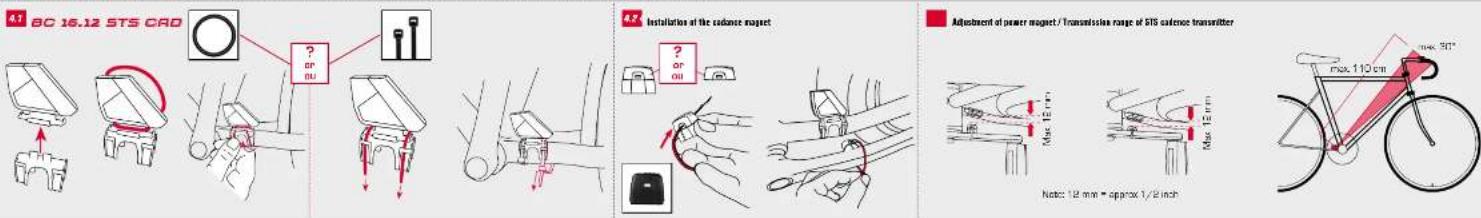

2. INSTALLATION OF THE WIRELESS CADENCE TRANSMITTER Cadence kit included with 2C 15.12 STS CAD (Ref No 06131), upgrade your BC 18.12 STS with Ref No 00442


max. 110 cm max. 30°

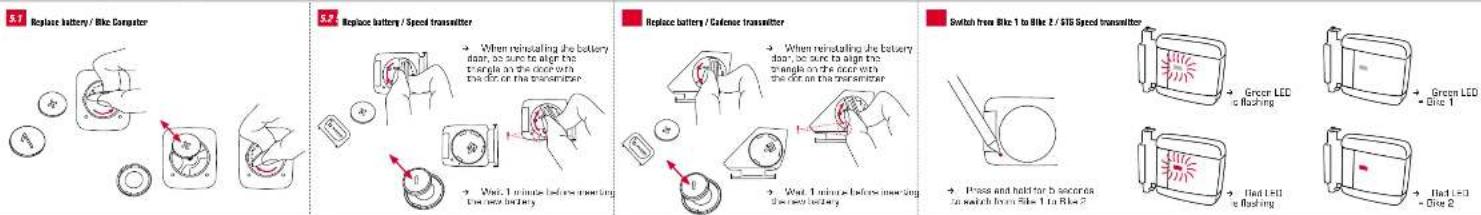

1. REPLACE BATTERY / SWITCH BIKE 1 - BIKE 2


→ Green LED is flashing → Red LED is flashing → Green LED - Dine 1 → Red LED - Dine 2

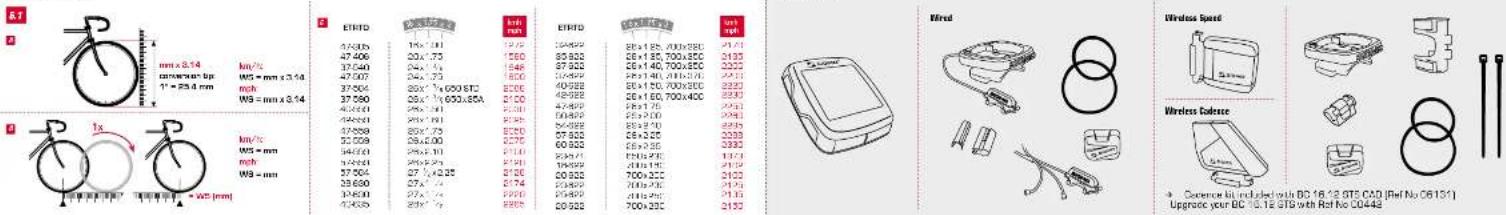

1. WHEEL SIZE CHART


BIKE COMPUTER TOPLINE

SIGMA®

GERMANY

PC-MAG

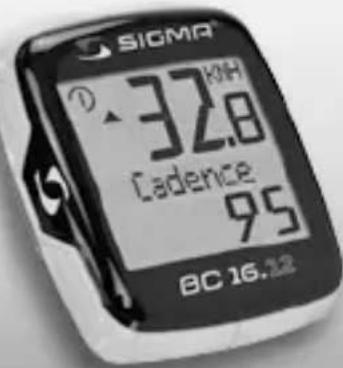

SIGMA 32.8 Cadence 95 BC 16.12

VIDEO TUTORIAL:

QR code image containing encoded data, no visible human-readable text

INSTALLATION VIDEO:

QR code image containing encoded data, no visible human-readable text

BC 16.12 / BC 16.12

16

FUNCTIONS

US ENGLISH

Contents

1. Introduction to the BC 16.12 / BC 16.12 STS 02

1.1 Initial use 02
1.2 Navigation principle 03
1.3 Set-up 04

2. Functions / Properties 04

2.1 General 04
2.2 Special functions 06
2.3 STS features 06

3. Settings / Re-setting the trip data 08

3.1 Settings 08
3.2 Determining the wheel size 08
3.3 Re-set trip data 08

4. Important Notes/Troubleshooting 09

4.1 Technical data 09

5. Warranty 11

1. Introduction to the BC 16.12 / BC 16.12 STS

1.1 Initial use

The bike computer comes in "deep sleep mode".

To exit this mode, press and hold the MODE 1 and SET buttons for five seconds.

On waking up, the bike computer will be in active mode.

0.0 Trip Dist 0.0

English

To access the settings, press the SET button.

1.2 Navigation principle

1.2.1 Button functions 1.2.2 Assigning the functions

RESET button for
- Re-setting the current values
- Scrolling backward

MODE 2 button for

• Switching between functions
• Scrolling forward

Simple geometric diagram with a square and rounded corners, no text or symbols present.

SET button for

• To enter/exit the setting mo
• Scrolling backward

MODE 1 button for

• Switching between the bike functions
• Scrolling forward

Simple diagram with a square and two vertical lines, no text or symbols present

You can access the following functions by pressing the

MODE 2 button:

cadence / avg. cadence / clock / stopwatch / countdown timer / trip (or trip segment) distance / TS time / temperature / total distance 1* / total distance 2* / total distance / total time 1* / total time 2* / total time

* The distinction between bike 1 and bike 2 is only displayed once a second bike has been detected.

You can access the following functions by pressing the

MODE 1 button:

trip distance / ride time / avg. speed / max. speed

1.2 Navigation principle

1.2.3 Display layout

0.00 KHH Trip Dist

Top field:

Speed

Middle field:

Function name

Bottom field:

Current value

1.3 Set-up

Please see the leaflet provided for the set-up diagrams!

2. Functions / Properties

2.1 General

- Current/average speed comparison →

If you are traveling at approximately your average speed, nothing is displayed. If you are traveling faster than your average speed,

(▲) is displayed; if you are traveling slower ( ) is displayed.

- Automatic detection of the

second bike → Switching between

14.6 Avg Speed 2.175

bike 1 and bike 2 occurs automatically. You simply need to purchase the appropriate bike 2 mounting kits. For wired computers you will need the universal bracket, and follow the included instructions for bike 2 usage. For wireless computers, purchase a second speed transmitter and follow the included instructions for use on a second bike. If only 1 bike is used, only the total values for bike 1 will be displayed (bike 2 functions will be hidden). Once a second bike is used, total values will be displayed as bike 1, bike 2, and bike 1+2.

2. Functions / Properties

- Light manager → Simultaneously press the SET and RESET buttons to activate or deactivate the backlight function. Once the backlight function is activated, press any button and the display will illuminate for 5 seconds. To change between modes, press the MODE 1 or MODE 2 buttons - the backlight will remain on while you scroll through modes. To deactivate the backlight, simultaneously press the SET and RESET buttons, or simply allow the computer head to go into sleep mode and it will deactivate automatically. On wireless models, the backlight function is disabled during synchronization. Avoid unnecessary use of the backlight to conserve the battery!

- Service interval With the service interval enabled, you are reminded of regularly scheduled maintenance for your bicycle. The computer comes with the service interval disabled and can only be enabled / disabled by a bike shop.

- Low Battery Indicator → A low battery indicator is shown on the computer display when the battery is low. Once the battery is changed, only the clock needs to be re-set.

- Memory chip → An integrated storage chip retains all total values and settings during a battery change. Only the clock needs to be re-set following a battery change.

- Downloadable The bike computer is downloadable and PC or Mac compatible. With the purchase of the SIGMA DATA CENTER software and docking station you can track and evaluate ride data. You can also program the bike computer with your PC or Mac.

www.sigma-data-center.com

2. Functions / Properties

2.2 Special functions

- Hiding total values during the trip As soon as your BC 16.12 receives a speed signal, all total functions (total distance, total time) are hidden on the display. If no speed values are received, the functions are once again displayed.

- Showing and hiding cadence functions If the BC 16.12 is used without the cadence sensor, all cadence functions (cadence / avg. cadence) will be hidden for this trip; may take up to 5 minutes.

- Trip section (TS) counter → This is a separate distance / time counter that is manually started and stopped. The trip section counter makes it possible to evaluate a trip section or interval training session without influencing the total values for the trip.

2.3 STS features

- Synchronization → Attach the BC 16.12 STS to the mount – zeros will flash for the speed and cadence during the synchronization process. There are two ways to synchronize speed / cadence:

- 1. → Start cycling – the receiver usually synchronizes with the transmitters after 3-4 wheel / pedal rotations.

- 2. → Spin the front wheel or turn the pedals until the speed / cadence values stop flashing.

Removing the BC 16.12 STS from the mount severs the connection and requires you to re-synchronize the speed / cadence transmitters.

Line drawing of a person riding a bicycle with two wheels (no text or symbols)

2

2. Functions / Properties

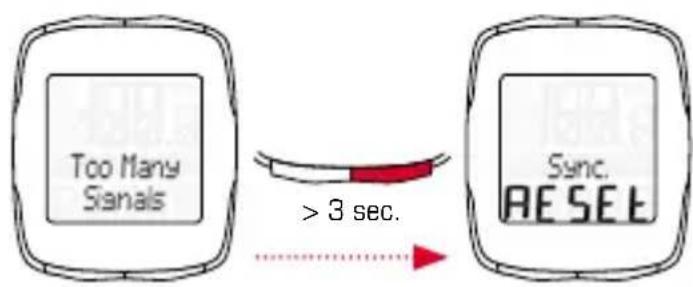

- Message "Too Many Signals" → This message indicates that there was a problem synchronizing your computer/transmitters. Increase your distance from other cyclists (transmitters) and press any button. Synchronization re-starts. (If the transmission connection is lost during your trip and your computer no longer functions, press and hold the MODE 1 button for more than three seconds to start manual synchronization. "Sync. RESET" flashes on the display)

Too Many Signals > 3 sec. Sync. RESEE

- Transport mode → When transported on a bike rack or in the car (if clicked into the mount), the BC 16.12 STS switches to "transport mode" via an integrated motion sensor to conserve your battery life. "Transport" appears on the display. Simply press any button to exit this mode.

3. Settings / Re-setting

3.1 Settings

The following settings can be configured: language / unit / wheel size 1 / wheel size 2 / clock / total distance 1 / total distance 2 / total time 1 / total time 2 / contrast. Clear diagrams of how to set each of these functions can be found in the enclosed leaflet.

3.2 Determining the wheel size

To measure your speed precisely, the wheel size must be set according to your tire size. To do this, you can:

A - Measure the height of the wheel and calculate the wheel size using the formula provided in the wheel size chart. Calculate the wheel size using the formula provided in the wheel size chart.
B - Use the roll out method as shown in the wheel size chart.
C - Take the value that corresponds to your tire size from the wheel size chart.

3.3 Re-setting trip data

Please see the diagrams for instructions on how to reset trip data.

Please note that the trip section (TS) counter, stopwatch, and countdown timer are not re-set with the current trip values. See special instructions for resetting these functions.

4. Important Notes / Troubleshooting

4.1 Technical data

4.1.1 Battery indicator / replacement

Please see the enclosed diagrams for how to insert or remove the battery. After changing the battery in the computer head unit, only the clock needs to be re-set.

BC 16.12 Type CR 2032 /

computer head unit: 1.5-year service life*

BC 16.12 STS Type CR 2032 /

computer head unit: 1-year service life*

Speed transmitter: Type CR 2032 /

1-year service life*

Cadence transmitter: Type CR 2032 /

1-year service life*

* when used for one hour per day

4.1.2 Troubleshooting

No speed:

• Is the computer correctly fastened into the mount? The word "SIGMA" on the mount must be facing forward!
• Check the distance between the magnet and the sensor (max. 1/4 inch).
• Is the magnet correctly positioned?
• If you recently removed your front wheel, did you put it on backwards?

Incorrect speed:

• Are there two magnets on your wheel?
• Is the wheel size correctly set?

Additional troubleshooting solutions can be found in our FAQs at www.sigmasport.com

4. Important Notes / Troubleshooting

4.1.3 Min./max./factory settings

Standard	Min.	Max.	Unit
Current speed 0.0 0 199.8 km/h mph
Trip Dist 0.00 0.00 9,999.9 km/mi
Ride Time 0:00:00 0:00:00 999:59:59 h:mm:ss hhh:mm:ss
Avg. Speed 0.00 0.00 199.8 km/h mph
Max. Speed 0.00 0.00 199.8 km/h mph
Cadence	0	0	180	rpm
Avg. cadence	0	0	180	rpm
Clock	00:00	00:00	23:59	hh:mm
Stopwatch	00:00.0	00:00.0	9:59:59	mm:ss,1/10 h:mm:ss
Countdown	0:00:00	0:00:00	9:59:59	h:mm:ss
TS Distance	0.00 0.00 9,999.9 km/mi
TS Time	0:00:00 0:00:00 999:59:59 h:mm:ss hhh:mm:ss
Temperature	0.0	-10/14	70/158	°C/°F
Tot Dist 1+2	0	0	99,999	km/mi
Tot Distance	0 0 999,99	km/mi
Total Time 1+2	0:00	0:00	9999:59	h:mm h.hhh:mm
Total Time	0:00 0:00 19,999	h:mm hh,hhh
Wheelsize 1+2	2,155	500	3,999	mm

5. Warranty

SIGMA's warranty policy covers manufacturer defects resulting from material or workmanship errors. The warranty does not cover batteries, normal wear and tear, or damage / loss caused by a crash or modification of the SIGMA product.

In the event of a warranty claim, please contact SIGMA USA. If our customer service department cannot help you over the phone, we will provide you with an "RA#" and request that you send your computer and a sales receipt showing that your computer was purchased within the last 2 years, to the address below. Please ensure that you pay sufficient postage.

SIGMA USA

RA#:

3487 Swenson Ave.

St. Charles, IL 60174

Upon receipt of the warranty claim, we will either repair or replace your SIGMA product with the equivalent model available at the time of replacement. The manufacturer retains the right to make technical modifications of SIGMA products at any time.

SIGMA SPORT USA

3487 Swenson Ave.

St. Charles, IL 60174

888-744-6277

[e-mail]

Please recycle! It is unlawful to throw batteries away in household garbage!

FR FRANÇAIS

Table des matières

1. Découverte du BC 16.12 / BC 16.12 STS 12

1.1 Mise en service 12
1.2 Principe de navigation 13
1.3 Montage 14

Simple diagram with a square and two vertical lines, no text or symbols present

kHH Distance

Champ supérieur :

www.sigma-data-center.com

Line drawing of a person riding a bicycle with two wheels (no text or symbols)

2 P

Simple geometric diagram with a square and rounded corners, no text or symbols present.

Tecla SET para

Simple diagram with a square and two vertical lines, no text or symbols present

www.sigma-data-center.com

Line drawing of a person riding a bicycle with two wheels (no text or symbols)

2

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.

This Class digital apparatus complies with Canadian ICES-003.

BC 16.12 / BC 16.12 STS

SIGMA SPORT USA

3487 Swenson Ave.

St. Charles, IL 60174, U.S.A.

086133/3
