FDK252 - Croque monsieur clip KRUPS - Free user manual and instructions

Product type	Electric waffle maker
Brand	Krups
Model	FDK252
Approximate dimensions	25 x 20 x 10 cm
Approximate weight	1.5 kg
Power supply	Mains, 220-240 V
Power	900 W
Number of plates	2 fixed waffle plates
Plate coating	Non-stick
Handle	Heat-insulated
Closure	Closure clip
Indicator lights	Power indicator light (red) and regulation indicator light (green)
Switch	On/Off (positions 0 and 1)
Vertical storage	Possibility of vertical storage with cord winding
Use	Cooking waffles (recipes provided)
Adjustable temperature	Built-in thermostat (green light indicates temperature reached)
Cleaning	Do not immerse; clean with a damp sponge and dishwashing liquid
Safety	Unplug before cleaning; let cool for 2 hours before storing
Accessories included	Not specified (probably none)
User manual contents	User instructions, recipes, safety instructions

Frequently Asked Questions - FDK252 KRUPS

How to use my Krups FDK252 waffle maker for the first time?

Before first use, fully unwind the cord, open the appliance and remove all packaging and stickers. Lightly grease the plates with vegetable oil or a non-stick aerosol, then wipe with a soft cloth.

How to turn on and preheat the appliance?

Close the appliance, make sure the switch is at 0, plug in the cord, then set the switch to position 1. The red light turns on. Wait for the green light to turn on, indicating that the cooking temperature is reached.

Why does the green light turn on and off during cooking?

This is normal. The green light indicates that the cooking temperature is reached. During cooking, the thermostat activates to maintain the temperature, causing the light to vary.

Can the waffle maker be immersed for cleaning?

No, the appliance should not be immersed. For cleaning, unplug it and let it cool. Clean the exterior with a damp sponge and the plates with a damp sponge and dishwashing liquid. Rinse and wipe thoroughly.

How to store the appliance?

The appliance can be stored vertically to save space. Wind the cord around the designated area. Let it cool for 2 hours before storing.

What are the essential safety precautions?

Always unplug the appliance before cleaning. Do not immerse it. Let it cool completely before storing. Use on a firm surface. Do not let the cord hang.

How many waffles can I make with the provided recipes?

The recipes indicate quantities for 10 to 20 waffles depending on the recipe. For example, the classic recipe yields 16 waffles.

Can I use other types of batter besides waffle batter?

The appliance is designed for waffles. Using other preparations could damage the plates or not cook properly. Follow the provided recipes.

What is the typical cooking time for waffles?

Cooking time varies by recipe, typically between 3 and 5 minutes. For example, classic waffles require about 3 minutes 30 seconds.

What to do if the appliance does not heat?

Check that the appliance is properly plugged in and the switch is in position 1. If the red light does not come on, contact Krups customer service. Do not attempt to repair it yourself.

USER MANUAL FDK252 KRUPS

Close-up of a mechanical component with a central circular housing and internal curved lines (no visible text or symbols)

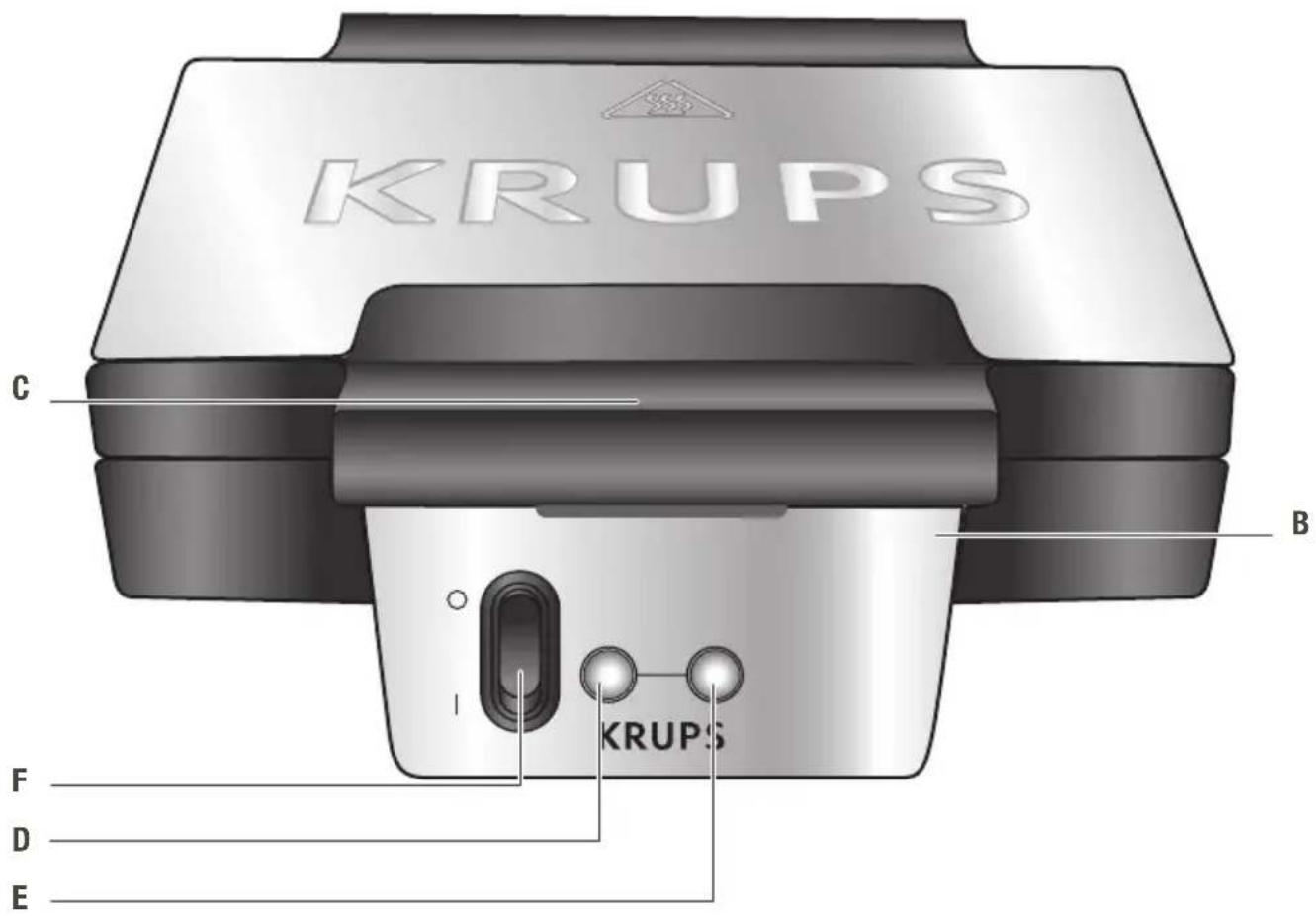

DESCRIPTION

■ Leave to cool for 2 hours.

SCHOONMAKEN

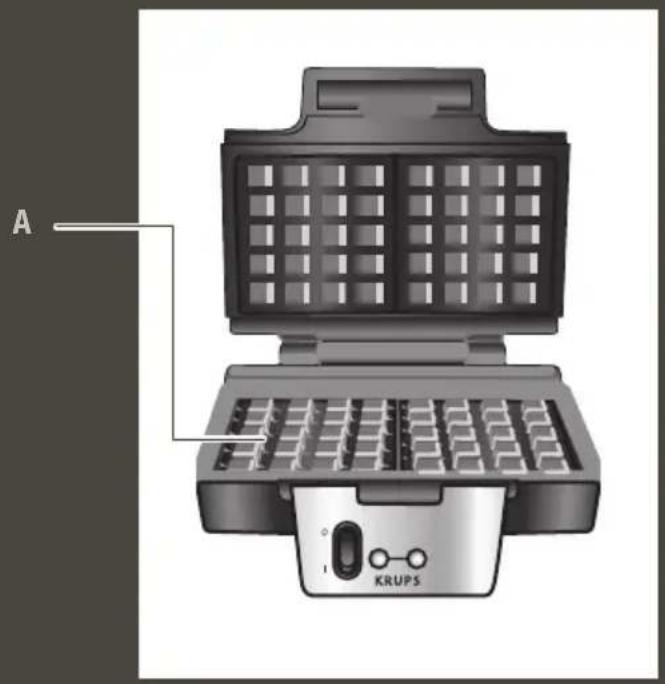

A Waffle plates fixed with non-stick (2)

B Thermo-insulating handle

C Locking clip

D Appliance switched on light

E Setting light

F Switch

INSTRUCTIONS

The explanatory drawings are on page 58

Put the appliance on a firm surface.

Before using:

■ Fully unwind the lead.

■ Open the appliance.

■ Remove all packaging, labels or accessories from the inside and outside of the appliance.

■ Coat the plates lightly with cooking oil or spray with a non-stick aerosol.

■ Wipe with a soft cloth.

Using your appliance

■ Close the appliance.

■ Check that the switch is set at 0.

■ Connect the lead to the mains. Set the switch (f) to on (position 1). The red light (d) comes on (1).

■ Leave the appliance to pre-heat: the green light (e) comes on when the cooking temperature has been reached (2).

■ Open the appliance (3). Using a ladle, pour the waffle batter onto the lower plate of the appliance.

■ Pour the batter taking care to cover each square and not to let it overflow.

■ Close the appliance.

■ Leave to cook for the time stated in the recipe.

■ While the waffles are cooking it is normal for the green light to switch on and off.

■ At the end of cooking, switch the appliance off by pressing 0. Then disconnect the plug.

■ Leave to cool for 2 hours.

CLEANING

■ Always disconnect the appliance before cleaning, and leave to cool completely.

■ Do not immerse the appliance.

To clean the exterior,

wipe with a damp cloth and dry.

To clean the interior,

wipe the plates with a damp cloth, some dishwashing soap may be used. Then wipe with a wet sponge and dry carefully.

STORAGE

The appliance can be stored vertically to save space. Wind up the cord into the cord storage area (4).

ENVIRONMENT PROTECTION FIRST!

Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

RECIPES

Classic waffles

Delicious traditional crispy waffles.

Makes 16 waffles

Cooking time: approximately 3 12 min

300 g plain flour, 10 g (1 level tablespoon) baking powder, salt, 75 g caster sugar, 100 g butter, 2 eggs, 12 litre milk.

Mix the flour and baking powder in a bowl. Make a well in the centre and add the salt, sugar, melted butter and eggs. Gradually add the milk. Let the batter stand for 1 hour.

Light waffles

Enjoy these light texture waffles.

Makes 12 waffles

Cooking time: approximately 3 to 3 12 min

300 g plain flour, 1 tbsp baking powder, pinch salt, 1 tbsp sugar, 2 eggs, 400 ml milk.

Beat the eggs until frothy. Add the other ingredients and beat the mixture until smooth.

Belgian waffles

Discover a waffle as it is made in Belgium.

Makes 16 waffles

Cooking time: approximately 4 to 4 12 min

5 eggs, 1 tbsp baking powder, 300 g plain flour, 300 g caster sugar, 300 g butter.

Soften the butter. Combine the flour, sugar and baking powder. Add the softened butter and the eggs. Mix well.

Soft belgian waffles

Enjoy crusty and soft waffles.

Makes 16 waffles

Cooking time: approximately 5 to 5 12 min

500 g plain flour, 12 tbsp baking powder, 400 g melted butter, 400 g caster sugar, 200 ml milk, 12 packet vanilla sugar or 12 tsp vanilla essence, 5 eggs.

Beat the egg whites to form stiff peaks. Beat the egg yolks. Gradually add the remaining ingredients, finishing with the stiffly beaten egg whites. This batter is best made the day before and kept in the refrigerator.

Sponge waffles

Add lemon zest for delicious waffles.

Makes 10 waffles

Cooking time: approximately 3 to 3 12 min

5 egg yolks, 5 tbsp hot water, 100 g caster sugar, grated zest of one lemon, 150 g plain flour, 12 tsp baking powder, 5 egg whites.

Beat together the egg yolks, water, sugar and lemon zest. Combine the flour and baking powder and add them to the mixture. Beat the egg whites to form stiff peaks and fold them into the mixture.

Vanilla waffles

An exotic vanilla delight.

Makes 14 waffles

Cooking time: approximately 3 to 4 min

200 g butter, 50 g caster sugar, vanilla pod or 1 tsp vanilla essence, pinch salt, 6 eggs, 300 g plain flour, 2 tsp baking powder, ¼ litre milk, 1 tbsp rum.

Cream the butter with the sugar, vanilla and salt. Combine the flour and baking powder and add to the mixture. Gradually add the milk and eggs, then the rum.

Cheese waffles

Ideal for aperitif time!

Makes 20 waffles

Cooking time: approximately 4 to 4 12 min

100 g butter, 8 egg yolks, 12 tsp salt, 500 g plain flour, 12 tsp baking powder, 50 g grated Parmesan, 12 litre water, 8 egg whites (stiffly beaten).

Cream the butter until soft. Combine the flour and baking powder. Add in order the egg yolks, salt, flour, cheese and water. Fold in the stiffly beaten egg whites.

DESCRIPCIÓN

A Waffle placas fijadas con antiadherente (2)
B Empuñadura termoaislante
C Clip de cierre

Para limpar as placas
