USER MANUAL Quantum GX6000 Standard Horizon

This manual provides the technical information necessary for servicing the GX6000 Transceiver.

Servicing this equipment requires expertise in handing surface-mount chip components. Attempts by non-qualified persons to service this equipment may result in permanent damage not covered by the warranty, and may be illegal in some countries.

Two PCB layout diagrams provided for each double-sided board in this transceiver. Each side of the board is referred to by the type of the majority of components installed on that side ("Side A" or "Side B"). In most cases one side has only chip components, and the other has either a mixture of both chip and leaded components (trimmers, coils, electrolytic capacitors, ICs, etc.), or leaded components only.

While we believe the information in this manual to be correct, YAESU assumes no liability for damage that may occur as a result of typographical or other errors that may be present. Your cooperation in pointing out any inconsistencies in the technical information would be appreciated.

Contents

Specifications

Exploded View & Miscellaneous Parts

Connection Diagram

Block Diagram

Alignment

Board Unit (Schematics, Layouts & Parts)

MAIN Unit

AIS Unit

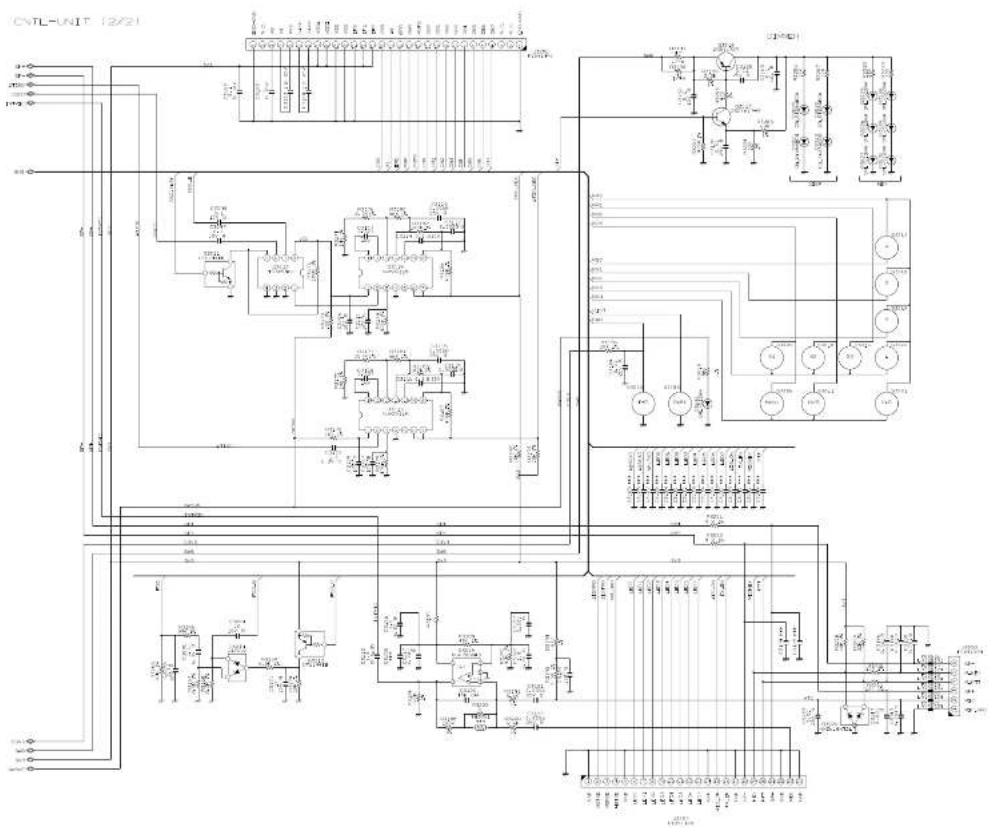

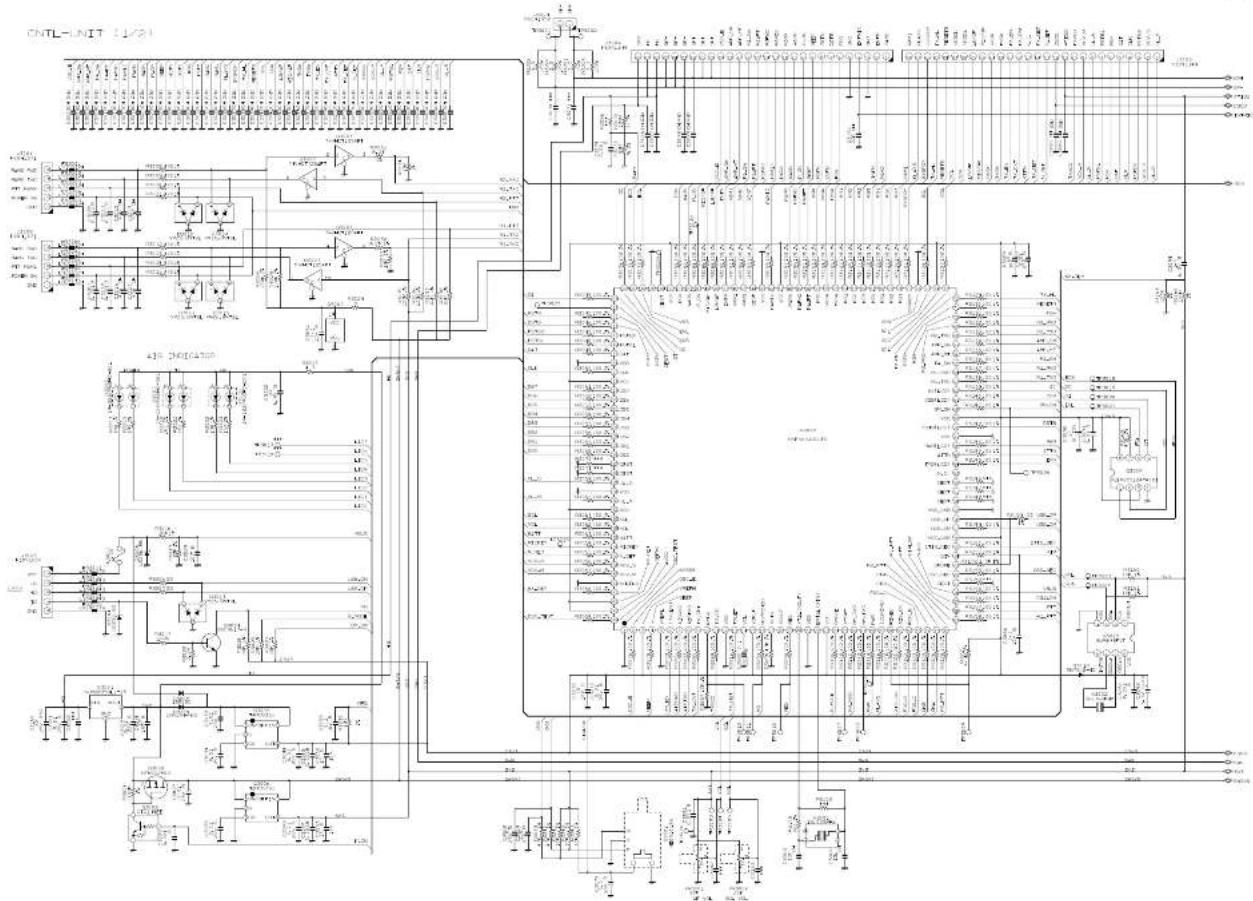

CNTL Unit

CON-1 Unit

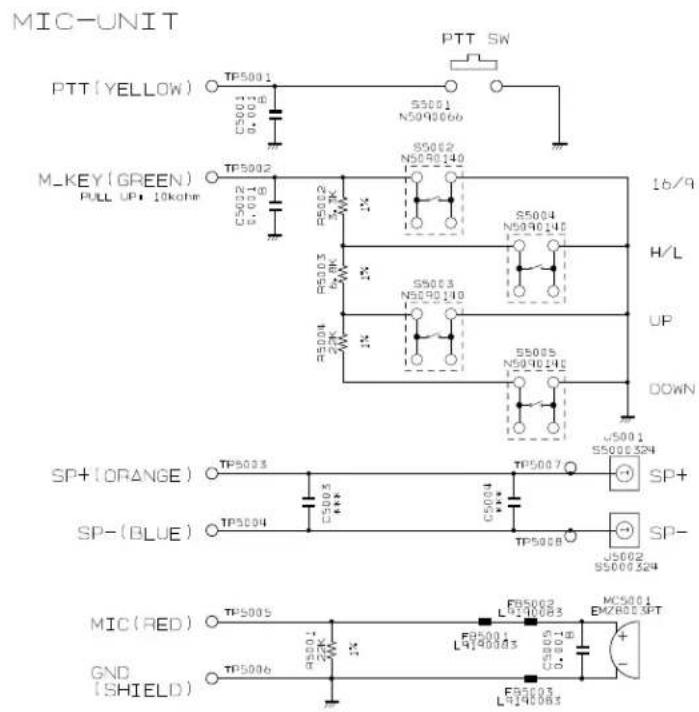

MIC Unit

Important Note

1) This transceiver was assembled using Pb (lead) free solder, based on the RoHS specification.

Only lead-free solder (Alloy Composition: Sn-3.0Ag-0.5Cu) should be used for repairs performed on this apparatus. The solder stated above utilizes the alloy composition required for compliance with the lead-free specification, and any solder with the above alloy composition may be used.

2) Risk of explosion if battery is replaced by an incorrect type. Dispse of used batteries according to the instructions.

General

Channels: All USA, International and Canadian* (^* Depending on the region setting)

Normal Input Voltage: 13.8 V DC

Operating Voltage Range: 11V to 16.5V

Current Drain:

Standby: 0.55 A

Receiver (at Maximum AF Output): 0.9 A

Transmit: 5.0 A (Hi), 1.0 A (Lo)

Display Type: 70mm× 51mm

Full Dot Matrix (222 x 162 pixels)

Dimensions (WxHxD): 6.9^ × 4.3^ × 6.8^ (175.5 mm × 110 mm × 173.3 mm)

Flush-Mount Dimensions (WxHxD): 6.2^ × 3.7^ × 6.2^ (157.4 mm x 93.4 mm x 158 mm)

Weight: 3.7 lbs (1.66 kg)

Transmitter

Frequency Range: 156.025 MHz to 157.425 MHz (USA)

156.025 MHz to 161.600 MHz (INTERNATIONAL)

RF Output Power: 25 W (Hi), 1 W (Lo)

Conducted Spurious Emissions: Less than -80dBc (Hi), -66dBc (Lo)

Audio Response: within +1 / - 3dB of a 6 dB/Octave pre-emphasis characteristic at 300 to 3000Hz

Audio Distortion: Less than 5%

Modulation: 16K0G3E (for Voice), 16K0G2B (for DSC)

Frequency Stability: ±0.0003 % (-20 °C to +60 °C)

FM Hum and Noise: 50 dB

Receiver (for Voice and DSC)

Frequency Range: 156.050 MHz to 163.275 MHz

Sensitivity:

20 dB Quieting: 0.35 V

12 dB SINAD: 0.30 V

Squelch Sensitivity (Threshold): 0.13 V

Modulation Acceptance Bandwidth: ±7.5 kHz

Selectivity (Typical):

Spurious and Image Rejection: 80 dB for Voice (75 dB for DSC)

Intermodulation and Rejection: 80 dB for Voice (75 dB for DSC)

Audio Output: 10 W (at 8 ohms external speaker output)

Audio Response: within +1 / - 3dB of a 6 dB/Octave de-emphasis characteristic at 300 to 3000Hz

Frequency Stability: ±0.0003 % (-20 °C to +60 °C)

Channel Spacing: 25 kHz

DSC Format: ITU-R M.493-13

Attenuator (Local): Approx. 10 dB

RECEIVER (for AIS)

Frequency: 161.975 MHz (CH A), 162.025 MHz (CH B)

Sensitivity: 0.5 V (at 12 dB SINAD)

Selectivity(Typical):

Spurious and Image Rejection: 70 dB

Intermodulation and Rejection: 70 dB

NMEA INPUT/OUTPUT

4800 Baud selected:

NMEA 0183 Input (4800 baud) : GGA, GLL, GNS, RMC, GSA, & GSV

NMEA 0183 Output (4800 baud) : DSC, DSE, GGA, GLL, GNS, RMC, GSA & GSV

NMEA 0183-HS AIS Output (38400 baud) : VDM

38400 Baud selected:

NMEA 0183-HS Input (38400 baud) : GGA, GLL, GNS, RMC, GSA, & GSV

NMEA 0183-HS Output (38400 baud) : DSC, DSE, GGA, GLL, GNS, RMC, GSA, GSV VDM

NMEA 0183-HS AIS Output (38400 baud) : VDM

SCU-31 EXTERNAL GPS ANTENNA (Optional)

Receiver Channels: 66 Channels

Sensitivity: Less than -147dBm

Time to First Fix: 1 minute typical (@Cold Start)

5 seconds typical (@ Hot Start)

Geodetic Datum: WGS84

Specifications are subject to change without notice or obligation.

SYMBOL PLACED ON THE EQUIPMENT

• Direct current

"ON" power

O "OFF" power

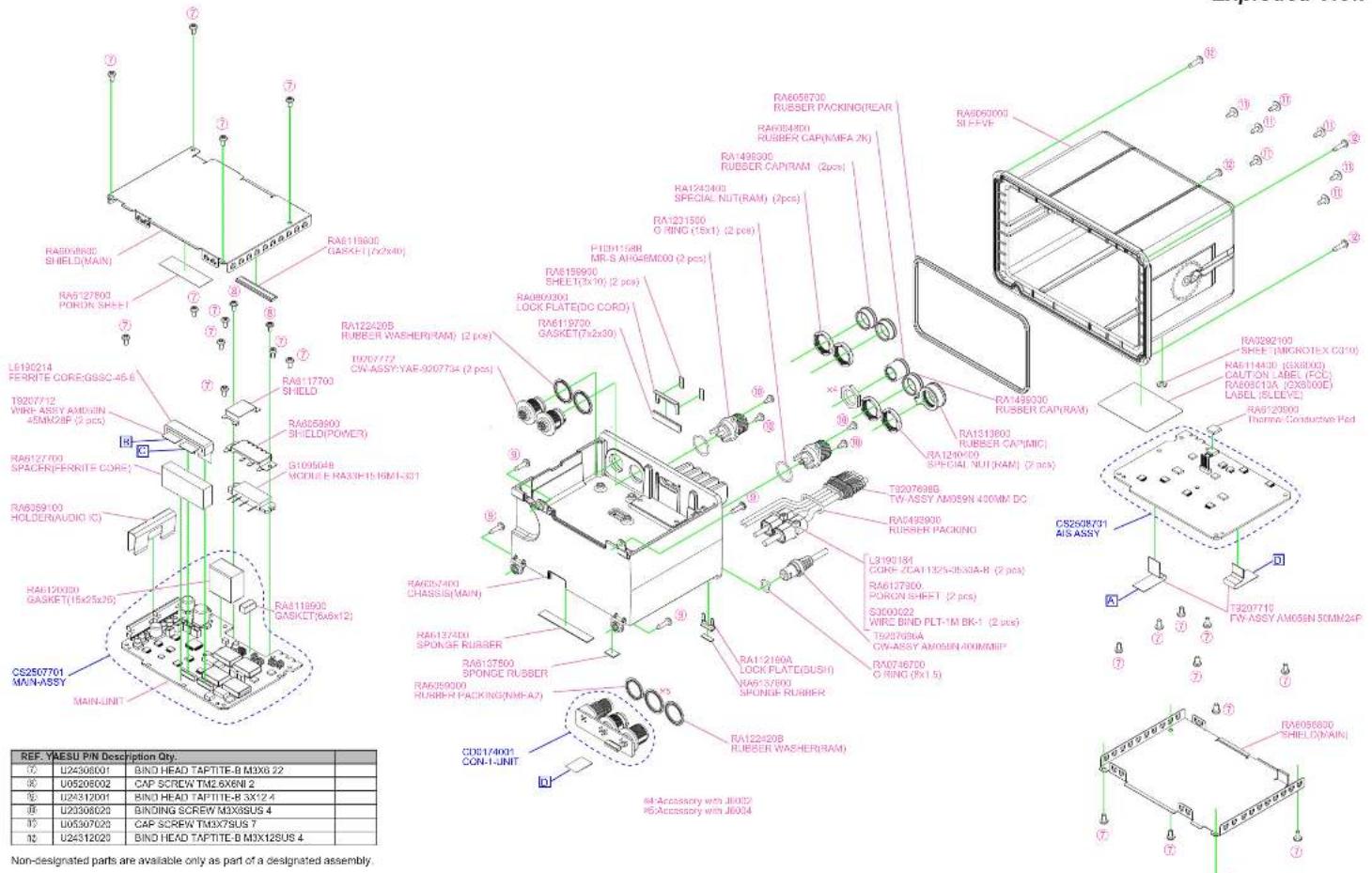

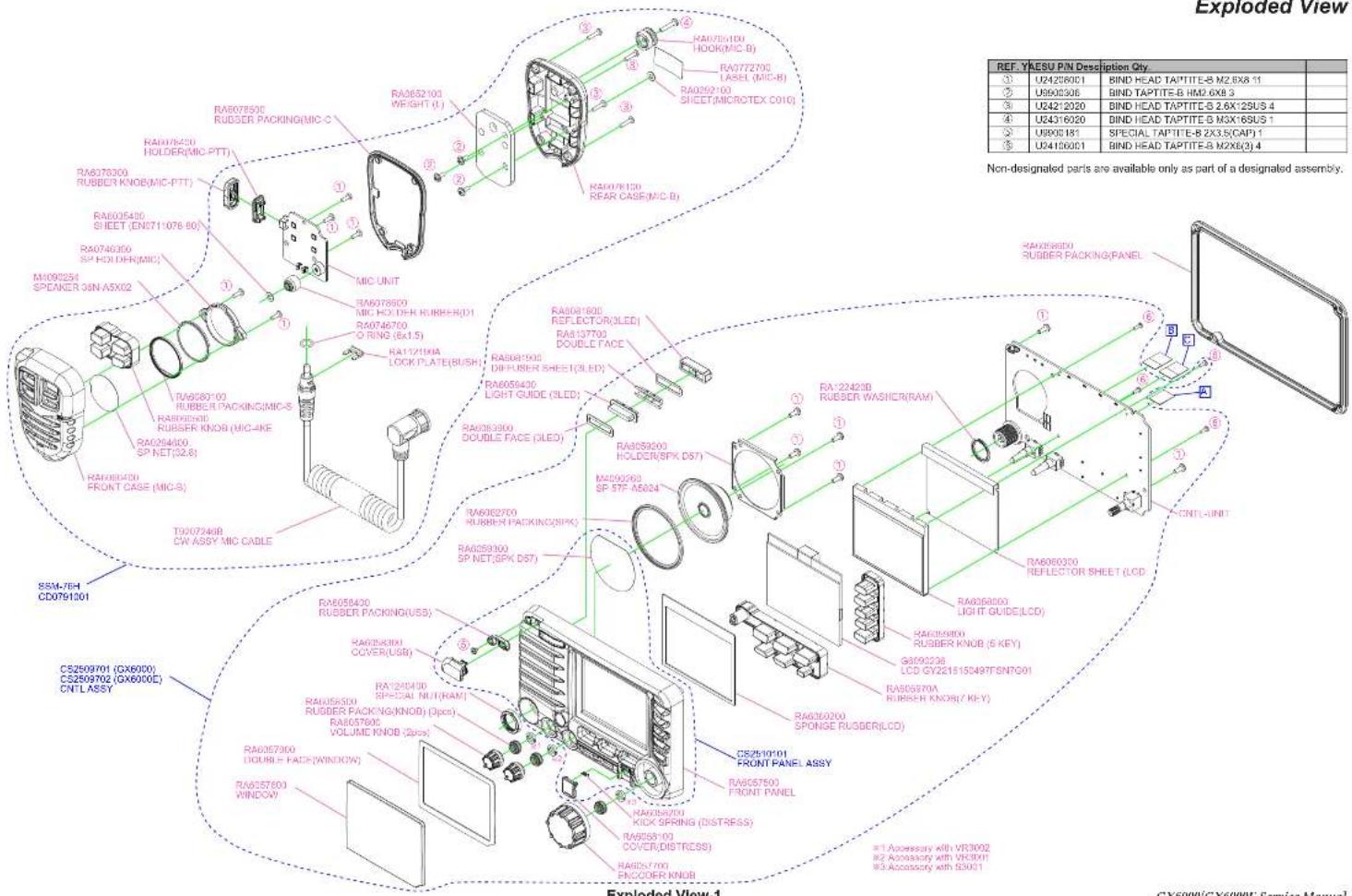

Exploded View

Exploded View
Exploded View-2

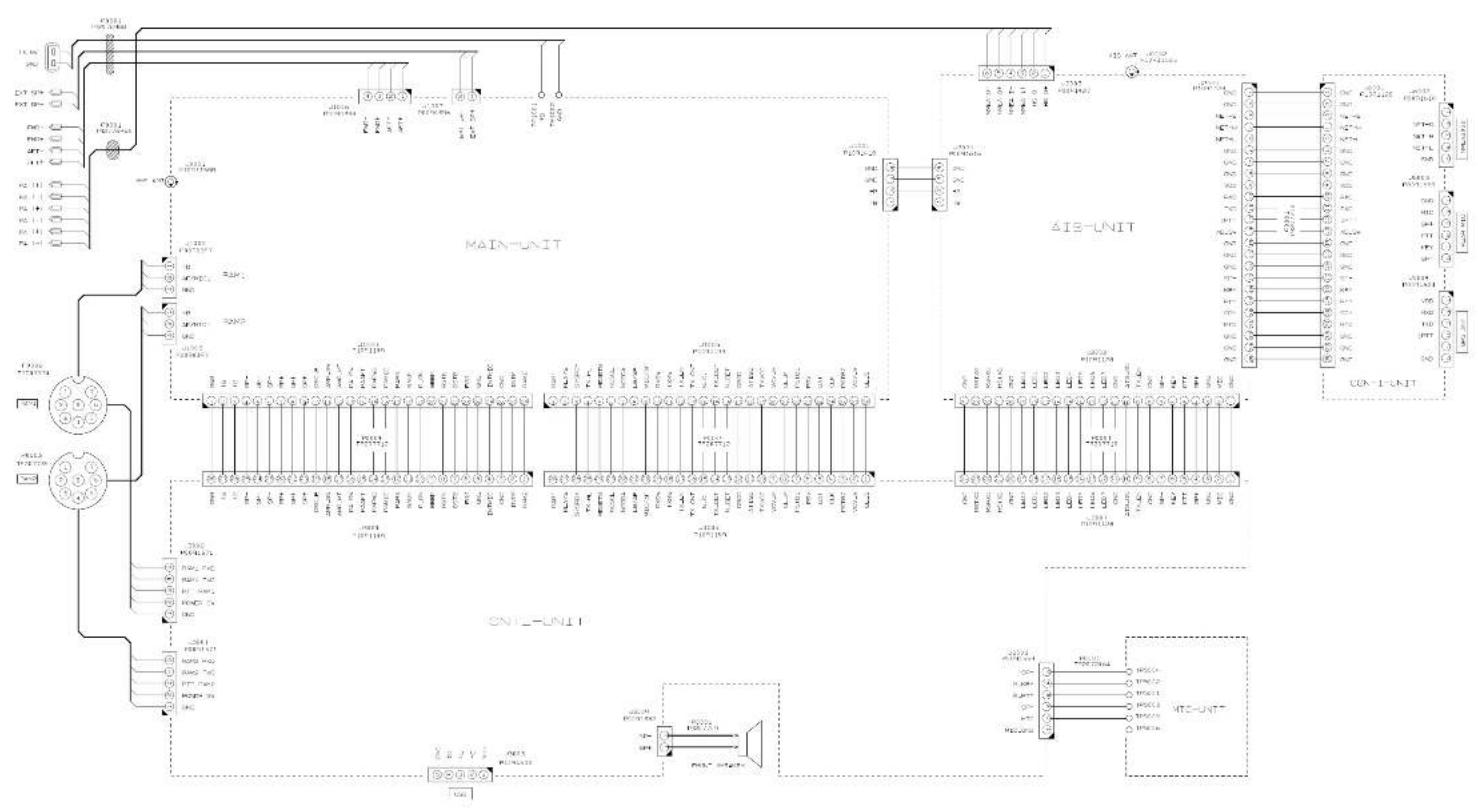

Connection Diagram

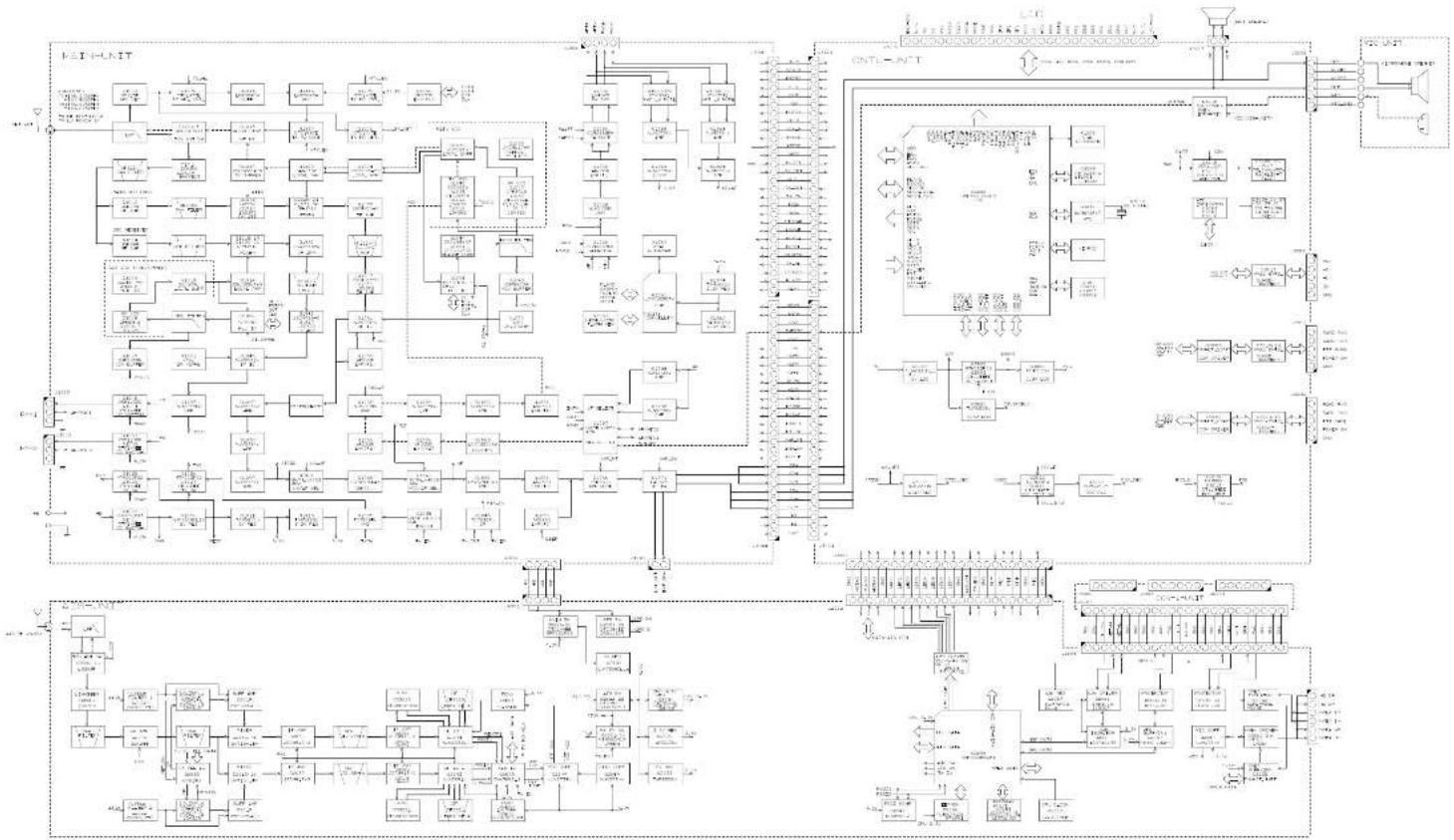

Block Diagram

Block Diagram-1

GX600/GX600E Service Manual

Introduction and Precautions

The GX6000 has been carefully aligned at the factory for performance across the specified VHF Marine band. Realignment should therefore not be necessary except in the event of a component failure. All component replacement and service should be performed only by an authorized STANDARD HORIZON representative, or the warranty policy may be voided.

The following procedures cover the sometimes critical and tedious adjustments that are not normally required once the transceiver has left the factory. However, if damage occurs and some parts are replaced, realignment may be required. If a sudden problem occurs during normal operation, it is likely due to component failure; realignment should not be done until after the faulty component has been replaced.

We recommend that servicing be performed only by authorized STANDARD HORIZON service technicians, who are experienced with the circuitry and fully equipped for repair and alignment. Therefore, if a fault is suspected, contact the dealer from whom the transceiver was purchased for instructions regarding repair. Authorized STANDARD HORIZON service technicians realign all circuits and make complete performance checks to ensure compliance with factory specifications after replacing any faulty components.

Those who do undertake any of the following alignments are cautioned to proceed at their own risk. Problems caused by unauthorized attempts at realignment are not covered by the warranty policy. Also, STANDARD HORIZON must reserve the right to change circuits and alignment procedures in the interest of improved performance, without notifying owners.

Under no circumstances should any alignment be attempted unless the normal function and operation of the transceiver are clearly understood, the cause of the malfunction has been clearly pinpointed and any faulty components replaced, and the need for realignment determined to be absolutely necessary.

Important Notice

Do not adjust the alignment menus that are not mentioned in this manual.

Required Test Equipment

RF Signal Generator with calibrated output level at 200 MHz
Deviation Meter (linear detector)
In-line Wattmeter with 5% accuracy at 200MHz
Frequency Counter: >0.1 ppm accuracy at 200 MHz
AF Signal Generator
VHF Sampling Coupler
50-ohm, 30-W RF Dummy Load
□ AF Dummy Load 4-ohm
Regulated DC Power Supply 13.8 V DC, 10 A
YSVC-03 GX6000 Alignment Program

Alignment Preparation & Precautions

A 50-ohm RF load and in-line wattmeter must be connected to the main antenna jack in all procedures that call for transmission, except where specified otherwise. Correct alignment is not possible with an antenna. After completing one step, read the next step to see if the same test equipment is required. If not, remove the test equipment (except dummy load and wattmeter, if connected) before proceeding.

Correct alignment requires that the ambient temperature be the same as that of the transceiver and test equipment, and that this temperature be held constant between 68^ 86^ ( 20^ 30^ ).

When the transceiver is brought into the shop from hot or cold air, it should be allowed some time to come to room temperature before alignment.

Whenever possible, alignments should be made with oscillator shields and circuit boards firmly affixed in place.

Also, the test equipment must be thoroughly warmed up before beginning.

Notes: signal levels in dB referred to in alignment are based on EMF (0dB = 1.0 V)

Alignment

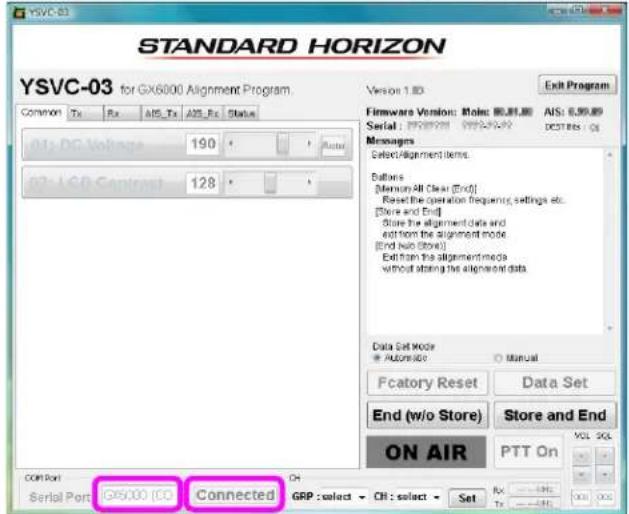

Before Alignment

Install the YSVC-03 GX6000 Alignment Program and USB Driver to your computer.
Execute the YSVC-03 GX6000 Alignment Program.
Select the COM port number which is connected to the GX6000.
Click the left mouse button on the [Connect] button of the YSVC-03 GX6000 Alignment Program.

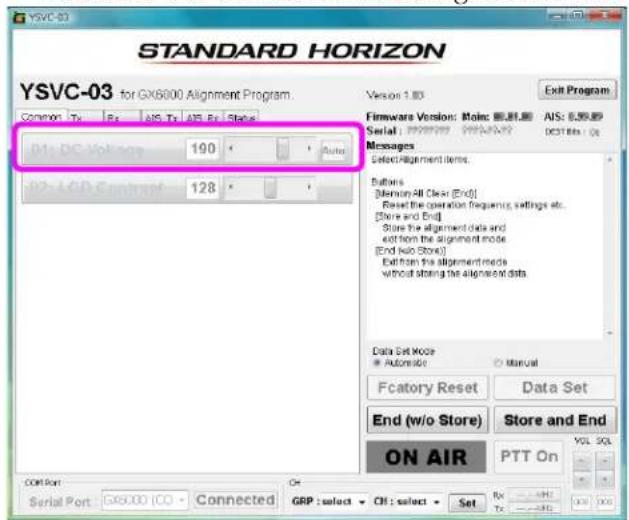

01: DC Volt

Reduce the DC power supply voltage to 13.8V
- Click the left mouse button on the [01: DC Volt] button. The transceiver now is in the DC Volt Alignment Mode.
Press the [Auto] key to read the DC Volt data.
- Click the left mouse button on the [01: DC Volt] button to exit the DC Volt Alignment Mode.

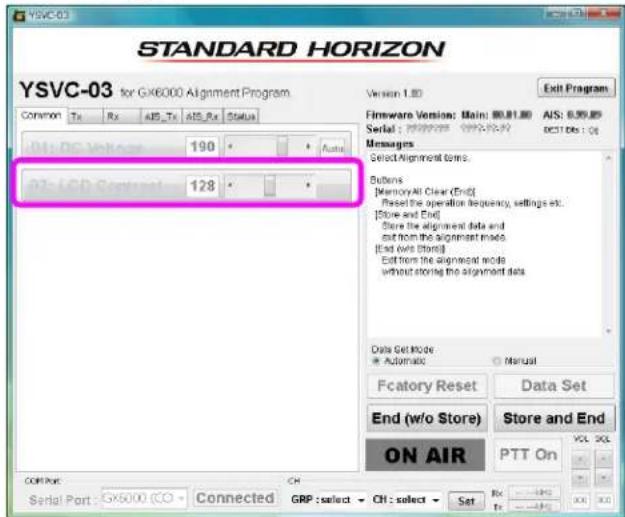

02: LCD Contrast

• Click the left mouse button on the [02: LCD Contrast] button. The transceiver now is in the Contrast Alignment Mode.
  Click the [] / [] button (or Move the Slide Bar).
• Click the left mouse button on the [02: LCD Contrast] button to exit the the Contrast Alignment Mode.

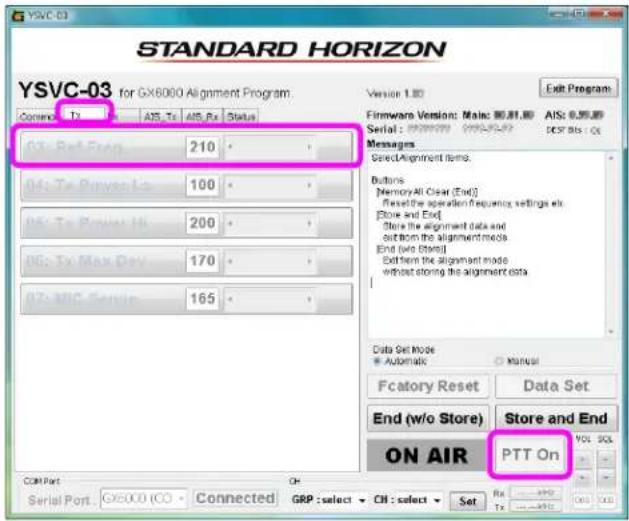

03: Ref Freq.

Setup the test equipment as shown below.
- Click the left mouse button on the [Tx] tab.
- Click the left mouse button on the [03: Ref Freq.] button. The transceiver now is in the PLL Reference Frequency Alignment Mode.
Click the left mouse button on the [PTT On] button.
- Click the [] / [] button (or Move the Slide Bar), if necessary, until the frequency Counter displays transmit frequency ± 50Hz .
- Click the left mouse button on the [PTT Off] button, then click the left mouse button on the [03: Ref Freq.] button to exit the PLL Reference Frequency Alignment Mode.

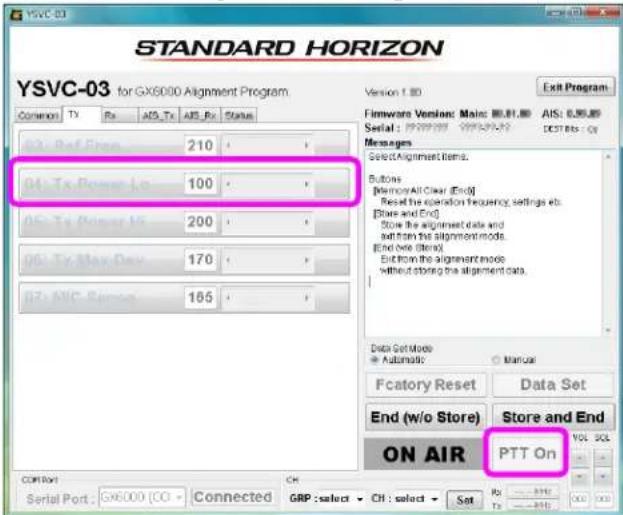

04: Tx Power Lo

Setup the test equipment as shown below.
- Click the left mouse button on the [04: Tx Power Lo] button. The transceiver now is in the Transmitter Lower Output Power Alignment Mode.
- Click the left mouse button on the [PTT On] button.
Click the [ ]/ [▶] button (or Move the Slide Bar), if necessary, until the Wattmeter displays 0.8W± 0.05W
- Click the left mouse button on the [PTT Off] button, then click the left mouse button on the [04: Tx Power Lo] button to exit the Transmitter Lower Output Power Alignment Mode.

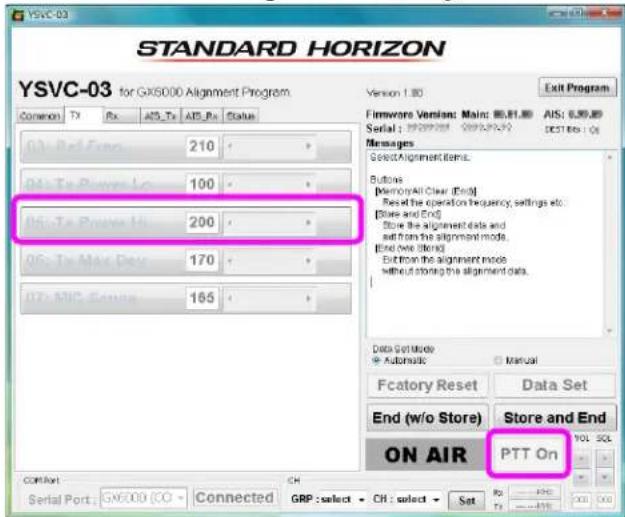

05: Tx Power Hi

• Click the left mouse button on the [05: Tx Power Hi] button. The transceiver now is in the Transmitter Maximum Output Power Alignment Mode.
• Click the left mouse button on the [PTT On] button.
  Click the [ ]/ [▶] button (or Move the Slide Bar), if necessary, until the Wattmeter displays 24W± 0.2W
• Click the left mouse button on the [PTT Off] button, then click the left mouse button on the [05: Tx Power Hi] button to exit the Transmitter Maximum Output Power Alignment Mode.

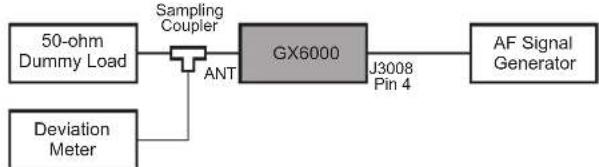

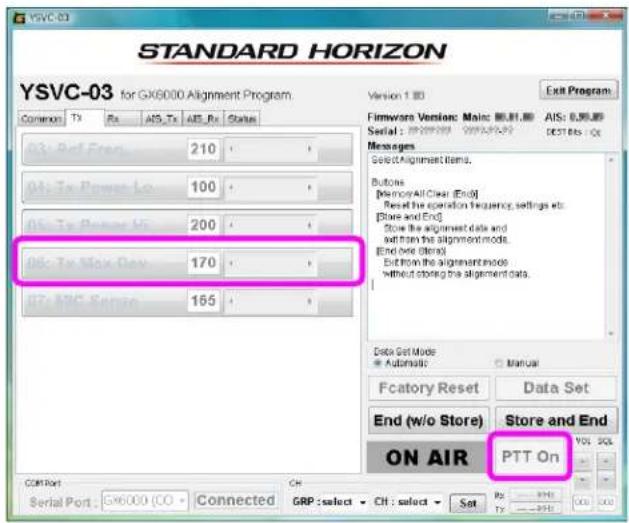

06: Tx Max Dev

Setup the test equipment as shown below.
Set the AF Generator output to 500mV rms @1kHz tone.
- Click the left mouse button on the [06: Tx Max Dev] button. The transceiver now is in the Transmitter Modulation Alignment Mode.
- Click the left mouse button on the [PTT On] button.
- Click the [▲] / [▶] button (or Move the Slide Bar), if necessary, until the deviation to 4.4kHz ± 0.1kHz .
- Click the left mouse button on the [PTT Off] button, then click the left mouse button on the [06: Tx Max Dev] button to exit the Transmitter Maximum Modulation Alignment Mode.

Alignment

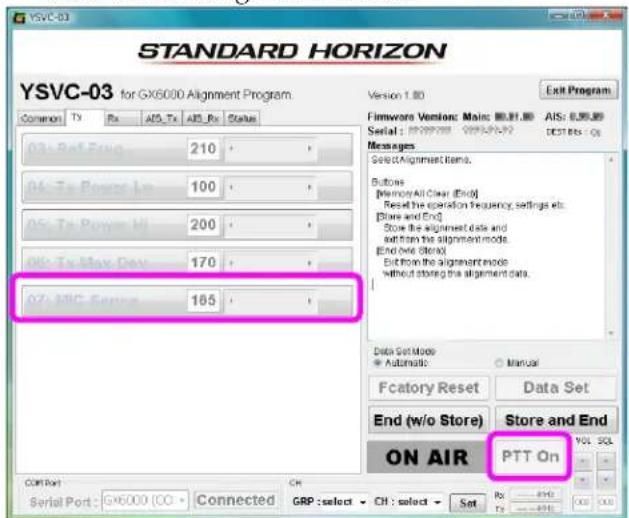

07: MIC Sense

Set the AF Generator output to 35mV rms @1kHz tone.
- Click the left mouse button on the [07: MIC Sence] button. The transceiver now is in the Transmitter Modulation Alignment Mode.
Click the left mouse button on the [PTT On] button.
Click the [] / [] button (or Move the Slide Bar), if necessary, until the deviation to 3.0kHz± 0.1kHz
- Click the left mouse button on the [PTT Off] button, then click the left mouse button on the [07: MIC Sence] button to exit the Transmitter Modulation Alignment Mode.

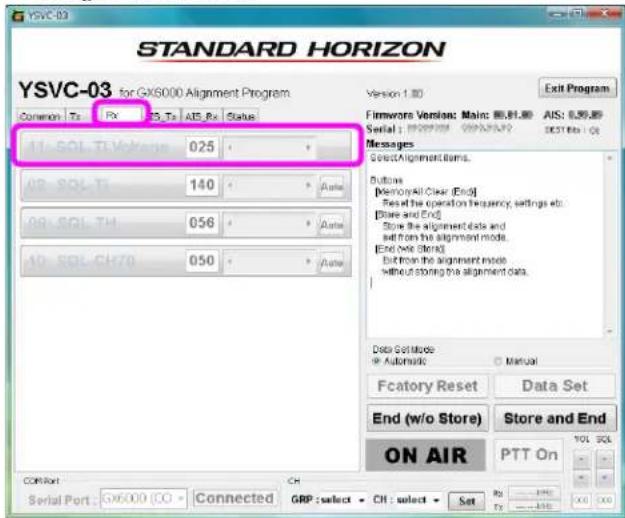

11:SQL TI Voltage

Setup the test equipment as shown below.
Click the left mouse button on the [Rx] tab.
- Click the left mouse button on the [11: SQL TI Voltage] button. The transceiver now is in the SQL TI Voltage Alignment Mode.

Click the [] / [] button (or Move the Slide Bar), if necessary, until the value to 25.
Click the left mouse button on the [11:SQL TI Voltage] button to exit the SQL TI Voltage Alignment Mode.

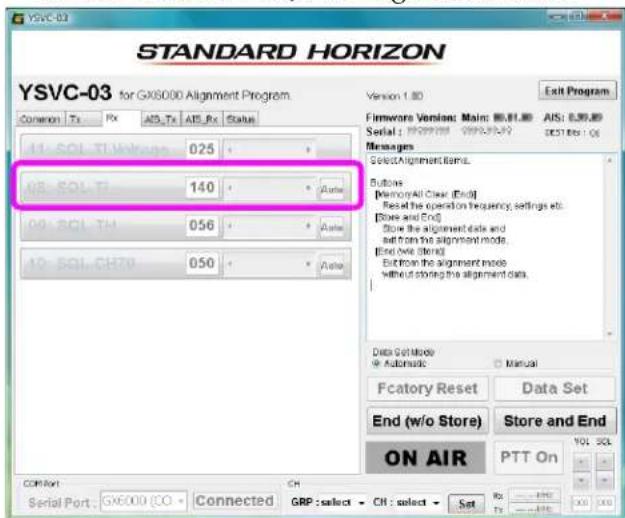

08:SQL TI

Setup the test equipment as shown below.
Set the RF Signal Generator output level to +3 dBuVemf at the 156.800 MHz.
Click the left mouse button on the [Rx] tab.
- Click the left mouse button on the [08:SQL TI] button. The transceiver now is in the SQL TI Alignment Mode.
Press the [Auto] key to read the tight SQL level.
- Click the left mouse button on the [08: SQL TI] button to exit the SQL TI Alignment Mode.

Alignment

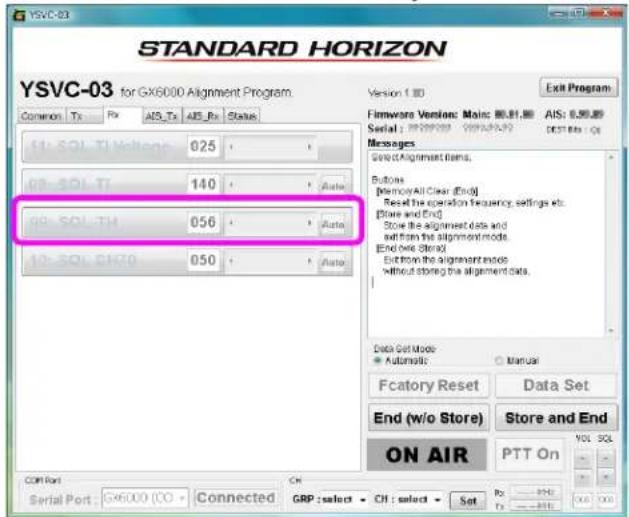

09:SQLTH

Set the RF Signal Generator output level to -6 dBuVemf at the 156.800 MHz.
- Click the left mouse button on the [09:SQL TH] button. The transceiver now is in the SQL TH Alignment Mode.
Press the [Auto] key to read the threshold SQL level.
- Click the left mouse button on the [09:SQL TH] button to exit the SQL TH Alignment Mode.

Exit from the Alignment Mode

• Click the left mouse button on the [Store and End] button to save the new setting(s) and turn off the transceiver.
  Click the left mouse button on the [Exit Program] button to close the GX6000 Alignment Program.

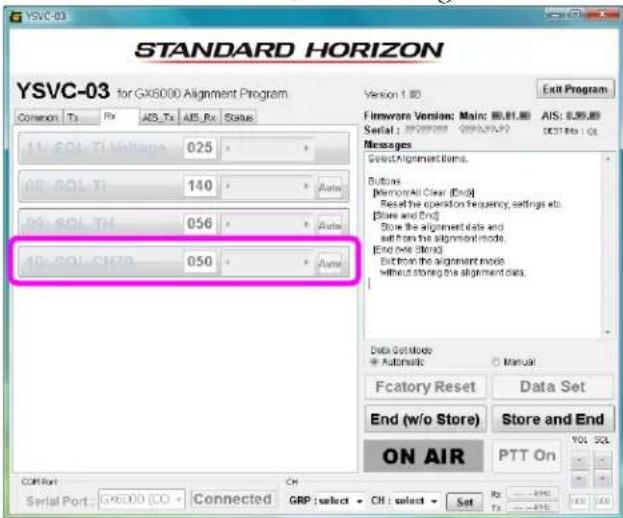

10:SQL CH70

Set the RF Signal Generator output level to -5 dBuVemf at the 156.525 MHz.
- Click the left mouse button on the [10: SQL CH70] button. The transceiver now is in the SQL CH70 Alignment Mode.
Press the [Auto] key to read the CH70 threshold SOL level.
- Click the left mouse button on the [09:SQL TH] button to exit the SQL CH70 Alignment Mode.

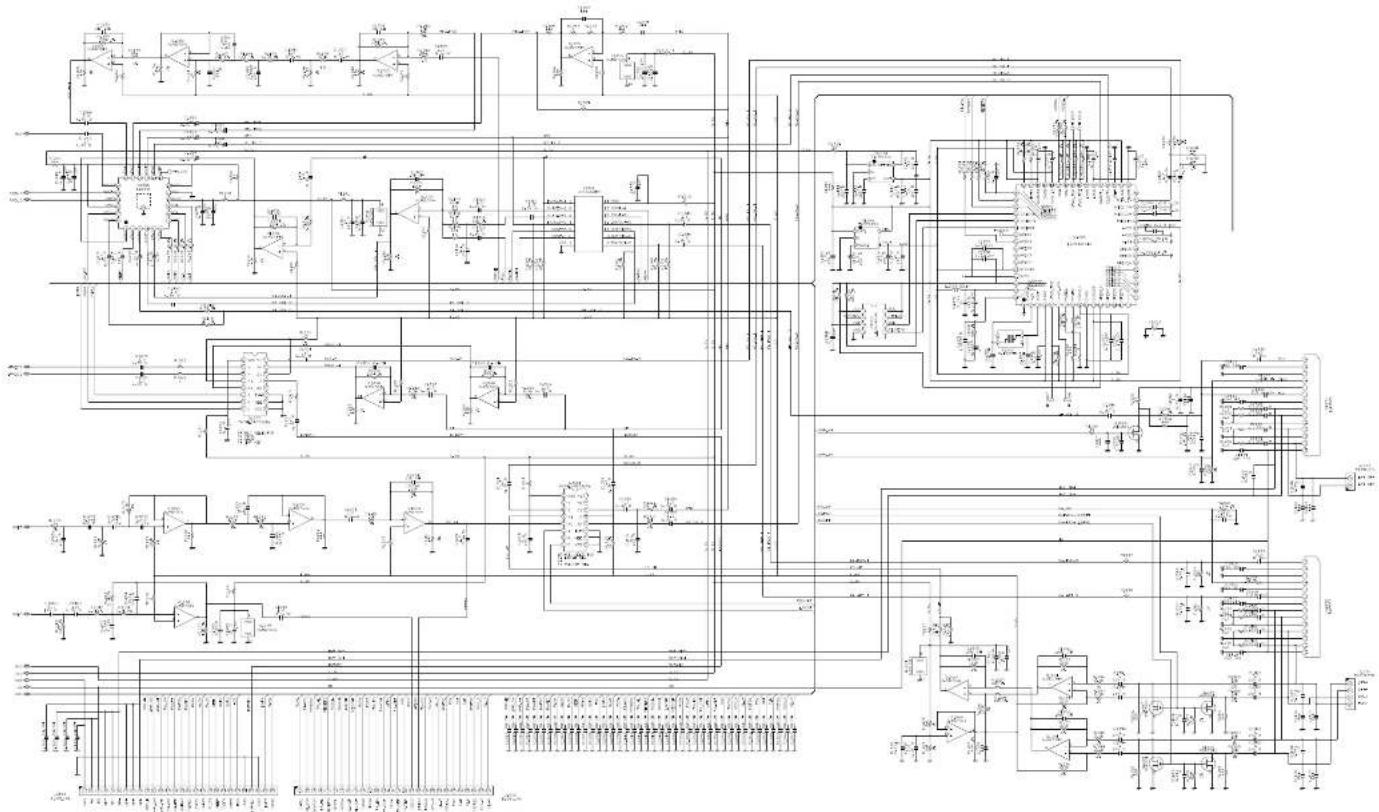

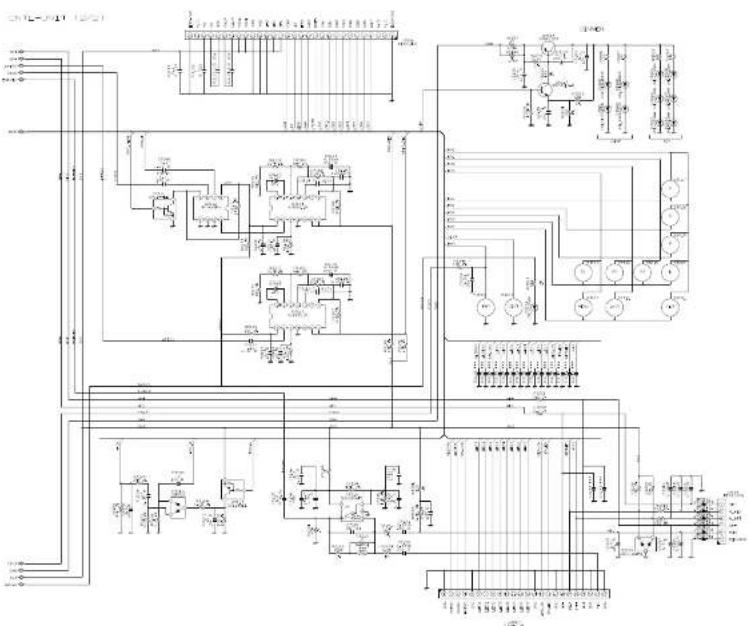

MAIN Unit

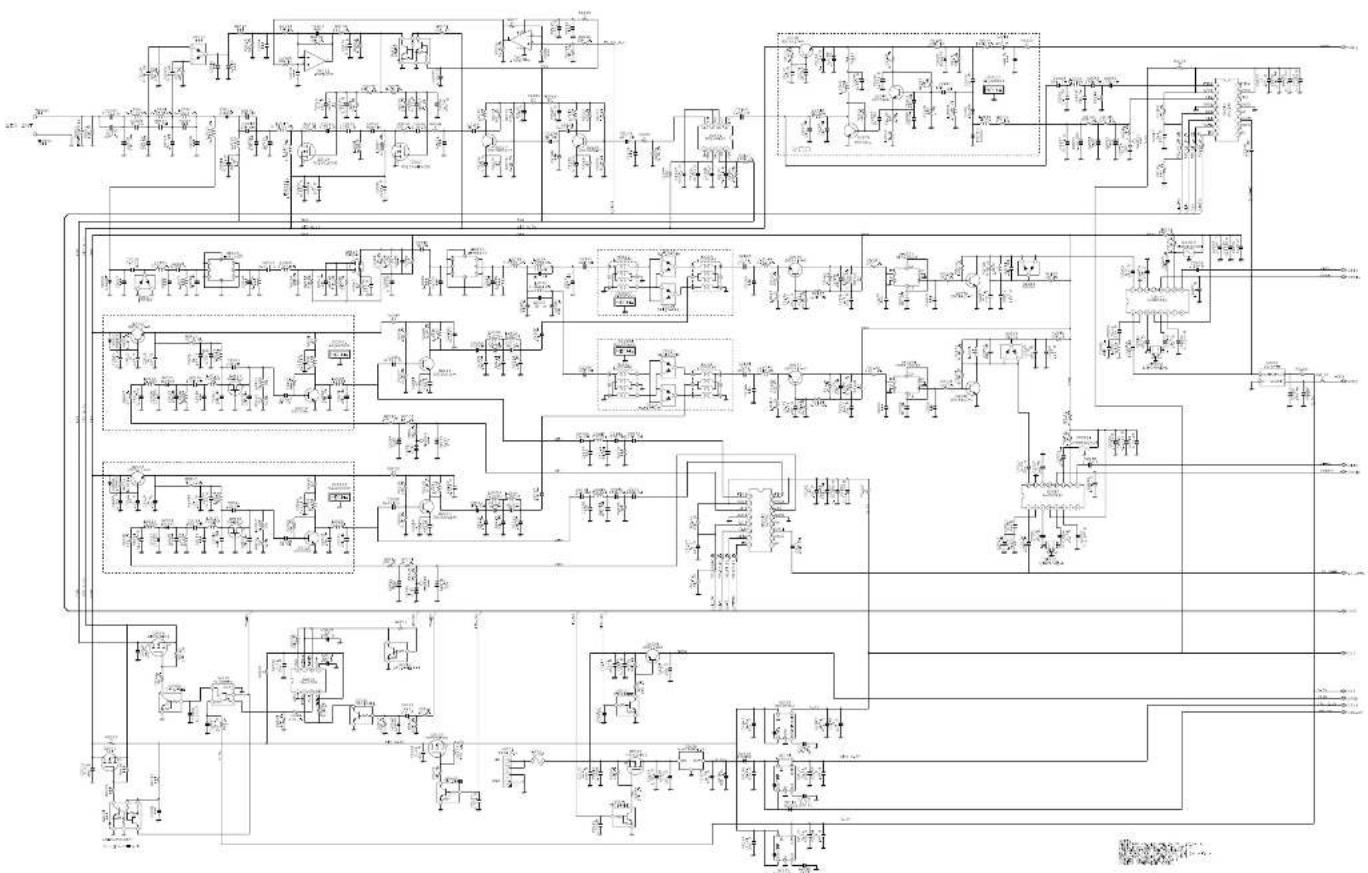

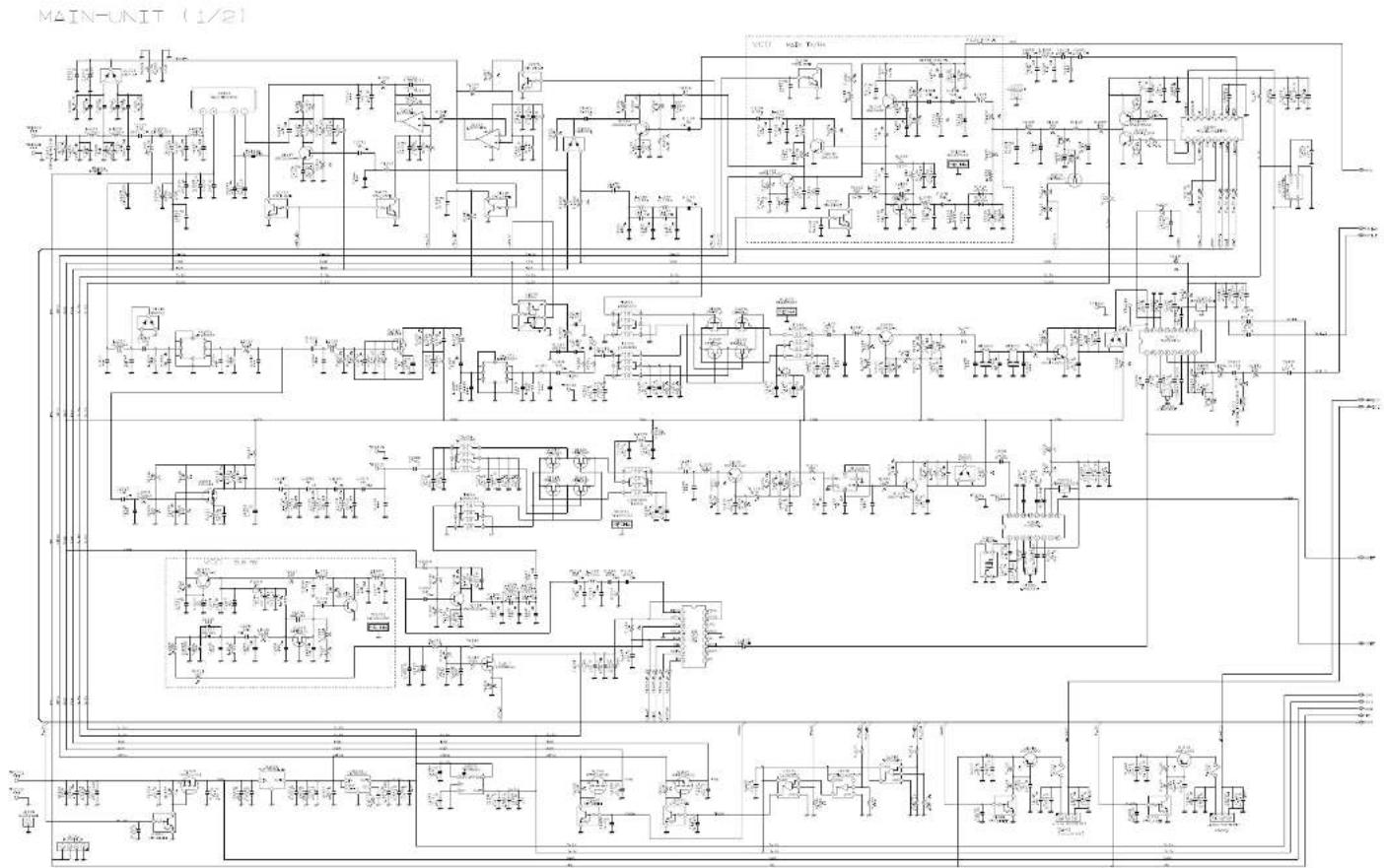

Circuit Diagram (1/2)

MAIN - 1
GX6000/GX6000E Service Manual

MAIN Unit

Circuit Diagram (2/2)

MAIN-UNIT (2/2)

MAIN-2

GX6000/GX6000L Service Manual

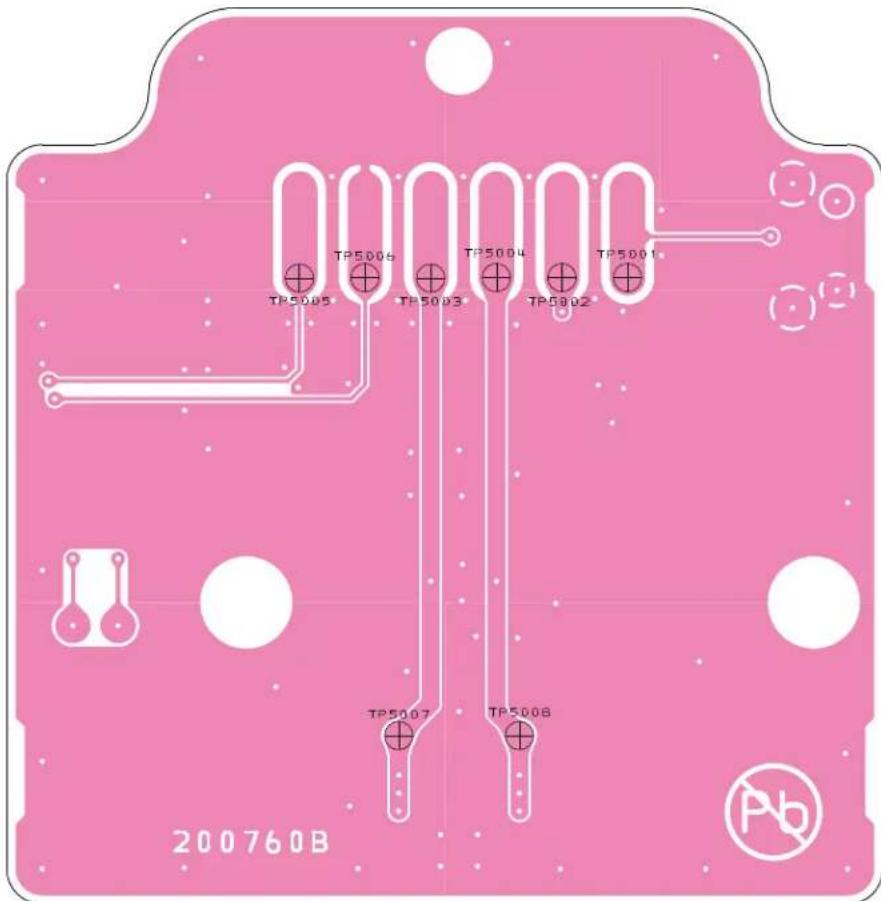

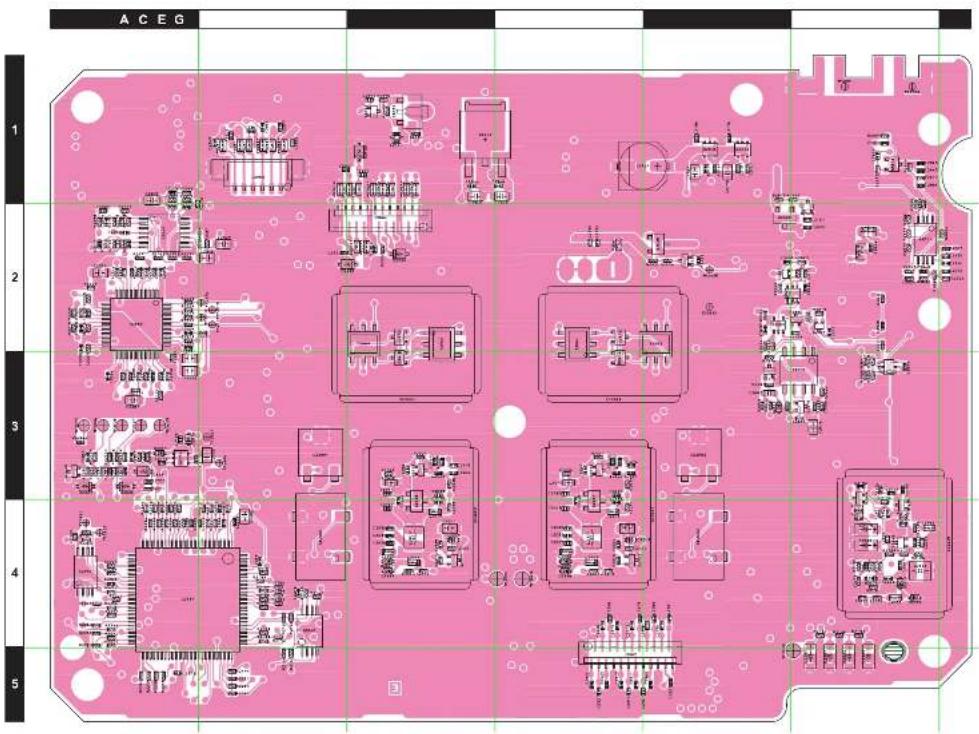

MAIN Unit

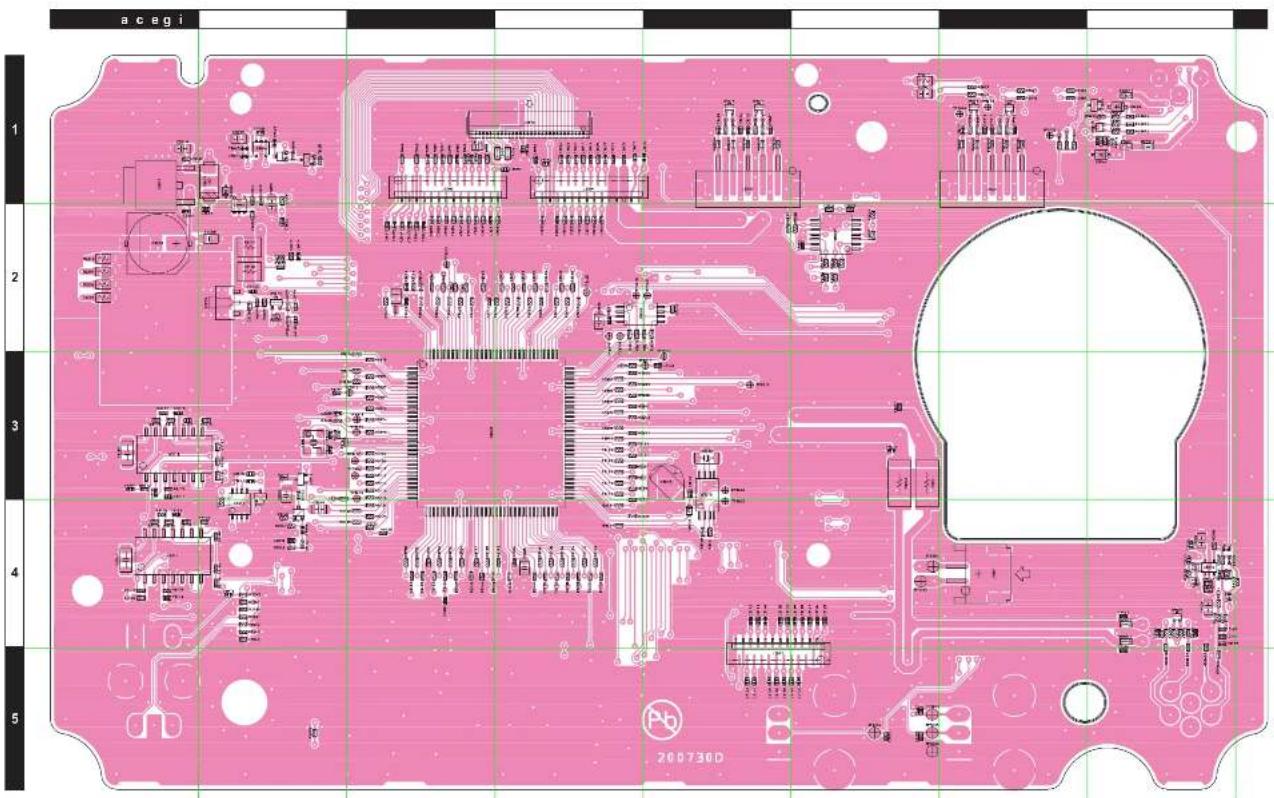

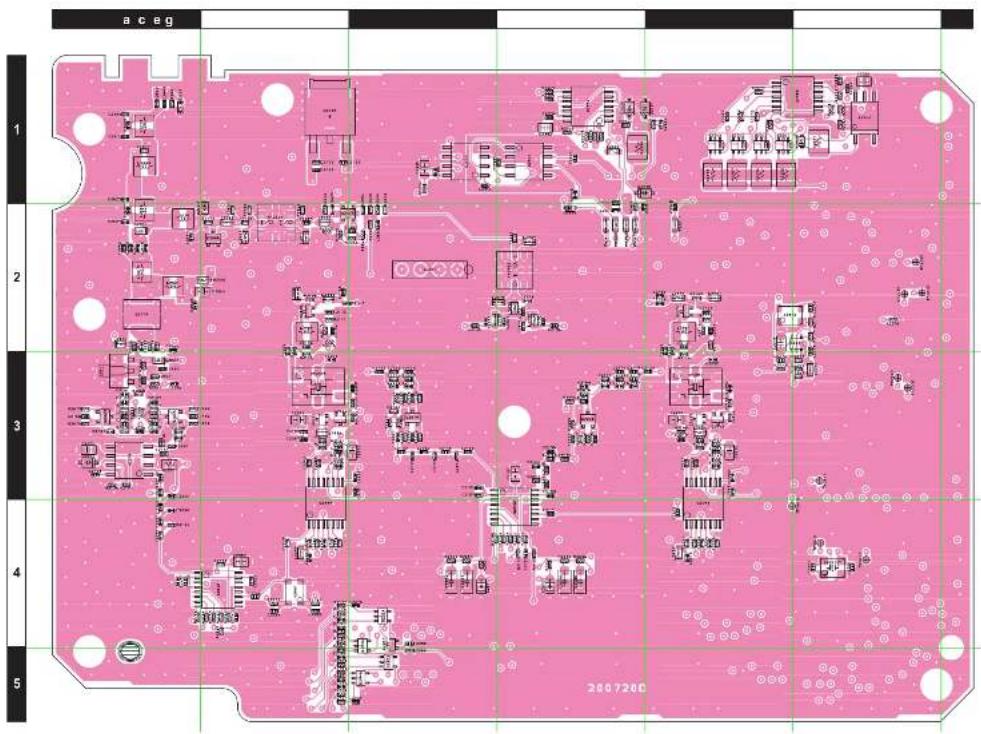

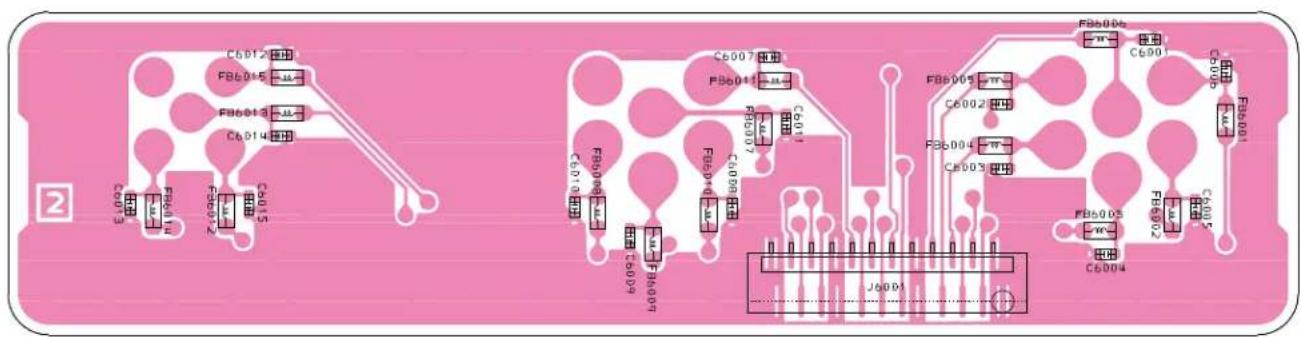

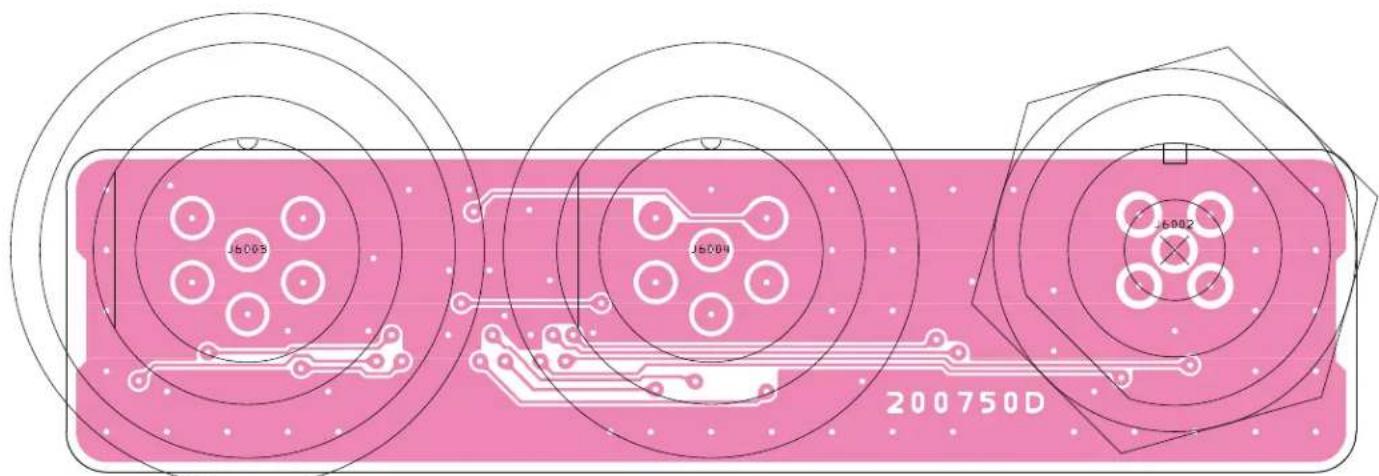

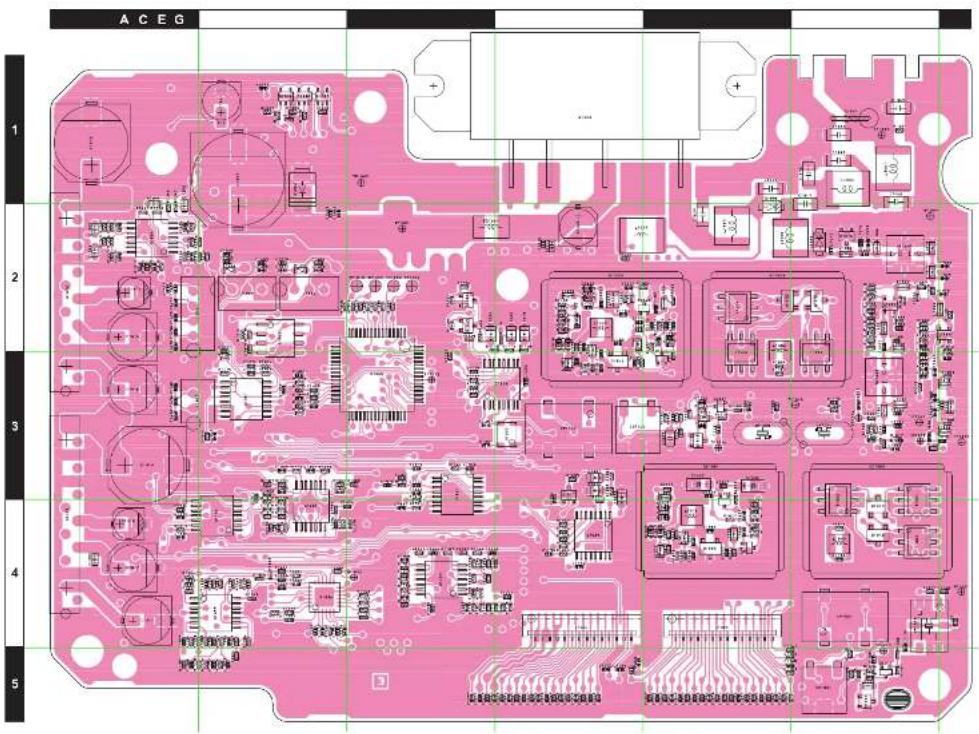

Parts Layout (Side A)

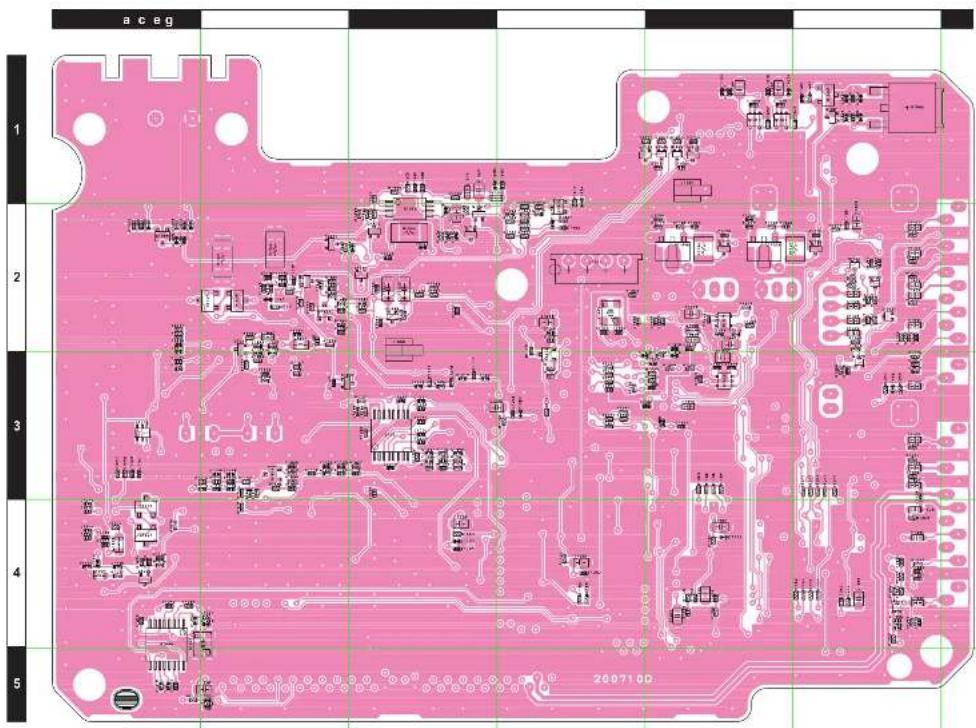

MAIN Unit
Parts Layout (Side B)

REF DESCRIPTION VALUE V/W		TOL. MFR'S		DESIG YAESU P/N VERS.
PCB with Components is included MAIN ASSY (see Exploded View-2)
C 1001	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B a2
C 1002	CHIP CAP.	10pF	50V	CH	GRM1552C1H100BA01D	K22178297		1-	A B2
C 1003	CHIP CAP.	10pF	500V	CH	1206N100J501LT	K22278209		1-	A F1
C 1004	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A B2
C 1005	CHIP CAP.	0.1uF	25V	B	GRM155B31E104KA87D	K22148838		1-	B a2
C 1006	CHIP CAP.	4pF	50V	CH	GRM1552C1H4R0BA01D	K22178291		1-	B a2
C 1007	AL.ELECTRO.CAP.	1000uF	25V		25CE1000BS	K48140025		1-	A B1
C 1008	CHIP CAP.	1pF	50V	CK	GRM1554C1H1R0CA01D	K22178202		1-	B a2
C 1012	CHIP CAP.	3pF	50V	CJ	GRM1553C1H3R0BA01D	K22178290		1-	B a2
C 1013	CHIP CAP.	33pF	50V	CH	GRM1552C1H330JA01D	K22178224		1-	A F2
C 1014	CHIP CAP.	1pF	50V	CK	GRM1554C1H1R0CA01D	K22178202		1-	B a2
C 1015	CHIP CAP.	18pF	500V	CH	1206N180J501LT	K22278212		1-	A F1
C 1017	CHIP CAP.	47pF	500V	CH	1206N470J501LT	K22278217		1-	A F2
C 1019	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A F2
C 1020	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B f1
C 1021	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	B f1
C 1022	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A D2
C 1023	CHIP CAP.	5pF	50V	CH	GRM1552C1H5R0CA01D	K22178207		1-	A F2
C 1024	CHIP CAP.	10pF	50V	CH	GRM1552C1H100BA01D	K22178297		1-	A F2
C 1025	CHIP CAP.	15pF	500V	CH	1206N150J501LT	K22278211		1-	A E1
C 1026	AL.ELECTRO.CAP.	10uF	25V		UWX1E100MCL1GB	K48140022		1-	A D2
C 1027	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A E3
C 1028	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A D2
C 1029	CHIP CAP.	10pF	500V	CH	1206N100J501LT	K22278209		1-	A E2
C 1030	CHIP TA.CAP.	10uF	10V		TAJA106M010Y	K78100072		1-	A E3
C 1030	CHIP TA.CAP.	10uF	10V		TAJA106M010RNJ	K78100120		5-	A E3
C 1031	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	B f1
C 1032	CHIP CAP.	1uF	25V	B	GRM188B31E105KA75D	K22144815		1-	A D2
C 1034	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	A E3
C 1036	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A G3
C 1037	CHIP CAP.	10pF	50V	CH	GRM1552C1H100BA01D	K22178297		1-	B d1
C 1038	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B f1
C 1039	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B c1
C 1041	CHIP CAP.	33pF	50V	CH	GRM1552C1H330JA01D	K22178224		1-	A E4
C 1042	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A F3
C 1043	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A E4
C 1044	CHIP CAP.	24pF	50V	CH	GRM1552C1H240JA01D	K22178221		1-	A E4
C 1046	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	A E4
C 1047	CHIP CAP.	3pF	50V	CJ	GRM1553C1H3R0CA01D	K22178205		1-	A F3
C 1048	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A E4
C 1049	CHIP CAP.	10pF	50V	CH	GRM1552C1H100JA01D	K22178212		1-	B d2
C 1050	CHIP CAP.	15pF	50V	CH	GRM1552C1H150JA01D	K22178216		1-	A E4
C 1051	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B f1
C 1053	CHIP CAP.	18pF	50V	CH	GRM1552C1H180GA01D	K22178701		1-	A G3
C 1054	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B d2
C 1055	CHIP CAP.	2pF	50V	CK	GRM1554C1H2R0CA01D	K22178204		1-	A F3
C 1056	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A E4
C 1057	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A F2
C 1058	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B f1
C 1059	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A E4
C 1060	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A E4
C 1061	ALELECTRO.CAP.	10uF	25V		UWX1E100MCL1GB	K48140022		1-	A B1
C 1063	CHIP CAP.	22pF	50V	CH	GRM1552C1H220GA01D	K22178707		1-	A G3
C 1064	CHIP CAP.	2pF	50V	CK	GRM1554C1H2R0BA01D	K22178289		1-	A E4
C 1065	CHIP CAP.	2pF	50V	CK	GRM1554C1H2R0CA01D	K22178204		1-	A F3
C 1066	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B d2
C 1067	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B f1
C 1068	CHIP CAP.	18pF	50V	CH	GRM1552C1H180GA01D	K22178701		1-	A G3
C 1070	CHIP CAP.	6pF	50V	CH	GRM1552C1H6R0DA01D	K22178809		1-	A F3
C 1071	CHIP CAP.	5pF	50V	CH	GRM1552C1H5R0CA01D	K22178809		1-	B d2
C 1072	CHIP CAP.	10pF	50V	CH	GRM1552C1H100BA01D	K22178809		1-	A F2
C 1073	CHIP CAP.	15pF	50V	CH	GRM1552C1H150GA01D	K22178300		1-	A E4
C 1074	CHIP CAP.	1uF	10V	B	GRM188B11A105KA61D	K22148834		1-	B c1
C 1075	CHIP CAP.	0.001uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B e1
C 1077	CHIP CAP.	15pF	50V	CH	GRM1552C1H6R0DA01D	K22178809		1-	A E4
C 1078	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B e1
C 1079	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B e1
C 1080	CHIP CAP.	0.22uF	10V	B	GRM155B31A224KE18D	K22108808		1-	B c1
C 1081	CHIP CAP.	1uF	10V	B	GRM155B31A105KE15D	K22108809		1-	B c1
C 1082	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B c2
C 1083	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B c3
C 1084	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22108808		1-	B e1
C 1085	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A F2
C 1086	CHIP CAP.	1uF	10V	B	GRM155B31A105KE15D	K22108809		1-	B c2

REF DESCRIPTION VALUE V/W		TOL. MFR'S	DESIG YAESU P/N VERS.				LOT	SIDE	LAY ADR
C 1087	CHIP CAP.	10pF	50V	CH	GRM1552C1H100JA01D	K22178212		1-	B	b3
C 1088	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A	F3
C 1089	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A	F2
C 1090	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	a4
C 1091	CHIP TA.CAP.	2.2uF	6.3V		TMCP0J225MTRF	K78080051		1-	A	D3
C 1092	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	e1
C 1093	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	e1
C 1094	CHIP CAP.	8pF	50V	CH	GRM1552C1H8R0DA01D	K22178210		1-	A	F2
C 1095	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B	a4
C 1096	CHIP TA.CAP.	0.22uF	20V		TMCP1D224MTRF	K78130069		1-	A	D3
C 1097	CHIP CAP.	33pF	50V	CH	GRM1552C1H330JA01D	K22178224		1-	A	F2
C 1098	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B	b3
C 1099	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B	b3
C 1101	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	a3
C 1102	CHIP CAP.	10pF	50V	CH	GRM1552C1H100JA01D	K22178212		1-	B	b3
C 1103	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B	a3
C 1104	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	e1
C 1105	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B	b3
C 1106	CHIP CAP.	10pF	50V	CH	GRM1552C1H100BA01D	K22178297		1-	B	b3
C 1107	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B	e1
C 1108	CHIP CAP.	33pF	50V	CH	GRM1552C1H330GA01D	K22178708		1-	B	b3
C 1109	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22100808		1-	B	e1
C 1110	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22100808		1-	B	c2
C 1111	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B	c1
C 1112	CHIP CAP.	10pF	50V	CH	GRM1552C1H100BA01D	K22178297		1-	B	b3
C 1113	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	B	c2
C 1115	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B	b3
C 1116	CHIP CAP.	18pF	50V	CH	GRM1552C1H180GA01D	K22178701		1-	B	b3
C 1118	CHIP CAP.	22pF	50V	CH	GRM1552C1H220GA01D	K22179707		1-	B	b3
C 1119	CHIP CAP.	47pF	50V	CH	GRM1552C1H470JA01D	K22178228		1-	A	F3
C 1120	CHIP CAP.	47pF	50V	CH	GRM1552C1H470GA01D	K22179709		1-	B	b3
C 1121	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	a3
C 1122	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22100808		1-	B	c4
C 1123	CHIP CAP.	47pF	50V	CH	GRM1552C1H470JA01D	K22178228		1-	B	b3
C 1124	CHIP CAP.	5pF	50V	CH	GRM1552C1H5R0CA01D	K22178207		1-	B	b2
C 1125	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B	a3
C 1126	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1-	B	b3
C 1127	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1-	B	c4
C 1128	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B	e1
C 1129	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	c4
C 1130	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B	c2
C 1131	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1-	B	c3
C 1132	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	e1
C 1133	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	a4
C 1134	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	A	D4
C 1135	CHIP CAP.	18pF	50V	CH	GRM1552C1H180GA01D	K22179701		1-	B	b2
C 1136	CHIP CAP.	10pF	50V	CH	GRM1552C1H100BA01D	K22178297		1-	B	b2
C 1137	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B	b2
C 1138	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	a2
C 1139	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	a4
C 1140	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	a4
C 1141	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B	a3
C 1142	CHIP CAP.	33pF	50V	CH	GRM1552C1H330GA01D	K22179708		1-	B	b2
C 1143	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	a4
C 1144	CHIP CAP.	0.001uF	50V	B	GRM155B11E103KA01D	K22148834		1-	B	a4
C 1145	CHIP CAP.	10pF	50V	CH	GRM1552C1H100BA01D	K22178809		1-	B	a4
C 1146	CHIP CAP.	12pF	50V	CH	GRM1552C1H120JA01D	K22178214		1-	B	b2
C 1147	CHIP CAP.	18pF	50V	CH	GRM1552C1H180GA01D	K22179701		1-	B	b2
C 1149	CHIP CAP.	18pF	50V	CH	GRM1552C1H180GA01D	K22179701		1-	B	b2
C 1150	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B	e1
C 1151	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	e1
C 1152	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	a4
C 1153	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1-	A	D4
C 1154	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A	E2
C 1155	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	A	b4
C 1156	CHIP CAP.	15pF	50V	CH	GRM1552C1H150GA01D	K22178809		1-	A	E2
C 1157	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B	c2
C 1158	CHIP CAP.	27pF	50V	CH	GRM1552C1H270GA01D	K22179726		1-	A	F4
C 1159	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	b2
C 1160	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	a4
C 1161	CHIP CAP.	15pF	50V	CH	GRM1552C1H150GA01D	K22178809		1-	A	E3
C 1162	CHIP TA.CAP.	10uF	10V		TAJA106M01Y		T8710072		B	c2
C 1163	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B	c2
C 1164	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A	E2

REF DESCRIPTION VALUE V/W	TOL. MFR'S	DESIG YAESU P/N VERS.
C 1165	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1- B
C 1166	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1- B
C 1167	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1- B
C 1168	CHIP CAP.	2pF	50V	CK	GRM1554C1H2R0CA01D	K22178204		1- A
C 1169	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1- B
C 1170	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1- B
C 1171	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1- B
C 1172	CHIP CAP.	6pF	50V	CH	GRM1552C1H6R0DA01D	K22178208		1- A
C 1175	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1- A
C 1176	CHIP CAP.	2pF	50V	CK	GRM1554C1H2R0BA01D	K22178289		1- A
C 1177	CHIP CAP.	2pF	50V	CK	GRM1554C1H2R0BA01D	K22178289		1- A
C 1178	CHIP CAP.	10pF	50V	CH	GRM1552C1H100JA01D	K22178212		1- A
C 1179	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1- B
C 1180	CHIP CAP.	10pF	50V	CH	GRM1552C1H100JA01D	K22178212		1- A
C 1181	CHIP CAP.	39pF	50V	CH	GRM1552C1H390JA01D	K22178226		1- A
C 1182	CHIP CAP.	39pF	50V	CH	GRM1552C1H390JA01D	K22178226		1- A
C 1183	CHIP CAP.	10pF	50V	CH	GRM1552C1H100JA01D	K22178212		1- A
C 1184	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1- A
C 1185	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1- A
C 1186	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1- A
C 1187	CHIP CAP.	27pF	50V	CH	GRM1552C1H270GA01D	K22178726		1- A
C 1188	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1- A
C 1189	CHIP CAP.	15pF	50V	CH	GRM1552C1H150JA01D	K22178216		1- A
C 1190	CHIP CAP.	33pF	50V	CH	GRM1552C1H330JA01D	K22178224		1- A
C 1191	CHIP CAP.	1pF	50V	CK	GRM1554C1H1R0BA01D	K22178287		1- A
C 1192	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1- B
C 1193	CHIP CAP.	22pF	50V	CH	GRM1552C1H220GA01D	K22179707		1- A
C 1194	CHIP CAP.	30pF	50V	CH	GRM1552C1H300JA01D	K22178223		1- A
C 1197	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1- B
C 1198	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1- B
C 1199	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1- B
C 1200	CHIP CAP.	8pF	50V	CH	GRM1552C1H8R0BA01D	K22178295		1- A
C 1201	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1- A
C 1202	CHIP CAP.	10pF	50V	CH	GRM1552C1H100BA01D	K22178297		1- B
C 1203	CHIP CAP.	9pF	50V	CH	GRM1552C1H9R0BA01D	K22178296		1- B
C 1204	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1- B
C 1205	CHIP CAP.	22pF	50V	CH	GRM1552C1H220GA01D	K22179707		1- B
C 1207	CHIP CAP.	0.1uF	25V	B	GRM155B31E104KA87D	K22148838		1- B
C 1208	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1- B
C 1209	CHIP CAP.	0.1uF	25V	B	GRM155B31E104KA87D	K22148838		1- B
C 1210	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1- B
C 1211	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1- B
C 1212	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1- B
C 1213	CHIP TA.CAP.	0.1uF	20V		TMCP1D104MTRF	K78130067		1- A
C 1213	CHIP TA.CAP.	0.1uF	20V		TMCP1D104MTRF	K78130049		5- A
C 1214	CHIP CAP.	10pF	50V	CH	GRM1552C1H100BA01D	K22178297		1- A
C 1215	CHIP CAP.	82pF	50V	CH	GRM1552C1H820JA01D	K22178234		1- B
C 1216	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1- B
C 1217	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1- B
C 1218	CHIP CAP.	47pF	50V	CH	GRM1552C1H470JA01D	K22178228		1- B
C 1219	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1- B
C 1220	CHIP TA.CAP.	3.3uF	10V		TMCP1A335MTRF	K78100091		1- A
C 1221	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1- B
C 1222	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1- A
C 1223	CHIP CAP.	47pF	50V	CH	GRM1552C1H470GA01D	K22179709		1- A
C 1224	CHIP TA.CAP.	0.47uF	16V		F921C474MPA	K78120123		1- A
C 1225	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22108088		1- B
C 1226	CHIP CAP.	33pF	50V	CH	GRM1552C1H330GA01D	K22179708		1- A
C 1227	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1- B
C 1228	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1- B
C 1229	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1- B
C 1230	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178236		1- B
C 1231	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1- A
C 1232	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1- B
C 1233	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1- B
C 1234	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22108088		1- B
C 1235	CHIP CAP.	0.047uF	10V	B	GRM155B11A473KA01D	K22108801		1- B
C 1235	CHIP CAP.	0.047uF	25V	X7R	0402B473K250CT	K22148842		19- B
C 1236	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1- B
C 1237	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1- B
C 1238	CHIP CAP.	0.047uF	10V	B	GRM155B11A473KA01D	K22108801		1- B
C 1238	CHIP CAP.	0.047uF	25V	X7R	0402B473K250CT	K22148842		19- B
C 1239	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1- B
C 1240	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1- B
C 1241	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1- B

REF DESCRIPTION VALUE V/W	TOL. MFR'S	DESIG YAESU P/N VERS.
C 1242	CHIP CAP.	82pF	50V	CH	GRM1552C1H820JA01D	K22178234		1-	B c3
C 1243	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	B c3
C 1244	CHIP CAP.	0.1uF	25V	B	GRM155B31E104KA87D	K22148838		1-	B e2
C 1245	CHIP CAP.	10pF	50V	CH	GRM1552C1H100BA01D	K22178297		1-	A B2
C 1246	CHIP CAP.	220pF	50V	B	GRM155B11H221KA01D	K22178801		1-	B c3
C 1247	CHIP CAP.	220pF	50V	B	GRM155B11H221KA01D	K22178801		1-	B c3
C 1248	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A B2
C 1249	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K2210808		1-	A E3
C 1250	CHIP CAP.	1uF	10V	B	GRM155B31A105KE15D	K22108809		1-	B c3
C 1251	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B c3
C 1252	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A D3
C 1253	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B c3
C 1254	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	A E3
C 1255	CHIP CAP.	47pF	50V	CH	GRM1552C1H470GA01D	K22179709		1-	A B2
C 1256	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A E3
C 1257	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1-	A C3
C 1258	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K2210808		1-	B c3
C 1259	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	B d3
C 1260	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1-	B d3
C 1261	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	A C3
C 1262	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A C5
C 1263	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	A D4
C 1264	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	A C4
C 1265	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A C5
C 1266	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A B4
C 1267	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A B4
C 1268	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	A C4
C 1269	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A C5
C 1270	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A B4
C 1271	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A C4
C 1272	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A B4
C 1273	CHIP CAP.	15pF	50V	CH	GRM1552C1H150GA01D	K22178300		1-	A B4
C 1274	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	A B4
C 1275	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A B4
C 1276	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A B4
C 1277	CHIP CAP.	0.068uF	16V	B	GRM155B31C683KA87D	K22128815		1-	A C4
C 1278	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A B4
C 1279	CHIP CAP.	15pF	50V	CH	GRM1552C1H150GA01D	K22178300		1-	A C4
C 1280	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A B4
C 1281	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A B4
C 1282	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B d4
C 1283	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A C4
C 1284	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	B e4
C 1285	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22108802		1-	B d4
C 1286	CHIP CAP.	330pF	50V	B	GRM155B11H331KA01D	K22178803		1-	A B5
C 1287	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22108802		1-	B e4
C 1288	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A B4
C 1289	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A B4
C 1290	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A C4
C 1291	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	A B2
C 1292	CHIP CAP.	0.0056uF	25V	B	GRM155B11E562KA01D	K22148802		1-	A B4
C 1293	CHIP CAP.	0.0068uF	25V	B	GRM155B11E682KA01D	K22148803		1-	A B5
C 1294	CHIP CAP.	0.068uF	16V	B	GRM155B31C683KA87D	K22128815		1-	A C4
C 1295	CHIP CAP.	0.047uF	10V	B	GRM155B11A473KA01D	K22108801		1-	A C4
C 1296	CHIP CAP.	0.047uF	25V	X7R	0402B473K250CT	K22148842		19-	A C4
C 1297	CHIP CAP.	15pF	50V	CH	GRM1552C1H150GA01D	K22178300		1-	A B4
C 1298	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A B4
C 1298	CHIP CAP.	0.047uF	10V	B	GRM155B31A104KA01D	K22108801		1-	A C4
C 1299	CHIP CAP.	1uF	6.3V	B	GRM21BB31A106KE18L	K22108802		1-	B e4
C 1300	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A A5
C 1301	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22108802		1-	B e4
C 1302	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B e4
C 1303	CHIP CAP.	15pF	50V	CH	GRM1552C1H150GA01D	K22178300		1-	A B3
C 1304	CHIP CAP.	15pF	50V	CH	GRM1552C1H150GA01D	K22178300		1-	A B4
C 1305	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	A C4
C 1306	CHIP CAP.	0.0047uF	50V	B	GRM155B30J105KE18D	K22178838		1-	A C4
C 1307	CHIP CAP.	15pF	50V	CH	GRM1552C1H150GA01D	K22178300		1-	A B4
C 1308	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A B3
C 1309	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A A4
C 1310	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A B4
C 1311	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A B3
C 1312	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A B4
C 1313	CHIP CAP.	15pF	50V	CH	GRM1552C1H150GA01D	K22178300		1-	A B3
C 1314	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A C3
C 1315	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A D5

REF DESCRIPTION VALUE V/W	TOL. MFR'S	DESIG YAESU P/N VERS.
		22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A	D5
C 1317	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A	D5
C 1318	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	A	C3
C 1319	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A	D5
C 1320	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A	D5
C 1321	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A	B3
C 1322	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A	D5
C 1323	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A	D5
C 1324	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A	D5
C 1325	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A	D5
C 1326	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A	D5
C 1328	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A	D5
C 1329	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A	D5
C 1330	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A	D5
C 1331	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A	D5
C 1332	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A	D5
C 1333	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A	C3
C 1334	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A	D5
C 1335	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	A	A4
C 1336	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A	C3
C 1337	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A	C4
C 1338	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A	D5
C 1339	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22108808		1-	B	f4
C 1340	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A	E5
C 1341	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A	E5
C 1342	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B	f4
C 1343	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	A	E5
C 1345	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A	A4
C 1346	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	A	A4
C 1347	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A	E5
C 1348	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A	E5
C 1349	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A	E5
C 1350	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A	E5
C 1351	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A	E5
C 1352	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	A	E5
C 1353	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178809		1-	A	E5
C 1354	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	A	E5
C 1355	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	A	E5
C 1356	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	A	E5
C 1357	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	A	E5
C 1358	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	A	E5
C 1359	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	A	E5
C 1360	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	A	E5
C 1361	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	A	E5
C 1362	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	A	E5
C 1363	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	A	E5
C 1364	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	A	E5
C 1365	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	A	E5
C 1366	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	A	E5
C 1367	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	A	E5
C 1368	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	B	e3
C 1369	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	e3
C 1370	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	e3
C 1371	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	e3
C 1372	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22108808		1-	B	e3
C 1373	CHIP CAP.	10uF	10V	BJ	LMK107BBJ106MALT	K22148834		1-	B	e2
C 1374	CHIP CAP.	0.0033uF	50V	B	GRM155B11H332KA01D	K22178815		1-	B	e2
C 1375	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	B	e2
C 1376	CHIP CAP.	0.033uF	10V	B	GRM155B11A333KA01D	K22108803		1-	B	e3
C 1377	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	B	e3
C 1378	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	B	e3
C 1380	CHIP CAP.	15pF	50V	CH	GRM1552C1H150JA01D	K22178826		1-	B	d2
C 1381	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B	e2
C 1382	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	B	e2
C 1383	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22108802		1-	B	e3
C 1384	CHIP CAP.	15pF	50V	CH	GRM1552C1H150JA01D	K22178826		1-	B	d2
C 1385	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	B	e3
C 1386	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	B	d3
C 1387	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	B	e3
C 1388	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	B	e3
C 1389	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	B	e3
C 1390	CHIP CAP.	10uF	10V	BJ	LMK107BBJ106MALT	K22104809		1-	B	e3
C 1391	CHIP CAP.	1uF	25V	B	GRM188B31E105KA75D	K22144815		1-	A	A2
C 1392	CHIP CAP.	1uF	25V	B	GRM188B31E105KA75D	K22144815		1-	A	A2
C 1393	CHIP CAP.	1uF	25V	B	GRM188B31E105KA75D	K22144815		1-	A	A2

REF DESCRIPTION VALUE V/W	TOL. MFR'S	DESIG YAESU P/N VERS.
C 1394	CHIP CAP.	1uF	25V	B	GRM188B31E105KA75D	K22144815		A
C 1395	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		B
C 1396	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		f4
C 1397	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		e3
C 1398	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		f4
C 1399	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		A
C 1400	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		A
C 1401	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		A
C 1402	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		A
C 1403	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		A
C 1404	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		f2
C 1405	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		f3
C 1406	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		f3
C 1407	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		f2
C 1408	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		f4
C 1409	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		f4
C 1410	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		f3
C 1411	ALELECTRO.CAP.	100uF	16V		EEE1CA101WP	K48120012		A
C 1413	ALELECTRO.CAP.	0.47uF	50V		UZS1HR47MCL1GB	K48170034		A
C 1414	ALELECTRO.CAP.	470uF	25V		25CE470BS	K48140015		A
C 1415	ALELECTRO.CAP.	100uF	16V		EEE1CA101WP	K48120012		A
C 1416	ALELECTRO.CAP.	10uF	50V		UWX1H100MCL1GB	K48170030		A
C 1417	ALELECTRO.CAP.	0.47uF	50V		UZS1HR47MCL1GB	K48170034		A
C 1418	ALELECTRO.CAP.	470uF	25V		25CE470BS	K48140015		A
C 1419	CHIP CAP.	1uF	25V	B	GRM188B31E105KA75D	K22144815		f2
C 1420	CHIP CAP.	1uF	25V	B	GRM188B31E105KA75D	K22144815		f2
C 1421	CHIP CAP.	1uF	25V	B	GRM188B31E105KA75D	K22144815		f2
C 1422	CHIP CAP.	1uF	25V	B	GRM188B31E105KA75D	K22144815		f2
C 1423	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		f3
C 1424	CHIP CAP.	0.1uF	25V	B	GRM188B11E104KA01D	K22144814		f2
C 1425	CHIP CAP.	0.1uF	25V	B	GRM188B11E104KA01D	K22144814		f2
C 1426	CHIP CAP.	0.1uF	25V	B	GRM188B11E104KA01D	K22144814		f2
C 1427	CHIP CAP.	0.1uF	25V	B	GRM188B11E104KA01D	K22144814		f2
C 1428	CHIP CAP.	0.1uF	25V	B	GRM188B11E104KA01D	K22144814		f4
C 1429	CHIP CAP.	0.1uF	25V	B	GRM188B11E104KA01D	K22144814		f3
C 1430	CHIP CAP.	0.1uF	25V	B	GRM188B11E104KA01D	K22144814		f3
C 1431	CHIP CAP.	0.1uF	25V	B	GRM188B11E104KA01D	K22144814		f3
C 1432	CHIP CAP.	2.2uF	10V	B	GRM188B31A225KE18D	K22104805		f4
C 1433	CHIP CAP.	2.2uF	10V	B	GRM188B31A225KE18D	K22104805		f3
C 1434	CHIP CAP.	2.2uF	10V	B	GRM188B31A225KE18D	K22104805		f2
C 1435	CHIP CAP.	2.2uF	10V	B	GRM188B31A225KE18D	K22104805		f4
C 1436	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		A
C 1437	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		A
C 1438	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		A
C 1439	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		A
C 1440	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		A
C 1441	CHIP CAP.	47pF	50V	CH	GRM1552C1H470JA01D	K22178228		A
C 1442	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		f3
C 1443	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		f3
C 1444	CHIP CAP.	0.001uF	25V	B	GRM155B11E103KA01D	K22148834		f2
C 1445	CHIP CAP.	0.001uF	25V	B	GRM155B11E103KA01D	K22148834		f2
C 1446	CHIP CAP.	0.001uF	25V	B	GRM155B11E103KA01D	K22148834		f2
C 1447	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22100808		f2
C 1448	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22100808		f4
C 1449	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		f4
C 1450	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		f3
C 1451	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		A
C 1452	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		A
C 1453	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		A
C 1454	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		A
C 1456	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		A
C 1457	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		A
C 1458	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		A
C 1459	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		A
C 1460	CHIP CAP.	0.001uF	50V	B	GRM155B31H102KA01D	K22178809		A
C 1461	CHIP TA.CAP.	10uF	10V		TAJA106M010Y	K78100072		b
C 1461	CHIP TA.CAP.	10uF	10V		TAJA106M010RNJ	K78100120		b
C 1462	CHIP TA.CAP.	10uF	10V		TAJA106M010Y	K78100272		A
C 1463	CHIP TA.CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		f2
C 1464	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		f2
C 1465	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		f2
C 1467	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		f2
C 1468	CHIP CAP.	27pF	500V	CH	1206N270J501LT	K22278214		A
C 1470	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		A

REF DESCRIPTION VALUE V/W		TOL.	MFR'S	DESIG YAESU P/N VERS.				LOT	SIDE	LAY ADR
C 1471	CHIP CAP.	0.1uF		10V	B	GRM155B11A104KA01D	K22108802		1-	A	C3
C 1472	CHIP CAP.	0.1uF		10V	B	GRM155B11A104KA01D	K22108802		1-	A	B3
C 1473	CHIP TA.CAP.	0.1uF		20V		TMCP1D104MTRF	K78130067		1-	A	D3
C 1473	CHIP TA.CAP.	0.1uF		20V		TMCP1D104MTRF	K78130049		5-	A	D3
C 1474	CHIP CAP.	1uF		6.3V	B	GRM155B30J105KE18D	K2208803		1-	A	C4
C 1475	CHIP CAP.	10uF		10V	B	GRM21BB31A106KE18L	K22100808		1-	B	e2
C 1482	CHIP CAP.	1uF		6.3V	B	GRM188B10J105KA01D	K22084801		1-	A	A4
C 1483	CHIP CAP.	0.01uF		16V	B	EMK105B103K-F	K22128802		1-	A	B2
C 1484	CHIP CAP.	0.01uF		16V	B	EMK105B103K-F	K22128802		1-	A	B2
CD1001	CERAMIC DISC					JTBM450CX24-A	H7901530A		1-	A	F5
CD1002	CERAMIC DISC					JTBM450CX24-A	H7901530A		1-	A	D3
CF1001	CERAMIC FILTER					LTWC450F	H3900563		1-	A	F4
CF1002	CERAMIC FILTER					LTWC450F	H3900563		1-	A	D3
D 1001	SURGE ABSORBER					DSP-141N-S00B	Q9000586		1-	A	F1
D 1002	DIODE					S3DB-T	G2071366		1-	A	B1
D 1003	DIODE					RB715F T106	G2070752		1-	B	a2
D 1004	DIODE					JDP2S12CR	G2071416		1-	A	F2
D 1005	DIODE					JDP2S12CR	G2071416		1-	A	E2
D 1006	DIODE					1SV325(TPH3.F)	G2070848		1-	A	E4
D 1007	DIODE					1SV325(TPH3.F)	G2070848		1-	A	E4
D 1008	DIODE					DAN235E TL	G2070612		1-	B	b2
D 1009	DIODE					1SS302(TE85R.F)	G2070088		1-	A	F5
D 1009	DIODE					1SS302ALF(B)	G2070088A		7-	A	F5
D 1010	DIODE					1SV279(TPH3.F)	G2070618		1-	A	D2
D 1011	DIODE					1SV282(TPH3.F)	G2070778		1-	A	D2
D 1013	DIODE					1SV325(TPH3.F)	G2070848		1-	A	D2
D 1014	DIODE					1SV325(TPH3.F)	G2070848		1-	A	D2
D 1015	DIODE					1SS302(TE85R.F)	G2070088		1-	A	E3
D 1016	DIODE					1SS302ALF(B)	G2070088A		7-	A	E3
D 1016	DIODE					1SS302ALF(B)	G2070088A		1-	A	F2
D 1017	DIODE					1SS390	G2071226		1-	A	F3
D 1018	DIODE					1SV325(TPH3.F)	G2070848		1-	A	D2
D 1019	DIODE					1SV325(TPH3.F)	G2070848		1-	A	D2
F 1001	CHIP FUSE	2A				FCC16 202ADTP	Q0000147		1-	A	B2
F 1002	CHIP FUSE	2A				FCC16 202ADTP	Q0000147		1-	A	B2
FB1001	FERRITE BEADS					SMB304729	L9190094		1-	A	C2
FB1002	FERRITE BEADS					BLM18BD601SN1D	L9190143		1-	B	c1
J 1001	CONNECTOR					IMSA-9131S-04	P1091418		1-	B	d2
J 1002	CONNECTOR					B3B-PH-K-S(LF)(SN)	P0090397		1-	A	B2
J 1003	CONNECTOR					B3B-PH-K-S(LF)(SN)	P0090397		1-	A	B2
J 1004	CONNECTOR					28FLT-SM2-TB(LF)(SN)(M)	P1091149		1-	A	D4
J 1005	CONNECTOR					28FLT-SM2-TB(LF)(SN)(M)	P1091149		1-	A	E4
J 1006	CONNECTOR					B4B-PH-K-S(LF)(SN)	P0090398		1-	A	A2
J 1007	CONNECTOR					B2B-PH-K-S(LF)(SN)	P0090396		1-	A	A3
J 1008	CONTACT					OG-363050	S5000324		1-	B	c2
J 1009	CONTACT					OG-363050	S5000324		1-	B	e1
L 1001	COIL	0.056uH				TAS0806-56NK	L0023105		1-	A	F1
L 1002	COIL	0.056uH				TAS0806-56NK	L0023105		1-	A	F1
L 1003	CHIP COIL	0.033uH			2%	LQW18AN33NG00D	L1690886		1-	A	F2
L 1004	CHIP COIL	0.033uH			2%	LQW18AN33NG00D	L1690886		1-	A	G2
L 1005	COIL	0.047uH				TAS0805-47NK	L0023104		1-	A	E2
L 1007	COIL	0.212uH				ASs051047-212NJ	L0022834		1-	A	D2
L 1008	M.RFC	0.22uH				HK1608 R22J-T	L1690940		1-	A	E3
L 1009	COIL	0.047uH				TAS0805-47NK	L0023104		1-	A	E2
L 1011	M.RFC	0.15uH				HK1608 R22J-T	L1691826		1-	A	F3
L 1012	M.RFC	0.22uH				LQW18AN33NG00D	L1690892		1-	A	F2
L 1013	CHIP COIL	0.1uH			2%	LQW18AN33NG00D	L1690892		1-	A	F2
L 1016	M.RFC	0.1uH			2%	LQW18AN33NG00D	L1690887		1-	A	G3
L 1017	M.RFC	2.2uH				LK1608 2R2K-T	L1690634		1-	A	E4
L 1018	CHIP COIL	0.039uH			2%	LQW18AN33NG00D	L1690887		1-	A	G3
L 1019	M.RFC	0.18uH				HK1005 R18J-T	L1691852		1-	B	d2
L 1020	CHIP COIL	0.039uH			2%	LQW18AN33NG00D	L1690887		1-	A	G3
L 1021	M.RFC	0.15uH				HK1005 R18J-T	L1691826		1-	A	E4
L 1022	CHIP COIL	0.1uH			2%	LQW18AN33NG00D	L1690892		1-	A	F2
L 1023	CHIP COIL	0.33uH			2%	LQW18AN33NG00D	L1691789		1-	A	E4
L 1024	CHIP COIL	0.039uH			2%	LQW18AN33NG00D	L1690887		1-	A	G3
L 1025	M.RFC	0.056uH				HK1005 56NJ-T	L1691250		1-	A	E4
L 1026	M.RFC	0.15uH				HK1005 R15J-T	L1691826		1-	A	F2
L 1027	M.RFC	0.15uH				HK1005 R15J-T	L1691826		1-	B	b3
L 1029	M.RFC	0.033uH				HK1005 33NJ-T	L1691383		1-	B	b3
L 1030	M.RFC	0.039uH				HK1005 33NJ-T	L1691384		1-	B	b3
L 1033	M.RFC	0.056uH				HK1005 56NJ-T	L1691250		1-	B	b3
L 1034	M.RFC	4.7uH				LK2125 4R7K-T	L1690327		1-	B	a4
L 1035	M.RFC	0.033uH				HK1005 33NJ-T	L1691383		1-	B	b2

REF DESCRIPTION VALUE V/W

TOL. MFR'S

DESIG YAESU P/N VERS.

LOT

SIDE

LAY ADR

L 1036

M.RFC

0.15uH

HK1005 R15J-T

L1691826

1-

B

b2

L 1037

M.RFC

0.039uH

HK1005 39NJ-T

L1691384

1-

B

b2

L 1038

M.RFC

0.1uH

HK1005 R10J-T

L1691825

1-

B

a4

L 1039

M.RFC

4.7uH

LK1608 4R7K-T

L1690688

1-

B

a4

L 1040

M.RFC

0.056uH

HK1005 56NJ-T

L1691250

1-

A

E2

L 1041

M.RFC

4.7uH

LK2125 4R7K-T

L1690327

1-

B

b2

L 1042

M.RFC

0.82uH

2%

1008CS-821XGLC

L1691683

1-

A

F4

L 1043

M.RFC 0.15uH HK1005

HK1005

R15J-T L1691826

1- A E2

L 1044

M.RFC

4.7uH

LK1608 4R7K-T

L1690688

1-

A

E2

L 1045

M.RFC

0.1uH

HK1005 R10J-T

L1691825

1-

B

b2

L 1046

CHIP COIL

0.33uH

2%

LQW18ANR33G0D

L1691789

1-

A

D2

L 1047

M.RFC

4.7uH

LK1608 4R7K-T

L1690688

1-

B

b2

L 1048

M.RFC

10uH

LK1608 100K-T

L1690689

1-

A

D2

L 1049

M.RFC

0.12uH

2%

1008CS-121XGLC

L1691671

1-

A

D2

L 1050

M.RFC

1uH

LK1608 1R0K-T

L1690687

1-

A

F5

L 1051

M.RFC

0.033uH

2%

0805CS-330XGLC

L1691628

1-

A

D2

L 1052

M.RFC

1.5uH

2%

1008CS-152XGLC

L1691687

1-

A

E2

L 1053

M.RFC 0.22uH HK1608

HK1608

R22J-T L1690940

1- A D3

L 1054

M.RFC

4.7uH

LK1608 4R7K-T

L1690688

1-

A

D2

L 1055

M.RFC 0.22uH HK1608

HK1608

R22J-T L1690940

1- A D2

L 1056

M.RFC

0.056uH

HK1005 56NJ-T

L1691250

1-

B

c3

L 1057

M.RFC

1.5uH

LK1608 1R5K-T

L1690846

1-

A

E3

L 1058

M.RFC

22uH

LK1608 220M-T

L1691030

1-

B

e2

L 1059

CHIP COIL

0.22uH

2%

LQW18ANR22G0D

L1690896

1-

A

F2

L 1060

M.RFC

0.18uH

HK1005 R18J-T

L1691852

1-

B

d2

Q 1001

TRANSITOR

DTC144EE TL

G3070075

1-

B

f1

Q 1002

FET

RRR030P03

G3070448

1-

B

f1

Q 1003

IC

RA33H1516M1-301

G1095048

1-

A

C1

Q 1004

FET

3SK294(TE85L)

G4802948A

1-

A

G2

Q 1005

TRANSITOR

2SC4617 TL R

G3346178R

1-

A

E4

Q 1006

IC

NJM7808DL1A-TE1

G1093802

1-

B

f1

Q 1007

TRANSITOR

DTC143ZE TL

G3070102

1-

B

c2

Q 1008

FET

CPH3910-TL-E

G3070486

1-

A

E4

Q 1009

TRANSITOR

2SC5226A-5-TL-E

G3070417

1-

B

d2

Q 1010

TRANSITOR

2SC5066-O,LF(T

G3350668

1-

A

E4

Q 1011

IC

TAR5S50U(TE85L.F)

G3109407

1-

B

e1

Q 1012

FET

3SK294(TE85L)

G4802948A

1-

A

F2

Q 1013

IC

LM2904PWR

G1094010

1-

B

c2

Q 1014

TRANSITOR

2SC5226A-5-TL-E

G3070417

1-

B

b3

Q 1015

IC

TAR5S33U(TE85L.F)

G3070449

1-

B

e1

Q 1016

TRANSITOR

DTC124TE TL

G3070128

1-

B

b2

Q 1017

FET

2SK880GR(TE85R.F)

G3808807G

1-

A

D3

Q 1018

FET

CPH3910-TL-E

G3070486

1-

A

F4

Q 1019

FET

CPH3910-TL-E

G3070486

1-

A

F4

Q 1020

FET

CPH3910-TL-E

G3070486

1-

B

a4

Q 1021

FET

CPH3910-TL-E

G3070486

1-

B

a4

Q 1022

FET

RTM002P02(TAPE)

G3070347

1-

B

e1

Q 1023

TRANSITOR

DTC144EE TL

G3070075

1-

B

e1

Q 1024

TRANSITOR

2SC5226A-5-TL-E

G3070417

1-

B

b2

Q 1025

IC

GP214D

G1094977

1-

A

D4

Q 1026

FET

RTM002P02(TAPE)

G3070347

1-

B

e1

Q 1027

TRANSITOR

DTC144EE TL

G3070075

1-

B

e1

Q 1028

FET

CPH3910-TL-E

G3070486

1-

B

b2

Q 1029

FET

CPH3910-TL-E

G3070486

1-

B

b2

Q 1030

TRANSITOR

2SC4915-O(TE85L.F)

G33491580

1-

B

a4

Q 1031

FET

CPH3910-TL-E

G3070486

1-

A

F2

Q 1032

FET

CPH3910-TL-E

G3070486

1-

A

E2

Q 1033

TRANSITOR

2SC4617 TL R

G3346178R

1-

B

c2

Q 1034

TRANSITOR

DTC143ZE TL

G3070102

1-

B

c2

Q 1035

IC

TC7S08FU(TE85R.F)

G1091528

1-

A

B1

Q 1036

TRANSITOR

2SC5066-O,LF(T

G3350668

1-

A

E3

Q 1037

TRANSITOR

DTC143ZE TL

G3070102

1-

B

b3

Q 1038

IC

SN74LVC1G04DCKR

G1093972

1-

A

B1

Q 1039

TRANSITOR

2SC4915-O(TE85L.F)

G33491580

1-

B

b2

Q 1040

TRANSITOR

2SC5066-O,LF(T

G3350668

1-

A

E2

Q 1041

TRANSITOR

2SC4915-O(TE85L.F)

G33491580

1-

A

F5

Q 1042

FET

CPH3910-TL-E

G3070486

1-

A

D3

Q 1043

IC

TC7S32FU(TE85R.F)

G1091529

1-

A

B1

Q 1044

TRANSITOR

DTC144EE TL

G3070075

1-

B

e2

Q 1045

IC

NJM2591V-TE1

G1094024

1-

B

a4

Q 1046

TRANSITOR

2SB132 T100 Q

G3211327Q

1-

B

e2

Q 1047

TRANSITOR

2SC4915-O(TE85L.F)

G33491580

1-

A

E3

Q 1048

FET

2SK880GR(TE85R.F)

G3808807G

1-

B

d3

Q 1049

TRANSITOR

2SA1586GR(TE85R.F)

G3115867G

1-

A

C2

Q 1050

TRANSITOR

2SC4116GR(TE85R.F)

G3341167G

1-

A

C2

REF DESCRIPTION VALUE V/W

TOL. MFR'S

DESIG YAESU P/N VERS.

LOT

SIDE

LAY ADR

Q 1051

IC

NJM2591V-TE1 G

1094024

1-

B

c3

Q 1052

TRANSISTOR

DTC144EE TL

G3070075

1-

B

Q 1053

TRANSISTOR

2SB1132 T100 Q

G3211327Q

1-

B

Q 1054

IC

MB15E03SLPFV1-

G-EF-6E1

G1

094623

1-

A

D3

Q 1055

IC

NJM2734V

G1

095021

1-

A

B4

Q 1056

IC

AK2330-L

G1

094583

1-

A

B4

Q 1057

IC

SN74LV4053APWR

G1093870

1-

A

B3

Q 1058

IC

NJM2734V

G1

095021

1-

A

B4

Q 1059

IC

NJM2734V

G1

095021

1-

A

C4

Q 1060

IC

CD4066BPWR

G1

093865

1-

A

B4

Q 1061

IC

SN74LV4053APWR

G1093870

1-

A

C3

Q 1062

IC

TAR5S15U(TE85L)

F)

G1094575

1-

B

e3

Q 1063

IC

LE25U40CMC-AH

G1095186

1-

A

Q 1064

IC

NJM2734V

G1

095021

1-

A

A2

Q 1065

IC

LC703200AW-8C15-H

G1095250

1-

A

Q 1065

IC

LC703200AW-8C20-H

G1095250A

2-

A

Q 1066

FET

2SK3541 T2L

G3835417

1-

f4

Q 1067

FET

2SK3541 T2L

G3835417

1-

f2

Q 1068

FET

2SK3541 T2L

G3835417

1-

f2

Q 1069

FET

2SK3541 T2L

G3835417

1-

f2

Q 1070

FET

2SK3541 T2L

G3835417

1-

f3

Q 1071

IC

LA4625

G1

095170

1-

A

A4

Q 1072

IC

LA4628

G1

095172

1-

A

A3

Q 1073

TRANSISTOR

UMD5N TR

G3070343

1-

B

Q 1074

IC

TAR5S33U(TE85L)

F)

G1094549

1-

B

e2

Q 1075

TRANSISTOR

DTC143ZE TL

G3070102

1-

B

Q 1076

TRANSISTOR

DTC143ZE TL

G3070102

1-

B

R 1001

CHIP RES.

56k

1/16W

1%

RMC1/16SK563FTH

J24189526

1-

A

R 1002

CHIP RES.

4.7k

1/16W

1%

RMC1/16SK472FTH

J24189488

1-

B

R 1003

CHIP RES.

4.7k

1/16W

1%

RMC1/16SK472FTH

J24189488

1-

B

R 1004

CHIP RES.

33k

1/16W

1%

RMC1/16SK333FTH

J24189494

1-

A

R 1005

CHIP RES.

22k

1/16W

1%

RMC1/16SK223FTH

J24189492

1-

A

R 1006

CHIP RES.

120

1/2W

5%

RMC1/2 121JATE

J24275121

1-

B

R 1007

CHIP RES.

100k

1/16W

1%

RMC1/16SK104FTH

J24189529

1-

B

R 1008

CHIP RES.

10k

1/16W

1%

RMC1/16SK103FTH

J24189489

1-

A

R 1009

CHIP RES.

47k

1/16W

1%

RMC1/16SK473FTH

J24189525

1-

A

R 1010

CHIP RES.

4.7k

1/16W

1%

RMC1/16SK472FTH

J24189488

1-

A

R 1011

CHIP RES.

100

1/16W

1%

RMC1/16SK101FTH

J24189504

1-

A

R 1012

CHIP RES.

47

1/16W

5%

RMC1/16S 470JTH

J24189009

1-

A

R 1013

CHIP RES.

4.7k

1/16W

1%

RMC1/16SK472FTH

J24189488

1-

A

R 1014

CHIP RES.

47

1/16W

0.5%

RR0510R-470-D

J24189087

1-

A

R 1015

CHIP RES.

47

1/16W

5%

RMC1/16S 470JTH

J24189009

1-

A

R 1017

CHIP RES.

220

1/16W

1%

RMC1/16SK221FTH

J24189508

1-

A

R 1018

CHIP RES.

1k

1/16W

1%

RMC1/16SK102FTH

J24189487

1-

B

R 1019

CHIP RES.

220

1/16W

1%

RMC1/16SK221FTH

J24189508

1-

B

R 1020

CHIP RES.

4.7k

1/16W

1%

RMC1/16SK472FTH

J24189488

1-

B

R 1021

CHIP RES.

2.2k

1/16W

1%

RMC1/16SK222FTH

J24189497

1-

B

R 1022

CHIP RES.

150

1/16W

0.5%

RR0510P-151-D

J24189099

1-

A

R 1023

CHIP RES.

33k

1/16W

1%

RMC1/16SK333FTH

J24189494

1-

A

R 1024

CHIP RES.

47

1/16W

5%

RMC1/16S 470JTH

J24189009

1-

B

R 1025

CHIP RES.

22k

1/16W

1%

RMC1/16SK223FTH

J24189492

1-

A

R 1026

CHIP RES.

33k

1/16W

1%

RMC1/16SK333FTH

J24189494

1-

A

R 1027

CHIP RES.

47k

1/16W

1%

RMC1/16SK473FTH

J24189525

1-

A

R 1028

CHIP RES.

1k

1/16W

1%

RMC1/16SK102FTH

J24189487

1-

B

R 1029

CHIP RES.

10k

1/16W

1%

RMC1/16SK103FTH

J24189489

1-

A

R 1030

CHIP RES.

47

1/16W

5%

RMC1/16S 470JTH

J24189009

1-

A

R 1031

CHIP RES.

470k

1/16W

1%

RMC1/16SK474FTH

J24189537

1-

B

R 1032

CHIP RES.

10k

1/16W

1%

RMC1/16SK103FTH

J24189489

1-

B

R 1033

CHIP RES.

470

1/16W

1%

RMC1/16SK471FTH

J24189512

1-

A

R 1034

CHIP RES.

47

1/16W

5%

RMC1/16S 470JTH

J24189009

1-

B

R 1035

CHIP RES.

2.2k

1/16W

1%

RMC1/16SK222FTH

J24189497

1-

A

R 1036

CHIP RES.

10k

1/16W

1%

RMC1/16SK103FTH

J24189489

1-

B

R 1037

CHIP RES.

1.8k

1/16W

1%

RMC1/16SK182FTH

J24189516

1-

A

R 1038

CHIP RES.

4.7k

1/16W

1%

RMC1/16SK472FTH

J24189488

1-

B

R 1039

CHIP RES.

2.2k

1/16W

1%

RMC1/16SK222FTH

J24189497

1-

B

R 1040

CHIP RES.

10k

1/16W

1%

RMC1/16SK103FTH

J24189489

1-

B

R 1041

CHIP RES.

47

1/16W

5%

RMC1/16S 470JTH

J24189009

1-

A

R 1042

CHIP RES.

100

1/16W

1%

RMC1/16SK101FTH

J24189504

1-

B

R 1043

CHIP RES.

330k

1/16W

1%

RMC1/16SK334FTH

J24189535

1-

A

R 1044

CHIP RES.

4.7k

1/16W

1%

RMC1/16SK472FTH

J24189488

1-

B

R 1045

CHIP RES.

10k

1/16W

1%

RMC1/16SK103FTH

J24189489

1-

B

R 1046

CHIP RES.

33k

1/16W

1%

RMC1/16SK333FTH

J24189494

1-

A

R 1047

CHIP RES.

220

1/16W

1%

RMC1/16SK221FTH

J24189508

1-

B

R 1048

CHIP RES.

220

1/16W

1%

RMC1/16SK221FTH

J24189508

1-

B

R 1050

CHIP RES.

0

1/16W

5%

RMC1/16S JPTH

J24189070

1-

B

REF DESCRIPTION VALUE V/W		TOL. MFR'S	DESIG YAESU P/N VERS.					LOT	SIDE	LAY ADR
R 1051	CHIP RES.	2.2k	1/16W	1%	RMC1/16SK222FTH	J24189497		1-	B	b2
R 1052	CHIP RES.	2.2k	1/16W	1%	RMC1/16SK222FTH	J24189497		1-	B	d2
R 1053	CHIP RES.	2.2k	1/16W	1%	RMC1/16SK222FTH	J24189497		1-	B	b2
R 1054	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	B	c4
R 1055	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529		1-	B	e1
R 1056	CHIP RES.	47	1/16W	5%	RMC1/16S 470JTH	J24189009		1-	B	c2
R 1057	CHIP RES.	47	1/16W	5%	RMC1/16S 470JTH	J24189009		1-	B	c3
R 1058	CHIP RES.	4.7k	1/16W	1%	RMC1/16SK472FTH	J24189488		1-	B	b2
R 1059	CHIP RES.	2.2k	1/16W	1%	RMC1/16SK222FTH	J24189497		1-	B	b2
R 1060	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	A	D4
R 1061	CHIP RES.	47	1/16W	5%	RMC1/16S 470JTH	J24189009		1-	B	b2
R 1062	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	B	b2
R 1063	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	A	D4
R 1064	CHIP RES.	150	1/16W	1%	RMC1/16SK151FTH	J24189506		1-	B	a4
R 1065	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	A	D4
R 1066	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	A	D4
R 1067	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529		1-	B	e1
R 1068	CHIP RES.	220	1/16W	1%	RMC1/16SK221FTH	J24189508		1-	B	a2
R 1069	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	A	D4
R 1070	CHIP RES.	220	1/16W	1%	RMC1/16SK221FTH	J24189508		1-	B	a2
R 1071	CHIP RES.	220	1/16W	1%	RMC1/16SK221FTH	J24189508		1-	B	a4
R 1072	CHIP RES.	2.7k	1/16W	1%	RMC1/16SK272FTH	J24189517		1-	B	a4
R 1073	CHIP RES.	3.9k	1/16W	1%	RMC1/16SK392FTH	J24189519		1-	B	a4
R 1074	CHIP RES.	4.7k	1/16W	1%	RMC1/16SK472FTH	J24189488		1-	A	F4
R 1075	CHIP RES.	220	1/16W	1%	RMC1/16SK221FTH	J24189508		1-	B	c2
R 1076	CHIP RES.	47	1/16W	5%	RMC1/16S 470JTH	J24189009		1-	B	a4
R 1077	CHIP RES.	220	1/16W	1%	RMC1/16SK221FTH	J24189508		1-	A	F4
R 1078	CHIP RES.	220	1/16W	1%	RMC1/16SK221FTH	J24189508		1-	A	E2
R 1079	CHIP RES.	22	1/16W	5%	RMC1/16S 220JTH	J24189005		1-	B	b2
R 1080	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529		1-	A	B1
R 1081	CHIP RES.	33k	1/16W	1%	RMC1/16SK333FTH	J24189494		1-	A	E2
R 1082	CHIP RES.	330	1/16W	0.5%	RR0510P-331-D	J24189107		1-	A	E2
R 1083	CHIP RES.	220	1/16W	0.5%	RR0510P-221-D	J24189103		1-	A	D3
R 1084	CHIP RES.	270	1/16W	1%	RMC1/16SK271FTH	J24189509		1-	B	b2
R 1085	CHIP RES.	1.2k	1/16W	1%	RMC1/16SK122FTH	J24189515		1-	A	F5
R 1086	CHIP RES.	47	1/16W	0.5%	RR0510P-470-D	J24189087		1-	A	E2
R 1087	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529		1-	A	F5
R 1088	CHIP RES.	47	1/16W	0.5%	RR0510P-470-D	J24189087		1-	A	D3
R 1089	CHIP RES.	2.7k	1/16W	1%	RMC1/16SK272FTH	J24189517		1-	B	b3
R 1090	CHIP RES.	3.9k	1/16W	1%	RMC1/16SK392FTH	J24189519		1-	B	b3
R 1091	CHIP RES.	22k	1/16W	0.5%	RR0510P-223-D-C	J2418951		1-	A	D2
R 1092	CHIP RES.	10k	1/16W	0.5%	RR0510P-103-D	J24189143		1-	A	D2
R 1093	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529		1-	A	B1
R 1094	CHIP RES.	4.7k	1/16W	1%	RMC1/16SK472FTH	J24189488		1-	A	E3
R 1095	CHIP RES.	47	1/16W	5%	RMC1/16S 470JTH	J24189009		1-	B	b3
R 1096	CHIP RES.	2.2k	1/16W	1%	RMC1/16SK222FTH	J24189497		1-	A	F5
R 1097	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529		1-	A	B1
R 1098	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529		1-	B	c2
R 1099	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	A	F3
R 1100	CHIP RES.	33k	1/16W	1%	RMC1/16SK333FTH	J24189494		1-	B	c2
R 1101	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529		1-	B	c2
R 1102	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	A	D2
R 1103	CHIP RES.	2.2k	1/16W	1%	RMC1/16SK222FTH	J24189497		1-	A	F5
R 1104	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	A	D2
R 1105	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	B	e2
R 1106	CHIP RES.	1k	1/4W	5%	RMC1/4 102JATP	J24245102		1-	B	e2
R 1108	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	A	D2
R 1109	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189504		1-	A	E3
R 1110	CHIP RES.	470	1/16W	1%	RMC1/16SK471FTH	J24189512		1-	A	D2
R 1111	CHIP RES.	18k	1/16W	1%	RMC1/16SK183FTH	J24189523		1-	B	d3
R 1112	CHIP RES.	33k	1/16W	1%	RMC1/16SK333FTH	J24189494		1-	B	d3
R 1113	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529		1-	A	E3
R 1114	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	B	a5
R 1115	CHIP RES.	3.3k	1/16W	1%	RMC1/16SK332FTH	J24189518		1-	A	F5
R 1116	CHIP RES.	1.2k	1/16W	1%	RMC1/16SK122FTH	J24189515		1-	A	D2
R 1118	CHIP RES.	0	1/16W	5%	RMC1/16SK JPTH	J24189070		1-	A	C2
R 1119	CHIP RES.	330k	1/16W	1%	RMC1/16SK334FTH	J24189535		1-	B	d2
R 1120	CHIP RES.	2.2k	1/16W	1%	RMC1/16SK222FTH	J24189497		1-	A	E3
R 1121	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	B	d3
R 1122	CHIP RES.	2.2k	1/16W	1%	RMC1/16SK222FTH	J24189497		1-	A	E3
R 1123	CHIP RES.	3.9k	1/16W	1%	RMC1/16SK392FTH	J24189519		1-	A	C2
R 1124	CHIP RES.	8.2k	1/16W	1%	RMC1/16SK822FTH	J24189522		1-	A	C2
R 1125	CHIP RES.	8.2k	1/16W	1%	RMC1/16SK822FTH	J24189522		1-	A	C2
R 1126	CHIP RES.	8.2k	1/16W	1%	RMC1/16SK822FTH	J24189522		1-	A	C2
R 1127	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	B	c3
REF DESCRIPTION VALUE V/W		TOL. MFR'S	DESIG YAESU P/N VERS.
R 1128	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	B	e2
R 1129	CHIP RES.	1k	1/4W	5%	RMC1/4 102JATP	J24245102		1-	B	f2
R 1130	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	A	E3
R 1131	CHIP RES.	3.3k	1/16W	1%	RMC1/16SK332FTH	J24189518		1-	A	E3
R 1132	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529		1-	A	C3
R 1133	CHIP RES.	180k	1/16W	1%	RMC1/16SK184FTH	J24189532		1-	B	c3
R 1134	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	A	C3
R 1135	CHIP RES.	2.2k	1/16W	1%	RMC1/16SK222FTH	J24189497		1-	B	c3
R 1136	CHIP RES.	27k	1/16W	1%	RMC1/16SK273FTH	J24189493		1-	B	c3
R 1137	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	A	C3
R 1138	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	A	C3
R 1139	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	A	C3
R 1140	CHIP RES.	270	1/16W	1%	RMC1/16SK271FTH	J24189509		1-	B	c3
R 1141	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	B	c3
R 1142	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	B	d3
R 1143	CHIP RES. 22k 1/16W	1% RMC1/16SKK223FTH	J24189492 1- A D4
R 1144	CHIP RES. 15k 1/16W	1% RMC1/16SK153FTH	J24189491 1- A C4
R 1145	CHIP RES. 47k 1/16W	1% RMC1/16SK473FTH	J24189525 1- A B4
R 1146	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	A	B4
R 1147	CHIP RES.	2.7k	1/16W	1%	RMC1/16SK272FTH	J24189517		1-	A	D4
R 1148	CHIP RES.	4.7k	1/16W	1%	RMC1/16SK472FTH	J24189488		1-	A	B4
R 1149	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529		1-	A	B4
R 1150	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	B	d4
R 1151	CHIP RES. 15k 1/16W	1% RMC1/16SK153FTH	J24189491 1- A C4
R 1152	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	B	f4
R 1153	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	B	d4
R 1154	CHIP RES.	2.7k	1/16W	1%	RMC1/16SK272FTH	J24189517		1-	A	C4
R 1155	CHIP RES. 68k 1/16W	1% RMC1/16SK683FTH	J24189527 1- A B4
R 1156	CHIP RES. 47k 1/16W	1% RMC1/16SK473FTH	J24189525 1- A B4
R 1157	CHIP RES. 47k 1/16W	1% RMC1/16SK473FTH	J24189525 1- A C4
R 1158	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529		1-	A	C4
R 1159	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	A	C4
R 1160	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	A	C4
R 1161	CHIP RES. 47k 1/16W	1% RMC1/16SK473FTH	J24189525 1- A C4
R 1162	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	A	C4
R 1163	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	A	C4
R 1164	CHIP RES.	1M	1/16W	1%	RMC1/16SK105FTH	J24189541		1-	B	f4
R 1165	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	B3
R 1166	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	B	d4
R 1167	CHIP RES. 39k 1/16W	1% RMC1/16SK393FTH	J24189524 1- A B4
R 1168	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	B	e4
R 1169	CHIP RES. 39k 1/16W	1% RMC1/16SK393FTH	J24189524 1- A B4
R 1170	CHIP RES.	6.8k	1/16W	1%	RMC1/16SK682FTH	J24189521		1-	A	B5
R 1171	CHIP RES.	8.2k	1/16W	1%	RMC1/16SK822FTH	J24189522		1-	A	D4
R 1172	CHIP RES. 47k 1/16W	1% RMC1/16SK473FTH	J24189525 1- A C4
R 1173	CHIP RES.	1.5k	1/16W	1%	RMC1/16SK152FTH	J2418946		1-	A	C4
R 1174	CHIP RES.	120k	1/16W	1%	RMC1/16SK124FTH	J24189530		1-	A	B4
R 1175	CHIP RES.	1M	1/16W	1%	RMC1/16SK105FTH	J24189541		1-	A	B3
R 1176	CHIP RES.	2.7k	1/16W	1%	RMC1/16SK272FTH	J24189517		1-	A	B5
R 1177	CHIP RES.	150k	1/16W	1%	RMC1/16SK154FTH	J24189531		1-	A	C4
R 1178	CHIP RES.	3.9k	1/16W	1%	RMC1/16SK392FTH	J24189519		1-	A	B5
R 1180	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	B	e3
R 1181	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	B	e4
R 1183	CHIP RES. 47k 1/16W	1% RMC1/16SK473FTH	J24189525 1- A B3
R 1184	CHIP RES. 47k 1/16W	1% RMC1/16SK473FTH	J24189525 1- A A5
R 1185	CHIP RES.	330k	1/16W	1%	RMC1/16SK334FTH	J24189535		1-	A	B4
R 1186	CHIP RES.	120k	1/16W	1%	RMC1/16SK124FTH	J24189530		1-	A	B3
R 1187	CHIP RES.	4.7k	1/16W	1%	RMC1/16SK472FTH	J24189488		1-	A	C4
R 1188	CHIP RES. 47k 1/16W	1% RMC1/16SK473FTH	J24189525 1- A B4
R 1189	CHIP RES.	0	1/16W	5%	RMC1/16SK124FTH	J24189070		1-	B	e3
R 1190	CHIP RES.	0	1/16W	5%	RMC1/16SK124FTH	J24189070		1-	B	f4
R 1191	CHIP RES.	4.7k	1/16W	1%	RMC1/16SK472FTH	J24189488		1-	A	C4
R 1192	CHIP RES.	8.2k	1/16W	1%	RMC1/16SK822FTH	J24189522		1-	A	B3
R 1193	CHIP RES. 15k 1/16W	1% RMC1/16SK153FTH	J24189541 1- A B4
R 1194	CHIP RES.	180k	1/16W	1%	RMC1/16SK184FTH	J24189532		1-	A	A4
R 1195	CHIP RES.	0	1/16W	5%	RMC1/16SK124FTH	J24189530		1-	B	e3
R 1196	CHIP RES.	120k	1/16W	1%	RMC1/16SK124FTH	J24189530		1-	B	e3
R 1197	CHIP RES.	8.2k	1/16W	5%	RMC1/16SK822FTH	J24189522		1-	A	B4
R 1198	CHIP RES.	8.2k	1/16W	1%	RMC1/16SK822FTH	J24189522		1-	A	B3
R 1199	CHIP RES. 68k 1/16W	1% RMC1/16SK683FTH	J24189527 1- A B4
R 1200	CHIP RES.	47k	1/16W	1%	RMC1/16SK473FTH	J24189525		1-	A	C3
R 1202	CHIP RES.	120k	1/16W	1%	RMC1/16SK124FTH	J24189530		1-	A	B3
R 1203	CHIP RES.	0	1/16W	5%	RMC1/16SK JPTH	J24189070		1-	B	e3
R 1204	CHIP RES.	0	1/16W	5%	RMC1/16SK822FTH	J24189070		1-	A	C3
R 1205	CHIP RES.	8.2k	1/16W	1%	RMC1/16SK822FTH	J24189522		1-	A	B3
REF DESCRIPTION VALUE V/W		TOL. MFR'S	DESIG YAESU P/N VERS.					LOT	SIDE	LAY ADR
R 1207	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	B4
R 1208	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	B4
R 1209	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	B	f4
R 1210	CHIP RES.	1M	1/16W	1%	RMC1/16SK105FTH	J24189541		1-	A	C4
R 1212	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	B	f4
R 1213	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	A4
R 1214	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	A	B2
R 1215	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	A	B2
R 1216	CHIP RES.	18k	1/16W	1%	RMC1/16SK183FTH	J24189523		1-	A	B2
R 1217	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	B	f2
R 1218	CHIP RES.	22k	1/16W	1%	RMC1/16SK223FTH	J24189492		1-	A	A2
R 1219	CHIP RES.	22k	1/16W	1%	RMC1/16SK223FTH	J24189492		1-	A	A2
R 1220	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529		1-	A	A2
R 1221	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	B	d3
R 1222	CHIP RES.	680	1/16W	1%	RMC1/16SK681FTH	J24189514		1-	B	e3
R 1223	CHIP RES.	47k	1/16W	1%	RMC1/16SK473FTH	J24189525		1-	A	A2
R 1224	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	B	d3
R 1225	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	B	d3
R 1226	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529		1-	A	A2
R 1227	CHIP RES.	22k	1/16W	1%	RMC1/16SK223FTH	J24189492		1-	A	A2
R 1228	CHIP RES.	22k	1/16W	1%	RMC1/16SK223FTH	J24189492		1-	A	A2
R 1229	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	B	e3
R 1230	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	B	e3
R 1231	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	B	d3
R 1232	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	A	C2
R 1233	CHIP RES.	220k	1/16W	1%	RMC1/16SK224FTH	J24189533		1-	A	A2
R 1234	CHIP RES.	220k	1/16W	1%	RMC1/16SK224FTH	J24189533		1-	A	B2
R 1235	CHIP RES.	220k	1/16W	1%	RMC1/16SK224FTH	J24189533		1-	A	A2
R 1236	CHIP RES.	220k	1/16W	1%	RMC1/16SK224FTH	J24189533		1-	A	A2
R 1237	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	B	d3
R 1238	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	B	d3
R 1239	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	A	C2
R 1240	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	B	d3
R 1241	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	A	C2
R 1243	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	A	C2
R 1244	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	C2
R 1245	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	A	B2
R 1246	CHIP RES.	2.2k	1/16W	1%	RMC1/16SK222FTH	J24189497		1-	A	A2
R 1247	CHIP RES.	2.2k	1/16W	1%	RMC1/16SK222FTH	J24189497		1-	A	A2
R 1248	CHIP RES.	2.2k	1/16W	1%	RMC1/16SK222FTH	J24189497		1-	A	A2
R 1249	CHIP RES.	2.2k	1/16W	1%	RMC1/16SK222FTH	J24189497		1-	A	A2
R 1250	CHIP RES.	10	1/16W	5%	RMC1/16S 100JTH	J24189001		1-	B	f4
R 1253	CHIP RES.	4.7	1/16W	5%	RMC1/16S 4R7JTH	J24189066		1-	B	d2
R 1254	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	B	e3
R 1255	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	B	e3
R 1256	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	B	f4
R 1257	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529		1-	B	f2
R 1258	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529		1-	B	f3
R 1259	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	B	f3
R 1260	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	B	f2
R 1261	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529		1-	B	f4
R 1262	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529		1-	B	f3
R 1265	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	B	f2
R 1266	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	B	f2
R 1268	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	B	f2
R 1269	CHIP RES.	2.2	1/16W	5%	RMC1/16S 2R2JTH	J24189602		1-	B	f4
R 1270	CHIP RES.	2.2	1/16W	5%	RMC1/16S 2R2JTH	J24189602		1-	B	f3
R 1271	CHIP RES.	2.2	1/16W	5%	RMC1/16S 2R2JTH	J24189602		1-	B	f3
R 1272	CHIP RES.	2.2	1/16W	5%	RMC1/16S 2R2JTH	J24189602		1-	B	f3
R 1273	CHIP RES.	2.2	1/16W	5%	RMC1/16S 2R2JTH	J24189602		1-	B	f3
R 1274	CHIP RES.	2.2	1/16W	5%	RMC1/16S 2R2JTH	J24189602		1-	B	f3
R 1275	CHIP RES.	2.2	1/16W	5%	RMC1/16S 2R2JTH	J24189602		1-	B	f3
R 1276	CHIP RES.	2.2	1/16W	5%	RMC1/16S 2R2JTH	J24189602		1-	B	f3
R 1277	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	B	f4
R 1278	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	B	f4
R 1279	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	B1
R 1280	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	F3
R 1281	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	F3
R 1282	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	F3
R 1283	CHIP RES.	2.2k	1/16W	1%	RMC1/16SK222FTH	J24189497		1-	A	F3
R 1284	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	B	d3
R 1287	CHIP RES.	5.6k	1/16W	1%	RMC1/16SK562FTH	J24189520		1-	B	c2
R 1288	CHIP RES.	470	1/16W	1%	RMC1/16SK471FTH	J24189512		1-	A	C2
R 1289	CHIP RES.	1M	1/16W	1%	RMC1/16SK105FTH	J24189541		1-	B	f3
R 1290	CHIP RES.	1M	1/16W	1%	RMC1/16SK105FTH	J24189541		1-	B	f3
R 1291	CHIP RES.	1M	1/16W	1%	RMC1/16SK105FTH	J24189541		1-	B	f3
R 1292	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	B3
R 1293	CHIP RES.	18k	1/16W	1%	RMC1/16SK183FTH	J24189523		1-	A	B3
R 1295	CHIP RES.	18k	1/16W	1%	RMC1/16SK183FTH	J24189523		1-	A	B3
R 1296	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	B	f4
R 1297	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	B	f3
R 1298	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	B	f2
R 1299	CHIP RES.	1M	1/16W	1%	RMC1/16SK105FTH	J24189541		1-	B	f3
R 1300	CHIP RES.	1M	1/16W	1%	RMC1/16SK105FTH	J24189541		1-	B	f3
R 1301	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	B1
R 1302	CHIP RES.	47	1/16W	5%	RMC1/16S 470JTH	J24189009		1-	B	e4
R 1303	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	B	d2
R 1304	CHIP RES.	5.6k	1/16W	1%	RMC1/16SK562FTH	J24189520		1-	A	C4
R 1307	CHIP RES.	0	1/16W	5%	RMC1/16 000JATP	J24185000		1-	A	F3
R 1309	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	B4
R 1310	CHIP RES.	18k	1/16W	1%	RMC1/16SK183FTH	J24189523		1-	A	C4
R 1311	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	A	C3
R 1312	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	A	B4
R 1313	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	B3
R 1314	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	B3
R 1315	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	B3
R 1316	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	D4
R 1317	CHIP RES.	8.2k	1/16W	1%	RMC1/16SK822FTH	J24189522		1-	A	B4
R 1318	CHIP RES.	12k	1/16W	1%	RMC1/16SK123FTH	J24189490		1-	A	B2
R 1319	CHIP RES.	10	1/16W	5%	RMC1/16S 100JTH	J24189001		1-	B	e2
R 1321	CHIP RES.	0	1/2W	5%	RMC1/2 JPATE	J24275000		1-	B	b2
R 1322	CHIP RES.	0	1/2W	5%	RMC1/2 JPATE	J24275000		1-	B	b2
R 1325	CHIP RES.	10	1/16W	5%	RMC1/16S 100JTH	J24189001		1-	B	f4
SC1001	SHIELD CASE				(VC2)	RA1225600		1-	A	E4
SC1002	SHIELD CASE				(VC2)	RA1225600		1-	A	F4
SC1003	SHIELD CASE				(VC2)	RA1225600		1-	A	E2
SC1004	SHIELD CASE				(VC2)	RA1225600		1-	A	D2
T 1001	BALUN TRANSFOMER				4BLH	L0023080		1-	A	F4
T 1002	BALUN TRANSFOMER				4BLH	L0023080		1-	A	F4
T 1003	BALUN TRANSFOMER				4BLH	L0023080		1-	A	F4
T 1004	BALUN TRANSFOMER				4BLH	L0023080		1-	A	E2
T 1005	BALUN TRANSFOMER				4BLH	L0023080		1-	A	F3
T 1006	BALUN TRANSFOMER				4BLH	L0023080		1-	A	E3
TH1001	THERMISTOR				NCP15WL473J03RC	G9090175		1-	B	c3
X 1001	XTALDSX321G	29.95MHz			29.95MHz	H0103402		1-	B	b4
X 1002	TCXO	21.25MHz			DSB321SDN 21.25MHz	H9501780		1-	A	D3
X 1002	TCXO	21.25MHz			DSB321SDNR 21.25MHz	H9501780A		5-	A	D3
X 1003	XTALDSX321G	8.192MHz			DSX321G 8.192MHz	H0103450		1-	B	d2
XF1001	SAW FILTER				HDF160F SMD-3	H4900027		1-	A	F2
XF1002	SAW FILTER				HDF160F SMD-3	H4900027		1-	A	F3
XF1003	XTAL FILTER				D30415GQ1 30.4MHz	H1102457		1-	A	F4
XF1004	XTAL FILTER				UM-5 MCF 21.7000MHz	H1102472		1-	A	F3
XF1005	XTAL FILTER				UM-5 MCF 21.7000MHz	H1102472		1-	A	E3

1

AIS Unit

Circuit Diagram (1/2)

AIS-1

GX6000/GX6000L Service Manual

AIS Unit
Circuit Diagram (2/2)

AIS Unit

Parts Layout (Side A)

AIS Unit
Parts Layout (Side B)

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG YAESU P/N VERS.
PCB with Components is included AIS ASSY (see Exploded View-2)
C 2002	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B a1
C 2003	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B a1
C 2004	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A D4
C 2005	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A C4
C 2006	CHIP CAP.	27pF	50V	CH	GRM1552C1H270JA01D	K22178222		1-	B a1
C 2008	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B b2
C 2009	CHIP CAP.	3pF	50V	CJ	GRM1553C1H3R0BA01D	K22178290		1-	B a1
C 2010	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22100808		1-	A D4
C 2011	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22100808		1-	A C4
C 2013	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	A D4
C 2014	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	A C4
C 2016	CHIP CAP.	27pF	50V	CH	GRM1552C1H270JA01D	K22178222		1-	B a1
C 2017	CHIP CAP.	5pF	50V	CH	GRM1552C1H5R0CA01D	K22178207		1-	B a1
C 2018	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	A D4
C 2019	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	A C4
C 2023	CHIP CAP.	10pF	50V	CH	GRM1552C1H100BA01D	K22178297		1-	B a1
C 2024	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B b2
C 2025	CHIP CAP.	10pF	50V	CH	GRM1552C1H100BA01D	K22178297		1-	A D4
C 2026	CHIP CAP.	10pF	50V	CH	GRM1552C1H100BA01D	K22178297		1-	A C4
C 2030	CHIP CAP.	2pF	50V	CK	GRM1554C1H2R0BA01D	K22178289		1-	B b2
C 2031	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	A D3
C 2032	CHIP CAP.	150pF	50V	CH	GRM1552C1H151JA01D	K22178240		1-	A D4
C 2033	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	A C3
C 2034	CHIP CAP.	150pF	50V	CH	GRM1552C1H151JA01D	K22178240		1-	A C4
C 2038	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A D4
C 2039	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A C4
C 2041	CHIP CAP.	12pF	50V	CH	GRM1552C1H120GA01D	K22179723		1-	A D4
C 2042	CHIP CAP.	12pF	50V	CH	GRM1552C1H120GA01D	K22179723		1-	A C4
C 2045	CHIP CAP.	12pF	50V	CH	GRM1552C1H120GA01D	K22179723		1-	A D4
C 2046	CHIP CAP.	12pF	50V	CH	GRM1552C1H120GA01D	K22179723		1-	A C4
C 2050	CHIP CAP.	15pF	50V	CH	GRM1552C1H150GA01D	K22178300		1-	A D3
C 2051	CHIP CAP.	15pF	50V	CH	GRM1552C1H150GA01D	K22178300		1-	A C3
C 2053	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B b2
C 2057	CHIP CAP.	2pF	50V	CK	GRM1554C1H2R0BA01D	K22178289		1-	A D3
C 2058	CHIP CAP.	2pF	50V	CK	GRM1554C1H2R0BA01D	K22178809		1-	A C3
C 2061	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A D3
C 2062	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A C3
C 2067	CHIP CAP.	10pF	50V	CH	GRM1552C1H100BA01D	K22178297		1-	B c2
C 2068	CHIP CAP.	15pF	50V	CH	GRM1552C1H150GA01D	K22178300		1-	A D3
C 2069	CHIP CAP.	15pF	50V	CH	GRM1552C1H150GA01D	K22178300		1-	A C3
C 2074	CHIP CAP.	15pF	50V	CH	GRM1552C1H150GA01D	K22178300		1-	A D3
C 2075	CHIP CAP.	15pF	50V	CH	GRM1552C1H150GA01D	K22178300		1-	A C3
C 2079	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B b2
C 2081	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B c3
C 2082	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B d3
C 2083	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B c2
C 2084	CHIP TA CAP.	0.22uF	35V		TMCSA1V224MTRF	K78160027		1-	B c4
C 2085	CHIP TA CAP.	0.22uF	35V		TMCSA1V224MTRF	K78160027		1-	B d4
C 2090	CHIP CAP.	7pF	50V	CH	GRM1552C1H7R0DA01D	K22178209		1-	B c2
C 2091	CHIP TA CAP.	4.7uF	6.3V		TMCP0J475MTRF	K78080053		1-	B c4
C 2092	CHIP TA CAP.	4.7uF	6.3V		TMCP0J475MTRF	K78080053		1-	B d4
C 2093	CHIP CAP.	0.001uF	25V	B	GRM155B11E103KA01D	K22148834		1-	A F2
C 2094	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B c3
C 2095	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B d3
C 2097	CHIP TA CAP.	0.47uF	25V		TMCSA1E474MTRF	K78140009		1-	B c4
C 2098	CHIP TA CAP.	0.47uF	25V		TMCSA1E474MTRF	K78140009		1-	B d4
C 2102	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B c3
C 2103	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B d3
C 2105	CHIP CAP.	4.7uF	6.3V		TMCP0J475MTRF	K78080053		1-	B d4
C 2106	CHIP CAP.	4.7pF	50V	CH	GRM1552C1H7R0DA01D	K22178809		1-	B c3
C 2107	CHIP CAP.	0.001uF	50V	B	GRM1552C1H7R0DA01D	K22178809		1-	B d3
C 2109	CHIP CAP.	18pF	50V	CH	GRM1552C1H7R0DA01D	K22179701		1-	B c3
C 2110	CHIP CAP.	18pF	50V	CH	GRM1552C1H7R0DA01D	K22178809		1-	B d3
C 2111	CHIP CAP.	6pF	50V	CH	GRM1552C1H7R0DA01D	K22178809		1-	B c3
C 2112	CHIP CAP.	6pF	50V	CH	GRM1552C1H7R0DA01D	K22178809		1-	B d3
C 2113	CHIP CAP.	6pF	50V	CH	GRM1552C1H7R0DA01D	K22178809		1-	B d3
C 2114	CHIP CAP.	33pF	50V	CH	GRM1552C1H7R30GA01D	K22179708		1-	B c3
C 2115	CHIP CAP.	33pF	50V	CH	GRM1552C1H7R30GA01D	K22179708		1-	B d3
C 2116	CHIP CAP.	6pF	50V	CH	GRM1552C1H7R30GA01D	K22178809		1-	B c3
C 2117	CHIP CAP.	6pF	50V	CH	GRM1552C1H7R30GA01D	K22178809		1-	B d3
C 2118	CHIP CAP.	18pF	50V	CH	GRM1552C1H7R30GA01D	K22179701		1-	B c3
C 2119	CHIP CAP.	18pF	50V	CH	GRM1552C1H7R30GA01D	K22179701		1-	B d3
C 2121	CHIP CAP.	47pF	50V	CH	GRM1552C1H7R30JA01D	K22178228		1-	B d2
C 2122	CHIP CAP.	47pF	50V	CH	GRM1552C1H7R30JA01D	K22178228		1-	B c3

REF DESCRIPTION VALUE V/W		TOL. MFR'S	DESIG YAESU P/N VERS.				LOT	SIDE	LAY ADR
C 2123	CHIP CAP.	47pF	50V	CH	GRM1552C1H470JA01D	K22178228		1-	B	e3
C 2125	CHIP CAP.	22pF	50V	CH	GRM1552C1H220GA01D	K22179707		1-	B	d2
C 2131	CHIP CAP.	22pF	50V	CH	GRM1552C1H220GA01D	K22179707		1-	B	c2
C 2133	CHIP CAP.	15pF	50V	CH	GRM1552C1H150GA01D	K22178300		1-	B	c3
C 2134	CHIP CAP.	15pF	50V	CH	GRM1552C1H150GA01D	K22178300		1-	B	d3
C 2135	CHIP CAP.	22pF	50V	CH	GRM1552C1H220GA01D	K22179707		1-	B	c2
C 2136	CHIP CAP.	22pF	50V	CH	GRM1552C1H220GA01D	K22179707		1-	B	d2
C 2139	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	A	D2
C 2140	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A	D2
C 2141	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A	E2
C 2142	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A	C1
C 2143	CHIP CAP.	47pF	50V	CH	GRM1552C1H470GA01D	K22179709		1-	B	c3
C 2144	CHIP CAP.	47pF	50V	CH	GRM1552C1H470GA01D	K22179709		1-	B	d3
C 2145	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1-	B	c3
C 2146	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1-	B	d3
C 2147	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	A	C1
C 2149	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A	C1
C 2150	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1-	B	c3
C 2151	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1-	B	d3
C 2153	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B	b1
C 2154	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	A	C1
C 2155	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	b1
C 2157	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	B	d4
C 2159	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	b1
C 2161	AL ELECTRO CAP.	220uF	10V		EE1AA221XP	K4810007		1-	A	E1
C 2163	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	b2
C 2164	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	e2
C 2167	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	A	E1
C 2168	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	A	A3
C 2169	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	A	E1
C 2171	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1-	B	d4
C 2172	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	b2
C 2173	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	e2
C 2176	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	A	E1
C 2177	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	A	A3
C 2178	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	A	A3
C 2179	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	A	E1
C 2180	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	A	E1
C 2181	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22100808		1-	B	d3
C 2183	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22100808		1-	A	B3
C 2184	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22100808		1-	A	E1
C 2186	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1-	B	c3
C 2187	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	A	E1
C 2189	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	c3
C 2190	CHIP CAP.	15pF	50V	CH	GRM1552C1H150GA01D	K22178300		1-	B	b2
C 2191	CHIP CAP.	22pF	50V	CH	GRM1552C1H220GA01D	K22179707		1-	B	e2
C 2192	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22100808		1-	A	E1
C 2193	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	d3
C 2194	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	b2
C 2195	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	e2
C 2201	CHIP CAP.	8pF	50V	CH	GRM1552C1H8R0DA01D	K22178210		1-	B	b3
C 2202	CHIP CAP.	8pF	50V	CH	GRM1552C1H8R0DA01D	K22178210		1-	B	e3
C 2209	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	b3
C 2210	CHIP CAP.	18pF	50V	CH	GRM1552C1H80GA01D	K22179701		1-	B	e3
C 2212	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22100808		1-	B	b3
C 2213	CHIP CAP.	39pF	50V	CH	GRM1552C1H390JA01D	K22178226		1-	B	e4
C 2214	CHIP CAP.	12pF	50V	CH	GRM1552C1H120GA01D	K22179723		1-	B	b3
C 2216	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	e4
C 2217	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	e4
C 2218	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1-	B	e4
C 2219	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	e3
C 2220	CHIP CAP.	0.1uF	25V	B	GRM155B31E104KA87D	K22148838		1-	B	e3
C 2221	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	e4
C 2222	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22100808		1-	B	e3
C 2223	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	e4
C 2224	CHIP CAP.	0.1uF	10V	B	GRM21BB31A106KE18L	K22100808		1-	B	e3
C 2225	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B	e4
C 2226	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22148834		1-	B	e4
C 2232	CHIP CAP.	1uF	10V	B	GRM155B31A105KE15D	K2210809		1-	B	e3
C 2233	CHIP CAP.	470pF	50V	B	GRM155B11H471JA01D	K22178805		1-	B	e3
C 2236	CHIP CAP.	22pF	50V	CH	GRM1552C1H220GA01D	K22179707
C 2238	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22100808
C 2239	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834
C 2240	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802
C 2242	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834
C 2243	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236

REF DESCRIPTION VALUE V/W		TOL. MFR'S	DESIG YAESU P/N VERS.				LOT	SIDE	LAY ADR
C 2244	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B
C 2245	CHIP CAP.	0.1uF	25V	B	GRM155B31E104KA87D	K22148838		1-	b3
C 2246	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	b4
C 2248	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	b4
C 2249	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1-	b3
C 2250	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	b4
C 2251	CHIP CAP.	470pF	50V	B	GRM155B11H471KA01D	K22178805		1-	c3
C 2252	CHIP CAP.	1uF	10V	B	GRM155B31A105KE15D	K22108809		1-	b
C 2253	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22108088		1-	b
C 2254	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	b
C 2255	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	b
C 2260	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	b
C 2263	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	b
C 2264	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	b
C 2265	CHIP CAP.	15pF	50V	CH	GRM1552C1H150GA01D	K22178300		1-	a
C 2266	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	b
C 2267	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1-	f3
C 2268	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	b
C 2269	CHIP CAP.	220pF	50V	B	GRM155B11H221KA01D	K22178801		1-	b
C 2270	CHIP CAP.	220pF	50V	B	GRM155B11H221KA01D	K22178801		1-	b
C 2271	CHIP CAP.	1uF	10V	B	GRM155B31A105KE15D	K22108809		1-	a
C 2272	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	e3
C 2273	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1-	f2
C 2274	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22108802		1-	b
C 2275	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	b
C 2276	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	b
C 2277	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	b
C 2278	CHIP CAP.	15pF	50V	CH	GRM1552C1H150GA01D	K22178300		1-	a
C 2279	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	f2
C 2280	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	b
C 2281	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	b
C 2282	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	a
C 2283	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	a
C 2284	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	a
C 2285	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22108808		1-	a
C 2286	CHIP CAP.	1uF	10V	B	GRM155B31A105KE15D	K22108809		1-	a
C 2287	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22108808		1-	a
C 2288	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	c4
C 2289	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	a
C 2290	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	a
C 2291	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	a
C 2292	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	a
C 2293	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	a
C 2294	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	a
C 2295	CHIP CAP.	1uF	10V	B	GRM21BB31A106KE18L	K22108809		1-	a
C 2296	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22108808		1-	a
C 2297	CHIP CAP.	15pF	50V	CH	GRM1552C1H150GA01D	K22178300		1-	f4
C 2298	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	a
C 2299	CHIP CAP.	0.01uF	50V	B	GRM155B11A104KA01D	K22108802		1-	a
C 2301	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22108808		1-	a
C 2303	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1-	a
C 2304	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	a
C 2306	CHIP CAP.	15pF	50V	CH	GRM1552C1H150GA01D	K22178300		1-	f4
C 2308	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1-	a
C 2309	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	a
C 2313	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	a
C 2314	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22108808		1-	a
C 2303	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236	1-	a
C 2304	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	a
C 2306	CHIP CAP.	15pF	50V	CH	GRM1552C1H101JA01D	K22178300		1-	a
C 2308	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1-	a
C 2309	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA00D	K22148834		1-	a
C 2313	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA00D	K22148834		1-	a
C 2318	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA00D	K22148834		1-	a
C 2319	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22108808		1-	a
C 2320	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	a
C 2323	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22178236		1-	a
C 2324	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	a
C 2337	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1-	a
C 2338	CHIP CAP.	1uF	10V	B	GRM155B31A105KE15D	K22108809		1-	a
C 2339	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	a
C 2340	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22108808		1-	a
C 2341	CHIP CAP.	10pF	50V	CH	GRM1552C1H100BA01D	K22178297		1-	a
C 2342	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	a
C 2343	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22108808		1-	a
C 2344	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		1-	a
C 2345	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		B	e2
C 2346	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		B	c1
C 2347	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		A	B1
C 2348	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		A	D1
C 2351	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		B	d2
C 2352	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		A	B2
C 2353	CHIP CAP.	1uF	10V	B	GRM155B31A105KE15D	K22108809		A	A3
C 2355	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		A	C1
C 2357	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		A	C2
C 2364	CHIP CAP.	0.47uF	35V	B	GMK212BJ474KG-T	K22160801		A	C1
C 2366	CHIP CAP.	100pF	50V	CH	GRM1552C1H101JA01D	K22178236		A	C1
C 2369	CHIP CAP.	2pF	50V	CK	GRM1554C1H2R0BA01D	K22178289		B	d2
C 2370	CHIP CAP.	2pF	50V	CK	GRM1554C1H2R0BA01D	K22178289		B	d2
CD2001	CERAMIC DISC				JTBM450CX24-A	H7901530A		A	B3
CD2002	CERAMIC DISC				JTBM450CX24-A	H7901530A		A	E3
CF2001	CERAMIC FILTER				LTWC450E-A	H3900565A		A	B4
CF2002	CERAMIC FILTER				LTWC450E-A	H3900565A		A	E4
D 2001	SURGE ABSORBER				EZAEG3A50AV	Q9000867		A	a1
D 2002	DIODE				L5208FR	G2071526		A	b2
D 2003	DIODE				1SS400 TE61	G2070634		A	D4
D 2004	DIODE				1SS400 TE61	G2070634		A	C4
D 2005	DIODE				1SS302(TE85R.F)	G2070088		A	b2
D 2006	DIODE				1SS302ALF(B)	G2070088A		A	b2
D 2007	DIODE				1SV325(TPH3.F)	G2070848		A	D4
D 2008	DIODE				1SV325(TPH3.F)	G2070848		A	C4
D 2009	DIODE				1SV325(TPH3.F)	G2070848		A	D4
D 2013	DIODE				BAT15-04W H6327	G2071578		A	D2
D 2014	DIODE				BAT15-04W H6327	G2071578		A	D3
D 2015	DIODE				BAT15-04W H6327	G2071578		A	C3
D 2016	DIODE				BAT15-04W H6327	G2071578		A	C2
D 2018	DIODE				1SS400 TE61	G2070634		A	A3
D 2019	DIODE				1SS400 TE61	G2070634		A	A3
D 2023	DIODE				DA221 TL	G2070178		B	e3
D 2024	DIODE				DA221 TL	G2070178		B	b3
D 2025	DIODE				1SS400 TE61	G2070634		B	f1
D 2026	DIODE				UDZS TE-17 6.8B	G2070888		A	A3
D 2027	DIODE				UDZS TE-17 6.8B	G2070888		A	A3
D 2028	DIODE				UDZS TE-17 6.8B	G2070888		B	d1
D 2029	DIODE				UDZS TE-17 6.8B	G2070888		A	A3
D 2030	DIODE				UDZS TE-17 6.8B	G2070888		A	d1
D 2032	DIODE				UDZS TE-17 6.8B	G2070888		A	C2
D 2033	DIODE				UDZS TE-17 6.8B	G2070888		A	C1
D 2035	DIODE				1SS400 TE61	G2070634		B	d2
F 2001	CHIP FUSE	2A			FCC16 202ADTP	Q0000147		A	D2
F 2002	CHIP FUSE	2A			FCC16 202ADTP	Q0000147		B	d1
F 2003	CHIP FUSE	0.63A			FCC10 631ABPA	Q0000114		A	A3
FB2002	FERRITE BEADS				BLM15AG121SN1D	L1690843		A	A3
FB2003	FERRITE BEADS				BLM15AG121SN1D	L1690843		A	A3
FB2004	FERRITE BEADS				BLM15AG121SN1D	L1690843		A	A3
FB2005	FERRITE BEADS				BLM15AG121SN1D	L1690843		A	A3
FB2006	FERRITE BEADS				BLM15AG121SN1D	L1690843		A	A3
FB2007	FERRITE BEADS				BLM18BD601SN1D	L9190143		A	B1
FB2008	FERRITE BEADS				BLM18BD601SN1D	L9190143		A	B1
FB2009	FERRITE BEADS				BLM18BD601SN1D	L9190143		A	B1
FB2010	FERRITE BEADS				BLM18BD601SN1D	L9190143		A	B1
FB2011	FERRITE BEADS				BLM18BD601SN1D	L9190143		A	B1
FB2012	FERRITE BEADS				BLM18BD601SN1D	L9190143		A	B1
FB2013	FERRITE BEADS				BLM18BD601SN1D	L9190143		A	C2
FB2014	FERRITE BEADS				BLM18BD601SN1D	L9190143		A	C1
FB2015	FERRITE BEADS				BLM18BD601SN1D	L9190143		A	C2
FB2016	FERRITE BEADS				BLM18BD601SN1D	L9190143		A	C1
FB2017	FERRITE BEADS				BLM18BD601SN1D	L9190143		A	C1
FB2018	FERRITE BEADS				BLM18BD601SN1D	L9190143		A	B1
FB2019	FERRITE BEADS				BLM18BD601SN1D	L9190143		A	B1
FB2020	FERRITE BEADS				BLM18BD601SN1D	L9190143		A	C2
FB2021	FERRITE BEADS				BLM18BD601SN1D	L9190143		A	C2
FB2022	FERRITE BEADS				BLM18BD601SN1D	L9190143		A	C1
FB2023	FERRITE BEADS				BLM18BD601SN1D	L9190143		A	C2
FB2024	FERRITE BEADS				BLM18BD601SN1D	L9190143		A	C1
FB2025	FERRITE BEADS				BLM18BD601SN1D	L9190143		A	C2
FB2026	FERRITE BEADS				BLM18BD601SN1D	L9190143		A	C2

REF DESCRIPTION VALUE V/W		TOL. MFR'S	DESIG YAESU P/N VERS.
J 2004	CONNECTOR				24FLT-SM2-TB(LF)(SN)(M)	P1091128		1-	A	C2
L 2001	M.RFC	0.047uH		2%	1008CS-470XGLC	L1691666		1-	B	a1
L 2002	M.RFC	0.22uH			HK1608 R22J-T	L1690940		1-	A	D4
L 2003	M.RFC	0.22uH			HK1608 R22J-T	L1690940		1-	A	C4
L 2004	M.RFC	0.047uH		2%	1008CS-470XGLC	L1691666		1-	B	a1
L 2005	CHIP COIL	0.1uH		2%	LQW18ANR10G00D	L1690892		1-	B	b2
L 2006	M.RFC	0.022uH		2%	1008CS-220XGLC	L1691662		1-	B	a2
L 2008	M.RFC	0.22uH			HK1608 R22J-T	L1690940		1-	A	D4
L 2009	M.RFC	0.22uH			HK1608 R22J-T	L1690940		1-	A	C4
L 2010	M.RFC	0.047uH		2%	1008CS-470XGLC	L1691666		1-	B	a2
L 2011	M.RFC	0.056uH		2%	1008CS-560XGLC	L1691667		1-	A	D4
L 2012	M.RFC	0.056uH		2%	1008CS-560XGLC	L1691667		1-	A	C4
L 2013	M.RFC	0.22uH			HK1608 R22J-T	L1690940		1-	A	D4
L 2014	M.RFC	0.22uH			HK1608 R22J-T	L1690940		1-	A	C4
L 2017	CHIP COIL	0.33uH		2%	LQW18ANR33G00D	L1691789		1-	A	D3
L 2018	CHIP COIL	0.33uH		2%	LQW18ANR33G00D	L1691789		1-	A	C3
L 2020	CHIP COIL	0.27uH		2%	LQW18ANR27G00D	L1691785		1-	B	b2
L 2022	M.RFC	0.15uH			HK1005 R15J-T	L1691826		1-	A	D3
L 2023	M.RFC	0.15uH			HK1005 R15J-T	L1691826		1-	A	C3
L 2024	M.RFC	0.033uH			HK1005 33NJ-T	L1691383		1-	A	D3
L 2025	M.RFC	0.033uH			HK1005 33NJ-T	L1691383		1-	A	C3
L 2028	M.RFC	0.15uH			HK1005 R15J-T	L1691826		1-	B	c2
L 2030	M.RFC	0.15uH			HK1005 R15J-T	L1691826		1-	B	c3
L 2031	M.RFC	0.15uH			HK1005 R15J-T	L1691826		1-	B	d3
L 2033	M.RFC	0.033uH			HK1005 33NJ-T	L1691383		1-	B	c3
L 2034	M.RFC	0.033uH			HK1005 33NJ-T	L1691383		1-	B	d3
L 2036	M.RFC	0.027uH			HK1005 27NJ-T	L1691382		1-	B	c3
L 2037	M.RFC	0.027uH			HK1005 27NJ-T	L1691382		1-	B	d3
L 2038	CHIP COIL	0.068uH		2%	LQW18AN68NG00D	L1690890		1-	B	d2
L 2039	CHIP COIL	0.068uH		2%	LQW18AN68NG00D	L1690890		1-	B	c2
L 2040	CHIP COIL	0.068uH		2%	LQW18AN68NG00D	L1690890		1-	B	d2
L 2042	M.RFC	0.033uH			HK1005 33NJ-T	L1691383		1-	B	c3
L 2043	M.RFC	0.033uH			HK1005 33NJ-T	L1691383		1-	B	d3
L 2044	CHIP COIL	0.1uH		2%	LQW18ANR10G00D	L1690892		1-	B	b2
L 2045	CHIP COIL	0.1uH		2%	LQW18ANR10G00D	L1690892		1-	B	e2
L 2046	M.RFC	4.7uH			LK1608 4R7K-T	L1690688		1-	B	b2
L 2047	M.RFC	4.7uH			LK1608 4R7K-T	L1690688		1-	B	e2
L 2050	M.RFC	0.82uH		2%	1008CS-821XGLC	L1691683		1-	B	b2
L 2051	M.RFC	0.82uH		2%	1008CS-821XGLC	L1691683		1-	B	e2
L 2054	M.RFC	1uH			LK1608 1R0K-T	L1690687		1-	B	e3
L 2056	M.RFC	1uH			LK1608 1R0K-T	L1690687		1-	B	b3
L 2057	M.RFC	0.47uH			LK1608 R47K-T	L1690414		1-	B	e4
L 2059	M.RFC	0.47uH			LK1608 R47K-T	L1690414		1-	B	b4
L 2060	M.RFC	0.47uH			LK1608 R47K-T	L1690414		1-	B	f3
Q 2002	TRANSISTOR				2SC4617 TL R	G3346178R		1-	A	D4
Q 2003	TRANSISTOR				2SC4617 TL R	G3346178R		1-	A	C4
Q 2007	FET				CPH3910-TL-E	G3070486		1-	A	D4
Q 2008	FET				CPH3910-TL-E	G3070486		1-	A	C4
Q 2012	TRANSISTOR				2SC5066-O,LF(T)	G3350668		1-	A	D3
Q 2013	TRANSISTOR				2SC5066-O,LF(T)	G3350668		1-	A	C3
Q 2015	FET				3SK294(TE85L)	G4802948A		1-	B	b2
Q 2019	TRANSISTOR				2SC5226A-5-TL-E	G3070417		1-	B	c3
Q 2020	TRANSISTOR				2SC5226A-5-TL-E	G3070417		1-	B	d3
Q 2022	FET				RRR030P03	G3070448		1-	A	E2
Q 2023	TRANSISTOR				DTC144EE TL	G3070075		1-	A	F2
Q 2026	TRANSISTOR				DTC144EE TL	G3070075		1-	A	E2
Q 2027	TRANSISTOR				DTC144EE TL	G3070075		1-	A	C1
Q 2028	FET				RRR030P03	G3070448		1-	A	E2
Q 2029	TRANSISTOR				2SB1132 T100 R	G3211327R		1-	A	C1
Q 2030	IC				NJM7808DL1A-TE1	G1093802		1-	B	b1
Q 2032	IC				GP214D	G1094977		1-	B	d4
Q 2033	IC				TAR5S50U(TE85L.F)	G1094097		1-	A	E1
Q 2034	IC				TAR5S33U(TE85L.F)	G1094549		1-	A	A3
Q 2035	IC				TAR5S33U(TE85L.F)	G1094549		1-	A	E1
Q 2036	TRANSISTOR				2SC4915-O(TE85L.F)	G3349158O		1-	B	b2
Q 2037	TRANSISTOR				2SC4915-O(TE85L.F)	G3349158O		1-	B	e2
Q 2041	TRANSISTOR				2SC4915-O(TE85L.F)	G3349158O		1-	B	b3
Q 2042	TRANSISTOR				2SC4915-O(TE85L.F)	G3349158O		1-	B	e3
Q 2043	IC				NJM2591V-TE1	G1094024		1-	B	e4
Q 2044	IC				NJM2591V-TE1	G1094024		1-	B	b4
Q 2046	TRANSISTOR				UMG3N TR	G3070350		1-	B	c4
Q 2048	TRANSISTOR				UMG3N TR	G3070350		1-	B	c5
Q 2049	TRANSISTOR				NJM2734V	G1095021		1-	A	A2
Q 2050	TRANSISTOR				UMG3N TR	G3070350		1-	B	c4
Q 2051	IC				SN74LVC1G04DCKR	G1093972		1-	B	f2
REF DESCRIPTION VALUE V/W	TOL.	MFR'S	DESIG YAESU P/N VERS.					LOT	SIDE	LAY ADR
Q 2052	TRANSISTOR				UMG3N TR	G3070350		1-	B	c5
Q 2053	TRANSISTOR				DTC143ZE TL	G3070102		1-	B	c4
Q 2054	IC		R5F56308DDFP			×		1-	A	A4
Q 2055	IC		CMX7042L4			×		1-	A	A2
Q 2056	IC				R1EX24128BTAS0I	G1095026		1-	A	A4
Q 2057	IC				74VHCT14AFT(BJ)	G1095166		1-	B	d1
Q 2058	IC				74VHCT14AFT(BJ)	G1095166		1-	B	f1
Q 2059	IC				ISO7421DR	G1095188		1-	B	c1
Q 2060	TRANSISTOR				UMD6N TR	G3070215		1-	B	e1
Q 2061	TRANSISTOR				UMD6N TR	G3070215		1-	B	e1
Q 2062	PHOTO COUPLER				ACPL-M50L-500E	G0090040		1-	B	f1
Q 2063	TRANSISTOR				2SC4617 TL R	G3346178R		1-	A	A3
Q 2064	TRANSISTOR				UMD6N TR	G3070215		1-	B	e1
Q 2065	TRANSISTOR				UMD6N TR	G3070215		1-	B	e1
Q 2066	IC				SN65HVD1050DR	G1095190		1-	B	d1
Q 2067	IC				NJM78M05DL1A-TE1	G1093660		1-	A	C1
R 2001	CHIP RES.	47k	1/16W	1%	RMC1/16SK473FTH	J24189525		1-	B	a1
R 2003	CHIP RES.	0	1/16W	5%	RMC1/16SK JPTH	J24189070		1-	A	F2
R 2004	CHIP RES.	4.7k	1/16W	1%	RMC1/16SK472FTH	J24189488		1-	A	D4
R 2005	CHIP RES.	4.7k	1/16W	1%	RMC1/16SK472FTH	J24189488		1-	A	C4
R 2007	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	A	D4
R 2008	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	A	C4
R 2014	CHIP RES.	47	1/16W	0.5%	RR0510R-470-D	J24189087		1-	A	D4
R 2015	CHIP RES.	47	1/16W	0.5%	RR0510R-470-D	J24189087		1-	A	C4
R 2020	CHIP RES.	150	1/16W	0.5%	RR0510P-151-D	J24189099		1-	A	D3
R 2021	CHIP RES.	150	1/16W	0.5%	RR0510P-151-D	J24189099		1-	A	C3
R 2027	CHIP RES.	68k	1/16W	1%	RMC1/16SK683FTH	J24189527		1-	A	D3
R 2028	CHIP RES.	68k	1/16W	1%	RMC1/16SK683FTH	J24189527		1-	A	C3
R 2029	CHIP RES.	22k	1/16W	1%	RMC1/16SK223FTH	J24189492		1-	B	b2
R 2033	CHIP RES.	27k	1/16W	1%	RMC1/16SK273FTH	J24189493		1-	B	b2
R 2034	CHIP RES.	47	1/16W	5%	RMC1/16S 470JTH	J24189009		1-	A	D3
R 2035	CHIP RES.	47	1/16W	5%	RMC1/16S 470JTH	J24189009		1-	A	C3
R 2038	CHIP RES.	47k	1/16W	1%	RMC1/16SK473FTH	J24189525		1-	B	c2
R 2040	CHIP RES.	33k	1/16W	1%	RMC1/16SK333FTH	J24189494		1-	B	c2
R 2042	CHIP RES.	47	1/16W	5%	RMC1/16S 470JTH	J24189009		1-	B	b2
R 2044	CHIP RES.	2.2k	1/16W	1%	RMC1/16SK222FTH	J24189497		1-	B	c2
R 2045	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	B	c4
R 2046	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	B	d4
R 2049	CHIP RES.	47	1/16W	5%	RMC1/16S 470JTH	J24189009		1-	B	c3
R 2050	CHIP RES.	47	1/16W	5%	RMC1/16S 470JTH	J24189009		1-	B	d3
R 2053	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	B	c4
R 2054	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	B	d4
R 2056	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	B	c3
R 2057	CHIP RES.	2.2k	1/16W	1%	RMC1/16SK222FTH	J24189497		1-	B	c3
R 2058	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	B	d3
R 2059	CHIP RES.	2.2k	1/16W	1%	RMC1/16SK222FTH	J24189497		1-	B	d3
R 2060	CHIP RES.	47	1/16W	5%	RMC1/16SK222FTH	J24189009		1-	B	c2
R 2061	CHIP RES.	560	1/16W	1%	RMC1/16SK561FTH	J24189513		1-	B	c4
R 2062	CHIP RES.	560	1/16W	1%	RMC1/16SK561FTH	J24189513		1-	B	d4
R 2064	CHIP RES.	47	1/16W	5%	RMC1/16S 470JTH	J24189009		1-	B	c3
R 2065	CHIP RES.	47	1/16W	5%	RMC1/16S 470JTH	J24189009		1-	B	d3
R 2069	CHIP RES.	2.2k	1/16W	1%	RMC1/16SK222FTH	J24189497		1-	B	c3
R 2070	CHIP RES.	2.2k	1/16W	1%	RMC1/16SK222FTH	J24189497		1-	B	d3
R 2072	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	A	F1
R 2073	CHIP RES.	47k	1/16W	1%	RMC1/16SK473FTH	J24189525		1-	A	E1
R 2091	CHIP RES.	47k	1/16W	1%	RMC1/16SK473FTH	J24189525		1-	A	E2
R 2094	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	A	E2
R 2095	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529		1-	A	C1
R 2096	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	A	C1
R 2100	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	B	d4
R 2101	CHIP RES.	33k	1/16W	1%	RMC1/16SK333FTH	J24189494		1-	B	d4
R 2102	CHIP RES.	18k	1/16W	1%	RMC1/16SK183FTH	J24189523		1-	B	d4
R 2103	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	B	d4
R 2104	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	B	d4
R 2106	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	B	c4
R 2108	CHIP RES.	270	1/16W	1%	RMC1/16SK271FTH	J24189509		1-	B	b2
R 2109	CHIP RES.	270	1/16W	1%	RMC1/16SK271FTH	J24189509		1-	B	e2
R 2111	CHIP RES.	2.7k	1/16W	1%	RMC1/16SK272FTH	J24189517		1-	B	b2
R 2112	CHIP RES.	2.7k	1/16W	1%	RMC1/16SK272FTH	J24189517		1-	B	e2
R 2113	CHIP RES.	3.9k	1/16W	1%	RMC1/16SK392FTH	J24189519		1-	B	b2
R 2114	CHIP RES.	3.9k	1/16W	1%	RMC1/16SK392FTH	J24189519		1-	B	e2
R 2115	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	B	b3
R 2116	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	B	e3
R 2118	CHIP RES.	47	1/16W	5%	RMC1/16SK470JTH	J24189009		1-	B	b2
R 2119	CHIP RES.	47	1/16W	5%	RMC1/16SK470JTH	J24189009		1-	B	e2

REF DESCRIPTION VALUE V/W		TOL. MFR'S	DESIG YAESU P/N VERS.				LOT	SIDE	LAY ADR
R 2121	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	b2
R 2122	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	e2
R 2123	CHIP RES.	0	1/16W	5%	RMC1/16SK JPTH	J24189070	1-	B	d4
R 2129	CHIP RES.	560	1/16W	1%	RMC1/16SK561FTH	J24189513	1-	B	c3
R 2130	CHIP RES.	560	1/16W	1%	RMC1/16SK561FTH	J24189513	1-	B	e3
R 2132	CHIP RES.	470k	1/16W	1%	RMC1/16SK474FTH	J24189537	1-	B	c3
R 2133	CHIP RES.	2.2k	1/16W	1%	RMC1/16SK222FTH	J24189497	1-	B	e3
R 2134	CHIP RES.	470k	1/16W	1%	RMC1/16SK474FTH	J24189537	1-	B	e3
R 2136	CHIP RES.	2.2k	1/16W	1%	RMC1/16SK222FTH	J24189497	1-	B	b3
R 2139	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489	1-	B	b3
R 2140	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489	1-	B	e3
R 2141	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	e3
R 2142	CHIP RES.	4.7k	1/16W	1%	RMC1/16SK472FTH	J24189488	1-	B	e3
R 2147	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	b3
R 2151	CHIP RES.	4.7k	1/16W	1%	RMC1/16SK472FTH	J24189488	1-	B	b3
R 2156	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070	1-	B	b4
R 2157	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070	1-	B	b4
R 2158	CHIP RES.	4.7k	1/16W	1%	RMC1/16SK472FTH	J24189488	1-	B	b4
R 2159	CHIP RES.	4.7k	1/16W	1%	RMC1/16SK472FTH	J24189488	1-	B	b4
R 2160	CHIP RES.	47k	1/16W	1%	RMC1/16SK473FTH	J24189525	1-	A	a2
R 2163	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489	1-	A	a2
R 2164	CHIP RES.	4.7k	1/16W	1%	RMC1/16SK472FTH	J24189488	1-	B	b5
R 2167	CHIP RES.	4.7k	1/16W	1%	RMC1/16SK472FTH	J24189488	1-	B	b5
R 2170	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489	1-	A	a3
R 2171	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489	1-	A	a2
R 2172	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489	1-	A	a3
R 2173	CHIP RES.	22	1/16W	5%	RMC1/16S 220JTH	J24189005	1-	B	e3
R 2174	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489	1-	B	f2
R 2175	CHIP RES.	4.7k	1/16W	1%	RMC1/16SK472FTH	J24189488	1-	B	b4
R 2176	CHIP RES.	4.7k	1/16W	1%	RMC1/16SK472FTH	J24189488	1-	B	b4
R 2177	CHIP RES.	47k	1/16W	1%	RMC1/16SK473FTH	J24189525	1-	A	a2
R 2178	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487	1-	B	f2
R 2179	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489	1-	A	a2
R 2180	CHIP RES.	4.7k	1/16W	1%	RMC1/16SK472FTH	J24189488	1-	B	b5
R 2181	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489	1-	A	a2
R 2182	CHIP RES.	470k	1/16W	1%	RMC1/16SK474FTH	J24189537	1-	A	a2
R 2183	CHIP RES.	4.7k	1/16W	1%	RMC1/16SK472FTH	J24189488	1-	B	b5
R 2190	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070	1-	A	b4
R 2191	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070	1-	A	b4
R 2192	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070	1-	A	b4
R 2193	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070	1-	A	b4
R 2194	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070	1-	A	b4
R 2195	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070	1-	A	a3
R 2196	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070	1-	A	a3
R 2197	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070	1-	A	a3
R 2198	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070	1-	A	a3
R 2199	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070	1-	A	a3
R 2200	CHIP RES.	4.7k	1/16W	1%	RMC1/16SK472FTH	J24189488	1-	B	c5
R 2201	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070	1-	A	b5
R 2202	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489	1-	A	b4
R 2203	CHIP RES.	0	1/16W	5%	RMC1/16SK103FTH	J24189489	1-	A	b5
R 2204	CHIP RES.	0	1/16W	5%	RMC1/16SK103FTH	J24189070	1-	A	a3
R 2205	CHIP RES.	0	1/16W	5%	RMC1/16SK103FTH	J24189070	1-	A	a3
R 2206	CHIP RES.	0	1/16W	5%	RMC1/16SK103FTH	J24189070	1-	A	a3
R 2208	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487	1-	A	a2
R 2209	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487	1-	A	a2
R 2210	CHIP RES.	22	1/16W	5%	RMC1/16SK122JTH	J24189005	1-	A	b2
R 2211	CHIP RES.	0	1/16W	5%	RMC1/16SK683FTH	J24189527	1-	A	a2
R 2212	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489	1-	A	a4
R 2213	CHIP RES.	47k	1/16W	1%	RMC1/16SK473FTH	J24189525	1-	A	b4
R 2214	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070	1-	A	a2
R 2215	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489	1-	A	a4
R 2220	CHIP RES.	1k	1/16W	1%	RMC1/16SK103FTH	J24189489	1-	A	a4
R 2221	CHIP RES.	1k	1/16W	5%	RMC1/16SK103FTH	J24189489	1-	A	a4
R 2222	CHIP RES.	4.7k	1/16W	1%	RMC1/16SK472FTH	J24189488	1-	A	a4
R 2223	CHIP RES.	0	1/16W	5%	RMC1/16SK JPTH	J24189070	1-	A	a4
R 2224	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487	1-	A	a2
R 2225	CHIP RES.	68k	1/16W	1%	RMC1/16SK683FTH	J24189527	1-	A	a2
R 2226	CHIP RES.	1k	1/16W	5%	RMC1/16SK102FTH	J24189487	1-	A	a2
R 2227	CHIP RES.	100k	1/16W	5%	RMC1/16SK104FTH	J24189529	1-	A	a2
R 2221	CHIP RES.	0	1/16W	5%	RMC1/16SK JPTH	J24189070	1-	A	a4
R 2222	CHIP RES.	4.7k	1/16W	1%	RMC1/16SK472FTH	J24189488	1-	A	a4

REF DESCRIPTION VALUE V/W		TOL. MFR'S	DESIG YAESU P/N VERS.				LOT	SIDE	LAY ADR
R 2230	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	A4
R 2231	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	A	A2
R 2232	CHIP RES.	4.7k	1/16W	1%	RMC1/16SK472FTH	J24189488		1-	A	A4
R 2233	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	A	A2
R 2234	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	A4
R 2235	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529		1-	A	A2
R 2237	CHIP RES.	47k	1/16W	1%	RMC1/16SK473FTH	J24189525		1-	A	A2
R 2238	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	A	A5
R 2239	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	A	A5
R 2240	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	A5
R 2241	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	A5
R 2242	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	A	A2
R 2243	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	A4
R 2244	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	A	A4
R 2246	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	A	A2
R 2249	CHIP RES.	4.7	1/16W	5%	RMC1/16S 4R7JTH	J24189066		1-	A	A3
R 2250	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	A	A4
R 2251	CHIP RES.	47k	1/16W	1%	RMC1/16SK473FTH	J24189525		1-	A	B2
R 2252	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	A4
R 2253	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	A	A4
R 2254	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	A4
R 2255	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	A4
R 2256	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	A4
R 2257	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	A4
R 2258	CHIP RES.	47k	1/16W	1%	RMC1/16SK473FTH	J24189525		1-	A	B2
R 2259	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	A4
R 2260	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	A	A4
R 2261	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	A4
R 2262	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	A	A4
R 2263	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	A	A4
R 2264	CHIP RES.	10	1/16W	5%	RMC1/16S 100JTH	J24189001		1-	B	f1
R 2265	CHIP RES.	47	1/16W	5%	RMC1/16S 470JTH	J24189009		1-	B	d1
R 2266	CHIP RES.	33k	1/16W	1%	RMC1/16SK333FTH	J24189494		1-	B	f1
R 2267	CHIP RES.	18k	1/16W	1%	RMC1/16SK183FTH	J24189523		1-	B	f1
R 2268	CHIP RES.	33k	1/16W	1%	RMC1/16SK333FTH	J24189494		1-	B	d1
R 2269	CHIP RES.	18k	1/16W	1%	RMC1/16SK183FTH	J24189523		1-	B	d1
R 2270	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	B	f1
R 2271	CHIP RES.	33k	1/16W	1%	RMC1/16SK333FTH	J24189494		1-	B	d1
R 2272	CHIP RES.	47k	1/16W	1%	RMC1/16SK473FTH	J24189525		1-	B	f1
R 2273	CHIP RES.	18k	1/16W	1%	RMC1/16SK183FTH	J24189523		1-	B	d1
R 2274	CHIP RES.	22	1/16W	5%	RMC1/16S 220JTH	J24189005		1-	B	c1
R 2275	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	B	d1
R 2276	CHIP RES.	47k	1/16W	1%	RMC1/16SK473FTH	J24189525		1-	A	A2
R 2277	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	B	e1
R 2278	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	B	e1
R 2279	CHIP RES.	22k	1/16W	5%	RMC1/16SK223FTH	J24189492		1-	A	A1
R 2280	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	B	e1
R 2281	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	B	e1
R 2282	CHIP RES.	1k	1/16W	1%	RMC1/16SK102FTH	J24189487		1-	B	e1
R 2283	CHIP RES.	0	1/16W	5%	RMC1/16SK102FTH	J24189070		1-	A	A2
R 2284	CHIP RES.	1.5k	1/16W	1%	RMC1/16SK152FTH	J24189496		1-	A	A4
R 2285	CHIP RES.	22k	1/16W	1%	RMC1/16SK223FTH	J24189492		1-	A	A1
R 2286	CHIP RES.	470	1/16W	1%	RMC1/16SK471FTH	J24189512		1-	A	A2
R 2287	CHIP RES.	120	1/4W	5%	RMC1/4 121JATP	J24245121		1-	B	e1
R 2288	CHIP RES.	120	1/4W	5%	RMC1/4 121JATP	J24245121		1-	B	e1
R 2289	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	A	A1
R 2290	CHIP RES.	2.2M	1/16W	5%	RMC1/16SK225JTH	J24189065		1-	A	A3
R 2291	CHIP RES.	820	1/4W	5%	RMC1/4 821JATP	J24245821		1-	B	f1
R 2292	CHIP RES.	150k	1/16W	1%	RMC1/16SK154FTH	J24189531		1-	A	A3
R 2293	CHIP RES.	22	1/16W	5%	RMC1/16SK220JTH	J24189005		1-	A	A3
R 2294	CHIP RES.	22	1/16W	5%	RMC1/16SK220JTH	J24189005		1-	A	A3
R 2295	CHIP RES.	120	1/4W	5%	RMC1/4 121JATP	J24245121		1-	B	e1
R 2296	CHIP RES.	120	1/4W	5%	RMC1/4 121JATP	J24245121		1-	B	e1
R 2297	CHIP RES.	33k	1/16W	1%	RMC1/16SK333FTH	J24189494		1-	A	A3
R 2298	CHIP RES.	18k	1/16W	1%	RMC1/16SK183FTH	J24189523		1-	A	A3
R 2299	CHIP RES.	100	1/4W	5%	RMC1/4 101JATP	J24245101		1-	B	d1
R 2300	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	B	d2
R 2301	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	B	e1
R 2302	CHIP RES.	0	1/16W	5%	RMC1/16SK JPTH	J24189070		1-	A	C2
R 2303	CHIP RES.	4.7k	1/16W	1%	RMC1/16SK472FTH	J24189488		1-	A	G2
SC2001	SHIELD CASE				(VC2)	RA1225600		1-	A	D4
SC2002	SHIELD CASE				(VC2)	RA1225600
SC2003	SHIELD CASE				(VC2)	RA1225600
SC2004	SHIELD CASE
T 2001 BALUN TRANSFOMER
REF DESCRIPTION VALUE V/W		TOL. MFR'S	DESIG YAESU P/N VERS.					LOT	SIDE	LAY ADR
T 2002	BALUN TRANSFOMER				4BLH	L0023080		1-	A	C2
T 2003	BALUN TRANSFOMER				4BLH	L0023080		1-	A	E2
T 2004	BALUN TRANSFOMER				4BLH	L0023080		1-	A	C2
X 2001	VCTCXO	15.6MHz			DSA321SDN 15.6MHZ	H9501740		1-	B	b4
X 2002	TCXO	19.2MHz			DSB321SDN 19.2MHZ	H9501760		1-	B	e2
X 2002	TCXO	19.2MHz			DSB321SDNR 19.2MHZ	H9501760A		5-	B	e2
X 2003	XTAL DSX321G	12MHz			DSX321G 12.000MHZ	H0103442		1-	B	f4
X 2003	XTAL DSX321G	12MHz			DSX321G 12MHZ AA0V	H0103466		9-	B	f4
XF2001	SAW FILTER				HDF160F SMD-3	H4900027		1-	B	b2
XF2002	SAW FILTER				HDF160F SMD-3	H4900027		1-	B	d2
XF2003	XTAL FILTER				D47215GQ3 47.250MHZ	H1102483		1-	B	b3
XF2004	XTAL FILTER	MHz			D38815GQ15 38.85M	H1102458		1-	B	e3

CNTL Unit

Circuit Diagram (1/2)

CNTL-1
GX6000/GX6000L Service Manual

CNTL Unit

Circuit Diagram (2/2)

CNTL-2

GX6000/GX6000L Service Manual

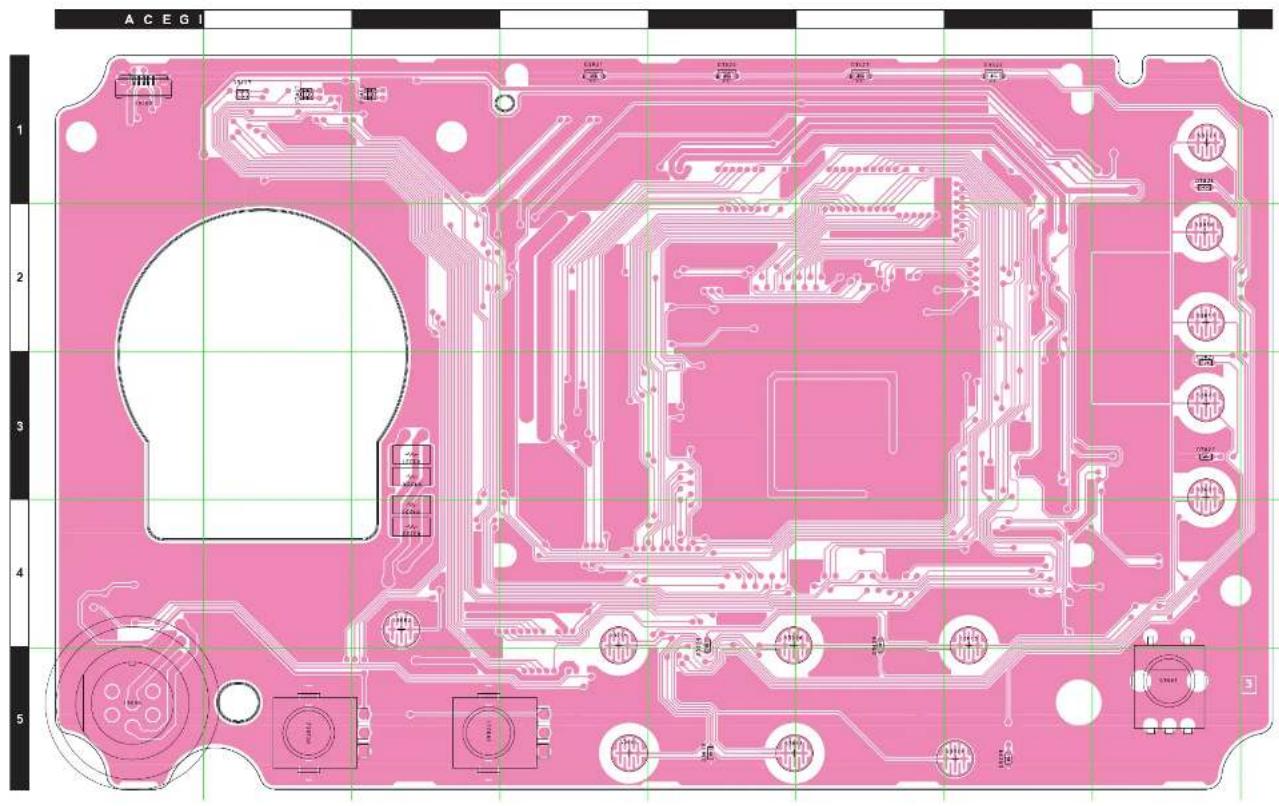

CNTL Unit

Parts Layout (Side A)

CNTL-3

GX6000/GX6000E Service Manual

CNTL Unit

Parts Layout (Side B)

CNTL-4

GX6000/GX6000L Service Manual

REF DESCRIPTION VALUE V/W		TOL. MFR'S	DESIG YAESU P/N VERS.
PCB with Components is included CNTL ASSY (see Exploded View-1)
C 3001	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B a2
C 3003	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B d1
C 3004	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B d2
C 3005	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B d1
C 3006	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B g1
C 3007	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B e1
C 3008	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B d2
C 3009	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B a1
C 3010	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B d1
C 3011	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B g1
C 3012	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B e1
C 3013	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B d2
C 3014	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22100808		1-	B a1
C 3015	CHIP CAP.	47pF	50V	CH	GRM1552C1H470JA01D	K22178228		1-	B g1
C 3016	CHIP CAP.	47pF	50V	CH	GRM1552C1H470JA01D	K22178228		1-	B e1
C 3017	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B d1
C 3018	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B d2
C 3019	CHIP CAP.	47pF	50V	CH	GRM1552C1H470JA01D	K22178228		1-	B g1
C 3020	CHIP CAP.	47pF	50V	CH	GRM1552C1H470JA01D	K22178228		1-	B e1
C 3021	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B d1
C 3022	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B d2
C 3023	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B d1
C 3024	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B d2
C 3025	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B b1
C 3026	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B d1
C 3027	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B b1
C 3028	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B d2
C 3029	CHIP CAP.	1uF	10V	B	GRM155B31A105KE15D	K22108809		1-	B h1
C 3030	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B d2
C 3031	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B d1
C 3032	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B d2
C 3033	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B b2
C 3034	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B b2
C 3035	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B b1
C 3036	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B d1
C 3037	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B c2
C 3038	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B c1
C 3039	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B c2
C 3040	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B c1
C 3041	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B c2
C 3042	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B c1
C 3043	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B c2
C 3044	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B b1
C 3045	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B b1
C 3046	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B c1
C 3047	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B c2
C 3048	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B b1
C 3049	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B b1
C 3050	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B c1
C 3051	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	B f2
C 3052	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22108802		1-	B b2
C 3053	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22108802		1-	B b1
C 3054	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B c2
C 3055	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22178802		1-	B c2
C 3056	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178802		1-	B c2
C 3057	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178802		1-	B c1
C 3058	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178802		1-	B c2
C 3059	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178802		1-	B c1
C 3060	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	B c2
C 3061	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	B c2
C 3062	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	B c1
C 3063	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	B c2
C 3064	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	B c2
C 3065	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	B c2
C 3066	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	B c1
C 3067	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	B c1
C 3068	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B b4
C 3069	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B b4
C 3072	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22108808		1-	B c2
C 3073	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B c2
C 3074	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	B b2
C 3075	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	B b4
C 3076	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	B e1
C 3077	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	B d1
REF DESCRIPTION VALUE V/W	TOL. MFR'S	DESIG YAESU P/N VERS.
		C3078	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220
C3079	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	B
C3080	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	B
C3081	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	b5
C3083	CHIP CAP.	12pF	50V	CH	GRM1552C1H120JA01D	K22178214		1-	b3
C3084	CHIP CAP.	12pF	50V	CH	GRM1552C1H120JA01D	K22178214		1-	b3
C3085	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22100808		1-	d4
C3086	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	c4
C3087	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	d4
C3088	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	c2
C3089	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178220		1-	c1
C3090	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22100808		1-	d2
C3091	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	d2
C3092	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	e3
C3093	CAP.	0.08F	3.3V		XH414HG-IV01E	K60060004		1-	e3
C3094	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	c2
C3095	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	b4
C3096	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	b4
C3097	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	b3
C3098	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	b3
C3099	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22108802		1-	b4
C3100	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	d1
C3101	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22108802		1-	b3
C3102	CHIP CAP.	1uF	25V	B	GRM188B31E105KA75D	K22144815		1-	c1
C3103	CHIP CAP.	1uF	25V	B	GRM188B31E105KA75D	K22144815		1-	d1
C3104	CHIP CAP.	1uF	25V	B	GRM188B31E105KA75D	K22144815		1-	d1
C3105	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	a3
C3106	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	a4
C3107	FILM CAP.	0.027uF	16V		ECHU1C273JX5	K57120041		1-	a4
C3108	FILM CAP.	0.027uF	16V		ECHU1C273JX5	K57120041		1-	a3
C3109	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	a3
C3110	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	a4
C3111	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	a3
C3112	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	h4
C3113	CHIP CAP.	0.0068uF	25V	B	GRM155B11E682KA01D	K22148803		1-	a4
C3114	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	a4
C3115	CHIP CAP.	0.0068uF	25V	B	GRM155B11E682KA01D	K22148803		1-	a3
C3116	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	a3
C3117	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	h4
C3118	CHIP CAP.	0.0022uF	50V	B	GRM155B11H222KA01D	K22178813		1-	b4
C3119	CHIP CAP.	0.0022uF	50V	B	GRM155B11H222KA01D	K22178813		1-	b3
C3120	CHIP CAP.	15pF	50V	CH	GRM1552C1H150GA01D	K22178300		1-	h4
C3121	CHIP CAP.	0.0056uF	25V	B	GRM155B11E562KA01D	K22148802		1-	h4
C3122	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	h4
C3123	CHIP CAP.	10uF	10V	B	GRM21BB31A106KE18L	K22108808		1-	h4
C3124	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	e3
C3132	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	b2
C3136	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	b2
C3138	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	b2
C3143	CHIP CAP.	0.1uF	10V	B	GRM155B11A104KA01D	K22108802		1-	b2
C3146	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	h4
C3147	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	h4
C3148	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	h4
C3149	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	h4
C3150	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	h4
C3151	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	c1
C3152	CHIP CAP.	22uF	6.3V	B	GRM21BB30J226ME38L	K2208806		1-	f1
C3154	CHIP CAP.	22pF	50V	CH	GRM1552C1H220JA01D	K22178820		1-	d1
C3155	CHIP CAP.	0.0056uF	25V	B	GRM155B11E562KA01D	K22148802		1-	h4
C3156	CHIP CAP.	1uF	6.3V	B	GRM155B30J105KE18D	K22088803		1-	h4
C3157	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	h4
C3159	CHIP CAP.	0.01uF	25V	B	GRM155B11E103KA01D	K22148834		1-	h4
C3160	CHIP CAP.	22uF	25V	X5R	GRM21BR61E226ME44L	K22140830		1-	b2
D 3003	LED				19-226/R6BHC-B01/2T	G2071584		1-	A
D 3004	DIODE				UDZS TE-17 6.8B	G2070888		1-	h1
D 3006	DIODE				UDZS TE-17 6.8B	G2070888		1-	h1
D 3007	LED				19-123/R6GHC-D01/2T	G2071582		1-	A
D 3008	DIODE				1SS400 TE61	G2070634		1-	b1
D 3009	DIODE				1SR154-400 TE25	G2070684		1-	b1
D 3009	DIODE				RR1LAM4S	G2071630		7-	b1
D 3010	DIODE				VMZ6.8NT2L	G2071222		1-	g1
D 3011	DIODE				VMZ6.8NT2L	G2071222		1-	e1
D 3013	DIODE				VMZ6.8NT2L	G2071222		1-	h1
D 3014	DIODE				VMZ6.8NT2L	G2071222		1-	g1
D 3015	DIODE				VMZ6.8NT2L	G2071222		1-	e1

REF DESCRIPTION VALUE V/W		TOL. MFR'S	DESIG YAESU P/N VERS.					LOT	SIDE	LAY ADR
D 3016	LED	19-123/R6GHC-D	01/2T G207	1582 1-	A C	RB751S-40TE61	G2070850	1-	B	e4
D 3018	DIODE					DAP222-TL	G2070432	1-	B	b4
D 3019	DIODE
D 3020	LED	CSL0406WBCW	G2071570	1- A	E1
D 3021	LED	CSL0406WBCW	G2071570	1- A	D1
D 3022	LED	CSL0406WBCW	G2071570	1- A	G1
D 3023	LED	CSL0406WBCW	G2071570	1- A	F1
D 3024	DIODE					VMZ6.8NT2L	G2071222	1-	B	h4
D 3025	LED					SML-512WWT86	G2071104	1-	A	H1
D 3026	LED					SML-512WWT86	G2071104	1-	A	H3
D 3027	LED					SML-512WWT86	G2071104	1-	A	H3
D 3028	LED					SML-512WWT86	G2071104	1-	A	F4
D 3029	LED					SML-512WWT86	G2071104	1-	A	E4
D 3030	LED					SML-512WWT86	G2071104	1-	A	E5
D 3034	LED					SML-512WWT86	G2071104	1-	A	G5
DS3001	LCD					GY2216150497FSN7G01	G6090236	1-
F 3001	CHIP FUSE	0.5A				FCC16 501ABTP	Q0000111	1-	B	h1
FB3001	FERRITE BEADS					BK1005HM102-T	L9190124	1-	B	g1
FB3002	FERRITE BEADS					BK1005HM102-T	L9190124	1-	B	g1
FB3003	FERRITE BEADS					BK1005HM102-T	L9190124	1-	B	g1
FB3004	FERRITE BEADS					BK1005HM102-T	L9190124	1-	B	g1
FB3005	FERRITE BEADS					BK1005HM102-T	L9190124	1-	B	g1
FB3006	FERRITE BEADS					BK1005HM102-T	L9190124	1-	B	e1
FB3007	FERRITE BEADS					BK1005HM102-T	L9190124	1-	B	e1
FB3008	FERRITE BEADS					BK1005HM102-T	L9190124	1-	B	e1
FB3009	FERRITE BEADS					BK1005HM102-T	L9190124	1-	B	e1
FB3010	FERRITE BEADS					BK1005HM102-T	L9190124	1-	B	e1
FB3011	FERRITE BEADS					BLM18PG121SN1D	L9190178	1-	B	h1
FB3012	FERRITE BEADS					BLM15AG121SN1D	L1690843	1-	B	h1
FB3013	FERRITE BEADS					BLM15AG121SN1D	L1690843	1-	B	h1
FB3014	FERRITE BEADS					BLM15AG121SN1D	L1690843	1-	B	h1
FB3015	FERRITE BEADS					BLM18PG221SN1D	L9190178	1-	B	h1
FB3016	FERRITE BEADS					BLM18PG221SN1D	L9190181	1-	B	h4
FB3017	FERRITE BEADS					BK1005HM102-T	L9190124	1-	B	h4
FB3018	FERRITE BEADS					BK1005HM102-T	L9190124	1-	B	h4
FB3019	FERRITE BEADS					BLM18PG221SN1D	L9190181	1-	B	h4
FB3020	FERRITE BEADS					BK1005HM102-T	L9190124	1-	B	h5
FB3021	FERRITE BEADS					BK1005HM102-T	L9190124	1-	B	h4
J 3001	CONNECTOR					BS5-PH-SM4-TBT(LF)(SN)	P0091371	1-	B	g1
J 3002	CONNECTOR					BS5-PH-SM4-TBT(LF)(SN)	P0091371	1-	B	e1
J 3003	CONNECTOR					105133-0011	P1091600	1-	A	A1
J 3004	CONNECTOR					28FLT-SM2-TB(LF)(SN)(M)	P1091149	1-	B	d1
J 3005	CONNECTOR					28FLT-SM2-TB(LF)(SN)(M)	P1091149	1-	B	c1
J 3006	CONNECTOR					AYF533035	P1091490	1-	B	d1
J 3007	CONNECTOR					24FLT-SM2-TB(LF)(SN)(M)	P1091128	1-	B	e5
J 3008	CONNECTOR					VERBD-06PMPP-SC W/O G/N	P0091559	1-	A	A5
J 3009	CONNECTOR					S2B-PH-SM4-TB(LF)(SN)	P0091352	1-	B	g4
Q 3001	IC					NJM2835DL1-05-TE1	G1095198	1-	B	a1
Q 3002	FET					RTMO02P02(TAPE)	G3070347	1-	B	b1
Q 3003	TRANSistor					DTC144EE TL	G3070075	1-	B	b1
Q 3004	TRANSistor					2SC4617 TL R	G3346178R	1-	B	h1
Q 3005	IC					TAR5S33U(TE85L.F)	G1094549	1-	B	b2
Q 3006	IC					TAR5S33U(TE85L.F)	G1094549	1-	B	b1
Q 3007	IC					74VHCT125AFT(BE)	G1095220	1-	B	f2
Q 3008	IC						×	1-	B	c3
Q 3009	IC		R5F563	DCDFB		R1EX25512ATA00I	G1094794	1-	B	d2
Q 3009	IC					R1EX25512ATA00#U0	G1095538	9-	B	d2
Q 3010	IC					BU9873FVT-GE2	G1095122	1-	B	e3
Q 3011	TRANSistor					DTC144EE TL	G3070075	1-	B	b3
Q 3012	IC					TC7W53FU(TE12L_F)	G1094548	1-	B	b4
Q 3013	TRANSistor					DTA144EE TL	G3070074	1-	B	b3
Q 3014	IC					NJM2211M-TE1	G1092943	1-	B	a4
Q 3015	IC					NJM2211M-TE1	G1092943	1-	B	a3
Q 3016	IC					NJU7056F3-TE2	G1095500	1-	B	h4
Q 3017	TRANSistor					2SC4617TL R	G3346178R	1-	B	b2
Q 3018	TRANSistor					2SB1132 T100 R	G3211327R	1-	B	b2
R 3003	CHIP RES.	180	1/16W	1%		RMC1/16SK181FTH	J24189507	1-	B	g1
R 3004	CHIP RES.	100k	1/16W	1%		RMC1/16SK104FTH	J24189529	1-	B	b1
R 3005	CHIP RES.	180	1/16W	1%		RMC1/16SK181FTH	J24189507	1-	B	g1
R 3006	CHIP RES.	22	1/16W	5%		RMC1/16S 220JTH	J24189005	1-	B	h1
R 3007	CHIP RES.	22	1/16W	5%		RMC1/16S 220JTH	J24189005	1-	B	h1
R 3008	CHIP RES.	470	1/16W	1%		RMC1/16SK471FTH	J24189512	1-	B	g1
R 3009	CHIP RES.	470	1/16W	1%		RMC1/16SK471FTH	J24189512	1-	B	g1
R 3010	CHIP RES.	470	1/16W	1%		RMC1/16SK471FTH	J24189512	1-	B	g1
R 3011	CHIP RES.	470	1/16W	1%		RMC1/16SK471FTH	J24189512	1-	B	g1

REF DESCRIPTION VALUE V/W		TOL. MFR'S	DESIG YAESU P/N VERS.				LOT	SIDE	LAY ADR
R 3012	CHIP RES.	470	1/16W	1%	RMC1/16SK471FTH	J24189512	1-	B	e1
R 3013	CHIP RES.	470	1/16W	1%	RMC1/16SK471FTH	J24189512	1-	B	e1
R 3014	CHIP RES.	470	1/16W	1%	RMC1/16SK471FTH	J24189512	1-	B	e1
R 3015	CHIP RES.	470	1/16W	1%	RMC1/16SK471FTH	J24189512	1-	B	e1
R 3016	CHIP RES.	18k	1/16W	1%	RMC1/16SK183FTH	J24189523	1-	B	h1
R 3017	CHIP RES.	150k	1/16W	5%	RMC1/16S 154JTH	J24189051	1-	B	h1
R 3018	CHIP RES.	180	1/16W	1%	RMC1/16SK181FTH	J24189507	1-	B	g1
R 3019	CHIP RES.	33k	1/16W	1%	RMC1/16SK333FTH	J24189494	1-	B	h1
R 3020	CHIP RES.	2.2M	1/16W	5%	RMC1/16S 225JTH	J24189065	1-	B	h1
R 3021	CHIP RES.	150	1/16W	1%	RMC1/16SK151FTH	J24189506	1-	B	g1
R 3022	CHIP RES.	180	1/16W	1%	RMC1/16SK181FTH	J24189507	1-	B	g1
R 3023	CHIP RES.	150	1/16W	1%	RMC1/16SK151FTH	J24189506	1-	B	g1
R 3024	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489	1-	B	g1
R 3025	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489	1-	B	g1
R 3026	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529	1-	B	f2
R 3027	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489	1-	B	g1
R 3028	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529	1-	B	f2
R 3029	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070	1-	B	e2
R 3030	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489	1-	B	b1
R 3031	CHIP RES.	8.2k	1/16W	1%	RMC1/16SK822FTH	J24189522	1-	B	f2
R 3032	CHIP RES.	8.2k	1/16W	1%	RMC1/16SK822FTH	J24189522	1-	B	f2
R 3033	CHIP RES.	15k	1/16W	1%	RMC1/16SK153FTH	J24189491	1-	B	f2
R 3034	CHIP RES.	15k	1/16W	1%	RMC1/16SK153FTH	J24189491	1-	B	f2
R 3035	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529	1-	B	f2
R 3036	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529	1-	B	f2
R 3037	CHIP RES.	22k	1/16W	1%	RMC1/16SK223FTH	J24189492	1-	B	f2
R 3038	CHIP RES.	22k	1/16W	1%	RMC1/16SK223FTH	J24189492	1-	B	f2
R 3039	CHIP RES.	47k	1/16W	1%	RMC1/16SK473FTH	J24189525	1-	B	b4
R 3040	CHIP RES.	47k	1/16W	1%	RMC1/16SK473FTH	J24189525	1-	B	b4
R 3041	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489	1-	B	b4
R 3042	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489	1-	B	b4
R 3043	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489	1-	B	b4
R 3044	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	e2
R 3045	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	d2
R 3046	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	d2
R 3047	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	d2
R 3048	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	d2
R 3049	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	d2
R 3050	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	d2
R 3051	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	d2
R 3052	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	d2
R 3053	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	d2
R 3054	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	d2
R 3055	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	d2
R 3056	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	d2
R 3057	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	d2
R 3058	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	d2
R 3059	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	c2
R 3060	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	c2
R 3061	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	c2
R 3062	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	c2
R 3063	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	c2
R 3064	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	c2
R 3065	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	c2
R 3066	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	c2
R 3067	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	c2
R 3068	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	c2
R 3069	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	c2
R 3072	CHIP RES.	100k	1/16W	0.5%	MRC01MZPD1003	J24189386	1-	B	b2
R 3073	CHIP RES.	22k	1/16W	0.5%	MRC01MZPD2202	J24189378	1-	B	b2
R 3074	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	d2
R 3075	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	d2
R 3076	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	d2
R 3077	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	c3
R 3078	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	c2
R 3079	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	c3
R 3080	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	d3
R 3081	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504	1-	B	d3
R 3089	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	B
R 3090	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	B
R 3091	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	B
R 3092	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	B
R 3093	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	B
R 3094	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	B
R 3095	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	B
R 3096	CHIP RES.	47k	1/16W	1%	RMC1/16SK473FTH	J24189525		1-	b3
R 3097	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b3
R 3098	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b3
R 3099	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b3
R 3100	CHIP RES.	220	1/16W	1%	RMC1/16SK221FTH	J24189508		1-	b3
R 3101	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b3
R 3103	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b3
R 3104	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b3
R 3105	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b3
R 3106	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	c3
R 3107	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b3
R 3108	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b3
R 3109	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b3
R 3110	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b3
R 3111	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b3
R 3112	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b3
R 3113	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b3
R 3114	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b3
R 3115	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b3
R 3116	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b3
R 3117	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b3
R 3118	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b3
R 3119	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b3
R 3120	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3121	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3122	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3123	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3124	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3125	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3126	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3127	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3128	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3129	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3130	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3131	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3132	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3133	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3134	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3135	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3136	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3137	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3138	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3139	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3140	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3141	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3142	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3143	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3144	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3145	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	b4
R 3148	CHIP RES.	0	1/16W	5%	RMC1/16SK101FTH	J24189504		1-	b4
R 3149	CHIP RES.	100	1/16W	5%	RMC1/16SK101FTH	J24189504		1-	b4
R 3150	CHIP RES.	100	1/16W	5%	RMC1/16SK101FTH	J24189504		1-	b4
R 3151	CHIP RES.	10k	1/16W	5%	RMC1/16SK103FTH	J24189489		1-	b4
R 3152	CHIP RES.	1.5k	1/16W	5%	RMC1/16SK152FTH	J24189496		1-	b4
R 3153	CHIP RES.	100	1/16W	5%	RMC1/16SK101FTH	J24189504		1-	b4
R 3154	CHIP RES.	0	1/16W	5%	RMC1/16SK101FTH	J24189504		1-	b4
R 3155	CHIP RES.	100	1/16W	5%	RMC1/16SK101FTH	J24189504		1-	b4
R 3156	CHIP RES.	100	1/16W	5%	RMC1/16SK101FTH	J24189504		1-	b4
R 3157	CHIP RES.	100	1/16W	5%	RMC1/16SK101FTH	J24189504		1-	b4
R 3158	CHIP RES.	100	1/16W	5%	RMC1/16SK101FTH	J24189504		1-	b4
R 3159	CHIP RES.	100	1/16W	5%	RMC1/16SK101FTH	J24189504		1-	b4
R 3160	CHIP RES.	10k	1/16W	5%	RMC1/16SK103FTH	J24189489		1-	b4
R 3161	CHIP RES.	10k	1/16W	5%	RMC1/16SK103FTH	J24189489		1-	b4
R 3162	CHIP RES.	47k	1/16W	5%	RMC1/16SK473FTH	J24189525		1-	b2
R 3163	CHIP RES.	100k	1/16W	5%	RMC1/16SK104FTH	J24189529		1-	b2
R 3164	CHIP RES.	100k	1/16W	5%	RMC1/16SK104FTH	J24189529		1-	b2
R 3165	CHIP RES.	47k	1/16W	5%	RMC1/16SK473FTH	J24189525		1-	b4
R 3166	CHIP RES.	39k	1/16W	5%	RMC1/16SK393FTH	J24189524		1-	b4
R 3167	CHIP RES.	2.2k	1/16W	1%	RMC1/16SK222FTH	J24189497		1-	B
R 3168	CHIP RES.	2.2k	1/16W	1%	RMC1/16SK222FTH	J24189497		1-	B
R 3169	CHIP RES.	5.6k	1/16W	1%	RMC1/16SK562FTH	J24189520		1-	b3
R 3170	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	b3
R 3171	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529		1-	b4
R 3172	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	a3
R 3173	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	a4
R 3174	CHIP RES.	18k	1/16W	1%	RMC1/16SK183FTH	J24189523		1-	a4
R 3175	CHIP RES.	18k	1/16W	1%	RMC1/16SK183FTH	J24189523		1-	a3
R 3176	CHIP RES.	2.7k	1/16W	1%	RMC1/16SK272FTH	J24189517		1-	a4
R 3177	CHIP RES.	2.7k	1/16W	1%	RMC1/16SK272FTH	J24189517		1-	a3
R 3178	CHIP RES.	470k	1/16W	1%	RMC1/16SK474FTH	J24189537		1-	a4
R 3179	CHIP RES.	470k	1/16W	1%	RMC1/16SK474FTH	J24189537		1-	a3
R 3180	CHIP RES.	56k	1/16W	1%	RMC1/16SK563FTH	J24189526		1-	a4
R 3181	CHIP RES.	56k	1/16W	1%	RMC1/16SK563FTH	J24189526		1-	a3
R 3182	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529		1-	b4
R 3183	CHIP RES.	100k	1/16W	1%	RMC1/16SK104FTH	J24189529		1-	b3
R 3184	CHIP RES.	47k	1/16W	1%	RMC1/16SK473FTH	J24189525		1-	h4
R 3185	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	h4
R 3186	CHIP RES.	470k	1/16W	1%	RMC1/16SK474FTH	J24189537		1-	b4
R 3187	CHIP RES.	470k	1/16W	1%	RMC1/16SK474FTH	J24189537		1-	b3
R 3188	CHIP RES.	150k	1/16W	1%	RMC1/16SK154FTH	J24189531		1-	h4
R 3189	CHIP RES.	47k	1/16W	1%	RMC1/16SK473FTH	J24189525		1-	h4
R 3190	CHIP RES.	47k	1/16W	1%	RMC1/16SK473FTH	J24189525		1-	h4
R 3191	CHIP RES.	5.6k	1/16W	1%	RMC1/16SK562FTH	J24189520		1-	h4
R 3192	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	b4
R 3193	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	b3
R 3194	CHIP RES.	470	1/16W	1%	RMC1/16SK471FTH	J24189512		1-	h4
R 3195	CHIP RES.	5.6k	1/16W	1%	RMC1/16SK562FTH	J24189520		1-	h4
R 3196	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	d3
R 3197	CHIP RES.	47	1/4W	5%	RMC1/4 470JATP	J24245470		1-	b2
R 3198	CHIP RES.	47	1/4W	5%	RMC1/4 470JATP	J24245470		1-	b2
R 3199	CHIP RES.	2.2k	1/16W	1%	RMC1/16SK222FTH	J24189497		1-	b2
R 3200	CHIP RES.	470k	1/16W	1%	RMC1/16SK474FTH	J24189537		1-	b2
R 3201	CHIP RES.	8.2	1W	5%	RMC1 8R2JTE	J24305829		1-	f3
R 3202	CHIP RES.	8.2	1W	5%	RMC1 8R2JTE	J24305829		1-	f3
R 3203	CHIP RES.	470	1/16W	1%	RMC1/16SK471FTH	J24189512		1-	b2
R 3204	CHIP RES.	330	1/16W	1%	RMC1/16SK331FTH	J24189510		1-	b2
R 3205	CHIP RES.	680	1/16W	1%	RMC1/16SK681FTH	J24189514		1-	b2
R 3206	CHIP RES.	100	1/10W	5%	RMC1/10T 101J	J24205101		1-	a2
R 3207	CHIP RES.	100	1/10W	5%	RMC1/10T 101J	J24205101		1-	a2
R 3208	CHIP RES.	10k	1/16W	1%	RMC1/16SK103FTH	J24189489		1-	h4
R 3209	CHIP RES.	22k	1/16W	1%	RMC1/16SK223FTH	J24189492		1-	h4
R 3210	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	h4
R 3211	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	h4
R 3212	CHIP RES.	330	1/10W	5%	RMC1/10T 331J	J24205331		1-	a2
R 3213	CHIP RES.	330	1/10W	5%	RMC1/10T 331J	J24205331		1-	a2
R 3215	CHIP RES.	4.7k	1/16W	1%	RMC1/16SK472FTH	J24189488		1-	b3
R 3216	CHIP RES.	100	1/16W	1%	RMC1/16SK101FTH	J24189504		1-	c3
R 3217	CHIP RES.	4.7	1/10W	5%	RMC1/10T 4R7J	J24205479		1-	f1
R 3218	CHIP RES.	560	1/16W	1%	RMC1/16SK561FTH	J24189513		1-	b5
R 3220	CHIP RES.	3.3	1/2W	5%	RMC1/2 3R3JCTP	J24275339		1-	C4
R 3221	CHIP RES.	3.3	1/2W	5%	RMC1/2 3R3JCTP	J24275339		1-	C3
R 3222	CHIP RES.	3.3	1/2W	5%	RMC1/2 3R3JCTP	J24275339		1-	C4
R 3223	CHIP RES.	3.3	1/2W	5%	RMC1/2 3R3JCTP	J24275339		1-	C3
R 3224	CHIP RES.	5.6k	1/16W	1%	RMC1/16SK562FTH	J24189520		1-	b4
R 3225	CHIP RES.	0	1/16W	5%	RMC1/16S JPTH	J24189070		1-	h4
S 3001	ROTARY ENCODER				RE09101AA-H01-0048	Q9001018		1-	A
VR3001	POT.	20k
	POT.	20k

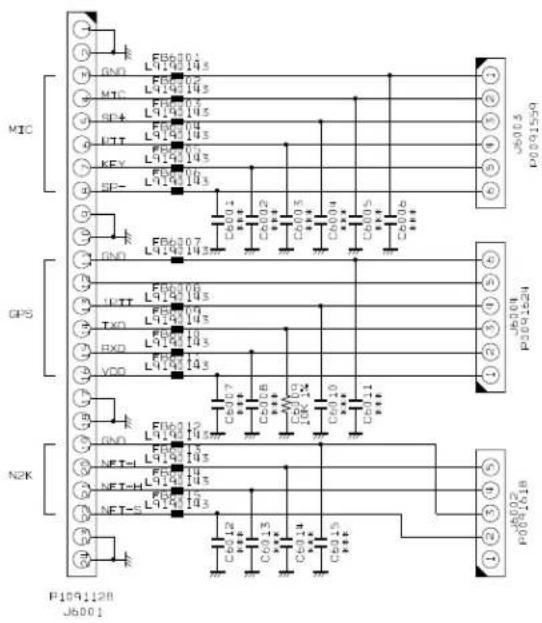

Circuit Diagram

CON-1-UNIT

Parts Layout
Side A

Side B

REF	DESCRIPTION	VALUE	V/W	TOL.	MFR'S DESIG	YAESU P/N	VERS.	LOT	SIDE	LAY ADR
PCB with Components CD0174001
C 6009	CHIP RES. 10kohm 1/16W 1% RMC1/16SK103	FTH J24189489 1- A B1
FB6001	FERRITE BEADS				BLM18BD601SN1D	L9190143		1-	A	D1
FB6002	FERRITE BEADS				BLM18BD601SN1D	L9190143		1-	A	C1
FB6003	FERRITE BEADS				BLM18BD601SN1D	L9190143		1-	A	C1
FB6004	FERRITE BEADS				BLM18BD601SN1D	L9190143		1-	A	C1
FB6005	FERRITE BEADS				BLM18BD601SN1D	L9190143		1-	A	C1
FB6006	FERRITE BEADS				BLM18BD601SN1D	L9190143		1-	A	C1
FB6007	FERRITE BEADS				BLM18BD601SN1D	L9190143		1-	A	B1
FB6008	FERRITE BEADS				BLM18BD601SN1D	L9190143		1-	A	B1
FB6009	FERRITE BEADS				BLM18BD601SN1D	L9190143		1-	A	B1
FB6010	FERRITE BEADS				BLM18BD601SN1D	L9190143		1-	A	B1
FB6011	FERRITE BEADS				BLM18BD601SN1D	L9190143		1-	A	B1
FB6012	FERRITE BEADS				BLM18BD601SN1D	L9190143		1-	A	A1
FB6013	FERRITE BEADS				BLM18BD601SN1D	L9190143		1-	A	A1
FB6014	FERRITE BEADS				BLM18BD601SN1D	L9190143		1-	A	A1
FB6015	FERRITE BEADS				BLM18BD601SN1D	L9190143		1-	A	A1
J 6001	CONNECTOR				24FLT-SM2-TB(LF)(SN)(M)	P1091128		1-	A	C1
J 6002	CONNECTOR				12-05PMMP-NMEA30	P0091618		1-	B	c1
J 6003	CONNECTOR				VERBD-06PMMP-SC W/O G/N	P0091559		1-	B	a1
J 6004	CONNECTOR				YAE-CCBPM06MCC-LWB	P0091624		1-	B	b1
J 6004	CONNECTOR				YAE-CCBPM06MCC-WUV	P0091624A		6-	B	b1

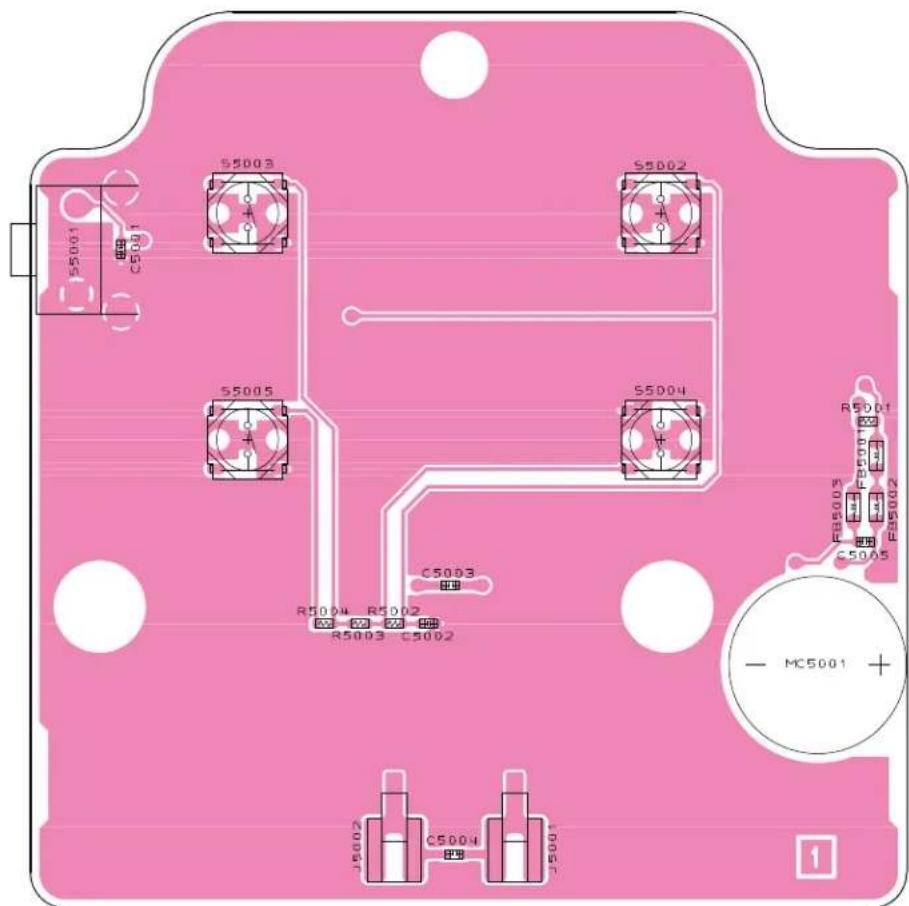

Parts Layout (Side A)

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S			DESIG YAESU P/N VERS.					LOT	SIDE	LAY ADR
PCB with Components is included SSM-76H (see Exploded View-2)
C 5001	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A	A1
C 5002	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A	B2
C 5005	CHIP CAP.	0.001uF	50V	B	GRM155B11H102KA01D	K22178809		1-	A	C2
FB5001	FERRITE BEADS				BK1608HS601-T	L9190083		1-	A	C2
FB5002	FERRITE BEADS				BK1608HS601-T	L9190083		1-	A	C2
FB5003	FERRITE BEADS				BK1608HS601-T	L9190083		1-	A	C2
J 5001	CONTACT				OG-363050	S5000324		1-	A	B3
J 5002	CONTACT				OG-363050	S5000324		1-	A	B3
MC5001	MIC ELEMENT				EMZ8003PT	M3290061		1-	A	C2
MC5001	MIC ELEMENT				EMZ8023TM11	M3290072		7-	A	C2
R 5001	CHIP RES.	22k	1/16W	1%	RMC1/16SK223FTH	J24189492		1-	A	C2
R 5002	CHIP RES.	3.3k	1/16W	1%	RMC1/16SK332FTH	J24189518		1-	A	B2
R 5003	CHIP RES.	6.8k	1/16W	1%	RMC1/16SK682FTH	J24189521		1-	A	A2
R 5004	CHIP RES.	22k	1/16W	1%	RMC1/16SK223FTH	J24189492		1-	A	A2
S 5001	TACT SWITCH				SKHLLD	N5090066		1-	A	A1
S 5002	TACT SWITCH				SKRMAAE010	N5090140		1-	A	B1
S 5003	TACT SWITCH				SKRMAAE010	N5090140		1-	A	A1
S 5004	TACT SWITCH				SKRMAAE010	N5090140		1-	A	B2
S 5005	TACT SWITCH				SKRMAAE010	N5090140		1-	A	A2

STANDARD HORIZON

Nothing takes to water like Standard Horizon

Copyright 2020

YAESUMUSENCO.,LTD.

All rights reserved.

No portion of this manual may be

reproduced without the permission of

YAESUMUSENCO.,LTD.

YAESUMUSENCO.,LTD.

Tennozu Parkside Building

2-5-8 Higashi-Shinagawa, Shinagawa-ku, Tokyo 140-0002 Japan

YAESU USA

6125 Phyllis Drive, Cypress, CA 90630, U.S.A.

YAESU UK

Unit 12, Sun Valley Business Park, Winnall Close

Winchester, Hampshire, SO23 0LB, U.K.
