USER MANUAL 43U760NB Kivi

EN KIVI LED TV User manual

Hello there! It's me, your KIVI color LED-TV, and I will tell you how to use me safely.

QR code with central Facebook logo, likely linking to a digital resource or website

	CONTENTS	EN
3	General information about me.
4	Attention!
5	Who am I? My features.
6-7	Remote control / night light.
8	Connection ports.
9	When something goes wrong.
	СЪДЪРЖАНИЕ	BG
10	Обща информация за мен.
11	Внимание!
12	Кой съм аз? Моите характеристики.
13-14	Дистанционно / нощна лампа.
15	Портове за свързване.
16	Когато нещо се обърка.
	OBSAH	CS
17	Obecné informace o mně.
18	Pozor!
19	Kdo jsem? Moje charakteristiky.
20-21	Dálkové ovládání / noční světlo.
22	Spojovací porty.
23	Když se něco pokazilo.
	INHALT	DE
24	Allgemeine Informationen über mich.
25	Achtung!
26	Wer bin ich? Meine Eigenschaften.
27-28	Fernbedienung / Nachtlicht.
29	Verbindungsports.
30	Wenn etwas schief läuft.
	ПЕПЕХОМЕНО	EL
31	Гевикёс плнрофоріес για εμένα.
32	Прогохні!
33	Поюс еімай? Та характерпістика юю.
34-35	Тнлекеиріотнріо / vuхтерівó фүс.
36	Өүрес σύνδεσης.
37	Όταν κάτι πάει στραβά.
	CONTENIDO	ES
38	Información general sobre mí.
39	¡Atención!
40	¡Quién soy! Mis especificaciones.
41-42	Mando a distancia / luz nocturna.
43	Puertos de conexión.
44	Cuando algo anda mal.
	SISUKORD ET	ET
45	Üldteave minu kohta.
46	Tähelepanu!
47	Kes mina olen? Minu omadused
48-49	Kaugjuht / öölamp.
50	Ühenduspordid.
51	Juhul kui midagi läks valesti.
	SOMMAIRE	FR
52	Informations générales sur moi.
53	Attention!
54	Qui suis-je? Mes caractéristiques.
55-56	Télécommande / veilleuse.
57	Ports de connexion.
58	En cas de problème.
	SADRŽAJ	HR
59	Opći podaci o meni.
60	Pažnja!
61	Tko sam ja? Moje osobine.
62-63	Daljinski upravljač / noćno svjetlo.
64	Priključni priključci.
65	Kad nešto krene po zlu.
	TARTALOM	HU
66	Általános információ rólam.
67	Figyelem!
68	Ki vagyok én? Jellemzóim.
69-70	Távirányító / éjszakai lámpa.
71	Csatlakoztató portok.
72	Ha valami nem úgy sült el.
	CONTENUTI	IT
73	Informazioni generali su di me.
74	Attenzione!
75	Chi sono? Le mie caratteristiche.
76-77	Telecomando / luce notturna.
78	Porte di connessione.
79	Quando qualcosa va storto.

	TURINYS	LT
80	Bendra informacija apie mane
81	Dèmesio!
82	Kas aš? Mano charakteristikos.
83-84	Tālvadības pults / nakts gaisma.
85	Prijungimo prievadai.
86	Kai kažkas nesigauna.
87	Vispārīga informācija par mani.
88	Uzmanību!
89	Kas es esmu? Mani raksturojumi.
90-91	Nuotolinio pultas / naktinė lemputė.
92	Savienojuma porti.
93	Kad kaut kas nogāja greizi.
94	Informazzjoni generali dwari.
95	Attenzjoni!
96	Min jiena? Il-karatteristici tieghi.
97-98	Kontroll mill-bogħod / dawl bil-lejl.
99	Ports tal-konnessjoni.
100	Meta tigri xi ħağa ŧažina.
101	Ogólne informacje o mnie.
102	Uwaga!
103	Kim jestem? Moje cechy.
04-105	Pilot / lampka nocna.
106	Porty połączeń.
107	Kiedy coś poszło nie tak.
108	Informação geral sobre mim.
109	Atenção!
110	Quem soul! Minhas especificações.
11-112	Controle remoto / luz noturna.
113	Portos de conexão.
114	Quando algo anda mal.
115	Informații generale despre mine.
116	Atenție!
117	Cine sunt eu? Caracteristicile mele.
18-119	Telecomanda / lumina de noapte.
120	Porturi de conectare.
121	Ceva nu a mers bine.
122	Общая информация обо мне.
123	Внимание!
124	Кто я? Мои характеристики.
25-126	Пульт / ночник.
127	Порты подключения.
128	Когда что-то пошло не так.
129	Všeobecné informácie o mne.
130	Upozornenia!
131	Kto som? Moje vlastnosti.
32-133	Dialkové ovládanie / nočné svetlo.
134	Pripojovacie porty.
135	Ked’sa niečo pokazí.
136	Splošne informacije o meni.
137	Pozor!
138	Kdo sem jaz? Moje lastnosti.
39-140	Daljinski upravljalnik / nočna lučka.
141	Priključna vrata.
142	Ko gre kaj narobe.
143	Загальна інформація про мене.
144	Увага!
145	Хто я? Мої характеристики.
46-147	Пульт / нічник.
148	Порти підключення.
149	Коли щось пішло не так.

PRODUCT NAME	KIVI COLOR LCD TV
Warranty period *
Operating temperature, °C	+15 – +35
Relative humidity while storing, %	45 – 75
Temperature while storing, °C	+5 – +40
Atmospheric pressure, KPA / mmHg	86 – 106 / 650 – 800
Relative humidity while operating, %	55 – 70
Electricity consumption in off mode	<1 W or missing

Recommendation only for countries where EU directives apply. This device complies with the standards and meets the requirements of Directive 2014/53 / EU.

*You can find information about the warranty period in the corresponding language of your country. The warranty period may be changed according to the update in the warranty legislation of the country.

TO BE SAFE WITH ME:

Make sure that all screws in the supports and bracket are properly tightened.

I do not recommend using unlicensed software.

Use a certified cable with the HDMI logo.

TO TRANSPORT ME:

I should be in upright position, fully complete and packaged. Do not place the box on the side of the display.

Hold me by the top and bottom of the body, not by the display or stand.

kivismart.com

DON'T USE ME IF:

• The power cord, plug, or screen is damaged.
• I fallen myself or your favorite cat fallen on me.

TO USE ME EFFECTIVELY AND SAFELYS:

• Read and follow all instructions and precautions.
• If your outlet doesn't fit, please, contact a specialist.
• Please connect me to power supply using a voltage stabilizer or relay only.

TO KEEP ME CLEAN:

• Wipe me with a cloth designed for the care and maintenance of the LCD screens.
• Do not spray liquids directly on me.
• If you touch me with greasy or sticky hands, turn me off, apply screen cleaner to a microfiber cloth, and wipe me down.

NOTE:

Do not place me on unstable or vibrating surfaces, or under TV objects that reflect and absorb sound.

Tiny black or colored spots can appear on my liquid crystal panel while in operation.

Depending on the viewing location, brightness, and color of the panel can change. And it is absolutely Okay.

This symbol indicates that I have double isolation between the mains voltage and dangerous parts for you.

Friends, unfortunately, I am not eternal. Therefore, at the end of my term, I shall be handed over to the receiving point of electrical and electronic equipment. For more detailed information about receiving and disposal points, please contact local municipal authorities or a household waste disposal company.

FEATURES

Model	32H760QB32H760QW	32F760QB32F760QW			43U760QB43U760QW	50U760QB40F760QBK10s	55U760QB55U760QW	65U760QB
Diagonal screen size, inches/cm	32/80 32/80		32/80	40/102 43	/109 50/127	55/140 65/165
Resolution	HD1366x768	FHD1920x1080			UHD3840x2160
USB 2.0(FAT32, NTFS)	2				2
HDMI	3				4
HDMI	HDMI 1.4a				HDMI 2.1
Wi-Fi	a/b/g/n/ac
VESA standard, mm	200x100 200x150 200x200 400x200
Type / size of VESA screws, mm	M4 / 2x12 + 2x6	M4 / 2x12 + 2x6	M4 / 2x12 + 2x6	M6 / 2x12 + 2x8	M6 / 2x12 + 2x12	M6 / 2x12 + 2x12	M6 / 2x16 + 2x16	M6 / 2x16 + 2x16
Width, height, depth, mm	720x425x62	720x430x62	734x436x71	899x522x62	960x556x64	1116x642x61	1229x710x63	1448x835x63
Dimensions with stand, mm	720x465x180	720x465.5x183	734x481x195	899x575x240	960x620x240	1116x705x240	1229x772x260	1448x902x333
Net weight, kg	4.2	4,2	6.87.4	6.4		10.5	13	17.3

NOTE:

The complete set, appearance and specifications of the product may differ or may be changed by the manufacturer without prior notice.

INPUT IMPEDANCE: 75 Ω

For stable reception of digital TV channels, I recommend using an external antenna with an amplifier (the gain ratio of 30 dB or more).

NOTE:

The manufacturer, importer, or supplier are not responsible for damage to my components due to high voltage supply through the antenna port.

Dolby Audio

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI, HDMI High-definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI and Microsoft Administrator, Inc.

Manufactured under DOLBY LABORATORIES license. The DOLBY, DOLBY AUDIO, and Double D symbols are trademarks of DOLBY and laboratories.

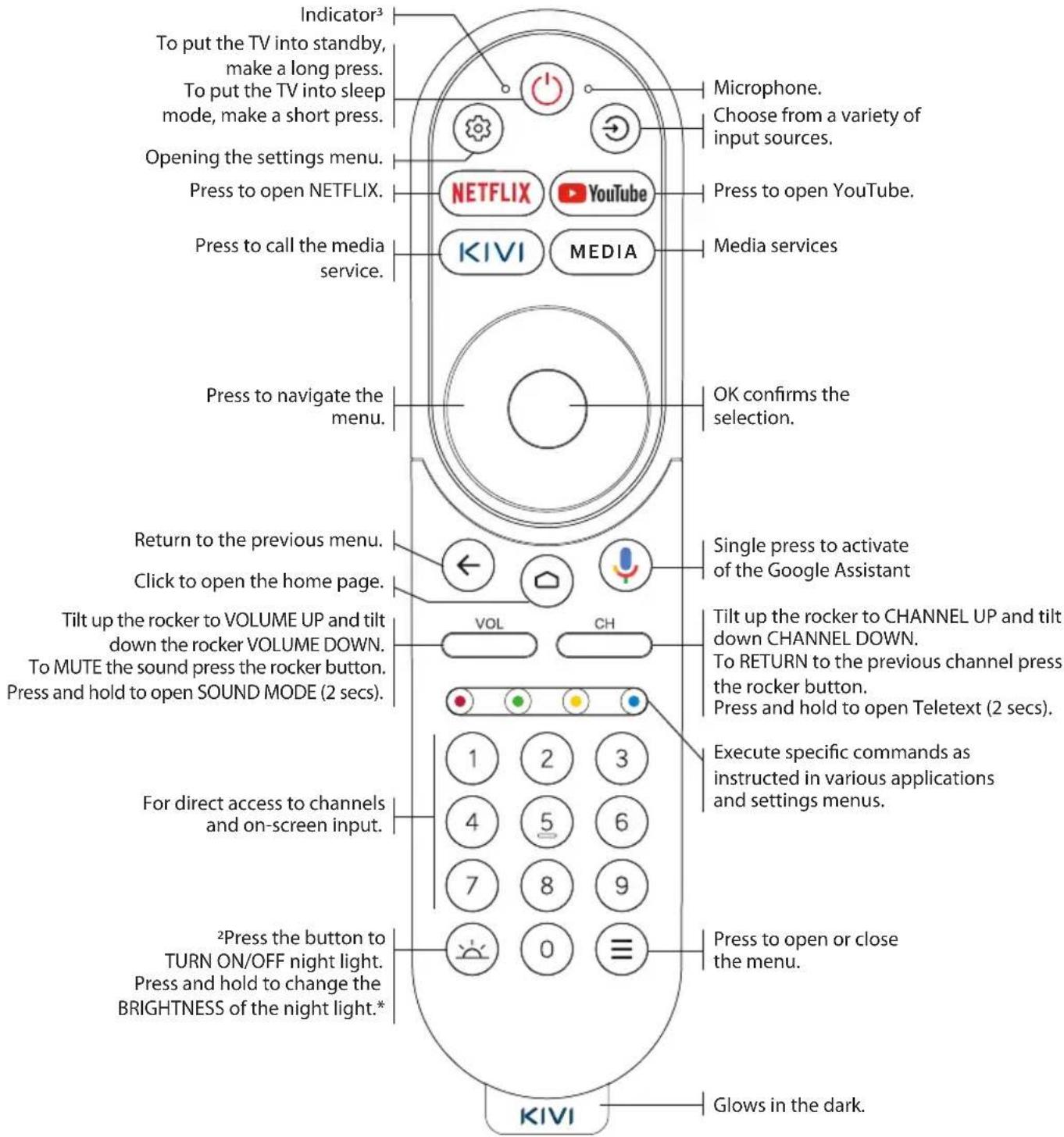

REMOTE CONTROL (RC70)
Key assignment:

Indicator³ To put the TV into standby, make a long press. To put the TV into sleep mode, make a short press. Opening the settings menu. Press to open NETFLIX. Press to call the media service. Press to navigate the menu. Return to the previous menu. Click to open the home page. Tilt up the rocker to VOLUME UP and tilt down the rocker VOLUME DOWN. To MUTE the sound press the rocker button. Press and hold to open SOUND MODE (2 secs). For direct access to channels and on-screen input. ²Press the button to TURN ON/OFF night light. Press and hold to change the BRIGHTNESS of the night light.* KIVI Indicator3 Microphone. Choose from a variety of input sources. Press to open YouTube. Media services OK confirms the selection. Single press to activate of the Google Assistant VOL CH Tilt up the rocker to CHANNEL UP and tilt down CHANNEL DOWN. To RETURN to the previous channel press the rocker button. Press and hold to open Teletext (2 secs). Execute specific commands as instructed in various applications and settings menus. Press to open or close the menu. Glows in the dark.

NOTE:

1 The configuration and appearance of the TV, accessories, remote controls may differ or may be changed by the manufacturer without notice.
2 Light key works only for models with night light (43U760QW, 55U760QW and KidsTV).
3 The remote control operates in IR mode (red indicator color) and Bluetooth mode (green color).

Remote control (RC) range — up to 10 meters.

To make it work - insert the alkaline batteries and point it at me.

Do not mix new batteries with old ones, and do not leave the remote control near a heat source.

If you don't use the remote control for more than one month, get the batteries out of there.

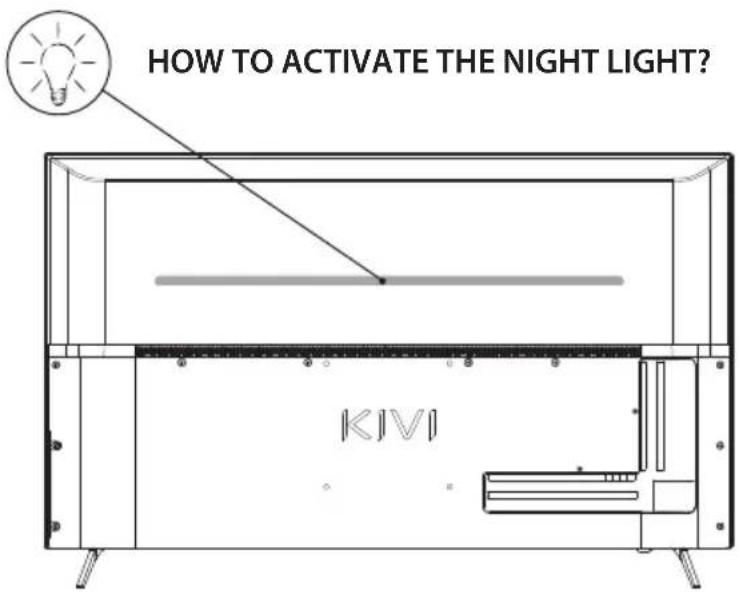

HOW TO ACTIVATE THE NIGHT LIGHT? KIVI

To activate the Night Light Press the button 🙏. To operate the Night Light, connect the TV to the power supply.

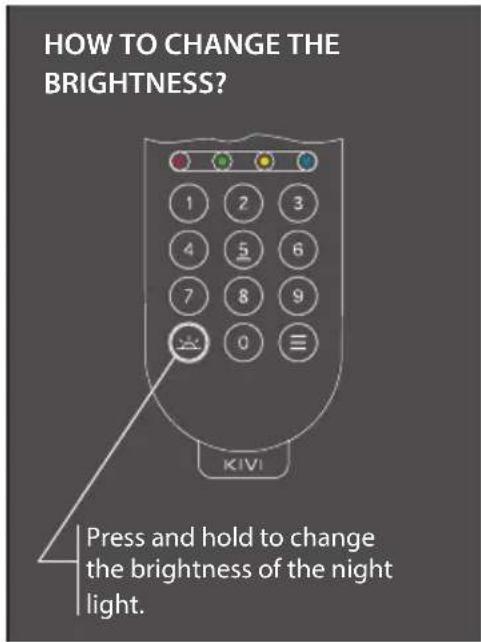

HOW TO CHANGE THE BRIGHTNESS? Press and hold to change the brightness of the night light.

Detailed instructions with images are also available on the website kivismart.com, in the "Support" section

CONNECTING DEVICES

I am compatible with most devices for video and audio playback and can be connected to a Blu-ray, game console, stereo system, etc.

HD / FHD MODELS

Front view of a black electronic device with labeled ports and indicator lights (no readable text or symbols beyond component labels)

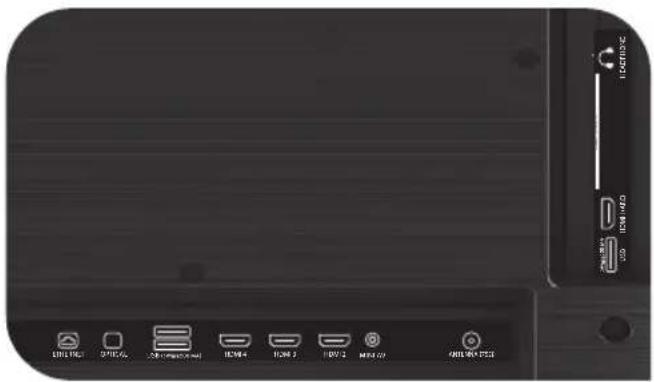

UHD MODELS

Front view of a black electronic device with labeled ports and buttons (no readable text or symbols beyond basic labels)

USB Input for USB devices (500 mA) HDMI HDMI input Antenna Antenna connection port CI CAM module connection port Mini AV Composite audio/video input-UHD

VIDEO Composite video input ETHERNET Ethernet input HEADPHONE Headphone output (3.5 mm) OPTICAL Optical output

NOTE:

1. All external devices should not be connected after you turn me off.
2. The maximum load on the USB port should not exceed 0.5 A.
3. The TV supports ARC, CEC. 2K supports HDMI 1.4 a, 4K supports HDMI 2.1 and eARC.

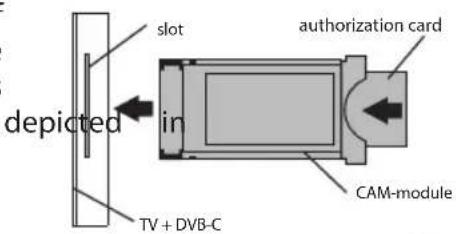

CONNECTING A CI CONDITIONAL ACCESS CARD

A CAM module with a CI conditional access attached to a digital cable broadcasting service provider along with information for use.

The names of individual menu modes, the designations of some connectors and places of application, and the performance of individual ergonomic control functions may differ slightly from those described and this manual.

card can be CA Card CI module (Side with the provider's brand logo) Contact side

slot depicted in TV + DVB-C authorization card CAM-module

In addition to hardware-related malfunctions, if there are any non-standard power me off for 30 seconds.

Unstable or missing broadcast/cable TV signal	I have an antenna connected, but I can't find channels, shows channels with distortion or sound interruptions	For stable reception of DVB-T2 (digital) and ATV (analog) signals - use an external antenna with an amplifier with an additional power supply.Additional power supply of the antenna input is not provided from the side of the TV and USB connectors.Point the antenna towards the nearest TV tower.If you use a room antenna, raise it higher, pay attention around your own axis and move the room.Make sure that the correct input source is selected - Antenna or Analog TV.Adjust the channels manually (with manual adjustment, the level and quality of the signal will be displayed).For the stability of the image and sound, the indicators should be from 50% to higher.Check the integrity of the cable.
	I have cable TV connected, but I can't find channels, shows channels with distortion or sound interruptions	When using cable TV (DVB-C), I recommend connecting without using a splitter. Connect me to another antenna cable if possible.Make sure the correct input source is Cable TV.Adjust the channels manually (with manual adjustment, the level and quality of the signal will be displayed).Check the integrity of the cable.Use a signal booster.
No sound is output to external speakers	Connecting speakers via Bluetooth	Connect Bluetooth speakers via the menu Settings → Remote controls and accessories → Add devices.Enable visibility / sync mode on the external device.
	Connecting speakers via HDMI	Connect the speakers to me via the HDMI (ARC) connector.In Settings → Device Settings → Input Sources → HDMI EDID Version → select the EDID value.In Settings → Device Settings → Sound → Digital Output → select Auto, Skip, PCM, etc.
	Connection of acoustics through the 3.5 connector for headphones	Make sure the audio cable is fully inserted into the 3.5 jack.
	Connecting acoustics through optics	Connect the speakers to the OPTICAL jack.In Settings → Device Settings → Sound → Digital Output → select Auto, Skip, PCM, etc.Use the VOL button on the remote control to reduce the sound volume until it is completely turned off.The remote from the acoustics will increase the sound to the required level.
The image from the PC / game console is not displayed	An external device is connected to me via HDMI, there is no image, the inscription “No signal”	Check the performance and version of the HDMI cable on another compatible device.HDR and 4K (Ultra HD) content can be transmitted via HDMI 2.0 and higher. Only UHD KIVI models are supported.► HDR. Go to Settings → Device settings → Picture → HDR → select On.► 4K (Ultra HD). In Settings → Device Settings → Input Sources → HDMI EDID Version → select EDID 2.0 or EDID 2.1.On a PC, change the resolution in the control menu of the video driver, and select the appropriate image broadcast mode.In the settings of the game console, configure the corresponding menu items according to the manufacturer's instructions.
No or unstable Internet connection	I am connected to a Wi-Fi or Ethernet network with no Internet access	Turn off the TV and router from the outlet for 1 minute.Check and set the correct date and time in Settings → Device settings → Date and time.

Technical line drawing of a mechanical assembly with labeled component 'KIVI' (no other text or symbols)

Front view of a black electronic device with labeled ports and buttons (no readable text or symbols beyond icons)

Front view of a black electronic device with indicator lights and ports (no readable text or symbols)

ABY SE MNOU BYLO BEZPEČNO:

VSTUPNÍ IMPEDANCE: 75 Ω

Front view of a black electronic device with ports and indicator lights (no readable text or symbols)

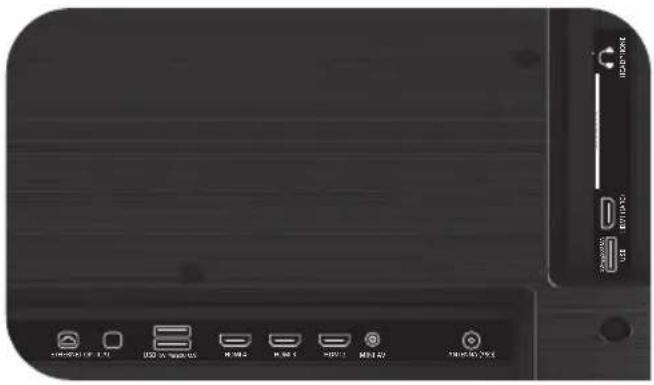

MODELY

UHD

Front view of a black electronic device with labeled ports (no readable text or symbols beyond component labels)

CE RECOCONOMICS CD

Front view of a black electronic device with labeled buttons and ports (no readable text or symbols beyond basic labels)

UHD MODELLE

Close-up of a black electronic device rear panel with labeled ports (no readable text or symbols beyond standard labels)

KIVJ 0.00 η

Technical line drawing of a rectangular electronic device with labeled 'KIVI' and internal components (no readable text or symbols beyond label)

Front view of a black electronic device with labeled ports and indicators (no readable text or symbols beyond basic labels)

MONTELA UHD

Close-up of a black electronic device rear panel with indicator lights and ports (no readable text or symbols)

Front view of a black electronic device with ports and indicator lights (no readable text or symbols)

MODELOS UHD

Front view of a black electronic device with indicator lights and ports (no readable text or symbols)

Front view of a black electronic device with ports and indicator lights (no readable text or symbols)

MUDELID
UHD

FAT1007 FAT200 FAT200 FAT300 FAT400 FAT500 FAT600 FAT700 FAT800 FAT900 FAT1000

USB USB-seadmete sisend (500 mA)

Front view of a black electronic device rear panel with ports and indicator lights (no readable text or symbols)

MODÈLES UHD

DUT/NCFT OPTICAL OFFIC LAYOUTING ICAM ICAM 3 I/O 1 MINI 27 MINI MAX 53

CE RECOCONOMICS CD

Technical line drawing of a mechanical assembly with labeled component 'KIVI' (no text or symbols beyond label)

Front view of a black electronic device with ports and indicator lights (no readable text or symbols)

UHD MODELI

Close-up of a black electronic device rear panel showing ports and labels (no readable text or symbols beyond basic icons)

USB ulaz za USB uređaje (500 mA)

HDMI HDMI ulaz

CE RECOCONOMICS CD

Technical line drawing of a rectangular electronic device with internal components and mounting feet (no text or symbols)

Front view of a black electronic device with labeled ports and buttons (no readable text or symbols beyond basic labels)

UHD MODELLEK

LED IC 2P/DC 2P/DC 2P/DC ICAM 4 ICAM 3 ICAM 2 I/O 2 MOS 02 MOS 03 LED CLK

CE RECOCONOMICS No DEDUCATION CD

Front view of a black electronic device rear panel with labeled ports (no readable text or symbols beyond labels)

MODELLI

UHD

Close-up of a black electronic device rear panel with indicator lights and ports (no readable text or symbols)

Front view of a black electronic device with ports and indicator lights (no readable text or symbols)

UHD MODELI

Close-up of a black electronic device front panel with indicator lights and ports (no readable text or symbols)

USB Ieeja USB iericēm (500 mA)

HDMI HDMI tipa ieeja

Antenna Antenas savienojuma ports

Technical line drawing of a rectangular electronic device with internal components and mounting feet (no text or symbols)

Front view of a black electronic device with labeled ports and indicators (no readable text or symbols beyond basic labels)

MODELIAI
UHD

START OFF AUTO OFF ITEM 1 ITEM 2 ITEM 3 ITEM 4 AUTO 5 AUTO 6

Three black-and-white icons: a square, a recycling symbol, and a waste bin (no text or symbols)

Dan is-simbolu jindika li ghandi izolament doppju bejn il-vultagg tal-mains u l-partijiet perikoluzi ghalik.

Hbieb, sfortunatament, jien m'inix etern. Ghaldaqstant, fit-tmiem tat-terminu tieghi, jien se ninghata lil punt ta'ričeviment ta'taghmir elettriku u elettroniku. Ghal informazzjoni aktar dettaljata dwar punti ta'ričeviment u rimi, jekk joghgbok ikkuntattja lill-awtoritajiet municipali lokali jew kumpanija ghar-rimi tal-iskart domestiku.

KARATTERISTIĆI

Mudell	32H760QB32H760QW	32F760QB32F760QW			43U760QB43U760QW	50U760QB40F760QBKds	55U760QB55U760QW	65U760QB
Daqs dijagonali tal-iskrin, pulzieri/cm	32/80 32/80		32/80	40/102 43/109 50/127		55/140 65/165
Rižoluzzjoni	HD1366x768	FHD1920x1080			UHD3840x2160
USB 2.0(FAT32, NTF5)	2				2
HDMI	3				4
HDMI	HDMI 1.4a				HDMI 2.1
Wi-Fi	a/b/g/n/ac
Standard VESA, mm	200x100 200x150		200x200 400x200
Tip / daqsViti VESA, mm	M4 /2x12 + 2x6	M4 /2x12 + 2x6	M4 /2x12 + 2x6	M6 /2x12 + 2x8	M6 /2x12 + 2x12	M6 /2x12 + 2x12	M6 /2x16 + 2x16	M6 /2x16 + 2x16
Wisa', gholi, fond, mm	720x425x62	720x430x62	734x436x71	899x522x62	960x556x64	1116x642x61	1229x710x63	1448x835x63
Dimensjonijietbl-istand, mm	720x465x180	720x465.5x183	734x481x195	899x575x240	960x620x240	1116x705x240	1229x772x260	1448x902x333
Piz nett, kg	4.2	4,2	6.87.4	6.4		10.5	13	17.3

NOTA:

Is-sett komplet, id-dehra u l-ispecifikazzjonijiet tal-prodott jistghu jkunu differenti jew jistghu jigu mibdula mill-manifattur minghajr avviż minn qabel.

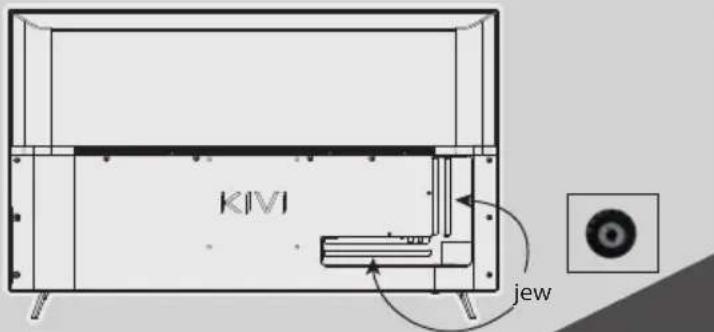

INSTALLA L-ANTENNA TIEGHI KIF MURI HAWN TAHT

KIVI jew

IMPEDANZA TAL-INPUT: 75 Ω

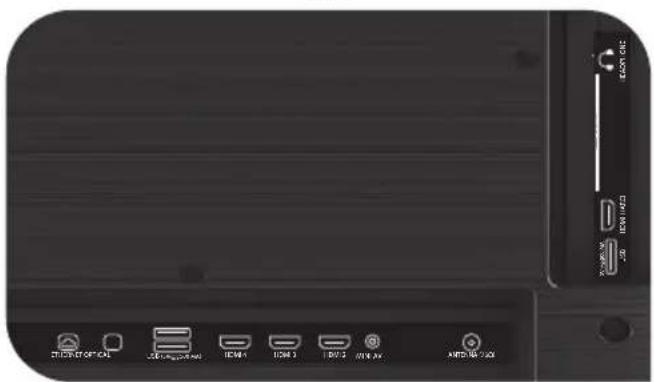

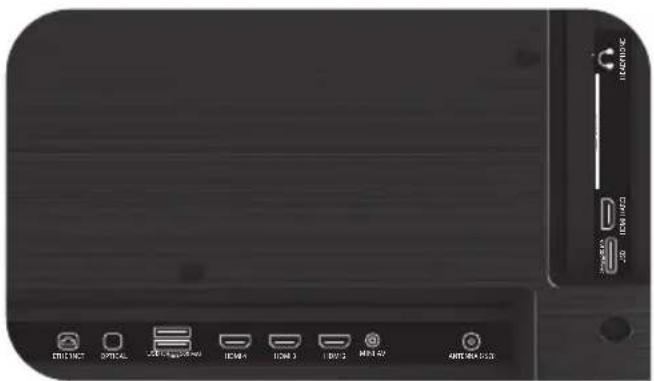

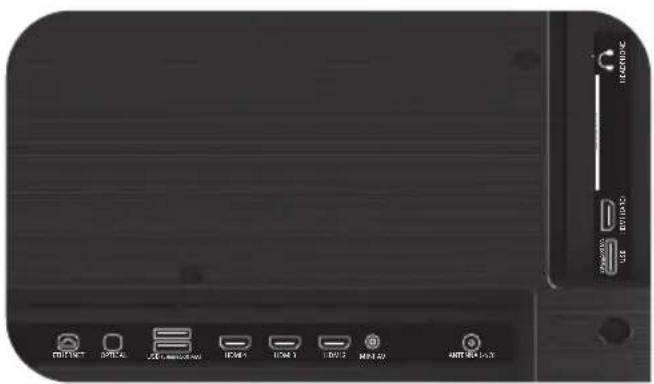

Front view of a black electronic device rear panel with labeled ports and indicators (no readable text or symbols beyond basic labels)

MUDELLI

UHD

Device rear panel with labeled buttons and icons for ventilation or storage functions

USB Input ghal apparati USB (500 mA)

HDMI Input HDMI

Antenna Port ghall-konnessjoni tal-antenna

CI Port tal-konnessjoni tal-modulu

Mini AV Input awdjo/vidjo kompost

VIDEO Input vidjo kompost

ETHERNET Input ethernet

HEADPHONE Hrug tal-headphone (3.5mm)

OPTICAL Output ottiku

! NOTA:

1. L-apparati esterni kollha m'ghandhomx ikunu konnessi wara li titfini.
2. It-taghbija massima fuq il-port USB m'ghandhiex taqbez 0.5 A.
3. It-TV jappopgga ARC, CEC. 2K jappoğga HDMI 1.4 a, 4K jappoğga HDMI 2.1 u eARC.

KIF TQABBAD KARD TAL-AČČESS KUNDIZZJONALI CI

IMPEDANCJA WEJŚCIOWA: 75 OM

Front view of a black electronic device with labeled buttons and ports (no readable text or symbols beyond basic labels)

MODELE UHD

Front view of a black electronic device rear panel with indicator lights and ports (no readable text or symbols)

Back view of a black electronic device with ports and indicator lights (no readable text or symbols)

MODELOS UHD

EXTRUCT OFFIC USB USB 1 USB 2 MINT 40 MINT 50

PENTRU CA SĂ FIU CURAT:

Three black-and-white icons: a square, a recycling symbol, and a waste bin (no text or labels)

NOTĂ:

Technical line drawing of a rectangular enclosure with internal components and a horizontal beam (no text or symbols)

Front view of a black electronic device with ports and indicator lights (no readable text or symbols)

MODELE UHD

Close-up of a black electronic device rear panel with indicator lights and ports (no readable text or symbols)

Front view of a black electronic device with labeled ports and indicators (no readable text or symbols beyond basic labels)

Black electronic device rear panel with labeled ports and indicator lights

NEPOUŽÍVAJTE MA, AK:

Front view of a black electronic device with labeled ports and indicators (no readable text or symbols beyond basic labels)

MODELY UHD

Front view of a black electronic device with indicator lights and ports (no readable text or symbols)

USB Vstup pre USB zariadenia (500 mA) HDMI HDMI vstup Antenna Port na pripojenie antény CI Port na pripojenie CAM modulu Mini AV Kompozitný audio/video vstup

NE MOREM BITI UPORABLJEN, ČE:

CE RECOCONOMICS CD

Ta simbol pomeni, da imam dvojno izolirane dele pod napetostjo.

Close-up of a black electronic device rear panel with labeled ports and buttons (no readable text or symbols beyond basic labels)

MODELI UHD

Front view of a black electronic device with labeled ports and connectors (no readable text or symbols beyond basic labels)

USB za USB naprave (500 mA)

HDMI vrste HDMI

Three black-and-white icons: a square, a recycling symbol, and a waste bin (no text or labels)

! ПРИМИТКА:

Front view of a black electronic device with labeled ports and indicators (no readable text or symbols beyond icons)

DIN 167 OPTICAL 201-500V/400 ICM1 ICM3 I/O1 MIN 40 MIN 40+50

Full troubleshooting instructions are available via the QR code.

Scan the QR code using your smartphone or Viber camera.
