USER MANUAL SS-8665 Sogo

EN Instructions for use

FR Mode d'emploi

QR code image containing encoded data, no visible human-readable text

Descarga tu manual

Download your manual

Technical diagram of a device with numbered components and labeled parts in Chinese

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

2.

GENERAL PRECAUTIONS

SAFETY INSTRUCTIONS FOR THE USER

I. Restrictions

• Never immerse the device or the charging cable-in water or any other liquid. In the event of the speaker falling in water take it to an authorized service agent for repair before reusing.
• Do not place or operate the device on or near hot surfaces (e.g., stove plates) or open flames.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or irreparable damage to the product.
• Do not use the device for any other purpose than described in this manual.
• Do not leave the device charging longer than recommended by the manufacturer, as this may damage the battery or the device itself.
• Do not use the device while in charge, otherwise it may also damage the device.
• Do not drop, disassemble, deform, modify or insert any objects into this product as operating damage may result.
• Do not attempt to repair, modify or disassemble the product yourself. This product does not contain any user-serviceable components and may void the warranty.
• Do not clean the product with alcohol, ammonia-based cleaners and abrasive cleaners.

• Do not place this product in to contact with any sharp objects as this may cause scratches and operating damage.

• Do not attempt to replace the product battery, it is built-in and is not user changeable.

• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children.

II. Precautions while using this device

• Keep the device away from direct sun-light, fire, or other high voltage equipment.
• WARNING: the device might get warm during charging. Always ensure the speaker is turned off when you plug and unplug the device. If the device is not turned off you might damage the speaker or injure yourself.
• Observe all signs and displays that require an electrical device or RF radio product to be switch off in designated areas.
• Dispose of the product and the product's battery in accordance with local laws and regulations.
• In case of speaker malfunction, or if it has been damaged in any manner, return it to the nearest authorized service facility for examination, repair or adjustment.
• Avoid exposure to extreme temperature, direct sunlight, moisture, sand, dust, or mechanical shock; never leave the products directly into the sun.
• In vehicles or in large concrete buildings, radio reception may be difficult or noisy. For using the product, try to listen to the radio near a window where you may catch good signal.
• In case of lightning, immediately take off the earphones.
• You may not hear some warning sounds while wearing these earphones.
• Prolonged exposure to high listening levels may permanently damage your hearing.
• Do not dispose of batteries in fire.

• CAUTION

- To avoid possible hearing damage, do not listen at high volume for long periods of time. Please set the volume to a safe level and understand that the

louder the volume is, the shorter safe listening time is.

- Do not turn up the volume so high that you cannot hear the ambient sound.

- You should temporarily renounce to use it in potentially hazardous situations (such as lightning, rain, extremely heat).

3. TECHNICAL SPECIFICATIONS

1. Frequency range: FM (87-108MHz) / AM (530-1710KHz)
2. Earphone's output: 5.5 mw
3. Speaker output: 500 mw
4. Power supply: 2PCS x 1.5V (AAA) batteries
5. Power consumption: 0.7W
6. Power source: DC 3V

Battery Supply: Open the battery compartment and insert as indicated in the compartment two batteries, type AA (not included)

Technical diagram of a device with numbered components and labeled parts in Chinese

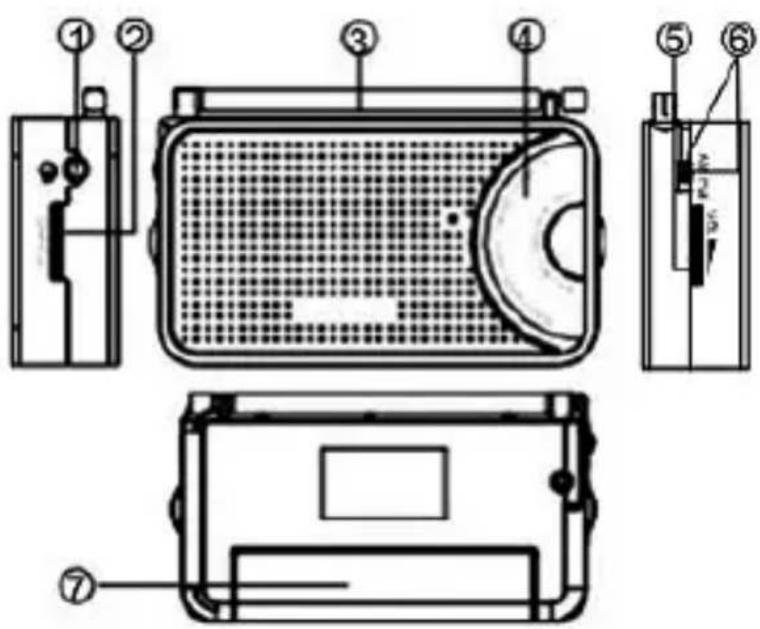

4. CONTROLS AND DIRECTIONS FOR USE:

1- PHONES JACK

3.5MM Stereo jack. If you would like to listen the radio in earphones, please connect the earphones provided, into this jack.

2- TUNING

Rotate the tuning knob to select the radio frequency on your desired position.

3- FM ANTENNA

Extend the telescopic Antenna to its full length if you are listening to FM broadcasting.

4- DIAL SCALE

Your desired radio station is shown here on dial scale.

5- VOL CONTROL

Rotate this knob to adjust volume level.

When playing, rotate upward to increase the volume, rotate upward till you hear a sound "clap" to close the unit, rotate down till you hear a sound "clap" to open the unit. When playing, rotate down to reduce the volume.

6- AM/FM SWITCH

This switch is provided to switch between AM/FM.

7- BATTERY COMPARTMENT

Open the battery compartment and insert 2 batteries, type AA cells (not included).

If you would like to listen to the radio through earphones, please set the switch to earphones and connect the supplied earphones into the jack. If you remove the earphone, the sound will switch to the speaker automatically.

Note: Before listening to the radio by earphones, please set the volume to the low level.

Important:

1. You may not hear some warning sounds while wearing these earphones.

2. Prolonged exposure to high listening levels may permanently damage your hearing.

3. Do not wear headphones in situations where it could be dangerous to have your hearing impaired. E.g. Driving

5. CLEANING AND MAINTENANCE

While cleaning the product, just use soft or dry cloth and in case of severe stains use the damp cloth.

Do not use abrasive cleaners, as it can damage the paint, plastic or even the speaker itself.

Keep it away from sun light and do not keep it in hot and humid atmosphere.

Make sure to remove the power adaptor cable and keep it in cool and dry place.

Keep the unit away from any strong magnetic item.

6. DISPOSAL OF ELECTRONIC GOODS

DISPOSAL OF BATTERY-OPERATED UNITS

Do not dispose the battery-operated units as normal rubbish, always these should be recycled in proper manner and according to the local municipal laws.

You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

1. AVIS IMPORTANT

Technical diagram of a device with numbered components and labeled parts in Chinese

Technical diagram of a device with numbered components and labeled parts in Chinese

Technical diagram of a portable electronic device with labeled parts including front panel, side panel, and internal components.

Technical diagram of a device with numbered components and labeled parts in Chinese

4. CONTROLLI E ISTRUZIONI PER L'USO:

1- JACK PER TELEFONI

Technical diagram of a device with numbered parts and labeled parts in Chinese

4. OVLÁDACÍ PRVKY A NÁVOD K POUŽITÍ:

1- TELEFONY JACK

Technical diagram of a portable electronic device with numbered components and internal structure annotations

4. KONTROLLER OG BRUGSANVISNINGER:

1- PHONES JACK

Technical diagram of a device with numbered components and labeled parts in Chinese

4. NADZOR IN NAVODILA ZA UPORABO:

1- TELEFONI JACK

Stereo vtičnica -3,5 mm. Če želite radio poslušati s slušalkami, priključite priložene slušalke v ta vtič.

2- UGLAŠEVANJE

Technical diagram of a device with numbered components and labeled parts in Chinese

4. KONTROLE I SMJERNICE ZA UPORABU :

1- TELEFONSKI JACK

Technical diagram of a device with numbered components and labeled parts in Chinese

4. ELEMENTY STERUJĄCE I INSTRUKCJE UŻYTKOWANIA:

1- GNIAZDO TELEFONICZNE

Technical diagram of a device with numbered components and labeled parts in Chinese

4. CONTROALE ŞI INSTRUCTIUNI DE UTILIZARE:

1- TELEFON JACK

Technical diagram of a device with numbered components and labeled parts in Chinese

Technical diagram of a device with numbered components and labeled parts in Chinese

4. CONTROLS I INSTRUCCIONS D'ÚS:

1- PRESA D'ENTRADA

DECLARATION OF CONFORMITY

This device complies with EU RED Directive 2014/53/EU related to Health and Safety from usage of Radio spectrum in household electronic equipment. Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

DÉCLARATION DE CONFORMITÉ

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards

Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain

Product manufactured in CHINA. After-

sales service: www.sogosat.com [e-mail] / 0034 902 222 161
