Product Type	Juice Extractor (Citrus Press)
Brand	Sogo
Model	SS-5223
Voltage / Frequency	220-240 V ~ 50/60 Hz
Power Consumption	40 W
Cone Material	Stainless Steel
Filter Material	Stainless Steel
Package Contents	Motor base, 2 cones (large and small), filter, juice container, protective cover
Functions	Manual citrus pressing (lemons, oranges, grapefruits, etc.)
Automatic Stop	Yes, when pressure on the cone is released
Cleaning	Removable parts washable with water and detergent; wipe motor base with a damp cloth
Safety	Automatic stop; non-slip base
Repairability	After-sales service: www.sogosat.com / [e-mail] / 0034 902 222 161
Estimated Dimensions (L x W x H)	20 x 18 x 25 cm
Estimated Weight	1 kg
Usage	Household only, indoor
Power Cord Length	Approximately 1 m (estimate)

Frequently Asked Questions - SS-5223 Sogo

How to use the Sogo SS-5223 juice extractor?

Cut the citrus fruit in half. Place the container under the juice spout. Plug in the appliance. Press the fruit half onto the cone and turn slightly. The juice flows automatically. Release pressure to stop.

What types of citrus fruits can I press?

This extractor is suitable for lemons, oranges, grapefruits, and other similarly sized citrus fruits. Use the large cone for large fruits and the small one for lemons.

How to clean the appliance after use?

Always unplug the appliance. Wash the removable parts (cones, filter, container) in warm soapy water. Rinse and dry. Wipe the motor base with a damp cloth. Never immerse the base in water.

Can I wash the parts in the dishwasher?

The instructions do not specify, but plastic and stainless steel parts can generally go in the dishwasher on a gentle cycle. To extend their lifespan, hand washing is recommended.

What should I do if the appliance does not start?

Check that the plug is properly inserted and the outlet works. Make sure to press firmly on the cone: the appliance only activates under pressure. If the problem persists, contact after-sales service.

Does the appliance stop automatically?

Yes, the appliance stops as soon as you release pressure from the cone. This prevents overheating and ensures safe operation.

Is there a risk of overheating?

The appliance is designed for intermittent use. If pressing many fruits, take breaks of a few minutes to avoid overheating. The 40 W motor is low-power, so this risk is limited.

Can I use the appliance continuously for a long time?

It is recommended not to exceed a few minutes of continuous use. For large quantities, clean the filter regularly and let the appliance cool between sessions.

Where can I find spare parts?

Contact Sogo after-sales service via www.sogosat.com or email at [e-mail]. Phone: [phone].

What if the cone or filter is damaged?

Do not use the appliance with damaged parts. Replace them with original parts from after-sales service. Do not attempt to repair the motor unit yourself.

USER MANUAL SS-5223 Sogo

Product photo of a BPA FREE SoGO juicer with orange juice being placed on a clear stand (no text or symbols visible on the device itself)

EXPRIMIDOR DE ZUMO

CITRUS JUICER

PRESSE-AGRUMES

ESPREMEDOR

SPREMIAGRUMI

SAFTPRESSE

Caution: please read and preserve these important instructions

_

| _

一

1

IMPORTANTE:

LIMPIEZA

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

SAFETY INSTRUCTIONS FOR THE USER

• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Do not use or store the appliance outdoors.
  • Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.
• The appliances are not intended to be operated by means of an external timer or

separate remote-control system.

• Do not place or operate this appliance near water sources.
• Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or

sold by the appliance manufacturer may result in fire, electric shock or injury to persons.

• Always place the appliance on to the flat and even surface.
- When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
- Make sure your hands are dry before plug or unplugging.
- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children should be supervised to ensure that they do not play with the appliance.
- Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
- Keep the appliance and its cord out of reach of children less than 8 years.
• This appliance is not a toy.
- Fully unroll the appliance's power cable before each use.
- Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section before use.

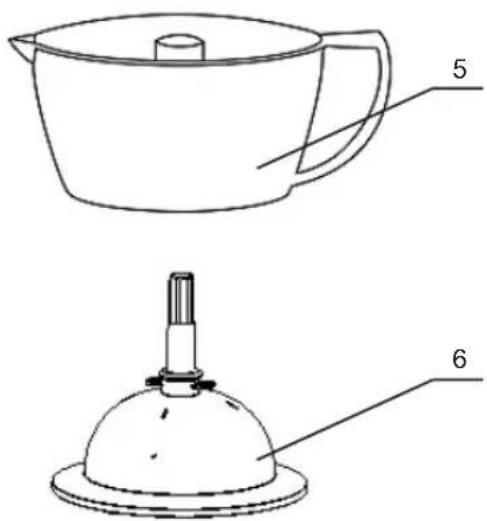

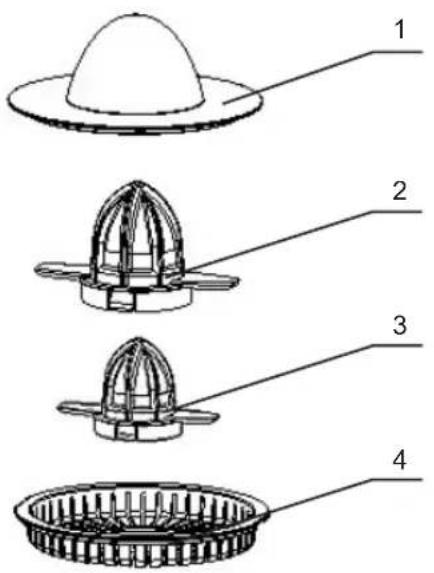

DESCRIPTION OF THE PARTS

1. Protective cover
2. The first Cone
3. The second Cone
4. Filter
5. Jug
6. Motor base

TECHNICAL INFORMATION

Voltage / Frequency: 220 - 240V\~ 50/60Hz Power: 40W

INSTRUCTIONS FOR USE

• Unroll the cord completely before plugging in.
• Connect the appliance to the mains.
• Cut the citrus fruit/s to be squeezed in half.
• Place the glass at the appliance's juice exit.
• Turn on the appliance by pushing down on the piece of citrus fruit, once it has been placed on the juicing cone.
  • To stop the appliance, simply stop applying pressure to the cone.
• Remove both the cone and the filter to empty the jug.
• Pour juice out of the jug and into glasses to serve directly.
• If you process a large quantity of fruit, you must periodically clean the filter and remove the remains of the pulp.

CLEANING

• Unplug the appliance from the mains and let it cool before starting any cleaning.
• Except for the power unit and the mains connection, all the parts can be cleaned with detergent and water or in washing up liquid. Rinse thoroughly to remove all traces of detergent.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not submerge the appliance in water or any other liquid, or place it under a running tap.
• It is advisable to clean the appliance regularly and remove any food remains.

IMPORTANT:

LIMPEZA

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2 46002 Valencia, Spain Product made in P.R.C. – Designed by SOGO based on the European Quality Standards Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
