Thank you for choosing a Candy appliance; quality dishwashers which guarantee high performance and reliability.

Candy manufacture a vast range of domestic appliances: washing machines, washer/dryers, cookers, microwave ovens, ovens and hobs, refrigerators and freezers.

Ask your dealer for the catalogue with the complete range of Candy products. Please read this booklet carefully as it provides important information regarding the safe installation, use, and maintenance of the machine, together with some useful advice on how to achieve the best results from your dishwasher.

For future reference please keep this instruction booklet in a safe place.

CUSTOMER SERVICE AND GUARANTEE

Your new appliance is fully guaranteed by the manufacturer for 12 months against electrical/mechanical breakdown excluding:

A. Any faults which occur due to bad installation or misuse of the machine.

B. Any faults which occur due to repair of, or interference with, the machine by any person not authorised by the manufacturer to carry out service.

C. Any faults which occur due to any parts which are fitted to the machine which are not the original manufacturers parts.

D. Any faults arising from non-domestic use or unusual or abnormal use of the machine.

E. Any faults arising from operation at incorrect voltage.

F. Any faults arising from incorrect operation of the machine.

The guarantee applies to Gt Britain and Northern Ireland only, and is an addition to your statutory rights.

AFTER SALES SERVICE

For service and repairs call your local engineer on our national telephone number:

GIAS Service

Tel: [phone]

Support Service

(Eire 018301 666)

CONTENTS

Description of the control panel

pag. 11

Technical data

pag. 11

Programme selection and special functions

pag. 12

Water softener unit

pag. 15

Programme guide

pag. 16

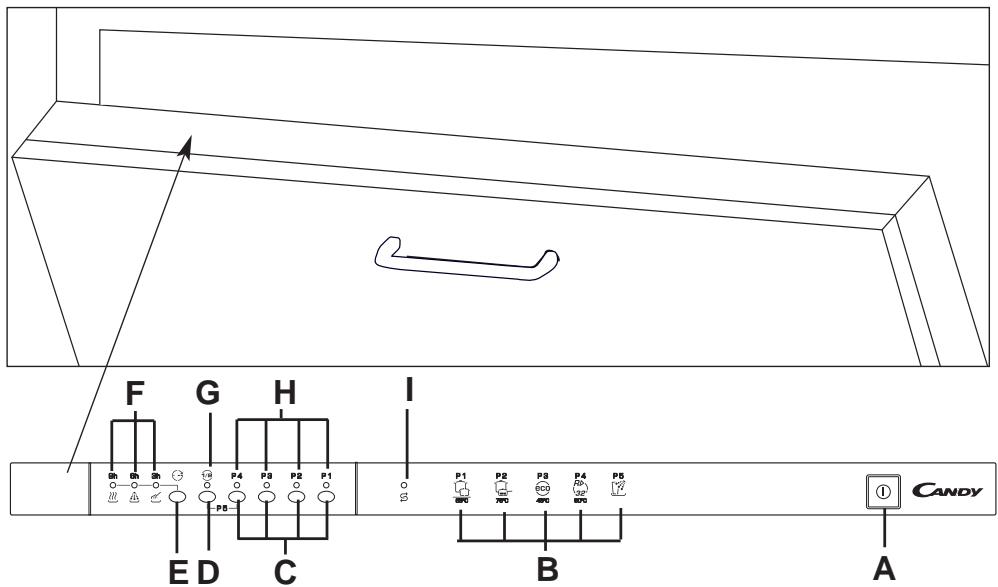

DESCRIPTION OF THE CONTROL PANEL

A "ON/OFF" button

B PROGRAMME DESCRIPTION

C "PROGRAMME" buttons

D "HALF LOAD" option button

E "DELAY START" button

F "PROGRAMME STATUS" lights/ "DELAY START" time lights

G "OPTION SELECTION" light

H "PROGRAMME SELECTION" lights

I "SALT EMPTY" light

DIMENSIONS:

Height	cm	82÷88,5
Depth	cm	55
Width	cm	59,8
Depth with door open	cm	117

TECHNICAL DATA:

EN 50242 place load	12
Capacity with pans and dishes	8 persons
Water supply pressure	Min. 0,08 - Max 0,8 MPa
Fuse	(see rating plate)
Power input	(see rating plate)
Supply voltage	(see rating plate)

PROGRAMME SELECTION AND SPECIAL FUNCTIONS

(Use in conjunction with programme guide)

IMPORTANT

The dishwasher has one very practical functions:

the "recommended" programme (which is ideal for full load daily use) for quick and accurate selection.

Programme settings

■ Open the door and place the dirty dishes inside the appliance.
■ Press the "ON/OFF" button Ⓘ.
■ After pressing the "ON/OFF" button, the indicator light which is factory set at "recommended" will flash.
■ If you wish to select an option, press the option button (the corresponding indicator light will light up).

The option button can be selected or deselected WITHIN 2 minutes of the programme commencing.

• Choose a programme by pressing the corresponding button.
  ■ Close the door (after an audible signal has sounded, the programme will start automatically).

WITHIN 2 minutes of the programme commencing another programme can be selected, simply by pressing the corresponding button.

IMPORTANT

To select the "COLD RINSE" programme, simultaneously press the "RAPID" programme button and "HALF LOAD" option button.

Programme interruption

Opening the door when a programme is running is not recommended especially during the main wash and final hot rinse phases. However, if the door is opened while a programme is running (for example, to add dishes) the machine stops automatically.

Close the door, without pressing any buttons. The cycle will start from where it left off.

WARNING!

If you open the door during the drying cycle, an audible audio signal advises you that the drying cycle has not yet finished.

Changing a running programme

Proceed as follows to change or cancel a running program:

■ Open the door.
■ Hold down the current programme button (with the indicator light on) for at least 5 seconds. The programme indicator lights (except for the "RAPID" programme indicator light) will flash.
■ The running programme will be cancelled and the indicator light for the "recommended" programme will start to flash.
■ At this point a new programme can be set.

IMPORTANT

To cancel the "COLD RINSE" programme, simultaneously hold down the "RAPID" programme button and "HALF LOAD" option button.

WARNING!

Before starting a new programme, you should check that there is still detergent in the dispenser. If necessary, top up the dispenser.

If there is any break in the power supply while the dishwasher is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off.

Programme operations

When a programme is running the relevant indicator light will remain on and the 3 "PROGRAMME STATUS" indicator lights ("WASH", "RINSE", and "DRY") will light singularly and in sequence to indicate the current phase.

Programme end

A 5 second alarm will sound (if not muted) 3 times at 30 second intervals to signal that the programme has ended.

The "PROGRAMME STATUS" indicator lights will turn off and the indicator light which is factory set "recommended", will start to flash.

Dishes can now be removed and the dishwasher turned off by pressing the "ON/OFF" button or dishes can be loaded for new cycle.

Option button

"HALF LOAD" button

In response to your everyday washing requirement in addition to the normal wash functions this dishwasher is equipped with the “HALF LOAD” function. This function enables the uses to wash a reduced number of dishes yet retaining the freedom of loading them both on the top and bottom basket.

When this function is activated the dishwasher will automatically reduce the water and energy consumption and the wash time. When selecting the “HALF LOAD” ensure a reduced amount of detergent is used.

"DELAY START" button

The dishwasher start time can be set with this button, delaying the start by 3, 6 or 9 hours.

Proceed as follows to set a delayed start:

■ Press the "DELAY START" button (each time the button is pressed the start will be delayed by 3, 6 or 9 hours respectively and the corresponding time indicator light will illuminate).
■ To start the countdown, press the selected programme button (the relevant indicator light will come on, while the set time indicator light will start to flash).

If a 9 hour delay is set, countdown will be displayed by the 6h indicator light after 3 hours and the 3h indicator light after 6 hours.

At the end of the last 3 hours (at the end of countdown) the 3h indicator light will stop flashing and remain on to indicate the washing phase and the programme will start automatically.

If countdown has not ended, whereby the programme has not yet started, it is possible to change or cancel the delayed start and select another programme or to select/deselect the option button, proceeding as follows:

■ Hold down the selected programme button for at least 5 seconds. The programme indicator lights (except for the "RAPID" programme indicator light) will flash.
■ The selected programme will be cancelled and the indicator light for the "recommended" programme will start to flash.

■ Press the "DELAY START" button to set another delayed start time (the corresponding indicator light will turn on).
A new programme can be set after a delayed time has been changed or cancelled or an option button has selected or deselected.

Alarm mute for the PROGRAMME END

The alarm for the programme end may be muted as follows:

■ With the dishwasher off, hold down the "HALF LOAD" button for few seconds while simultaneously pushing the "ON/OFF" button, releasing them only after the alarm sound.
■ Press the "HALF LOAD" button again: the relevant indicator light (turned on to indicate that the alarm is activated) will flash (to indicate that the alarm is off).
■ Wait for the alarm to sound to indicate that the settings were saved.
■ To turn the alarm on again, follow the same procedure.

Fault signals

If malfunctions or faults occur when a programme is running the indicator light that corresponds to the selected cycle (2 indicator lights for the "COLD RINSE" programme) will flash rapidly and the alarm sounds.

In this event, turn the dishwasher off by pressing the "ON/OFF" button.

After checking to make sure the water inlet hose tap is open, that the drain hose is not bent and that the siphon or filters are not clogged, set the selected programme again.

If the anomaly persists, contact Customer Service Department.

IMPORTANT

This dishwasher is equipped with an anti-overflow safety device which will automatically discharge any excess water should a problem occur.

WARNING!

To ensure the correct operation of the anti-overflow safety device, we recommend that the dishwasher is not moved or tilted during operation. If however it is necessary to tilt or move the dishwasher, please ensure that the washing cycle is complete and that there is no remaining water inside the dishwasher.

WATER SOFTENER UNIT

Depending on the source of the supply, water contains varying amounts of limestone and minerals which are deposited on the dishes leaving whitish stains and marks. The higher the level of these minerals present in the water, the harder the water is. The dishwasher is fitted with a water softener unit which, through the use of special regenerating salt, supplies softened water for washing the dishes. The degree of hardness of your water can be obtained from your water supply company.

Regulating the water softener

The softener unit can treat water with a hardness of up to 90^ fH (French grading) or 50^ dH (German grading) through 6 different settings.

The table below lists different degrees of water hardness with the corresponding setting for the softener unit.

Level	Water hardness		Use of regenerating salt	Water softener setting
	^ofH (French grading)	^ofH (German grading)
0	0-5	0-3	NO	Indicator light 1
1	6-15	4-9	YES	Indicator light 1
2	16-30	10-16	YES	Indicator lights 1,2
*3	31-45	17-25	YES	Indicator lights 1,2,3
4	46-60	26-33	YES	Indicator lights 1,2,3,4
5	61-90	34-50	YES	Indicator lights 1,2,3,4,5

* The water softener unit is set in the factory at level 3, as this is suitable for the majority of users.

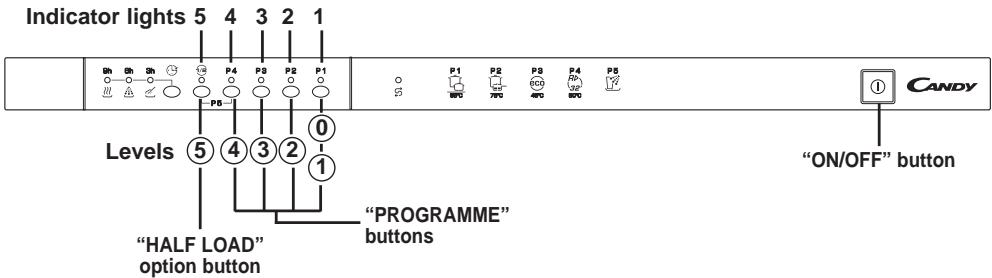

According to the degree of hardness of your water, regulate the softener unit in the following way:

IMPORTANT

The dishwasher must be ALWAYS off before start this procedure.

1. When the dishwasher is off, OPEN the door.
2. Hold down the FIRST and the THIRD "PROGRAMME" button (from the right) while simultaneously pushing the "ON/OFF" button.
3. Release the buttons when some "PROGRAMME SELECTION" indicator lights up.
4. Press the "PROGRAMME" button for the required water softener level (each time the button is pressed a light will go on). For level 5, press the "HALF LOAD" button.
5. Turn off the dishwasher pressing the "ON/OFF" button to confirm the new setting.

WARNING!

If any problem occurs, turn the dishwasher off by pressing the "ON/OFF" button and start the procedure again from the beginning (STEP 1).

PROGRAMME GUIDE

Programme

Description

	UNIVERSAL	(“RECOMMENDED” PROGRAMME)Once a day - for normal soiled pans and any other items that have been left all day for washing.
	HYGIENIC	Once a day - for heavily soiled pans and any other items that have been left all day for washing.
	ECO	Energy Saving Programme suitable for normal soiled items. Using detergents with enzyme.Programme standardised to EN 50242.
	RAPID 32'	Quick wash for dishes which are to be washed immediately after the meal. Wash load of 4/6 persons.
	COLD RINSE RD_32' + 1/2	Short cold pre-wash for items that are stored in the dishwasher until you are ready to wash a full load.

Wash with prewash
If setting the HYGIENIC wash programme, a second dose of about 20 g of detergent
(1 table-spoon) must be added directly in the machine.

Check list

Programme contents

Avaragedurationin minutes

Special functionbuttonsavailable

Detergent for soaking(Prewash)

Detergent for washing

Clean filter

Check rinse aid dispenser

Check salt container

Hot pre-wash

Cold pre-wash

Main wash

First cold rinse

Second cold rinse

Hot rinse withrinse aid

With cold water (15°C)-Tolerance ± 10%-

"START DELAY"button

"HALF LOAD" button

●

●

●

●

○

65°C

○

○

95

YES

YES

●

●

●

●

●

○

75°C

○

○

○

120

YES

YES

●

●

●

●

●

○

45°C

○

160

YES

YES

●

●

●

●

50°C

○

32

YES

N/A

●

○

5

YES

N/A

N/A = OPTION NOT AVAILABLE
