LE GRIDDLE GF-105

3D rendering of a rectangular stainless steel grater with three circular control knobs and a black dot on the side (no text or symbols)

Noce d'ulisaon/Instrucons Manual

Cher client,

3D technical illustration of a mechanical assembly with yellow pipe fittings and black cable (no text or symbols)

⚠️DANGER : NE JAMAIS UTILISER UN APPAREIL QUI FUIT.

Technical diagram of a mechanical assembly with internal components and a green arrow indicating direction (no text or symbols)

3D mechanical assembly diagram showing layered components with a green arrow indicating direction (no text or symbols)

3D mechanical assembly diagram showing a roller pressing into a housing with a green arrow indicating direction (no text or symbols)

Illustration of a French cooker with two rotary controls and a decorative 'Le Griddle' logo (no text or symbols on the main body)

Le rangement :

To Open the Lidyouneed 24 Inches 40 1/4 16 3/4 5 3/4

Thank you for purchasing this SISTERIA product. It is very easy to use, but we strongly recommend that you carefully read these instrucons which include advice on how to use and install your appliance in order to obtain opmum and safe results.

Recepon and unpacking

Should you noce any damage when unpacking, please contact your retailer.

General rules applicable to gas equipment

EXCLUSIVELY USE THE GRIDDLE OUTDOOR IN A WELL VENTILATED AREA AND ABOVE GROUND (I.E NOT IN AREAS THAT ARE BELOW GROUND LEVEL).

DANGER:

if you smell gas:

1. Shut o gas to appliance.
2. Exnguish any open ame.
3. Open lid.
4. If odor connues, keep away from the appliance and immediately call your gas supplier or your re department.

WARNING:

1. Do not store or use gasoline or other ammable liquids or vapors in the vicinity of this or any other appliance.
2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

When using gas appliances, safety measures must always be taken:

Please read all the instrucons carefully.

- This appliance is not designed for use by people (including children) whose physical, sensorial or mental capacities are impaired or by people with no experience or knowledge, unless they have been supervised or given training in the use of the appliance beforehand by a person responsible for their safety.

• Some parts can be hot, keep the children away from the Griddle
  ■ The appliance must never be le without supervision during use.
  ■ Do not move the device during operaon.
• Do not use the appliance for anything other than the purpose which is described.
• There is a risk of accidents if accessories used are not recommended by the manufacturer of the appliance.
  ■ This appliance must be kept away from ammable materials.
  ■ If you smell gas, turn o all the taps.
  ■ Never use an appliance that leaks.
  ■ Use protecve gloves when handling particularly hot parts of the appliance.
• Allow the appliance to cool down before handling or cleaning.
  ■ Use this appliance out of the wind.
• The underneath of the appliance must be kept well venlated to ensure good air circulaon to the burner.
• Place the appliance on a stable, dry surface, slightly away from the edge and more than 20 cm away from any walls or heat-sensitive objects.
• Recommended hot plate height: 85 to 95 cm from the ground for a comfortable working posion.
  ■ Close the gas cylinder tap aer use.
  ■ Any modicaon of the appliance may be dangerous.
  ■ Do not use an adjustable regulator.
• Do not obstruct the venlaon openings on the frame.
• Warning: Do not use or store any ammable liquids or vapours in the vicinity of the Griddle.
• Close the tap on the gas cylinder when the griddle is not in use. Store the appliance in a dry, well venlated place.
• Place the appliance on a stable, dry surface, slightly away from the edge and more than 20 cm away from any walls or heat-sensitive objects (Plasc, Wood, ....)
  ■ We recommend you to keep the original packaging in order to store the appliance.

KEEP THESE INSTRUCTIONS

SISTERIA cannot be held responsible for any damage incurred to objects or people resulting from incorrect installation of the appliance.

Technical descripon

Characteriscs

• Stainless steel frame
• 1burners
• 1 adjustable thermostats up to 300°C
• 1 safety tapes (automac gas cut-out if ame goes out)
• Flame protected from wind
• Electronic ignition (baery R6 included)
• Uses butane/propane or natural gas
• Rim on 3 sides
• Removable tray for liquid and waste recovery
• A protecon cover (oponal)

- Stainless steel DUAL PLATE SYSTEM cooking plate cered for contact with food

Référence	Size en mm	Gas	weight	BTU power	Injecteur	Cooking surface	Cooking material	Plug
GFE 105	1050x470x240	PROPANE NATURAL GAS	65kg	21000	0,9(LPG)1,3(NG)	1050x400	DUAL PLATE SYSTEM	3/8 FLARE

Operaon

Installaon

Install the Griddle on a at surface coated with an inammable material (les, re brick, etc.).

The distance between the Griddle and the adjacent walls must be at least 2 m.

We recommend boles of commercial butane or propane, using the appropriate pressure regulator.

Keep the gas bole as far away as possible from any heat sources, placing it on the ground alongside or behind the Griddle.

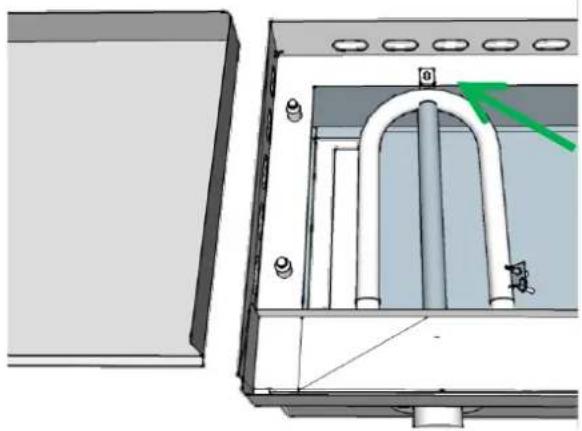

Plug IN

Make sure the control knobs are in the o posion. The Griddle must be connected using the conncon under (3/8 are)

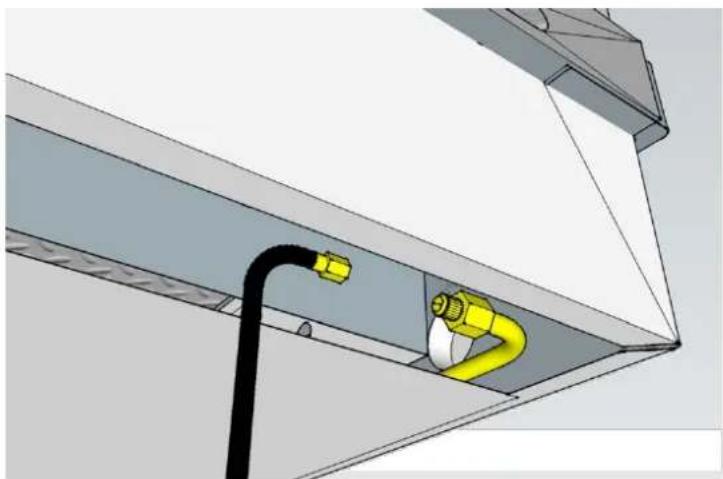

The hose length must be suitable for your use and visible along its enre length, without exceeding 1.5m.

Check that the exible hose is in good condion and do not hesitate to change it if it looks cracked or damaged. The exible hose must not be twisted or pulled and must not come into contact with hot parts of the appliance. Aer connecng the hose to the appliance, connect the pressure regulator to the hose and the gas cylinder, following the instrucons supplied with the pressure regulator and the hose. Then check for gas leaks as follows:

Check for leaks using soapy water, away from any heat sources (cigarette, electrical appliance, etc.).

Never test for leaks using a ame.

• Put soapy water on all the connecons, turn on the gas inlet and check whether any bubbles form.
• The presence of a bubble = gas leak; shut the gas cylinder and ghten the connecons again. Repeat the test for leaks.
• If the leak persists or comes from another part, do not use your Griddle and contact the manufacturer.

Technical diagram of a mechanical assembly with yellow connectors and a black cable, no visible text or symbols

DANGER: NEVER USE AN APPLIANCE THAT LEAKS.

Your Griddle is build for an Propane (LPG) or Natural GAS (NG), but the original conguraon is Propane.

If you want to use it with Natural gas you must:

- Unscrew the 2 retaining screw M4 of burner

Technical diagram of a mechanical or electrical enclosure with pipes and mounting holes, showing internal structure and no visible text or symbols.

3D architectural rendering of a metal structure with ribbed panels and circular cutouts, showing no text or symbols.

• Remove burner

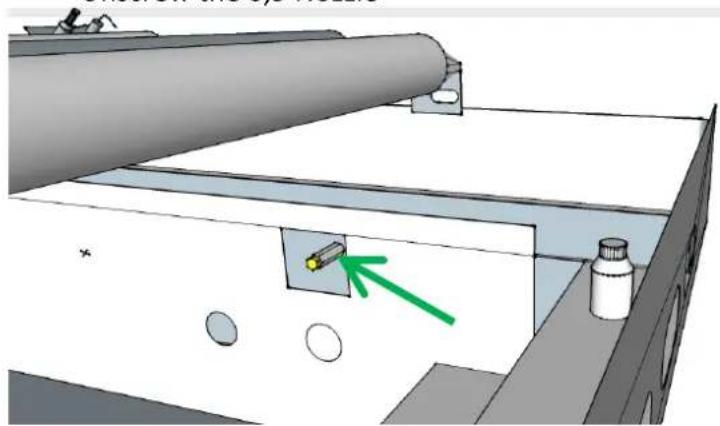

• Unscrew the 0,9 Nozzle

3D mechanical assembly diagram showing a roller pressing into a housing with a green arrow pointing to a component (no text or symbols present)

• Screw the 1,3 Nozzle (pink painted) included
• Place the burner

Changing the gas bole

Gas Bole must always be changed with the control knobs in the o posion and the tap of the gas Bole shut.

Gas Bole must be changed in a well venlated place, away from any heat sources (cigarette, electrical appliance, etc.).

Always check for gas leaks aer every gas bole change.

Use

Switching on

1. Once installed, the appliance is ready to use. Make sure the gas inlet is turn on aer having pressed down the pressure regulator trigger. If you smell gas, shut the gas inlet of the appliance and ghten the connecons again. If the smell persists, check the conneccon (see FIG.6) and the pressure tap screw (see FIG.6) and contact your qualified gas er.
2. When switching on for the rst-me aer installaon, push the knob, posion it to the big ame posion and hold it down for 5 seconds to allow air to escape from the gas line to the burner, then release the knob.
3. Turn on the tap by turning the knob to the le, turn the control knob to big ame posion (drawing on knob).
4. Holding it in this posion, push the knob down against the frame and press the ignition buon until it generates a spark and light the burner.
5. Keep the knob depressed for 5 to 10 seconds to trigger the thermocouple safety system.
6. Then release the knob and allow the burner to heat the hot plate to the right temperature.
7. Your appliance is now ready for use.

Comments

- The appliance may give o a lile smoke or odor the rst me it is used; this is perfectly normal.

- Each me it is switched on, push and turn the knob to the big ame posion and hold it down for 5 seconds to allow air to escape, then release the knob.

- To see the ame, look through the side of the appliance.

Exncon

1. Aer use, switch o your appliance, turning the 2 knobs clockwise to O posion.
2. Shut the gas bole tap.
3. Disconnect the gas hose from the appliance and store in a dry, well venlated place. The gas Bole must also be stored in a dry, well venlated place, away from any heat sources.

Cooking:

Over me, you will be able to gauge the right cooking temperature according to the thickness and texture of food and adapt it to your taste.

The temperatures and mes given below are intended as an indicaon only.

Advice:

Do not cut food directly on the plate to avoid causing deep scratches.

Do not leave kitchen utensils on the Griddle, such as cutlery, wooden spoons, plasc utensils, etc.

Do not overheat when cooking as this could blacken the plate and make cleaning difficult.

The Griddle can be used to keep food warm aer cooking.

Cleaning and maintenance

The frame

To avoid any risk of burns, you are advised to always allow the hot plate to cool down before cleaning the frame. Clean with a sponge soaked in warm water and detergent. Never use abrasives or steel wire brushes.

The hot plate

The plate is easier to clean when the Griddle is sll slightly warm. Beware of the risk of burns. The stainless steel plate on the Griddle is shiny before use. The surface is likely to become dull and scratched once utensils have been used. Aer a while, the scratches will fade and the plate will have a brushed, weathered look.

Aer the appliance has been used several mes, grease residues may appear on the hot plate; this is perfectly normal.

To remove these, pour a glass of cold water or place ice cubes on the hot plate and scrape or residue with a spatula or scraper. You can also soak residues in water.

During use, these residues may become detached by themselves; this does not mean that the hot plate has been damaged.

With a rigid spatula, remove most of the scky residue on the hot plate by pushing it towards the drip tray.

Then pour some water on the hot plate to soak the remaining residue (use a wet sponge or ice cubes).

Leave for a few minutes.

With a rigid spatula, remove the water and scky residue and push it towards the juice tank Clean with a scouring pad and then a so sponge.

Pour some vinegar on the plate to remove smells and strong tastes.

Clean the plate promptly aer preparing salty food to avoid any risk of corrosion. Do not use chlorine based cleaning products as they can also cause corrosion.

The burner

Check the condion of the ame holes on the burners from me to me. If they are blocked, brush the arms with a s bristled brush. Before using again, wipe the burners thoroughly along with the base of the Griddle.

To clean the injectors, you are strongly advised against using metal objects as these could alter the technical speciaons of the burners.

The juice tank

It allows to recover the cooking juice.

You must handle it when it is cold, it must be emped and cleaned aer each use.

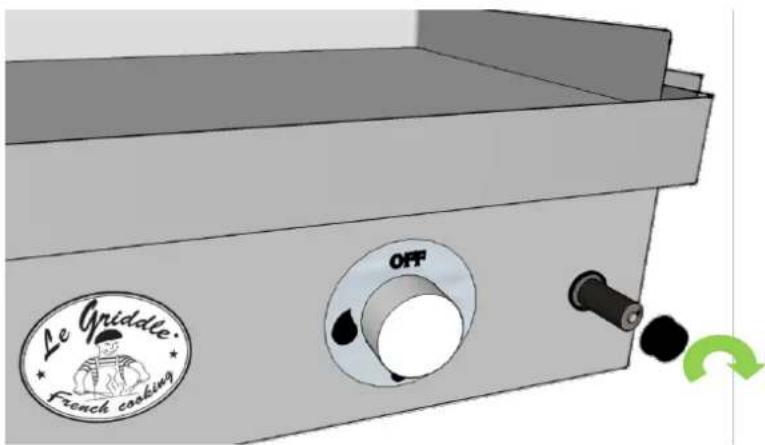

The Igniter

It is delivered with an AA (1,5V) baery.

To change this baery unscrew the switch on the front panel.

Le Griddle French cooking OFF

Storage

The gas Bole must be disconnected, then stored away from any heat sources.

Store your Griddle in a dry, sheltered place where there is no risk of it being damaged.

The protecon cover must be use only when the Griddle is cold.

BUILT :

• The underneath of the appliance must be kept well venlated to ensure good air circulaon to the burner.
• Place the appliance on a stable, dry surface, slightly away from the edge and more than 20 cm away from any walls or heat-sensitive objects (Plasc, Wood, ....)

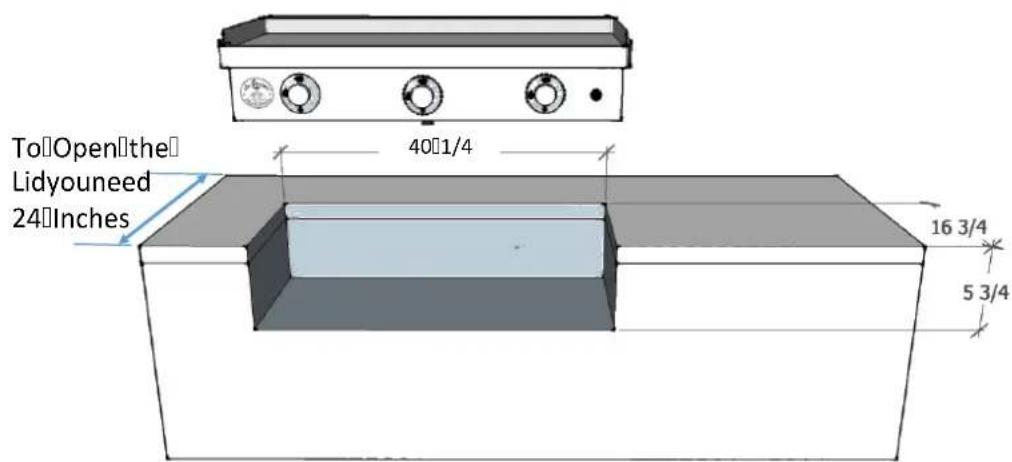

• Recommended hot plate height: 85 to 95 cm from the ground for a comfortable working posion
  ■ Do not use worktop combustible material
  ■ The furniture must allow a perfect air circulaon to the griddle and gas cylinder

To Open the Lidyouneed 24 Inches 40 1/4 16 3/4 5 3/4

Guarantee and aer-sales service

This appliance is guaranteed for:

• Lifetime against perforation of stainless steel
• 5 years for burners
• 1 year parts and labour for the other parts of the griddle

The guarantee starts from the date of purchase, you will submit the bill to assert your right to guaranteed.

We take great care to ensure that each of our appliances reaches the user in perfect operang condion. If you do nd a problem when unpacking your appliance, please report it to the shop within 48 hours.

If you notice that the appliance is not working properly during the guarantee period, please contact your retailer.

The following are not covered by the guarantee:

1. Normal wear of the product that does not act operaon of the appliance (scratches, impacts, change of color, etc.).
2. The presence of rust, cracks, or other deformation of cast iron radiators, not detrimental of Griddle ulisaon.
3. Damage caused by abnormal events or use, modicaon of the product or not following the instrucons for use (in particular, the use of chlorine-based cleaning products).
4. Damage resulting from professional, industrial or collective use.
5. Damage resulting from a fall or impact.

Please do not hesitate to contact us should you have any suggestions at [e-mail].

ITEM	Reference	Quanté	Désignaon
1	GRIDDLEGF105	1	HEAT BOX
2	GF105SSPLATE	1	COOKING PLATE
3	GF105TANK	1	GREASE TANK
4	GF40BURN9000	3	BURNER 9000 BTU
5	GF75THERMO	1	THERMOCOUPLE
6	GF75CERAMS	1	SHORT INGNITING WIRE
7	GF75VALV	1	GAS VALVE
8	GF75INIT	1	AA ELECTRONIC IGNITER
9	GF75KNOB	1	KNOB
10	GF40PIPE	1	ADMISSION PIPE
