Product type	Robotic pool cleaner
Brand	Maytronics
Model	Dolphin PS60
Power supply	Power supply: input 100-250 V AC, 50-60 Hz, 180 W; output <30 V DC
Protection rating (motor)	IP68
Protection rating (power supply)	IP54
Operating depth	0.8 m to 5 m
Filtration type	Filter cartridges (x4) with mesh filter; optional ultra-fine filter
Included brushes	Brush suitable for all wall coatings
Optional brushes	PVC brush (concrete, PVC, fiberglass, coating); Wonder brush (smooth ceramics); combined brush

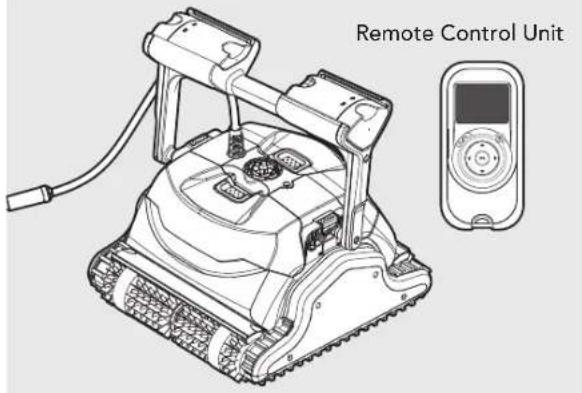

Remote control	Yes (included)
Main functions	Automatic cleaning of bottom, walls, and waterline; full cleaning cycle; handle angle adjustment to optimize coverage
Routine maintenance	Cleaning filter cartridges with hose; disassembly and cleaning of impeller
Electrical safety	Use only the supplied power supply; outlet protected by ground fault circuit breaker; keep power supply away from water (≥3 m from edge); do not enter pool during operation
Required water conditions	Chlorine ≤4 ppm; pH 7.0-7.8; temperature 6-34°C; NaCl ≤5000 ppm
Off-season storage	Drain water, clean filters, coil cable without kinks, store vertically on Caddy, away from sun, rain, and frost, between 5°C and 45°C
Spare parts and repairability	Filters, brushes, and other parts available as options; simple user maintenance (cleaning filters and impeller)
Additional information	User manual available in multiple languages; after-sales support from retailer

Frequently Asked Questions - Dolphin PS60 MAYTRONICS

The robot does not move, what to do?

Check that the power cable is properly connected and that the outlet works. Try turning the device off (OFF), wait 30 seconds, then turn it back on (ON). If nothing changes, disconnect the power supply and open the impeller cover to check that no debris is blocking rotation.

Why doesn't the robot climb the walls?

Clean the filter cartridges. Check the chemical levels in the water (chlorine, pH): algae can make the walls slippery. If necessary, adjust the levels and scrub the walls. Also ensure the brushes are not worn.

The robot only cleans part of the pool, how to improve coverage?

Check that the cable is long enough to reach all corners. Clean the filters. For the Classic 9 model, adjust the handle float: if the robot rotates more than 90°, pull the float toward the cable side; if it rotates less than 90°, pull it to the opposite side.

The robot floats instead of sinking to the bottom, what to do?

The robot may contain air. Try pressing it underwater to expel the air. If the problem persists, squeeze the brushes (Wonder brush type) to let them absorb water.

How to clean the filter cartridges?

Disconnect the power supply before any handling. Open the filter covers, remove the cartridges from both sides, open the clips and clean the filters with a garden hose. Reassemble by inserting the positioning tabs into the grooves and closing the "S" clip. Do not let the filters dry before cleaning.

How to start the robot for the first time?

Unroll the cable completely to remove kinks. Set the handle angle to diagonal position for optimal cleaning. Place the power supply 3 m from the edge, connect the floating cable, then plug the power supply into the mains. Set the switch to OFF, then place the robot in the pool and turn it ON. The cleaning cycle starts automatically.

What are the recommended water conditions?

Chlorine ≤ 4 ppm, pH between 7.0 and 7.8, temperature from 6 to 34 °C, NaCl ≤ 5000 ppm. Use outside these ranges may damage the device or reduce its performance.

How to remove the robot from the pool at the end of the cycle?

Turn off the power (OFF) and unplug the unit. Use the floating cable to bring the robot to the edge, then grasp it by the handle to lift it out of the water. Caution: do not pull by the cable.

The floating cable has kinks, how to remove them?

Stretch the cable completely and leave it in the sun for at least a day to remove kinks. If the problem persists, clean the filter cartridges, as clogged filters can strain the robot and cause twisting.

How to store the robot off-season?

Drain all remaining water from the robot. Clean the filter cartridges thoroughly and put them back. Coil the cable without kinks and place the robot vertically on its Caddy. Store it in a place away from sun, rain, and frost, at a temperature between 5 °C and 45 °C.

USER MANUAL Dolphin PS60 MAYTRONICS

Dolphin Explorer Classic 9 / Top 9

EN

User Instructions...... p. 1

FR

EN

Dolphin Explorer Classic 9 / Top 9

User Instructions

Contents

1. INTRODUCTION ...... 2
2. SPECIFICATIONS.... 2
3. WARNINGS AND CAUTIONS 2

3.1. Warnings....2
3.2. Cautions....2

1. POOL CLEANER PARTS 3
2. USING THE POOL CLEANER....4

5.1. Setup....4

5.1.1. Adjusting the handle angle 4

5.2. Putting the Pool Cleaner into the pool....5
5.3. Removing the Pool Cleaner from the pool....6

1. ROUTINE MAINTENANCE....7

6.1. Cleaning the filter cartridges 7
6.2. Dismantling and cleaning the impeller....8

1. OFF SEASON STORAGE....9
2. TROUBLESHOOTING....10

Dolphin Explorer Classic 9 / Top 9

User Instructions

1. INTRODUCTION

Thank you for purchasing a Maytronics Robotic Pool Cleaner.

We are sure that your Maytronics Robotic Pool Cleaner will provide you with reliable, convenient and cost effective pool cleaning. Its reliable filtration in all pool conditions, active brushing, and all-surface climbing brush enhance maximum pool hygiene.

The Robotic Pool Cleaners by Maytronics deliver advanced cleaning technology, long lasting performance and easy maintenance. You and your family will be free to enjoy swimming with full confidence that your pool is completely clean.

2. SPECIFICATIONS

Motor protection: IP 68

Minimum depth: 0.80m/2.6ft

Maximum depth: 5m/16.4ft

Digital switch-mode power supply

• Input - 100-250 AC VOLTS
50-60 Hertz
180 Watt
• Output - <30 VDC
IP 54

3. WARNINGS AND CAUTIONS

3.1. Warnings

• Use the originally supplied power supply only
- Ensure the electrical outlet is protected by a ground fault interrupter (GFI) or an earth leakage interrupter (ELI)
- Keep the power supply out of standing water
- Position the power supply at least 3m/10ft away from the edge of the pool
- Do not enter the pool while the Pool Cleaner is working
• Unplug the power supply before servicing

3.2. Cautions

When not in use store the Pool Cleaner on its Caddy in a shaded area.

Use the Pool Cleaner in the following water conditions only:

Chlorine Max 4 ppm
pH 7.0 - 7.8
Temperature 6-34°C (43-93°F)
NaCl Maximum = 5000 ppm

4. POOL CLEANER PARTS

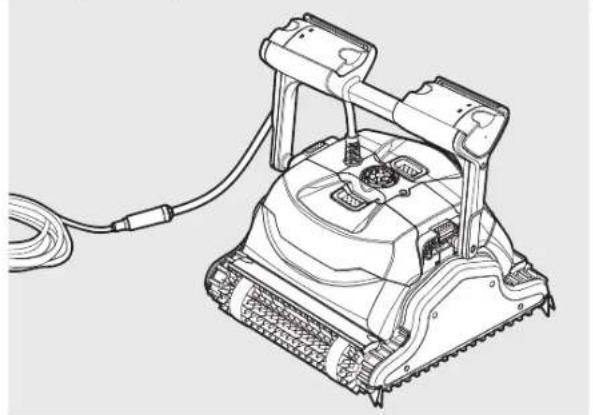

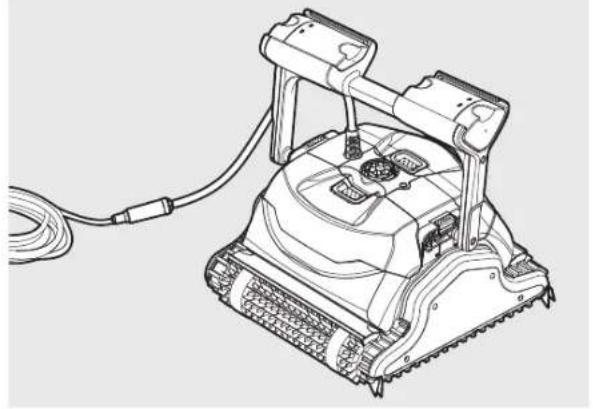

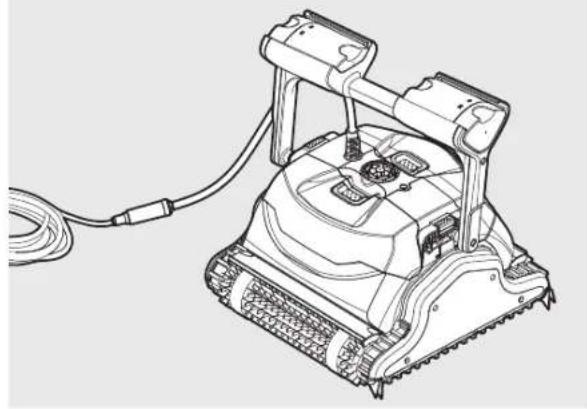

▶Dolphin Explorer Classic 9

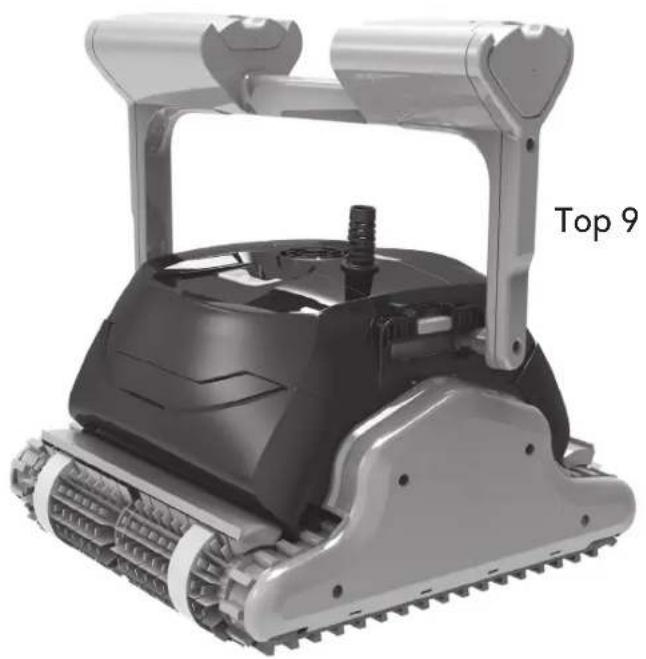

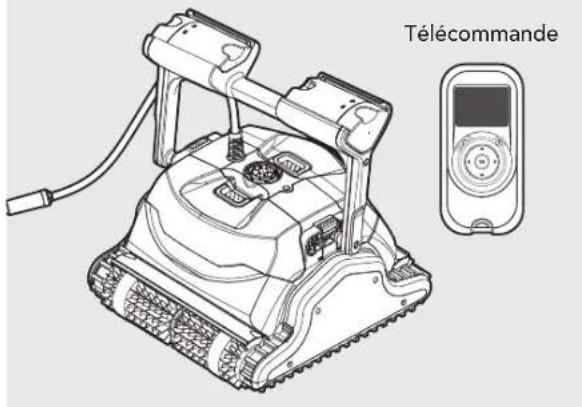

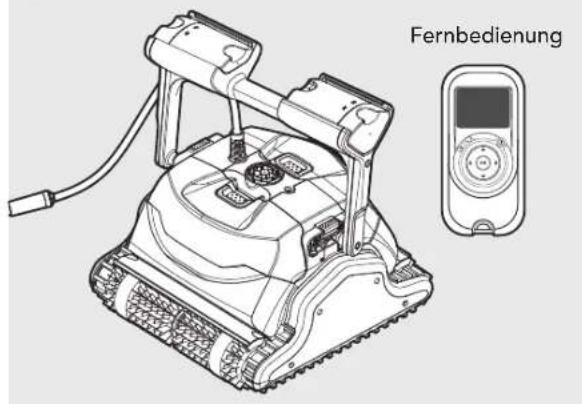

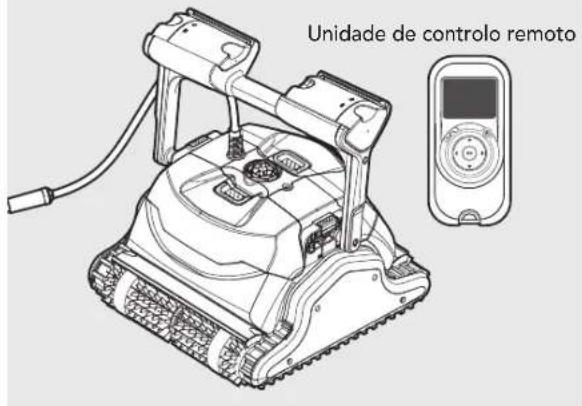

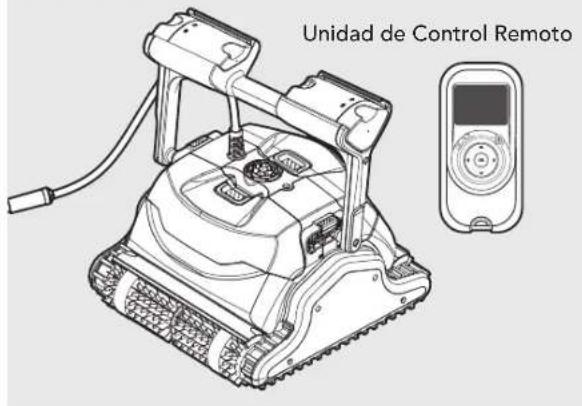

▶Dolphin Explorer Top 9

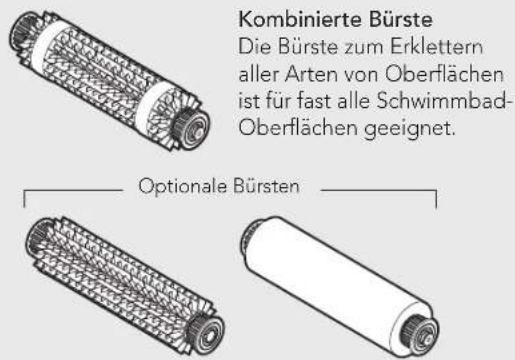

Brushes

Combined Brush
All surface climbing brush, ideal for most pool surfaces.

Optional Brushes

PVC Brush
For concrete, PVC, fiberglass and liner.
For smooth ceramics.

Wonder Brush

Combined Brush
All surface climbing brush, ideal for most pool surfaces.

Optional Brushes

PVC Brush
For concrete, PVC, fiberglass and liner.
For smooth ceramics.

Wonder Brush

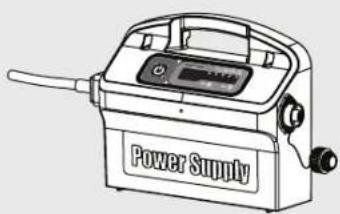

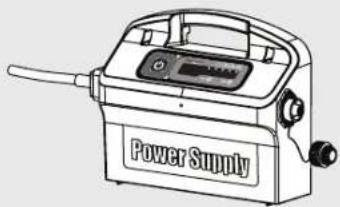

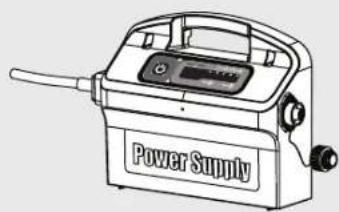

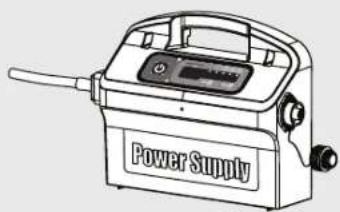

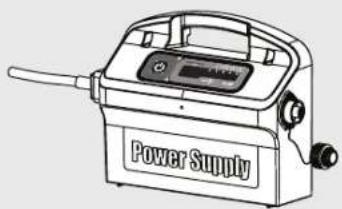

▶ Power supply unit

▶ Filtration

Cartridge with Net filters (X4)

Ultra-fine filter (X4) (optional)

5. USING THE POOL CLEANER

The Pool Cleaner is very simple to use. Simply put it into the pool and make sure that it is properly sitting on the floor of the pool. Turn it ON and let it get the job done.

5.1. Setup

Before using the Pool Cleaner for the first time perform the following steps:

Unwind the cable and stretch it out completely so that it has no kinks.

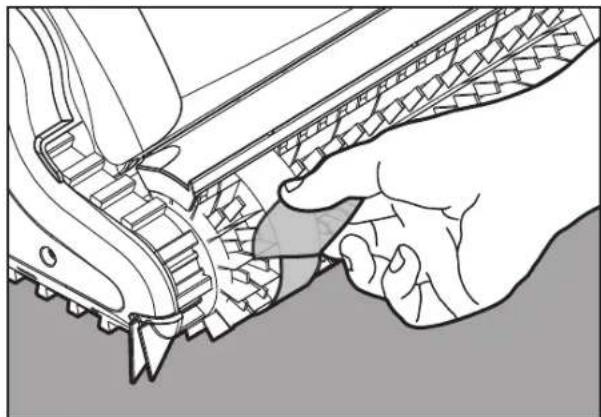

Some models arrive with plastic coverings on the brushes.

Remove them before use.

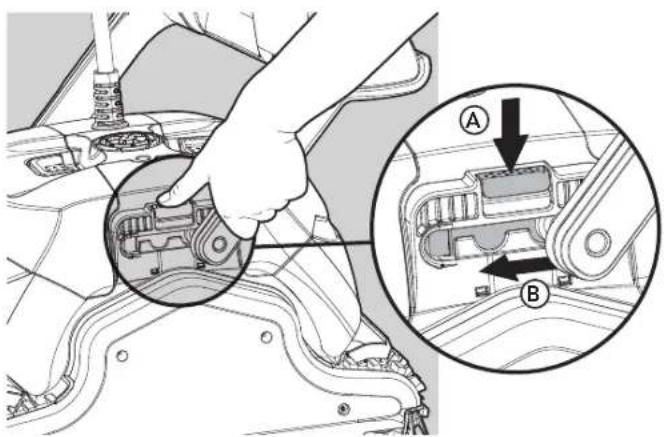

5.1.1. Adjusting the handle angle

The robot's handle should be adjusted and locked diagonally in order to ensure optimum cleaning results.

The handle angle can be adjusted also to determine the speed at which the robot advances along the water-line.

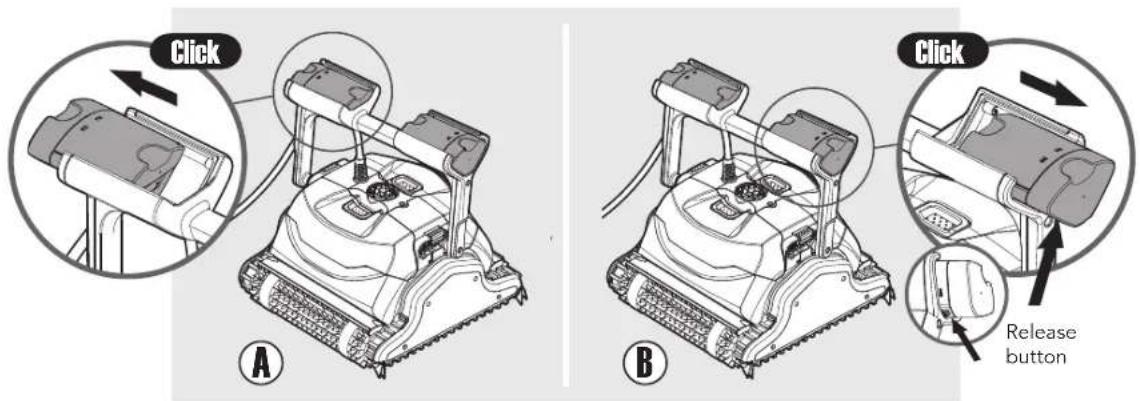

To adjust the handle angle:

A. Press the latch down and hold it in position.
B. Move the handle to the desired position and release the latch to hold the handle in place.

Position the power supply so that it is approximately in the middle of the long side of the pool at a distance of 3m/10ft.

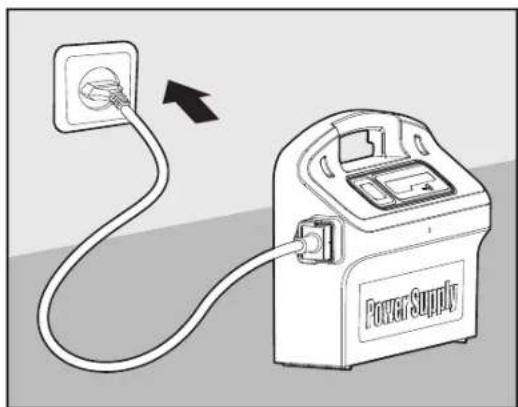

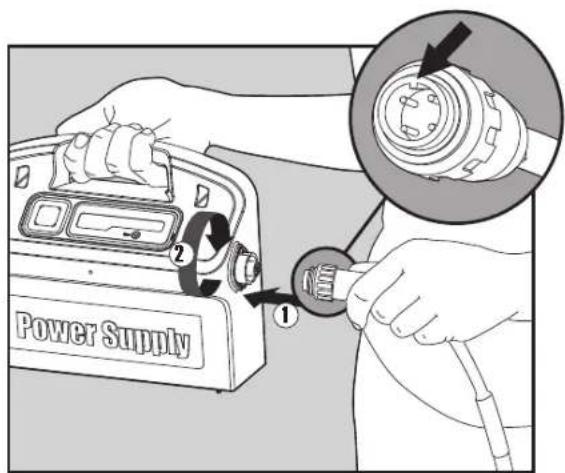

Attach the floating cable to the power supply by inserting it with the notch on the connector (1) lined up with the groove in the socket on the power supply and turning clockwise (2).

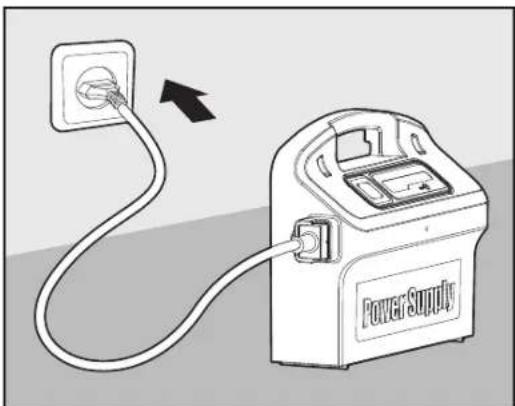

Plug in the power supply and leave it in the OFF position.

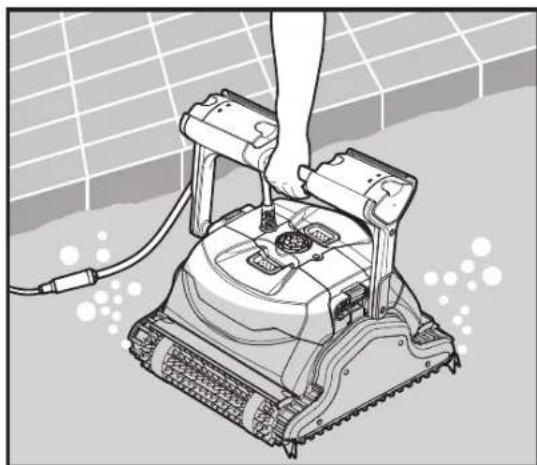

5.2. Putting the Pool Cleaner into the pool

If your Pool Cleaner is equipped with brushes that contain sponges, dip the brushes in the water and squeeze them so that they will absorb water the first time you use the Pool Cleaner, or if the brushes have dried out between uses.

Release the Pool Cleaner and let it sink to the floor of the pool.

Make sure that the floating cable is free of any obstructions.

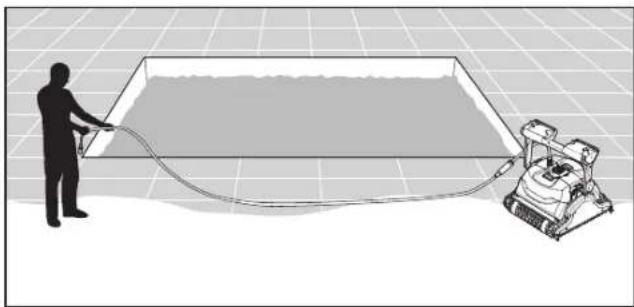

To avoid kinks in the floating cable, place approximately enough cable in the water for the Pool Cleaner to reach the farthest corner of the pool.

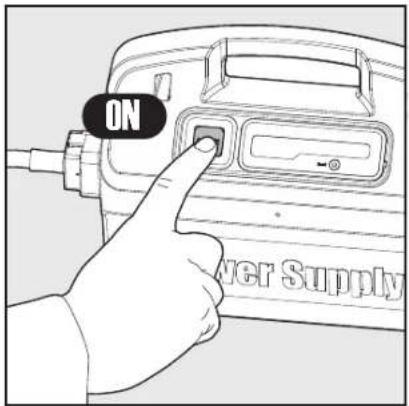

Turn the power supply ON.

The Pool Cleaner will now operate until it has reached the end of the cleaning cycle.

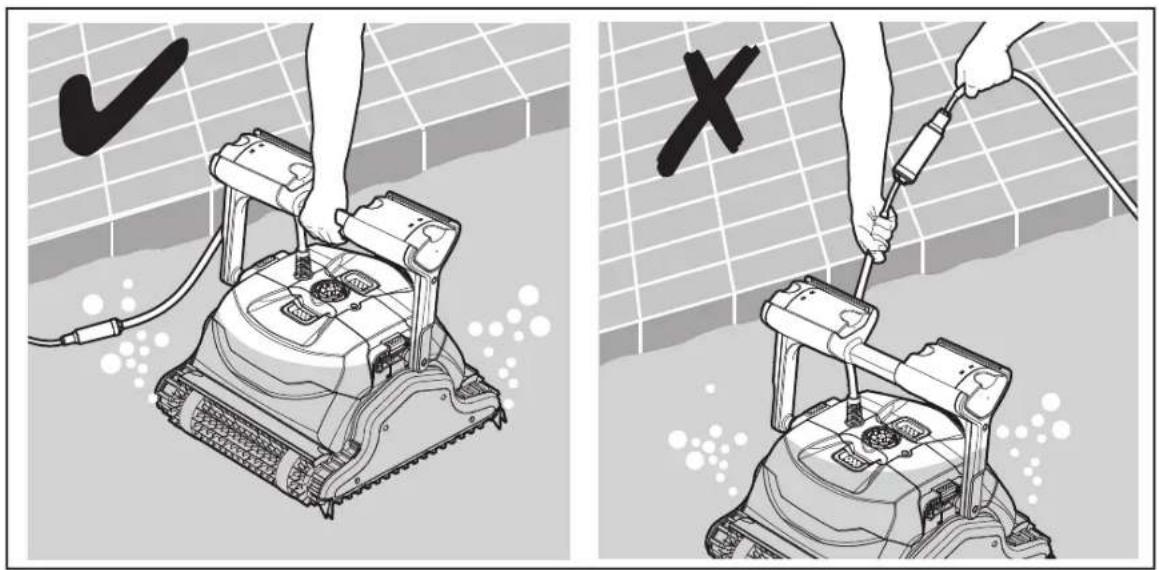

5.3. Removing the Pool Cleaner from the pool

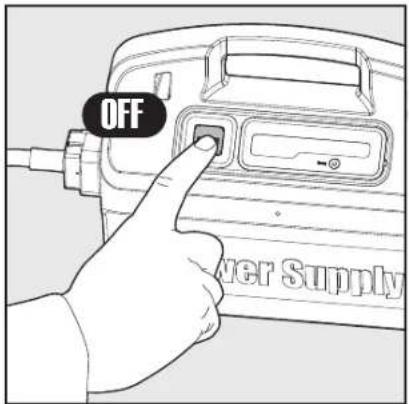

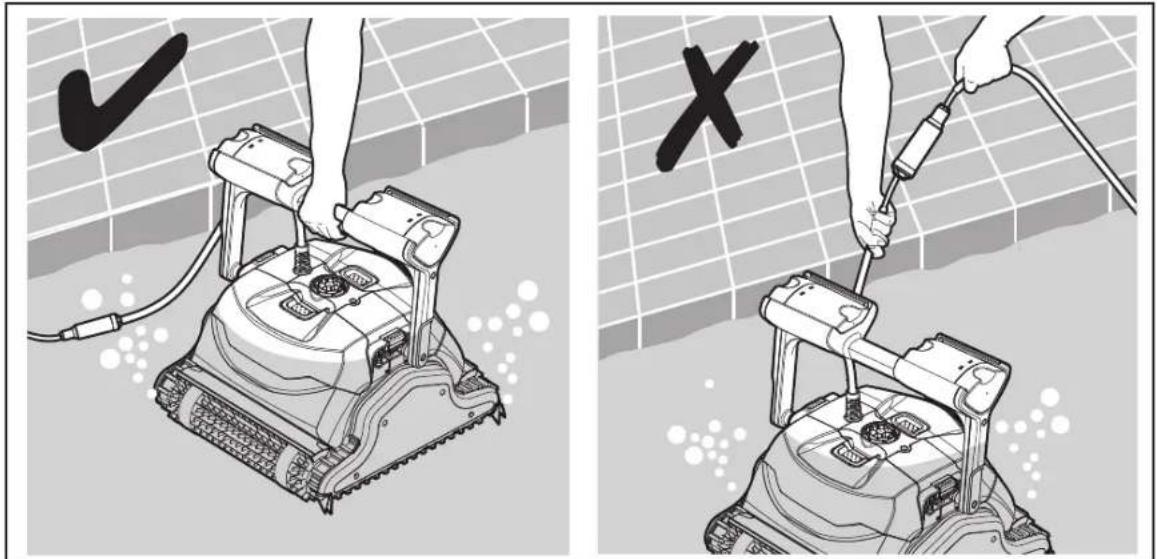

⚠️ Turn OFF and unplug the power supply.

Using the floating cable, bring the Pool Cleaner to the pool's edge.

Using the handle remove the Pool Cleaner from the pool.

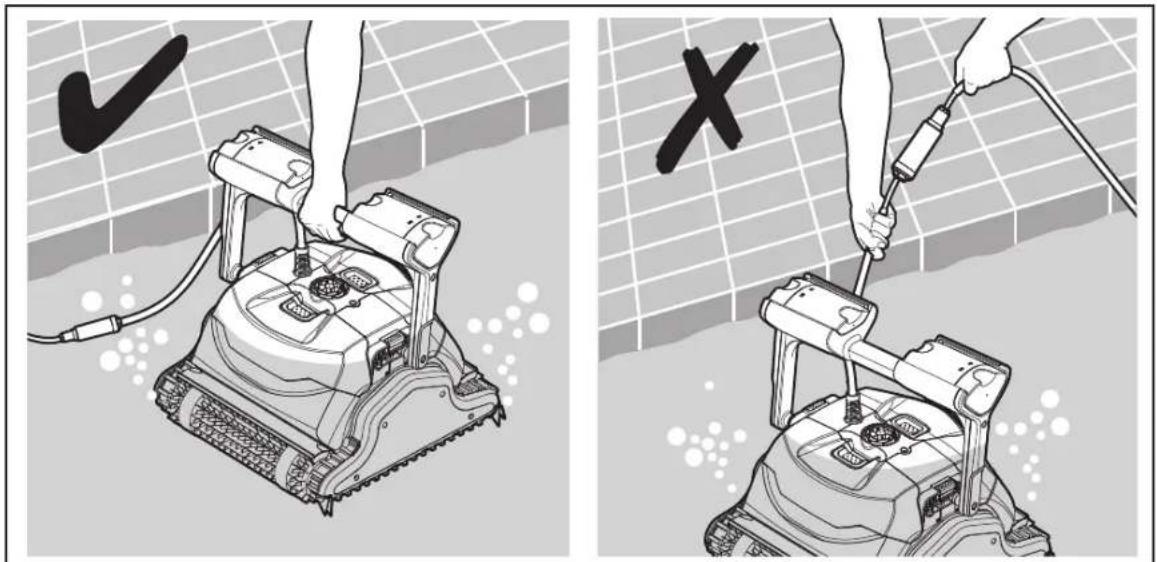

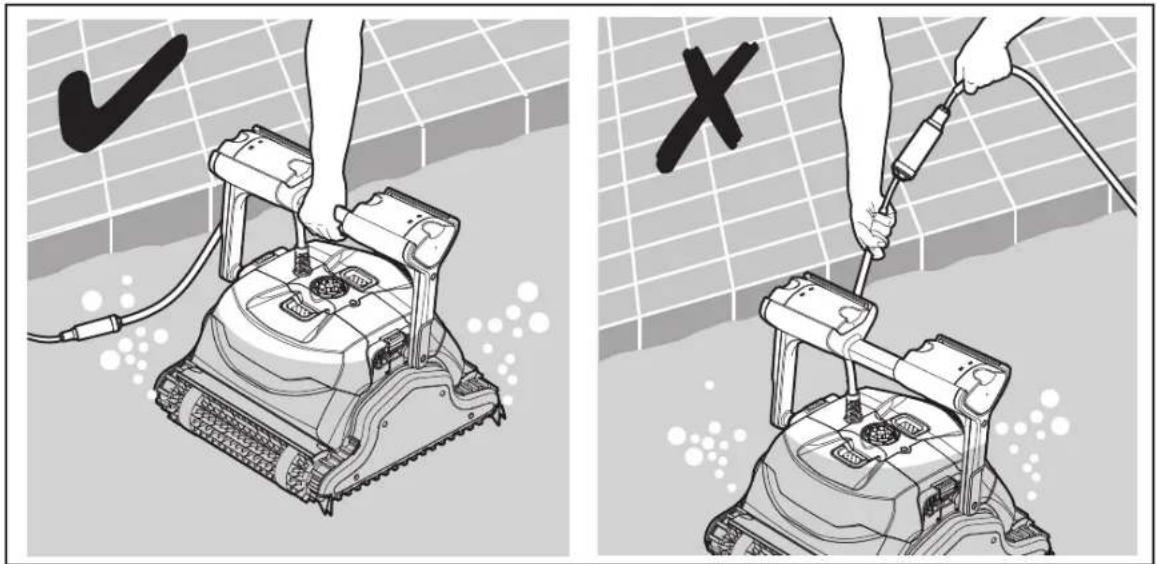

DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.

6. ROUTINE MAINTENANCE

6.1. Cleaning the filters of the cartridges

Unplug the power supply before any servicing activity.

Note: Do not let the filters of the cartridges dry out before cleaning.

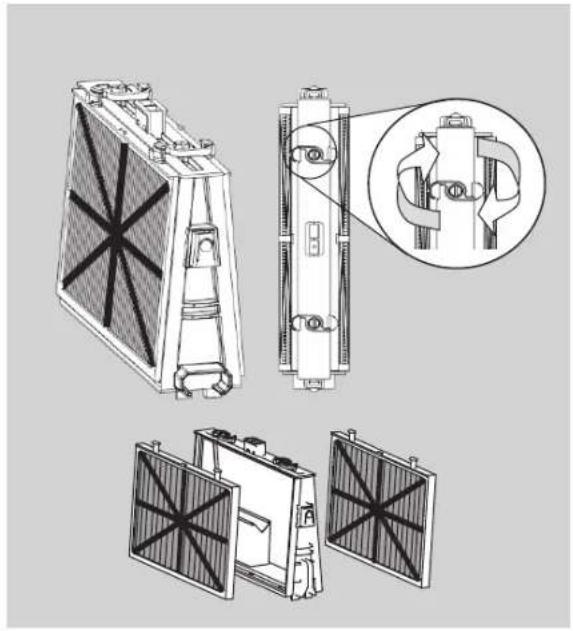

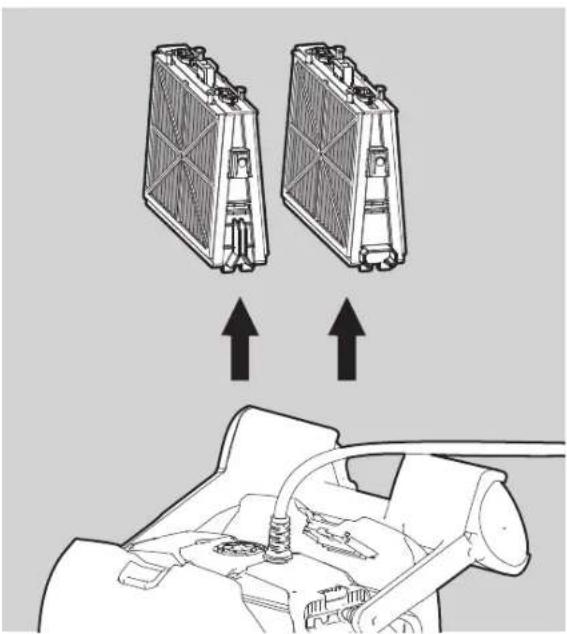

1. Open the filter covers and remove the cartridges from both sides of the robot.

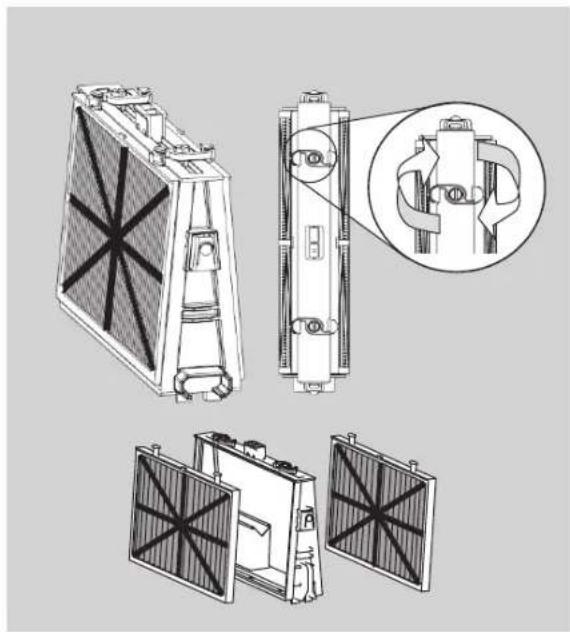

2. Open the clips and remove the filters.

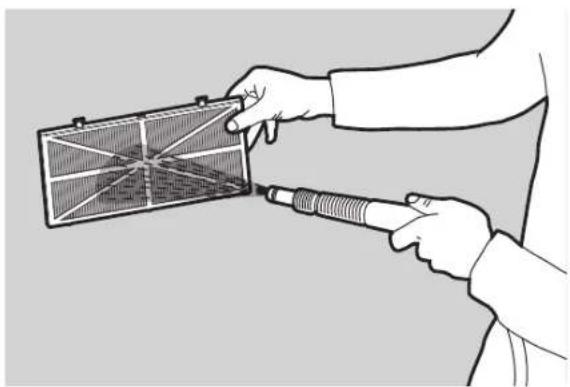

1. Clean the filters with a hose.

1. Reassembling the filter elements

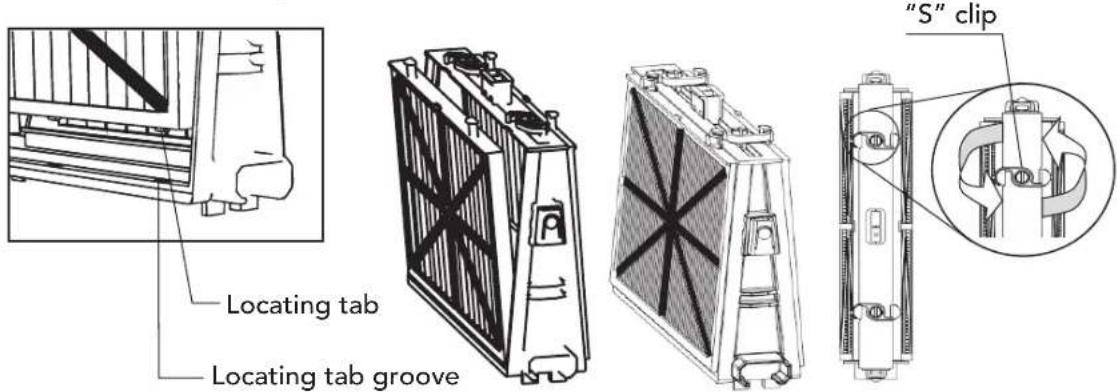

Insert the locating tabs at the bottom of the filter element into their grooves on the base frame then close the "S" clip.

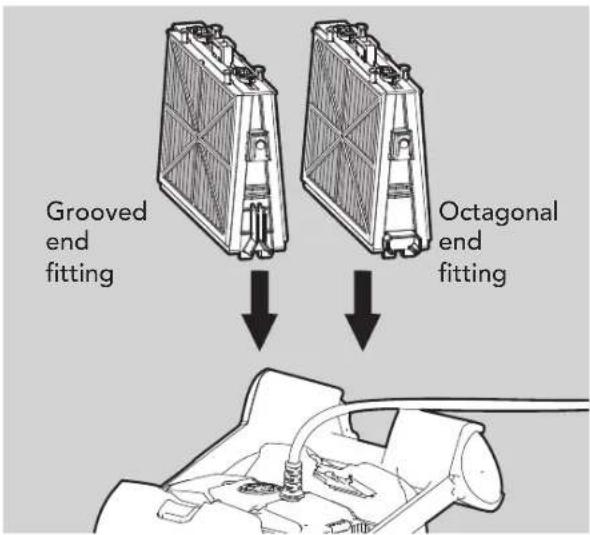

Reinstall the base frames with filters according to the diagram.

Do not force the filters into place.

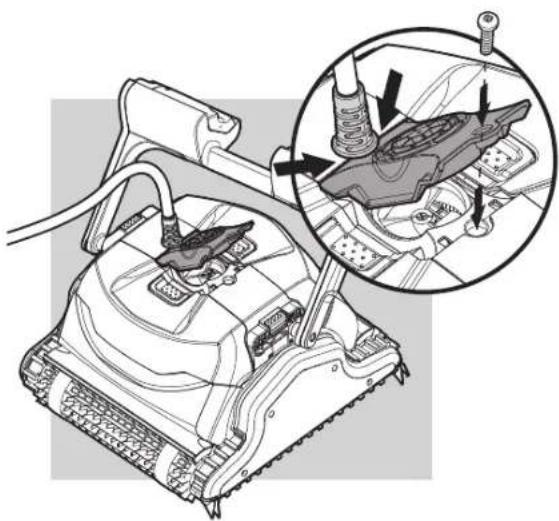

6.2. Dismantling and cleaning the impeller

Unplug the power supply before cleaning.

Dismantle the impeller cover and clean around the impeller housing, then reassemble.

(Use Phillips head screwdriver).

If the Pool Cleaner will not be in use for an extended period, perform the following storage steps:

• Make sure that no water is left in the Pool Cleaner
• Thoroughly clean the filters of the cartridges and insert in place
• Roll up the cable so that it has no kinks and place on the Caddy

- Store the pool cleaner upright on the Caddy in a protected area out of direct sun/rain/frost at a temperature of between 5°-45°C / 41°-113°F

8. TROUBLESHOOTING

If the suggested solutions do not solve the problem contact your dealer

Problem Solution
Pool Cleaner does not move 1.	Check that the power supply cable is plugged properly into the power supply socket. Check power to the socket and reconnect Pool CleanerEnsure the power outlet is functioning properly and that it has not tripped the breaker in the fuse boxTurn the power supply off. Wait 30 seconds then turn it back onUnplug the power supply. Open the impeller cover and check that nothing is trapped in the impeller
The Pool Cleaner moves but does not clean the pool	Clean the filters of the cartridgesAfter the Pool Cleaner starts moving observe it for several minutes and make sure that it keeps moving. If it stops moving check the impeller and the drive system to see if any debris is stuck there
The Pool Cleaner cleans only part of the pool	Check that there is enough slack in the cable for the Pool Cleaner to reach all of the poolClean the filters of the cartridgesForClassic 9only:You may enhance the pool coverage by adjusting the handle float. For optimal pool coverage the Pool Cleaner should turn on the floor at 90° angle (the Pool Cleaner rotates twice before completing the 90° turn).If the Pool Cleaner turns in an angle wider than 90° , pull out the handle float on the cable’s entry-side (A)If the Pool Cleaner does not complete a 90° turn, pull out the handle float opposite to the cable’s entry–side (B)Check the brushes to see if they are obstructed or worn out
The Pool Cleaner floats instead of sitting on the floor of the pool	Try removing the air againWith the Pool Cleaner in the water squeeze the combined brush/Wonder brush to make sure that they are completely water absorbent
Cable has kinks 1. To remove the kinks stretch the cable out completely and let it lie for at least a day in the sunClean the filters of the cartridges
The Pool Cleaner doesn’t climb the walls	Clean the filters of the cartridgesCheck the level of the chemicals of the water. Improper levels may allow the growth of algae making the walls slippery. If so, adjust the levels and scrub the wallsCheck that the brushes aren’t worn outForTop 9only: Check that the wall climbing mode hasn’t been cancelled via the remote control unit

To move the floats back to their original position: while pressing the release button on the base of the handle float – push the handle float back.
