USER MANUAL GMOS1964BSS FRIGIDAIRE

Installation Instructions

Over the Range Microwave Oven

Questions? Call 1-800-944-9044(US) or 1-800-265-8352(Canada)

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT - Save these instructions for local inspector's use.
• IMPORTANT - Observe all governing codes and ordinances.

• Note to Installer – Be sure to leave these instructions with the Consumer.

• Note to Consumer – Keep these instructions for future reference.

• Skill level – Installation of this appliance requires basic mechanical and electrical skills.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.

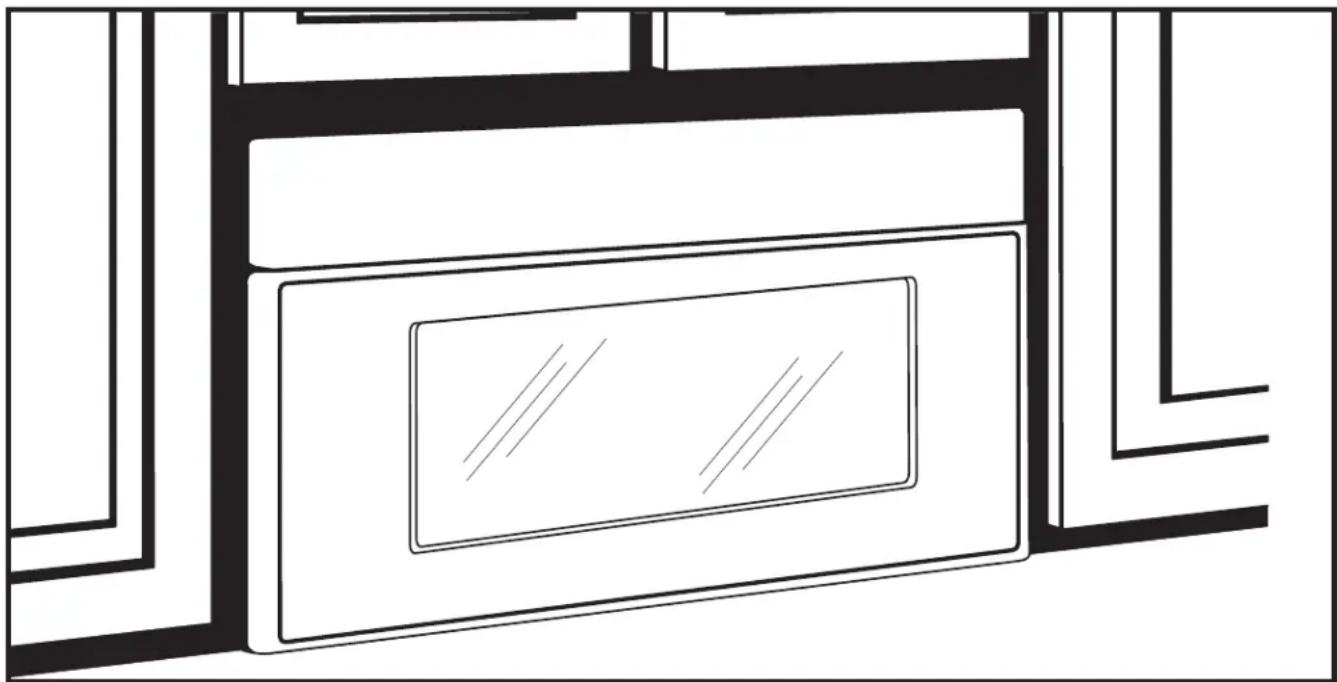

Line drawing of a cabinet or enclosure with a blank display panel (no text or symbols)

READ CAREFULLY.

KEEP THESE INSTRUCTIONS.

CONTENTS

General information

Important Safety Instructions .... 3

Electrical Requirements 3

Damage - Shipment/Installation.... 4

Parts Included.... 4

Tools You Will Need 5

Mounting Space 5

Step-by-step installation guide

Placement of The Mounting Plate 6-8

Removing the Mounting Plate 6

Finding the Wall Studs 6

Determining Wall Plate Location .... 7

Aligning the Wall Plate 8

Installation Types....9

A Recirculating 10-13

Attach Mounting Plate to Wall .....10

Preparation of Top Cabinet ...... 11

Check Blower Plate ....11

Mount the Microwave Oven ..... 11-12

Installing or Change

the Charcoal Filter 12-13

Hood Exhaust 14-15

B Outside Back Exhaust.... 16-19

Preparing Rear Wall for

Outside Back Exhaust.... 16

Remove Blower Plate.... 16

Attach Mounting Plate to Wall ..... 17

Preparation of Top Cabinet ...... 17

Adapting Microwave Blower

for Outside Back Exhaust...... 17-18

Mount the Microwave Oven ..... 19

C Outside Top Exhaust.... 20-23

Attach Mounting Plate to Wall...... 20

Preparation of Top Cabinet...... 21

Adapting Microwave Blower for

Outside top Exhaust 21-22

Checking for Proper Damper

Operation.... 22

Mount the Microwave Oven ..... 22-23

Adjust the Exhaust Adaptor ...... 23

Connecting Ductwork.... 23

Before You Use Your Microwave 24

Template Information.... 25

IMPORTANT SAFETY INSTRUCTIONS

This product requires a three-prong grounded outlet. The installer must perform a ground continuity check on the power outlet box before beginning the installation to ensure that the outlet box is properly grounded. If not properly grounded, or if the outlet box does not meet electrical requirements noted (under ELECTRICAL REQUIREMENTS), a qualified electrician should be employed to correct any deficiencies.

Illustration of a hand interacting with an electrical outlet panel (no text or symbols visible)

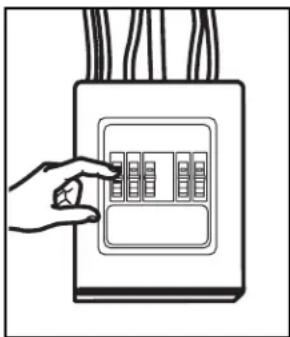

CAUTION: For personal safety, remove house fuse or open circuit breaker before beginning installation to avoid severe or fatal shock injury.

CAUTION: For personal safety, the mounting surface must be capable of supporting the cabinet load, in addition to the added weight of this 63-85 pound (28.5-38.5 kg) product, plus additional oven loads of up to 50 pounds (22.7 kg) or a total weight of 113-135 pounds (51.3-61.2 kg).

CAUTION: For personal safety, this product cannot be installed in cabinet arrangements such as an island or a peninsula. It must be mounted to BOTH a top cabinet AND a wall.

NOTE: For easier installation and personal safety, it is recommended that two people install this product. IMPORTANT - PLEASE READ CAREFULLY. FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED TO AVOID SEVERE OR FATAL SHOCK.

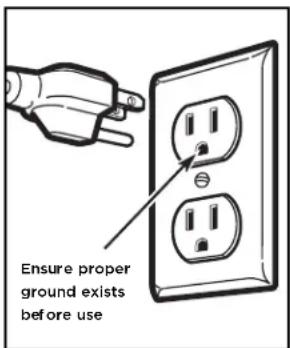

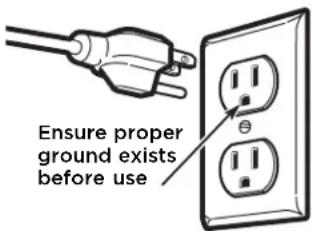

Ensure proper ground exists before use

The power cord of this appliance is equipped with a three-prong (grounding) plug which mates with a standard three-prong (grounding) wall receptacle to minimize the possibility of electric shock hazard from this appliance.

You should have the wall receptacle and circuit checked by a qualified electrician to make sure the receptacle is properly grounded.

Where a standard two-prong wall receptacle is encountered, it is very important to have it replaced with a properly grounded three-prong wall receptacle, installed by a qualified electrician.

DO NOT, UNDER ANY CIRCUMSTANCES, CUT, DEFORM OR REMOVE ANY OF THE PRONGS FROM THE POWER CORD. DO NOT USE WITH AN EXTENSION CORD.

ELECTRICAL REQUIREMENTS

Product rating is 120 volts AC, 60 Hertz, 15 amps and 1.6 kilowatts. This product must be connected to a separate and dedicated supply circuit of the proper voltage and frequency. Wire size must conform to the requirements of the National Electrical Code or the prevailing local code for this kilowatt rating. The power supply cord and plug should be brought to a separate and dedicated 15- to 20- ampere branch circuit single grounded outlet. The outlet box should be located in the cabinet above the microwave oven. The outlier box and supply circuit should be installed by a qualified electrician and conform to the National Electrical Code or the prevailing local code.

DAMAGE—SHIPMENT/ INSTALLATION

• If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement.
• If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
• If the unit is damaged by the installer (if other than the customer), repair or replacement must be made by arrangement between customer and installer.

PARTS INCLUDED

HARDWARE PACKET

PART		QUANTITY
	Wood Screws ( ^1/4" × 2")	2
	Toggle Bolts (and wing nuts) ( ^3/16" × 3")	2
	Self-Aligning Machine Screws ( ^1/4"-28 × 3^1/4")	3
	Nylon Grommet(for metal cabinets)	1

You will find the installation hardware contained in a packet with the unit. Check to make sure you have all these parts.

NOTE: Some extra parts are included.

PARTS INCLUDED (CONT.) ADDITIONAL PARTS

PART		QUANTITY
	Top Cabinet Template	1
	Rear Wall Template	1
	Installation Instructions	1
	Use & Care Manual	1
	Separately Packed Grease Filters	2
	Exhaust adaptor	1
	Glass Tray	1
	Turntable Ring	1
For some models	Convection wire rack	1
For some models	Shelf	1

Installation Instructions

Tools you will need:

• Tape measure
• Hole saw
  • Stud finder or hammer
• Level
  • Duct and masking tape
• Scissors

• #1 Phillips screw driver
• Electric drill
• 3/16", 1/2", 5/8" drill bit
- Filler wood blocks for recessed bottom cabinets
- Tin snips

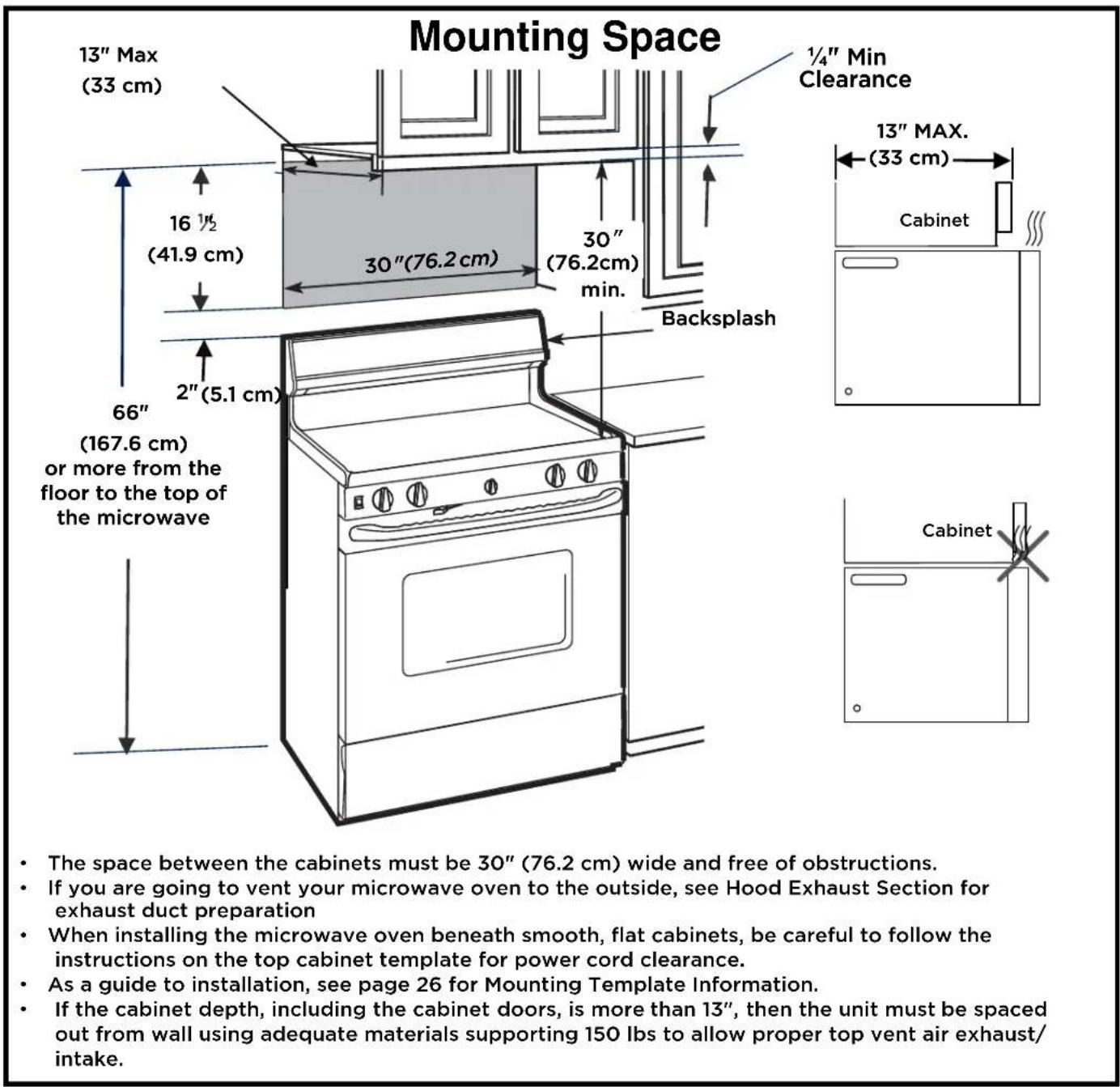

Mounting Space 13" Max (33 cm) 16 ½ (41.9 cm) 30"(76.2 cm) 30" (76.2cm) min. 1/4" Min Clearance 13" MAX. (33 cm) Cabinet Backsplash 66" (167.6 cm) or more from the floor to the top of the microwave Cabinet The space between the cabinets must be 30" (76.2 cm) wide and free of obstructions. If you are going to vent your microwave oven to the outside, see Hood Exhaust Section for exhaust duct preparation When installing the microwave oven beneath smooth, flat cabinets, be careful to follow the instructions on the top cabinet template for power cord clearance. As a guide to installation, see page 26 for Mounting Template Information. If the cabinet depth, including the cabinet doors, is more than 13", then the unit must be spaced out from wall using adequate materials supporting 150 lbs to allow proper top vent air exhaust/ intake.

1 | PLACEMENT OF THE MOUNTING PLATE

A. REMOVING THE MICROWAVE OVEN FROM THE CARTON/REMOVING THE MOUNTING PLATE

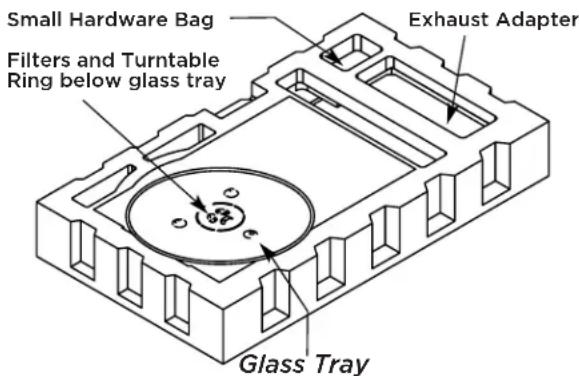

1 Remove the installation instructions, use and care, exhaust adapter, turntable ring, shelf, filters, glass tray and the small hardware bag. Do not remove the Styrofoam protecting the front of the oven. please note: Do Not Remove plastic plug protective cover until just before hanging the unit. Keep the unit at least 8 inches away from the counter top edge to prevent dropping because of the heavy door

Small Hardware Bag Filters and Turntable Ring below glass tray Glass Tray Exhaust Adapter

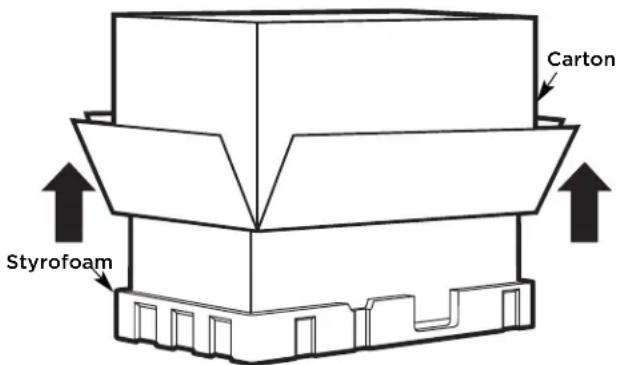

2 Fold back all 4 carton flaps fully against carton sides. Then carefully roll the oven and carton over onto the top side. The oven should be resting in the Styrofoam.

Carton Styrofoam

3 Pull the carton up and off the oven.

4 Cut the middle of the outer protective plastic bag to remove the mounting plate

Screws Mounting Plate Screws

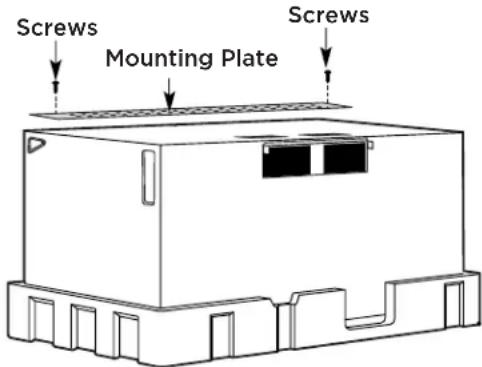

5 Remove the screws from each end of the mounting plate. This plate will be used as the rear wall template and for mounting. Reinstall the screws into the holes where they were removed.

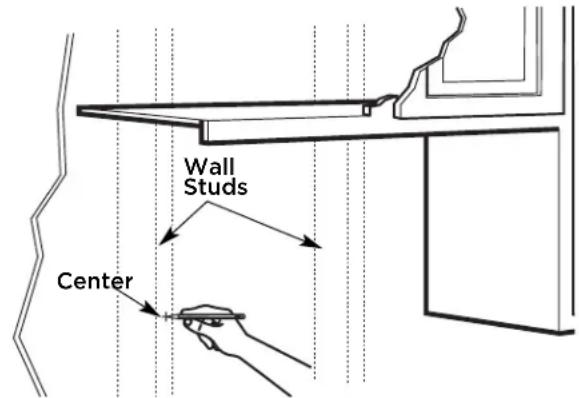

B. FINDING THE WALL STUDS

Wall Studs Center

1 Find the studs, using one of the following methods:

A. Stud finder - a magnetic device which locates nails.
B. Use a hammer to tap lightly across the mounting surface to find a solid sound. This will indicate a stud location.

2 After locating the stud(s), find the center by probing the wall with a small nail to find the edges of the stud. Then place a mark halfway between the edges. The center of any adjacent studs should be 16" (40.6 cm) or 24" (61 cm) from this mark.

3 Draw a line down the center of the studs. THE MICROWAVE MUST BE CONNECTED TO AT LEAST ONE WALL STUD.

DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET

Plate position-beneath flat bottom cabinet

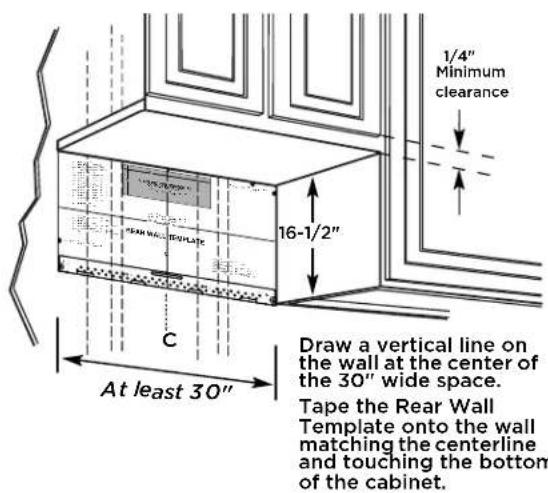

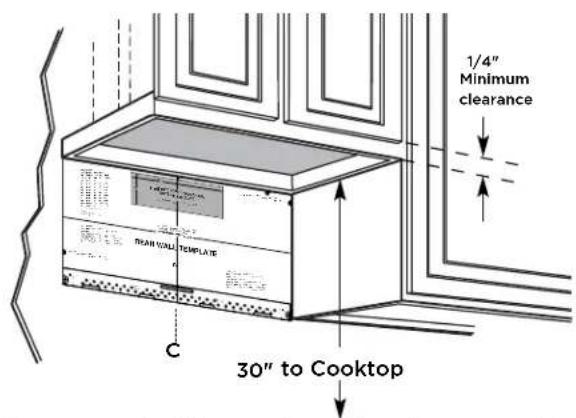

1/4" Minimum clearance 16-1/2" C At least 30" Draw a vertical line on the wall at the center of the 30" wide space. Tape the Rear Wall Template onto the wall matching the centerline and touching the bottom of the cabinet.

Plate position -beneath framed recessed cabinet bottom

1/4" Minimum clearance 30" to Cooktop

Draw a vertical line on the wall at the center of the 30" space.

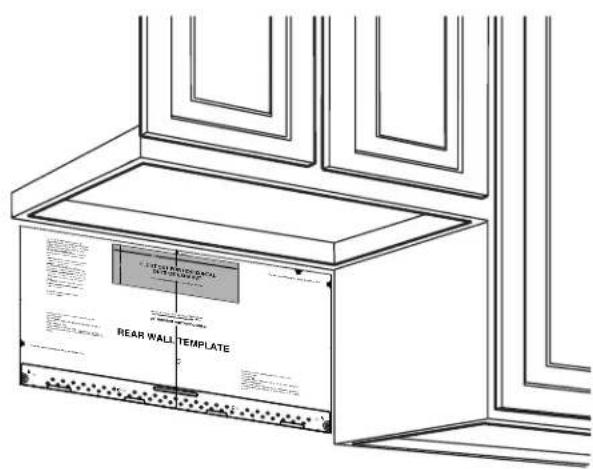

Tape the Rear Wall Template onto the wall matching the centerline and touching the bottom cabinet frame.

Plate position-beneath recessed bottomcabinetwith front overhang

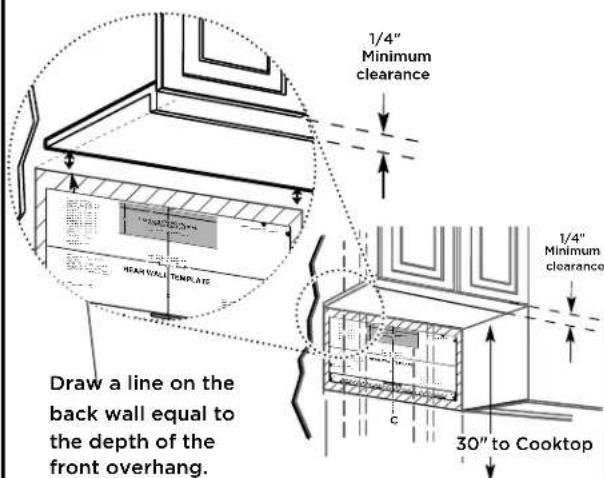

1/4" Minimum clearance 1/4" Minimum clearance Draw a line on the back wall equal to the depth of the front overhang. 30" to Cooktop

Your cabinets may have decorative trim that interferes with the microwave installation. Remove the decorative trim to install the microwave properly and to make it level.

Use a level to make sure the cabinet bottom is level. If the cabinets have a front overhang only, with no back or side frame, install the mounting plate down the same distance as the front overhang depth. This will keep the microwave level.

1 Measure the inside depth of the front overhang.
2 Draw a horizontal line on the back wall an equal distance below the cabinet bottom as the inside depth of the front overhang.
3 For this type of installation with front overhang only, align the mounting tabs with this horizontal line, not touching the cabinet bottom as described in Step D.

D. ALIGNING THE WALL PLATE

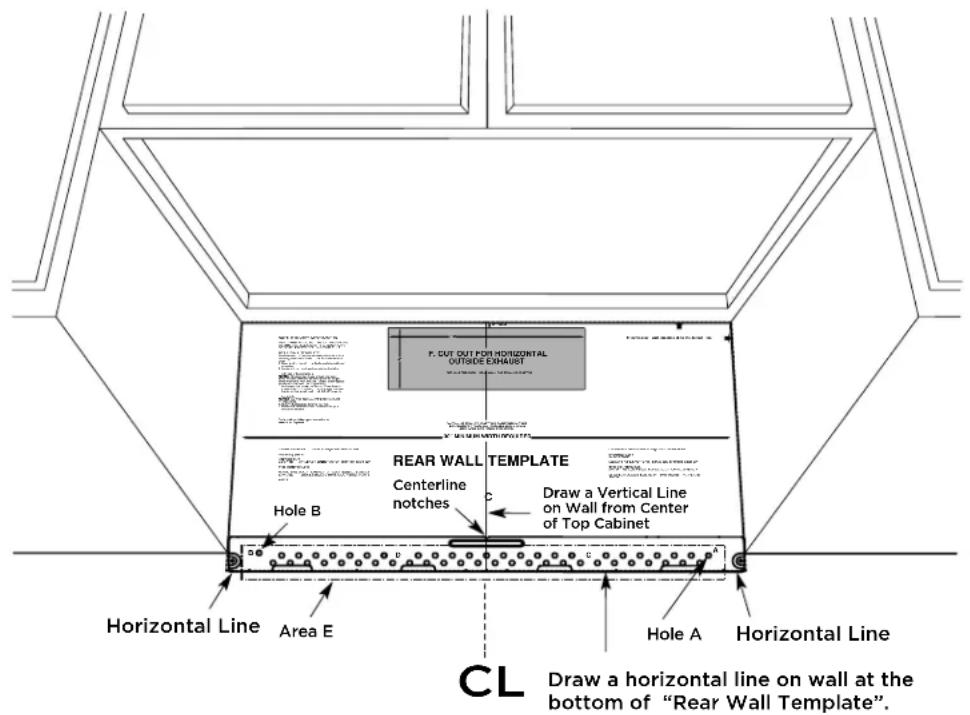

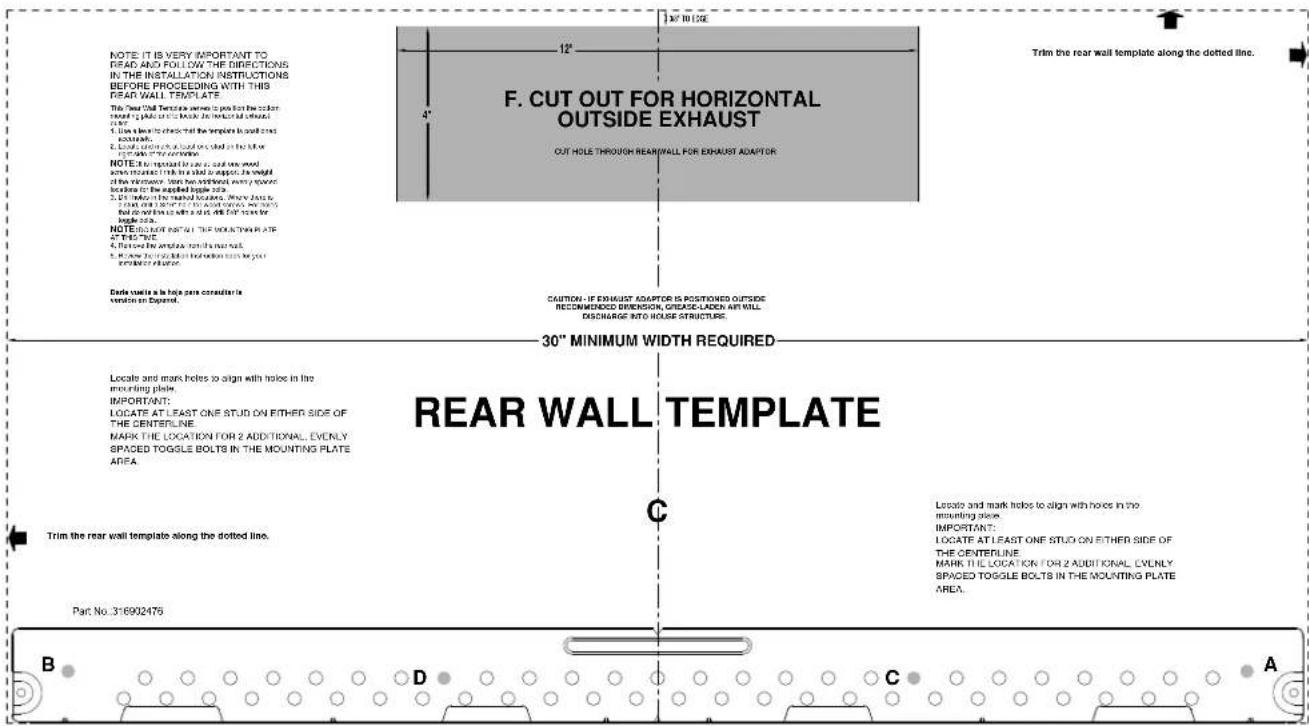

F. CUT OUT FOR HORIZONTAL OUTSIDE EXHAUST REAR WALL TEMPLATE Centerline notches Draw a Vertical Line on Wall from Center of Top Cabinet Hole B Horizontal Line Area E CL Draw a horizontal line on wall at the bottom of "Rear Wall Template". Hole A Horizontal Line

1 Draw a vertical line on the wall at the center of the 30" wide space.
2 Draw a horizontal line on the wall at the bottom of "Rear Wall Template".
3 Find a wall stud in area "E" of mounting plate Refer to section 1B. Finding the wall studs.
4 For attaching the mounting plate into stud drill a 3/16" hole into wood stud. Drill a 5/8" hole for toggle bolt in 1 other location (Hole A or Hole B) NOTE: DO NOT MOUNT THE PLATE AT THIS TIME.

NOTE: Holes A and B are inside area E. If neither of Holes A and B are not in a stud, find a stud somewhere in area E and draw a circle to line up with the stud. It is important to have at least one wood screw mounted firmly in a stud to support the weight of the microwave. Set the mounting plate aside.

2 | INSTALLATION TYPES (Choose A, B or C)

This microwave oven is designed for adaptation to the following three types of ventilation:

A. Recirculating (Non-Vented Ductless)
B. Outside Back Exhaust (Horizontal Duct)
C. Outside Top Exhaust (Vertical Duct)

NOTE: This microwave is shipped assembled for Recirculating. Select the type of ventilation required for your installation and proceed to that section.

A

RECIRCULATING (NON-VENTED DUCTLESS)

Line drawing of a rectangular box with a lid and a handle, no text or symbols present

See page 10

Models are shipped for recirculating exhaust. Some models have a disposable charcoal filter installed to help remove smoke and odors.

B

OUTSIDE BACK EXHAUST (HORIZONTAL DUCT)

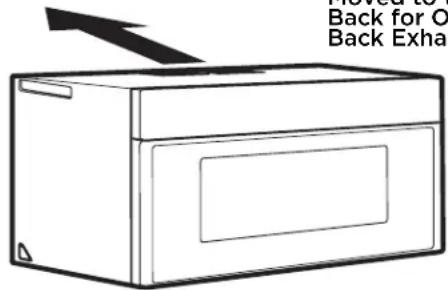

Back for O Back Exha

See page 16

C

OUTSIDE TOP EXHAUST (VERTICAL DUCT)

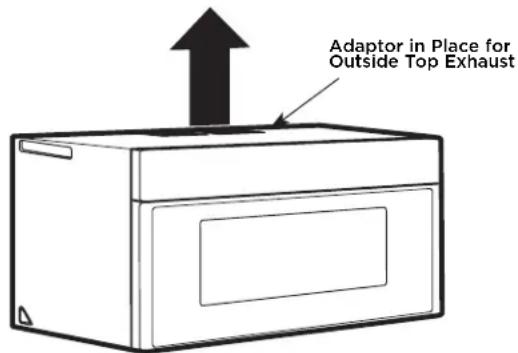

Adaptor in Place for Outside Top Exhaust

See page 20

NOTE: Read the pages 14-15 only if you plan to vent your exhaust to the outside. If you plan to recirculate the air back into the room, proceed to page 10.

A | RECIRCULATING (Non-Vented Ductless)

INSTALLATION OVERVIEW

A1. Attach Mounting Plate to Wall

A2. Prepare Top Cabinet

A3. Check Blower Plate

A4. Mount the Microwave Oven

A5. Install or change Charcoal Filter

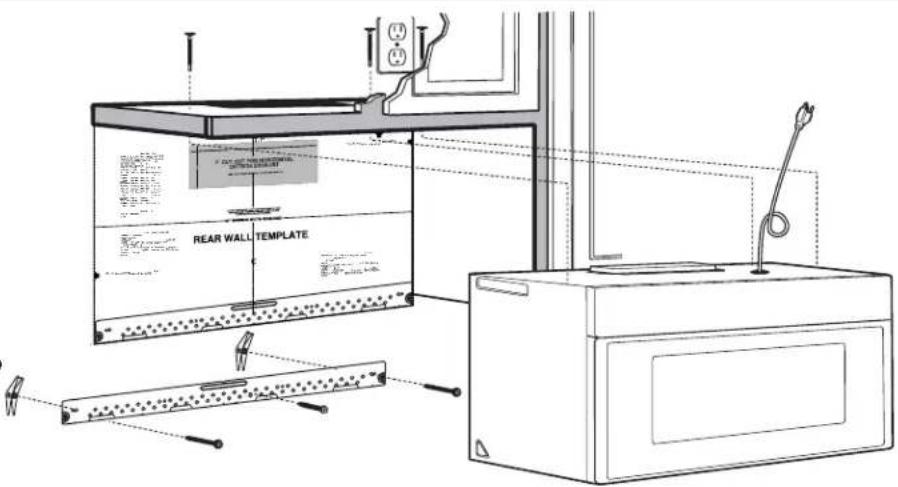

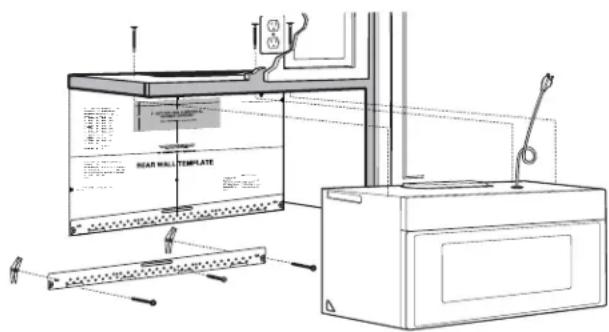

IMPORTANT NOTES:

- Make sure the screws for the blower motor and blower plate are securely tightened when they are reinstalled. This will help to prevent excessive vibration.

- Make sure the motor wiring has been properly routed and secured, and that the wires are not pinched.

HEAT WALL TEMPLATE

A1. ATTACH THE MOUNTING PLATE TO THE WALL

Technical line drawing of a structural assembly with beams and supports, no visible text or symbols

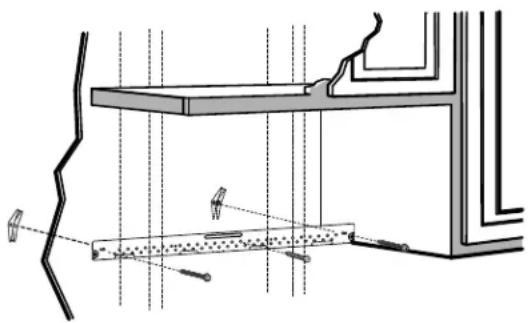

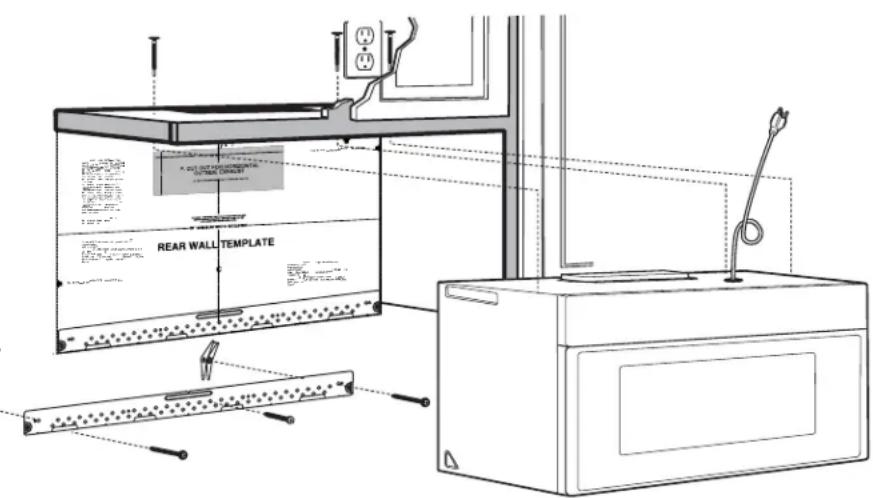

Attach the plate to the wall using toggle bolts. At least one wood screw must be used to attach the plate to a wall stud.
NOTE: If the cabinet depth including the cabinet doors is more than 13" then the unit must be spaced out from wall using adequate materials supporting 150 lbs to allow proper top vent air exhaust/intake.

13" MAX. (33 cm) Cabinet

Cabinet

1 Remove the toggle wings from the bolts.
2 Insert the bolts into the mounting plate through the holes designated to go into drywall and reattach the toggle wings to 34 " (19 mm) onto each bolt.

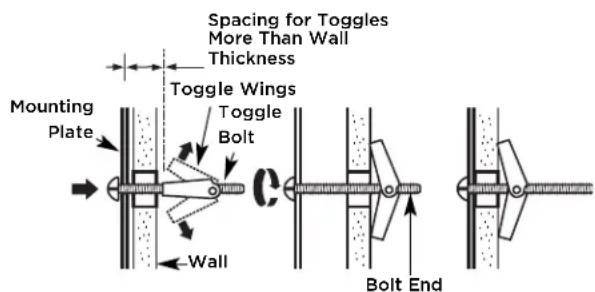

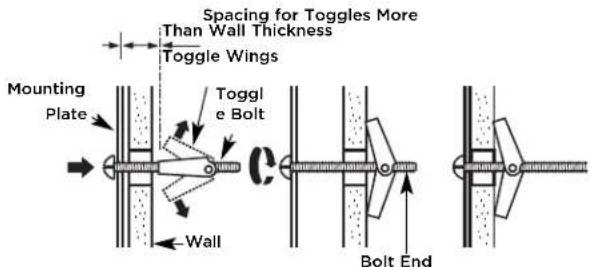

To use toggle bolts:

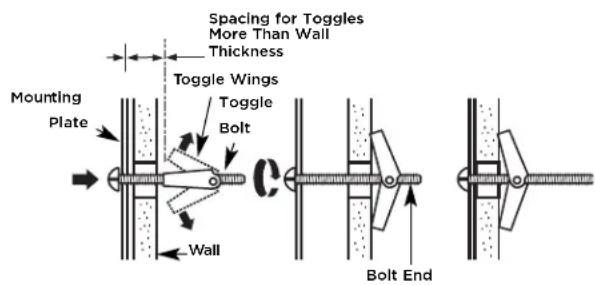

Spacing for Toggles More Than Wall Thickness Toggle Wings Toggle Bolt Mounting Plate Wall Bolt End

3 Place the mounting plate against the wall and insert the toggle wings into the holes in the wall to mount the plate.

NOTE: Before tightening toggle bolts and wood screw, make sure the bottom of the mounting plate touch the bottom of the cabinet when pushed flush against the wall and that the plate is properly centered under the cabinet.

CAUTION: Be careful to avoid pinching fingers between the back of the mounting plate and the wall.

4 Tighten all bolts. Pull the plate away from the wall to help tighten the bolts.

Installation Instructions

A2. USE TOP CABINET TEMPLATE FOR PREPARATION OF TOP CABINET

You need to drill holes for the top support screws and a hole large enough for the power cord to fit through.

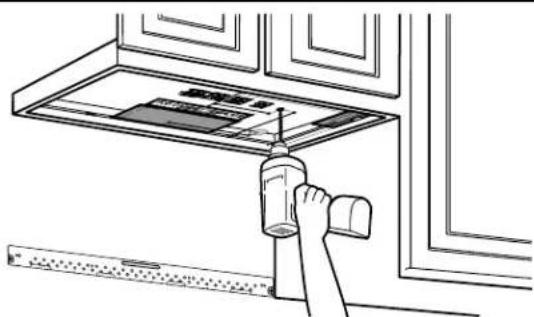

Line drawing of a hand using a tool to press or install a wall-mounted device (no text or symbols visible)

• Read the instructions on the TOP CABINET TEMPLATE.
• Tape it underneath the top cabinet.

NOTE: Adjust top template accordingly if the microwave is being spaced out from the wall due to cabinet depth (including cabinet doors) of more than 13".

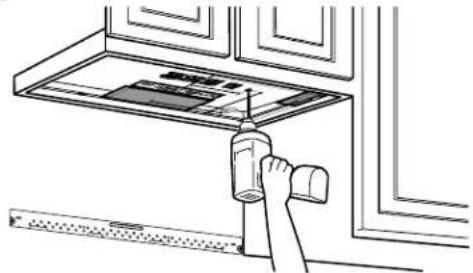

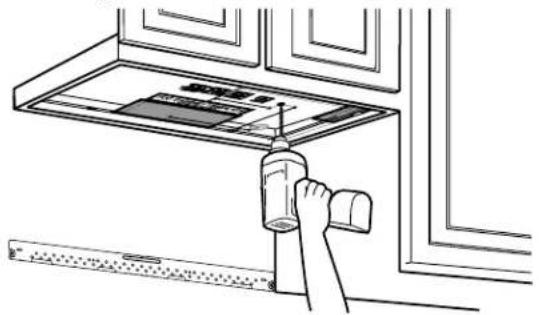

- Drill the holes, following the instructions on the TOP CABINET TEMPLATE.

CAUTION: Wear safety goggles when drilling holes in the cabinet bottom.

A3. CHECK BLOWER PLATE

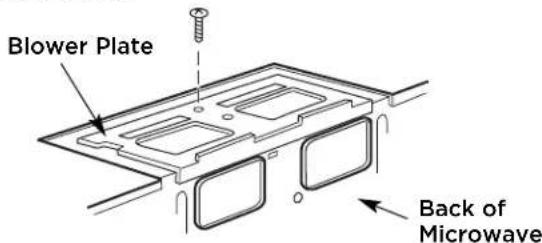

Blower Plate

Technical line drawing of a mechanical component with mounting holes and a directional arrow (no text or symbols)

• Place the microwave in its upright position, with the top of the unit facing up.
• Check to see that the blower plate is correctly installed on the unit.

A4. MOUNT THE MICROWAVE OVEN

Illustration showing three scenes of a person handling a box, crossed out by a 'X' symbol, and holding a book with another figure nearby.

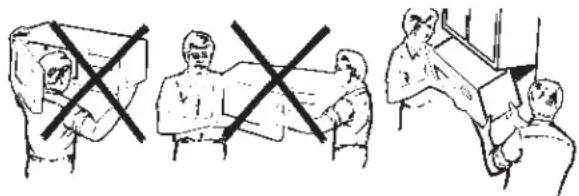

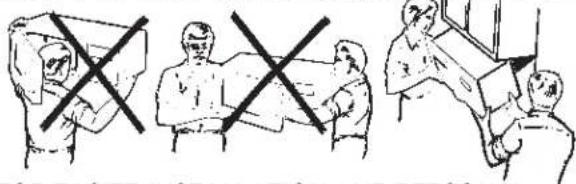

FOR EASIER INSTALLATION AND PERSONÁL SAFETY, WE RECOMMEND THAT TWO PEOPLE INSTALL THIS MICROWAVE OVEN.

IMPORTANT: Do not grip or use the handle or heat shield during installation. Do not remove the cardboard spacers between the heat shield and door.

NOTE: If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord.

NOTE: We recommend using filler blocks if the cabinet front hangs below the cabinet bottom shelf.

IMPORTANT: If filler blocks are not used, case damage may occur from overtightening screws.

NOTE: When mounting the microwave oven, thread power cord through hole in bottom of top cabinet. Keep it tight throughout Steps

1-3. Do not pinch cord or lift oven by pulling cord.

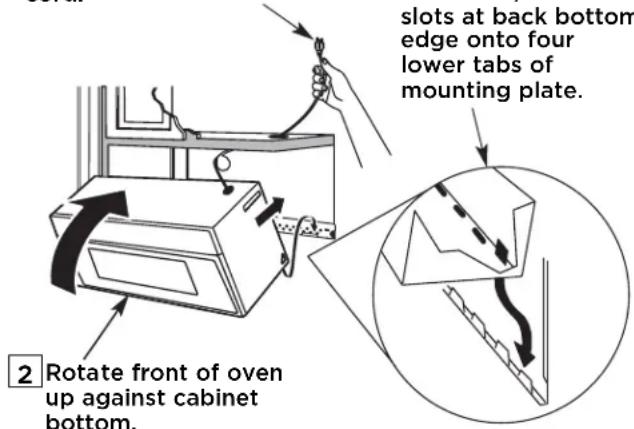

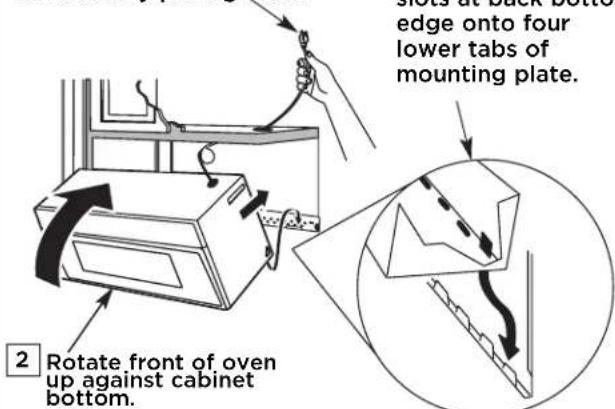

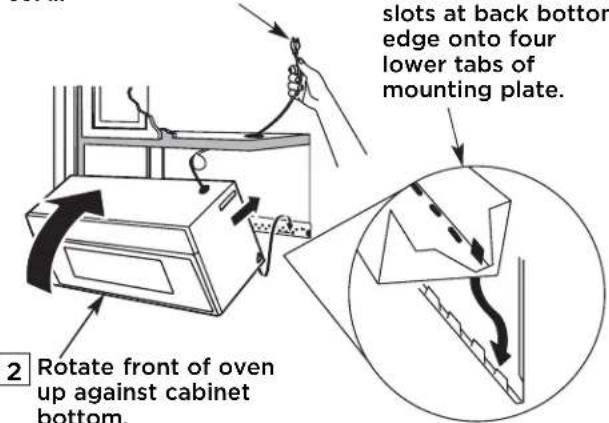

1 Lift microwave, tilt it forward, and hook slots at back bottom edge onto four lower tabs of mounting plate.

2 Rotate front of oven up against cabinet bottom. 3 Sits at back bottom edge onto four lower tabs of mounting plate.

3 Insert a self-aligning screw through top center cabinet hole. Temporarily secure the oven by turning the screw at least two full turns after the threads have engaged. (It will be completely tightened later.) Be sure to keep power cord tight. Be careful not to pinch the cord, especially when mounting flush to bottom of cabinet.

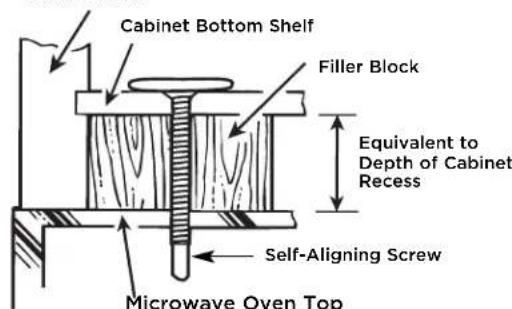

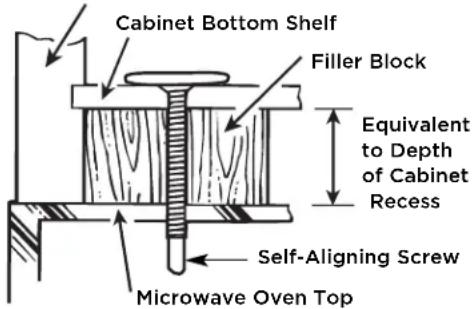

Cabinet Bottom Shelf Filler Block Equivalent to Depth of Cabinet Recess Self-Aligning Screw Microwave Oven Top

4 Attach the microwave oven to the top cabinet.

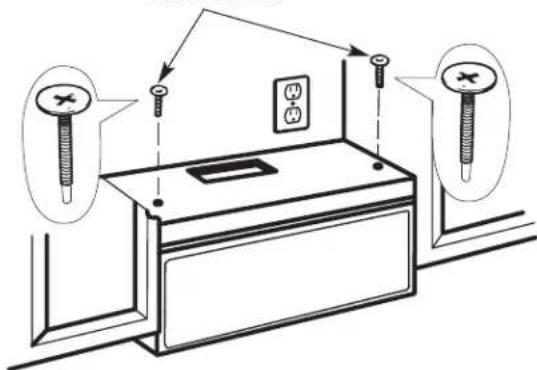

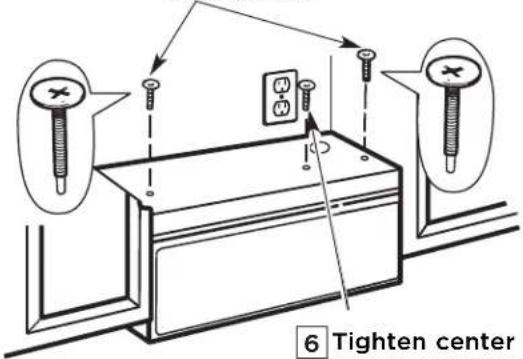

5 Insert 2 self-aligning screws through outer top cabinet holes. Turn two full turns on each screw.

6 Tighten center

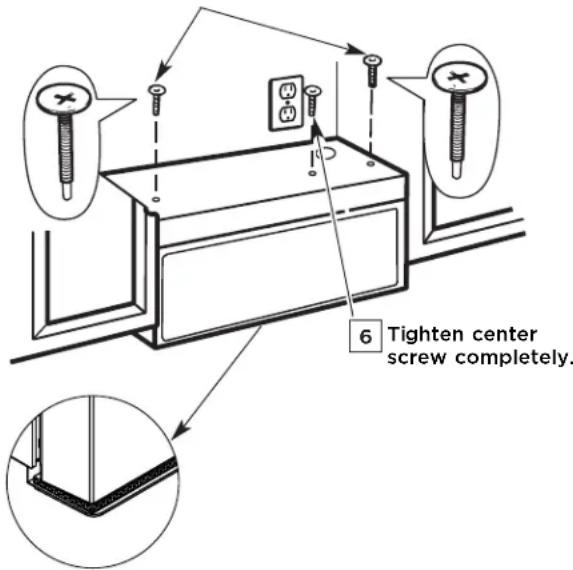

6 Tighten center screw completely.

7 Tighten the outer two screws to the top of the microwave oven. (While tightening screws, hold the microwave oven in place against the wall and the top cabinet.)

Hand inserting a small object into a grid-patterned device (no text or symbols visible)

8 Install grease filters. See the Use and Care packed with the microwave.

A5. INSTALLING OR CHANGE THE CHARCOAL FILTER (Some Models)

NOTE: The charcoal filter is factory installed in some models. Refer to the Use and Care to see if yours is factory installed and for replacement information.

For models without the recirculation filter access door, follow these steps to replace or install a charcoal filter.

A 5.1 Unplug microwave oven or disconnect power.

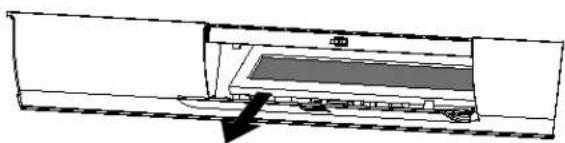

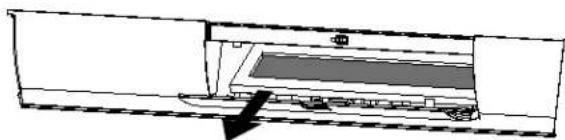

A 5.2 Open the microwave door and push the "PUSH" position on the Vent, and then the cover open.

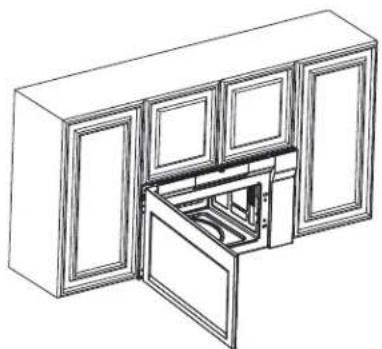

Line drawing of a multi cabinet with doors open and internal compartments (no text or symbols)

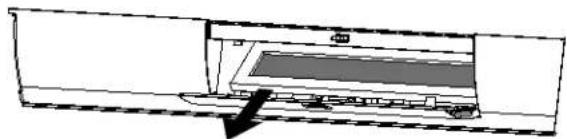

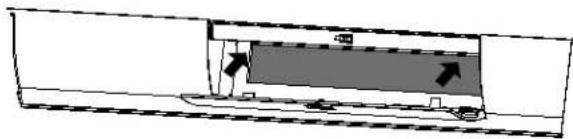

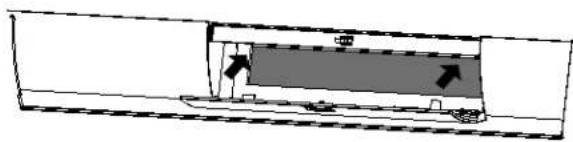

A 5.3 Remove the charcoal filter by pushing the top of the filter inwards, then pull it forward out from the unit.

Simple line drawing of a monitor with an open screen and directional arrows indicating motion (no text or symbols)

Line drawing of a computer monitor with an open screen and a mouse (no text or symbols)

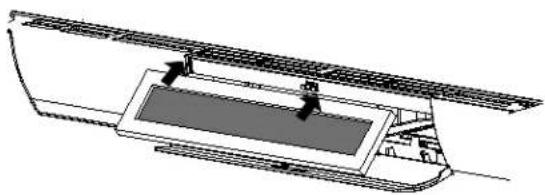

A 5.4 Slide the top of the new charcoal filter into the top of the filter cavity.

Technical line drawing of a boat hull with support structures and no visible text or symbols

A5. INSTALLING OR CHANGE THE CHARCOAL FILTER(cont.)

A 5.5 Press the bottom of charcoal filter to place it into the correct position.

Diagram of a ship's side view showing hull, hull, and structural elements (no text or labels)

A 5.6 Then close vent's cover.

Line drawing of a multi-level cabinet with doors open and internal compartments (no text or symbols)

A 5.7 Close the microwave door. Plug in microwave oven or reconnect power.

INSTALLATION INSTRUCTIONS FOR EXTERNAL EXHAUST DUCTING

NOTE: If you need to install ducts, note that the total duct length of 3^1/4 " x 10" (8.2 x 25.4 cm) rectangular or 5" (12.7 cm) diameter/6" (15.2 cm) diameter round duct should not exceed 140 equivalent feet (42.7 m). Outside ventilation requires an EXTERNAL EXHAUST DUCT. Read the following carefully.

NOTE: It is important that venting be installed using the most direct route and with as few elbows as possible. This ensures clear venting of exhaust and helps prevent blockages. Also, make sure dampers swing freely and nothing is blocking the ducts.

Exhaust connection:

The exhaust adaptor has been designed to mate with a standard 3^1/4 " x 10" (8.2 x 25.4 cm) rectangular duct. If a round duct is required, a rectangular-to-round transition adaptor must be used. A 5" (12.7cm)/6" (15.2cm) diameter duct is acceptable to use.

Maximum duct length:

For satisfactory air movement, the total duct length of 314 " x 10" (8.2 x 25.4 cm) rectangular or 5" (12.7 cm) diameter/6" (15.2 cm) diameter round duct should not exceed 140 equivalent feet (42.7 m).

Elbows, transitions, wall and roof caps, etc., present additional resistance to airflow and are equivalent to a section of straight duct which is longer than their actual physical size. When calculating the total duct length, add the equivalent lengths of all transitions and adaptors plus the length of all straight duct sections. The chart below shows you how to calculate total equivalent ductwork length using the approximate feet of equivalent length of some typical ducts.

DUCT PIECES LENGTH x USED = LENGTH		EQUIVALENT NUMBER EQUIVA LENT
	Transition Adaptor*	5 Ft. (1.5 m) x( )=	Ft. or mRe
	Wall Cap 40 Ft. (12.2 m)	x( )=	Ft. or m
	90° Elbow 10 Ft. (3 m)	x( )=	Ft. or m
	45° Elbow 5 Ft. (1.5 m)	x( )=	Ft. or m
	90° Elbow 25 Ft. (7.6 m)	x( )=	Ft. or m
	45° Elbow 5 Ft. (1.5 m)	x( )=	Ft. or m
	Roof Cap 24 Ft. (7.3 m)	x( )=	Ft. or m
[KEZY]	Straight Duct 6" (15.2 cm)Round or 3 1/4" x 10"(8.2 x 25.4 cm Rectangular)	1 Ft. (0.3 m) x( )=	Ft. or m
Total Ductwork = Ft. or m

* IMPORTANT : If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will have to be cut to fit, using the tin snips, in order to allow free movement of the damper.

Equivalent lengths of duct pieces are based on actual tests and reflect requirements for good venting performance with any vent hood.

EXTERNAL EXHAUST DUCTING

OUTSIDE TOP EXHAUST (EXAMPLE ONLY)

The following chart describes an example of one possible ductwork installation.

DUCT PIECES LENGTH x USED = LENGTH		EQUIVALENT NUMBER	EQUIVALENT
	Roof Cap 24 Ft. (7.3 m) x	(1) = 24 Ft. (7.3 m)
	12 Ft. (3.6 m) Straight Duct (6"/15.2 cm Round)	12 Ft. (3.6 m) x (1) = 12 Ft. (3.6 m)
	Transition Adaptor*	5 Ft. (1.5 m) x (1) = 5 Ft. (1.5 m)Rectangular-to-Round
Equivalent lengths of duct pieces are based on actual tests and reflect requirements for good venting performance with any vent hood.		Total Length = 41 Ft. (12.5 m)

* IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will have to be cut to fit, using the tin snips, in order to allow free movement of the damper.

OUTSIDE BACK EXHAUST (EXAMPLE ONLY)

The following chart describes an example of one possible ductwork installation.

DUCT PIECES LENGTH* x USED = LENGTH		EQUIVALENT NUMBER				EQUIVALENT
	Wall Cap	40 Ft. (12.2 m)	x	(1)	=	40 Ft. (12.2 m)
[ST6C]	3 Ft. Straight Duct (3^1/4 × 10^''/8.2 × 25.4 cm Rectangular)	3 Ft. (0.9 m)	x (1)		= 3 Ft. (0.9 m)
[280K]	90° Elbow	10 Ft. (3 m)	x	(2)	=	20 Ft. (3 m)
Equivalent lengths of duct pieces are based on actual testsand reflect requirements for good venting performancewith any vent hood.					Total Length = 63 Ft. (19.2 m)

NOTE: For back exhaust, care should be taken to align exhaust with space between studs, or wall should be prepared at the time it is constructed by leaving enough space between the wall studs to accommodate exhaust.

B | OUTSIDE BACK EXHAUST (Horizontal Duct)

INSTALLATION OVERVIEW

B1. Prepare Rear Wall

B2. Remove Blower Plate

B3. Attach Mounting Plate to Wall

B4. Prepare Top Cabinet

B5. Adjust Blower

B6. Mount the Microwave Oven

IMPORTANT NOTES:

• Make sure the screws for the blower motor and blower plate are securely tightened when they are reinstalled. This will help to prevent excessive vibration.

• Make sure the motor wiring has been properly routed and secured, and that the wires are not pinched.

REAR WALL TEMPLATE

B1. PREPARING THE REAR WALL FOR OUTSIDE BACK EXHAUST

You need to cut an opening in the rear wall for outside exhaust.

REAR WALL TEMPLATE 100% 25% 30% 35% 40% 45% 50% 55% 60% 65% 70% 75% 80% 85% 90% 95% 100%

- Read the instructions on the REAR WALL TEMPLATE.

- Tape it to the rear wall.

- Cut the opening, following the instructions of the REAR WALL TEMPLATE.

B2. REMOVE BLOWER PLATE

Remove and save the screw that holds the blower plate to the microwave. Lift off the blower plate.

Blower Plate Back of Microwave

B3. ATTACH THE MOUNTING PLATE TO THE WALL

Technical line drawing of a structural assembly with beams and supports, no visible text or symbols

Attach the plate to the wall using toggle bolts. At least one wood screw must be used to attach the plate to a wall stud.

1 Remove the toggle wings from the bolts.
2 Insert the bolts into the mounting plate through the holes designated to go into drywall and reattach the toggle wings to 34 " (19 mm) onto each bolt.

To use toggle bolts:

Spacing for Toggles More Than Wall Thickness Toggle Wings Mounting Plate Toggle Bolt Wall Bolt End

3 Place the mounting plate against the wall and insert the toggle wings into the holes in the wall to mount the plate.

NOTE: Before tightening toggle bolts and wood screw, make sure the bottom of the mounting plate touch the bottom of the cabinet when pushed flush against the wall and that the plate is properly centered under the cabinet.

CAUTION: Be careful to avoid pinching fingers between the back of the mounting plate and the wall.

4 Tighten all bolts. Pull the plate away from the wall to help tighten the bolts.

B4. USE TOP CABINET TEMPLATE FOR PREPARATION OF TOP CABINET

You need to drill holes for the top support screws and a hole large enough for the power cord to fit through.

Line drawing of a hand using a tool to clean or install a wall-mounted device (no text or symbols visible)

• Read the instructions on the TOP CABINET TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the TOP CABINET TEMPLATE.

CAUTION: Wear safety goggles when drilling holes in the cabinet bottom.

B5. ADAPTING MICROWAVE BLOWER FOR OUTSIDE BACK EXHAUST

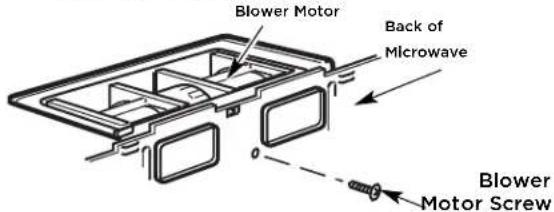

1 Remove and save screw that holds blower motor to microwave.

Blower Motor Back of Microwave Blower Motor Screw

2 Carefully pull out the blower unit. The wires will extend far enough to allow you to adjust the blower unit.

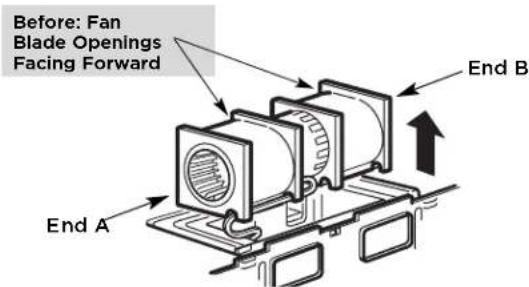

Before: Fan Blade Openings Facing Forward End A End B

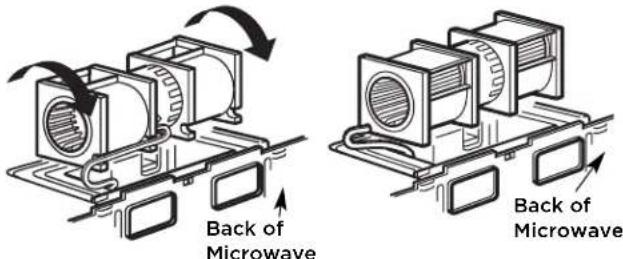

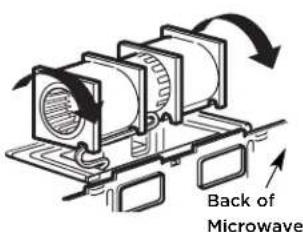

3 Roll the blower unit 90° Before Rotation

Back of Microwave

After Rotation Back of Microwave

Back of Microwave Back of Microwave

5 Gently remove the wires from the grooves. Reroute the wires through grooves on other side of the blower unit.

Before Rerouting After Rerouting

Technical line drawing of two industrial enclosures with cooling fans and a coiled spring (no text or symbols)

Wires Routed Through Right Side

Technical line drawing of two rectangular electronic components with internal circuitry (no text or symbols)

Wires Routed Through Left Side

6 Roll the blower unit 90° so that fan blade openings are facing out the back of the microwave.

Before Rolling After Rolling

Back of Microwave Back of Microwave

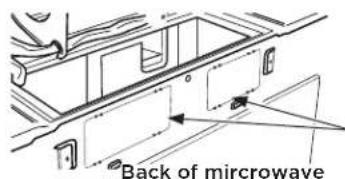

7Remove the knockout plates in the back of the unit with snips. (For some models) Knockout Plates:

Back of microwave

Knockout Plates: Snip all 4 webs on each knockout panel and remove the metal knockouts for rear airflow. Please take care to remove any sharp edges created from removing the knockout plates.

8 Place the blower unit back into the opening.

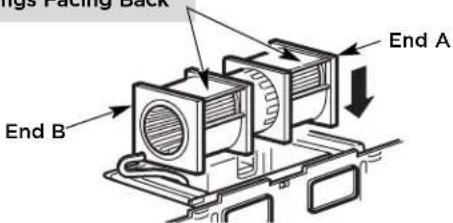

AFTER: Fan Blade Openings Facing Back

Ends Facing Back End A End B

CAUTION: Do not pull or stretch the blower unit wiring. Make sure the wires are not pinched, and that they are properly secured.

NOTE: The blower unit exhaust openings should match exhaust openings on rear of microwave oven.

9 Secure the blower unit to the microwave with the original screw.

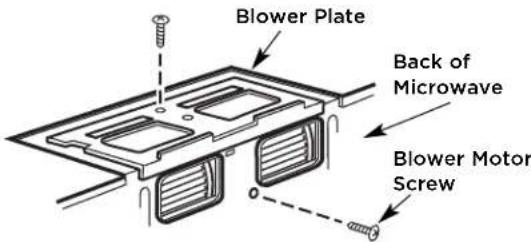

Blower Plate Back of Microwave Blower Motor Screw

10 Replace the blower plate in the same position as before with the screw. Make sure the screw is tight.

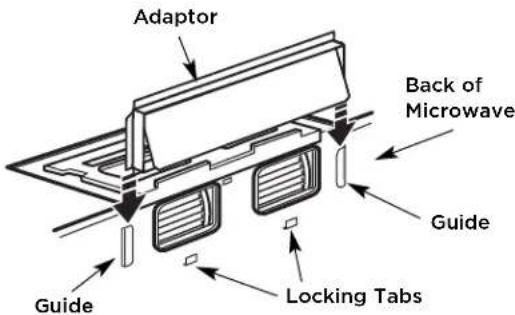

11 Attach the exhaust adaptor to the rear of the oven by sliding it into the guides at the top center of the back of the oven.

Adaptor Back of Microwave Guide Guide Locking Tabs

Push in securely until it is in the lower locking tabs. Take care to assure that the damper hinge is installed so that it is at the top and that the damper swings freely.

B6. MOUNT THE MICROWAVE OVEN

Illustration showing three scenes of people handling boxes with a crossed-out box, no text or symbols present

FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE RECOMMEND THAT TWO PEOPLE INSTALL THIS MICROWAVE OVEN.

IMPORTANT: Do not grip or use the handle or heat shield during installation. Do not remove the cardboard spacers between the heat shield and door.

NOTE: If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord.

NOTE: We recommend using filler blocks if the cabinet front hangs below the cabinet bottom shelf.

IMPORTANT: If filler blocks are not used, case damage may occur from overtightening screws.

NOTE: When mounting the microwave oven, thread power cord through hole in bottom of top cabinet. Keep it tight throughout Steps 1-3. Do not pinch cord or lift oven by pulling cord.

slots at back bottom edge onto four lower tabs of mounting plate. 2 Rotate front of oven up against cabinet bottom.

3 Insert a self-aligning screw through top center cabinet hole. Temporarily secure the oven by turning the screw at least two full turns after the threads have engaged. (It will be completely tightened later.) Be sure to keep power cord tight. Be careful not to pinch the cord, especially when mounting flush to bottom of cabinet.

Cabinet Front

Cabinet Bottom Shelf Filler Block Equivalent to Depth of Cabinet Recess Self-Aligning Screw Microwave Oven Top

4 Attach the microwave oven to the top cabinet.

5 Insert 2 self-aligning screws through outer top cabinet holes. Turn two full turns on each screw.

6 Tighten center screw completely.

7 Tighten the outer two screws to the top of the microwave oven. (While tightening screws, hold the microwave oven in place against the wall and the top cabinet.)

Line drawing of a hand holding a grid-patterned device (no text or symbols)

8 Install grease filters. See the Use and Care packed with the microwave.

IMPORTANT: Remove the cardhoard spacers between heat shield and door.

C | OUTSIDE TOP EXHAUST (Vertical Duct)

INSTALLATION OVERVIEW

C1. Attach Mounting Plate to Wall

C2. Prepare Top Cabinet

C3. Adapting Microwave Blower for Outside Top Exhaust

C4. Check Damper Operation

C5. Mount Microwave Oven Adjust

C6. Exhaust Adaptor

C6. Connect Ductwork

IMPORTANT NOTES:

- Make sure the screws for the blower motor and blower plate are securely tightened when they are reinstalled. This will help to prevent excessive vibration.

- Make sure the motor wiring has been properly routed and secured, and that the wires are not pinched.

REAR WALL TEMPLATE

C1. ATTACH THE MOUNTING PLATE TO THE WALL

Technical line drawing of a structural assembly with beams and supports (no text or symbols)

Attach the plate to the wall using toggle bolts. At least one wood screw must be used to attach the plate to a wall stud.

1 Remove the toggle wings from the bolts.

2 Insert the bolts into the mounting plate through the holes designated to go into drywall and reattach the toggle wings to 34 " (19 mm) onto each bolt.

To use toggle bolts:

Spacing for Toggles More Than Wall Thickness Toggle Wings Mounting Plate Toggle Bolt Wall Bolt End

3 Place the mounting plate against the wall and insert the toggle wings into the holes in the wall to mount the plate.

NOTE: Before tightening toggle bolts and wood screw, make sure the bottom of the mounting plate touch the bottom of the cabinet when pushed flush against the wall and that the plate is properly centered under the cabinet.

CAUTION: Be careful to avoid pinching fingers between the back of the mounting plate and the wall.

4 Tighten all bolts. Pull the plate away from the wall to help tighten the bolts.

C2. USE TOP CABINET TEMPLATE FOR PREPARATION OF TOP CABINET

You need to drill holes for the top support screws, a hole large enough for the power cord to fit through, and a cutout large enough for the exhaust adaptor.

Line drawing of a hand using a tool to clean or install a window (no text or symbols visible)

• Read the instructions on the TOP CABINET TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the TOP CABINET TEMPLATE.

CAUTION: Wear safety goggles when drilling holes in the cabinet bottom.

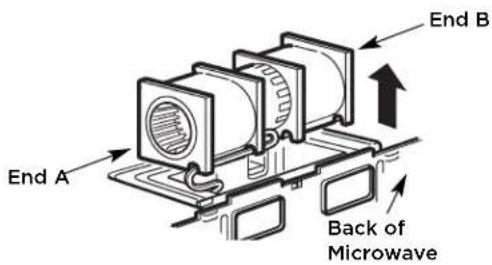

2 Carefully pull out the blower unit. The wires will extend far enough to allow you to adjust the blower unit.

End A End B Back of Microwave

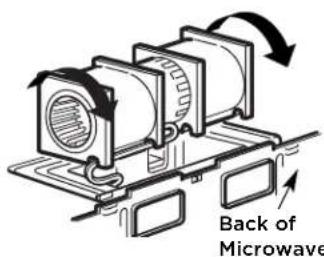

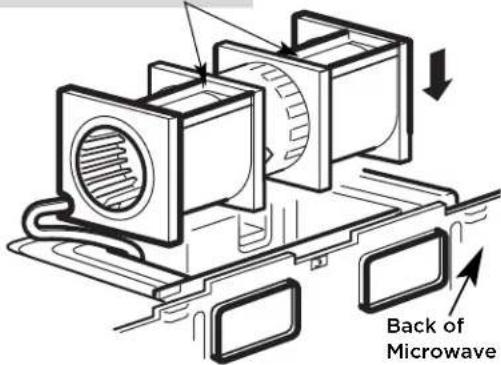

3 Roll the blower unit 90° so that fan blade openings are facing out the top of the microwave.

Before Rotation

After Rotation

Back of Microwave

Back of Microwave

C3. ADAPTING MICROWAVE BLOWER FOR OUTSIDE TOP EXHAUST

1 Place the microwave in its upright position, with the top of the unit facing up.

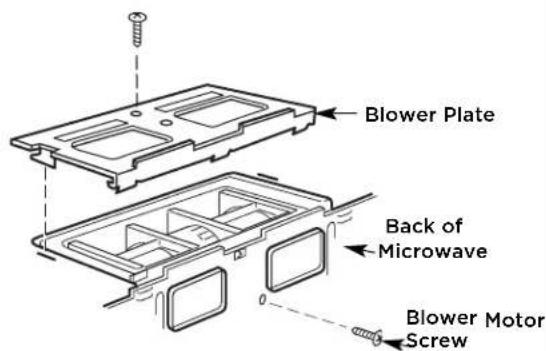

Blower Plate Back of Microwave Blower Motor Screw

Remove the screw that holds the blower plate to the microwave. Remove and save the screw holding the blower motor to the microwave.

4 Place the blower unit back into the opening.

AFTER: Fan Blade Openings Facing Top

Back of Microwave

CAUTION: Do not pull or stretch the blower unit wiring. Make sure the wires are not pinched, and that they are properly secured.

C3.

ADAPTING MICROWAVE BLOWER FOR OUTSIDE TOP EXHAUST (cont.)

5 Secure blower unit to microwave with the screw removed in Step 1. Make sure the screw is tight.

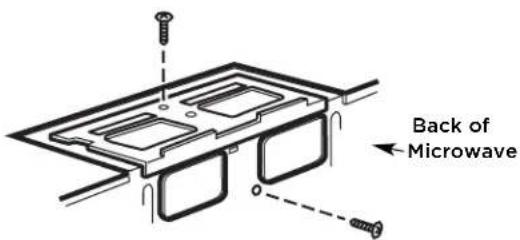

6 Replace blower plate with the screw removed in Step 1. Make sure the screw is tight.

Back of Microwave

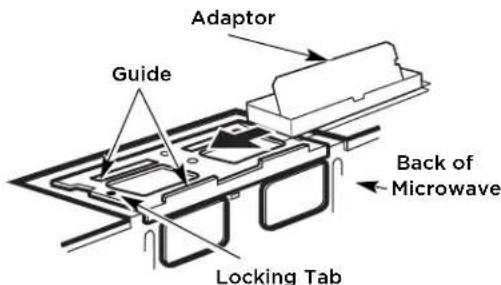

7 Attach the exhaust adaptor to the top of the blower plate by sliding it into the guides of the blower plate.

Adaptor Guide Back of Microwave Locking Tab

Push in securely until it is in the locking tabs. Take care to assure that the damper hinge is installed so that the damper swings freely.

C4

Blower Plate Exhaust Adaptor Damper Back of Microwave

• Make sure tape securing damper is removed and damper pivots easily before mounting microwave.
• You will need to make adjustments to assure proper alignment with your house exhaust duct after the microwave is installed.

C5.

Three-panel line drawing showing a person holding a box, another with a cross crossed over, and a third with a person placing a box (no text or symbols)

FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE RECOMMEND THAT TWO PEOPLE INSTALL THIS MICROWAVE OVEN.

IMPORTANT: Do not grip or use the handle or heat shield during installation. Do not remove the cardboard spacers between the heat shield and door.

NOTE: If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord.

NOTE: We recommend using filler blocks if the cabinet front hangs below the cabinet bottom shelf.

IMPORTANT: If filler blocks are not used, case damage may occur from overtightening screws.

NOTE: When mounting the microwave oven, thread power cord through hole in bottom of top cabinet. Keep it tight throughout Steps 1-3. Do not pinch cord or lift oven by pulling cord.

slots at back bottom edge onto four lower tabs of mounting plate. 2 Rotate front of oven up against cabinet bottom.

3 Insert a self-aligning screw through top center cabinet hole. Temporarily secure the oven by turning the screw at least two full turns after the threads have engaged. (It will be completely tightened later.) Be sure to keep power cord tight. Be careful not to pinch the cord, especially when mounting flush to bottom of cabinet.

Cabinet Bottom Shelf Filler Block Equivalent to Depth of Cabinet Recess Self-Aligning Screw Microwave Oven Top

4 Attach the microwave oven to the top cabinet.

5 Insert 2 self-aligning screws through outer top cabinet holes. Turn two full turns on each screw.

Diagram showing screw installation process with labeled components and directional arrows

7 Tighten the outer two screws to the top of the microwave oven. (While tightening screws, hold the microwave oven in place against the wall and the top cabinet.)

Line drawing of a hand pressing a textured rectangular object on a flat surface (no text or symbols)

8 Install grease filters. See the Use & and Care packed with the microwave.

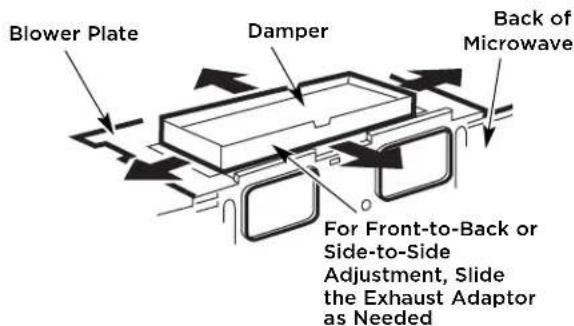

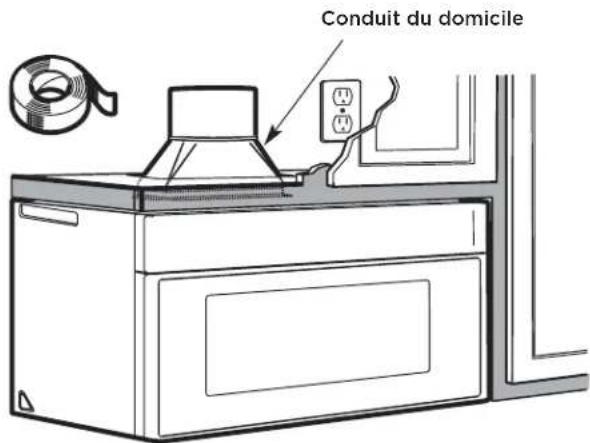

C6. ADJUST THE EXHAUST ADAPTOR

Open the top cabinet and adjust the exhaust adaptor to connect to the house duct.

Blower Plate Damper Back of Microwave For Front-to-Back or Side-to-Side Adjustment, Slide the Exhaust Adaptor as Needed

C7. CONNECTING DUCTWORK

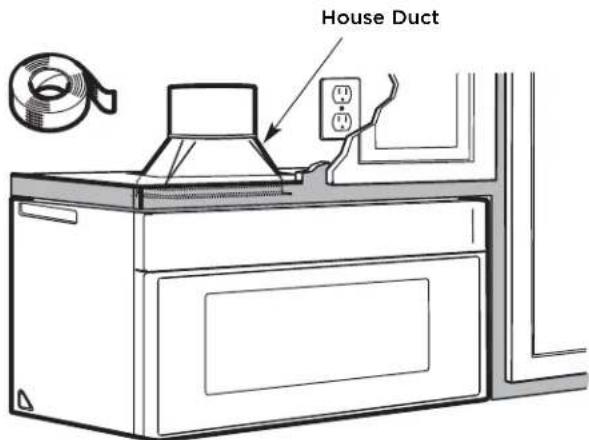

House Duct

1 Extend the house duct down to connect to the exhaust adaptor.
2 Seal exhaust duct joints using furnace duct tape for high temperature applications.

1. Make sure the microwave oven has been installed according to instructions.

INSTALLATION INSTRUCTIONS

1. Replace house fuse or turn breaker back on.

Hand placing a button into an electrical outlet panel (no text or symbols visible)

1. Remove all packing material from the microwave oven.

2. Read the USE & CARE Manual.

USE & CARE MANUAL

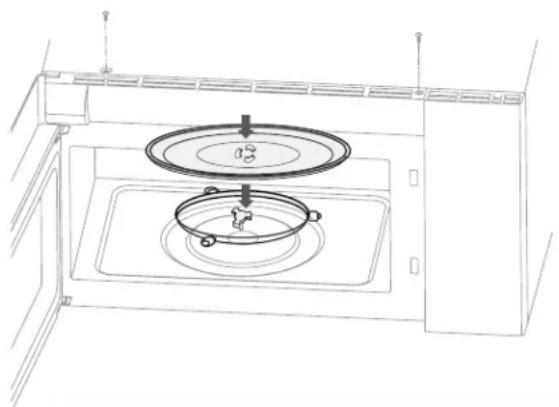

1. Install turntablering and glass tray in cavity.

Line drawing of a microwave oven with a circular vent and lid, showing internal components (no text or symbols)

1. KEEP INSTALLATION INSTRUCTIONS FOR THE LOCAL INSPECTOR'S USE.

INSTALLATION INSTRUCTIONS

1. Plug power cord into a separate and dedicated 15- to 20-amp electrical outlet.

Ensure proper ground exists before use

1. FILL OUT PRODUCT REGISTRATION CARD AN SEND IN.

PRODUCT REGISTRATION CARD

NOTE: IT IS VERY IMPORTANT TO READ AND FOLLOW THE DIRECTIONS IN THE INSTALLATION INSTRUCTIONS BEFORE PROCEEDING WITH THIS REAR WALL TEMPLATE. This Over Wall Template was required to join the front floor (e.g. 12 inches) and be added outboard. 4". 1. Use a line to check that the template is small and outboard. 2. Locally, using a ball or pencil on the back or outboard in the connection. NOTE: It is important for each side and every word and requires 1 inch a ball or pencil. We need of the expansion, then be additional, every spacer locations for the attached logo 200. 3. Use the horizontal location, where you need to add a 1 inch at the top of the space, we need be used as well as the bottom, and do not have the header 200. NOTE: It is required to apply this work in three plate at this time. 4. Use the entire part of the rear wall. 5. Use the entire part of the rear wall. Details include a high gear consideration version on Export. F. CUT OUT FOR HORIZONTAL OUTSIDE EXHAUST CUT HOLE THROUGH REAR WALL FOR EXHAUST ADAPTER 30" MINIMUM WIDTH REQUIRED REAR WALL TEMPLATE C Locate and mark holes to align with holes in the mounting plate. IMPORTANT: LOCATE AT LEAST ONE STUD ON EITHER SIDE OF THE CENTERLINE MARK THE LOCATION FOR 2 ADDITIONAL, EVENLY SPACED TOGGLE BOLTS IN THE MOUNTING PLATE AREA. Trim the rear wall template along the dotted line. B D C A Locate and mark holes to align with holes in the mounting plate. IMPORTANT: LOCATE AT LEAST ONE STUD ON EITHER SIDE OF THE CENTERLINE MARK THE LOCATION FOR 2 ADDITIONAL, EVENLY SPACED TOGGLE BOLTS IN THE MOUNTING PLATE AREA.

FILLER BLOCK AREA 13-3/8" 13 3/8" G. FILLER BLOCK AREA NOTE: C#. VIEY IMPORTANT TO RED AND FOLLOWING TRANSCRIPTIONS IN THE INSTALLATION INSTRUCTIONS REFERENCE PROCESSING WITH THE TOP CABINET TEMPLATE. The template is used to locate the power hold channel table, container mounting holes and the wireframe outlet. 1. Remove Power hold for a inline one or a concrete block. On Fig. 1. Part(s) tape tensing pass the bottom outlet. Fig. 2. Fig. 3 is removed, set the edge of the bottom to Fig. 4 the increased bottle of the corner, if it is important that the edges of the middle parts and installation of the wall. FIG. 5. Or some sides are a block or part block to cut between the corner and the intermediate of the cement outlet. Cut the foundation is B around the bracket or plug hole so that lens be all to be against the bottom of the outlet. Then the Top Cabinet Template to the umbrella of the top section in the recessed area. Fig. 6. Fig. 7. Wall was the rear of the clemble because the base and for assembly. Net portion contents on the back of the increase from second section after cutting the edge of the cement. Part No.: A06823426 WALL E.CUT OUT FOR VERTICAL (OUTSIDE) EXHAUST ONLY CUT HOLE THROUGH CABINET BOTTOM FOR EXHAUST ADAPTUM 6-1/4" 12-1/2" WALL TOP CABINET TEMPLATE D. POWER CORD ONE ORROWTH 4-1/9" E.CUT OUT FOR VERTICAL (OUTSIDE) EXHAUST ONLY CUT HOLE THROUGH CABINET BOTTOM FOR EXHAUST ADAPTUM

Line drawing of a cabinet or enclosure with a blank display panel (no text or symbols)

LEA CUIDADOSAMENTE.

CONSERVE ESTAS

INSTRUCCIONES.

p/n A06823456

enero 2023

CONTENIDO

Información general

Illustration of a hand holding a control panel with wires, no text or symbols present

Line drawing of a microwave oven with a black ribbon attached (no text or symbols)

Architectural cross-section diagram showing structural layers and floor connections (no text or labels)

Line drawing of a hand using a tool to clean or install a cabinet (no text or symbols visible)

Illustration showing three scenes of people crossed out of a box, with no visible text or symbols

Hand inserting a small rectangular object into a grid-patterned panel (no text or symbols visible)

Line drawing of a multi-level cabinet with doors open and internal compartments (no text or symbols)

Simple line drawing of a boat hull with arrows indicating direction (no text or symbols)

Diagram of a device interior with a highlighted component and arrow indicating direction (no text or symbols)

Technical line drawing of a boat hull with visible structural elements and no text or symbols

Diagram of a mechanical or architectural component with directional arrows indicating movement or force (no text or symbols present)

Line drawing of a multi-level cabinet with doors open, showing internal compartments and storage unit (no text or symbols)

Simple line drawing of a cylindrical object with a flanged top and tapered base (no text or symbols)

Technical line drawing of a structural assembly with beams and supports, showing no text or symbols

Diagram showing a hand using a tool to press or install a device with Chinese text labels on the panel.

Technical line drawing of two rectangular electronic components with internal circuitry and mounting brackets (no text or symbols)

Technical line drawing of two rectangular electronic components with internal circuitry (no text or symbols)

Three-panel line drawing showing a person carrying a box and another holding a box, with no visible text or symbols.

Illustration of a hand holding a grid-patterned tablet device (no text or symbols visible)

Technical line drawing of a structural assembly with beams and supports, no text or symbols present

Line drawing of a hand using a tool to clean or install a window (no text or symbols)

Three line drawings showing people in different positions, one crossed out by a 'X' symbol (no text or labels present)

Diagram showing electrical components with screw holes and a switch, illustrating installation or maintenance instructions.

Line drawing of a hand holding a rectangular device with a textured screen (no text or symbols)

Illustration of a hand holding an electrical outlet with wires (no text or symbols)

Line drawing of a microwave oven with a circular vent and lid (no text or symbols)

Line drawing of a cabinet or enclosure with a blank display panel (no text or symbols)

VEUILLEZ LIRE ATTENTIVEMENT.

CONSERVEZ CES INSTRUCTIONS.

INDEX:

Pièces comprises ....4

Illustration of a hand interacting with an electrical outlet box (no text or symbols visible)

Montants Centre

Line drawing of a box with a handle and label 'Consultez la page 10' (no other text or symbols)

Architectural cross-section diagram of a window frame structure (no text or labels)

Line drawing of a hand using a tool to clean or store items on a shelf (no text or symbols visible)

Diagram showing electrical connections between a battery pack and two screw terminals with labeled components

Line drawing of a hand holding a rectangular device with a mesh screen (no text or symbols)

Line drawing of a multi-level cabinet with doors open, showing interior compartments and storage unit (no text or symbols)

Simple line drawing of a boat with a rectangular object inside, no text or symbols present

Diagram of a vehicle interior with a highlighted rectangular area and directional arrow (no text or symbols)

Technical line drawing of a boat hull with visible hull, hull, and structural elements (no text or symbols)

A5. INSTALLATION OU CHANGEMEUT DU FILTRE À CHARBON (suite)

Simple line drawing of a boat on a dock with directional arrows indicating flow or movement (no text or symbols)

Line drawing of a multi-level cabinet with doors and internal compartments (no text or symbols)

Simple line drawing of a cylindrical object with a flanged top and tapered base (no text or symbols)

Architectural cross-section diagram of a building facade with structural elements and lighting fixtures (no text or labels)

Line drawing of a hand holding a spray bottle above a cabinet (no text or symbols)

Illustration showing three scenes of people crossed out of a box, indicating a physical or symbolic violation.

POUR VOTRE SÉCURITÉ ET POUR FACILITER L'INSTALLATION, L'INSTALLATION DE CE FOUR DOIT ÊTRE EFFECTUÉE PAR DEUX PERSONNES.

Simple line drawing of a hand holding a rectangular object with a textured fill (no text or symbols)

Architectural cross-section diagram of a building facade with structural elements and window grilles (no text or labels)

Line drawing of a hand using a tool to lift a wall-mounted device (no text or symbols visible)

Illustration showing three scenes of people crossed out of a box, with one figure crossed out and others holding or interacting.

POUR VOTRE SÉCURITÉ ET POUR FACILITER L'INSTALLATION, L'INSTALLATION DE CE FOUR DOIT ÊTRE EFFECTUÉE PAR DEUX PERSONNES.

Diagram showing installation of a wall-mounted electrical cabinet with screw fasteners and a power outlet, illustrating electrical setup.

Line drawing of a hand holding a rectangular object with a textured fill (no text or symbols)

C7. CONNEXION AU CONDUIT

Illustration of a hand placing an electrical outlet into a grid (no text or symbols)

Technical line drawing of a microwave oven with a circular component and internal components (no text or symbols)
