USER MANUAL LX1DP Summit

BeautiFridge® Cosmetics Refrigerator

Model No: COOL1D / LX1D / WC1D

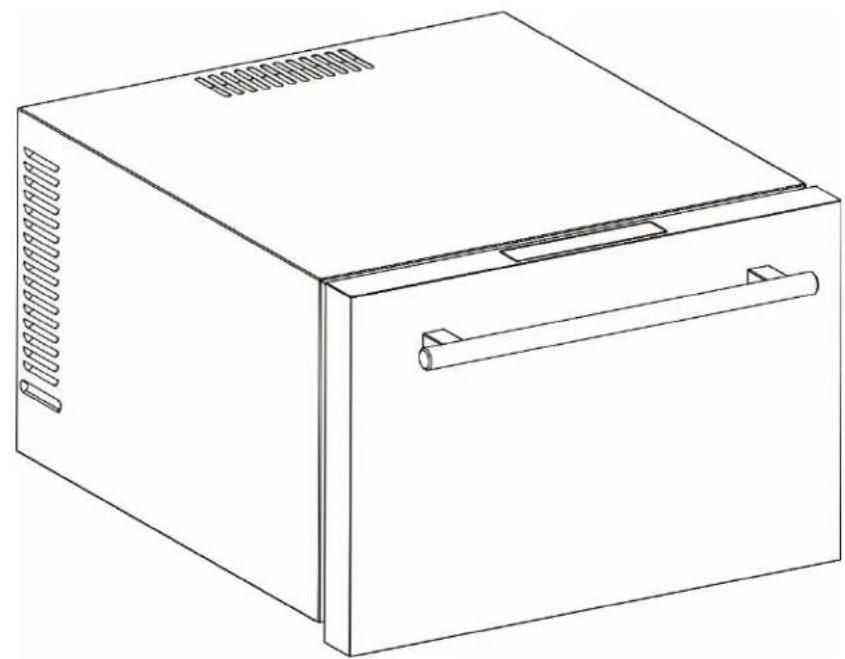

Line drawing of a rectangular box with ventilation slots and a handle (no text or symbols)

INSTRUCTION MANUAL

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

Write Model and Serial Numbers here:

Model

Serial No: ____

Felix Storch, Inc.

An ISO 9001:2015 registered company

770 Garrison Ave

Bronx, New York 10474

www.summitappliance.com

TABLE OF CONTENTS

Appliance Safety 3

Important Safeguards 3-4

Location of Parts 5

Installation Instructions 6-10

Before Using your BeautiFridge® 6

Installation of your BeautiFridge® 6-11

Electrical Connection 10

Extension Cord 10

Installing the Stainless Steel Handle 11

Full Overlay Panel Installation Instructions 11

Operating your BeautiFridge® 12-13

Control Panel 12 Setting the Temperature Control 12

Interior Light 13

Sabbath Mode 13

Defrosting 13 Warning System 13

Care and Maintenance 14

Cleaning your BeautiFridge® 14

Power Failure 14

Vacations 14

Moving your Appliance 14

Energy-Saving Tips 14

Troubleshooting 15

Limited Warranty 16

APPLIANCE SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your BeautiFridge®. Always read and obey all safety messages.

This is the Safety Alert Symbol. The symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the Safety Alert Symbol and either the word DANGER or WARNING.

DANGER means that failure to heed this safety statement may result in severe personal injury or death.

WARNING means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.

All safety messages will alert you about the potential hazard, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS

Before the BeautiFridge® is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the BeautiFridge®, follow basic precautions, including the following:

! DANGER !

• Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord.
• Replace all panels before operating.
• It is recommended that a separate circuit serving only your BeautiFridge® be provided. Use receptacles that cannot be turned off by a switch or pull chain.
• Never clean BeautiFridge® parts with flammable fluids. These fumes can create a fire hazard or explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• Do not connect or disconnect the electric plug when your hands are wet.
• Unplug the BeautiFridge® or disconnect the power before cleaning or servicing. Failure to do so can result in electrical shock or death.
• Do not attempt to repair or replace any part of your BeautiFridge® unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.
  • In the event of any damage:
• Avoid open flames and anything that creates a spark,
  Disconnect from the power source,
  • Air the room in which the appliance is located for several minutes and contact the Service Department for advice.
  • Replacing component parts and servicing shall be done by factory-authorized service personnel.

! WARNING

FOLLOW WARNINGS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL

• Use two or more people to move and install the BeautiFridge®. Failure to do so can result in back or other injuries.
• To ensure proper ventilation for your BeautiFridge®, the front of the appliance must be completely unobstructed. Choose a well-ventilated area with temperatures above 50°F (10°C) and below 89°F (32°C).
  • The BeautiFridge® should not be located next to ovens, grills, or other sources of high heat.
• The BeautiFridge® must be installed with all electrical, water, and drain connections in accordance with state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances, is required.
• Do not kink or pinch the power supply cord of the BeautiFridge®.
  • The size of the fuse (or circuit breaker) should be 15 amperes.
• It is important that the appliance be leveled in order to work properly. You may need to make several adjustments to level it.
  • All installations must be in accordance with local plumbing code requirements.
  • Make certain that the pipes are not pinched, kinked, or damaged during installation.
  • Check for leaks after connection.
• Never allow children to operate, play with or crawl inside the BeautiFridge®.
• Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may damage or discolor the interior.
  • Use the BeautiFridge® only for its intended purpose as described in this User Manual.
• Keep fingers out of the "pinch point" areas. Clearances between the drawers and cabinet are necessarily small. Be careful closing drawers when children are in the area.
  • The BeautiFridge® is intended to be used in household and similar applications such as
• Staff kitchen areas in shops, offices, and other working environments.
• Farm houses and by clients in hotels, motels, and other residential type environments.
• Bed and breakfast type environments.
• Catering and similar non-retail applications.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not use electrical appliances inside the storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• If the SUPPLY CORD is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• The BeautiFridge® is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the BeautiFridge®.

DANGER

Risk of child entrapment!

Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous, even if they will “just sit in the garage a few days.”

Before discarding your old BeautiFridge®:

• Take off the doors.
• Leave the shelves in place so that children may not easily climb inside.

- SAVE THESE INSTRUCTIONS -

LOCATION OF PARTS

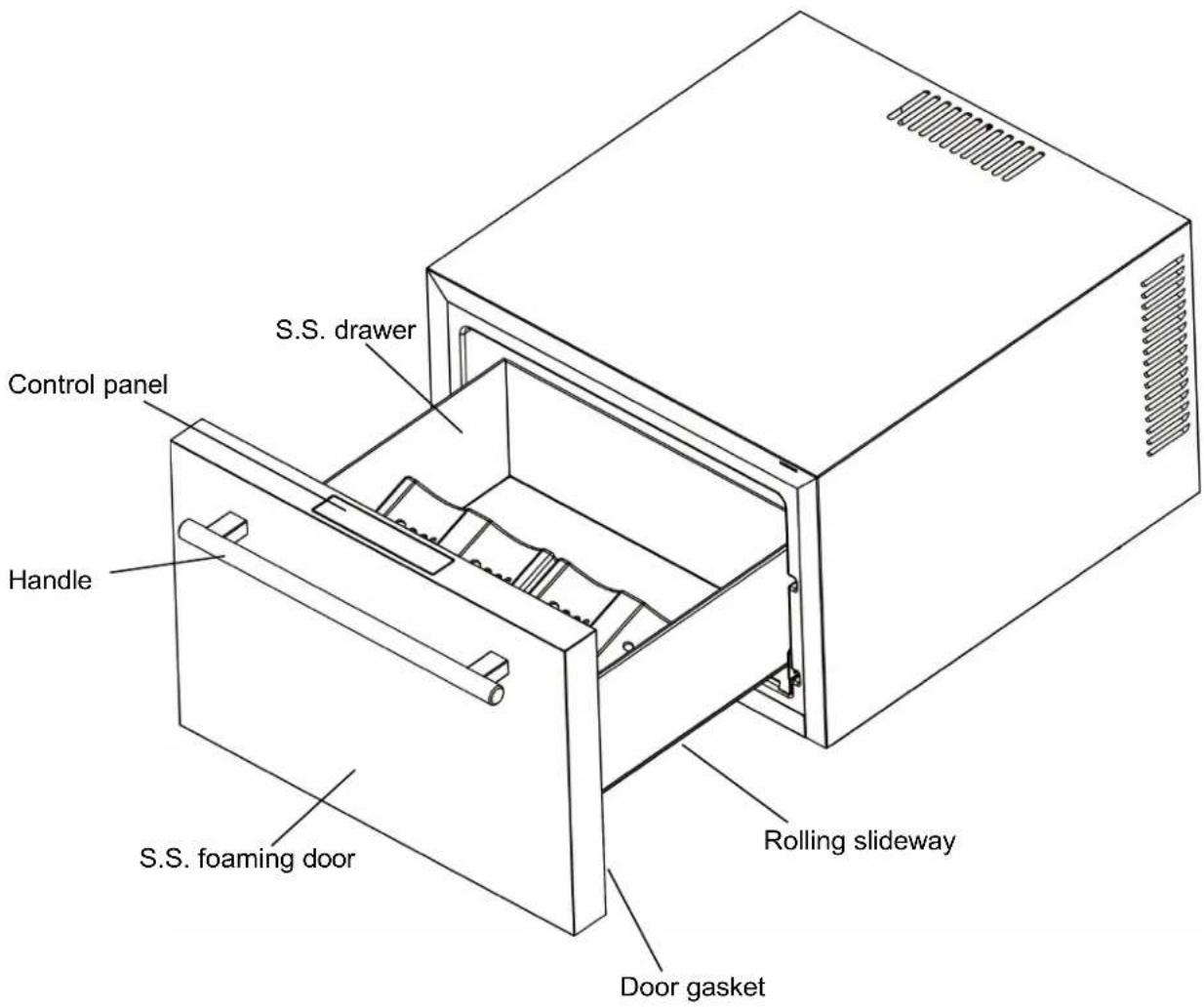

S.S. drawer Control panel Handle S.S. foaming door Rolling slideway Door gasket

NOTES:

• The BeautiFridge® is designed for indoor use only.
- For ventilation purposes, the solid face of the drawer must face toward the door.

INSTALLATION INSTRUCTIONS

Before Using your BeautiFridge®

• Remove the exterior and interior packing.
• Before connecting the appliance to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water, using a soft cloth.
  • Install the handle on the drawers if they are not already attached.

Installation of your BeautiFridge®

The appliance is designed for built-in, recessed, or free-standing installation

CAUTION: This appliance is not designed for the storage of medicine or other medical products.

• Place your appliance where the floor is strong enough to support it when it is fully loaded. To level the appliance, adjust the front leveling legs.
• For free-standing installation, 5" (127mm) of space between the back and sides of the appliance, and 4" (102mm) at the top, are suggested. This allows for proper air circulation. For built-in installation, keep 2" (50mm) at the rear. Make sure the air ventilation channels at the back of appliances are never covered or blocked in any way.
• Avoid locating the appliance in moist areas.
• Plug the appliance into an exclusive, properly grounded wall outlet.

NOTE: It is recommended that you do not install the BeautiFridge® near an oven, radiator, or other heating sources. Heat sources may increase electrical consumption, and direct sunlight may affect the outer coating. Do not install in a location where the temperature will fall below 50°F (10°C). For best performance, do not install the BeautiFridge® behind a cabinet door or block the base grille.

Built-in Installation

CAUTION: For this model, please take into consideration the clearances required for air intake and exhaust.

Hot air must be driven by the ventilation to the rear wall of the cooler and then expelled upwards. The ventilation channels shall be at least 5.11" x 2.36" (130mm x 60mm) in cross-section.

Warning: To ensure proper operation, the ventilation grilles must never be obstructed or covered.

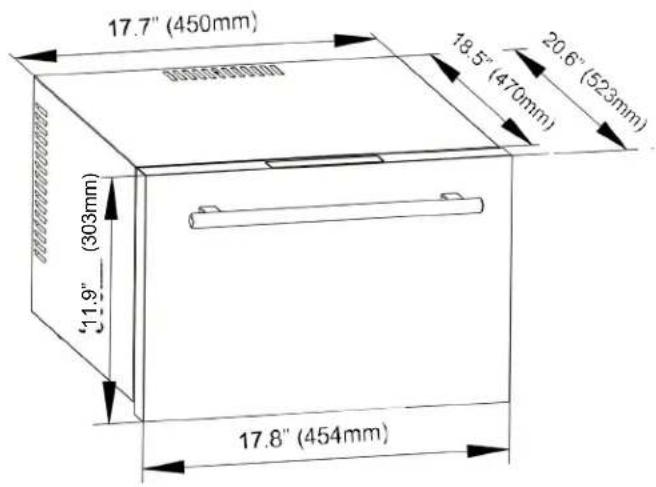

Ventilation channel 5.11x2.36 in. (130x60mm)

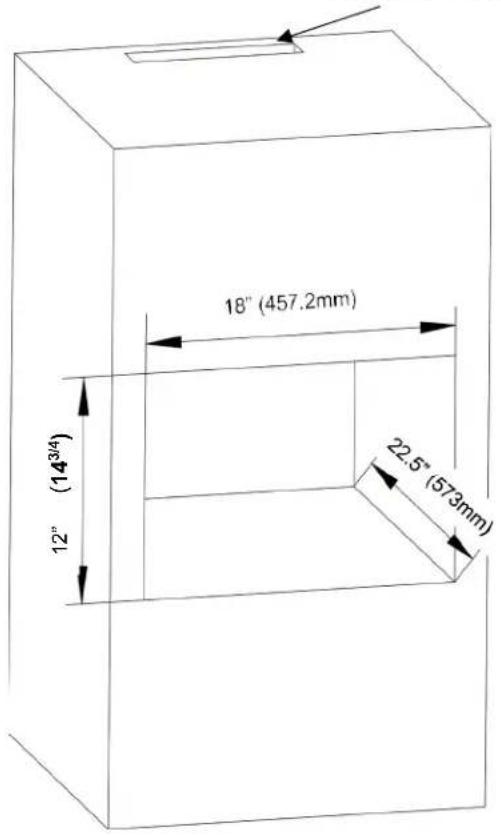

18" (457.2mm) 12" (14³/⁴) 22.5" (573mm)

NOTE: If you are unable to cut a top ventilation hole, install the included ventilation grille and allow for extra ventilation space.

17.7" (450mm) 18.5" (470mm) 20.6" (523mm) '11.9" (303mm) 17.8" (454mm)

*Height needed if installing with included grille.

Line drawing of a refrigerator with an open door and shelf, showing internal compartments and a directional arrow (no text or symbols)

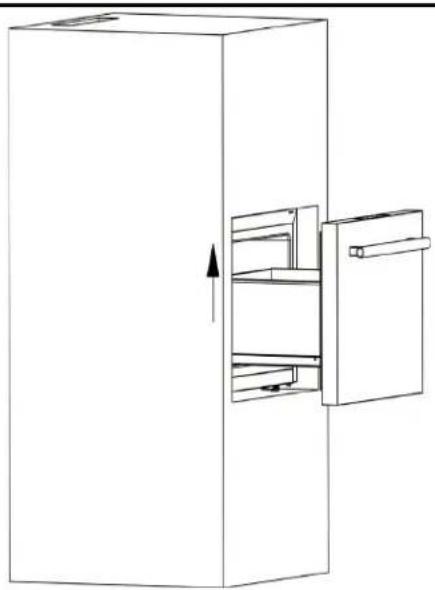

Recess the cooler into the kitchen cabinet and remove the S.S. drawer.

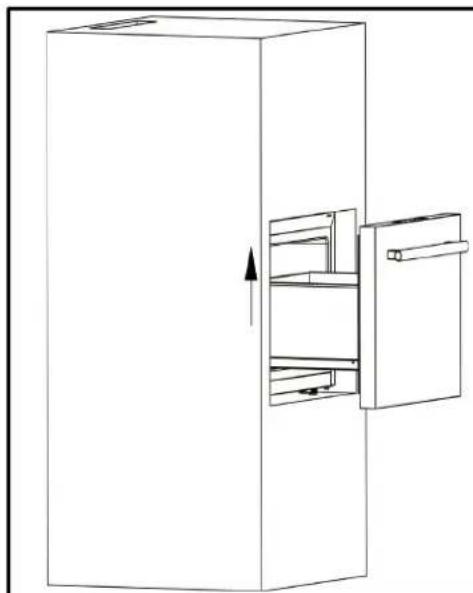

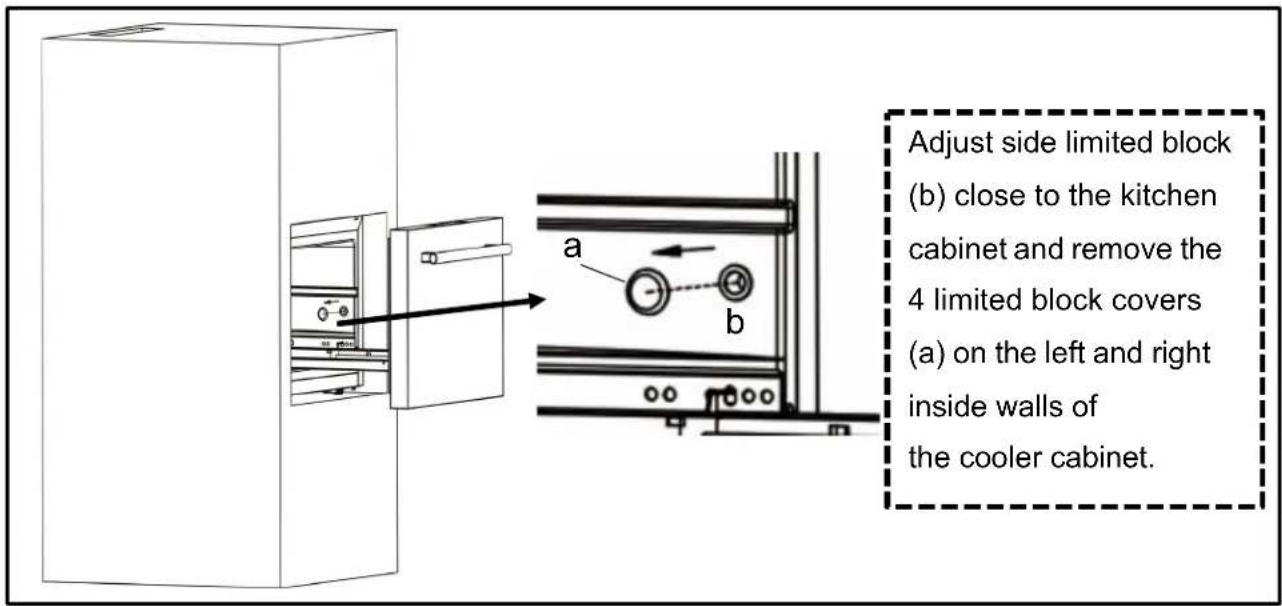

Adjust side limited block (b) close to the kitchen cabinet and remove the 4 limited block covers (a) on the left and right inside walls of the cooler cabinet.

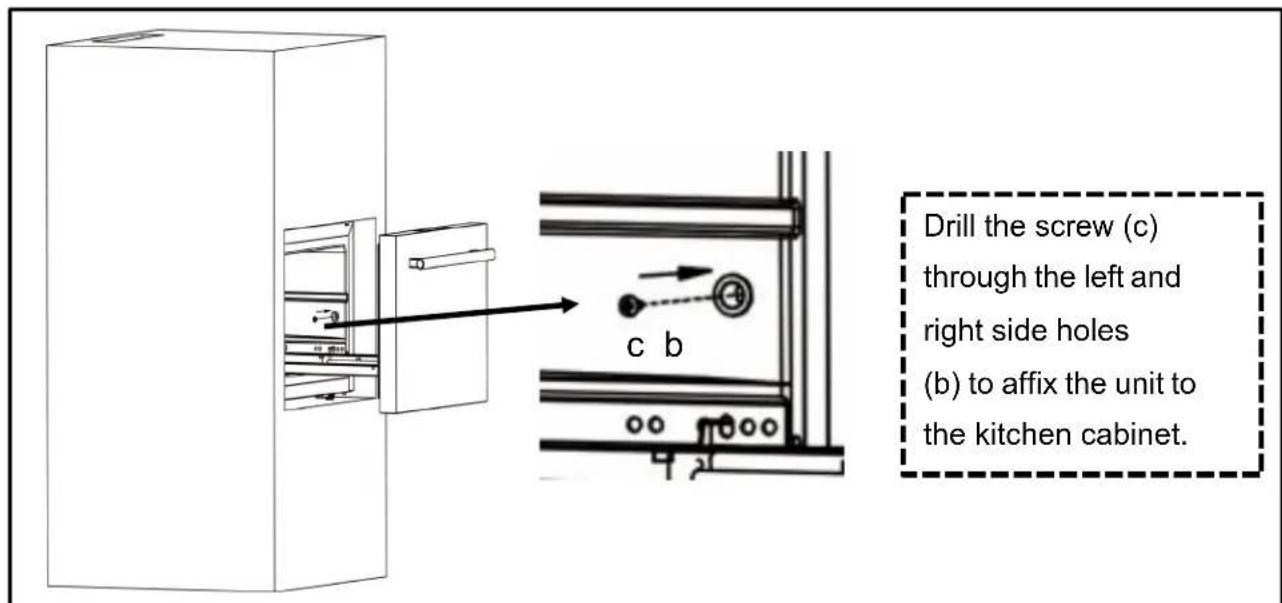

Drill the screw (c) through the left and right side holes (b) to affix the unit to the kitchen cabinet.

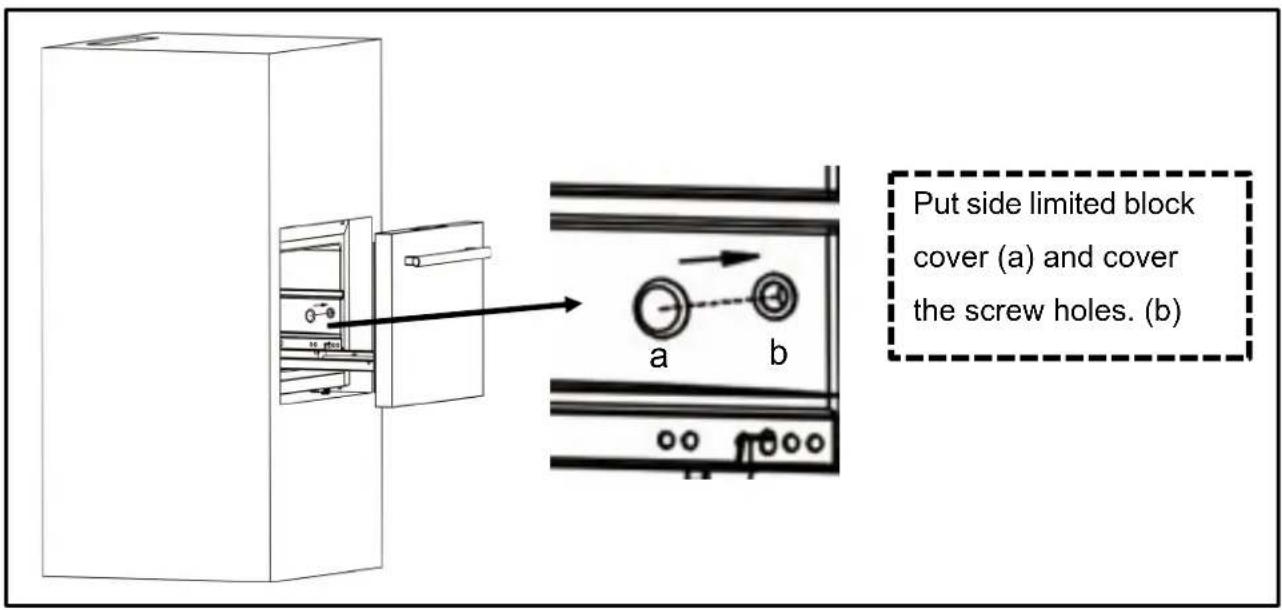

Put side limited block cover (a) and cover the screw holes. (b)

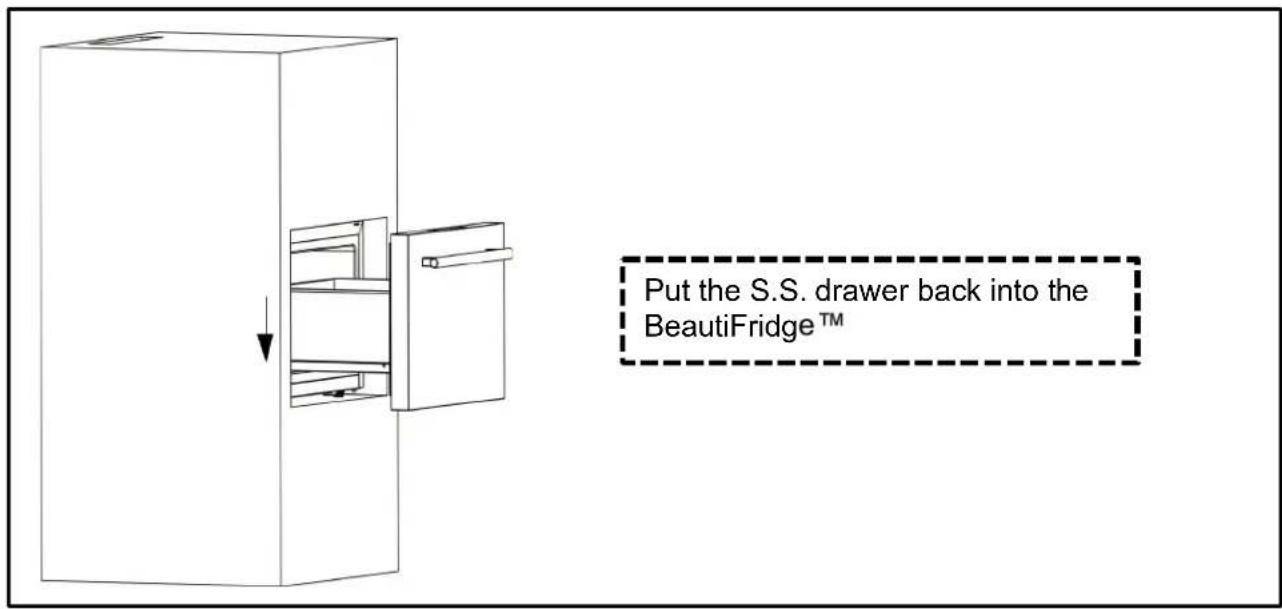

Put the S.S. drawer back into the BeautiFridge™

a. Side limited cover (2pcs on each side of cabinet)

c. Screw

b. Side limited block (2pcs on each side of cabinet)

Electrical Connection

WARNING

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by a qualified electrician or an authorized service center.

The BeautiFridge® should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug, which mates with standard three-prong wall outlets to minimize the possibility of electrical shock.

Do not, under any circumstances, cut or remove the third (grounding) prong from the power cord supplied. For personal safety, this appliance must be properly grounded. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized service center.

The BeautiFridge® requires a standard 115/120 Volt AC \~60Hz three-prong grounded electrical outlet. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

To prevent accidental injury, the cord should be secured behind the BeautiFridge® and not left exposed or dangling.

The BeautiFridge® should always be plugged into its own individual electrical outlet, which has a voltage rating that matches the rating label on the appliance. This provides the best performance and prevents overloading house wiring circuits, which could cause a fire hazard from overheating. Never unplug the BeautiFridge® by pulling on the power cord. Always grip the plug firmly and pull it straight out from the receptacle. Immediately repair or replace all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the BeautiFridge®, be careful not to damage the power cord.

Extension Cord

Due to potential safety concerns under certain conditions, it is strongly recommended that you do not use an extension cord with the BeautiFridge®. However, if you must use an extension cord, it is necessary that it be a UL/CUL-Listed, 3-wire grounding-type appliance extension cord that has a grounding-type plug. The electrical rating of the cord must be 115 volts and at least 10 amperes.

Installing the Stainless Steel Handle

The BeautiFridge® includes one stainless steel handle that is not required to operate the appliance. To install the handle, follow the instructions below:

1. Remove the door gasket.
2. Install the handle with the screws provided. DO NOT over-tighten as this will cause damage to the stainless steel door surface.
3. Reinstall the door gasket.

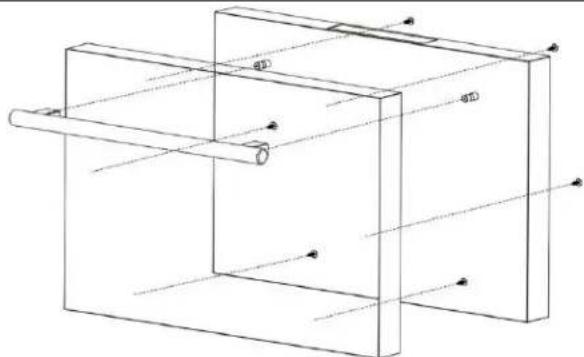

Technical line drawing of a mechanical assembly with two vertical supports and a horizontal bar (no text or symbols)

Full Overlay Panel Installation Instructions

This model is designed for a field-installed overlay panel, which can cover the stainless steel to give a built-in appearance. The overlay panel and appropriate hardware are not included with the appliance, and you must install the panel yourself.

Please follow the instructions below for installation:

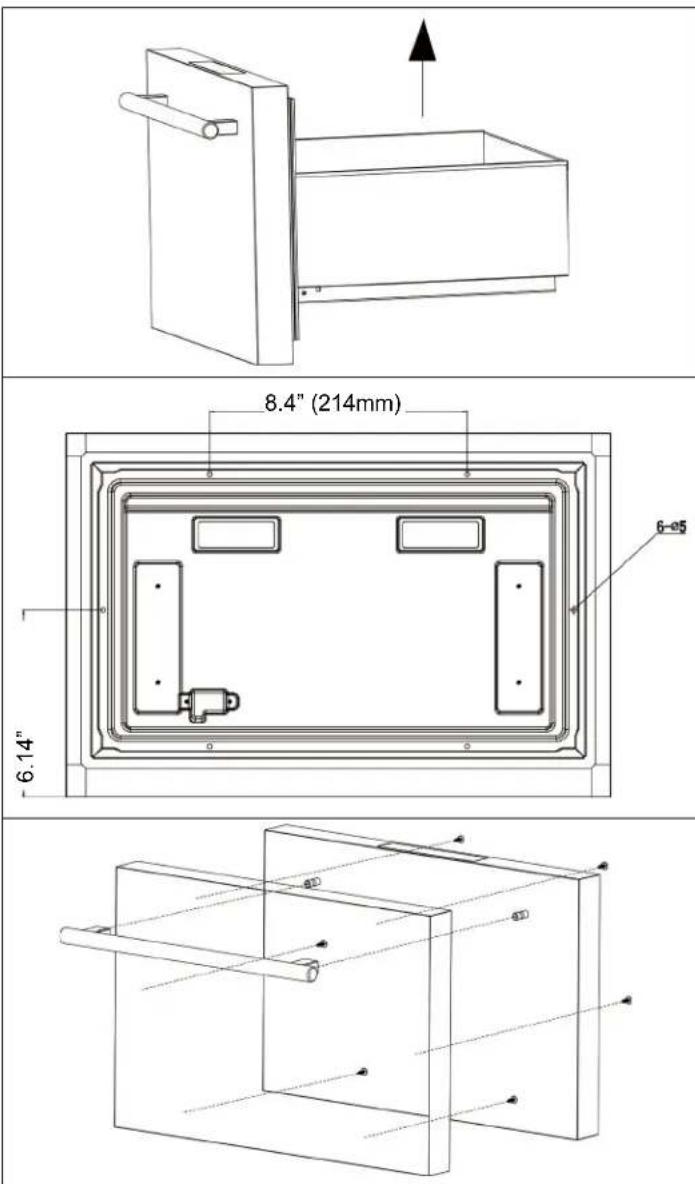

1. Remove any items stored inside the drawers and take the drawers out.
2. Peel off the gasket and remove the handle by removing the two screws that attach the handle to the door.
3. Drill the 6 holes shown by using a 9/50" drill bit on the 4 sides of the drawer door front. (Fig.2)
4. Cut the overlay panels with 3/4" thickness to the following dimensions: 17.87" x 11.9" (WxH).
5. If reusing the handle that came with the appliance, drill two holes with a diameter of 9/50" in the overlay panel.
6. If user-supplied handle will be used, attach the handle to the overlay panels by using the flat head screws and drive the screws flush with the panels.
7. Attach the handle and overlay panel together to the drawer face using 2 M4x45 screws and through the 2 existing holes on the door face. Then attach the overlay panel to the drawer face using 6 M4x45 screws and through 6 existing holes inside the door groove. (Fig. 3)
8. Attach the overlay panel to the drawer face through the existing holes inside the door groove, using the 6 M4x45 screws.
9. Peel back the gaskets, then align the left and right side channels with the tracks in the cabinet.

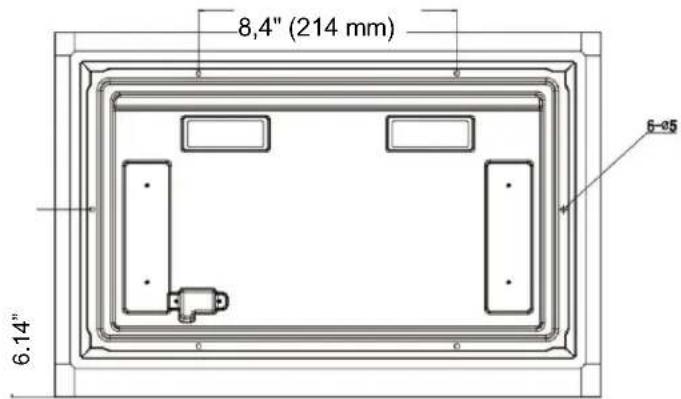

8.4" (214mm) 6-e5 6.14"

This equipment is intended for the storage and display of non-potentially-hazardous products only. The temperature is specifically set for the proper storage of cosmetics, including creams, serums, and oils. Always read the labeling on your beauty products for specific details on proper storage. Here are some general guidelines for storing these items:

Cosmetic	Recommended Temperature
Oils	54° - 60°F
Eye Creams and Serums	50° - 60°F
Face Masks and Creams	45° - 60°F
Pencils (Eyeliner)	Refrigerate for a few minutes prior to using them for better application texture
Lipstick	Store between 65° - 75°F; refrigerate lipstick not being currently used or used infrequently
Liquid Makeup	50° - 60°
Organic Cosmetics	50° - 60°

NOTE: Do not put too many items into the cooler at one time. Leave some space around the goods to allow cold air to circulate inside the cabinet. Keep articles away from the walls of the interior to avoid freezing.

Control Panel

The dot will light on when Sabbath mode on These 2 dots will flash if door opening alarm is on

Press for 3s °C ←→ °F

ON/OFF UP DOWN

ON/OFF Power

To turn the BeautiFridge® off, press and hold the key for 5 seconds until the temperature display goes off.

NOTE: Pressing the ON/OFF key once can switch off the audible alarm when the alarm is on.

Setting the Temperature Control

The BeautiFridge® includes a digital thermostat with a temperature range of 42 to 65^ . To adjust the temperature between those points, follow the instructions below:

• You can set the temperature by pressing the UP or DOWN symbol. The temperature preset at the factory is 46°F or 8°C.
  • The range of set temperatures is from 46^ F to 68^ F or 8^ C to 20^ C.
• Set the temperature by pressing the UP or DOWN symbol.
• The temperature will increase by 1°C/1°F each time you press the UP symbol and will decrease by 1°C/1°F each time you press the DOWN symbol.
• Select the temperature display in Fahrenheit or Celsius degrees. To change the temperature from Fahrenheit to Celsius or from Celsius to Fahrenheit, press and hold the UP and DOWN symbols for 3 seconds.

Interior Light

• The interior light will turn on/off automatically when you open or close the door.

Sabbath Mode

• Sabbath mode is available for the observance of certain religious holidays. This mode turns off the displays, interior light, and audible alarms and prevents them from turning on again. Normal cooling operations will still take place.
• To initiate Sabbath mode, press the ON/OFF and UP symbols at the same time and hold for 3 seconds. The dot in the upper left corner of the LED screen will on and confirm that Sabbath mode is ON.
• Sabbath mode can be canceled by repeating the process above. Sabbath Mode will automatically turn off after 24 hours. If the power goes off, when it is recovered, Sabbath Mode will turn off.

Defrosting

Under normal operating conditions, the BeautiFridge® does not require manual defrosting.

Warning System

Door Opening Alarm

If the door has been left open for more than 5 minutes, the 2 dots on the screen will flash and beep 3 times every 5 seconds. Press any key or close the door to stop the alarm.

CARE AND MAINTENANCE

Cleaning your BeautiFridge®

• Turn off the power, unplug the appliance, and remove all items.
- Wash the inside surfaces with a solution of warm water and baking soda (a quart of water to about 2 tablespoons of baking soda).
- Wring excess water out of the sponge or cloth when cleaning the area where the controls are located, or near any electrical parts.
- To wash the outside cabinet, remove the dirt with a soft, non-abrasive cloth or sponge, mild detergent, and water. You can also use most hospital grade cleaners and commercial disinfectants that are qualified to destroy or suppress the growth of bacteria. Rinse well, and wipe dry with a clean, soft cloth.
- Use an approved stainless-steel cleaner to clean the doors and handle. Do not use steel wool or a steel brush on the stainless steel.

CAUTION: Failure to unplug the appliance before cleaning could result in electrical shock or other personal injuries.

Power Failure

Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the drawers are opened. If the power is going to be off for a longer period of time, take the proper steps to protect the contents.

Vacations

• Short vacations: Leave the BeautiFridge® operating during vacations of less than three weeks.
• Long vacations: If the BeautiFridge® will not be used for several months, remove all items, and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the drawers slightly open.

Moving your BeautiFridge®

1. Remove all stored items.
2. Securely tape down all loose parts (baskets, dividers) inside your BeautiFridge®.
3. Turn the adjustable legs up to the base to avoid damage.
4. Tape the drawers shut.
5. Be sure the BeautiFridge® stays secure and in an upright position during transportation. Also, protect the outside of the appliance with a blanket or similar item.

Energy-Saving Tips

• The BeautiFridge® should be located in the coolest area of the room, away from heat-producing appliances, and out of direct sunlight.
• Ensure that the BeautiFridge® is adequately ventilated. Never cover air vents.
• Do not keep the drawers open longer than necessary.
• Appliance bins and baskets should not be lined with aluminum foil, wax paper, or paper towels. Liners interfere with cold air circulation, making the appliance less efficient.

TROUBLESHOOTING

You can solve many common problems easily, possibly saving you the cost of a service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

PROBLEM	POSSIBLE CAUSE	REMEDY
The BeautiFridge®does not operate	The BeautiFridge®is not connected to a power sourceThe BeautiFridge®is turned offA triple circuit breaker or blown fuse	Connect the BeautiFridge®to a power sourceTurn on the BeautiFridge®Turn the circuit breaker on or replace the fuse
The BeautiFridge®is not cold enough	The temperature is not set correctlyThe drawer is opened too oftenThe drawer was not closed completelyThe drawer is not hermetically sealedThe condenser is too dirtyThe ventilation opening is blocked or is too dusty	Check the set temperature. The ambient temperature could require a lower temperature setting, set a lower temperatureDo not open the drawer more often than necessaryClose the drawer properlyCheck the seal and clean or replace itClean the condenser, when necessaryClear any obstructions and wipe off the dust.
The BeautiFridge®turns itself on and off frequently	The ambient room temperature is higher than averageThe drawer is opened too oftenThe drawer is not closed completelyThe drawer gasket does not seal properly	Place the BeautiFridge®in a location with a cooler ambient temperatureLeave the BeautiFridge®to work until the set temperature has been reachedDo not open the drawer more often than necessaryClose the drawer properlyCheck the drawer seal and clean it or replace it.
The light does not work	The BeautiFridge®is not connected to a power supplyA tripped circuit breaker or a blown fuse.The light is switched off on the control panel	Connect the BeautiFridge®Turn the circuit breaker on or replace the fuseSwitch on the light
Vibration	The BeautiFridge®is not properly leveled	Level the BeautiFridge®using the adjustable feet
The BeautiFridge®makes too much noise	The BeautiFridge®is not properly leveled	Level the BeautiFridge®with the adjustable feet
The drawer will not close properly	The BeautiFridge®is not properly leveledThe gasket is dirtyThe baskets or bins are out of position	Level the BeautiFridge®with the adjustable feetClean the drawer gasketsCheck the baskets and bins and refit them correctly.
Display “LL,” “EE”	“LL”indicates the temperature sensor open circuit“EE”indicates the temperature sensor short circuit	Call for service.

If you've checked the table above and find that you still need help with your appliance, call our Customer Service facility at 800-932-4267 (Ext. 513) or visit summitappliance.com/support between 9:00 AM and 5:00 PM ET. We will do our best to answer your questions.

LIMITED WARRANTY

ONE-YEAR LIMITED WARRANTY

Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company. Outside the 48 states, all parts are warranted for one year from manufacturing defects. Plastic parts, shelves and cabinets are warranted to be manufactured to commercially acceptable standards and are not covered from damage during handling or breakage.

ITEMS WARRANTOR WILL NOT PAY FOR:

1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as filters) are excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by warrantor.
4. Replacement parts or repair labor costs for appliances operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.

DISCLAIMER OF IMPLIED WARRANTIES - LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.

WARNING: This product can expose you to chemicals including Nickel (Metallic) which is known to the State of California to cause cancer.

For more information go to www.P65Warnings.ca.gov

Note: Nickel is a component in all stainless steel and some other metallic compositions.

Felix Storch, Inc. An ISO 9001:2015 registered company 770 Garrison Ave Bronx, New York 10474 www.summitappliance.com

For parts and accessory ordering, troubleshooting, and helpful hints, visit: www.summitappliance.com/support

Line drawing of a rectangular electronic device with ventilation slots and a handle (no text or symbols)

MANUEL D'INSTRUCTIONS

AVANT UTILISATION, VEUILLEZ LIRE ET SUIVRE TOUTES LES RÈGLES DE SÉCURITÉ ET LES INSTRUCTIONS D'UTILISATION.

An ISO 9001:2015 registered company

770 Garrison Ave

Bronx, New York 10474

www.summitappliance.com

TABLE DES MATIÈRES

17.7" (450mm) 18.5" (470mm) 20.6" (523mm) 11.9" 17.8" (454mm)

Line drawing of a cabinet with shelves and door, showing internal compartments and an upward arrow (no text or symbols)

Technical line drawing of a mechanical assembly with two vertical supports and a rectangular frame (no text or symbols)

Line drawing of a mechanical device with a handle and arrow indicating upward motion (no text or symbols)

8,4" (214 mm) 6-05 6.14"

Technical line drawing of a 3D mechanical assembly with no visible text or symbols

FONCTIONNEMENT DE VOTRE BeautiFridge®

GARANTIE LIMITÉE D'UN AN
