USER MANUAL TSUNAMI2 Melchioni

MELCHIONI family

TSUNAMI2

Black rectangular electronic device with red and white control buttons, no visible text or symbols on the screen or body.

TSUNAMI2

Italiano

Our induction cookers are suitable for all types of cooking. In a short time, from ignition to boiling, the heating efficiency can reach up to 93%.

Thanks to a special microcomputer security inspection system, it is super safe and reliable. Thanks to the characteristic of cooking without flame and without exhaust of burnt gas, it avoids the traditional cooking safety problems making the induction cooker appreciated by many consumers.

Our induction cooker will be safer and healthier for your family and cleaner for your kitchen

We recommend that you read this manual carefully before starting to use the hob, paying particular attention to all warnings; only in this way will it be possible to use it in maximum safety and acquire the necessary knowledge of all its functions. Keep this manual for future reference, and deliver it to the buyer in case of sale or transfer of the product to third parties.

IMPORTANT

There are high voltages in the device, which can seriously endanger the safety of anyone who tries to disassemble it.

Before starting to use the appliance, you must read all the warnings contained in this instruction manual.

Do not touch the top plate immediately after removing the pot or pan

THE SURFACE REMAINS HOT AFTER USE. DO NOT TOUCH!

It is forbidden to dispose of this equipment as ordinary urban waste: it is necessary to contact one of the WEEE Collection Centers (Waste Electrical and Electronic Equipment) authorized and prepared by the Public Administration.

When using the appliance, the utmost attention must be paid in order not to burn yourself with hot steam or touching very hot surfaces.

The device complies with EU directives to protect user safety.

SAFETY WARNINGS

- Check that the mains voltage corresponds to that of the power supply, indicated on the appropriate label.

• The hob must be connected to an earthed socket.
- Disconnect the power cord plug from the power outlet when the hob is not in use.
- If it is necessary to use an extension cable, it must be ensured that the cable is fully extended, and not coiled. Only use extension cords that comply with safety regulations.
- Improper use of the hob can damage it and endanger the user's safety.
- This hob must only be used for the purpose for which it was designed and built. We decline any responsibility for improper use of the product, or in any case different from what is specified in this manual.
- Do not leave the hob unattended while it is in operation.
- Do not place the hob near sinks or water containers, or where it can be reached by jets or splashes of water.
- If the hob gets wet, unplug the power cord from the socket immediately.
- Do not use the hob with wet hands.
- This appliance has not been designed for use by children or people with limited physical, sensory and cognitive abilities and / or with little experience, unless they are under the direct and constant supervision of a qualified person or have received from the latter the necessary instructions regarding correct use.
- Do not leave the packaging bags within the reach of children or pets: DANGER OF CHOKING!
• Prevent children from using this electrical appliance for play.
- Check the integrity of the power cable from time to time. Avoid using the appliance if you notice any damage.
- If the power cord is damaged, replace it with a new one to avoid short circuit and / or personal injury. For replacement, contact an authorized Technical Assistance Center.
- This appliance is intended for domestic use only. Avoid using it in a professional or commercial context, or in a way different from what is indicated.
- Do not immerse the hob in water or other liquids.
- Do not wash the hob in the dishwasher.
- Do not place the hob near hot surfaces or heat sources.
- Before cleaning, always unplug the hob from the mains and wait until it has cooled down completely.
- Do not use the hob outdoors, and store it in a cool and dry place.
- Avoid using accessories not expressly provided for or recommended by the manufacturer. Otherwise, damage to the appliance and personal injury may occur.
- Do not move or lift the hob by pulling the power cord.
• Always check that the power cord does not get caught in obstacles.
- Do not wrap the power cord around the hob.

• Before putting the hob away, make sure it has cooled down completely.
- The hob must not come into contact with flammable surfaces or materials (such as curtains or fabrics of various kinds).
- The power cord must not come into contact with water or other liquids.
- Do not move the appliance when the pot or pan are on it.
- Do not heat the empty pan or overheat the pan.
- Do not place metal objects such as knives, forks, spoons, lids, cans and aluminum foil on the top plate.
- Use the appliance with sufficient space around it. When the appliance is in operation, it must be positioned at least 10 cm from the wall. Keep the front and the right or left side of the appliance free.
- Do not use the appliance on carpets or tablecloths (vinyl) or other items with low heat resistance.
- Do not place a sheet of paper / silver paper between the pot / pan and the appliance. The paper could burn.
- Do not break the surface of the appliance. If the surface is cracked, turn it off immediately and take it to a qualified service center.
- Do not block the air intake or exhaust vent.
- Do not touch the top plate immediately after removing the pot or pan, as the top plate will still be very hot.
- Avoid placing credit cards, memory devices, or any other object that could demagnetize on the hob.

IMPORTANT WARNINGS

• The hob must be placed on a stable, flat and perfectly horizontal surface.
• Do not store or use the hob outside, where it can be exposed to the elements.
• Do not store or use the hob near an oven or other heat source.
• During use, some parts of the hob can be remarkably hot: it is recommended not to touch them, in order to avoid the risk of burns.
• Avoid repairing, modifying or tampering with the hob yourself.
• During use, metal utensils that could overheat should not be placed on the hob, such as cutlery, forks, ladles or lids.
• The ignition of the hob must not be controlled by an external timer or other remote control devices.

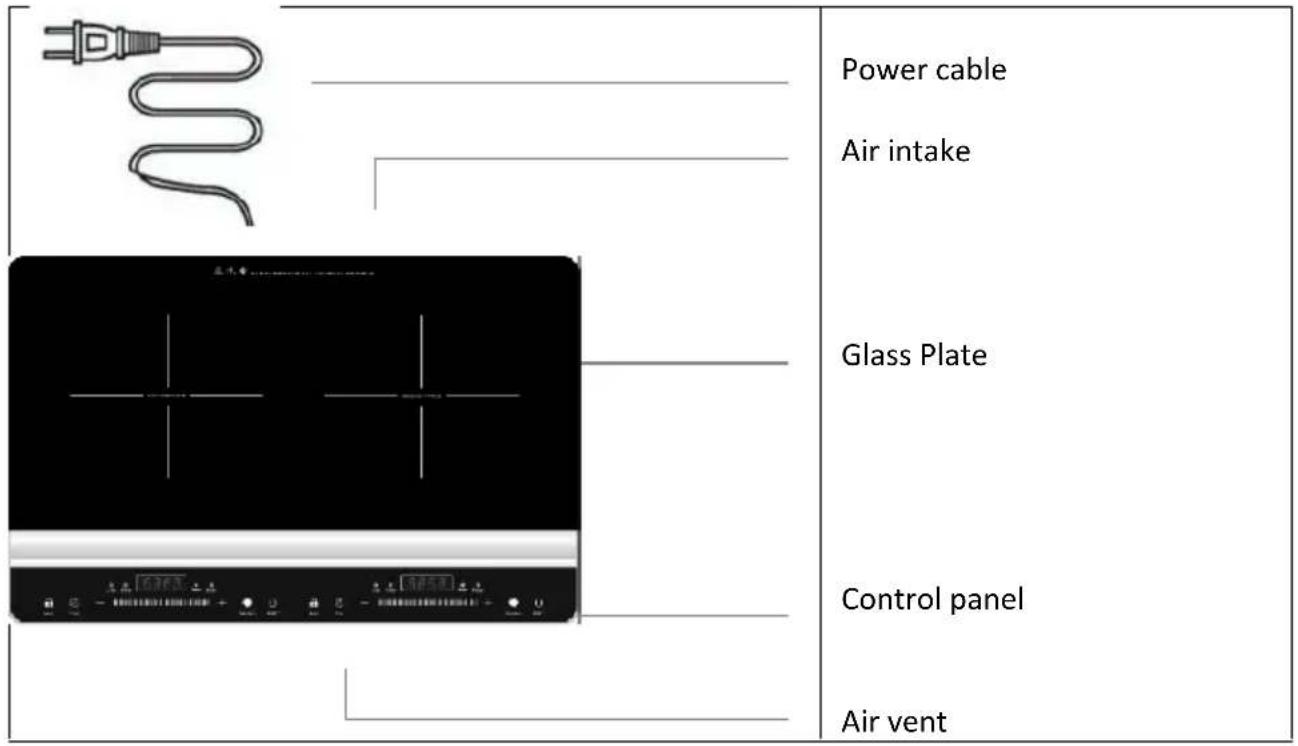

Description of the device

Power cable Air intake Glass Plate Control panel Air vent

Description of the operating principle

An induction hob is an appliance that uses the principle of electromagnetic induction with the aim of transforming electricity into thermal energy.

Inside the top, a special device rectifies the direct current voltage into high frequency voltage (20-40 kHz).

The current flowing through the coil produces an electromagnetic head which causes the heating of the material with which the pot is made and, consequently, of its contents.

Each hob has two different control modes, respectively based on power and temperature. In order to ensure the necessary safety of the user, there are also protection systems, which are added to the functions that can adapt to the most varied operational needs.

The advantages of the induction cooking system are innumerable: absence of smoke, free flames and burnt gases, high energy efficiency, rapid heating and ease of cleaning. These qualities have helped to raise awareness of the limited environmental impact and the highly advanced technological content of induction hobs, whose diffusion is constantly growing.

Advantages of the induction cooking system

1. High efficiency (thermal efficiency greater than 93%) and significant energy savings, with consequent savings on electricity supply costs.
2. Rapidity of the heating action.

3. Control by microprocessor, able to adapt the operation to the most varied operational needs (preparation of frying, cooking of rice, boiling water, preparation of soups, steam cooking, preparation of stews and stews, heating of milk, preparation or heating dishes directly on the table, etc.).

4. Extreme precision in controlling the power and, therefore, the temperature.

5. Possibility of switching on and off control via the built-in timer.

6. Multiple security systems:

7. interruption of operation in the absence of the pot (if the pot is removed from the hob, if its diameter is less than 12 centimeters or if its material is not suitable, the power supply is automatically interrupted).

8. protection device against overheating of the support surface and the inside of the hob.
   • protection device against overcurrents, overvoltage and voltage drop.

9. Safety, hygiene and reliability: ease of cleaning, absence of open flames and emission of fumes and burnt gases, absolute impossibility of damage resulting from gas leaks, explosions or fires, which can instead be verified using cooking or gas cookers.

10. The microcrystalline glass ceramic support surface resists high temperatures and is easy to clean.

SUITABLE CONTAINERS

Flat-bottomed pots / pans / pans with a diameter of 12 in 26 cm, which bear the induction cooking symbol ( 9200 )

UNSUITABLE CONTAINERS

All pots / pans / pans with a bottom less than 12 cm or more than 26 cm, in any case that do not carry the induction cooking symbol ( )

Furthermore, metal conversion discs should not be used for the use of standard pots as these discs eliminate the economic advantage of induction and place the product under excessive strain,

Therefore, where the use of such discs is ascertained, it will not be possible to appeal to warranty treatment in case of failure.

GENERAL PRECAUTIONS

1. Do not place the hob next to sinks or water containers, as in the event of any penetration of water inside it could be irreparably damaged.
2. While in operation, the hob must be at least 10 centimeters away from the surrounding walls, and the air inlet and outlet slots must not be obstructed by any obstacle or object.
3. Avoid using the hob in places where there are high temperatures, steam, humidity or gas.
4. Avoid placing credit cards, memory devices, or any other object that could demagnetize on the hob.
5. Since the heating action of an induction hob is very rapid, it is recommended not to place empty containers on it, but already filled with the food to be cooked.
6. The containers to be used must not have a diameter of less than 10 centimeters or more than 26 centimeters; in the latter case they could in fact come into contact with the plastic edges of the support surface and damage them.
7. Avoid using the hob by placing it on a metal tray or metal surface.

SAFETY PRECAUTIONS

1. In order to avoid the risk of overheating, it is recommended to use a direct power socket, without the interposition of extension cables, power strips or multiple plugs, 15 A and equipped with earth.
2. Avoid cooking food enclosed in sealed containers, which could burst due to the expansion of the air inside them.
3. During use, metal utensils that could overheat should not be placed on the hob, such as cutlery, forks, ladles or lids.
4. Do not place the hob on flammable or heat-damaging surfaces or materials.
5. Avoid inserting any metal objects into the hob through the ventilation slots. Otherwise, short circuits or a fire may occur.
6. If you detect any damage to the hob, such as cracks or chips on the outside, immediately disconnect it from the power outlet and contact an authorized Technical Assistance Center.
7. In automatic operation it is not possible to deactivate the timing and it is not possible to adjust the power and temperature.
8. In manual operation, power or temperature adjustment and timer setting are available.
9. Overheating protection: This appliance is equipped with overheating protection. If the pan overheats, the appliance switches off automatically, the buzzer can sound an alarm. If so, wait a few minutes and let it cool down. After that, the appliance will work without problems.
10. This appliance can become hot during use. Do not touch the surface.

INSTRUCTIONS FOR USE

1. Connect the hob to a power outlet.

As soon as you insert the plug of the power cord into a 220-240V, 50 / 60Hz socket, the hob beeps and the internal fan starts briefly.

1. Place the food to be cooked in the pan and place it on the hob.
   The pan must be centered on the hob.
2. Switch the device on by lightly pressing the "ON / OFF" switch with your finger.
3. Start the induction by pressing the "Function" button, the display shows by default the power at 1600 for the left plate or 1200 for the right one. Press + or - to choose between the power settings (from 200 to 1800W for the left plate, and from 200 to 1300W for the right one).
4. Press the "Function" button again to go to the temperature indication, set by default to the maximum value of 240^ C. Press + or - to choose between temperature settings (60 to 240^ C).
5. Press the "Timer" button: 0:00 appears on the display. Press + or - to set the desired time (max 3 hours); however, if no key is pressed, no time limit is set.
6. At the end of the set time, the appliance turns off.

Note: In order not to interrupt the cooling of the inside of the hob, it is recommended not to disconnect it from the power socket while the fan is running.

CLEANING AND MAINTENANCE

1. Before cleaning the appliance, make sure it is turned off and unplugged from the power socket, and that it has completely cooled down.
2. To remove dirt, use a mild detergent. Avoid using steel wool or pointed or sharp tools.
3. Do not use abrasive sponges or abrasive cleaners
4. After removing the dirt, use a clean damp cloth to clean the unit.
5. Do not clean directly with water, water penetrates inside the appliance and can cause malfunctions.
6. Clean the glass plate and pan before cooking, otherwise the dirt may char and become very difficult to clean, and the plate may become discolored.
7. You can clean the dirt from the inlet of the air vents with a vacuum cleaner or with cotton. If there is dirt with oil, add some mild detergent and clean with a toothbrush.
8. Do not use caustic impregnator to clean. It could damage the kitchen by chemical reaction.
9. Do not use gasoline, thinners, brushes or polishing powder to clean the induction cooker.

Storage

• Before putting away the hob, at the end of use, it must be checked that it has completely cooled down.
• Avoid wrapping the power cord around the hob.
• Store the hob in a cool and dry place

Technical features

Power supply: 220-240 \~ 50/60Hz

Power: 3100W (1800W left burner + 1300W right burner)

10 power settings left burner:

• 200-350-500-650-800-1000-1200-1400-1600-1800

10 power settings right burner :

• 200-350-500-650-800-900-1000-1100-1200-1300

Adjustable temperature: up to 240 °C max

10 temperature settings: 60-80-100-120-140-160-180-200-220-240 °C

Adjustable timer: up to 3 hours

Error codes

TroubleCode	Possible Reasons	Possible Reasons
EO	No pot / pan on the plate;Non-usable Pans on the plate;	Put suitable cooking utensils on the plate.
E1	Coilpanel is not connected well;Electrocircuit malfunction;	Please contact the supplier or go to a qualified service center.
E2	Temperature sensor failure.	Please contact the supplier or go to a qualified service center.
E3	Abnormal supply voltage: voltage too high.	Check power supply, power on after power supply back to normal.
E4	Abnormal supply voltage: voltage too low.	Please check power supply, power on after power supply is back to normal.
E5	Plate surface temperature too high; Empty pot / pan heating leads to too high temperature.	Please wait for some minutes until the unit cools down; Please check pot / pan.
E6	Fan failure;Air intake / exhaust vent blocked.	Please contact the supplier or go to a qualified service center. Clean the vent after the unit cools down, then can restart.

CONFORMITY OF THE PRODUCT

The producer Melchioni Ready S.r.l. declares that the product Induction cooker Mod. TSUNAMI2 (cod. 118360029) is in compliance with Directive 2014/30/EU of the European Parliament and of the Council, of 26 february 2014, on the harmonisation of the laws of the Member States relating to electromagnetic compatibility.

The producer Melchioni Ready S.r.l. declares that the product Induction cooker Mod. TSUNAMI2 (cod. 118360029) is in compliance with Directive 2014/35/EU of the European Parliament and of the Council, of 26 february 2014, on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits. The producer Melchioni Ready S.r.l. declares that the product Induction cooker Mod. TSUNAMI2 (cod. 118360029) is in compliance with Directive 2009/125/EC of the European Parliament and of the Council, of 21 october 2009, establishing a framework for the setting of ecodesign requirements for energy-related products.

The producer Melchioni Ready S.r.l. declares that the product Induction cooker Mod. TSUNAMI2 (cod. 118360029) is in compliance with Directive 2011/65/EU of the European Parliament and of the Council, of 8 June 2011 and subsequent Commission Delegated Directive 2015/863, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

According to Directive 2012/19/EU of the European Parliament and of the Council, of 4 July 2012, on waste electrical and electronic equipment (WEEE), the presence of the crossed-out

bin symbol indicates that this appliance is not to be considered as urban waste: its disposal must therefore be carried out by separate collection. Disposal in a non-separate manner may constitute a potential harm to the environment and health. This product can be returned to the distributor when purchasing a new device. Improper disposal of the appliance constitutes misconduct and is subject to sanctions by the Public Security Authority. For further information, contact the local administration responsible for environmental matters.

WARRANTY

Melchioni Ready s.r.l., based in Milan (Italy), via Colletta 37, recognizes a conventional guarantee on the product for a period of two years from the date of the first purchase by the consumer. This guarantee does not affect the validity of the legislation in force concerning consumer goods (Legislative Decree 6 September 2005 n. 206 art. 128 and following), of which the consumer remains the owner. This guarantee applies to the entire territory of the European Union.

The components or parts that are found to be defective for ascertained manufacturing causes will be repaired or replaced free of charge through the dealer, during the above warranty period. Melchioni Ready S.r.l. reserves the right to make a complete replacement of the device, if repairability is impossible or excessively expensive, with another device of similar characteristics (Legislative Decree 6 September 2005 no. 206 art. 130) during the warranty period. In this case, the validity of the warranty remains that of the original purchase: the service provided under warranty does not extend the warranty period.

In any case, this appliance will not be considered defective in terms of materials or manufacture should it be adapted, changed or adjusted, in order to comply with national or local safety and / or technical standards, in force in a country other than the one for which it is was originally designed and manufactured. This appliance has been designed and built for domestic use only: any other use will invalidate the benefits of the guarantee.

The warranty does not cover:

• parts subject to wear or tear, nor those parts that require periodic replacement and / or maintenance
  • professional use of the product
• malfunctions or any defects due to incorrect installation, configuration, software / BIOS / firmware update not performed by authorized Melchioni Ready S.r.l.
• repairs or interventions carried out by persons not authorized by Melchioni Ready S.r.l.

• manipulation of assembly components or, where applicable, of the software
  • defects caused by falls or transport, lightning strikes, power surges, liquid infiltrations, opening of the appliance, bad weather, fire, public disturbances, inadequate ventilation or incorrect power supply

• any accessories, for example: boxes, bags, batteries, etc. used with this product

• home interventions for convenience checks or presumed defects

The recognition of the guarantee by Melchioni Ready S.r.l. is subject to the presentation of a tax document that proves the actual date of purchase. The same must not show any tampering or deletions, in the presence of which Melchioni Ready S.r.l. reserves the right to refuse the provision of treatment under warranty.

The warranty will not be recognized if the serial number or model of the appliance is non-existent, abraded or modified.

This warranty does not include any right to compensation for direct or indirect damage, of any nature, to people or things, caused by any inefficiency of the appliance. Any extensions, promises or services in this regard, insured by the retailer, will be borne by the latter
