Range Hood

USER MANUAL

MVP30W6AST

THANK YOU LETTER

Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

CONTENTS

THANK YOU LETTER 01

SAFETY INSTRUCTIONS 02

SPECIFICATIONS 05

PRODUCT OVERVIEW 06

PRODUCT INSTALLATION 11

OPERATION INSTRUCTIONS 15

CLEANING AND MAINTENANCE 16

TROUBLE SHOOTING 18

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT --19

DISPOSAL AND RECYCLING 19

DATA PROTECTION NOTICE 20

SAFETY INSTRUCTIONS

Intended Use

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. Please note modifications or alterations to the appliance are not allowed for your safety concern. Unintended use may cause hazards and loss of warranty claims.

Explanation of Symbols

	DangerThis symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.
	Warning of electrical voltageThis symbol indicates that there is a danger to life and health of persons due to voltage.
	Warningwarning alerts you to situations that may cause serious body harm, death or property damage.
	Cautioncaution indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
	AttentionThe signal word indicates important information (e.g. damage to property), but not danger.
	Observe instructionsThis symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.
	ImportantImportant indicates installation, operation, maintenance or valuable information that is not hazard related.

Read these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use!

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

• Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
• Before servicing or cleaning unit, unplug and switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
• Installation work and electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards, including fire-rated construction codes and standards.
• Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guidelines and safety standards such as those published by the National Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
• When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
• Ducted fans must always be vented to the outdoors.
• Do not use this unit with any solid-state speed control device.
  • TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
• This unit must be grounded. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
• Do not use an extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the appliance.
• When applicable local regulations comprise more restrictive installation and/or certification requirements, the aforementioned requirements prevail on those of this document and the installer agrees to conform to these at his own expense.

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

• Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
• Always turn hood ON when cooking at high heat or when flambeing food (i.e.: Crêpes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
• Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan, filters or in exhaust ducts.
• Use proper pan size. Always use cookware appropriate for the size of the surface element.

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING\*:

• SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY, EVACUATE AND CALL THE FIRE DEPARTMENT.
• NEVER PICK UP A FLAMING PAN — You may be burned.
• DO NOT USE WATER, including wet dishcloths or towels —This could cause a violent steam explosion.
• Use an extinguisher ONLY if:

A. You own a Class ABC extinguisher and you know how to operate it.
B. The fire is small and contained in the area where it started.
C. The fire department has been called.
D. You can fight the fire with your back to an exit.

- Based on “Kitchen Fire Safety Tips” published by NFPA.

CAUTION

• For indoor use only.
• For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
• To avoid motor bearing damage and noisy and/or unbalanced impeller, keep drywall spray, construction dust, etc. off power unit.
  • Install the vent hood in a location away from strong drafts, such as windows, door, and strong HVAC vent for best performance.
• The minimum hood distance above cooktop must not be less than 25-5/8". For best capture of cooking impurities, the bottom of the hood should be at a maximum of 29-1/2" above cooking surface.

• Two installers are recommended because of the large size and weight of this unit.

• To reduce the risk of fire and to properly exhaust air, be sure to duct air outside — Do not exhaust air into spaces within walls or ceiling or into attics, crawl space or garage.

• Because of the high exhausting capacity of this unit, you should make sure enough air is entering the house to replace exhausted air by opening a window close to or in the kitchen.
• Always leave safety grills and filters in place. Without these components, operating blowers could catch onto hair, fingers and loose clothing.
• The vent hood and filters should be cleaned frequently.
• To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
• Please unplug before cleaning and maintenance the appliance. Use a soft cloth moisten with mild soap, and then use a dry cloth to wipe it again.
• Extension sockets are forbidden.
• Please cut off the power before maintenance.
• This appliance has been designed for home use only, and may cause danger if used in special occasions.

SAVE THESE INSTURCTIONS

SPECIFICATIONS

Model MVP30W6AST

Voltage/Frequency 120V-/60Hz

Rated power 323W

Lighting power 1.5Wx2

Motor input power 320W

Diameter of air tube 150mm

Air flow 450CFM

Noise

≤71dB(A)

PRODUCT OVERVIEW

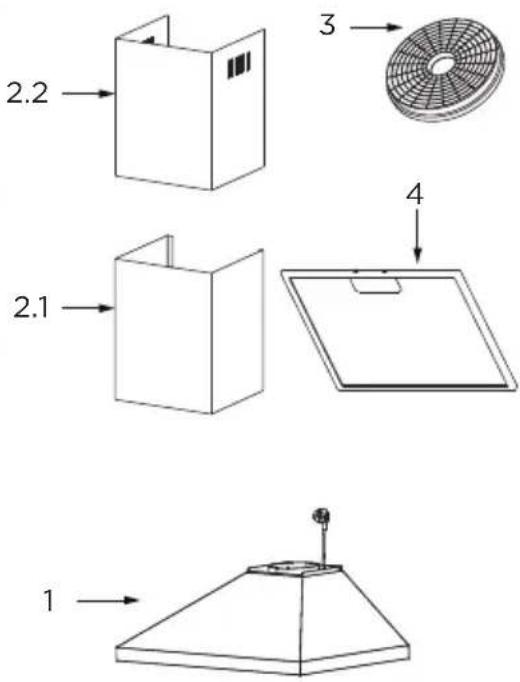

Components

Ref. Qty. Product Components

11 Hood Body, complete with: Controls, Light Blower, Filter.
2.11 Lower Decorative Chimney
2.2 1 Upper Decorative Chimney
3 2 The Activated Charcoal filter (optional)
4 2 Grease filter (30")

Qty. Documentation

1 Instruction Manual

2.2 3 2.1 4 1

Ref. Qty. Optional Installation Components

10 7 Screws M5 x 1.97"
11 7 Wall Plugs
12 6 Screws M4.2 x 0.37"
201 Hood fixing bracket
21 1 Chimney fixing bracket

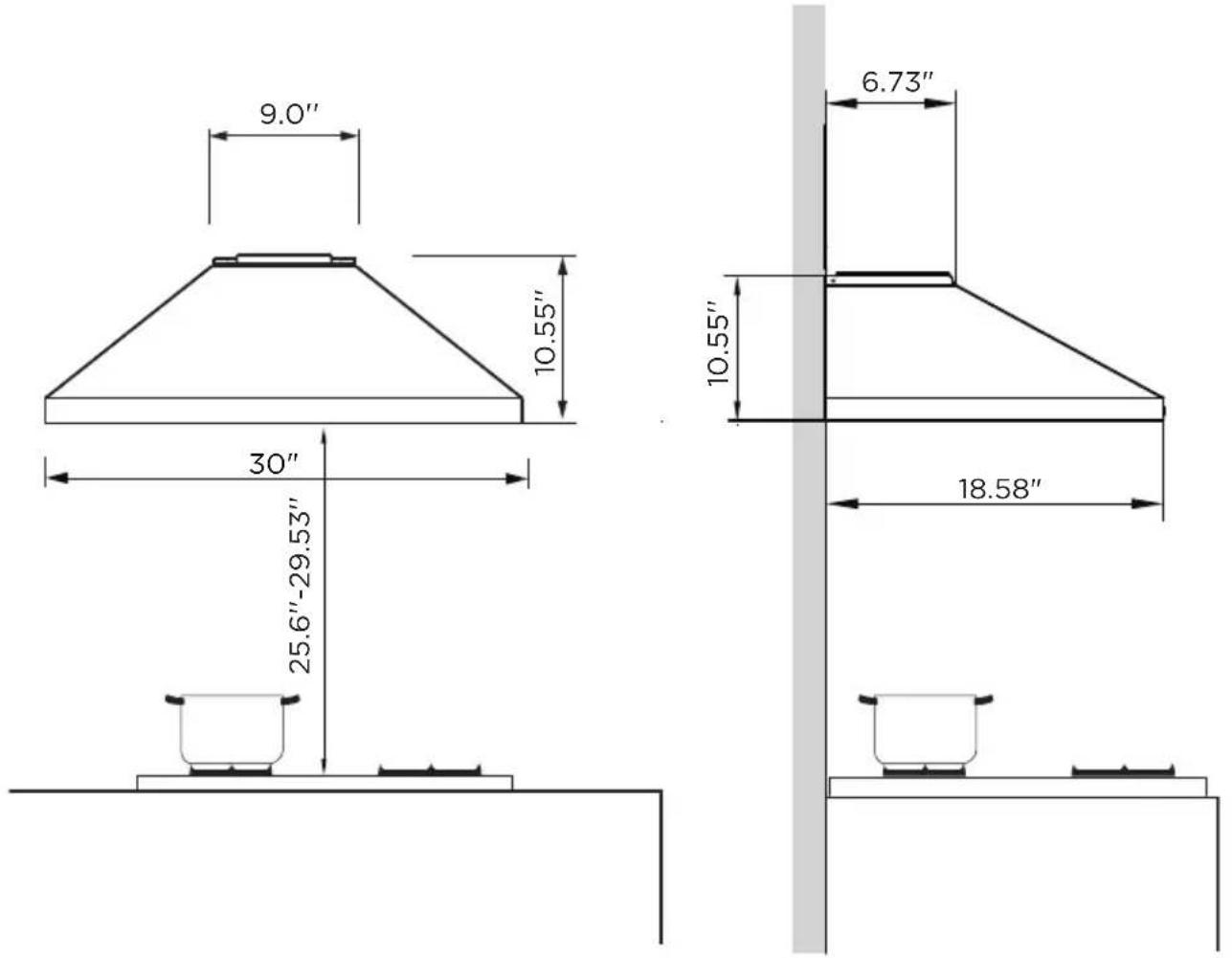

Dimensions

unit: inch

9.0" 10.55" 30" 25.6"-29.53" 6.73" 10.55" 18.58"

Select Installation Type

A. Vented Installation

B. Non-Vented / Recirculation Installation

A. Vented Installation

- Roof Discharge

This canopy hood is designed for venting through the roof or wall.

A 6" round vent system is needed for installation (not included). The hood exhaust opening is 6" round.

Vent system can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed.

- Rear Discharge

A 90° elbow may be installed immediately above the hood.

WARNING

TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

- If it is not possible to vent cooking fumes and vapors to the outside, the hood can be used in the non-vented (recirculating) version, fitting a charcoal filter and the deflector (not included, you can decide whether to use according to your installation environment). Fumes and vapors are recycled through the top grille.

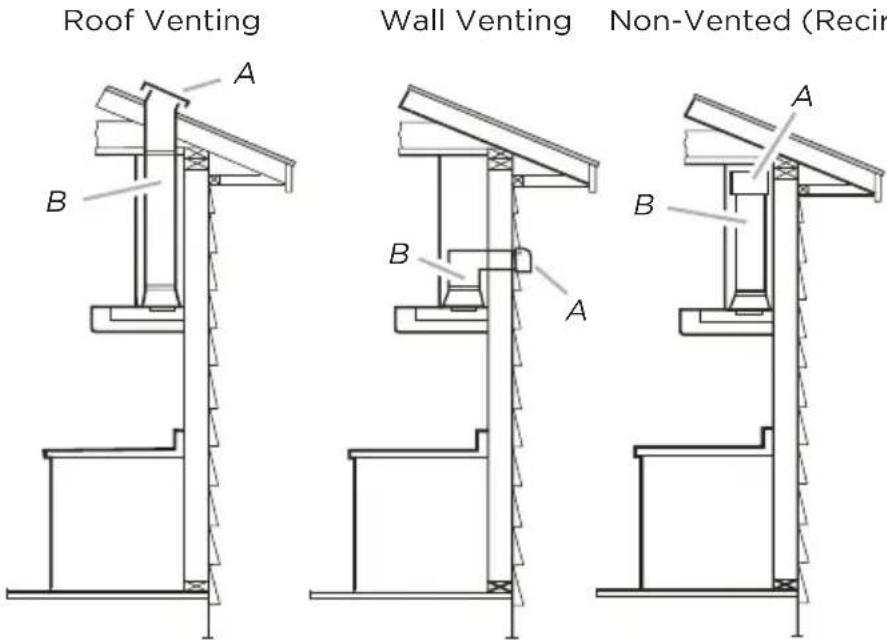

Roof Venting Wall Venting Non-Vented (Recir)

A. Roof cap
B. 6" round vent
A. Wall cap B. 6" round vent
A. Deflector
B. 6" round vent

Local building codes may require the use of makeup air systems when using ventilation systems greater than specified CFM of air movement. The specified CFM varies from locale to locale. Consult your HVAC professional for specific requirements in your area.

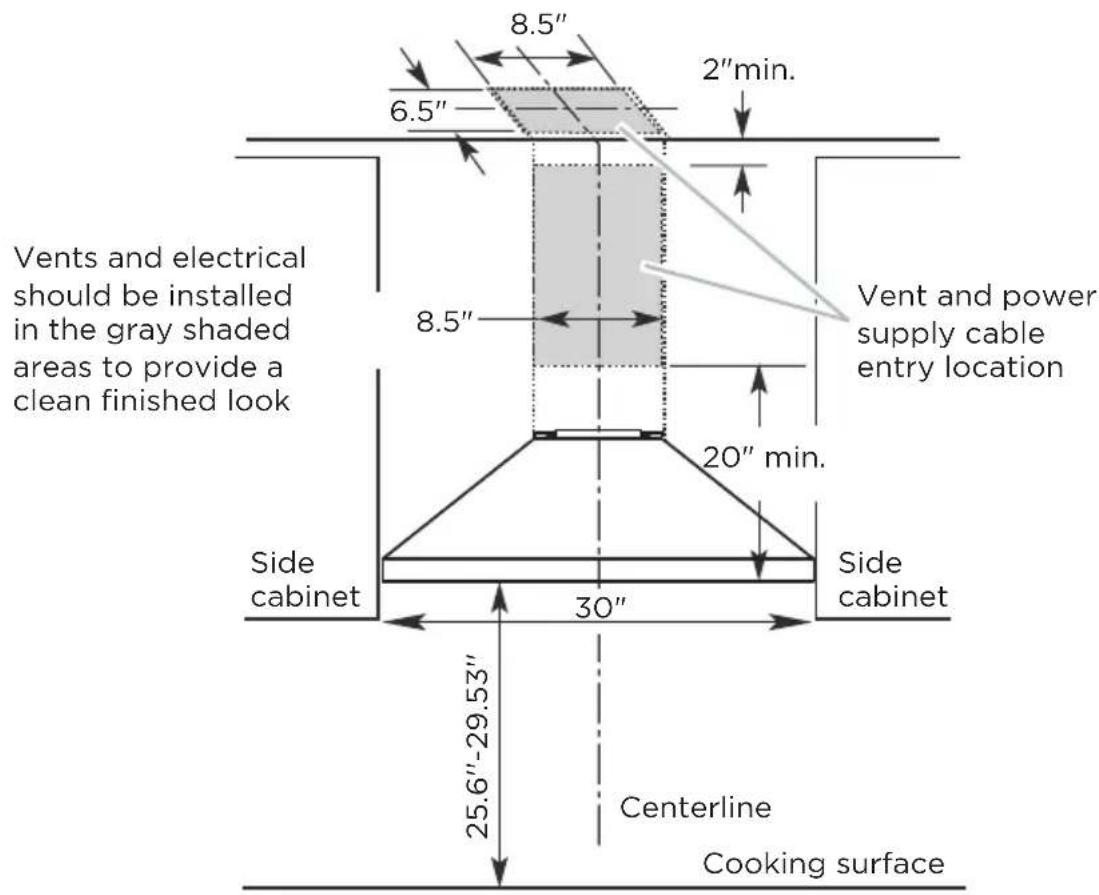

8.5" 6.5" 2"min. Vents and electrical should be installed in the gray shaded areas to provide a clean finished look 8.5" Vent and power supply cable entry location 20" min. Side cabinet 30" 25.6"-29.53" Centerline Cooking surface

CAUTION

• Vent system must terminate to the outdoors except for non-vented (recirculating) installations.
• Do not terminate the vent system in an attic or other enclosed area.
• Do not use 4" laundry-type wall cap (plastic). Only use a metal exterior exhaust vent.
• Use metal vent only. Rigid metal vent is recommended for best performane.
• All vent joints should be taped and sealed with 2"metal foil tape.
• The length of vent system and number of elbows should be kept to a minimum to provide efficient performance.

Use the correct size exhaust vent, or the range hood will not work normally!

performance. 6" 4" 4" 6" to 4" metal adapter If you want to keep the wrong size exhaust vent, please install an adapter!

For the Most Efficient and Quiet Operation:

• Use no more than three 90^ elbows.
• Make sure there is a minimum of 24" of straight vent between the elbows if more than 1 elbow is used.
• Do not install 2 elbows together.
• Use clamps to seal all joints in the vent system.
• Use caulking to seal exterior wall or roof opening around the cap.
  • The size of the vent should be uniform.

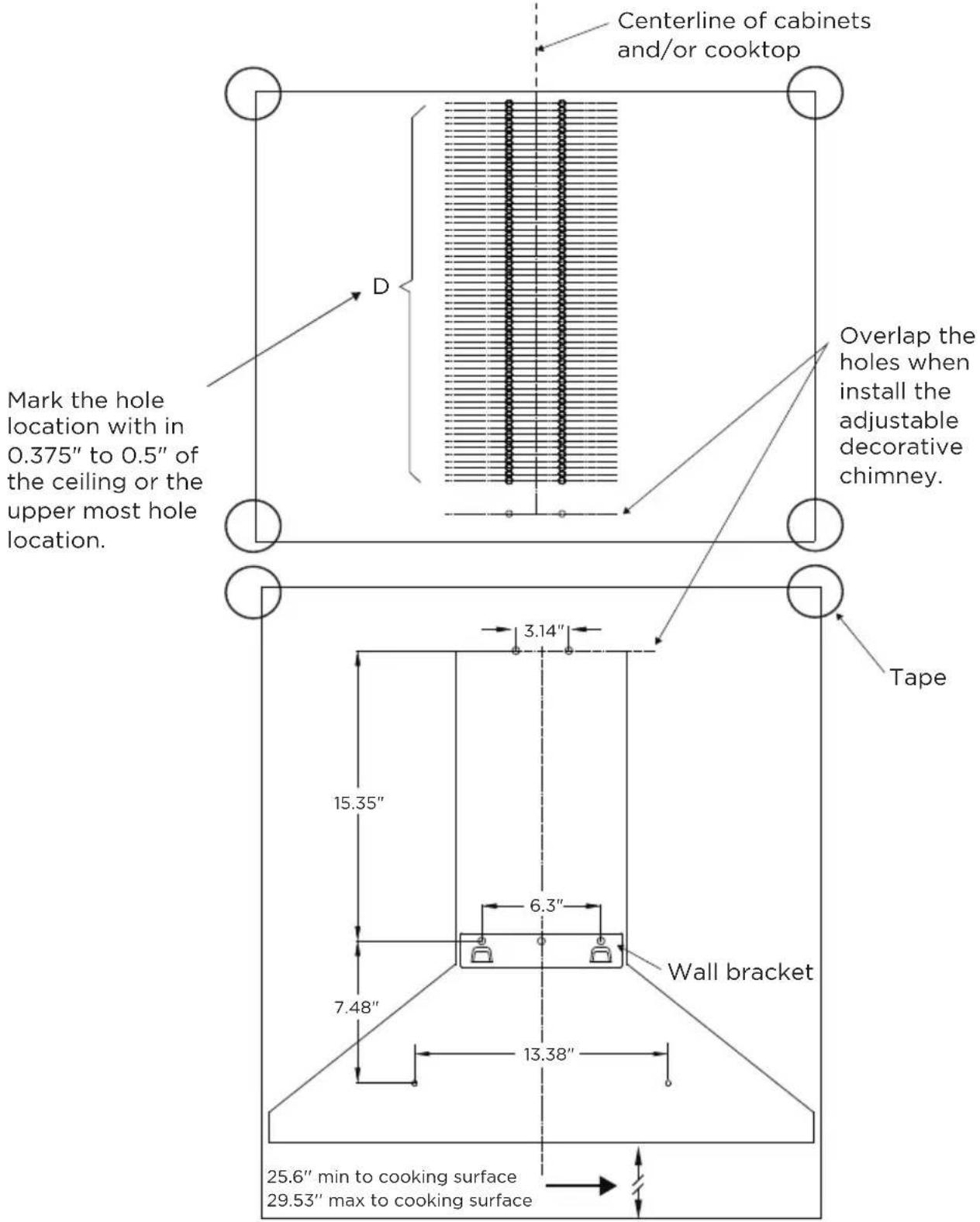

Hood Mounting Screw Installation:

1 Determine and mark the centerline on the wall where the hood will be installed.
2 Select a mounting height between a minimum of 25.6" and a suggested maximum of 29.53" above the range to the bottom of the hood. Mark a reference line on the wall.
3 Tape template in place, aligning the template centerline and bottom of template with hood bottom line and with the centerline marked on the wall.

Centerline of cabinets and/or cooktop D Mark the hole location with in 0.375" to 0.5" of the ceiling or the upper most hole location. Overlap the holes when install the adjustable decorative chimney. 3.14" 15.35" 6.3" 7.48" 13.38" Wall bracket 25.6" min to cooking surface 29.53" max to cooking surface Tape

NOTE: Ensure that horizontal lines are level prior to marking hole locations.

PRODUCT INSTALLATION

Wall Drilling And Bracket Fixing

unit: inch

C 1.57" 1.57" X B 3.15" 3.15" 7.48" A (3) 6.69" 6.69" 36.61" - 40.55" Vertical reference line

Chimney X
15.75" /
15.75"+11.81"	15.35"-24.41"

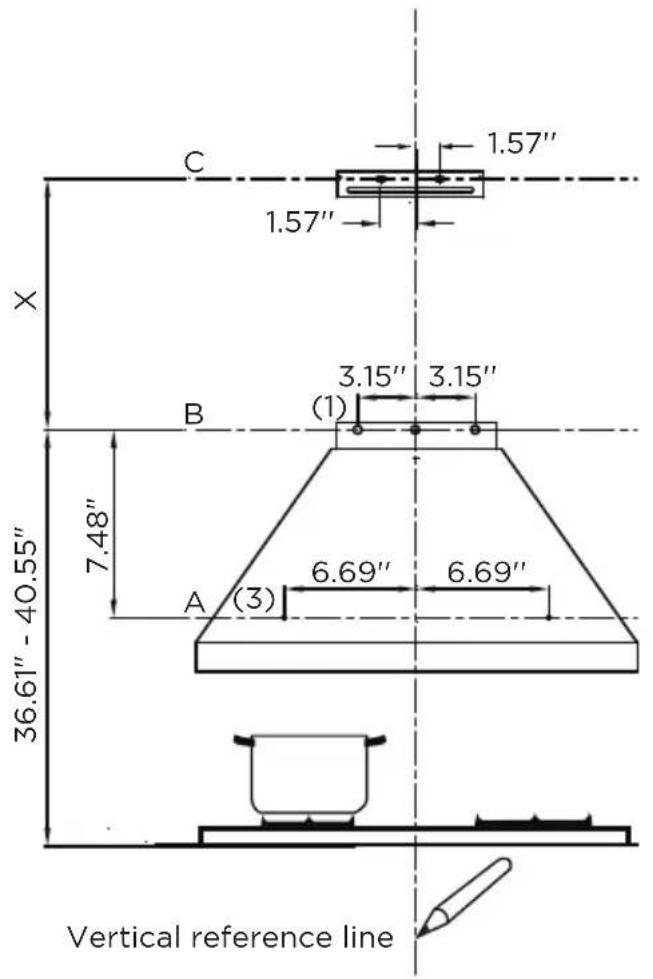

As a first step, proceed with the following drawings:

• A vertical line up to the ceiling or up to the upper limit, at the center of the area in which the hood is to be fitted.
• A horizontal line B at 36.61" - 40.55" above the cooker top.
  • A horizontal line C at a X inch above the horizontal line B.
• A horizontal line A at a 7.48" below the horizontal lineB.

Mark Points:

• Mark a point (1) on the horizontal line B, 3.15" to the vertical reference line.
• Repeat this operation on the other side and on the vertical reference line, checking that the three marks are leveled.
• Mark a point (2) on the horizontal line C. 1.57" to the vertical reference line.
• Repeat this operation on the other side . checking that the two marks are leveled.
• Mark a point (3) on the horizontal line A. 6.69" to the vertical reference line.
• Repeat this operation on the other side, checking that the two marks are leveled.

Fix the brackets :

• Drill holes at the marked points with a 3/8" drill bit.
• Insert the Wall Plugs 11 into the holes.
  • Fix the hood fixing bracket 20 with 3 screws 10 (0.2" x 1.97") at the horizontal line B.
  • Fix a Chimney fixing bracket 21 with 2 screws 10 (0.2" x 1.97") at the horizontal line C.

Hang and Mount the Vent Hood:

• Hang the vent hood onto fixing bracket 20.
  • Level the hood, and insert 2 long screws (10) into bracket 21 at level B.
• Insert 2 long screws (10) into the hood at level A.

IMPORTANT

- The vent hood should be lifted and installed by 2 people to prevent injuries and potential damage.

Two 3D technical line drawings of a conical fan or chimney, shown from different angles (no text or symbols)

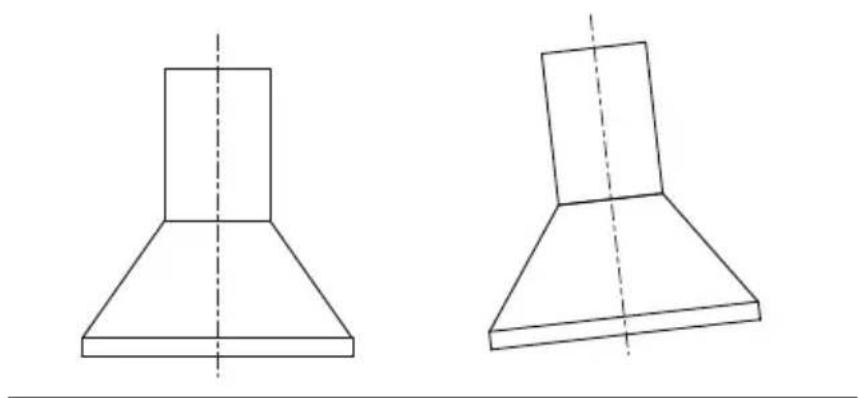

Right Wrong

Pre-Assemble the Upper Chimney Cover :

• Remove the protective foil from the Upper Decorative Chimney (2.2).
• Slide the Upper Decorative Chimney trim (2.2) into the Lower Decorative Chimney trim.

Install Duct and Insert Plug:

• Install 6" duct over the flange on the fan body.
- Use 2" wide metal tape to make an air tight seal between the duct and the fan body.
• Install a clamp to secure the ductwork securely.
- Remove Carbon Filters if installed.
- Insert the plug into a properly grounded outlet.

Assemble the Lower Chimney Cover:

• Slide the Lower Decorative Chimney trim (2.1) over the fan body.
• Ensure that the Decorative trim is pressed down to line up the lower mounting holes (A).
• Slightly lift the Upper Decorative Chimney cover.

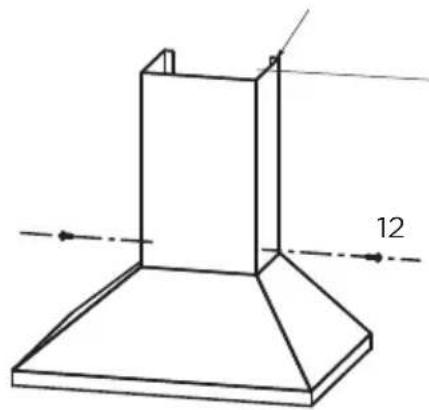

• Insert 2 short sheet metal screws (12) in the lower holes.
• Place Chimney mounting bracket (21) at the top of the Lower Decorative Chimney (2.1), and insert 2 short sheet metal screws (12) into the outer most holes on the bracket at location B.

2.1 12

WARNING

Electrical Shock Hazard

• This unit must be grounded. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
• Do not use an extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the appliance.

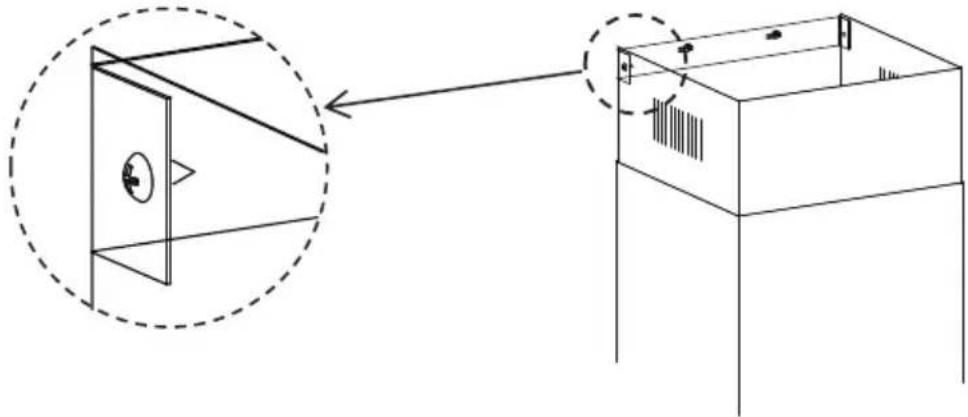

Install Upper Decorative Chimney:

• Install Chimney mounting bracket (21) at holes previously marked on level D.
- Slide the upper decorative chimney 2.2 up to the horizontal line D.
- Insert 2 small sheet metal screws into the sides of the bracket to secure the Upper Decorative Chimney.

21

D

Technical line drawing of a 3D mechanical component with no visible text or symbols

- Fix the upper chimney onto the bracket 21 with 2 screws 12 (0.17" x 0.37") supplied with the hood.

Technical line drawing showing a door opening and a cabinet with internal components, no text or symbols present

B. Non-Vented / Recirculation Installation

Recirculation Mode:

• Install Carbon Filters.
• Install deflector according to your installation environment.

OPERATION INSTRUCTIONS

Speed Adjustment. (For Some Models)

Light Low Mid High Power

• After plugging, buzz once to declare the hood is connected with electricity. After the connection:

- Press the Power button, control motor power: under standby state, press this button, motor will run at low speed, and light for power and low speed button will be on; under power-on state, press this button, hood will enter 3-min-delay-shutdown state, press power button againunder this state, the hood will turn off (motor stops running).

- Press the Light button, control light being on and off independently without any other buttons' help. Press it once, lights will be on. Press again, they will be off.

- Press the High button, valid under power-on state. While running at middle or low speed mode, press this button, the hood will enter high speed mode. If already running at high speed, pressing this butt on takes no effect. In 3-min-delay-shutdown state, pressing this button takes no effect.

- Press the Low button, valid under power-on state. While running at high or middle speed mode, press this button, the hood will enter low speed mode. If already running at low speed, pressing this button takes no effect. In 3-min-delay-shutdown state, pressing this button takes no effect.

CLEANING AND MAINTENANCE

Grease Filters

CLEANING METAL SELF-SUPPORTING GREASE FILTERS

• The filters must be cleaned frequently and can be washed in a dishwasher or a hot detergent solution.

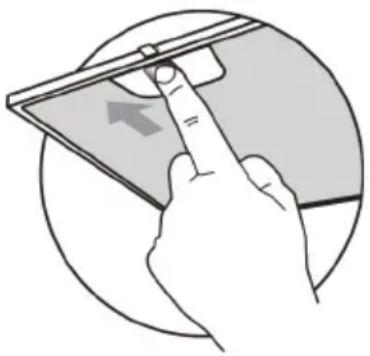

• Depress the latch to remove the filters.
• Avoid bending the filters when washing, and allow the filters to completely dry before reinstalling (The color of the filter surface may change throughout the time but this has no influence to the filter efficiency).
• When reinstalling the filter ensure the release latches are facing down, and are securely in place.

Illustration of a hand interacting with a tablet device, showing a finger pointing at the screen (no text or symbols present)

WARNING

- Do not operate your cooktop when the filters are not installed into the vent hood.

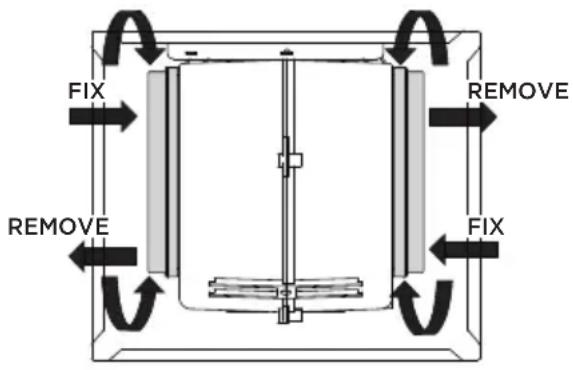

Activated Charcoal Filter (Recirculation Version)

- These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

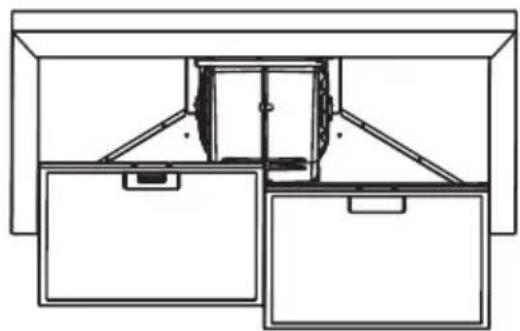

Replacing The Activated Charcoal Filter

• Remove the metal grease filters.
• Remove the saturated activated charcoal filter.
• Fit the new filters.
• Replace the metal grease filters.
  • The service part number: 12173000001200.
• The specific installation steps for the carbon filter are provided in the instruction video on the Amazon website for this product.
  Please follow the instructions carefully to ensure proper installation and operation of the filter.

FIX REMOVE REMOVE FIX

Architectural line drawing of a room with doors and structural beams (no text or symbols)

3D rendering of a black industrial fan or impeller device with visible blades and mounting brackets (no text or symbols)

Circular black fan with radial blades, no text or symbols visible

Close-up of a turbine blade and fan assembly (no visible text or symbols)

Exterior view of a black industrial fan or impeller device (no visible text or symbols)

Lighting

LIGHT REPLACEMENT

Replacing the light modules

• The entire light module must be replaced.

• Before changing the light module(s), unplug the appliance or switch off the circuit breaker in the fuse box.

• Remove the grease filter.

• Disconnect the terminal of LED light.

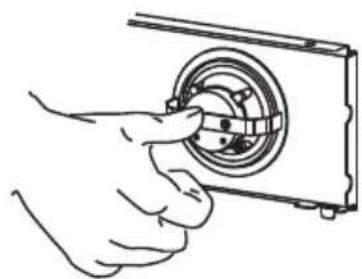

• Press LED light on the back of the front plate, take the LED light out.
• Replace the lamp.

Line drawing of a hand gripping a small object, possibly a tool or device, with no visible text or symbols.

Line drawing of a hand inserting a camera lens into a rectangular frame (no text or symbols)

	Max Power Voltage Picture Service		Number
Round/Diameter: 2.76"	1.5W DC 12V			17473000000136

Reinstalling the LED Light Module

• Press LED light on the front of front plate, install the LED light on the front plate.
• Connect the terminal of LED light and light leads.
• Reinstall the grease filter.

TROUBLE SHOOTING

Problem Possible reason Solution
Light on, but motor does not work	The blades are blocked. Check the blades
	The capacitor is damaged. Replace capacitor.
	The motor is damaged. Replace motor.
	The internal wiring of motor is cut off/disconnected. An unpleasant smell may be produced.	Replace motor.
Both light and motor do not work	Apart from the above mentioned, check the following:
	Light damaged. Replace lights.
	Power cord loose. Connect the wires as the electric diagram.
Oil leakage	Outlet and the air ventilation entrance are not tightly sealed.	Take down the outlet and seal with glue.
Vibration	The blade, if damaged, can cause vibrating.	Replace the blade.
	The motor is not tightly fastened.	Fasten the motor tightly.
	The cooker hood is not tightly fixed.	Fixed the cooker hood tightly.
Insufficient suction	The distance between the cooker hood and the cooker top is too large.	Readjust the distance.
	Too much ventilation from open doors or windows.	Choose a new place to install the appliance or close some doors / windows.
The machine inclines	The fixing screws are not tight enough.	Tighten the fixing screw and make it horizontal.
	The hanging screws are not tight enough.	Tighten the hanging screw and make it horizontal.

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT

Midea logo, word marks, trade name, trade dress and all versions thereof are valuable assets of Midea Group and/or its affiliates (“Midea”), to which Midea owns trademarks, copyrights and other intellectual property rights, and all goodwill derived from using any part of an Midea trademark. Use of Midea trademark for commercial purposes without the prior written consent of Midea may constitute trademark infringement or unfair competition in violation of relevant laws.

This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea.

All the described functions and instructions were up to date at the time of printing this manual. However, the actual product may vary due to improved functions and designs.

DISPOSAL AND RECYCLING

Important instructions for environment

Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

DATA PROTECTION NOTICE

For the provision of the services agreed with the customer, we agree to comply without restriction with all stipulations of applicable data protection law, in line with agreed countries within which services to the customer will be delivered, as well as, where applicable, the EU General Data Protection Regulation (GDPR).

Generally, our data processing is to fulfil our obligation under contract with you and for product safety reasons, to safeguard your rights in connection with warranty and product registration questions. In some cases, but only if appropriate data protection is ensured, personal data might be transferred to recipients located outside of the European Economic Area.

Further information are provided on request. You can contact our Data Protection Officer via [e-mail]. To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via [e-mail]. To find further information, please follow the QR Code.

Midea

make yourself at home

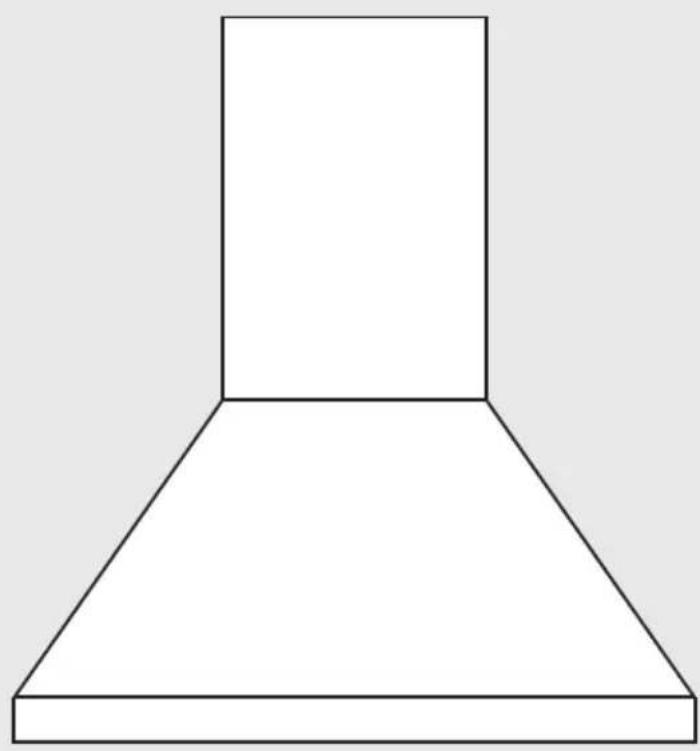

Simple line drawing of a conical chimney (no text or symbols)

Hotte De Cuisine

MODE D'EMPLOI

MVP30W6AST

9.0" 10.55" 30" 25.6"-29.53" 6.73" 10.55" 18.58"

Use the correct size exhaust vent, or the range hood will not work normally! 6" 4" 4" 6" to 4" metal adapter If you want to keep the wrong size exhaust vent, please install an adapter!

Two technical line drawings of a conical industrial fan or chimney, shown with dashed symmetry lines (no text or symbols)

Droite Incorrecte

Technical line drawing of a mechanical component with no visible text or symbols

Diagram showing a 3D box with internal components and an arrow indicating direction (no text or symbols present)

B. Installation sans aération/recirculation

Image showing five icons: sun, leaf, flower, butterfly, and a numbered circle, likely representing a basic diagram or educational material.

Illustration of a hand holding a tablet device with an arrow pointing to the screen (no text or symbols present)

AVERTISSEMENT

Architectural line drawing of a room with doors and structural beams (no text or symbols)

3D rendering of a black industrial fan with visible blades and mounting brackets (no text or symbols)

Circular black fan with radial blades, no text or symbols visible

Close-up of a turbine blade and fan assembly (no visible text or symbols)

Exterior view of a black industrial fan or vent with visible blades and mounting bracket (no text or symbols)

Éclairage

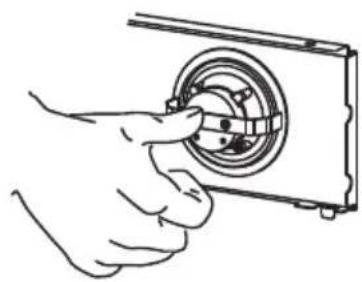

REEMPLACEMENT DE LA LUMIÈRE

Line drawing of a hand gripping a car (no text or symbols)

Line drawing of a hand inserting a camera lens into a rectangular frame (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

AVIS DE PROTECTION DES DONNÉES

make yourself at home

www.midea.com
