SAFETY INSTRUCTIONS

Intended Use

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. Please note modifications or alterations to the appliance are not allowed for your safety concern. Unintended use may cause hazards and loss of warranty claims.

Explanation of Symbols

	DangerThis symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.
	Warning of electrical voltageThis symbol indicates that there is a danger to life and health of persons due to voltage.
	WarningThis symbol indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.
	CautionThis symbol indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.
	AttentionThis symbol indicates important information (e.g. damage to property), but not danger.
	Observe instructionsThis symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.

Read these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use!

SAFETY WARNINGS

Your safety is important to us. Please read this information before using your appliance. Please strictly observe the instructions in this manual. No liability will be assumed for any problems, damage or fires caused by failure to comply with the instructions in this manual. The device is intended for domestic use only, to cook food and extract the fumes generated by cooking. No other use is allowed (e.g. heating rooms). The manufacturer declines any liability for inappropriate use or incorrect setting of the controls.

The product may have different aesthetic features with respect to the illustrations in this handbook, however the operating, maintenance and installation instructions remain the same.

This manual must be stored for future consultation at any time. If sold, transferred or moved, it must remain with the product.

INSTALLATION

Electrical Shock Hazard

• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• Connection to a good earth wiring system is essential and mandatory.
• Alterations to the domestic wiring system must only be made by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death.
• -Installation or maintenance must be performed by a qualified technician, in compliance with the manufacturer's instructions and with local safety regulations. Do not repair or replace any part of the device unless specifically stated in the operating manual.
• Earthing the device is compulsory.
• In order to ensure the installation complies with current safety standards, a regular omnipolar switch is required that assures the complete disconnection of the mains under category III over-voltage conditions, in accordance with the installation rules.
• Do not use multiple sockets or extension cords.

- Before connecting the device to the electrical network: check the data plate (on the bottom of the device) to ensure that the voltage and power correspond to the network values and that the connection socket is suitable. If in doubt, consult a qualified electrician.

Important Safety Instructions

- Read these instructions carefully before installing or using this appliance.

- No combustible material or products should be placed on this appliance at any time.

- In order to avoid a hazard, this appliance must be installed according to the installation manual

- This appliance is to be properly installed and earthed only by a suitably qualified person.

- This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply.

- Failure to install the appliance correctly could invalidate any warranty or liability claims.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts

- Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot

- Do not use a steam cleaner to clean your appliance.

• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• WARNING: Danger of fire: do not store items on the cooking surfaces.
• The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
• Avoid spills; when boiling or heating liquids, lower the heat supply.
• Do not leave the heating elements on with pots and pans empty or without containers.
• Once cooking is complete, turn off the relative zone.
• Never use aluminium foil to cook with, and never directly place products packaged with aluminium on top of the cooking surface. The aluminium would melt and irreparably damage your device.
• Never heat a tin or a tin can containing foods without first opening it: it might explode!

Electrical Shock Hazard

• Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.

Health Hazard

• This appliance complies with electromagnetic safety standards.
• However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be affected by the electromagnetic field.
- Failure to follow this advice may result in death.

Hot Surface Hazard

• During use, accessible parts of this appliance will become hot enough to cause burns.
• Do not let your body, clothing or any item other than suitable cookware contact the Induction glass until the surface is cool.
• Keep children away.
• Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children.
• Failure to follow this advice could result in burns and scalds.

Important Safety Instructions

• Do not place or leave any magnetisable objects (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near the appliance, as they may be affected by its electromagnetic field.
• Never use your appliance for warming or heating the room.
  • After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls). Do not rely on the pan detection feature to turn off the cooking zones when you remove the pans.
• Do not allow children to play with the appliance or sit, stand, or climb on it.
• Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured.
• Do not leave children alone or unattended in the area where the appliance is in use.
• Children or persons with a disability which limits their ability to use the appliance should have a responsible and competent person to instruct them in its use. The instructor should be satisfied that they can use the appliance without danger to themselves or their surroundings.

- Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician.

- Do not place or drop heavy objects on your cooktop.

- Do not stand on your cooktop.

- Do not use pans with jagged edges or drag pans across the Induction glass surface as this can scratch the glass.

- Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the Induction glass.

- This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments.

- WARNING: The appliance and its accessible parts become hot during use.

- Care should be taken to avoid touching heating elements.

• Children less than 8 years of age shall be kept away unless continuously supervised.

- The room must be properly ventilated when the cooker hood is used at the same time as other combustion devices, gas or otherwise.

- The hood must be regularly cleaned both internally and externally (AT LEAST ONCE PER MONTH), in strict accordance with the maintenance instructions.

- Failure to follow the rules for hood cleaning and filter replacement and cleaning shall result in a fire hazard.

- It is strictly prohibited to flame food. The use of an open flame may damage the filters and cause a fire hazard; it must therefore be avoided under all circumstances. Extra care must be taken when frying to prevent the oil from overheating and catching fire.

- CAUTION: When the hob is on, the accessible parts of the hood may become hot.

- In regards to the technical and safety measures that must be adopted for fume extraction, regulations issued by local authorities must be strictly followed.

- The extracted air must not be conveyed through the same ducts used to extract the fumes generated by gas combustion or other types of combustion devices. Never use the hood unless the grill has been correctly assembled!

- Use only the fastening screws supplied with the product for its installation, or if not supplied, purchase the correct type of screws. Use screws with the right length, as indicated in the installation guide.

- When the cooker hood is used together with other devices powered with non-electrical energy, the negative pressure of the room must not exceed 4 Pa (4 x 10-5 bar). This can be achieved whenever the air needed for combustion is able to enter through openings that cannot be sealed, for example in doors, windows, incoming/exhaust air wall boxes or byother technical means. An incoming/ex-haust air wall box alone does not ensure compliance with the limit.

- Recommendations for correct use in order to reduce the impact on the environment: When starting to cook, turn on the hood at minimum speed and leave it on for a few minutes even after cooking is complete. Increase the speed only if there is a large amount of fumes and steam, using the Booster function only in extreme cases. To keep the air recirculation system running efficiently, replace the odour filters or carbon cube filters when necessary.

• To ensure the high performance of the grease filter, clean it when necessary.

- Never operate the appliance without grease filter.

- Never work with naked flames close to the appliance (e.g. flambéing) around the grease filters.

- Do not install the appliance near a solid fuel heating appliance (e.g. wood- or coal-burning) unless the heating appliance hasa sealed, non-removable cover. There must be no flying sparks.

- Allow the appliance to cool down beforecleaning.

- If hot liquids penetrate the appliance, only remove the grease filter or the overflow container once the appliance has cooled down.

- There is a slight odor when unpacking, and it will soon disappear.

- Range hoods and other cooking fumeextractors may adversely affect the safe operation of appliances burning gas orother fuels (including those in other rooms) due to back flow of combustiongases. These gases can potentially result in carbon monoxide poisoning. Afterinstallation of a range hood or other cooking fume extractor, the operation offlued gas appliances should be tested by a competent person to ensure that backflow of combustion gases does not occur.

• there is a fire risk if cleaning is not carried out in accordance with the instructions
• regulations concerning the discharge of air have to be fulfilled.
• CAUTION: This appliance is not intended to be used with gas hobs.

Congratulations on the purchase of your new Induction Hob.

We recommend that you spend some time to read this user / Installation Manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section.

Read all the safety instructions carefully before use and keep this user / Installation Manual for future reference.

SPECIFICATIONS

Cooking Hob	MIH742FY58K2Y
Cooking Zones	4 Zones
Supply Voltage	220-240V- 380-415V 3N- 50Hz or 60Hz
Installed Electric Power	7400W
Product Size LxWxH(mm)	800X520X237
Building-in Dimensions AxB (mm)	750X490
Motor	BLDC

Energy labelling

Manufacturer	Midea
Model identification	MIH742FY58K2Y
	Symbol	Value	Unit
Type of hob	Electric hob
Number of cooking area	Two areas
Heating technology	Induction cooking
Diameter of useful surface for cooking zone ∅	∅	-	cm
Diameter of useful surface cooking area L*W	L W	Left area: 38*18 Right area: 38*18	cm
Energy consumption per cooking zone or area	EC_electric cooking	Left area: 191.1 Right area: 188.9	Wh/kg
Energy consumption for the hob	EC_electric hob	190	Wh/kg
Energy consumption
Annual energy consumption	AEC_hood	11.9	kWh/a
Energy efficiency class	-	A++	-
Energy efficiency index	EEI_hood	33.7	-
Fluid dynamic efficiency	FDE_hood	30.1	-
Fluid dynamic efficiency class	-	A	-
Lighting
Lighting efficiency	LE_hood	N/A	lux/W
Lighting efficiency class	-Symbol	N/AValue	-Unit
Grease filtering
Grease filtering efficiency	GFE_hood	77.1	%
Grease filtering efficiency class	-	C	-
Air flow volume (Air extraction)
Maximum air flow at lowest setting in normal use	-	246.5	m^3/h
Maximum air flow at highest setting in normal use	-	554.1	m^3/h
Maximum air flow at boost setting	-	707.7	m^3/h
Noise(Air extraction)
Airborne acoustical A-weighted sound power emissions at lowest setting	-	47	dB
Airborne acoustical A-weighted sound power emissions at highest setting	-	62	dB
Airborne acoustical A-weighted sound power emissions at boost setting	-	68	dB
Power consumption
Power consumption in off mode	Po	0.35	W
Power consumption in standby mode	Ps	N/A	W
Air flow volume ( Air recirculation )
Maximum air flow at lowest setting in normal use	-	184.6	m^3/h
Maximum air flow at highest setting in normal use	-	478.9	m^3/h
Maximum air flow at boost setting	-	521.2	m^3/h
Noise( Air recirculation )
Airborne acoustical A-weighted sound power emissions at lowest setting	-	44	dB
Airborne acoustical A-weighted sound power emissions at highest setting	-	62	dB
Airborne acoustical A-weighted sound power emissions at boost setting	-	64	dB

Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.

PRODUCT OVERVIEW

Top View

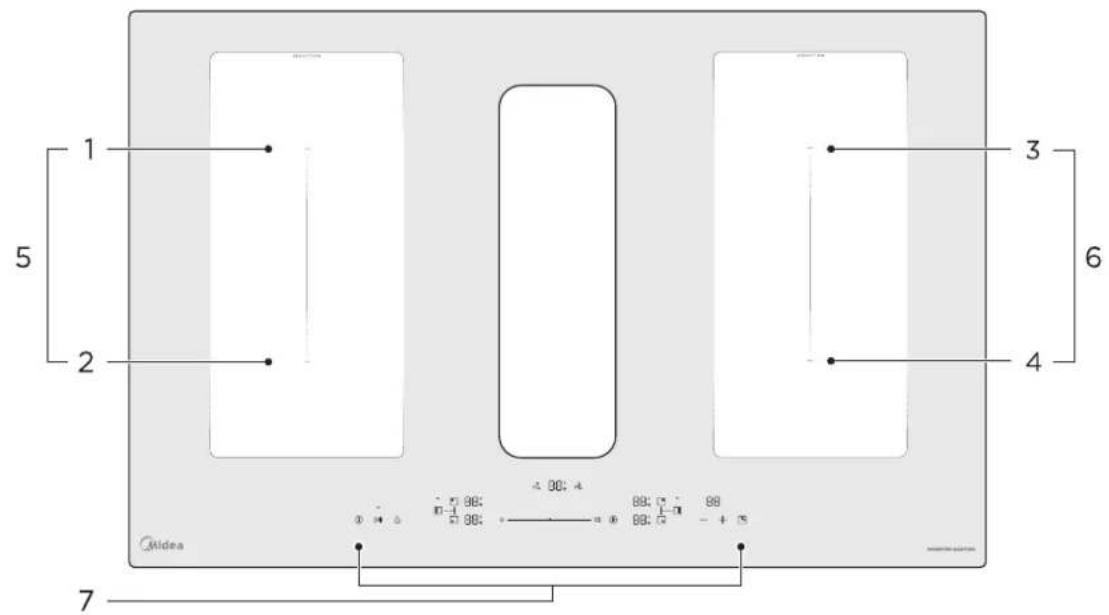

1 5 2 3 6 4 7 Midea

1. Max. 1800/2000 W zone
2. Max. 1800/2000 W zone
3. Control panel
4. Max. 1800/2000 1800/2000
5. Max. 3000/3700 W zone
6. Max.
7. Max. 3000/3700 W zone

Control Panel

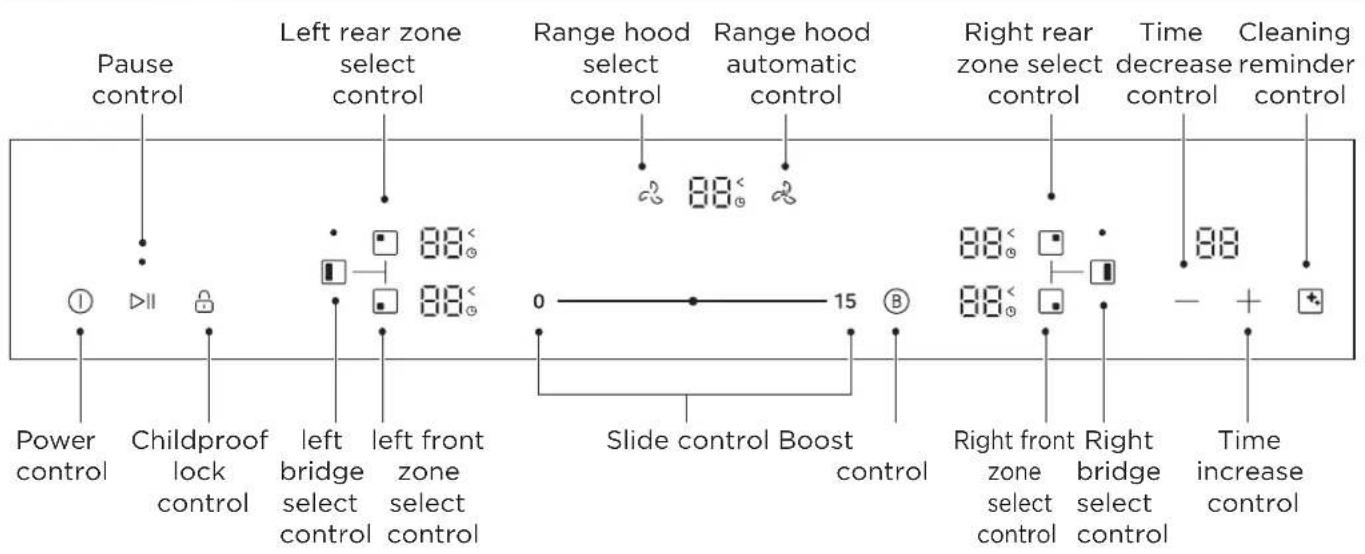

Pause control Left rear zone select control Range hood select control Range hood automatic control Right rear zone select control Time decrease reminder control Power control Childproof lock control left bridge select control left front zone select control 0 15 Slide control Boost control Right front zone select control Right front bridge select control Time increase control

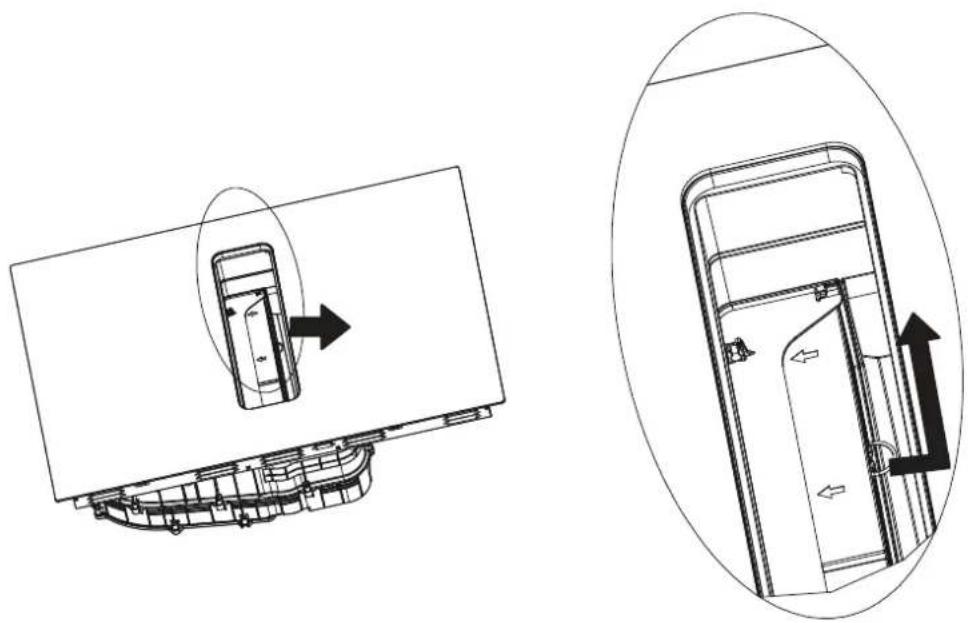

NOTE

All the pictures in this manual are for explanation purpose only. Any discrepancy between the real object and the illustration in the drawing shall be subject to the real subject.

How it Works

Induction cooking is a safe, advanced, efficient and economical cooking technology. It generates heat directly in the cookware by electromagnetic vibrations, rather than indirectly by heating the glass surface. The glass gets hot because the heat is transferred from the cookware.

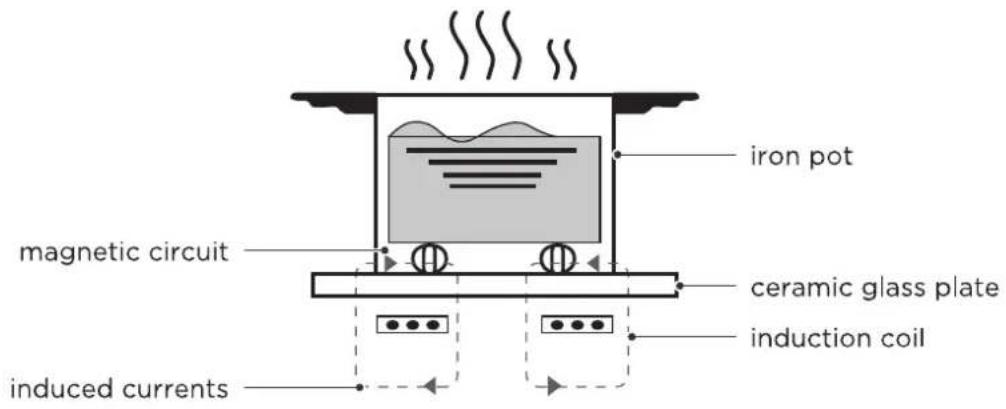

iron pot magnetic circuit ceramic glass plate induction coil induced currents

Operating Mode

You can operate your appliance in air extraction mode or air recirculation mode.

Air extraction mode

The air is cleaned by a grease filter and conveyed to the outside via a duct system. With air extraction mode an adequate fresh air supply is required. The device can only extract the amount of air to the outside that is present in the room or which is drawn into the room. The air must not be discharged into chimneys used to exhaust fumes from appliances burning gas or other fuels.

Simple line drawing of a house interior with a roof, ventilation duct, and airflow direction (no text or symbols)

Air recirculation mode

The air is cleaned by a grease filter and two odour filters before being returned to the room. By introducing fresh air, The humidity in the room can be reduced. With air recirculation mode, two odour filters must be installed. The different options for operating the appliance in air recirculation mode can be found in our catalogue. You can also ask your dealer.

Simple line drawing of a house with a desk and roof, showing airflow or ventilation (no text or symbols)

Before Using Your New Appliance

• Read this guide, paying special attention to the "Safety Warning" section.
• Remove any protective film that may still be on your appliance.
• Set the operating mode, please refer to the "user setting mode" section.

QUICK START GUIDE

Take care when frying as the oil and fat heat up very quickly, particularly if you're using PowerBoost. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk.

Cooking Tips

• When food comes to the boil, reduce the temperature setting.
  • Using a lid will reduce cooking times and save energy by retaining the heat.
• Minimize the amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the food has heated through.

Simmering, cooking rice

• Simmering occurs below boiling point, at around 85^ , when bubbles are just rising occasionally to the surface of the cooking liquid. It is the key to delicious soups and tender stews because the flavours develop without overcooking the food. You should also cook egg-based and flour thickened sauces below boiling point.
• Some tasks, including cooking rice by the absorption method, may require a setting higher than the lowest setting to ensure the food is cooked properly in the time recommended.

Searing steak

To cook juicy flavorsome steaks:

1. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will depend on the thickness of the steak and how cooked you want it. Times may vary from about 2 - 8 minutes per side. Press the steak to gauge how cooked it is - the firmer it feels the more 'well done' it will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender before serving.

For Stir-frying

1. Choose an induction compatible flat-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook any meat first, put it aside and keep warm.
5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a lower setting, return the meat to the pan and add your sauce.
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.

Detection of Small Articles

When an unsuitable size or non-magnetic pan (e.g. aluminium), or some other small item (e.g. knife, fork, key) has been left on the hob, the hob automatically go on to standby in 1 minute.

Heat Settings

The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the induction hob to find the settings that best suit you.

Heat setting	Suitability
1 - 2	·delicate warming for small amounts of food·melting chocolate, butter, and foods that burn quickly·gentle simmering·slow warming
3 - 5	·reheating·rapid simmering·cooking rice
6 - 11	·pancakes
12 - 13	·fried·cooking pasta
15/P	·stir-frying·searing·bringing soup to the boil·boiling water

OPERATION INSTRUCTIONS

Touch Controls

• The controls respond to touch, so you don't need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

Diagram showing two hand-drawn symbols: a curved object on a line with a checkmark and a cross on a horizontal line.

Choosing the Right Cookware

!

• Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the cookware.

• You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the cookware. If it is attracted, the cookware is suitable for induction.
  • If you have not a magnet:

• Put some water in the cookware you want to check.

• If U does not flash in the display and the water is heating, the cookware is suitable.

Simple line drawing of a cooking pot with a coiled cable (no text or symbols)

• Cookware made from the following materials is not suitable: pure stainless steel, aluminium or copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.
• If the ferromagnetic part covers only partially the base of the cookware, only the ferromagnetic area will heat up, the rest of the base may not heat up a sufficient temperature for cooking.
• If the ferromagnetic area is not homogeneous, but presents others material such as aluminum may affect the heating up and the cookware detection.
• If the base of the cookware is similar to the pictures below the cookware may not detected.

Two black cooking utensils: a square pan and a flat pan (no text or symbols visible)

Two cooking panes with visible flames and a circular emblem on the cover (no text or symbols)

Black cooking pot with lid and side view of a circular filter (no text or symbols visible)

- Do not use cookware with jagged edges or a curved base.

- Make sure that the base of your cookware is smooth, sits flat against the glass, and is the same size as the heating zone. Use cookware whose diameter is as large as the graphic of the zone selected. Using a cookware a slightly wider energy will be used at its maximum efficiency. If you use smaller cookware efficiency could be less than expected. Cookware with a small diameter may not be detected by the hob. Always place your cookware in the center of the heating zone."

Simple line drawing of a cooking pot with crossed-out X marks (no text or symbols)

• Always lift cookware off the appliance - do not slide, or they may scratch the glass.

Simple line drawing of a pot with crossed-out arrows indicating pressure or resistance (no text or symbols)

The base diameter of induction cookware

Cooking zone	Minimum	Maximum
1 & 2 & 3 & 4	140	200
Bridge zone	250 190*390

How to Use

Start heating

Press and hold the power control button for 1 second, all digits will show “-” or “—” after the buzzer beeps, then the appliance enters standby mode.

- In standby mode, if no button is pressed within 20 seconds, the appliance will enter shutdown mode automatically.

Place the appropriate cookware on the heating zone what you want to use.

- Please ensure that the bottom of the cookware and the surface of heating zone are clean and dry.

Simple line drawing of a cooking pot on a stand (no text or symbols)

Press the heating zone selection button, then the digits shows "0" for the level, And the upper right corner will display "<" indicating the currently controllable heating zone.

- Slide the slider to set the heating zone level.

If the digits flashes U or alternates between U and heating level, it may be caused by following situations:

• The cookware is not placed in the correct heating zone;
- The cookware being used is not suitable for induction heating. Please refer to "Choosing the Right Cookware" section.
• The cookware used is too small or not placed in the center of the heating zone.

The heating zone will only function properly when suitable cookware is placed on it. If appropriate cookware is not placed on the heating zone, the digits will flash U and the heating zone will automatically shut off after 1 minute.

Finish heating

Slide the slider to position 0 to turn off the selected heating zone.

Press the power control button to turn off the appliance.

Residual Heat Indicator:

If the digits shows 'H' or 'h', it indicates that the surface temperature of the heating zone is too high.

Please do not touch the heating zone panel directly with your hands to avoid burns.

You can keep using the heating zone with residual heat if you want to continue heating other cookware, which can save energy.

The 'H' or 'h' indicator will automatically disappear when the surface cools down to a safe temperature.

Range Hood Control

Auto function:

The range hood will automatically adjust its working state based on the settings of the heating zones. This mode is effective when any heating zone is in operation, and the range hood will automatically turn off 2 minutes after all heating zones stop working.

Manual function:

By sliding the slider to set the working level of the range hood, it will operate according to the selected level. This function allows the range hood to be controlled even without an active heating zone.

After the appliance is powered on and enters standby function, select the heating zone and start heating. The range hood will default to auto function, and the digits on the range hood will show "A".

You can switch the range hood's operating function using the range hood automatic control button:

In auto function, press the button to switch the range hood to manual function.

In manual function, press the button to switch the range hood to auto function.

Press the range hood selection button, then the upper right corner of range hood digits will display "<" indicating that the range hood is being controlled.

Slide the slider to set the working level.

NOTE

Using high cookware will cause the exhaust system to not work at the best efficiency. By placing the cookware cover at an angle, the exhaust efficiency can be improved.

Boost function

Using the boost function can heat faster than level 15.

After using the Boost function continuously until it automatically exits, the heating zone or range hood will automatically return to the previous setting before entering the Boost function to continue working. If the previous setting before entering Boost was 0, it will automatically work at the maximum setting. To ensure the safety of household circuits, this appliance is equipped with a power management feature. This feature limits the total power of the heating zones on the same side to within 3.7kW. If one heating zone on the same side is operating in boost function and another heating zone starts working, and the total power of the two heating zones on the same side exceeds 3.7kW, the heating zone with the boost function will automatically return to the maximum power setting.

Using the Boost Function:

After selecting the heating zone or the range hood for controlling, press the boost control to activate the boost function. If the range hood activates this function, the digits on the range hood will show "b". If the heating zone activates this function, the digits on the heating zone will change as shown below.

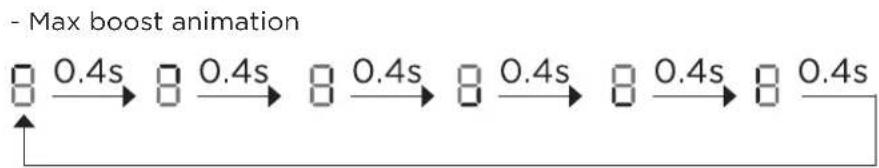


Exit the Boost Function:

• Set the heating zone or range hood that has activated the Boost function to another heating level using the slider.
• Press the power control button to turn off the appliance.

Bridge Function

The bridge function combines two heating zones on the same side into one large heating zone, allowing for the heating of cookware with a larger bottom surface area. To ensure proper cookware detection and even heat distribution, the cookware should be placed correctly. If small cookware is used or the cookware is placed incorrectly, the bridge function will exit automatically.

Diagram showing three scenarios of battery charge distribution: positive, negative, and negative charge states with red X marks indicating charge thresholds.

It is not recommended to turn on the flex pro mode if the long side of the cookware is less than 21cm.

Using Bridge Function:

- In standby mode, press the bridge control button to activate this function. The bridge zone indicator light will light up.

Exit the Bridge Function:

• Set the bridge heating zone level to 0, it will be exit this function automatically after 10 seconds.
• Press the bridge control button to exit bridge Function when it is activated.
• Press the power control button to turn off the appliance.

Childproof Lock Control

Long-term childproof lock:

Using the long-term childproof lock function to lock the control panel and prevent accidental use (e.g., to prevent children from accidentally turning on the heating zone). When the panel is in long-term childproof lock mode, all buttons except the power and childproof lock buttons will be disabled.

Temporary childproof lock

It can be used to clean the control panel during heating.

Enter childproof lock
In the heating mode, press the childproof lock control button to enter the temporary childproof lock state.	The timer digits will show a 30-second countdown, and other digits shows “Lo” for a period time.
Press and hold the childproof lock control button for 3 seconds to enter the long-term childproof lock state.	All digits show “Lo” for a period of time.

Exit childproof lock

In the temporary childproof lock state:press the childproof lock control button to exit the temporary childproof lock.It will automatically exit the temporary childproof lock state after a 30-second countdown.In the long-term childproof lock state:press and hold the childproof lock button for 3 seconds to exit the long-term childproof lock.

When the appliance has a heating zone in operation and is in the long-term childproof lock state, in case of an emergency, you can press the power control button at any time to turn off the appliance. In the long-term childproof lock state, after the appliance shutting down and restarting, all digits will show "Lo". You must first exit the childproof lock state before you operate the heating zone and the range hood.

Timer Function

The timer function is only effective when the heating zone or the range hood is in operation. The heating zone or range hood will turn off automatically When the timer ends. The maximum timer duration is 99 minutes, with a default value of 1 minutes.

Timer Setting

• Press the “-” or “+” button to decrease or increase the timer by 1 minutes.
• Press and hold the "-" or "+" button to decrease or increase the timer by 10 minutes at a time.

Timer Cancel

• Press and hold both the “-” and “+” buttons for 1 second to cancel the timer function.
• Setting the timer to 0 will automatically cancel the timer function after 3 seconds.

Default Working Time

Automatic shutdown is a safety protection feature for electrical appliances. If the heating zone or the range hood continues to operate, it will automatically stop working once the continuous operation time exceeds the default working time. Below is a table of default working times corresponding to different levels:

Default working time table for heating zones

Heating level	1	2	3	4	5	6	7	8	9
Default working time(h)	8	8	8	6	6	6	4	4	4
Heating level	10	11	12	13	14	15
Default working time(h)	2	2	2	1.5	1.5	1.5

Default working time table for range hood

Range hood level	1	2	3	4	5	6	7	8	9
Default working time(h)	8	8	8	6	6	6	4	4	4
Range hood level	10	11	12	13	14	15
Default working time(h)	3 3 3			2	2	2

Default Working Time Table for boost function

Range hood Heating zone flex pro heating zone
	5min5min5min

Cleaning Tips

The indicator light above the cleaning button will illuminate when the range hood and heating zone have been working simultaneously for a total of 80 hours.

If the indicator light turns on, check if the filter is dirty and clean it according to the filter cleaning instructions. After cleaning the filter, press and hold the cleaning reminder control button for 3 seconds to reset the cleaning reminder time, and the indicator light will turn off.

NOTE

Too much oil pollution can affect the effectiveness of smoking, and leaving the water in the water storage box for too long can easily produce odors. It is recommended to clean the filter and water storage box irregularly.

Pause Control

The pause function can only be activated while heating. Once activated, the working area will enter a low power mode. When pause Function is activated, it will automatically exit after 10 minutes and turn off the appliance.

Enter pause state

In the heating state, press the pause control button to enter the pause state, all digits will show || or || ||.

Exit pause state

In the pause state, press the pause control button to exit the pause state, and the appliance will return to the working state it was in before entering the pause state.

User Setting Mode

Operation Guide:

1. Enter the Long-term childproof lock in standby mode;
2. Press and hold the Boost function button for 3 seconds to enter the user settings mode. The digits in the left front heating zone will show "c".
3. Press the Boost function button to enter the menu list selection state. The digits in the left front heating zone will show the current list index number (e.g., c0), and the timer digits will show the current setting value of the index number.
4. Press the childproof lock button to switch the index number (e.g., c0->c1->c2...).
5. Press the Boost function button to switch the setting value of the index number.
6. After completing the settings, press and hold the childproof lock button for 3 seconds to save all the settings and exit the user setting mode.

User setting Table:

Index	Description Options
c0 Restore to factory settings.		0: no restore(default)1: restore
c3 Power limit setting.		28: 2.8Kw35: 3.5Kw35: 4.5Kw58: 5.8Kw74: 7.4Kw(default)
c4 Quality testing of Cookware.		0: Do not enter the cookware quality testing.(default)1: Enter the cookware quality testing. After entering, long press the heating zone selection button 3s to enter the cookware quality inspection.(after 12 seconds, the quality level(0-10) will be displayed on the digits)
c5 Notification sound settings.		0: Sound turn on(default)1: Sound turn off
c7 Digits brightness setting.		brightness level: 1-5default:3
h1	Range hood circulation system mode Setting.	0: Reversed1: Air recirculation mode 12: External circulation(default)3: Air recirculation mode 2
h2	Range hood delay closing Time Setting.	0: OFF(default)1: 1min2: 2 min5: 5 min10: 10 min20: 20 min
h3	Reset the working time of the filter screen setting.	0: No reset (default)1: Reset

Range hood delay closing instructions:

After setting the delay shutdown time for the range hood, if the range hood and the heating zone work simultaneously for more than 30 seconds, the delay shutdown function of the range hood will be triggered. If the range hood is turned off at this time, it will continue to operate at level 1 until the set delay shutdown time is reached, and then it will automatically shut down.

Range hood circulation system mode instructions:

Digits shown	Mode Description
1	Air recirculation mode 1	Internal circulation and install carbon cube filter.
2 Exhaust to the outside.Air extraction mode
3	Air recirculation mode 2	Internal circulation mode and use odour filter.

CLEANING AND MAINTENANCE

To keep your appliance working efficiently for a longtime, it is important to clean and maintain it carefully.

Cleaning the Hob

What?	How?	Important!
Everyday soiling on glass. (fingerprints, marks, stains left by food or non-sugary spillovers on the glass)	1. Switch the power to the cooktop off.2. Apply a cooktop cleaner while the glass is still warm (but not hot!)3. Rinse and wipe dry with a clean cloth or paper towel.4. Switch the power to the cooktop back on.	·When the power to the cooktop is switched off, there will be no 'hot surface' indication but the cooking zone may still be hot! Take extreme care.·Heavy-duty scourers, some nylon scourers and harsh/abrasive cleaning agents may scratch the glass. Always read the label to check if your cleaner or scourer is suitable.·Never leave cleaning residue on the cooktop: the glass may become stained.
Boilovers, melts, and hot sugary spills on the glass.	Remove these immediately with a fish slice, palette knife or razor blade scraper suitable for Induction glass cooktops, but beware of hot cooking zone surfaces:1. Switch the power to the cooktop off at the wall.2. Hold the blade or utensil at a 30° angle and scrape the soiling or spill to a cool area of the cooktop.3. Clean the soiling or spill up with a dish cloth or paper towel.4. Follow steps 2 to 4 for 'Everyday soiling on glass' above.	·Remove stains left by melts and sugary food or spillovers as soon as possible. If left to cool on the glass, they may be difficult to remove or even permanently damage the glass surface.·Cut hazard: when the safety cover is retracted, the blade in a scraper is razor-sharp. Use with extreme care and always store safely and out of reach of children.
Spillovers on the touch controls.	1. Switch the power to the cooktop off.2. Soak up the spill3. Wipe the touch control area with a clean damp sponge or cloth.4. Wipe the area completely dry with a paper towel.5. Switch the power to the cooktop back on.	·The cooktop may beep and turn itself off, and the touch controls may not function while there is liquid on them. Make sure you wipe the touch control area dry before turning the cooktop back on.

Components to Be Cleaned Or Replaced

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

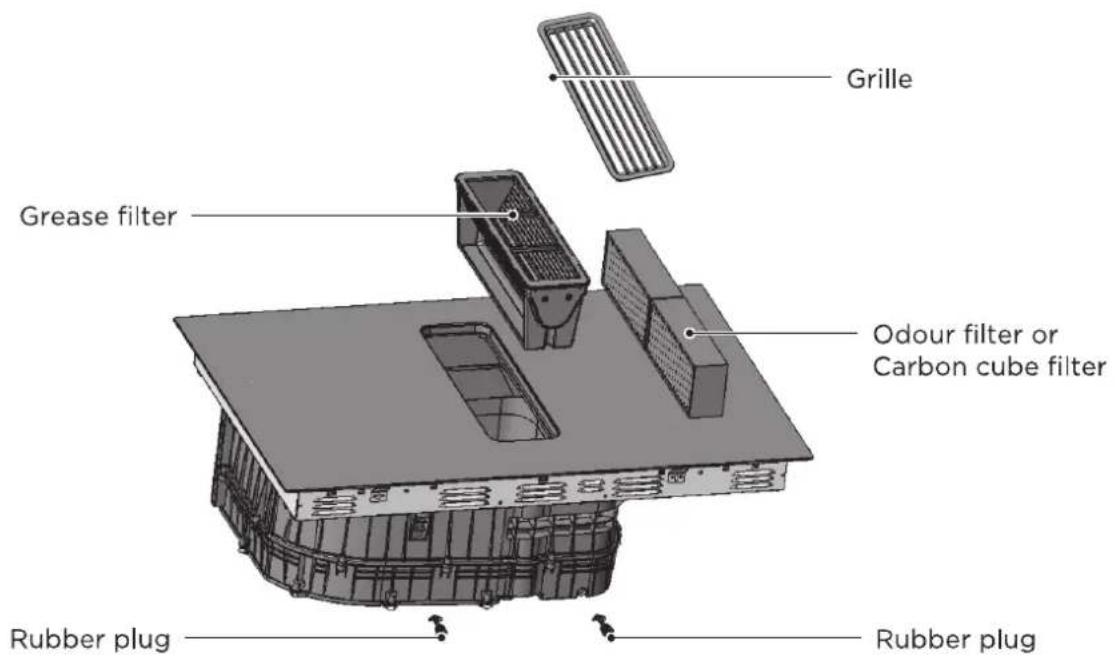

The following overview shows the components of the appliance that you either replace or clean.

Grille Grease filter Odour filter or Carbon cube filter Rubber plug Rubber plug

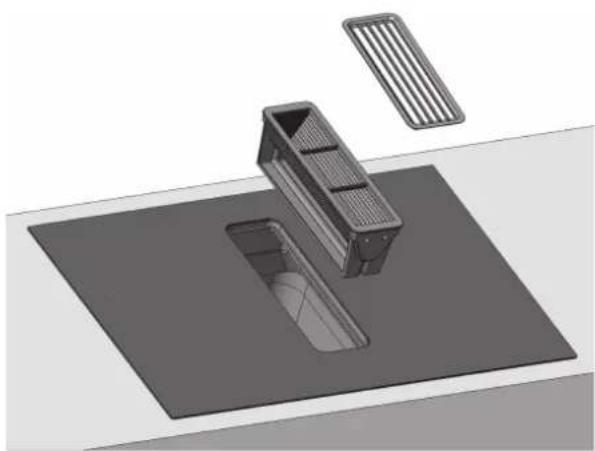

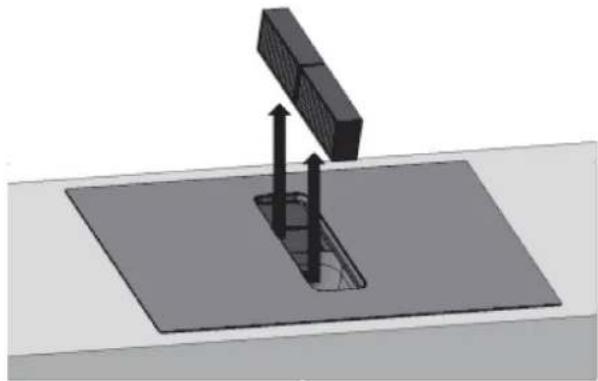

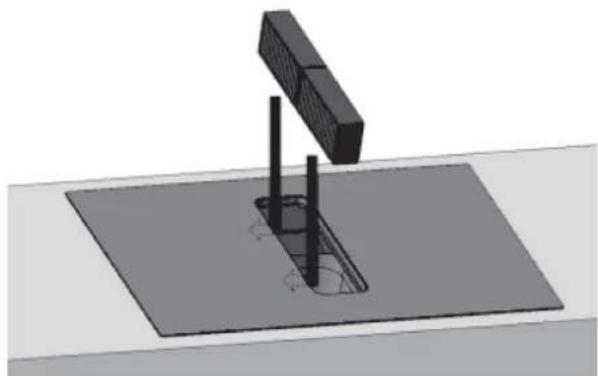

Replacing the Odour Filter

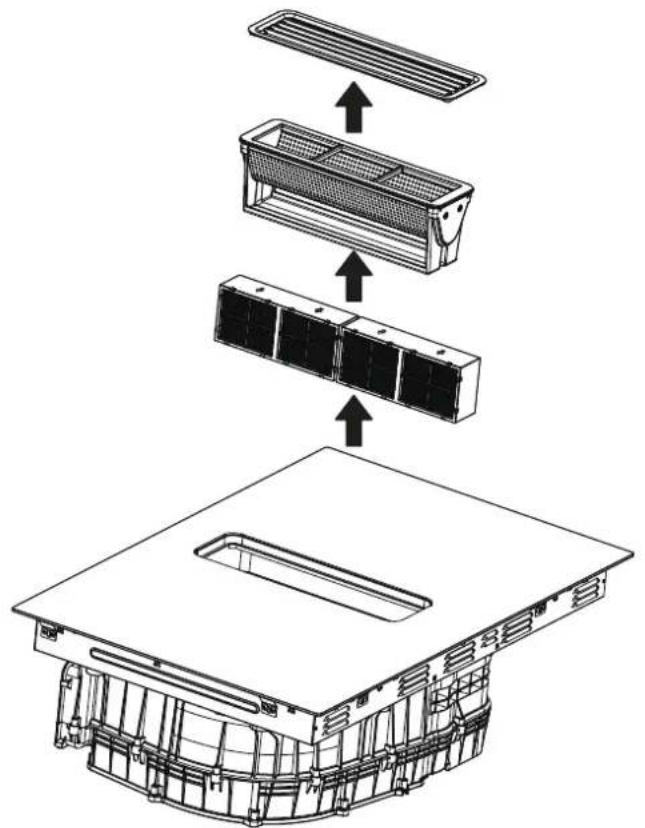

• You can obtain odour filters from specialist retailers or customer service.
• To keep them in good working order, only use genuine replacement filters.
• ATTENTION!

Falling grease filters and grille may damage the hob below.

Remove the grille and the grease filter, and dispose of them properly.

- Grease may accumulate in the bottom of the container. Hold the grease filter level to prevent grease from dripping out.

3D rendering of a mechanical component with a rectangular housing and a slatted base, placed on a flat surface (no text or symbols visible)

1. Remove the two odour filters, and dispose of them properly.

3D diagram of a mechanical assembly with a block and two upward arrows indicating motion or force direction (no text or symbols)

1. Insert two odour filters into the left of the appliance.

3D mechanical assembly diagram showing a bracket and mounting base with no visible text or symbols

1. Insert the grease filter, and Cover the grille.

3D rendering of a mechanical component with a rectangular housing and a slatted plate, no visible text or symbols

Reset odour filter reminder time

Refer the user setting mode section to reset life remainder time.

Cleaning or Replacing Carbon Cube Filter

When the cooker surface displays the "FC" code, it means that the carbon cube filter needs to be replaced. You can get the carbon cube filter from a professional retailer or customer service.

How to remove the carbon cube filter:

Remove the grille, grease filter and carbon cube filter from top to bottom.

Technical diagram showing assembly of a multi-layered device with labeled components and directional arrows indicating assembly steps.

NOTE

When removing the carbon cube filter, pull the metal ring of the filter to the right, then lift it up to remove the filter.

Technical line drawing showing a device with internal components and directional arrows, no text or symbols present.

Cleaning Carbon Cube Filter

To keep your appliance working efficiently, it is important to clean carbon cube filters about 2 months

1. Put the carbon cube filter in the dishwasher, add detergent, and use the standard mode (1.5h-3h) to clean it.
2. Soak the carbon cube filter in hot water (60-80°C) for 1-2 hours, add detergent to the hot water, and then rinse with clean water.
3. To keep the carbon cube filter in good working condition, please clean it regularly; after reaching the 5-year service life, please replace it in time.

Draining carbon cube filter

1. Put the cleaned carbon cube filter block into the oven and bake it for 3 hours (150°C).
2. Use a warm air dryer to dry it for 0.5 hours.

NOTE

1. Do not use strong alkaline or heavy oil-based cleaners (dishwashing tablets/powder from Finish, Somat or Ecover recommended) as they may damage the carbon cube filter.
2. The hot water temperature should not exceed 80^ C as this may damage the carbon cube filter.
3. The baking temperature should not exceed 200^ C as this may damage the carbon cube filter.
4. Do not use external force to scrub the carbon cube filter as this may cause damage.

Replacing carbon cube filter

Insert a new carbon cube filter, and then install the grease filter and grille in turn.

Resetting life reminder time

Refer the user setting mode section to reset life remainder time.

Cleaning the Grille and Grease Filters

The grease filters filter the grease from the cooking vapour. To keep it in good working order, you must clean the grease filter regularly.

WARNING...Risk of fire!

Fatty deposits in the grease filters may catch fire.

• Never operate the appliance without a grease filter.
• Clean the grease filters regularly.
• Never work with naked flames close to the appli-ance (e.g. flambéing).
• Do not install the appliance near a solid fuel heating appliance (e.g. wood- or coal-burning) unless the heating appliance has a sealed, non-removable cover. There must be no flying sparks.

1. ATTENTION!

Falling grease filters may damage the hob below. (It is recommended to clear the grease filter every 7 days)

Remove the grille and the grease filter, and dispose of them properly.

- Grease may accumulate in the bottom of the container. Hold the grease filter level to prevent grease from dripping out.

3D rendering of a mechanical component with a rectangular housing and a slatted panel, placed on a flat base (no text or symbols visible)

1. Clean the grille.

2. See chapter "Cleaning the grease filters or grille manually"

3. Clean the grease filters.
   • See chapter "Cleaning the grease filters or grille manually"
4. See chapter "Cleaning the grease filter in the dishwasher"
5. If required, remove the odour filters or acoustics filters and clean the appliance from the inside.
   • See chapter "Changing the odour filter"
6. If any objects get into the appliance, remove these objects and ensure that the supply to the overflowcontainer is not blocked.
7. Wipe out the inside of the appliance with soapy water and a dish cloth.
8. After cleaning, reinsert the dried metal grease filter.

Cleaning the grease filters or grille manually

1. Soak the grease filter or grille in hot soapy water.
2. Use a brush to clean the grease filter or grille.
   Do not use aggressive, acidic or alkaline cleaning products.
   Use special grease solvent for stubborn dirt.
3. Rinse the grease filters thoroughly.
4. Allow the grease filters to drain.

Cleaning the grease filter in the dishwasher

1. Place the grease filters loosely in the dishwasher and do not jam it in.
   For optimum cleaning results, lay the grease filter on the filter side in the dishwasher.
   Do not clean heavily soiled grease filters with utensils.
   Do not use aggressive, acidic or alkaline cleaning products.
2. Start the dishwasher.
   Select a temperature of no more than 70.°C.
3. Allow the grease filters to drain.

Cleaning the Cavity and Sewage

From the rubber plug, drain liquids or objects that come into the appliance from above.

Requirement: The appliance has cooled and the resid-ual heat indicator has gone out.

1. Pull out the rubber plug with one hand and Hold the bin with the other hand, drain liquids or objects from the rubber plug

2. Ensure that the supply to rubber plug is not blocked, before plugging it back into place.

3. Pull out the rubber plug with one hand and Hold the bin with the other hand, drain liquids or objects from the rubber plug

4. Ensure that the supply to rubber plug is not blocked, before plugging it back into place.

Remove any objects that have entered the appliance once it has cooled down. To do this, remove the grease filter.

TROUBLESHOOTING

The appliance may malfunction during use. The following table contains possible causes and solutions to the malfunction. In order to save time and money that you may spend on calling the service center, it is recommended to read the table below carefully.

Failure Display and Inspection

The induction hob is equipped with a self diagnostic function. With this test the technician is able to check the function of several components without disassembling or dismounting the hob from the working surface.

Troubleshooting

1) Failure code occur during customer using & Solution;

Failure code	Problem	Solution
Auto-Recovery
EL or EH	The power supply voltage is not within the rated voltage range.	Please check whether the power supply is normal.Power on and work after the power supply is normal.
C1	The cooker surface temperature is high.	Wait for the cooker surface temperature to return to normal.Touch the “On/Off” button to restart the appliance.
	High temperature of IGBT.C2	Wait for the temperature of the IGBT to return to normal.Touch the “On/Off” button to restart the appliance.Check whether the fan runs smoothly; if not, replace the fan.
	High temperature of IPM.B2	Wait for the temperature of IPM return to normal.Touch “ON/OFF” button to restart the appliance.
B3	The current of the hood driver board is abnormal.	Touch “ON/OFF” button to restart the appliance.
	The motor failed to start.B7	Check whether there is foreign matter inside the motor and restart the hood.Touch the “On/Off” button to restart the appliance.
EF	Multiple function key are pressed at the same time.	Restart after cleaning the operation panel. If the abnormality continues to occur after restarting, please contact the supplier.
	Filter replacement reminder.FC	Internal circulation mode filter replacement reminder; refer to the filter replacement guide to replace the filter.
No Auto-Recovery
E2	Ceramic plate temperature sensor failure- -short circuit.	Check the connection or replace the ceramic plate temperature sensor.
E1	Ceramic plate temperature sensor failure--open circuit.
E7	Ceramic plate temperature sensor failure--invalid.
E4	Temperature sensor of the IGBT failure - short circuit.	Replace the inverter driver board.
E3	Temperature sensor of the IGBT failure - open circuit.
B5	Failed to start the hood or motor system error.	Restart; if the fault persists, replace the hood driver board or motor.
bd	Communication failure between the display board and the hood driver board.	Replace the hood driver, power board, or display board, and check whether the connecting cable is damaged.
EU	The connection between the display board and the main board is fail or touch IC communication fail.	Replace the inverter driver board, power board, or display board, and check whether the connecting cable is damaged.
	Cooling fan failure.F5	Restart the appliance. If the failure still occurs, please contact the supplier to replace the cooling fan.

Failure	Problem	Solution A	Solution B
The LED does not come on when unit is plugged in.	No power supplied.	Check to see if plug is secured tightly in outlet and that outlet is working.
	The accessorial power board and the display board connected failure.	Check the connection.
	The accessorial power board is damaged.	Replace the accessorial power board.
	The display board is damaged.	Replace the display board.
Some buttons can't work, or the LED display is not normal.	The display board is damaged.	Replace the display board.
The Cooking Mode Indicator comes on, but heating does not start.	High temperature of the hob.	Ambient temperature may be too high. Air Intake or Air Vent may be blocked.
	There is something wrong with the fan.	Check whether the fan runs smoothly; if not , replace the fan.
	The power board is damaged.	Replace the power board.
Heating stops suddenly during operation and the display flashes "u".	Cookware Type is wrong.	Use the proper cookware (refer to the instruction manual.)	Cookware detection circuit is damaged, replace the power board.
	Cookware diameter is too small.
	Cooker has overheated;	Unit is overheated. Wait for temperature to return to normal. Push "ON/OFF" button to restart unit.
Heating zones of the same side (Such as the first and the second zone) would display "u".	The power board and the display board connected failure;	Check the connection.
	The display board of communicate part is damaged.	Replace the display board.
	The Main board is damaged.	Replace the power board.
Fan motor sounds abnormal.	The fan motor is damaged.	Replace the fan.

The above are the judgment and inspection of common failures.
Please do not disassemble the unit by yourself to avoid any dangers and damages to the induction hob.

Midea

make yourself at home

www.midea.com

© Midea 2022 all rights reserved

MIDEA	Midea Europe GmbH Ludwig-Erhard-Str.14, 65760 Eschborn. Germany	[e-mail]
	MIDEA ITALIA S.R.L. Via Luigi Bodio 29/37 -Milano (MI) 20158 Italy	[e-mail]
	Midea Electrics France 253 RUE SAINT-HONORE 75001 PARIS	[e-mail]
	MIDEA HOME APPLIANCES UK LTD Conavon Court Ground Floor, 12 Blackfriars Street, Salford,Manchester M3 5BQ UK	[e-mail]
