USER MANUAL YWMML5530RZ WHIRLPOOL

Internet Connectivity Guide for Connected Appliances Only FCC Caution....4

General Cleaning....5

INSTALLATION INSTRUCTIONS REQUIREMENTS ....5

Tools and Parts ....5

Parts Supplied....6

Location Requirements 8

Product Dimensions 8

Installation Dimensions 8

Electrical Requirements 9

PREPARE MICROWAVE OVEN HOOD 9

Prepare Microwave Oven Hood Combination....9

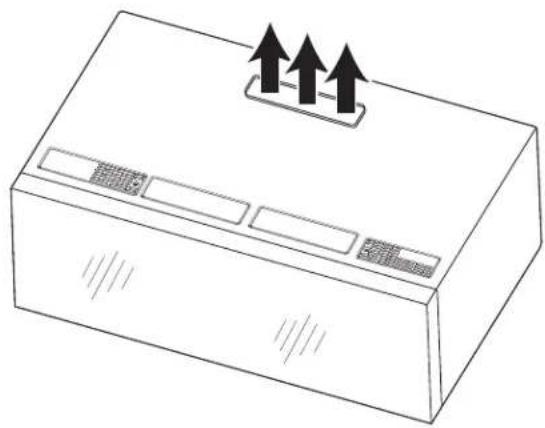

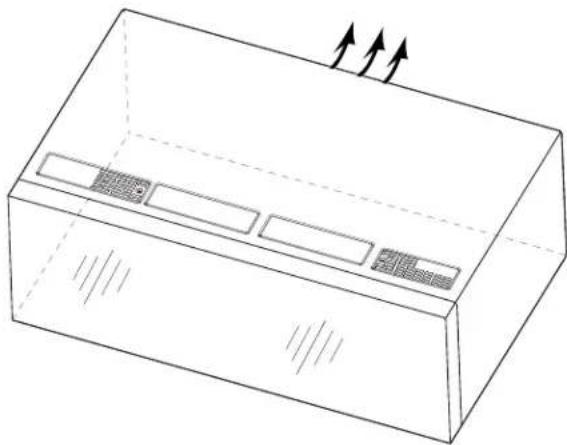

Installation Types 9

INSTALLATION INSTRUCTIONS 10

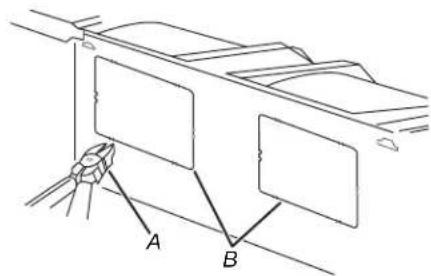

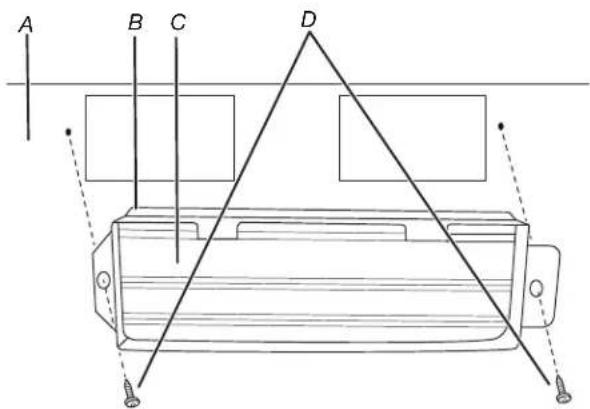

Install Damper (For Wall Venting) 10

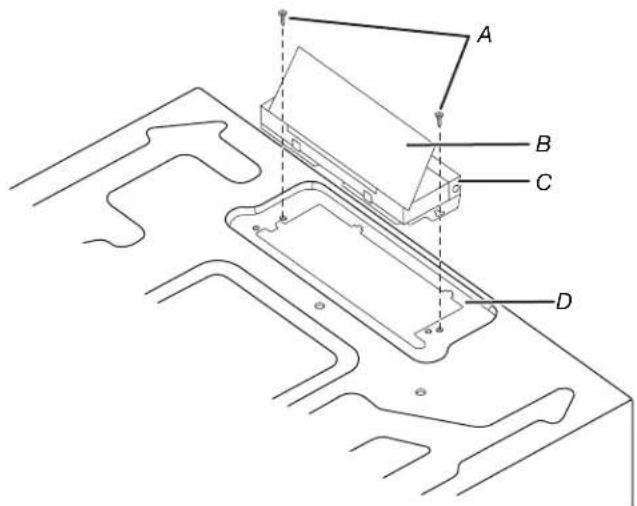

Install Damper (For Roof Venting).... 10

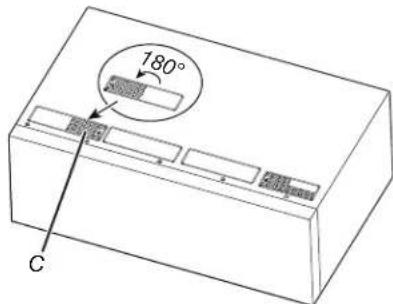

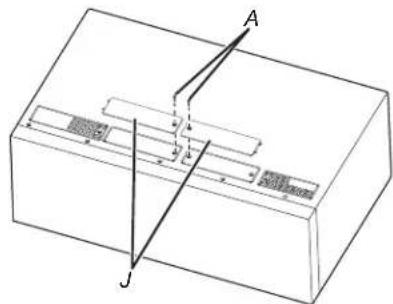

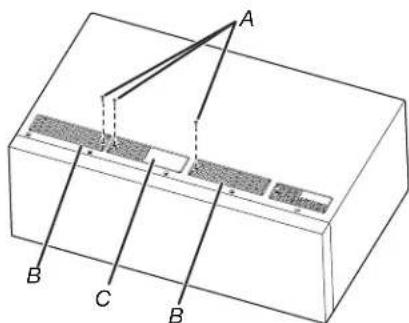

Install Vent Cover (For Wall and Roof Venting) ....

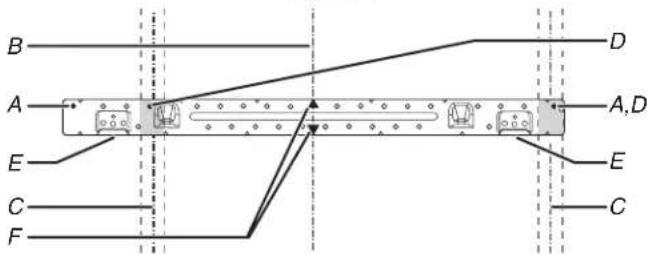

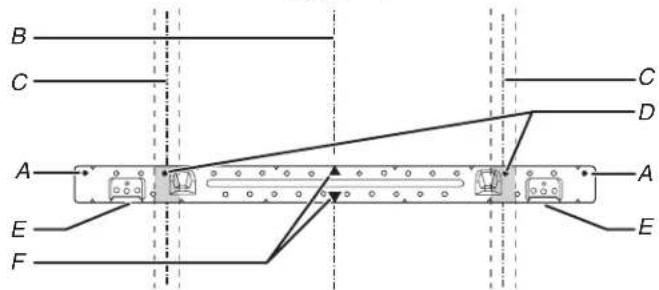

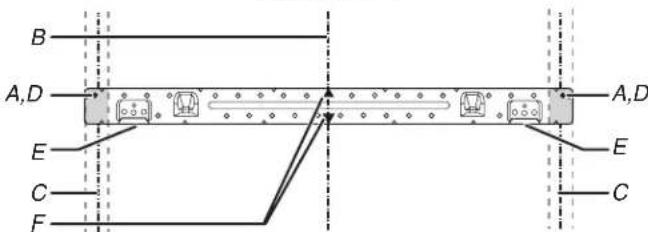

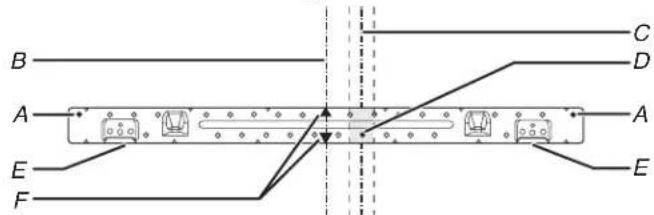

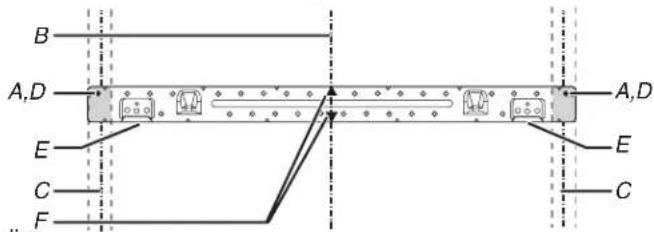

Find the Wall Stud(s) 12

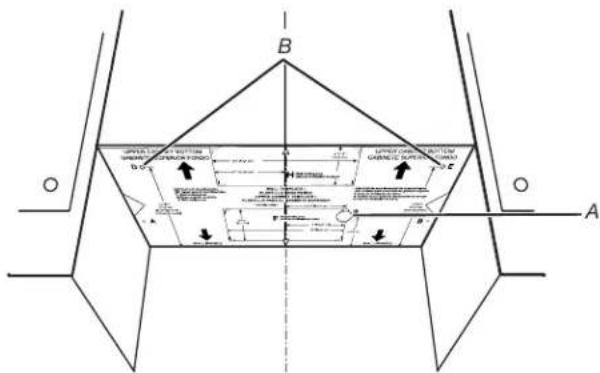

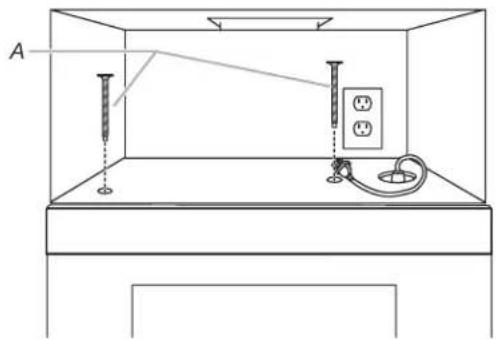

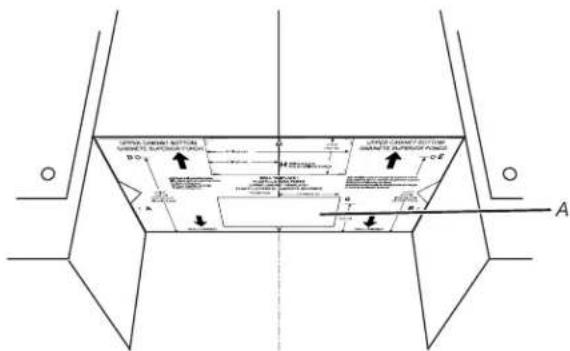

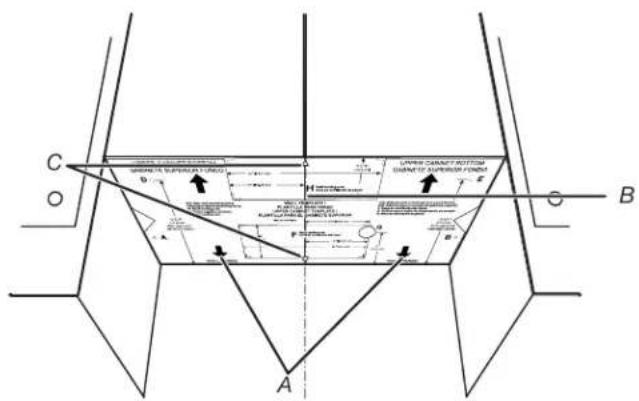

Mark Upper Cabinet 13

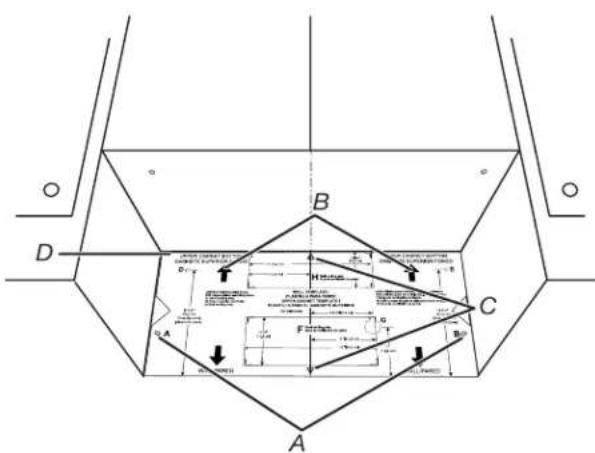

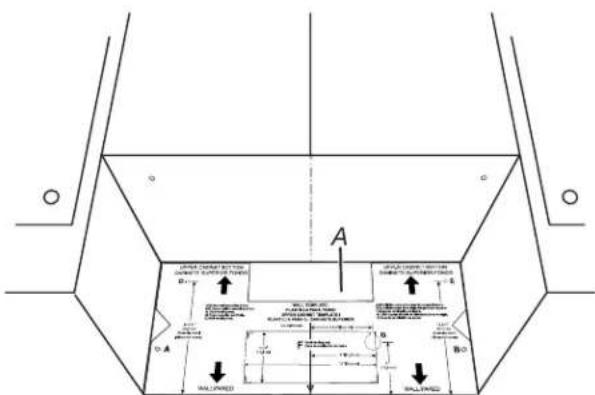

Mark Rear Wall.... 14

Drill holes in Upper Cabinet.... 14

Drill holes in Rear Wall 15

Attach Mounting Plate to Wall 15

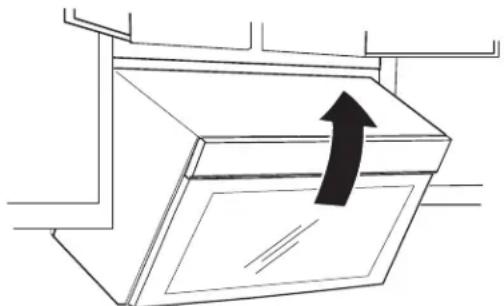

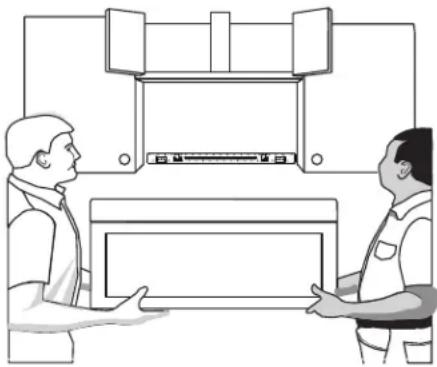

Install the Microwave Oven 16

Complete Installation 17

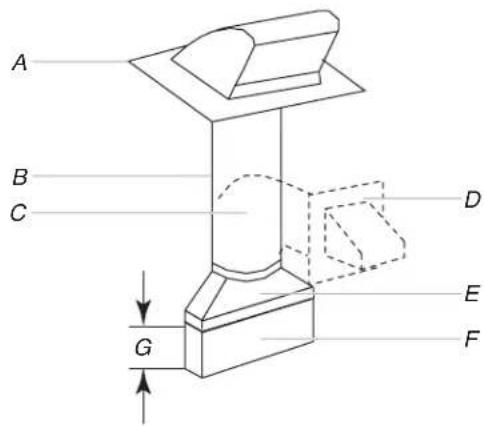

VENTING DESIGN SPECIFICATIONS.... 18

SÉCURITÉ DU FOUR À MICRO-ONDES 20

Black and white barcode image with vertical lines and a central dot

W11702686B

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy:

• Read all instructions before using the appliance.
• Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" found in this manual.
  This appliance must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS" found in this section.
  ■ Install or locate this appliance only in accordance with the provided Installation Instructions.
  ■ Some products such as whole eggs and sealed containers - for example, closed glass jars - are able to explode and should not be heated in this oven.
  ■ Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.
  ■ HOT CONTENTS CAN CAUSE SEVERE BURNS. DO NOT ALLOW CHILDREN TO USE THE MICROWAVE. Use caution when removing hot items.
  ■ Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.
  ■ This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair, or adjustment.
  ■ Do not cover or block any openings on the appliance.
• Do not store this appliance outdoors. Do not use this product near water – for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.
  ■ Do not immerse cord or plug in water.
• Keep cord away from heated surfaces.

■ Do not let cord hang over edge of table or counter.
■ Do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).
■ See door surface cleaning instructions in the “Microwave Oven Maintenance and Care” section.
■ Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.
■ Do not operate any heating or cooking appliance beneath this appliance.
■ Do not mount unit over or near any portion of a heating or cooking appliance.
■ Do not mount over a sink.
■ Do not store anything directly on top of the appliance surface when the appliance is in operation.
■ Clean Ventilating Hoods Frequently - Grease should not be allowed to accumulate on hood or filter.
■ When flaming foods under the hood, turn the fan on.
■ Suitable for use above both gas and electric cooking equipment.
■ Intended to be used above ranges with maximum width of 36" (91.44 cm).
■ Use care when cleaning the vent-hood filter. Corrosive cleaning agents, such as lye-based oven cleaners, may damage the filter.

SAVE THESE INSTRUCTIONS

When using electrical appliances basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy:

■ To reduce the risk of fire in the oven cavity:

- Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.

- Remove wire twist-ties from paper or plastic bags before placing bag in oven.

- If materials inside the oven ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.

- Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.

SAVE THESE INSTRUCTIONS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open (since) do not operate the oven if it is damaged. It is particularly open-door operation can result in harmful exposure to important that the oven door close properly and that there is microwave energy. It is important not to defeat or tamper with damage to the:

(1) Door (bent),

(b) Do not place any object between the oven front face and the Hinges and latches (broken or loosened), door or allow soil or cleaner residue to accumulate on sealing. Door seals and sealing surfaces surfaces.

(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

Internet Connectivity Guide for Connected Appliances Only

IMPORTANT: Proper installation of your appliance prior to use is your responsibility. Be sure to read and follow the installation instructions that came with your appliance.

Connectivity requires Wi-Fi and account creation. App features and functionality are subject to change. Data rates may apply. Once installed, launch the app. You will be guided through the steps to set up a user account and to connect your appliance.

You Will Need:

A home wireless router supporting Wi-Fi, 2.4 Ghz with WPA2 security. If you are unsure of your router's capabilities, refer to the router manufacturer's instructions.
■ The router to be on and have a live internet connection.
■ The 10-character SAID code for your appliance. The SAID code is either printed on a label on the appliance or found on the LCD screen.

Federal Communications Commission (FCC) Compliance Notice

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Industry Canada (IC) Compliance Notice

This Device complies with Industry Canada License-exempt RSS standard(s). Operation is subject to the following two conditions:

1. This device may not cause interference.

2. This device must accept any interference, including interference that may cause undesired operation of the device.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

To comply with FCC and Industry Canada RF radiation exposure limits for general population, antenna(s) used for this transmitter must be installed such that a minimum separation distance of 20 cm is maintained between the radiator (antenna) and all persons at all times and must not be co-located or operating in conjunction with any other antenna or transmitter.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

■ Reorient or relocate the receiving antenna.

■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

■ Increase the separation between the equipment and receiver.

■ Consult the dealer or an experienced radio/TV technician for help.

FCC Caution

■ Changes or modifications not expressly approved by Whirlpool Corporation could void the user's authority to operate the equipment.

The antenna(s) used for this transmitter must be installed such that a minimum separation distance of 20 cm is maintained between radiator (antenna) and all persons at all times and must not be co-located or operating in conjunction with any other antenna or transmitter.

Part 15B compliance statements for digital devices:

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates; uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■ Consult the dealer or an experienced radio/TV technician for help.

The user manual for the end product must include the following information in a prominent location Instruction:

"To comply with FCC RF radiation exposure limits for general population, the antenna(s) used for this transmitter must be installed such that a minimum separation distance of 20 cm is maintained between the radiator (antenna) and all persons at all times and must not be co-located or operating in conjunction with any other antenna or transmitter."

OEM Responsibilities to comply with FCC Regulations

The rebel UI Modules have been certified for integration into products only by OEM integrators under the following conditions:

1. The antenna(s) must be installed such that a minimum separation distance 20 cm is maintained between the radiator (antenna) and all persons at all times.
2. The transmitter module must not be co-located or operating in conjunction with any other antenna or transmitter.

As long as the two conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.)

IMPORTANT: In the event that these conditions cannot be met (for certain configurations or co-location with another transmitter), then the FCC authorizations are no longer considered valid and the FCC ID cannot be used on the final product. in these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization.

End Product Labelling

This module is labelled with an FCC ID. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. In that case, the final end product must be labelled in a visible area or display the following:

"Contains FCC ID: 2AC7Z-RIGEL"

The OEM of this module must only use the approved antenna(s), which have been certified with this module. The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module or change RF related parameters in the user manual of the end product.

IMPORTANT: Before cleaning, make sure all controls are off and the microwave oven is cool. Always follow label instructions on cleaning products.

Soap, water, and a soft cloth or sponge are suggested first, unless otherwise noted.

STAINLESS STEEL AND BLACK STAINLESS STEEL (on some models)

NOTE: To avoid damage to stainless steel surfaces, do not use soap-filled scouring pads, abrasive cleaners, Cooktop Cleaner, or steel-wool pads, gritty washcloths, or abrasive paper towels. Damage may occur to stainless steel surfaces, even with one-time or limited use.

Rub in direction of grain to avoid damaging.

Cleaning Method:

■ Affresh® Stainless Steel Cleaners Part Number W10355016 (not included) or affreshStainless Steel Cleaning Wipes Part Number W1055049 (not included): See the Quick Start Guide for ordering information.

■ Vinegar for hard water spots.

MICROWAVE OVEN DOOR EXTERIOR

Cleaning Method:

■ Glass cleaner and a soft cloth or sponge: Apply glass cleaner to soft cloth or sponge, not directly on panel.

■ Affresh ^® Kitchen Appliance Cleaners Part Number W10355010 (not included): See "Online Ordering Information" section from Quick Start Guide to order.

NONSTICK CAVITY COATING (on some models)

To avoid damage to the microwave oven cavity, do not use meta or sharp utensils or scrapers or any type of abrasive cleanser or scrubbers.

To avoid damage to the microwave oven cavity, do not use soap-filled scouring pads, abrasive cleaners, steel-wool pads, gritty washcloths, or some paper towels.

On stainless steel models, rub in direction of grain to avoid damaging.

The area where the microwave oven door and frame touch when closed should be kept clean.

Cleaning Method:

Average soil

■ Mild, nonabrasive soaps and detergents: Rinse with clean water and dry with soft, lint-free cloth.

Heavy soil

Mild, nonabrasive soaps and detergents: Heat 1 cup (250 mL) of water for 2 to 5 minutes in microwave oven. Steam will soften soil. Rinse with clean water and dry with soft, lint-free cloth.

Odors

■ Lemon juice or vinegar: Heat 1 cup (250 mL) of water with 1 tbs (15 mL) of either lemon juice or vinegar for 2 to 5 minutes in microwave oven.

Grease Filters

■ Mild cleanser and scouring pad ■ Dishwasher

INSTALLATION INSTRUCTIONS REQUIREMENTS

Tools and Parts

Tools Needed

■ Measuring tape
■ Pencil
■ Scissors
■ Masking tape or thumbtacks
Drill
■ No. 2 Phillips screwdriver
■ Stud finder
■ No. 3 Phillips screwdriver for 1/4 - 20 x 3" (76 mm) bolts
3/16" (5 mm), 3/8" (10 mm), 5/8" (16 mm) drill bits 3/4" (19 mm) hole saw
■ Keyhole saw
■ Diagonal wire cutting pliers
■ 7/16" (11 mm) socket wrench (or box wrench) for 1/4" x 2" (6.4 mm x 51 mm) lag screws
■ 1 1/2" (38 mm) diameter hole drill bit for wood or metal cabinet
■ Caulking gun and weatherproof caulking compound
■ Duct tape.

Materials Needed

■ Standard fittings for wall or roof venting. See the "Venting Design Specifications" section.

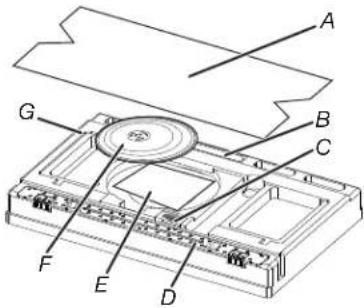

Parts Supplied

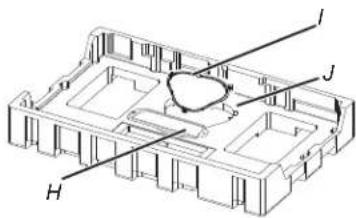

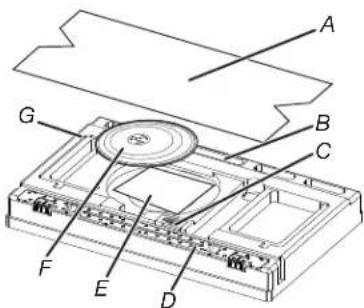

Part Drawing Description	Qty Where can find?
A. Cardboard Plate		Upper cabinet template and Wall template	1	A. Cardboard plateB. Exhaust vent coversC. Screw packD. Mounting plateE. Literature packF. Glass turntableG. Upper foam in the carton box
B. Exhaust vent cover		Exhaust vent cover for wall or roof venting	2
C. Screw Pack		3/16-24 x 3" round-head bolts	2
		1/4-20 x 3" flat-head bolts	2
		Washers 2

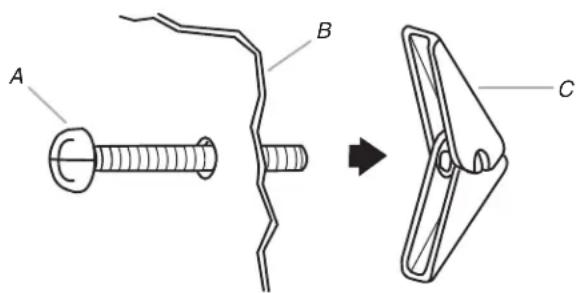

		3/16" toggle nuts 2
		1/4" x 2" lag screws	4
		#6 x 3/8" Sheet metal screws	2
		Power supply cord bushing	1

D. Mounting Pate Mounting plate 1
E. Literature Pack Literature 1			D. Mounting plateE. Literature packF. Glass turntableG. Upper foam in the carton box
F. Glass Turntable	305 Glass turntable 1
H. Damper	Damper for wall or roof venting	1
I. Turntable support ring Turntable support ring	1		H. DamperI. Turntable support ringJ. Bottom foam in the carton box

Check local codes. Check existing electrical supply. See "Electrical Requirements".

It is recommended that all electrical connections be made by a licensed, qualified electrical installer.

NOTE:

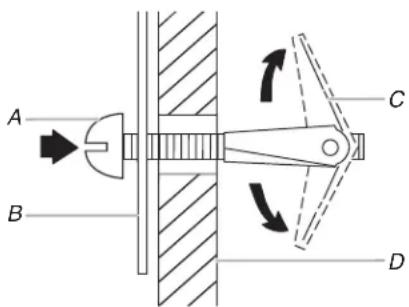

■ The hardware items listed here are for wood studs. For other types of wall structures, be sure to use appropriate fasteners.
■ Be sure to purchase only Whirlpool factory-certified parts and accessories for your appliance. Your installation may require additional parts. To order, see the "Online Ordering Information" section of the Quick Start Guide.

Location Requirements

Check the opening where the microwave oven will be installed. The location must provide:

■ Minimum installation dimensions. See the "Installation Dimensions" illustration.
■ Minimum one 2" x 4" (5.1 x 10.2 cm) wood wall stud and minimum 3/8" (1 cm) thickness drywall or plaster/lath within cabinet opening.
■ Support for weight of 150 lbs (68 kg) which includes microwave oven and items placed inside the microwave oven and upper cabinet.
■ Grounded electrical outlet inside upper cabinet. See the "Electrical Requirements" section.

NOTE:

■ Some models have a pocket handle. If installing the microwave near a right side wall, make sure there is at least 3" (7.6 cm) of clearance between wall and microwave oven so you can grab the handle integrated inside the door.

■ Some cabinet and building materials are not designed to withstand the heat produced by the microwave oven for cooking. Check with your builder or cabinet supplier to make sure that the materials used will not discolor, delaminate, or sustain other damages.

Special Requirements

For Wall Venting Installation Only:

■ Cutout must be free of any obstructions so that the vent fit properly and the damper blade opens freely and fully.

For Roof Venting Installation Only:

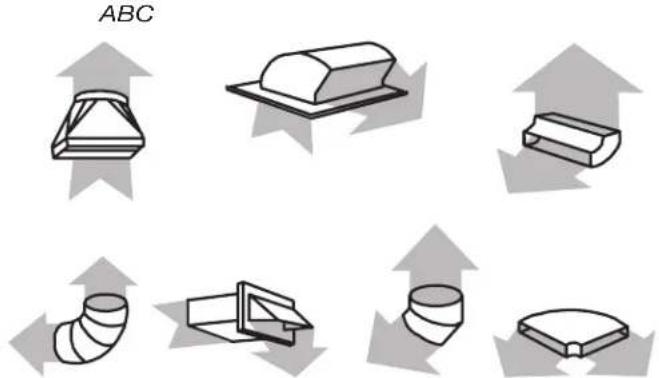

If you are using a rectangular-to-round transition piece, the 3" (7.6 cm) clearance needs to exist above the microwave oven so that the damper blade can open freely and fully. See "Rectangular to Round Transition" illustration in the "Venting Design Specifications" section.

Product Dimensions

A B C

A. 295/16" (76 cm)
B. 10 ^5 / _16 " (26.2 cm)
C. 18/16" (46.9 cm)

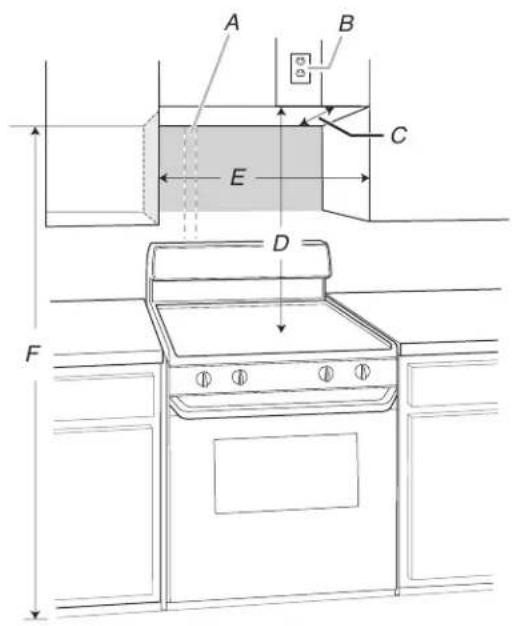

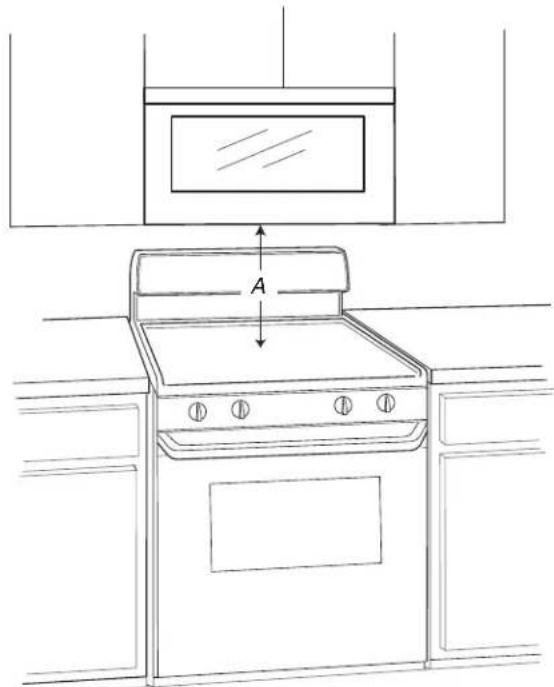

Installation Dimensions

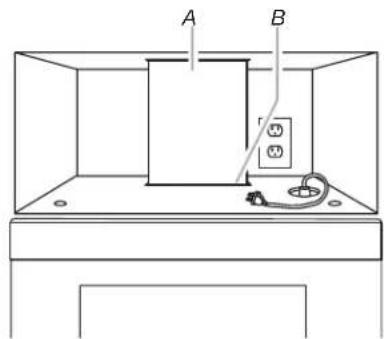

NOTE: The grounded 3 prong outlet must be inside the upper cabinet. See the "Electrical Requirements" section.

A B C E D F

A. 2" x 4" (5.1 cm x 10.2 cm) D. 24" (61 cm) minimum** wall stud E. 30" (76.2 cm) minimum

B. Grounded 3 prong outlet F. 60" (152.4 cm) minimum

C. 12" (30.5 cm) minimum, 14" (35.6 cm) maximum*

Exact dimensions may vary depending on type of range/cooktop below.

*Upper cabinet and side cabinet depth: 12" (30.5 cm) minimum, 14" (35.6 cm) maximum*

**24" (61 cm) is minimum for 60" (152.4 cm) installation height.

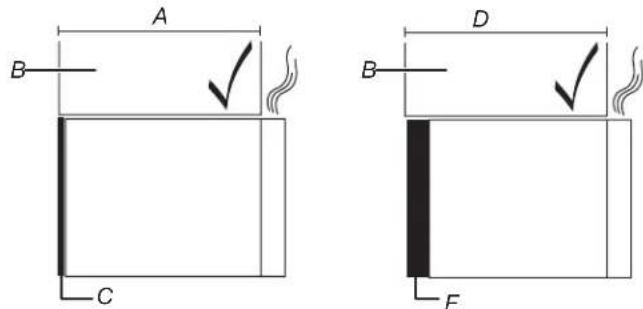

A B C D B E

A. 12" (30.5 cm) to 14" (35.6 cm) depth of cabinet
B. Cabinet
C. Mounting plate
D. 14" (35.6 cm) to 15" (38.1 cm) depth of cabinet
E. Bump out mounting kit

NOTE: To ensure good performance, do not obstruct top vent airflow. If cabinets are larger than 14" (35.6 cm) but no more than 15" (38.1 cm), use the bump out mounting kit replacing the mounting plate from the wall. The bump out mounting kit (part # W11185746) is not provided but can be purchased from Whirlpool.

To order, see the "Online Ordering Information" section of the Quick Start Guide.

For cabinets with other dimension's, we suggest selecting other Whirlpool Products.

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Observe all governing codes and ordinances.

Required:

■ A 120 V, 60 Hz, AC only, 15 or 20 A electrical supply with fuse or circuit breaker.

Recommended:

■ A time-delay fuse or time-delay circuit breaker
■ A separate circuit serving only this microwave oven

GROUNDING INSTRUCTIONS

For a grounded, cord-connected appliance:

This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the appliance: if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

SAVE THESE INSTRUCTIONS

This device complies with Industry Canada ICES-001.

PREPARE MICROWAVE OVEN HOOD

Prepare Microwave Oven Hood Combination

WARNING

Excessive Weight Hazard

Use two or more people to move and install or uninstall appliance.

Failure to do so can result in back or other injury.

1. To avoid possible damage to the work surface, cover the work surface.
2. Remove cardboard plate from the outer foam in the carton. It is for upper-cabinet and wall installation.
3. Remove exhaust vent covers from the upper foam in the carton, they are used for upper-cabinet and wall installation.
4. Remove the screw pack from the upper foam in the carton.
5. Remove the literature pack from the upper foam in the carton.
6. Remove shipping materials, tape and film from microwave.
7. Remove the mounting plate from the upper foam in the carton.
8. Remove glass turntable from the upper foam in the carton.
9. Remove the damper from the bottom foam in the carton.
10. Remove the turntable support ring from the bottom foam in the carton.
11. Tape the microwave oven door closed so that the door does not swing open while the microwave oven is being handled.

Installation Types

This microwave oven is designed for adaptation to the following three types of ventilation, choose one type before installation.

NOTE: For roof venting and wall venting, charcoal filter is not necessary, uninstall the charcoal filter before use. See the "Complete Installation" section for details.

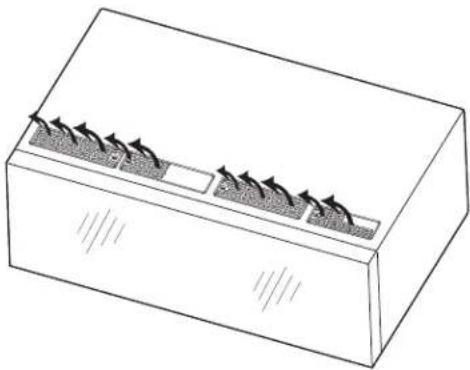

Recirculation (Factory Default Setting)

Wall Venting

Line drawing of a rectangular box with internal compartments and upward arrows indicating flow or movement (no text or symbols)

Roof Venting

Line drawing of a rectangular electronic device with three upward-pointing arrows on top (no text or symbols)

INSTALLATION INSTRUCTIONS

The Microwave oven is set for recirculation installation. For wall or roof venting, changes must be made to the venting system.

NOTE: Skip below sections if you are using recirculation installations. Go to section "Locate Wall Stud(s)". Keep the damper assembly in case the venting method is changed or the microwave oven is reinstalled in another location where wall or roof venting may be used.

Isometric line drawing of a rectangular electronic component with multiple pins inserted (no text or symbols)

Install Damper (For Wall Venting)

1. Using diagonal wire cutting pliers, gently snip out the rectangular vent cover on the damper plate.

Technical diagram showing a mechanical assembly with labeled components A and B, likely illustrating a cutting or assembly process.

A. Diagonal wire cutting pliers

B. Damper vent covers

1. Find the damper in outer foam in the carton.

2. Check that damper blade moves freely, and opens fully.

3. Position the damper assembly on the back of the microwave oven so that the damper blade hinge is at the top, and the damper blade opens away from the microwave oven.

4. Secure damper assembly with two #6 x 3/8" Sheet metal screws, see above illustration.

A B C D

A. Back of microwave oven

B. Damper assembly

C. Damper blade

D. #6 x 3/8" Sheet metal screws (in the screw pack)

Install Damper (For Roof Venting)

1. Remove screws attaching damper plate to top of microwave oven exterior. Slide damper plate toward the front of the microwave oven and lift up.

Technical diagram showing a mechanical assembly with labeled components A and B, including an upward arrow indicating motion or force direction.

A. Screws

B. Damper plate

1. Find the damper in outer foam in the carton.

2. Check that damper blade moves freely, and opens fully.

3. Position the damper assembly on the back of the microwave oven so that the damper blade hinge is at the top, and the damper blade opens away from the microwave oven.

4. Secure damper assembly with two #6 x 3/8" Sheet metal screws, see above illustration.

Technical diagram of a mechanical assembly with labeled components A, B, C, and D

A. #6 x 3/8" Sheet metal screws (in the screw pack)
B. Damper blade
C. Damper assembly
D. Top of the microwave oven

NOTE: To ensure good performance of airflow, for Wall and Roof venting, remove the charcoal(s) filter from the bottom plate before operating the microwave oven.

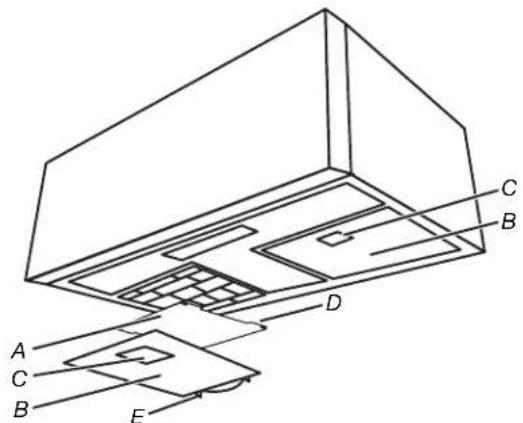

To uninstall the charcoal filter:

a. Disconnect power.
b. Remove the grease filter by pushing finger grips back and then pull down charcoal filters) from the bottom plate and keep for future use.
c. Put the grease filter back into the bottom plate and the spring toward the back. Push the finger grips back, until the two tongues are in position.

Technical diagram of a device with labeled components A, B, C, D, E, and internal structure

A. Charcoal filter(s)
B. Grease filter(s)
C. Finger grip(s)
D. Charcoal filter hooks
E. Grease filter spring

Install Vent Cover(For Wall and Roof Venting)

1. Remove screws attaching B and C cover. Slide them out. Keep C for step 2 use.

Technical diagram of a rectangular device with labeled points A, B, and C indicating positions or sections.

A. Screws
B. Recirculation vent covers
C. Recirculation lighting cover

NOTE: Keep B for future recirculation vent installation.

1. Rotate C 180 degrees, place it as shown below.

180° C

C. Recirculation lighting covers

1. Take J from packaging upper foam (see item J in "Parts Supplied" section), attach both of them as shown below with screw removed from step 1.

Technical diagram of a mechanical component with labeled parts A and J, showing internal structure and alignment lines.

A. Screws
J. Exhaust vent covers

Find the Wall Stud(s)

NOTE: If no wall studs exist within the cabinet opening, do not install the microwave oven.

See illustrations in "Possible Wall Stud Configurations."

1. Using a stud finder, locate the edges of the wall stud(s) within the opening.
2. Mark the center of each stud, and draw a plumb line down each stud center. See illustrations in "Possible Wall Stud Configurations."

Possible Wall Stud Configurations

These depictions show examples of preferred installation configurations with the mounting plate.

No Wall Studs at End Holes
Figure 1

B C A E F C D A E

A. End holes (on mounting plate)
B. Cabinet opening vertical centerline
C. Wall stud centerlines

D. Holes for lag screws

E. Support tabs

F. Mounting plate center markers

No Wall Studs at End Holes
Figure 3

B A E C F D A,D E C

A. End holes (on mounting plate)
B. Cabinet opening vertical centerline
C. Wall stud centerlines

D. Holes for lag screws

E. Support tabs

F. Mounting plate center markers

Wall Stud at End Holes
Figure 2

B A E F C D A E

NOTE: If wall stud is within 6" (15.2 cm) of the vertical centerline (see the "Mark Rear Wall" section), only recirculation or roof venting installation can be done.

Wall Stud at End Holes
Figure 4

B A,D E C F A,D E C

A. End holes (on mounting plate)
B. Cabinet opening vertical centerline
C. Wall stud centerlines

D. Holes for lag screws

E. Support tabs

F. Mounting plate center markers

A. End holes (on mounting plate)
B. Cabinet opening vertical centerline
C. Wall stud centerlines

D. Holes for lag screws

E. Support tabs

F. Mounting plate center markers

Mark Upper Cabinet

1. Using a tape, measure clearly and mark the vertical centerline of the opening. Make sure it aligns with the vertical wall centerline. Use a pencil to draw the centerlines on the upper cabinet and wall.

A B

A. Upper cabinet centerline
B. Wall centerline

NOTE: The cardboard plate is fit for depth of 12" to 14" (30.5 to 35.6 cm) cabinet installation, if cabinets are larger than 14" (35.6 cm), and up to 15" (38.1 cm), using the bump out mounting kit, replacing the mounting plate supplied with the product. The bump out mounting kit (part#- W11185746) is not provided.

To order, see the "Online Ordering Information" section of the Quick Start Guide.

UPPER QANT BOTTOM TOPS OF SUPERIOR FLOOR A B C O D H E F B A

A. Arrows to wall
B. Upper cabinet centerline
C. Center marks on cardboard plate

1. Placing the cardboard plate against the bottom of the upper cabinet. Make sure the cardboard plate centerline aligns with the centerline on the upper cabinet which drew in step 1. And the Arrows to wall(A) must be against the rear wall so that the holes cut into the upper cabinet align with the holes in the top of the microwave oven.

2. Use a pencil to mark power supply hole(G) and 2 mounting holes(D) and (E) as shown in following figure. Make sure the 10^3/4" (27.4 cm) dimension from the rear wall to "D" and "E" on the mounting plate is maintained. And"1(3.8 cm) diameter for "G" hole.

A. Power cord hole
B. Mounting nut holes

1. Use a pencil to mark the upper cabinet vent hole. This step can be skipped if your unit is using recirculation or wall venting installation.

UPPA CABBAGE SWITCH SPRING TURBERRY PEAS DO A T O E UPPA CABBAGE SWITCH SPRING TURBERRY PEAS DO T O E A

A. Upper cabinet vent hole

Mark Rear Wall

The microwave oven must be installed on a minimum of 1 wall stud, preferably 2, using a minimum of 1 lag screw, preferably 2. See "Find the Wall Stud(s)" section for find the wall studs.

Align the center markers on the cardboard plate, to the centerline on the wall, making sure it is level, and that the top of the cardboard template is butted up against the back edge of the upper cabinet. (see following NOTE before making marks).

1. Use a pencil to draw two small circles A and B holes.

D B H C A F T B D H F T D

A. A and B holes
B. Arrows to upper cabinet
C. Center marks on cardboard plate
D. Back edge of upper cabinet

1. Use a pencil to mark the wall venting hole (wall venting installation only), skip it if your unit is for recirculation or upper cabinet venting installation.

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

A. Wall venting hole

NOTE: If the front edge of the upper cabinet is lower than the back edge, lower the cardboard template so that its top is level with the front edge of the cabinet.

A C D B

A. Rear wall
B. Cardboard plate
C. Top of cardboard plate must align with front edge of cabinet
D. Front edge of upper cabinet

Drill holes in Upper Cabinet

1. Using a drill and the 3/4" (1.9 cm) hole saw, cut out the power cord hole (A).
2. Drill two mounting nut holes (B), which are 3/8" (10 mm) holes at points "D" and "E" on the cardboard template. These are for two 1/4-20 x 3" bolts and washers used to secure the microwave oven to the upper cabinet.

B A

A. Power Cord Hole
B. Mounting Nut Holes

NOTE: If upper cabinet is metal, the supply cord bushing needs to be installed around the supply cord hole as shown.

A B

A. Metal cabinet
B. Power supply cord bushing

1. Using a keyhole saw, cut out the rectangular roof venting cutout area. Skip this step if for recirculation venting or wall venting installation.

Pure geometric diagram of a symmetrical 3D shape with no text, numbers, or symbols

A. Roof Venting Cutout Area

Drill holes in Rear Wall

1. Drill holes at A, B, H, & J, if the Wall studs are not located A B hole, do not drill A & B hole, and follow the below instruction. In addition to being installed on at least 1 wall stud, the mounting plate must attach to the wall at both end holes. If the end holes are not over wall studs, use two 3/16-24 x 3" round head bolts with toggle nuts; if 1 end hole is over a wall stud, use 1 lag screw and one 3/16-24 x 3" round-head bolt with toggle nut; or if both end holes are over wall studs, use 2 lag screws. Following are 3 installation configurations. Installation for No Wall Studs at End Holes

(Figures 1 and 2 in Find the Wall Stud(s) section)

1. Drill 5/8" (1.6 cm) holes through the wall at both end holes marked in Step 3 of the "Mark Rear Wall."
2. Drill 3/16" (5 mm) hole(s) into the wall stud(s) at the hole (s) marked in step 6 of the "Mark Rear Wall." Refer to figures 1 and 2 in "Possible Wall Stud Configurations" in the "Locate Wall Studs(s)" section.

Installation for Wall Stud at One End Hole (Figure 3 in Find the Wall Stud(s) section)

1. Drill a 3/16" (5 mm) hole into the wall stud at the end hole marked in Step 3 of the "Mark Rear Wall."
2. If installing on a second wall stud, drill a 3/16" (5 mm) hole into the wall stud at the other hole marked in Step 6 of the "Mark Rear Wall." Refer to Figure 3 in "Possible Wall Stud Configurations" in the "Locate all Stud(s)" section.
3. Drill a 5/8" (1.6 cm) hole through the wall at the other end.

Installation for Wall Studs at Both End Holes (Figure 4 in Find the Wall Stud(s) section)

1. Drill 3/16" (5 mm) holes into the studs at the end holes marked in Step 3 of the "Mark Rear Wall."

2. Using a keyhole saw, cut out the rectangular wall venting cutout area. Skip this step if for recirculation venting or roof venting installation.

Pure technical line drawing of a mechanical or structural component with no text, numbers, or symbols

A. Wall Venting Cutout Area

Attach Mounting Plate to Wall

1. Position mounting plate on the wall.
2. Secure the mounting plate to the wall at both end holes drilled into the wall studs and/or drywall using either 3/16-24 x 3" round-head bolts and toggle nuts or 1/4 x 2" lag screws. Refer to illustrations in "Possible Wall Stud Configurations" in the "Locate Wall Stud(s)" section, and the following sections "No Wall Studs at End Holes (Figures 1 and 2 in Find the Wall Stud(s) section)" or "Wall Stud at One End Hole (Figure 3 in Find the wall Stud(s) section)".
3. Insert lag screws into both end holes.
4. Check alignment of mounting plate, making sure it is level.
5. Secure the two end hole screws.

Installation for No Wall Studs at End Holes (Figures 1 and 2 in Find the Wall Stud(s) section)

NOTE: The mounting plate must be secured to the wall on at least 1 wall stud as well as at both ends.

With the support tabs of the mounting plate facing forward, insert 3/16-24 x 3" round-head bolts through both end holes of mounting plate.

Start toggle nuts on bolts from the back of the mounting plate. Leave enough space for the toggle nuts to go through the wall and to open.

A B C

A. 3/16-24 x 3" round-head bolt
B. Mounting plate
C. Spring toggle nut

Position mounting plate on the wall.

Push the 2 bolts with toggle nuts through the drywall, and finger tighten the bolts to make sure toggle nuts have opened against drywall.

A B C D

A. 3/16-24 x 3" round-head bolt

B. Mounting plate
C. Spring toggle nut
D. Drywall

1. Insert lag screw(s) into the hole(s) drilled into wall stud(s) in Step 2 of "Installation for No Wall Studs at End Holes" in the "Drill Holes in Rear Wall" section.
2. Check alignment of mounting plate, making sure it is level.
3. Securely tighten all lag screws and bolts.

Wall Stud at One End Hole (Figure 3 in Find Wall Stud(s) section)

1. With the support tabs of the mounting plate facing forward, insert a 3/16-24 x 3" round-head bolt through the end hole that fits over the 5/8" (16 mm) hole drilled in step 3 of "Installation for Wall Stud at One End Hole" in the "Drill Holes in Rear Wall" section.
2. Start a toggle nut on the bolt from the back of the mounting plate. Leave enough space for the toggle nut to go through the wall and to open.
3. Position mounting plate on the wall.
4. Push the bolt with toggle nut through the drywall, and finger tighten the bolt to make sure toggle nut has opened against drywall.
5. Insert a lag screw into the remaining end hole.
6. If installing on a second wall stud, insert a lag screw into the other hole drilled in Step 2 of "Installation for Wall Stud at One End Hole" in the "Drill Holes in Rear Wall" section. Check alignment of mounting plate, making sure it is level.
7. Securely tighten the lag screw(s) and bolt.

Wall Studs at Both End Holes (Figure 4)

1. Position mounting plate on the wall.
2. Insert lag screws into both end holes.
3. Check alignment of mounting plate, making sure it is level.
4. Securely tighten the lag screws.

Install the Microwave Oven

WARNING

Excessive Weight Hazard

Use two or more people to move and install or uninstall appliance.

Failure to do so can result in back or other injury.

IMPORTANT: The control side of the microwave oven is the heavy side. Handle the microwave oven gently. 8.

1. Place a washer on each 1/4-20 x 3" flat-head bolt and place inside upper cabinet near the 3/8" (10 mm) holes.
2. Make sure the microwave oven door is closed and taped shut.

Illustration of two workers exchanging a device under a pressure vessel (no text or symbols visible)

Using 2 or more people, lift microwave oven and hang it on support tabs at the bottom of mounting plate.

NOTE: To avoid damage to the microwave oven, do not grip or use the door or while the microwave oven is being handled.

Technical diagram of a device with labeled components A and B, showing internal structure and mounting points.

A. Mounting plate
B. Support tabs

1. With front of microwave oven still tilted, thread power supply e cord through the power supply cord hole in the bottom of the One upper cabinet.

Diagram of a ceiling-mounted air vent with an upward arrow indicating airflow direction (no text or symbols)

1. Rotate microwave oven up toward upper cabinet.
   NOTE: If venting through the wall, make sure the damper assembly fits easily into the vent in the wall cutout.
2. Push microwave oven against mounting plate and hold in all NOTE: If microwave oven does not need to be adjusted, skip steps 6 through 8.
3. If adjustment is required, rotate microwave oven downward. Using 2 or more people, lift microwave oven off of mounting ayy plate, and set aside on a covered surface.
4. Loosen mounting plate screws. Adjust mounting plate and retighten screws.
5. Repeat steps 3 through 6.
6. With the microwave oven centered, and with at least one person holding it in place, insert bolts through upper cabinet into microwave oven. Tighten bolts until there is no gap between upper cabinet and microwave oven.

NOTES:

■ Some upper cabinets may require bolts longer or shorter than 3" (7.6 cm). Longer or shorter bolts are available at most hardware stores.
■ Overtightening bolts may warp the top of the microwave oven. To avoid warping, wood filter blocks (installer to provide) may be added. The blocks must be the same thickness as the space between the upper cabinet bottom and the microwave oven.

A

A. Bolts

■ Avoid damage to the mounting nut, screw the bolts into the mounting nut holes around 15–20 mm by hand first, make sure the bolts thread in properly. Then tighten with tools.

A 15-20 mm B

A. Bolt
B. Mounting Nut

1. Connect vent to damper assembly.

A B

A. Vent
B. Damper assembly (under vent)

Complete Installation

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Plug microwave oven into grounded 3 prong outlet.
2. Reconnect power.
3. Check the operation of microwave oven by placing 1 cup (250 mL) of water on the cavity and programming a cook time of 1 minute at 100% power. Test vent fan and exhaust by operating the vent fan.

4. If the microwave oven does not operate:
   ■ Check that a household fuse has not blown, or that a circuit breaker has not tripped. Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician.
   ■ Check that the power supply cord is plugged into a grounded 3 prong outlet.

5. See the quick start guide for more informations.

The installation is now complete.

Save Installation Instructions for future use.

Line drawing of a kitchen oven with a mounted door and top panel, showing height measurement A (no text or symbols)

A. 13.7" (34.8 cm) is the height from the highest point of the stove to the bottom of the microwave oven

VENTING DESIGN SPECIFICATIONS

This section is intended for architectural designer and builder/contractor reference only.

NOTES:

■ Vent materials needed for installation are not provided with microwave hood combination.
■ We do not recommend using a flexible metal vent.
■ To avoid possible product damage, be sure to vent air outside, unless using recirculation installation. Do not vent exhaust air into concealed spaces, such as spaces within walls or ceilings, attics, crawl spaces or garages.

For optimal venting installation, we recommend:

■ Using roof or wall caps that have backdraft dampers.
■ Using a rigid metal vent.
■ Using the most direct route by minimizing the length of the vent and number of elbows to provide efficient performance.
■ Using uniformly sized vents.
■ Using duct tape to seal all joints in the vent system.
■ Using caulking compound to seal exterior wall or roof opening around cap.
■ Not installing 2 elbows together, for optimal hood performance.

If venting through the wall, be sure that there is proper clearance within the wall for the damper to open fully.

A B C D E F G

A. Roof cap
B. 6" (152 mm) minimum diameter round vent
C. Elbow (for wall venting only)
D. Wall cap
E. 3/4" x 10" to 6" (8.3 x 25.4 cm to 15.2 cm) a rectangular-to-round transition piece
F. Vent extension piece, at least 3" (7.6 cm) high
G. 3" (7.6 cm)

Recommended Standard Fittings

If venting through the roof, and rectangular-to-round transition is used, be sure there are at least 3" (7.6 cm) of clearance between the top of the microwave oven and the transition piece. See The following length equivalents are for use when figuring vent length. See the examples in "Recommended Vent Length." "Rectangular-to-Round Transition" illustration.

Pure mechanical diagram showing a lever and pulley system without any text, numbers, or symbols

A

Simple line drawing of a 3D object resembling a folded paper or stand (no text or symbols)

B

Simple line drawing of a mechanical device with a cylindrical component and directional arrows (no text or symbols)

C

D

A. Roof venting

B. Roof cap

C. Wall venting

D. Wall cap

Rectangular-to-Round Transition

NOTE: The minimum 3" (7.6 cm) clearance must exist between the top of the microwave oven and the rectangular-to-round transition piece so that the damper can open freely and fully.

The following length equivalents are for use when figuring vent length. See the examples in "Recommended Vent Length."

DEFG

A. Rectangular-to-round transition piece: 1/3'' × 10'' to 6'' = 5 ft (8.3 x 25.4 cm to 15.2 cm = 1.5 m)
B. Roof cap: 34^ x 10" = 24 ft (8.3 x 25.4 cm = 7.3 m)
C. 90° elbow: _4 " x 10" = 25 ft (8.3 x 25.4 cm = 7.6 m)
D. 90^ elbow: 6'' = 10 ft (15.2 cm = 3 m)
E. Wall cap: 34 " x 10" = 40 ft (8.3 x 25.4 cm = 12.2 m)
F. 45^ elbow: 6'' = 5 ft (15.2 cm = 1.5 m)
G. 90^ flat elbow:1/3" x 10" = 10 ft (8.3 x 25.4 cm = 3 m)

Recommended Vent Length

A 3 ^1/4 " x 10" (8.3 x 25.4 cm) rectangular or 6" (15.2 cm) round vent should be used.

The total length of the vent system including straight vent, elbow(s), transitions and wall or roof caps must not exceed the equivalent of 140 ft (42.7 m) for either type of vent. See the "Recommended Standard Fittings" section for equivalent lengths.

For best performance, use no more than three 90° elbows.

To calculate the length of the system you need, add the equivalent lengths of each vent piece used in the system. See the following examples:

3 ^1/4 x 10" (8.3 x 25.4 cm) vent system = 73 ft (22.2 m)6 ^t (152 mm) vent system = 73 ft (22.2 m) total

A D B E C

A. One _4 " x 10" (8.3 x 25.4 cm) 90° elbow= 25 ft (7.6 m)
B. 1 wall cap = 40 ft (12.2 m)
C. 2 ft (0.6 m) + 6 ft (1.8 m) straight = 8 ft (2.4 m)
D. 6 ft (1.8 m)
E. 2 ft (0.6 m)

A E B F C D

A. Two 90^ elbows = 20 ft (6.1 m)
B. 1 wall cap = 40 ft (12.2 m)
C. 1 rectangular-to-round transition piece = 5 ft (1.5 m)
D. 2 ft (0.6 m) + 6 ft (1.8 m) straight = 8 ft (2.4 m)
E. 6 ft (1.8 m)
F. 2 ft (0.6 m)

If the existing vent is round, a rectangular to round transition piece must be used. In addition, a rectangular 3" (7.6 cm) extension vent between the damper assembly and rectangular to round transition piece must be installed to keep the damper from sticking.

SÉCURITÉ DU FOUR À MICRO-ONDES

Diagram of a rectangular container with internal structures and directional arrows, no text or symbols present

Line drawing of a rectangular box with internal compartments and upward arrows indicating flow or movement (no text or symbols)

Line drawing of a rectangular electronic device with three upward-pointing arrows on top (no text or symbols)

INSTRUCTIONS D'INSTALLATION

Isometric line drawing of a rectangular electronic component with multiple pins inserted (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components A and B, likely illustrating a cutting or fastening process.

A. Pince coupante
B. Couvercles de clapet antiretour

Technical diagram showing a mechanical assembly with labeled components A and B, including directional arrows and section views.

A. Vis
B. Plaque de support du clapet

Technical diagram of a device with labeled components A, B, C, D, E and internal structure

Technical diagram of a rectangular device with labeled points A, B, and C indicating components or sections.

Technical line drawing of a mechanical component with labeled points A and J (no text or symbols beyond labels)

B C A E F C D A E

E. Pattes de support

C. Axe vertical de montant de cloison

B A E C F D A,D E C

E. Pattes de support

C. Axe vertical de montant de cloison

B A E F C D A E

Illustration 4

B A,D E C F A,D E C

E. Pattes de support

C. Axe vertical de montant de cloison

E. Pattes de support

C. Axe vertical de montant de cloison

Geometric diagram showing a trapezoid ABCD with horizontal and vertical lines, likely illustrating a perspective or construction.

Pure geometric diagram of a symmetrical 3D structure with no text, numbers, or symbols

Pure electrical circuit lines without any symbols

Illustration of two workers exchanging a large air conditioner unit (no text or symbols visible)

Technical diagram of a mechanical assembly with labeled components A and B

B. Pattes de support

Simple line drawing of a ceiling-mounted cabinet with an upward arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical device with a lever and base, no text or symbols present

A

Simple line drawing of a desk with a book on top (no text or symbols)

B

Simple line drawing of a mechanical device with a cylindrical component and an arrow indicating motion (no text or symbols)

C

D

A B C D E F G

Diagram showing six 3D mechanical parts with directional arrows indicating movement or assembly (no text or symbols present)

DEFG
