USER MANUAL PVC310 CANDY

. Safety instructions 19
. Electrical connection 20-22
. Built-in 23-24

USER INSTRUCTIONS

. Recommendations 25
. Technical information 26
. The surface units 27
. Hob cookware tips 28
. How to operate the glass ceramic hob 29
. Cleaning and maintenance 30
Problem solving 31

GUARANTEE 32

Installing a domestic appliance can be a complicated operation which if not carried out correctly, can seriously affect consumer safety.

It is for this reason that the task should undertaken by a professionally qualified person who will carry it out in accordance with the technical regulations in force.

In the event that this advice is ignored and the installation is carried out by an unqualified person, CANDY declines all responsibility for any technical failure of the product whether or not it results in damage to goods or injury to individuals.

INSTALLATION - ELECTRICAL CONNECTION

"The installation must conform to the standard directives."

CANDY declines all responsibility for any damage that may be caused by unsuitable or unreasonable use.

Warning :

• Always check before any electrical operation, the supply tension shown on the electricity meter, the adjustment of the circuit-breaker, the continuity of the connection to earth to the installation and that the fuse is suitable.
• The electrical connection to the installation should be made via a socket with a plug with earth, or via an omnipole cut-out switch with an opening gap of at least 3mm .
• The yellow/green wire of the power supply cable must be connected to the earth of both power supply and appliance terminals.
• Candy cannot be held responsible for any accidents resulting from the use of an appliance which is not connected to earth, or with a faulty earth connection continuity.
• Any queries regarding the power supply cord should be referred to After Sales Service or a qualified technician.

A power cord is not supplied with the appliance, but the hob is equipped with a terminal block which enables you to choose the correct connection for the particular power supply.

The terminal block permits different connections :

. Monophase 220-240V2~
. Monophase 380-415V1N~
.2 phases + Neutral 380-415 V2N~
. Three phase 220-240 V3~
3 phases + Neutral 380-415 V3N~

INSTALLATION - ELECTRICAL CONNECTION

CONNECTION TO THE TERMINALS ON THE TERMINAL BLOCK :

To proceed with the connection, you must adhere to the following instructions.

. Before making the connection, make sure that the installation is protected by a suitable fuse, see table on next page, and that it is fitted with wires of a large enough section to supply the appliance normally.
. Choose the supply cord in accordance with the recommendations in the table page 22.
. Turn the hob, with the glass side against the worktop, providing you have protected the glass!
. Remove the cover located under the control knobs, fitted by 2 screws at the front.

Pass the supply cord into the cover hole.
Pass the supply cord into the clamp.
. Strip the end of each conductor of the supply cord on a 10mm length, by taking account of the requested length of the cord for the connection on the terminal block.

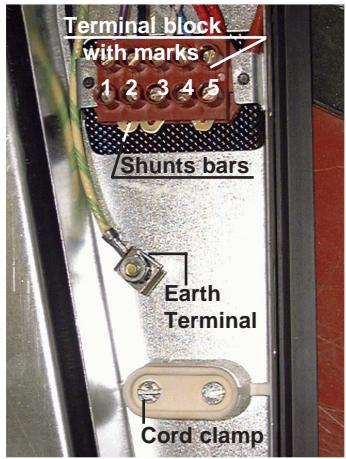

. The terminal block offers different types of connection.

So, in accordance with installation instructions and with the help of shunt bars, fix the conductors as shown on the chart page 22.

The shunt bars, placed on the Earth Terminal, allow to make a bridge between two phases.

Note :

Please take care to ensure that the shunt bars do not fall through the hole.

. Screw the cable clamp back.
. Screw the cover hole back.

INSTALLATION - ELECTRICAL CONNECTION
	Monophase 220-240V2~	Monophase 380-415V1N~	Two phases + Neutral 380-415V2N~	Three phases 220/240V3~	Three phases 380/415V3N~
PVC 220 - 310
FUSE	20A	20A	20 A	16 A	16 A
CABLE AERA TYPE	3 G 2,5 mm² HO5VV-F or HO5RR-F	3 G 2,5 mm² HO5VV-F or HO5RR-F	4 G 2,5 mm² HO5VV-F or HO5RR-F	4 G 2,5 mm² HO5VV-F or HO5RR-F	5 G 1,5 mm² HO5VV-F or HO5RR-F
PVC 400
FUSE	20 A	20 A	20 A	20 A	16 A
CABLE AERA TYPE	3 G 2,5 mm² HO5VV-F or HO5RR-F	3 G 2,5 mm² HO5VV-F or HO5RR-F	4 G 2,5 mm² HO5VV-F or HO5RR-F	4 G 2,5 mm² HO5VV-F or HO5RR-F	5 G 2,5 mm² HO5VV-F or HO5RR-F
CONNECTION TO THE TERMINAL BLOCK	1 2 3 4 5 T PH PH T	1 2 3 4 5 T PH N T	1 2 3 4 5 T PH PH N T	1 2 3 4 5 T PH PH N T	1 2 3 4 5 T PH PH N T
To shunt: make a bridge with a shunt bar	1rst Phase shunt 1-2 shunt 2-3 2nd Phase shunt 4-5 Earth	1rst Phase shunt 1-2 shunt 2-3 2nd Neutral shunt 4-5 Earth	1rst Phase 1 2nd Phase shunt 2-3 3rd Neutral shunt 4-5 Earth	1rst Phase shunt 1-2 2nd Phase shunt 3-4 3rd Phase 5 Earth	1st Phase 1 2nd Phase 2 3rd Phase 3 4th Neutral shunt 4-5 Earth

IMPORTANT: Blue wire = Neutral Yellow / Green = Earth

For the connection to the terminal block, you must:

. follow the marks 1, 2, 3, 4 and 5.
. tighten the screws.
. do not forget to fix the earth wire on the earth terminal.

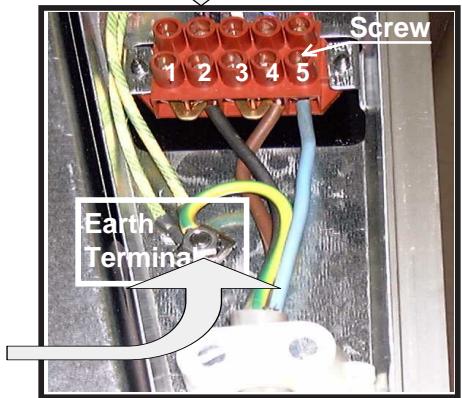

Example of connection Three Phase 220-240 V3~:

The earth wire (yellow/green) must be clipped at this place.

Screw the screw fully home.

When you fit the cover back, do not forget the fan-lock washers.

INSTALLATION - BUILT-IN

The furniture in which your hob will be installed and all adjacent furniture, should be made from materials that can withstand high temperatures. In addition, all decorative laminates should be fixed with heat-resistant glue.

Installation:

• Leave a gap of at least 5cm between the appliance and the vertical sides of the adjacent furniture.
• A partition should be fitted below the hob unit.

It should be located at least 1 cm beneath the hob unit.

Also, it should have a 10 × 10 cm opening in the rear right-hand corner (see next page).

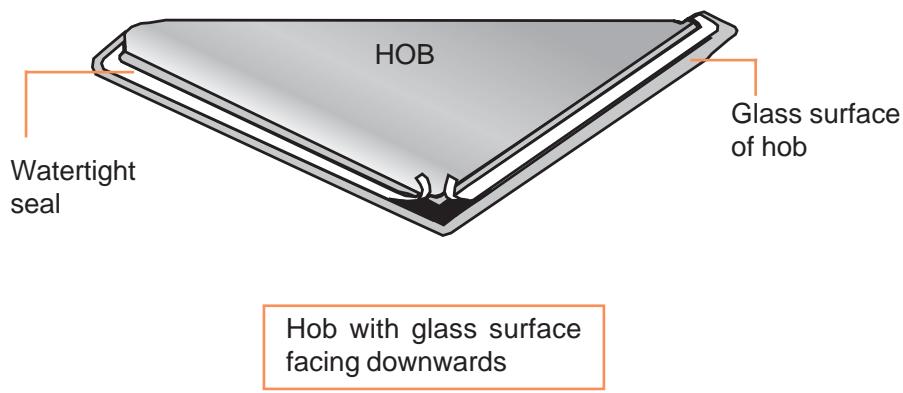

• A watertight seal is supplied with the hob.

Before fitting :

. turn the hob upside down, with the glass surface facing downwards.

NB:Make sure the glass is protected.

. fit the seal round the hob.

. make sure that it is correctly fitted to avoid any leakage into the supporting cabinet.

INSTALLATION - BUILT-IN

Built-in :

Type "Y" installation conform to EN 60335-2-6

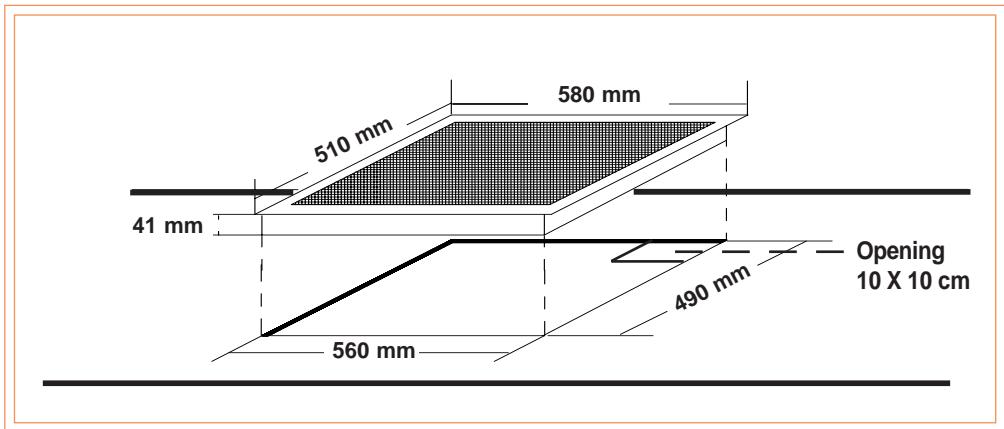

Worktop cut-out dimensions :

Length

560 mm

• Width

490 mm

RECOMMENDATIONS

• The hob is hot when in use. Surface temperatures are high so be careful when touching the hob. Keep children away.
• Do not touch the heat zones during operation for a while after use.
• Never cook food directly on the glass ceramic hob. Always use the appropriate cookware.
• Always place the pan in the centre of the unit that you are cooking on.
• Do not use the surface as a cutting board.
• Do not slide cookware across the hob.
• Do not store heavy items above the hob. If they drop onto the hob, they may cause damage.
• Do not use the hob as a working surface.
• Do not use the hob for storage of any items.
• Aluminium foil and plastic pans must not be placed on heating zones.
• When cooking with fats or oils, never leave surface unit unattended. Overheated fats or oils can quickly catch fire.
• In the unlikely event of a surface crack appearing, do not use the hob. Immediately disconnect the hob from the electrical power supply and call the After Sales Service.
• It is advisable not to stare directly at the halogen elements.

TECHNICAL INFORMATION

At Candy we are constantly striving to improve product quality and as such may modify appliances to incorporate the latest technical improvements.

Glass Ceramic Hobs conform to directives 73/23/CEE and 89/336/CEE.

PVC 220

PVC 310

PVC 400

	PVC 220	PVC 310	PVC 400
OVERALL DIMENSIONS
Width	58 cm	58 cm	58 cm
Depth	51 cm	51 cm	51 cm

THE HEAT ZONES

1 Rear Left	Halolight	Halolight	Radiant
	1800 W - Ø175	1800 W - Ø175	2100 W - Ø210
2 Front left	Halolight	Radiant	Radiant
	1200 W - Ø140	1200 W - Ø140	1200 W - Ø140
3 Rear right	Radiant	Radiant	Radiant
	1700 W - Ø175	1700 W - Ø175	1700 W - Ø175
4 Front right	Radiant	Radiant	Radiant
	1200 W - Ø140	1200 W - Ø140	1200 W -Ø140

Total power input	5900 W	5900 W	6200 W
Supply voltage	220 - 240V ~	220 - 240 V ~	220 - 240 V ~

THE HOB SURFACE

The glass ceramic hob is fitted with different surface units :

. halolight zone

. radiant zone

- Halolight zone :

is regulated by a control knob with 6 heat positions.

It is a combination of halogen (1/3) and high light (2/3).

The temperature rise of this surface unit is extremely rapid.

It is suitable for frying meat, rapid boiling and intensive cooking where a high temperature is required for a very short period of time.

- Radiant zone :

is regulated by a control knob with 6 heat positions.

It offers either rapid or slow rises in temperature and offers greater stability maintaining the required temperature. It is extremely precise and offers very good diffusion. It is recommended for simmering and for cooking stews, but it is also good for prolonged cooking.

HOB COOKWARE ADVICE

Using good quality cookware is critical for setting the best performance from your hob.

• Always use good quality cookware with perfectly flat bases : using this type of cookware will prevent hot spots that cause food to stick. Thick metal pots and pans will provide an even distribution of heat.
• Ensure that the base of the pot or pan is dry : when filling pans with liquid or using one that has been stored in the refrigerator, ensure that the base of the pan is completely dry before placing it on the hob. This will help to avoid staining the hob.
• Use pans whose diameter is wide enough to completely cover the surface unit : the size of the pan should be no smaller than the heating area. If it is slightly wider the energy will be used at its maximum efficiency.

THE CHOICE OF COOKWARE

The following information will help you to choose cookware which will give good performance.

Stainless Steel : highly recommended.

Especially good with a sandwich clad base. The sandwich base combines the benefits of stainless steel (appearance, durability and stability) with the advantages of aluminium or copper (heat conduction, even heat distribution).

Aluminium : heavy weight recommended.

Good conductivity. Aluminium residues sometimes appear as scratches on the hob, but can be removed if cleaned immediately. Because of its low melting point, thin aluminium should not be used.

Cast Iron : usable, but not recommended. Poor performance. May scratch the surface.

Copper Bottom / stoneware: heavy weight recommended.

Good performance, but copper may leave residues which can appear as scratches. The residues can be removed, as long as the hob is cleaned immediately. However, do not let these pots boil dry. Overheated metal can bond to glass hobs. An overheated copper pot will leave a residue that will permanently stain the hob.

Porcelain/enamel : Good performance only with a thiny smooth, flat base.

Glass-ceramic : not recommended. Poor performance. May scratch the surface.

HOW TO OPERATE THE GLASS CERAMIC HOB

• Locate the sign corresponding to the cooking zone that you need :

rear

right

rear

left

front

left

front

right

Each surface unit is regulated by a control knob which provides access to any power levels.

• It is recommended that heat setting is at its highest until it has properly warmed up and then lower to the desired cooking setting.
• The residual heat indicator lights up when the heat zone temperature reaches 60^ and above. It will stay on, even if the unit is switched off, until the surface has cooled down.

It will switch off when the temperature of the heat zone falls below 60^ .

• To switch off an heat zone, turn the corresponding knob back on the "0" setting.
• Positions : The examples below are intended as a guide. When you become familiar with using your hob you will be able to work out the settings which suit you best.

Positions		Some tips ......
1	Very low	To keep a dish hot, melt butter and chocolate ....
2	Low	Slow cooking, sauces, stews, rice pudding, poached eggs ...
3	Moderately	Beans, frozen foods, fruit, boiling water ....
4	Medium	Steamed apples, fresh vegetables, pasta, crepes, fish ....
5	High	More intense cooking, omelettes, steaks ....
6	Very high	Steaks, chops, frying...

CLEANING AND MAINTENANCE

• Before carrying out any maintenance work on the hob, allow it to cool down.
• Only products, (creams and scrapers) specifically designed for glass ceramic surfaces should be used. They are obtainable from hardware stores.
• Avoid spillages, as anything which falls on to the hob surface will quickly burn and will make cleaning more difficult.
• It is advisable to keep away from the hob all substances which are liable to melt, such as plastic items, sugar, or sugar-based products.

MAINTENANCE:

. Place a few drops of the specialised cleaning product on the hob surface.
. Rub any stubborn stains with a soft cloth or with slightly damp kitchen paper.
. Wipe with a soft cloth or dry kitchen paper until the surface is clean.

If there are still some stubborn stains:

. Place a few more drops of specialised cleaning fluid on the surface.

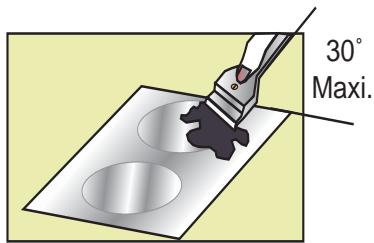

. Scrape with a scraper, holding it at an angle of 30^ to the hob, until the stains disappear.
. Wipe with a soft cloth or dry kitchen paper until the surface is clean.
Repeat the operation if necessary.

A FEW HINTS:

Frequent cleaning leaves a protective layer which is essential to prevent scratches and wear. Make sure that the surface is clean before using the hob again.

To remove marks left by water, use a few drops of white vinegar or lemon juice. Then wipe with absorbent paper and a few drops of specialised cleaning fluid.

The glass ceramic surface will withstand scraping from flat-bottomed cooking vessels, however, it is always better to lift them when moving them from one zone to another.

The control knobs can be removed for a complete cleaning. However, you must care not to let any liquid go into the open zones, and then to push the knobs fully on fitting back.

NB: do not use a sponge which is too wet.

• never use a knife or a screwdriver.
• a scraper with a razor blade will not damage the surface, as long as it is kept at an angle of 30^ .
• never leave a scraper with a razor blade within the reach of children.
• never use abrasive products or scouring powders.

- The metal surround :

To safely clean the metal surround wash with soap and water, rinse, then dry with a soft cloth.

PROBLEM SOLVING

Cooking zones that do not maintain a rolling boil or a fast enough frying rate.

• You must use pans which are absolutely flat. If light is visual between the pan base and a straight edge, the surface unit will not transfer heat properly.

Foods cook slowly.

• Pan bottoms should closely match the diameter of the heat zone selected.

• Improper cookware being used. Pan bases should be flat, fairly heavy-weight and the same diameter as the heat zone selected.

Tiny scratches (may appear as cracks or abrasions) on the glass surface of the hob.

• Incorrect cleaning methods, cookware with rough bases, or coarse particles (salt or sand) trapped between the cookware and the surface of the hob. Use recommended cleaning procedures, be sure cookware bases are clean before use and use cookware with smooth bases.

Metal markings (may appear as scratches).

• Do not slide aluminium cookware across the surface. Use recommended cleaning procedure to remove marks.

• Incorrect cleaning materials have been used, spillage or grease stains remain on the surface, use a razor scraper and recommended cleaning product.

Dark streaks or specks.

• Use a razor scraper and recommended cleaning product.

Areas of discoloration on cooktop.

• Marks from aluminium and copper pans as well as mineral deposits from water or food can be removed with the cleaning cream.

Hot sugar mixtures / plastic melted to the surface.

See the Glass Hob Cleaning section.

The hob is out of order, or some heat zones do not work.

• The shunt bars are not properly fitted on the terminal block. Check the connection is made in conformity with the instructions page 20 to 22.

GUARANTEE

The guarantee contract consists simply and solely in exchanging or replacing any part considered by us to be defective, or repairing it after examination by our Technical Assistance, to the exclusion of all other indemnities of whatever kind.

Duration

The appliance is guaranteed for one year from the date of delivery to the first purchaser.

Conditions

The appliance should only be used for the purposes for which it has been designed and as described in this booklet. You should always contact your installer who is responsible for After-Sales service and who sold you the appliance. The costs of removal, transport and packing for work done under the guarantee will be charged either to the user or to the installer, as stated in the conditions of sale.

After the guarantee

Get in touch with the retailer who sold you the appliance. They will immediately place on order with our Parts Department for the required components.

Legal guarantee

The conditions of guarantee do not affect your statutory rights.

When making a claim, or when ordering a part, tell your retailer the exact type of your appliance, the serial number (shown on the specification plate) and the name of the part. To be certain of getting the correct specification, guaranteed for maximum reliability and safety, ask specifically for "CERTIFIED MANUFACTURERS' PARTS".
