USER MANUAL UPTBVTR Videotec

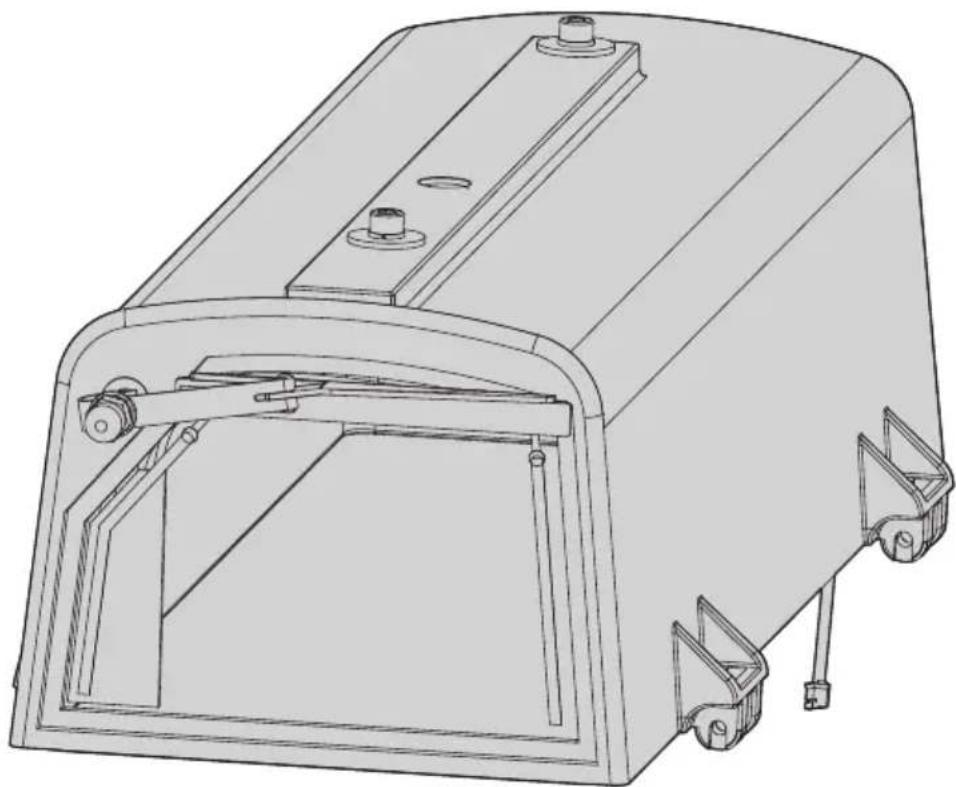

ULISSE2 housing upper part with anti-ice glass and wiper

Technical line drawing of a mechanical enclosure or enclosure with mounting brackets and internal components (no text or symbols)

EN English - Instruction manual
IT Italiano - Manuale di istruzioni
FR Français - Manuel d'instructions
DE Deutsch - Bedienungsanleitung
RU Русский - Руководство по эксплуатации

1 About this manual

Read all the documentation supplied carefully before installing and using this unit. Keep the manual in a convenient place for future reference.

1.1 Typographical conventions

CAUTION!

Medium level hazard.

This operation is very important for the system to function properly. Please read the procedure described very carefully and carry it out as instructed.

INFO

Description of system specifications.

We recommend reading this part carefully in order to understand the subsequent stages.

2 Notes on copyright and information on trademarks

The quoted names of products or companies are trademarks or registered trademarks.

3 Safety rules

CAUTION! Device installation and maintaining must be performed by specialist technical staff only.

• The manufacturer declines all responsibility for any damage caused by an improper use of the appliances mentioned in this manual.
  Furthermore, the manufacturer reserves the right to modify its contents without any prior notice. The documentation contained in this manual has been collected with great care. The manufacturer, however, cannot take any liability for its use. The same thing can be said for any person or company involved in the creation and production of this manual.
• Never, under any circumstances, make any changes or connections that are not shown in this handbook. Improper use of the appliance can cause serious hazards, risking the safety of personnel and of the installation.
• Use only original spare parts. Non-original spare parts could cause fire, electrical discharge or other hazards.
• Before proceeding with installation, check the supplied material to make sure it corresponds to the order specification by examining the identification labels (4.2 Product marking, page 2).

4 Identification

4.1 Product description and type designation

ULISSE2 housing upper part with anti-ice glass and wiper

4.2 Product marking

See the label attached to the product.

5 Preparing the product for use

Any change that is not expressly approved by the manufacturer will invalidate the guarantee.

5.1 Unpacking

When the product is delivered, make sure that the package is intact and that there are no signs that it has been dropped or scratched.

If there are obvious signs of damage, contact the supplier immediately.

Keep the packaging in case you need to send the product for repairs.

5.2 Contents

Check the contents to make sure they correspond with the list of materials as below:

• Upper body of the housing
- Instruction manual

5.3 Safely disposing of packaging material

The packaging material can all be recycled. The installer technician will be responsible for separating the material for disposal, and in any case for compliance with the legislation in force where the device is to be used.

When returning a faulty product we recommend using the original packaging for shipping.

6 Product Overview

• 01: Wiper
• 02: Heated glass control board
• 03: Wiper connector
• 04: Heated glass connector

Technical diagram of a rectangular electronic device with labeled components (01, 02, 03, 04) and internal wiring.

Fig. 1

7 Installation

This product can only be installed on the ULISSE2 line Pan & Tilt. For installation and setting please refer to the P&T manual.

8 Disposal of waste materials

This symbol mark and recycle system are applied only to EU countries and not applied to the countries in the other area of the world.

Your product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.

Please dispose of this equipment at your local Community waste collection or Recycling centre.

In the European Union there are separate collection systems for used electrical and electronic products.

9 Technical data

9.1 General

Die cast aluminum body.

Epoxy polyester powder painting, RAL9002 colour.

9.2 Mechanical

Dimensions: 18.8x12.2x47.3cm

Unit weight: 2.3Kg

9.3 Environment

Outdoor/Indoor

Operating temperature: from -40^ ( -40^ ) up to +65^ ( 149^ )

9.4 Certifications

UR certification

EAC certification

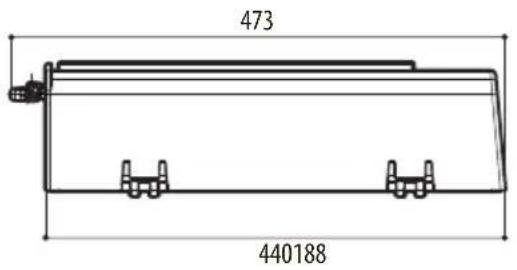

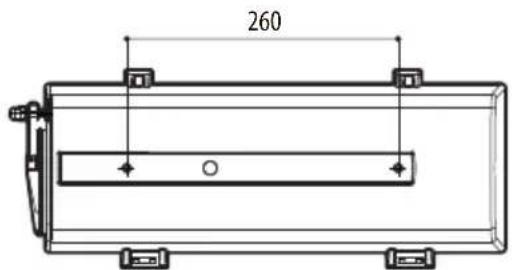

10 Technical drawings

The dimensions of the drawings are in millimetres.

473 440188

122

260

Fig. 2 UPTBVTR.

Technical diagram of a rectangular electronic device with labeled components (01, 02, 03, 04) and internal wiring.

Fig. 1

7 Installazione

Technical diagram of a rectangular electronic device with labeled components (01, 02, 03, 04) and internal wiring.

Fig. 1

7 Installation

Dimensions: 18.8x12.2x47.3cm

Poids net: 2.3Kg

9.3 Environnement

Extérieur/Intérieur

Technical diagram of a rectangular electronic device with labeled components (01, 02, 03, 04) and internal wiring.

Abb. 1

7 Installation

Technical diagram of a rectangular electronic device with labeled components (01, 02, 03, 04) and internal wiring.

Рис. 1

7 Монтаж
