You have just purchased a BRANDT product and we thank you for your trust.

We designed and manufactured this product with you, your lifestyle and your needs in mind, in order to best meet your expectations. We have put into it our expertise, our spirit of innovation and all the passion which has driven us for over 60 years.

We make every effort to ensure our products better meet your requirements, and our Customer Relations Department is at your disposal and will be happy to hear any questions or suggestions you may have.

You may also visit our website www.brandt.com where you will find our latest innovations, as well as useful and complementary information.

BRANDT is happy to assist you in your daily life and hopes you will fully enjoy your purchase.

Important: Before switching on your appliance, please read this user guide carefully in order to familiarise yourself more quickly with its operation.

This appliance complies with the European directives.

SAFETY GUIDELINES

For your safety and in order to use your appliance correctly, carefully read these instructions (including the warnings and useful advice), before installation and first use.

To avoid damaging the appliance and unnecessary injury, it is important that the persons who use the appliance fully understand how it works and the safety instructions.

Always keep these instructions close to the appliance so that they can accompany it in the event of resale or a change of house. In this way, the appliance will continue to function optimally and any risk of injury will be avoided.

The manufacturer shall not be held liable in the event of misuse of the appliance.

GENERAL SAFETY AND WARNINGS

This appliance is exclusively intended for domestic use in private households. It may only be used in a roofed, enclosed and heated environment such as a kitchen or any other room fulfilling these conditions. Its use on shared or professional premises such as in an office or workshop break room, a camp site building, or a hotel, etc., does not comply with the use defined by the manufacturer.

WARNING! Keep your appliance away from any source of flame during installation, servicing and use. The symbol in the margin which is found on the rear of your appliance, means that there are inflammable materials in this area.

The refrigerating and insulating agents used in this appliance contain inflammable gases.

When transporting, installing and servicing the appliance, make sure that none of the components of the cooling circuit are damaged. If the cooling circuit is damaged:

√ Avoid naked flames and all sources of inflammation.
√ Ventilate the room in which the appliance is installed.

Installation safety

• Your appliance must be installed and, if necessary, secured and used in accordance with the instructions in this manual in order to avoid any risks due to poor installation.
• Maintain clear of obstruction ventilation openings in the appliance enclosure or in the built-in structure.
• It is dangerous to change the composition of this model in any way whatsoever.
• Ensure that the power cord is not trapped or damaged when you position your appliance.
• Any damage to the power cord may result in a short circuit and/or electrocution.
• If the power cord is damaged, it should be replaced by the manufacturer, its after-sales service department or a similarly qualified person, so as to avoid danger.
• Do not place multiple plugs or portable power supply units behind the appliance.
• For models fitted with a water dispenser or an ice compartment, only fill or connect using a supply of drinking water.

Safety of vulnerable persons

- This appliance may be used by children aged 8 years or more and by people with physical, sensual or metal deficits and lacking experience or knowledge of the device provided that they are correctly supervised or have been provided with instructions regarding the safe use of the appliance and provided that the risks present have been fully

understood.

● Children must not play with the appliance.
● Children must not clean and maintain the appliance without supervision.
- Children aged 3 to 8 are allowed to load and unload refrigeration appliances.
- Keep all the packaging materials out of the reach of children, as they can cause suffocation.

Safety of use

- Do not damage the refrigerating circuit.

- Do not use any mechanical or other means, other than those recommended by the manufacturer, to speed up the defrosting process.

- Do not use any electric appliances inside the compartment for food, unless they are of a type recommended by the manufacturer.

- Do not store any explosive substances, such as aerosols containing inflammable propellant gases, inside the appliance.

Food safety

To avoid contaminating food, follow the instructions below:

- Leaving the door open for long periods of time may significantly raise the temperature in the appliance compartments.

- Regularly clean any surfaces that may come into contact with food and accessible drain systems.

- Clean water containers if they have not been used for 48 hours. Properly rinse the water distribution system connected to a fresh water network if no water has been drawn off for five days.

- Store raw meat and fish in the appropriate refrigerator compartments so that the latter products are not in contact with other food and do not drip onto other food.

- The "two star" compartments for frozen foods are suitable for storing food that is already frozen, for storing or making ice cream and ice cubes.

- The "one, two and three star" compartments are not suitable for freezing fresh foods.

- If the refrigerator remains empty for an extended period of time, switch it off, defrost it, clean it, dry it and leave the door open to prevent any mould from forming inside the appliance.

This symbol indicates that this product should not be treated as household waste.

Only dispose of the appliance in certified collection centres.

Your appliance contains a large amount of recyclable material. It is marked with this label to indicate the used appliances must be disposed of in certified collection points.

Contact your town hall or your retailer for the used appliance collection points closest to your home. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive on Waste Electrical and Electronic Equipment.

This appliance's packing materials are also recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose.

In accordance with the most recent legislative provisions applying to the protection and respect for the environment, your appliance does not contain any CFCs, but a refrigerant called R600a. The exact type of coolant gas used in your appliance is clearly shown on the ID plate inside the fridge part of your appliance, at the foot of the left-hand side panel. R600a is a non-polluting gas that does not harm the ozone layer and hardly contributes to the greenhouse effect at all.

Used appliances must be immediately made unusable.

Disconnect the power cord and cut it as close to the appliance as possible. Inhibit the closing mechanism of the door or, even better, detach the door, so that children or pets cannot remain enclosed inside the appliance when playing.

ECODESIGN

To access the data on your model, stored in the product database in line with regulation (EU) 2019/2016 and data relating to energy labelling, please connect to the dedicated website at https://eprel.ec.europa.eu/

Find the reference of your appliance on the website by entering the service reference shown on the ID plate on your appliance.

Another way to access this information is to flash the QR code found on the energy label on your product.

Layout and presentation of your appliance

• Your appliance was designed and tested to optimise its energy use.
• The proposed layout represents the ideal solution for achieving ideal energy consumption and optimum food storage.

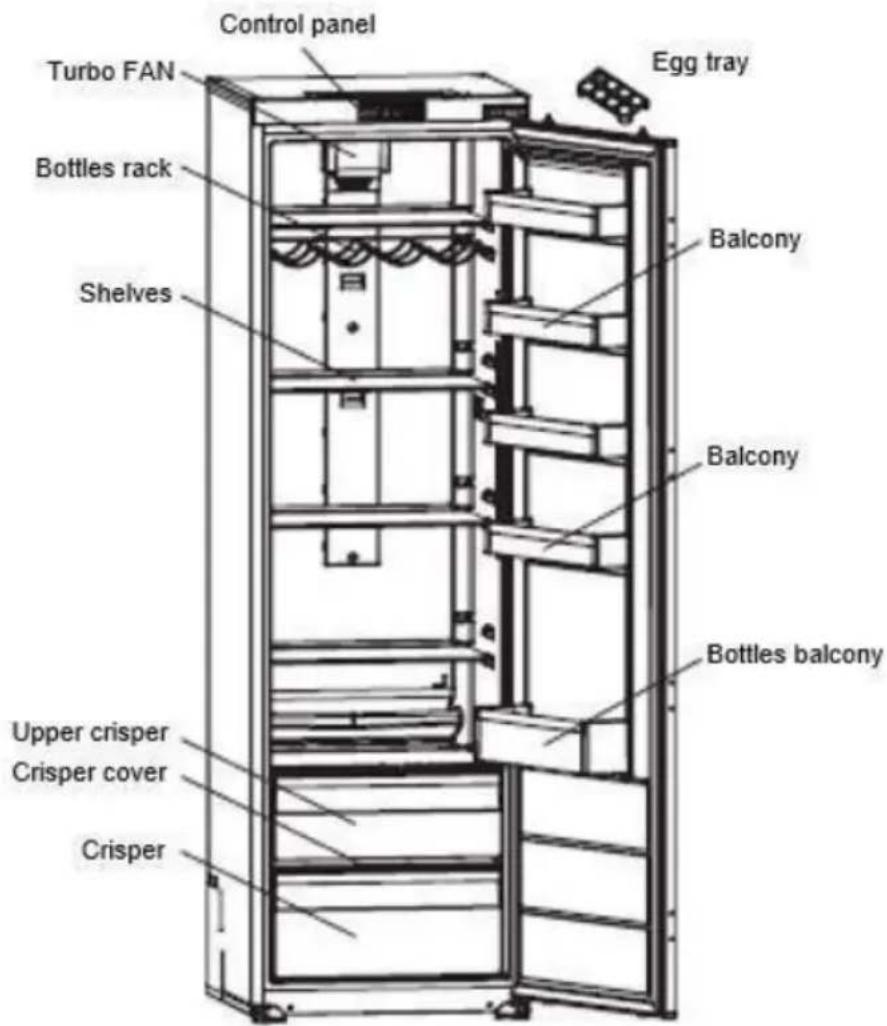

Control panel Turbo FAN Bottles rack Shelves Egg tray Balcony Balcony Bottles balcony Upper crisper Crisper cover Crisper

This illustration is only for hinting, the detail please check your appliance.

You can only keep your food in good condition and optimise your energy consumption by following the instructions in this installation and user guide.

Energy-saving measures

In order to reduce the power consumption of your appliance:

• Install it in a suitable location (see "Installing your appliance").
- Leave the doors open for the shortest time possible.
- Never put hot food in the fridge or the freezer, and in particular soups and other preparations that release a lot of steam.
- Check that your appliance is working correctly and do not allow too much ice to accumulate (defrost when the ice is more than 5-6 mm thick). Clean the condenser on a regular basis.
- Regularly check the door seals and make sure that the doors can be closed properly. If this is not the case, contact after-sales service.
- Do not adjust the temperature too low.

Storing food

Here are some rules you should follow:

• Maintain the cold chain and select "Booster" mode at least 6 hours before coming home with groceries (if your model has it).
• Clean the refrigerator part at least once a month (see Care and cleaning)
• Keep home-made food in the refrigerator after first taking care to leave it to cool.
• Make sure that your appliance is set to the recommended temperatures shown below. The temperatures for every compartment are recommended to optimise storing food and avoid any waste.

Area	Type of compartment	Recommended temperature
Fresh food compartments	Fresh food compartment (refrigerator)	+4°C

- Place the food in the locations recommended in the tables below.

Fresh food compartments

Refrigerator compartments	Type of food
Refrigerator door and door racks	Jams, drinks, eggs, condiments.Do not place perishable fresh food in these areas
Crisper	Lettuce, fruit, vegetables, herbsDo not put bananas, onions, potatoes or garlic in the refrigerator.
Lower shelf	Raw meat, fish, highly perishable food.
Intermediate shelf	Milk products
Top shelf	Cold cuts, prepared meals, meals to reheat

INSTALLATION

Care before installation

Before installing the appliance and connecting it to the power, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

① Never use detergents or abrasive cleaners, they will damage the inside coating.

When using the appliance for the first time or after a period of non-use, before putting the food in the compartment let the appliance run at least two hours on the higher settings.

Location

Warning! Never expose the appliance to a naked flame.

• Install the appliance in a dry and well ventilated place.
- The appliance should be located far from heat sources like radiators, boilers, sunlight, etc.
- Your appliance is designed to function optimally at a given ambient temperature. In this case, it is said to be designed for a particular "climate class". The climate class is clearly shown on the ID plate (see the "Contact" chapter). The refrigerator may not maintain satisfactory inside temperatures if it operates outside of the temperature limits set for the "climate class" it is designed for. Ensure that the chosen location is compliant with these temperature limits:

Class	Ambient temperature
SN	This refrigeration appliance is designed for use at ambient temperatures between 10°C and 32°C
SN-ST	This refrigeration appliance is designed for use at ambient temperatures between 10°C and 38°C
SN-T	This refrigeration appliance is designed for use at ambient temperatures between 10°C and 43°C
N	This refrigeration appliance is designed for use at ambient temperatures between 16°C and 32°C
ST	This refrigeration appliance is designed for use at ambient temperatures between 16°C and 38°C
T	This refrigeration appliance is designed for use at ambient temperatures between 16°C and 43°C

• Based on the above, avoid locating your appliance on balconies, verandas, terraces, in garages, etc. Excessively high temperature in summer and excessively low temperatures in winter can prevent it from functioning properly and therefore properly conserving food.
• Appliance levelling is achieved by adjusting one or more adjustable feet located under the unit (refer to the "Levelling the appliance" section).
  ① If your appliance is fitted with casters, then remember that they should only be used for short movements. Do not move the appliance over long distances on its casters.

How to reverse the door

• Ensure the unit is unplugged and empty.
• To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
• It's better that 2 people handle the unit during assembly.

Refer to the drawing below

Installation

Kits for installation

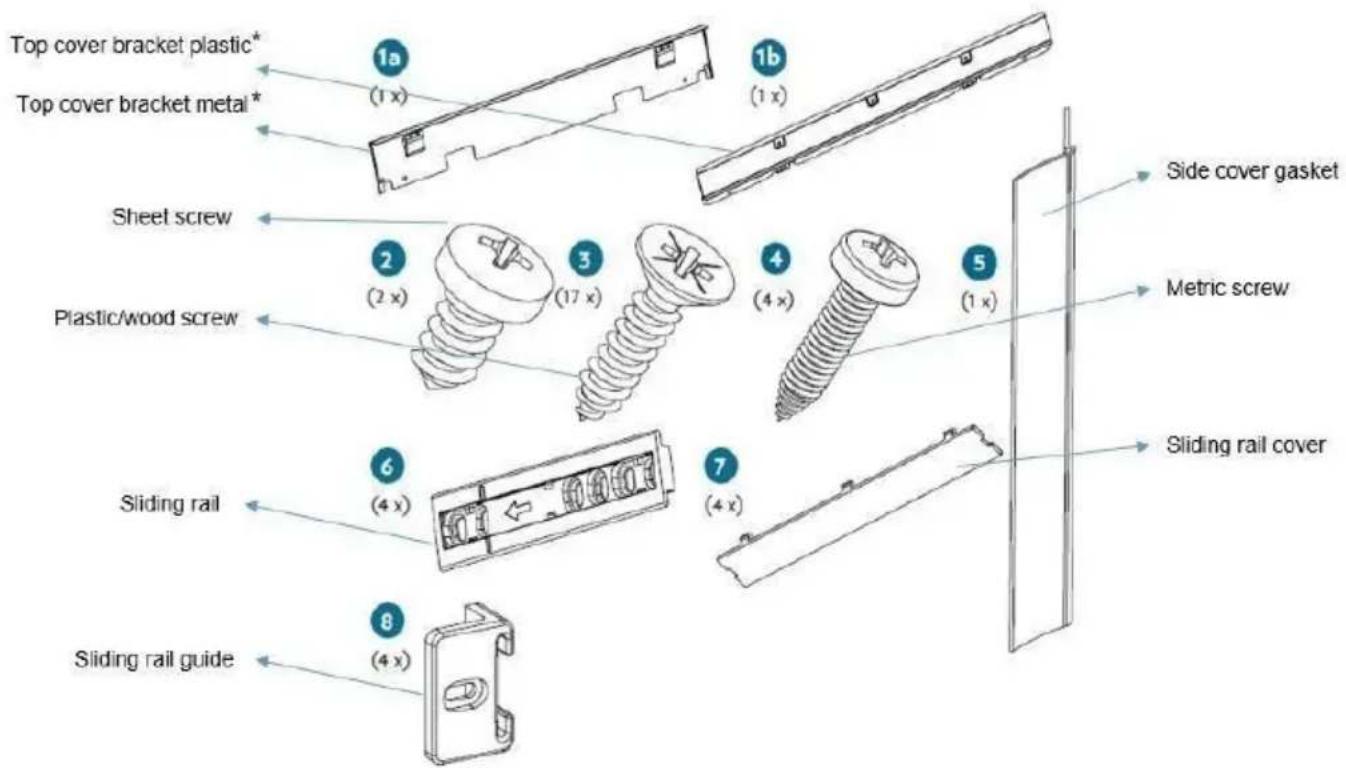

Top cover bracket plastic* 1a (1 x) Top cover bracket metal* 1b (1 x) Sheet screw 2 (2 x) 3 (17 x) 4 (4 x) 5 (1 x) Plastic/wood screw 6 (4 x) 7 (4 x) Sliding rail Sliding rail cover Sliding rail guide

*Depending on models

Tools needed

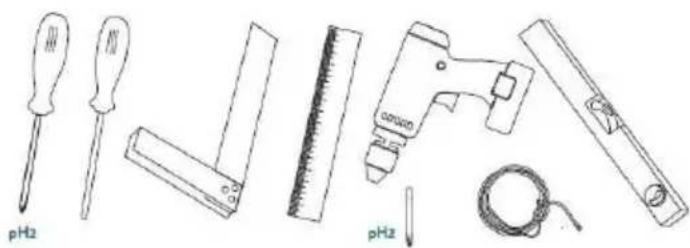

Illustration of various tools including screwdriver, ruler, pen, and tape with pH label (no text or symbols on objects)

Installation instructions

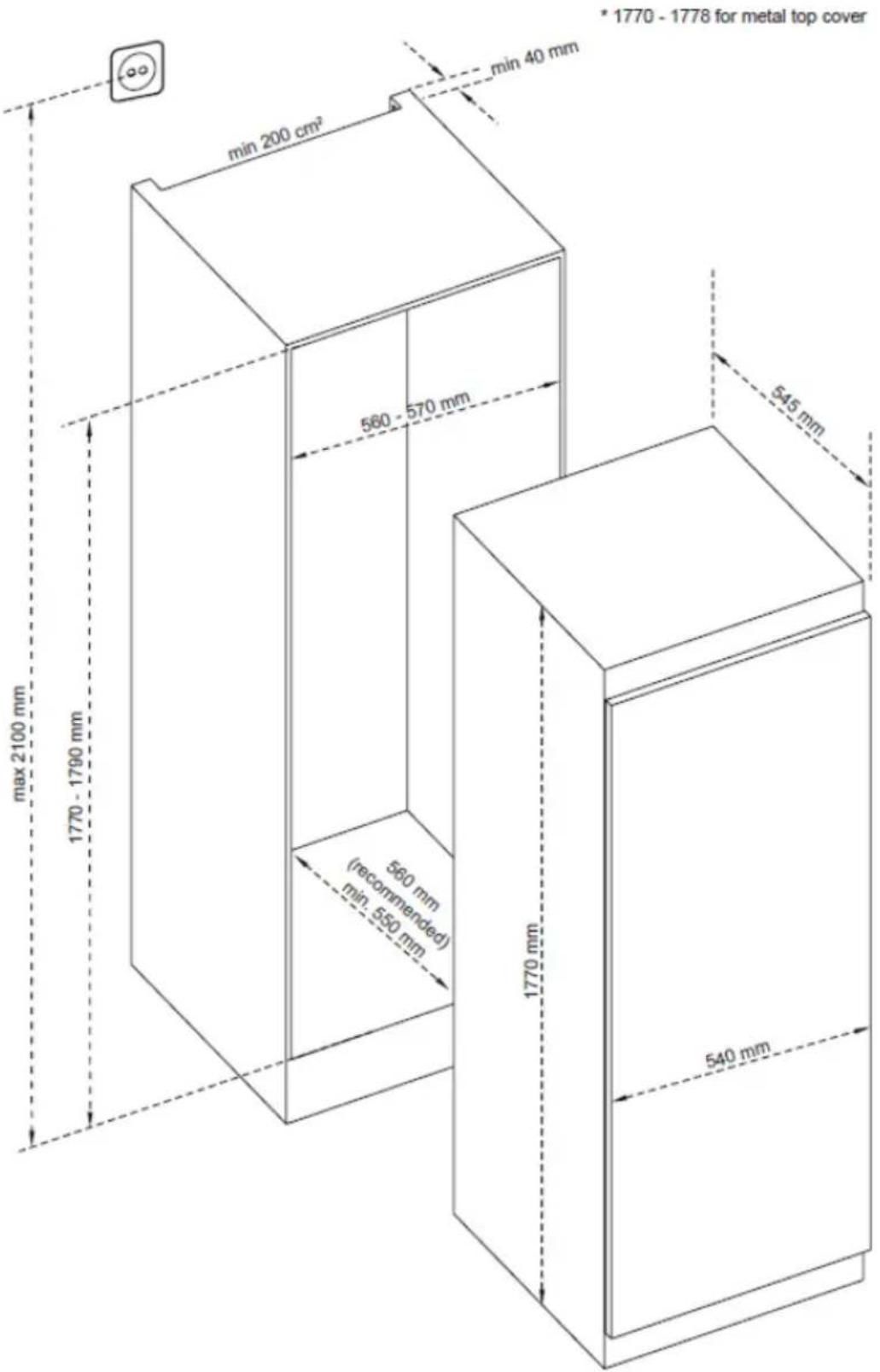

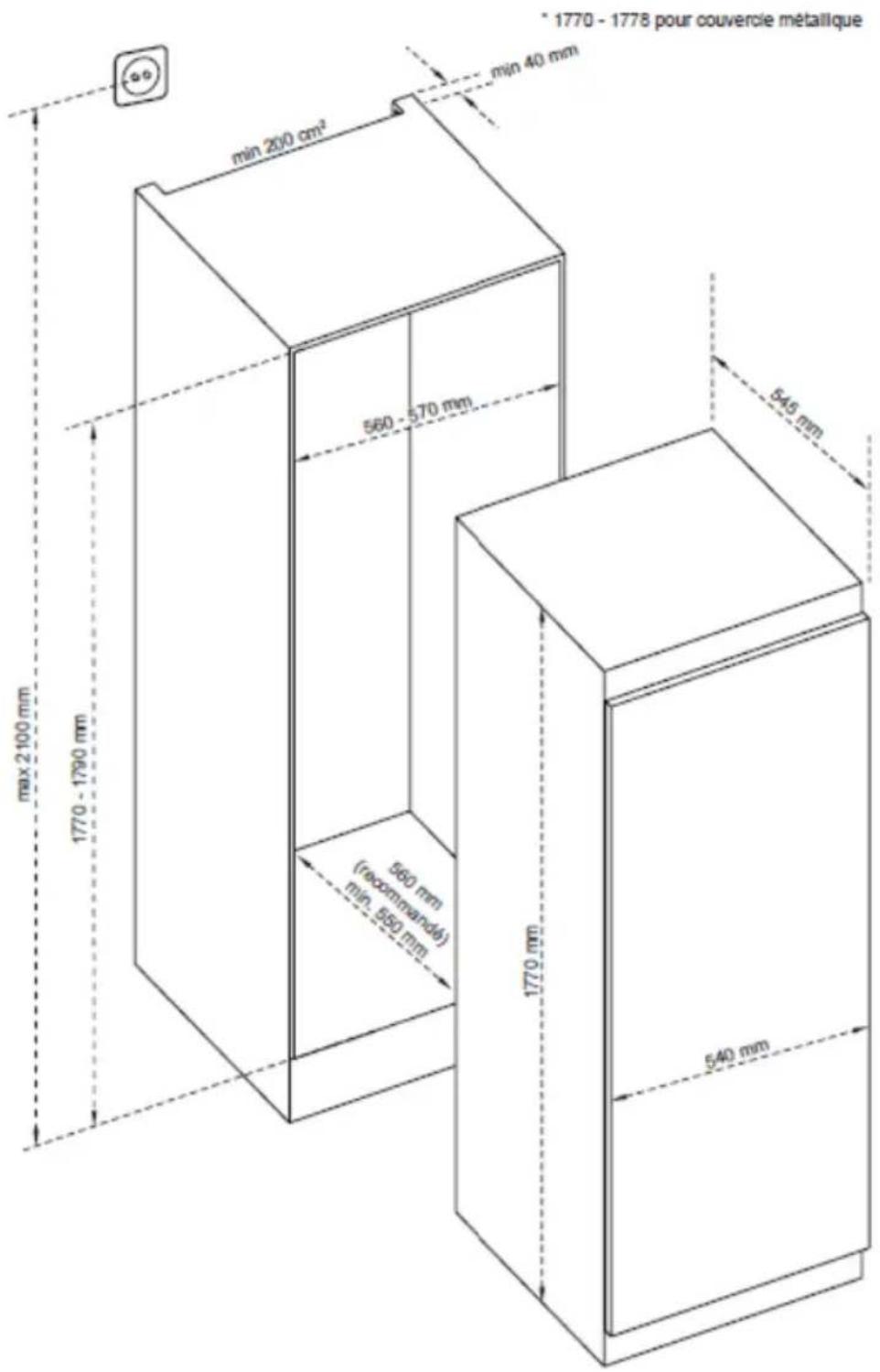

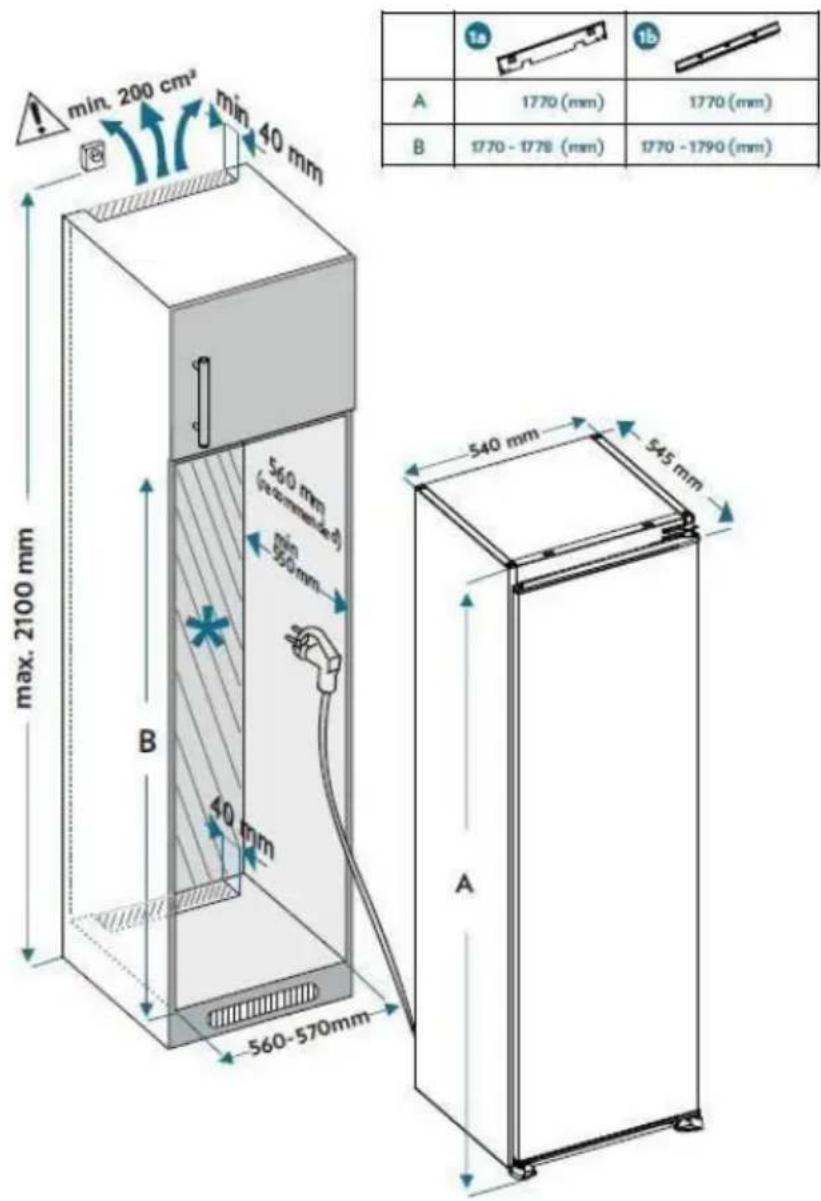

min 200 cm² min 40 mm 560 - 570 mm max 2100 mm 1770 - 1790 mm 560 mm (recommended) min 550 mm 1770 mm 540 mm * 1770 - 1778 for metal top cover

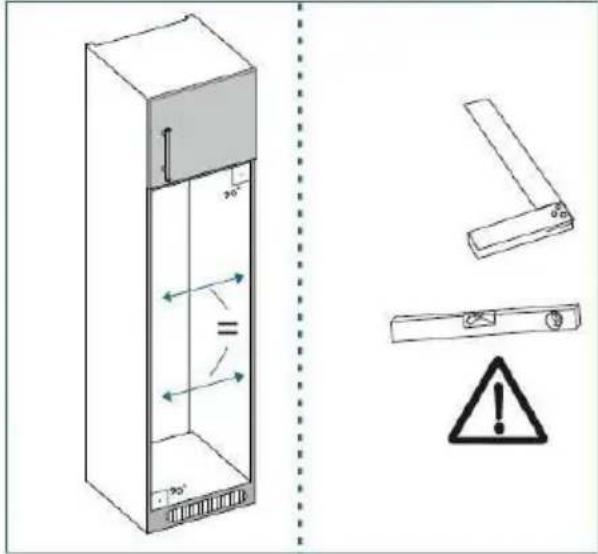

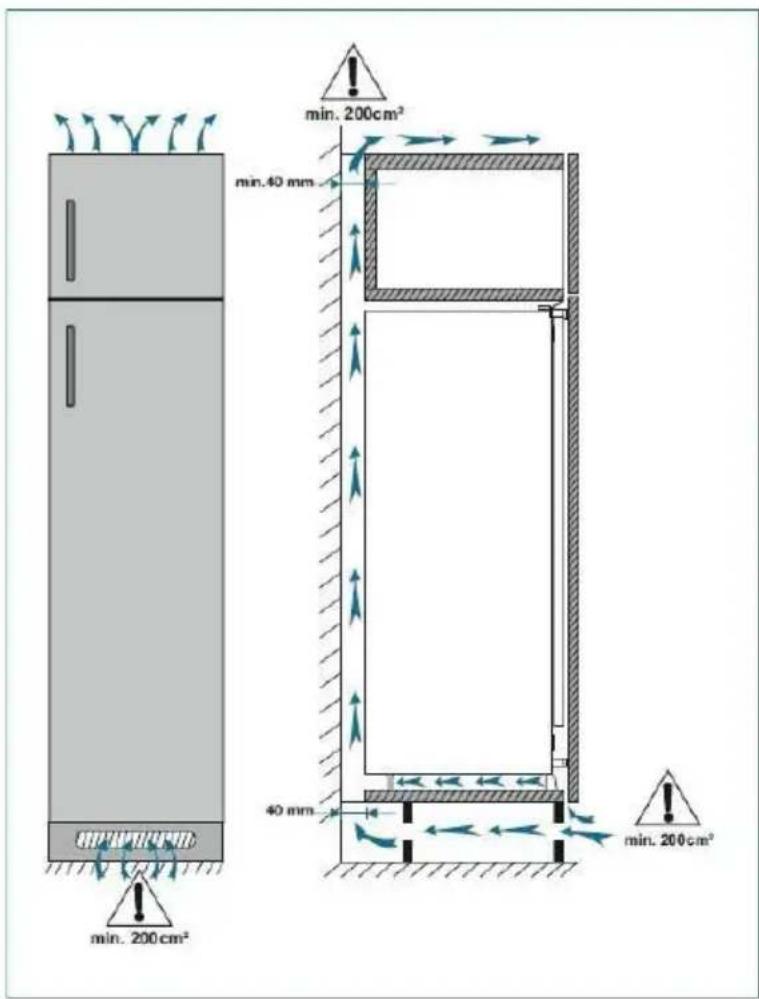

1. Ensure the size of cabinet is enough for proper ventilation.

min. 200cm² min.40 mm 40 mm min. 200cm² min. 200cm²

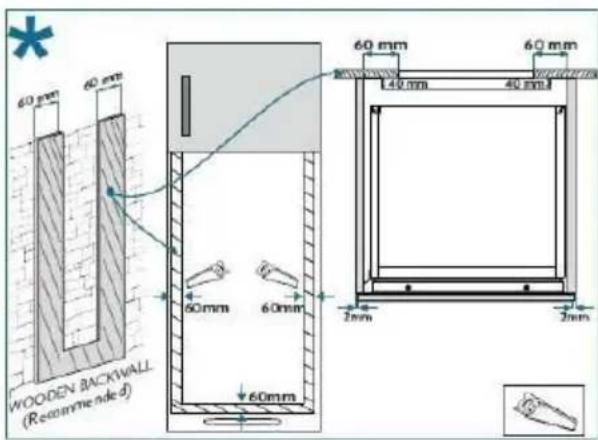

60 mm 60 mm WOODEN BACKWALL (Recommende d) 60 mm 60 mm 60 mm 60 mm 40 mm 40 mm 2mm 2mm

Technical diagram showing a cabinet with directional arrows and warning symbols, including a warning sign and safety symbol.

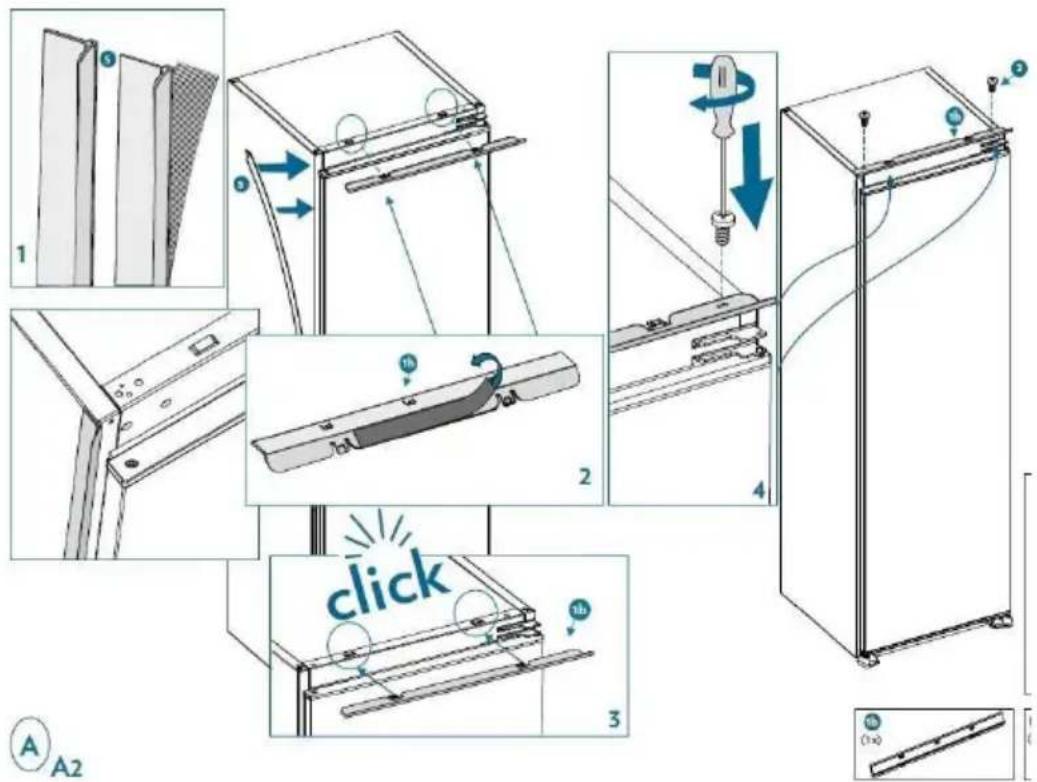

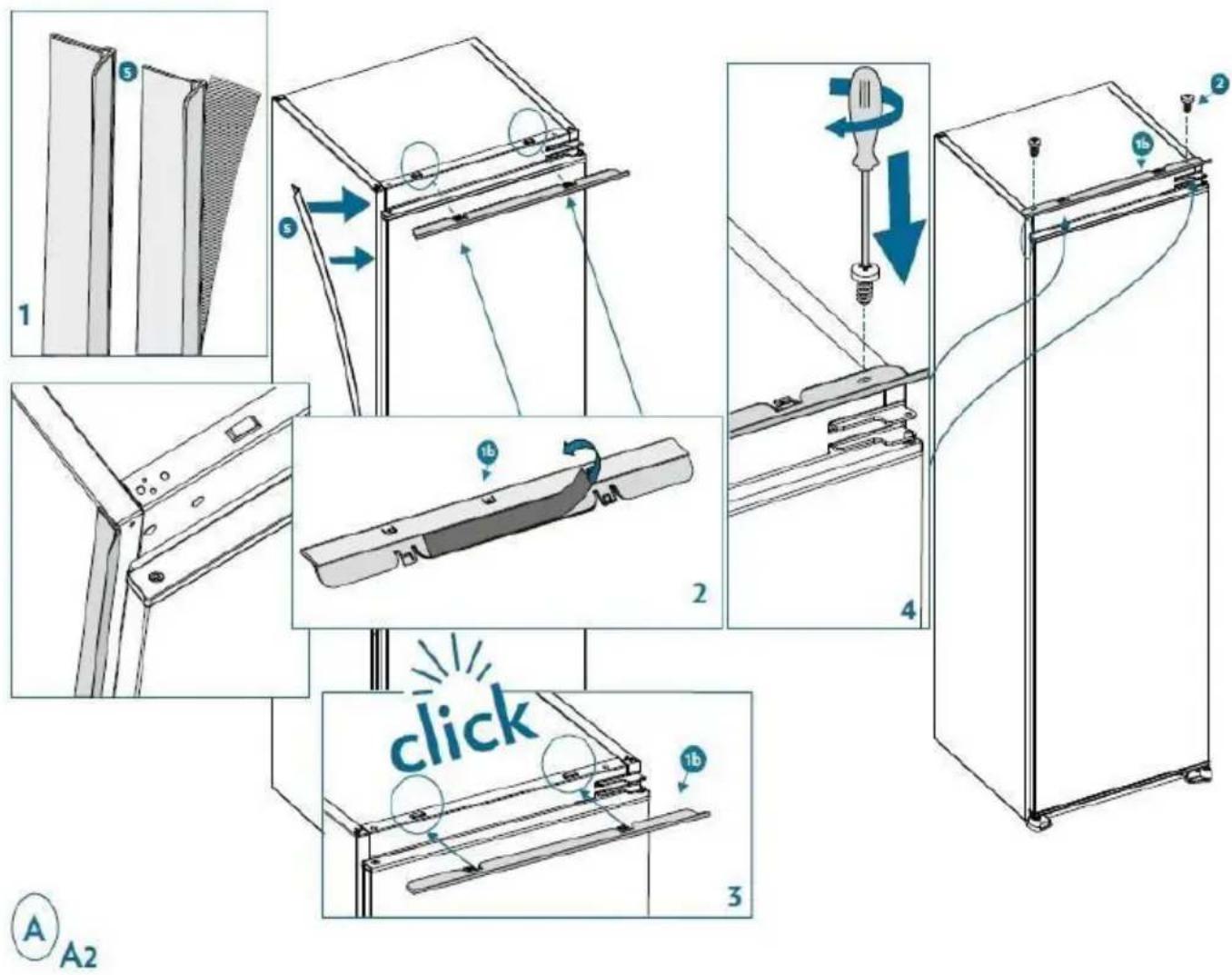

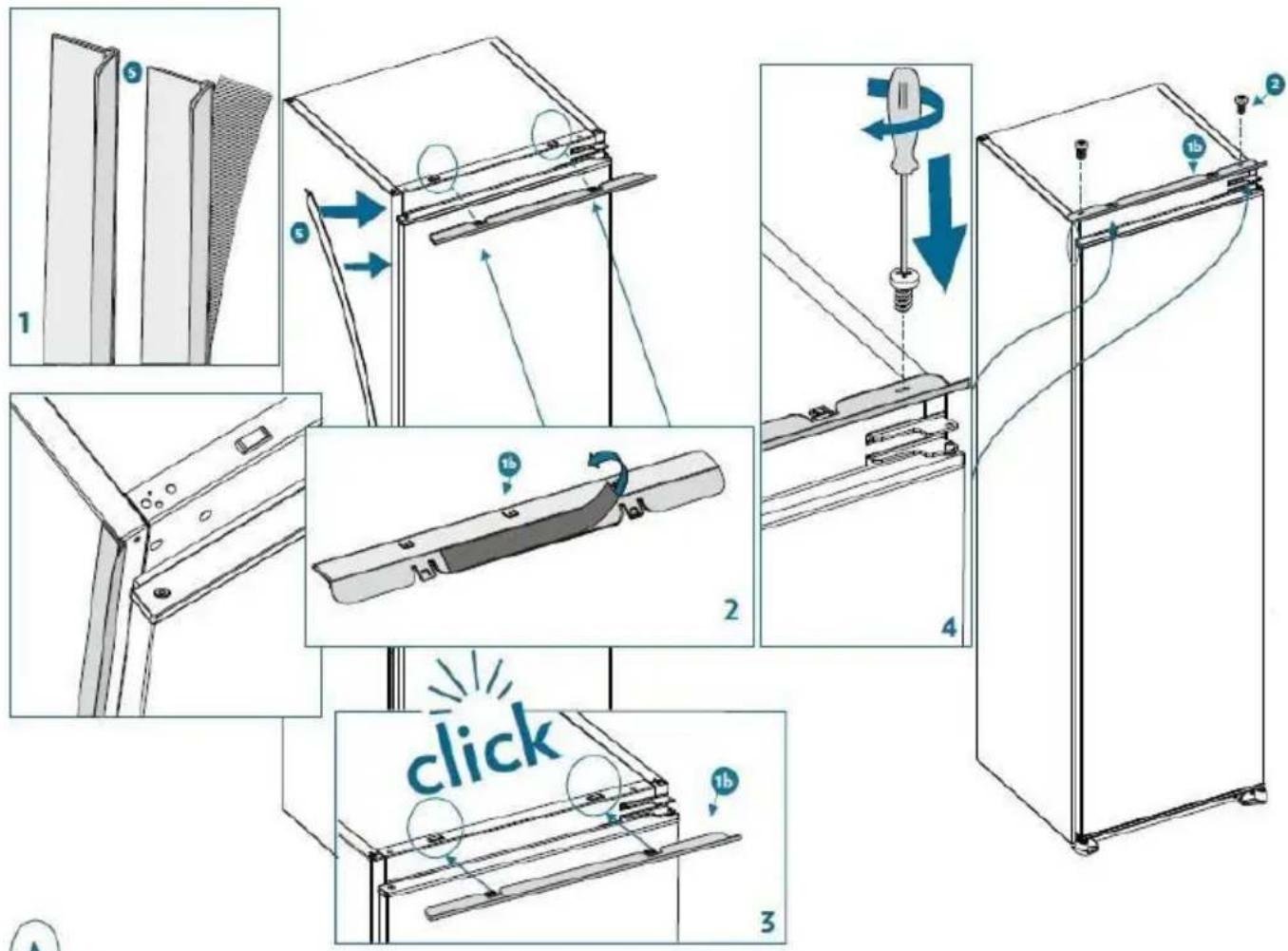

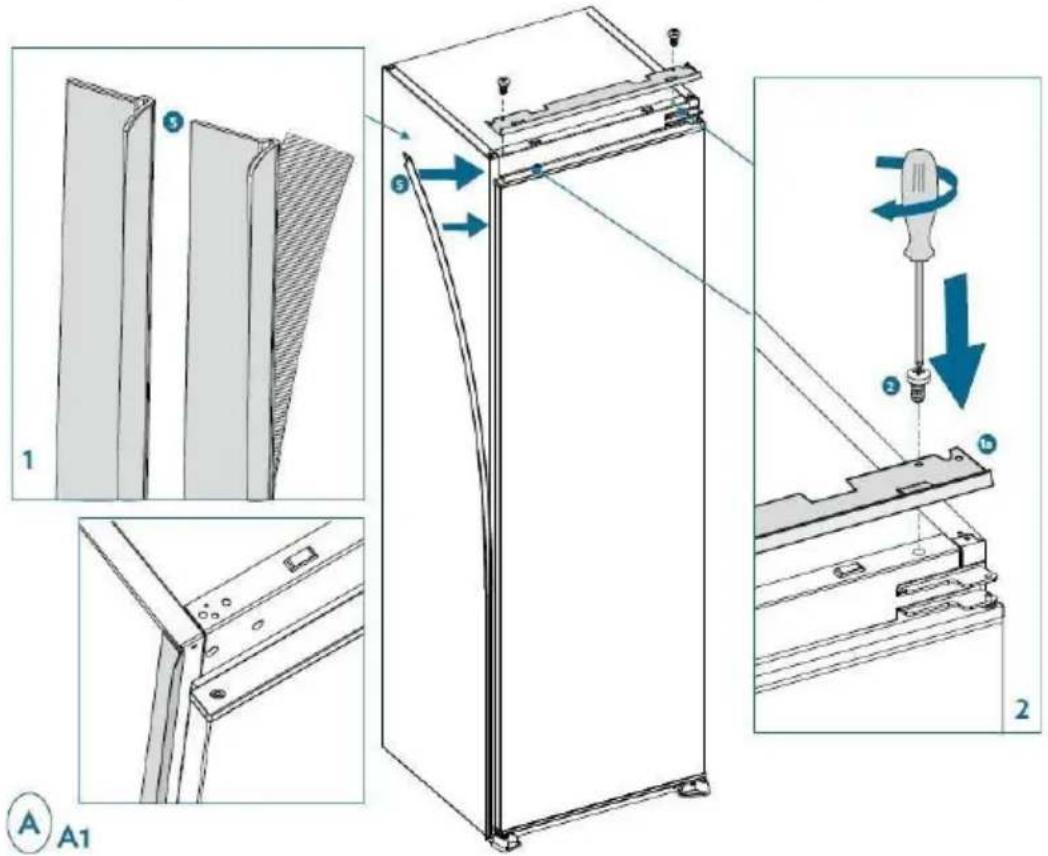

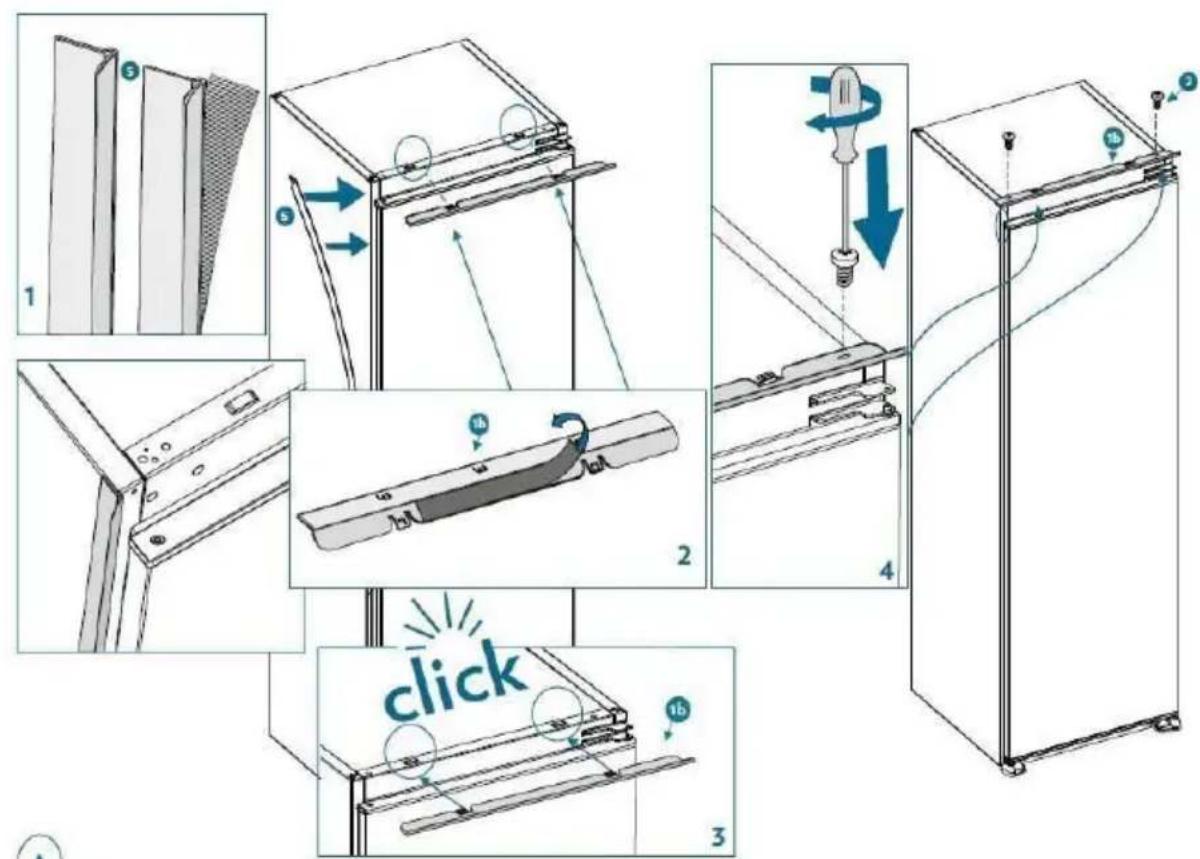

1. Install the side cover gasket on the side where the door opens, to close the gap between the appliance and the wooden cabinet. Attach the top cover bracket to the appliance.

Technical diagram illustrating the assembly of a refrigerator with labeled parts and directional arrows indicating motion or assembly steps.

*Depending on models

Technical diagram illustrating the step-by-step installation of a refrigerator door frame, with labeled steps and instructions.

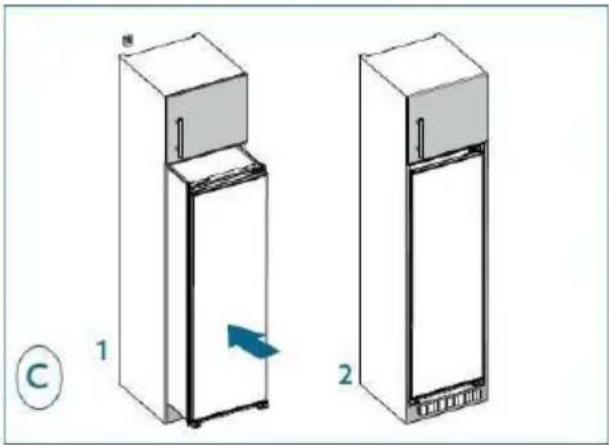

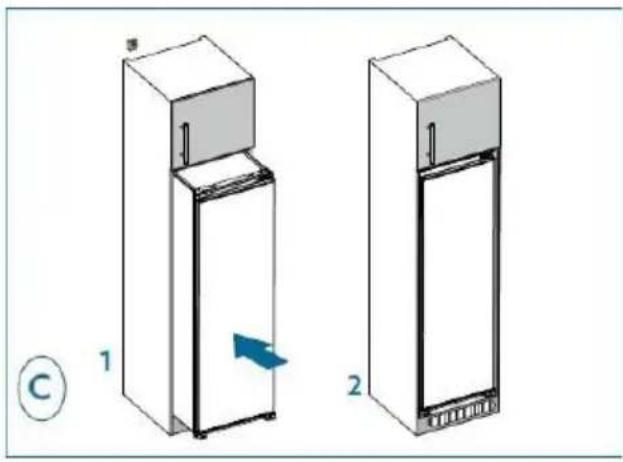

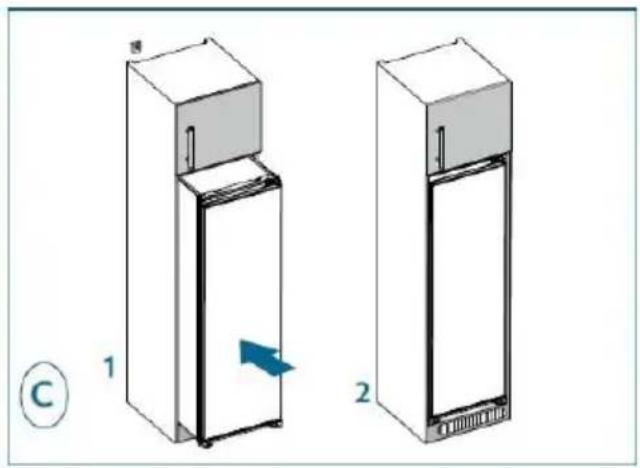

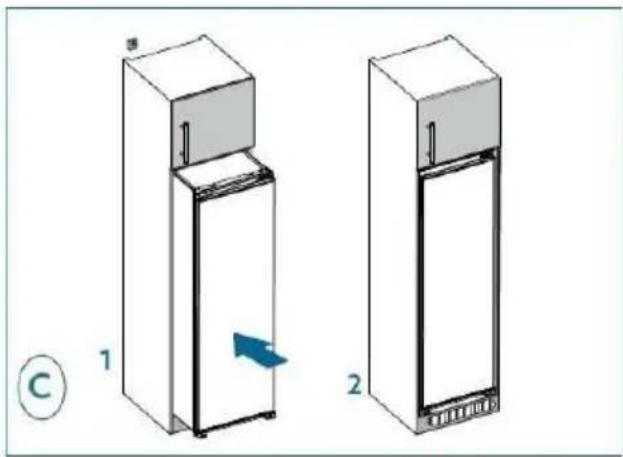

1. Carefully slide the appliance into the cabinet. Make sure the opening side of the door is as close as possible to the cabinet wall.

min. 200 cm² min 40 mm max. 2100 mm 560 mm (in mm)mm min 550 mm B 40 mm 540 mm 545 mm A 1770 (mm) 1770 (mm) 1770 - 1778 (mm) 1770 - 1790 (mm)

*Depending on models

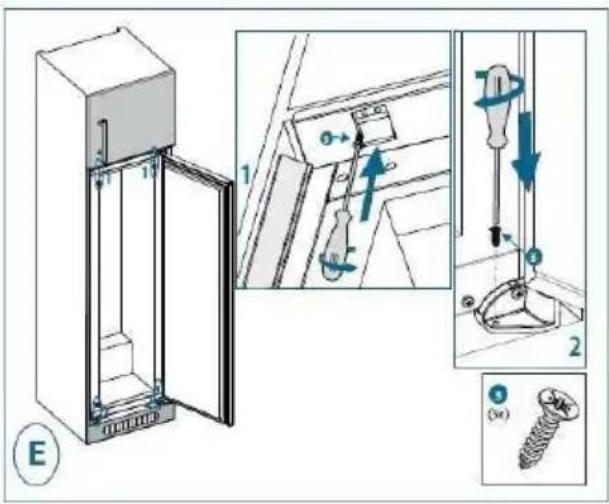

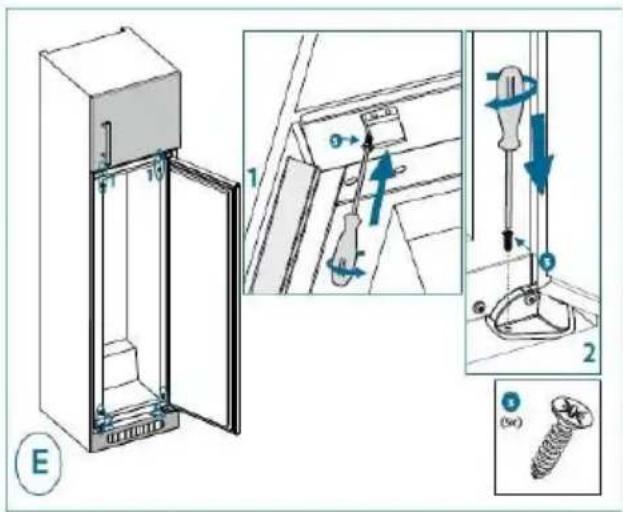

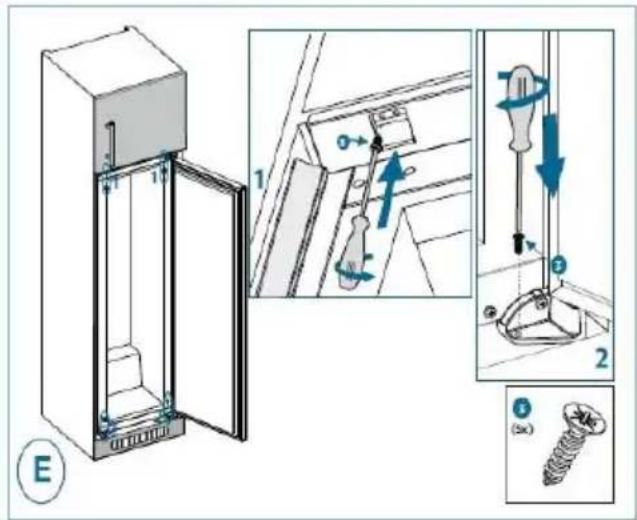

1. Do not plug in the appliance. Fix the top cover bracket and feet to the cabinet.

Diagram illustrating electrical hazard warning and safety instructions for using a device, with labeled diagrams and warning symbols.

Diagram of two refrigerators with labeled parts and a blue arrow indicating motion (no text or symbols present)

Diagram illustrating the installation of a refrigerator with warning symbols and safety indicators

Technical diagram showing a door panel installation with labeled components and directional arrows indicating motion or force directions.

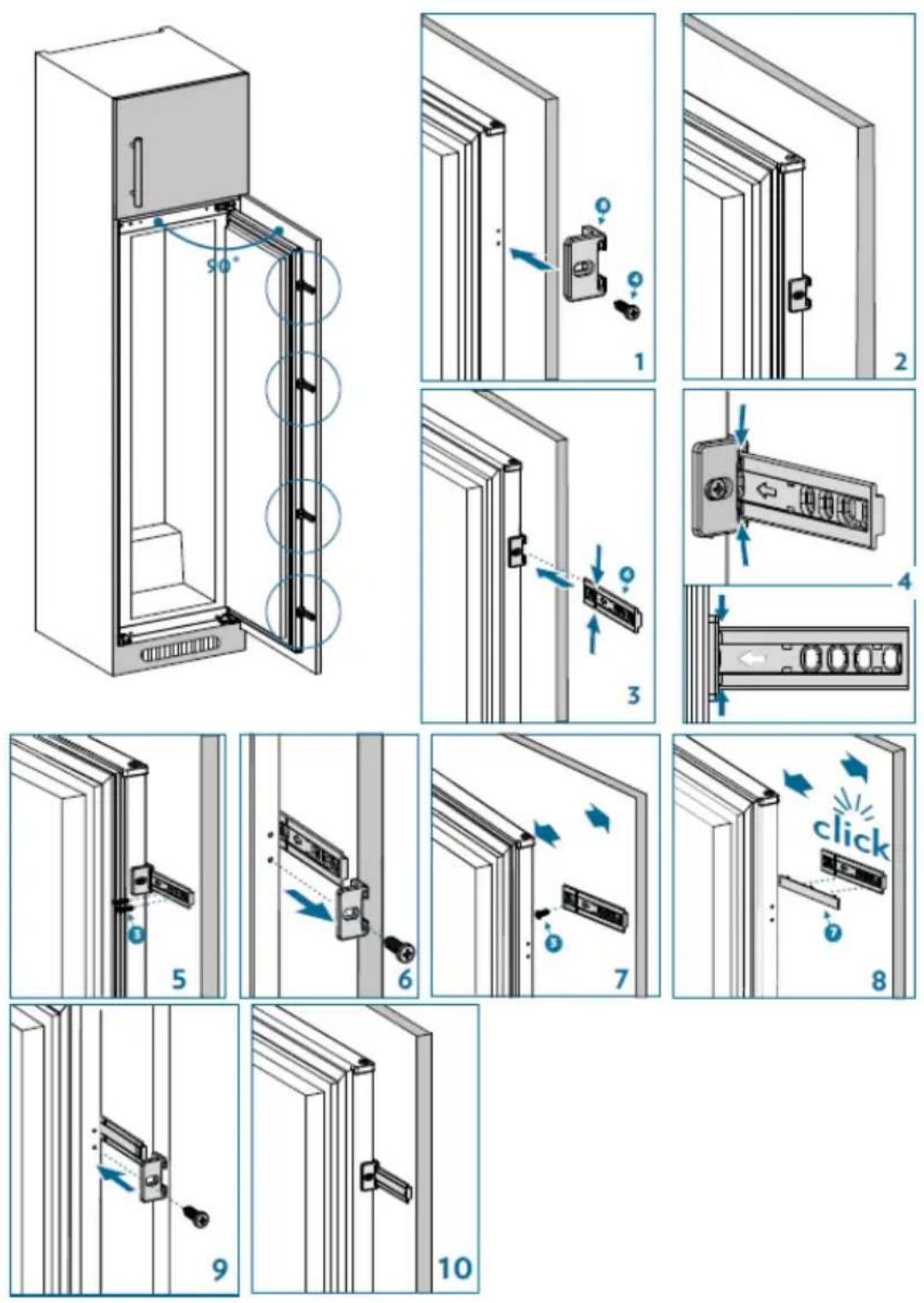

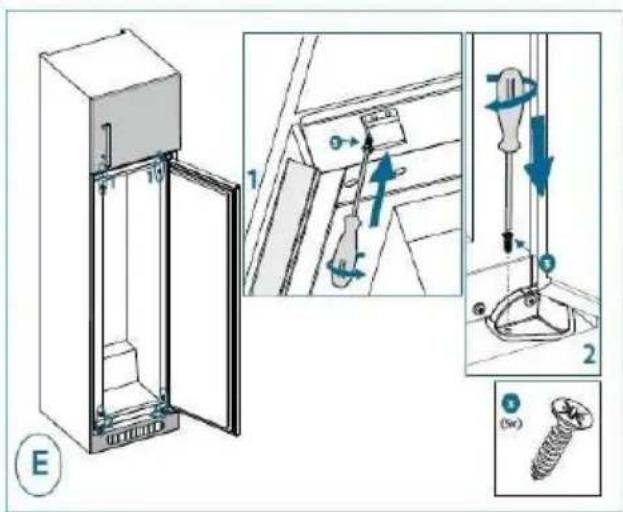

1. Screw a guide into the holes on the appliance side. Insert the sliding rail into the guide and screw it to the door. Unscrew the guide to screw the last screw of the sliding rail to the door. Then attach the sliding rail cover to the sliding rail. Screw the guide back onto the unit by inserting the slide.

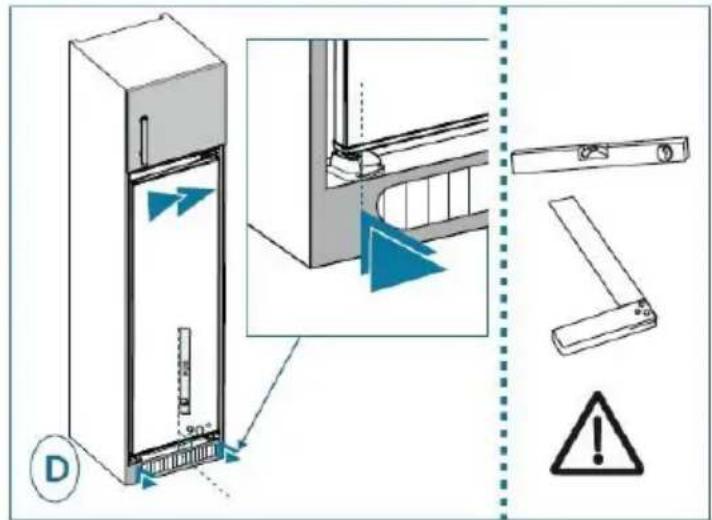

Levelling the appliance

Choose a place to install the refrigerator on a flat surface.

Two labeled signs: a checkmark inside a container and a cross inside a container, likely indicating cancellation or rejection.

If the appliance is not level, the doors will not be correctly aligned and compartment sealing will not be ensured.

Electrical connections

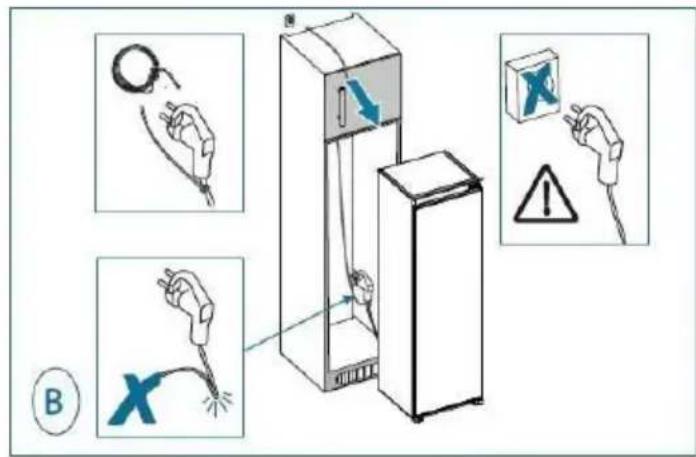

Warning! It must be possible to unplug the appliance from the mains power, so the plug must remain easy to access after installation.

• The electric connections must meet the applicable standards and be capable of withstanding the maximum power shown on the ID plate.
• The power plug must be easily accessible and out of the reach of children.
• For your safety this appliance must be earthed. If the power plug is not earthed, consult a qualified electrician to connect your appliance in line with applicable regulations.
• Do not use extensions, adapters or multiple plugs.
• Do not place multiple plugs or portable power supply units behind the appliance.

The manufacturer declines all liability if the above-mentioned safety precautions are not complied with. If in doubt, refer to your reseller.

"COLD AREA" indicator

The sign opposite can be found in your fridge.

It clearly shows the coldest zone of your appliance, where the temperature is lower than or equal to +4^ C.

A temperature gauge in this zone allows you to check the settings of your fridge.

Adjust the thermostat

Temperature correct

Warning!

If the door of the fridge is left open for too long, the temperature inside the fridge will rise. Check the temperature gauge within 30 seconds after opening the door to make sure that the reading is correct.

Temperature setting

Control Panel

1 2 3 08.0 E | M | 6 5 4

Buttons

2 – Press 2 to adjust the temperature of the fridge: 8, 6, 5, 4, 2°C, and to activate the Super cool mode
3 – Press 3 to select Eco mode.

Lights

1 – Show the temperature of the fridge.
4 – Eco mode light.
5 – Super cool mode light.
6 – Alarm light: appears when there is an error on one of the components such as defrost heater, compressor or when the sensor is no longer connected.

Setting

• Press Mode button (#3 on control panel drawing) to select the mode wanted.
• Press Fridge button (#2 on control panel drawing) to adjust the setting temperature. The temperature of the fridge is automatically at 4°C.

Super cool mode

This mode allows to cool and store a large quantity of food in the fridge compartment, and to quickly cool drinks.

• Scroll through the different temperatures until the wanted temperature for the Super cool mode appears.
• Press and hold the Fridge button (#2 on the control panel drawing) while the displayed temperature is flashing, to activate the mode. A buzzer sounds, the mode is set.
• Press the button until you return to the temperature at which you set the Super cool mode. The Super cool light (# 5 on the control panel drawing) appears next to the temperature, the mode is set.

During this mode:

• Eco mode cannot be selected.
• Super cool mode can be disabled by pressing and holding the Fridge button again. When disabled, the selected setting values will proceed.

Eco mode

During periods of less frequent use or absence from home, such as holidays, Eco program can provide optimum temperature while saving power.

E | I |

• Push Mode button (#3 on control panel drawing) until Eco symbol appears. Buzzer will sound, mode will be set.
  • Temperature light (#1) will show "E".
• Eco symbol and E will light till mode finishes.

During this mode:

• Temperature may be adjusted.
• Super cool mode can be selected, but Eco mode is automatically cancelled.
- To disable, press Mode button. When Eco mode will be disabled, the selected setting values will proceed.

Screen saving mode

This mode saves energy by switching off all control panel lighting when the panel is left inactive. Screen saver mode will be activated automatically after 30 seconds.

• If you press any button while the lighting of the control panel is off, the current settings will reappear on the display to let you make any change you wish.
• If you do not cancel the screen saving mode or press any button for 30 seconds, control panel remains off.

To disable the Screen saving mode

• Press any button to activate the keys and then press and hold the Mode button (#3 on control panel drawing) for 3 seconds.
• To reactivate Screen saving mode, press and hold the Mode button (#3 on control panel drawing) for 3 seconds.

Door open alarm

- The alarm will sound when door is left open for a long time. It switches off when door is closed.

Daily use

Your refrigerator compartment is equipped with shelves, door racks and drawers with various logos to help you store your food in the right place.

Using the shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

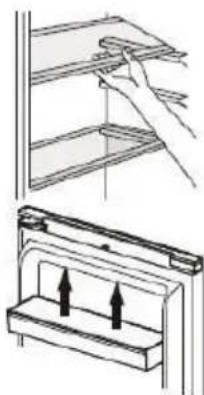

Positioning the small door trays

The small door trays can be removed to assist cleaning. To do this, progressively pull the door rack in the direction indicated by the arrows until you can remove it completely. After cleaning it, replace it in the desired location.

Diagram showing a hand pressing down on a shelf with arrows indicating movement or force, alongside a mechanical component (no text or symbols)

Bottle shelf

This equipment is dedicated to bottles storage. It allows to optimize space and to save space when the bottle rack is full. For optimum use, recommended position of the bottle shelf is the second one starting from the top of the fridge.

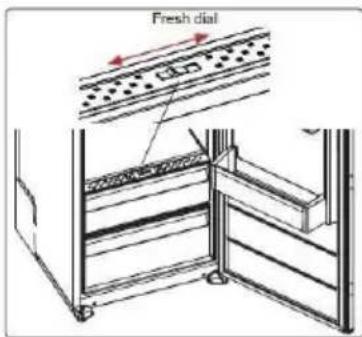

Turbo Fan

Do not block the air inlet and outlet openings when storing food, otherwise air circulation provided by the turbo fan will be impaired.

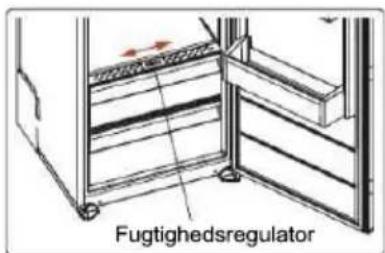

If the crisper is full, the fresh dial located in front of the crisper should be opened. This allows the air to go into the crisper and the humidity rate to be controlled, in order to increase the life of food within.

The dial, located behind the shelf, must be opened if any condensation is seen on the glass shelf.

Fresh dial

Hints and Tips

• The refrigerator is a domestic appliance suited to short-term conservation of food products like fruit, vegetables, drinks, etc.
• Do not use it as a specialised appliance for storing products that require storage in line with strict temperature rules, like medicines, etc.
  • Cooked foods must be cooled to ambient temperature before they are placed in the refrigerator.
  • We recommend placing food in sealed containers before storing them in the fridge.
• Never place food right next to the air outlet as this could impede the airflow and freeze the food.
• Never place volatile, inflammable or explosive liquids like solvents, alcohol, acetone or petrol in the fridge. There is an explosion hazard.
• Never leave the door open longer than necessary.

Hints for refrigeration

• Meat (all types) must be wrapped in sealed polyethylene bags and placed on the glass shelf above the crisper.
• For safety, store in this way only one or two days at the most.
• Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer provided.
• Butter and cheese should be placed in special sealed containers, wrapped in aluminium foil or placed in a sealed bag.
• Milk bottles should be capped and stored in the bottle rack in the door.
• To save energy, all of the door shelves and glass shelves should be fitted in their designed location.

Warning! Always unplug your appliance before any maintenance work. Never pull on the power cord, but only on the plug itself.

Cleaning

For hygiene reasons, regularly clean the appliance (sidewalls and interior and exterior accessories).

Important! Ethereal oils and organic solvents can damage plastic parts, e.g. lemon juice, butyric acid or acetic acid.

• Do not allow such substances to come into contact with appliance parts.
• Do not use any abrasive cleansers.
• Remove food from the appliance. Store it in a cool place and keep well covered.
• Clean the appliance and the interior accessories with a cloth and lukewarm water with a diluted white vinegar or bicarbonate of soda solution. Do not wash the accessories in a dishwasher.
  • After cleaning them, rinse surfaces with clear water and dry them.
  • After everything is dry, plug the appliance back into the plug.
  • Make sure that no water enters the lamp housing and other electrical components.
• Clean the condenser with a brush at least twice a year. This will help you to save energy costs and increase productivity.

① Never clean the appliance with a steam cleaner.

Cleaning the drain

To stop the defrost water from running into the refrigerator, clean the drain at the back of the refrigerator part from time to time. To do this, use a cleaning product as shown in the diagram on the right.

Replacing the light

This product contains a light source whose the energy efficiency class is F.

The light inside the fridge uses a LED. To replace it, please contact your after sales service or an approved technician.

You will find all the information you need to contact our authorized technicians and our after-sales service in the “CONTACTS & INFORMATION” section.

Troubleshooting

Warning! If there is any anomaly, unplug your appliance. Only a qualified electrician or competent person may carry out troubleshooting.

If there is any anomaly during operation, check the following points before calling our approved after sales service or a qualified professional.

ERROR TYPE	MEANING	WHY	WHAT TO DO
E01	Sensor warning		Call Service for assistance as soon as possible.
E02	Sensor warning		Call Service for assistance as soon as possible.
E03	Sensor warning		Call Service for assistance as soon as possible.
E06	Sensor warning		Call Service for assistance as soon as possible.
E07	Sensor warning		Call Service for assistance as soon as possible.
E08	Low voltage warning	Power supply to the device has dropped to below 170V.	- This is not a device failure, this error helps to prevent damages to the compressor.- The voltage needs to be increased back to required levels.If this warning continues, an authorised technician needs to be contacted.
E10	Fridge compartment is not cold enough	Likely to occur after:- Long term power failure.- Hot food has been left in the fridge.	1. Set the fridge temperature to a colder value or set Super cool. This should remove the error code once the required temperature has been reached. Keep doors closed to improve time taken to reach the correct temperature.2. Please empty the location at the front area of air duct channel holes and avoid putting food close to the sensor.If this warning continues, an authorised technician needs to be contacted.
E11	Fridge compartment is too cold	Various	1. Check if Super cool mode is activated2. Reduce the fridge compartment temperature3. Check if vents are clear and not cloggedIf this warning continues, an authorised technician needs to be contacted.

① Some noises may be heard during normal appliance operation (compressor operating cycle, automatic defrosting, circulation of the refrigerating gas through the appliance, etc.).
If you cannot find the cause of the anomaly, only call our approved after sales service or a qualified professional.

CONTACTS & INFORMATION

Customer Relations

For more information about our products or to contact us, please:

Visit our website: www.brandt.com

Servicing and repairs.

Any repairs to your appliance must be made by a qualified professional accredited to work on the brand.

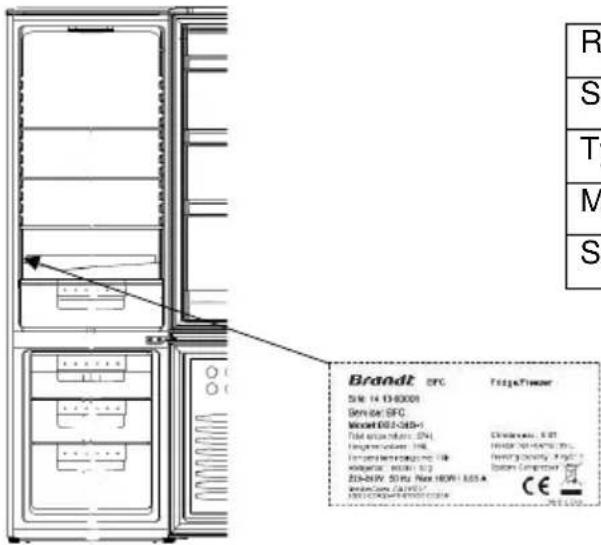

When making contact, mention the complete reference of your appliance (model, type, serial number). This information is provided on the ID plate located at the bottom left of the refrigerator (above the shelf or behind the crisper).

Brandt EFC SME 14 13-03001 Service EFC Mccmt.002-005-1 Total volume unit: 27A Volume unit: 10K Volume unit: 10K 220-80V 50Hz Next HOP-1 605 A System Compression CE

Reference
Serial number
Type
Model
Service Reference

You can find a list of approved service centres on our website www.brandt.com

This website also allows access to information on spare parts.

Original replacement parts

During servicing, ask for only original spare parts to be used.

The minimum length of time for making available spare parts listed in European Regulation 2019-2019-EU and accessible especially to the appliance user is 10 years under the terms set out in the above regulation.

Guarantee

Please contact your reseller to benefit from the guarantee. The manufacturer does not offer any commercial guarantee for the refrigeration appliance.

Kære kunde,

Sikkerhed under installation

Line drawings of various household cleaning tools including screwdriver, ruler, and tool holder (no text or symbols)

Technical diagram illustrating the assembly of a refrigerator with labeled parts and directional arrows indicating motion or movement.

Technical diagram illustrating the step-by-step assembly of a refrigerator with labeled parts and instructions for click action.

Diagram illustrating electrical hazard warning and safety instructions for a refrigerator, showing hand actions and warning symbols.

Diagram of two refrigerators with labeled parts, showing front and side views (no text or symbols present)

Diagram illustrating the installation of a refrigerator with labeled components and warning symbols

Technical diagram showing a door panel installation with labeled components and directional arrows indicating movement or force.

Two identical diagrams showing a checkmark and a cross inside vertical bars, likely indicating approval or rejection status.

Indikator for "KOLDT OMRÅDE"

1 2 3 08.0 | M | 6 5 4

Taster

Diagram showing a hand placing a shelf onto a rack, with an inset view of a mechanical component (no text or symbols)

Skabsflaskehylde

Luftventilator,

Diagram illustrating a door lock mechanism with labeled steps and directional arrows, including click button and adjustment controls.

Technical diagram illustrating the assembly of a refrigerator with labeled parts and directional arrows indicating motion or movement.

* Segundo o modelo

1 2 3 click A A2

Diagram illustrating electrical hazard warning and safety instructions for a device, showing hand gestures and warning symbols.

Illustration of two refrigerators with a blue arrow indicating a cooling effect (no text or symbols)

Diagram illustrating a door lock mechanism with labeled components and warning symbols

Technical diagram showing a door panel installation with labeled components and assembly steps, including tool positioning and screw assembly.

Two identical diagrams showing a checkmark inside a container and a cross inside a device, both with black symbols.

1 2 3 08 L | M | 6 5 4

Botões

Technical diagram showing a mechanical assembly with two views of a frame structure (no text or symbols)

Porta garrafas

Diagram showing a hand holding a tool inside a container with arrows indicating motion (no text or symbols)

Brandt S/N: 14 124004 ServiceEPC Phone:[phone] This is provided by: CNL Copyright: CNL Product code: CNL Product name: CNL Product type: CNL Product quality: English Inventory: 500 gm / kg Cost: $500.00/1000.00 / (100.00) Product name: CNL Product description: CNL Firm/Firetor Circuits CE Pcs 1240

Technical diagram of an open refrigerator with numbered compartments and labeled parts

Technical diagram showing a vertical panel with internal components and directional arrows, alongside warning symbols including an exclamation mark and warning symbol.

Technical diagram illustrating the assembly of a refrigerator with labeled parts and directional arrows indicating motion or movement.

Technical diagram illustrating the step-by-step installation of a refrigerator door panel, showing steps from opening to closing.

A A2

Diagram illustrating safety instructions for using a refrigerator, showing hand actions and warning symbols

Diagram of two refrigerators with labeled parts and a blue arrow indicating a component (no text or symbols present)

Diagram illustrating the installation of a refrigerator with labeled components and warning symbols

Technical diagram showing a door panel installation with labeled components and mechanical assembly steps

Two identical diagrams showing a checkmark and an 'X' symbol inside vertical bars, likely indicating cancellation or rejection.

1 2 3 08.0 | M | 6 5 4

Buttons

Illustration of a hand placing a component into a shelf, with an arrow indicating direction (no text or symbols present)

Technical diagram of an open refrigerator with numbered compartments and labeled parts

Line drawings of various tools including screwdriver, ruler, and tool holder (no text or symbols)

Technical diagram showing a vertical panel with internal components and directional arrows, alongside warning symbols including an exclamation mark and warning symbol.

Technical diagram illustrating the assembly of a refrigerator with labeled parts and directional arrows indicating motion or movement.

Diagram illustrating safety instructions for using a refrigerator, showing hand gestures and warning symbols

Diagram of two refrigerators with labeled parts, showing front and side views (no text or symbols present)

Diagram illustrating the installation of a refrigerator with labeled components and warning symbols

Technical diagram showing a door panel installation with labeled components and directional arrows indicating motion or force directions.

Two identical diagrams showing a checkmark and a cross symbol inside vertical bars, likely indicating approval or rejection status.

1 2 3 08.0 | M | 6 5 4

Pulsanti

Technical illustration showing a hand holding a shelf above a rack, and a close-up of a mechanical component with two arrows indicating force or movement (no text or symbols present)

Portabottiglie

Line drawing of a refrigerator interior showing door, frontrest, and side arm (no text or symbols)

Technical line drawing of a door with a handle and wheels, showing internal structure (no text or symbols)

Technical diagram of an open refrigerator with numbered compartments and labeled parts

Line drawings of various tools including screwdriver, ruler, magnifying glass, and coiled cable (no text or symbols)

Pokyny k instalaci

1770 - 1778 pour couvercie métallique min 200 cm² min 40 mm 560 - 570 mm max 2100 mm 1770 - 1790 mm 545 mm 560 mm (recommande) min 580 mm 1770 mm 540 mm

Technical diagram showing a 3D cabinet with internal components and warning symbols including an exclamation mark and warning symbol.

Technical diagram illustrating the assembly of a refrigerator with labeled parts and directional arrows indicating motion or movement.

Diagram illustrating safety warning and hazard for using a refrigerator, showing hand actions and warning symbols.

Diagram of two refrigerators with one opening its lid, showing internal components and a blue arrow indicating rotation (no text or symbols)

Technical diagram showing a device with labeled components and warning symbols, including a warning sign and safety warning.

Technical diagram showing a door switch mechanism with labeled parts and directional arrows indicating motion or assembly.

Two identical signboards with checkmarks and an 'X' symbol, likely indicating approval or rejection status.

1 2 3 08.0 | M | 6 5 4

Tlačítka

Technical line drawing showing a hand holding a shelf above a mechanical component with two arrows indicating motion (no text or symbols)

Stojan na láhve

Brandt SVM 14 13-0008 Service: SFC Model D03-3d3-1 File usage (2.9M) Operating software: 1KB Operating system: 1KB Aircraft: 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Brandt, SFC FrigaPower Chinakawa, 5.67 Huang Henghong, 5.67 Huang Chongyuan, 5.67 System Computer CE PNC 5.67

Technical diagram of an open refrigerator with numbered compartments and labeled parts

1) Ovládací panel
2) Turbo ventilátor*
3) Držiak na víno*
4) Poličky v chladničke
5) Kryt hornej priehradky na ovocie a zeleninu*
6) Horná priehradka na ovocie a zeleninu*
7) Kryt priehradky na ovocie a zeleninu
8) Priehradka na ovocie a zeleninu
9) Polička na fl'aše
10) Nastaviteľná dverná polička*/dverná polička
11) Dverné poličky
12) Držiak na vajcia

Úspora energie

Ak chcete obmedzil spotrebu energie spotrebiča:

Line drawings of various tools including screwdriver, ruler, and pH2 accessories (no text or symbols on the objects themselves)

Technical diagram showing a cabinet with internal components and warning symbols including an exclamation mark and warning symbol.

Technical diagram illustrating the assembly of a refrigerator with labeled parts and directional arrows indicating motion or movement.

Diagram illustrating safety instructions for using a refrigerator, showing hand gestures and warning symbols

Diagram of two refrigerators with labeled parts and a blue arrow indicating rotation (no text or symbols present)

90° D

Technical diagram showing a door panel installation with labeled components and directional arrows indicating motion or force directions.

Two identical diagrams showing a checkmark and an 'X' symbol inside vertical bars, likely indicating cancellation or error.

1 2 3 08.0 | M | 6 5 4

Tlačidlá

Technical illustration showing a hand placing a component into a shelf, with an inset view of a mechanical component (no text or symbols)

Stojan na fl'aše
