Safety information

- Congratulations on your new Samsung appliances. This manual contains important information on the installation, use, and care of your appliances. Read this manual thoroughly before using the appliances to ensure that you know how to safely and efficiently operate the features and functions that your new appliances offers.

Important safety symbols

What the icons and signs in this user manual mean:

WARNING

Hazards or unsafe practices that may result in severe personal injury, death and/or property damage.

CAUTION

Hazards or unsafe practices that may result in personal injury and/or property damage.

Read the instructions

After reading this manual, store it in a safe place for future reference.

Read all instructions before using the appliance.

NOTE

Supplementary information that may be useful

Safety information

WARNING

Failure to follow the instructions may result in electric shock, injury, fire, breakdown or explosion.

Important safety precautions

WARNING; Risk of fire / flammable materials

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. For use in Europe: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
3. Children should be supervised to ensure that they do not play with the appliance.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. This appliance contains a small amount of combustible refrigerant isobutane (R-600a). For installation, handling, servicing and disposal of the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.
6. R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of the appliance or the rating label inside the fridge to see which refrigerant is used for your appliance. When this product contains flammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.
7. Do not damage the refrigerant circuit.

English2

1. To avoid the creation of a flammable gas-air mixture if a leak in the refrigerating circuit occurs, the room size must be 1 m^3 in size for every 8 g of R-600a refrigerant inside the appliance. And, unplug the appliance showing any signs of damage and please consult to your dealer if in doubt.
2. Cyclopentane is used in the insulation. The gases in the insulation material require a special disposal procedure. Please contact your local authorities for environmentally safe disposal.
3. The socket must be easily accessible so that the appliance can be quickly disconnected from the supply in an emergency.
4. When positioning the appliance, ensure the supply cord is not trapped or damaged.
5. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
6. This appliance is intended to be used in household and similar applications such as
7. staff kitchen areas in shops, offices and other working environments;
8. farm houses and by clients in hotels, motels and other residential type environments;
9. bed and breakfast type environments;
10. catering and similar non-retail applications.
11. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
12. Do not use mechanical devices or any other means to accelerate the defrosting process, other than those recommended by the manufacturer.
13. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
14. Do not keep volatile or flammable objects or substances in the refrigerator.
15. This refrigerator is for storing food only.
16. This may result in fire or explosion.
17. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
18. For the most efficient use of energy, please keep the all inner fittings such as baskets, drawers, shelves on the position supplied by manufacturer.
19. Connect to potable water supply only. (applicable models only)

3English

Safety information

1. Fill with potable water only. (applicable models only)

2. Fill the water tank, ice tray and water cubes only with potable water (mineral water or purified water).

3. Do not fill the tank with tea, juice or sports drink, this may damage the refrigerator.

4. New hose-sets supplied with the appliance are to be used and old hose-sets should not be reused.

5. Please connect to the potable water supply only. Water pressure of 206-861 kPa(30-125 psi) is required for the correct operation.
6. If the product is equipped with LED lamps, please contact a local Samsung service centre or it's agents to replace the lamps.
7. To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments are suitable for storing prefrozen food, storing or making icecream and making ice cubes.

- One-, two- and three-star compartments are not suitable for the freezing of fresh food.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

1. The temperature of two star section (sections) or compartment (compartments) which have two star symbol (*) is slightly higher than other freezer compartment (compartments).

2. To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

English4

Installation

• This appliance should only be transported by two or more people holding the appliance securely.
  • Install the appliance on a firm and level floor.
• Do not install the appliance in a damp and dusty place. Do not install or store the appliance in any outdoor area, or any area that is subject to weathering conditions such as direct sunlight, wind, rain, or temperatures below freezing.
• Do not place the appliance in direct sunlight or expose it to the heat from heating appliances such as stoves or heaters.
• Be careful not to expose the rear of the appliance when installing.
• Install the appliance in a place where it is easy to unplug the power plug of the appliance.
• Be careful not to let the appliance door fall during assembly or disassembly.
• Be careful not to pinch, crush, or damage the power cable during assembly or disassembly of the appliance door.
• Be careful not to point the power plug up or let the appliance lean against the power plug.
• Do not connect a plug adapter or other accessories to the power plug.
• Do not modify or extend the power cable.
• Ensure that the outlet socket is properly grounded, and that the earth pin on the power cord is not damaged or removed from the power plug. For more details on grounding, inquire at the Samsung Electronics service centre.
• This appliance is equipped with a power cord having an equipment-grounding conductor and a grounding power plug. The power plug must be plugged into an appropriate outlet socket that is installed and grounded in accordance with all local codes and ordinances.
• Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.
• Do not plug the appliance into a multi-socket adapter which does not have a power cable (mounted).
• The appliance should be connected to a dedicated power line which is separately fused.
• Do not use a multi-socket outlet which is not properly grounded (portable). In case of using a properly-grounded multi-socket (portable), use the multi-socket outlet with the current capacity of the power cord rating or higher and use the multi-socket outlet only for the appliance.
• Dispose of all packaging materials (such as plastic bags and styrofoam) away from children. The packaging materials can cause suffocation.

Operation

CAUTION

To reduce the risk of minor injury to persons, malfunction, or damage to the product or property when using this product, follow basic precaution, including the following:

• Be careful of nearby children when you open or close the appliance door, The door may bump the child and cause injury.
• Avoid the danger of children getting trapped inside the appliance. A child trapped inside the appliance can cause suffocation. Do not touch frozen food or the metal parts in the freezer compartment with wet or damp hands. It may cause frostbite.
• Do not place glass containers, bottles or cans (especially those containing carbonated drinks) in the freezer compartment, shelves or ice bin that will be exposed to temperatures below freezing,
• The tempered glass on the front side of the appliance door or the selves can be damaged by an impact. If it is broken. Do not touch it with hands.
• Do not hang from the appliance doors, storage room, shelf or climb up into it.
• Do not store an excessive amount of water bottles or containers for side dishes on the door baskets.
• Do not open or close the appliance door with excessive force.
• If the hinge of the appliance door is damaged or operates improperly, stop using the appliance and contact an authorized service centre.
• Prevent animals from nibbling on the power cable or water hose.
• Never eat frozen foods immediately after they have been taken out in the freezer compartment.
• Make sure not to get a hand or foot stuck upon opening or closing the appliance door or door in door.

Maintenance

• Do not clean glass shelves or covers with warm water when they are cold. They my shatter if exposed to sudden temperature changes.
• Do not insert the shelves upside down. The shelves may fall.
• To remove frost from the appliance, contact the Samsung Electronics service centre.
• Dispose of the ice inside the ice bin in the freezer compartment during an extended power outage.

5English

Safety information

Declaration of conformity

Hereby, Samsung declares that this radio equipment is in compliance with Directive 2014/53/EU and with the relevant statutory requirements in the UK.

The full text of the EU declaration of conformity and the UK declaration of conformity is available at the following internet address: The official Declaration of conformity may be found at http://www.samsung.com, go to Support > Search Product Support and enter the model name.

CAUTION (Applicable to Family Hub type only)

The 5 GHz WLAN function of this equipment may only be operated indoors. This equipment may be operated in all EU countries and in the UK.

	Frequency range Transmitter power (Max)
Wi-Fi	2412 - 2472 MHz 20 dBm
	5120 - 5250 MHz 23 dBm
	5250 - 5350 MHz 20 dBm
	5470 - 5725 MHz 27 dBm
Bluetooth 2402 - 2480 MHz 20 dBm

Installation

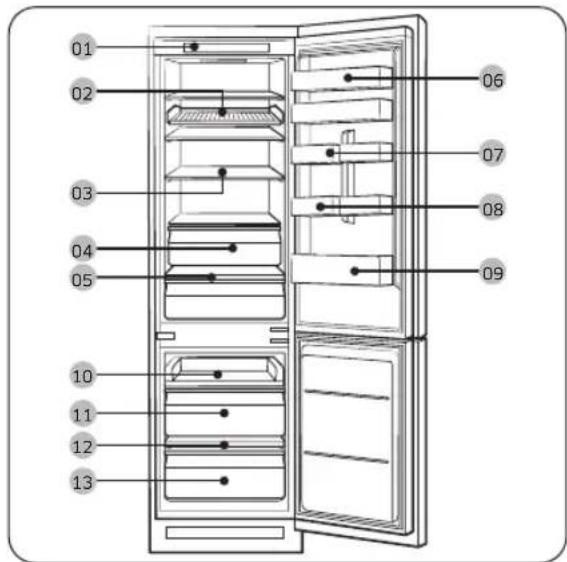

Refrigerator at a glance

The actual refrigerator and provided component parts of your refrigerator may differ from the illustrations in this manual, depending on the model and the country.

01 02 03 04 05 10 11 12 13 06 07 08 09

01 Control panel
02 Shelf wine *
03 Fridge shelf *
04 Fridge drawer *
05 Vegetable shelf *
06 Top door bin *
07 Variety door bin
08 Egg tray *
09 Fridge door bin
10 Slide shelf
11 Freezer middle drawer
12 Freezer shelf *
13 Freezer bottom drawer
* applicable models aonly

NOTE

• For best energy efficiency, make sure all of shelves, drawers, and baskets are placed in their original position.
• Only for models which have freezer shelf:

- To quickly freeze large quantities of food, use the freezer after removing the bottom drawer of the freezer.

To get more space, you can remove the slide shelf (10) and two freezer drawers (11, 13) under it but keep the freezershelf on the bottom drawer of the freezer. They do not affect thermal and mechanical characteristics. The declared storage volume of the frozen food storage compartment is calculated with the shelf and the freezer drawers removed.

English6

Clearance

See the following figures and tables for installation space requirements.

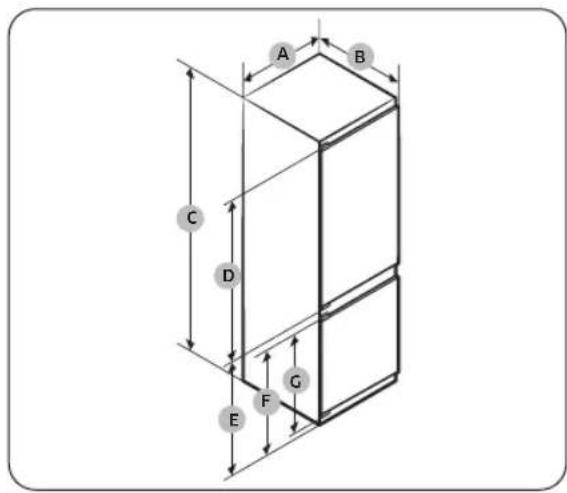

Product dimension

A B C D E F G

	BRB***26* BRB***30*
A 540±2 540±2
B 550±2 (with door) 550±2 (with door)
C 1775±2 1935±2
D 987 1147
E 735 735
F 671 671
G 621 621

(unit: mm)

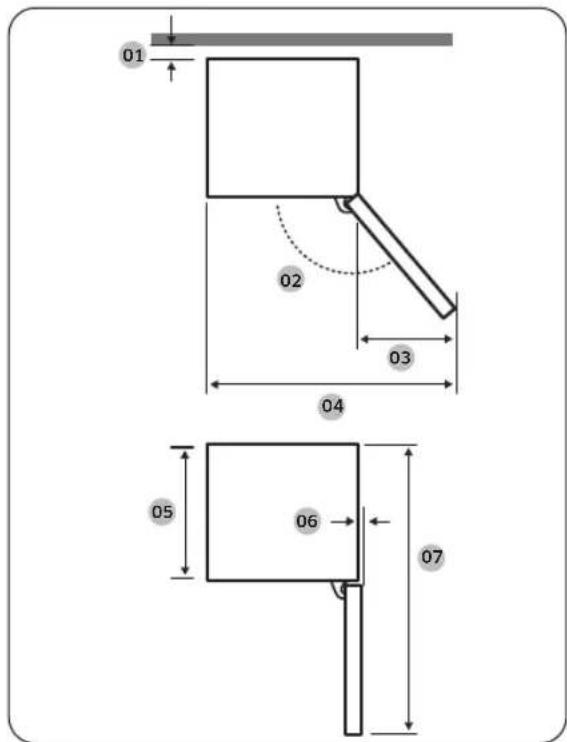

Product Overall Dimension

01 02 03 04 05 06 07

Model	BRB******SO SLIDE TYPE	BRB******FO FIXED TYPE
01* 10 (Min.) / 30 (Recommended)
02	95° (Recommended)	115° (Recommended)
03 218	180
04 758	700
05 510	510
06	1	5
07	1055	1055

* 01: From cabinet to rear of product.

(unit: mm)

NOTE

• The specified energy consumption is based on the condition of a 10 mm gap from cabinet to rear of product. The product will work properly even with a gap which is less than 10 mm, however it consumes slightly more energy.
  • We recommend using a cabinet that is 18 mm thick with hinges less than 20 mm thick.

NOTE

• The measurements in the above table may differ, depending on the measuring method.
• For built-in installation, see the Installation Manual.

7English

Installation

Ventilation system of the cabinet

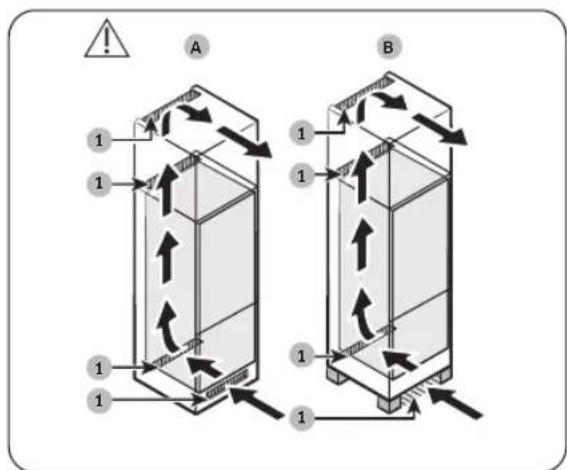

As shown in the figure, the air entering the refrigerator circulates along the ventilation path (see the arrow direction) of the cabinet. The cabinet must have at least 200 cm ^2 (WxH: 500 mm x 40 mm) of space both for the air inlet and air outlet. Also, the cabinet must have a rear vent of at least 200 cm ^2 (WxH: 500 mm x 40 mm) of space at the rear bottom.

Air inlet

A B

1200cm

2

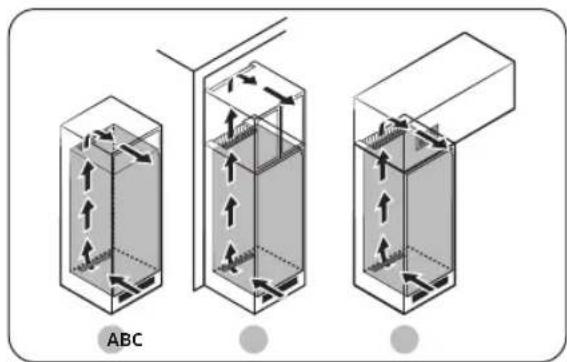

The air inlet must be positioned in one of the examples below, or a similar position, depending on your cabinet type.

A. A ventilation hole included in the cabinet.
B. A cabinet with feet.

Air outlet

ABC

The air outlet must be positioned in one of the examples below, or a similar position, depending on your cabinet type.

A. Immediately above the refrigerator with an optional vent grille
B. Close to the cabinet ceiling
C. Above the refrigerator with a separately built-in vent

CAUTION

Regardless of the cabinet design, the air ventilation system must not be blocked by any kind of installation.

Cabinet dimension

If the cabinet has a door, make sure the door is not heavy to prevent it from tipping or falling off.

Cabinet door Thickness (mm) Weight (kg)
Fridge side	Min. 16	Max. 18
Freezer side Max. 12	Max. 19

Any product failure due to the following is not covered by the Warranty.

1. Improper site conditions or incorrect cabinet sizes
2. Defective cabinet
3. Mistakes by the installer or the user

English8

Clearance

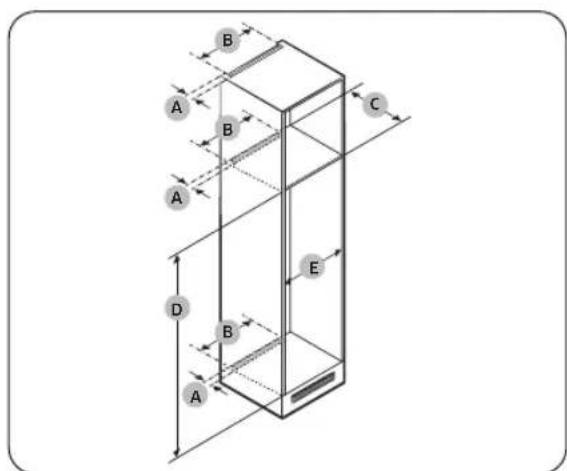

See the pictures and tables below for space requirements for installation.

Model		A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	Remark
BRB***26**S0 SLIDE TYPE	Min.	56240 500Hinge : 17 mm		560 1778 560
	Recommend 580 1780
	Max. - 1782 568
BRB***26**F0 FIXED TYPE	Min. 560 1778 555
	Recommend 580 1780 562
	Max. - 1782 568
BRB***30**S0 SLIDE TYPE	Min.	56240 500Hinge : 17 mm		560 1938 560
	Recommend 580 1940
	Max. - 1942 568
BRB***30**F0 FIXED TYPE	Min. 560 1938 555
	Recommend 580 1940 562
	Max. - 1942 568

NOTE

• If the width of a cabinet is larger than 568 mm, the gasket (between the refrigerator and the cabinet) can become loose.
  • If the cabinet is higher than the maximum dimension (1782 mm), you must use other finishing materials to fill the gap.

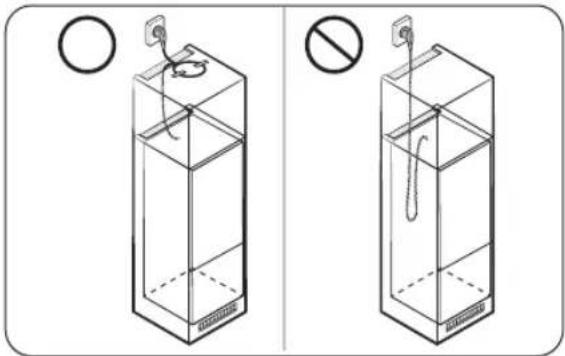

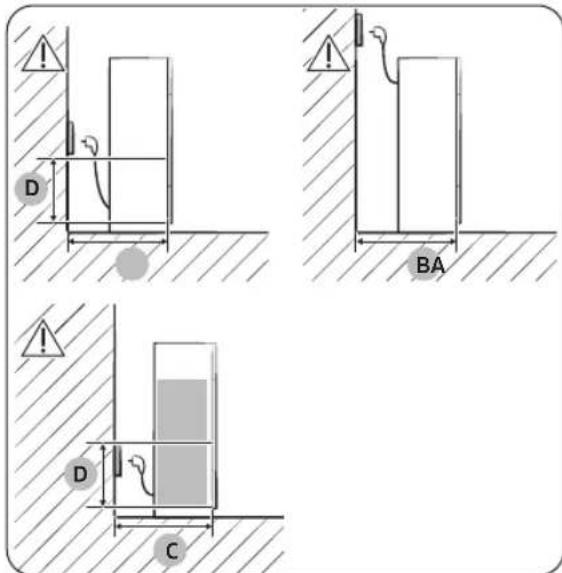

Consideration for socket outlet location and required space

Technical diagram showing three safety scenarios with warning symbols and labeled components (D, BA, C)

Two technical diagrams showing a transparent cylindrical container with internal components and a circular symbol above, alongside a separate view with a no-smoking sign (no text or symbols on the diagram itself)

A Min. 590
B Min. 560
C Min. 580
D	240

(unit: mm)

NOTE

If you install the refrigerator in a cabinet with a 560 mm depth, make sure the power cord is arranged on a side of the refrigerator before plugging into a power socket. If the power cord is in the rear of the refrigerator, it could decrease the energy efficiency.

9English

Maintenance

Cleaning

Interior and exterior

WARNING

• Do not use benzene, thinner, vinegar, liquid bleach, baking soda, citric, salt mixtures or home/car detergent such as Clorox™ for cleaning purposes. They may damage the surface of the refrigerator and cause a fire.
• Do not spray water onto the refrigerator. This may cause electric shock.

Regularly use a dry cloth to remove all foreign substances such as dust or water from the power plug terminals and contact points.

1. Unplug the power cord.
2. Use a moistened, soft, lint-free cloth or paper towel to clean the refrigerator's interior and exterior.
3. When done, use a dry cloth or paper towel to dry well.
4. Plug in the power cord.

LED Lamps

To replace the lamps of the refrigerator, contact a local Samsung service centre.

WARNING

The lamps are not user-serviceable. Do not attempt to replace a lamp yourself. This can cause electric shock.

Lamp (Light Source)

This product contains a light source of energy efficiency class . The lamp(s) and/or control gear(s) are not user-serviceable. To replace the lamp(s) and/or control gear(s) in the product, contact a local Samsung service centre.

For detailed instructions on replacing lamp(s) or control gear(s) in your product, visit the Samsung website (http://www.samsung.com), go to Support > Support home, and then enter the model name.

For detailed instructions on dismantling lamp(s) and/or control gear(s), simply follow the replacement instruction reached as described above.

Appendix

Information for model and ordering spare parts

Model information

To access energy labelling information about this product on the European Product Registry for Energy Labelling (EPREL), scan QR-Code on the energy label.

You can find QR-Code on the energy label in your product box.

Part information

• The minimum period during which spare parts, necessary for the repair of the appliance, are available
  -7 Years thermostats, temperature sensors, printed circuit boards and light sources, door handles, door hinges, trays, baskets (boxes or drawers)
  -10 Years door gaskets

- The minimum duration of the guarantee of the refrigerating appliance offered by the manufacturer 24 Months.

- Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorized representative

- You can find professional repair information on http://samsung.com/support.

- You can find user servicing manual on http://samsung.com/support.

Install Instruction

For refrigerating appliances with climate class

• Depending on the climate class, this refrigerating appliance is intended to be used at ambient temperatures range as specified following table.
• The climate class can be found on the rating plate. The product may not operate properly at temperatures outside of the specific range.
• You can find climate class on label inside of your refrigerator

English10

Effective temperature range

The refrigerator is designed to operate normally in the temperature range specified by its class rating.

Class Symbol		Ambient Temperature range (°C)
		IEC 62552 (ISO 15502) ISO 8561
Extended Temperate SN +10 to	+32 +10 to +32
Temperate N +16 to +32 +	6 to +32
Subtropical ST +16 to +38 +	18 to +38
Tropical T +16 to +43 +18 to +43

NOTE

The cooling performance and power consumption of the refrigerator may be affected by the ambient temperature, the door-opening frequency, and the location of the refrigerator. We recommend adjusting the temperature settings as appropriate.

Temperature Instruction

Recommended Temperature

The optimal temperature setting for food storage:

• Fridge: 3 °C
• Freezer: -19 °C

NOTE

The optimal temperature setting of each compartment depends on the ambient temperature. Above optimal temperature is based on the ambient temperature of 25^ C.

Power Cool

Power Cool speeds up the cooling process at maximum fan speed. The fridge keeps running at full speed for two and a half hours and then returns to the previous temperature.

Power Freeze

Power Freeze speeds up the freezing process at maximum fan speed. The freezer keeps running at full speed for 50 hours and then returns to the previous temperature. To freeze large amounts of food, activate Power Freeze for at least 20 hours before putting food in the freezer.

NOTE

When you use this function the energy consumption of the refrigerator will increase. Remember to turn it off when you don't need it and return the freezer to your original temperature setting.

11English

Appendix

How to store for best preservation (applicable models only)

Cover foods to retain moisture and prevent them from picking up odors from other foods. A large pot of food like soup or stew should be divided into small portions and put in shallow containers before being refrigerated. A large cut of meat or whole poultry should be divided into smaller pieces or placed in shallow containers before refrigerating.

Placement of Foods

Shelves Shelves should be adjustable	to accommodate a variety of packages.
Specialized compartment(applicable models only)	Sealed crisper drawers provide an optimal storage environment for fruits and vegetables. Vegetables require higher humidity conditions while fruits require lower humidity conditions. Crispers are equipped with controls devices to control the humidity level. (*Depending on model and options) An adjustable temperature meat drawer maximizes the storage time of meats and cheeses.
Stored on the door	Don't store perishable foods in the door. Eggs should be stored in the carton on a shelf. The temperature of the storage bins in the door fluctuate more than the temperature in the cabinet. Keep the door closed as much as possible.
Freezer Compartment You can store	frozen food, make ice cubes and freeze fresh food in the freezer compartment.

NOTE

Freeze fresh, undamaged food only. Keep food which is to be frozen away from food which is already frozen. To prevent food from losing its flavour or drying out, place in airtight containers.

Refrigerator & Freezer Storage Chart

The freshness longevity depends on temperature and exposure to moisture. Since product dates aren't a guide for safe use of a product, consult this chart and follow these tips.

Product Refrigerator Freezer
Milk products	Milk 1 week 1 month
	Butter 2 weeks 12 months
	Cream cheese 2 weeks Not recommended
Meat	Fresh roasts, steaks, chops 3-4 days 2-3 months
	Sausage, Raw from pork, beef, turkey 1-2 days	1-2 months
Poultry / Eggs	Fresh poultry	2 days	6-8 months
	Eggs, Fresh in shell	2-4 weeks	Not recommended
Fish / Seafood	Fresh fish	1-2 days	3-6 months
	Dried or pickled fish	3-4 weeks	-
Fruits	Apples	1 month	-
	Other fresh fruit	3-5 days	9-12 months
Vegetables	Asparagus	2-3 days	-
	Broccoli, Brussels sprouts, green peas, mushrooms	3-5 days	-
	Cabbage, cauliflower, celery, cucumbers, lettuce	1 week	-
	Carrots, beets, radishes	2 weeks	-

English12

Instructions about the WEEE

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

For information on Samsung's environmental commitments and product regulatory obligations, e.g. REACH, WEEE or Batteries, visit our sustainability page available via www.samsung.com (For products sold in European countries and in the UK only)

13English

Memo

Réfrigérateur

Appareil encastré

A B C D E F G

Two technical line drawings of a transparent cylindrical container with internal components, one open and one closed, both without any text or symbols.

A Min. 590
B Min. 560
C Min. 580
D 240

(unité : mm)

REMARQUE

Symbol of a waste bin with crossed lines indicating no waste, and a blank rectangular bar below (no text or labels)

A B C D E F G

	BRB***26* BRB***30*
A 540±2 540±2
B 550±2 (con la porta) 550±2 (con la porta)
C 1775±2 1935±2
D 987 1147
E 735 735
F 671 671
G 621 621

(unità : mm)

Diagram showing two containers with labeled parts and a prohibition sign, likely illustrating a safety or disinfection scenario.

A Min. 590
B Min. 560
C Min. 580
D 240

(unità : mm)

NOTA

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

A B C D E F G

	BRB***26* BRB***30*
A 540±2 540±2
B 550±2 (con puerta) 550±2 (con puerta)
C 1775±2 1935±2
D 987 1147
E 735 735
F 671 671
G 621 621

(unidad: mm)

Two technical diagrams showing a transparent container with internal structure and a circular symbol, no text or labels present.

A Mín. 590
B Mín. 560
C Mín. 580
D 240

(unidad: mm)

NOTA

Symbol of a waste bin with crossed lines indicating no waste, and a blank rectangular bar below (no text or labels)

A B C D E F G

	BRB***26* BRB***30*
A 540±2 540±2
B 550±2 (com porta) 550±2 (com porta)
C 1775±2 1935±2
D 987 1147
E 735 735
F 671 671
G 621 621

(unidade: mm)

Technical diagram showing three safety scenarios with warning symbols and labeled components (D, BA, C)

Two technical diagrams showing a transparent cylindrical container with internal components and a circular symbol above, alongside a separate diagram with a prohibition sign (no text or labels present)

A Mín. 590
B Mín. 560
C Mín. 580
D	240

(unidade: mm)

NOTA

Symbol of a waste bin with crossed lines indicating no waste, and a blank rectangular bar below (no text or labels)

A B C D E F G

	BRB***26* BRB***30*
A540±2 540±2
B550±2 (με την πόρτα) 550±2 (με την πόρτα)
C1775±2 1935±2
D987 1147
E735 735
F 671 671
G621 621

(μονάδες: mm)

Two technical diagrams showing a transparent container with internal components and a circular symbol above, alongside a magnified view of the same container with a paperclip and prohibition sign (no text or symbols on the diagram itself)

Symbol of a waste bin with crossed lines indicating no waste, and a blank rectangular bar below (no text or labels)

A B C D E F G

Two technical diagrams showing a transparent container with internal structure and a circular symbol, no text or labels present.

A Min. 590
B Min. 560
C Min. 580
D 240

(Einheit: mm)

HINWEIS

Symbol of a waste bin with crossed lines indicating no waste, and a blank rectangular bar below (no text or labels)

A B C D E F G

	BRB***26* BRB***30*
A 540	±2 540±2
B 550	±2 (met deur) 550±2 (met deur)
C 1775	±2 1935±2
D 987	1147
E 735	735
F 671	671
G 621	621

(eenheid: mm)

Totale productafmeting

01 02 03 04 05 06 07

Model	BRB******SOSCHUIFTYPE	BRB******FOVAST TYPE
01*	10 (min.) / 30 (aanbevolen)
02	95° (aanbevolen)	115° (aanbevolen)
03	218	180
04	758	700
05	510	510
06	1	5
07 1055	1055

Diagram showing two containers with labeled parts and a prohibition sign, likely illustrating a safety or disinfection scenario.

A Min. 590
B Min. 560
C Min. 580
D 240

(eenheid: mm)

OPMERKING

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

A B C D E F G

	BRB***26* BRB***30*
A 540	± 2 540 ± 2
B 550	± 2 (med dörr) 550 ± 2 (med dörr)
C 1 775	± 2 1935 ± 2
D 987	1147
E 735	735
F 671	671
G 621	621

(enhet: mm)

Two technical diagrams showing a transparent cylindrical container with internal components and a circular symbol above, alongside a separate diagram with a prohibition sign (no text or symbols on the containers themselves)

A Min. 590
B Min. 560
C Min. 580
D 240

(enhet: mm)

OBS!

Symbol of a trash bin crossed with no text or labels, representing waste sorting or recycling (no text present)

A B C D E F G

	BRB***26* BRB***30*
A 540±2 540±2
B 550±2 (med dør) 550±2 (med dør)
C 1775±2 1935±2
D 987 1147
E 735 735
F 671 671
G 621 621

(enhed:mm)

Produktets overordnede dimensioner

01 02 03 04 05 06 07

Model	BRB******S0FLYTBARTYPE	BRB******F0FASTGJORTTYPE
01*	10 (Min.) / 30 (anbefales)
02	95° (anbefales)	115° (anbefales)
03	218	180
04	758	700
05	510	510
06	1	5
07	1055	1055

Technical diagram showing three safety scenarios with warning symbols and labeled components (D, BA, C)

Two technical diagrams showing a transparent cylindrical container with internal components and a circular symbol above, alongside a separate diagram with a prohibition sign (no text or labels present)

A Min. 590
B Min. 560
C Min. 580
D	240

(enhed:mm)

BEMÆRK

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

A B C D E F G

	BRB***26* BRB***30*
A 540	±2 540±2
B 550	±2 (med dør) 550±2 (med dør)
C 1775	±2 1935±2
D 987	1147
E 735	735
F 671	671
G 621	621

(enhet: mm)

Technical diagram showing three safety scenarios with warning symbols and labeled components (D, BA, C)

Two technical diagrams showing a transparent cylindrical container with internal components and a circular symbol above, alongside a separate view with a no-smoking sign (no text or symbols on the diagram itself)

A Min. 590
B Min. 560
C Min. 580
D 240

(enhet: mm)

MERK

Hvis du installerer kjøleskapet i et skap som er 560 mm dypt, må du sørge for at strømledningen er på siden av kjøleskapet før du kobler den til et strømuttak. Hvis strømledningen er bak på kjøleskapet, kan det senke energieffektiviteten.

9Norsk

Vedlikehold

Rengjøring

Symbol of a trash bin crossed with no text or labels, representing waste sorting or recycling (no text present)

A B C D E F G

	BRB***26* BRB***30*
A 540	± 2 540 ± 2
B 550	± 2 (oven kanssa) 550 ± 2 (oven kanssa)
C 1775	± 2 1935 ± 2
D 987	1147
E 735	735
F 671	671
G 621	621

(yksikkö: mm)

Two technical diagrams showing a transparent cylindrical container with internal components and a circular symbol above, alongside a separate diagram with a prohibition sign (no text or labels present)

A Väh. 590
B Väh. 560
C Väh. 580
D 240

(yksikkö: mm)

HUOM.

Symbol of a trash bin crossed with no visible text or labels
