USER MANUAL ATL EBMulti569HA ATLANTIC

Line drawing of a kitchen oven with front panel and door (no text or symbols)

ATL EBMulti569HA

Technical diagram showing a 3D box with labeled dimensions and an inset cross-section view of the same box.

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

Solid black square with two thin white horizontal lines on top and bottom (no text or symbols)

Simple icon of a propeller inside a dark square frame with horizontal lines (no text or symbols)

Abstract geometric shape with a wavy white line inside a dark square frame (no text or symbols)

Abstract icon with a stylized propeller inside a wavy line above a dark square (no text or symbols)

En·d - Mode +

5:18 - Mode +

En·d - Mode +

Technical line drawing of a door with internal components, no text or symbols present

Ölfilter

Technical illustration of a fan with internal blades and a meshed cover (no text or symbols)

Technical line drawing of a multi-tiered mechanical structure with no visible text or symbols

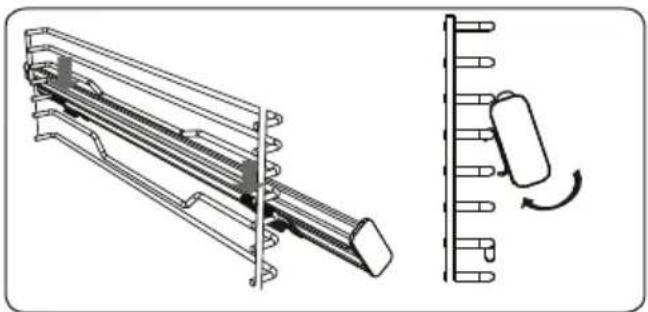

Teleskopschienen

Technical line drawing of a mechanical component with a side-view rotation view (no text or symbols)

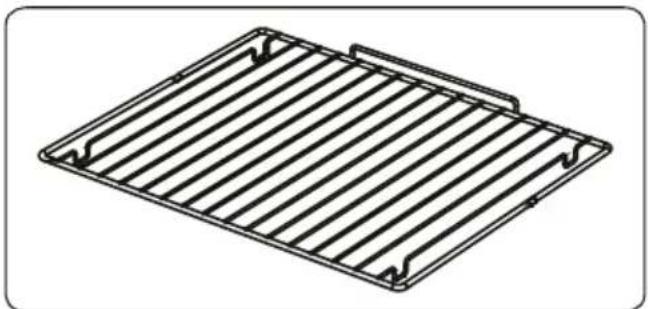

Isometric line drawing of a metal grate or rack with slats and mounting brackets (no text or symbols)

Warning: Setzen Sie

Technical line drawing of a metal grate with a curved arrow indicating force or movement (no text or symbols)

Wasserablauf

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a hand cleaning a car window with a circular vent (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical joint or bracket assembly (no text or symbols)

Diagram of a door mechanism with an arrow indicating direction (no text or symbols present)

Diagram of a hand pressing down on a grid-like structure with an arrow indicating direction (no text or symbols)

5.2 WARTUNG

Weather icon and sun symbol showing a person in a gear and a sun with directional arrows

I H F G J A B E C D C

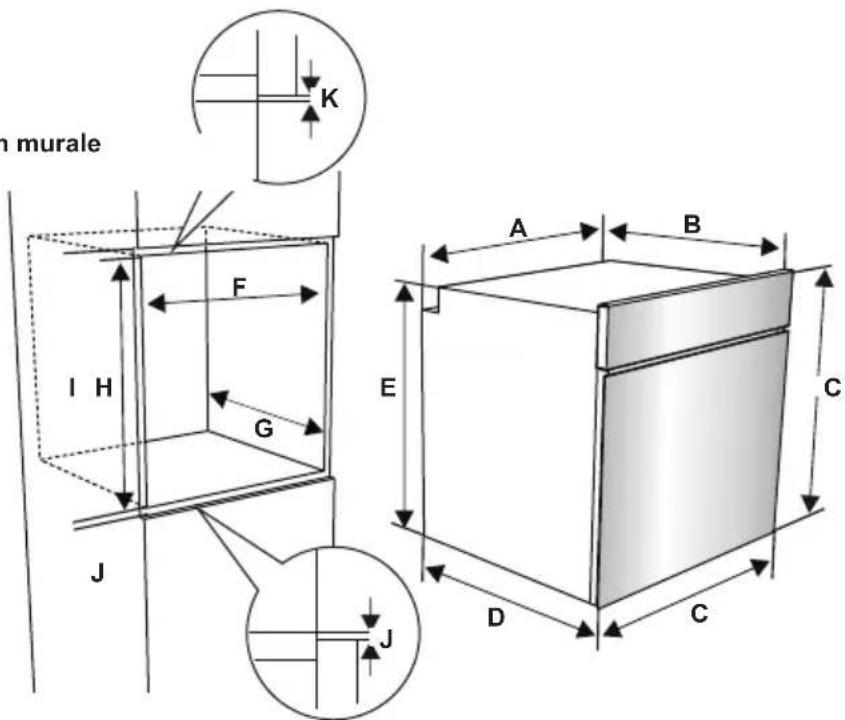

Installation murale

murale K F I H G J A B E C D C J

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

2.3. BRANCHEMENT ÉLECTRIQUE ET SÉCURITÉ

Simple white pinwheel icon on dark background, no text or symbols present

Fonction

Solid black square with two thin white horizontal lines on top and bottom (no text or symbols)

Abstract geometric symbol with a four-blade propeller inside a dark square frame (no text or symbols)

Abstract geometric design with a wavy white line above a dark square (no text or symbols)

Abstract icon with a stylized propeller inside a dark square, no text or symbols present.

A - Mode +

A - Mode +

9-18 - Mode +

En·d - Mode +

97.18°C - Mode +

5:18 - Mode +

En·d - Mode +

Technical line drawing of a mechanical enclosure or oven with internal compartments and doors (no text or symbols)

Filtre à huile

Diagram of a fan or vent with a mesh grille and directional arrow, no text or symbols present

Technical line drawing of a mechanical component with multiple parallel grooves and a central shaft (no text or symbols)

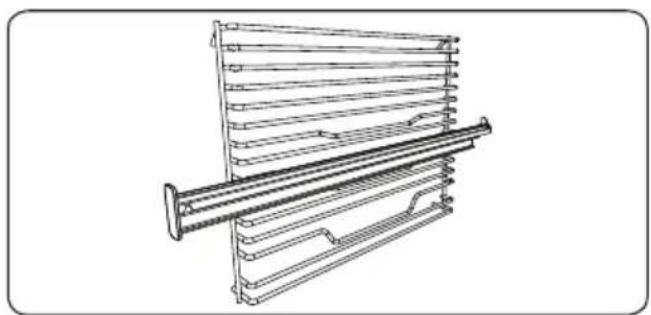

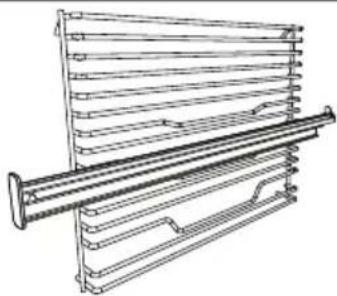

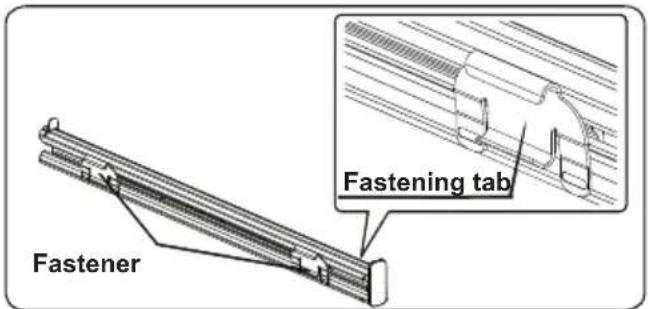

Rails télescopiques

Technical illustration of a mechanical device with a side-view rotation view showing internal components (no text or symbols)

Diagram of a metal rack with a curved panel and an arrow indicating rotation (no text or symbols)

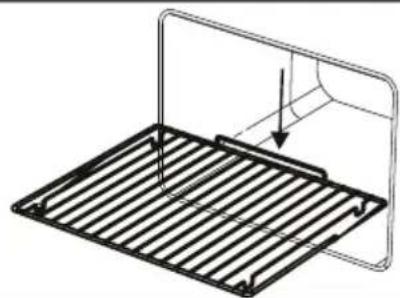

AVERTISSEMENT Placez correctemer

Technical line drawing of a metal grate plate with slats and mounting brackets (no text or symbols)

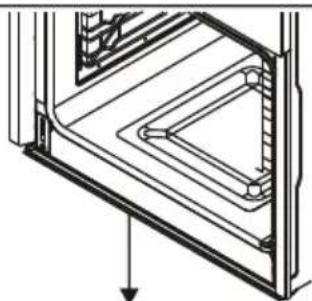

Collecteur d'eau

Technical line drawing of a mechanical component with a downward arrow indicating direction (no text or symbols)

5. NETTOYAGE ET ENTRETIEN

5.1. NETTOYAGE

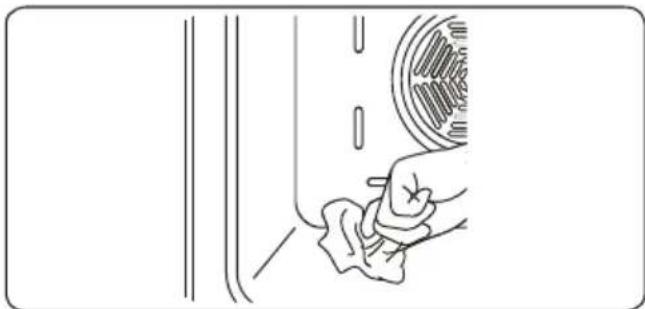

Line drawing of a hand cleaning a car window with a circular object on the wall (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Diagram of a door frame with an arrow indicating upward motion (no text or symbols)

Line drawing of a hand pressing down on a laptop screen with horizontal lines and arrows indicating motion (no text or symbols)

5.2. ENTRETIEN

Weather icon showing sun and train with directional arrow, indicating rightward shift or cycle

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE Warning; Risk of fire / flammable materials
	CAUTION Injury or property damage risk
	IMPORTANT / NOTE Operating the system correctly

CONTENTS

1.SAFETY INSTRUCTIONS....3
1.1 General Safety Warnings ...... 3
1.2 Installation Warnings .... 5
1.3 During Use....6
1.4 During Cleaning and Maintenance 7
2.INSTALLATION AND PREPARATION FOR USE....9
2.1 Instructions for the Installer 9
2.2 Installation of the Oven....9
2.3 Electrical Connection and Safety....11
3.PRODUCT FEATURES....12
4. USE OF PRODUCT ...... 13
4.1 Oven Controls.... 13
4.2 Cooking Table....13

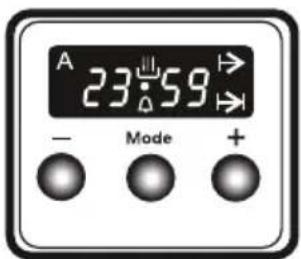

4.3 Use of the Digital Timer 14
4.4 Accessories 16
5.CLEANING AND MAINTENANCE.... 18
5.1 Cleaning 18
5.2 Maintenance.... 19
6.TROUBLESHOOTING&TRANSPORT 20
6.1 Troubleshooting....20
6.2 Transport 20

1. SAFETY INSTRUCTIONS

• Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary.
• This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. For this reason, it is important to pay particular attention to any figures whilst reading the operating manual.

1.1 GENERAL SAFETY WARNINGS

- This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Keep children less than 8 years of age away unless they are continually supervised.

WARNING: Danger of fire: Do not store items on the cooking surfaces.

⚠️ WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

• Do not operate the appliance with an external timer or separate remote-control system.
• During use the appliance will get hot. Care should be taken to avoid touching heating elements inside

the oven.

• Handles may get hot after a short period during use.
• Do not use harsh abrasive cleaners or scourers to clean the oven door glass and other surface.
  They can scratch the surfaces which may result in shattering of the door glass or damage to surfaces.
• Do not use steam cleaners for cleaning the appliance.

WARNING: To avoid the possibility of electric shock, make sure that the appliance is switched off before replacing the lamp.

⚠️ CAUTION: Accessible parts may be hot when cooking or grilling. Keep young children away from the appliance when it is in use.

• Your appliance is produced in accordance with all applicable local and international standards and regulations.
• Maintenance and repair work should only be carried out by authorised service technicians. Installation and repair work that is carried out by unauthorised technicians may be dangerous. Do not alter or modify the specifications of the appliance in any way. Inappropriate hob guards can cause accidents.
• Before connecting your appliance, make sure that the local distribution conditions (nature of the gas and gas pressure or electricity voltage and frequency) and the specifications of the appliance are compatible. The specifications for this appliance are stated on the label.

⚠️ CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic household use only. It should not be used for any other purpose or in any other application, such as for non-domestic use, in a commercial environment or for

heating a room.

• Do not use the oven door handles to lift or move the appliance.
• All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken while cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories.
• Make sure that the supply cord is not trapped or damaged during installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard.
• Do not let children climb on the oven door or sit on it while it is open.
• Please keep children and animals away from this appliance.

1.2 INSTALLATION WARNINGS

• Do not operate the appliance before it is fully installed.
• The appliance must be installed by an authorised technician. The manufacturer is not responsible for any damage that might be caused by defective placement and installation by unauthorised people.
• When the appliance is unpacked, make sure that it is has not been damaged during transportation. In case of any defect do not use the appliance and contact a qualified service agent immediately. The materials used for packaging (nylon, staplers, Styrofoam, etc.) may be harmful to children and they should be collected and removed immediately.

• Protect your appliance from the atmosphere. Do not expose it to effects such as sun, rain, snow, dust or excessive humidity.

• Any materials (i.e. cabinets) around the appliance must be able to withstand a minimum temperature of 100^ .

• The appliance must not be installed behind a decorative door, in order to avoid overheating.

1.3 DURING USE

- When you first use your oven you may notice a slight smell. This is perfectly normal and is caused by the insulation materials on the heater elements. We suggest that, before using your oven for the first time, you leave it empty and set it at maximum temperature for 45 minutes. Make sure that the environment in which the product is installed is well ventilated.

• Take care when opening the oven door during or after cooking. The hot steam from the oven may cause burns.

- Do not put flammable or combustible materials in or near the appliance when it is operating.

• Always use oven gloves to remove and replace food in the oven.

- Under no circumstances should the oven be lined with aluminium foil as overheating may occur.

- Do not place dishes or baking trays directly onto the base of the oven whilst cooking. The base becomes very hot and damage may be caused to the product.

Do not leave the oven unattended while cooking with solid or liquid oils. They may catch fire under extreme heating conditions. Never pour water on to flames that are caused by oil, instead switch the oven off and cover the pan with its lid or a fire blanket.

- If the product will not be used for a long period of time, turn the main control switch off.

• Make sure the appliance control knobs are always in the “0” (stop) position when it is not in use.
• The trays incline when pulled out. Take care not to spill or drop hot food while removing it from the ovens.
• Do not place anything on the oven door when it is open. This could unbalance the oven or damage the door.
• Do not hang towels, dishcloths or clothes from the appliance or its handles.

1.4 DURING CLEANING AND MAINTENANCE

• Make sure that your appliance is turned off at the mains before carrying out any cleaning or maintenance operations.
• Do not remove the control knobs to clean the control panel.
• To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call our authorised service agents in case of need.

CE Declaration of conformity

CE We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

This appliance has been designed to be used only for home cooking. Any other use (such as heating a room) is improper and dangerous.

The operating instructions apply to several models. You may notice differences between these instructions and your model.

Disposal of your old machine

The symbol of the crossed-out wheeled bin shown on the product or its packaging means that the device must not be disposed of with other household waste but requires separate collection. You can dispose of the device free of charge at your local waste return and collection system. The addresses can be obtained from your responsible city council or local government.

Alternatively, you can return small waste electrical and electronic equipment (WEEE) with an edge length of up to 25 cm free of charge to any retailer with a sales area relating to electrical and electronic equipment (EEE) of at least 400 m2 or to a food retailer that offers EEE at least several times a year with a total sales area of 800 m2. Larger WEEE can be returned to a respective retailer free of charge when buying a new product of the same type. Regarding the modalities of the collection of WEEE in case of shipment of the newly bought product, please contact your retailer.

If possible, please remove all batteries and accumulators as well as all removable lamps before disposing of the device.

Please note that you are responsible for deleting all personal data on the device to be disposed of.

2. INSTALLATION AND PREPARATION FOR USE

WARNING : This appliance must be installed by an authorised service person or qualified technician, according to the instructions in this guide and in compliance with the current local regulations.

• Incorrect installation may cause harm and damage, for which the manufacturer accepts no responsibility and the warranty will not be valid.
• Prior to installation, ensure that the local distribution conditions (electricity voltage and frequency) and the adjustments of the appliance are compatible. The adjustment conditions for this appliance are stated on the label.
• The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.).
• If the product contains removable shelf guides (wire racks) and the user manual includes recipes like yoghurt, the wire racks shall be removed and the oven operated in the defined cooking mode. Removal of the Wire Shelf information is included in the CLEANING AND MAINTENANCE section.

2.1 INSTRUCTIONS FOR THE INSTALLER General instructions

• After removing the packaging material from the appliance and its accessories, ensure that the appliance is not damaged. If you suspect any damage, do not use it and contact an authorised service person or qualified technician immediately.
- Make sure that there are no flammable or combustible materials in the close vicinity, such as curtains, oil, cloth etc. which may catch fire.
- The worktop and furniture surrounding the appliance must be made of materials resistant to temperatures above 100°C.
- The appliance should not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer.

2.2 INSTALLATION OF THE OVEN

The appliances are supplied with installation kits and can be installed in a worktop with the appropriate dimensions. The dimensions for hob and oven installation are given below.

A (mm)	557 min./max.	F (mm) 560/580
B (mm)	550 min. G (mm)	555
C (mm)	595 min. H/I (mm)	600/590
D (mm)	575 min. J/K (mm)	5/10
E (mm)	576

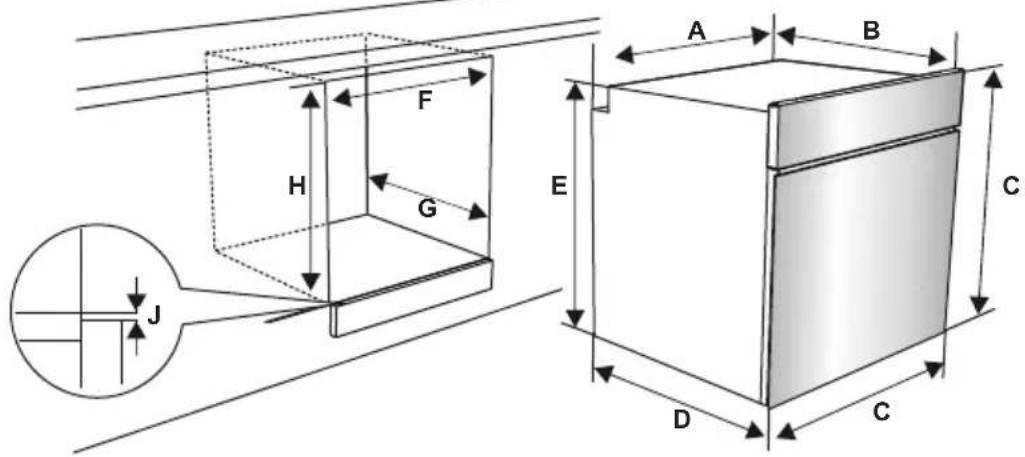

Installation under a worktop

Technical diagram showing a 3D box with labeled dimensions and an inset cross-section view of the same box.

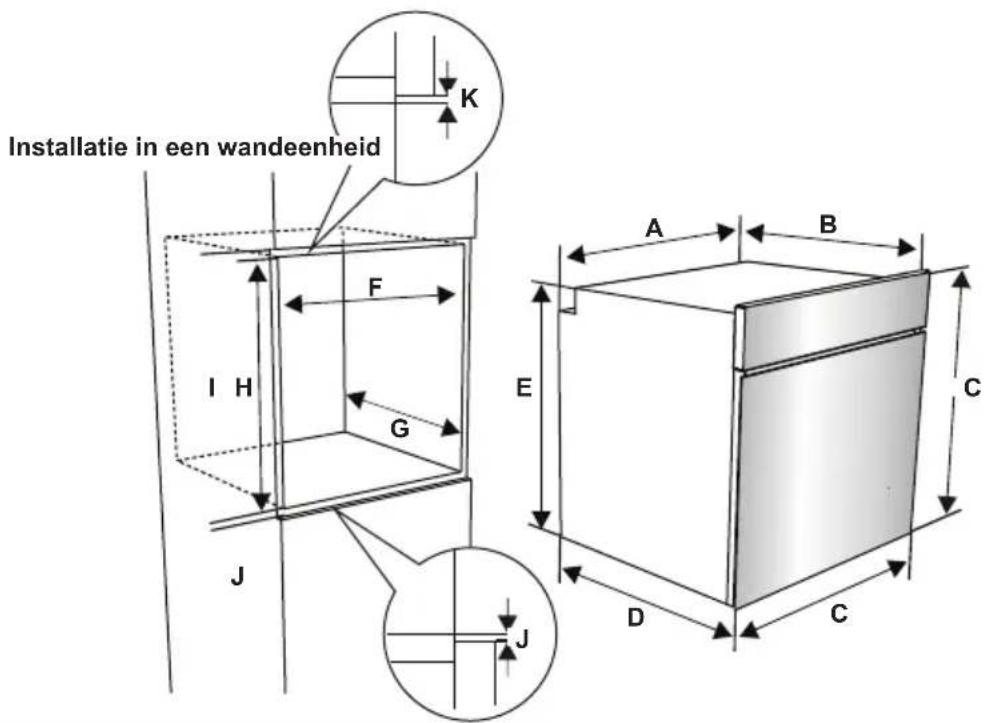

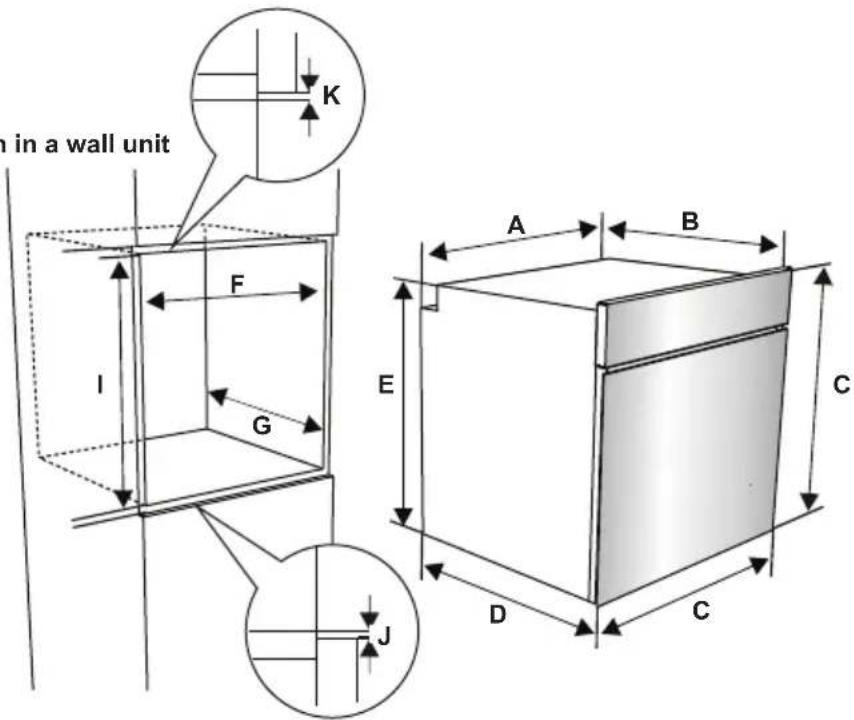

Installation in a wall unit

in a wall unit K F I G A B E C J D C

After making the electrical connections, insert the oven into the cabinet by pushing it forward. Open the oven door and insert 2 screws in the holes located on the oven frame. While the product frame touches the wooden surface of the cabinet, tighten the screws.

Technical line drawing of a mechanical assembly with no visible text or symbols

2.3 ELECTRICAL CONNECTION AND SAFETY

WARNING: The electrical connection of this appliance should be carried out by an authorised service person or qualified electrician, according to the instructions in this guide and in compliance with the current local regulations.

WARNING: THE APPLIANCE MUST BE EARTHED.

• Before connecting the appliance to the power supply, the voltage rating of the appliance (stamped on the appliance identification plate) must be checked for correspondence to the available mains supply voltage, and the mains electric wiring should be capable of handling the appliance's power rating (also indicated on the identification plate).
• During installation, please ensure that isolated cables are used. An incorrect connection could damage your appliance. If the mains cable is damaged and needs to be replaced this should be done by a qualified personnel.
• Do not use adaptors, multiple sockets and/or extension leads.
• The supply cord should be kept away from hot parts of the appliance and must not be bent or compressed. Otherwise the cord may be damaged, causing a short circuit.
• If the appliance is not connected to the mains with a plug, a all-pole disconnector (with at least 3 mm contact spacing) must be used in order to meet the safety regulations.
• The appliance is designed for a power supply of 220-240V. If your supply is different, contact the authorised service person or a qualified electrician.
  • The power cable (H05VV-F) must be

long enough to be connected to the appliance, even if the appliance stands on the front of its cabinet.

• Ensure all connections are adequately tightened.
• Fix the supply cable in the cable clamp and then close the cover.

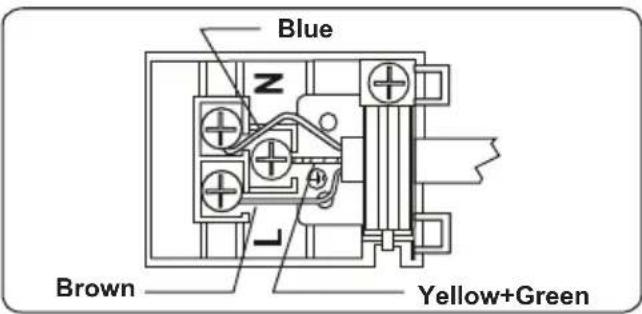

• The terminal box connection is placed on the terminal box.

Blue Brown Yellow+Green

3. PRODUCT FEATURES

Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below.

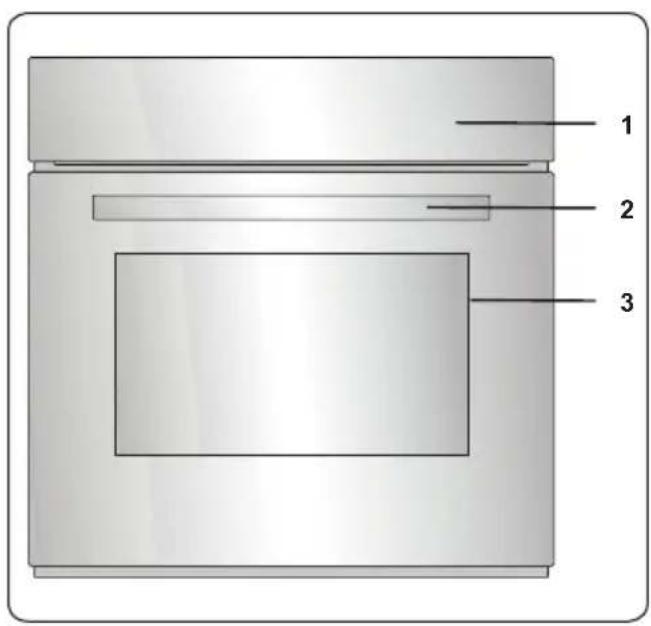

List of Components

1 2 3

1. Control Panel
2. Oven Door Handle
3. Oven Door

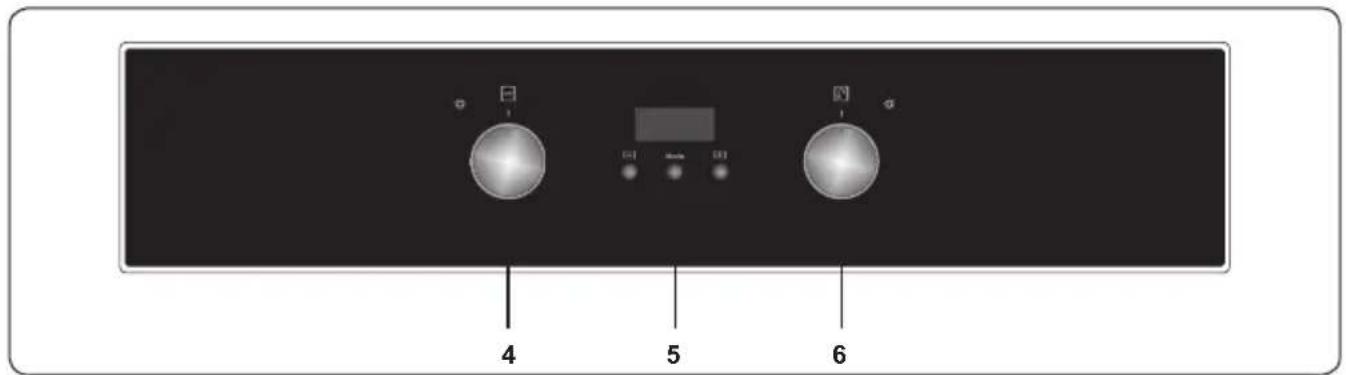

Control Panel

4 5 6

1. Oven Function Control Knob
2. Timer
3. Oven Thermostat Knob

4. USE OF PRODUCT

4.1 OVEN CONTROLS

Oven function control knob

Turn the knob to the corresponding symbol of the desired cooking function. For the details of different functions see 'Oven Functions'.

Oven thermostat knob

After selecting a cooking function, turn this knob to set the desired temperature. The oven thermostat light will illuminate whenever the thermostat is in operation to heat up the oven or maintain the temperature.

Oven Functions

* The functions of your oven may be different due to the model of your product.

Abstract white line drawing of a stylized flower or droplet on a dark background (no text or symbols)

Defrost Function: The oven's warning lights will switch on and the fan will start to operate. To use the defrost function, place your frozen food in the oven on a shelf in the third slot from

the bottom. It is recommended that you place an oven tray under the defrosting food to catch the water accumulated due to melting ice. This function will not cook or bake your food, it will only help to defrost it.

Solid dark square with two thin white horizontal lines on top and bottom (no text or symbols)

Static Cooking Function: The oven's thermostat and warning lights will switch on, and the lower and upper heating elements will start operating. The static cooking function emits heat,

ensuring even cooking of food. This is ideal for making pastries, cakes, baked pasta, lasagne and pizza. Preheating the oven for 10 minutes is recommended and it is best to use only one shelf at a time in this function.

Abstract geometric symbol with a four-petal flower inside a dark square (no text or symbols)

Fan Function: The oven's thermostat and warning lights will switch on, and the upper and lower heating elements and fan will start operating. This function is good for baking

pastry. Cooking is carried out by the lower and upper heating elements within the oven and by the fan, which provides air circulation, giving a slightly grilled effect to the food. It is recommended that you preheat the oven for about 10 minutes.

Abstract geometric design with a wavy white line inside a dark square frame (no text or symbols)

Grilling Function: The oven's thermostat and warning lights will switch on, and the grill heating element will start operating. This function is used for grilling and toasting foods on the

upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to 190^ C.

Abstract icon with a stylized propeller inside a wavy line above a dark square (no text or symbols)

Grill and Fan Function: The oven's thermostat and warning lights will switch on, and the grill heating element and fan will start operating. This function is ideal for grilling thicker food. Use the upper

shelves of oven, lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat.

Warning: When grilling, the oven door must be closed and the oven temperature should be tied to 190°C.

4.2 COOKING TABLE

Function	Dishes			min.
Static	Puff Pastry 2 -	3 - 4 170-19	0 35-45
	Cake 2 - 3 -	4 170-190	30-40
	Cookie 2 - 3 -	4 170-190	30-40
	Stew 2 175 -	200 40-50
	Chicken 2 - 3 -	4 200 45-60
Fan	Puff Pastry 2 -	3 - 4 170-19	0 25-35
	Cake 2 - 3 -	4 150-170	25-35
	Cookie 2 - 3 -	4 150-170	25-35
	Stew 2 175 -	200 40-50
	Chicken 2 - 3 -	4 200 45-60
Grilling	Grilled meatballs	5 200	10-15
	Chicken * 190	50-60
	Chop 4 - 5	200 15-25
	Beefsteak 5	200 15-25

*If available cook with roast chicken skewer.

4.3 USE OF THE DIGITAL TIMER

A 23:59 - Mode +

Function Description
A	Auto cooking
	Manual cooking
→	Cooking time
→I	Cooking end time
•	Dot
∅	Minute minder
Mode	Mode function
-	Decrease timer
+	Increase timer
23 59	Timer display

Time adjustment

The time must be set before you start using the oven. Following the power connection, the symbol "A" and "000" will flash on the display.

※ 0:00 - Mode +

1. Press the "+" and "-" keys simultaneously. Symbol will appear, and the dot in the middle of the screen will start to flash.

A - Mode + +

1. Adjust the time while the dot is flashing using the "+" and "-" keys.

A - Mode +

1. After a few seconds, the dot will stop flashing and will remain illuminated.

Audible warning time adjustment

The audible warning time can be set to any time between 0:00 and 23:59 hours. The audible warning time is for warning purposes only. The oven will not be activated with this function.

A 0:00 - Mode +

1. Press "MODE". The symbol will begin to flash and "000" will be displayed.

A 23:59 - Mode +

1. Select the desired time period using the "+" and "-" keys while is flashing.

A 23:59 - Mode +

1. The symbol will remain illuminated, the time will be saved and the warning will be set.

When the timer reaches zero, an audible warning will sound and the symbol 🙏 will flash on the display. Press any key to stop the audible warning and the 🔔 symbol will disappear.

Semi-automatic time adjustment (cooking period)

This function helps you to cook for a fixed period of time. A time range between 0 and 10 hours can be set. Prepare the food for cooking and put it in the oven.

1. Select the desired cooking function and the temperature using the control knobs.

A du·r - Mode +

1. Press "MODE" until you see "dur" and symbol on the display screen. The symbol "A" will flash.

* 1:20 - Mode +

1. Select the desired cooking time period using the "+" and "-" keys.

9:18 - Mode +

1. The current time will reappear on the screen, and the symbols "A", and will remain illuminated.

When the timer reaches zero, the oven will switch off and an audible warning will sound. The symbols "A" and I will flash. Turn both control knobs to the "0" position and press any key on the timer to stop the warning sound. The symbols will disappear and the timer will switch back to manual function.

Semi-automatic time adjustment (finishing time)

This function automatically starts the oven so that cooking will finish at a set time. You can set an end time of up to 10 hours after the current time of day. Prepare the food for cooking and put it in the oven.

1. Select the desired cooking function and the temperature using the control knobs.

En·d - Mode +

1. Press "MODE" until you see "end" and ➞ symbol on the display screen. "A" and the current time of day will flash.

12°30 - Mode +

1. Use the “+” and “-” buttons to set the desired finishing time.

9:18 - Mode +

1. The current time will reappear on the screen, the symbols "A", and will remain illuminated.

When the timer reaches zero, the oven will switch off and an audible warning will sound. The symbol "A" and I will flash. Turn both control knobs to the "0" position and press any key on the timer to stop the sound. The symbol will disappear and the timer will switch back to manual function.

Full-automatic programming

This function is used to start cooking after a certain period of time and for a certain duration. A time of up to 10 hours after the current time of day can be set. Prepare the food for cooking and put it in the oven.

1. Select the desired cooking function and the temperature using the control knobs.

A du·r - Mode +

1. Press "MODE" until you see "dur" and symbol on the screen. The symbol "A" will flash.

120 - Mode +

1. Select the desired cooking time period using the "+" and "-" keys.

9 18 - Mode +

1. The current time will reappear on the screen, the symbols "A", and will remain illuminated.

En·d - Mode +

1. Press "MODE" until you see "end" and ➡ symbol on the screen. The time and the symbols "A" and ➡ will flash.

A 12:30 - Mode +

1. Select the desired finishing time using the “+” and “-” keys.

23:59 - Mode +

1. Add the cooking period to the current time of day. You can set a time of up to 23 hours and 59 minutes after this.

9.18°C - Mode +

1. The current time will reappear on the screen, and the symbols "A", and will remain illuminated.

The operating time will be calculated and the oven will automatically start so that cooking will finish at the set finishing time. When the timer reaches zero, the oven will switch off, an audible warning will sound and the symbols "A" and I will flash. Turn both control knobs to the "0" position and press any key to stop the sound. The symbol will disappear and the timer will switch back to manual function.

Sound Adjustment

To adjust the volume of the audible warning sound, while the current time of day is displayed, press and hold the “-” button for 1-2 seconds until an audible signal sounds. After this, each time the “-” button is pressed, a different signal will sound. There are three different types of signal sounds. Select the desired sound and do not press any other buttons. After a short time, the selected sound will be saved.

4.4 ACCESSORIES

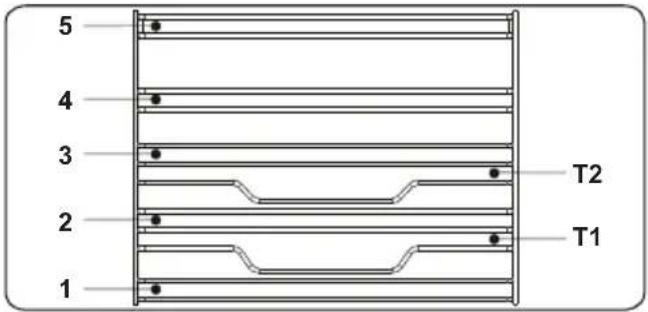

The EasyFix Wire Rack

Clean the accessories thoroughly with warm water, detergent and a soft clean cloth on first use.

5 4 3 2 1 T2 T1

• Insert the accessory to the correct position inside the oven.
• Allow at least a 1 cm space between the fan cover and accessories.
  • Take care removing cookware and/or accessories out of the oven. Hot meals or accessories can cause burns.
• The accessories may deform with heat. Once they have cooled down, they will recover their original appearance and performance.
• Trays and wire grids can be positioned on any level from 1 to 5.
• Telescopic rails can be positioned on levels T1, T2, 3, 4, 5.
• Level 3 is recommended for single level cooking.
• Level T2 is recommended for single level cooking with the telescopic rails.
• The turnspit wire grid must be positioned on Level 3.
• Level T2 is used for the turnspit wire grid positioning with telescopic rails.

****Accessories may vary depending on the model purchased.

FIRST IN THE WORLD

Hot Air Shield System in Built-in Ovens

The patented hot air shield system prevents hot air from reaching the end user by creating an air curtain when the oven door is opened.

Technical line drawing of a mechanical enclosure or enclosure with internal compartments and no visible text or symbols

The Oil Filter

The oil filter is used when a function is selected that requires operation of the fan, for example the Turbo function. The filter will protect the fan impeller (located behind the fan cover) from spattered fat or oil.

Installation / Removal of the Oil Filter

To install the oil filter, use the holder to push the oil filter onto the fan cover. Make sure that the notches on the oil filter are inserted into the slots on the fan cover.

To remove the oil filter, use the holder to move the oil filter upwards so that the notches on the oil filter are removed from the slots on the fan cover.

Important: The oil filter should not be used for cooking foods which are expected to rise.

Diagram of a fan with a mesh grille and an arrow pointing to the grille (no text or symbols)

The Wire Rack with Easyfix Half Telescopic Rail

The half telescopic rail extends half-way out, to allow easy access to your food.

Technical line drawing of a multi-tiered mechanical structure with no visible text or symbols

Technical line drawing of a mechanical component with multiple parallel grooves (no text or symbols)

Telescopic rails

Clean the accessories thoroughly with warm water, detergent and a soft clean cloth on first use.

Fastener Fastening tab

- On each telescopic rail there are fasteners that allow you to remove them for cleaning and repositioning.

- Remove the side runner. See section "Removal of the wire shelf".

Technical illustration of a mechanical assembly with a side view showing a rotating component (no text or symbols present)

- Hang the telescopic rail top fasteners on the side rack level reference wire and simultaneously press the bottom fasteners until you clearly hear the fasteners clip into the side rack level fixing wire.

- In order to remove, hold the front surface of the rail and repeat the previous instructions in reverse.

The Wire Grid

The wire grid is best used for grilling or for processing food in oven-friendly containers.

Technical line drawing of a metal grate plate with slats and mounting brackets (no text or symbols)

WARNING Place the q

Place the grid to any corresponding rack in the oven cavity correctly and push it to the end.

Diagram of a metal grate with a curved arrow indicating force or movement (no text or symbols)

The Water Collector

In some cases of cooking, condensation may appear on the inner glass of the oven door. This is not a product malfunction.

Open the oven door into the grilling position and leave it in this position for 20 seconds.

Water will drip to the collector.

Cool the oven and wipe the inside of the door with a dry towel. This procedure must be applied regularly.

Technical line drawing of a mechanical component or housing assembly (no text or symbols)

5. CLEANING AND MAINTENANCE

5.1 CLEANING

WARNING: Switch off the appliance and allow it to cool before cleaning is to be carried out.

General Instructions

- Check whether the cleaning materials are appropriate and recommended by the manufacturer before use on your appliance.

- Use cream cleaners or liquid cleaners which do not contain particles. Do not use caustic (corrosive) creams, abrasive cleaning powders, rough wire wool or hard tools as they may damage the cooker surfaces.

Do not use cleaners that contain particles as they may scratch the glass, enamelled and/or painted parts

of your appliance.

- Should any liquids overflow, clean them immediately to avoid parts becoming damaged.

Do not use steam cleaners for cleaning any part of the appliance.

Cleaning the Inside of the Oven

• The inside of enamelled ovens are best cleaned while the oven is warm.
• Wipe the oven with a soft cloth soaked in soapy water after each use. Then, wipe the oven over again with a wet cloth and dry it.
• You may need to use a liquid cleaning material occasionally to completely clean the oven.

Line drawing of a hand cleaning a car window with a circular vent (no text or symbols)

Cleaning the Glass Parts

• Clean the glass parts of your appliance on a regular basis.
• Use a glass cleaner to clean the inside and outside of the glass parts. Then, rinse and dry them thoroughly with a dry cloth.

Cleaning the Stainless Steel Parts (if available)

• Clean the stainless steel parts of your appliance on a regular basis.
• Wipe the stainless steel parts with a soft cloth soaked in only water. Then, dry them thoroughly with a dry cloth.

Do not clean the stainless steel parts while they are still hot from cooking.

Do not leave vinegar, coffee, milk, salt, water, lemon or tomato juice on the stainless steel for a long time.

Cleaning Painted Surfaces (if available)

- Spots of tomato, tomato paste, ketchup, lemon, oil derivatives, milk, sugary foods, sugary drinks and coffee should be cleaned with a cloth dipped in warm water immediately. If these stains are

not cleaned and allowed to dry on the surfaces they are on, they should NOT be rubbed with hard objects (pointed objects, steel and plastic scouring wires, surface-damaging dish sponge) or cleaning agents containing high levels of alcohol, stain removers, degreasers, surface abrasive chemicals. Otherwise, corrosion may occur on the powder painted surfaces, and stains may occur. The manufacturer will not be held responsible for any damage caused by the use of inappropriate cleaning products or methods.

Removal of the Oven Door

Before cleaning the oven door glass, you must remove the oven door, as shown below.

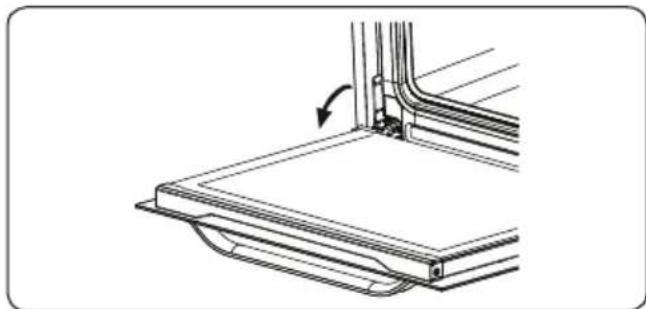

1. Open the oven door.

Technical line drawing of a mechanical assembly with an arrow indicating rotation (no text or symbols)

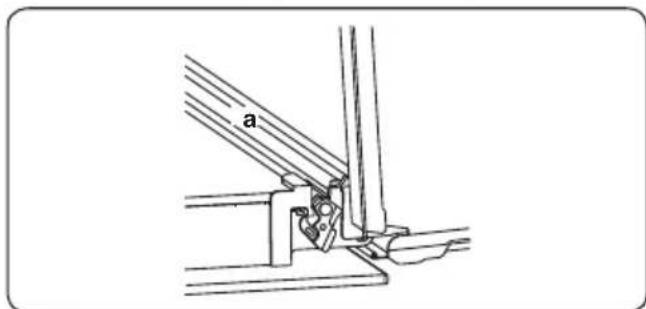

1. Open the locking catch (a) (with the aid of a screwdriver) up to the end position.

a

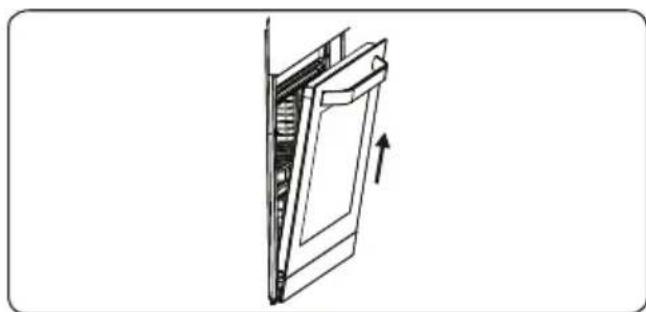

1. Close the door until it is almost in the fully closed position, and remove the door by pulling it towards you.

Diagram of a door with an arrow indicating upward motion, showing internal structure without any text or symbols.

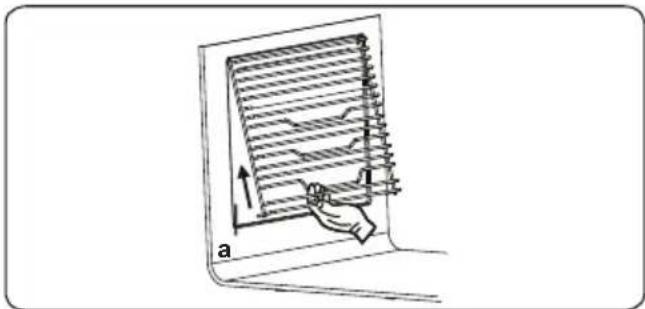

Removal of the Wire Shelf

To remove the wire rack, pull the wire rack as shown in the figure. After releasing it from the clips (a), lift it up.

Diagram of a hand pressing down on a grid-like structure with arrows indicating direction (no text or symbols)

5.2 MAINTENANCE

WARNING: The maintenance of this appliance should be carried out by an authorised service person or qualified technician only.

Changing the Oven Lamp

WARNING: Switch off the appliance and allow it to cool before cleaning your appliance.

• Remove the glass lens, then remove the bulb.
• Insert the new bulb (resistant to 300 °C) to replace the bulb that you removed (230 V, 15-25 Watt, Type E14).
• Replace the glass lens, and your oven is ready for use.
  • The product contains a light source of energy efficiency class G.
  • Light source can not be replaced by end user. After sales service is needed.
• The included light source is not intended for use in other applications.

Weather icon and sun symbol showing worker silhouette, directional arrow, and sun symbol with arrows

Replaceable light source by a professional

The lamp is designed specifically for use in household cooking appliances. It is not suitable for household room illumination.

6. TROUBLESHOOTING&TRANSPORT

6.1 TROUBLESHOOTING

If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician.

Problem Possible Cause Solution
Oven does not switch on.	Power is switched off.	Check whether there is power supplied.Also check that other kitchen appliances are working.
No heat or oven does not warm up.	Oven temperature control is incorrectly set.Oven door has been left open.	Check that the oven temperature control knob is set correctly.
Oven light (if available) does not operate.	Lamp has failed.Electrical supply is disconnected or switched off.	Replace lamp according to the instructions.Make sure the electrical supply is switched on at the wall socket outlet.
Cooking is uneven within the oven.	Oven shelves are incorrectly positioned.	Check that the recommended temperatures and shelf positions are being used.Do not frequently open the door unless you are cooking things that need to be turned.If you open the door often, the interior temperature will be lower and this may affect the results of your cooking.
The timer buttons cannot be pressed properly.	There is foreign matter caught between the timer buttons.Touch model: there is moisture on the control panel.The key lock function is set.	Remove the foreign matter and try again.Remove the moisture and try again.Check whether the key lock function is set.
The oven fan (if available) is noisy.	Oven shelves are vibrating.	Check that the oven is level.Check that the shelves and any bake ware are not vibrating or in contact with the oven back panel.

6.2 TRANSPORT

If you need to transport the product, use the original product packaging and carry it using its original case. Follow the transport signs on the packaging. Tape all independent parts to the product to prevent damaging the product during transport.

If you do not have the original packaging, prepare a carriage box so that the appliance, especially the external surfaces of the product, is protected against external threats.

Prohibition sign with crossed-out trash bin and no text or symbols

Technical diagram of a mechanical assembly with no visible text or symbols

2.3. ELEKTRIK BAĞLANTISI VE GÜVENLIK

Simple white line drawing of a stylized flower or droplet on a dark background (no text or symbols)

Buz Çözme

Solid black square with two thin white horizontal lines on top and bottom (no text or symbols)

Statik Pişirme

Abstract geometric symbol with a four-blade propeller inside a dark square frame (no text or symbols)

Fan Fonksiyonu:

Simple geometric shape with a wavy line above a square, no text or symbols present.

Izgara Fonksiyonu:

Abstract graphic with a stylized propeller inside a dark square frame (no text or symbols)

Izgara ve Fan

A - Mode +

En·d - Mode +

5:18 - Mode +

En·d - Mode +

Technical line drawing of an open industrial furnace or oven with internal components (no text or symbols)

Yağ Filtresi

Technical illustration of a fan or vent with a mesh grille and internal blades (no text or symbols)

Technical line drawing of a mechanical support structure with no visible text or symbols

Teleskopik raylar

Technical line drawing of a mechanical component with a side view showing a rotating shaft (no text or symbols)

Technical line drawing of a metal grate plate with slats and mounting brackets (no text or symbols)

UYARI Izgarov

Technical line drawing of a metal rack with an arrow indicating force or direction (no text or symbols)

Su Kolektörü

Technical line drawing of a mechanical assembly with no visible text or symbols

5. TEMİZLİK VE BAKIM

5.1. TEMIZLEME

Line drawing of a hand cleaning a car window with a cloth (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating rotation (no text or symbols)

Diagram of a door mechanism with an arrow indicating direction (no text or symbols present)

Tel Rafın Sökülmesi

Diagram of a hand pressing down on a screen with horizontal lines, showing a grid pattern and directional arrow (no text or symbols)

5.2. BAKIM

Weather icon showing sun and person with directional arrow, likely indicating sunlight or weather direction

I H F G J A B E C D C

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

WAARSCHUWING: DIT TOESTEL MOET WORDEN GEAARD.

Abstract white line drawing of a stylized flower or droplet on a dark background (no text or symbols)

Solid black square with two thin white horizontal lines on a dark gray background (no text or symbols)

Abstract geometric symbol with a four-blade propeller inside a dark square frame (no text or symbols)

Simple black square with a white zigzag line at the top (no text or symbols)

Abstract icon with a stylized propeller inside a wavy line above a dark square (no text or symbols)

A - Mode +

En·d - Mode +

En·d - Mode +

9.18°C - Mode +

Technical line drawing of a mechanical device with internal components (no text or symbols)

Het oliefilter

Technical illustration of a fan component with a mesh grille and directional arrow (no text or symbols)

Technical line drawing of a mechanical assembly with parallel rods and a central shaft (no text or symbols)

Telescopische rails

Technical illustration of a mechanical assembly with a side view showing a rotating component (no text or symbols present)

Technical line drawing of a metal grate or rack structure with no text or symbols

WAARSCHUWING

Technical line drawing of a metal grate with a curved top and an arrow indicating direction (no text or symbols)

Watercollector

Technical line drawing of a door frame structure with an arrow indicating direction (no text or symbols)

5. REINIGING EN ONDERHOUD

5.1. REINIGING

Line drawing of a hand cleaning a car window with a circular object on the wall (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical joint or bracket assembly (no text or symbols)

Diagram of a door mechanism with an arrow indicating direction (no text or symbols present)

Diagram of a hand holding a grid-like structure with an arrow, no text or symbols present

5.2. ONDERHOUD

Weather icon showing sun and train with directional arrow, likely indicating solar or wind conditions

6. PROBLEEMOPLOSSING EN TRANSPORT

6.1. PROBLEEMOPLOSSING
