USER MANUAL ATLKGK185R10A++ ATLANTIC

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Illustration showing three different techniques for using a tool, no text or symbols present

Cartoon illustration of a person inside a refrigerator with arms and legs open (no text or symbols)

Safety warning illustration showing a smiling face, a crossed-out hand holding a prohibition symbol, and a hand adjusting a device.

Simple line drawing of two bottles and a glass with bubbles, no text or symbols present

Cartoon illustration of a distressed container character holding a box labeled 'KG', with no readable text or symbols.

Vor Inbetriebnahme

Simple line drawing of a hand holding a smiling square character (no text or symbols)

GEFRIERSCHRANK & KÜHLSCHRANK THERMOSTAT

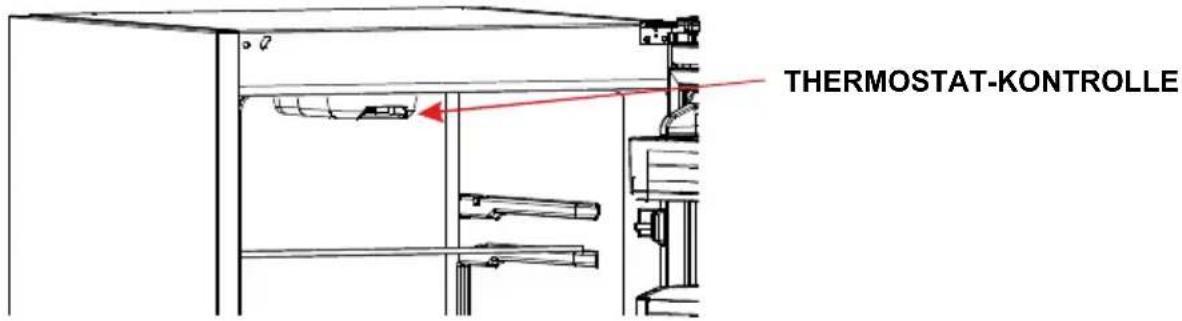

THERMOSTAT-KONTROLLE

Simple line drawing of a bottle mounted on a stand (no text or symbols)

Frischeregler

Technical diagram showing a structural assembly with labeled components and directional arrows indicating motion or force directions.

Illustrated guide showing a kitchen appliance with facial expressions and food items, including a hand holding a smiling emoji and cleaning tools.

Illustration of a hand holding a device inside a rack (no text or symbols visible)

Technical line drawing of a mechanical component with an inset showing a magnified detail of a textured surface (no text or symbols)

Line drawing of a kitchen appliance interior showing a hand cleaning the interior with a cloth and a small pot (no text or symbols)

Technical diagram showing a mechanical component with labeled parts A and B, likely illustrating a machining or assembly process.

Simple line drawing of two children playing a large block together (no text or symbols)

Technical diagram of a refrigerator with numbered parts for identification and assembly reference

Old and out-of-order fridges 25

Safety warnings 25

Installing and operating your fridge 26

Before Using your Fridge 26

THE VARIOUS FUNCTION AND POSSIBILITIES 27

Warnings for Temperature Settings 27

Thermostat Setting 27

Accessories 28

Ice tray 28

Bottle holder 28

Fresh dial 28

FOOD PLACEMENT 29

Fridge Compartment 29

Freeze Compartment 29

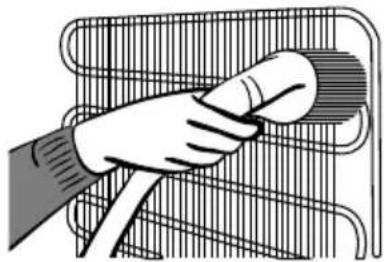

CLEANING AND MAINTENANCE 34

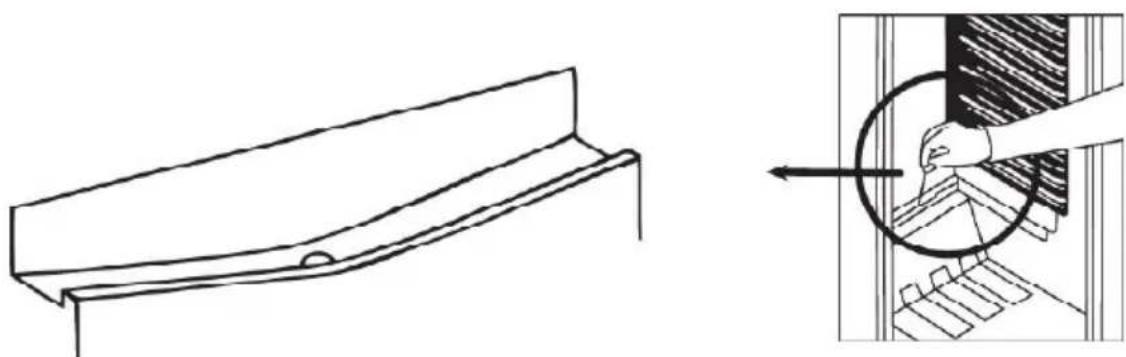

Defrosting Fridge Compartment 35

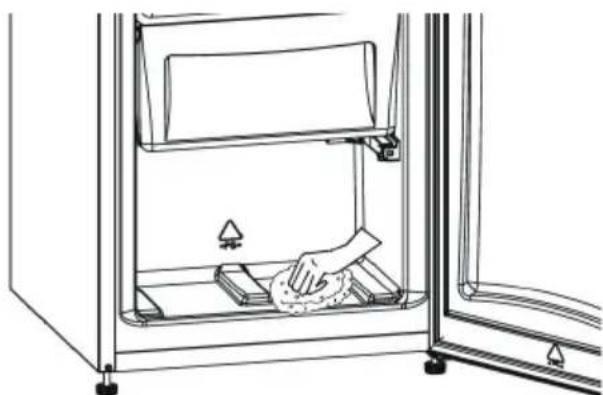

Defrosting Freezer compartment 35

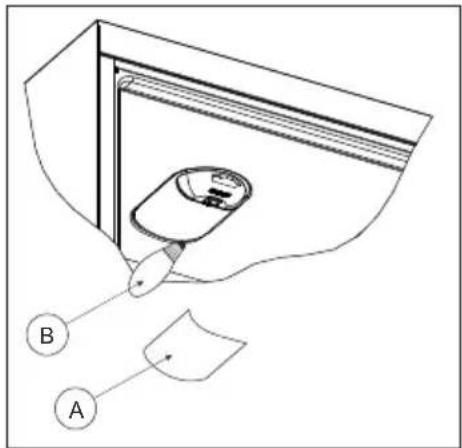

Replacing the Refrigerator Light Bulb 36

SHIPMENT AND REPOSITIONING 36

Repositioning the door 36

BEFORE CALLING THE SERVICE 37

Tips for saving energy 38

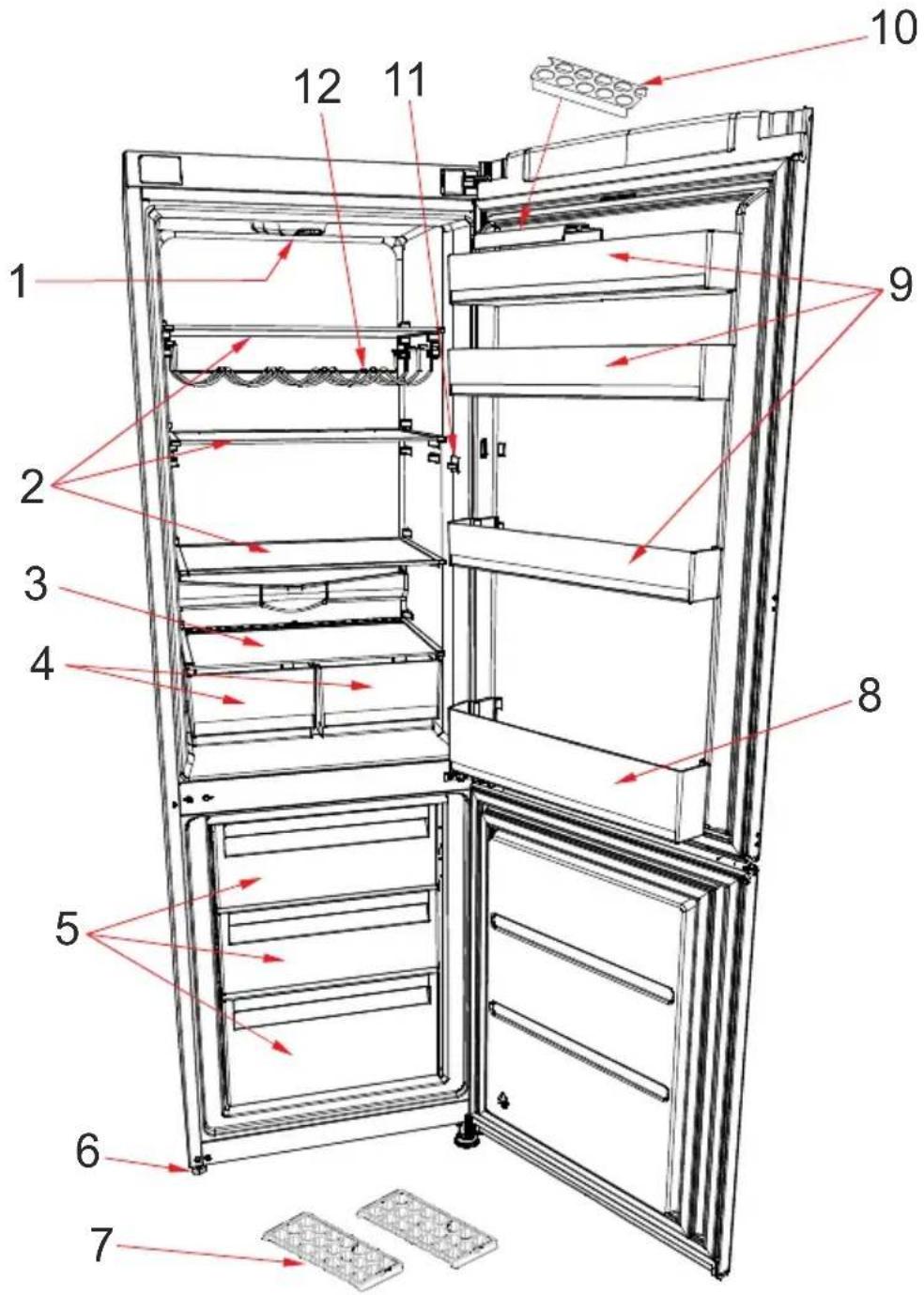

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ......39

Product fiche 40

Product part list 40

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability of the appliance, it must be fixed in accordance with the instructions.

- This appliance is not intended for use at altitudes exceeding 2000 m.

- If your appliance uses R600a as a refrigerant – you can learn this information from the label on the cooler- you should be careful during shipment and installation to prevent your appliance's cooled elements from being damaged. Although R600a is an environmentally friendly and natural gas. As it is explosive, in the event of a leak due to damage to the cooler elements, move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

- While carrying and positioning the fridge, do not damage the cooler gas circuit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- This appliance is intended to be used in household and similar applications such as;

- staff kitchen areas in shops, offices and other working

environments

• farm houses and by clients in hotels, motels and other residenti type environments
• bed and breakfast type environments;
• catering and similar non-retail applications

- If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

Old and out-of-order fridges

- If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.

Pure electrical circuit lines without any symbols

- Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Notes:

- Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

- Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

- This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.

- This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

Safety warnings

- Do not use multiple receptacles or extension cord.

- Do not plug in damaged, torn or old plugs.

- Do not pull, bend or damage the cord.

Illustration of four different techniques for using a tool, showing hand positioning and cutting process (no text or symbols)

- This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.

- Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!

- Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.

- Do not place explosive or flammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge department.

- When taking ice made in the freezer department, do not touch it, ice may cause ice burns and/or cuts.

- Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes immediately after you have taken them out of the freezer department!

Illustration of three cartoon characters: a smiling refrigerator with arms, a crossed-out prohibition symbol, and a broken bottle with spray (no text or symbols present)

- Do not re-freeze frozen goods after they have melted. This may cause health issues like food poisoning.

- Do not cover the body or top of fridge with lace. This affects the performance of your fridge.

- Fix the accessories in the fridge during transportation to prevent damage to accessories.

Installing and operating your fridge

Before starting to use your fridge, you should pay attention to the following points:

- Operating voltage for your fridge is 220-240 V at 50Hz.

- We do not take the responsibility of the damages that occur due to ungrounded usage.

- Place your fridge in a place that it would not be exposed to direct sunlight.

- Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.

- Your fridge should never be used outdoors or left under the rain.

- When your fridge is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity on the outer surface.

- Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15 cm is available on the upper side.

Cartoon illustration of a distressed container with arms and legs, no text or symbols present

- The adjustable front legs should be adjusted to make sure your appliance is level and stable. You can adjust the legs by turning them clockwise (or in the opposite direction). This should be done before placing food in the fridge.

- Before using your fridge, wipe all parts back with warm water added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after cleaning.

• Install the plastic distance guide (the part with black vanes at the rear) by turning it 90° as shown in the figure to prevent the condenser from touching the wall.

Diagram showing two curved heat exchanger-like structures with internal components and directional arrows indicating flow or movement (no text or symbols)

- Refrigerator should be placed against a wall with a free distance not exceeding 75 mm.

Before Using your Fridge

- When it is operated for the first time or after transportation, keep your fridge in the upright position for 3 hours and plug it on to allow efficient operation. Otherwise, you may damage the compressor.

Simple line drawing of a hand holding a smiling square character (no text or symbols)

- Your fridge may have a smell when it is operated for the first time; the smell will fade away when your fridge starts to cool.

PART-2. THE VARIOUS FUNCTION AND POSSIBILITIES

Thermostat Setting

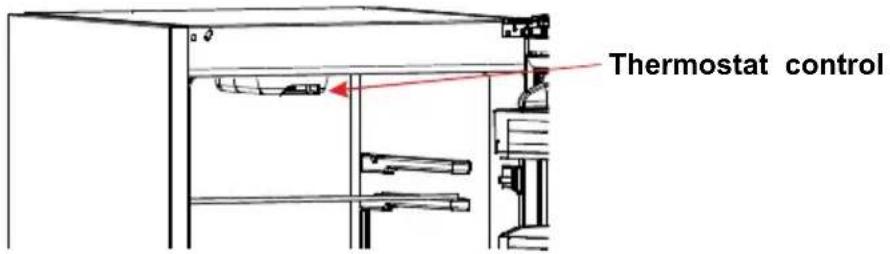

Thermostat control

Freezer thermostat automatically regulates the inside temperature of the compartments. By rotating the knob from position 1 to 5, colder temperatures can be obtained.

Important note: Do not try to rotate knob beyond 1 position it will stop your appliance.

Freezer & Refrigerator Thermostat Setting;

1 - 2 : For short-term storage of food in the freezer compartment, you can set the knob between minimum and medium position.

3-4: For long-term storage of food in the freezer compartment, you can set knob in the medium position.

5: For freezing the fresh food. The appliance will work longer. So after you get the cold condition you must position to previous position.

Warnings for Temperature Settings

• It is not recommended that you operate your fridge in environments colder than 10^ in terms of its efficiency.
• This appliance is designed for use at an ambient temperature within the 16^ C - 38^ C range.
• The thermostat setting should be done by taking into consideration how often the fresh food and freezer doors are opened and closed, how much food is stored in the refrigerator, and the environment in which the refrigerator is located.
• Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.
• A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.

- Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are out of the stated temperature intervals in terms of cooling efficiency.

Climate Class Ambient
T	16 to 43 °C
ST	16 to 38 °C
N	16 to 32 °C
SN	10 to 32 °C

Accessories

Ice tray

• Fill the ice tray with water and place in freezer compartment.
  • After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

Line drawing of a hand pouring liquid into a tray with circular wells (no text or symbols)

Diagram of a hand holding a cylindrical object with arrows indicating rotation or movement (no text or symbols)

Simple line drawing of two hands holding a tooth with a crossed-out black X (no text or symbols)

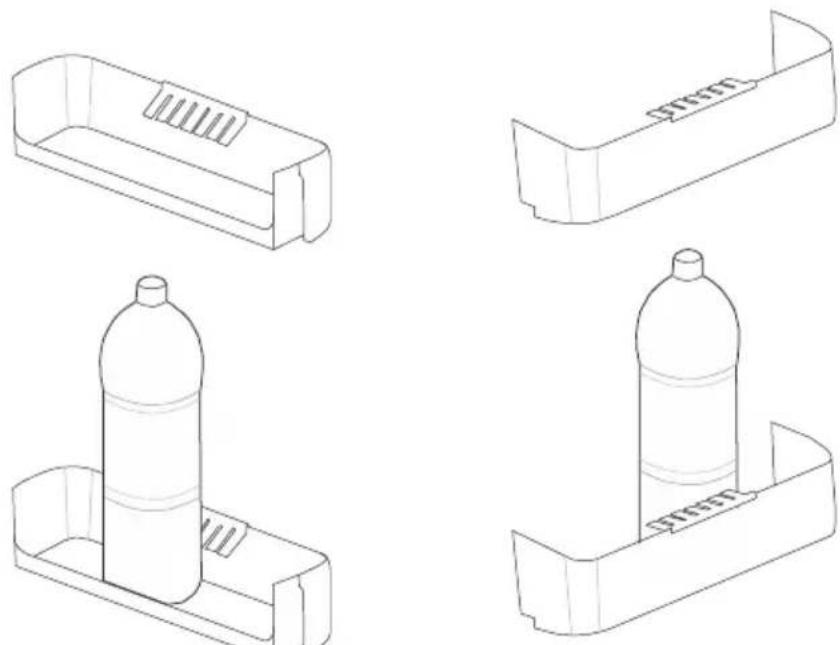

Bottle holder (Only some models)

- In order to prevent the bottles to slip or fall over you can use the bottle holder. You can also prevent making noise that will be done when you open or close the door.

Simple line drawing of a bottle mounted on a stand (no text or symbols)

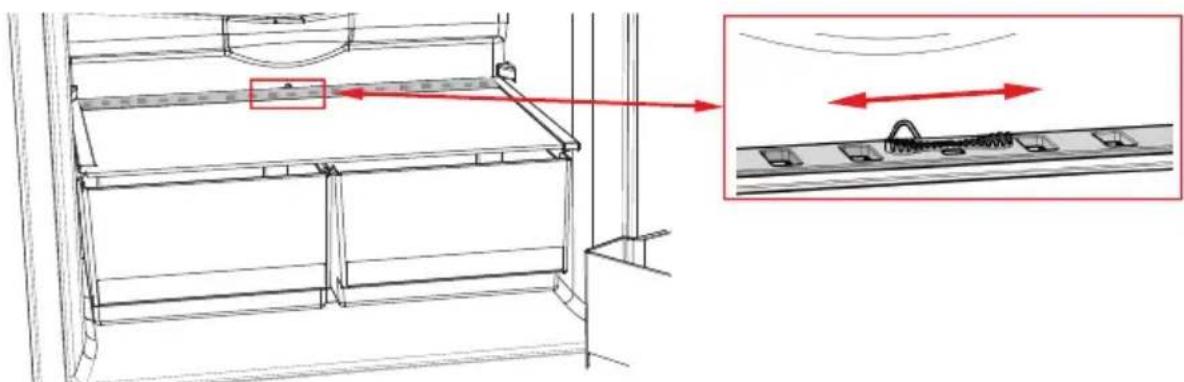

Fresh dial

In case of the crisper is totally full, the fresh dial is located in front of crisper, should be opened. By means of this the air in the crisper and humidity rate will be controlled and endurance life will be increased.

If you see any condensation on glass shelf, you must open this klape which is on behind of shelf.

Technical diagram showing a structural assembly with labeled components and directional arrows indicating motion or force directions.

All written and visual descriptions in the accessories may vary according to the appliance model.

PART-3. FOOD PLACEMENT

Fridge Compartment

• To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
• Nothing should touch to refrigerator back wall as it will cause frost and the packages can stick here. Do not open the refrigerator door too frequently.
• Arrange the meat and cleaned fish (wrapped in packages or sheets of plastic) which you will use in 1-2 days.
• You can put the fruits and vegetables into crisper without packing.

Food Storing time	Where to place in the fridge department
Vegetables and fruits 1 week	In the Crisper (without being wrapped)
Meat and fish 2 to 3 days	Covered with plastic folio and bags Or in a meat box (on the glass shelf)
Fresh cheese 3 to 4 days In the special door shelf
Butter and Margarine 1 week In the special door shelf
Bottled product, Milk and Yoghurt	Until the expiry date recommended by the producer In the special door shelf
Eggs 1 month In the egg shelf
Cooked food	All shelves

NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.

Freeze Compartment

• The use of freezer is, storing of deep-frozen or frozen food for long periods of time and making ice cubes.
• Do not put fresh and warm food to the freezer door shelves to be frozen. Only use for storage of frozen food.
• Do not put fresh and warm food with frozen food side by side as it can thaw the frozen food.
• While freezing fresh food (i.e. meat, fish and mincemeat) divide them in parts you will use in one time.

• For storing the frozen food; the instructions shown on frozen food packages should always be followed carefully and if no information is provided food should not be stored for more than 3 months from the purchased date.

• When buying frozen food ensure that these have been frozen at suitable temperatures and that the packing is intact.

• Frozen food should be transported in appropriate containers to maintain the quality of the food and should be returned to the freezing surfaces of the unit in the shortest possible time.
• If a package of frozen food shows the sign of humidity and abnormal swelling it is probable that it has been previously stored at an unsuitable temperature and that the contents have deteriorated.
• The storage life of frozen food depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the package and never exceed the maximum storage life indicated.
• Use the fast freezing shelf to freeze home cooking (and the food which is wanted to freeze) more quickly because of the freezing room's greater freezing power. Fast freezing shelves are the middle drawers of the freezer compartment (see in page 18)
• Some recommendations have been specified on pages 31, 32 and 33 for the placement and storage of your food in the deep freeze compartment.

Meat and fish Preparing		Storing time (months)	In room temperature Defrost time -hour-
Steak Wrapping in a foil 6-10 1-2
Lamb meat Wrapping in a foil 6-8 1-2
Veal roast Wrapping in a foil 6-10 1-2
Veal cubes In small pieces 6-10 1-2
Lamb cubes In pieces 4-8 2-3
Minced meat	In packages without using spices	1-3 2-3
Giblets (pieces)	In pieces 1-3 1-2
Bologna sausage/salami	Should be packaged even if it has membrane		Until it is defrosted
Chicken and turkey	Wrapping in a foil 7-8	10-12
Goose and Duck	Wrapping in a foil 4-8	10
Deer, Rabbit, Wild Boar	In 2.5 kg portions and as fillets	9-12	10-12
Freshwater fishes (Salmon, Carp, Crane, Siluroidea)	After cleaning the bowels and scales of the fish, wash and dry it; and if necessary, cut the tail and head.	2	Until it is thawed completely
Lean fish; bass, turbot, flounder		4-8	Until it is thawed completely
Fatty fishes (Tunny, Mackarel, bluefish, anchovy)		2-4	Until it is thawed completely
Shellfish	Cleaned and in bags	4-6	Until it is thawed completely
Caviar	In its package, aluminum or plastic container	2-3	Until it is thawed completely
Snail	In salty water, aluminum or plastic container	3	Until it is thawed completely

Note: Frozen foods, when thawed, should be cooked just like fresh foods. If they are not cooked after being thawed they must NEVER be re-frozen.

Vegetables and Fruits		Preparing	Storing time (months)	In room temperature Defrost time -hour-
Cauliflower		Take the leaves apart, cut the heart into pieces, and leave it in water with a little lemon juice for a while	10 - 12 It can be used as frozen
String beans and beans		Wash and cut to small pieces	10 - 13 It can be used as frozen
Beans Hull and wash		12 It can be used as frozen
Mushroom and asparagus		Wash and cut to small pieces	6 - 9 It can be used as frozen
Cabbage Cleaned 6		8 2
Eggplant		Cut to pieces of 2cm after washing	10 - 12 Separate them from one another
Corn		Clean and pack with its stem or as sweetcorn	12 It can be used as frozen
Carrot Clean and cut		to slices 12 It can be used as frozen
Pepper		Cut the stem, cut into two pieces and remove the core	8 - 10 It can be used as frozen
Spinach Washed 6		9 2
Apple and pear Peel		and slice	8 - 10	(In Fridge) 5
Apricot and Peach		Cut into two pieces and remove the stone	4 - 6	(In Fridge) 4
Strawberry and Blackberry		Wash and hull	8 - 12 2
Cooked fruits		Adding 10 % of sugar in the container	12	4
Plum, cherry, sourberry		Wash and hull the stems	8 - 12	5 - 7
Dairy Products Pastry		Preparing	Storing time (months)	Storing Conditions
Packet (Homogenize) Milk		In its own packet 2 - 3		Pure Milk – In its own packet
Cheese-excluding white cheese		In slices 6 - 8		It can be left in its original package for storing for a short time. For long term storage It should be stored in a plastic
Butter, margarine		In its package 6
* Eggs	Albumen 10 - 12 30	gr of it is equal to a yolk.			In closed container
	Egg mixture (Albumen – yolk)	Some salt or sugar is added for preventing it from becoming dense.	10 50 gr of it is equal to a yolk.
	Yolk	Some salt or sugar is added for preventing it from becoming dense.	8 - 10 20 gr of it is equal to a yolk.

* It should not be frozen with its shells. The white and yolk of the egg should be frozen separately or as having been well mixed.

	Storing time (months)	Thawing time in room temperature (hours)	Thawing time in owen (min.)
Bread 4 - 6 2 - 3	4-5 (220-225 °C)
Biscuits	3 - 6	1 - 1,5	5-8 (190-200 °C)
Pastry	1 - 3 2 - 3	5-10 (200-225 °C)
Pie	1 - 1,5	3 - 4 5-8 (190-200 °C)
Phyllo dough	2 - 3	1 - 1,5	5-8 (190-200 °C)
Pizza	2 - 3 2 - 4	15-20 (200 °C)

The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period. Therefore, the frozen food should be added little amount of spices or the desired spice should be added after the food has been thawed.

The storage period of food is dependent on the oil used. The suitable oils are margarine, calf fat, olive oil and butter and the unsuitable oils are peanut oil and pig fat.

The food in liquid form should be frozen in plastic cups and the other food should be frozen in plastic folios or bags.

PART-4. CLEANING AND MAINTENANCE

• Make sure to unplug the fridge before starting to clean it.
• Do not wash your fridge by pouring water onto it.
• You can wipe the inner and outer sides of your appliance with a soft cloth or a sponge using warm and soapy water.

Cartoon illustration of a smiling refrigerator with arms and legs, accompanied by a bowl and pencil (no text or symbols)

- Remove the parts individually and clean with soapy water. Do not wash in washing machine.

• Never use flammable, explosive or corrosive material like thinner, gas, acid for cleaning.

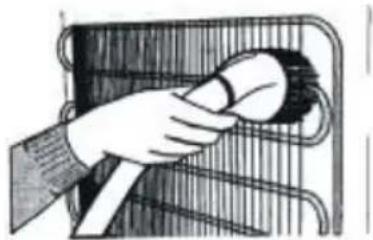

• The condenser (the back part with black wings) should be cleaned using a vacuum cleaner or a dry brush at least once a year. This will help your fridge to operate more efficiently and save energy.

Cartoon illustration of a hand cleaning a refrigerator with a magnifying glass (no text or symbols)

Simple line drawing of a smiling face on a square object held by a hand (no text or symbols)

Cartoon illustration of a refrigerator with a smiling face, accompanied by a smaller bottle and a cup (no text or symbols)

Simple line drawing of a refrigerator with a red X symbol crossed out (no text or symbols present)

Cartoon illustration of a smiling rectangular box character and two penguin-shaped objects beside it (no text or symbols)

Illustration of a hand using a tool to clean or adjust a grid-like structure (no text or symbols visible)

Defrosting Fridge Compartment

- Defrosting occurs fully automatically in refrigerator compartment during operation; the defrosted water collected by the evaporating tray and evaporates automatically.

- The evaporating tray and water drain hole (back of the refrigerator crisper shelf) should be cleaned periodically to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.

Technical line drawing of a mechanical component and its magnified cross-section showing internal components (no text or symbols)

Defrosting Freezer compartment

- The frost, which covers the shelves of the freezer compartment, should be removed periodically.

- Do not use sharp metal objects for this operation. They could puncture the refrigerator circuit and cause irreparable damage to the unit. Use the plastic scraper provided.

- When there is more than 5 mm of frost on the shelves, defrosting must be done.

- Before defrosting operation, place the frozen food in a cool place after wrapping them in sheets of newspaper in order to obtain its temperature steady for long time.

• To accelerate the defrosting process place one or more basins of warm water in the freezer compartment.

Line drawing of a kitchen appliance with a hand cleaning the interior (no text or symbols)

- Dry the inside of the compartment with a sponge or a clean cloth.

- Once the unit has been defrosted, place the food into freezer and remember to consume them in a short period of time.

Replacing the Refrigerator Light Bulb

1. Unplug the unit from the power supply,
2. Remove the refrigerator light cover (A) by pressing the hooks placed both sides of the cover.
3. Change the present light bulb (B) with a new one (not more than 15 W).
4. Place the light cover in its place and plug the unit.

Replacing LED Lighting

If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.

Technical diagram showing a mechanical component with labeled parts A and B, likely illustrating a machining or assembly process.

PART-5. SHIPMENT AND REPOSITIONING

Transportation and changing of installation position

• Original package and foam may be kept for re-transportation (optionally).
• You should fasten your fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation.

- Remove movable parts (shelves, accessories, vegetable bins etc.) or fix them into the fridge against shocks using bands during re-positioning and transportation.

Carry your fridge in the upright position.

Simple line drawing of two children playing a large board (no text or symbols)

Repositioning the door

• It is not possible to change the opening direction of your fridge door, if the door handles on your fridge are installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any handles.
• If the door opening direction of your fridge may be changed, you should contact the nearest Authorised Service to have the opening direction changed.

PART-6. BEFORE CALLING THE SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money.

What to do if your appliance does not operate;

Check that;

• There is no power,
• The general switch in your home is disconnected,
• The socket is not sufficient. To check this, plug in another appliance that you know which is working into the same socket.

What to do if your appliance performs poorly;

Check that;

• You have overloaded the appliance,
• The thermostat setting is "1" position (if so set the thermostat dial suitable value)
  • The doors are closed perfectly,
• There is no dust on the condenser,
• There is enough place at the rear and side walls.

If there is noise;

The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that;

• The appliance is well levelled
- Nothing is touching the rear.
- The stuffs on the appliance are vibrating.

If there is water in the lower part of the refrigerator,

Check that;

- The drain hole for defrost water is not clogged (Use defrost drain plug to clean the drain hole)

IMPORTANT NOTES:

• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to Part 4 and leave the door open to prevent humidity and smell
• If the problem persists after you have followed all the instructions above, please consult to the nearest authorized service.
• The appliance you bought is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasize that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.

Tips for saving energy

1- Install the appliance in a coll, well ventilated room, but not in direct sunlight and not near heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2- Allow ward food and drinks to cool down outside the appliance.
3- When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. So it causes energy saving. If the frozen food is put out, it causes wastage of energy.
4- When placing, drinks and slops they must be covered. Otherwise humidity increases at the appliance. Therefore the working time gets longer. Also covering drinks and slops helps to save smell and taste.
5- When placing food and drinks, open the appliance door as briefly as possible.
6- Keep close the covers of any different temrepature compartment in the appliance (crisper, chiller ...etc ).
7- Door gasket must be clean and pliable. Replace gaskets if worn.

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

Technical diagram of a refrigerator with numbered parts for identification and assembly reference

This figure has been drawn for information purposes about parts and accessories of the appliance. Parts may vary according to the model of the appliance.

1) Thermostat knob & Lamp
2) Fridge glass shelves
3) Crisper cover
4) Crispers
5) Freezer baskets
6) Adjustable feet
7) Ice box
8) Bottle shelf
9) Door shelves
10) Egg holder
11) Lamp switch
12) Wine rack

Product part list

Mark / Model	ATLANTIC
	Freezer Fridge
Glass shelves	4
Crisper	2
Door shelves	4
Egg tray	2
Ice cube tray	2
Plastic ice blade	1
User manual / Installation booklet	Yes
Warranty documents	Yes

Product fiche

Brand	ATLANTIC
Model	ATLKGK185SI10A++ATLKGK185R10A++
Product category	7 (Fridge - Freezer)
Energy class	A++
Annual energy consumption *	207 kWh / year
Total gross volume	313 l
Total net volume	290 l
Refrigerator gross volume	214 l
Refrigerator net volume	209 l
Freezer gross volume	99 l
Freezer net volume	81 l
Star rating	***
Refrigeration system	Static
Temperature rise time (-18°C) - (-9°C)	14 h. (25°C)
Freezing capacity	4,5 kg
Climate class **	ST/N (16°C - 38°C)
Noise emission	42 dB(A)

1. Between A(low consumption) to G (high consumption)
2. Energy consumption of 207 kWh per year, calculated on the basis of results obtained in 24 hours under normalised test conditions. Real energy consumption depends on the conditions in which the equipment is used as well as where it is placed.

3.

(*) One Star storage is for the frozen food which keeps the inner temperature lower than -6 °C.
(**) Two Star storage is for the frozen food which keeps the inner temperature lower than - 12 °C.
(***) Tree Star storage is for the frozen food which keeps the inner temperature lower than - 18 °C.
(****) FOUR Star storage is for the freezing the food from +18 TO - 18 °C. It also keeps the foods under 3 star storage conditions.

1. Your fridge is designed to operate in the ambient temperature intervals stated in the

standards, according to the climate class stated in the information label.

We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class Ambient Temperature (°C)
T	Between 16 and 43 (°C)
ST Between 16 and 38 (°C)
N	Between 16 and 32 (°C)
SN Between 10 and 32 (°C)

Sommaire

AVANT DE METTRE EN MARCHE L'APPAREIL 43

Pure electrical circuit lines without any symbols

Illustration of hands using a tool to cut a wire, showing step-by-step motion (no text or symbols)

Cartoon illustration of a character inside a door, holding hands with arms outstretched (no text or symbols)

Illustration of a hand holding a smiling face icon next to a prohibition symbol (no text or numbers present)

Simple line drawing of two bottles and a container with droplets, no text or symbols present

Cartoon illustration of a distressed container character with arms and facial expressions (no text or symbols)

Simple line drawing of a smiling face inside a square with a hand holding it (no text or symbols)

PARTIE - 2. LES DIFFERENTES FONCTIONS ET POSSIBILITES

Climate Class Ambient
T	16 to 43 °C
ST	16 to 38 °C
N	16 to 32 °C
SN	10 to 32 °C

Accessoires

Simple line drawing of a bottle mounted on a container (no text or symbols)

Technical diagram showing a mechanical assembly with red arrows indicating motion or force direction, including a zoomed-in view of the component.

Illustration of a hand holding a tool inside a rack (no text or symbols visible)

Technical line drawing of a mechanical component with an inset showing a hand holding a circular object (no text or symbols present)

Line drawing of a kitchen appliance interior with a hand cleaning the interior (no text or symbols)

Technical diagram showing a mechanical component with labeled parts A and B, likely illustrating a machining or assembly process.

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Labeled diagram of a refrigerator interior with numbered parts for identification
