USER MANUAL ATLKS84W10A+ ATLANTIC

Old and out-of-order fridges 19

Safety warnings 19

Installing and operating your fridge 20

Before Using your Fridge 20

THE VARIOUS FUNCTION AND POSSIBILITIES 21

Thermostat Setting 21

Accessories 22

"Door Open" Indicator; 22

Making Ice cubes; 22

CLEANING AND MAINTENANCE 23

Defrosting 24

Replacing The Light Bulb 25

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION 25

Repositioning the door 25

BEFORE CALLING YOUR AFTER SALES SERVICE 26

Tips for saving energyTips for saving energy 27

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS 28

Product fiche 29

Product part list 29

PART-1. BEFORE USING THE APPLIANCE

General warnings

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability of the appliance, it must be fixed in accordance with the instructions.

• This appliance is not intended for use at altitudes exceeding 2000m .

• If your appliance uses R600a as a refrigerant – you can learn this information from the label on the cooler- you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. Although R600a is an environmentally friendly and natural gas. As it is explosive, in the event of a leak due to damage to the cooler elements, move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• This appliance is intended to be used in household and similar applications such as;

• staff kitchen areas in shops, offices and other working

environments

• farm houses and by clients in hotels, motels and other residen-ti type environments
• bed and breakfast type environments;

• catering and similar non-retail applications

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

Old and out-of-order fridges

• If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.

• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.

• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

Safety warnings

• Do not use multiple receptacles or extension cord.

• Do not plug in damaged, torn or old plugs.

• Do not pull, bend or damage the cord.

• This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.

• Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!

• Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.

• Do not place explosive or flammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge department.

• When taking ice made in the freezer department, do not touch it, ice may cause ice burns and/or cuts.

• Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes immediately after you have taken them out of the freezer department!

• Do not re-freeze frozen goods after they have melted. This may cause health issues like food poisoning.

• Do not cover the body or top of fridge with lace. This affects the performance of your fridge.

Fix the accessories in the fridge during transportation to prevent damage to accessories.

Installing and operating your fridge

Before starting to use your fridge, you should pay attention to the following points:

• Operating voltage for your fridge is 220 - 240V at 50Hz .

• We do not take the responsibility of the damages that occur due to ungrounded usage.

• Place your fridge in a place that it would not be exposed to direct sunlight.

• Your appliance should be at least 50~cm away from stoves, Gas ovens and heater cores, and should be at least 5~cm away from electrical ovens.

• Your fridge should never be used outdoors or left under the rain.

• When your fridge is placed next to a deep freezer, there should be at least 2cm between them to prevent humidity on the outer surface.

• Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15cm is available on the upper side.

• The adjustable front legs should be adjusted to make sure your appliance is level and stable. You can adjust the legs by turning them clockwise (or in the opposite

direction). This should be done before placing food in the fridge.

• Before using your fridge, wipe all parts back with warm water added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after cleaning.

• Install the plastic distance guide (the part with black vanes at the rear) by turning it 90^ as shown in the figure to prevent the condenser from touching the wall.

• Refrigerator should be placed against a wall with a free distance not exceeding 75 mm.

Before Using your Fridge

• When it is operated for the first time or after transportation, keep your fridge in the upright position for 3 hours and plug it on to allow efficient operation. Otherwise, you may damage the compressor.

• Your fridge may have a smell when it is operated for the first time; the smell will fade away when your fridge starts to cool.

PART-2. THE VARIOUS FUNCTION AND POSSIBILITIES

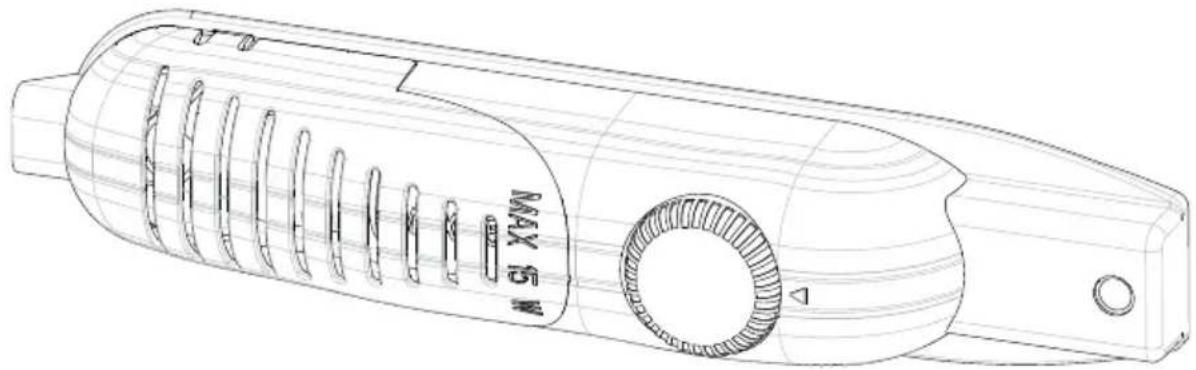

Thermostat Setting

Thermostat automatically regulates the inside temperature of the refrigerator compartment and freezer compartment. By rotating the knob from position 1. to 5., colder temperatures can be obtained.

Important note: Do not try to rotate knob beyond 1 position it will stop your appliance.

• For short-term storage of food in the freezer compartment, you can set the knob between minimum and medium position.(1-3)
• For long-term storage of food in the freezer compartment, you can set knop medium position.(3-4)

Note that; the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting.

• When you first switch on the appliance, for starting a suitable cooling, the appliance should work 24 hours continuously until it cools down to sufficient temperature.
• In this time do not open the door so often and place a lot of food inside the appliance.
• If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting or re-plugged the unit in order not to damage the compressor.
• The freezer**** of the refrigerator can cool up to -18^ and more.
• This appliance is designed for use at an ambient temperature within the 16^ - 32^ range.

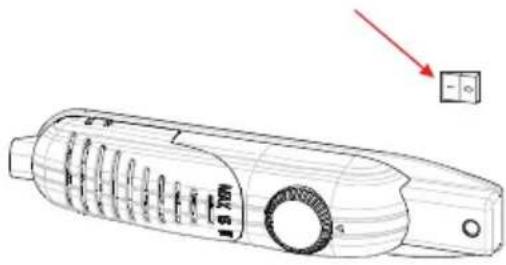

If super switch is available:

In order to ensure proper operation with an ambient temperature below 20^ , press the button next to the thermostat. Press the button again to turn it off when the temperature is high (above 20^ ).

Accessories

"Door Open" Indicator;

• The « Door Open » indicator on the handle shows whether the door has closed properly or whether it is still open.
• If the indicator is red, the door is still open.
• If the indicator is white, the door is properly closed.
• Observe that the freezer's door should always be kept closed. This will prevent food products from defrosting; it will avoid heavy ice and frost build-up inside the freezer and an unnecessary increase in energy consumption.

Making Ice cubes;

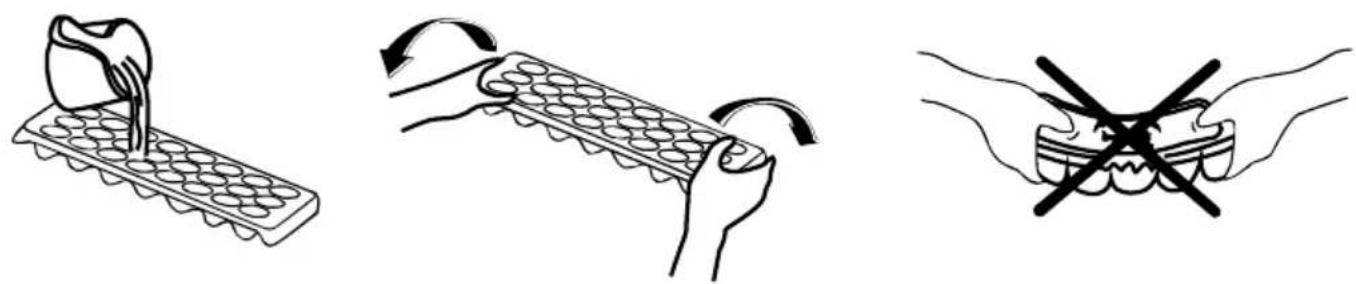

Ice tray ;

• Fill the ice tray with water and place in freezer compartment.
• After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

CLEANING AND MAINTENANCE

• Disconnect unit from the power supply before cleaning.

• Do not clean the appliance by pouring water.

• The refrigerator compartment should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

• Clean the accessories separately with soap and water Do not clean them in the washing machine.

• Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When the cleaning operations have been completed reconnect the plug of the unit with dry hands.

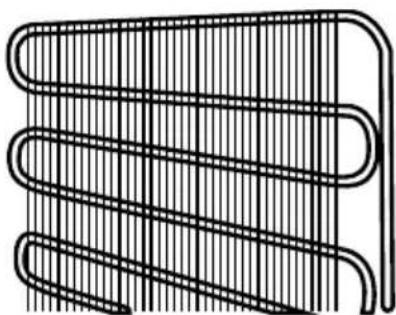

• You should clean the condenser with broom at least twice a year in order to provide energy saving and increase the productivity.

Defrosting

For fridge compartment

• Defrosting occurs automatically in refrigerator compartment during operation; the defrost water is collected by the evaporating tray and evaporates automatically.
• The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.
• You can also pour 12 glass of the water to drain hole to clean inside.

For freezer compartment;

The frost, accumulated in the freezer compartment, should be removed periodically. The freezer compartment should be cleaned in the way as the refrigerator compartment, with the defrost operations of the compartment at least twice a year.

For this;

• The day before you defrost, set the thermostat dial to 5. position to freeze the foods completely.
• During defrosting, frozen foods should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten their storage life. Remember to use these foods within a relatively short period of time.
• Switch the refrigerator off at the socket outlet and pull the main plug
• Leave the door open and to accelerate the defrosting process one or more basins of warm water can be placed in the freezer compartment.
• Dry the inside of the unit and water tray, refit the tray plug and set the thermostat knob to 5 position.

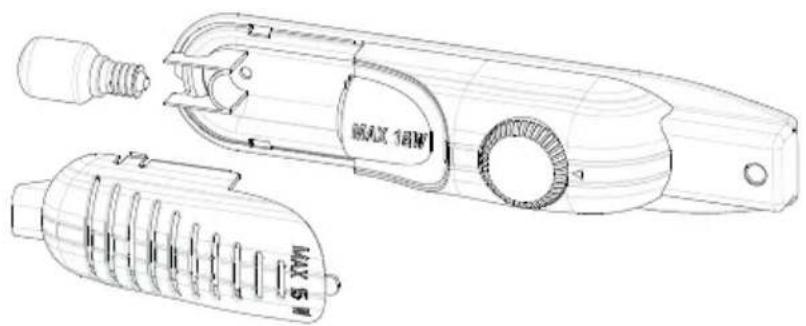

Replacing The Light Bulb

When replacing the light of the refrigerator compartment;

1. Unplug the unit from the power supply,
2. Press the hooks on the sides of the light cover top and remove the light cover
3. Change the present light bulb with a new one of not more than 15 W.
4. Replace the light cover and after waiting 5 minutes plug the unit.

Replacing LED Lighting

If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.

PART-4.

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

Transportation and changing of installation position

• Original package and foam may be kept for re-transportation (optionally).

• You should fasten your fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation.

• Remove movable parts (shelves, accessories, vegetable bins etc.) or fix them into the fridge against shocks using bands during re-positioning and transportation.

Carry your fridge in the upright position.

Repositioning the door

• It is not possible to change the opening direction of your fridge door, if the door handles on your fridge are installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any handles.
• If the door opening direction of your fridge may be changed, you should contact the nearest Authorised Service to have the opening direction changed.

PART-5. BEFORE CALLING YOUR AFTER SALES SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money.

What to do if your refrigerator does not operate;

Check that ;

• There is no power,
• The general switch in your home is not disconnected ,
• The thermostat setting is on "·" position,
• The socket is not sufficient. To check this, plug in another appliance that you know which is working into the same socket.

What to do if your refrigerator performs poorly ;

Check that ;

• You have not overloaded the appliance,
• The doors are closed perfectly,
• There is no dust on the condenser,
• There is enough place at the rear and side walls.

If there is noise ;

The cooling gas which circulates in the refrigerator circuit may make a slight noise(bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that;

• The appliance is well levelled ,
• Nothing is touching the rear,
• The stuffs on the appliance are vibrating.

If there is water in the lower part of the refrigerator;

Check that ;

The drain hole for defrost water is not clogged(Use defrost drain plug to clean the drain hole)

If your fridge is not cooling enough;

Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class Ambient Temperature (°C)
T	Between 16 and 43 (°C)
ST Between 16 and 38 (°C)
N	Between 16 and 32 (°C)
SN Between 10 and 32 (°C)

IMPORTANT NOTES:

• While power cut, to prevent any compressor problem you should plug out the refrigerator. You should delay plugging in 5 - 10 minutes after you power supply. If you plug out the refrigerator for a reason you should wait at least 5 min to replug. It is important for avoiding damage to refrigerator's components.
• The cooling unit of your refrigerator is hidden in the rear wall. Therefore, water droplets or icing may occur on the rear surface of your fridge due to the operation of the compressor in specified intervals. This is normal. There is no need to perform a defrosting operation unless the icing is excessive.
• If you will not use your fridge for a long time (e.g. in summer holidays), put the thermostat to "..." position. After defrosting, clean your fridge and leave the door open to prevent humidity and smell.
• If the problem persists after you have followed all the instructions above, please consult to the nearest Authorised Service.
• The appliance you have purchased is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasise that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.

Tips for saving energyTips for saving energy

1- Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near heat source (radiator, cooker., etc). Otherwise use an insulating plate.
2- Allow warm food and drinks to cool down outside the appliance.
3- When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. So it reduces the energy requirements.
4- When placing, drinks and liquids they must be covered. Otherwise humidity increases at the appliance. Therefore the working time gets longer. Also covering drinks and liquids helps preserve the smell and taste.
5- When placing food and drinks, open the appliance door as briefly as possible.
6- Keep the covers closed of any different temperature compartment in the appliance (crisper, chiller ...etc ).
7- Door gasket must be clean and pliable. Replace gaskets if worn.

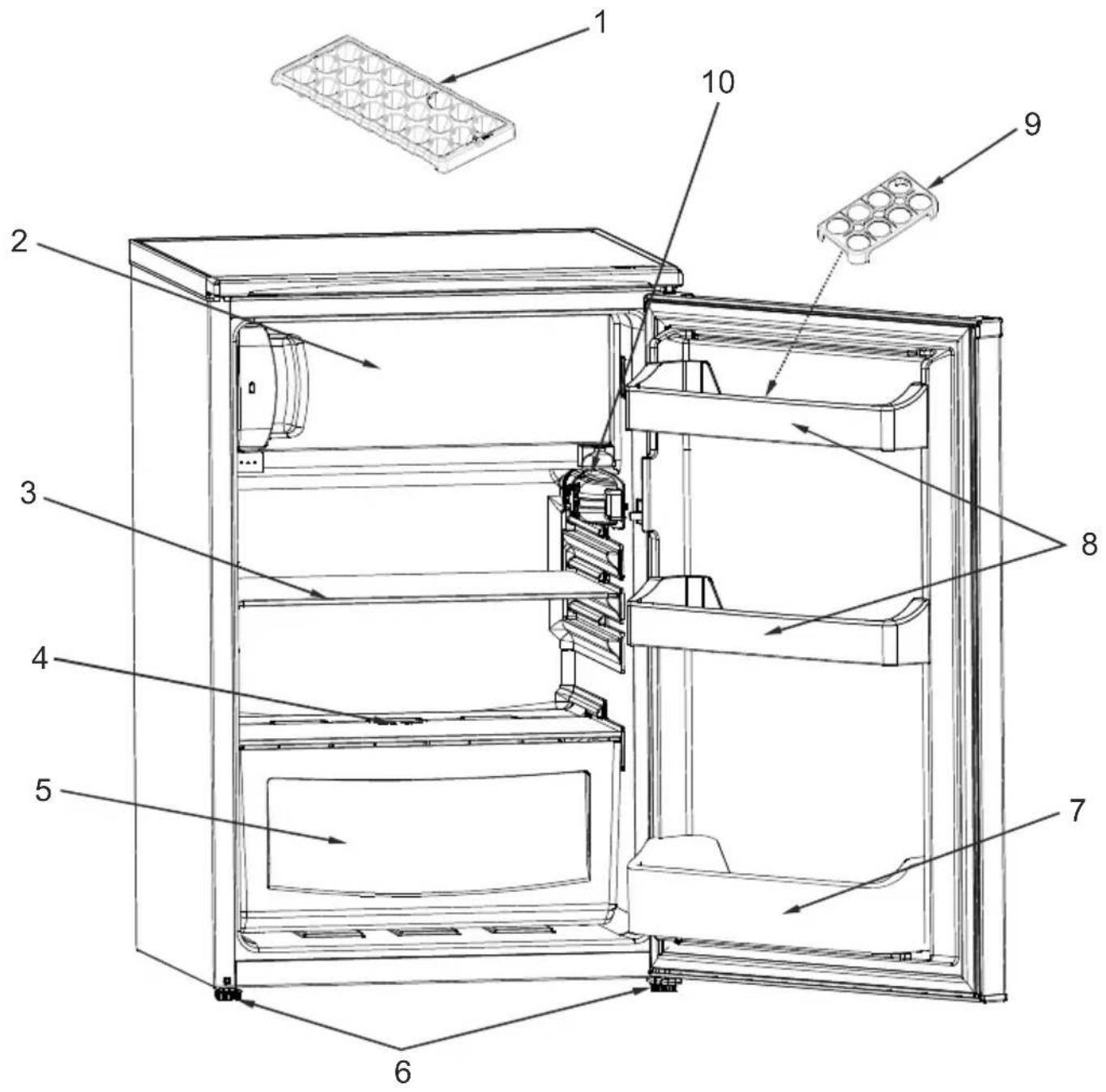

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1) Ice Tray 6) Levelling Feet
2) Freezer compartment 7) Bottle Shelf
3) Refrigerator Shelf 8) Door Shelf
4) Crisper Cover (Safety Glass**) 9) Egg Shelf
5) Crisper 10) Thermostat Box

Product part list

Mark / Model	ATLANTIC
	Freezer Fridge
Glass shelves	2
Crisper	1
Door shelves	3
Egg tray	1
Ice cube tray	1
Plastic ice blade	-
User manual / Installation booklet	Yes
Warranty documents	Yes

Product fiche

Brand	ATLANTIC
Model	ATLKS84W10A+
Product category	7 (Fridge - Freezer)
Energy class	A+
Annual energy consumption *	169 kWh / year
Total gross volume	119 I
Total net volume	117 I
Refrigerator gross volume	106 I
Refrigerator net volume	105 I
Freezer gross volume	13 I
Freezer net volume	12 I
Star rating	***
Refrigeration system	Static
Temperature rise time (-18°C) - (-9°C)	10 h. (25°C)
Freezing capacity	2 kg
Climate class **	N (16°C - 32°C)
Noise emission	41 dB(A)

1. Between A(low consumption) to G (high consumption)
2. Energy consumption of 169 kWh per year, calculated on the basis of results obtained in 24 hours under normalised test conditions. Real energy consumption depends on the conditions in which the equipment is used as well as where it is placed.

3.

() One Star storage is for the frozen food which keeps the inner temperature lower than -6^ .
(^) Two Star storage is for the frozen food which keeps the inner temperature lower than - 12 °C.
() Tree Star storage is for the frozen food which keeps the inner temperature lower than - 18 °C.
(^**) FOUR Star storage is for the freezing the food from +18 TO - 18^ C . It also keeps the foods under 3 star storage conditions.

1. Your fridge is designed to operate in the ambient temperature intervals stated in the

standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class Ambient Temperature (°C)
T	Between 16 and 43 (°C)
ST Between 16 and 38 (°C)
N	Between 16 and 32 (°C)
SN Between 10 and 32 (°C)

Sommaire

AVANT D'UTILISER CET APPAREIL 32

TRANSPORT ET DEPLACEMENT 40

AVANT D'APPELER LE SERVICE APRES VENTE 41

SECTION 4. TRANSPORT ET DEPLACEMENT
