USER MANUAL SS-5185 Sogo

Exterior view of a modern SOGO coffee maker with a glass lid and white base (no text or symbols visible on the device itself)

QR code image containing encoded data, no visible human-readable text

Exprimidor de Zumo Cítrico con Palanca Citrus Juice Extractor with Press Handle Presse-Agrume avec poignée de presse Espremedor de Suco Cítrico com alavanca Citrus Juice Squeezer Lever Succo di agrumi Squeezer Leva

Labeled diagram of a food blender with numbered parts for identification

INSTRUCCIONES DE USO

SAFETY ADVICE AND CAUTIONS

• This instruction manual can also be downloaded from our web page www.sogo.es
• Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.
• Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section before use.
• Do not use the appliance if the cable or plug is damaged.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Do not use or store the appliance outdoors.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not force the electrical connection wire. Never use the electric wire to lift up, carry or unplug the appliance.
• Ensure that the electric cable does not get trapped or tangled.
• Check the state of the electric cable. Damaged or knotted cables increase the risk of electric shock.
• Do not touch the plug with wet hands.
• This appliance is not intended for use by persons with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Fully unroll the appliance's power cable before each use.
- Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
- This appliance is for household use only, not professional or industrial use.
• This appliance is not a toy.
- Store the appliance in a dry place, free from dust and out of direct sunlight.
- Never leave the appliance unattended while in use.
- This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
- Keep the appliance and its cord out of reach of children aged less than 8 years.
- Do not use this appliance with a programmer, counter or another device which can automatically turn it on because it is dangerous.

• If you apply too much pressure to the cone while juicing the motor may seize
  • To protect against electrical shock, do not immerse cord, plug or appliance itself in water or other liquids.

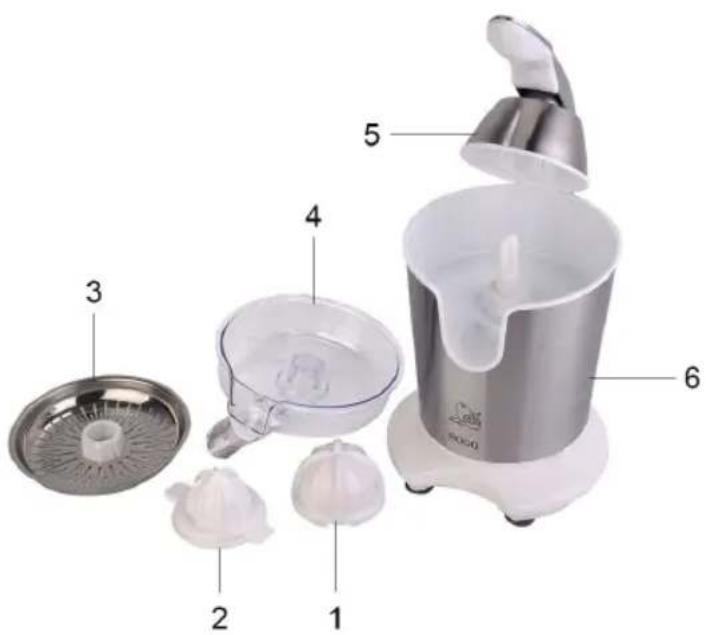

DESCRIPTION

1. Big Rotating head
2. Small Rotating head
3. Strainer
   4 .Juice Container
   5 .Axis of rotation
4. Main machine

TECHNICAL INFORMATION:

Model: SS-5185

Voltage / Frequency:

220 - 240V\~ 50/60Hz

Power Consumption: 160W

Labeled diagram of a food grainer with numbered parts for identification

INSTRUCTIONS FOR USE

Caution: if you apply too much pressure to the juicing cone, the motor may stop working.

1. Fit the appropriate cone onto the drive shaft.

2. If you wish to collect the juice in press the spout upwards to close it.

3. If you want the juice to run straight into a glass, press the spout downwards to open it and place a glass under it.

4. Cut a citrus fruit in half and press the cut end of one fruit half onto the cone. Bring down the liver to press the fruit over the cone. The juicer switches on automatically when you press the fruit down and the cone starts to turn. The juicer automatically switches off as soon as you reduce pressure on the cone. The cone scrapes the pulp out and squeezes the juice from the fruit. The juice flows through the strainer into the juice container from where it can run into a glass (the spout must be open). The strainer keeps back thick pulp and seeds.

5. To maximize the quantity of juice extracted from a fruit, press a fruit onto the cone several times.

CLEANING

• Unplug the appliance from the mains and let it cool before starting any cleaning.
• Except for the power unit and the mains connection, all the parts can be cleaned with detergent and water or in washing up liquid. Rinse thoroughly to remove all traces of detergent.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents such as bleach, or abrasive products, for cleaning the appliance.
• Do not submerge the appliance in water or any other liquid, or place it under a running tap.
• It is advisable to clean the appliance regularly and remove any food remains.
• The following parts can be cleaned in the dishwasher: Cone, Strainer and Middle container.

JUICING ADVICE

1. Citrus fruit juices should be consumed immediately and never stored in a metal container.

2. Citrus juices are ideal for mixing. For example, you can mix orange juice with lemon juice for extra vitamin C kick.

3. Freshly squeezed juice gives cocktails a better flavor. Lemon juice is also delicious in hot tea. The conditionally helps you build up your defences when you have a cold.

Mode d'emploi

CONSIGNES DE SÉCURITÉ ET LES PRÉCAUTIONS

Labeled diagram of a coffee maker with numbered parts for identification

INSTRUÇÕES DE USO

Labeled diagram of a food blender with numbered parts for identification

ISTRUZIONI PER L'USO

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2 46002 Valencia, Spain Product made in P.R.C. – Designed by SOGO based on the European Quality Standards Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
