Brand	Sogo
Model	SS-13505
Product Type	Electric whetstone sharpener
Power	5 W - 20 W (max)
Voltage	3.7 V
Battery Type	Rechargeable Li-ion, 1200 mAh
Runtime	Approximately 30 minutes continuous
Charging Time	Approximately 2 hours
Charging Port	Micro-USB
Charge Indicator	Yellow light (charging), green (charged)
Compatible Blades	Metal knives (not ceramic), moderately-sized scissors
Recommended Sharpening Angle	12 to 15 degrees
Wheel Material	Abrasive stone
Cleaning	Dry cloth, avoid moisture
Safety	Adult use only, keep out of reach of children
Recycling	Do not discard in household waste, dispose at WEEE collection point

Frequently Asked Questions - SS-13505 Sogo

How to use the Sogo SS-13505 sharpener?

Hold the device in one hand with your thumb on the power button. Place the blade in the wheel slot and move the knife back and forth. Sharpen each side of the blade using the appropriate slot.

What types of knives can I sharpen?

This sharpener is compatible with standard metal knives. It does not work with ceramic knives. Scissors can be sharpened if they are not too thick.

How to recharge the sharpener?

Use the included micro-USB cable and a standard power adapter (not included). Plug the cable into the charging port. The indicator turns yellow during charging, then green when the battery is full (about 2 hours).

What if the sharpener stops working or runs poorly?

This likely means the battery is discharged. Recharge the device for about 2 hours. If the problem persists, contact customer service.

Can I use the sharpener while it is charging?

No, it is not recommended to use the device while plugged in. Use it only on battery to avoid damage.

How to clean the sharpener?

Use a dry cloth or paper to clean the housing. Avoid any contact with water or moisture to preserve the device.

What sharpening angle is recommended?

For best results, hold the blade at an angle of 12 to 15 degrees relative to the wheel.

Is the device safe for children?

No, this sharpener is not a toy. It should be used only by adults and kept out of reach of children due to sharp blades.

What if the sharpener falls into water?

Do not use it. Take it to an authorized service center for inspection and repair before reuse.

How to recycle the sharpener at end of life?

Do not discard the device with household waste. Dispose of it at a WEEE (Waste Electrical and Electronic Equipment) collection point or appropriate recycling container.

USER MANUAL SS-13505 Sogo

Black SOGO brand electronic device with ventilation slots and a logo (no readable text beyond branding)

AFILADOR DE CUCHILLOS RECARGABLE RECHARGEABLE KNIFE SHARPENER AIGUISEUR DE COUTEAU RECHARGEABLE AFIADOR DE FACAS RECARREGÁVEL WIEDERAUFLADBARER MESSERSCHÄRFER AFFILA COLTELLI RICARICABILE

Line drawing of a knife with a handle and blade, mounted on a base (no text or symbols)

Imagen 2

Technical line drawing of a mechanical component with two arms and a central hub, showing a magnified inset (no text or symbols)

Imagen 3

Four red icons showing different types of kitchen utensils: a knife, a cleaver, a knife with scissors, and a pair of scissors (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

SAFETY INSTRUCTIONS FOR THE USER

• Do not place or operate the knife sharpener near water sources.
• Never immerse the sharpener or the charging cable-in water or any other liquid. In the event of the sharpener falling in water take it to an authorized service agent for repair before reusing.

- Do not place or operate the sharpener on or near hot surfaces (e.g., stove plates) or open flames.

- In case of product malfunction, or if it has been damaged in any manner, return it to the nearest authorized service facility for examination, repair or adjustment.

• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by

qualified technicians.

• Never use accessories that are not recommended by the manufacturer.
• Do not use the sharpener for any other purpose than described in this manual.
• Do not leave the sharpener, in charge longer than recommended by the manufacturer, as this may damage the battery or the sharpener itself.
• Do not use the sharpener while in charge, otherwise it may also damage it.
• Keep the sharpener away from direct sunlight, fire, and humid atmosphere.
• Do no use wet clothing or paper to do cleaning process.
  • Only an adult can use this product, it is totally restricted to use by the children.
• This knife sharpener is not a toy and keep away from the children.
• Do not let the children play or come nearby to you while sharpening the knives, as the knives edges are quite sharp.

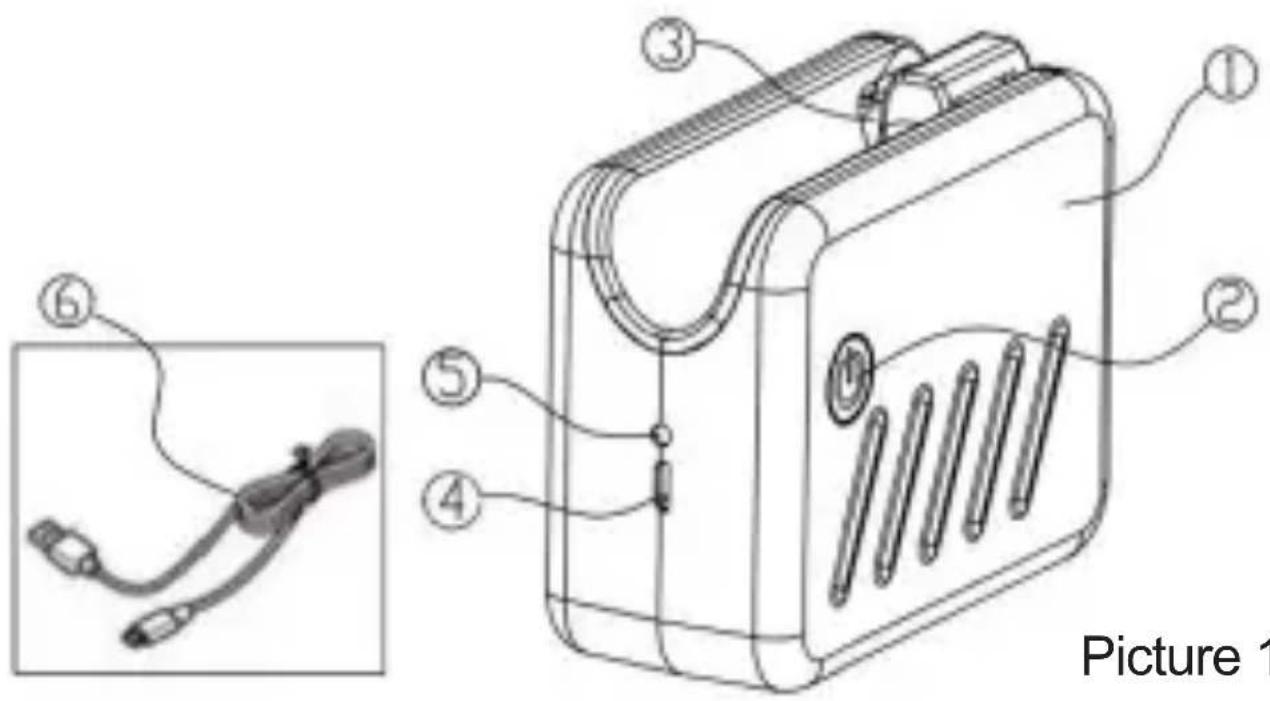

PRODUCT DESCRIPTION

1. Housing
2. Power-button

3. Grinding stone wheel

4. Micro-USB charging port

5. Charging indicator light
6. USB cable

FEATURES

Power: 5W -20W (Max)

Voltage: 3.7V

Motor voltage: 3.7V/50Hz

Battery power: 1200mAh

Working time: continue use of 30 minutes

PCB Protector for the battery, with more than 1500

recharging times

WORKING

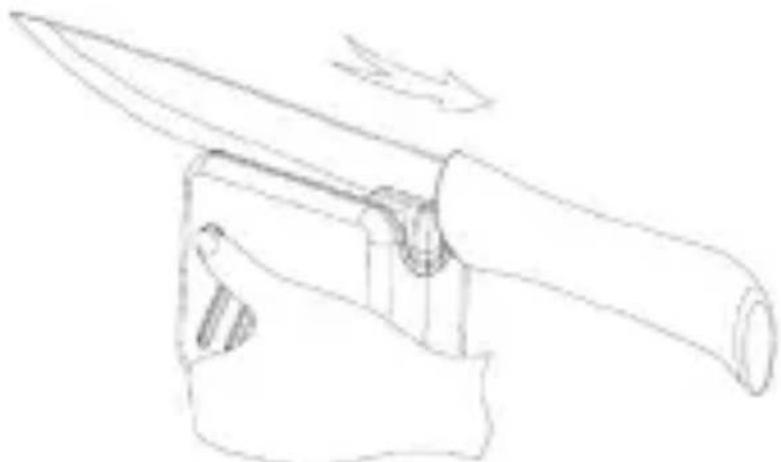

1. Hold the knife sharpener by one hand in such a way so that you can press the power-button by using Thumb finger. Like picture 2

Line drawing of a knife with a handle and blade, no text or symbols present

Picture 2

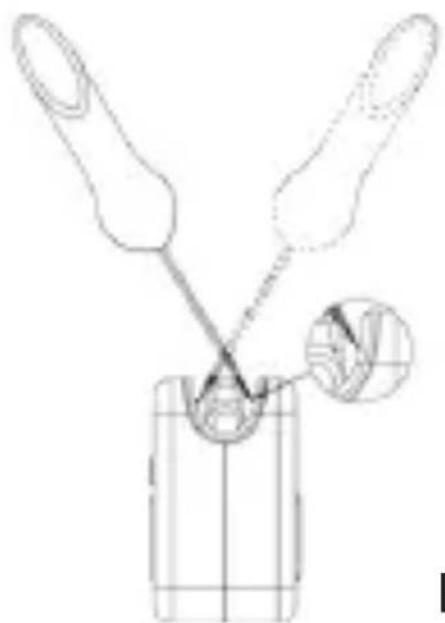

1. Hold the knife in other hand and place it in to the gap of sharpening stone wheel, move the knife from backward to forward and vice versa same as like picture 2. There is a curvy design to make sure the knife edge sharpened properly. As shown in the picture 3.

Technical line drawing of a mechanical component with two arms and a central hub, showing a magnified inset (no text or symbols)

Picture 3

1. Once the one edge of the knife has been sharpened, follow the same process to sharpen the other edge of the knife by placing it on to the other side of the wheel.
2. Once you have sharpened the both edges of the knife, put the sharpener aside and try it and incase you are not satisfied or the edges has not been sharpened enough, then repeat the procedure until you get the perfect sharpened knife.

COMPATIBLE KNIVES:

Four red silhouette icons showing different types of cutting or dissection tools (no text or symbols)

This product is compatible with the knives as shown in the pictures above.

Note: This sharpener doesn't work with ceramic knives.

Note: you can sharpen the Scissors but need to consider the size, as big and too thick Scissors can't be sharp properly.

Note: 12-15 degree of the blade angle is the best fit to this knife sharpener.

CLEANING:

Using dry cloth or paper to clean the sharpener and keep it away from the humid place to protect it and last longer.

CHARGING:

When you see that the sharpener is not sharpening and the wheels are not spinning well, so it means knife sharpener need to recharge.

You can charge the knife sharpener with the help of micro-USB charging cable provided with this sharpe-ner or you can use any micro-USB cable as well to charge. For the wall plug as well you can use mobile charging cable wall adaptor.

Maximum charging time to charge this sharpener is 2 hrs., so once you plug in the cable to charge the yellow light switches on, and once it has charged fully the light turns in to green color, this is the time when nee to unplug the unit.

DISPOSAL OF BATTERY-OPERATED UNITS

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Do not dispose the battery-operated units as normal rubbish, always these should be recycled in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centers or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

IMPORTANT

Line drawing of a knife with a handle and blade, no text or symbols present

Image 2

Technical line drawing of a mechanical component with two arms and a central hub, showing a magnified inset (no text or symbols)

Image 3

Four red icons showing different types of kitchen utensils: a knife, a cleaver, a knife with scissors, and a pair of scissors (no text or symbols)

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Line drawing of a knife with a handle and blade, mounted on a base (no text or symbols)

Imagem 2

Technical line drawing of a mechanical component with two handles and a central hub, showing a cross-section view (no text or symbols)

Imagem 3

Red stylized graphic of a cleaver (no text or symbols)

Red stylized knife icon inside a square frame (no text or symbols)

Red scissors cutting through a square frame (no text or symbols)

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Line drawing of a knife with a handle and blade, mounted on a base (no text or symbols)

Abbildung 2

Technical line drawing of a mechanical component with two arms and a central hub, showing cross-sections (no text or symbols)

Abbildung 3

Four red icons showing a knife, a cleaver, a blade, and scissors (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Line drawing of a knife with a handle and blade, no text or symbols present

Figura 2

Technical line drawing of a mechanical component with two handles and a central hub, showing a magnified inset (no text or symbols)

Figura 3

Four red icons showing a knife, a cleaver, a blade, and scissors (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

DECLARATION OF CONFORMITY

This device complies with Electromagnetic Compatibility Directive2014/35/CE, and the Directive 2015/863 UE on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. – Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
