USER MANUAL MIDI 5 Defender

Close-up of a black and yellow floor tile with a yellow horizontal stripe and a blue wheelchair symbol (no text or labels)

DEFENDER ^ SERIES

MIDI 5 2D / MIDI 5 / MIDI 4C

DEFENDER SERIES

TABLE OF CONTENTS

SAFETY INFORMATION page 3

GENERAL DESCRIPTION page 4

CARE AND MAINTENANCE page 4

SETUP page 5

DEFENDER® MIDI 5 2D page 6

DEFENDER® MIDI 5 page 10

DEFENDER® MIDI 4C page 12

REPLACEMENT PARTS AND ACCESSORIES page 14

DISPOSAL page 14

LIMITED WARRANTY page 15

LIMITATION OF LIABILITY page 16

REQUESTING WARRANTY-SERVICE page 16

Always up-to-date online at: defender-protects.com

DEFENDER®

SAFETY INFORMATION

All cable protectors in the DEFENDER® SERIES are designed to protect cables of all types against damage, and visitors as well as operators from injuries by tripping. To ensure these goals, the following safety instructions for use of the cable protectors must be observed:

• This user's manual is an integral part of the product and must be read carefully before use.
• DEFENDER ^® cable protectors may only be used in accordance with their intended purposes and maximum load-bearing capacity. Valid parameters can be found in the detailed description of the respective product variant.
• DEFENDER ^® cable protectors are designed for use on firm and level ground. The load specified in the detailed descriptions is achieved only on level and solid ground. Load-bearing capacity may be greatly reduced on uneven or soft ground.
• Please note that additional markings / hazard warnings or even permits may be required when using cable protectors on public thoroughfares, walkways, etc.
• Use DEFENDER® cable protectors only with original replacement parts and accessories.

HAZARD

Incorrect insulation Life-threatening danger due to electric shock Only use cables that comply with the prescribed installation regulations with regard to voltage, current, insulation material, load capacity, etc.

Caution! Tripping hazard.

ESPECIALLY IMPORTANT:

• Do not modify the product in ANY way. Modifications to the DEFENDER® cable protector change the product's characteristics, reduce its protective effect, and lead to a loss of the warranty.
• Do NOT bridge over ANY ditches, shafts, stairs, or similar depressions.
• Do NOT support pedestals, scaffolding, beams, and similar on the cable protectors.
• Do NOT run rigid gas lines in the cable protectors.
• Do NOT run cables with a voltage >500V in the cable protectors.
• Fill the cable ducts up to a max. of 70% to the underside of the cover.

To ensure that the trip protection does not itself become a tripping hazard:

• Connect the cable protectors in complete sections.
• Check that the connectors are flush for each installation.
• Check that the lid closures function for each installation.
• Make sure that the lid closure snaps securely into the base.
• Keep the hinge area and lid closure clean.
• Remove any excess lubricant from the hinges after care.

DEFENDER SERIES

GENERAL DESCRIPTION

Cable protectors are used to protect floor cables that are not permanently installed, for example at trade shows, markets and in the event industry. Cable protectors are used to prevent people from tripping.

You have chosen the DEFENDER ^® SERIES and thus made the best choice when it comes to protecting your cables and people. DEFENDER ^® cable protectors are characterised by:

• TÜV SÜD-certified safety (MICRO 2-86100, MINI-85200, MIDI 5-85300)
- Patented with self-cleaning hinge (EU Patent No.: EP1366550)
• Development and production in Germany
- Fire protection class E according to DIN EN 13501-1 (B-s1 pending)
- Stringent raw material and production controls
- Very stable, tear-resistant and 100% recyclable plastic
• Resistance to oil, acid and petrol
• Temperature resistance from -30^ to +60^
• A shore A hardness of 88 ± 4
- A wide range of product variants with coordinated system elements
- A wide range of uses, from construction sites to offices
- Suitable for indoor and outdoor use

CARE AND MAINTENANCE

All cable protectors in the DEFENDER ^® SERIES are made of extremely sturdy, non-breakable plastic (polyurethane). The protectors can be easily cleaned, even using a steam jet cleaner. In order to ensure trouble-free functioning, however, the hinge area and the lid closure should always be kept clean; slightly lubricate hinges and closure on a regular basis. For this, we recommend using a commercially available Teflon or silicone spray. Wipe off excess lubricant after application to avoid any risk of slipping.

DEFENDER®

SETUP

The cable protectors from the DEFENDER ^® series are easy and safe to set up. Surfaces, edges and corners are designed in such a way that there is no danger of injury. Cable protectors with a weight up to 20 kg can be transported safely by one person. Cable protectors weighing more than 20 kg can be transported safely by two people.

Each cable protector has connectors and corresponding sockets that enable you to connect cable protectors in the same series endlessly with one another. Generally, sections are stable enough to be walked on or driven over without any additional precautions. To find the right cable protector for your respective requirements, please see the attached detailed product description for the load-bearing capacity and use.

For the product versions DEFENDER® 3 AND ULTRA L 2, special holes for floor anchoring are provided. If complete sections from these product variants are exposed to increased requirements, so that there is a risk of the section shifting during use, we recommend additionally anchoring the section to the ground or floor. Please note that additional markings / hazard warnings or even permits may be required when using cable protectors on public thoroughfares, walkways, etc.

The load-bearing capacity specified in the detailed descriptions is achieved only on level and solid ground. Load-bearing capacity may be greatly reduced on uneven or soft ground. In such cases, you should conduct appropriate load tests before using the protector. We guarantee the load-bearing capacity of our cable protectors only with proper use of unmodified products on firm and level ground.

DEFENDER® cable protectors help protect pipes (e.g. water/sewage) and low voltage cables up to 500 V (e.g. communication/control cables/power supply). The cable protectors are NOT suitable for rigid gas pipes. When using fragile couplings and connectors within the connected section, make sure there is sufficient space to either side and above. Each user is responsible for the manner of installation and selection of cables to be protected with the help of the DEFENDER® cable protectors.

After installation (except for the COMPACT and OFFICE models), the lids can be opened by pulling them upward. They snap into the open position automatically and stay open until you close them again, thus making it easier to run your cables. After running your cables, close the lid. When doing so, make certain that the lid closure snaps into the base securely. This is the only way to ensure that the lid stays closed under load.

DEFENDER SERIES

DEFENDER® MIDI 5 2D

The wheelchair-friendly and modular DEFENDER® MIDI 5 2D system was developed based on our popular DEFENDER® MIDI. It consists of a DEFENDER® MIDI 5-compatible mid-section and a flat ramp that can be freely expanded and combined as required, both in length and width. For extremely simple handling. To ensure wheelchairs can safely cross cable protectors, ensure that the minimum width of the transversible cable protector is not less than 2000 mm.

MIDI 5 2D M / MIDI 5 2D M BLUMIDI 5 2D HV / MIDI 5 2D BLU HV	1000 x 325 x 54 mm500 x 325 x 54 mm	Weight: 11.5 kgWeight: 5.8 kg
Load-bearing capacity: approx. 5 t / 25 x 30 cm. In general, every vehicle licensed for use on public roads may drive over this protector.
Areas of use: Exhibitions / walkways / marketplaces / Christmas markets / workshops / warehouses / shopping centers / department stores / etc.

MIDI 5 2D R / MIDI 5 2D R BLU MIDI 5 2D RS	1000 x 430 x 54 mm 1000 x 172 x 53 mm	Weight: 9.6 kg Weight: 4.3 kg
Load-bearing capacity: approx. 5 t / 25 x 30 cm. In general, every vehicle licensed for use on public roads may drive over this ramp.
Areas of use: Exhibitions / walkways / marketplaces / Christmas markets / workshops / warehouses / shopping centers / department stores / etc.

MIDI 5 2D SET BLU 1000 x 1185 x 54 mm Weight: 27.2 kg

Load-bearing capacity: approx. 5 t / 25 x 30 cm. In general, every vehicle licensed for use on public roads may drive over this ramp.

Areas of use: Exhibitions / walkways / marketplaces / Christmas markets / workshops / warehouses / shopping centers / department stores / etc.

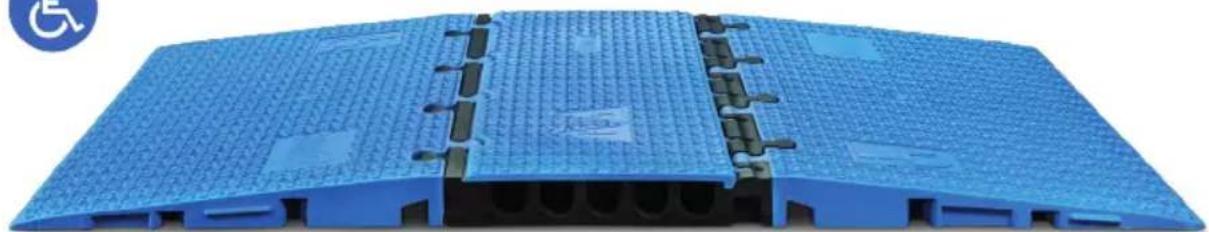

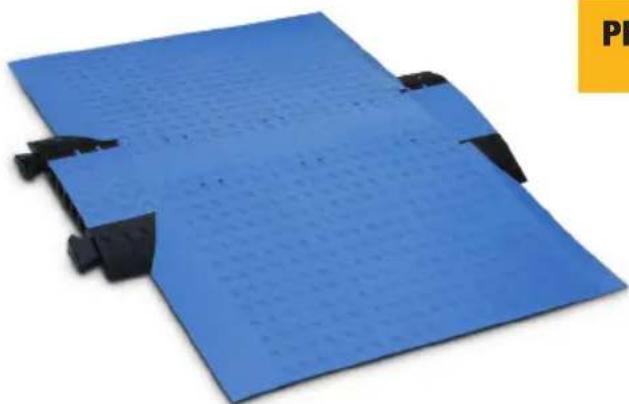

Blue LEGO wall panel with grid pattern and mounting holes (no text or symbols visible)

869300SETBLU

DEFENDER® MIDI 5 2D SET BLU

DEFENDER®

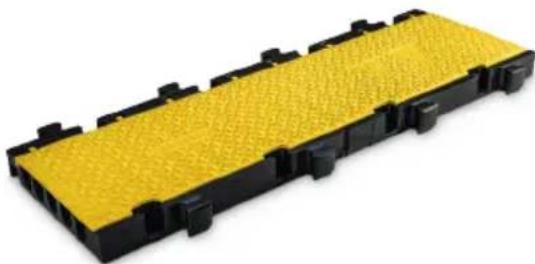

Yellow perforated plastic component with black plastic housing (no text or symbols visible)

869300

DEFENDER® MIDI 5 2D

Yellow and black plastic component with no visible text or symbols

® MIDI 5 2D HV

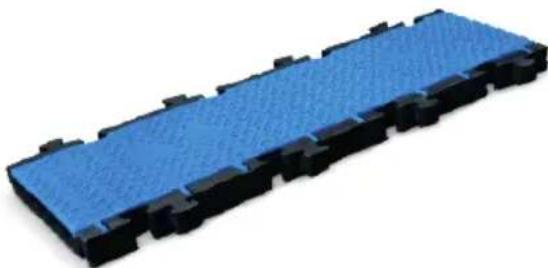

Blue perforated metal plate with black edges, no text or symbols visible

869300BLU

DEFENDER® MIDI 5 2D BLU

Blue plastic electronic component with black base and mounting feet (no visible text or symbols)

869350BLU869350
DEFENDER® MIDI 5 2D BLU HVDEFENDER

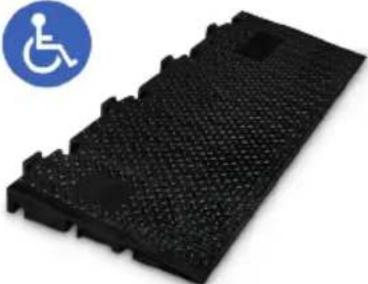

Black plastic component with a blue circular icon featuring a wheelchair symbol (no text or labels)

869301
MIDI 5 2D R

Black textured object with no visible text or symbols

869302
MIDI 5 2D RS

Blue plastic tiled base with no visible text or symbols

869301BLU
MIDI 5 2D R BLU

Close-up of a black and yellow striped object with a yellow horizontal stripe (no text or symbols visible)

Close-up of a blue horizontal stripe mounted on a black corrugated metal structure (no text or symbols visible)

DEFENDER SERIES

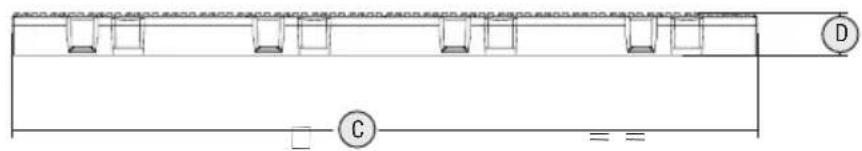

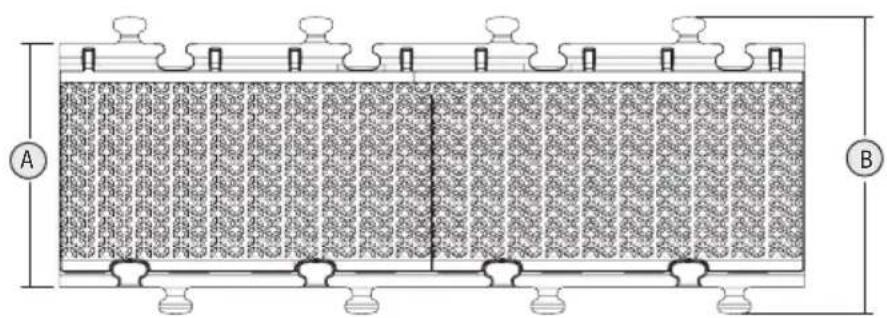

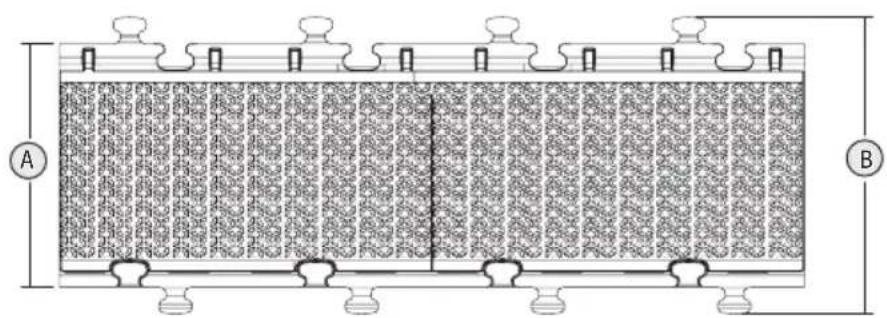

ENGINEERING DRAWING

A B

Technical diagram showing a structural cross-section with labeled components and dimension lines

E F G H

Technical diagram showing a sloped structure with labeled components I and J, likely representing a mechanical or architectural component.

A 325 mm / 12.8" D 54 mm / 2.1" G 38.1 mm / 1.5" J 6°

B 398 mm / 15.7" E 34.5 mm / 1.4" H 397.7 mm / 15.7" K 172 mm / 6.7"

C 1000 mm / 39.4"

F 4°C

I 430 mm / 16.9"

L 53 mm / 2.1"

DEFENDER®

Accessories:

Four black plastic mechanical components labeled 1 to 4, arranged in a 2x2 grid (no text or symbols on the parts themselves)

Close-up of a black perforated surface with yellow horizontal bands, no visible text or symbols

869301ASET

DEFENDER® MIDI 5 2D Adapter set

(Connector plugs)

Black plastic object with yellow rectangular band, resembling a stylized aircraft or mechanical component (no text or symbols visible)

869300 AE M (Endpiece Male)

DEFENDER® MIDI 5 2D Adapter

Black plastic mechanical component with a yellow rectangular block, no visible text or symbols

869300 AE F (Endpiece Female)

DEFENDER® MIDI 5 2D Adapter

DEFENDER SERIES

DEFENDER® MIDI 5

The DEFENDER® MIDI was developed as a solution for applications between the DEFENDER® COMPACT and DEFENDER® 3. This cable crossover features five cable channels, moulded connectors and a lower height and lighter weight than the DEFENDER® 3. The load bearing capacity is similar to that of the DEFENDER® 3!

MIDI 5 / MIDI 5 BLK MIDI 5 LUX

870 x 538 x 55 mm Weight: 13.5 kg

Load-bearing capacity: ca. 5 t on a surface area of 25 x 30 cm. Generally, any street-legal vehicle can drive over this crossover.

Areas of use: Exhibitions / walkways / marketplaces / Christmas markets / workshops / warehouses / shopping centers / department stores / etc.

Close-up of a black and yellow corrugated metal component (no text or symbols visible)

Black textured rectangular object with a curved top and side protrusions (no visible text or symbols)

Close-up of a yellow and black plastic component with textured edges (no text or symbols visible)

85300

85300BLK 85300LUX

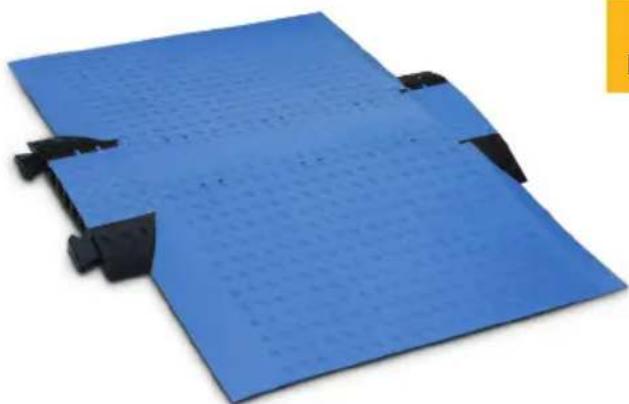

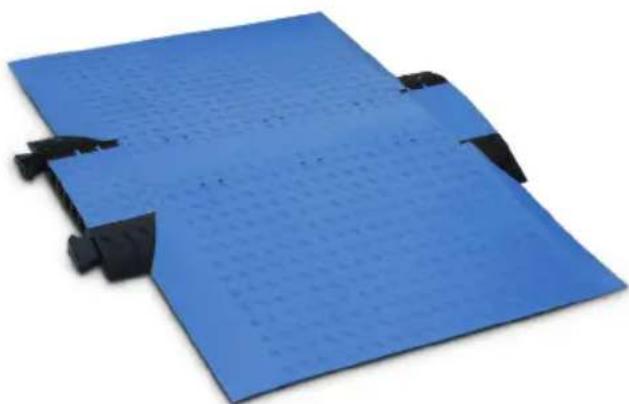

Blue LEGO-printed object with black connectors, no visible text or symbols

DISCONTINOUED

While stock last

85305SET

(Wheelchair Ramp Set)

DEFENDER®

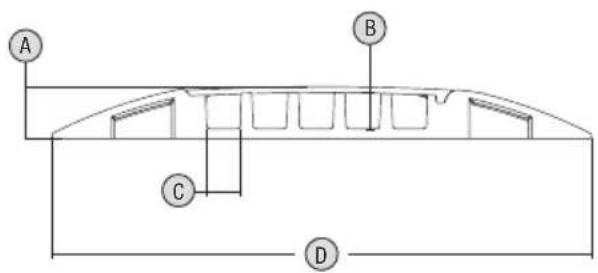

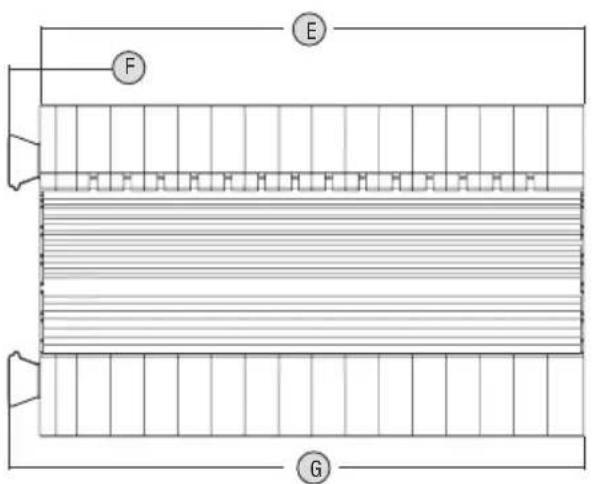

ENGINEERING DRAWING

A B C D

F E G

A 55 mm / 2.2" C 34 mm / 1.3" E 870 mm / 34,3" G 942 mm / 37"
B 36 mm / 1.4" D 538 mm / 21.2" F 54 mm / 2.1"

Accessories:

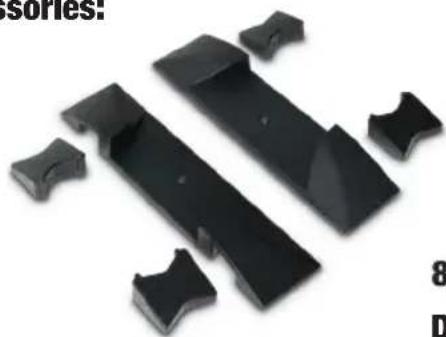

Black plastic mechanical components with cutouts, no visible text or symbols

85308

DEFENDER® MIDI ER (End ramp)

Yellow and black plastic object with textured edges, resembling a mechanical or architectural component (no text or symbols visible)

85310

DEFENDER® MIDI 5 C (45° curve)

Black plastic triangular component with perforated edges and side supports (no text or symbols visible)

85310BLK

DEFENDER® MIDI 5 C (45° curve)

DEFENDER SERIES

DEFENDER® MIDI 4C

The Defender® MIDI 4C cable crossover has three cable channels measuring 34 x 36 mm plus a wide hose channel (80 x 36 mm), making it the ideal solution if a pressure hose has to run parallel to individual sound, light and/or network cables.

MIDI 4C / MIDI 4C BLKMIDI 4C LUX	870 x 538 x 55 mm Weight: 13.5 kg
Load-bearing capacity:approx. 5 t on an area of 25 x 30 cm. Not to be used in street traffic.However, automobiles may still drive slowly over the protector.
Areas of use:Exhibitions / walkways / marketplaces / Christmas markets / workshops / warehouses / shopping centers / department stores / etc

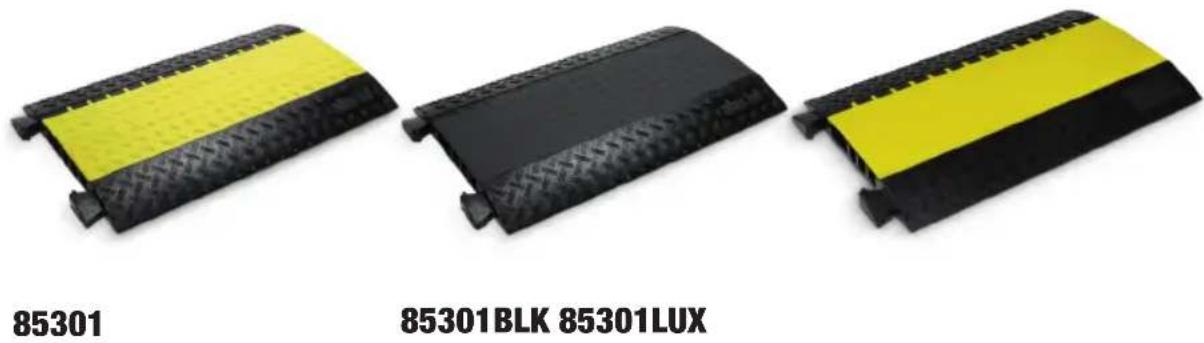

Three black and yellow brake pad components labeled 85301, 85301BLK 85301LUX (no additional text or symbols visible)

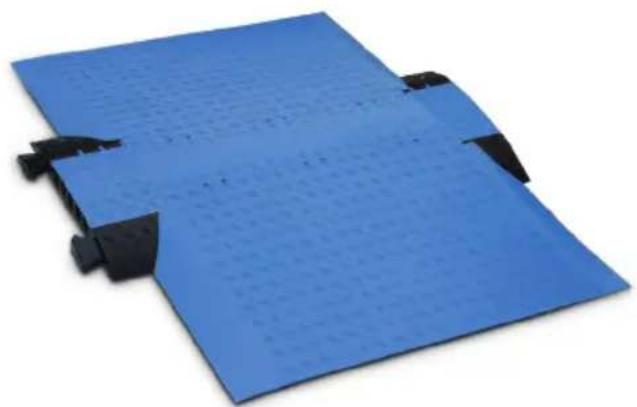

Blue plastic sheet with dotted pattern and black connectors (no text or symbols visible)

DISCONTINOUED

While stock last

85305SET

(Wheelchair Ramp Set)

DEFENDER®

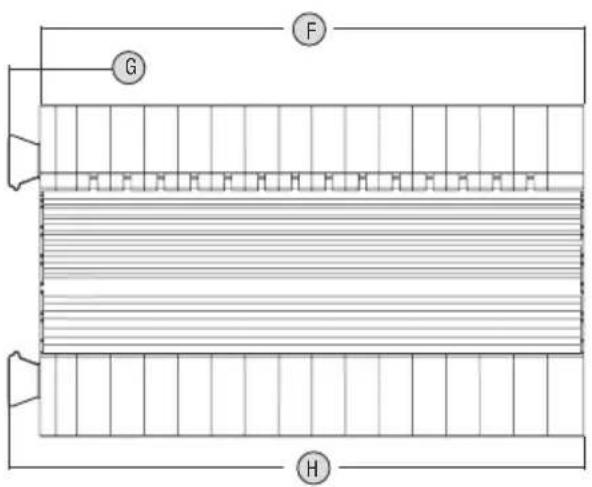

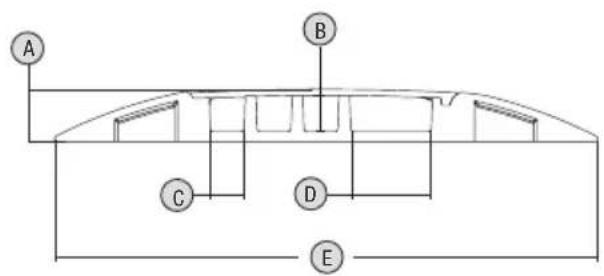

ENGINEERING DRAWING

A B C D E

G F H

A 55 mm / 2.2" C 34 mm / 1.3" E 538 mm / 21.2" G 52 mm / 2.0"
B 36 mm / 1.4" D 80 mm / 3.2" F 870 mm / 34.3" H 942 mm / 37.1"

Accessories:

Black plastic mechanical components with cutouts, arranged on a white background (no text or symbols visible)

85308
DEFENDER® MIDI ER (End ramp)

DEFENDER SERIES

REPLACEMENT PARTS AND ACCESSORIES

The DEFENDER ^® SERIES consists of a wide range of product variants with coordinated system elements, and covers applications from construction sites to offices.

A selection of frequently used system elements can be found in the respective detailed description of this user's manual.

A complete list of system elements, replacement parts and accessories can be found at http://www.defender-protects.com

DISPOSAL

All cable protectors in the DEFENDER® SERIES are made of extremely sturdy, non-breakable plastic (polyurethane and thermoplastic polyurethane). Polyurethane is a valuable raw material, 100% recyclable and is not considered hazardous waste, thus it is not subject to any specific disposal requirements. The cable protectors will be accepted either by recycling centres and recycling yards or other landfills and waste incinerators.

DEFENDER®

LIMITED WARRANTY

This warranty extends to the DEFENDER® branded product you purchased from Adam Hall. The statutory warranty rights against the vendor shall not be affected by this warranty. Rather, this warranty gives you additional independent claims against Adam Hall.

With this warranty, Adam Hall ensures that products you have purchased from Adam Hall or Adam Hall partners, under normal use, are free of defects in material or workmanship for a period of 5 years from the date of purchase. The warranty period begins on the date of purchase. In order to assert a claim for warranty service, the proof of date of purchase is provided by the receipt bearing the date of purchase or the date of purchase on the delivery note. You are entitled to warranty service under the conditions and provisions set out in this document, if a repair within the warranty period is required.

This warranty applies only to the original purchaser of the products supplied by Adam Hall and is not transferable to any person to whom the property is transferred by the original purchaser.

Within the warranty period, the defective parts or the product from Adam Hall will be repaired or replaced. Under the terms of this warranty, all the replaced or removed components become the property of Adam Hall.

In the unlikely event that a product acquired from Adam Hall, repeatedly exhibits a defect, Adam Hall may decide, at its discretion, to replace this product with a comparable product of at least the same performance.

Adam Hall does not guarantee that the operation of this product will be uninterrupted or error-free. Adam Hall accepts no responsibility for any damage due to incorrect compliance with the instructions received in the delivery.

This warranty does not extend to:

• wearing parts (eg battery, tubes).
  • devices that have had their serial number removed or damaged, or failed as a result of an accident
• inappropriate or abusive use or other external causes
• devices that were not used in accordance with the operating parameters defined in the user documentation shipped with the product
  • devices that have been repaired using parts not made or distributed by Adam Hall
• devices that have been serviced, modified or repaired by someone other than Adam Hall or an authorised service partner.

These terms and conditions constitute the complete and exclusive warranty agreement between you and Adam Hall regarding the Adam Hall branded product you have purchased.

This warranty is valid only within Europe. Outside of Europe please contact our official distributors.

DEFENDER SERIES

LIMITATION OF LIABILITY

If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy shall be repair or replacement. Adam Halls' maximum liability under this limited warranty is expressly limited to the lesser of the price you have paid for the product or the cost of repair or replacement of any hardware components that malfunction in conditions of normal use.

Adam Hall is not liable for any damages caused by the product or the failure of the product, including any lost profits or savings or special, incidental, or consequential damages. Adam Hall is not liable for any claim made by a third party or made by you for a third party.

This limitation of liability applies whether damages are sought, or claims are made, under this Limited Warranty or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim. This limitation of liability cannot be waived or amended by any person. This limitation of liability will be effective even if you have advised Adam Hall of an authorized representative of Adam Hall of the possibility of any such damages. This limitation of liability however, will not apply to claims for personal injury.

This Limited Warranty gives you specific legal rights. You may also have other rights that may vary from state to state or from country to country. You are advised to consult applicable state or country laws for a full determination of your rights.

REQUESTING WARRANTY-SERVICE

To request warranty service for the product, contact Adam Hall GmbH, Adam-Hall-Str. 1, 61267 Neu Anspach (Germany) / Email: [e-mail] / +49 (0)6081 / 9419-0 or the Adam Hall authorized reseller from which you purchased the product.

Important

Slight discolouration of material and metallic sheen result from the halogen-free flame retardant additives and the recycled materials. They cannot be considered as a defect.

Printing errors and mistakes, as well as technical or other changes are reserved!

DEFENDER®

DEFENDER SERIES

INHALTSVERZEICHNIS

Blue LEGO wall panel with grid pattern and black connectors, no visible text or symbols

869300SETBLU

DEFENDER® MIDI 5 2D SET BLU

DEFENDER®

Yellow perforated plastic component with black plastic housing (no text or symbols visible)

869300

DEFENDER® MIDI 5 2D

Yellow and black plastic component with no visible text or symbols

® MIDI 5 2D HV

Blue perforated metal plate with black edges, no text or symbols visible

869300BLU

DEFENDER® MIDI 5 2D BLU

Blue textured rectangular component with black base and corner connectors (no visible text or symbols)

869350BLU869350
DEFENDER® MIDI 5 2D BLU HVDEFENDER

Black plastic tiled surface with a blue circular icon featuring a wheelchair symbol (no text or labels)

869301
MIDI 5 2D R

Black plastic mechanical component with textured surface and mounting holes (no text or symbols visible)

869302
MIDI 5 2D RS

Blue plastic sheet with irregular edges and small dark spots, no visible text or symbols

869301BLU
MIDI 5 2D R BLU

Close-up of a black and yellow striped metal structure with no visible text or symbols

Close-up of a blue horizontal stripe on a black corrugated metal plate (no text or symbols visible)

DEFENDER SERIES

Technical diagram showing a structural or mechanical assembly with labeled components C and D, and dimension lines.

E F G H

Technical diagram showing a sloped structure with labeled components I and J, likely representing a mechanical or architectural component.

A 325 mm / 12.8" D 54 mm / 2.1" G 38.1 mm / 1.5" J 6°

B 398 mm / 15.7" E 34.5 mm / 1.4" H 397.7 mm / 15.7" K 172 mm / 6.7"

C 1000 mm / 39.4"

F 4°C

I 430 mm / 16.9"

L 53 mm / 2.1"

DEFENDER®

Zubehör:

Four black plastic mechanical components labeled 1 to 4, arranged in a 2x2 grid (no text or symbols on the components themselves)

869301ASET

Circular diagram showing a black and yellow barrier structure with no text or symbols

Black plastic mechanical component with a yellow rectangular block, no visible text or symbols

869300 AE M (Endstück Male)

DEFENDER® MIDI 5 2D Adapter

Black plastic mechanical component with a yellow rectangular block on top (no text or symbols visible)

869300 AE F (Endstück Female)

DEFENDER® MIDI 5 2D Adapter

DEFENDER SERIES

DEFENDER® MIDI 5

Close-up of a black and yellow striped mechanical component with textured surface (no text or symbols visible)

Close-up of a black corrugated metal component with textured surface and side connectors (no text or symbols visible)

Close-up of a black and yellow mechanical component with textured edges (no text or symbols visible)

85300

85300BLK 85300LUX

Blue plastic sheet with black connectors, no text or symbols visible

AUSLAUFMODELL

Black plastic mechanical components with cutouts, no visible text or symbols

85308

Close-up of a yellow and black plastic object with textured edges (no text or symbols visible)

85310

DEFENDER® MIDI 5 C (45° Biegung)

Black plastic triangular component with textured surface and side brackets (no text or symbols)

85310BLK

DEFENDER® MIDI 5 C (45° Biegung)

DEFENDER SERIES

DEFENDER® MIDI 4C

Close-up of a black and yellow textured object with no visible text or symbols

Black textured object with a curved top and side connectors (no visible text or symbols)

Close-up of a black and yellow mechanical component with textured edges (no text or symbols visible)

85301

85301BLK 85301LUX

Blue plastic sheet with black connectors, no text or symbols visible

AUSLAUFMODELL

Black plastic mechanical components with cutouts and mounting holes (no text or symbols visible)

DEFENDER SERIES

Blue LEGO wall panel with grid pattern and black connectors (no text or symbols visible)

869300SETBLU

DEFENDER® MIDI 5 2D SET BLU

DEFENDER®

Yellow perforated plastic component with black plastic housing (no text or symbols visible)

869300

DEFENDER® MIDI 5 2D

Yellow and black plastic component with no visible text or symbols

® MIDI 5 2D HV

Blue perforated metal plate with black edges, no text or symbols visible

869300BLU

DEFENDER® MIDI 5 2D BLU

Blue textured rectangular component with black base and corner connectors (no visible text or symbols)

869350BLU869350
DEFENDER® MIDI 5 2D BLU HVDEFENDE

Black plastic component with a blue circular icon featuring a wheelchair symbol (no text or labels)

869301
MIDI 5 2D R

Black plastic object with textured surface and small holes (no text or symbols visible)

869302
MIDI 5 2D RS

Blue plastic sheet with irregular edges and small dark spots, no visible text or symbols

869301BLU
MIDI 5 2D R BLU

Close-up of a black and yellow perforated metal bracket with a yellow stripe (no text or symbols visible)

Close-up of a blue horizontal stripe over a black corrugated metal structure (no text or symbols visible)

DEFENDER SERIES

PLAN TECHNIQUE

A B

A B C D = =

E F G H

Technical diagram showing a sloped structure with labeled components I and J, likely representing a mechanical or architectural component.

A 325 mm / 12.8" D 54 mm / 2.1" G 38.1 mm / 1.5" J 6°

B 398 mm / 15.7" E 34.5 mm / 1.4" H 397.7 mm / 15.7" K 172 mm / 6.7"

C 1000 mm / 39.4"

F 4°C

I 430 mm / 16.9"

L 53 mm / 2.1"

DEFENDER®

Zubehör:

Four black plastic mechanical components labeled 1 to 4, arranged in a 2x2 grid (no text or symbols on the parts themselves)

869301ASET

Close-up of a black and yellow striped pavement with no visible text or symbols

Black plastic object with yellow rectangular block, no visible text or symbols

869300 AE M (Embout mâle)

Black plastic mechanical component with a yellow rectangular section, no visible text or symbols

869300 AE F (Embout femelle)

Close-up of a black and yellow striped mechanical component with textured surface (no text or symbols visible)

Close-up of a black corrugated metal component with textured surface and side connectors (no visible text or symbols)

Close-up of a black and yellow mechanical component with textured edges (no text or symbols visible)

85300

85300BLK 85300LUX

Blue plastic sheet with black connectors, no text or symbols visible

PRODUIT ARRÊTÉ

Black plastic blade components with cutouts, no visible text or symbols

85308
DEFENDER® MIDI ER (Embout)

Yellow and black plastic object with textured edges, resembling a mechanical or electronic component (no text or symbols visible)

85310
DEFENDER® MIDI 5 C (Incurvation de 45°)

Black plastic triangular component with perforated edges and side supports (no text or symbols visible)

85310BLK
DEFENDER® MIDI 5 C (Incurvation de 45°)

DEFENDER SERIES

DEFENDER® MIDI 4C

Three black and yellow rubber heat exchanger blocks with textured surfaces, displayed against a white background (no text or symbols visible)

85301
85301BLK 85301LUX

Blue plastic sheet with black connectors, no visible text or symbols

PRODUIT ARRÊTÉ

Black plastic mechanical components with cutouts and mounting holes (no text or symbols visible)

85308
DEFENDER® MIDI ER (Embout)

DEFENDER SERIES

PIÈCES DE RECHANGE ET ACCESSOIRES

Blue LEGO wall panel with grid pattern and black components, no visible text or symbols

869300SETBLU

DEFENDER® MIDI 5 2D SET BLU

DEFENDER®

Yellow perforated plastic component with black plastic housing (no text or symbols visible)

869300

DEFENDER® MIDI 5 2D

Yellow and black plastic component with no visible text or symbols

® MIDI 5 2D HV

Blue perforated metal plate with black edges, no text or symbols visible

869300BLU

DEFENDER® MIDI 5 2D BLU

Blue textured rectangular component with black base and corner connectors (no visible text or symbols)

869350BLU869350
DEFENDER® MIDI 5 2D BLU HVDEFENDER

Black plastic component with a blue circular icon featuring a wheelchair symbol (no text or labels)

869301
MIDI 5 2D R

Black textured rectangular object with multiple small holes, possibly a mechanical or electronic component (no visible text or symbols)

869302
MIDI 5 2D RS

Blue plastic sheet with irregular edges and small dark spots, no visible text or symbols

869301BLU
MIDI 5 2D R BLU

Close-up of a black and yellow mechanical component with grooves (no text or symbols visible)

Close-up of a black corrugated metal structure with a blue horizontal stripe (no text or symbols visible)

DEFENDER SERIES

DIBUJO TÉCNICO

A B

D C = =

E F G H

Technical diagram showing a sloped structure with labeled components I and J, likely representing a mechanical or architectural component.

A 325 mm / 12.8" D 54 mm / 2.1" G 38.1 mm / 1.5" J 6°

B 398 mm / 15.7" E 34.5 mm / 1.4" H 397.7 mm / 15.7" K 172 mm / 6.7"

C 1000 mm / 39.4"

F 4°C

I 430 mm / 16.9"

L 53 mm / 2.1"

DEFENDER®

Accesorios:

Four black plastic mechanical components labeled 1 to 4, arranged in a 2x2 grid (no text or symbols on the components themselves)

Close-up of a black and yellow striped pavement with no visible text or symbols

869301ASET

Black plastic object with yellow rectangular band, resembling a mechanical or electronic component (no text or symbols visible)

869300 AE M (Pieza Final Macho) DEFENDER® MIDI 5 2D Adaptador

Black plastic mechanical component with a yellow rectangular section, no visible text or symbols

869300 AE F (Extremo Hembra) DEFENDER® MIDI 5 2D Adaptador

DEFENDER SERIES

DEFENDER® MIDI 5

Close-up of a black and yellow striped mechanical component with textured surface (no text or symbols visible)

Close-up of a black textured rectangular object with no visible text or symbols

Close-up of a black and yellow plastic component with textured edges (no text or symbols visible)

85300

85300BLK 85300LUX

Blue plastic sheet with black connectors, no visible text or symbols

DESCATALOGADO

Black plastic mechanical components with cutouts, no visible text or symbols

85308

DEFENDER® MIDI ER (Final de rampa)

Close-up of a yellow and black plastic object with textured edges (no text or symbols visible)

85310

DEFENDER® MIDI 5 C (Curva de 45°)

Black plastic triangular component with perforated edges and side supports (no text or symbols visible)

85310BLK

DEFENDER® MIDI 5 C (Curva de 45°)

DEFENDER SERIES

DEFENDER® MIDI 4C

Three black and yellow rubber heat exchanger blocks with textured surfaces, shown against white background (no text or symbols)

85301
85301BLK 85301LUX

Blue plastic sheet with black connectors, no visible text or symbols

DESCATALOGADO

Black plastic mechanical components with cutouts and mounting holes (no text or symbols visible)

85308
DEFENDER® MIDI ER (Final de rampa)

DEFENDER SERIES

REPUESTOS Y ACCESORIOS

Blue LEGO wall panel with grid pattern and mounting holes (no text or symbols visible)

869300SETBLU

DEFENDER® MIDI 5 2D SET BLU

DEFENDER®

Yellow perforated plastic component with black plastic housing (no text or symbols visible)

869300

DEFENDER® MIDI 5 2D

Yellow and black plastic component with no visible text or symbols

® MIDI 5 2D HV

Blue perforated metal plate with black edges, no text or symbols visible

869300BLU

DEFENDER® MIDI 5 2D BLU

Blue textured rectangular component with black base and corner connectors (no visible text or symbols)

869350BLU869350
DEFENDER® MIDI 5 2D BLU HVDEFENDER

Black plastic tiled plate with a blue circular icon featuring a wheelchair symbol (no text or labels)

869301
MIDI 5 2D R

Black plastic object with textured surface and small protrusions (no visible text or symbols)

869302
MIDI 5 2D RS

Blue LEGO brick slab with visible mortar joints and construction details (no text or symbols)

869301BLU
MIDI 5 2D R BLU

Close-up of a black and yellow perforated metal bracket with a yellow stripe (no text or symbols visible)

Close-up of a black corrugated metal structure with a blue horizontal stripe (no text or symbols visible)

DEFENDER SERIES

RYSUNEK TECHNICZNY

A B

Technical diagram showing a structural cross-section with labeled components and dimension lines

E F G H

Technical diagram showing a sloped structure with labeled components I and J, likely representing a mechanical or architectural component.

A 325 mm / 12.8" D 54 mm / 2.1" G 38.1 mm / 1.5" J 6°

B 398 mm / 15.7" E 34.5 mm / 1.4" H 397.7 mm / 15.7" K 172 mm / 6.7"

C 1000 mm / 39.4"

F 4°C

I 430 mm / 16.9"

L 53 mm / 2.1"

DEFENDER®

Akcesoria:

Four black plastic mechanical components labeled 1 to 4, arranged in a 2x2 grid (no text or symbols on the components themselves)

869301ASET

Close-up of a black and yellow striped pavement with no visible text or symbols

Black plastic mechanical component with a yellow rectangular section, no visible text or symbols

Black plastic mechanical component with a yellow rectangular block, no visible text or symbols

Close-up of a black and yellow striped mechanical component with textured surface (no text or symbols visible)

Close-up of a black textured rectangular object with no visible text or symbols

Close-up of a black and yellow plastic component with textured edges (no text or symbols visible)

85300

85300BLK 85300LUX

Blue plastic sheet with black connectors, no visible text or symbols

PRODUKCJA ZAKOŃCZONA

Black plastic mechanical components with cutouts, no visible text or symbols

85308

Close-up of a yellow and black plastic object with textured edges (no text or symbols visible)

85310

Black plastic triangular component with perforated edges and side supports (no text or symbols visible)

85310BLK

Three identical black and yellow rubber heat exchanger blocks with textured surfaces, shown against a white background (no text or symbols)

85301
85301BLK 85301LUX

Blue LEGO floor plan with black connectors, no visible text or symbols

PRODUKCJA ZAKOŃCZONA

Black plastic mechanical components with cutouts and mounting holes (no text or symbols visible)

DEFENDER SERIES

CZEŚCI ZAMIENNE I AKCESORIA

Blue LEGO wall panel with grid pattern and black connectors, no visible text or symbols

869300SETBLU

DEFENDER® MIDI 5 2D SET BLU

DEFENDER®

Yellow perforated plastic component with black plastic housing (no text or symbols visible)

869300

DEFENDER® MIDI 5 2D

Yellow and black plastic component with no visible text or symbols

® MIDI 5 2D HV

Blue perforated metal plate with black edges, no text or symbols visible

869300BLU

DEFENDER® MIDI 5 2D BLU

Blue textured rectangular component with black base, no visible text or symbols

869350BLU869350
DEFENDER® MIDI 5 2D BLU HVDEFENDER

Black plastic component with a blue circular icon featuring a wheelchair symbol (no text or labels)

869301
MIDI 5 2D R

Black textured rectangular object with multiple small holes, possibly a mechanical or electronic component (no visible text or symbols)

869302
MIDI 5 2D RS

Blue plastic tiled base with visible edges and small holes (no text or symbols)

869301BLU
MIDI 5 2D R BLU

Close-up of a black and yellow mechanical component with grooves (no text or symbols visible)

Close-up of a black corrugated metal structure with a blue horizontal stripe (no text or symbols visible)

DEFENDER SERIES

DISEGNO TECNICO

A B

A B C D = =

E F G H

Technical diagram showing a sloped structure with labeled components I and J, likely representing a mechanical or architectural component.

A 325 mm / 12.8" D 54 mm / 2.1" G 38.1 mm / 1.5" J 6°

B 398 mm / 15.7" E 34.5 mm / 1.4" H 397.7 mm / 15.7" K 172 mm / 6.7"

C 1000 mm / 39.4"

F 4°C

I 430 mm / 16.9"

L 53 mm / 2.1"

DEFENDER®

Accessories:

Four black plastic mechanical components labeled 1 to 4, arranged in a 2x2 grid (no text or symbols on the components themselves)

869301ASET

Circular diagram showing a black and yellow barrier structure with no text or symbols

Black plastic mechanical component with a yellow rectangular block on top (no text or symbols visible)

869300 AE M (Terminale Maschio) DEFENDER® MIDI 5 2D Adattatore

Black plastic object with a yellow rectangular block, resembling a mechanical or electronic component (no text or symbols visible)

869300 AE F (Terminale Femmina) DEFENDER® MIDI 5 2D Adattatore

DEFENDER SERIES

DEFENDER® MIDI 5

Close-up of a black and yellow corrugated metal component (no text or symbols visible)

Close-up of a black corrugated metal component with textured surface (no text or symbols visible)

Close-up of a black and yellow mechanical component with textured edges (no text or symbols visible)

85300

85300BLK 85300LUX

Blue LEGO brick panel with black connectors, no visible text or symbols

DESCATALOGADO

Black plastic mechanical components with cutouts and mounting holes (no text or symbols visible)

85308
DEFENDER® MIDI ER (finale)

Close-up of a yellow and black plastic object with textured edges (no text or symbols visible)

Black plastic triangular component with perforated edges and side supports (no text or symbols visible)

85310
DEFENDER® MIDI 5 C (angolo a 45°)
85310BLK

DEFENDER SERIES

DEFENDER® MIDI 4C

Three identical black and yellow rubber heat exchanger blocks with textured surfaces, shown against a white background (no text or symbols)

85301
85301BLK 85301LUX

Blue plastic sheet with black connectors, no visible text or symbols

DESCATALOGADO

Black plastic mechanical components with cutouts and mounting holes (no text or symbols visible)

DEFENDER SERIES

RICAMBI E ACCESSORI
