USER MANUAL BMCI 44313 X BEKO

Simple icon of a microwave oven with a steaming bowl (no text or symbols)

BMCI 44313 FBG

BMCI 44313 MBG

BMCI 44313 X

Please read this user manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this user manual:

Important information and useful hints about usage.

Warnings for dangerous situations concerning the safety of life and property.

Warning for hot surfaces.

Warning for electric shock.

1 Important safety and environmental instructions

Important Safety Instructions Read Carefully And Keep For Future Reference

1.1 Safety warnings

This section contains safety instructions that will help protect from risk of fire, electric shock, exposure to leak microwave energy, personal injury or property damage. Failure to follow these instructions shall void any warranty.

•Beko Microwave Ovens comply with the applicable safety standards; therefore, in case of any damage on the appliance or power cable, it should be repaired or replaced by the dealer, service center or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.

•This appliance is intended

to be used in household and similar applications such as:

-Staff kitchen areas in shops, offices and other working environments;
-Farm houses
-By clients in hotels, and other residential type environments;
-Bed and Breakfast type environments.

- It is not intended for in-
dustrial or laboratory use.

- Do not attempt to start the oven when its door is open; otherwise you may be exposed to harmful microwave energy. Safety locks should not be disabled or tampered with.

•The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or

1 Important safety and environmental instructions

fire.

• Do not place any object between the front side and the door of the oven. Do not allow dirt or cleaning agent remnants to build up on the closure surfaces.
  •Any service works involving removal of the cover that provides protection against exposure to microwave energy must be performed by authorized persons/service. Any other approach is dangerous.
• Your product is intended for cooking, heating and defrost food at home. It must not be used for commercial purposes.
• Your oven is not designed to dry any living being.
• Do not use your appliance to dry clothes or kitchen towels.
• Do not use this appliance outdoors, bathrooms, humid environments or in

places where the it can get wet.

• No responsibility or warranty claim shall be assumed for damages arising from misuse or improper handling of the appliance.
• Never attempt to dismantle the appliance. No warranty claims are accepted for damage caused by improper handling.
  •Only use the original parts or parts recommended by the manufacturer.
• Do not leave this appliance unattended while it is in use.
  •Always use the appliance on a stable, flat, clean dry, and non-slip surface.
  •The appliance should not be operated with an external clock timer or separate remote control system.
• Before using the appliance for the first time, clean all parts. Please see the de-

1 Important safety and environmental instructions

tails given in the “Cleaning and Care” section.

• Operate the appliance for its intended purpose only as described in this manual.
  •Appliance becomes very hot while it is in use. Pay attention not to touch the hot parts inside the oven.
• Do not operate the oven empty.
  •Cooking utensil may get hot due to the heat transferred from the heated food to the utensil. You may need oven gloves to hold the utensil.
• Utensils shall be checked to ensure that they are suitable for use in microwave ovens.
• Do not place the oven on stoves or other heat generating appliances. Otherwise, it may be damaged and the warranty becomes void.
• Steam may come out while opening the covers

or the foil after cooking the food.

•The appliance and its accessible surfaces may be very hot when the appliance is in use.
- Door and outer glass may be very hot when the appliance is in use.
•Make sure that your mains power supply complies with the information supplied on the rating plate of the appliance.
•The only way to disconnect the appliance from the power supply is to remove the power plug from the power outlet.
- Use the appliance with a grounded outlet only.
- Never use the appliance if the power cable or the appliance itself is damaged.
- Do not use this appliance with an extension cord.
- Never touch the appliance or its plug with damp or wet hands.

1 Important safety and environmental instructions

• Place the appliance in a way so that the plug is always accessible.
• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.
  •Make sure that there is no danger that the power cable could be accidentally pulled or that someone could trip over it when the appliance is in use.
• Unplug the appliance before each cleaning and when the appliance is not in use.
• Do not pull the power cable of the appliance to disconnect it from its power supply and never wrap its power cable around the appliance.
• Do not immerse the appliance, power cable, or power plug in water or any

other liquids. Do not hold it under running water.

- When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

- Remove the wire strings and/or metal handles of paper or plastic bags before placing bags to the oven.

- If smoke is observed, switch off or unplug the appliance if safe to do so and keep the door closed in order to stifle any flames.

- Do not use microwave oven for storage. Do not leave paper items, cooking material or food inside the oven when it is not being used.

•The contents of feeding bottles and baby food jars should be stirred or shaken and the temperature checked before con-

1 Important safety and environmental instructions

sumption, in order to avoid burns.

•This appliance is a Group 2 Class B ISM equipment. Group 2 contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment.

•Class B equipment is suitable for use in domestic establishments and establishments directly connected to a low voltage power supply network.

- Do not use cooking oil in the oven. Hot oil may damage the components and materials of the oven, and it may even cause skin burns.

- Pierce food with thick crust such as potatoes, courgettes, apples and

chestnuts.

•Appliance must be placed so that the rear side is facing the wall.
•Before moving the appliance, please secure the turntable to prevent damage.
•Eggs in their shell and whole hard-boiled eggs must not be heated in microwave ovens since they may explode, even after microwave heating has ended.

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to micro-

1 Important safety and environmental instructions

wave energy.

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

•The oven should be cleaned regularly and any food deposits removed.
•There should be min 20 cm free space above the top surface of the oven.
- Do not over-cook foods; otherwise, you may cause a fire.
- Do not use chemicals and steam assisted cleaners to clean the appliance.
•Extreme caution is advised when being used near children and persons who are restricted in their physical, sensory or mental abilities.
•This appliance can be used by the children who are at the age of 8 or over and by the people who have limited physical, sen-

sory or mental capacity or who do not have knowledge and experience, as long as they are supervised with regard to safe use of the product or they are instructed accordingly or understand the risks of using the product. Children should not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Danger of choking! Keep all the packaging materials away from children.

- Due to excessive heat that arises in grill and combination modes, children should only be allowed to use these modes under supervision of an adult.

- Keep the product and its power cable so that they are inaccessible by children under 8 years old.

- Do not cook food directly

1 Important safety and environmental instructions

on the glass tray. Put the food in / on appropriate kitchen utensils before placing them in the oven.

•Metallic containers for food and beverages are not allowed during microwave cooking. Otherwise, sparking may occur.

- Microwave oven must not be placed in a cupboard that is not in compliance with the installation instructions.

•Microwave oven is intended for built-in use only.

- If built-in appliances being used equal or higher than 900 mm above the floor, care should be taken not to displace the turntable when removing containers from the appliance.

- If the built-in product is in a cupboard with a door, the product must be operated with the cupboard door open.

- Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

•The appliance shall not be cleaned with a steam cleaner.

•Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

- WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

- Cleaning: Do not place the appliance in water or other liquids. Clean the housing only with a sponge/cloth moistened in warm, soapy

1 Important safety and environmental instructions

water. Do not use harsh, abrasive cleaners. See for the Cleaning and care and Storage detailed cleaning instructions.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your microwave oven

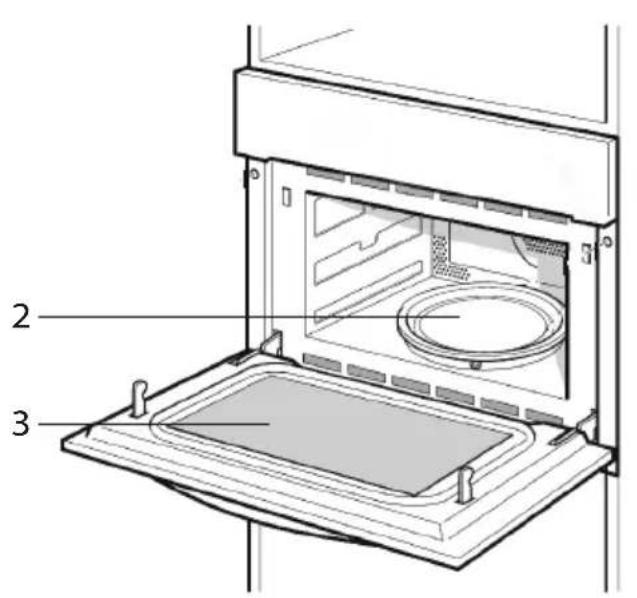

2.1 Overview

Diagram of a microwave oven with labeled parts, showing internal components and casing layout

Simple 3D diagram of a circular table with four legs and a central vertical line (no text or symbols)

4

Line drawing of a 3D rectangular box with a side tab and a clip, labeled with number 1 (no text or symbols on the object itself)

5

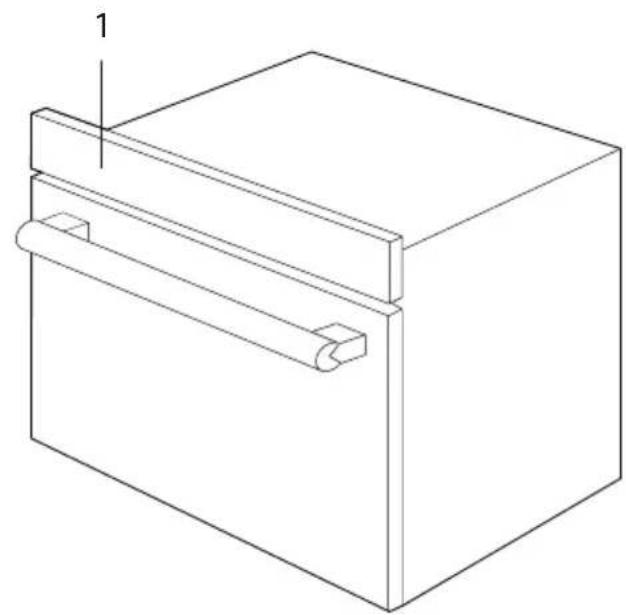

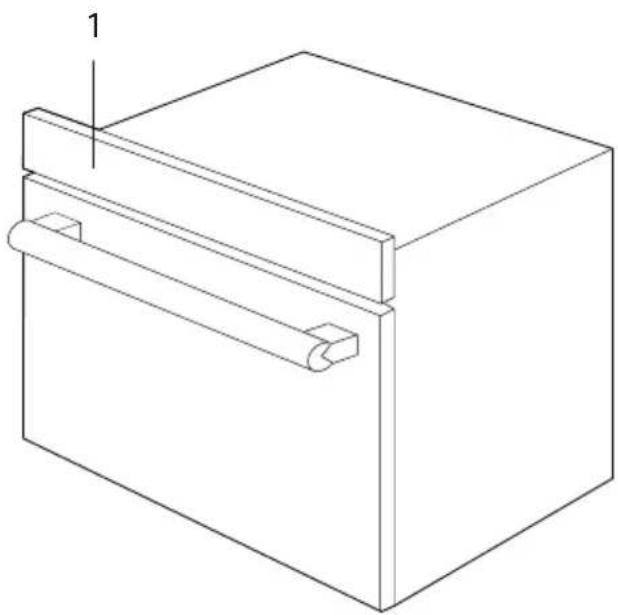

Controls and parts

1. Control panel
2. Turntable
3. Oven window
4. Higher wire rack
5. Lower wire rack

2.2 Technical data

Power consumption 220-230 V~50 Hz
Output power (Microwave) 900 W
Input power (Microwave) 1650 W
Grill power 1750 W
Convection power 1750 W
Max. Input 3350 W
Operating frequency 2450 MHz
Oven capacity 44 litres

Technical and design modification rights are reserved.

Markings on the product or the values stated in other documents supplied with the product are values obtained under laboratory conditions as per relevant standards. These values may vary according to the usage of the appliance and ambient conditions. Power values are tested at 230V.

2 Your microwave oven

2.3 Accessories

Turntable

As a surface for the wire rack. Food which particularly requires a lot of heat from underneath can be prepared directly on the turntable.

The turntable can turn clockwise or anti-clockwise. Place the turntable on the drive in the centre of the cooking compartment. Ensure that it is properly fitted.

• Never use the microwave without the turntable.
  • The turntable can withstand max. 5 kg.
• The turntable must turn when using all types of heating.

Lower wire rack

For the microwave and for baking and roasting in the oven.

Higher wire rack

For grilling, e.g. steaks, sausages and for toasting bread.

As a support for shallow dishes.

Type and quantity of accessories is subject to actual demand.

3 Installation and connection

3.1 Fitted units

• This appliance is only intended to be fully fitted in a kitchen.
• This appliance is not designed to be used as a tabletop appliance or inside a cupboard.
• The fitted cabinet must not have a back wall behind the appliance.
• A gap of at least 45 mm must be maintained between the wall and the base or back panel of the unit above.
• The fitted cabinet must have a ventilation opening of 250 cm ^2 on the front. To achieve this, cut back the base panel or fit a ventilation grille.
• Ventilation slots and intakes must not be covered.
• The safe operation of this appliance can only be guaranteed if it has been installed in accordance with these installation instructions.
• The fitter is liable for any damage resulting from incorrect installation.
• The units into which the appliance is fitted must be heatresistant up 90 °C.
• Don't use under the work surface and that it must not be subject to spillage from containers onto surfaces under which the appliance is installed.

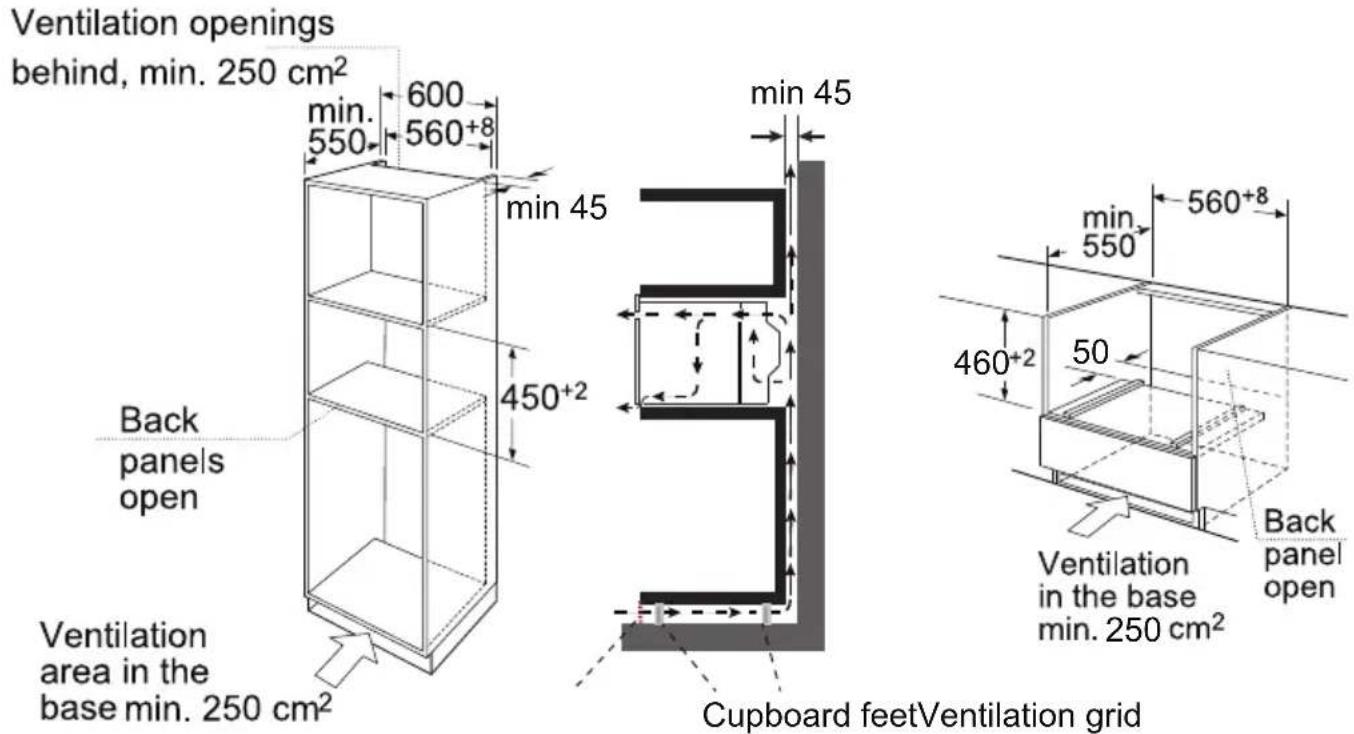

Installation dimensions

Ventilation openings behind, min. 250 cm² min. 550 600 560+8 min 45 450+2 Back panels open Ventilation area in the base min. 250 cm² min 45 min 550 560+8 460+2 50 Back panel open Ventilation in the base min. 250 cm² Cupboard feetVentilation grid

There should be gap above the oven.

3 Installation and connection

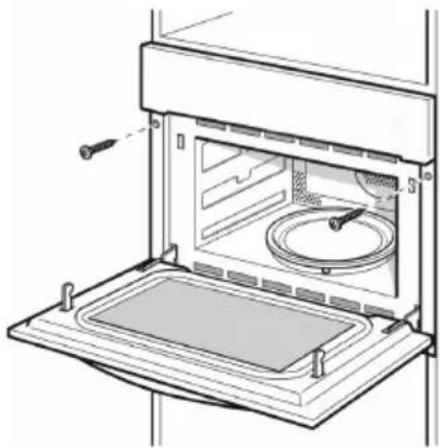

Building in

Do not hold or carry the appliance by the door handle. The door handle cannot hold the weight of the appliance and may break off.

1. Carefully push the oven into the box, making sure that it is in the centre.
2. Open the door and fasten the microwave with the screws that were supplied.

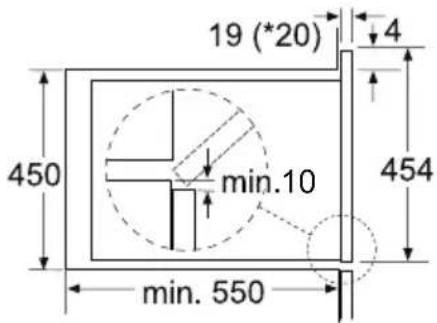

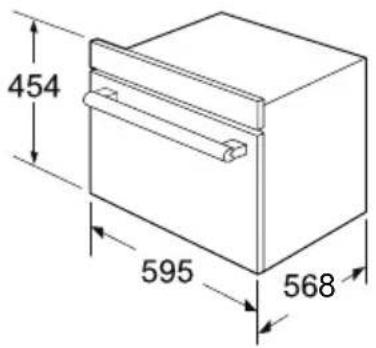

454 595 568

19 (*20) 4 450 min.10 454 min. 550

Line drawing of an open microwave oven with a dish inside, showing internal components and a handle (no text or symbols)

* 20 mm for metal fascias

• Fully insert the appliance and centre it.
• Do not kink the connecting cable.
• Screw the appliance into place.
• The gap between the worktop and the appliance must not be closed by additional battens.

3.2 Electrical connection

Electrical connection with plug

• The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
• Only a qualified electrician who takes the appropriate regulations into account may install the socket or replace the connecting cable.
• If the plug is no longer accessible following installation, an all-pole isolating switch must be present on the installation side with a contact gap of at least 3 mm.
• Contact protection must be ensured by the installation.

Electrical connection without plug

• The appliance is designed to be permanently installed with a three-pin power cord and may only be connected by a licensed expert in accordance with the connection diagram.
• Only a qualified electrician who takes the relevant regulations into account may replace the power cord.
• Do not use multiple plugs, power strips or extensions. Overloading causes a risk of fire.
• If the connection is no longer accessible following installation, an all-pin isolating switch with a contact gap of at least 3 mm must be provided.

3 Installation and connection

Connect the wires of the mains power cord in accordance with the following colour coding:

Green and yellow	Earth wire
Blue	Neutral wire (N)
Brown	Live (L)

Great Britain and Australia:

Do not connect the appliance using a 13 A plug or protect it with a 13 A fuse. The appliance must be protected using a fuse that is rated 16 A or higher. The appliance must be disconnected from the power supply during all installation work. When the appliance is installed, protection must be provided against accidental contact in the future.

4 Operation

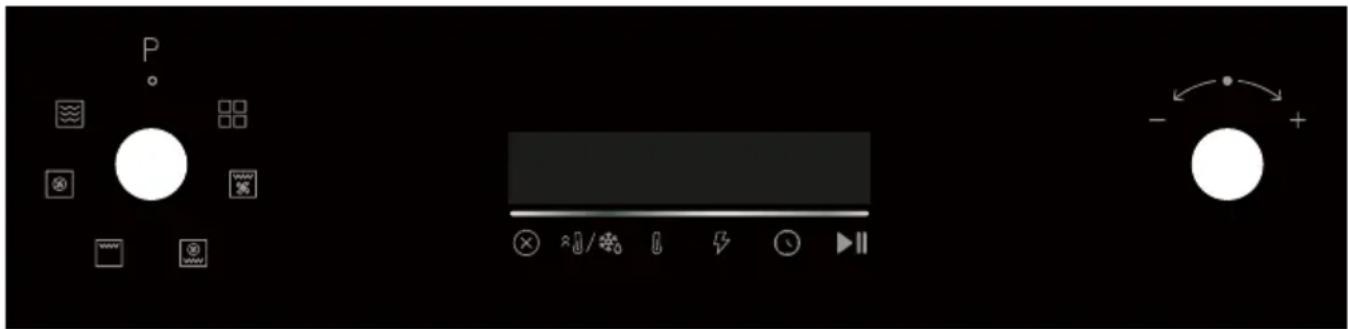

4.1 Control panel

The touch keys are used to set the various additional functions.

Digital camera control interface with playback controls, display screen, and playback buttons

Symbol Function
	Cancel
	Preheat/Defrost
	Temperature
	Microwave Power
	Time/Clock
	Start/Pause

P ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ● ○ ★

Function selector knob

Parameter adjustment knob

4 Operation

4.2 Function and use

Use the function keys to set the type of heating.

Function Use
Convection	For baking sponge cakes in baking tins, flans and cheesecakes as well as cakes, pizza and small baked items on the baking tray. 50°C can maintain the taste of food after heat preservation of 1-2 hours.
Grill	Select between the levels high, medium or low. This is ideal if you wish to grill several steaks, sausages, pieces of fish or slices of bread.
Convection+Bottom Grill	For frozen convenience products and dishes which require a lot of heat from underneath.
_Grill+Fan	Poultry goes brown and crispy. Baked casseroles and grilled dishes work out best using this setting.
+Microwave+Convection	Use this function to roast meals quickly. And at the same time use the function of convection.
+Microwave+Grill+Fan	Poultry goes brown and crispy. Baked casseroles and grilled dishes work out best using this setting. And use the function to roast meals evenly.
+Microwave+Convection+Bottom Grill	Use this function to roast meals quickly. And at the same time use the function of Pizza setting.
+Microwave+Grill	Use this function to cook meals quickly and at the same time give the meal a brown crust.
Defrost	2 defrosting programmes
Microwave	Defrost,reheat and cooking.

4 Operation

4.3 Parameter selector

Use the selector to set the parameters.

Parameter Function
Auto menu Select 13 automatic programmes. From P 01 to P 13.
Temperature Select the temperature of cooking (°C). : 50, 100-230 : 100-230 : 100-230	[50,51,00-230] [109,230] [108,230]
Grill level	[1( Low), G-2(Medium), G-3(High)
Weight Set the weight of cooking.
Time Set the time of
Microwave Select m

4.4 Cooling fan

Your appliance has a cooling fan. The cooling fan switches on during operation. The hot air escapes above the door. The cooling fan continues to run for a certain time after operation.

Do not cover the ventilation slots. Otherwise, the appliance will overheat.

• The appliance remains cool during microwave operation. The cooling fan will still switch on. The fan may run on even when microwave operation has ended.
• Condensation may appear on the door window, interior walls and floor. This is normal and does not adversely affect microwave operation. Wipe away the condensation after cooking.

4.5 Before using the appliance for the first time

4.5.1 Setting the clock

Once the appliance is connected, "00:00" will blink, buzzer will ring once. Set the clock.

1. Turn the parameter adjustment knob to set the hour figures.
2. Touch "to confirm."
3. Turn the parameter adjustment knob to set the minute figures.
4. Touch "to confirm. The clock is set."

The clock is a 24-hour display.

4 Operation

4.5.2 Cleaning the accessories

Before you use the accessories for the first time, clean them thoroughly with hot soapy water and a soft dish cloth.

4.5.3 Heating up the oven

To remove the new cooker smell, heat up the oven when it is empty and closed. One hour with Hot air at 230^ C is ideal. Ensure that no packaging remnants have been left in the cooking compartment.

1. Turn the function selector knob to "The default temperature will display."
2. Turn the parameter adjustment knob to set the temperature to 230^ C.
3. Touch the "▶" to confirm.
4. Turn the parameter adjustment knob to set the cooking time to "1:00hr".
5. Touch the "▶" to confirm. The oven begins to heat up.

4.6 Setting the oven

There are various ways in which you can set your oven. Here we will explain how you can select the desired type of heating and temperature or grill setting. You can also select the oven cooking time for your dish.

4.6.1 Setting the type of heating, temperature or grill level and time

Example : "Convection at 200 °C for 25 minutes.

1. Turn the function selector knob to "The default temperature will display."
2. Turn the parameter adjustment knob to set the temperature to 200 °C .
3. Touch the "to confirm."
4. Turn the parameter adjustment knob to set the cooking time to "25:00 min."
5. Touch the "▶" to confirm. The oven begins to heat up.

Opening the oven door during operation

Operation is suspended. After closing the door, touch the "▶" key. Operation continues.

Pausing operation

Touch the "▶" key to pause operation. Then touch the " " key to continue operation.

Changing the cooking time

This can be done at any time. Touch the "☐" key. Then turn the parameter adjustment knob to change the cooking time.

Changing the temperature or grill level

This can be done at any time. Touch the "8" once. Then turn the parameter adjustment knob to change the temperature or grill level.

Cancelling operation

Touch the "×" key to enter into the off state.

4 Operation

4.6.2 Rapid preheating

Rapid Preheating is available for the following types of heating:

Convection	Microwave+Convection
Convection+Bottom Grill	Microwave+Grill+Fan
Grill+Fan	Microwave+Convection+Bottom Grill

To ensure an ven cooking result, only put your food in the cooking compartment when the preheating phase is complete.

1. Setting the type of heating, temperature, and microwave power.
2. Touch the "once. And then will display."
3. Touch the "▶" to start preheating. When preheating is completed, the oven will sound. Open the door and place the food in the oven. And then close the oven door.
4. Turn the parameter adjustment knob to set the cooking time.
5. Touch the "▶" to start cooking.

Cancelling rapid preheating

During setting the rapid preheating function, touch the "once can cancel the function. During rapid preheating, touch the "once can cancel the function. Also you can open the door to cancel the function.

Opening the oven door during preheating

Operation is suspended. After closing the door, touch "▶" once Operation continues.

Pausing operation

Touch "▶" to pause the preheating. Then touch " " to continue operation.

Changing the temperature during preheating

Touch "8 once. Then turn the parameter adjustment knob to change the temperature.

1. The rapid preheating function only works if you have already chosen one of the modes above.
2. When the set temperature is below 100°C, the rapid preheating function cannot be enabled

4.7 The microwave

Microwaves are converted to heat in foodstuffs. The microwave can be used solo, i.e. on its own, or in combination with a different type of heating. You will find information about ovenware and how to set the microwave.

The step quantities for the adjustment time of the coding switch are as follow:

0-1 min:1second

1-5 min : 10 seconds

5-15 min : 30seconds

4.7.1 Notes regarding ovenware

Suitable ovenware Suitable dishes are heat-resistant ovenware made of glass, glass ceramic, porcelain, ceramic or heat-resistant plastic. These materials allow microwaves to pass through.

You can also use serving dishes. This saves you having to transfer food from one dish to another. You should only use ovenware with decorative gold or silver trim if the manufacturer guarantees that they are suitable for use in microwaves.

Unsuitable ovenware

Metal ovenware is unsuitable. Metal does not allow microwaves to pass through. Food in covered metal containers will remain cold.

Caution! Creation of sparks: metal -e.g. a spoon in a glass - must be kept at least 2 cm from the oven walls and the inside of the door. Sparks could destroy the glass on the inside of the door.

Ovenware test

Do not switch on the microwave unless there is food inside. The following ovenware test is the only exception to this rule.

Perform the following test if you are unsure whether your ovenware is suitable for use in the microwave:

1. Heat the empty ovenware at maximum power for 12 to 1 minute.

2. Check the temperature occasionally during that time.

The ovenware should still be cold or warm to the touch.

The ovenware is unsuitable if it becomes hot or sparks are generated.

4.7.2 Microwave power settings

P01 Defrosting sensitive/delicate foodsDefrosting irregularly-shaped foodsSoftening ice creamAllowing dough to rise

P03 DefrostingMelting chocolate and butter

P05 Cooking rice, soup

P08 ReheatingCookingmushrooms,shell fishCookingdishes containing eggs and cheese

P10 Boiling water, reheatingCookingchicken, fish, vegetables

The microwave power can be set to P10 for a maximum of 30 minutes. With all other power settings a maximum cooking time of 1 hour 30 minutes is possible.

4 Operation

4.7.3 Setting the microwave

Example: Set microwave power to P03 and cooking time to 17 minutes.

1. Turn the function selector knob to "The default microwave power will display."
2. Turn the parameter adjustment knob to set the microwave power to P03.
3. Touch the "▶" to confirm.
4. Turn the parameter adjustment knob to set the cooking time to "17:00 min."
5. Touch the "▶" to start cooking.

Operation begins. The cooking time starts counting down in the display.

Opening the oven door during operation

Operation is suspended. After closing the door, touch the "▶" key. Operation continues.

Pausing operation

Touch the "▶" to pause the operation. Then touch " " key again to continue operation.

Changing the cooking time

This can be done at any time. Touch the "key. Then turn the parameter adjustment knob to change the cooking time.

Cancelling operation

Touch the "×" once to cancel operation.

• When you set the function selector to "☐", the highest microwave power setting always lights up as the suggested setting.
• If you open the appliance door during cooking, the fan may continue to run.

4.8 Microwave Combi operation

This involves simultaneous operation of the grill and the microwave. Using the microwave makes your dishes ready more quickly, but they are still nicely browned.

You can switch on all microwave power settings.

Exception: P10

4.8.1 Setting Microwave Combi operation

Example: "☐+☐" Microwave+Convection function with P03 and 190°C for 17 minutes.

1. Turn the function selector knob to "☐☐
2. Turn the parameter adjustment knob to set the cooking mode to "☐+☐
3. Touch "▶" to confirm.
4. Turn the parameter adjustment knob to set the temperature to 190^ C.
5. Touch "or" to confirm.
6. Turn the parameter adjustment knob to set the microwave power to P03.
7. Touch "▶" to confirm.

4 Operation

1. Turn the parameter adjustment knob to set the cooking time to "17:00 min."
2. Touch "th" start cooking.

Opening the oven door during cooking

Operation is suspended. After closing the door, touch the "▶" once. Operation continues.

Pausing operation

Touch the "to pause the operation. Then touch " " once to continue operation.

Changing the cooking time

This can be done at any time. Touch the "①" once. Then turn the parameter adjustment knob to change the cooking time.

Cancelling operation

Touch the "×" once to cancel operation.

4.9 Auto menu

The auto menu enable you to prepare the food very easily. You select the auto menu and enter the weight of your food. The auto menu makes the optimum setting. You can choose from 13 menus.

4.9.1 Setting a auto menu

1. Turn the function selector knob to
2. Turn the parameter adjustment knob to choose the auto menu you want.
3. Touch the "to confirm."
4. Turn the parameter adjustment knob to set the weight of the food.
5. Touch the "▶" to start cooking.

Changing the auto menu

Once you have started the auto menu, the auto menu number and weight cannot be changed.

Cancelling the auto menu

Touch the "×" once to cancel operation.

Changing the cooking time

If using the auto menu, you cannot change the cooking time.

4.9.2 Auto menu

No. Menu Weight range in kg
P 01** Vegetables -	Fresh vegetables 0.30 - 0.60
P 02** Side dishes -	Potatoes (peeled/cooked) 0.50 - 0.80
P 03* Side dishes -	Potatoes (roasted) 0.20 - 1.00
P 04 Poultry/Fish -	Chicken pieces/Fish pieces 0.20 - 1.00
P 05* Bakery - Cake	0.50 - 1.00
P 06* Bakery - Apple pie	1.00 - 1.40

4 Operation

P 07* Bakery - Quiche	0.50 - 0.90
P 08** Reheat - Drink/Soup	0.10 - 0.50
P 09** Reheat - Plated meal	0.20 - 0.50
P 10** Reheat - Sauce	0.20 - 0.70
P 11* Convenience	Frozen pizza	0.10 - 0.40
P 12* Convenience	Frozen oven chips	0.20 - 0.80
P 13* Convenience	Frozen lasagna	0.30 - 1.00

• The menus with a * are preheated. During preheating, the preheating symbol will display.
• The menus with ** only use the microwave function.
• For the menus "P03, P04, P12", the buzzer will sound to remind you to turn the food over during cooking. If no operation, the oven will continue working.

4.10 Defrosting programmes

You can use the 2 defrosting programmes to defrost food.

4.10.1 Defrosting by time

1. Turn the function selector knob to "The default microwave power will display."
2. Touch "once, and then "1:00 min." will display.
3. Turn the parameter adjustment knob to set the cooking time. The maximum time value is "1:30 hr.".
4. Touch the "▶" to start defrosting.

The default defrosting power level is P03 and it cannot be changed.

4.10.2 Defrosting by weight

1. Turn the function selector knob to "The default microwave power will display."
2. Touch " twice, and then "200g" will display.
3. Turn the parameter adjustment knob to set the weight of the food. The range of weight is 200 to 1500g.
4. Touch the "▶" to start defrosting.

The buzzer will sound to remind you to turn the food over during defrosting. If no operation, the oven will continue working.

4.11 Setting the time-setting options

Your oven has various time-setting options.

4 Operation

4.11.1 Setting the cooking time

The cooking time for your meal can be set on the oven. When the cooking time has elapsed, the oven switches itself off automatically. This means that you do not have to interrupt other work to switch off the oven. The cooking time cannot be accidentally exceeded.

The oven starts. The cooking time counts down in the display.

The cooking time has elapsed

An audible signal sounds. The oven stops heating.

4.11.2 Setting the clock

1. Turn the function selector knob to "°".
2. Touch and hold "☐" for 3 seconds, and then the current clock will flash.
3. Turn the parameter adjustment knob to set the hour figures.
4. Touch the "▶" to confirm.
5. Turn the parameter adjustment knob to set the minute figures.
6. Touch the "▶" to confirm. The clock is set.

4.12 Lock function for children

You can use this function to disable the screen buttons and prevent your child from accidentally turning the oven on.

To activate the lock:

In standby mode, press and hold "▶" for three seconds. A beep sounds and the locked icon will display.

To deactivate the lock:

In the locked state, press and hold "▶" for three seconds. A beep sounds.

4.13 ECO function

To enter ECO mode:

1. In standby mode and the function selector knob turned to "P", if there is no operation within one minute, the screen will dim.
2. The function selector knob is turned to a position other than "o", if there is no operation within five minutes, the oven will enter standby mode, and if there is no further operation for 1 minute, the screen will dim.

To cancel ECO mode:

In ECO mode, pressing any key, turning the knob, opening or closing the door will cancel it.

5 Cleaning and maintenance

5.1 Cleaning and care

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

WARNING: Never immerse the appliance or its power cable in water or in any other liquid.

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Wait for the appliance to completely cool down.
3. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
4. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside thea oven, water should not be allowed to seep into the ventilation openings.
5. Wipe the both sides of the door and window, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
6. A steam cleaner is not be used.
7. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
8. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
9. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
10. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the

proper position.

1. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
2. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
3. Please do not dispose this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.
4. When the microwave oven with grill function is first used, it may produce slight smoke and smell. This is a normal phenomenon because the oven is made of a steel plate coated with lubricating oil, and the new oven will produce fumes and odor generated by burning the lubricating oil. This phenomenon will disappear after a period of using.

5.2 Storage

• If you do not intend to use the appliance for a long time, please store it carefully.
• Please make sure that the appliance is unplugged, cooled down and totally dry.
• Store the appliance in a cool and dry place.
• Keep the appliance out of the reach of children.

5.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance will render it non-operational or cause permanent damage. Dropping the appliance will render it non-operational or cause permanent damage.

6 Troubleshooting

Problem Possible cause Remedy/information
The appliance does not work. F	Faulty circuit breaker. Look in the	fuse box and check that the circuit breaker for the appliance is in working order.
	Plug not plugged in. Plug in the plug.
	Power cut Check whether the	kitchen light works.
The appliance does not work."appears in the display panel.	Childproof lock is active. Dea	activate the childproof lock (see sec-tion: Childproof lock).
"00:00" is in the display panel. P	Power cut Reset the clock.
The microwave does not switch on.	Door not fully closed. Check w	whether food residue or debris is trapped in the door.
It takes longer than before for the food to heat up in the mi-crowave	The selected microwave power level is too low.	Select a higher power level.
	A larger amount than usual has been placed in the ap- pliance.	Double the amount = almost double the cooking time.
	The food was colder than usual.	Stir or turn the food during cooking.
Turntable grates or grinds. Dirt	or debris in the area around the turntable drive.	Clean the rollers under the turntable and the recess in the oven floor thor- oughly.
A particular operating mode or power level cannot be set.	The temperature, power lev-el or combined setting is not possible for this operating mode.	Choose permitted settings.
"E-01" appears in the display panel.	The thermal safety switch-off function has been acti-vated.	Call the after-sales service.
"E-04" appears in the display panel.	The thermal safety switch-off function has been acti-vated.	Call the after-sales service.
"E-17" appears in the display panel.	Rapid heating has failed. Call	the after-sales service.

Diagram of a microwave oven with labeled parts showing internal structure and components

Simple line drawing of a circular metal grate with four legs and a central vertical seam (no text or symbols)

4

Line drawing of a 3D rectangular box with a side tab and a clip, labeled with number 1 (no text or symbols on the object itself)

5

Commandes et pièces

Line drawing of an open oven with a dish inside, showing internal components and a handle (no text or symbols)

Micro-ondes+Convection

Convection+Grille inférieur

Diagram of a microwave oven with labeled parts showing internal structure and mounting points

Simple line drawing of a circular metal grate with four legs and a central vertical seam (no text or symbols)

4

Isometric line drawing of a rectangular box with a side tab and a handle, labeled with number 1 (no text or symbols on the diagram itself)

5

Line drawing of an oven with a lid and tray, showing internal components (no text or symbols)

Digital camera control interface with playback controls, display screen, and directional arrows

Diagram of a microwave oven with labeled parts, showing interior and exterior views

Simple line drawing of a circular metal grate with four legs and a central vertical seam (no text or symbols)

4

Line drawing of a 3D rectangular box with a side clip and labeled component '1' (no text or symbols beyond label)

5

Line drawing of an open microwave oven with a dish inside, showing internal components and a handle (no text or symbols)

Digital camera control interface with playback controls, display screen, and playback buttons

Diagram of a microwave oven with labeled parts showing internal components and casing layout

Simple 3D diagram of a circular table with four legs and a central vertical seam (no text or symbols)

4

Line drawing of a 3D rectangular box with a side tab and a clip, labeled with number 1 (no text or symbols on the object itself)

5

Power consumption 220-230V~50 Hz

Output power (Microwave) 900 W

Input power (Microwave) 1650 W

Grill power 1750 W

Convection power 1750 W

Max. Input 3350 W

Operating frequency 2450 MHz

Oven capacity 44 litrów

Digital camera control interface with playback controls, display screen, and directional arrows
