USER MANUAL RF185DLE0 TCL

■ This service guide is a universal format for our company.
■ Please refer to the corresponding operation for specific physical configurations.
■ The pictures are for reference onlyThe products may subject to changes without notice.
■ Please carefully read the operation instructions before power on, and keep it properly.

EN

TCL

RF149DLE0

RF185DLEO

RF045DWE0

RF092DWE0

USER MANUAL

REFRIGERATOR

PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

Contents

EN

Thank you for buying TCL refrigerator. We hereby express our thanks.

Welcome to use TCL refrigerator. We will do our best to provide you with quality service.

Safety instructions P2

Product introduction P5

Handling and placement P6

Preparations prior to use P7

Operation keys P8

Temperature regulation P8

Foods storage P8

Defrost P8

Ice-making (If the appliance has it) P9

Disassembly and assembly method of accessory P9

Care and maintenance P9

Failure analysis P10

Non-failures P10

Technical parameter P11

Packing list P11

Safe recovery instructions P12

Description of climate types P12

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

5. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

6. WARNING: Do not damage the refrigerant circuit.

7. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

8. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

9. This appliance is intended to be used in household and similar applications such as

- Staff kitchen areas in shops, offices and other working environments;

— Farm houses and by clients in hotels, motels and other residential type environments;

— Bed and breakfast type environments;

- Catering and similar non-retail applications.

1. This product contains a light source of energy efficiency class F for light source ERP, test with (without) light cover.

1. Warning

Warning: No barrier is allowed around the appliance or in the embedded structure in order to ensure the free ventilation.

Warning: It is forbidden to speed up the defrosting process with any mechanical equipment or by other method except for the method recommended by the manufacturer.

Warning: Never damage the refrigerating circuit.

Warning: Never use any electric apparatus in the food chamber of the appliance except for the type recommended by the manufacturer.

Warning: Never place the liquid beverage or food contained with glass container in the freezing chamber for fear of cracking.

Warning: If powered off, the refrigerator shall be powered on 5min later for fear of damaging the compressor.

Warning: If any live part, abnormal noise, smell, smoke or other abnormality is found during use, it is necessary to power off the appliance immediately and contact the after-sales service department of the Company timely.

Warning: Never place your finger or hand under the refrigerator, especially rear bottom of refrigerator; otherwise, you may be hurt by the sharp matter.

Warning: The children must not play or climb the refrigerator. The operation by the children must be supervised by their parents for fear of danger.

Warning: Never place your hand between the doors to open or close door for fear of jamming your finger. The door handle shall be used to open or close the door.

Warning: Under the rated climate types SN, N and ST, the operating ambient range of the appliance is 10^ C\~ 38^ C; under the climate types SN, N, ST and T, the operating ambient range of the appliance is 10^ C\~ 43^ C. If the appliance operates outside the rated climate type (ambient temperature range), the appliance may not maintain the satisfying interior temperature.

Warning: Risk of fire/flammable materials

Warning: When positioning the appliance, ensure the supply cord is not trapped or damaged.

Warning: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Children aged from 3 to 8 years are not allowed to load and unload refrigerating appliances.

Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

Clean regularly surfaces that can come in contact with food and accessible drainage systems. Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

One-, two- and three-star compartments are not suitable for the freezing of fresh food.

If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

2. Cautions

Cautions: The power supply of this product must be uniform with the power supply mentioned on the nameplate, and the standard independent 3-hole socket shall be used (above 10A, and reliably grounded). One socket must not be shared by more than one appliance; otherwise, fire may be caused due to overheat.

Cautions: Never pull the power wire by hand. It is necessary to hold and unplug the power connector from the socket to disconnect the power supply. The power wire or connector must not be touched by the wet hand for fear of electric shock.

Cautions: The power wire must not be squeezed by the refrigerator or any heavy load, and the power wire shall not be bent extremely. The damage or peeling of power wire may result in fire or electric shock. If the power wire is broken or cut, please contact the after-sales service department immediately.

Safety instructions

EN

Cautions: No flammable or explosive matter or corrosive acid or alkaline matter is allowed in the refrigerator.

Cautions: The refrigerator must not be used in the rain or under the sunshine.

Cautions: It is forbidden to place the container with fluid on the refrigerator because the breakage or turnover of the container may affect the electrical insulation of refrigerator and result in electric shock or fire.

Cautions: The refrigerator must not be disassembled or modified without permission. The repair of refrigerator must be performed by the specialist.

Cautions: In case of leakage of any flammable gas such as coal gas, it is necessary to close the leaking valve first and then open the window for ventilation, and forbidden to unplug the refrigerator connector immediately for fear of fire or explosion due to electric spark.

Cautions: Refrigerating appliances — in particular a refrigerator-freezer Type I — might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed;

Cautions: The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold.

Cautions: The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food.

Cautions: The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.

Cautions: The fact that a rise in temperature of the frozen food during manual defrosting, maintenance orcleaning could shorten the storage life.

Cautions: The care required with regard to frozen food in storage in the event of an extended non-running of the refrigerating appliance (interruption of power supply or failure of the refrigerating system).

Cautions: The action to be taken when the refrigerating appliance is switched off and taken out of service temporarily or for an extended period (e.g. emptied, cleaned and dried, and the door(s) or lid(s) propped ajar).

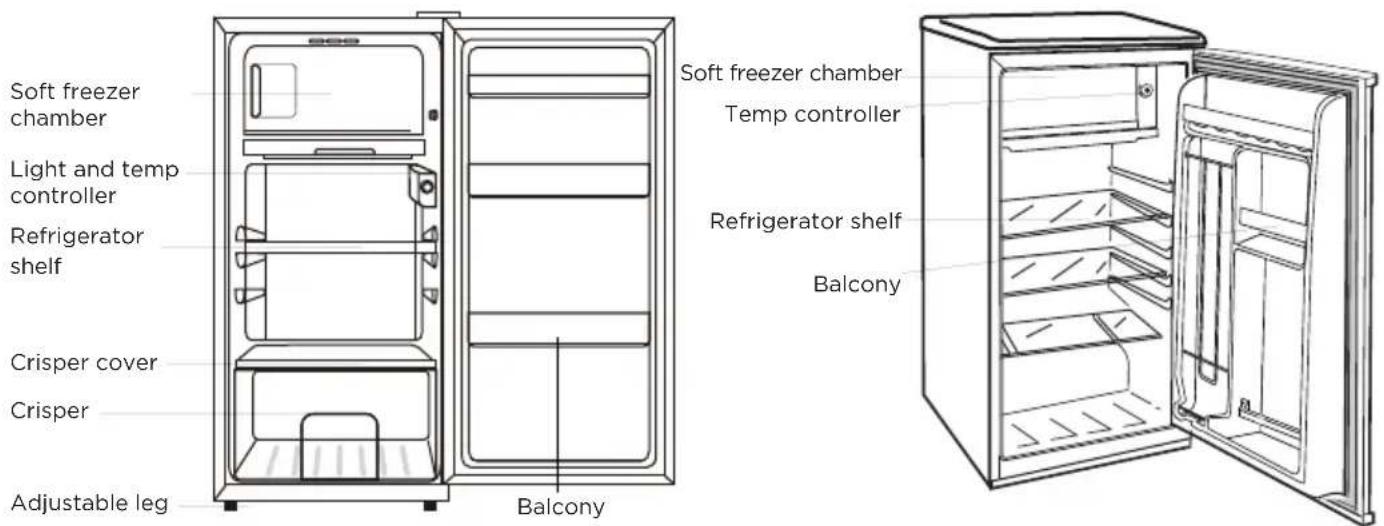

Soft freezer chamber Light and temp controller Refrigerator shelf Crisper cover Crisper Adjustable leg Balcony Soft freezer chamber Temp controller Refrigerator shelf Balcony

Series A: RF149DLE0 RF185DLE0
Series B: RF045DWEO RF092DWEO

The pictures are for reference only. Please refer to the object.

Features

--Green and environmental friendly refrigerant

CFC-free materials are adopted, green and environmental friendly material R600a, 80% main materials can be recycled;

--With freezer compartment for soft freezing food storage;

--Semi-automatic defrost

--Reversible door meets the need of different groups;

--Inner mechanical temperature control for easy operation;

Warm prompt:

If your product is improved product, it may not be totally same as that in the instructions. But it will not change the performance and method of application. Please feel relieved about usage.

Handling and placement

Certain space shall be left around the refrigerator, shown in the figure.

>10cm >10cm >10cm

During handling, the door side of the refrigerator shall not contact with the handling tools

<45°

The refrigerator shall be placed in an environment which is dry, has good ventilation, far from direct sunshine and heat source.

Illustration showing a distressed box with a warning sign and a QR code, indicating a warning or complaint.

The refrigerator shall be placed on the flat and firm surface. If the ground is not flat, adjust the adjusting leg to keep it level.

Cartoon illustration of a smiling rectangular character standing on a tiled floor, with no text or symbols present.

Never place the refrigerator into a too cold environment that may get frozen.

Cartoon illustration of a character holding a box with snowflakes around (no text or symbols)

Removing the foam base is beneficial for bottom heat dissipation and can avoid fire.

Cartoon illustration of a smiling cube on a steaming platform (no text or symbols)

Warm prompt:

--When handling the refrigerator, at least two persons are required — one lifts the top of rear part, the other one handles the bottom (if one part is clamped, it is quite dangerous and may cause accident).

--When moving the refrigerator, the lower runner may damage and scratch the floor. If you need to move the refrigerator for a long distance, the internal accessories shall be fixed using adhesive tape. Otherwise, the accessories may get damaged due to crashing each other.

--Please place the refrigerator in the position with small vibration or little exposed to vibration. For users in the area where earthquake often occurs, please fix the refrigerator against the wall or pole. Otherwise, the falling of refrigerator will cause accident.

--Sufficient clearance shall be left around. If the clearance is too small or place goods on the top or close to the side, or paste on the sides, the heat dissipation of refrigerator will be affected, and thus to cause unnecessary electric energy waste as well as burn out of the wall and other goods; the contact between the back and wall will cause vibration and noise;

--Adjust the front part and adjusting leg of the refrigerator to level it. Unlevel of the refrigerator will cause vibration and noise.

Handling and placement

EN

This refrigerating appliance is not intended to be used as a built-in appliance

The outline dimension of the product and the space needed by the use of product are shown in the following pictures:

Outline dimension of product

L1 W1

Space needed by the use of product

L2 W2

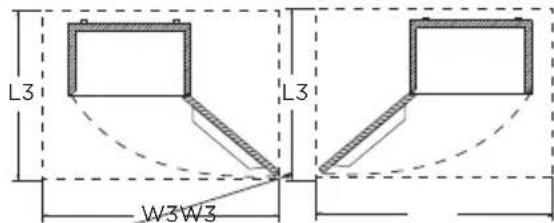

Total space needed by the use of product

L3 L3 W3W3

Space needed by the free ventilation
Unit: mm

Product series	Outline dimension of product		Space needed by the use of product		Total space needed by the use of product
	L1 W1 L2 W2 L3 W3
A	542 545	>L1+100 >W1	+200 >L1+640	>W1+600
B	470 449	>L1+100 >W1	+200 >L1+511	>W1+600

Preparations prior to use

1. Remove all packing assemblies such as case fixing tape etc., especially the foam base.
2. Use warm wet cloth to clean both interior and exterior of the refrigerator, (neutral detergent can be added in warm water).
3. After leveling and cleaning the refrigerator, stand it for about 2 hours before plugging the power plug for powering on, and cool the refrigerator for 2 to 3 hours before storing foods.

1. Remove fixing tape Wipe with warm and wet cloth

In hot summer, 24 hours are needed to fully freeze the food. Check the refrigerating condition on the second day.

2. Connect to power

3. Store food after connecting to power for 2-3 hours Do not open the doors frequently to save electricity. The plastics deodorant will disappear automatically after freezing for a while.

The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.

Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.

Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.

Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.

Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

Please refer to the product introduction picture on page 5 for the placement of accessories.

Temperature regulation

--The temperature inside the refrigerator is controlled by the temperature controller mounted in the refrigerating chamber, which is provided with 8 gears (0, 1, 2,.....7). Temperature controller lighting combination panel -- The temperature inside the refrigerator decreases gradually when the temperature control knob is turned from 0-7; conversely, the temperature increases gradually;

--The use may set the temperature control knob at different gears on the basis of refrigerator service environment and specific situations of stored foods;

--The temperature inside the refrigerator will vary as the temperature control knob is placed at different gears, and meanwhile the power consumption will show some differences;

--Upon overall consideration of preservation effect and power consumption, the recommended regulated values are as follows:

4-6 gears in summer, 4 gear in spring and autumn and 2-4 gear in winter.

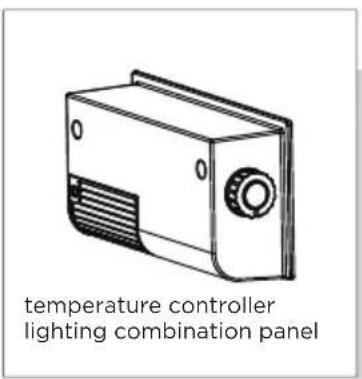

temperature controller lighting combination panel

Foods storage

Refrigerating chamber (2°C\~8°C)

--The refrigerating chamber is mainly used for storing short-term foods, like milk, eggs and bottled drink.

--Vegetables, melons and fruits shall be put into the fruit and vegetable box to prevent water loss.

--The cooked foods shall be put into the refrigerator after packaging with the preservative bags, to prevent the back from frosting and the power from increasing.

Soft freezing chamber (-6°C\~0°C)

--The freezing chamber is not designed for long-term storage of frozen food. Stored food should be used within one week.

--This is suitable for storing food without freezing solid. You may cut food easily.

--Fish and meat to be frozen shall be cut into small pieces, packaged with preservative bags separately and then put into the frozen drawer.

--The fresh foods shall not be stored together with the frozen foods.

Defrost

If thicker layer of frost is detected at the back of the refrigerating chamber and the refrigeration effect is affected, defrost the refrigerating chamber first. Press the button in the center of the control knob, refrigerator will star the defrost function automatically.

★★ Warm tips:

The stored food, if any, shall not block the air duct outlet and return port for fear of affecting the refrigerating effect.

Before being stored in the refrigerator, the overheated water and food shall be cooled to the room temperature.

Operation keys

Ice-making (If the appliance has it)

Fill the ice-making box with 4/5 water and put the box into the freezing chamber. After the water in the box turns into ice, twist the box slightly to separate the ice from the box. However, don't bend the box. When separating the ice, wrap the box with dry hands to avoid finger frostbite.

Illustration of hands holding a grid-based object with curved arrows indicating rotation (no text or symbols)

Disassembly and assembly method of accessory

--Glass shelf in the refrigerating chamber: the height of the shelf is adjustable, which facilitates the storage of articles with different volumes. Pull the shelf outwardly and upwardly in a slight way to take out.

--Fruit and vegetable box: for storing vegetables and fruits. It can be taken out by pulling outwardly.

--Bottle pedestal at the refrigerating door: storing eggs, various bottled drinks and other sundries. It can be taken out by being lifted up slightly.

Note:

Don't pull out the bottle pedestal at the refrigerating door forcibly during disassembly, to avoid damaging the refrigerator.

Care and maintenance

It is suggested to maintain the refrigerator once per month;

--Unplug the power plug to prevent from electric shock;

--Use wet cloth or neutral detergent (cleanser essence) to wipe off the oil contamination and other dirt. Then completely wipe off the detergent.

--Do not use alkaline detergent, soap powder, gasoline and alcohol, talcum powder etc.; otherwise the coats or plastics may be damaged;

--Regularly clean the refrigerator body and clear the ground dusts to keep the refrigerator clean.

Inspections after maintenance:

1. Whether there are damages to the power line and plug;
2. Whether there are dusts on the power plug; 3. Whether there is abnormal heat on the plug; 4. Whether the socket is loose; 5. Whether the plug is totally inserted.

Note:

If the power line and plug is damaged and there exist dusts, electric shock or fire may occur;

After unplugging the plug, 5 minutes must pass before re-plugging it;

Do not put your hands under the refrigerator to avoid getting hurt.

Illustration of a plug and a wall socket with a lightning bolt symbol (no text or labels)

Unplug the refrigerator plug before cleaning

Neutral detergent

Please use neutral detergent

Failure analysis

EN

The following items shall be inspected before occurring failures which require maintenance:

Failures: Refrigerator does not work, The refrigeration effect is poor

Causes: 1. Check the connection of power supply. 2. Check whether the refrigerator is exposed to direct sunlight or whether there is heat source nearby. 3. Check whether there is heat dissipation space around refrigerator.

Remedies: 1. Connect the power supply. 2. Move the refrigerator to a place without direct sunlight and heat source. 3. Leave sufficient space between refrigerator and wall.

Failures: Foods in refrigerating chamber are frozen

Causes: 1. Check whether the setting temperature is too low. 2. Check whether foods with too much water are too close to the rear wall.

Remedies: 1. Adequately increase the temperature. 2. Move the foods with too much water to the door side of glass shelf

Failures: There is abnormal sound in refrigerator

Causes: 1. Check whether the bottom of refrigerator is stable. 2. Check whether the refrigerator is too close to the wall. 3. Check whether the refrigerator touches other objects. Remedies: 1. Adjust the bottom adjusting leg to stabilize the refrigerator. 2. Leave sufficient space around refrigerator. 3. Remove the obstacles.

Failures: There is abnormal odor in refrigerator

Causes: 1. Check whether the foods are sealed for storage. 2. Check whether the refrigerator is clean. 3. Check whether the foods are stored for too long time.

Remedies: 1. Sealed foods for storage. 2. Regularly clean the refrigerator. 3. Do not store foods for too long time.

Non-failures

Phenomenon: Fever or hot on two sides and spacing part surface between refrigerating chamber and freezing chamber.

Cause: Refrigerator pipes (condenser, anti-fog pipes) are on two sides and front part of refrigerator for heat dissipation and to prevent from condensation.

Phenomenon: The door is too tight and not easy to open

Cause: Reopening of the door immediately after closing it is hard because hot air enters the refrigerator and contracts to produce pressure difference. It is easy to open the door after a while.

Phenomenon: There is water ripple in refrigerator

Cause: When starting or stopping the compressor, the refrigerant will make such sound; Water produced after defrosting will also make such sound.

Phenomenon: There is "Click" sound or tick sound in refrigerator

Cause: Shrinkage and swelling of case will make such sound; When the case is cold or the door is opened, this sound will occur; Phenomenon: There is hum sound in refrigerator

Cause: Running of compressor will make such sound (if the refrigerator is not leveled, this sound will be louder)

Phenomenon: There is condensation or frosting freezing chamber door surface or food surface

Cause: Temperature or humidity around the refrigerator is high; The door is opened for too long time; The foods with too much water are not sealed or tightly wrapped

Phenomenon: There is condensation on the built-in light surface

Cause: Light will produce heat after being lit, and the door is opened for too long time. So there is temperature difference, and thus the light case will have condensation.

Phenomenon: There is condensation and water mist on body

Cause: Humidity around refrigerator is high, and the moisture in the air will gather in the case to form condensation

Technical parameter

Model	RF149DLE0	RF185DLE0	RF045DWE0	RF092DWE0
Climate type	SN/N/ST/T	SN/N/ST/T	SN/N/ST/T	SN/N/ST/T
Electric shock resistance	I	I	I	I
Star sign	*	*	/	/
Total volume	149L	185L	45L	90L
Storage volume of freezer	27L	27L	/	/
Power type	220-240V-/50Hz	220-240V-/50Hz	220-240V-/50Hz	220-240V-/50Hz
Rated current	0.8A	0.8A	0.5A	0.5A
Power consumption	104kW·h/year	109kW·h/year	80kW·h/year	85kW·h/year
Lamp power	2W	2W	/	/
Weight	30kg	34kg	15.3kg	21kg
Dimension (WxDxHmm)	545x542x1012	545x542x1198	449x485x512	449x485x842
Refrigerant and charge amount	R600a,33g	R600a,38g	R600a,18g	R600a,22g
Noise level (dB(A)re 1 pW)	40	40	40	40

EN

Packing list

Annex\Model	RF149DLE0	RF185DLE0	RF045DWE0	RF092DWE0
Refrigerator shelf	1	2	1	3
Crisper cover	1	1	/	/
Crisper	1	1	/	/
Balcony	3	4	2	3
Freezer shelf	/	/	/	/
Drain cleaning plug	/	/	/	/
Operating instruction	1	1	1	1

Safe recovery instructions

EN

Disposal

Old appliances still have some surplus value. An environmentally friendly approach will ensure that valuable raw materials are recycled.

The refrigerants used in your equipment and insulation materials require special handling procedures. Make sure there is no pipe damage on the back of the equipment before handling. Up-to-date information on the options for disposing of old equipment and packaging from old equipment can be obtained from the local municipal office.

Correct Disposal of this product.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and ollection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Description of climate types

Table 1 Climate classes

Class Symbol Ambient temperature ranges	°C
Extended temperate SN + 10 to + 32
Temperate N + 16 to + 32
Subtropical ST + 16 to + 38
Tropical T + 16 to + 43

Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';

temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';

Subtropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 38^ C’;

Tropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43°C’;

Dear customer

if you need customer service, please check warranty card for further information.

Line drawing of an open refrigerator with labeled side panel (no text or symbols on the diagram itself)

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Illustration showing a distressed box with a surprised face and a warning sign with text, indicating a warning or caution.

Cartoon illustration of a smiling rectangular character standing on a tiled floor, with no text or symbols present.

Cartoon illustration of a character holding a box with expressive faces, surrounded by snowflakes and decorative elements (no text or symbols)

Cartoon illustration of a cube with a smiling face and steam lines, placed on a base with no text or symbols.

Remarque :

Line drawing of a rectangular electronic device with a button and ventilation slots (no text or symbols)

Illustration of hands holding a grid-based container with directional arrows indicating rotation (no text or symbols)

FR

Simple line drawing of an electrical plug and a wall socket with a lightning bolt symbol (no text or labels)

Serie A: RF149DLEO RF185DLEO
Serie B: RF045DWEO RF092DWEO

Illustration showing a distressed box with a sad face and smoke, accompanied by a warning sign and a QR code.

Cartoon illustration of a smiling rectangular character standing on a tiled floor, with arms pointing forward (no text or symbols)

Cartoon illustration of a smiling face inside a box with hands clasped, surrounded by snowflakes and decorative elements (no text or symbols)

Cartoon illustration of a smiling cube with steam rising from its base (no text or symbols)

Consejo:

Illustration of hands holding a grid-based container with curved arrows indicating rotation (no text or symbols)

Illustration of a plug and a wall socket with a lightning bolt symbol (no text or labels)

Illustration showing a distressed box with a sad face and smoke, accompanied by a crossed-out box and a warning sign with 'CO' text.

Cartoon illustration of a smiling rectangular character standing on a tiled floor, with arms pointing forward (no text or symbols)

Cartoon illustration of a smiling face inside a box surrounded by snowflakes and decorative elements (no text or symbols)

Cartoon illustration of a smiling cube with steam rising from its base (no text or symbols)

Συμβουλή:

Illustration of hands holding a grid-based object with curved arrows indicating rotation (no text or symbols)

Illustration of a plug and a wall socket with a switch, showing an electrical switch (no text or symbols present)

Illustration showing a cartoon character reacting to a box with steam and a 'CO' label, likely depicting environmental or chemical hazard.

Cartoon illustration of a smiling character standing beside a rectangular box on a tiled floor (no text or symbols)

Cartoon illustration of a surprised character inside a box surrounded by snowflakes (no text or symbols)

Cartoon illustration of a cube with steam rising from its base, no text or symbols present

Poznámka:

Illustration of hands holding a grid-based object with curved arrows indicating rotation (no text or symbols)

Illustration of a plug and a wall socket with a lightning bolt symbol (no text or labels)

Nearborn food prostheses

Seria A: RF149DLE0 RF185DLE0
Seria B: RF045DWEO RF092DWEO

PL

Illustration showing a distressed box with steam rising, accompanied by a warning sign and a small icon labeled 'CO'.

Cartoon illustration of a smiling character standing beside a rectangular box on a tiled floor (no text or symbols)

Cartoon illustration of a surprised face inside a box surrounded by snowflakes and decorative elements (no text or symbols)

Cartoon illustration of a cube with steam rising from its base, no text or symbols present

Uwaga:

Illustration of hands holding a grid-based object with curved arrows indicating rotation (no text or symbols)

Illustration of a plug and a wall socket with a lightning bolt symbol (no text or labels)

Detergent o aldehyde is procyanate

Serija A: RF149DLEO RF185DLEO
Serija B: RF045DWEO RF092DWEO

Slike služe samo kao reference. Pogledajte stvarni objekt.

Značajke

--Zeleno i ekološki prihvatljivo rashladno sredstvo

Usvojeni su materijali bez CFC-a, zeleni i ekološki prihvatljivi materijal R600a, 80 % glavnih materijala može se reciklirati;

--S pretincem za blago zamrzavanje hrane;
--Poluautomatsko odmrzavanje
--Reverzibilna vrata zadovoljavaju potrebe različitih skupina;
--Unutarnja mehanička regulacija temperature za jednostavno rukovanje;

Rukovanje i postavljanje

Illustration showing a distressed box with steam rising, accompanied by a monitor displaying 'CO' and a warning symbol.

Cartoon illustration of a smiling character standing beside a rectangular box on a tiled floor (no text or symbols)

Hladnjak nikada ne postavljajte u previše hladno okruženje koje se može smrznuti.

Cartoon illustration of a character holding a box with surprised expression, surrounded by snowflakes and falling petals (no text or symbols)

Cartoon illustration of a cube with steam rising from its base, no text or symbols present

Savjet:

--Za rukovanje hladnjakom potrebne su najmanje dvije osobe — jedna podiže gornji stražnji dio, druga rukuje dnom (ako je jedan dio fiksiran, to je prilično opasno i može izazvati nezgodu).

Line drawing of a rectangular electronic device with a button and ventilation slots (no text or symbols)

Illustration of hands holding a grid-based object with curved arrows indicating rotation (no text or symbols)

Rastavljanje i sastavljanje dodataka

--Staklena polica u rashladnoj komori: visina police je podesiva, što olakšava pohranu namirnica različitih volumena. Lagano povucite policu prema van i prema gore da je izvadite.
--Kutija za voće i povrće: za pohranu povrća i voća. Može se izvaditi povlačenjem prema van.
--Postolje za boce u vratima hladnjaka: čuvanje jaja, raznih flaširanih pića i ostalih stvari. Može se izvaditi tako da se lagano podigne.

Napomena:

Illustration of an electrical outlet with a plug and switch, showing a close-up of the socket (no text or symbols)

Seria A: RF149DLE0 RF185DLE0
Seria B: RF045DWE0 RF092DWE0

Illustration showing a distressed box with steam rising, accompanied by a warning sign and a QR code.

Cartoon illustration of a smiling character standing beside a rectangular box with arms down, placed on tiled floor (no text or symbols)

Cartoon illustration of a character holding a box with snowflakes around (no text or symbols)

Cartoon illustration of a cube-shaped object with a smiling face and steam lines, placed on a base (no text or symbols)

Atentie:

Illustration of hands holding a grid-based object with curved arrows indicating rotation (no text or symbols)

Illustration of a plug with a switch connected to an open electrical outlet (no text or symbols)

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Rad A: RF149DLE0 RF185DLE0
Rad B: RF045DWEO RF092DWEO

Illustration of a cartoon character standing beside a cardboard box with steam rising, next to a small fan icon (no text or symbols)

Cartoon illustration of a smiling rectangular character with arms and legs, no text or symbols present

Cartoon character holding a box with surprised expression, surrounded by snowflakes and decorative elements (no text or symbols)

Cartoon illustration of a cube with a sad face and steam lines, placed on a base with no text or symbols.

Informácia o teple:

Line drawing of a rectangular electronic device with a button and ventilation slots (no text or symbols)

Kombinovaný panel osvetlenia regulátora teploty

Skladovanie potravín

Chladiaca komora (2 °C až 8 °C)

Illustration of hands holding a grid-based object with curved arrows indicating rotation (no text or symbols)

Illustration of a plug and a wall socket with a switch, showing an electrical switch (no text or symbols present)

Illustration showing a distressed box with steam rising, accompanied by a warning sign and a digital display showing 'CO'.

Cartoon illustration of a smiling character standing beside a rectangular box on a tiled floor (no text or symbols)

Cartoon illustration of a character holding a box with expressive faces, surrounded by snowflakes (no text or symbols)

Cartoon illustration of a smiling cube with steam rising from its base (no text or symbols)

Потсетување:

Illustration of hands holding a grid-based object with curved arrows indicating rotation (no text or symbols)

Illustration of a plug and a wall socket with a switch, showing an electrical switch (no text or symbols present)
