TRÅDFRI 505.455.17 - Lamp IKEA - Free user manual and instructions

Product type	Connected LED bulb
Brand	IKEA
Model	TRÅDFRI 505.455.17
Range	TRÅDFRI (IKEA connected lighting)
Socket	E27 (standard estimate)
Dimensions	Height 11 cm, diameter 6 cm (estimate)
Weight	Approximately 50 g
Power supply	220-240 V AC, 50/60 Hz
Power	10 W (estimate)
Color temperature	2200 K (reddish) to 4000 K (cool white)
Dimmability	Yes, via IKEA control device only
Max. number of bulbs per remote control	10
Operating frequency	2405 - 2480 MHz
Radio output power	10 dBm
Range	Up to 10 m (estimate)
Reset	Toggle the main switch 6 times
Compatibility	IKEA TRÅDFRI control devices
Protocol	Proprietary (Zigbee Light Link, estimate)
Maintenance and cleaning	Disconnect power before cleaning; use a dry cloth
Safety	Do not use with a standard dimmer; keep at least 20 cm away from body
Recycling	Device subject to selective sorting (crossed-out wheelie bin symbol)
Repairability	Not user-serviceable; contact IKEA

Frequently Asked Questions - TRÅDFRI 505.455.17 IKEA

How to pair the TRÅDFRI bulb with a control device?

Install and turn on the bulb. Hold the control device within 5 cm of the bulb, then press the pairing button for at least 10 seconds. A red light turns on and the bulb flashes once to confirm success.

How many bulbs can be connected to a single remote control?

It is possible to pair up to 10 light sources to a single control device. Pair them one by one.

Can I use this bulb with a standard dimmer?

No, do not use with standard dimmers. Only use the control device supplied with the product or a compatible device from the IKEA TRÅDFRI range.

What color temperatures are available?

The bulb ranges between 2200 Kelvin (reddish light), 2700 Kelvin (warm white), and 4000 Kelvin (cool white).

How to reset the TRÅDFRI bulb?

Toggle the main switch of the bulb 6 times in a row (on/off).

Is this bulb compatible with voice assistants?

Yes, via an IKEA TRÅDFRI gateway, it is compatible with Amazon Alexa, Google Assistant, and Apple HomeKit (depending on the hub).

What is the range of the radio signal?

The typical range is about 10 meters indoors, depending on obstacles. The operating frequency is 2405-2480 MHz with a power of 10 dBm.

What to do in case of radio interference?

Try reorienting the antenna, move the bulb away from the receiver, or plug it into a different circuit. Consult a qualified technician if necessary.

What is the power consumption of this bulb?

Consumption is approximately 10 W (estimate based on similar models). Check the product label for the exact value.

How to clean and maintain the bulb?

Always unplug the bulb before cleaning. Use a soft, dry cloth. Do not immerse it in water.

USER MANUAL TRÅDFRI 505.455.17 IKEA

Simple line drawing of a lit bulb with radiating lines and a control panel (no text or symbols)

max 5 cm (max 2")

English 6

Français 18

Español 31

ADD LIGHT SOURCES TO YOUR STEERING DEVICE:

Before you can use your light source you'll need to pair it with a steering device.

To add more light sources, just repeat the steps below:

1. Make sure that your light source is installed and the main power switch is turned on.

2. Hold the steering device close to the light source you want to add (no more than 5 cm away).

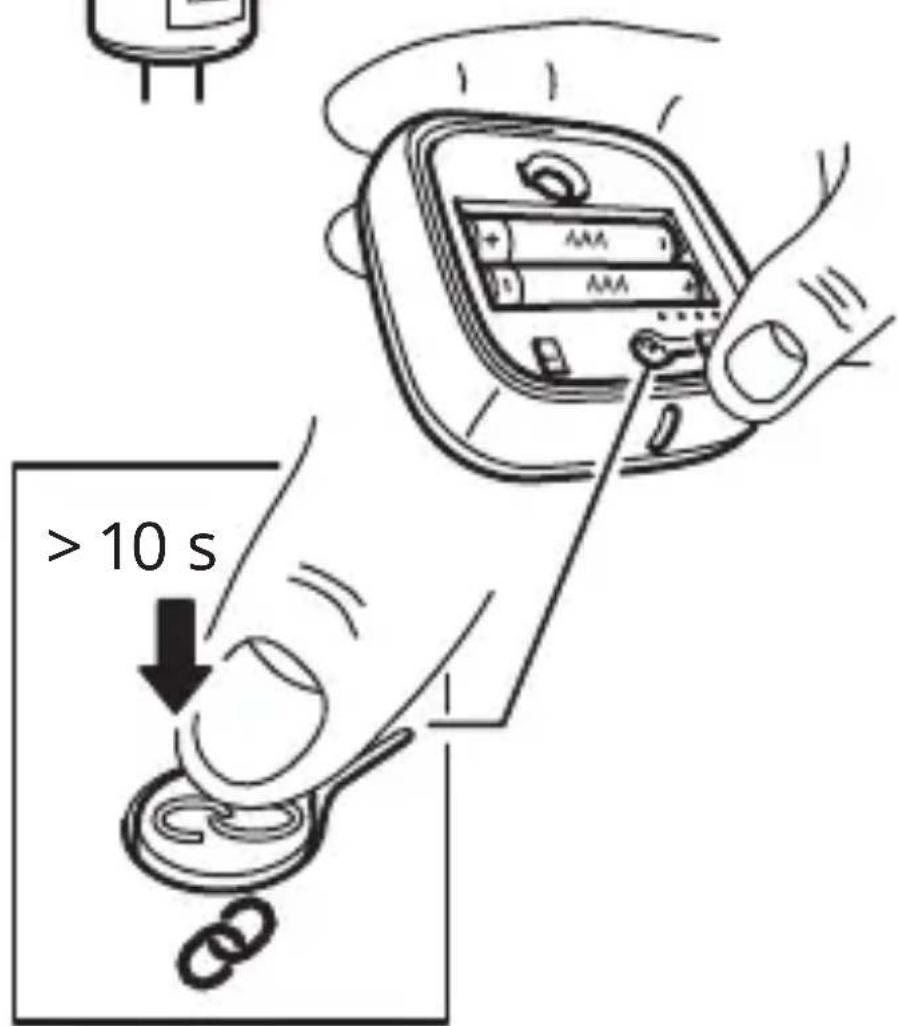

3. Press and hold the pairing button 📄 for at least 10 seconds. A red light will shine steadily on the steering device. Your light source will begin to dim and finally flash one time to indicate that it has been successfully paired.

Up to 10 light sources can be paired with 1 steering device.

Make sure to pair them one at a time. If the light sources are close to each other, disconnect those

that have already been paired from the main power switch.

CAUTION:

DO NOT USE WITH STANDARD DIMMERS. Only use the control provided with or specified by these instructions to control this bulb. This bulb will not operate properly when connected to a standard (incandescent) dimmer or dimming control. Only controllable by IKEA Smart lighting products.

The colour temperature can be switched between 2200K (warm glow), 2700K (warm white) and 4000K (cool white).

RESET YOUR DEVICE

Toggle the main switch 6 times.

TECHNICAL DATA:

Operating frequency:

2405 - 2480 MHz

Output power: 10 dBm

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

This device complies with Part 15 of the FCC Rules. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation Science and Economic Development Canada's licence-exempt RSS standard(s). Operation is subject

to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation of the device.

WARNING:

Any changes or modifications to this unit not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

RF EXPOSURE INFORMATION

According to RF exposure regulations, under normal operations the end user shall refrain from being closer than 20 cm from the device.

License rights and limitations

NO RIGHTS OR LICENSES, EXPRESS OR IMPLIED, ARE GRANTED TO USE THIRD-PARTY DEVICES IN COMBINATION WITH THESE PRODUCTS IN A WIRELESS MESH NETWORK, OR TO

USE THIRD-PARTY SERVICES TO ACCESS, MONITOR OR CONTROL THESE PRODUCTS IN A WIRELESS MESH NEWORK VIA THE INTERNET OR ANOTHER EXTERNAL WIDE AREA NETWORK.

For use pursuant to U.S. Patent Nos.:

US 6,914,893 US 7,697,492 US 8,964,708

The crossed-out wheeled bin symbol indicates

that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or landfill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
