FPJ 915 V BK A - Basket FRANKE - Free user manual and instructions

Product Type	Extractor hood
Brand	Franke
Model	FPJ 915 V BK A
Width (estimated)	90 cm
Minimum safety distance above hob	650 mm
Power supply	220-240 V ~ (mains voltage)
Electrical class	Class I (earthing required)
Exhaust duct diameter	120 mm minimum
Suction speeds	3 speeds (1, 2, 3)
Delayed start function	Yes, 5 minutes automatic
Lighting	Integrated, maximum intensity
Grease filter	Dishwasher safe, replace every 2 months
Charcoal filter	Non-washable, replace every 4 months
Exterior cleaning	Damp cloth and neutral detergent
Child safety	Use under supervision for children over 8 years
Intended use	Domestic, removal of cooking odours
Standards	Compliance with local exhaust standards
After-sales service for lighting	Contact customer service for replacement

Frequently Asked Questions - FPJ 915 V BK A FRANKE

At what height should the FPJ 915 V BK A hood be installed above the hob?

The minimum safety distance is 650 mm. If the gas hob instructions specify a greater distance, follow that.

What types of filters are used and how to maintain them?

The hood is equipped with grease filters that are dishwasher safe (every 2 months) and charcoal filters that are non-washable and should be replaced every 4 months.

How to replace the charcoal filter?

The charcoal filter cannot be washed or regenerated. It must be replaced approximately every 4 months of use, more often in case of heavy usage.

What are the available suction speeds?

The hood offers 3 speeds: first, second and third speed, accessible via buttons B, C and D respectively.

How does the delayed start function work?

The delayed start (5-minute delay) automatically stops the motor after 5 minutes. It can be activated from any speed by pressing the corresponding button.

What to do in case of a lighting failure?

The lighting can only be replaced by a professional. Contact customer service for purchase and replacement.

What safety precautions should be observed during installation?

Ensure the electrical installation has earthing and that the safety distance is respected. Do not connect the hood to flues used for combustion fumes.

Can I use the hood with a gas cooker?

Yes, but ensure room ventilation to avoid gas backflow. Negative pressure must not exceed 0.04 mbar. Respect minimum distances.

What are the electrical requirements for connecting the hood?

Check that the mains voltage matches that on the rating plate. The appliance is Class I: earthing is mandatory.

How to dispose of the hood at the end of its life?

Do not discard the appliance with household waste. Take it to a recycling collection center for electrical and electronic equipment.

USER MANUAL FPJ 915 V BK A FRANKE

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
• Connect the extractor to the

exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

• Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

- If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.

- Connect the plug to a socket complying with current regulations, located in an accessible place.

- With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local

authorities.

WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Do not look directly at the light through optical devices (binoculars, magnifying glasses...).
• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.
- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

- Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

- Range hoods and other cooking fume extractors may adversely affect the safe operation of

appliances burning gas or other fuel (including those in other rooms) due to back flow of combustion gases. These gases can potentially result in carbon monoxide poisoning. After installation of a range hood or other cooking fume extractor, the operation of flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

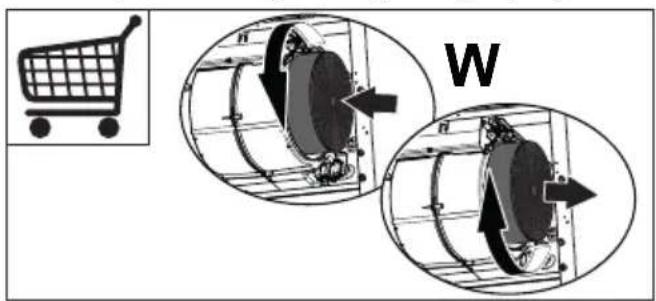

- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

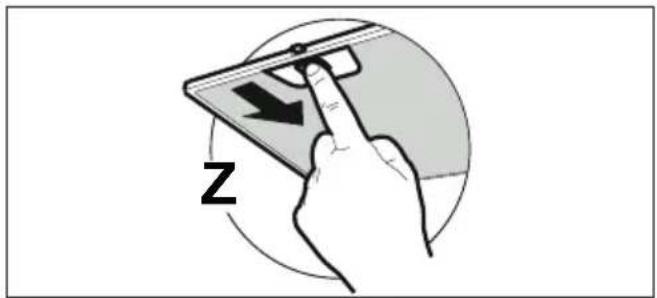

- The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

Illustration of a hand interacting with a smartphone displaying a downward arrow, labeled 'Z' (no text or symbols on the diagram itself)

- Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

Button	Function
A	Turns the lighting system on and off at maximum intensity.
B	Turns the suction motor on and off at speed one.
	Delay functionActivate automatic switch-off with a 5' delay. Suitable to complete elimination of residual odours. Can be activated from any position, and is disabled by pressing the button or turning the motor off.
C	Turns the suction motor on and off at speed two.
	Delay functionActivate automatic switch-off with a 5' delay. Suitable to complete elimination of residual odours. Can be activated from any position, and is disabled by pressing the button or turning the motor off.
D	Turns the suction motor on and off at speed three.
	Delay functionActivate automatic switch-off with a 5' delay. Suitable to complete elimination of residual odours. Can be activated from any position, and is disabled by pressing the button or turning the motor off.

5. LIGHTING

- For replacement contact technical support ("To purchase contact technical support").
