Download the instructions for your Lighting in PDF format for free! Find your manual TRÅDFRI 105.413.09 - IKEA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TRÅDFRI 105.413.09 by IKEA.
USER MANUAL TRÅDFRI 105.413.09 IKEA


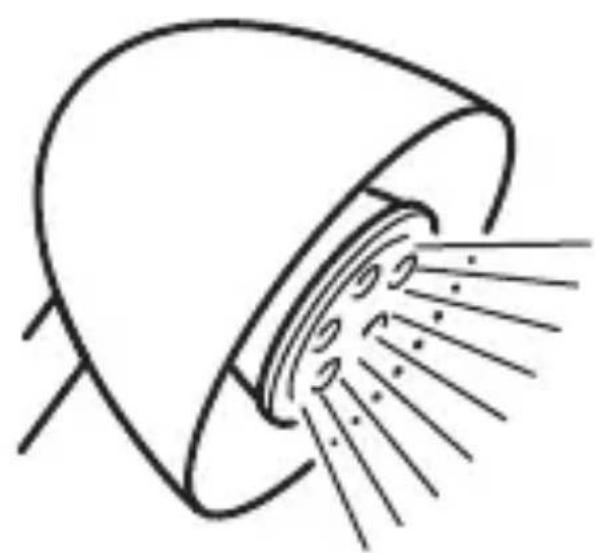

Simple line drawing of a showerhead emitting light rays (no text or symbols)max 5 cm (max 2")
Deutsch 11
Français 14
Nederlands 17
Dansk 20
Íslenska 23
Norsk 26
Suomi 29
Svenska 32
Česky 35
Español 38
Italiano 41
Magyar 44
Polski 47
Eesti 50
Latviešu 53
Lietuvių 56
Português 59
Româna 62
Slovensky 65
Български 68
Hrvatski 71
Ελληνικα 74
Русский 77
Українська 80
Srpski 83
Slovenščina 86
Türkçe 89
عربي 92
ADD LIGHT SOURCES TO YOUR STEERING DEVICE:
Before you can use your light source you'll need to pair it with a steering device.
To add more light sources, just repeat the steps below:
- Make sure that your light source is installed and the main power switch is turned on.

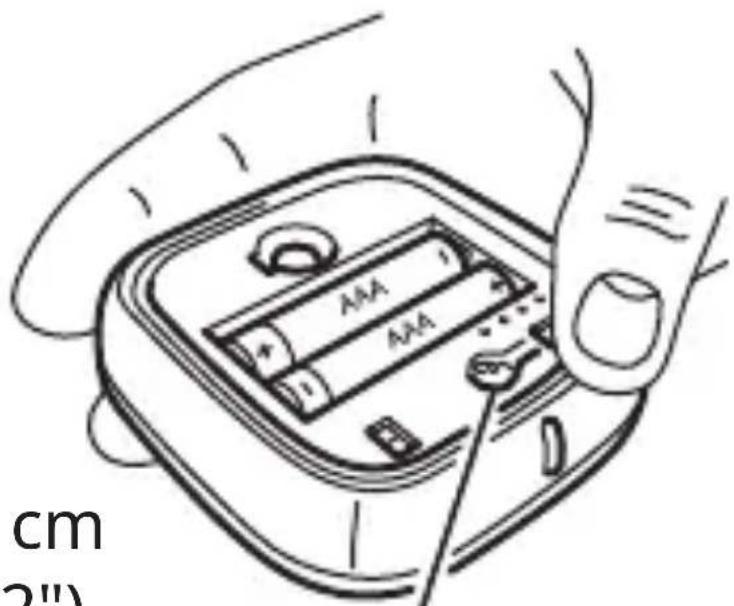

- Hold the steering device close to the light source you want to add (no more than 5 cm away).

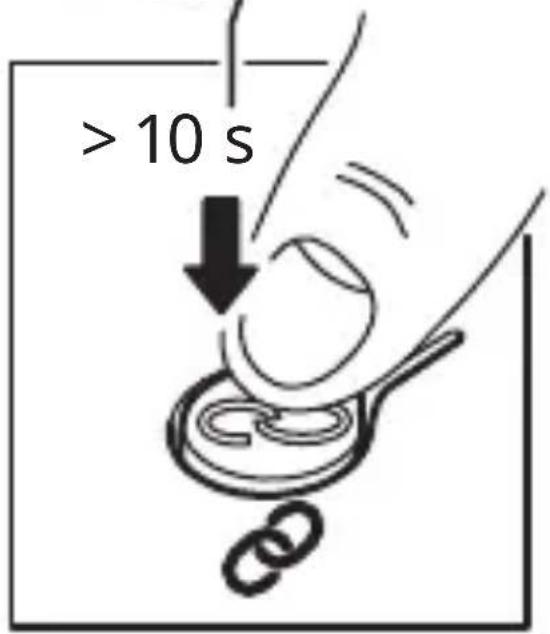

- Press and hold the pairing button for at least 10 seconds. A red light will shine steadily on the steering device. Your light source will begin to dim and finally flash one time to indicate that it has been successfully paired.
Up to 10 light sources can be paired with 1 steering device.
Make sure to pair them one at a time. If the light sources are close to each other, disconnect those that have already been paired from the main power switch.
CAUTION:
DO NOT USE WITH STANDARD DIMMERS. Only use the control provided with or specified by these instructions to control this bulb. This bulb will not operate properly when connected to a standard (incandescent) dimmer or dimming control. Only controllable by IKEA Smart lighting products.
RESET YOUR DEVICE
Toggle the main switch 6 times.
TECHNICAL DATA:
Operating frequency: 2405 - 2480 MHz Output power: 10 dBm
Manufacturer: IKEA of Sweden AB
Address: Box 702, SE-343 81 Älmhult, SWEDEN
The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
AJOUT SOURCES LUMINEUSES AU DISPOSITIF DE COMMANDE
Fabricant : IKEA of Sweden AB
Adresse : Box 702, SE-343 81 Älmhult, SUÈDE
JE APPARAAT RESETTEN
Producent: IKEA of Sweden AB
Framleiðandi: IKEA of Sweden AB
Heimilisfang: Box 702, SE-343 81 Älmhult, SWEDEN
TILBAKESTILL PRODUKTET
Produsent: IKEA of Sweden AB
Adresse: Box 702, SE-343 81 Älmhult, SWEDEN
Producent: IKEA of Sweden AB
Adres: Box 702, SE-343 81 Älmhult, SZWECJA
Tootja: IKEA of Sweden AB
Address: Box 702, SE-343 81 Älmhult, SWEDEN
