Brand	Broan
Model	Antero CLSC130SS
Product Type	Under-cabinet range hood
Series	CLSC2
Width	30 in (76.2 cm)
Supply Voltage	120 V AC, 60 Hz
Lighting	2 LED bulbs, 4 W max., GU10 base (included)
Motor	Thermal protection, permanently lubricated
Fan Speeds	2 speeds (low and high) with I/II switch
Duct Type	3-1/4 in x 10 in rectangular or 7 in round (steel)
Recirculation Mode	Possible (charcoal filters optional)
Grease Filters	Metallic, dishwasher safe
Recirculation Filters	Replace every 3 to 6 months
Filter Maintenance Reminder	Yes (LED flashing)
Material	Stainless steel
Grounding	Required
Installation	Under cabinet, with or without ducts
Warranty	1 year, parts and labor (LED: 3 years)
Weight (estimated)	Approximately 15 kg (33 lb)
Dimensions (approx., H x W x D)	6.5 in x 30 in x 18 in (16.5 x 76.2 x 45.7 cm)

Frequently Asked Questions - Antero CLSC130SS BROAN

What is the recommended mounting height for the Antero CLSC130SS hood?

The bottom of the hood should be located at least 18 inches above an electric cooktop and 26 inches above a gas cooktop. A distance greater than 30 inches is at the installer's discretion.

How to clean the grease filters?

The metal grease filters can be hand washed with a solution of hot water and detergent or in the dishwasher using a phosphate-free detergent. It is recommended to clean them frequently.

Can I use the hood in recirculation mode?

Yes, the hood can operate in recirculation mode by installing recirculation (charcoal) filters sold separately. The recirculation filters should be replaced every 3 to 6 months.

How to replace the LED bulbs of the hood?

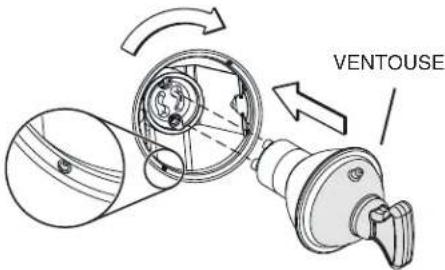

Use the included suction cup to remove the bulb: press on the bulb and turn counterclockwise. To install, align the pins with the holes, push upward and turn clockwise. The bulbs are 4 W max., GU10 base.

What to do if the hood motor stops and restarts automatically?

The motor has a thermal protection that turns it off in case of overheating. It will restart automatically after cooling down. If the problem persists, have the unit checked by a professional.

How to reset the filter maintenance reminder?

When the 3 LED indicators flash slowly after the fan stops, press the fan button for 3 seconds during the 30-second flashing period to reset the reminder.

Is the hood compatible with a solid-state speed control?

No, using an additional solid-state speed control is not recommended. Use only the controls provided with the hood.

What type of duct should I use for ventilation?

Use only metal ducts. The recommended dimensions are 3-1/4 in x 10 in rectangular or 7 in round. For optimal performance, use a straight and short duct with a minimum of elbows.

What to do if the hood seems less effective?

Check that the grease filters are clean, the ducts are not blocked, and the damper flap operates freely. Also ensure the hood is installed at the correct height.

How to clean the stainless steel surface?

Clean regularly with a clean cloth dampened with hot water and mild soap, following the grain. Rinse with clear water and wipe dry completely. Avoid steel wool, abrasive powders, and products containing chlorine.

USER MANUAL Antero CLSC130SS BROAN

Series: CLDA1 and CLSC2

INSTALLATION, USE

AND CARE MANUAL

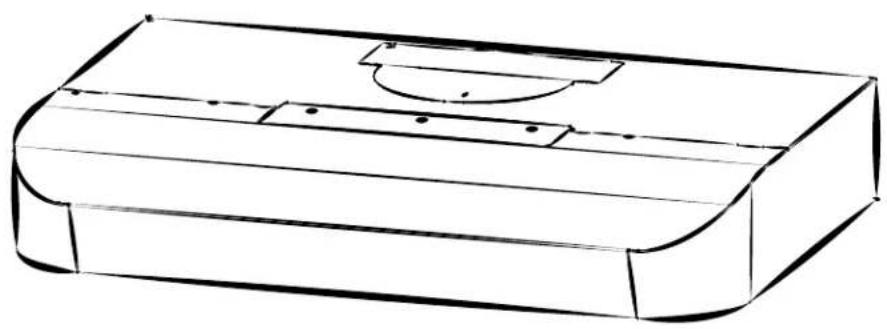

Line drawing of a flatboard-shaped object with a recessed top and mounting holes (no text or symbols)

Serial number:

99045653-003J

Safety 3-4

Operation 5

Cleaning and Maintenance.... 6

Motor

Grease Filter

Non-Ducted Recirculation Filter

Fan Blade

Stainless Steel Cleaning

Painted Finish Cleaning

Installation 7-17

Recommended Tools

and Accessories for Installation 7

Install Ductwork (Ducted Installations Only) . . . 7

Contents 8

Prepare the Hood 9-11

Prepare the Hood Location.... 12

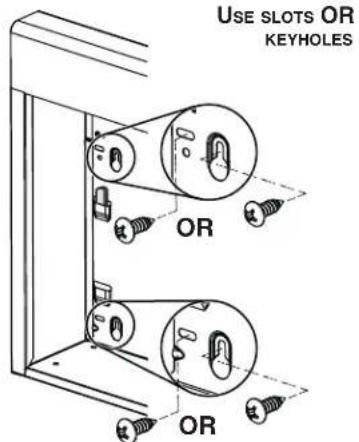

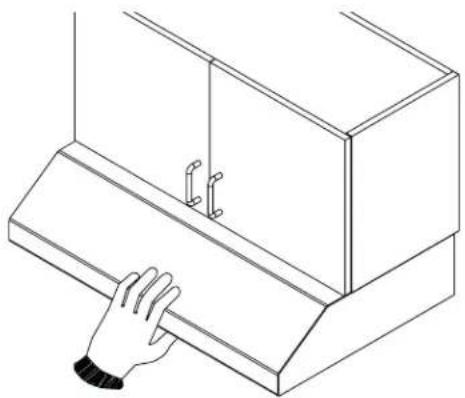

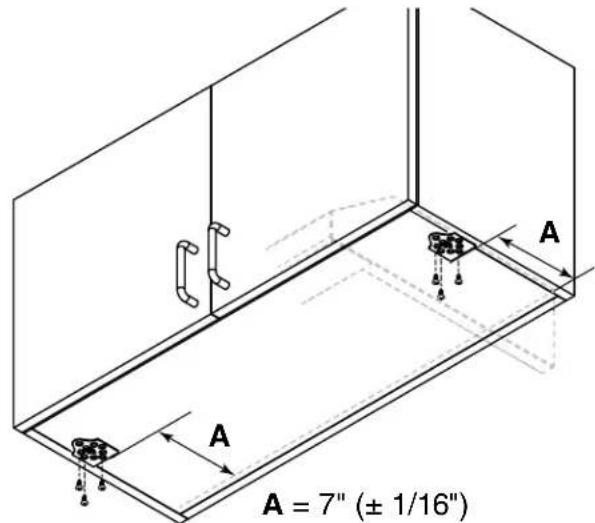

EZ1 One-Person Installation 12-13

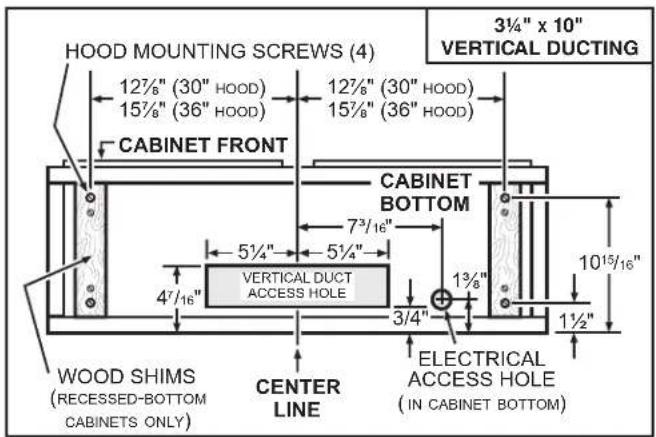

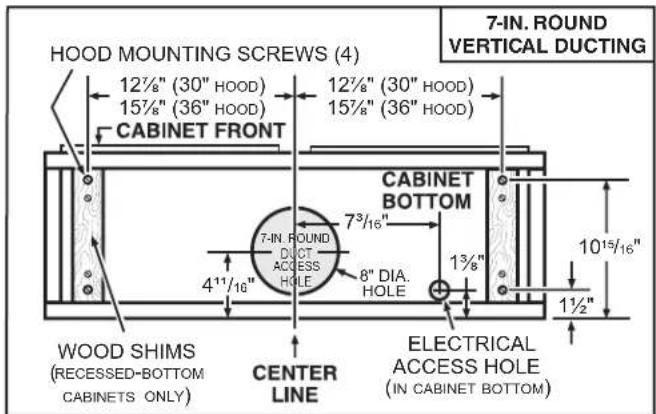

Standard Installation 14

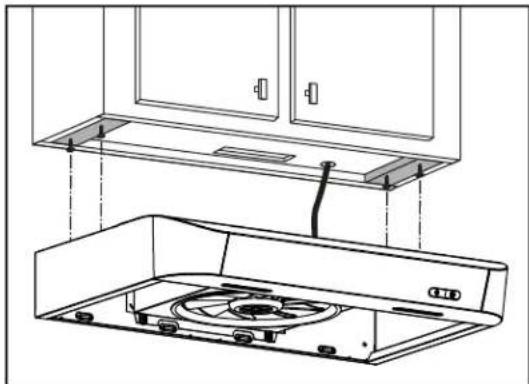

Install the Hood (Standard Installation) ..... 15

Connect the Wiring 16

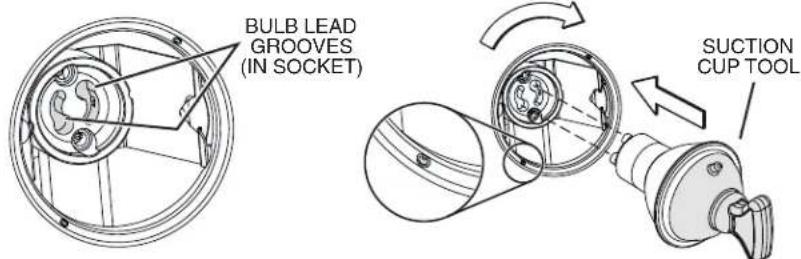

LED Light Bulbs (CLSC2 Series only) ..... 17

Install the Filters 17

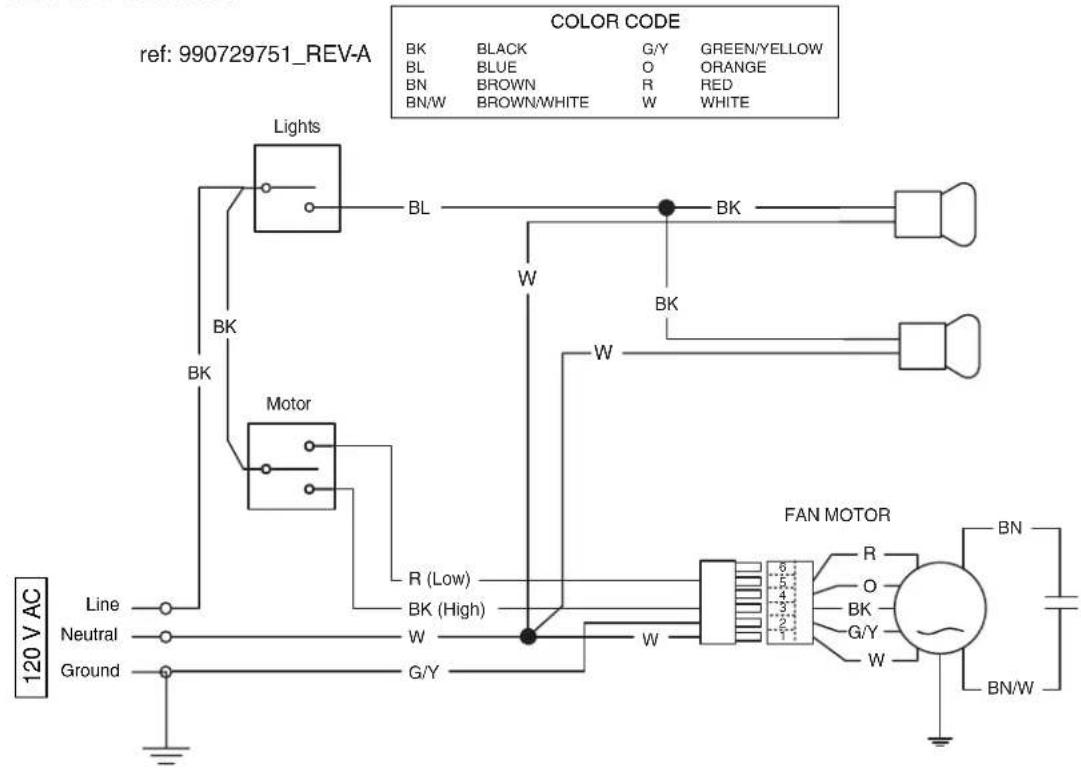

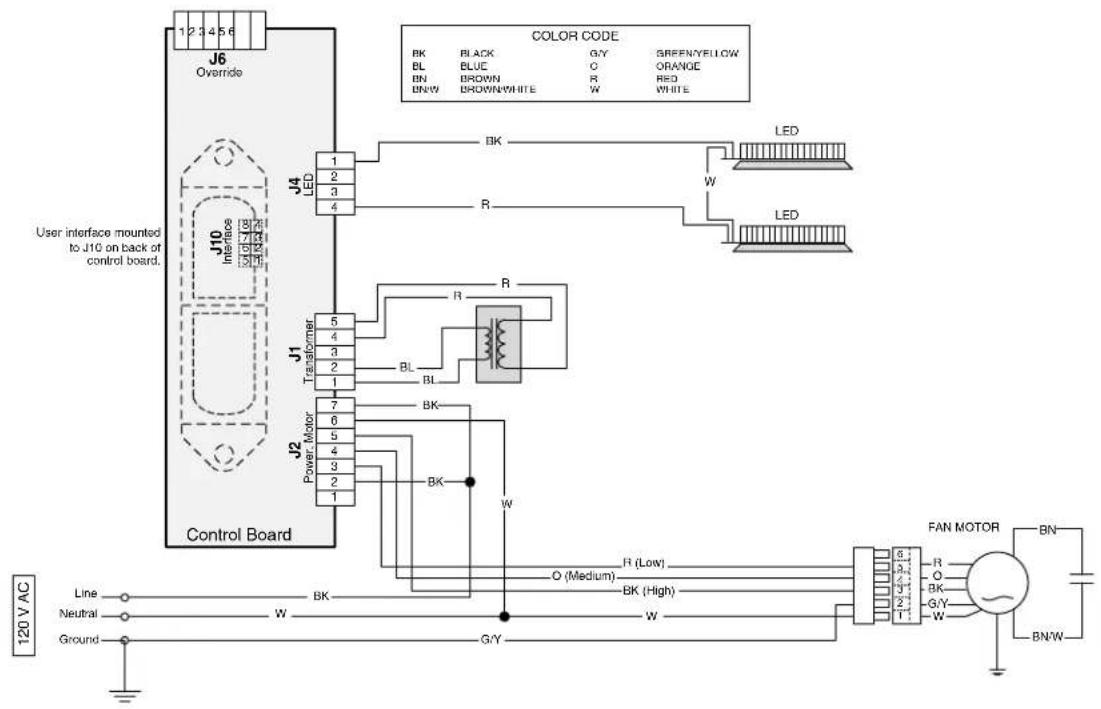

Wiring Diagrams 18

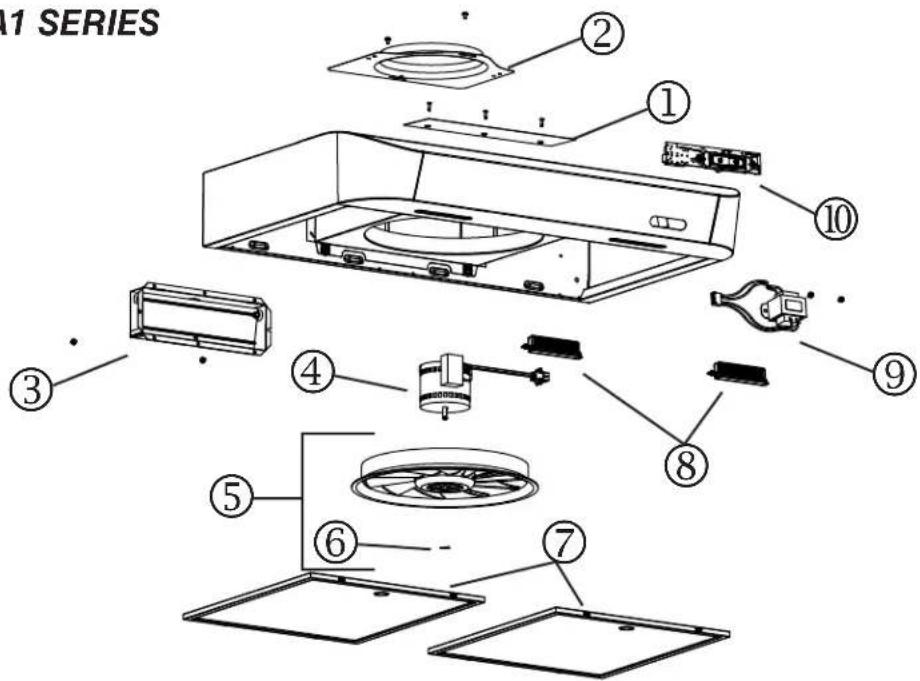

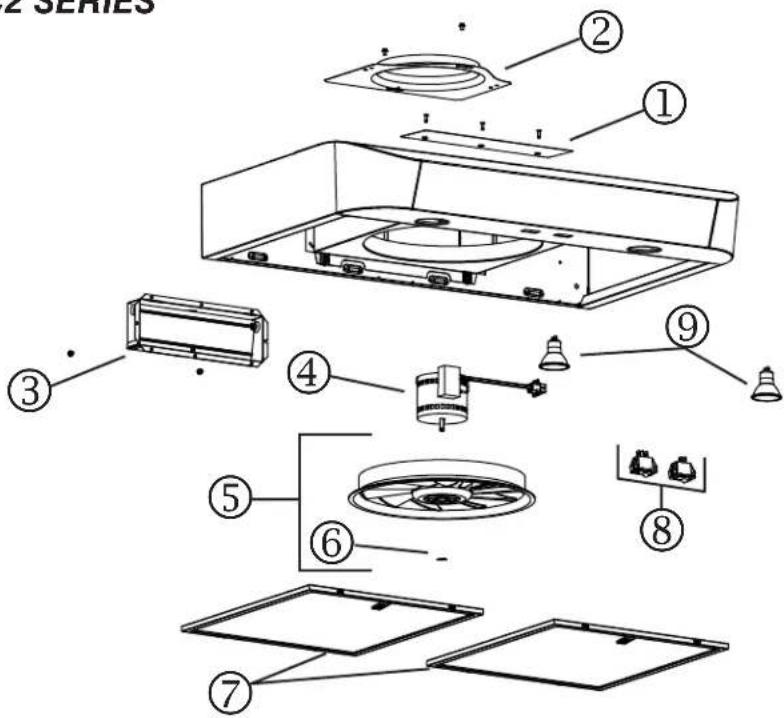

Service Parts 19-20

Warranty 21

READ AND SAVE THESE INSTRUCTIONS

Intended for domestic cooking only

INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.

In U.S.A., register your range hood online at www.broan-nutone.com In Canada, register your range hood online at www.broan.ca

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

• Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
• Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
• Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
• Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guidelines and safety standards such as those published by the National Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
• When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
• Ducted fans must always be vented to the outdoors.
• Do not use this unit with any additional solid-state speed control device.
• To reduce the risk of fire, use only metal ductwork.
  • This unit must be grounded.
• As an alternative, this product may be installed with the UL-approved cord kit designated for the product, following instructions packed with the cord kit.
• When applicable local regulations comprise more restrictive installation and/or certification requirements, the aforementioned requirements prevail on those of this document and the installer agrees to conform to these at his own expense.

WARNING

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when flambeing food (i.e.: Crêpes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
c) Clean ventilating fan frequently. Grease should not be allowed to accumulate on fan, filters or in exhaust ducts.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING\*:

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY, EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN — You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels — This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:

A. You own a Class ABC extinguisher and you know how to operate it.

B. The fire is small and contained in the area where it started.

C. The fire department has been called.

D. You can fight the fire with your back to an exit.

* Based on "Kitchen Fire Safety Tips" published by NFPA.

CAUTION

• For indoor use only.
• For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
• To avoid motor bearing damage and noisy and/or unbalanced fan blade, keep drywall spray, construction dust, etc. off range hood.
• Your hood motor has a thermal overload which will automatically shut off the motor if it becomes overheated. The motor will restart when it cools down. If the motor continues to shut off and restart, have the hood serviced.
• For best capture of cooking fumes, the bottom of the hood must be at a minimum of 18" above the cooking surface for electrical range and at a minimum of 26" above the cooking surface for gas range.
• Always follows the cooking equipment manufacturer's requirements regarding the ventilation needs.
• To reduce the risk of fire and to properly exhaust air, be sure to duct air outside — Do not exhaust air into spaces within walls or ceiling or into attics, crawl space or garage.
• When installing, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.
• Please read specification label on product for further information and requirements.

Operation

Always turn your hood on before you begin cooking to establish an air flow in the kitchen. Let the blower run for a few minutes to clear the air after you turn off the range. This will help keep the whole kitchen cleaner and fresher.

Operate the hood as follows:

CLSC2 SERIES

S I · II 扇

BLOWER SWITCH

I Turns blower on to LOW speed.
- Turns blower OFF.
II Turns blower on to HIGH speed.

LIGHT SWITCH

I Turns light ON.
- Turns light OFF.

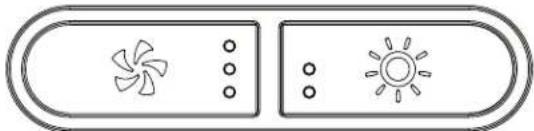

CLDA1 SERIES

Simple diagram of a device with fan, sun, and dot indicators (no text or symbols)

BLOWER BUTTON

When blower is OFF, press this button to turn ON the blower at the last saved speed. If there was no speed saved, the blower will be set on LOW speed.

NOTE: When LOW speed is activated from OFF, the blower starts on MEDIUM speed for a very short lapse of time, and then resume to LOW speed.

To change the blower speed, press on this button again until the desired speed is reached (from LOW to MEDIUM to HIGH speed to OFF). Each time a blower speed is activated, a beep is heard and LED indicators light up to show the corresponding speed chosen (lower LED for LOW speed, lower and center LEDs for MEDIUM speed and all LEDs for HIGH speed).

When blower is on (no matter the speed level), press and hold this button until the beep sound ends; this will turn off the blower and save this blower speed to memory.

LIGHT BUTTON

When lights are OFF, press once on this button to turn ON the lights at the last saved setting. If there was no light setting saved, the lights will be set on LOW intensity. Press another time to set the lights on HIGH intensity. Pressing another time after the HIGH setting will turn OFF the lights. Each time the lights are turned ON, a beep is heard and LED indicators light up to show the corresponding intensity chosen (lower LED for LOW and both LEDs for HIGH).

When lights are on (no matter the lighting level), press and hold this button until the beep sound ends; this will turn off the lights and save the chosen light intensity.

The LED modules included with this hood are the latest in LED cooktop illumination technology specially designed to operate in the elevated temperatures of cooking - offering bright lighting and lasting up to 25 times as long as a standard bulb and greater reliability than typical replacement LED bulbs.

FILTER CLEANING REMINDER

When it is time to clean the hood and filters (refer to Cleaning and Maintenance on page 6), the 3 blower button LED indicators will flash slowly for 30 seconds after turning the blower OFF. This will happen every time the blower is turned OFF until the filter cleaning reminder has been reset. Once the cleaning is done, reset the filter cleaning reminder indicators by pressing on blower button for 3 seconds during the 30 seconds the 3 blower button LED indicators flash slowly.

Cleaning and Maintenance

Proper maintenance of the Range Hood will assure proper performance of the unit.

MOTOR

The motor is permanently lubricated and never needs oiling. If the motor bearings make excessive or unusual noise, replace the motor with the exact service motor. The fan blade should also be replaced.

GREASE FILTERS

The grease filters should be cleaned frequently. Use a warm dishwashing detergent solution. Grease filters are dishwasher safe.

Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of the filters may occur if using phosphate detergents, or as a result of local water conditions - but this will not affect filter performance. This discoloration is not covered by the warranty. To minimize or prevent discoloration, hand wash filters using a mild detergent.

NON-DUCTED RECIRCULATION FILTERS

The non-ducted recirculation filters should be changed every 3 to 6 months. Replace more often if your cooking style generates extra grease, such as frying and wok cooking. Refer to installation instructions included with non-ducted recirculation filters.

FAN BLADE

The fan blade should be cleaned frequently. Use a clean cloth soaked with warm detergent solution.

STAINLESS STEEL CLEANING

Do:

• Regularly wash with clean cloth or rag soaked with warm water and mild soap or liquid dish detergent.
  • Always clean in the direction of original polish lines.
  • Always rinse well with clear water (2 or 3 times) after cleaning. Wipe dry completely.
• You may also use a specialized household stainless steel cleaner.

Don't:

• Use any steel or stainless steel wool or any other scrapers to remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construction residues reach the hood. During construction/renovation, cover the range hood to make sure no dust sticks to the stainless steel surface.

Avoid when choosing a detergent:

• Any cleaners that contain bleach will attack stainless steel.
• Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be used close to a range.

PAINTED FINISH CLEANING:

Clean with warm water and mild detergent only. If discoloration occurs, use a finish polish such as automotive polish. (DO NOT use rough abrasive cleaner or porcelain cleaner.)

For ADA compliance installation guidelines, please type the model number into our website.

Recommended Tools and Accessories for Installation

• Measuring tape
  • Phillips screwdriver no. 2
• Flat blade screwdriver (to open knockout holes)
• Drill, 1/8" drill bit and 1½" hole saw (to mark holes for ducting and cut electrical access hole)
• 7/64" drill bit (to drill holes for EZ1 brackets mounting screws, not for CLSC2 Series)
• Wood shims (2) and wood screws (4) (required for standard installation to framed cabinet)
• Saw (to cut holes for ducted application)
• Sheet metal shears (ducted installation only, for duct adjustment)
• Pliers (ducted installation only, for duct adjustment)
  • Metal foil duct tape (for ducted applications)
• Scissors (to cut metal foil duct tape)
• Pencil
• Wire stripper
• Strain relief, 1/2" diameter (to secure house wiring cable to the hood)
  • BP87Q Damper (needed if 7-in. round duct is used)

Install Ductwork (Ducted Installations Only)

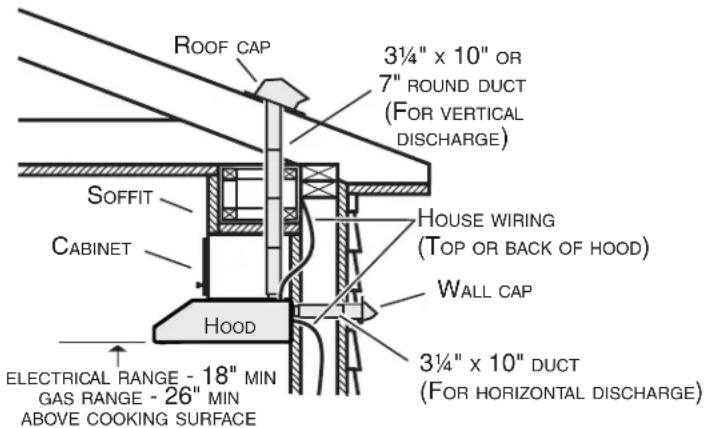

ROOF CAP 3¼" x 10" OR 7" ROUND DUCT (FOR VERTICAL DISCHARGE) SOFFIT HOUSE WIRING (TOP OR BACK OF HOOD) CABINET WALL CAP HOOD 3¼" x 10" DUCT (FOR HORIZONTAL DISCHARGE) ELECTRICAL RANGE - 18" MIN GAS RANGE - 26" MIN ABOVE COOKING SURFACE

NOTE: Distances over 30" are at the installer and user discretion.

1] Determine whether hood will discharge vertically (3¼" x 10" or 7" round), or horizontally (3¼" x 10" only).

2] Decide where the ductwork will run between the hood and the outdoors.

3] Choose a straight, short duct run to allow the hood to perform most efficiently. Long duct runs, elbows and transitions will reduce the performance of the hood. Use as few of them as possible. When possible, use at least 2 foot straight runs before any turns. Larger ductwork may be required for best performance with longer duct runs.

NOTE: To use 6" round ducting, install a 3¼" x 10" to 6" round transition (not included). The performances may be affected.

4 ] Install wall cap or roof cap (sold separately); ensure there is no leak in house insulation. Connect metal ductwork to cap and work back towards the hood location. Use 2" metal foil duct tape to seal the joints between ductwork sections.

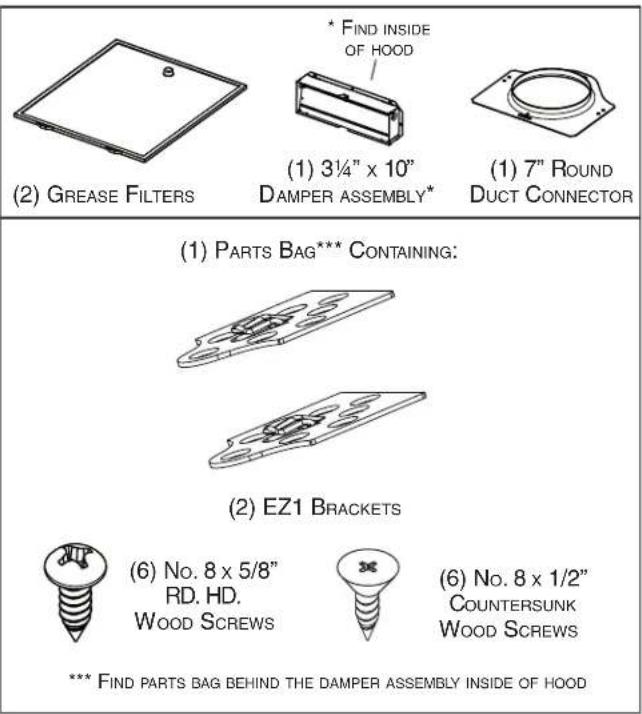

Contents

Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the manufacturer.

Make sure that the following items are included:

CLDA1 Series

(2) GREASE FILTERS * FIND INSIDE OF HOOD (1) 3¼" x 10" DAMPER ASSEMBLY* (1) 7" ROUND DUCT CONNECTOR (1) PARTS BAG*** CONTAINING: (2) EZ1 BRACKETS (6) No. 8 x 5/8" RD. HD. WOOD SCREWS (6) No. 8 x 1/2" COUNTERSUNK WOOD SCREWS *** FIND PARTS BAG BEHIND THE DAMPER ASSEMBLY INSIDE OF HOOD

CLSC2 Series

(2) GREASE FILTERS	(2) LED BULBS (4 W, GU10)(INSTALLED ON HOOD)* FIND INSIDE OF HOOD	(1) PARTS BAG**CONTAINING:(6) No. 8 x 5/8"RD. HD.WOOD SCREWS
(1) 7" ROUND DUCT CONNECTOR	(1) 31⁄4" x 10"DAMPER ASSEMBLY*	(1) BULB SUCTION CUP TOOL** FIND PARTS BAG BEHIND THE DAMPER ASSEMBLYINSIDE OF HOOD

Prepare the Hood

1] If present, remove all protective polyfilm from the hood and/or parts.

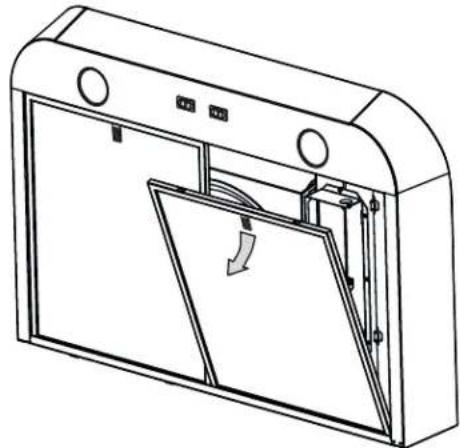

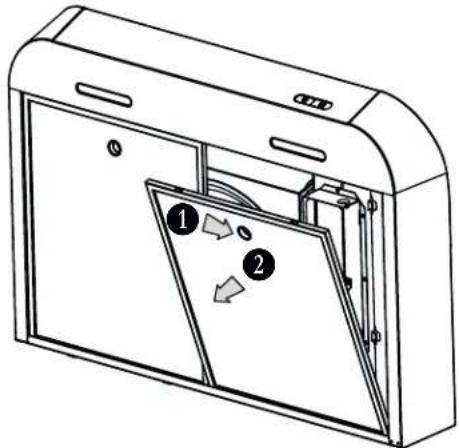

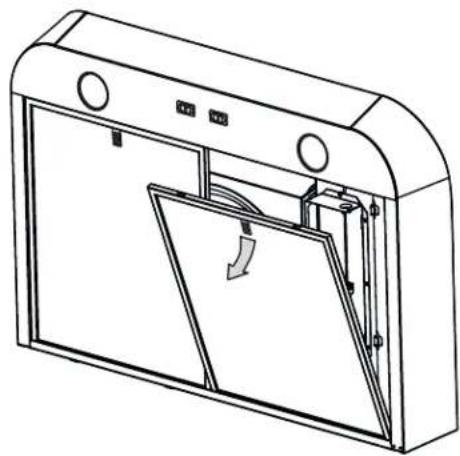

2] Using the finger cup (CLDA1 Series) or the tab (CLSC2 Series), remove the grease filters from the hood by pushing down ① and tilting filters out ②.

Technical diagram of a door with labeled parts and directional arrows indicating movement or assembly.

Line drawing of a door with open doors and internal compartments, showing no text or symbols

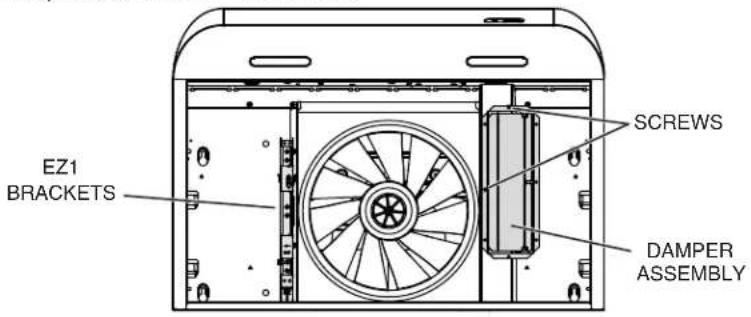

3] Remove the EZ1 brackets from inside the hood by cutting off the tie wrap (no EZ1 brackets in CLSC2 Series). Remove both screws holding damper assembly to hood. Remove parts bag (captured behind the damper assembly). Remove damper assembly from inside the hood and keep the screws for further use.

EZ1 BRACKETS SCREWS DAMPER ASSEMBLY

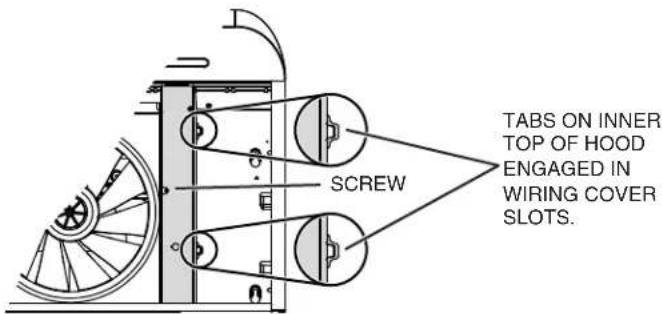

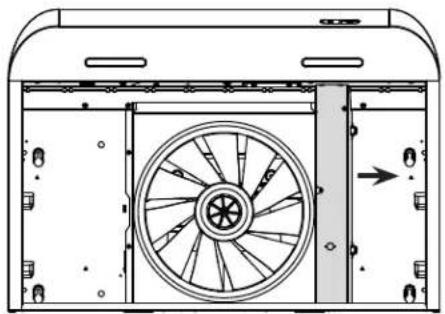

4] Remove the wiring cover (shaded part on illustration below) by sliding it out from the hood and set it aside.

Technical line drawing of a mechanical component with a central wheel and directional arrows (no text or symbols)

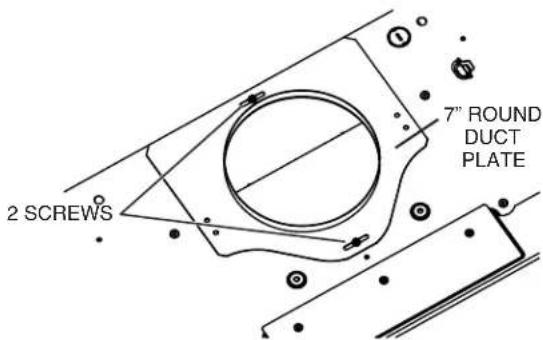

5] Remove 7" Round Duct Plate from top/back of hood (see illustration below).

2 SCREWS 7" ROUND DUCT PLATE

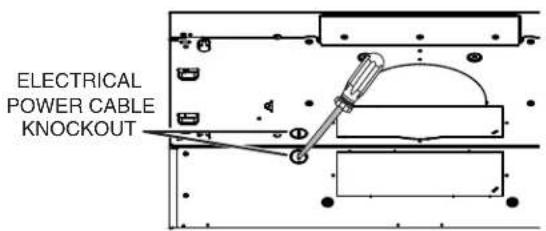

6] Remove Electrical Power Cable Knockout from top (vertical exhaust) or back (horizontal exhaust) of hood. Install an appropriate strain relief, 1/2" diameter (not included).

ELECTRICAL POWER CABLE KNOCKOUT

NON-DUCTED INSTALLATION ONLY

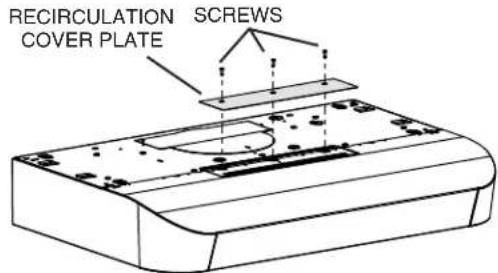

7] Remove 3 screws retaining the recirculation cover plate (shaded part in illustration below) to the hood. Discard this plate with its screws.

RECIRCULATION COVER PLATE SCREWS

DUCTED INSTALLATION ONLY

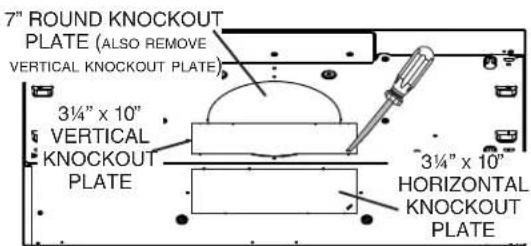

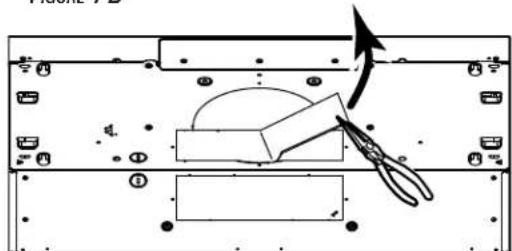

8] Remove 3¼" x 10" vertical, 3¼" x 10" horizontal, or 7-inch round knockout plate as appropriate for your ducting method (see FIGURES 1 A and 1 B).

FIGURE 1 A

7" ROUND KNOCKOUT PLATE (ALSO REMOVE VERTICAL KNOCKOUT PLATE) 3¼" x 10" VERTICAL KNOCKOUT PLATE 3¼" x 10" HORIZONTAL KNOCKOUT PLATE

FIGURE 1 B

Diagram showing a mechanical assembly with labeled components and an arrow indicating direction, likely illustrating a process or assembly.

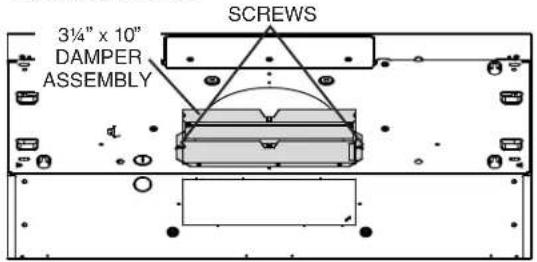

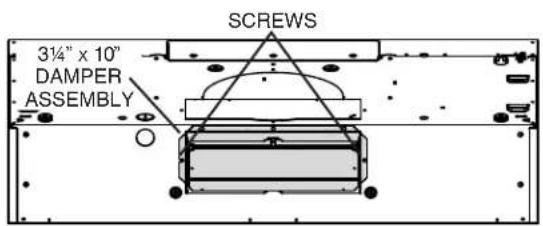

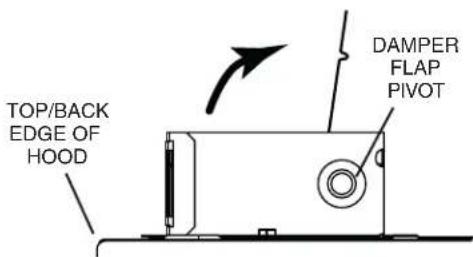

9] Attach 3¼" x 10" Damper Assembly on top OR back of hood (if using 3¼" x 10" duct; shaded part in FIGURE 2 A below) or 7" Round Duct Plate (if using 7-inch round duct, FIGURE 3) over the knockout opening. When installed, the 3¼" x 10" damper assembly must open as shown in FIGURE 2 B.

FIGURE 2 A FIGURE 2 B

3¼" x 10" DAMPER ASSEMBLY SCREWS

TOP/BACK EDGE OF HOOD DAMPER FLAP PIVOT

SCREWS 3¼" x 10" DAMPER ASSEMBLY

BACK OF HOOD DAMPER FLAP PIVOT

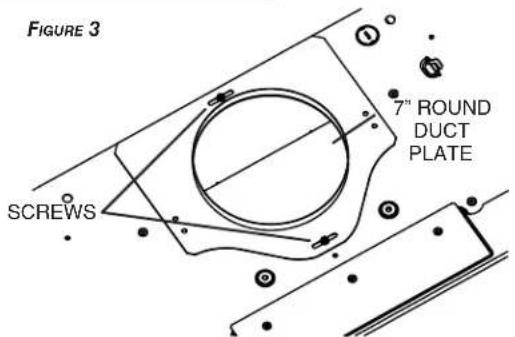

FIGURE 3 7" ROUND DUCT PLATE SCREWS

NOTE: To accommodate off-center ductwork, the 7" round duct plate can be installed up to 1/2" on either side of the hood center.
TIP: Insert a small length of duct over the 3¼" x 10" damper assembly (for rectangular ducting) or 7" round (for round ducting) and seal the joint using aluminum foil duct tape to ease connection with the house ductwork.

Prepare the Hood Location

NOTE: Before starting installation, read all the steps of these instructions. Use the illustration below to identify your kitchen cabinet type.

FRAMED CABINET FRAMELESS CABINET

Two technical line drawings of a cabinet or enclosure with no text, numbers, or symbols present.

This manual covers 2 kinds of installation: the standard (without EZ1 brackets) and the EZ1 one-person installation system (using included brackets). Please note that the EZ1 one-person installation system is not available for the CLSC2 Series. For the standard installation, go to page 14.

EZ1 one-person installation system

The EZ1 installation system consists of 2 brackets (included in parts bag). Use these brackets to TEMPORARILY hang the hood to the cabinet during its installation.

A = 7" (± 1/16") A A

7" (± 1/16") Back of hood/Wall

Outer side of the bracket flush with hood side.

Diagram showing a hand giving a thumbs-up above a container with particles, connected to a line with falling objects below.

Diagram showing a hand gesture interacting with a device, with arrows indicating signal or interaction points.

Hang the hood on the brackets using the 2 recessed FRONT HOLES. Slide hood back towards wall until hood is fully engaged.

Line drawing of a hand pressing down on a wooden cabinet (no text or symbols)

WHILE HOLDING THE HOOD, secure the hood to the cabinet using 4 round head wood screws (included in parts bag). Use 2 screws per side.

USE SLOTS OR KEYHOLES OR OR

Standard Installation (without EZ1 brackets)

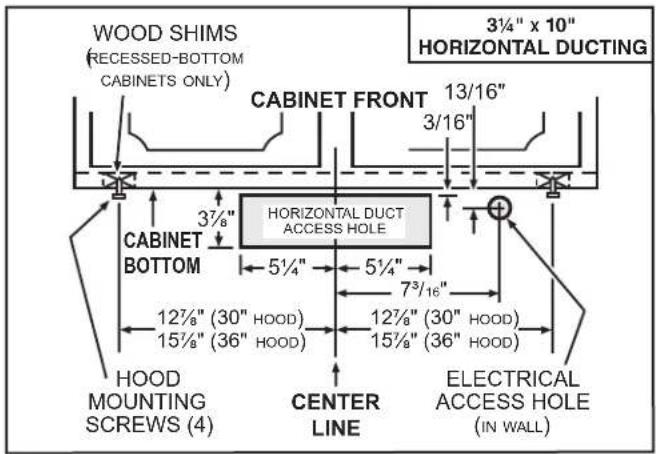

1] Use the proper diagram below for placement of ductwork and electrical cutout in cabinet or wall. For a non-ducted installation, DO NOT cut a duct access hole, only cut the hole for electrical wiring.

HOOD MOUNTING SCREWS (4) 12½" (30" HOOD) 15½" (36" HOOD) CABINET FRONT 3¼" x 10" VERTICAL DUCTING 7³/16" 5½" 4⁷/16" VERTICAL DUCT ACCESS HOLE 3/4" 1¾" 10¹⁵/¹⁶" 1½" ELECTRICAL ACCESS HOLE (IN CABINET BOTTOM) WOOD SHIMS (RECESSED-BOTTOM CABINETS ONLY) CENTER LINE

WOOD SHIMS (RECESSED-BOTTOM CABINETS ONLY) 3½" x 10" HORIZONTAL DUCTING CABINET FRONT 13/16" 3/16" 3½" HORIZONTAL DUCT ACCESS HOLE CABINET BOTTOM 5½" 5½" 7³/₁₆" 12½" (30" HOOD) 12½" (30" HOOD) 15½" (36" HOOD) 15½" (36" HOOD) HOOD MOUNTING SCREWS (4) CENTER LINE ELECTRICAL ACCESS HOLE (IN WALL)

HOOD MOUNTING SCREWS (4) 12½" (30" HOOD) 15½" (36" HOOD) CABINET FRONT 12½" (30" HOOD) 15½" (36" HOOD) 7-IN. ROUND VERTICAL DUCTING CABINET BOTTOM 7³/¹⁶" 7-IN. ROUND DUCT ACCESS HOLE 8" DIA. HOLE 1¾" 10¹⁵/¹⁶" 1½" WOOD SHIMS (RECESSED-BOTTOM CABINETS ONLY) CENTER LINE ELECTRICAL ACCESS HOLE (IN CABINET BOTTOM)

2 ] Install part-way four (4) ROUND HEAD no. 8 x 5/8" mounting screws into shims/cabinet, according to the proper diagram above. (Mounting screws are included in parts bag, but wood shims and shim mounting screws are not included.)

Install the Hood (Standard Installation)

1] Run house power cable between service panel and hood location. Run the house power cable into the hood through the strain relief previously installed in step 6 on page 10.
2] Hang hood from (4) mounting screws previously installed. Slide hood back towards wall until mounting screw heads are engaged in narrow end of keyhole slots in top of hood. Tighten screws securely. Attach power cable to the hood using the strain relief.

Line drawing of a kitchen ventilation system with an open chimney and cabinet (no text or symbols)

DUCTED INSTALLATION ONLY

3 ] Connect ductwork to hood and use metal foil duct tape to make joints secure and air-tight. Make sure the damper assembly (or round duct plate) enters the ductwork and that the damper opens and closes freely.

Connect the Wiring

WARNING

Risk of electric shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally.

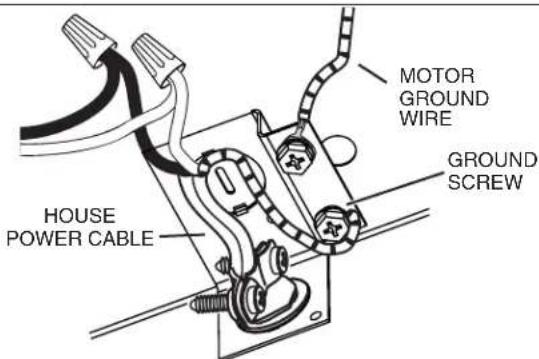

1] Connect House Power Cable to range hood wiring: BLACK to BLACK, WHITE to WHITE and GREEN or bare wire under GREEN ground screw.

SCREW TABS ON INNER TOP OF HOOD ENGAGED IN WIRING COVER SLOTS.

2] Reinstall wiring cover and attach it to the hood using its retaining screw.

CAUTION

Ensure both tabs on inner top of hood are engaged in their corresponding slots in wiring cover. Also, take care not to pinch wires while reinstalling wiring cover.

LED Light Bulbs (CLSC2 Series only)

The CLSC2 Series range hoods require two LED light bulbs (120 V, 4 W max., with GU10 base), included.

BULB LEAD GROOVES (IN SOCKET) SUCTION CUP TOOL

1] Align the bulb leads with the small indentations located on the border of the lamp location on hood (see inset above), then install the bulbs by placing the bulb leads into their grooves in the socket.
2] Gently push upwards and turn clockwise until secure.

NOTE: The Suction Cup Tool (included with hood) can be used to install and remove light bulbs. Press suction cup tool on bulb and rotate counterclockwise to remove bulb or clockwise to install bulb.

Install the Filters

Ducted Installation Only:

Re-install grease filters removed in step 2, page 9, under "Prepare the Hood".

Non-ducted Installation Only:

Purchase two non-ducted filters from your local distributor or retailer (see product specification label for filter type). Attach the non-ducted filters following instructions packed with the non-ducted filter.

CLDA1 SERIES

J6 Override User interface mounted to J10 on back of control board. J10 Interface J4 LED Control Board J1 Transformer J2 Power Motor BKN W R R BL BL R R W FAN MOTOR BN Line Neutral Ground BKN W G/Y O (Medium) F (Low) BK (High) R O BK G/Y W 120 V AC 1 2 3 4 5 6 BKN W R R W 1 2 3 4 5 6 BKN W R R W 1 2 3 4 5 6 BKN W R R W 1 2 3 4 5 6 BKN W R R W

CLSC2 SERIES

ref: 990729751_REV-A COLOR CODE BK BLACK G/Y GREEN/YELLOW BL BLUE O ORANGE BN BROWN R RED BN/W BROWN/WHITE W WHITE Lights BL W BK W Motor Line Neutral Ground R (Low) BK (High) W G/Y FAN MOTOR R O BK G/Y W BN/W 120 V AC

CLDA1 SERIES

11 SERIES ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩

KEY NO.	PART NO. DESCRIPTION		QUANTITY
			30" WHITE	30" STAINLESS	30" BLACK STAINLESS	36" BLACK	36" WHITE	36" STAINLESS	36" BLACK STAINLESS
1	S97020029	RECIRC. COVER PLATE, BLACK (INCL. SCREWS)				1
	S97020030	RECIRC. COVER PLATE, WHITE (INCL. SCREWS)	1				1
	S97020031	RECIRCULATION COVER PLATE, STAINLESS STEEL (INCLUDING SCREWS)		1				1
	S98011873	RECIRCULATION COVER PLATE, BLACK STAINLESS STEEL (INCLUDING SCREWS)			1				1
2	SR680508	7" ROUND DUCT PLATE (INCLUDING SCREWS)	1	1	1	1	1	1	1
3	S97020534	31⁄4" x 10" DAMPER ASSEMBLY (INCL. SCREWS)	1	1	1	1	1	1	1
4	S97020408	BLOWER MOTOR (INCL. 4 SCREWS AND 1 CAPACITOR)	1	1	1	1	1	1	1
5	S97020407	FANPELLER (INCLUDING ITEM 6)	1	1	1	1	1	1	1
6	SR99420635	CLIP FOR FANPELLER	1	1	1	1	1	1	1
7	S99010434-002	GREASE FILTER - MICRO MESH -TYPE C2 (SET OF 2)	1	1	1
	S99010434-003	GREASE FILTER - MICRO MESH -TYPE D2 (SET OF 2)				1	1	1	1
8	S97020444	LED MODULE (PAIR)	1	1	1	1	1	1	1
9	S97020445	TRANSFORMER 24 V 18 VA (WITH SCREWS)	1	1	1	1	1	1	1
10	S97020431	CAPTOUCH CONT. LED, STAINLESS (WITH SCREWS)		1				1
	S97020432	CAPTOUCH CONT. LED, WHITE (WITH SCREWS)	1				1
	S97020433	CAPTOUCH CONT. LED, BLACK (WITH SCREWS)			1	1			1
*	S97020453	WIRE HARNESS	1	1	1	1	1	1	1
*	S98011637	WIRING COVER	1	1	1	1	1	1	1
*	S97020360	PARTS BAG INCLUDING:2 EZ1 BRACKETS,6 ROUND HEAD NO. 8 x 5/8" WOOD SCREWS,6 NO. 8 x 1/2" COUNTERSUNK WOOD SCREWS	1 1	1 1 1 1
*	S97020466	NON-DUCTED FILTER - TYPE XC (SET OF 2)(NON-DUCTED INSTALLATION ONLY)	1 1
*	S97020467	NON-DUCTED FILTER - TYPE XD (SET OF 2)(NON-DUCTED INSTALLATION ONLY)				1 1	1
*	S99527587	NON-DUCTED FILTER CLIP KIT (INCL. 4 CLIPS)	1	1	1	1	1	1	1
*	S97020470	EASY INSTALL KIT (INCLUDING HARDWARE)	1	1	1	1	1	1	1

* ITEM NOT SHOWN.

REPLACEMENT PARTS AND REPAIRS

In order to ensure your unit remains in good working condition, you must use Broan-NuTone LLC or Venmar Ventilation ULC genuine replacement parts only. Broan-NuTone LLC or Venmar Ventilation ULC genuine replacement parts are specially designed for each unit and are manufactured to comply with all the applicable certification standards and maintain a high standard of safety. Any third party replacement part used may cause serious damage and drastically reduce the performance level of your unit, which will result in premature failing. Broan-NuTone LLC and Venmar Ventilation ULC recommend to contact a certified service depot for all replacement parts and repairs.

CLSC2 SERIES

2 SERIES ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

KEY NO.	PART NO. DESCRIPTION		QUANTITY
			30" STAINLESS	30" WHITE	30" BLACK
1	S97020029	RECIRCULATION COVER PLATE, BLACK (INCLUDING SCREWS)			1
	S97020030	RECIRCULATION COVER PLATE, WHITE (INCLUDING SCREWS)		1
	S97020031	RECIRCULATION COVER PLATE, STAINLESS STEEL (INCLUDING SCREWS)	1
2	SR680508	7" ROUND DUCT PLATE (INCLUDING SCREWS)	1	1	1
3	S97020534	3 14 " X 10" DAMPER ASSEMBLY (INCLUDING SCREWS)	1	1	1
4	S97020409	BLOWER MOTOR (INCLUDING 4 SCREWS AND 1 CAPACITOR)	1	1	1
5	S97020407	FANPELLER (INCLUDING ITEM 6)	1	1	1
6	SR99420635	CLIP FOR FANPELLER	1	1	1
7	S99010430-002	GREASE FILTER - OPEN MESH -TYPE C1 (SET OF 2)	1	1	1
8	S99030377	ROCKER SWITCH, WHITE (SET OF 2)		1
	S99030376	ROCKER SWITCH, BLACK (SET OF 2)			1
	S99030375	ROCKER SWITCH, GREY (SET OF 2)	1
9	S99271662	LED BULB 4 W, GU10	2	2	2
*	S99271660	WIRE HARNESS	1	1	1
*	S98011637	WIRING COVER	1	1	1
*	S97018623	PARTS BAG INCLUDING: 5 ROUND HEAD NO. 8 X 5/8" WOOD SCREWS, 1 SUCTION CUP TOOL	1 1 1
*	S97020466	NON-DUCTED FILTER - TYPE XC (SET OF 2)(NON-DUCTED INSTALLATION ONLY)	1 1 1
*	S99527587	NON-DUCTED FILTER CLIP KIT (INCLUDES 4 CLIPS)	1	1	1

* ITEM NOT SHOWN.

REPLACEMENT PARTS AND REPAIRS

In order to ensure your unit remains in good working condition, you must use Broan-NuTone LLC genuine replacement parts only. Broan-NuTone LLC genuine replacement parts are specially designed for each unit and are manufactured to comply with all the applicable certification standards and maintain a high standard of safety. Any third party replacement part used may cause serious damage and drastically reduce the performance level of your unit, which will result in premature failing. Broan-NuTone LLC recommends to contact a certified service depot for all replacement parts and repairs.

Limited Warranty

Warranty Period and Exclusions: Broan-NuTone LLC and Venmar Ventilation ULC (either being the "Company") warrants to the original consumer purchaser of its product ("you") that the product (the "Product") will be free from material defects in the Product or its workmanship for a period of one (1) year from the date of original purchase (or such longer period as may be required by applicable law). For Range Hood Product that includes built-in LED modules, the Company warrants the LED modules and driver to be free from material defects for a period of three (3) years from the date of purchase. The limited warranty period for any replacement parts provided by the Company and for any Products repaired or replaced under this limited warranty shall be the remainder of the original warranty period (or such longer period as may be required by applicable law).

This warranty does not cover fluorescent lamp starters, tubes, halogen and incandescent bulbs, fuses, filters, ducts, roof caps, wall caps and other accessories for ducting that may be purchased separately and installed with the Product. This warranty also does not cover (a) normal maintenance and service, (b) normal wear and tear, (c) any Products or parts which have been subject to misuse, abuse, abnormal usage, negligence, accident, improper or insufficient maintenance, storage or repair (other than repair by the Company), (d) damage caused by faulty installation, or installation or use contrary to recommendations or instructions, (e) any Product that has been moved from its original point of installation, (f) damage caused by environmental or natural elements, (g) damage in transit, (h) natural wear of finish, (i) Products in commercial or nonresidential use, or (j) damage caused by fire, flood or other act of God or (k) Products with altered, defaced or removed serial numbers. This warranty covers only Products sold to original consumers in the United States and Canada by the Company or its U.S. and Canadian distributors authorized by the Company.

This warranty supersedes all prior warranties and, subject to applicable law, is not transferable from the original consumer purchaser.

No Other Warranties: This Limited Warranty contains the Company's sole obligation and your sole remedy for defective products. The foregoing warranties are exclusive and in lieu of any other warranties and conditions, express or implied. THE COMPANY DISCLAIMS AND EXCLUDES ALL OTHER EXPRESS WARRANTIES AND CONDITIONS, AND DISCLAIMS AND EXCLUDES ALL WARRANTIES AND CONDITIONS IMPLIED BY LAW, INCLUDING WITHOUT LIMITATION THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. To the extent that applicable law prohibits the exclusion of implied warranties or conditions, the duration of any applicable implied warranty or condition is limited to the period specified for the express warranty above. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Any oral or written description of the Product is for the sole purpose of identifying it and shall not be construed as an express warranty.

Whenever possible, each provision of this Limited Warranty shall be interpreted in such manner as to be effective and valid under applicable law, but if any provision is held to be prohibited or invalid, such provision shall be ineffective only to the extent of such prohibition or invalidity, without invalidating the remainder of such provision or the other remaining provisions of the Limited Warranty.

Remedy: During the applicable limited warranty period, the Company will, at its option, provide replacement parts for, or repair or replace, without charge, any Product or part thereof, to the extent the Company finds it to be covered by and in breach of this limited warranty under normal use and service. The Company will ship the repaired or replaced Product or replacement parts to you at no charge. You are responsible for all costs for removal, reinstallation and shipping, insurance or other freight charges incurred in the shipment of the Product or part to the Company. If you must send the Product or part to the Company, as instructed by the Company, you must properly pack the Product or part—the Company is not responsible for damage in transit. The Company reserves the right to utilize reconditioned, refurbished, repaired or remanufactured Products or parts in the warranty repair or replacement process. Such Products and parts will be comparable in function and performance to an original Product or part and warranted for the remainder of the original warranty period (or such longer period as may be required by applicable law).

Company reserves the right, in its sole discretion, to refund the money actually paid by you for the Product in lieu of repair or replacement. If the Product or component is no longer available, replacement may be made with a similar product of equal or greater value, at Company's sole discretion. This is your sole and exclusive remedy for breach of this limited warranty. Exclusion of Damages: THE COMPANY'S OBLIGATION TO PROVIDE REPLACEMENT PARTS, OR REPAIR REPLACE OR REFUND, AT THE COMPANY'S OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY AND THE COMPANY'S SOLE AND EXCLUSIVE OBLIGATION. THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL, INDIRECT, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE PRODUCT, ITS USE OR PERFORMANCE. Incidental damages include but are not limited to such damages as loss of time and loss of use. Consequential damages include but are not limited to the cost of repairing or replacing other property which was damaged if the Product does not work properly.

THE COMPANY SHALL NOT BE LIABLE TO YOU, OR TO ANYONE CLAIMING UNDER YOU, FOR ANY OTHER OBLIGATIONS OR LIABILITIES, INCLUDING, BUT NOT LIMITED TO, OBLIGATIONS OR LIABILITIES ARISING OUT OF BREACH OF CONTRACT OR WARRANTY, NEGLIGENCE OR OTHER TORT OR ANY THEORY OF STRICT LIABILITY, WITH RESPECT TO THE PRODUCT OR THE COMPANY'S ACTS OR OMISSIONS OR OTHERWISE.

Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from jurisdiction to jurisdiction. The disclaimers, exclusions, and limitations of liability under this warranty will not apply to the extent prohibited by applicable law.

This warranty covers only replacement or repair of defective Products or parts thereof at the Company's main facility and does not include the cost of field service travel and living expenses.

Any assistance the Company provides to or procures for you outside the terms, limitations or exclusions of this limited warranty will not constitute a waiver of such terms, limitations or exclusions, nor will such assistance extend or revive the warranty. The Company will not reimburse you for any expenses incurred by you in repairing or replacing any defective Product, except for those incurred with the Company's prior written permission.

How to Obtain Warranty Service: To qualify for warranty service, you must (a) notify the Company at the address or telephone number stated below within seven (7) days of discovering the covered defect, (b) give the model number and part identification and (c) describe the nature of any defect in the Product or part. At the time of requesting warranty service, you must present evidence of the original purchase date. If you cannot provide a copy of the original written limited warranty, then the terms of the Company's most current written limited warranty for your particular product will control. The most current limited written warranties for the Company's products can be found at www.broan-nutone.com and www.broan-nutone.ca.

Broan-NuTone LLC, 926 West State Street, Hartford, Wisconsin, USA 53027 www.broan-nutone.com 800-558-1711 Venmar Ventilation ULC, 550 Lemire Blvd., Drummondville, Québec, Canada J2C 7W9 www.broan-nutone.ca 800-567-3855

HOTTE

DE CUISINIÈRE

MANUEL D'INSTALLATION,

D'UTILISATION ET D'ENTRETIEN

Technical line drawing of a rectangular electronic component with a recessed top and mounting holes (no text or symbols)

Numéro de série :

Sécurité 3-4

Fonctionnement. 5

Simple line drawing of an umbrella with a sun symbol (no text or labels)

COMMUTATEUR DE L'ÉCLAIRAGE

Simple diagram of a device with two panels, one showing a fan icon and the other a sun symbol (no text or labels)

BOUTON DU VENTILATEUR

Technical diagram of a door handle with labeled parts and directional arrows indicating movement or assembly.

Line drawing of a door with open doors and internal compartments, showing no text or symbols

Technical line drawing of a mechanical component with a wheel and directional arrow (no text or symbols)

Diagram showing a mechanical setup with a cutting tool and a block, no text or symbols present

Two technical line drawings of a cabinet or enclosure with no text, numbers, or symbols present.

A = 7" (± 1/16")

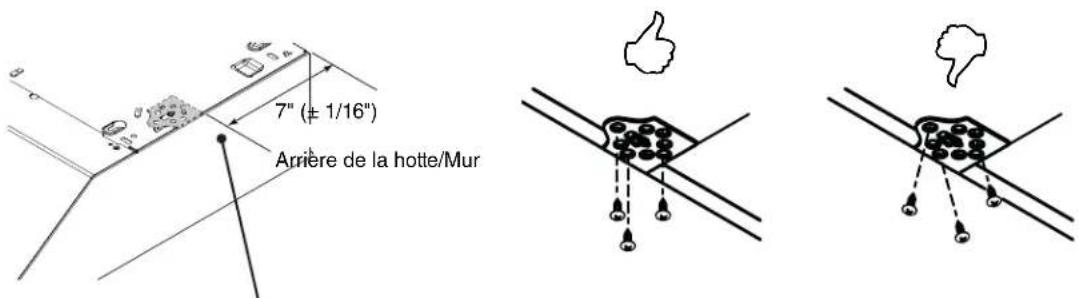

7" (± 1/16") Arrière de la hotte/Mur

Line drawing of a hand pressing down on a wooden shelf with a bracket (no text or symbols)

Installation standard (sans supports EZ1)

Technical line drawing of a double-door kitchen cabinet with an open oven and stove (no text or symbols)

INSTALLATION AVEC CONDUITS SEULEMENT

Technical line drawing of a mechanical component with no visible text or symbols

RAINURES (DANS LA DOUILLE)

VENTOUSE

Exploded view diagram of a kitchen appliance with numbered parts for identification

REPÈRE	N° DE PIÈCE	DESCRIPTION	QUANTITÉ
			30 PO INOX.	30 PO BLANCHE	30 PO NOIRE
1	S97020029	PLAQUE DE GRILLE DE RECIRCULATION, NOIRE (INCLUANT LES VIS)			1
	S97020030	PLAQUE DE GRILLE DE RECIRCULATION, BLANCHE (INCLUANT LES VIS)		1
	S97020031	PLAQUE DE GRILLE DE RECIRCULATION, INOX. (INCLUANT LES VIS)	1
2	SR680508	PLAQUE POUR CONDUIT ROND DE 7 PO (INCLUANT LES VIS)	1	1	1
3	S97020534	ADAPTATEUR/VOLET DE 3 14 PO x 10 PO (INCLUANT LES VIS)	1	1	1
4	S97020409	MOTEUR DU VENTILATEUR (INCLUANT 4 VIS ET 1 CONDENSATEUR)	1	1	1
5	S97020407	HÉLICE (INCLUANT LE REPÈRE 6)	1	1	1
6	SR99420635	CLIP D'HÉLICE	1	1	1
7	S99010430-002	FILTRE À GRAISSES À MAILLAGE RÉGULIER - TYPE C1 (ENSEMBLE DE 2)	1	1	1
8	S99030377	INTERRUPTEURS À BASCULE, BLANC (ENSEMBLE DE 2)		1
	S99030376	INTERRUPTEURS À BASCULE, NOIR (ENSEMBLE DE 2)			1
	S99030375	INTERRUPTEURS À BASCULE, GRIS (ENSEMBLE DE 2)	1
9	S99271662	AMPOULE DEL 4 W, GU10	2	2	2
*	S99271660	FAISCEAU DE FILS	1	1	1
*	S98011637	COUVERCLE DU COMPARTIMENT ÉLECTRIQUE	1	1	1
*	S97018623	SAC DE PIÈCES COMPRENANT: 5 VIS À BOIS À TÊTE RONDE N° 8 x 5/8 PO, 1 VENTOUSE	1 1 1
*	S97020466	FILTRES DE RECIRCULATION - TYPE XC (ENSEMBLE DE 2) (INSTALLATION SANS CONDUIT SEULEMENT)	1 1 1
*	S99527587	CLIPS POUR FILTRE AU CHARBON (ENSEMBLE DE 4)	1	1	1

* ARTICLE NON ILLUSTRÉ.

PIÈCE DE REMPLACEMENT ET SERVICE

Technical line drawing of a rectangular electronic component with mounting holes and a curved top (no text or symbols)

Número de serie:

99045653-003J

Seguridad....3-4

Simple line drawing of a device with two panels: one showing a fan icon, the other showing a sun symbol (no text or labels)

Simple line drawing of a sun and an oval shape with internal rectangles, no text or symbols present.

INTERRUPTOR DE LA LUZ

Technical diagram of a door with labeled parts, showing internal components and directional arrows

Line drawing of a door with open door, showing internal components and a scroll inside (no text or symbols)

Technical line drawing of a mechanical component with a wheel and directional arrow (no text or symbols)

Pure mechanical diagram showing a lever mechanism with pulleys and a block, no text or symbols present

A A = 7" (± 1/16")

7" (± 1/16") Parte trasera de la campana/pared

Diagram showing a hand gesture above a circuit board with labeled components and a thumbs-up icon

Diagram showing a droplet falling into a container with arrows indicating flow or movement, possibly illustrating a biological or chemical process.

Line drawing of a hand pressing down on a wooden shelf with a bracket (no text or symbols)

Technical line drawing of a kitchen cabinet with an open oven and electrical outlet (no text or symbols)

Exploded view diagram of a microwave oven with numbered components for identification

N.°	N° PIEZA	DESCRIPCIÓN	CANTIDAD
			30" ACERO INOX.	30" BLANCA	30" NEGRA
1	S97020029	PLACA DE CUBIERTA DE RECIRCULACIÓN, NEGRA (INCL. TORNILLOS)			1
	S97020030	PLACA DE CUBIERTA DE RECIRCULACIÓN, BLANCA (INCL. TORNILLOS)		1
	S97020031	PLACA DE CUBIERTA DE RECIRCULACIÓN, ACERO INOX. (INCL. TORNILLOS)	1
2	SR680508	PLACA DE CONDUCTO REDONDO DE 7" (INCLUYE TORNILLOS)	1	1	1
3	S97020534	CONJUNTO DE CLAPETA DE 3 14 " X 10" (INCLUYE TORNILLOS)	1	1	1
4 S	S97020409	MOTOR DEL VENTILADOR IMPELENTE (INCL. 4 TORNILLOS Y 1 CONDENSADOR)	1 1 1
5	S97020407	HÉLICE (INCLUYE N° 6)	1	1	1
6	SR99420635	CLIP DE LA HÉLICE	1	1	1
7	S99010430-002	FILTRO DE GRASA - ESTANDAR - TIPO C1 (JUEGO DE 2)	1	1	1
8	S99030377	INTERRUPTOR OSCILANTE, BLANCO (JUEGO DE 2)		1
	S99030376	INTERRUPTOR OSCILANTE, NEGRO (JUEGO DE 2)			1
	S99030375	INTERRUPTOR OSCILANTE, GRIS (JUEGO DE 2)	1
9	S99271662	BOMBILLA LED 4 W, GU10	2	2	2
*	S99271660	HARNÉS DE HILOS	1	1	1
*	S98011637	TAPA DE CABLEADOS	1	1	1
*	S97018623	BOLSA DE PIEZAS, INCLUYE: 5 TORNILLOS DE CABEZA REDONDA PARA MADERA N.° 8 X 5/8", 1 VENTOSA	1 1 1
*	S97020466	FILTRO DE RECIRCULACIÓN - TIPO Xc (JUEGO DE 2) (INSTALACIÓN SIN CONDUCTOS ÚNICAMENTE)	1 1 1
* 99527587		JUEGO DE SUJETADORES PARA FILTROS DE CARBÓN - INCLUYE 4 SUJETADORES	1 1 1

• ÍTEM NO MOSTRADO.
