DX 520E - Heating DIMPLEX - Free user manual and instructions

Product Type	Electric Wall Heater
Brand	Dimplex
Model	DX 520E
Rated Power	2.0 kW
Heat Levels	2 levels: 1.2 kW and 2.0 kW
Supply Voltage	230-240 V ~ 50 Hz
Dimensions (W x H x D)	585 x 383 x 123 mm
Weight	3.8 kg
Protection Rating	IP20
Protection Class	I (with protective conductor)
Control Type	Electronic with weekly program and adaptive start control
Temperature Range	5 °C to 30 °C
Frost Protection	Active in MANUAL OFF and AUTO modes (OFF range)
Key Lock	Yes
Program Copy Function	Yes
Adaptive Start	Yes, adjustable
Cleaning	Soft damp cloth, vacuum dusting
Safety	Overload limiter, frost protection, child safety
Warranty	2 years
Mounting Type	Wall-mounted (original fixing included)

Frequently Asked Questions - DX 520E DIMPLEX

How to install the Dimplex DX 520E heater?

Install the heater horizontally on a vertical wall respecting minimum distances (230 mm above, 230 mm below, 500 mm in front). Always use the original wall fixing provided. Ensure not to drill into electrical cables or pipes. The power socket must be accessible after installation.

How to set the time and day on the device?

Press and hold the PROG button for three seconds. The clock symbol appears. Use the + and - buttons to set the hours, press ENTER, then set the minutes and finally the day of the week. Press ENTER to confirm.

How to program the automatic mode (weekly program)?

Select AUTO mode with the MODE button. Press PROG, choose the day with the +/- buttons, then press ENTER. Set the start time of the ON period, then the end time (OFF) and the desired temperature. Repeat for programs P1 to P4.

How to use manual mode?

Press the MODE button to switch to MANUAL ON mode. Use the +/- buttons to set the desired room temperature. To turn off, switch to MANUAL OFF mode.

What to do if the heater does not heat?

Check that the heat level is correctly selected (rotary knob), that the thermostat is set to the desired temperature, that the overload limiter has not tripped (due to obstruction), and that the fuse in the electrical panel has not blown.

How to activate or deactivate frost protection?

Frost protection is automatically active in MANUAL OFF mode and in the OFF time periods of the weekly program. It activates heating if the temperature drops to 5 °C or lower. No manual activation is required.

How to lock the keypad to prevent accidental adjustments?

Press and hold the ENTER and MODE buttons simultaneously for one second. The key symbol appears on the display. To unlock, repeat the same action.

How to use the adaptive start function (ECO)?

In AUTO mode, press and hold the + and - buttons for three seconds. The ECO indicator appears. Use +/- to enable (ON) or disable (OFF) the function. Press ENTER to confirm.

How to copy the programmed settings to other days?

After setting the temperature of a program, press and hold the ENTER button until COPY is displayed. Use + to select the desired days (marked with a triangle) and - to deselect. Press ENTER to copy.

How to clean and maintain the heater?

Unplug the device and let it cool down. Clean the exterior with a soft damp cloth. Do not use scouring powder or wax. Remove dust deposits from the interior using a vacuum cleaner.

USER MANUAL DX 520E DIMPLEX

Technical line drawing of two rectangular heat exchangers with cooling fins and ventilation grilles (no text or symbols)

DCDimplex

Montage- und Gebrauchsanweisung	Deutsch
Installation and Operating Instructions	English
Instructions de montage et d’utilisation	Français
Istruzioni d’uso e di montaggio	Italiano
Instrukcja montażu i użytkowania	Polski
Montage- en gebruiksaanwijzing	Nederlands
Upute za montażu i uporabu	Hrvatski
Ръководство за монтаж и употреба	Български
Uputstvo za montażu i upotrebu	Srpski

Wandkonvektor

Convector heater

Convecteur muraux

Convettore a parete

Konwektor øcienny

Wandconvector

Zidni konvektor

Стенен конвектор

Zidni konvektor

Issue 1 long version

Cross-sectional diagram of a mechanical or fluidic component with a downward arrow indicating flow or movement (no text or symbols present)

Technical line drawing of a device with three views showing internal components and directional arrows (no text or symbols)

1. Notes for the user

NOTE

Dear customer,

Keep these instructions in a safe place and pass them on to any future owners.

To ensure safe operation, the device may only be operated in accordance with the information in these operating instructions. Please carefully follow all information provided in these instructions.

ATTENTION!

This device can be used by children aged 8 and over and by persons with limited physical, sensory or mental aptitude, providing they are supervised or have been instructed in the safe use of the device and understand the associated potential dangers. Children must not play with the device. Cleaning and user maintenance may not be carried out by children without supervision.

ATTENTION!

Children younger than 3 years of age must be kept away unless they are supervised constantly.

ATTENTION!

Children between the ages of 3 and 8 may switch the device on and off if they are supervised or have been instructed in the safe use of the device and have understood the resulting dangers, providing that the device is positioned or installed in its normal place of use.

ATTENTION!

Children between the ages of 3 and 8 may not switch on the device, clean the device or carry out maintenance.

ATTENTION!

The heating device carries the symbol shown on the right, which indicates that the heating device must under no circumstances be covered with any objects.

ATTENTION!

Some parts of the device can get very hot and cause burns. Particular caution must be taken with children or vulnerable people.

ATTENTION!

Do not operate the heating device in rooms where highly flammable substances are used (e.g. solvents).

ATTENTION!

Install the device in such a manner that it cannot be touched by a person in the bathtub or under the shower.

ATTENTION!

If the supply cord is damaged, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

ATTENTION!

Rooms can become overheated if left unattended whilst in operation; this depends on the size of the room, its heat consumption and the controller setting. Persons who are not able to vacate the room if the temperature becomes too high can thus be placed in danger.

ATTENTION!

To prevent a hazard due to the protection temperature limiter being reset unintentionally, the device must not be supplied by an external switching facility, such as a time switch, or connected to an electric circuit that is switched on and off regularly by a device.

ATTENTION!

Do not use the device if it is visibly damaged or if the device has been dropped.

ATTENTION!

If the device switches on automatically when unsupervised, hazards may arise, e.g. devices that have been covered or adjusted could result in fires.

NOTE

Use device for room heating within enclosed rooms only.

2. Installation

ATTENTION!

Do not install the device directly below a wall socket.

The minimum clearances must be observed.

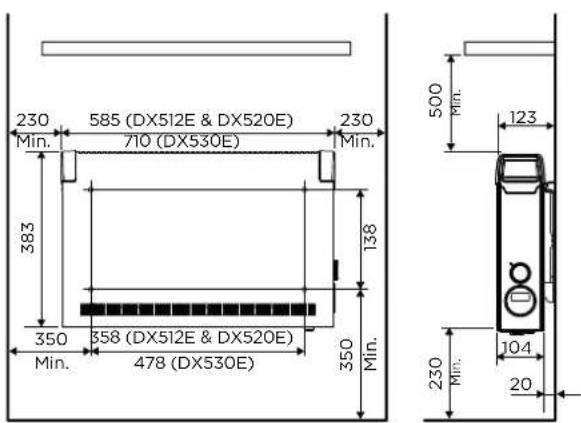

In addition, a clearance of 500 mm is to be maintained in front of the device.

The heating device must be aligned horizontally and installed on a vertical wall (see illustration).

During assembly, the safety area must be maintained, as specified in the current installation regulations.

The supply connection socket must be accessible after installation.

Make sure that the inflow and outflow of air at the top and bottom of the device are unimpeded.

2.1. Wall mounting

NOTE

The original wall bracket supplied on the rear of the device must be used.

NOTE

Pay attention to electric wires or pipework in the wall when drilling.

NOTE

Installation on wooden walls is permissible.

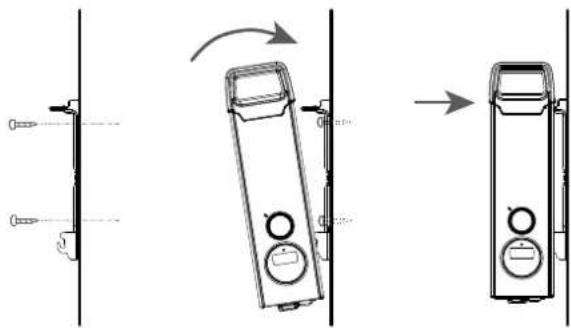

■ Remove the wall bracket from the rear of the device. To do this, press both springs down.

Cross-sectional diagram of a mechanical component with a downward arrow indicating a feature (no text or symbols present)

• Drill the fastening holes.
  ■ Screw the wall bracket securely to the wall.

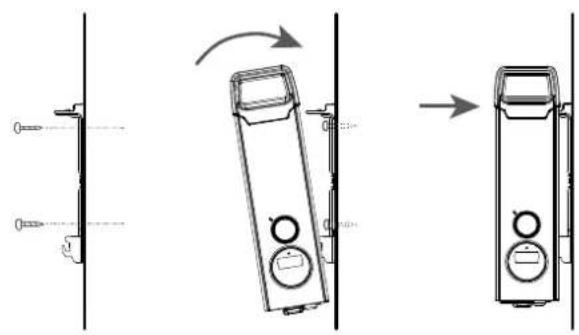

■ Fit the device in the lower slots of the wall bracket.
■ Tilt the device up and engage in the springs to lock.

Technical line drawing of a device with two views and directional arrows indicating assembly or transformation (no text or symbols)

3. Electrical connection

The voltage specified on the type plate must match the line voltage.

The cable must not be in contact with the casing.

Connect the device directly to an earthed socket. Do not use an extension cable.

The plug must always be accessible in case of emergencies.

4. Operation

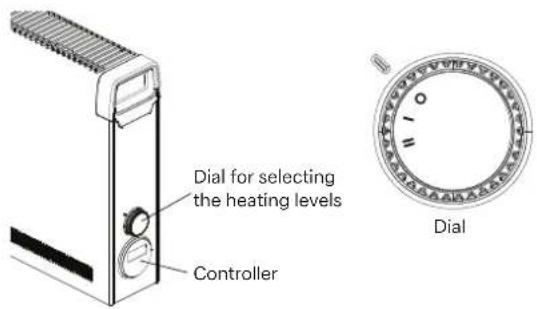

Two different heating levels can be selected using the dial:

Mode DX 512E DX 520E DX 530E
O Off
I 0.8 kW 1.2 kW 2.0 kW
II 1.2 kW 2.0 kW 3.0 kW

The room temperature is regulated using the adjustable electronic controller.

5. Controller description

5.1. Control unit

The heating device is equipped with a configurable electronic controller, consisting of a display, a red LED and five buttons.

The control unit is located on the right side panel.

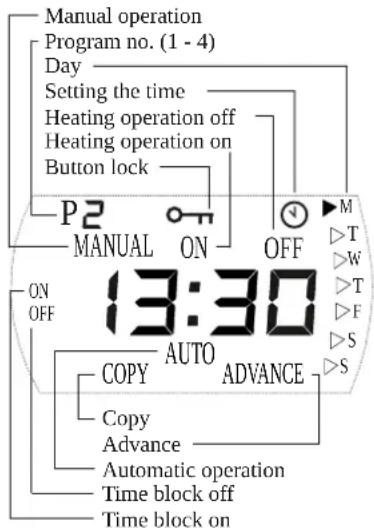

The set functions and values are shown on the display.

The LED lights up red when the heating is ON.

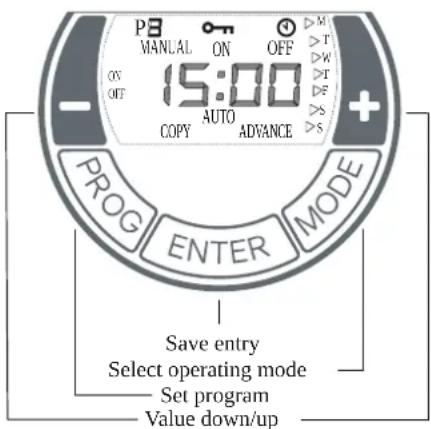

5.2. Button functions

MODE

■ Automatic mode (week program)
■ Manual operation ON
■ Manual operation OFF

ENTER

Save entry.

PROG

Week program, set clock.

+/- buttons

Used to navigate through the menu and to change the setting values.

5.3. Commissioning

5.3.1. Setting the time and day

The time and day are set with the following steps:

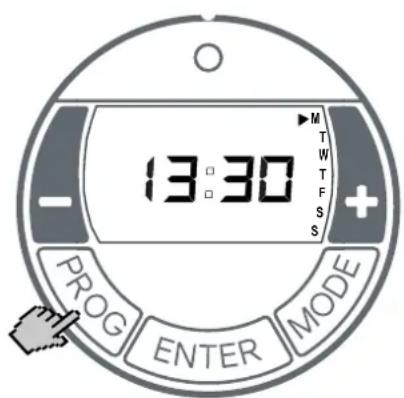

■ Press and hold the PROG key for three seconds. The clock symbol appears. The hours display flashes.
- Use the + / - buttons to set the hours. Press the ENTER button. The minutes display flashes.
- Use the + / - buttons to set the minutes. Press the ENTER button. The day flashes.
Use the + / - buttons to set the day. Press the ENTER button. The CLOCK symbol disappears. Setting is complete.

5.4. Operation

5.4.1. Selecting the operating mode

Pressing the MODE key switches the operating mode between MANUAL ON, MANUAL OFF and AUTO.

MANUAL ON

■ Manual heating operation switched on.
■ Display alternates between room temperature setting and the current time.
■ Room temperature is set using +/-.

MANUAL OFF

■ Heating operation switched off.
■ The current time is displayed.
■ Room temperature cannot be set.

i NOTE

In MANUAL OFF operating mode, frost protection takes place. If the room temperature is 5^ C or less, the heating device is switched on automatically.

AUTO

■ Automatic mode (week program) activated.
■ Display alternates between room temperature setting and the current time.
■ Heating operation takes place in the specified time blocks for ON and OFF.
■ Room temperature is set using +/-.

There are no factory default time blocks. These must be defined by the user as required.

NOTE

Frost protection is the factory default in the OFF time blocks. If the room temperature is 5^ C or less, the heating device is switched on automatically.

5.4.2. Automatic mode (week program)

NOTE

For extended operation, it is advisable to use the AUTO operating mode to reduce the operating costs.

Four times blocks are available per day. These can be adapted individually for each weekday.

• Select AUTO operating mode by pressing the MODE button.
  ■ Press the PROG key. WEEKDAY display flashes. Order from top to bottom: M = Monday, T = Thursday, S = Saturday, T = Tuesday, F = Friday, S = Sunday. W = Wednesday,

■ Use the +/- keys to set the weekday.

Setting time block ON

■ Press the ENTER key. P1 (program 1) and ON appears. The hours display flashes.
- Use the +/- keys to set the hours. Press the ENTER key. The minutes display flashes.
■ Use +/- to set minutes (in 10 minute increments).

Setting time block OFF

■ Press the ENTER key. P1 (program 1) and OFF appears. The hours display flashes.
- Use the +/- keys to set the hours. Press the ENTER key. The minutes display flashes.
■ Use the +/- keys to set the minutes.

Temperature setting

■ Press the ENTER key. Temperature setting appears.
■ Use the +/- keys to set the temperature.
■ Press the ENTER key. P2 (program 2) and ON appears. The hours display flashes.

The programs P2, P3 and P4 can be set in the same way.

i NOTE

To exit the program early, press the PROG key.

Copying programs

To copy the newly set programs P1 - P4 to other days, proceed as follows.

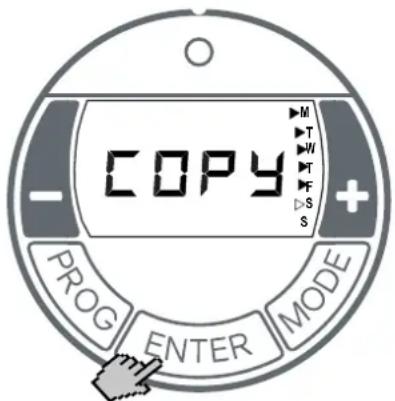

■ After carrying out the Temperature Setting, press and hold the ENTER key until COPY appears.

• Press + to select more weekdays. The selected weekdays are marked with a triangle displayed permanently. The days Monday to Friday are selected on the screen at the top. Deselect weekdays with the - key.
• Press the ENTER key. The settings are saved. COPY flashes three times. Setting is complete.

5.4.3. Frost protection

In MANUAL OFF operating mode and Auto operating mode (time block OFF), frost protection takes place. If the room temperature is 5^ C or less, the heating device is switched on automatically.

5.4.4. Adaptive startup

This function guarantees that, in automatic mode (week program), the set room temperature is achieved exactly at the start of the switch-on time.

Example:

In the timer menu, a set room temperature of 22^ C is specified. The current room temperature is 17^ C. The heating device switches on early so that the specified room temperature of 22^ C is reached by 07:00.

■ Use the MODE key to select the operating mode AUTO.

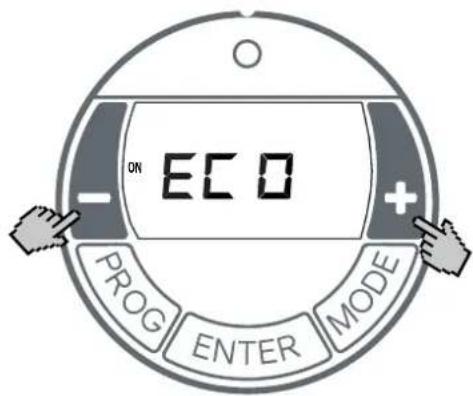

■ Press and hold the + key and the - key for three seconds.
■ ECO appears.
■ Activate/deactivate the function with the + / - keys: ON = Adaptive startup activated, OFF = Adaptive startup deactivated.
■ Press the ENTER key. Setting is saved.

5.5. Options

5.5.1. Key lock

This function can be used to lock the operating elements.

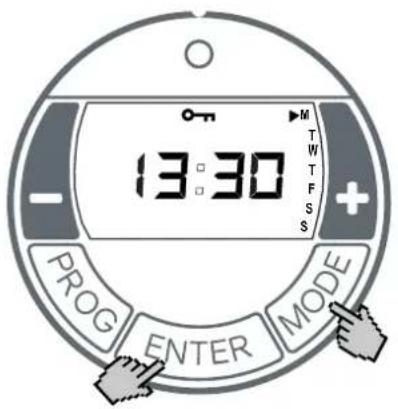

■ Press and hold the ENTER key and the MODE key for one second.
■ The LOCKED key symbol appears in the display.
■ To unlock, press and hold the ENTER key and the MODE at the same time again.

i NOTE

No settings can be made if the key lock is activated.

5.5.2. Advance

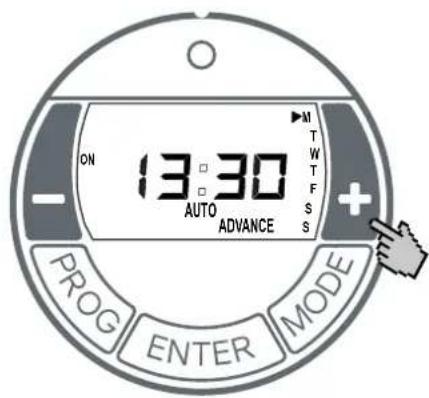

In automatic mode, the next time block can be selected early. The set time block then switches from OFF to ON or vice versa.

■ Press and hold the + key for three seconds. ADVANCE flashes.
- Operating display on the left side of the screen switches from OFF to ON or vice versa.

Activating / deactivating the ADVANCE function

■ Press the - key. ADVANCE disappears.

6. Overload protector

For your safety, the heating device is equipped with an overload protector. If the air circulation is interrupted (e.g. due to the air grille being covered or closed), the device switches off automatically.

In this case, the power supply to the heating device should be disconnected for a few minutes (switch off the fuse) to allow the device to cool down sufficiently. Before recommissioning the device, resolve the reasons for the overload protector being triggered.

7. Maintenance

The device must be disconnected from the mains and allowed to cool down before maintenance.

Clean the outside of the device using a soft, damp cloth. Do not use scouring powder or furniture polish as this may damage the surface.

Dust which gathers inside the device can be removed from the outside using a vacuum cleaner.

8. Faults

If the heating device is not emitting any heat, check the following points:

• Has the heating level been selected?
• Has the controller been set to the desired temperature?
• Has the overload protector been triggered? See chapter 5.
• Has the fuse in the switch box tripped?

If you cannot remedy the fault, please contact your electrical retailer. The retailer will require the product number (E no.) and the production date (FD) of the device. This information is listed on the type plate.

9. Warranty

This product is supplied with a two-year warranty according to our terms of guarantee.

10. Recycling

Do not dispose of the device with general household waste. Take the device to the available collection points at the end of its service life.

1. Technical data

Order code Unit DX 512E DX 520E DX 530E
Connection voltage 1/N/PE 230-240 V ~ 50 Hz
Power consumption kW 1.2 2.0 3.0
Protection class I, with protective conductor
Degree of protection			IP20
Heating levels		kW	0.8 / 1.2	1.2 / 2.0	2.0 / 3.0
Heat output
Nominal heat output	Pnom	kW 1.2	2.0 3.0
Minimum heat output (guide value)	Pmin	kW 0.8	1.2 2.0
Maximum continuous heat output	Pmax,c	kW 1.2	2.0 3.0
Additional power consumption
At nominal heat output	Elmax	W	0.5	0.5	0.5
At minimum heat output	Elmin	W	0.5	0.5	0.5
In standby mode	elSB	W	0.5 0.5 0.5
Type of heat output/room temperature control
Electronic room temperature controller with week program and adaptive control of start of heating		°C	5 - 30
Dimensions width x height x depth (with / without wall bracket)		mm	585 x 383 x 123 / 104		710 x 383 x 123 / 104
Weight		kg	3.8 3.8 4.5

Cross-sectional diagram of a mechanical or structural component with hatched areas and a downward arrow indicating a feature (no text or symbols present)

Diagram showing three views of a device with adjustment handles and control buttons, no text or symbols present.

Cross-sectional diagram of a mechanical or fluidic component with a downward arrow indicating flow or movement (no text or symbols present)

Technical line drawing of a device with two views showing internal components and directional arrows (no text or symbols)

Cross-sectional diagram of a mechanical or fluidic component with a downward arrow indicating flow or movement (no text or symbols present)

Technical line drawing of a device with three views showing internal components and directional arrows (no text or symbols)

Cross-sectional diagram of a mechanical or fluidic component with a downward arrow indicating flow or movement (no text or symbols present)

Technical line drawing showing three sequential views of a device with adjustment handles and buttons (no text or symbols)

Cross-sectional diagram of a mechanical component with hatched areas and a downward arrow indicating force or direction (no text or symbols)

Diagram showing three views of a device with adjustment handles and control buttons, no text or symbols present.

Cross-sectional diagram of a mechanical or fluidic component with a downward arrow indicating flow or movement (no text or symbols present)

Technical line drawing of a device with three views showing internal components and directional arrows (no text or symbols)

Cross-sectional diagram of a mechanical or structural component with hatched areas and a downward arrow indicating a process (no text or symbols)

■ Izbušite rupe za pričvršćivanje.
- Pravilno pričvrstite zidni nosač na zid koristeći zavrtnje.
Zakačite uređaj o donje proreze zidnog nosača.
■ Uspravite uredaj i umetnite ga u opruge da biste ga fiksirali.

Technical line drawing showing three sequential views of a device with adjustment knobs and buttons (no text or symbols)
