USER MANUAL SHXFP12MINI SHX

Exterior view of a modern electric heating appliance with a digital display and two illuminated front panels (no visible text or symbols)

HERZLICHEN GLÜCKWUNSCH!

QR code image containing encoded data, no visible human-readable text

Current operating instructions and other languages

Download current user manuals in various languages via the link www.becool.at/downloads or scan the displayed QR code. Follow the instructions on the website.

QR code image containing encoded data, no visible human-readable text

DE

Technical diagram of a device casing with numbered components for identification

7 8

White electric heating appliance with digital display and illuminated interior (no visible text or symbols)

FÉLICITATIONS !

MERCI D'AVOIR CHOISI UN PRODUIT DE SHX.

Technical diagram of a device casing with numbered components for identification

7 8

White electric heating appliance with digital display and illuminated interior (no visible text or symbols)

CONGRATULAZIONI!

GRAZIE PER AVER SCELTO UN PRODOTTO SHX.

Technical diagram of a device casing with numbered components for identification

7 8

White portable electric heater with black ventilation grille and two illuminated interior panels showing lit flames (no text or symbols visible)

GEFELICITEERD!

BEDANKT VOOR HET KIEZEN VAN EEN PRODUCT VAN SHX.

Technical diagram of a device casing with numbered components for identification

7 8

White portable electric heater with black panel and two heat sinks, no visible text or symbols

¡ENHORABUENA!

GRACIAS POR ELEGIR UN PRODUCTO DE SHX.

Technical diagram of a device casing with numbered components for identification

7 8

White portable electric heating fan with black mesh grille and two lit flames at the bottom (no visible text or symbols)

GRATULUJEME!

DĚKUJEME, ŽE JSTE SI VYBRALI PRODUKT OD SPOLEČNOSTI SHX.

Technical diagram of a multi-compartment device with numbered components for identification

7 8

Exterior view of a modern electric heating appliance with two heat sinks (no visible text or symbols)

GRATULUJEME!

ĎAKUJEME, ŽE STE SI VYBRALI PRODUKT OD SPOLOČNOSTI SHX.

Warning symbols including a hand holding a circle, an exclamation mark, and a lightning bolt symbol

White portable electric heater with black ventilation grille and illuminated interior, showing lit flames (no text or symbols visible)

FELICITĂRI!

VĂ MULTUMIM CĂ AȚI ALES UN PRODUS DE LA SHX.

Three hazard symbols: no hand, warning triangle with exclamation mark, and lightning bolt symbol

Technical diagram of a device casing with numbered components for identification

7 8

Exterior view of a modern electric heating appliance with two digital displays and a lit interior (no visible text or symbols)

GRATULACJE!

DZIEKUJEMY ZA WYBRANIE PRODUKTU FIRMY SHX.

Technical diagram of a device casing with numbered components for identification

7 8

White portable electric heater with two heat sinks showing lit flames (no visible text or symbols)

ČESTITAMO!

HVALA, KER STE IZBRALI IZDELEK PODJETJA SHX.

Technical diagram of a device casing with numbered components for identification

7 8

Exterior view of a modern electric heating appliance with two front panels showing illuminated screens and flames (no text or symbols visible)

ČESTITAMO!

HVALA VAM ŠTO STE ODABRALI SHX PROIZVOD.

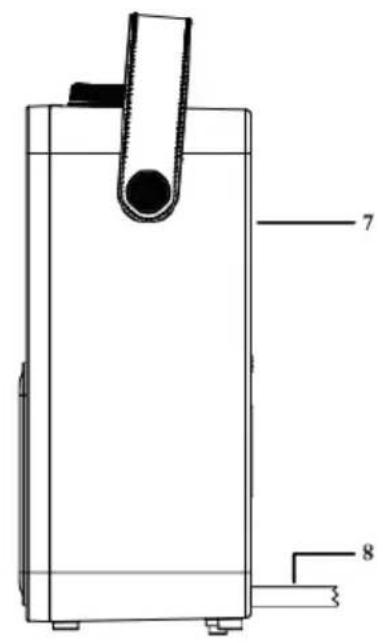

Technical diagram of a device casing with numbered components for identification

7 8

serijski broj	Prezime
01	Ručka
02	Gumb za podešavanje funkcija
03	Tipka za podešavanje temperature
04	Odvod zraka
05	Efekt dimnjaka
06	Preklopni prekidač
07	Usis zraka
08	Kabel za napajanje

Lokacija i veza

• Uklonite sav materijal za pakiranje i držite ga izvan dohvata djece. Nakon uklanjanja pakiranja provjerite ima li na uređaju oštećenja ili znakova kvara. Ako imate bilo kakvih nedoumica, nemojte koristiti uređaj i kontaktirajte svog prodavača za pregled ili zamjenu.
• Odaberite prikladno mjesto za grijač s ventilatorom koje je udaljeno najmanje jedan metar od svih prepreka, zidova i zapaljivih materijala (također se pridržavajte sigurnosnih propisa).
• Provjerite je li grijač uvijek na stabilnoj, ravnoj i vodoravnoj površini.
• Provjerite je li upravljački gumb postavljen na OFF (O).
• Odmotajte priključni kabel do kraja i umetnite utikač u odgovarajuću utičnicu od 230 volti. Kako biste izbjegli preopterećenja, nemojte spajati druge uređaje na isti strujni krug.

White portable electric heater with two heat sinks, one showing lit flames (no text or symbols visible)

CONGRATULATIONS!

THANK YOU FOR CHOOSING A PRODUCT FROM SHX.

This product is only suitable for well-insulated rooms or for occasional use.

EN

PLEASE READ THE OPERATING INSTRUCTIONS CAREFULLY BEFORE STARTING ASSEMBLY, INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW THE INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND/OR INVALIDATE THE WARRANTY!

Intended usecalendar

This appliance is intended exclusively for heating living spaces in households and must not be used for any other purpose.

IMPORTANT INFORMATION ON SAFETY, STANDARD AND ELECTRICAL CONNECTION

1. use this appliance only in accordance with the guidelines in the operating instructions. Any other use not recommended by the manufacturer could result in fire, electric shock or personal injury.
   2 This appliance is intended exclusively for heating living spaces in households and must not be used for any other purpose.

2. remove the packaging and make sure that the device is not damaged. If in doubt, do not use the appliance and contact your dealer.

3. Before connecting to the mains, you must check that the type of current and mains voltage correspond to the specifications on the appliance rating plate.

4. The electrical socket into which you connect the appliance must not be defective or loose and must be suitable for the required current load and, above all, reliably earthed.

5. avoid using an extension cable, as this could overheat and cause a fire.

6. the appliance must not be installed directly under a wall socket. If in doubt, have your electrical installation checked by a qualified electrician.

7. It is forbidden to adapt or modify the characteristics of this appliance in any way whatsoever. Only use spare parts and accessories recommended by the manufacturer (failure to do so may invalidate the warranty).

8. Do not use this heater if it shows visible signs of damage.

9. Do not operate the appliance unattended. If you leave the room, always switch off the appliance.

10. Do not use the device in small rooms where people are present who are unable to leave the room independently, unless they are constantly monitored.

11. children must not play with the appliance.

Children under the age of 3 must be kept away from the appliance unless they are constantly supervised.

1. Keep children away from the packaging material.

Choking hazard if swallowed!

1. The appliance is not suitable for continuous and precision operation.

2. Do not use this heater if it has been dropped.

3. This appliance is only intended for use in dry indoor areas.

1. Do not use the appliance in the vicinity of water or high humidity, e.g. in a damp cellar, next to a swimming pool, bathtub or shower. Ensure that no water can penetrate the appliance.
2. Do not use the appliance in the direct vicinity of petrol, gas, oil, alcohol or other explosive and highly flammable liquids or gases.
3. To reduce the risk of fire, keep the air outlet of the appliance at least one metre away from all highly flammable substances such as e.g:

a. pressurised vessels (e.g. spray containers)
b. Furniture
c. Textiles of any kind

1. Only use this heater on a level and stable surface.

2. Never cover the appliance during operation and the cool-down phase.

3. Ensure that no objects touching the heating surface get between the appliance and the mounting wall.
4. Always switch off the appliance before disconnecting the mains plug.
5. Do not pull on the mains cable to disconnect the appliance from the mains. Always pull the plug to disconnect the mains cable.
6. Unplug the appliance when not in use, before cleaning or when maintenance is required.

Cleaning and user maintenance must not be carried out by children without supervision.

1. Do not touch the plug with wet hands to avoid electric shocks.

ATTENTION	RISK OF INJURYThe appliance becomes hot during operation!Never touch the appliance during operation→ this could lead to serious BURNS.
ATTENTION	FIRE HAZARDThe appliance must not be covered during operation!
ATTENTION	SAFETY DISTANCEKeep a safe distance of at least one metre from easily flammable objects such as furniture, curtains, paper, etc.!LOCATIONAlways position the appliance so that the air can flow in and out unhindered.RISK OF BURNSThe appliance becomes very hot during use and can cause burns. Special care must be taken when children and vulnerable persons are present.RISK OF OVERHEATINGDo not heat rooms with a volume of less than 4m3

Symbols on the device

Symbol:

Significance:

Caution! Do not cover!

The symbol on the appliance indicates that it is not permitted to hang objects (e.g. towels, clothing, etc.) above the appliance or directly in front of it. The heater must not be covered in order to avoid overheating and the risk of fire!

Symbol:

Significance:

Protection class 2

The symbol indicates that the appliance is assigned to protection class 2. Protection class 2 devices are not connected to the protective conductor. Instead, they have reinforced or double insulation at the level of the rated insulation voltage between active and touchable parts. Electrically conductive surfaces or conductive touchable parts are thus separated from live parts by reinforced or double insulation.

Recycling, disposal, declaration of conformity

	RECYCLINGThe packaging materials can be recycled. It is therefore recommended to dispose of them in sorted waste
	DISPOSALThis marking indicates that this product must not be disposed of with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your old appliance, please use the return and collection systems or contact the retailer where you purchased the product. They will be able to recycle the product in an environmentally friendly manner.
	DECLARATION OF CONFORMITYWe hereby confirm that this product complies with the essential requirements, regulations and directives of the EU.You can view the detailed declaration of conformity at any time under the following link:https://www.schuss-home.at/downloads

Errors and technical changes excepted.

Scope of delivery

• Fan heater
• Operating instructions

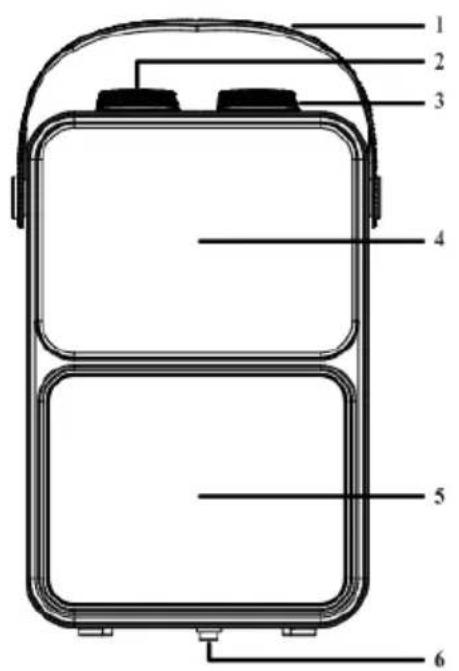

Description of the device

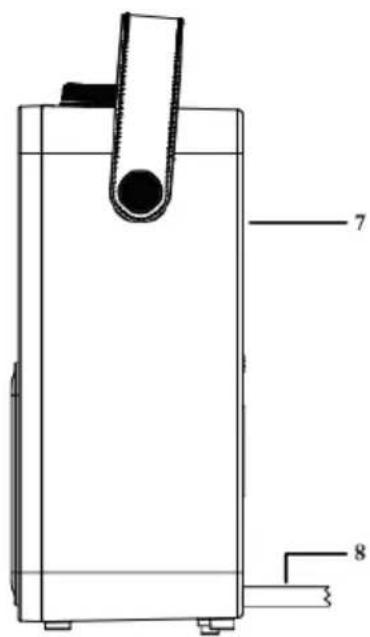

Technical diagram of a device casing with numbered components for identification

7 8

Serial number	Name
01	Handle
02	Button for function setting
03	Button for temperature setting
04	Air outlet
05	Chimney effect
06	Toggle switch
07	Air inlet
08	Power cable

Location and connection

• Remove all packaging material and keep it out of the reach of children. After removing the packaging, please check the appliance for any damage or signs of malfunction. If you have any doubts, do not use the appliance and contact your dealer for inspection or replacement.
• Choose a suitable location for the fan heater that is at least one metre away from all obstacles, walls and flammable materials (also observe the safety regulations).
• Ensure that the fan heater is always placed on a stable, level and horizontal surface.
• Check that the control knob is set to OFF (O).
• Unroll the connection cable completely and insert the plug into a suitable 230 volt socket. To avoid overloading, please do not connect any other devices to the same circuit.

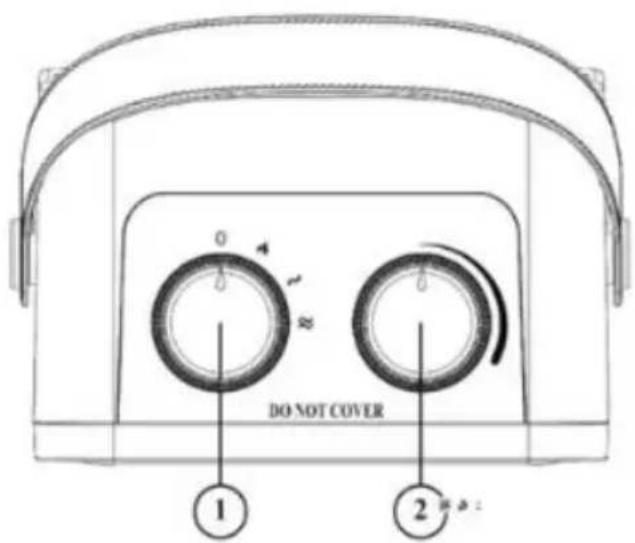

Commissioning and function

DO NOT COVER ① ②

• Connect the power cable to the power source first before using it.
• Turn the thermostat control to maximum (clockwise as far as possible).
• Switch on the fan heater by turning the function control to one of the three positions.

• Turn the function knob (1) clockwise to the first position (flame symbol) to switch on the fireplace effect

• Turn the function knob (1) further clockwise and heat at level 1 (600W) or level 2 (1200W).

• When the desired temperature has been reached, slowly turn the thermostat control (2) back until you hear a click. The temperature is now set.
• The fan heater switches on and off automatically to regulate the set temperature. To set a higher or lower temperature, turn the thermostat control (2) clockwise/anti-clockwise.

Notes

• Do not use this heater near a bathtub, shower head or swimming pool.
• Since covering the heater or improper use and placement can cause a fire, it must not be used with a programmer with automatic switch-on, a timer or similar device.
• The capacity of the socket to which the mains cable is connected must be above 15 A.
• The heater must be installed vertically and no flammable objects may be placed in the vicinity.
• To avoid burns, do not touch the air outlet when the heater is switched on. Do not place the power cable on the heater.
• If the mains cable is damaged, do not replace it yourself.
• It is strictly forbidden to rinse the heater with water.
• Please unplug the appliance if it is not to be used or cleaned for a long period of time.
• To avoid danger, do not use the appliance in a damp, dusty or volatile gas environment.
• Children or persons who are unable to operate the appliance should not use it.
• When using this heater, the appliance must be placed vertically in a flat position. It is strictly forbidden to use the appliance upside down or flat, the switch must not be switched on by force.
• Warning: Covering this heater is strictly prohibited

Protective devices

The fan heater is equipped with a toggle switch that switches the appliance off if it falls over unexpectedly. If you then set the appliance upright again, it will resume operation.

However, first switch off the appliance, remove the plug from the socket and check the fan heater for damage. If it is damaged or does not function properly, do not use it but take it to be checked/ repaired.

NOTE The overheating protection switches the fan heater off if the appliance gets too hot!

This can happen if the fan heater does not emit enough heat or cannot draw in enough fresh air. As a rule, the causes include (partially) covering the fan heater, blockage of the intake and/or outlet grille, dirt, positioning too close to a wall, etc.

If the overheating protection switches the fan heater off, you must set the function controller to OFF (O), pull the plug out of the socket and give the fan heater the opportunity to cool down. Eliminate the cause of the overheating before putting the fan heater back into operation.

If you cannot find the cause of the overheating and the problem persists, stop using the fan heater and return it for inspection/repair.

Cleaning and maintenance

Keep the fan heater clean. Dust and dirt deposits in the appliance are one of the most common causes of overheating. You should therefore remove these regularly. Switch off the fan heater for cleaning or maintenance work, remove the plug from the socket and allow the fan heater to cool down.

• Clean the outside of the appliance regularly with a dry or very slightly damp cloth. Do not use harsh soaps, sprays, cleaning or scouring agents, wax, polishing agents or other chemical solutions.
• Use a hoover to carefully remove dust and dirt from the grilles and check that the air inlets and outlets are clean. When cleaning, ensure that you do not touch or damage any internal parts.
• The fan heater does not contain any other parts that require maintenance.
• Put the fan heater away at the end of the season, if possible in its original packaging. Place it upright in a cool, dry and dust-free place.
• If the appliance needs to be disposed of at the end of its expected service life, it should not be disposed of with household waste. Take it to your local authority's designated collection point for electrical appliances,

where care will be taken to ensure that any materials that can still be used are recycled.

TECHNICAL INFORMATION

Item number:	SHXFP12MINI
Input voltage:	220-240V~
Frequency:	50 Hz
Performance range:	1200W
Setting options:	0 - 15W - 600W - 1200W
Thermostat:	Yes
Oscillating:	No
Weight	1.7 kg
Dimensions (W x H x D)	215 x 350 x 135 cm
Contact address for further information:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 ViennaService line: [phone]www.schuss-home.atFB-No.: 236974 t / FB-Court: Vienna

Information required for electric individual room heaters

Item number SHXFP12MINI
Specification	Symbol	Value	Unit		Specification	Unit
Heat output					Only for electric storage single-room heaters: Type of heat supply control
Nominal heat output	P_nom	1,2	kW		Manual control of the heat supply with integrated thermostat	No
Minimum heat output (guide value)	P_min	0,6	kW		Manual control of the heat supply with feedback of the room and/or outside temperature	No
Maximum continuous heat output	P_max,c	1,2	kW		Electronic control of the heat supply with feedback of the room and/or outside temperature	No
Auxiliary power consumption					Heat output with fan support	No
With Nominal heat output	el_max	0,000	kW		Type of heat output/room temperature control
With Minimum heat output	el_min	0,000	kW		Single-stage heat output, no room temperature control	No
In the Ready state	el_sB	0,000	kW		Two or more manually adjustable levels, no room temperature control	No
					Room temperature control with mechanical thermostat	Yes
					With electronic room temperature control	No
					Electronic room temperature control and time-of-day control	No
					Electronic room temperature control and weekday control	No
					Other control options
					Room temperature control with presence detection	No
					Room temperature control with open window detection	No
					With remote control option (WiFi)	No
					With adaptive control of the heating start	No
					With operating time limit	No
					With black ball sensor	No
Contact details:	Schuss Home Electronic GmbH Scheringgasse 3 - 1140 Vienna - Austria https://www.schuss-home.at/

WARRANTY

With this quality product from SHX, you have made a decision in favour of innovation, durability and reliability. For this SHX device we grant a warranty period of 2 years from the date of purchase valid in Austria and Germany!

If, contrary to expectations, service work on your device should nevertheless be necessary during this period, we hereby guarantee you a free repair (spare parts and labour) or (at Schuss's discretion) replacement of the product. If neither repair nor replacement is possible for economic reasons, we reserve the right to issue a time value credit note.

In any case, please contact the customer hotline as a first step (see instructions for use - "Contact addresses for further information and service line").

Please note that any repair work carried out by unauthorised workshops will immediately invalidate this warranty.

This guarantee does not cover

• Damage due to non-compliance with the operating instructions
  • Repair or replacement of parts due to normal wear and tear
  • Devices that are used - even partially - for commercial purposes
  • Devices mechanically damaged by external influences (fall, impact, breakage, improper use, etc.) as well as signs of aesthetic wear and tear
  • Devices that have been handled improperly
  • Devices that have not been opened by our authorised service workshop
  • Unfulfilled consumer expectations
• Damage caused by force majeure, water, lightning, overvoltage
• Devices for which the type designation and/or serial number on the device has been changed, deleted, made illegible or removed
  • Defects due to extraordinary soiling
• services outside our authorised workshops, the transport costs to an authorised workshop or to us and back and the associated risks

We would like to emphasise that within the warranty period, a lump sum of € 60 (indexed based on CPI 2015, June 2020) will be charged in the event of operating errors or if no error is detected.

The provision of a warranty service (repair or replacement of the device) does not extend the absolute< warranty period of 2 years from the date of purchase.

The 2-year guarantee is only valid on presentation of the proof of purchase (must include the name and address of the dealer as well as the complete appliance designation) and the corresponding guarantee certificate, on which the appliance type and the serial number (visible on the box and on the back or bottom of the appliance) must be noted! Without the warranty certificate, only the statutory warranty applies! We expressly point out that the statutory warranty rights are not affected by this guarantee and remain unaffected.

Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in the event of gross negligence or wilful intent. Liability for loss of profit, expected but unrealised savings, consequential damage and damage arising from third-party claims is excluded.

You can find the contact address of the relevant service centre on our homepage www.schuss-home.at. Congratulations on your choice. We hope you enjoy using your SHX device!

ADDRESS

SHX Distribution

Schuss Home Electronic GmbH

A-1140 Vienna, Scheringgasse 3

Tel.: [phone]

Type designation:

Serial number:
