APM124 - Oven BESTRON - Free user manual and instructions

USER MANUAL APM124 BESTRON

Exterior view of a Bestron grater with open pan and fried flat (no text or symbols on the grater itself)

INSTRUCTION MANUALPANIN

DE

HRN

EN S

OES

BESTRON® ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

SICHERHEITSHINWEISE

- This appliance is not intended for professional use, but is intended for domestic and similar use, such as in staff kitchens, in shops, offices and other working environments, by guests in hotels, motels and other residential environments, in Bed & Breakfast type environments and farms.

- Make sure that the mains voltage matches with the voltage shown on the rating plate.

• Always install the appliance on a stable and level surface where it cannot fall over.

- Parts of this appliance may become warm or hot. Avoid burning yourself. Do not touch.

- Your hands must be dry when you touch this appliance, it's cord and plug.

- This appliance must lose it's heat so give it sufficient clearance around it. Also do not cover it.

- This appliance, the cord and the plug must not come into contact with water, heat sources or open flames.

- Do not touch this device if it has come into contact with water. Immediately remove the plug from the socket.

- Never let the cord hang over the edge of the sink, worktop or table.

• Always remove the plug from the socket when you are not using the electrical appliance.

- Remove the plug from the socket by pulling on the plug itself and not on the cord.

- Do not use the electrical appliance if the cord is damaged.

- Do not operate this appliance with an external timer or separate remote control system.

- If the appliance or cord is defective, do not attempt to repair it yourself. Always have repairs carried out by a qualified technician. It must be replaced by the manufacturer, a technical service provider or a person with equivalent qualifications, to avoid any danger.

- Do not move this device when it is turned on or still hot.

- Do not place heavy objects on the lid to keep the device closed.

- Never use this device near birds. The fumes released from the non-stick coating can cause stress or worse in birds.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the dangers.

• Children are not allowed to clean or maintain the appliance unless they are over 8 years old and supervised.

- Keep the appliance and the cord out of the reach of children under the age of 8.

- Children must be supervised to ensure that they do not play with the appliance.

ENVIRONMENT

Dispose of packaging material such as plastic and cardboard boxes in the designated containers.

Do not dispose of this product as normal domestic waste at the end of its life, but hand it in at a collection point for the reuse of electric and electronic equipment. Look for the symbol on the product, the user instructions or the packaging showing the type of waste.

• The materials can be used as indicated. By helping us reuse and process the materials or otherwise recycle the old equipment, you will be making an important contribution towards the protection of the environment.
• Your municipality can tell you where to find the designated waste collection point in your neighbourhood.

SERVICE

In the unlikely event of a malfunction, please contact Bestron customer service: www.bestron.com/service

Technical Specifications
Model APM124
Mains (V) 220-240V
Frequency (Hz) 50-60
Safety Class 1
Power (Watt) 1000
Noise (dB(A)) -
Max. Capacity -
Maximum continuous operating time (KB)	-
Dimensions (L x W x H) (cm)	26,6x22,5x9,9
Cable length (cm)	65

CERTAIN PARTS OF THE APPLIANCE MAY GET HOT. DO NOT TOUCH THESE PARTS TO PREVENT BURNING YOURSELF.

OPERATION - General information

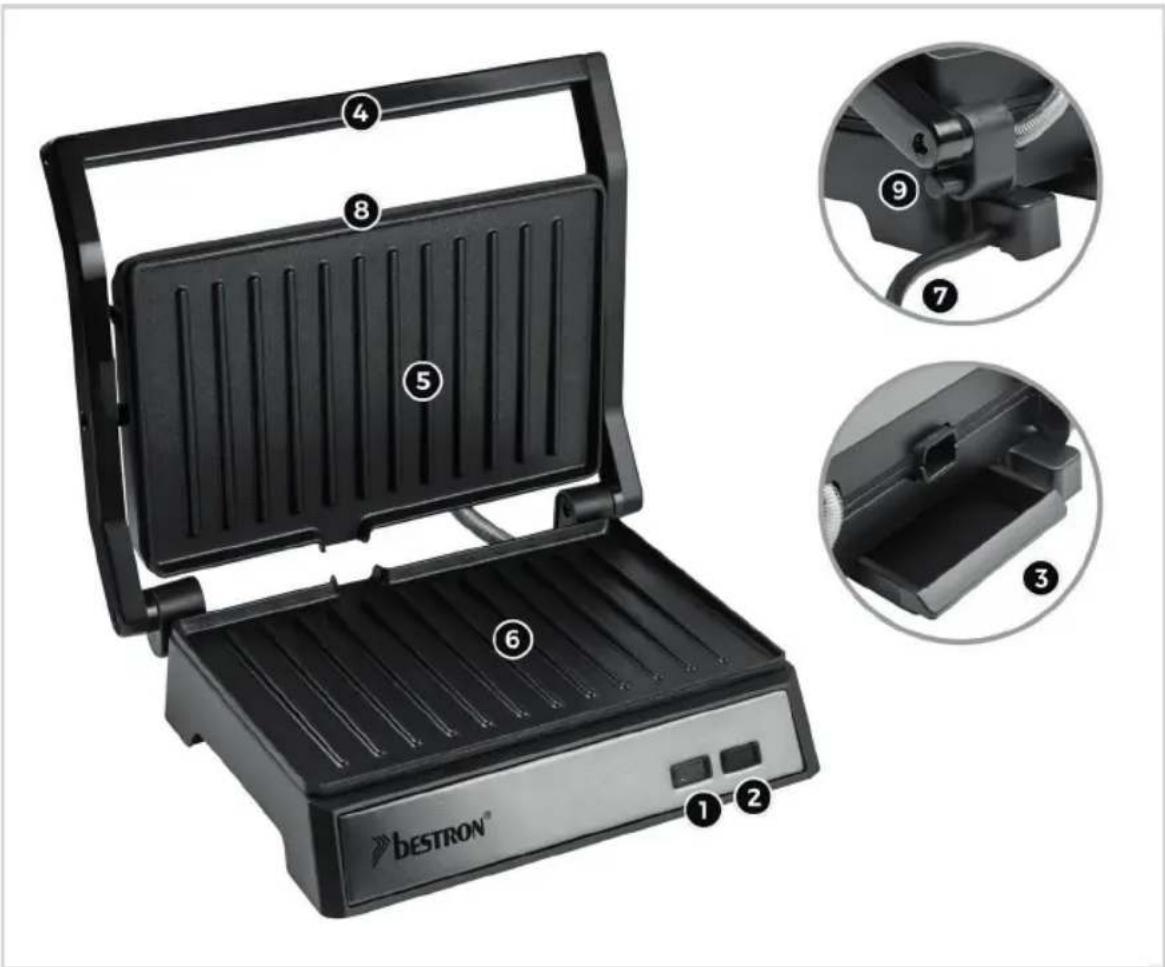

The below description goes with the image on page 2.

1. Power indicator light ("Power", red)
2. Ready-to-use light ("Ready", green)
3. Grease drip tray
4. Handle

5. Grill plate top

6. Grill plate bottom

7. Power cord and plug
8. Cover
9. 180° degree open system button

OPERATION - Before use for the first time

1. Remove the packaging.
2. Clean all the accessories to remove any residues that may be left from the manufacturing process (see "Cleaning and maintenance").
3. Put the plug into the wall socket and allow the grill to heat up for 10 minutes. This will remove any packaging odor from the appliance.

WARNING:

- The appliance may emit a little smoke and a characteristic smell when you switch it on for the first time. This is normal and will stop on its own. Make sure there is sufficient ventilation.

OPERATION - Preparations

1. Place the grill on a level, stable and heat-resistant surface.
2. Close the lid.
3. Put the plug in the wall socket. The "Power" and "Ready" indicator lights will illuminate.
4. The appliance is ready to use once the "Ready" indicator light extinguishes.

OPERATION - Grilling

1. Open the lid.
2. Lay the food that you want to grill on the lower grill plate.
3. Close the lid
4. Grill the food until it is cooked. The cooking time required is different for each product.
5. Open the lid and remove the food from the grill plate.
6. Remove the plug from the wall socket once you have finished using the appliance. Bon appetit!

WARNING:

• To be able to handle food with different thicknesses, there is play in the cover so that it can easily adjust to the thickness of the food.
- Do not use a fork, knife or other sharp object! You can damage the non stick coat with it. Warranty becomes void when damaging the baking plate with sharp objects.

OPERATION - Use as open grill

1. Place the grill on a flat and stable surface and open the appliance.
2. Grab the handle, then push the 180° degree open system button (9) upward and fold open the appliance until the cover rests flat on the counter.
3. To revert the appliance into a closed grill, grab the handle and fold the appliance back until the 180° degree open system button (9) clicks back in place.

CLEANING AND MAINTENANCE

Clean the appliance after each use.

1. Remove the plug from the wall socket and allow the appliance to cool down completely.
2. Remove the food remaining from the under baking plate with a kitchen paper while it is still hot.
3. The upper baking plate is easier to clean when it is cooled down.
4. Clean the housing and the top cover with a moistures cloth.
5. Store the appliance horizontally.

WARNING:

• Make sure the plug has been removed from the wall socket before cleaning the appliance.
- Never use corrosive or scouring cleaning products or sharp objects (such as a knife or a hard brush) to clean the appliance.
- Never immerse the appliance, the power cord or the plug in water or any other liquid.

ALL YOU WANT TO KNOW ABOUT YOUR UNIQUE 5 YEAR WARRANTY

ALLES, WAS SIE ÜBER IHRE EINZIGARTIGE 5-JAHRES-GARANTIE WISSEN MÖCHTEN TOUT CE QUE VOUS VOULEZ SAVOIR SUR VOTRE GARANTIE UNIQUE DE 5 ANS ALLES WAT U WILT WETEN OVER UW UNIEKE GARANTIE VAN 5 JAAR TUTTO QUELLO CHE VUOI SAPERE SULLA TUA GARANZIA UNICA DI 5 ANNI TODO LO QUE QUIERES SABER SOBRE TU ÚNICA GARANTÍA DE 5 AÑOS

BESTRON.COM/GUARANTEE

QR code image containing encoded data, no visible human-readable text

NEED HELP?

CHECK OUT OUR SERVICE PAGE

BRAUCHEN SIE HILFE? SCHAUEN SIE SICH UNSERE SERVICESEITE AN BESOIN D'AIDE? DISCUTE AVEC NOUS! CONSULTEZ NOTRE PAGE DE SERVICE HULP NODIG? CHAT MET ONS! BEKIIK ONZE SERVICEPAGINA HO BISOGNO DI AIUTO? CHATTA CON NOI! GUARDA LA NOSTRA PAGINA SERVIZI ¿NECESITAS AYUDA? CONSULTE NUESTRA PÁGINA DE SERVICIO

BESTRON.COM/SERVICE

Generic user avatar icon showing a person wearing a headset and holding a microphone (no text or symbols)

EASTERN EUROPE CUSTOMER SERVICE

POLSKA [e-mail] HRVATSKA [e-mail] CZECHIA [e-mail] SLOVENSKO [e-mail] ROMÂNIA [e-mail] BULGARIA [e-mail]

SERVICE HOTLINE: [phone]

240701-01

Hersteller / Fournisseur/ Výrobce / Proizvođač / Produčator / Výrobca / ПроизводителBestron Nederland BV, Moeskampweg 20, 5222 AW, 's-Hertogenbosch Niederlande, Pays-Bas, Nizozemí, Hollandia, Holandia, Olandia, Holandsko, Холандия
DCZHRPLRO/MDSKBG
Ursprungs-landChina	Pays d'origineChine Čína	Země původuChina Chiny	Zemlja podrijetlaChina Čína Kyr	Wyprodu kowano w rai	Tara de origine	Krajina pôvodu	Страна на производ
