QUICK START GUIDE:

JVM410H & JVM410C

EUNI 5W1K 5W1K 5W1K 5W1K 5W1K 5W1K 5W1K 5W1K 5W1K 5W1K 5W1K 5W1K 5W1K 5W1K 5W1K 5W1K 5W1K 5W1K 5W1K 5W1K 5W1M 5W1M 5W1M 5W1M 5W1M 5W1M 5W1M 5W1M 5W1M 5W1M 5W1M 5W1M 5W1M 5W1M 5W1M 5W1M 5W1M 5W1M 5W1M 5W1M 5W1N ENGLA R89 R88 R87 R86 R85 R84 R83 R82 R81 R79 R78 R77 R76 R75 R74 R73 R72 R71 R70 R69 R68 R67 R66 R65 R64 R63 R62 R61 R60 R59 R58 R57 R56 R55 R54 R53 R52 R51 R50 R49 R48 R47 R46 R45 R44 R43 R42 R41 R40 R39 R38 R37 R36 R35 R34 R33 R32 R31 R30 R29 R28 R27 R26 R25 R24 R23 R22 R21 R20 R19 R18 R17 R16 R15 R14 R13 R12 R11 R10 R99 C677 R78 R77 R76 R75 R74 R73 R72 R71 R70 R69 R68 R67 R66 R65 R64 R63 R62 R61 R60 R59 R58 R57 R56 R55 R54 R53 R52 R51 R50 R49 R48 R47 R46 R45 R44 R43 R42 R41 R40 R39 R38 R37 R36 R35 R34 R33 R32 R31 R30 R29 R28 R27 R26 R25 R24 R23 R22 R21 R20 R19 R18 R17 R16 R15 R14 R13 R12 R11 R10 R9 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 8 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

CONGRATULATIONS ON PURCHASING YOUR MARSHALL JVM.

Download the full manual at www.marshall.com

QUICK START GUIDE

Warning! Safety instructions 3

Specification 5

Front panel functions 6

Rear panel functions 8

Footswitch 9

WARNING! SAFETY INSTRUCTIONS

Please read this manual carefully before plugging in. Follow all instructions and heed all warnings.

Warning: before going any further, make sure that your amp is compatible with your mains electricity supply. If you have any doubt, please seek help from a qualified technician – your Marshall dealer can help you with this.

MAINS INPUT & FUSE

The specific mains input voltage rating that your amp has been manufactured for is indicated on the rear panel of the amp. Your amp is provided with a detachable mains (power) lead, which should be connected to the mains input socket on the rear panel of the amp.

The correct value and type of mains fuse is specified on the rear panel of the amp. Never attempt to bypass the fuse or fit one of the incorrect value or type.

Warning: your amp must be switched off and disconnected from the mains electricity supply before you check and/or change any fuse.

IMPORTANT SET UP INFORMATION

Follow the start-up procedures below to safely switch on your amplifier. The procedure differs depending on whether you plan to run your amplifier into speaker cabinets or for silent recording.

Warning: failure to comply with the following points may damage your amp.

Using your amp with speaker cabs

1. Make sure the power handling rating of the speaker cabinet(s) is/are equal to or higher than the output power of the amp. Connect the speaker cabinet(s) to the correct impedance speaker output(s) on the rear panel.

Note: only use speaker (unscreened) cables

to connect the cabinets.

1. Ensure both the power switch and standby switch are switched off and set all master volumes on the front panel to zero.
2. Connect the footswitch cable to the footswitch and then connect to the footswitch socket on the rear panel of the amp.
3. Connect the supplied mains (power) lead into the mains input on the rear panel first and then into an electrical outlet.
4. Plug your guitar into the input jack socket on the front panel.
5. Turn the front panel power switch on. The switch will glow red.
6. After waiting a couple of minutes, turn the standby switch on.

Warning: before you turn the standby switch on, a (speaker) load must be attached to the unit. Never use your amp without a (speaker) load attached when the standby switch is on.

Using your amp for silent recording

When the standby switch is off the amp can be used without a load for silent recording. This mode allows you to take a signal from the preamp section without engaging the output power section.

1. Ensure both the power switch and standby switch are switched off.
2. Connect the footswitch cable to the footswitch and then connect to the footswitch socket on the rear panel of the amp.
3. Connect the supplied mains (power) lead into the mains input on the rear panel first and then into an electrical outlet.
4. Plug your guitar into the input jack socket on the front panel.
5. Turn the front panel power switch on. The

switch will glow red.

1. A signal for recording is available through the series/parallel FX loop send output jack and/or the pre-amp out/send output jack.

Warning: always ensure a load is connected before you switch the standby switch on (to leave silent recording mode).

TRANSPORTING YOUR EQUIPMENT

Please ensure that your amp is switched off, unplugged from the mains electricity supply and all removable cables have been disconnected from your equipment before attempting to move it.

Only move the amp on its own; do not attempt to move it while it is stacked on top of a cabinet or other equipment.

FCC COMPLIANCE STATEMENT

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.

CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance may void the users authority to operate the equipment.

This device complies with CAN ICES-3(B)/NMB-3(B).

SPECIFICATION

4-channel JVM amps boast 3 modes giving you a total of 12 different sounds to choose from.

The front panel contains dedicated sets of EQ and gain controls for each of the 4 channels, master and reverb sections. The master section is comprised of 2 footswitchable master volumes, plus master resonance and presence controls that work universally on all 4 channels. The reverb section consists of reverb level controls for each channel.

MODEL: JVM4L0H JVM410C
Power 100W 100W

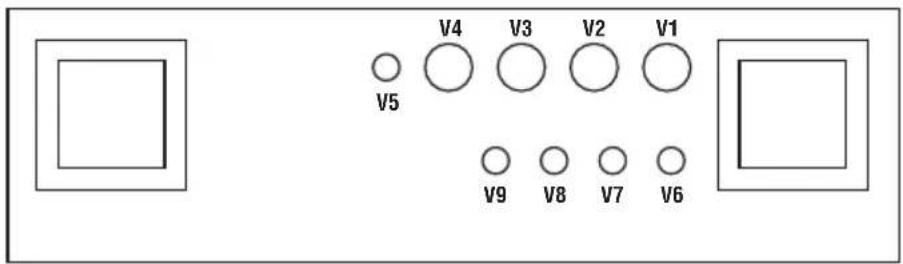

Valves 4 x ECG83, 1 x ECC83 (phase splitter) and 4 x EL34
Channels 4 (multi): Clean, Crunch, OD1 and OD2
Equalisation Treble, middle, bass, presence and resonance
Effects Digital reverb
Outputs	5 x 1/4" jack speaker outputs, selectable 16Ω/ 8Ω / 4Ω loadEmulated line out (XLR)MIDI thru
Effects loops 2, 1 x series parallel, 1 x series
Speakers N/A		2 x 12"1 x Celestion Heritage G12H (8Ω, 80W)1 x Celestion Vintage (8Ω, 70W)
Unit weight 22kg 34.5kg
Unit width 740mm 690mm
Unit height	310mm	510mm
Unit depth	215mm	265mm

FRONT PANEL FUNCTIONS

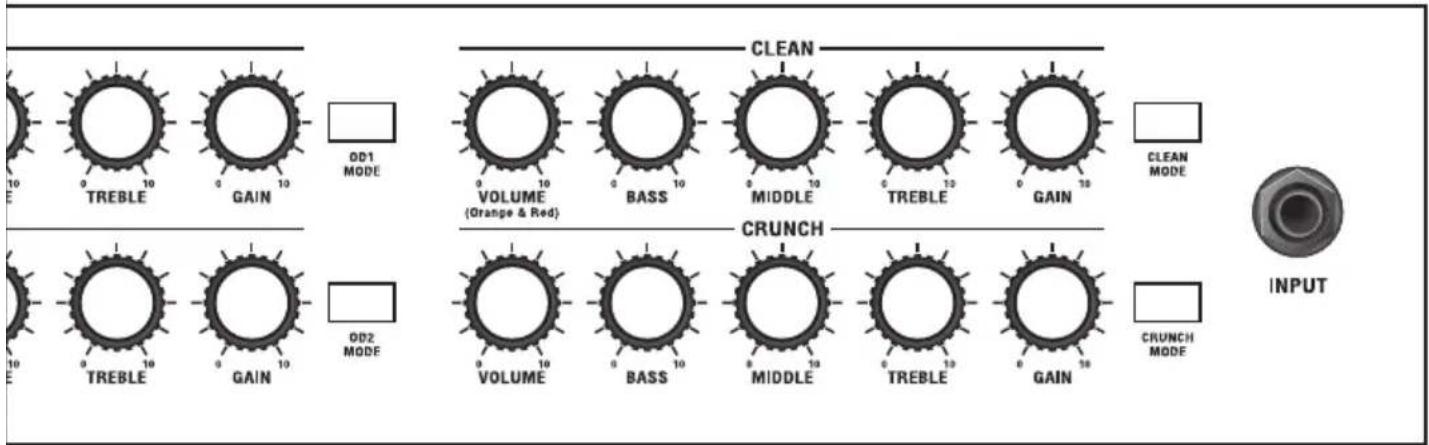

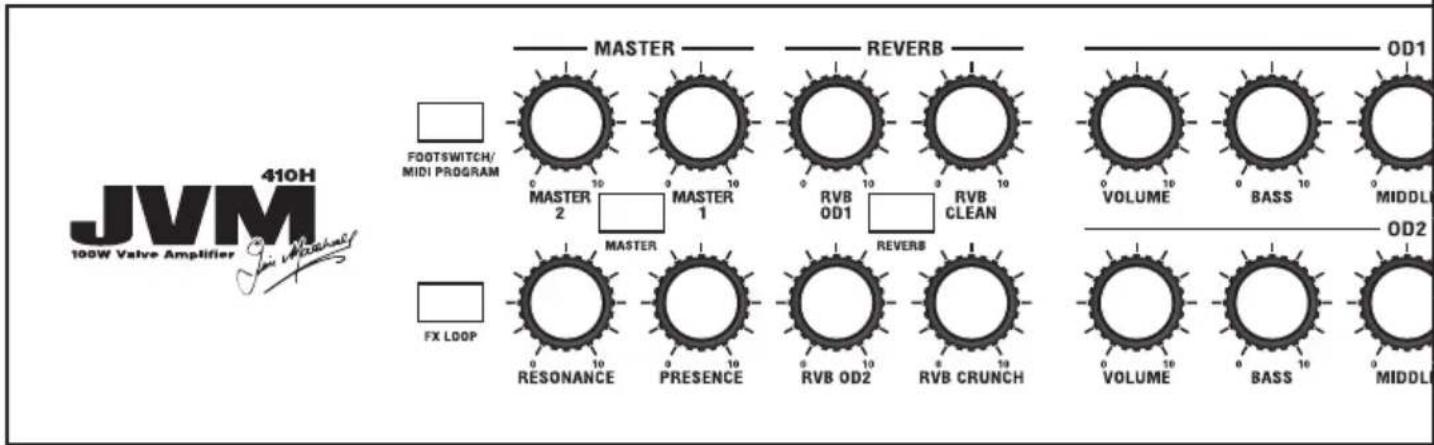

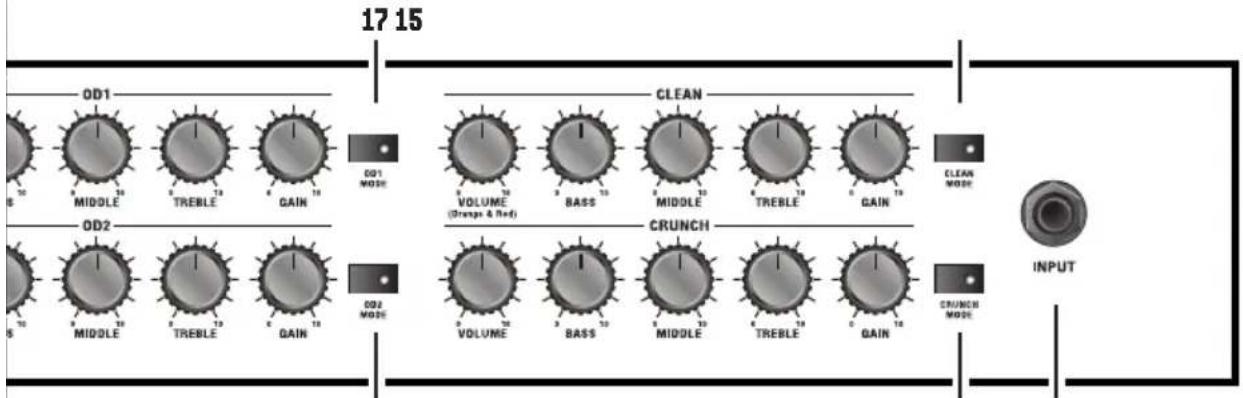

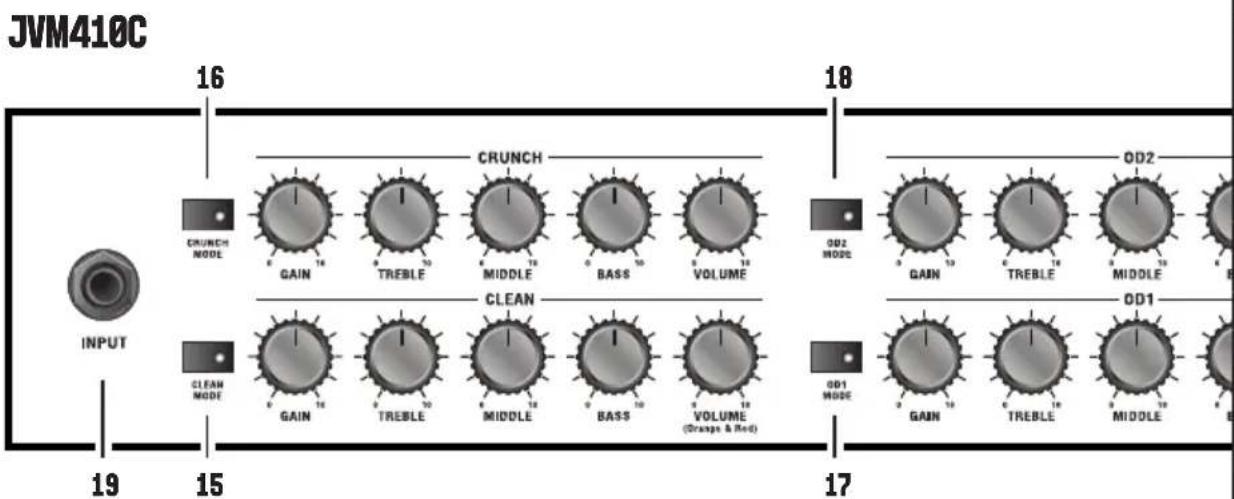

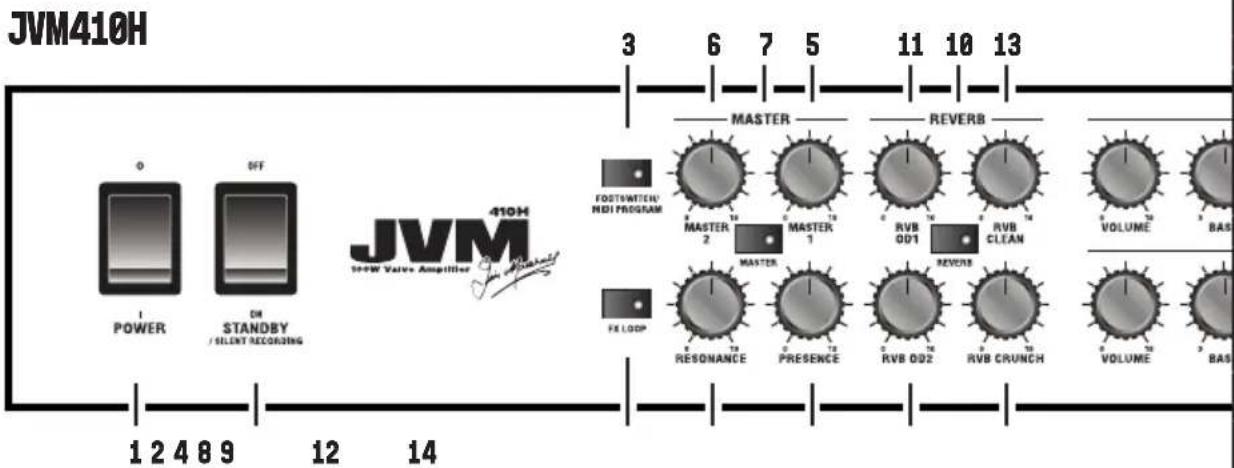

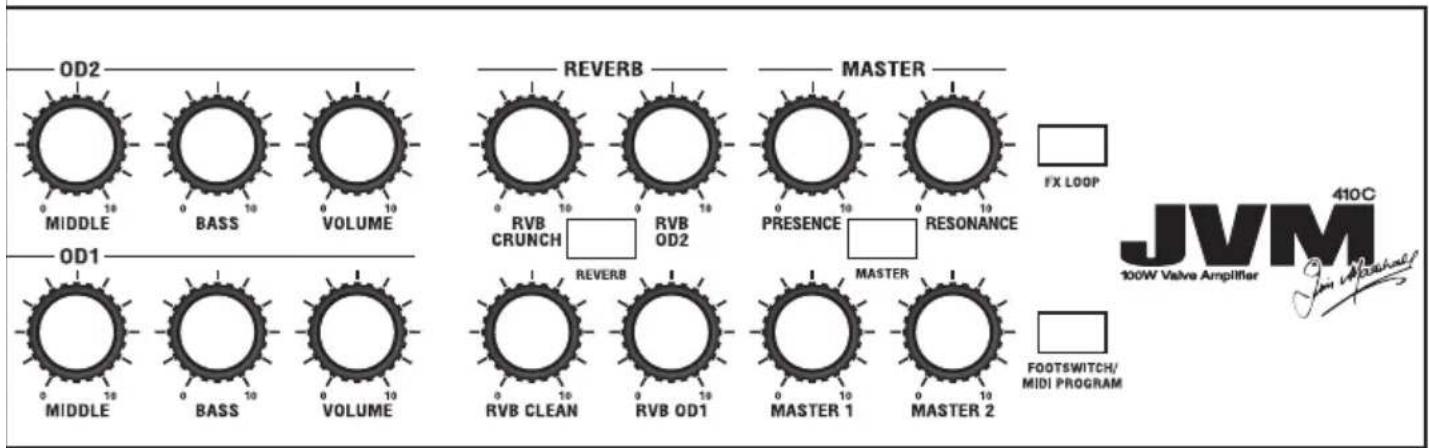

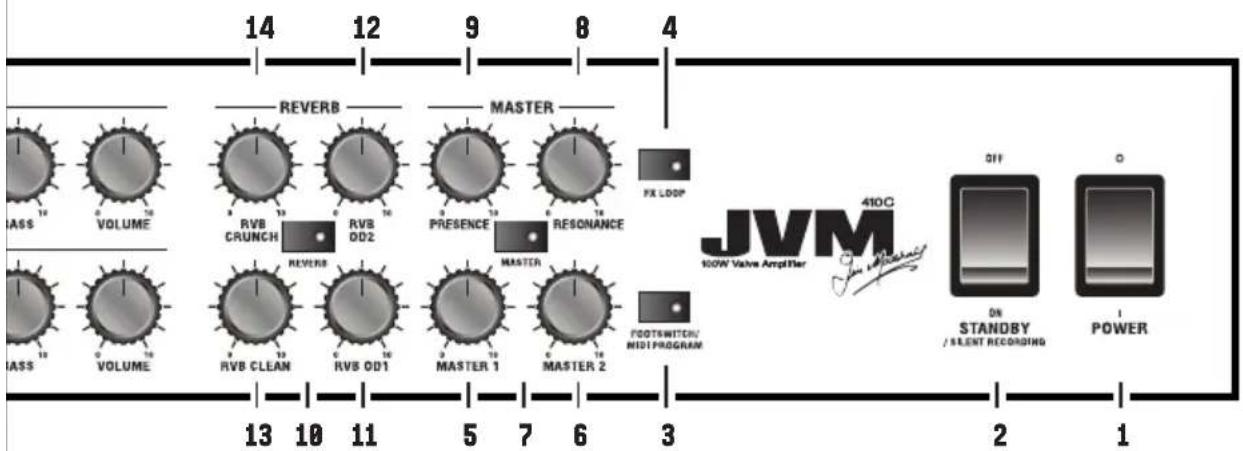

The front panel is divided into 3 main sections: channels, reverb and master. Each of the channels has 3 modes which are differentiated by the colour of the light in the button used to change channel. These are green, orange or red respectively.

1. POWER SWITCH

This turns the amp on and off.

2. STANDBY SWITCH

The standby switch is used in conjunction with the power switch to warm up the amp before use. Turn power switch on for 2 minutes before switching standby on.

Set the standby switch to the off position during breaks in performances.

Note: when the standby switch is off the amp can be used without a load for silent recording. See the 'Using your amp for silent recording' start-up procedure for more information.

3. FOOTSWITCH/MIDI PROGRAM SWITCH

This switch has a dual function:

1. Pressing it once will enter 'footswitch program' mode. This is indicated by a solid red light.
2. Pressing it twice will enter 'MIDI program' mode. This is indicated by a blinking red light.
   See more information on these modes later in this manual.

4. FX LOOP SWITCH

Engages/disengages the serial/parallel FX loop for the current channel.

Note: This switch does not affect the power amp insert / serial loop.

19. INPUT JACK SOCKET

Connect your guitar here using a 14 " jack instrument cable.

CHANNEL SECTION

Pressing a channel button has two functions:

• When pressing in the same channel it cycles the gain modes: GREEN (lowest gain level) > ORANGE > RED (highest gain level) > GREEN etc. Each mode remembers its own previous FX, reverb and master settings.
• Coming from a different channel recalls the last setting in the new selected channel.

Note: when you leave and then reselect a channel, it will automatically recall the last active mode.

15. CLEAN CHANNEL

Green mode: This is the cleanest of the three modes. It uses a simple and straightforward circuit keeping the signal as pure as possible. In this mode the channel's volume control is taken out of circuit. This is the only mode where this happens.

Orange mode: This mode offers a punchy sound that's easy to overdrive.

Red mode: This is mode adds another gain stage after the tone stack.

16. CRUNCH CHANNEL

This channel has a more typical Marshall preamp circuit characteristic of 'gain then tone'.

Green mode: This mode shares the preamp topology of the classic Marshall JTM45/1959 Plexi™ models (i.e.: gain + gain + tone). This means the sound and response will be similar to these vintage amplifiers, but with a bit more gain than is found in the originals.

Orange mode: This mode is reminiscent of the JCM800 2203 amplifier and offers gritty, . The gain structure is gain + gain + gain + tone.

Red mode: This shares the topology of the orange mode, but with more gain, giving you sounds similar to a hot-rodded JCM800.

17. OD1 CHANNEL

Green mode: This is very similar to the sound found in crunch red mode, allowing you to dial-in

two different crunch sounds.

Orange mode: This adds another gain stage to the OD1 green mode, resulting in hard rock/heavy metal tones.

Red mode: Adds more gain to the OD1 orange for a high gain Marshall sound.

18. OD2 CHANNEL

This channel is similar to the OD1 channel but with even more gain and the middle control shifted to being centred around 500hz (instead of the more typical Marshall value of 650hz). OD2 provides 3 high gain modes that are ideal for both lead and modern rhythm metal tones.

REVERB SECTION

The digital reverb is routed in parallel to the main signal and mixed using a valve. The reverb does not degrade the direct signal when engaged and when off it is effectively removed from the circuit.

10. REVERB SWITCH

Switches the reverb effect on or off for the current channel.

13. REVERB CONTROL (CLEAN CHANNEL)

Adjusts the level of reverb applied to the clean channel.

14. REVERB CONTROL (CRUNCH CHANNEL)

Adjusts the level of reverb applied to the crunch channel.

11. REVERB CONTROL (OD1 CHANNEL)

Adjusts the level of reverb applied to the OD1 channel.

12. REVERB CONTROL [OD2 CHANNEL]

Adjusts the level of reverb applied to the OD2 channel.

MASTER SECTION

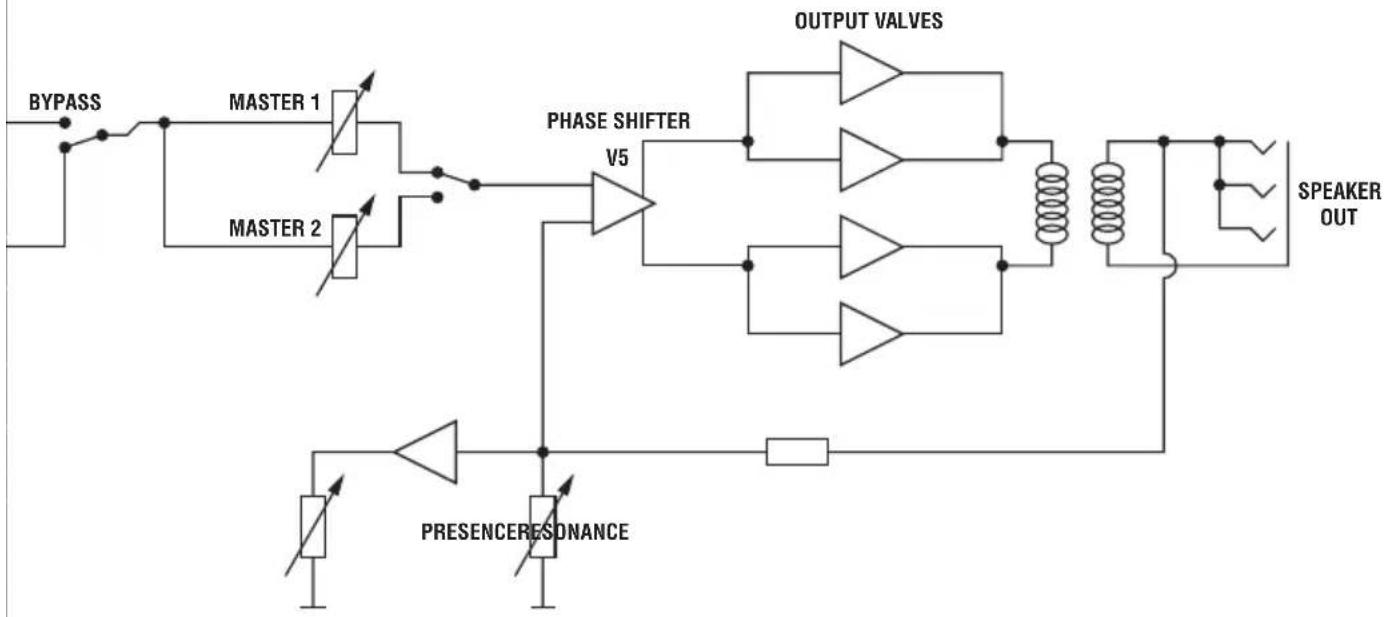

The master volume controls set the overall volume of the amp across all channels. Master 1 and Master 2 can be assigned to any mode and can be switched back and forth.

5. MASTER 1

Master 1 is used on all channels/modes by default.

6. MASTER 2

To set a channel/mode to use master 2, select the channel and mode, push the master button to engage master 2 and then switch out of the mode. When you re-visit the mode, the amp will automatically recall which master volume control you were previously using.

7. MASTER SWITCH

Switch between master 1 and master 2 for different volume settings on the same channel/ mode. The red LED in the switch indicates that master 2 is engaged. The light is off when master 1 is engaged.

Note: presets stored in the footswitch will recall whether master 1 or master 2 was selected. However, it will not recall the previous level of the master volume control.

9. PRESENCE

Adjusts the high frequencies of the power amp. Increasing high frequencies adds more bite to your sound.

8. RESONANCE

Adjusts the low frequencies of the power amp. Increasing low frequencies adds more bottom end giving you a fatter sound.

Warning: care should be taken to avoid over exertion of the speaker cones in high resonance settings.

Note: both the presence and resonance controls are power amplifier controls and therefore only have effect when playing through a speaker.

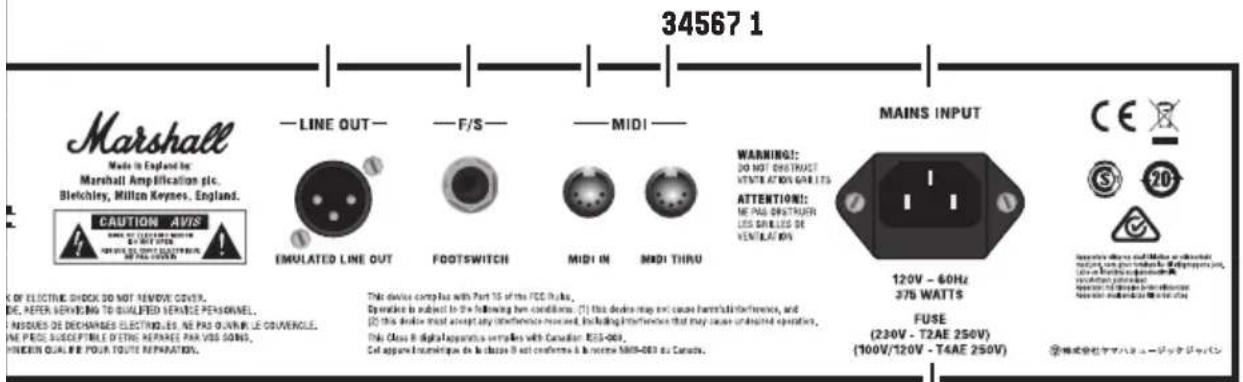

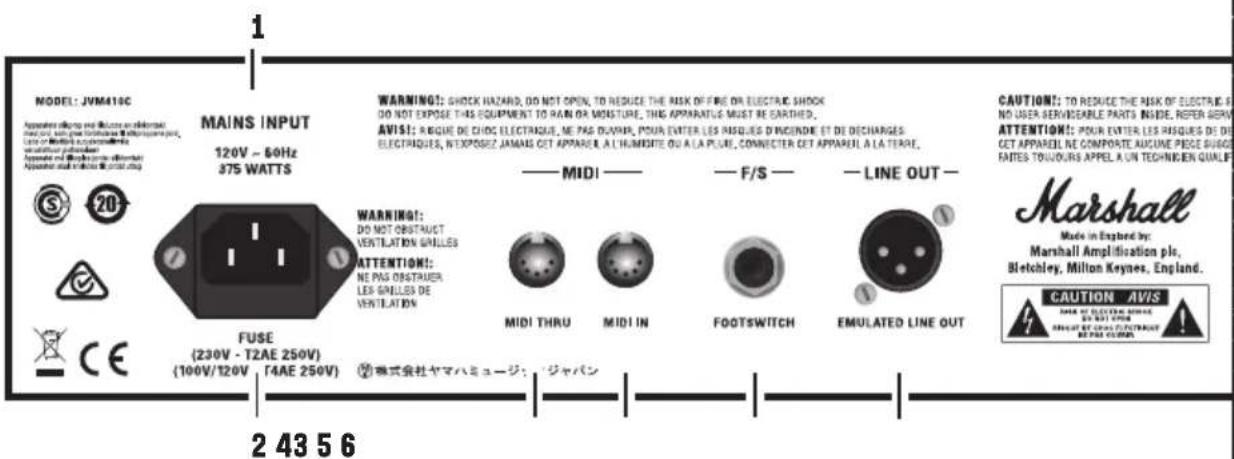

REAR PANEL FUNCTIONS

1. POWER INLET

The supplied mains power lead is connected here. The mains input voltage rating that your amplifier has been built for is shown on the rear panel.

Warning: before powering on, ensure the amp is compatible with the mains voltage of the country that the amp is being used in. If you have any doubt, please get advice from a qualified person.

2. MAINS FUSE

Protects the amplifier and mains supply in the event of a fault. The correct value of mains fuse is specified on the rear panel.

3. MIDI THRU

A copy of the signal from the MIDI In connector is available on the MIDI thru socket to allow daisy chaining of MIDI equipment.

4. MIDI IN

Connect any external MIDI equipment to the MIDI In DIN socket.

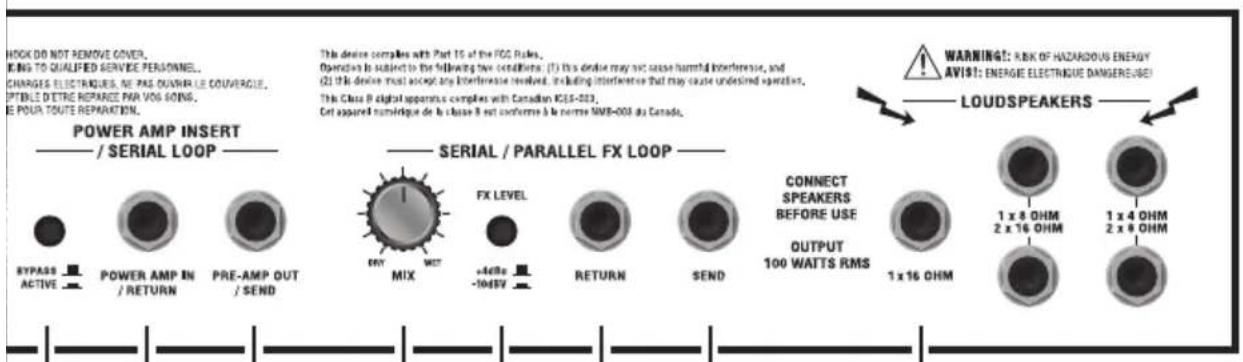

SERIAL/PARALLEL FX LOOP:

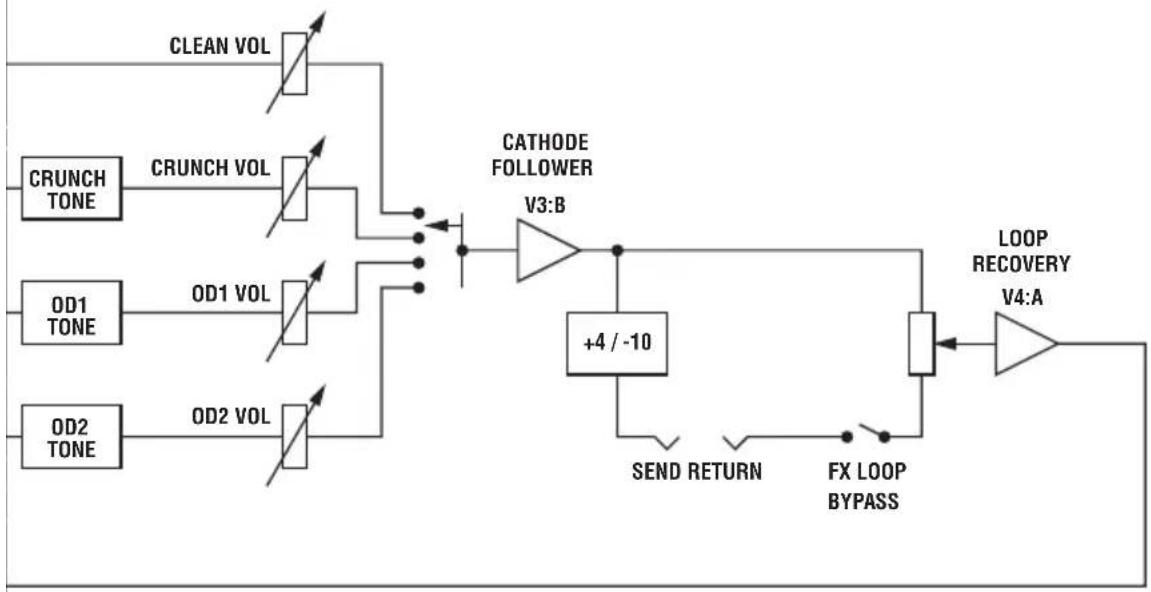

This is a programmable FX loop located after the pre-amp, right before the reverb and serial loop circuits. The FX Loop switch engages/disengages this effects loop.

13. SERIAL / PARALLEL FX LOOP: SEND

Connect your external FX equipment here using a 14 " jack instrument cable.

12. SERIAL / PARALLEL FX LOOP: RETURN

Return your signal from external FX equipment here using a 14 " jack instrument cable.

11. SERIAL / PARALLEL FX LOOP: FX LEVEL

Configure the loop for use with either professional equipment (+4dBu setting) or with guitar level effects like effects pedals (-10dBV setting).

10. SERIAL / PARALLEL FX LOOP: MIX CONTROL

Control the amount of effect that can be dialled in with the mix control. When mix is set to 'wet', all the signal goes through the external loop, adding more direct (unprocessed) signal as you turn it towards dry.

POWER AMP INSERT/SERIAL LOOP

This is a passive loop connected right before the master controls. It is a line level loop so it is recommended to only use high headroom devices to avoid signal degradation.

9. PRE-AMP OUT / SEND

Connect your external FX equipment here using a 14 " jack instrument cable.

8. POWER-AMP IN / RETURN

Return your signal from external FX equipment here using a 14 " jack instrument cable.

7. BYPASS SWITCH

Engage/disengage the power amp insert/serial loop. This switch cannot be programmed.

6. EMULATED LINE OUT

This output sends signal to external equipment. The signal is taken pre-master volume, processed through a 4x12 speaker cabinet emulator and electronically balanced.

Note: using the line out does not omit the need for a load to be connected (unless the amp is in silent recording mode).

5. FOOTSWITCH

Connect the supplied footswitch using any standard 14 " jack instrument lead.

FOOTSWITCH

Note: using any other type of footswitch rather than the one supplied will have no effect and will be ignored by the amp.

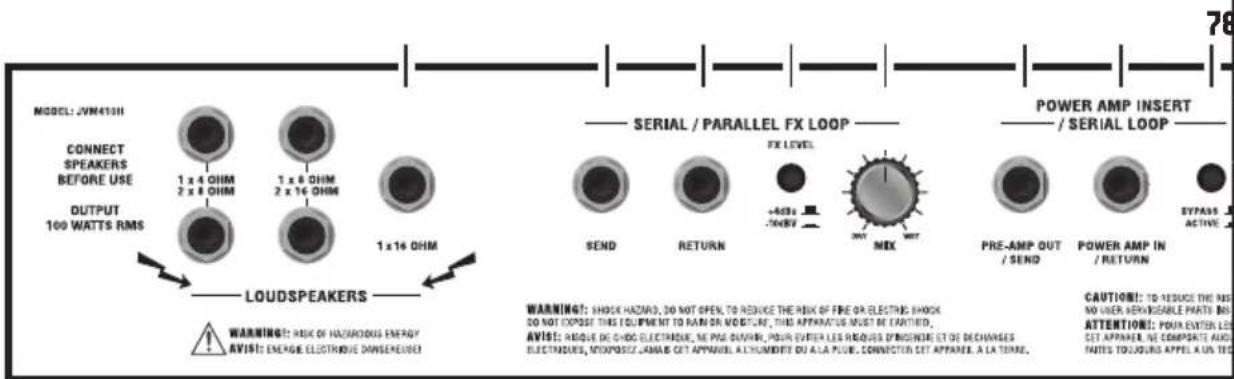

14. SPEAKER OUTPUTS

1/4" jack speaker outputs. They are labelled according to the corresponding cabinet setups:

• 1 x 16 Ohm: connect a 16Ω speaker cab..
• 1 x 8 Ohm / 2 x 16 Ohm: connect a single 8Ω guitar cabinet or two 16Ω cabinets.
• 1 x 4 Ohm / 2 x 8 Ohm: connect a single 4Ω guitar cabinet or two 8Ω guitar cabinets.

Warning: although the amplifier has five speaker outputs, never attempt to connect more speakers than rated. The safe combinations are listed above. Any other speaker configuration may stress or damage the amp.

4 channel JVM amps are supplied with a 6-way programmable footswitch which can be connected to the amp via any standard guitar cable.

Warning: the supplied footswitch lead is unscreened and not suitable for guitar.

The footswitch features 7 LEDs marked clean, crunch, OD1, OD2, master, reverb and FX. The LEDs for each of the 4 channels are 3-coloured green, orange and red. These indicate which channel and mode is selected, alongside the status of master, reverb and FX loop.

Each of the individual footswitches has 2 modes of operation:

- Switch store mode: Assign any of its 6 switches to instantly recall any front panel function (channel/mode; reverb on/off; master volume 1/2 and FX loop on/off).

Note: if a switch is assigned to select a channel, once it has been activated it can be used to scroll through the three modes, just like its respective front panel switch.

- Preset store mode: Each switch can be programmed to instantly call up a combination of JVM button options to form a preset. This allows you to recall complete channel setups in any order and combination.

As the switches can be programmed independently you can program a mixture of the above.

Note: all the settings are stored within your footswitch; this means it can be plugged into any JVM amp and all your footswitch settings can be instantly recalled.

PROGRAMMING THE FOOTSWITCH

To enter footswitch program mode, press the footswitch/MIDI program button on the front panel once. The indicator light will illuminate. This mode allows you to program the footswitch.

Note: when the front panel footswitch/MIDI program switch is off, the footswitch will execute commands the moment the switch is pressed down. When the footswitch program mode is active, you can use the amp as normal with commands executed on release of the footswitch.

To store the current amp status/settings to a footswitch (preset store mode):

1. Press the footswitch/MIDI program button on the front panel to enter Footswitch program mode (red LED).
2. Press and hold the desired footswitch for about 3 seconds. The FX footswitch LED will flicker indicating that the preset has been stored.

To store a specific front panel function to a footswitch (switch store mode):

1. Press the footswitch/MIDI program button on the front panel to enter Footswitch program mode (red LED).
2. Press and hold the desired footswitch. While holding the footswitch down, in less than 3 seconds, press the front panel switch you want to map. The FX footswitch LED will flicker a couple of times indicating that the switch has been mapped.

Note: the footswitch/MIDI program switch cannot be assigned to a footswitch.

The footswitch can be hot-swapped and synchronises itself with the amp after connection. Connect the footswitch lead to the footswitch side first and then connect it to the amp.

FOOTSWITCH RESET

Warning: once the memory is erased it cannot be recovered.

To reset the footswitch to the factory default status:

1. Unplug the footswitch at any of the cable sides.
2. Press and hold the switch #6 (right switch).
3. Plug in the footswitch cord.
4. Release the switch and the FX LED will start blinking.
5. If you want to erase the footswitch memory press the switch #5. To keep the memory press any of the #1-#4 switches.
6. Release the switch and the footswitch will synchronise with the amplifier.

The factory default is as follows:

FSW #1: clean;
FSW #2: crunch;
FSW #3: OD1;
FSW #4: OD2;
FSW #5: master;
FSW #6: reverb.

AVERTISSEMENT ! CONSIGNES DE SÉCURITÉ

DÉCLARATION DE CONFORMITÉ

6. EMULATED LINE OUT

ORANGE : V1:A, V2:A GAIN OFF, V2:B

RED : V1:A, V1:B, V2:A GAIN OFF, V2:B

CRUNCH

GREEN : V1:A, V2:B

ORANGE : V1:A, V2:A GAIN OFF, V2:B

RED : V1:A, V2:A, GAIN ON, V2:B

OD1

GREEN : V1:A, V2:A GAIN ON, V2:B

ORANGE : V1:A, V1:B, V2:A GAIN OFF, V2:B

RED : V1:A, V1:B, V2:A GAIN ON, V2:B

OD2

GREEN : V1:A, V2:A GAIN ON, V2:B

ORANGE : V1:A, V1:B, V2:A GAIN OFF, V2:B

RED : V1:A, V1:B, V2:A GAIN ON, V2:B

VALVE CHART

V5 V4 V3 V2 V1 V9 V8 V7 V6

JVM410H 3 6 7 5 11 10 13 POWER OFF ON STANDBY /SILENT RECORDING JVM 100W Valve Amplifier FOOT/WITCHEN MIDI PROGRAM MASTER REVERB 8 MASTER 2 MASTER 1 RVB OD1 RVB CLEAN VOLUME BAS FE LOOP RESONANCE PRESENCE RVB OD2 RVB CRUNCH VOLUME BAS 1 2 4 8 9 12 14

MODEL: JVM410II CONNECT SPEAKERS BEFORE USE OUTPUT 100 WATTS RMS 1 x 4 OHM 2 x 8 OHM 1 x 8 OHM 2 x 16 OHM 1 x 16 OHM LOUDSPEAKERS WARNING: RISK OF HAZAROUS ENERGY AVIS: ENAGE ELECTRIDE DUSSENEUER SERIAL / PARALLEL FX LOOP FX LEVEL SEND RETURN +40% -340V MIX POWER AMP INSERT / SERIAL LOOP PRE-AMP OUT / SEND POWER AMP IN / RETURN EYPASS ACTIVE CAUTION: TO REDUCE THE NS NO USER SERVUSAABLE PARTS NO ATTENTION: POUR ENTER LED SET APPAREL. NE COMPOSITE AND FAITES TOZOLURS APPEL A UN TEA

MODEL: JVM410C MAINS INPUT 120V - 60Hz 375 WATTS WARNING: SHOCK HAZARD, DO NOT OPEN, TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE, THIS APPARATUS MUST BE EARTHED. AVIS: REQUE DE CHOC ELECTRAQUE, ME PAS DAVIER, POUR ENTER LES RAQUES D'INGENDE ET DE OSCARGES, ELECTRAQUES, N'exPOSEZ JAMAIS CET APPAREL A L'HUMORTE OU A LA PLAUE, CONNECTER CET APPAREL A LA TERRE. MIDI —— F/S —— LINE OUT — MIDI THRU MIDI IN FOOTSWITCH EMULATED LINE OUT WARNING: DO NOT OBSTRUCT VENTILATION GRANLES ATTENTION: NE PAS OBSTRAUER LES GRANLES DE VENTILATION MARSHALL Made in England by: Marshall Amplification pile, Bletchley, Milton Keynes, England. CAUTION AVIS 2 43 5 6
    subgraph_Display_Units["17 15"]
        A["OD1"] --> B["MIDDLE"]
        B --> C["TREBLE"]
        C --> D["GAIN"]
        D --> E["OD2 MODE"]
    end

    subgraph_Mode_Says["MODE"]
        F["VOLUME (Orange & Red)"]
        G["BASS"]
        H["MIDDLE"]
        I["TREBLE"]
        J["GAIN"]
    end

    subgraph_Power_Traffic["Power Supply"]
        K["VOLUME"]
        L["BASS"]
        M["MIDDLE"]
        N["TREBLE"]
        O["GAIN"]
    end

    subgraph_Power_Circuit["Power Supply"]
        P["CRUNCH"]
        Q["CRUNCH MODE"]
    end

    R["INPUT"] --> S["Ground"]

18 16 19

34567 1 Marshall Made in England by Marshall Amp Education plc. Bleichley, Milton Keynes, England. CAUTION AVTS EMULATED LINE OUT F/S- FOOTSWITCH MIDI IN MIDI THRU WARNING: DO NOT OBTUCT VISTA ACTION GARE LTS ATTENTION: ME PAS OBTUER LES GARLES DE VENTILATION MAINS INPUT 120V - 60Hz 378 WATTS FUSE (230V - 72AE 250V) (100V/120V - T4AE 250V) CE 20 S ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ ⑵ ⑶ ⑷ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑪ ⑫ ⑬

2

    subgraph Stage 1
        F["ASS"] --> G["VOLUME"]
        H["13"] --> I["RVB CRUNCH"]
        J["10"] --> K["RVB OD2"]
        L["11"] --> M["REVERB"]
        N["5"] --> O["RVB CLEAN"]
        P["7"] --> Q["RVB OD1"]
        R["6"] --> S["MASTER 1"]
        T["3"] --> U["MASTER 2"]
    end

    subgraph Stage 2
        V["13"] --> W["RVB CLEAN"]
        X["10"] --> Y["RVB OD1"]
        Z["11"] --> AA["MASTER 1"]
        AB["5"] --> AC["MASTER 2"]
    end

    subgraph Stage 3
        AD["13"] --> AE["10"]
        AF["11"] --> AG["5"]
        AH["7"] --> AI["6"]
        AJ["3"] --> AK["FOOT/SWITCH/MIDI PROGRAM"]
    end

    subgraph Stage 4
        AL["FX LOOP"] --> AM["JVM 410C 100V Valve Amplifier"]
        AN["OFF"] --> AO["ON STANDBY / BLENT RECORDING"]
        AP["O"] --> AQ["POWER"]
    end

HOOK DO NOT REMOVE COVER, KING TO QUALIFIED SERVICE PERSONNEL, CHARGES ELECTRIOLES, NE PAS OUVER LE COUVERGIE, PTIBLE D'ETRE REPARGE PARA VOS SONS, E POUR TOUTE REPARATION. POWER AMP INSERT / SERIAL LOOP EYPASS ACTIVE POWER AMP IN / RETURN PRE-AMP OUT / SEND SERIAL / PARALLEL FX LOOP FX LEVEL +40Hz -1046V RETURN SEND CONNECT SPEAKERS BEFORE USE OUTPUT 100 WATTS RMS 1 x 8 OHM 2 x 16 OHM 1 x 4 OHM 2 x 9 OHM WARNING: RISK OF HAZARDOUS ENERGY AVIST: ENERGIE ELECTRIQUE DANGEREUSE LOUDSPEAKERS 1 x 8 OHM 2 x 16 OHM 1 x 4 OHM 2 x 9 OHM

7 8 9 10 11 12 13 14

YOUR SETTINGS

JVM410H

JVM 410H 100W Valve Amplifier FOOTSWITCH/ MIDI PROGRAM MASTER REVERB OD1 MASTER 2 MASTER 1 RVB OD1 RVB CLEAN VOLUME BASS MIDDLE FX LOOP RESONANCE PRESENCE RVB OD2 RVB CRUNCH VOLUME BASS MIDDLE

JVM410C

OD2 MIDDLE BASS VOLUME OD1 MIDDLE BASS VOLUME REVERB RVB CRUNCH RVB OD2 REVERB RVB CLEAN RVB OD1 MASTER 1 MASTER 2 MASTER FX LOOP PRESENCE RESONANCE FOOTSWITCH/ MIDI PROGRAM 410C JVM 100W Valve Amplifier Jim Vashkwal

Whilst the information contained herein is correct at the time of publication, due to its policy of constant improvement and development, Marshall Amplification Plc reserves the right to alter specifications without prior notice.

MARSHALL AMPLIFICATION PLC, DENBIGH ROAD, BLETCHLEY, MILTON KEYNES, MK1 1DQ, ENGLAND.

T: [phone]

MARSHALL AMPLIFICATION PLC REGISTERED IN ENGLAND REGISTERED NUMBER: 805676

M3311.393 | CATS-00260-03

MARSHALL.COM
