USER MANUAL ULX-Dry 2H Ulsonix

Two-step diagram showing a tool applying force to a mechanical component, with no visible text or symbols.

Three-panel image showing a metal rack-mounted device with a separate vertical panel and a separate view of its base with legs and legs, connected by wires (no text or symbols visible)

Illustration of two metal lattice structures with a 90° angle indicator, showing structural details (no text or symbols)

Line drawings of two folding furniture items: a vertical panel and a flat folding table (no text or symbols)

Illustration of folding chairs with folding bands and a magnified detail showing a hand pointing to a component (no text or symbols present)

Line drawing of a folding chair with grid panel and side arm, showing structural change (no text or symbols)

Line drawing of a folding table with a rifle and a close-up view of the internal components (no text or symbols)

Reinigung

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description Parameter value
Product name	Electric Clothes Dryer
Model	ULX-DRY 2H	ULX-DRY 2TT	ULX-DRY TT
Rated voltage [V~] / frequency [Hz]	230/50
Rated power [W]	200	230	120
Load capacity - capacity max. [kg]	20	15	10
Protection rating IP	IPX1
Dimensions [width x depth x height; mm]	700 x 680 x 1090	940 x 540 x 940	940 x 500 x 740
Weight [kg]	3.6	2.8	2

Warning

1. Keep away from children and disabled people when using this product.
2. Always unplug the power cord when you not in using.
3. If the supply cord is damaged it must be replaced by the manufacturer, a service agent or similarly qualified persons to avoid a hazard.
4. For household use only. Do not use outdoors.
5. Never put the product in water, in the bath or other water containers.
6. Do not use the power cord under the floor mats, slide or carpet to avoid the tripping hazard.
7. Do not unplug the device by the power cord, hold the plug, not the cord.
8. Do not place objects into air vents and vents as this may result in electric shock, fire and equipment damage.
9. Do not use in areas where gasoline, paint or flammable liquids are used or stored.
10. Use this product strictly as described in this manual to avoid the cause of fire, electric shock or personal injury.
11. Children should be supervised to ensure they do not play with the device.
12. Children, elderly people with reduced mobility, people with physical, sensory or mental disabilities and lack of experience and knowledge should use the product under the supervision or guidance of a person responsible for their safety.
13. Do not use to dry down jackets and quilts!
14. After being on for 5 minutes, the heating region temperature remains constant at 45-55 °C. (be affected by the environment)
15. Maintenance: If the power cord is damaged, it must be replaced by the professionals from the maintenance department or similar department from manufacturer to avoid the danger.

Installation instructions ULX-DRY 2H

Stand:

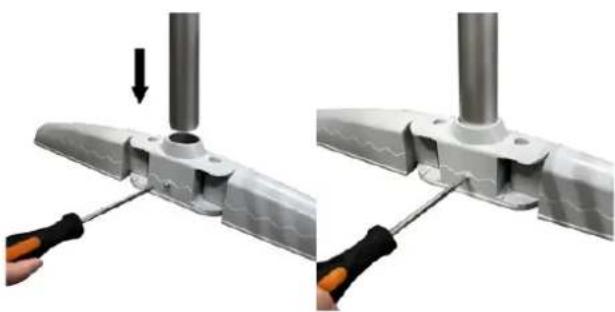

1. Remove the protective cover, install the foot, then tighten the screws provided on both sides of the base.

Two-step diagram showing a tool interacting with a mechanical component, one being inserted and the other holding a screwdriver (no text or symbols present)

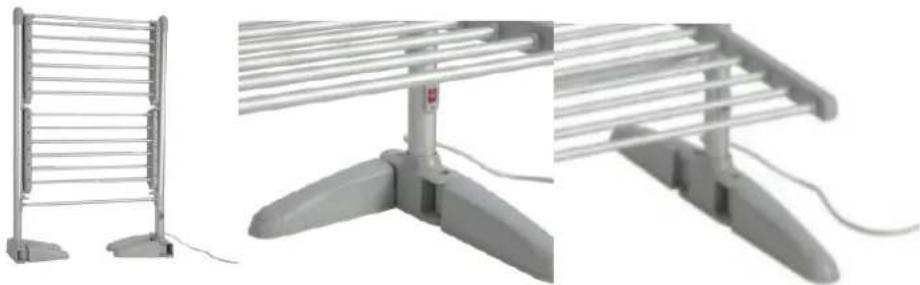

1. Open the support legs when you are using the clothes dryer.

Three-panel image showing a metal rack structure with a vertical ladder, a vertical support base, and a separate view of a multi-tiered platform with visible wiring (no text or symbols)

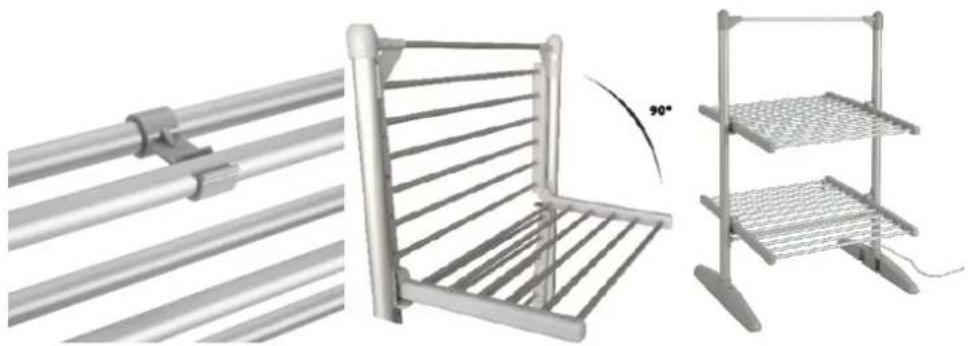

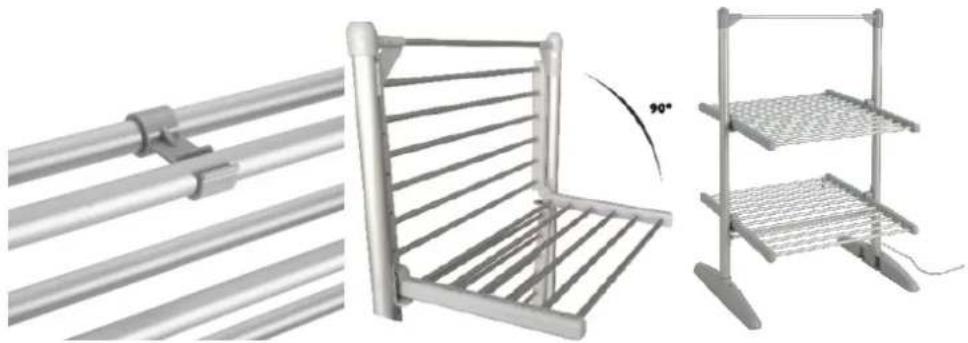

1. Unbuckle the hook, put down the shelves.

Illustration of two metal rack structures with a 90° angle indicator, showing structural details and mounting hardware (no text or symbols present)

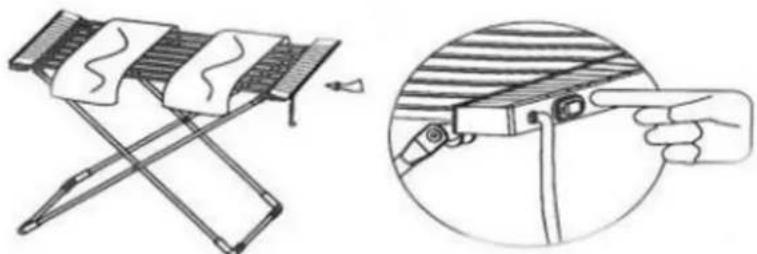

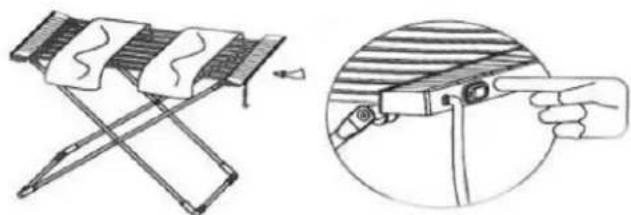

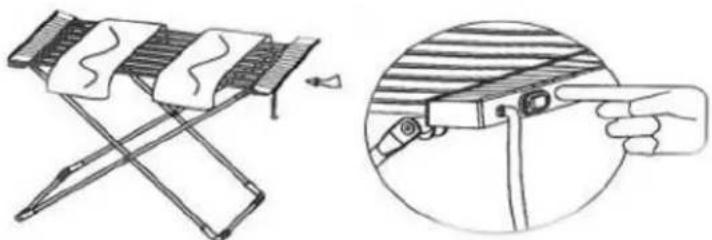

1. Plug in and switch on the clothes dryer.

Power ON/OFF switch

1. Press the switch at (I) position, the power indicator lights up and this product start to work.
2. Press the switch at [o] position, the power indicator lights off and this product finish working.

Product use instructions

1. Please read the installation instruction carefully to understand how to install product.
2. Make sure the installation is completed.
3. Press the power switch to [OFF] position.(i.e. Power indicator light is off).
4. Plug the power cord into an electrical outlet.
5. After connecting to suitable power supply, press the power ON/OFF switch, the power indicator lights up and then the warmer starts the heating work.

Installation instructions ULX-DRY 2TT

1. When using the heated dryer, please refer to these safety instructions.

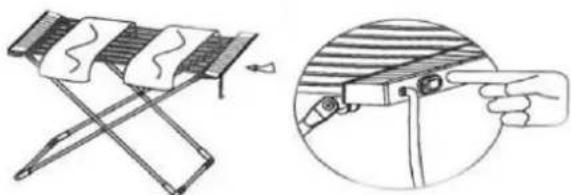

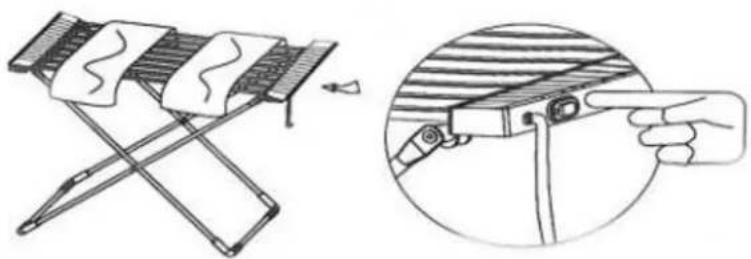

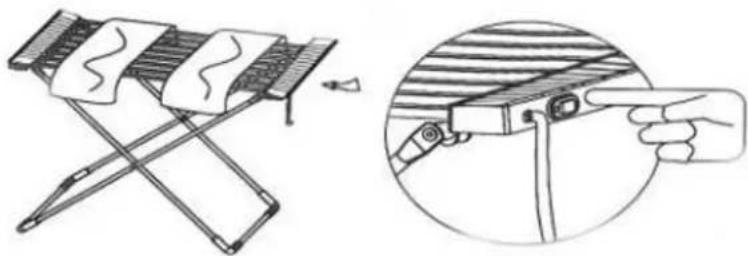

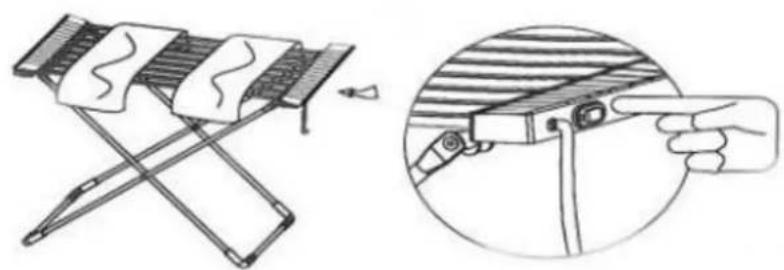

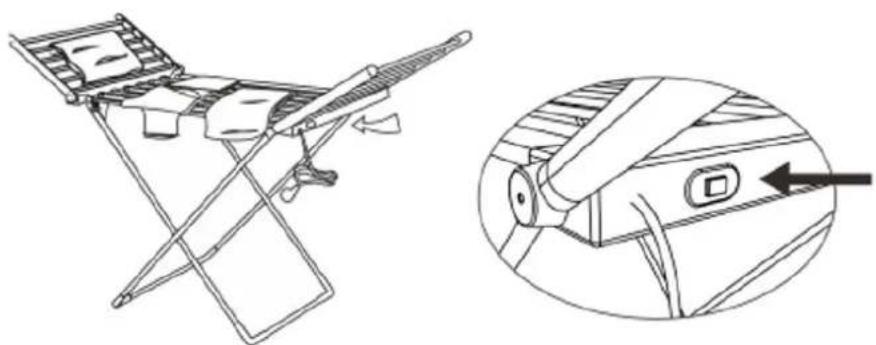

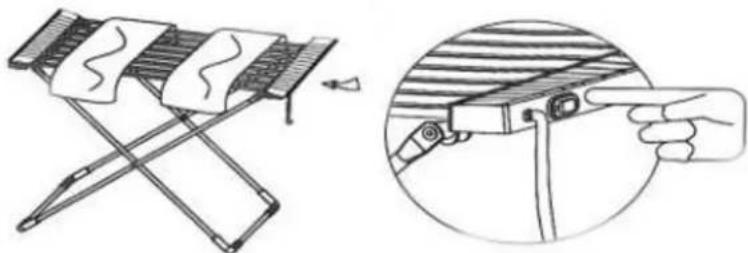

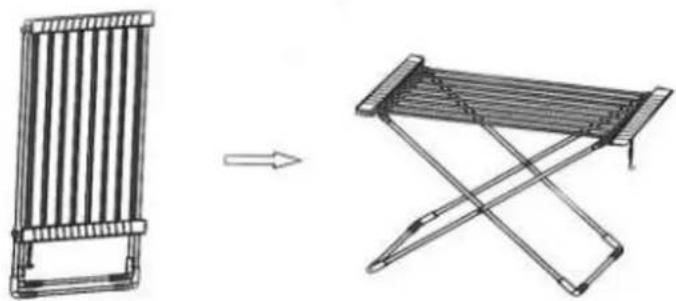

2. How to install and use as shown in the images below. After placing on a stable floor, turn on the switch button to activate the heater dryer.
3. Once you have finished using the heated dryer, unplug from the power source and fold the support legs for easy storage.

1 2 3 4

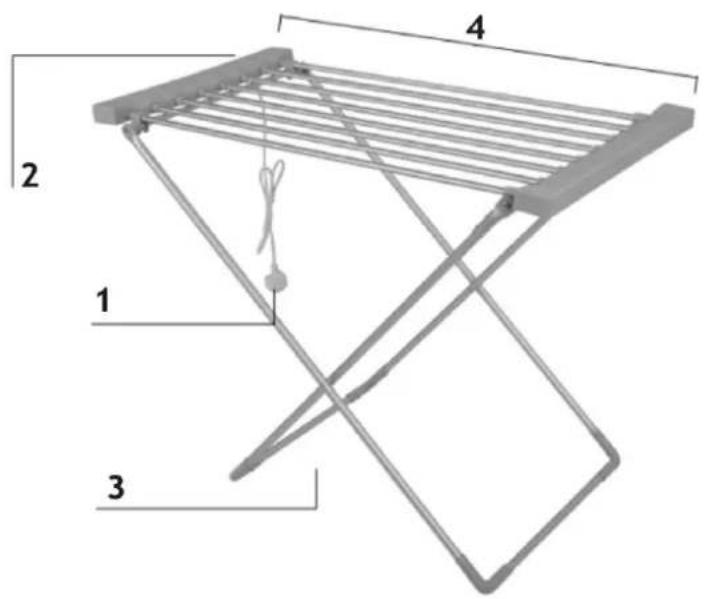

1 - Power cord.
2-ON/OFF switch
3 – Supporting legs
4 - Heating area

Diagram showing a folding chair and its open folding table, both without any text or symbols.

Illustration of folding chairs with folding panels and a magnified detail showing a hand pointing to a component (no text or symbols present)

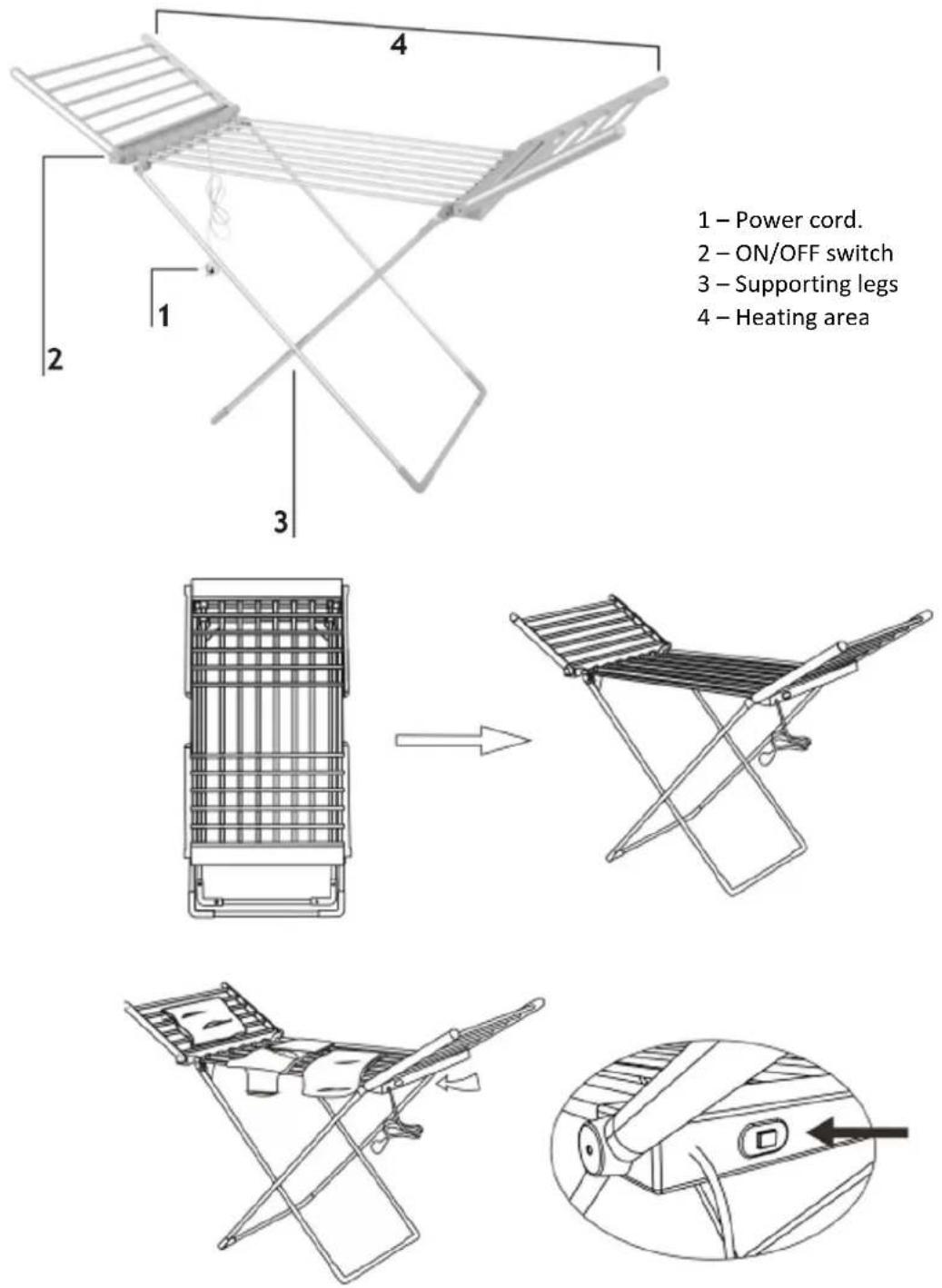

Installation instructions ULX-DRY TT

1. When using the heated dryer, please refer to these safety instructions.

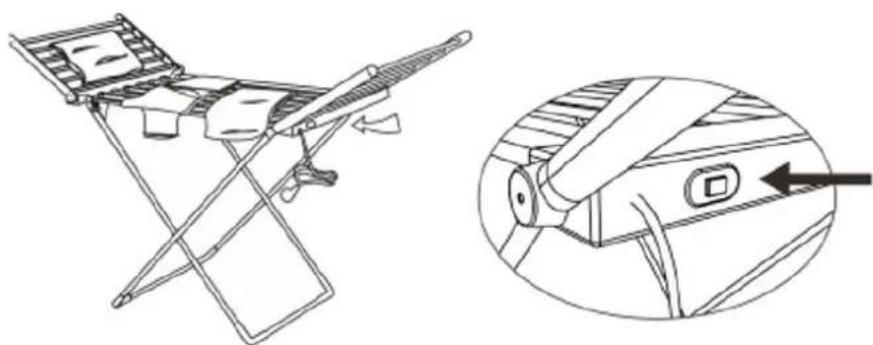

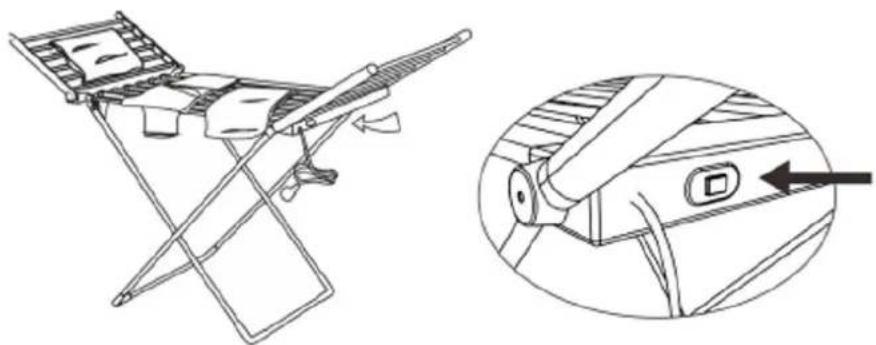

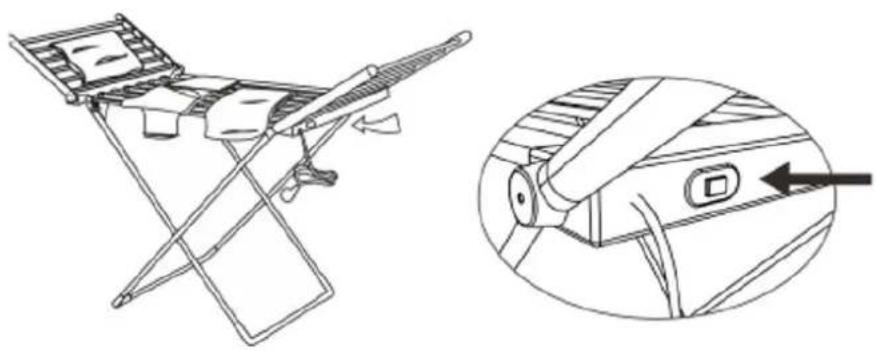

2. How to install and use as shown in the images below. After placing on a stable floor, turn on the switch button to activate the heater dryer.

3.Once you have finished using the heated dryer, unplug from the power source and fold the support legs & wings for easy storage.

1 - Power cord.
2-ON/OFF switch
3 – Supporting legs
4 - Heating area

Cleaning

1. Before cleaning, please unplug the product and let it cool down.
2. Do not put the product, power cord and plug into the water. Keep the cord dry.
3. Never clean the product with alcohol or solvent-based cleansers.

4. Please clean the surface by wet towel first and then dry it with a soft cotton cloth. Please NOTE: Do not use a metal ball or a rough cloth to wipe the product, it will scratch the surface of the product.

5. Please do not use alcohol or solvents on plastic components, it will cause the cracking and ageing of these parts.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
