ULX-DRY J - Dryer Ulsonix - Free user manual and instructions

Product type	Wall-mounted electric shoe dryer
Brand	Ulsonix
Model	ULX-DRY J
Power supply	230 V ~ / 50 Hz
Nominal power	40 W
Protection class	I
IP protection rating	IPX1
Dimensions (W × D × H)	610 × 110 × 220 mm
Weight	0.8 kg
Heating temperature	Up to 55 °C (constant after 5 min)
Number of heating elements	4
Maximum load capacity	8 kg
Mounting type	Wall mounting with brackets and wall plugs
Main functions	On/Off switch with indicator light, uniform heating
Housing material	Heat-resistant plastic
Safety	Splash-proof protection (IPX1), manual shut-off, detachable power cable
Cleaning	Surface: non-abrasive damp cloth; do not immerse, avoid solvents
Use	Indoor domestic use only
Precautions	Keep out of reach of children and disabled persons; unplug after use
Color	White / Gray (as shown in illustration)

Frequently Asked Questions - ULX-DRY J Ulsonix

How to install the ULX-DRY J shoe dryer on the wall?

First, attach the wall mounting brackets to the shoe dryer using the provided flat-head screws. Mark the hole positions on the wall, drill and insert wall plugs. Then screw the other half of the brackets to the wall, hang the device, and secure the retractable foot.

What is the maximum temperature reached?

The heating temperature can reach up to 55 °C. After about 5 minutes of use, it stabilizes between 45 and 55 °C, depending on ambient conditions.

Can I use the shoe dryer to dry wet shoes?

Yes, that is its main use. Distribute the weight of the shoes evenly over the heating tubes. Maximum capacity is 8 kg.

How to clean the device?

Unplug the device and let it cool. Clean the surface with a soft damp cloth, then dry with a dry cloth. Never use alcohol-based or solvent cleaners, and do not immerse the device in water.

Is the device suitable for outdoor use?

No, the ULX-DRY J is designed for indoor domestic use only. Do not use it outdoors to avoid any risk of electric shock or damage.

What to do if the power cord is damaged?

The cord must be replaced by the manufacturer, its after-sales service, or a similarly qualified person to avoid any hazard. Do not use the device with a damaged cord.

Can I leave the device on all night?

It is recommended not to leave the device unattended for a long period. Turn it off and unplug it after use, especially if you are away.

How many pairs of shoes can I dry at the same time?

The number depends on size and weight. Maximum capacity is 8 kg distributed over the 4 heating tubes. Generally, you can place 2 to 4 pairs of shoes depending on their weight.

Is this device suitable for drying clothes?

No, it is specifically designed for shoes. The heating elements are suitable for gentle drying of shoes, but not for bulky clothing.

What do the symbols on the packaging or device mean?

The crossed-out wheelie bin symbol means that the device must not be disposed of with household waste. It must be taken to a collection point for recycling of electrical and electronic devices.

USER MANUAL ULX-DRY J Ulsonix

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description Parameter value
Product name	Electric shoe dryer
Model	ULX-DRY V	ULX-DRY J
Rated voltage [V~] / frequency [Hz]	230 / 50
Rated power [W]	80	40
Protection class	I
Protection rating IP	IPX1
Dimensions [width x depth x height; mm]	610 x 350 x 315	610 x 110 x 220
Weight [kg]	1.3	0.8
Heating temperature [°C]	Up to 55
Number of heating elements	8	4
Load capacity [kg]	≤30	≤8

Warning

1. Keep away from children and disabled people when using this product.
2. Always unplug the power cord when you not in using.
3. If the supply cord is damaged it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.
4. For household indoor use only. Do not use outdoors.
5. Never put the product in water, in the bath or other water containers.
6. Do not use the power cord under the floor mats, slide or carpet to avoid the tripping hazard.
7. Do not unplug the device by the power cord, hold the plug, not the cord.
8. Do not place objects into air vents and vents as this may result in electric shock, fire and equipment damage.
9. Do not use in areas where gasoline, paint or flammable liquids are used or stored.
10. Use this product strictly as described in this manual to avoid the cause of fire, electric shock or personal injury.
11. Children should be supervised to ensure they do not play with the device.
12. Children, elderly people with reduced mobility, people with physical, sensory or mental disabilities and lack of experience and knowledge should use the product under the supervision or guidance of a person responsible for their safety.
13. After being on for 5 minutes, the heating temperature around remains constant at 45-55 °C (can be affected by the environment).
14. The weight of the shoes should be evenly distributed on the device.
15. Maintenance: If the power cord is damaged, it must be replaced by the professionals from the maintenance department or similar department from manufacturer to avoid the danger.

Installation

ULX-DRY V:

Fit the product body into the foot recess and screw them on together:

a) Heating tubes
b) Reinforced buckles
c) ON/OFF-switch
d) Electrical plug
e) Feet
f) Fixing screws

ULX-DRY J

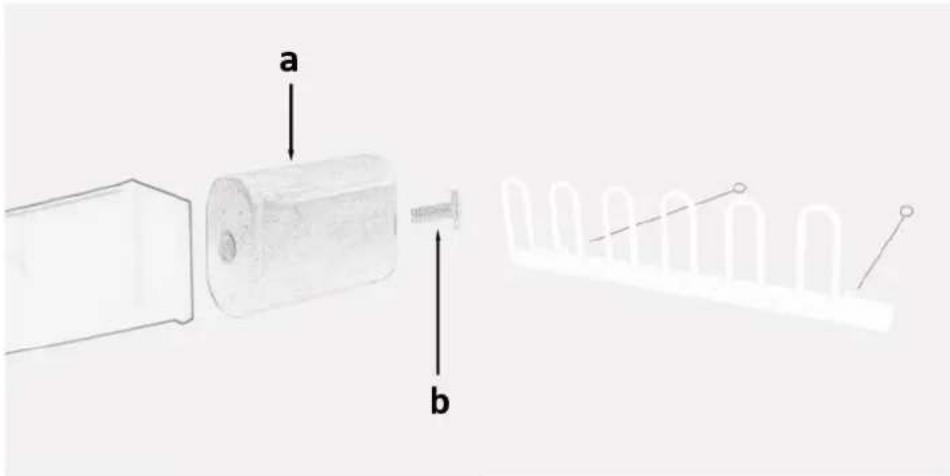

1. Secure wall-mount brackets to the shoe dryer with flat head screws, Mark 2 circles of each corner. Then find the centre of the 2 mark circles to drill holes:

a. Wall-mount brackets
b. Flat-head screw

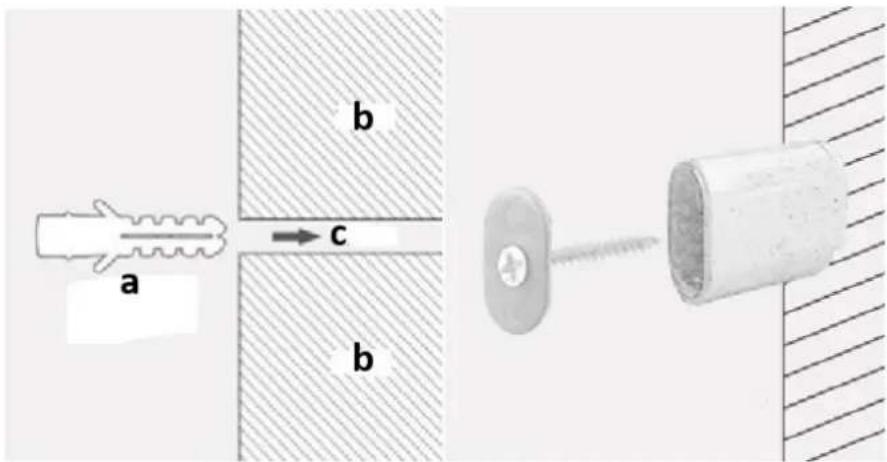

1. Insert the wall plug into the 2 holes as illustrate at right. Attach the other half wall-mount brackets to the wall:

a. Wall plug

b. Wall (cross-section)

c. Hole (drilled)

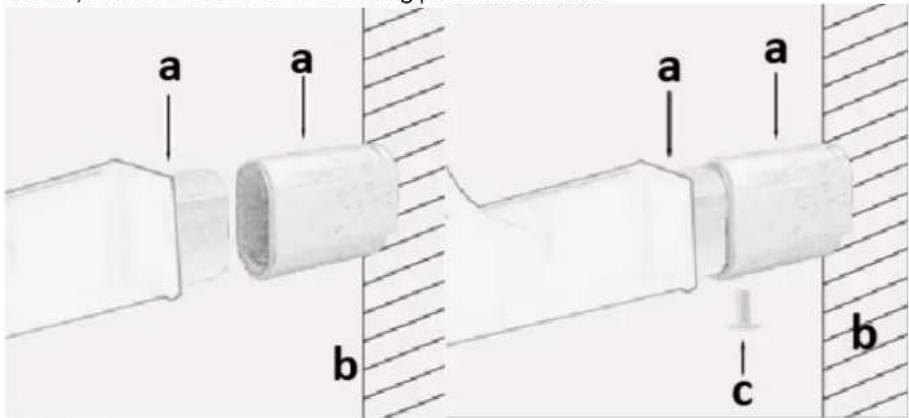

1. Adjust the retractable wall foot to the proper position, Fix the retractable wall foot on the device with screws, and then buckle it to the fixing piece on the wall:

a. Wall-mount brackets

b. Wall

c. Flat-head screw

Product use instructions

1. Make sure the installation is completed.
2. Press the power switch to [OFF-O] position.(i.e. Power switch lighting is off).
3. Plug the power cord into an electrical outlet.
4. After connecting to suitable power supply, press the power switch (I/O), the power indicator lights up and then the warmer starts the heating work.
5. When not using the device anymore please turn it off by putting the power switch to the OFF (O) position – the switch lighting turns also off.
6. When not using the device for a longer time period please unplug it form the power source.

Cleaning

1. Before cleaning, please unplug the product and let it cool down.
2. Do not put the product, power cord and plug into the water. Keep the cord dry.
3. Never clean the product with alcohol or solvent-based cleansers.
4. Please clean the surface by wet towel first and then dry it with a soft cotton cloth.

NOTE: Do not use a hard brush or a rough cloth to wipe the product, it will scratch the surface of the product.

1. Please do not use alcohol or solvents on plastic components, it will cause ageing or even cracking of these parts.

Correct Disposal of this product

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

a. Supports de montage mural

b. Mur

c. Vis à tête plate

a. Seinäkiinnikkeet

b. Seinä

a. Muurbeugels

b. Muur

c. Platte schroef

a. Veggmonterte braketter

b. Vegg

c. Flathodeskrue

Bruksanvisning for produktet

a. Konzoly pre montáž na stenu
b. Stena
c. Skrutka s plochou hlavou

a. Zidni nosači

b. Zid

a. Suporturi de montare pe perete
b. Perete
c. Šurub cu cap plat

a. Stenski nosilci

b. stena

c. Vijak s ploščato glavo

For the disposal of the device please consider and act according to the national and local rules and regulations.
