TIL-2 - Basket Pando - Free user manual and instructions

Product type	Decorative hood
Brand	Pando
Model	TIL-2
Main functions	3 speeds + intensive speed, automatic shut-off timer (15 min), Air Pur function
Lighting	LED (replacement by authorized technical service)
Filters	Washable grease filter, activated carbon filter (washable or disposable depending on type)
Maintenance alarm	Grease filter cleaning alarm every 30 hours, carbon filter replacement alarm every 120 hours
Alarm reset	Press button E for 3 seconds (motor running)
Air Pur function	Motor activated 10 min every 50 min at speed 1, max 24 h
Installation type	Wall-mounted, ceiling, island, built-in cabinet
Controls	Push buttons (A, B, C, D, E)
Safety	LED handling reserved for qualified professional to avoid electric shocks
General information	Manual downloadable at www.pando.es; environmental commitment (WEEE recycling, Green Point packaging)
Maintenance	Washable grease filters, carbon filters to replace or wash depending on type
Cleaning	Use appropriate containers for packaging

Frequently Asked Questions - TIL-2 Pando

How to activate the intensive speed on the Pando TIL-2 hood?

Press button C to activate intensive speed. This function temporarily increases suction power.

How to use the automatic shut-off timer?

Press button D: the hood and lights will turn off after 15 minutes. To cancel, press button D again.

What is the Air Pur function and how to activate it?

With the hood off, press button D for 3 seconds. The motor will run 10 minutes every 50 minutes at speed 1, for a maximum of 24 hours. Button A flashes during the cycle. Pressing any other button (except light) returns to normal mode.

How to know when to clean the grease filter?

Button B flashes every 30 hours of use to indicate that the grease filter needs cleaning. Reset the alarm by pressing button E for 3 seconds (motor running).

How to know when to replace the carbon filter?

Button E flashes at a frequency of 0.5 seconds every 120 hours of use, even if the filter is not used. Replace or wash the filter according to type, then press button E for 3 seconds (motor running) to reset.

What to do if the grease and carbon filter alarms are active at the same time?

Buttons B and E flash simultaneously. Perform maintenance on both filters, then reset each alarm by pressing button E for 3 seconds (motor running).

Can I replace the LED bulbs myself?

No, handling LED lamps is complex and poses a risk of electric shock. Entrust any intervention to the Pando authorized technical service or a qualified professional installer.

How to reset the maintenance alarm?

Make sure the motor is running, then press button E for 3 seconds. The alarm resets and the flashing stops.

Where to download the complete hood manual?

The manual is available for free in PDF format on the website www.pando.es. You can also download it via the QR code or link provided in the packaging.

How to know the latest version of the manual?

Check the digital version on www.pando.es to ensure the latest instructions. The paper version is not updated in real time.

USER MANUAL TIL-2 Pando

Interior view of a modern kitchen appliance with a Pando air conditioner unit, mounted on a wooden shelf (no visible text or symbols)

Pando integralcooking

TIL-2

Quality Management System

UNE-EN ISO 9001:2015

ES19/86566

The Global Kitchen Partner

Pando reserves the right to change or cancel any measures of the articles in the manual without prior notice, without affecting the essential characteristics of functionality and safety, and is not responsible for any errors or omissions that may occur in the manual.

Technical specifications valid except for typographical errors, omission, or printing. The images and content of this manual are the exclusive property of Pando - INOXPAN S.L., and any appropriation of images and total or partial reproduction without prior written authorization is strictly prohibited.

THE IMAGES SHOWN IN THIS MANUAL ARE NOT CONTRACTUAL.

Pando's Technical Management reserves the right to modify, alter, or improve the technical drawings displayed in this manual without prior notice.

The paper version of this manual cannot be updated in real-time, to ensure the latest version of your product's instructions, we recommend consulting the digital version at www.pando.es

First of all, we would like to thank you for the trust you have placed in our company by purchasing one of our products.

For purchasing one of our products. We are sure that you have made the right decision.

At Pando, not only do we offer top quality products, but we also have a large team of professionals who will help you and advise you on any queries you may have during installation or operation.

To get to know us better, we invite you to visit our website (www.pando.es) where you can see our full range of products with the most up to date commercial and technical information.

Here you will find a wide selection of Decorative Hoods; wall-mounted, ceiling-mounted, island, integrated into furniture and integrated into the hob.

This variety allows us to adapt to any style of kitchen.

We also show you our collection of essential appliances in any home.

Appliances such as our collection of high-performance Ovens and Microwaves with high performance, Induction and Gas Hobs that will help you to make the best recipes, Wine Cellars and Ageing Cellars to maintain and preserve your wines in the best conditions, Dishwashers with the most modern technology and our with the most up-to-date technology and our range of Refrigerators and Freezers with Freezers and Refrigerators for panel integration together with those for free installation.

All this under a brand with a very long trajectory of more than 40 years in the sector, which manufactures its products as a sector, which manufactures its products like a true craftsman. Bringing the best of our experience to everything we do.

We sincerely hope you have fun, experience and enjoy the comfort and capabilities of what is already your new capabilities of what is already your new kitchen ally.

Muchas gracias

El equipo de Pando

Simple line drawing of a trash bin with no text or symbols

DEL MEDIOAMBIENTE Y TRATAMIENTO DEL RESIDUO

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

PROTECTION DE L'ENVIRONNEMENT ET TRAITEMENT DES DÉCHETS

The symbol on the product or its packaging indicates that this product cannot be disposed of like normal domestic waste. The product must be handed over at a collection point for recycling electrical and electronic equipment. If you ensure that this product is correctly disposed of, you will help to avoid the possible negative environmental and public health effects that could arise from incorrect disposal. For more detailed information about recycling this product, please contact your city authorities, the domestic waste service or the establishment where you purchased it. This electrical appliance is marked in compliance with European Directive 2012/19/EU on electrical and electronic appliance waste (WEEE).

COLLECTION OF HOUSEHOLD APPLIANCES

Simple line drawing of a trash bin with no text or symbols

ENVIRONMENTAL PROTECTION AND WASTE TREATMENT

DISPOSAL OF THE PACKAGING. The packaging is marked with in Green Dot.

In its commitment to the protection of the environment and in compliance with the provisions of the European Directive 94/62 / EC on packaging and packaging waste and the derived Law 22/2011 on Contaminated Residues and Soils, Pando entrusts entities of social economy an Integrated Management System, responsible for the periodic collection at the consumer's home or in its vicinity of used packaging and packaging waste for subsequent treatment.

To remove all packaging materials such as cardboard, expanded polyurethane, and film, use the appropriate containers.

This ensures the correct treatment and reuse of packaging materials.

Contenido / Conteúdo / Contenu / Content

Ø150 Ø120 Pseudo x2 x4 Ø1.4 mm i

Herramientas Necesarias / Ferramentas Necessárias / Les Outils Nécessaires / Tools Needle

Illustration of construction workers and various tools including screwdriver, wrench, drill bit, and pencil (no text or labels)

Dimensiones / Dimensões / Dimensions / Dimensions

273 344 291 70 30/50 300 561-661-761-861-961 598-698-798-898-998

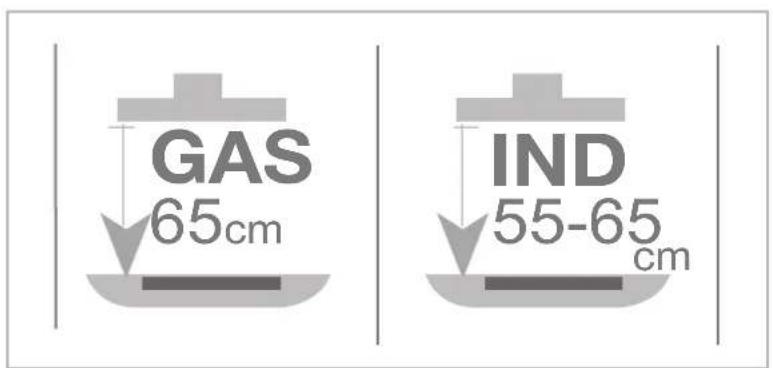

GAS 65cm IND 55-65 cm

Instalación / Instalação / Installation / Installation

Diagram illustrating the process of installing or removing a grid-patterned air conditioner unit, showing step ① and directional arrows.

② x10

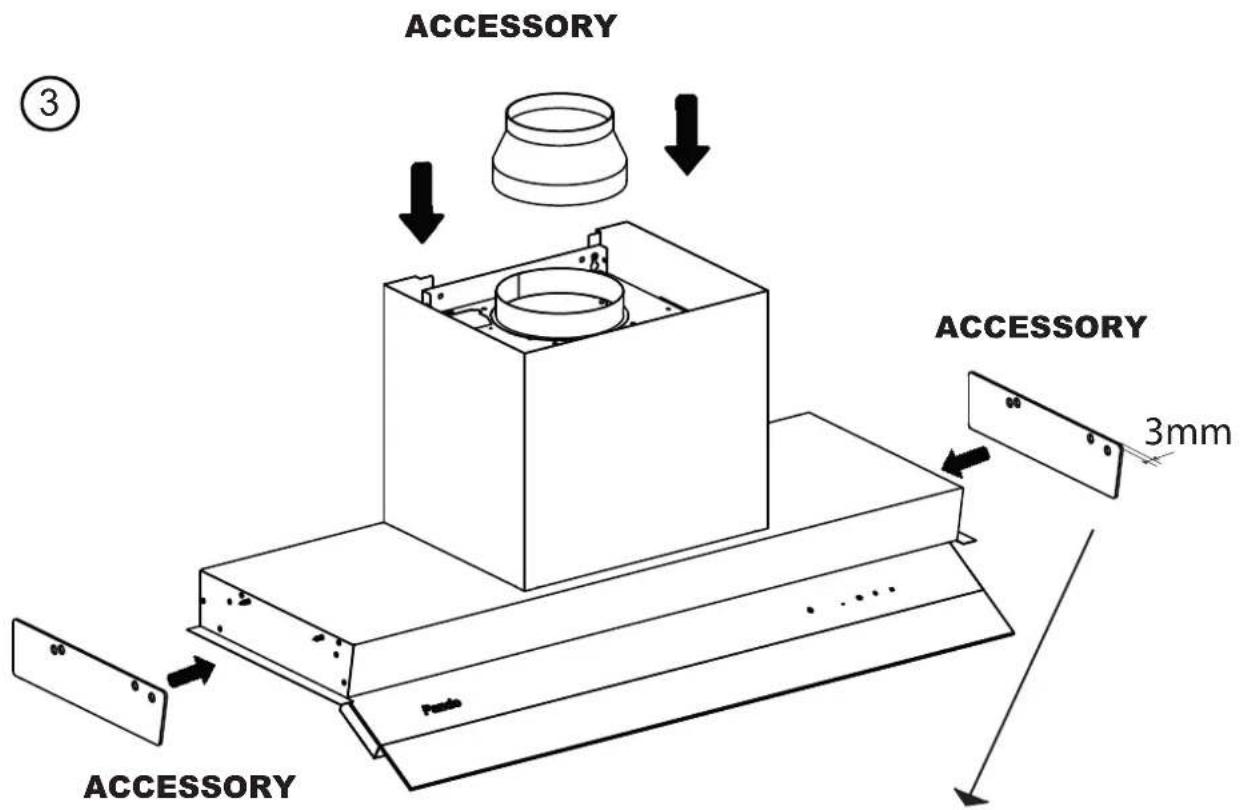

ACCESSORY ACCESSORY 3mm ACCESSORY ACCESSORY

30mm 50mm ACCESSORY

Isometric line drawing of a 3D rectangular box with internal compartments and a circular top, no text or symbols present

Technical line drawing of a mechanical assembly with an upward arrow indicating motion (no text or symbols present)

Line drawing of a multi-level cabinet or enclosure with shelves and a door, no text or symbols present

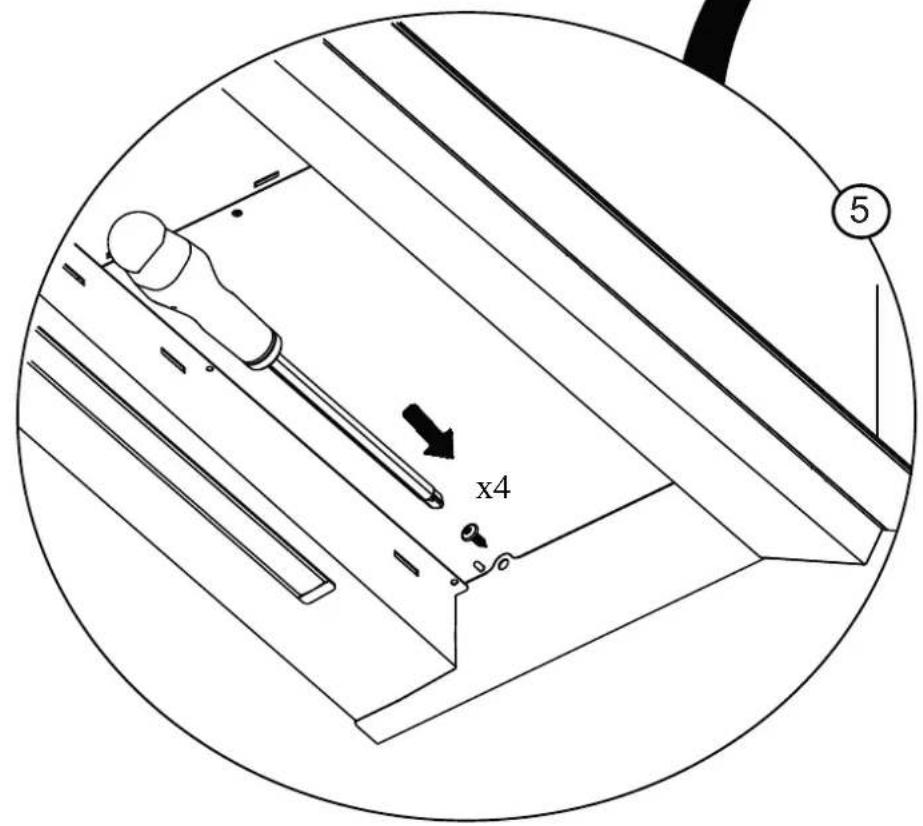

x4 ⑤

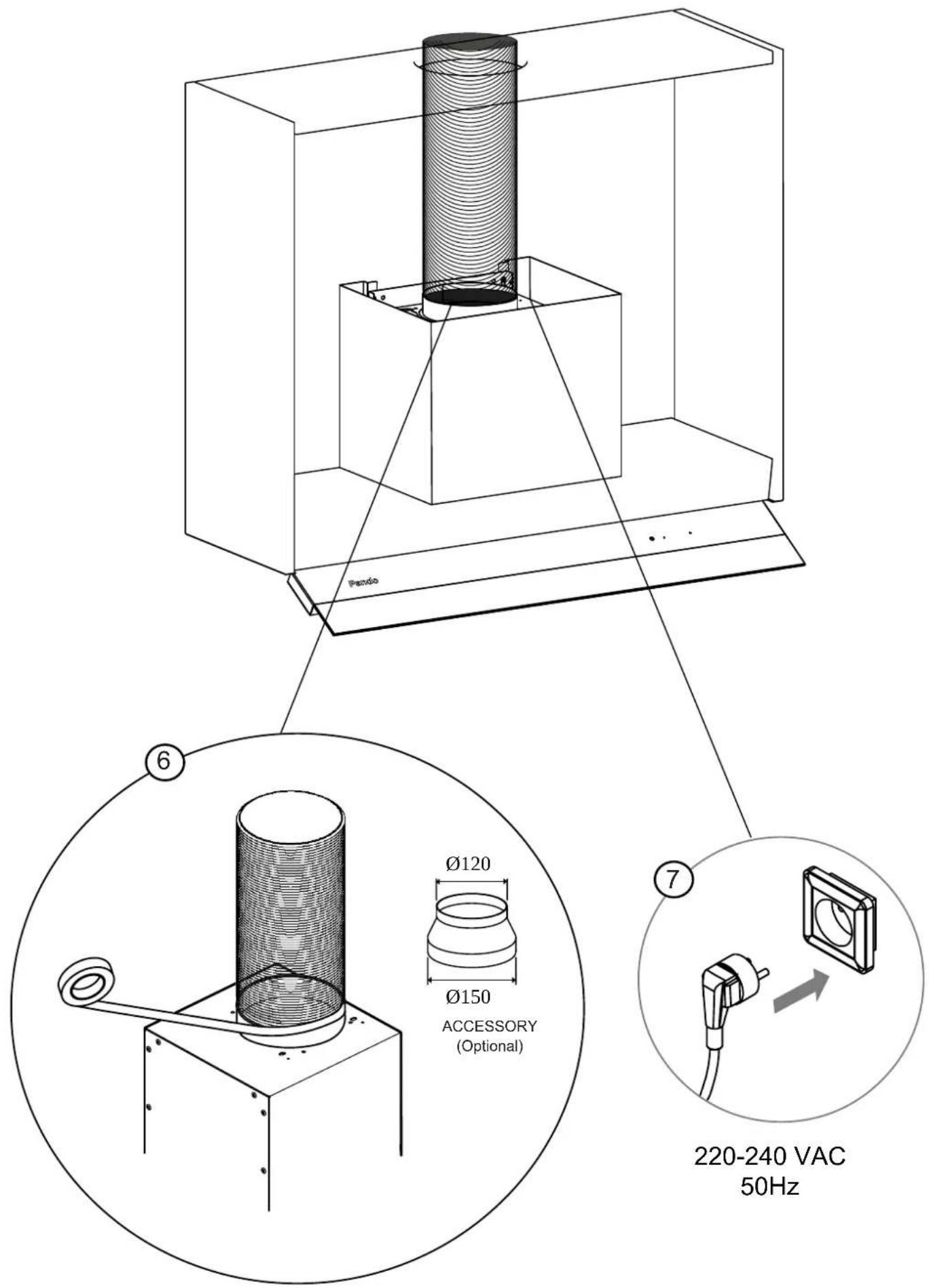

Pseudo 6 Ø120 Ø150 ACCESSORY (Optional) 7 220-240 VAC 50Hz

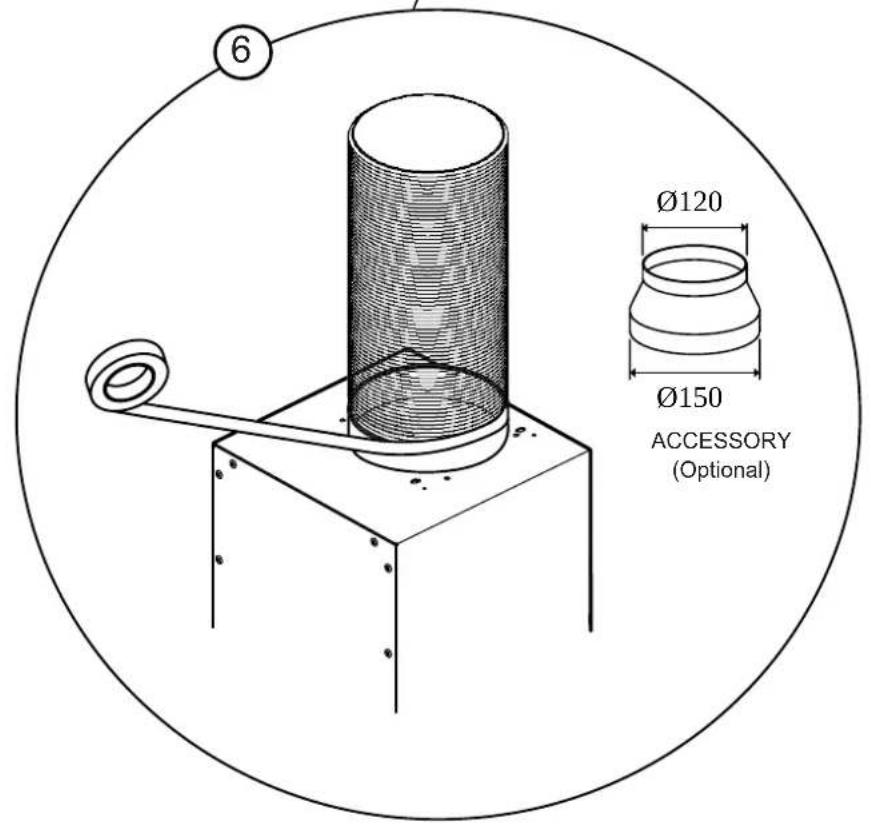

6 Ø120 Ø150 ACCESSORY (Optional)

⑦

Technical diagram showing assembly steps of a laptop with labeled components and directional arrows

Mantenimietno / Manutenção / Entretien / Maintenance

ES Filtro Aluminio

PT Filtro Alumínio

FR Filtre D'Aluminium

GB Aluminium Filter

Diagram showing a server rack with grid layout and two separate panels, both with downward arrows indicating assembly or installation (no text or symbols present)

Three identical patterned panels with circular and square patterns, each containing a small rectangular cutout (no text or symbols)

Mantenimietno / Manutenção / Entretien / Maintenance

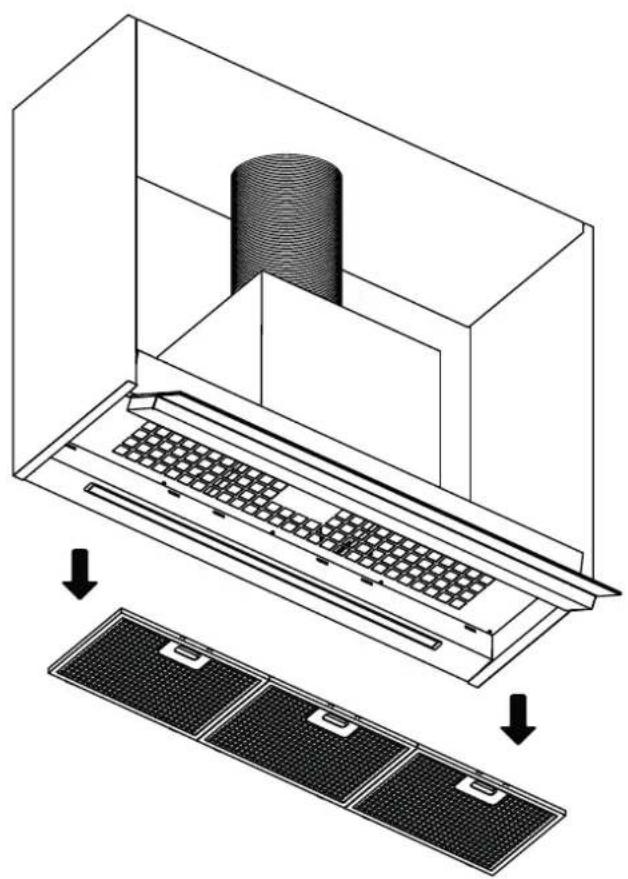

ES FILTRO DE CARBON ACTIVADO (FCLR-AE)

FR FILTRE AU CHARBON ACTIVÉ (FCLR)

GB ACTIVATED CARBON FILTER (FCLR)

Washable and reactivatable high efficiency. (Optional)

Diagram showing a device with a cylindrical component inside a transparent enclosure, and two solar panels below (no text or symbols present)

Technical diagram of a computer setup with a cylindrical component and a keyboard, showing a 3D view and a 10x magnification indicator (no text or symbols present)

Mantenimietno / Manutenção / Entretien / Maintenance

LED type lights involve a complex manipulation in addition to an air connection involving an internal connector risk of electric shock, therefore this type of handling must be done by the Pando official technical service or a qualified and authorized professional. The manufacturer will not be liable for any damage caused by mishandling of the L ED lights by unauthorized personnel.

4000K 12V DC

• Function “THIRD SPEED / INTENSIVE SPEED”. Pressing button C activates the INTENSIVE SPEED.
• Function “AUTO STOP TIMER”: By pressing button D, the hood and lights will turn off after 15 minutes. The timer function can be cancelled by pressing the button again.
• Pressing button D for 3 seconds (with the hood turned off) activates the “CLEAN AIR” function. This function runs the motor for 10 minutes every 50 minutes at 1st speed, during which time button A will blink. After this period, the motor turns off and button D remains steadily lit until the motor starts again at 1st speed after another 50 minutes. Pressing any button, except the light button, immediately returns the hood to its normal operation. You can use the clean air function for a maximum of 24 hours

Maintenance of grease/activated carbon filters:

• When button B flashes, the grease filters must be cleaned. The alarm is activated every 30 hours of use. To reset it, press button E for 3 seconds (with the engine running).
• When button E flashes at a frequency of 0.5 sec. the activated carbon filters must be replaced or washed depending on the type. The alarm is activated every 120 hours of use, even if the filter is not used. To reset it, press button E for 3 seconds (with the engine running).
• When both alarms are active, buttons B and E flash if the alarm is activated multaneously.
• When the hood is switched off, the filter alarm is not displayed.
