GRV - Basket Pando - Free user manual and instructions

Product type	Range hood
Brand	Pando
Model	GRV
Usage	Domestic, dedicated to extracting cooking fumes
Main material	Stainless steel
Minimum distance between hood and (gas) cooking surface	65 cm
Installation type	Wall mounting or under cabinet (reserved for a qualified professional)
Main functions	Air extraction, LED lighting, timer (10 min), automatic shut-off after 4 hours, speed control (decrease/increase)
Controls	Mechanical switches: light On/Off, reduced speed/motor Off, indicator light, motor on/increased speed, timer
Lighting	Integrated LED lamps (replacement by authorized technical service)
Grease filter	Washable metal filter (manually or in dishwasher, at least every 2 months)
Filter saturation indicator	All buttons light up after 30 hours of operation; press the timer to reset
Electrical supply	Connection to mains (230 V / 50 Hz, check on rating plate)
Disconnection device	Accessible plug or bipolar switch complying with standards
Overvoltage protection	Category III (disconnection means integrated into the fixed installation)
Maximum negative pressure in the room	0.04 mbar (a permanent air inlet is recommended)
Maintenance and cleaning	External cleaning with Pando Inox product Ref. 1059; washable grease filter; non-accessible LEDs
Safety	Do not use as a support; do not modify the appliance; unplug before installation; cable replacement by after-sales service
Repairability	Reserved for Pando official technical service; warranty does not cover cosmetic damage nor interventions without easy access
Warranty	Manufacturer's warranty (detailed conditions in the manual)

Frequently Asked Questions - GRV Pando

What is the minimum distance between the hood and my gas cooking surface?

The minimum distance is 65 cm between the support surface of the containers and the bottom of the hood. If the instructions of the cooking element indicate a greater distance, this must be observed.

Can I install the hood myself?

No, installation is reserved exclusively for qualified professionals or the official technical service. Improper installation may void the warranty.

How to clean the grease filter?

The grease filter must be cleaned manually or in the dishwasher at least every two months. The saturation indicator lights up after 30 hours of operation; press the timer to reset.

What to do if all buttons light up?

This indicates that the grease filter is saturated after 30 hours of operation. Press the timer button to restart the counter.

Can I replace the LED lamps myself?

No, the LED lamps cannot be handled by the user. Replacement must be done by the Pando official technical service due to the risk of electric shock.

What is the function of the timer?

The timer automatically stops the hood after 10 minutes. In addition, the appliance shuts off automatically after 4 hours from the last operation.

How to maintain the stainless steel of my hood?

Use the product Pando Inox Ref. 1059, specially designed to clean, polish and protect stainless steel surfaces of hoods.

What to do in case of breakdown or malfunction?

Contact your dealer or the Pando official technical service immediately. Do not attempt to repair the appliance yourself.

Can I use the hood at the same time as a gas heater?

Yes, but proper room ventilation is necessary to avoid the accumulation of carbon monoxide. Consult the heater manufacturer for safe operation.

What to do if the power cord is damaged?

The cable must be replaced by the manufacturer through the authorized technical service. Do not use the appliance in this condition.

USER MANUAL GRV Pando

EN – User and installation Manual.

GRV 520-780

Interior view of a double-door air duct with ventilation grilles and ventilation grilles (no text or symbols visible)

The International Certification Network Quality Management System ISO 9001:2015

ES - Español

RECOGIDA DE LOS ELECTRODOMÉSTICOS

The symbol on the product or its packaging indicates that this product cannot be disposed of like normal domestic waste. The product must be handed over at a collection point for recycling electrical and electronic equipment. If you ensure that this product is correctly disposed of, you will help to avoid the possible negative environmental and public health effects that could arise from incorrect disposal. For more detailed information about recycling this product, please contact your city authorities, the domestic waste service or the establishment where you purchased it. This electrical appliance is marked in compliance with European Directive 2002/96/EC on electrical and electronic appliance waste (WEEE).

EN - INTRODUCTION

Firstly, we would like to thank you for your confidence in our firm when you chose a Pando extractor hood.

This manual and its annexes are a guide for the correct installation, usage and maintenance of your new Extractor Hood.

To learn everything about your hood, we recommend you read these instructions carefully from beginning to end and keep them for future reference.

Before starting the installation process read with care this installation manual and the attached user's manual, There are also instructions for the correct installation of the product.

Installation should only be carried out by qualified professionals, professional installers or the official technical service. The manual or installation guide must be read with care before starting the installation process.

When opening the packaging, check that all the components are in perfect state and all the accessories are present. If this is not the case, contact the dealer and do not install. Once installed, any damage to the exterior such as scratches, dents, stains, etc. will not be covered by the guarantee.

The manufacturer will not be held liable for any possible inaccuracies due to printing or trans- cription errors in this manual. The manufacturer reserves the right to incorporate modifications considered useful or necessary into the products, which will not alter their essential functional and safety characteristics.

EN - RECOMMENDATIONS TO BEAR IN MIND BEFORE INSTALLATION.

VERY IMPORTANT!

DO NOT REMOVE THE PROTECTIVE PLASTIC FROM THE HOOD UNTIL IT IS COMPLETELY INSTALLED, IF THIS PLASTIC IS NOT PRESENT IN AREAS THAT COULD HAVE A RISK OF DAMAGE DURING INSTALLATION, IT IS RECOMMENDED TO APPLY PROTECTIVE MATERIALS AGAINST IMPACT, SCRATCHES AND CONTACT WITH CORROSIVE AGENTS.

TAKE ESPECIAL CARE DURING THE INSTALLATION IF OTHER WORK IS ALSO IN PROGRESS, BECAUSE PAINT, SILICON, PLASTER AND OTHER MATERIALS COULD CONTAIN CORROSIVE CHEMICALS THAT MAY DAMAGE THE PRODUCT, IN THESE CASES IT IS RECOMMENDED TO ADEQUATELY PROTECT THE HOOD, BY FOR EXAMPLE, HERMETICALLY COVERING AREAS THAT COULD BE AFFECTED WITH PLASTIC.

THIS WILL AVOID DAMAGE TO THE OUTSIDE OF THE APPLIANCE, SOMETHING THAT WILL NOT BE COVERED BY THE GUARANTEE.

EN - SAFETY INSTRUCTIONS

- If the hood is to be used at the same time as gas fuelled or other fuelled appliances (not applicable to appliances exclusively designed to blow air into the room) the room must be properly ventilated.

- The exhausted air must not be led through a conduit that is used for exhausting fumes from other appliances using gas or other fuels (not applicable to devices destined exclusively to discharge the air inside the room).

-The minimum distance between the surface of the cooktop and the lower edge of the hood must be 65 cm if the the extractor hood is fitted over gas cooker. If the installation instructions of the gas cooker indicates a greater distance, this must be followed.

- Regulations regarding air evacuation must be respected.

- If the hood does not have a power cable with a plug, or other means for disconnection from the mains, with a separation of all poles to ensure total disconnection under category III conditions of overvoltage, means for disconnection of the fixed installation must be incorporated in accordance with installation regulations.

EN - SAFETY INSTRUCTIONS

- Once the appliance has been delivered, within 24h, remove the packaging and check that it is in good state, visually inspecting the general state of the outside. If any anomaly or damage is observed, do not install and immediately inform the dealer or installer within 24h of reception.

- This hood has been designed for normal domestic use. It must not be used for industrial, professional, or any other use different from what it has been designed for.

- Pando will not be held liable for consequences or damages resulting from incorrect installation or misuse of the appliance.

- Do not try to alter any of the characteristics of this appliance, this could be dangerous and will automatically render the guarantee void.

- It must be possible and accessible for the user to disconnect the appliance from the mains after installation. The power plug should be easily accessible, if this is not the case, a switch for electrical disconnection, compliant with electrical installation regulations, must be fitted.

- Take special care when perforating walls or ceilings and ensure that there are no hidden electrical cables, pipes, metal beams, etc., as perforating them could cause great damage, short circuits or the transmission of noise and vibrations.

- IMPORTANT: Before connecting the appliance to the mains, make sure the current is first turned off (differential or circuit breaker on the general electrical panel of the house).

- Hood and conduit installation must comply with regulations on ventilation of closed spaces. More specifically, the exhausted air must not be led through a conduit that is used for exhausting fumes from other appliances using gas or other fuels (central heating installations, etc.).

- Negative pressure in the premises must not exceed 0.04 mbar. This will allow the hood to operate in optimum conditions. To achieve this, it is necessary to have a permanent entry of fresh air to avoid air stagnation, it is recommended to have a ventilation grille for this purpose. Doors and windows are not enough.

EN - SAFETY INSTRUCTIONS

- Attention! When the hood is in operation “in suction” at the same time as a heating system that depends on ambient air (gas, oil, coal boiler, chimney, etc.), take special care to avoid the hood absorbing air needed for combustion, this could cause dangerous accumulations of carbon monoxide in the premises or home, which could be deadly. If the extractor hood is installed together with a combustion appliance such as a boiler, chimney or local heating, the manufacturers of these appliances must be contacted to ensure optimum and risk-free operation.

- Electrical power supply must be stable and meet the electrical requirements of the appliance (see the nameplate of the appliance). If the power supply is unstable, with variations in voltage, current, surges and cuts, electrical storms, etc., the hood could malfunction and even be damaged, in which case repairs will not be covered by the guarantee. If any of these things happen, disconnect the hood and contact an electrician or your electrical company to solve the problem.

- To avoid hazards, it is forbidden to manipulate the appliance. If the power cable is damaged it must be replaced by the manufacturer through an authorised technical service. Any repairs that involve manipulating the appliance or its components must only be done by an authorised technical service.

- Improper and unauthorised handling of the hood, as well as modifying, cutting or perforating the body, structure, motor or wiring of the hood are expressly forbidden. In case of any of the above, the guarantee will be automatically void and the manufacturer will not be held liable for any possible harm or damages.

- The hood is an electrical appliance for fume extraction and must not be used as a support for objects or utensils.

- The LED lamps can not be manipulated by the user as there are risks of electric shock, handling, maintenance or replacement is a task reserved exclusively for official technical assistance service or authorized specialist installer.

- With the aim of constantly improving our products, we reserve the right to modify their functional characteristics or their appearance.

EN-It must be taken into account and provide that the hood and peripherals must have easy and safe access for possible maintenance or repair tasks of the official Pando technical service (SAT). The guarantee will NOT cover the costs and means necessary for access to a product that does not meet these conditions. In the event that the product is not easily accessible or safe, a criterion that will be issued by SAT in its initial inspection, it will be the responsibility of the client to place the means and assume the necessary costs so that the SAT can perform the intervention adequately.

HERRAMIENTAS NECESARIAS / FERRAMENTAS NECESSÁRIAS / LES OUTILS NÉCESSAIRES / TOOLS NEEDLE

Line drawings of four different types of tools: a pencil, a screwdriver, a drill bit, and a power tool (no text or symbols present)

COTAS / DIMENSÕES / REPÈRES / DIMENSIONS

252 275 15 Ø150 370 min. 445 - max. 730 330 240 90 15 261 290 491 / 751 520 / 780

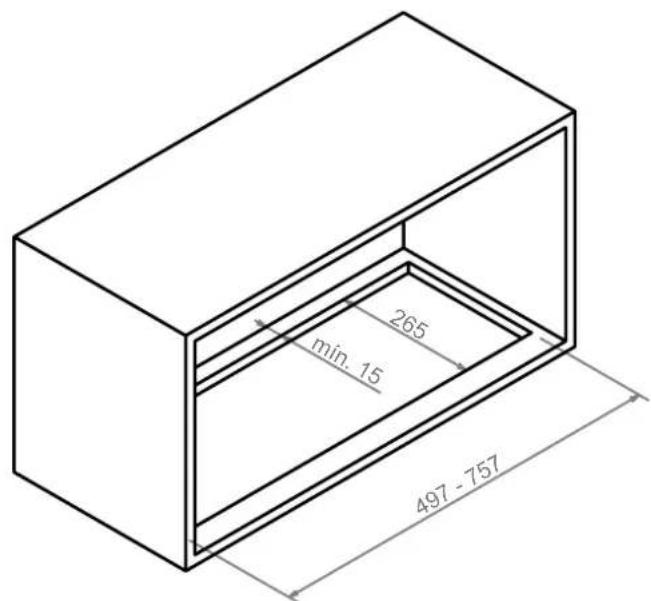

ENCASTRE / INSIRA / ENCASTREMENT / INSERT CABINET

265 min. 15 497 - 757

DISTANCIA A ENCIMERA / DISTÂNCIA À PLACA / DISTANCE DE LA HOB / DISTANCE TO THE HOB

GAS 65 cm IND 55-65 cm

OPCIONAL/ OPCIONAL/ EN OPTION/ OPTIONAL

CAMBIO POSICION MOTOR / POSIÇÃO DO MOTOR /

CHANGE POSITION DU MOTEUR / CHANGE ENGINE POSITION

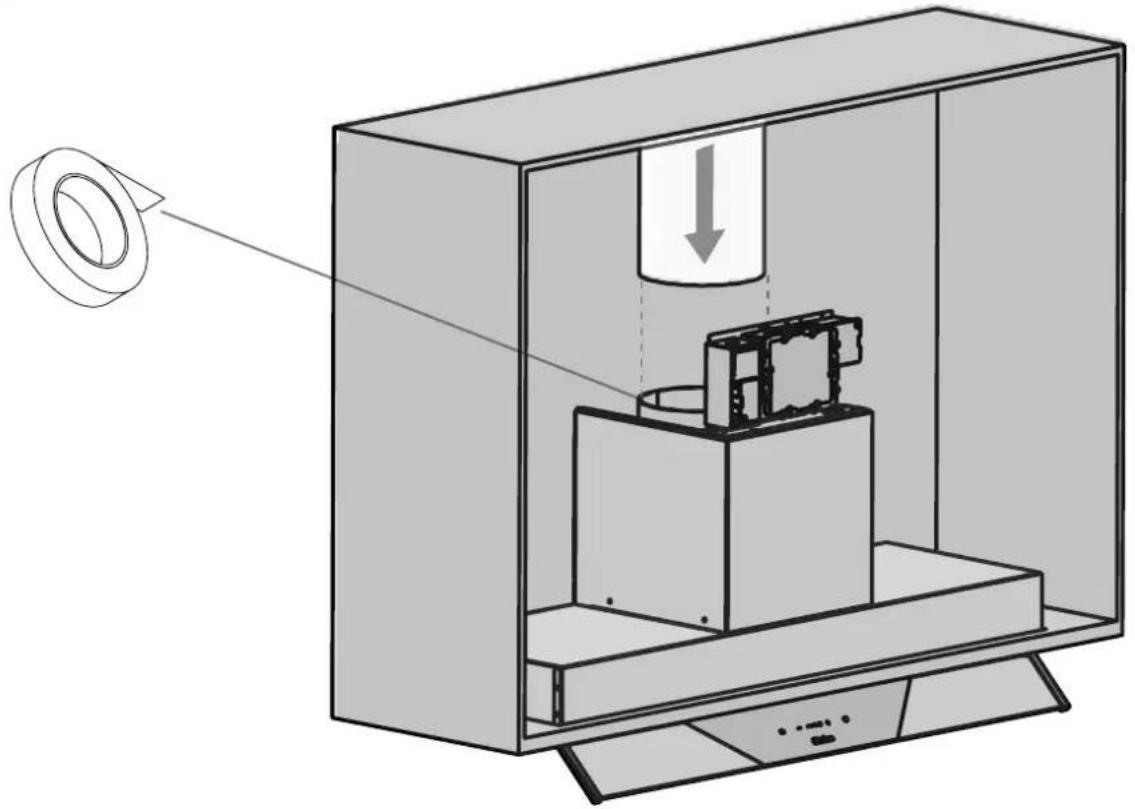

INSTALACIÓN / INSTALAÇÃO / INSTALLATION / INSTALLATION

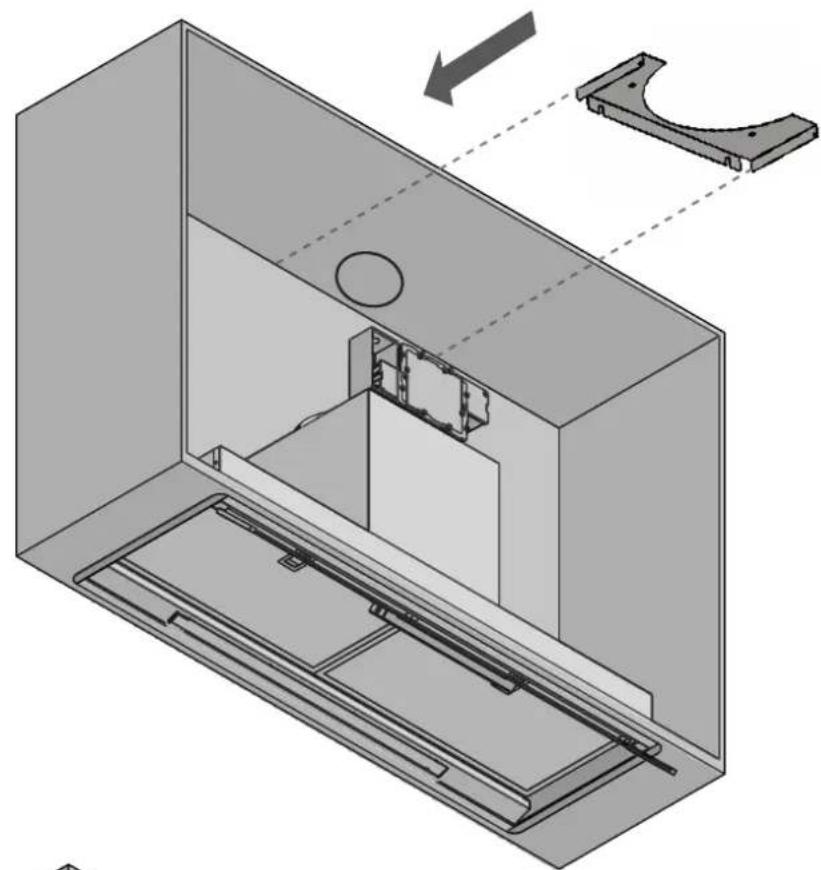

1

Technical line drawing of a mechanical assembly with a top component and base plate (no text or symbols)

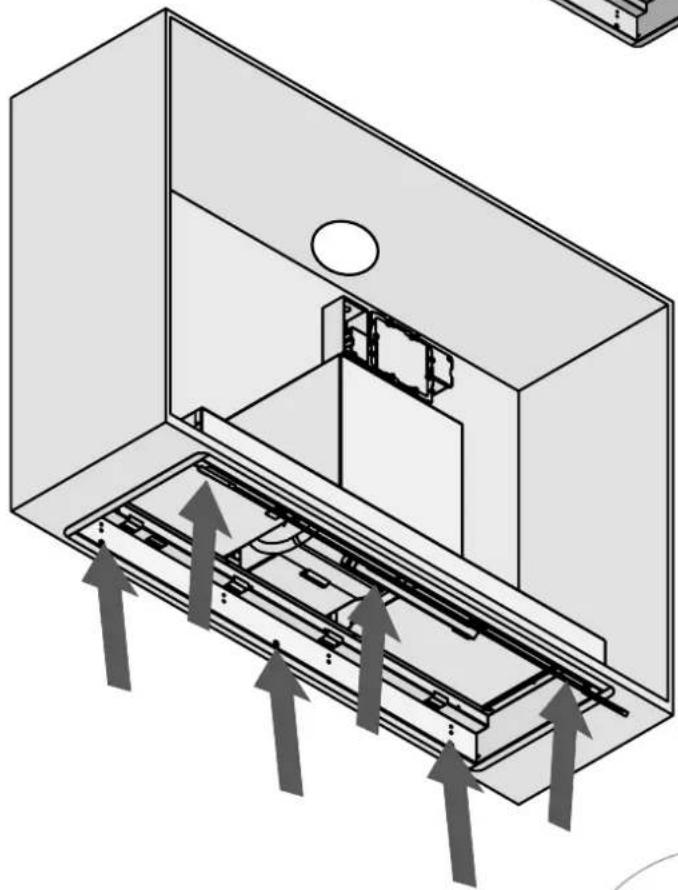

2

Technical diagram of a mechanical ventilation system with airflow path indicated by arrows (no text or symbols)

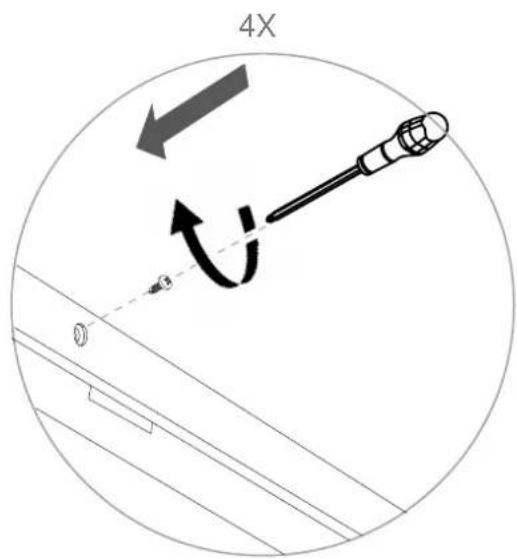

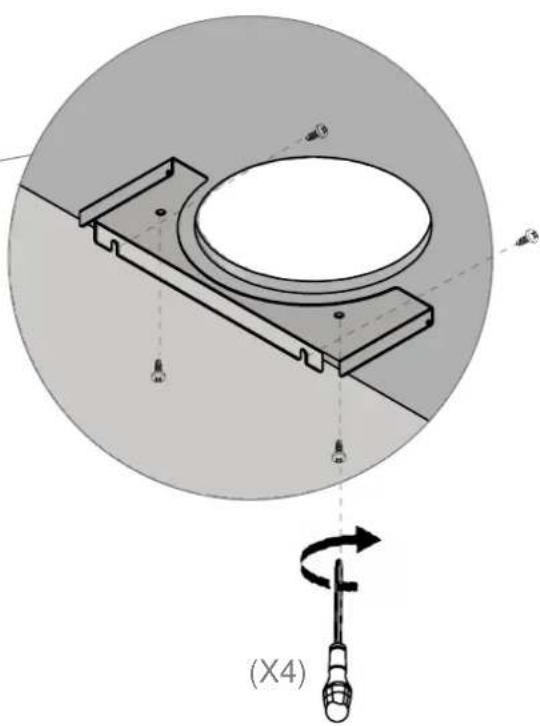

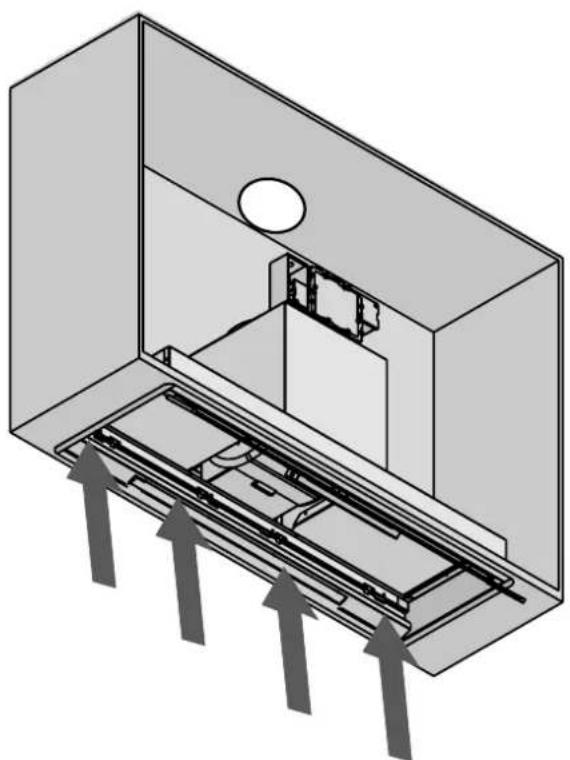

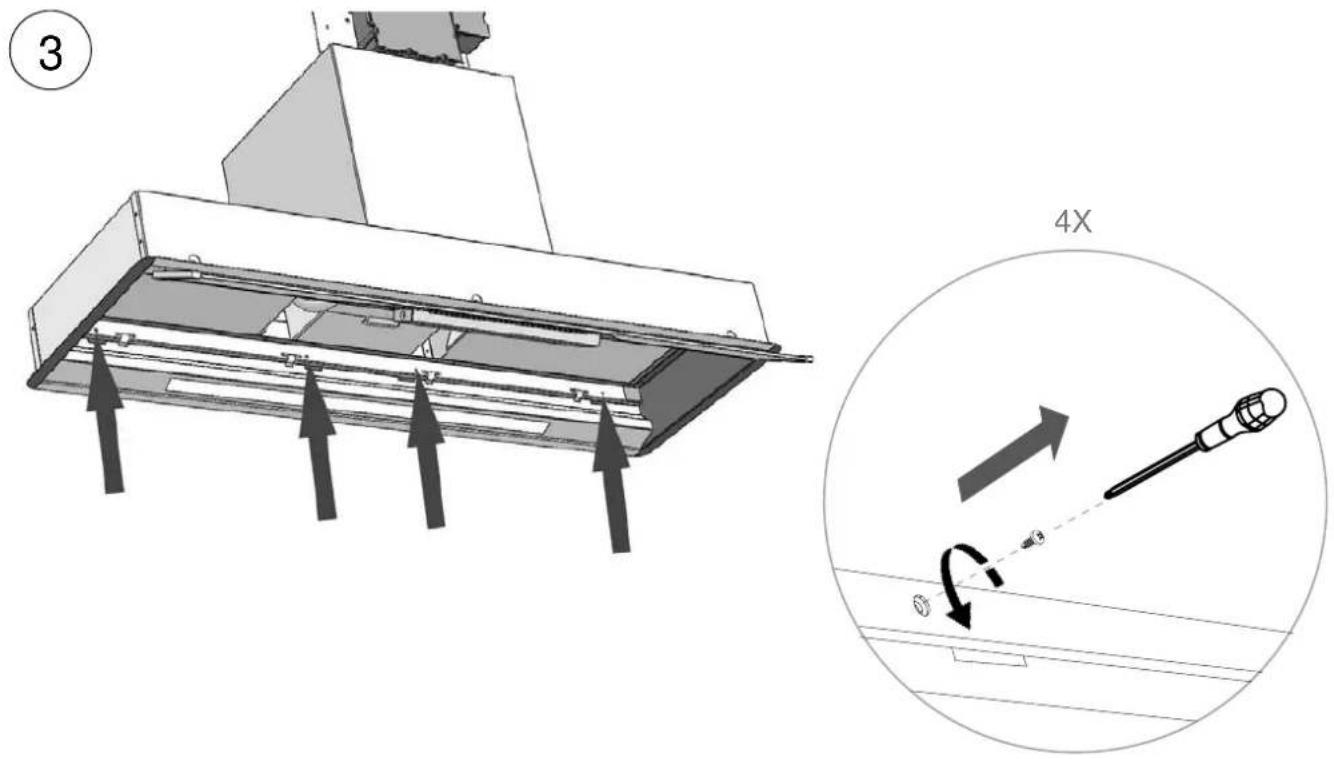

INSTALACIÓN / INSTALAÇÃO / INSTALLATION / INSTALLATION

Technical diagram showing a 3D mechanical assembly with directional arrows and a magnified view of a 4X tool interacting with a component.

Technical diagram of a mechanical assembly with a rotating component and base plate (no text or symbols)

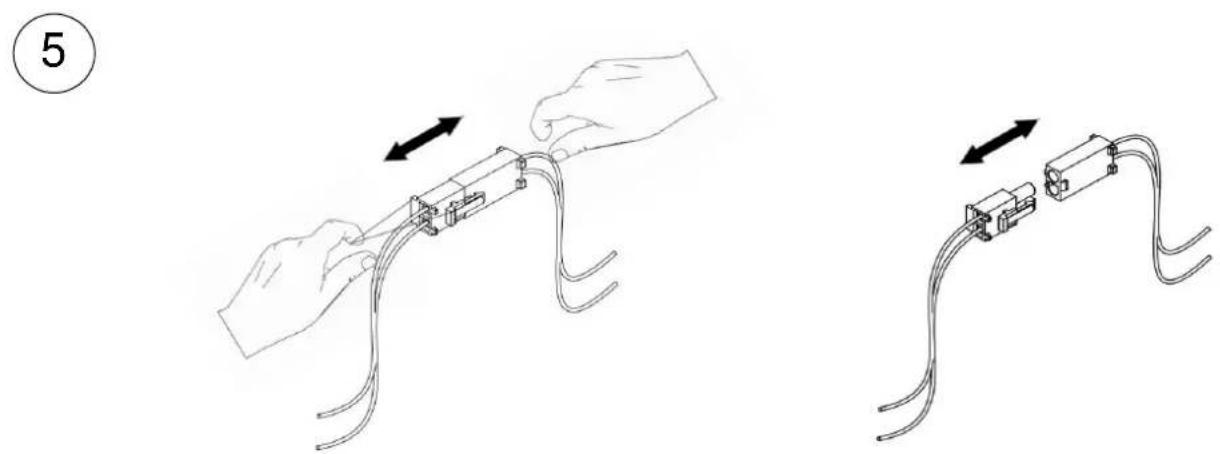

Diagram showing two steps of cable installation with arrows indicating direction (no text or symbols)

INSTALACIÓN / INSTALAÇÃO / INSTALLATION / INSTALLATION

6

Technical illustration of a mechanical assembly with an open box and internal components, showing a downward force arrow (no text or symbols present)

7

Technical diagram of an air conditioner unit with airflow arrows indicating internal components (no text or symbols)

6X

INSTALACIÓN / INSTALAÇÃO / INSTALLATION / INSTALLATION

8

Diagram showing hands connecting two cable connectors to a terminal block, with arrows indicating direction (no text or symbols)

Pure electrical circuit lines without any symbols

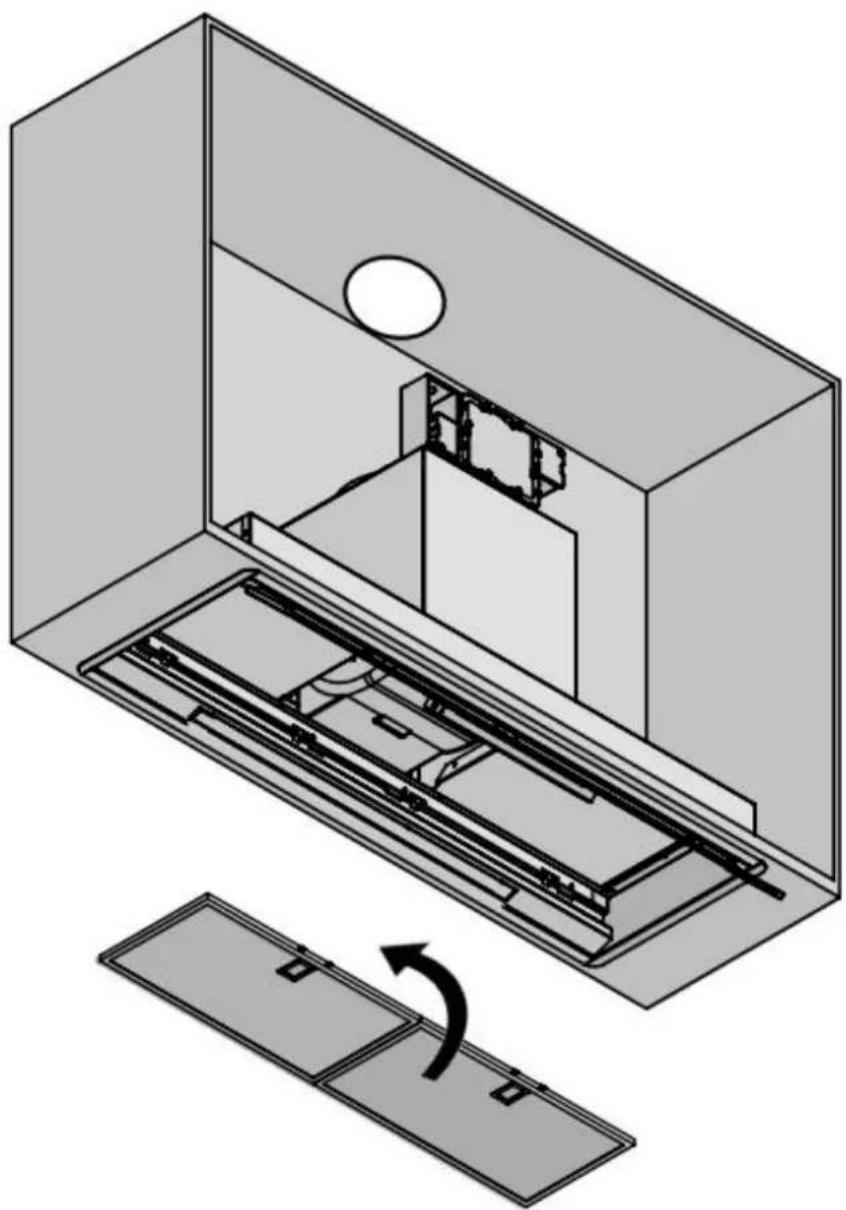

9

Technical illustration of a multi-panel appliance with internal components and a circular vent (no text or symbols)

10

Isometric technical diagram of a mechanical or electrical component with internal channels and directional arrows (no text or symbols)

4X

INSTALACIÓN / INSTALAÇÃO / INSTALLATION / INSTALLATION

11

Technical illustration of an open electronic device with internal components and a rotating arrow indicating rotation (no text or symbols)

INSTALACIÓN / INSTALAÇÃO / INSTALLATION / INSTALLATION

12

Isometric technical diagram of a mechanical assembly with internal components and a directional arrow (no text or symbols)

13

3D diagram of a device with a lever and internal components, no text or symbols present

14

3D diagram of a mechanical assembly with internal components and an arrow indicating direction (no text or symbols)

INSTALACIÓN / INSTALAÇÃO / INSTALLATION / INSTALLATION

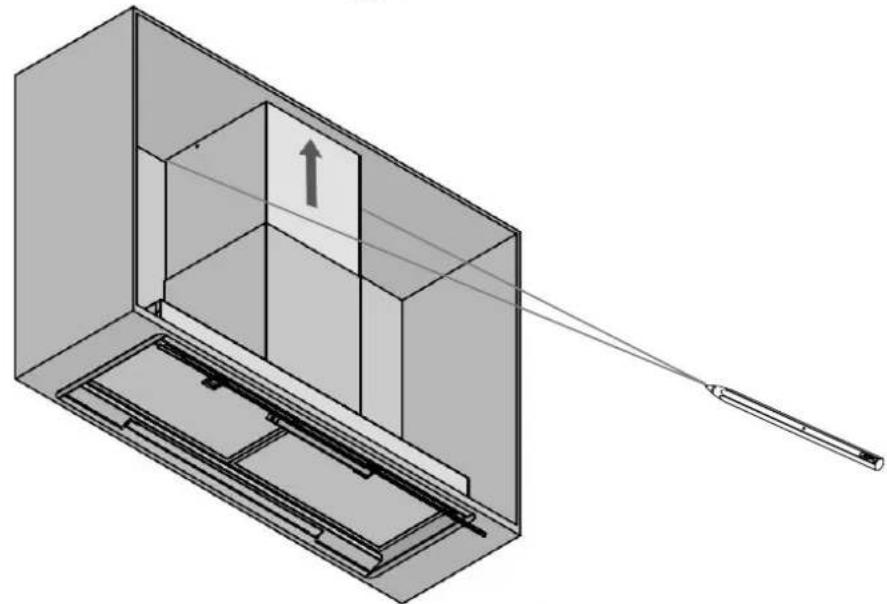

15

3D technical illustration of a mechanical assembly inside a housing, showing internal components and a close-up view of a bracket (no text or symbols)

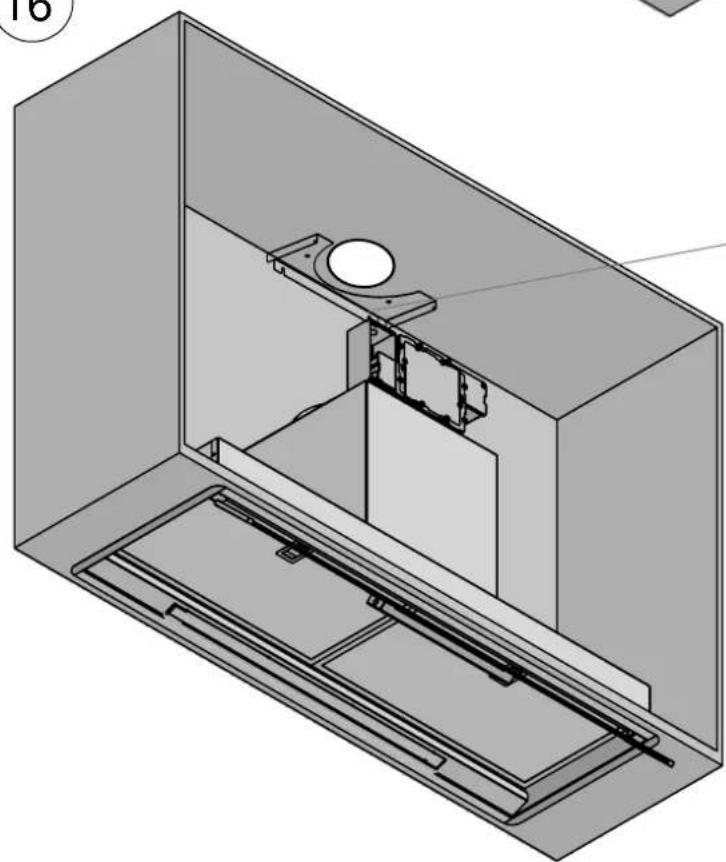

16

Technical line drawing of a mechanical assembly inside a rectangular housing (no text or symbols)

Technical diagram of a mechanical component with a circular cross-section and a tool, labeled (X4), showing no readable text or symbols.

INSTALACIÓN / INSTALAÇÃO / INSTALLATION / INSTALLATION

17

Technical diagram of a mechanical device with internal components and a magnified inset showing a circular component (no text or symbols present)

18

Diagram showing a plug connector and its corresponding 3D view of a square component (no text or symbols)

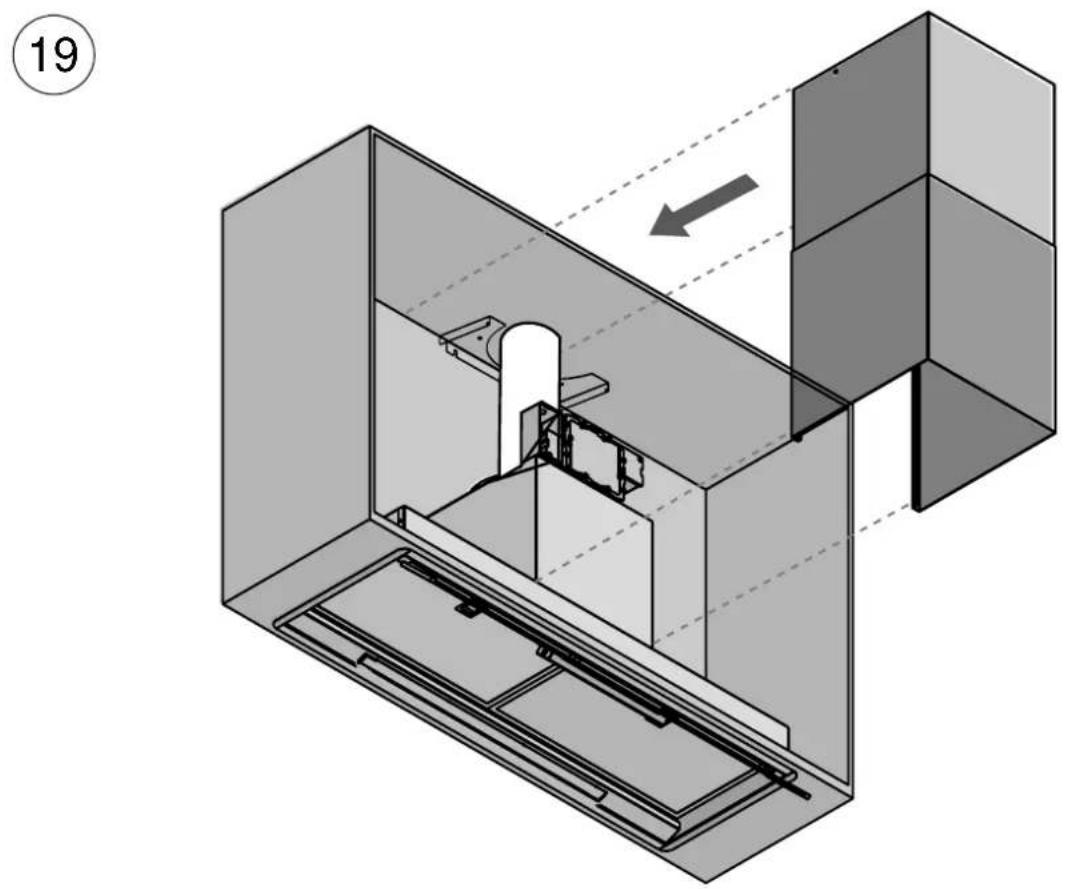

INSTALACIÓN / INSTALAÇÃO / INSTALLATION / INSTALLATION

20

(X2) 30

BOTONERA / PAINEL DE BOTÕES / BOITIER DE COMMANDES / CONTROL PANEL

B: Reduce speed / OFF motor
C: Luminous telltale
D: ON motor/ increase speed
E: 10 minute timer

If the electrical power supply to the product is cut, 15 seconds are needed for self diagnostics after the functions are restored. In the meanwhile, its operation may be incorrect.

The products are endowed with an electronic devi-ce which allows the automatic switching off after 4 hours working from the last operation.

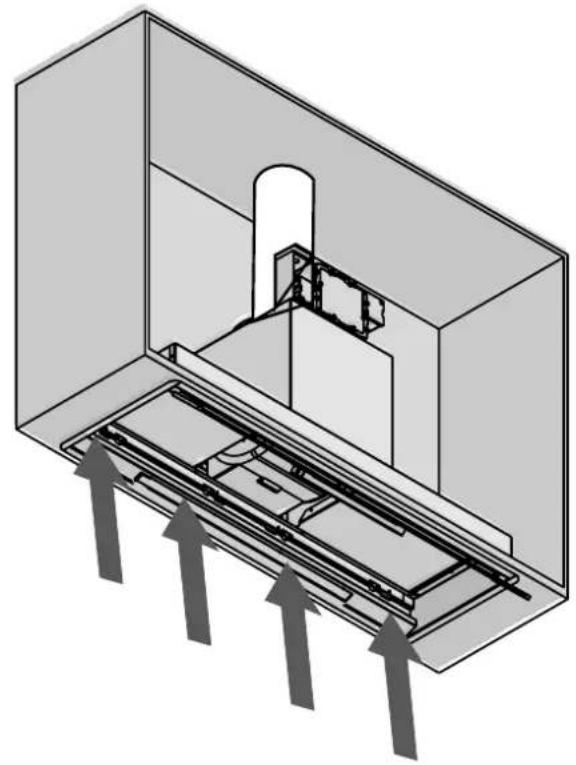

MANTENIMIENTO / MANUTENÇÃO / MAINTENANCE / MAINTENANCE

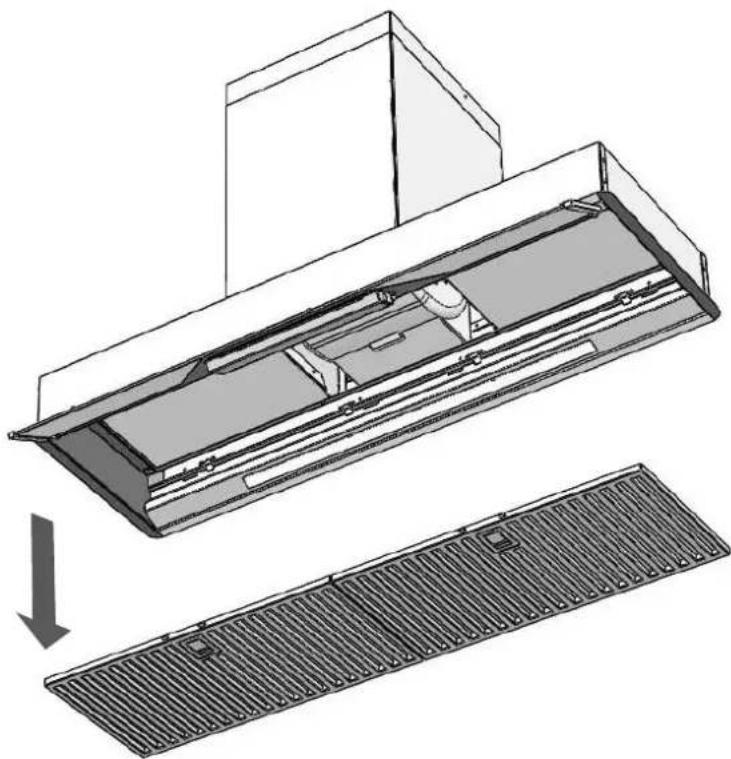

FILTRO ALUMINIO / FILTRO ALUMÍNIO / FILTRE D'ALUMINIUM ALUMINIUM FILTER

Technical illustration of a kitchen air duct system with a downward arrow indicating airflow or component movement (no text or symbols present)

EN- After 30 hours working, the push button control panel will signal the saturation of the grease filter by lighting all the buttons. Press the timer button ⏻ to reset.

The grease filter needs cleaning by regular handwashing or in dishwashers every two months at least or depending on its use.

MANTENIMIENTO / MANUTENÇÃO / MAINTENANCE / MAINTENANCE

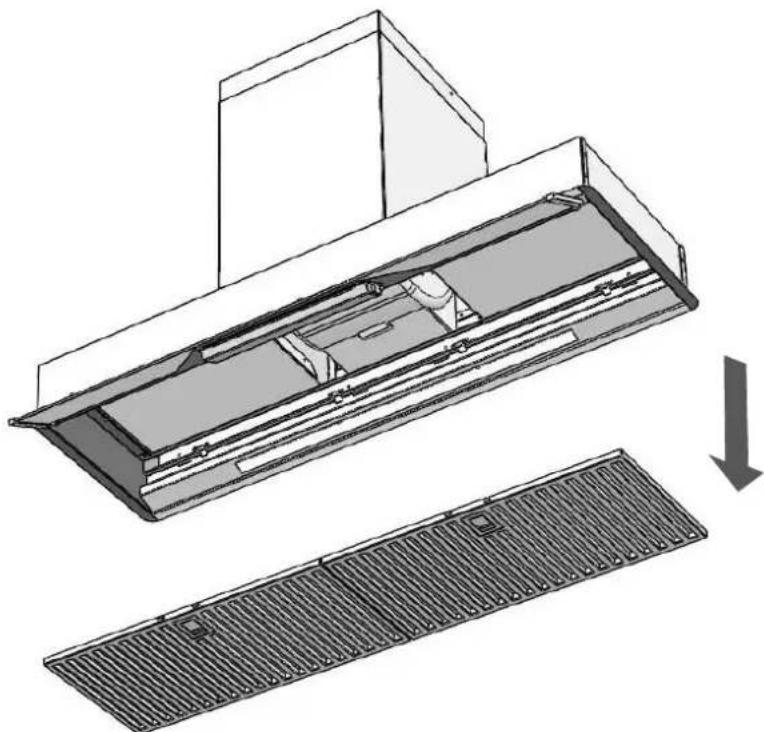

FILTRO DE CARBON ACTIVADO (FCLR), LAVABLE Y REACTIBABLE (OPCIONAL) FILTRO DE CARVAO ATIVADO (FCLR), LAVÁVEL E REACTIBABLE. (OPCIONAL) FILTRE AU CHARBON ACTIVÉ (FCLR), LAVABLE ET RETIGGERABLE. (EN OPTION) ACTIVATED CARBON FILTER (FCLR), WASHABLE AND RETRIGGERABLE. (OPTIONAL)

1

Technical illustration of a kitchen air duct assembly with a downward arrow indicating cooling or ventilation (no text or symbols present)

2

Two black rectangular panels with grid patterns, one tilted upward and the other flat, both with a right-angle arrow indicating rotation (no text or symbols)

MANTENIMIENTO / MANUTENÇÃO / MAINTENANCE / MAINTENANCE

ILUMINACION Y CARACTERISTICAS LED / ILUMINAÇÃO E CARATERISTICA LED ÉCLAIRAGE ET CARACTÉRISTIQUES LED / LED LIGHTING AND FEATURES

ATENCIÓN!

LED type lights involve a complex manipulation in addition to an air connection involving an internal connector risk of electric shock, therefore this type of handling must be done by the Pando official technical service or a qualified and authorized professional. The manufacturer will not be liable for any damage caused by mishandling of the L ED lights by unauthorized personnel.

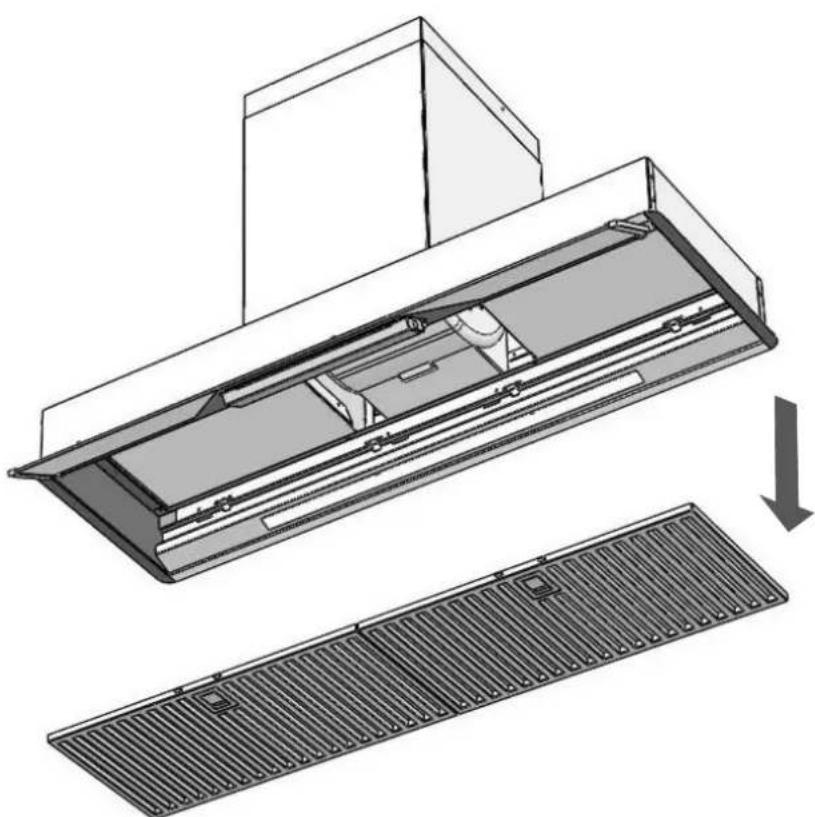

1

Technical illustration of a kitchen ventilation system showing airflow path and component layout (no text or symbols)

MANTENIMIENTO / MANUTENÇÃO / MAINTENANCE / MAINTENANCE

ILUMINACION Y CARACTERISTICAS LED / ILUMINAÇÃO E CARATERISTICA LED ÉCLAIRAGE ET CARACTÉRISTIQUES LED / LED LIGHTING AND FEATURES

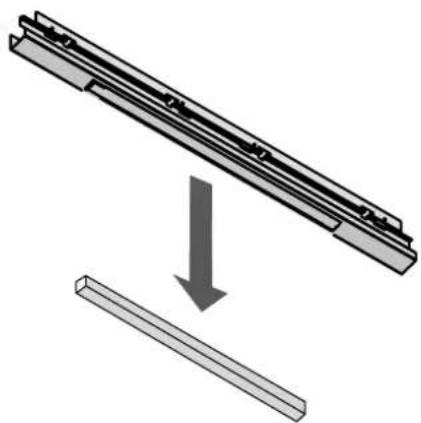

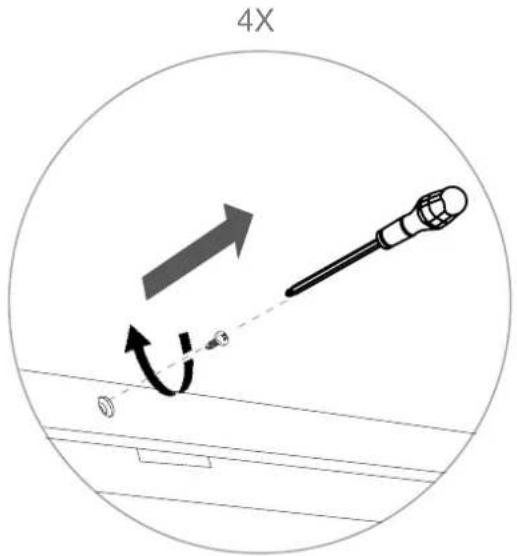

2

Technical diagram of a mechanical or electrical assembly with directional arrows indicating flow or movement (no text or symbols present)

4X

3

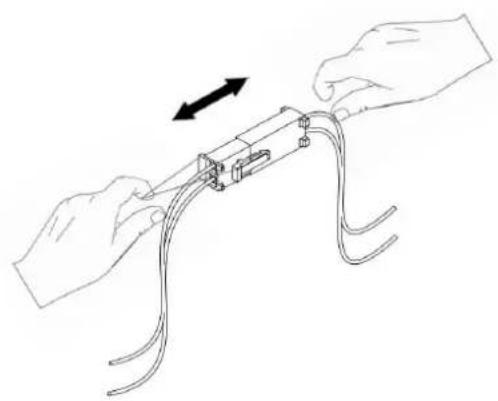

Line drawing of hands holding a coiled cable or wire with an arrow indicating direction (no text or symbols)

Pure electrical connector diagram without any text, numbers, or symbols

MANTENIMIENTO / MANUTENÇÃO / MAINTENANCE / MAINTENANCE

ILUMINACION Y CARACTERISTICAS LED / ILUMINAÇÃO E CARATERISTICA LED ÉCLAIRAGE ET CARACTÉRISTIQUES LED / LED LIGHTING AND FEATURES

4

Technical diagram of a mechanical assembly with internal components and a rotating arrow indicating motion (no text or symbols)

5

Diagram showing a mechanical assembly with a downward arrow indicating a process or transformation (no text or symbols present)

NOTAS/ NOTAS/ REMARQUES/ NOTES:

NOTAS/NOTAS/REMARQUES/NOTES:

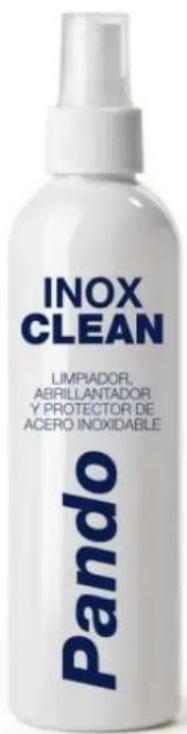

INOX CLEAN LIMPIADOR, ABRILLANTADOR Y PROTECTOR DE ACERO INOXIDABLE Pando

ES

ESPRODUCTO EXCLUSIVO

LIMPIADOR,

ABRILLANTADOR Y

PROTECTOR DE ACERO INOXIDABLE

INOX PANDO, Referencia 1059.

PROPIEDADES:

Degreaser especially recommended for polishing stainless steel surfaces, with its complex formula based on paraffin it leaves an invisible film that acts as a protector and makes it shine.

APPLICATIONS:

Cleans, polishes and evens out stainless steel surfaces of extractor hoods and stainless steel kitchen furniture.

INOXPAN S.L.

Pol. Ind. El Cros

The International Certification Network Quality Management System ISO 9001:2015
