USER MANUAL PR175FR PRIMO

Interior view of a modern refrigerator with open doors and visible shelves (no text or symbols)

Two simple line icons: a triangular warning triangle and an open book, both without any text or symbols.

Read all instructions carefully - save this instruction manual for future reference.

NL Nederlands 4
FR Français 25
DE Deutsch 46
EN English 67

GARANTIE (NL)

Geachte klant,

Two labeled diagrams showing checkmark and cross symbols, likely indicating approval or rejection actions.

Simple line drawing of a mechanical lever with a handle and a downward arrow indicating motion (no text or symbols)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Technical line drawing of a sewing machine needle stitching fabric (no text or symbols)

Pure technical line drawing of a 3D rectangular frame with corner points and dashed lines indicating hidden edges (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Unscrew Screw

Technical line drawing of a mechanical bracket assembly with two circular insets showing close-up views (no text or symbols)

Technical line drawing of a mechanical assembly with a circular inset showing a rotating component (no text or symbols)

Simple line drawing of a folded paper or panel with two arrows indicating downward edges (no text or symbols)

Simple line drawing of a document with arrows indicating rotation around it (no text or symbols)

Simple line drawing of a mechanical assembly with a rectangular component and a handle (no text or symbols)

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Pure diagram of layered panels with no text, numbers, or symbols

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

GEBRUIK

TEMPERATUURREGELING

Diagram showing a hand placing a component into a shelf while another panel with upward arrows indicates motion (no text or symbols)

VERLICHTING

HET APPARAAT VERPLAATSEN

Technical line drawing of a mechanical assembly with a magnified circular detail (no text or symbols)

H E E 90° G

A 50 cm

B 56 cm

C 84 cm

D MIN = 5 cm

E MIN = 5 cm

F MIN = 5 cm

G 85,5 cm

H 111 cm

Two vertical signs with checkmark and cross symbols, likely indicating approval or rejection status

Technical line drawing showing two mechanical assembly steps with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and component (no text or symbols)

Pure geometric line drawing of a 3D rectangular prism with corner holes and dashed lines indicating hidden edges (no text or symbols)

Technical line drawing of a mechanical assembly with two circular insets showing close-up views of components (no text or symbols)

Unscrew Screw

Technical line drawing of a mechanical assembly with two circular insets showing close-ups of components (no text or symbols)

Technical line drawing of a mechanical assembly with a circular inset showing a rotating component (no text or symbols)

Line drawing of a mechanical component with two downward arrows indicating force or alignment (no text or symbols)

Abstract diagram of a document with curved arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a mechanical assembly or frame with no text, numbers, or symbols

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Pure technical line drawing of layered materials with no text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

UTILISATION

RÉGLAGE DE LA TEMPÉRATURE

Diagram showing a hand placing a component into a shelf and then moving an upward arrow inside a rectangular frame (no text or symbols)

ÉCLAIRAGE

Technical line drawing of a mechanical assembly with a magnified circular detail (no text or symbols)

DÉGIVRAGE DU CONGÉLATEUR

E C D B A E

H F₁ F₂ 90° G

A 50 cm

B 56 cm

C 84 cm

D MIN = 5 cm

E MIN = 5 cm

F MIN = 5 cm

G 85,5 cm

H 111 cm

Two labeled diagrams showing a checkmark and a cross symbol, likely indicating approval or rejection status.

Technical line drawing showing two mechanical assembly steps with arrows indicating motion direction (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and component (no text or symbols)

Pure technical line drawing of a 3D mechanical part with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

Unscrew Screw

Technical line drawing of a mechanical assembly with two circular insets showing close-up views of components (no text or symbols)

Technical line drawing of a mechanical assembly with a circular inset showing a rotating component (no text or symbols)

Line drawing of a mechanical component with two downward arrows indicating force or alignment (no text or symbols)

Simple line drawing of a document with arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a mechanical assembly with no text or symbols

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

Pure technical line drawing of a door or panel with no text, numbers, or symbols

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

GEBRAUCH

TEMPERATURREGELUNG

Diagram showing a hand interacting with a shelf and a mechanical device with upward arrows (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing a hand holding a tool (no text or symbols)

All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service. Our staff will gladly assist you.

www.primo-elektro.be

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 – 12.00 and 13.00 – 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure.

When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
• In case of incorrect connection, e.g. electrical voltage that is too high.
• In case of incorrect, rough or abnormal use.
  • In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

- This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.
• Keep the appliance and its cord out of reach of children younger than 16 years.
• All repairs should be carried out by the manufacturer or its aftersales service.
• Make sure that children do not touch the cord or appliance.
• Your appliance uses isobutane (R600a) as a refrigerant. Despite the fact that R600a is an environmentally friendly and natural gas, it is highly flammable. Therefore you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your refrigerator from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

- Using the appliance incorrectly may cause an injury. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

⚠️ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected

to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance. To disconnect, turn controls to “OFF” or “0” position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don’t cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- To avoid danger, do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the PRIMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do

not try to repair the appliance yourself.

• It is prohibited to alter or modify the device and its specifications.
• When disposing of the appliance, remove the plug from the power socket, cut the power cord (as closely as possible to the appliance), and remove the door to prevent playing children getting an electrical shock or shutting themselves in the appliance.
• The lamp in the appliance is intended for use in this cooling device only. Do not use the lamp as a household light.

⚠️INSTALLATION

• Do not place near flammable materials, gases or explosives.
  • Always use the appliance on a steady, dry and level surface.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Keep the ventilation openings free of obstructions.
• Avoid long exposure to direct sunlight.
• Make sure that you have access to the plug of the appliance.
• Make sure the plug and cord are not crushed or damaged by the back of the appliance. This can cause short circuits and, as a result, overheating and fire.

• This is a heavy appliance. Be careful when moving it.

• This cooling unit is not intended for use as a built-in appliance.

• Do not place a power strip or other portable power supply behind the appliance.
  • After installation, it is advisable to wait 6 hours before connecting the appliance to allow the oil to flow back in the compressor.

⚠ USE

• Do not use or store this appliance outdoors.
• Do not use this appliance for other than intended use.
• Do not use any other electrical appliance inside the refrigerator, unless they are approved for this purpose by the manufacturer.

- Do not keep any explosive substances inside the appliance, like for instance aerosol cans with a flammable propellant.

- Do not use the appliance without a lamp.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

- Ensure the food in the appliance does not touch the back wall.

- Do not touch anything that comes out of the freezer with damp or wet hands. This could cause skin burns.

- Be careful when consuming ice cubes or ice creams

that come from the freezer. These can cause frostbite on the lips or tongue.

- Follow the instructions below to prevent contamination of food:

• Keeping the door open for long periods may cause the temperature in the compartments of the appliance to rise considerably.
• Clean the surfaces that could come into contact with food regularly.
• If the appliance is left empty for longer periods, it should be turned off, defrosted and cleaned. Allow it to dry and leave the door ajar to prevent mould from growing in the appliance.

⚠️CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Do not place warm or hot objects on top of the appliance.
• Do not clean the appliance with anything made of metal.
• Make sure that the refrigerant circuit does not get damaged, for instance during transportation or installation.
• Do not use mechanical appliances or other means to speed up the defrosting process, unless approved by the manufacturer.

- WARNING! Never place this appliance on or in the neighbourhood of a gas or electric

fire or in a place where it could come into contact with a heat source. There are flammable materials located on the back of the appliance.

- Pay attention to the symbol 'Fire risk – flammable materials' located on the back of the appliance.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

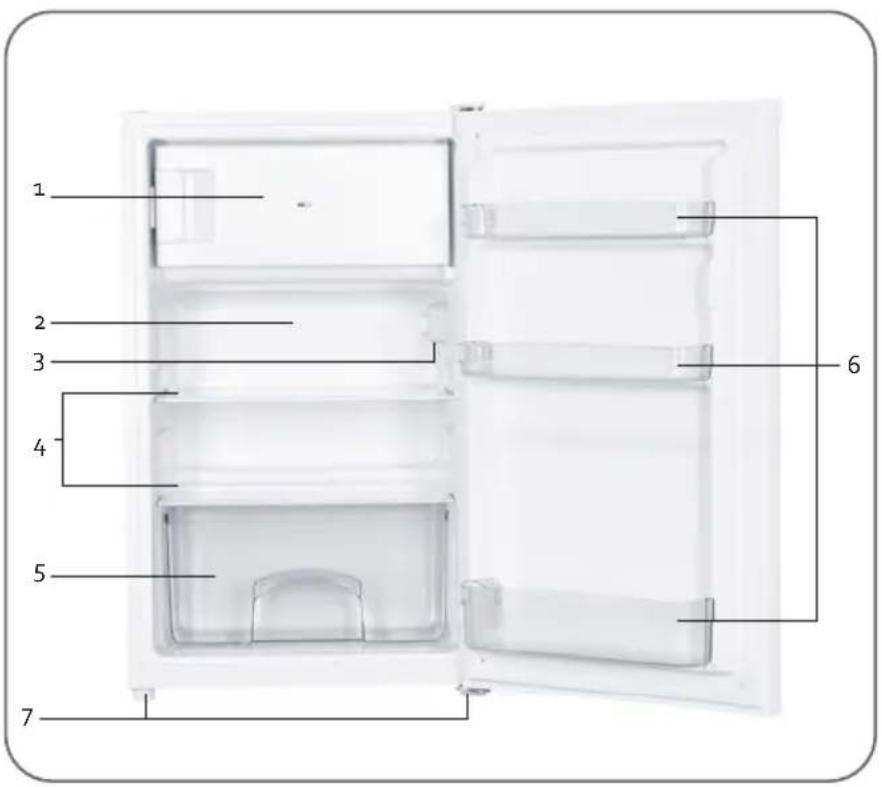

PARTS

1. Freezer compartment
2. Cooling compartment
3. Temperature control knob and LED lamp
4. Glass shelves
5. Vegetable drawer
6. Door racks
7. Levelling feet

1 2 3 4 5 6 7

INSTALLATION

• Remove the exterior and interior packing, wipe the outside thoroughly with a soft dry cloth and the inside with a wet, lukewarm cloth. Dry the appliance off well.
• Let air circulate freely around the cabinet.
  • Make sure there is sufficient space to open the door.
• This cooling unit is not intended for use as a built-in appliance.
• Select a place with a strong, level floor.

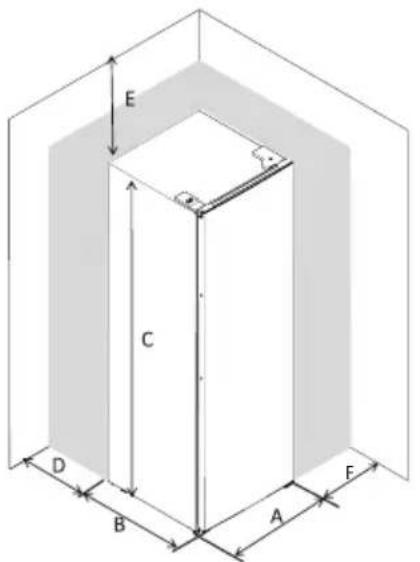

E C D B A F

H F E 90° G

A 50 cm

B 56 cm

C 84 cm

D MIN = 5 cm

E MIN = 5 cm

F MIN = 5 cm

G 85,5 cm

H 111 cm

• Avoid direct sunlight and heat. Direct sunlight may affect the acrylic coating. Heat sources nearby will cause higher electricity consumption.
• Avoid very moist places. Too much moisture in the air will cause frost to form very quickly on the evaporator, and your refrigerator.
• Before connecting your refrigerator to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance.
  • After installation, leave the fridge-freezer for 24 hours before turning it on. This way the refrigerant can settle.
• Allow the appliance to run empty for 12 hours so the compartment can cool to the appropriate temperature.

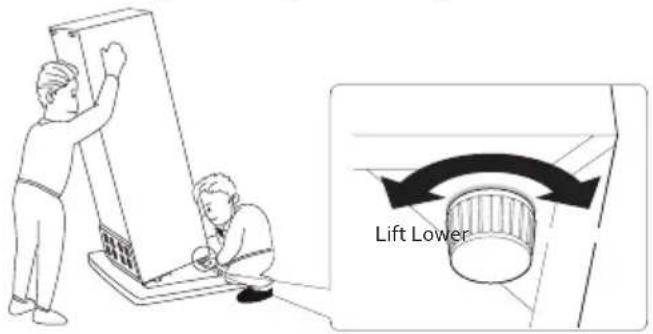

  • One can level the appliance using the adjustable legs. The adjustable legs can be adjusted by screwing them in or out of the appliance.

Lift Lower

Two labeled diagrams showing checkmark and cross symbols on vertical bars, likely indicating approval or cancellation.

- The climate class indicates the minimum and maximum ambient temperature for the proper operation of an appliance. You can find the climate class on the type plate on the inside or back of the appliance.

· SN: Subnormal: ambient temperature between 10°C and 32°C
· N: Normal: ambient temperature between 16°C and 32°C
- ST: Subtropical: ambient temperature between 16°C and 38°C
· T: Tropical: ambient temperature between 16°C and 43°C

DOOR CONVERSION

If you need to hinge your door on the opposite side, it is recommended that you call your local authorised service agent to make this conversion or ask a technician. Before you reverse the door, you should ensure the appliance is unplugged and empty. After reversing the door, leave the appliance alone for 12 hours before switching it on. This allows the coolant to set.

It is recommended that two people carry out the works.

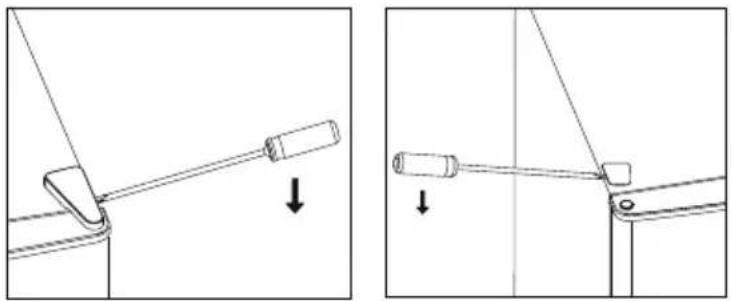

1. Remove the upper hinge cover plates.

Technical line drawing showing two mechanical assembly steps with arrows indicating motion (no text or symbols)

1. Remove the upper hinge, then remove the door and place it on a soft surface to avoid scratches.

Technical line drawing of a sewing machine needle and base mount (no text or symbols)

1. Move the cover plates from one side to the other.

Pure technical line drawing of a 3D mechanical part with no text, numbers, or symbols

1. Remove the bottom hinge and adjustable foot.

Technical line drawing of a mechanical clamp or bracket assembly with two circular inset views (no text or symbols)

Attention: the inclination of the refrigerator must be less than 45^ so that the compressor oil does not enter the cooling circuit. If you do shut down the unit completely, wait 24 hours before turning it back on.

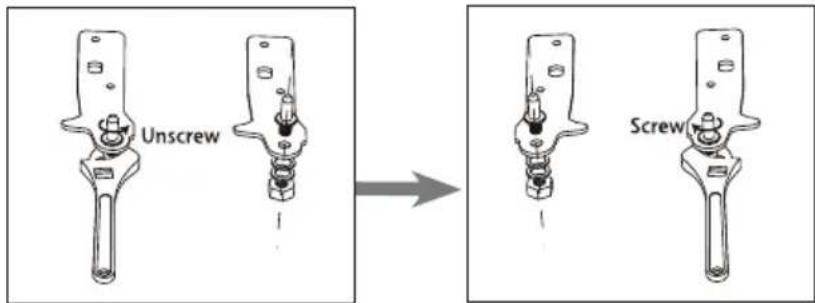

1. Reattach the pin in the hinge so the pin is pointing upwards when the hinge is turned.

Unscrew Screw

1. Attach this hinge at the bottom of the appliance. Reattach the door to the unit. Swap the adjustable feet.

Technical line drawing of a mechanical assembly with two circular insets showing close-ups of components (no text or symbols)

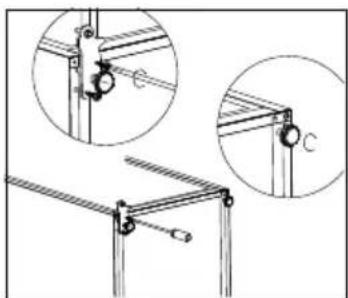

1. Fasten the top hinge.

Technical line drawing of a mechanical assembly with a circular inset showing a component detail (no text or symbols)

1. Install the hinge plate back on top of the appliance.

Line drawing of a flat panel with two arrows indicating downward force or alignment (no text or symbols)

1. Remove the rubber seal from the door, turn it over, and then put it back on.

Diagram of a document with arrows indicating rotational movement (no text or symbols)

You can also reverse the door of the freezer compartment:

- Remove the bottom hinge, then remove the door and place it on a soft surface to avoid scratches.

Simple line drawing of a cabinet or rack with a handle and a small screen (no text or symbols)

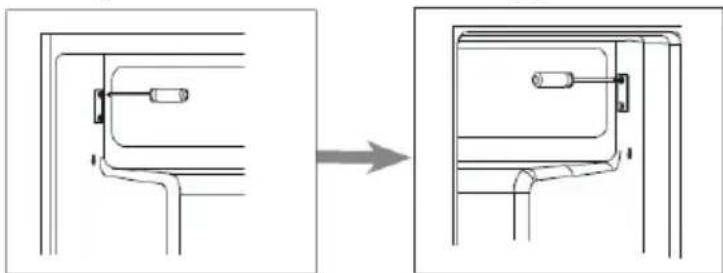

· Unscrew the mounting bracket and fix it on the opposite side.

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

- You can use the cover caps to cover the original screw holes. Move the cover caps from one side to the other.

Pure technical line drawing of layered panels with no text, numbers, or symbols

- Turn the freezer compartment door 180^ and fasten the bottom hing on the opposite side. Attach the door to the mounting bracket.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

USE

TEMPERATURE CONTROL

The fridge is controlled with a temperature control knob located inside the appliance.

Adjust the control knob as desired to suit your individual preference. The higher the number, the colder the temperature.

Position 4 is the recommended position for normal use.

4 5 3 6 2 7 1 0

Depending on the ambient temperature and the contents used, we recommend changing the setting to 5 or 6 (for more cooling) or setting 2 or 3 (if too cold). We recommend waiting one day after adjusting the temperature to be able to correctly assess it.

- In the 0 position the appliance does not operate (the cooling system is switched off), but power supply is not interrupted.

- The running time and temperature are affected by where the fridge is located, how often the door is opened and the temperature of the room the fridge is located in.

ALARM

If the refrigerator door remains open for 60 seconds, the interior lighting flashes three times. This alarm is a warning so that you do not accidentally leave the door open and spoil your food. The alarm stops as soon as the door is closed again.

STORAGE GUIDE

For the best storage, set up your refrigerating appliance as follows:

Refrigerator compartment Type of food
Door rack • Food with natural	preservatives such as jams, juices, drinks, spices, etc. • Do not store food with a limited shelf life here
Crisper drawer • Fruits, herbs,	and vegetables • Do not refrigerate bananas, onions, potatoes, or garlic
Middle shelf • Dairy and eggs
Top shelf • Food that does not need to be cooked, such as ready-made meals, leftovers, spreads, etc.

MOVING THE SHELVES AND DOOR RACK

· Empty the fridge before moving the shelves or the door racks.

· To move a shelf, raise it and pull it towards you.

- To move a door rack, grip it firmly with 2 hands. Raise the door rack and pull it towards you.

LIGHTING

The lighting in the fridge is an LED light. LED lights are ecological and manufactured for a long life. For this reason, these may not be replaced. If there is a problem with the lighting, contact a qualified service centre in your area.

MOVING THE DEVICE

If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting.

• Turn off the appliance and unplug it from the mains socket. Remove all food. Also remove all mobile parts (shelves, accessories, etc.) or fix them into the fridge to avoid any shock.
• Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on.

STORING FOOD IN THE REFRIGERATOR

The refrigerator provides extended storage time for fresh, perishable foods. Store fresh food for best results:

• Store only very fresh food of good quality.
• Make sure foods are properly wrapped or covered before storing.
  This avoids foods drying out, becoming paler or losing flavour and ensures

longer freshness. This also avoids transmission of odours.

- Make sure foods with strong odours are properly wrapped and covered and store them away from butter, milk and cream and other foods that can be affected by strong odours.

- Allow hot foods to cool before placing them in the refrigerator.

FREEZING AND STORING FOOD IN THE FREEZER

Use the freezer

· To store deep-frozen food.
· To make ice cubes.
· To freeze food.

Note: Ensure that the freezer door has been closed properly. Avoid opening the freezer drawer unnecessarily.

Purchasing frozen food

· Packaging must not be damaged.

- Use by the 'use by/best before/best by/' date.

- If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer.

Freezing fresh food

Freeze fresh and undamaged food only. To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing.

Aubergines, peppers, zucchini and asparagus do not require blanching.

Note: Keep food to be frozen away from food which is already frozen.

- The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.

- The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing.

Suitable packaging: plastic ☐lm, tubular ☐lm made of polyethylene, aluminium foil, freezer containers.

Recommended storage times of frozen food in the freezer

These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18^ ).

Food Storage	time
Bacon, casseroles, milk 1 month
Bread, ice cream, sausages, pies, prepared shell-sh, oily sh 2 months
Non-oily sh, shell-sh, pizza, scones and muns 3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces 4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked cray-sh, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

Never forget:

• When you freeze fresh foods with a use by/best before/best by date, you must freeze them before the expiry of this date.
• Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.
  · Once defrosted, food should be consumed quickly.

VACATION TIME

For short vacation periods, leave the control knob at its usual setting. During longer absences:

• Remove all foods.
• Disconnect from electrical outlet.
• Clean the refrigerator thoroughly, including defrost pan.
• Leave door open to avoid possible formations of condensate, mould or odours.

POWER FAILURE

• Most power failures are corrected within an hour or two and will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is 0.
• During power failures of longer duration, take steps to protect your food by putting dry ice on top of packages.
• Frozen food should not be affected if the power failure lasts for less than 15 hours. Do not refreeze frozen foods that have thawed completely. The food may

be dangerous to eat.

IMPORTANT RULES

• Never place hot food in the refrigerator.
• Beverages should be kept in a sealed container.
• Food kept in the refrigerator for longer periods of time should be covered or kept in glass containers.
• Never place spoiled food in the refrigerator.
  • Always make sure that the refrigerator is not overloaded so that food can be adequately cooled.
• Open the refrigerator door only when necessary.
• The appliance must not be used for outdoor camping, e.g. in a tent.
• Must only be used indoors.
• The appliance must not be used in public transportation.
• Keep all accessories, such as shelves, door racks, and drawers, in the appliance to minimise energy consumption.
• Please read the storage instructions on the food packaging. Always check the storage date.
• Do not place carbonated drinks in the freezer. The bottle/can is pressurised and may explode.
• Be careful when consuming ice creams that come from the freezer. These can cause frostbite.
• An empty fridge consumes more energy. After all, when the door is opened, warm air enters the space and needs to be cooled. More air enters when there are fewer products, meaning that more energy needs to be consumed to cool that air. So fill your fridge properly or choose a model sized for your needs.

MAINTENANCE AND CLEANING

• Do not use abrasive cleaning agents or solvents.
• Set the temperature controller to the "0" position to turn the appliance off. Disconnect the mains plug from the mains socket.
  • Take out the food and store in a cool location.
• Clean the appliance with a soft cloth, warm water and a mild detergent.
• Wipe the door seal with clear water only and then wipe dry thoroughly.
  • After cleaning, put the plug in the socket and set the temperature control to the desired position.
• Put the food back into the appliance.

DEFROSTING THE REFRIGERATOR

The refrigerator defrosts fully automatically. While the cooling is running, beads of condensation or hoarfrost form at the back of the refrigerator. This is normal. It is not necessary to wipe off the condensation or frost. The rear panel defrosts automatically. The condensation runs into the condensation channel and is conveyed to the compressor from where it evaporates.

Note: Keep the condensation channel and drainage hole clean, so that the condensation can run out.

Technical line drawing of a mechanical assembly with a magnified circular detail (no text or symbols)

DEFROSTING THE FREEZER

A layer of frost in the freezer will impair refrigeration of the frozen food and increases power consumption. Remove the layer of frost regularly. Do not scrape off frost or ice with a knife or pointed object. Doing this may damage the refrigerant tubes.

1. Remove the frozen food and place temporarily in a cool location.
2. Set the temperature controller to the "0" position to turn the appliance off. Disconnect the mains plug from the mains socket.
3. To accelerate the defrosting process, place a pan of hot water on a stand in the freezer.
4. Wipe up condensation with a cloth or sponge.
5. Wipe dry the freezer compartment.
6. Plug in the appliance and adjust the temperature control knob as desired.
7. Put the frozen food back in the freezer.

FREQUENTLY ASKED QUESTIONS

Problem Solution
The device is not working.	· The unit is not receiving power, check that the power supply is OK.· Check that the plug is plugged in.· Check that the correct voltage is used.· Check that the temperature controller is not in the “0” position.
The device jumps up too often.	· The temperature setting is too cool.· Is the door closed properly?· Have you put hot food in the appliance, causing the appliance to work harder to cool?· The door has been open too often or too long.· The appliance is getting the wrong voltage.· The appliance is too close to a heat source or direct sunlight.
The inside temperature of the appliance is too hot.	· Check that the unit has power.· Check that the plug is plugged in.· The temperature setting is too low.· The door has been left open too long or too often.· The air supply is blocked.· Check that the appliance is getting the correct voltage.· The appliance is too close to a heat source or the sun.
The device is making a strange noise.	· The appliance is not level. Readjust the adjusting feet and level the unit.· The unit is touching a wall or another object. Gently move the appliance.
There is water on the floor.	· The condensation duct is blocked. See the chapter on cleaning.· Too much condensation has formed in the fridge, causing the reservoir to overflow. Too much condensation is caused by a heat difference. Is the door closed properly? Have you put hot food in the fridge? Does the seal still close properly?
The door does not close properly.	· The door seal is deformed. Heat it gently using a hair-dryer. The rubber seal will become flexible and the magnetic strip in the rubber will automatically pull towards the appliance. After cooling, the rubber stays in that position.
The LED lamp inside flashes once.	· The temperature sensor is broken. Contact the shop of purchase or an authorised service centre.
The LED lamp inside flashes three times.	· The fridge door hasn't been closed for more than 60 seconds. Close the door.
The LED lamp inside flashes four times.	• The temperature control knob is broken. Contact the shop of purchase or an authorised service centre.

ENVIRONMENTAL GUIDELINES

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

WEBSHOP

Accessories have 6 months warranty, and can be easily ordered using the link below.

WWW.PRIMO-ELEKTRO.BE

WWW.PRIMO-ELEKTRO.BE
