USER MANUAL CRF50-BT MSW

Technical diagram showing a device with labeled parts, including open and closed views of a box.

QR code image containing encoded data, no visible human-readable text

Android

QR code image containing encoded data, no visible human-readable text

IOS

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Car refrigerator
Model	MSW-CRF30-BT	MSW-CRF40-BT		MSW-CRF50-BT
Rated voltage [V~] / Frequency [Hz] for Adaptor	230 / 50
Rated power [W]	50
Rated Current for Adaptor	2.5
Rated Voltage [V]	12 / 24
Rated Current [A]	5(12V) / 2.5 (24V)
Protection rating IP	IP20
Climatic Category	T ST N SN
Temperature range [°C]	-20 / 20
Capacity	30l	40l	50l
Refrigerent	R600a / 20g
Foam vesicant	Cyclopentan (C5H10)
Dimensions [Width x Depth x Height; mm]	64 x 36 x 36	63 x 36 x 43		64 x 36 x 50
Weight [kg]	12.9	13.85		14.6

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

CE	The product satisfies the relevant safety standards.
	Read instructions before use.
	The product must be recycled.
	WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.(general warning sign)
	ATTENTION! Electric shock warning!
	ATTENTION! Fire hazard - flammable materials!

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

Electrical equipment:

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to the:

Car refrigerator

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.
d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.
f) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
g) Never touch uninsulated wires with bare hands.
h) Prevent the device from getting wet. Risk of electric shock!
i) Use only grounded power sources.

2.2. Safety in the workplace

a) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust.
b) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.
c) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.
d) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!
e) In case of fire, use a powder or carbon dioxide (CO 2) fire extinguisher (one intended for use on live electrical devices) to put it out.
f) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

2.4. Safe device use

a) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.

b) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.
c) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
d) Keep the device in perfect technical condition.
e) Keep the device out of the reach of children.
f) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
g) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
h) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
i) Do not move, adjust or rotate the device in the course of work.
j) Clean the device regularly to prevent stubborn grime from accumulating.
k) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
I) Food and beverages may only be stored in the device in original packaging or in sealed containers.
m) Do not store heavy, poisonous or corrosive objects in the device.
n) It is not allowed to store potentially explosive substances in the appliance, e.g.: cans containing compressed flammable gas.
o) It is not allowed to store glass vessels with freezing fluids in the appliance.
p) ATTENTION! Do not use any electrical appliances inside the chamber of the appliance which serves to store food.
q) Make sure that your hands are dry when putting your hands into the device to prevent frost damage to the skin.
r) Do not immerse the device in water and do not expose it to adverse weather conditions (rain, sun, etc.) or to high humidity.
s) Do not use the device upside down with the cover facing the ground. The inclination angle with respect to the ground should not exceed 30^
t) Regularly defrost and clean the device.
u) Do not use hard, metal or sharp tools to remove ice from the freezing compartment.
v) Do not carry the device by grabbing the door.
w) Keep the device away from sources of fire and heat.
x) There must be a free space of at least 5 cm at the sides and 10 cm at the rear of the appliance for proper ventilation.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The device is designed to cool and store food and beverages while traveling by car. The car refrigerator keeps the temperature low, ensuring the freshness of food products. It can be powered from the car's cigarette lighter socket, making it convenient and portable.

The user is liable for any damage resulting from unintended use of the device.

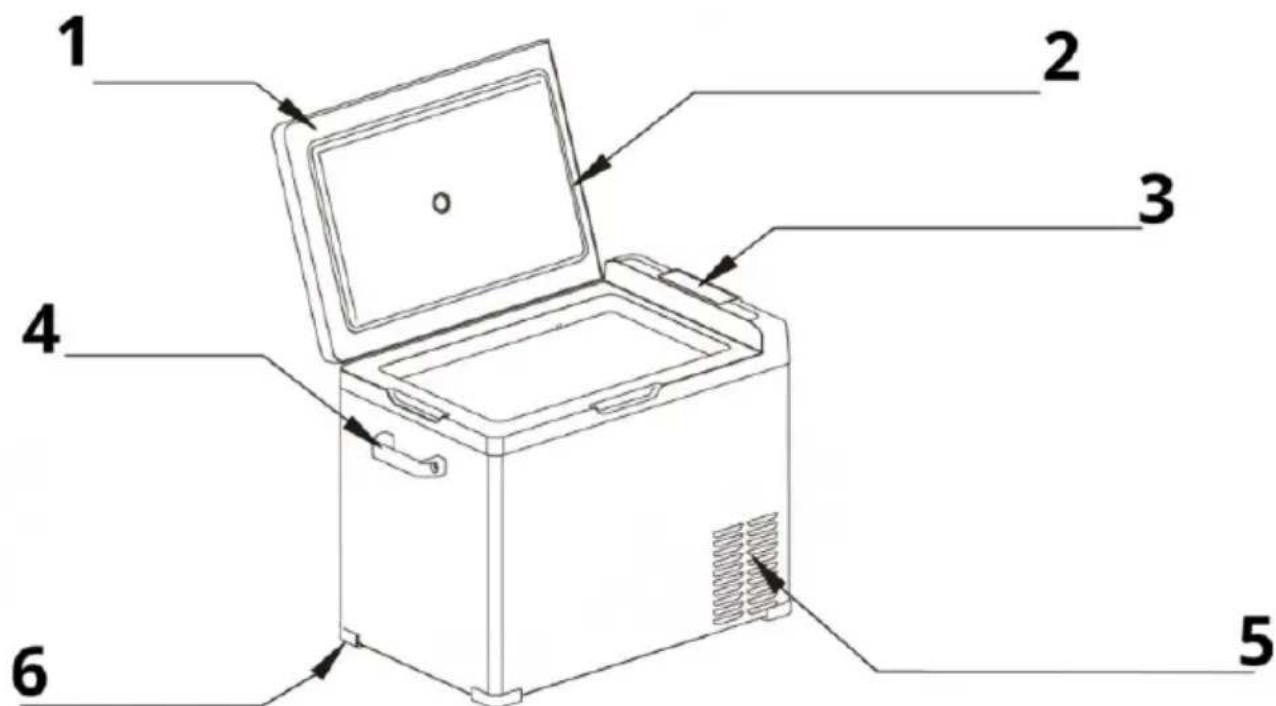

3.1. Device description

1 2 3 4 5 6

1	Door	2	Sealing Strip
3	Control Panel	4	Handle
5	Machine Compartment	6	Footpad

Technical diagram showing a device being assembled from a box, labeled with components 1 to 4.

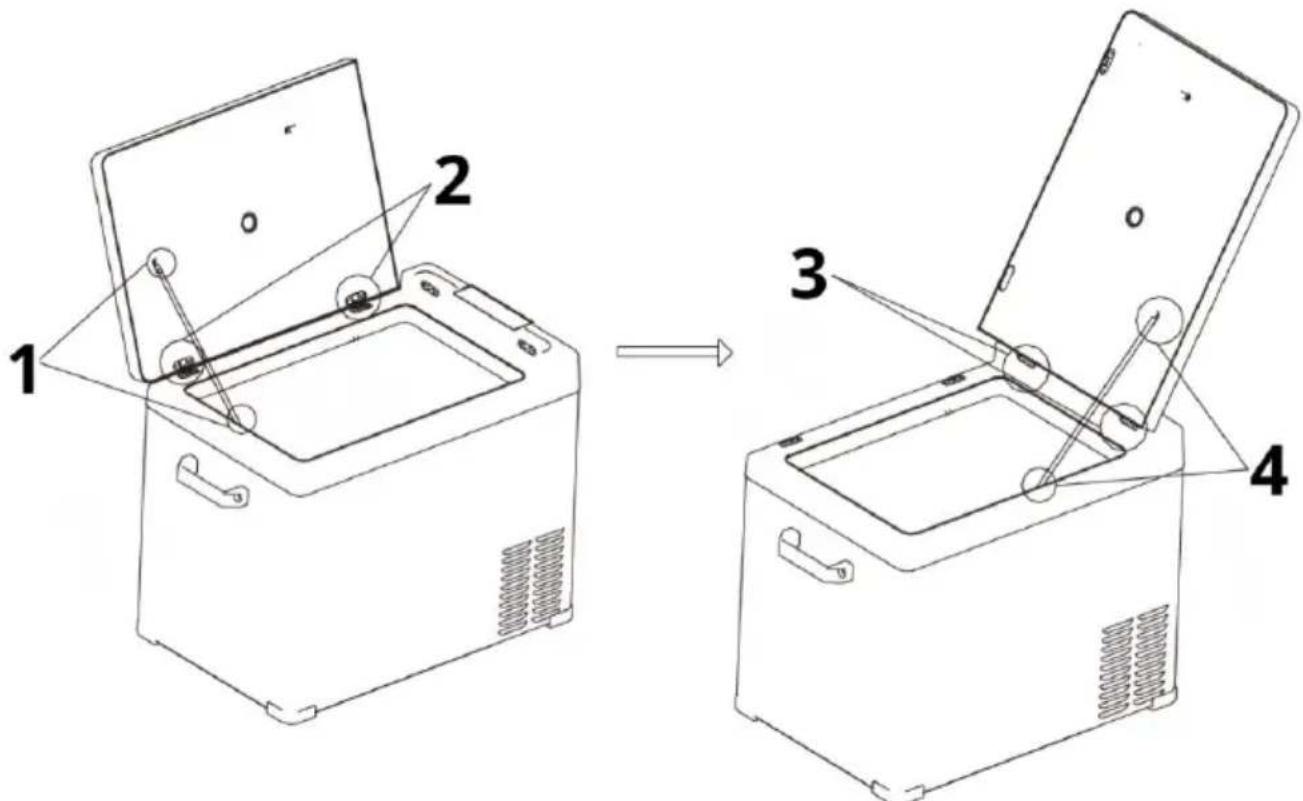

1. Take down the stainless chain by cross screwdriver.
2. Take down the two hinges
3. Install the two hinges on the other side between the door and the tank.
4. Install the stainless chain on the other side between the door and the tank.
   Please note: The illustrations of this product can be found on the last page of the instruction manual (pp. xxx).

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

Disassemble the device and all its components and clean them before the first use.

ASSEMBLING THE APPLIANCE / ASSEMBLING THE DEVICE

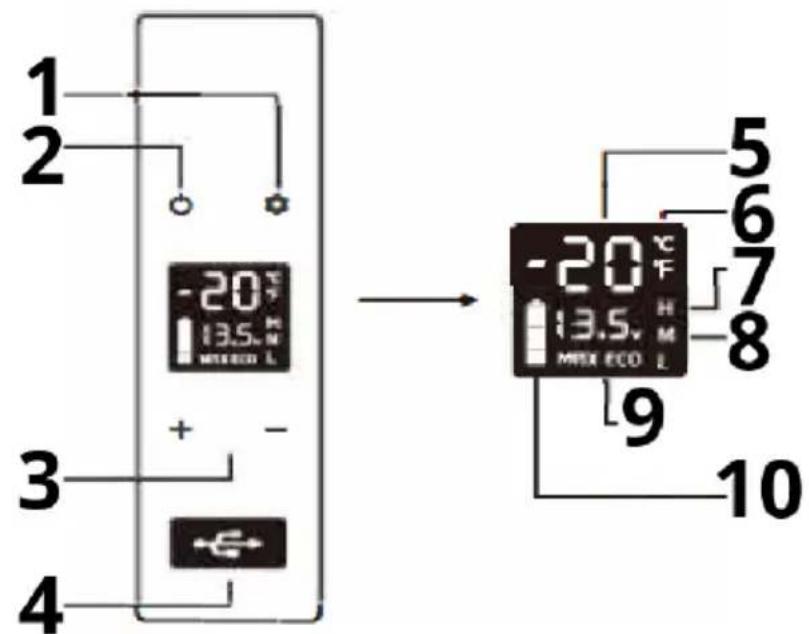

3.3. Device use

1 2 -20°F 13.5° MIX ECO L 3 + - 4 → -20°C 13.5° MIX ECO L 5 6 7 8 9 10

1	Set	6	Temperature Unit (°C/°F)
2	Power	7	Battery Protection Mode (H.M.L)
3	Temperature Control	8	Current Voltage (13.5V)
4	USB 5V/1A	9	MAX (Fast cooling) ECO (Energy-saving)
5	Current Temperature (-20°C)	10	Current Battery

Power Supply: connect to DC 12V/24V or AC 230 V power (using dedicated adapter.) Display Screen Initialization: connect to the power supply, the buzzer will make a long beep, and the display will be on for 2 seconds then enter the normal operating mode. Power On/Off: press 🔒 to switch ON/OFF.

Temperature Setting: press + or — for temperature setting, the setting will be saved automatically after stopping operating for 3 seconds ( Note: the temperature displayed is the current temperature of the compartment, it'll take w while to reach the set temperature.)

Cooling Mode: under the running state, press ⚙ to switch MAX (fast cooling) and ECO (Energy saving Mode) (*Factory setting is MAX.)

Battery Protection Mode: under the running state, long press ⚙ for three seconds until screen flashes, then press ⚙ again to select protection mode H(High), M(Medium) and L(Low). (*Factory setting is H)

MODE\INPUT	DC 12V		DC 24V
	CUT OUT	CUT IN	CUT OUT	CUT IN
L	8.5V	10.9V	21.3V	22.7V
M	10.1V	11.4V	22.3V	23.7V
H	11.1V	12.4V	24.3V	25.7V

*The voltage is theoretical value, there may be deviation in different scenarios. **H mode should be set then the product is connected to car power, and M or L should beset when it is connected to a portable battery or other back-up battery.

Temperature Unit Setting: switch off the fridge, log press ⚙ for three seconds until E1 displays, then switch to E5 by pressing ⚙ again. Under E5 mode, press+ or - to select Celsius or Fahrenheit (*Factory setting is °C)

Reset: switch off the fridge, long press ⚙ for three seconds until E1 displays, under E1 mode, long press +- at the same time for three seconds to reset it

Recommended temperature for common food:

Drinks	Fruits	Vegatable	Delicatessen	Wine	Ice cream	Meat
5°C/41°F	5~8°C/41~46°F	3~10°C/37~50°F	4°C/39°F	10°C/50°F	-10°C/14°F	-18°C/0°F

3.4. Cleaning and maintenance

Cleaning:

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.
b) Always unplug the device before cleaning it.
c) After cleaning the device, all parts should be dried completely before using it again.
d) Do not allow water to get inside the device through vents in the housing of the device.
e) Clean the vents with a brush and compressed air.
f) Use a soft cloth for cleaning.

Defrosting

Humidity can form frost in the interior of the cooling device or on the evaporator. This reduces the cooling capacity. Defrost the device in good time to avoid this.

• Switch off and unplug the device first to avoid electric shock.
  • Take out all the items stored in the device
• Keep the lid open

- Wipe off the defrosted water.

Storage:

If the device will not be is use for a long time, please follow the instructions:

• Switch off and unplug the device
  • Take out all the items stored in the device.
• Wipe off the excess water with soft rag.
  • Put the fridge in a cool and dry place

• Leave the lid slightly open to prevent odors from forming

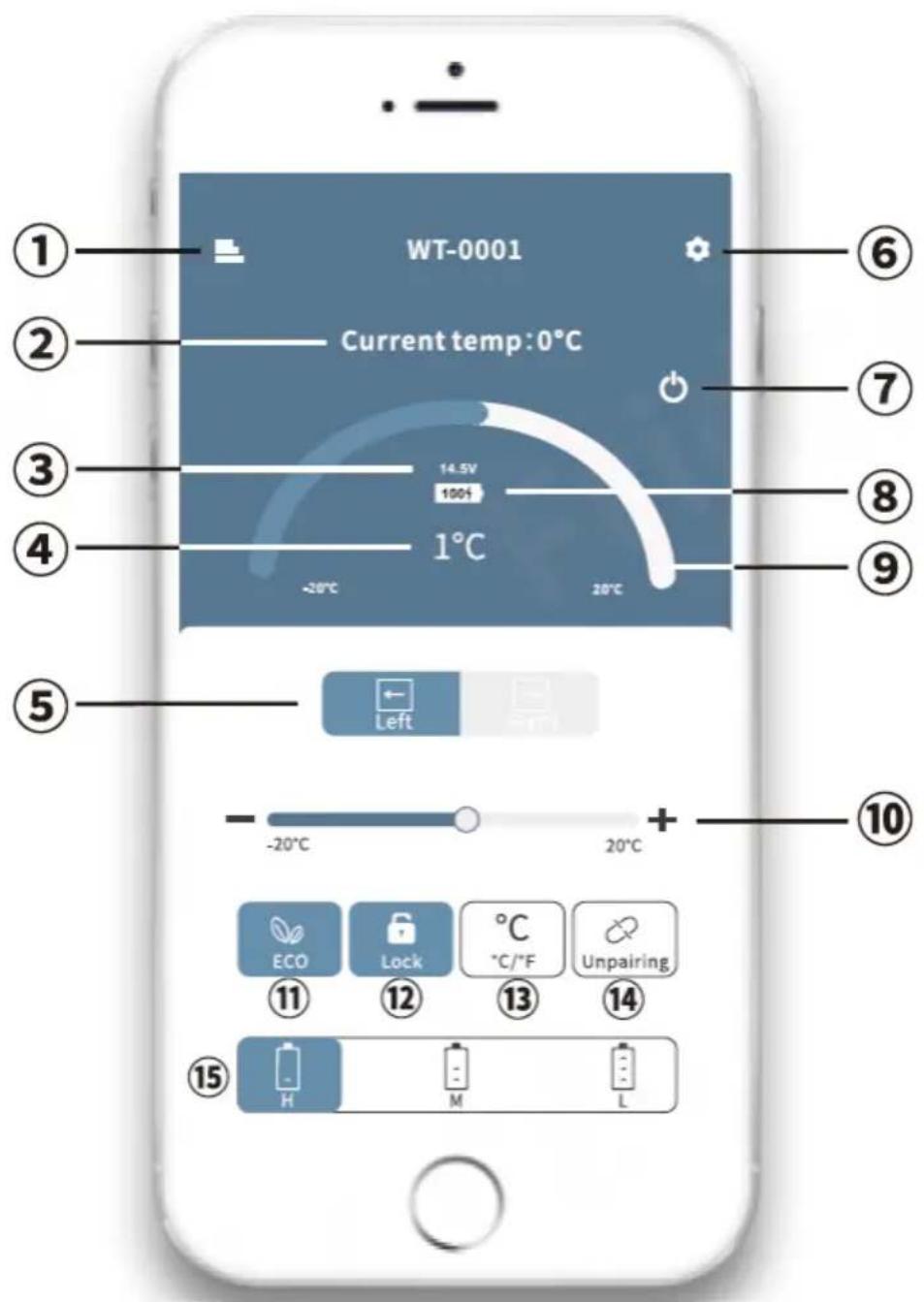

• Mobile app


WT-0001 Current temp:0°C 14.5V 100V 1°C -20°C 20°C Left -20°C 20°C + ⑥ ⑦ ⑧ ⑨ ⑩ ⑮ ⑯ ⑪ ECO Lock °C Unpairing ⑫ H M L

EN

1	MENU	8	Current battery
2	Current temperature	9/10	Temperature control
3	Current voltage	11	ECO / MAX mode
4	Target temperature	12	Lock / unlock
5	Switch Left/Right compartment	13	°C / °F
6	SET	14	Unpairing the device and return to search
7	ON / OFF	15	Battery protection mode: H/M/L

Pairing the device

Turn of the Bluetooth on your smart device; start the APP and click "Search" to Find nearby fridges. Click of fridge name for Bluetooth pairing.

The APP will prompt you to pair the fridge by pressing the set button 🎨 on the fridge's control panel when connecting the fridge for the first time

After pairing, the APP will switch to the main interface allowing you to control the fridge.

Downloading the "CAR FRIDGE FREEZER" Application

Scan the QR code below or search for the “CAR FRIDGE FREEZER” APP in the iTunes APP Store (for Apple devices) or Google Store (for Android devices)

QR code image containing encoded data, no visible human-readable text

Android

QR code image containing encoded data, no visible human-readable text

IOS

Click the lock icon on the APP to lock/unlock the control panel on the fridge, if locked, the fridge can only be controlled by the APP

DISPOSING OF USED DEVICES

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on

the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

TROUBLESHOOTING

Issues	Cause/Suggestions
Refrigerator does not work	Check if the switch is on.Check if the plug and socket are connected well.Check if the fuse has been burnt.Check if the power supply is malfunctioned.Switch on/off the fridge frequently may cause start delay of the compressor
Refrigerator compartments are too warm	The door is opened frequently.A large amount of warm or hot food was stored recently.The refrigerator has been disconnected for a long time.
Food is frozen	The temperature is set too low.
There is "water flow" noise from inside the refrigerator	It's a normal phenomenon, caused by the flow of refrigerant.
There are waterdrops around the refrigerator casing or door gap	It's a normal phenomenon, the moisture will condense to water when it touches a cold surface of the refrigerator.
The compressor is slightly noisy when starting	It's a normal phenomenon, the noise will be reduced after the compressor works stably.
Code F1 displayed	Possible cause: low voltage to fridge.Adjust the battery protection from High to Medium or from Medium to Low.
Code F2 displayed	Possible cause: condenser fan is overloaded.Disconnect power to fridge for 5 minutes & re-start.If the code shows again, contact manufacturer for service.
Code F3 displayed	Possible cause: the compressor starts too frequently.Disconnect power to fridge for 5 minutes & re-start.If the code shows again, contact manufacturer for service.
Code F4 displayed	Possible cause: compressor not kicking in.Disconnect power to fridge for 5 minutes & re-start.If the code shows again, contact manufacturer for service.
Code F5 displayed	Possible cause: overheating of the compressor &

EN

	electronics.Disconnect power to fridge for 5 minutes & re-start.If the code shows again, contact manufacturer for service.
Code F6 displayed	Possible cause: no parameter can be detected by the controller. Disconnect power to fridge for 5 minutes & re-start.If the code shows again, contact manufacturer for service.
Code F7 or F8 displayed	Possible cause: temperature sensor is faulty.Contact manufacturer for service.

Technical diagram showing a device being lifted from a box, labeled with components 1 to 4.

Technical diagram showing a device being opened into a box, with numbered parts labeled 1 to 4.

QR code image containing encoded data, no visible human-readable text

Android

QR code image containing encoded data, no visible human-readable text

IOS

Technical diagram showing a device being assembled from a base case, with numbered parts labeled 1 to 4.

QR code image containing encoded data, no visible human-readable text

Android

QR code image containing encoded data, no visible human-readable text

IOS

Technical diagram showing a device being assembled from a base case, labeled with components 1 to 4.

QR code image containing encoded data, no visible human-readable text

Android

QR code image containing encoded data, no visible human-readable text

IOS

Technical diagram showing a device being assembled from a base case, labeled with components 1 to 4.

QR code image containing encoded data, no visible human-readable text

Android

QR code image containing encoded data, no visible human-readable text

IOS

Technical diagram showing a device being assembled from a base case, with numbered components and directional arrows indicating assembly.

QR code image containing encoded data, no visible human-readable text

Android

QR code image containing encoded data, no visible human-readable text

IOS

Technical diagram showing a device being assembled from a base case, labeled with components 1 to 4.

APPARATETS PLACERING

QR code image containing encoded data, no visible human-readable text

Android

QR code image containing encoded data, no visible human-readable text

IOS

Technical diagram showing a device being opened into a box, with numbered parts labeled 1 to 4.

QR code image containing encoded data, no visible human-readable text

Android

QR code image containing encoded data, no visible human-readable text

IOS

Technical diagram showing a device being assembled from a base case, labeled with components 1 to 4.

PLAATS VAN HET APPARAAT

QR code image containing encoded data, no visible human-readable text

Android

QR code image containing encoded data, no visible human-readable text

IOS

Technical diagram showing a device being opened into a box, with numbered parts labeled 1 to 4.

1. Ta ned det rustfrie kjedet med en kryssskrutrekker.
2. Ta ned de to hengslene
3. Installer de to hengslene på den andre siden mellom døren og tanken.
4. Installer den rustfrie kjeden på den andre siden mellom døren og tanken.
   Merk: Illustrasjonene til dette produktet finner du på siste side i bruksanvisningen (s. xxx).

QR code image containing encoded data, no visible human-readable text

Android

QR code image containing encoded data, no visible human-readable text

IOS

Technical diagram showing a device with labeled parts, including open box and internal compartments, before and after assembly.

APPARATENS PLACERING

QR code image containing encoded data, no visible human-readable text

Android

QR code image containing encoded data, no visible human-readable text

IOS

Technical diagram showing a device being assembled from a base case, with numbered parts labeled 1 to 4.

QR code image containing encoded data, no visible human-readable text

Android

QR code image containing encoded data, no visible human-readable text

IOS

Technical diagram showing a device being opened into a box, with numbered parts labeled 1 to 4.

QR code image containing encoded data, no visible human-readable text

Android

QR code image containing encoded data, no visible human-readable text

IOS

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
