USER MANUAL GWS 18V-11 S Professional BOSCH

Two industrial angle cutlators with visible shafts and mounting brackets (no text or symbols)

A ① (12) (10) ② ③

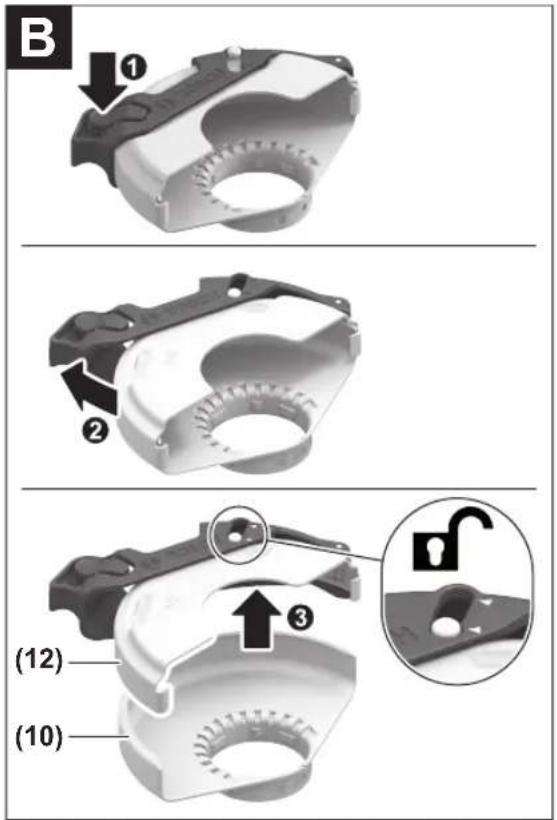

B ① ② ③ (12) (10)

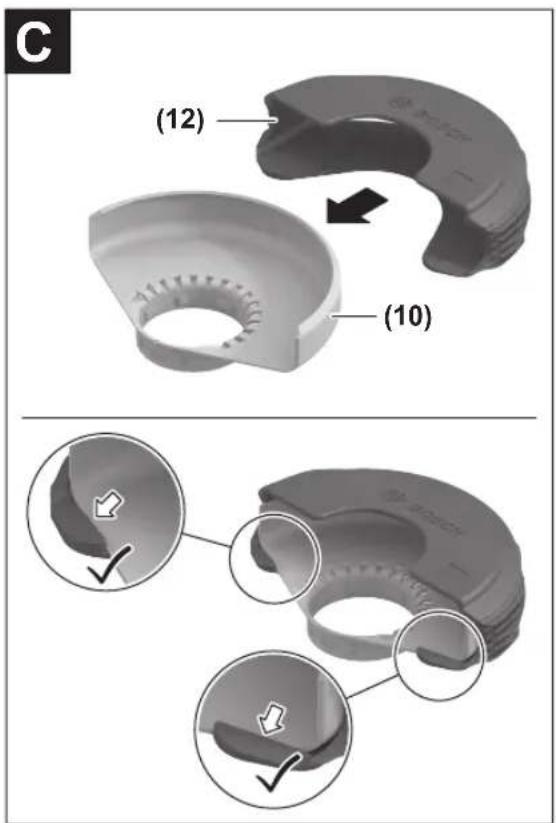

(12) (10)

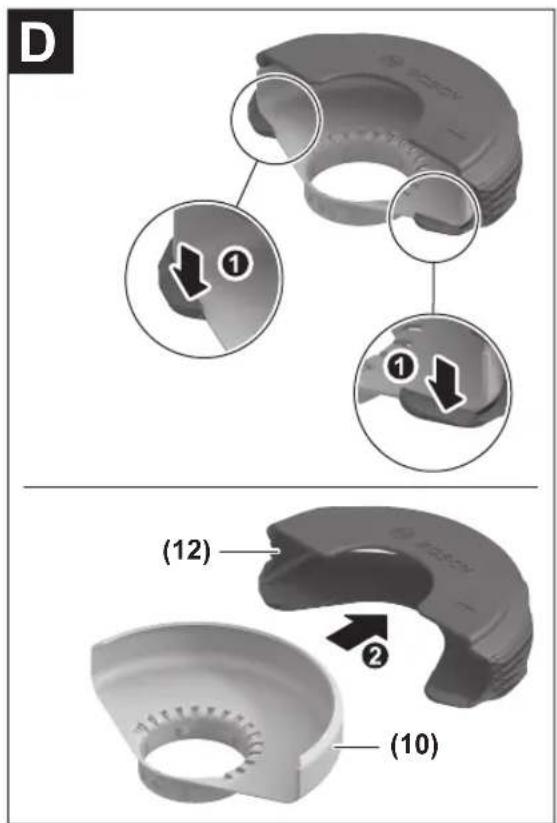

D ① ① (12) ② (10)

4

Exploded view diagram of a cleaning or grinding machine with numbered parts and Chinese labels

Technical diagram illustrating mechanical assembly steps with labeled components and dimensions

Deutsch

Sicherheitshinweise

Diagram of two mechanical components with rotating arrows indicating motion (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrow labeled ①

Technical diagram of a mechanical device with numbered components and directional arrow labeled '0'

www.bosch-pt.com/serviceaddresses

Transport

General Power Tool Safety Warnings

WARNING

Read all safety warnings, instructions, illustrations and specifica-

tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents.
▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inatten-

tion while operating power tools may result in serious personal injury.

▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
▶ Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
▶ Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery tool use and care

▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
▶ Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
▶ Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ C may cause explosion.
▶ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

Service

▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
▶ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

22 | English

Safety warnings for angle grinder

Safety warnings common for grinding, sanding, wire brushing or cutting-off operations:

This power tool is intended to function as a grinder, sander, wire brush, hole cutter or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
▶ Operations such as polishing are not to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.
▶ Do not convert this power tool to operate in a way which is not specifically designed and specified by the tool manufacturer. Such a conversion may result in a loss of control and cause serious personal injury.
▶ Do not use accessories which are not specifically designed and specified by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.
The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.
The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
The dimensions of the accessory mounting must fit the dimensions of the mounting hardware of the power tool. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
▶ Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.
▶ Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various applications. The dust mask or respirator must be capable of filtrating particles generated by the particular application. Prolonged exposure to high intensity noise may cause hearing loss.

▶ Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.
▶ Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting tool may contact hidden wiring. Contact with a "live" wire will also make exposed metal parts of the power tool "live" and could give the operator an electric shock.
▶ Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.
▶ Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
▶ Do not operate the power tool near flammable materials. Sparks could ignite these materials.
▶ Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

Kickback and related warnings:

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding.

For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.

Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

• Maintain a firm grip with both hands on the power tool and position your body and arms to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.
  ▶ Never place your hand near the rotating accessory. Accessory may kickback over your hand.
  Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.

▶ Use special care when working corners, sharp edges, etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
▶ Do not attach a saw chain woodcarving blade, segmented diamond wheel with a peripheral gap greater than 10 mm or toothed saw blade. Such blades create frequent kickback and loss of control.

Safety warnings specific for grinding and cutting-off operations:

▶ Use only wheel types that are specified for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
The grinding surface of centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.
The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect the operator from broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing.

▶ Wheels must be used only for specified applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.

▶ Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.

▶ Do not use worn down wheels from larger power tools. A wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst.

When using dual purpose wheels always use the correct guard for the application being performed. Failure to use the correct guard may not provide the desired level of guarding, which could lead to serious injury.

Additional safety warnings specific for cutting-off operations:

Do not "jam" the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.
▶ Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kick-back may propel the spinning wheel and the power tool directly at you.
▶ When the wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold it

motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.

▶ Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
▶ Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
▶ Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.
▶ Do not attempt to do curved cutting. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage, which can lead to serious injury.

Safety warnings specific for sanding operations:

▶ Use proper sized sanding disc paper. Follow manufacturers recommendations, when selecting sanding paper. Larger sanding paper extending too far beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc or kickback.

Safety warnings specific for wire brushing operations:

▶ Be aware that wire bristles are thrown by the brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush The wire bristles can easily penetrate light clothing and/or skin.
If the use of a guard is specified for wire brushing, do not allow any interference of the wire wheel or brush with the guard. Wire wheel or brush may expand in diameter due to work load and centrifugal forces.

Additional safety information

Wear safety goggles.

The protective guard must not be used for cutting. With a suitable adapter, the protective guard can also be used for cutting.

Hold the power tool firmly with both hands and make sure you have a stable footing. The power tool can be more securely guided with both hands.

For application tools with an internal thread, such as brushes and diamond annular cutters, attention must be paid to the max. thread length of the grinding

24 | English

spindle. The spindle end must not touch the base of the application tool.

▶ Use suitable detectors to determine if there are hidden supply lines or contact the local utility company for assistance. Contact with electric cables can cause fire and electric shock. Damaging gas lines can lead to explosion. Breaking water pipes causes property damage.
▶ Do not touch grinding and cutting discs until they have cooled down. The discs can become very hot while working.
▶ Release the On/Off switch and set it to the Off position when the power supply is interrupted, e.g. when the battery pack is removed. This prevents uncontrolled restarting.
- Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
▶ Store the application tools inside buildings, in a dry, frost-free room at a uniform temperature.
▶ Remove the application tools before transporting the power tool. This will allow you to avoid damage.
▶ Bonded cutting and grinding discs have an expiration date, after which the discs must no longer be used.
In case of damage and improper use of the battery, vapours may be emitted. The battery can set alight or explode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system.
▶ Do not open the battery. There is a risk of short-circuiting.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.
▶ Only use the battery in the manufacturer's products. This is the only way in which you can protect the battery against dangerous overload.

Protect the battery against heat, e.g. against continuous intense sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting.

Product Description and Specifications

Read all the safety and general instructions.

Failure to observe the safety and general instructions may result in electric shock, fire and/or serious injury.

Please observe the illustrations at the beginning of this operating manual.

Intended use

The power tool is intended for cutting metal and stone materials, plastic and composite materials and for brushing

metal and stone materials, roughing metal as well as making holes in stone materials using diamond annular cutters, without the use of water. Make sure that the correct protective guard is used (see "Operation", page 29).

Sufficient dust extraction must be provided when cutting stone.

With approved abrasive tools, the power tool can be used for sanding with sanding discs.

The power tool must not be used to grind stone materials with diamond grinding heads.

Product Features

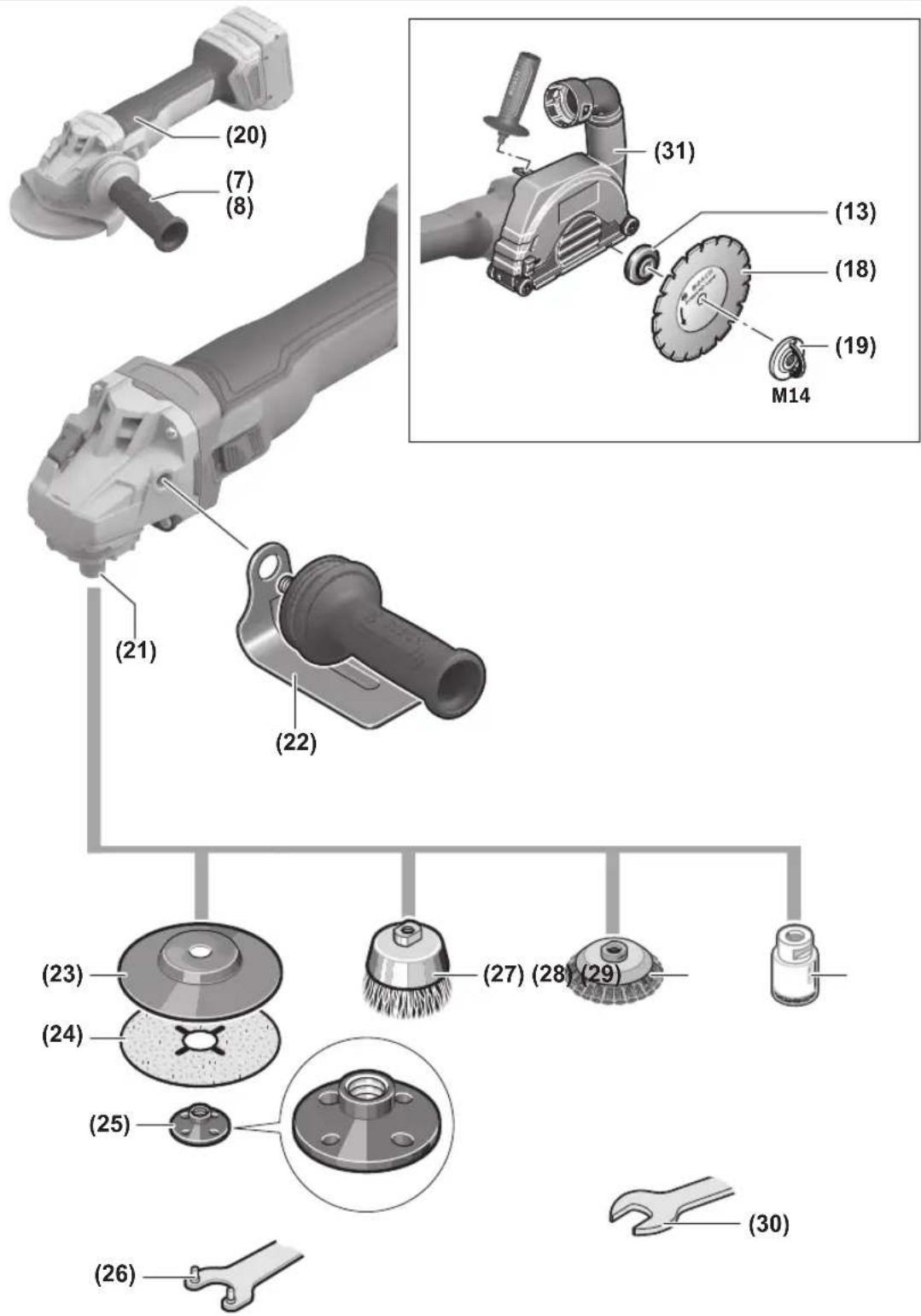

The numbering of the product features refers to the diagram of the power tool on the graphics page.

(1) Unlocking lever for protective guard
(2) Spindle lock button
(3) On/off switch
(4) Speed preselection thumbwheel (GWS 18V-11 S)
(5) Rechargeable battery ^a)
(6) Rechargeable battery release button ^a)
(7) Vibration-damping auxiliary handle (insulated gripping surface)
(8) Standard auxiliary handle (insulated gripping surface) ^a)
(9) Extraction guard for grinding ^a)
(10) Protective guard for grinding
(11) Protective guard for cutting ^a)
(12) Cover for cutting
(13) Mounting flange with O-ring
(14) Carbide grinding head ^a)
(15) Grinding disc ^a)
(16) Disc brush (M14) ^a)
(17) Cutting disc ^a)
(18) Diamond cutting disc ^a)
(19) Quick-clamping nut with bar (M14)
(20) Handle (insulated gripping surface)
(21) Grinding spindle
(22) Hand guard ^a)
(23) Rubber sanding pad ^a)
(24) Sanding sheet ^a)
(25) Round nut ^a)
(26) Two-pin spanner for clamping nut
(27) Cup brush ^a)
(28) Conical brush ^a)
(29) Diamond annular cutter ^a)
(30) Open-ended spanner ^a)
(31) Extraction guard for cutting with cutting guide ^a)
a) This accessory is not part of the standard scope of delivery.

Technical Data

Article number		3 601 JN4 1..	3 601 JN4 1..	3 601 JN4 0..	3 601 JN4 0..
Rated voltage V= 18 18 18 18
Rated speed ^A)	min ^-1	9000	9000	9000	9000
Speed adjustment range min	^-1	--	3000-9000	3000-9000
Max. grinding disc diameter/rubber sanding pad diameter	mm 115 125 115 125
Grinding spindle thread M 14 M 14 M 14 M 14
Max. thread length of grinding spindle mm 22 22 22 22
KickBack Control ● ● ● ●
Restart protection		● ● ● ●
Run-out brake		● ● ● ●
Drop control		● ● ● ●
Speed preselection		-- ● ●
Weight ^B)	kg	2.0-3.3	2.0-3.3	2.0-3.3	2.0-3.3
Recommended ambient temperature during charging	°C	0 to +35	0 to +35	0 to +35	0 to +35
Permitted ambient temperature during operation ^C) and during storage	°C	-20 to +50	-20 to +50	-20 to +50	-20 to +50
Compatible rechargeable batteries		GBA 18V...ProCORE18V...	GBA 18V...ProCORE18V...	GBA 18V...ProCORE18V...	GBA 18V...ProCORE18V...
Recommended rechargeable batteries		GBA 18V...≥ 4.0AhProCORE18V...≥ 4.0Ah	GBA 18V...≥ 4.0AhProCORE18V...≥ 4.0Ah	GBA 18V...≥ 4.0AhProCORE18V...≥ 4.0Ah	GBA 18V...≥ 4.0AhProCORE18V...≥ 4.0Ah
Recommended battery chargers		GAL 18...GAX 18...GAL 36...	GAL 18...GAX 18...GAL 36...	GAL 18...GAX 18...GAL 36...	GAL 18...GAX 18...GAL 36...

A) Measured at 20–25 °C with rechargeable battery ProCORE18V 12.0Ah
B) Depends on rechargeable battery (5), protective guard ((11), (10), (12)) and auxiliary handle ((8), (7)) in use
C) Limited performance at temperatures < 0 °C
Values can vary depending on the product, scope of application and environmental conditions. To find out more, visit www.bosch-professional.com/wac.

Noise/Vibration Information

Noise emission values determined according to EN IEC 62841-2-3.

Typically, the A-weighted noise level of the power tool is: Sound pressure level 85 dB(A); sound power level 93 dB(A). Uncertainty K = 3 dB.

Wear hearing protection!

Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN IEC 62841-2-3:

Surface grinding (roughing) and abrasive cutting:

a_n=6.0 m/s^2,K=1.5 m/s^2,

Disc sanding:

a_n = 1.5 ~m / s^2, K = 1.5 ~m / s^2 .

Grinding thin metal sheets or other materials that tend to easily vibrate with a large surface area can cause the noise emission value to increase by up to 15 dB. Suitable, heavy damping mats can reduce

the increased noise emissions. Increased noise emissions must be taken into consideration, both for the risk assessment of the noise output and for selecting suitable hearing protection.

The vibration level and noise emission value given in these instructions have been measured in accordance with a standardised measuring procedure and may be used to compare power tools. They may also be used for a preliminary estimation of vibration and noise emissions.

The stated vibration level and noise emission value represent the main applications of the power tool. However, if the power tool is used for other applications, with different accessories or is poorly maintained, the vibration level and noise emission value may differ. This may significantly increase the vibration and noise emissions over the total working period.

To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account.

26 | English

This may significantly reduce vibration and noise emissions over the total working period.

Implement additional safety measures to protect the operator from the effects of vibration, such as servicing the power tool and accessories, keeping their hands warm, and organising workflows correctly.

Kickback control

If there is a sudden kickback in the power tool, e.g. jamming in a separating cut, the power supply to the motor will be interrupted electronically.

To restart the tool, set the On/Off switch (3) to the "off" position and then switch the power tool on again.

Restart protection

The restart protection feature prevents the power tool from uncontrolled starting after the power supply to it has been interrupted.

To restart the tool, set the on/off switch (3) to the off position and then switch the power tool on again.

Run-out brake

The power tool is fitted with an electronic run-out brake. When the power tool is switched off or the power supply is interrupted, the abrasive tool is brought to a complete stop within a few seconds.

Drop control

The integrated drop control switches the power tool off as soon as it hits the floor. To restart the tool, set the On/Off switch (3) to the "off" position and then switch the power tool on again.

Data logging

Tool data logging is enabled in this tool.

Speed preselection

(GWS 18V-11 S)

You can preselect the required speed using the speed preselection thumbwheel (4), even during operation. The information in the table below describes the recommended values.

Material Application Application tool Thumbwheel position

Metal Removing paint Sanding sheet 2-3
Metal Brushing, removing rust Cup brush, abrasive disc 3
Stainless steel Grinding Grinding disc/fibre disc 4-6
Metal Rough grinding Grinding disc 6
Metal Cutting Cutting disc	6
Stone Cutting Diamond cutting disc	6

The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.

Level Speed preselection	GWS 18V-11 S [min ^-1 ]
1	3000
2	4500
3	5400
4	6200
5	7000
6	9000

The values specified for speed levels are guide values.

Rechargeable battery

Bosch sells some cordless power tools without a rechargeable battery. You can tell whether a rechargeable bat-

tery is included with the power tool by looking at the packaging.

Charging the battery

▶ Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of your power tool.

Note: Lithium-ion rechargeable batteries are supplied partially charged according to international transport regulations. To ensure full rechargeable battery capacity, fully charge the rechargeable battery before using your tool for the first time.

Inserting the Battery

Push the charged battery into the battery holder until it clicks into place.

Removing the Battery

To remove the rechargeable battery, press the battery release button and pull the battery out. Do not use force to do this.

The rechargeable battery has two locking levels to prevent the battery from falling out if the battery release button is pressed unintentionally. The rechargeable battery is held in place by a spring when fitted in the power tool.

Battery charge indicator

Note: Not all battery types have a battery charge indicator. The green LEDs on the battery charge indicator indicate the state of charge of the battery. For safety reasons, it is only possible to check the state of charge when the power tool is not in operation.

Press the button for the battery charge indicator 📄 or 📋 show the state of charge. This is also possible when the battery is removed.

If no LED lights up after pressing the button for the battery charge indicator, then the battery is defective and must be replaced.

Battery model GBA 18V...

LED Capacity

3× continuous green light 60–100%

2× continuous green light 30–60%

1× continuous green light 5–30%

1× flashing green light 0–5%

Battery model ProCORE18V...

LED Capacity

5 × continuous green light 80–100 %

4 × continuous green light 60–80 %

3 × continuous green light 40–60 %

2 × continuous green light 20–40 %

1 × continuous green light 5–20 %

1 × flashing green light 0–5 %

Recommendations for Optimal Handling of the Battery

Protect the battery against moisture and water.

Only store the battery within a temperature range of -20 to 50 °C. Do not leave the battery in your car in the summer, for example.

Occasionally clean the ventilation slots on the battery using a soft brush that is clean and dry.

A significantly reduced operating time after charging indicates that the battery has deteriorated and must be replaced.

Follow the instructions on correct disposal.

Fitting

Fitting Protective Equipment

Before carrying out any work on the power tool (e.g. maintenance, tool change etc.), remove the battery from the power tool. There is risk of injury from unintentionally pressing the on/off switch.

Note: If the grinding disc breaks during operation or the holding fixtures on the protective guard/power tool become damaged, the power tool must be sent to the after-sales service immediately; see the "After-Sales Service and Application Service" section for addresses.

Protective guard for grinding

Diagram of two mechanical components with rotating arms and directional arrows, no text or symbols present

Place the protective guard (10) onto the holder on the power tool until the coding cams of the protective guard are aligned with the holder. When doing so, press and hold the unlocking lever (1).

Press the protective guard (10) onto the spindle collar until the shoulder of the protective guard is sitting on the flange of the power tool and rotate the protective guard until it audibly clicks

into place.

Adjust the position of the protective guard (10) to meet the requirements of the operation. To do this, push the unlocking lever (1) upward and rotate the protective guard (10) into the required position.

▶ Always position the protective guard (10) such that the two cams on the unlocking lever (1) engage in the corresponding openings on the protective guard (10).
▶ Adjust the protective guard (10) such that sparking in the direction of the operator is prevented.
The protective guard (10) must only be able to be rotated in the direction of the accessory while the unlocking lever (1) is actuated. Otherwise, the power tool must not be used any more under any circumstances and must be sent to the after-sales service.

Note: The coding cams on the protective guard (10) ensure that only a protective guard that is suitable for the power tool can be fitted.

Extraction guard for sanding

For low-dust grinding of paints, lacquers and plastics in conjunction with carbide grinding heads (14), you can use the extraction guard (9). The extraction guard (9) is not suitable for machining metal.

A suitable Bosch dust extractor can be connected to the extraction guard (9). To do so, insert the vacuum hose with dust extraction adapter into the provided receiving connection of the extraction guard.

28 | English

Protective guard for cutting

For cutting, always use the protective guard for cutting (11) or the protective guard for grinding (10) together with the cover for cutting (12).
▶ Provide sufficient dust extraction when cutting stone.

The protective guard for cutting (11) is fitted in the same way as the protective guard for grinding (10).

Metal cover for cutting

Fit the metal cover for cutting (12) on the protective guard for grinding (10) (see figure A): Swivel the tool retainer back (①). Attach the cover (12) to the protective guard for grinding (10) (②). Press the tool retainer firmly into place on the protective guard (10) (③).

To remove the cover (see figure B), press the button on the tool retainer (①) and swivel it back (②). Remove the cover (12) from the protective guard (10) (③).

Plastic cover for cutting

Attach the plastic cover for cutting (12) to the protective guard for grinding (10) (see figure C). The cover (12) audibly and visually engages on the protective guard (10). To remove the cover (see figure D), unlock the cover (12) on the left- or right-hand side of the protective guard (10) (①) and remove the cover (②).

Extraction guard for cutting with a guide block

The extraction guard for cutting with a cutting guide (31) is fitted in the same way as the protective guard for grinding. By securing the auxiliary handle (8)/(7) with the clip through the extraction guard on the gearbox housing, the power tool is firmly attached to the extraction guard. A suitable Bosch dust extractor can be connected to the extraction guard with a cutting guide (31). To do so, insert the vacuum hose with dust extraction adapter into the provided receiving connection of the extraction guard.

Note: The friction generated by the dust in the vacuum hose and accessory during extraction causes an electrostatic charge that the user may experience as static discharge (depending on environmental factors and their physiological state). Bosch generally recommends using an anti-static vacuum hose (accessory) to vacuum up fine dust and dry materials.

Hand guard

▶ Always fit the hand guard (22) when working with the rubber sanding pad (23) or with the cup brush/conical brush/diamond annular cutter.

Attach the hand guard (22) to the auxiliary handle (8)/(7).

Standard auxiliary handle/low-vibration auxiliary handle Screw the auxiliary handle (8)/(7) on the right or left of the machine head depending on the working method.

▶ Do not operate your power tool without the auxiliary handle (8)/(7).
▶ Do not continue to use the power tool if the auxiliary handle (8)/(7) is damaged. Do not make any alterations to the auxiliary handle (8)/(7).

Vibration Control

The low-vibration auxiliary handle (7) reduces vibration, enabling the tool to be used safely and more comfortably.

Fitting the Abrasive Tools

Before carrying out any work on the power tool (e.g. maintenance, tool change etc.), remove the battery from the power tool. There is risk of injury from unintentionally pressing the on/off switch.
▶ Do not touch grinding and cutting discs until they have cooled down. The discs can become very hot while working.

Clean the grinding spindle (21) and all the parts to be fitted. Lock the grinding spindle with the spindle lock button (2) before clamping and releasing the abrasive tools.

▶ Do not press the spindle lock button while the grinding spindle is moving. The power tool may become damaged if you do this.

Grinding/cutting disc with a diameter of 115 mm/125 mm

Pay attention to the dimensions of the abrasive tools. The diameter of the hole must match that of the mounting flange. Do not use an adapter or reducer.

When using diamond cutting discs, ensure that the arrow indicating the direction of rotation on the diamond cutting disc matches the direction of rotation of the power tool (see the direction of rotation arrow on the machine head).

See the graphics page for fitting instructions.

Use the quick-clamping nut (19) to secure the grinding/cutting disc without the need for additional tools.

Only use the quick-clamping nut (19) for grinding/cutting discs up to a maximum diameter of 125 mm.

▶ The quick-clamping nut (19) may be used only for grinding or cutting discs.
▶ Only use quick-clamping nuts (19) that are in good working order and not damaged.
- When screwing on, make sure that the printed side of the quick-clamping nut (19) is not facing the grinding disc.
▶ Always secure a grinding/cutting disc using only the quick-clamping nut (19) supplied.

Technical diagram of a mechanical device with numbered components and directional arrow labeled 'O'

Press the spindle lock button (2) to lock the grinding spindle. To tighten the quick-clamping nut (19), fold up the bar and turn the quick-clamping nut firmly clockwise. Then fold down the bar to secure the quick-clamping nut. It is not sufficient to tighten the disc along the edge.

Technical diagram of a mechanical device with numbered components and directional arrow labeled ①

Quick-clamping nuts (19) that are properly secured and not damaged can be removed by hand. To do this, fold up the bar and turn the quick-clamping nut firmly anticlockwise. If the quick-clamping nut is stuck, do not attempt to loosen it with a tool – always use a two-pin spanner.

After fitting the hub flange and the grinding/cutting disc, the free thread length of the grinding spindle must be at least 4 mm.

Ensure that the abrasive tool is firmly seated, so that it does not twist away

from the spindle in the runout of the power tool.

Mounting flange for grinding spindle M 14: A plastic part (O-ring) is fitted around the cent-ring collar in the mounting flange (13). If the O-ring is missing or damaged, the mounting flange (13) must be replaced before operation can resume.

▶ After fitting the abrasive tool, check that the abrasive tool is fitted correctly and can turn freely before switching on the power tool. Make sure that the abrasive tool does not brush against the protective guard or other parts.

Approved abrasive tools

You can use all the abrasive tools mentioned in these operating instructions.

The permissible speed [min^-1] or the circumferential speed [m/s] of the abrasive tools used must at least match the values given in the table.

It is therefore important to observe the permissible rotational/circumferential speed on the label of the abrasive tool.

Max. [mm] [mm] [°]
	D b s d a [min]					-1] [m/s]
	115	7.2	-	22.2	-	9000	80
	125	7.2	-	22.2	-	9000	80
	115	4.2	-	22.2	-	9000	80
	125	4.2	-	22.2	-	9000	80
	115	-	-	-	-	9000	80
	125	-	-	-	-	9000	80

75 30 - M 14 - 9000 80

115	24	-	M 14	-	9000	80
115	19	-	22.2	-	9000	80
125	24	-	M 14	-	9000	80

Max. [mm] [mm] [°]
D b s d a [min]				-1[m/s]
125 19 - 22.2 - 9000 80
[ccwg]	115	-	-	M 14	-	9000 80
	125	-	-	M 14	-	9000 80
d	83 -- M 14 - 9000 80
[D]
[2DSG]	115	6	10	22.2	>0	9000 80
	125	6	10	22.2	>0	9000 80

Rotating the machine head (see figure E)

Before carrying out any work on the power tool (e.g. maintenance, tool change etc.), remove the battery from the power tool. There is risk of injury from unintentionally pressing the on/off switch.

The machine head can be rotated in 90° increments. In this way, the on/off switch can be brought into a more favourable handling position for particular applications, e.g. for left-handed tool users.

Completely unscrew the 4 screws (1). Rotate the machine head carefully, without removing it from the housing, into the new position (2). Screw in and retighten the 4 screws (3).

Dust/Chip Extraction

The dust from materials such as lead paint, some types of wood, minerals and metal can be harmful to human health. Touching or breathing in this dust can trigger allergic reactions and/or cause respiratory illnesses in the user or in people in the near vicinity.

Certain dusts, such as oak or beech dust, are classified as carcinogenic, especially in conjunction with wood treatment additives (chromate, wood preservative). Materials containing asbestos may only be machined by specialists.

- Use a dust extraction system that is suitable for the material wherever possible.

- Provide good ventilation at the workplace.

- It is advisable to wear a P2 filter class breathing mask.

The regulations on the material being machined that apply in the country of use must be observed.

- Avoid dust accumulation at the workplace. Dust can easily ignite.

Operation

▶ Do not load the power tool so heavily that it comes to a stop.

▶ Before carrying out any work on the power tool (e.g. maintenance, tool change etc.), remove the battery

30 | English

from the power tool. There is risk of injury from unintentionally pressing the on/off switch.

▶ Exercise caution when cutting slots in structural walls; see the "Information on structural design" section.
▶ Clamp the workpiece if it is not secure under its own weight.
▶ If the power tool has been subjected to a heavy load, continue to run it at no-load for several minutes to cool down the accessory.
▶ Do not use the power tool with a cut-off stand.
▶ Do not touch grinding and cutting discs until they have cooled down. The discs can become very hot while working.

Working advice

Rough grinding

▶ Always use the protective guard for grinding (10) when rough grinding with bonded abrasives.
▶ Never use cutting discs for rough grinding.
▶ When rough grinding, the protective guard for cutting (11) or the protective guard for grinding (10) with a fitted cover for cutting (12) can impact the workpiece and lead to a loss of control.

The best rough grinding results are achieved with a set angle of 30^ to 40^ . Move the power tool back and forth with moderate pressure. This will ensure that the workpiece does not become too hot or discolour and that grooves are not formed.

The protective guard for cutting (11) or the protective guard for grinding (10) with a fitted cover for cutting (12) must be used when using bonded discs which are approved for cutting and grinding.

Surface grinding with flap disc

▶ Always use the protective guard for grinding (10) when grinding with the flap disc.

The flap disc (accessory) enables you to machine curved surfaces and profiles. Flap discs have a considerably longer service life, lower noise levels and lower grinding temperatures than conventional grinding discs.

Surface grinding with sanding disc

▶ Always fit the hand guard (22) when working with the rubber sanding pad (23).

Grinding with a sanding disc can be done without a protective guard.

See the graphics page for fitting instructions.

Screw on the round nut (25) and tighten it with the two-pin spanner.

Cup brush/disc brush/conical brush

▶ Always use the protective guard for grinding (10) when brushing with disc brushes. Brushing with cup brushes/conical brushes can be performed without the protective guard.

▶ Always fit the hand guard (22) when working with the cup brush or conical brush.
The wires of the disc brush can get caught on the protective guard and break, if the maximum permitted dimensions of the disc brushes are exceeded.

See the graphics page for fitting instructions.

The cup brush/conical brush/disc brush with M14 thread must be screwed onto the grinding spindle until it rests firmly against the grinding spindle flange at the end of the grinding spindle thread. Tighten the cup brush/conical brush/disc brush with an open-ended spanner.

Cutting Metal

For cutting metal with bonded cutting discs or diamond cutting discs, always use the protective guard for cutting (11) or the protective guard for grinding (10) with a fitted cover for cutting (12).
When using the protective guard for grinding (10) for cutting work with bonded cutting discs, there is an increased risk of being exposed to sparks, particles and disc fragments if the disc breaks.

When carrying out abrasive cutting, use a moderate feed that is suited to the material being machined. Do not exert pressure on the cutting disc and do not tilt or swing the power tool.

Do not attempt to reduce the speed of a cutting disc coming to a stop by applying pressure from the side.

The power tool must always work in an up-grinding motion. Otherwise there is a risk that it will be pushed uncontrolled out of the cut. For best results when cutting profiles and rectangular tubing, start at the smallest cross section.

Cutting stone

For cutting stone with bonded cutting discs or diamond cutting discs for concrete/stone, always use the extraction guard for cutting with a cutting guide (31) or the protective guard for cutting (11) or the protective guard for grinding (10) with a fitted cover for cutting (12).
▶ Provide sufficient dust extraction when cutting stone.
▶ Wear a dust mask.
▶ The power tool may be used only for dry cutting/grinding.
When using the protective guard for cutting (11), the protective guard for grinding (10) or the protective guard for grinding (10) with a fitted cover for cutting (12) for cutting and grinding applications in concrete or masonry, there is an increased dust load and an increased risk of losing control of the power tool, which can lead to kickback.

For cutting stone, it is best to use a diamond cutting disc. When using the extraction guard for cutting with a cutting guide (31), the dust extractor must be approved for extract-

ing stone dust. Suitable dust extractors are available from Bosch.

Switch on the power tool and position it with the front part of the cutting guide on the workpiece. Move the power tool with a moderate feed motion that is suited to the material being machined.

When cutting especially hard materials such as concrete with a high pebble content, the diamond cutting disc can overheat and become damaged as a result. This is clearly indicated by circular sparking, rotating with the diamond cutting disc.

If this happens, stop cutting and allow the diamond cutting disc to cool down by running the power tool for a short time at maximum speed with no load.

If work is noticeably slower and with circular sparking, this indicates that the diamond cutting disc has become blunt. You can resharpen the disc by briefly cutting into abrasive material (e.g. lime-sand brick).

Cutting other materials

For cutting materials such as plastic, composite materials, etc. with bonded cutting discs or Carbide Multi Wheel cutting discs, always use the protective guard for cutting (11) or the protective guard for grinding (10) with a fitted cover for cutting (12). You can achieve improved dust extraction by using the extraction guard with a cutting guide (31).

Working with Diamond Annular Cutters

▶ Only use dry diamond annular cutters.

▶ Always fit the hand guard (22) when working with diamond annular cutters.

Do not place the diamond annular cutter parallel to the workpiece. Plunge it into the workpiece at an angle and in a circular motion. This will allow you to achieve optimal cooling and ensure a longer tool life for the diamond annular cutter.

Information on structural design

Recesses in load-bearing walls are subject to country-specific regulations. These regulations must be observed under all circumstances. Seek advice from the responsible structural engineer, architect or construction supervisor before starting work.

Start-Up

Switching on/off

To start the power tool, push the on/off switch (3) forward. To lock the on/off switch (3) in position, push the on/off switch (3) forward and down until it clicks into place.

To switch off the power tool, release the on/off switch (3); or, if the switch is locked, briefly push the on/off switch (3) backward and down and then release it.

▶ Always check abrasive tools before using them. The abrasive tool must be fitted properly and be able to move freely. Carry out a test run for at least one

minute with no load. Do not use abrasive tools that are damaged, run untrue or vibrate during use. Damaged abrasive tools can burst apart and cause injuries.

Maintenance and Service

Maintenance and Cleaning

Before carrying out any work on the power tool (e.g. maintenance, tool change etc.), remove the battery from the power tool. There is risk of injury from unintentionally pressing the on/off switch.
▶ To ensure safe and efficient operation, always keep the power tool and the ventilation slots clean.

Store and handle the accessories carefully.

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

You can find further service addresses at:

www.bosch-pt.com/serviceaddresses

Transport

The recommended lithium-ion batteries are subject to legislation on the transport of dangerous goods. The user can transport the batteries by road without further requirements.

When the batteries are shipped by third parties (e.g. air transport or forwarding agency), special requirements on packaging and labelling (e.g. ADR regulations) must be met. A dangerous goods expert must be consulted when preparing the items for shipping.

Dispatch battery packs only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more detailed national regulations.

32 | Français

Disposal

Power tools, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools and batteries/re-chargeable batteries into household waste!

Only for EU countries:

Power tools that are no longer suitable for use and defective or used batteries must be disposed of separately. Use the designated collection systems.

If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Only for United Kingdom:

According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) and the Waste Batteries and Accumulators Regulations 2009 (SI 2009/890) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

Battery packs/batteries:

Li-ion:

Please observe the notes in the section on transport (see "Transport", page 31).

Français

Diagram of two mechanical components with directional arrows indicating motion or force (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrow indicating rotation or movement.

Technical diagram of a mechanical device with numbered components and directional arrow labeled '1'

Robert Bosch (France) S.A.S.

www.bosch-pt.com/serviceaddresses

Transport

Mechanical diagram showing two cross-sectional views of a mechanical component with rotational arrows (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with numbered components and directional arrow labeled '0'

Calle Robert Bosch No. 405

www.bosch-pt.com/serviceaddresses

Transporte

Rebarbadora GWS 18V-11 GWS 18V-11 GWS 18V-11 S GWS 18V-11 S

Temperatura ambiente admissível em funcionamento ^c) e durante o armazenamento	°C -20 ... +50 -20 ... +50 -20 ... +50 -20 ... +50
Baterias compatíveis GBA 18V...	ProCORE18V...	GBA 18V...	GBA 18V...	GBA 18V...
		ProCORE18V...	ProCORE18V...	ProCORE18V...
Baterias recomendadas GBA 18V...	≥4.0Ah	GBA 18V...	GBA 18V...	GBA 18V...
		≥4.0Ah	≥4.0Ah	≥4.0Ah
	ProCORE18V...	ProCORE18V...	ProCORE18V...	ProCORE18V...
	≥4.0Ah	≥4.0Ah	≥4.0Ah	≥4.0Ah
Carregadores recomendados GAL 18...	GAX 18...	GAL 18...	GAL 18...	GAL 18...
		GAX 18...	GAX 18...	GAX 18...
	GAL 36...	GAL 36...	GAL 36...	GAL 36...

Diagram of two mechanical components with directional arrows indicating motion or flow (no text or symbols)

Montar as ferramentas de lixar

Technical diagram of a mechanical device with numbered components and directional arrow labeled '0'

Technical diagram of a mechanical device with numbered components and directional arrow labeled 'o'

www.bosch-pt.com/serviceaddresses

Transporte

Diagram of two mechanical components with directional arrows indicating motion or force (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrow labeled ①

Technical diagram of a mechanical device with numbered components and directional arrow labeled ①

www.bosch-pt.com/serviceaddresses

Trasporto

Haakse slijpmachine GWS 18V-11 GWS 18V-11 GWS 18V-11 S GWS 18V-11 S

Productnummer	3 601 JN4 1.. 3 601 JN4 1.. 3 601 JN4 0.. 3 601 JN4 0..
Nominale spanning V= 18 18 18 18

Haakse slijpmachine GWS 18V-11 GWS 18V-11 GWS 18V-11 S GWS 18V-11 S

Nominaal toerental ^A)	min ^-1	9000	9000 9000 9000
Instelbereik toerental min	^-1	--3000-9000 3000-9000
Max. slijpschijfdiameter/diameter rub-ber schuurplateau	mm 115 125 115 125
Schroefdraad slijpas M 14 M 14 M 14 M 14
Max. schroefdraadlengte van de slij-pas	mm 22 22 22 22
Terugslaguitschakeling ● ● ● ●
Nulspanningsbeveiliging ● ● ● ●
Uitlooprem ● ● ● ●
Valuitschakeling ● ● ● ●
Toerentalinstelling	-- ● ●
Gewicht ^B)	kg	2,0-3,3	2,0-3,3	2,0-3,3	2,0-3,3
Aanbevolen omgevingstemperatuur bij het opladen	°C	0 ... +35	0 ... +35	0 ... +35	0 ... +35
Toegestane omgevingstemperatuur tij-dens gebruik ^C) en bij opslag	°C	-20 ... +50	-20 ... +50	-20 ... +50	-20 ... +50
Compatibele accu's		GBA 18V...ProCORE18V...	GBA 18V...ProCORE18V...	GBA 18V...ProCORE18V...	GBA 18V...ProCORE18V...
Aanbevolen accu's		GBA 18V...≥ 4.0AhProCORE18V...≥ 4.0Ah	GBA 18V...≥ 4.0AhProCORE18V...≥ 4.0Ah	GBA 18V...≥ 4.0AhProCORE18V...≥ 4.0Ah	GBA 18V...≥ 4.0AhProCORE18V...≥ 4.0Ah
Aanbevolen oplaadapparaten		GAL 18...GAX 18...GAL 36...	GAL 18...GAX 18...GAL 36...	GAL 18...GAX 18...GAL 36...	GAL 18...GAX 18...GAL 36...

Mechanical diagram showing two cross-sectional views of a mechanical component with rotational arrows (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrow indicating rotation or movement.

Technical diagram of a mechanical device with numbered components and directional arrow labeled ①

www.bosch-pt.com/serviceaddresses

Vervoer

Diagram of two mechanical components with directional arrows indicating motion or force (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrow indicating rotation or movement.

Technical diagram of a mechanical device with numbered components and directional arrow labeled ①

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

Yderligere serviceadresser findes under:

www.bosch-pt.com/serviceaddresses

Transport

Vinkelslip GWS 18V-11 GWS 18V-11 GWS 18V-11 S GWS 18V-11 S

Tillåten omgivningstemperatur vid drift ^c) och vid lagring	°C -20 ... +50 -20 ... +50 -20 ... +50 -20 ... +50
Kompatibla batterier GBA 18V...	ProCORE18V...	GBA 18V...	GBA 18V...	GBA 18V...
		ProCORE18V...	ProCORE18V...	ProCORE18V...
Rekommenderade batterier GBA 18V...	≥ 4.0Ah	GBA 18V...	GBA 18V...	GBA 18V...
		≥ 4.0Ah	≥ 4.0Ah	≥ 4.0Ah
	ProCORE18V...	ProCORE18V...	ProCORE18V...	ProCORE18V...
	≥ 4.0Ah	≥ 4.0Ah	≥ 4.0Ah	≥ 4.0Ah
Rekommenderade laddare GAL 18...	GAX 18...	GAL 18...	GAL 18...	GAL 18...
		GAX 18...	GAX 18...	GAX 18...
	GAL 36...	GAL 36...	GAL 36...	GAL 36...

Mechanical diagram showing two cross-sectional views of a gear or cam mechanism with rotational arrows (no text or labels)

Technical diagram of a mechanical device with numbered components and directional arrow labeled ①

Technical diagram of a mechanical device with numbered components and directional arrow labeled ①

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

(No text)

4

4 - M1

4 M 1

(二)交易对方

2017年1月1日

0 22

9 - 22

1.2.3

(二)本年累计分配

24 11.4

4 - M1

14 M. 1

[Non-Text]

0 22

9 - )

10 22,

(二) 本次股东大会的召集和召开程序

M-1

- - M14

(1) 2017年1月1日

(1) 2017年1月1日

M.1

- - M14

M.1

[Non-Text]

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

(1)

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

[Non-Text]

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

[NO TEXT]

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

Vidare serviceadresser finner du under:

www.bosch-pt.com/serviceaddresses

Transport

Vinkelsliper GWS 18V-11 GWS 18V-11 GWS 18V-11 S GWS 18V-11 S

Artikkelnummer	3 601 JN4 1.. 3 601 JN4 1.. 3 601 JN4 0.. 3 601 JN4 0..
Nominell spenning V= 18 18 18 18
Nominelt turtall^A)	o/min 9000 9000 9000 9000
Turtallinnstillingsområde o/min -- 3000-9000 3000-9000
Maks. slipeskive-/gummislipeskivediameter	mm 115 125 115 125
Slipespindelgjenger M 14 M 14 M 14 M 14
Maks. gjengelengde på slipespindelen mm 22 22 22 22
Tilbakeslagsutkobling ● ● ● ●
Gjenstartbeskyttelse		● ● ● ●
Utløpsbrems		● ● ● ●
Utkobling ved slag		● ● ● ●
Turtallsinnstilling		-- ● ●
Vekt^B)	kg	2,0-3,3	2,0-3,3	2,0-3,3	2,0-3,3
Anbefalt omgivelsestemperatur ved lading	°C	0 ... +35	0 ... +35	0 ... +35	0 ... +35
Tillatt omgivelsestemperatur under drift^C) og ved lagring	°C	-20 ... +50	-20 ... +50	-20 ... +50	-20 ... +50
Kompatible batterier		GBA 18V...ProCORE18V...	GBA 18V...ProCORE18V...	GBA 18V...ProCORE18V...	GBA 18V...ProCORE18V...
Anbefalte batterier		GBA 18V...≥ 4.0AhProCORE18V...≥ 4.0Ah	GBA 18V...≥ 4.0AhProCORE18V...≥ 4.0Ah	GBA 18V...≥ 4.0AhProCORE18V...≥ 4.0Ah	GBA 18V...≥ 4.0AhProCORE18V...≥ 4.0Ah
Anbefalte ladere		GAL 18...GAX 18...GAL 36...	GAL 18...GAX 18...GAL 36...	GAL 18...GAX 18...GAL 36...	GAL 18...GAX 18...GAL 36...

a_n = 6,0m / s^2,K = 1,5m / s^2,

Vernedeksel for slipping

Diagram of two mechanical components with directional arrows indicating motion (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrow labeled ①

Technical diagram of a mechanical device with numbered components and directional arrow labeled '↑o'

www.bosch-pt.com/serviceaddresses

Transport

Kulmahiomakone GWS 18V-11 GWS 18V-11 GWS 18V-11 S GWS 18V-11 S

Diagram of two mechanical components with rotating arrows indicating motion (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrow labeled '0'

Technical diagram of a mechanical component with numbered parts and directional arrow labeled 'O'

www.bosch-pt.com/serviceaddresses

Kuljetus

Mechanical diagram showing two cross-sectional views of a mechanical component with rotational arrows (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrow labeled ①

Technical diagram of a mechanical device with numbered components and directional arrow labeled '1'

www.bosch-pt.com/serviceaddresses

Μεταφορά

Taşlama makinesi GWS 18V-11 GWS 18V-11 GWS 18V-11 S GWS 18V-11 S

Önerilen şarj cihazları GAL 18...		GAL 18...	GAL 18...	GAL 18...
	GAX 18...	GAX 18...	GAX 18...	GAX 18...
	GAL 36...	GAL 36...	GAL 36...	GAL 36...

Mechanical diagram showing two cross-sectional views of a mechanical component with rotational arrows (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrow labeled ①

Mechanical component diagram showing a dial and housing with numbered parts (no text or symbols)

www.bosch-pt.com/serviceaddresses

Taşıma

Mechanical diagram showing two cross-sectional views of a gear or cam mechanism with directional arrows (no text or labels)

Technical diagram of a mechanical device with numbered components and directional arrow indicating rotation or movement.

Technical diagram of a mechanical device with numbered components and directional arrow labeled '0'

Robert Bosch Sp. z o.o.

www.bosch-pt.com/serviceaddresses

Transport

Diagram of two mechanical components with rotating arrows indicating motion (no text or symbols)

Technical diagram of a mechanical component with numbered parts and directional arrow labeled '0'

Technical diagram of a mechanical device with numbered components and directional arrow labeled 'O'

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

www.bosch-pt.com/serviceaddresses

Přeprava

Diagram of two mechanical components with rotating arrows indicating motion (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrow labeled 'o'

Technical diagram of a mechanical device with numbered components and directional arrow labeled ①

max. [mm] [mm] [°] D b s d a [ot/ min] [m/s]

125 19 - 22,2 - 9 000 80

115	-	-	M 14	-	9000	80
125	-	-	M 14	-	9000	80

83--M14-900080

115	6	10	22,2	>0	9000	80
125	6	10	22,2	>0	9000	80

www.bosch-pt.com/serviceaddresses

Preprava

Mechanical diagram showing two curved components with directional arrows, no text or symbols present

Technical diagram of a mechanical device with numbered components and directional arrow labeled 'O'

Technical diagram of a mechanical device with numbered components and directional arrow labeled 'O'

www.bosch-pt.com/serviceaddresses

Szállítás

$$ a _ {n} = 6, 0 \mathrm{M} / \mathrm{c} ^ {2}, K = 1, 5 \mathrm{M} / \mathrm{c} ^ {2}, $$

230 | Русский

Mechanical diagram showing two cross-sectional views of a mechanical component with rotational arrows (no text or symbols)

Technical diagram of a mechanical component with numbered parts and an arrow indicating direction

Technical diagram of a mechanical device with numbered components and directional arrow labeled 'O'

www.bosch-pt.com/serviceaddresses

$$ a _ {n} = 6, 0 \mathrm{M} / \mathrm{c} ^ {2}, K = 1, 5 \mathrm{M} / \mathrm{c} ^ {2}, $$

Mechanical diagram showing two cross-sectional views of a gear or cam mechanism with rotational arrows (no text or labels)

Technical diagram of a mechanical device with numbered components and directional arrow labeled ①

Technical diagram of a mechanical device with numbered components and directional arrow labeled '0'

www.bosch-pt.com/serviceaddresses

Транспортування

Mechanical diagram showing two cross-sectional views of a gear or cam mechanism with rotational arrows (no text or labels)

Technical diagram of a mechanical device with numbered components and directional arrow labeled '0'

Technical diagram of a mechanical component with numbered parts and directional arrow labeled 'O'

www.bosch-pt.com/serviceaddresses

Polizor unghiular GWS 18V-11 GWS 18V-11 GWS 18V-11 S GWS 18V-11 S

Acumulatori recomandați GBA 18V...		GBA 18V...	GBA 18V...	GBA 18V...
	≥ 4,0 Ah	≥ 4,0 Ah	≥ 4,0 Ah	≥ 4,0 Ah
	ProCORE18V...	ProCORE18V...	ProCORE18V...	ProCORE18V...
	≥ 4,0 Ah	≥ 4,0 Ah	≥ 4,0 Ah	≥ 4,0 Ah
Încărcătoare recomandate GAL 18...		GAL 18...	GAL 18...	GAL 18...
	GAX 18...	GAX 18...	GAX 18...	GAX 18...
	GAL 36...	GAL 36...	GAL 36...	GAL 36...

Mechanical diagram showing two cross-sectional views of a mechanical component with rotational arrows (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrow labeled 'O'

Technical diagram of a mechanical device with numbered components and directional arrow labeled 'O'

Service scule electrice

Strada Horia Măcelariu Nr. 30-34, sector 1

013937 Bucureşti

www.bosch-pt.com/serviceaddresses

Transport

Diagram of a mechanical component with two views showing internal components and directional arrows (no text or labels)

Technical diagram of a mechanical device with numbered components and directional arrow labeled '1'

Diagram of a mechanical device with numbered components and directional arrow labeled '1'

Service scule electrice

Strada Horia Măcelariu Nr. 30-34, sector 1

013937 Bucureşti, România

www.bosch-pt.com/bg/bg/

www.bosch-pt.com/serviceaddresses

Транспортиране

Mechanical diagram showing two rotating components with arrows indicating motion (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrow labeled ①

Technical diagram of a mechanical device with numbered components and directional arrow labeled ①

www.bosch-pt.com/serviceaddresses

Транспорт

Ugaona brusilica GWS 18V-11 GWS 18V-11 GWS 18V-11 S GWS 18V-11 S

Broj artikla		3 601 JN4 1..	3 601 JN4 1..	3 601 JN4 0..	3 601 JN4 0..
Nominalni napon V= 18 18 18 18
Nominalni broj obrtaja^A)	min^-1	9000	9000 9000 9000
Opseg podešavanja broja obrtaja min	-1	--	3000–9000 3000–9000
Maksimalni prečnik brusnog diska/gumenog brusnog tanjira	mm 115 125 115 125
Navoj brusnog vretena M 14 M 14 M 14 M 14
Maksimalna dužina navoja brusnog vretena	mm 22 22 22 22
Povratno isključivanje ● ● ● ●
Zaštita od ponovnog pokretanja ● ● ● ●
Inerciona kočnica		● ● ● ●
Isključivanje u slučaju udara		● ● ● ●
Izbor broja obrtaja		-- ● ●
Težina ^B)	kg	2,0–3,3	2,0–3,3	2,0–3,3	2,0–3,3
Preporučena temperatura okruženja prilikom punjenja	°C	0 ... +35	0 ... +35	0 ... +35	0 ... +35
dozvoljena temperatura okruženja u radu ^C) prilikom skladištenja	°C	-20 ... +50	-20 ... +50	-20 ... +50	-20 ... +50

Ugaona brusilica GWS 18V-11 GWS 18V-11 GWS 18V-11 S GWS 18V-11 S

Kompatibilni akumulatori GBA 18V...	ProCORE18V...	GBA 18V...	GBA 18V...	GBA 18V...
		ProCORE18V...	ProCORE18V...	ProCORE18V...
Preporučeni akumulatori GBA 18V...	≥ 4.0Ah	GBA 18V...	GBA 18V...	GBA 18V...
		≥ 4.0Ah	≥ 4.0Ah	≥ 4.0Ah
	ProCORE18V...	ProCORE18V...	ProCORE18V...	ProCORE18V...
	≥ 4.0Ah	≥ 4.0Ah	≥ 4.0Ah	≥ 4.0Ah
Preporučeni punjači GAL 18...		GAL 18...	GAL 18...	GAL 18...
	GAX 18...	GAX 18...	GAX 18...	GAX 18...
	GAL 36...	GAL 36...	GAL 36...	GAL 36...

A) Mereno na 20-25 °C sa akumulatorom ProCORE18V 12.0Ah.
B) u zavisnosti od korišćenog akumulatora (5), zaštitne haube koju koristite ((11), (10), (12)) i dodatne drške koju koristite ((8), (7))
C) ograničeni učinak na temperaturama < 0 °C
Vrednosti mogu da se razlikuju u zavisnosti od proizvoda i zavise od uslova upotrebe i uslova iz okoline. Dodatne informacije možete pogledati na adresi www.bosch-professional.com/wac.

Diagram of two mechanical components with directional arrows indicating motion or force (no text or symbols)

Postavite zaštitnu haubu (10) na prihvatnik na električnom alatu, sve dok se grebeni za kodiranje zaštitne haube ne poklope sa prihvatnim delom. Pri tom pritisnite i držite tako ručicu za deblokiranje (1). Pritiskajte zaštitnu haubu (10) na vrat vretena sve dok traka zaštitne haube ne nalegne na prirubnicu električnog alata i okrećite zaštitnu haubu dok čujno ne ulegne u ležište.

Prilagodite poziciju zaštitne haube (10) zahtevima radnog koraka. Pritisnite ručicu za deblokiranje (1) nagore i okrenite zaštitnu haubu (10) u željeni položaj.

▶ Podesite zaštitnu haubu (10) tako da sva grebena poluge za deblokadu (1) upadnu u odgovarajuće otvore zaštitne haube (10).
▶ Podesite zaštitnu haubu (10) tako, da se sprečava letenje varnica u pravcu radnika.
U smeru okretanja pribora zaštitna hauba (10) sme se okretati samo uz aktiviranje poluge za deblokadu (1)! U suprotnom, električni alat ne sme nikako da se dalje koristi i mora se predati servisu.

Napomena: Kodni ispust na zaštitnoj haubi (10) osiguravaju da se može montirati samo zaštitna hauba koja odgovara električnom alatu.

Usisna hauba za brušenje

Za brušenje boja, lakova i plastike sa što manje prašine, zajedno sa lončastim diskom od tvrdog metala (14) možete da koristite zaštitnu haubu (9). Usisna hauba (9) nije prikladna za obradu metala.

Na usisnu haubu (9) možete da priključite kompatibilan usisivač kompanije Bosch. Postavite usisno crevo sa usisnim adapterom u predviđeni prihvatni deo usisne haube.

Zaštitna hauba za presecanje

Za rezanje uvek koristite zaštitnu haubu za rezanje (11) ili zaštitnu haubu za brušenje (10) zajedno sa prekrivkom za rezanje (12).
Prilikom presecanja u kamenu morate se pobrinuti za dovoljno usisavanja prašine.

Technical diagram of a mechanical device with numbered components and an upward arrow labeled 'o'

Technical diagram of a mechanical device with numbered components and directional arrow labeled '0'

www.bosch-pt.com/serviceaddresses

Transport

Sadržani litijum-jonski akumulatori podležu zahtevima zakona o opasnim materijalima. Korisnik može da transportuje akumulatore kopnenim putem bez dodatnih uslova.

Kod slanja preko posrednika (npr.: vazdušnim transportom ili otpremom) treba poštovati posebne zahteve u pogledu pakovanja i označavanja. Pri tome je kod pripreme pošiljke potrebno angažovati stručnjaka za opasne materijale.

Šaljite akumulatore samo ako je kućište neoštećeno. Otvorene kontakte odlepite i tako upakujte akumulator da se u pakovanju ne pokreće. Molimo da obratite pažnju i na eventualne dodatne nacionalne propise.

Uklanjanje dubreta

Električne alate, akumulacione baterije, pribor i pakovanja treba predati na reciklažu koja je u skladu sa zaštitom životne sredine.

Ne bacajte električne alate i akumulatore/baterije u kućno djubre!

Samo za EU-zemlje:

Mechanical diagram showing two cross-sectional views of a mechanical component with rotational arrows (no text or symbols)

Technical diagram of a mechanical component with numbered parts and directional arrow labeled '10'

Technical diagram of a mechanical component with numbered parts and directional arrow labeled 'O'

www.bosch-pt.com/serviceaddresses

Transport

Kutna brusilica GWS 18V-11 GWS 18V-11 GWS 18V-11 S GWS 18V-11 S

Kataloški broj		3 601 JN4 1.. 3 601 JN4 1.. 3 601 JN4 0.. 3 601 JN4 0..
Nazivni napon V= 18 18 18 18
Nazivni broj okretaja ^A)	min ^-1	9000 9000 9000 9000
Područje namještanja broja okretaja min	^-1	-- 3000-9000 3000-9000
Maks. promjer brusne ploče/gumenog brusnog tanjura	mm 115 125 115 125

Kutna brusilica GWS 18V-11 GWS 18V-11 GWS 18V-11 S GWS 18V-11 S

Navoj brusnog vretena M 14 M 14 M 14 M 14
Maks. dužina navoja brusnog vretena mm 22 22 22 22
Isključivanje kod povratnog udarca ● ● ● ●
Zaštita od ponovnog pokretanja ● ● ● ●
Inercijska kočnica ● ● ● ●
Isključivanje kod udarca o pod ● ● ● ●
Predbiranje broja okretaja -- ● ●
Težina ^3)	kg 2,0-3,3 2,0-3,3 2,0-3,3 2,0-3,3
Preporučena temperatura okoline kod punjenja	°C 0 ... +35 0 ... +35 0 ... +35 0 ... +35
Dopuštena temperatura okoline pri radu ^c) i kod skladištenja	°C -20 ... +50 -20 ... +50 -20 ... +50 -20 ... +50
Kompatibilne aku-baterije	GBA 18V...ProCORE18V...	GBA 18V...ProCORE18V...	GBA 18V...ProCORE18V...	GBA 18V...ProCORE18V...
Preporučene aku-baterije	GBA 18V...≥ 4.0AhProCORE18V...≥ 4.0Ah	GBA 18V...≥ 4.0AhProCORE18V...≥ 4.0Ah	GBA 18V...≥ 4.0AhProCORE18V...≥ 4.0Ah	GBA 18V...≥ 4.0AhProCORE18V...≥ 4.0Ah
Preporučeni punjači	GAL 18...GAX 18...GAL 36...	GAL 18...GAX 18...GAL 36...	GAL 18...GAX 18...GAL 36...	GAL 18...GAX 18...GAL 36...

A) Izmjereno na 20–25 °C s aku-baterijom ProCORE18V 12.0Ah.
B) ovisno o korištenoj aku-bateriji (5), korištenom štitniku ((11), (10), (12)) i korištenoj dodatnoj ručki ((8), (7))
C) ograničeni učinak pri temperaturama < 0 °C
Vrijednosti se mogu razlikovati ovisno o proizvodu i ovise o uvjetima primjene i okoline. Dodatne informacije na www.bosch-professional.com/wac.

Informacije o buci i vibracijama

Mechanical diagram showing two curved components with directional arrows, no text or symbols present

Stavite štitnik (10) na prihvat na električnom alatu tako da se kodirni izdanci na štitniku podudaraju s prihvatom. Pritisnite i pritom držite polugu za deblokiranje (1).

Pritišćite štitnik (10) na grlo vretena sve dok naslon štitnika ne sjedne na prirubnicu električnog alata i okrećite štitnik sve dok se čujno ne uglavi. Prilagodite položaj štitnika (10) zahtjevima faze rada. U tu svrhu

pritisnite polugu za deblokiranje (1) prema gore i okrenite štitnik (10) u željeni položaj.

Technical diagram of a mechanical device with numbered components and directional arrow labeled '0'

Pritisnite tipku za blokadu vretena (2) kako biste fiksirali brusno vreteno. Za stezanje brzostezne matice (19) otklopite držač brzostezne matice i okrenite brzosteznu maticu snažno u smjeru kazaljke na satu. Zatim preklopite držač za fiksiranje brzostezne matice prema dolje. Pritezanje na rubu ploče nije dovoljno.

Technical diagram of a mechanical device with numbered components and directional arrow labeled 'O'

Pravilno pričvršćenu, neoštećenu brzosteznu maticu (19) možete ručno otpustiti. U tu svrhu otklopite držač brzostezne matice i okrenite brzosteznu maticu snažno u smjeru suprotnom od kazaljke na satu. Brzosteznu maticu s čvrstim dosjedom nikada ne otpuštajte alatom, nego upotrijebite dvostruki okasti ključ.

Nakon montiranja prihvatne prirubnice i brusne/rezne ploče slobodna dužina navoja brusnog vretena mora iznositi najmanje 4 mm. Pazite na čvrst dosjed brusnog alata kako se ne bi odvrnuo od vretena

www.bosch-pt.com/serviceaddresses

Transport

Diagram of two mechanical components with directional arrows indicating motion or force (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrow labeled ①

Technical diagram of a mechanical device with numbered components and directional arrow labeled ①

www.bosch-pt.com/serviceaddresses

Transport

Diagram of two mechanical components with rotating arrows indicating motion (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrow labeled ①

Technical diagram of a mechanical device with numbered components and directional arrow labeled '↑'

www.bosch-pt.com/serviceaddresses

Transportešana

Mechanical diagram showing two rotating components with arrows indicating motion (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrow labeled ①

Technical diagram of a mechanical device with numbered components and directional arrow labeled 'O'

www.bosch-pt.com/serviceaddresses

Transportavimas

Diagram of two mechanical components with rotating arms and housing (no text or symbols)

Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority Minority White and Black American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and African American Indian and AfricanAmerican Indian and AfricanAmerican Indian and AfricanAmerican Indian and AfricanAmerican Indian and AfricanAmerican Indian and AfricanAmerican Indian and AfricanAmerican Indian and AfricanAmerican Indian and AfricanAmerican Indian and AfricanAmerican Indian and AfricanAmerican Indian and AfricanAmerican Indian and AfricanAmerican Indian and AfricanAmerican Indian and AfricanAmerican Indian and AfricanAmerican Indian and AfricanAmerican Indian and AfricanAmerican Indian and AfricanAmerican Indian and AfricanAmerican Indian and AfricanAmerican Indian and AfricanAmerican Indian and AfricanAmerican Indian and AfricanAmerican Indian and AfricanAmerican Indian and AfricanAfrican-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-American-AmericanAmericanIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndianandIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndianaanIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananIndiananoninianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinianinialineoninianineoninianineoninianineoninianineoninianineoninianineoninianineoninianineoninianineoninianineoninianineoninianineoninianineoninianineoninianineoninianineoninianineoninianineoninianineoninianineoninianineoninianineoninianineoninianineoninianineoninIANININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININININ INNINDIA

Technical diagram of a mechanical device with numbered components and directional arrow indicating rotation or movement.

القص.

Technical diagram of a mechanical component with numbered parts and directional arrow labeled '1'

٤ قبل التشفيل تأكد

Robert Bosch Morocco SARL

1. شارع الملازم محمد م representatives

20300 الدار البيضاء

www.bosch-pt.com/serviceaddresses

النقل

◀ Launch محافظ preschool

(A.ProCORE18V 12.0Ah

(7), (8), (9), (10), (11), (12), (13), (14), (15), (16), (17), (18), (19), (20), (21), (22), (23), (24), (25), (26), (27), (28), (29), (30), (31), (32), (33), (34), (35), (36), (37), (38), (39), (40), (41), (42), (43), (44), (45), (46), (47), (48), (49), (50), (51), (52), (53), (54), (55), (56), (57), (58), (59), (60), (61), (62), (63), (64), (65), (66), (67), (68), (69), (70), (71), (72), (73), (74), (75), (76), (77), (78), (79), (80).

(B

100-80

5%

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

20-40

Mechanical diagram showing two cross-sectional views of a mechanical component with rotational arrows (no text or symbols)

www.bosch-pt.com/serviceaddresses

جمل و نقل

Technical line drawing of a mechanical component with no visible text or symbols

∅ 115/125 mm 2 605 510 224

2x 2605510226

Technical line drawing of a mechanical device with a flanged handle and base plate (no text or symbols)

1600793007

2 605 510 264∅ 115/125 mm

3D rendering of a Bosch-branded electronic component (no visible text or symbols)

L-BOXX 136
1 600 A01 2G0

Isometric technical drawing of a mechanical housing or enclosure with internal components (no text or symbols)

1619 PS1 113

White plastic electronic component with metallic contacts and ridged top surface (no text or symbols visible)

6 082 762 1KG

3D rendered mechanical component with internal cavities and mounting holes (no text or symbols)

1619 PS1 112

410 | Legal Information and Licenses

Legal Information and Licenses

Copyright © 2015, Infineon Technologies AG

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the copyright holders nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Warranty Disclaimer

This product contains Open Source Software components which underly Open Source Software Licenses. Please note that Open Source Licenses contain disclaimer clauses. The text of the Open Source Licenses that apply are included in this manual under "Legal Information and Licenses".

CE

1

de	EU-Konformitätserklärung		Wir erklären in alleiniger Verantwortung, dass die genannten Produkte allen einschlägigen Bestimmungen der nachfolgend aufgeführten Richtlinien und Verordnungen entsprechen und mit folgenden Normen übereinstimmen.Technische Unterlagen bei:*
	Winkelschleifer	Sachnummer
en	EU Declaration of Conformity		We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards.Technical file at:*
	Angle grinder	Article number
fr	Déclaration de conformité UE		Nous déclarons sous notre propre responsabilité que les produits décrits sont en conformité avec les directives, règlements normatifs et normes énumérés ci-dessous.Dossier technique auprès de:*
	Meuleuse angulaire	N° d'article
es	Declaración de conformidad UE		Declaramos bajo nuestra exclusiva responsabilidad, que los productos nombrados cumplen con todas las disposiciones correspondientes de las Directivas y los Reglamentos mencionados a continuación y están en conformidad con las siguientes normas.Documentos técnicos de:*
	Amoladora angular	N° de artículo
pt	Declaração de Conformidade UE		Declaramos sob nossa exclusiva responsabilidade que os produtos mencionados cumprem todas as disposições e os regulamentos indicados e estão em conformidade com as seguintes normas.Documentação técnica pertencente à:*
	Rebarbadora	N.° do produto
it	Dichiarazione di conformità UE		Dichiariamo sotto la nostra piena responsabilità che i prodotti indicati sono conformi a tutte le disposizioni pertinenti delle Direttive e dei Regolamenti elencati di seguito, nonché alle seguenti Normative.Documentazione Tecnica presso:*
	Smerigliatrice angolare	Codice prodotto
nl	EU-conformiteitsverklaring		Wij verklaren op eigen verantwoordelijkheid dat de genoemde producten voldoen aan alle desbetreffende bepalingen van de hierna genoemde richtlijnen en verordeningen en overeenstemmen met de volgende normen.Technisch dossier bij:*
	Haakse slijpmachine	Productnummer
da	EU-overensstemmelseserklæring		Vi erklærer som eneansvarlige, at det beskrevne produkt er i overensstemmelse med alle gældende bestemmelser i følgende direktiver og forordninger og opfylder følgende standarder.Tekniske bilag ved:*
	Vinkelsliber	Typenummer
sv	EU-konformitetsförklaring		Vi förklarar under eget ansvar att de nämnda produkterna uppfyller kraven i alla gällande bestämmelser i de nedan angivna direktiven och förordningarnas och att de stämmer överens med följande normer.Teknisk dokumentation:*
	Vinkelslip	Produktnummer
no	EU-samsvarserklæring		Vi erklærer under eneansvar at de nevnte produktene er i overensstemmelse med alle relevante bestemmelser i direktivene og forordningene nedenfor og med følgende standarder.Teknisk dokumentasjon hos:*
	Vinkelsliper	Produktnummer
fi	EU-vaatimustenmukaisuusvakuutus		Vakuutamme täten, että mainitut tuotteet vastaavat kaikkia seuraavien direktiivien ja asetusten asiaankuuluvia vaatimuksia ja ovat seuraavien standardien vaatimusten mukaisia.Tekniset asiakirjat saatavana:*
	Kulmahiomakone	Tuotenumero
el	Δήλωση πιστότητας ΕΕ		Δηλώνουμε με αποκλειστική μας ευθύνη, ότι τα αναφερόμενα προϊόντα αντιστοιχούν σε όλες τις σχετικές διατάξεις των πιο κάτω αναφερόμενων οδηγιών και κανονισμών και ταυτίζονται με τα ακόλουθα πρότυπα.Tεχνικά έγγραφα στη:*
	Γωνιακός λειαντήρας	Αριθμός ευρετηρίου
tr	AB Uygunluk beyani		Tek sorumlu olarak, tanımlanan ürünün aşağıdaki yönetmelik ve direktiflerin geçerli bütün hükümlerine ve aşağıdaki standartlara uygun olduğunu beyan ederiz.Teknik belgelerin bulunduğu yer:*
	Taşlama makinesi	Ürün kodu

||

CE

pl	Deklaracja zgodności UE		Oświadczamy z pełną odpowiedzialnością, że niniejsze produktyodpowiadają wszystkim wymaganiom poniżej wyszczególnionych dyrektyw irozporządzeń, oraz że są zgodne z następującymi normami.Dokumentacja techniczna: *
	Szlifierka kątowa	Numer katalogowy
cs	EU prohlásení o shodě		Prohlašujeme na výhradní zodpovednost, že uvedený výrobek splňujevšechna příslušná ustanovení níže uvedených směrnic anařízení aje vsouladusnásledujícími normami:Technické podklady u: *
	Úhlová bruska	Objednací číslo
sk	EÚ vyhlásenie o zhode		Vyhlasujeme na výhradní zodpovednosť, že uvedený výrobok splňa všetkypríslušné ustanovenia nižšie uvedených smerníc anariadení aje vsúladesnasledujúcimi normami:Technické podklady má spoločnosť: *
	Uhlová brúska	Vecné číslo
hu	EU konformitási nyilatkozat		Egyedüli felelőséggel kijelentjük, hogy a megnevezett termékek megfelelnekaz alábbiakban felsorolásra kerülő irányelvek és rendeletek valamennyiidevágó előírásainak és megfelelnek a következő szabványoknak.Műszaki dokumentumok megőrzési pontja: *
	Sarokcsiszoló	Cikkszám
ru	Заявление о соответствии EC		Мы заявляем под нашу единоличную ответственность, что названныепродукты соответствуют всем действующим предписаниямнижеуказанных директив и распоряжений, а также нижеуказанныхнорм.Техническая документация хранится y: *
	Угловая	Tоварный No
	шлифовальная	машина
uk	Заява про відповідність ЄС		Мизаявляємо під нашу одноособову відповідальність, що названівироби відповідають усім чинним положенням нищеозначених директиві розпоряджень, а також нижчеозначеним нормам.Технічна документація зберігається y: *
	Кутова	Товарний номер
	шліфмашина
kk	EO сәйкестік маглумдамасы		Өз жауапкершілікпен біз аталған өнімдер төменде жзылғандиректикалар мен жарлықтардың тиісті қағидаларына сәйкестігін жәнетөмендегі нормаларға сай екенін білдіреміз.Техникалық құжаттар: *
	Бұрыштық	Өнім нөмірі
	ажарлау	машинасы
ro	Declarație de conformitate UE		Declarăm pe proprie răspundere că produsele menționate corespundtuturor dispozițiilor relevante ale directivelor și reglementărilor enumerate încele ce urmează și sunt în conformitate cu următoarele standarde.Documentаție tehnică la: *
	Polizor unghiular	Număr de identificare
bg	ЕС декларация за съответствие		С пълна отговорност ние декларираме, че посочените продуктиотговарят на всички валидни изисквания на директивите и разпоредбитепо-долу и съответства на следните стандарти.Техническа документация при: *
	Ъглошлайф	Каталожен номер
mk	EU-Изјава за сообразност		Со целосна одговорност изјавуваме, дека опишаните производи се всогласност со сите релевантни одредби на следните регулативи ипрописи и се во согласност со следните норми.Техничка документација кaj: *
	Аголна брусилка	Број на дел/артикл
sr	EU-izjava o usaglašenosti		Na sopstvenu odgovornost izjavljujemo, da navedeni proizvodi odgovarajusvim dotičnim odredbama naknadno navedenih smernica u uredaba i da su uskladu sa sledećim standardima.Tehnička dokumentacija kod: *
	Ugaona brusilica	Broj predmeta
sl	Izjava o skladnosti EU		Izjavljamo pod izključno odgovornostjo, da je omenjen izdelek v skladu zvsemi relevantnimi določili direktiv in uredb ter ustreza naslednjimstandardom.Tehnična dokumentacija pri: *
	Kotni brusilnik	Številka artikla
hr	EU izjava o sukladnosti		Pod punom odgovornošću izjavljujemo da navedeni proizvodi odgovarajusvim relevantnim odredbama direktiva i propisima navedenima u nastavku ida su sukladni sa sljedećim normama.Tehnička dokumentacija se može dobiti kod: *
	Kutna brusilica	Kataloški br.

CE

III

et	EL-vastavusdeklaratsioon		Kinnitame ainuvastutajatena, et nimetatud tooted vastavad järgnevalt loetletud direktiivide ja määruste köikidele asjaomastele nõuetele ja on kooskõlas järgmiste normidega.Tehnilised dokumentid saadaval: *
	Nurklihvmasin	Tootenumber
Iv	Deklaräcija par atbilstībuES standartiem		Mēs ar pilnu atbildību paziņojam, ka šeit aplūkotie izstrādājumi atbilst visiem tālāk minētajās direktīvās un rikojumos ietvertajām saistošajām nostādnēm,kā arī sekojošiem standartiem.Tehniskā dokumentācija no: *
	Lenka slīpmašina	Izstrādājuma numurs
It	ES atitikties deklaracija		Atsakingai pareiškiame, kad išvardyti gaminiai atitinka visus privalomusžemiau nurodytų direktyvų ir reglamentų reikalavimus ir šiuos standartus.Techninė dokumentacija saugoma: *
	Kampiniošlifavimo mašina	Gaminio numeris
	GWS 18V-11	3 601 JN4 101	2006/42/EC	EN 62841-1:2015+A11:2022
	GWS 18V-11	3 601 JN4 102	2014/30/EU	EN IEC 62841-2-3:2021+A11:2021
	GWS 18V-11	3 601 JN4 104	2011/65/EU	EN IEC 55014-1:2021
	GWS 18V-11 S	3 601 JN4 002		EN IEC 55014-2:2021
	GWS 18V-11 S	3 601 JN4 004		EN IEC 63000:2018
			BOSCH	* Robert Bosch Power Tools GmbH(PT/ECS)70538 StuttgartGERMANY
			Thomas DonatoChairman of theManagement Board	Helmut HeinzelmannHead of Product Certificationi.V. K-wdRobert Bosch Power Tools GmbH, 70538 Stuttgart, GERMANYStuttgart, 19.07.2024

BOSCH

IV

CE

i

Declaration of Conformity

Angle grinder Article number
GWS 18V-11	3 601 JN4 101
GWS 18V-11	3 601 JN4 102
GWS 18V-11	3 601 JN4 104
GWS 18V-11 S	3 601 JN4 002
GWS 18V-11 S	3 601 JN4 004

We declare under our sole responsibility that the stated products comply with all applicable provisions of the regulations listed below and are in conformity with the following standards.

Technical file at: Robert Bosch Ltd. (PT/SOP-GB), Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom

The Supply of Machinery (Safety) Regulations 2008The Electromagnetic Compatibility Regulations 2016The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012EN 62841-1:2015+A11:2022EN IEC 62841-2-3:2021+A11:2021EN IEC 55014-1:2021EN IEC 55014-2:2021EN IEC 63000:2018

BOSCH

Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany represented (in terms of the above regulations) by Robert Bosch Limited, Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom

Vonjy Rajakoba

Managing Director - Bosch UK

Damm J. 2017

Martin Sibley

Business Operations and Aftersales Director

linal dly

Robert Bosch Ltd. Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom, as authorised representative acting on behalf of Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany

Place of issue: Uxbridge Date of issue: 19/07/2024
