H6 ID66G3HTB - Oven HAIER - Free user manual and instructions

Product type	Built-in oven
Brand	Haier
Model	H6 ID66G3HTB

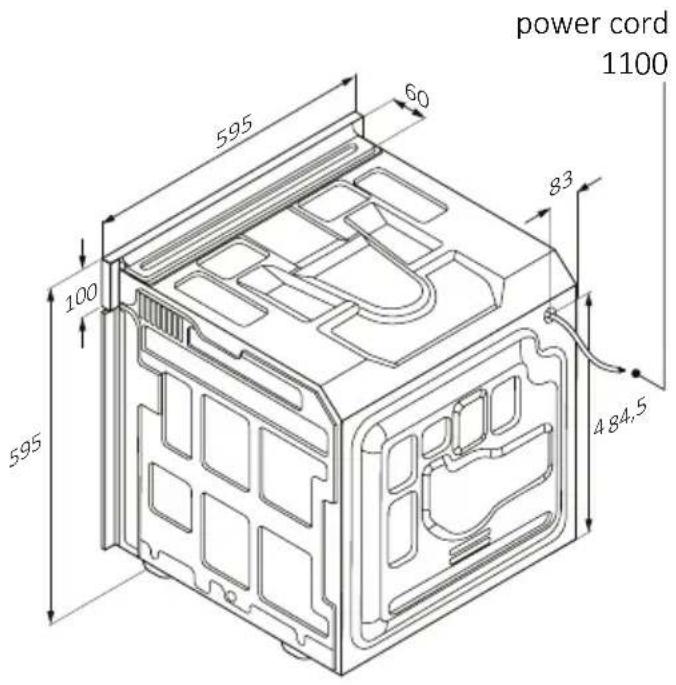

Dimensions (H x W x D)	595 x 595 x 548 mm
Power supply	220-240 V ~ 50/60 Hz, 13/16 A adjustable
Connectivity	Wi-Fi (IEEE 802.11 b/g/n) and Bluetooth (v4.2, BLE)
Main cooking functions	Natural convection, Convection + fan, Multi-level, Bottom heat, Bottom heat + fan, Grill, Supergrill, Gratin, Multi-level+, ECO, Air fry
Special functions	Bread, Pizza, White meat, Red meat, Fish, Vegetables, Jolly (customizable via app)
Temperature probe	Preci Probe wireless (Bluetooth) – core temperature control
Integrated camera	Bionic vision (Preci Taste) – food recognition and automatic parameter adjustment
Cleaning	Pyrolysis (410°C, door locked), H2O-Clean (steam), Catalysis (catalytic panels)
Catalytic panels	Present, to be replaced every 3 years (2-3 cooking cycles/week)

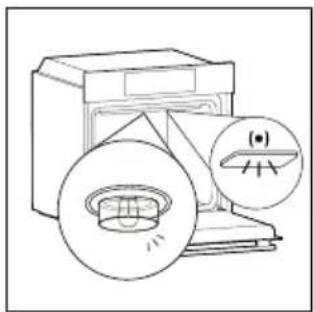

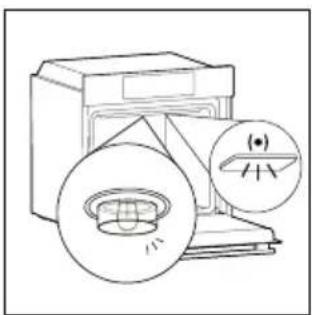

Interior lighting	Class G LED bulbs (replaceable)
Child lock	Yes, activation by simultaneous press of Lamp and Remote keys for 3 seconds
Oven door	Removable for glass cleaning thanks to soft-close hinges
Included accessories	Wire rack, oven tray, deeper tray, drip tray, telescopic rails, rotisserie, air fry tray, double BBQ/steam tray (depending on model)
Shelf levels	6 or 7 levels depending on model

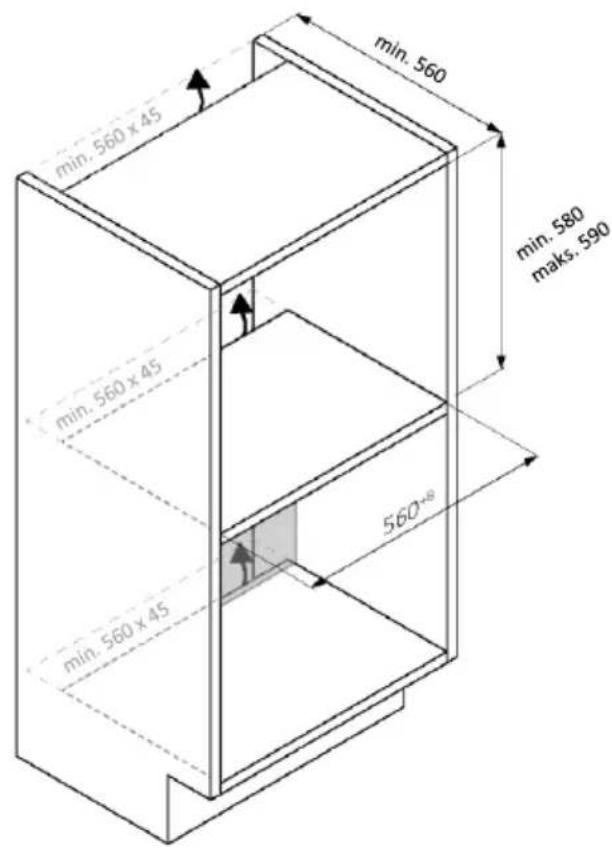

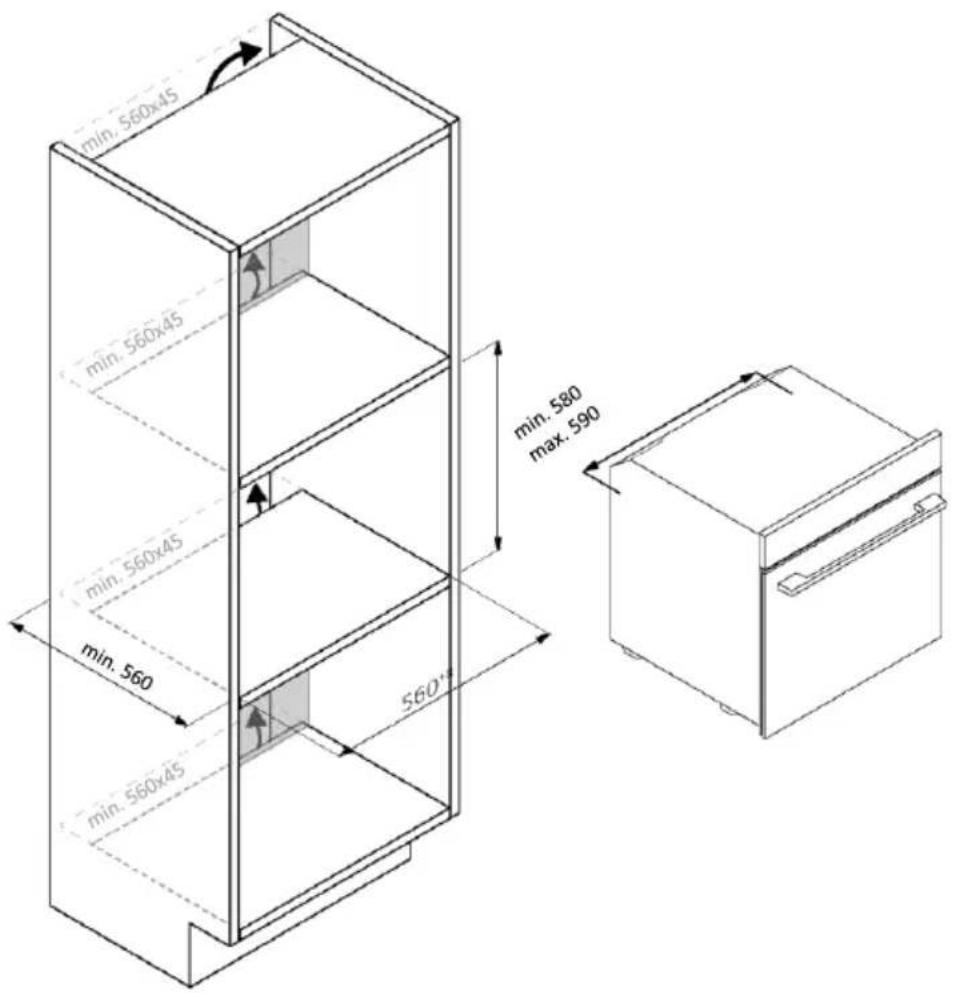

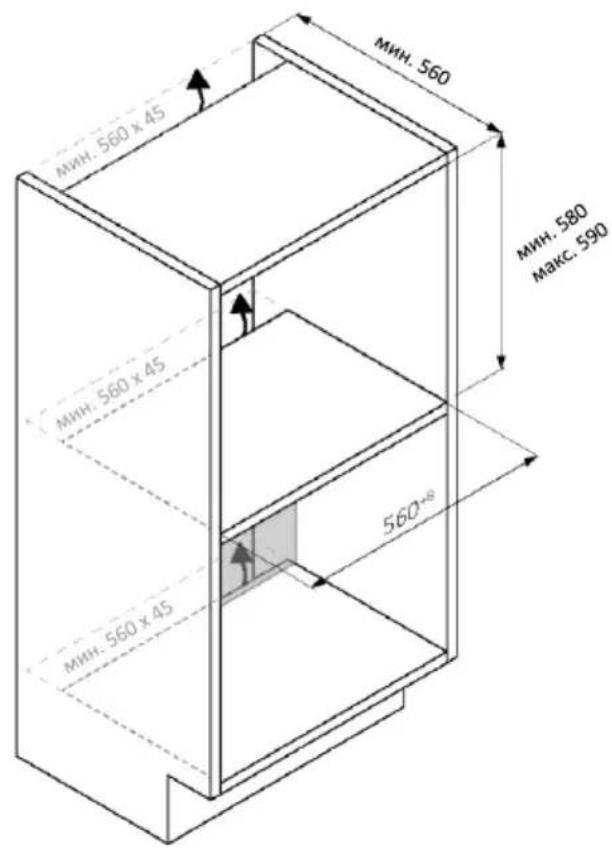

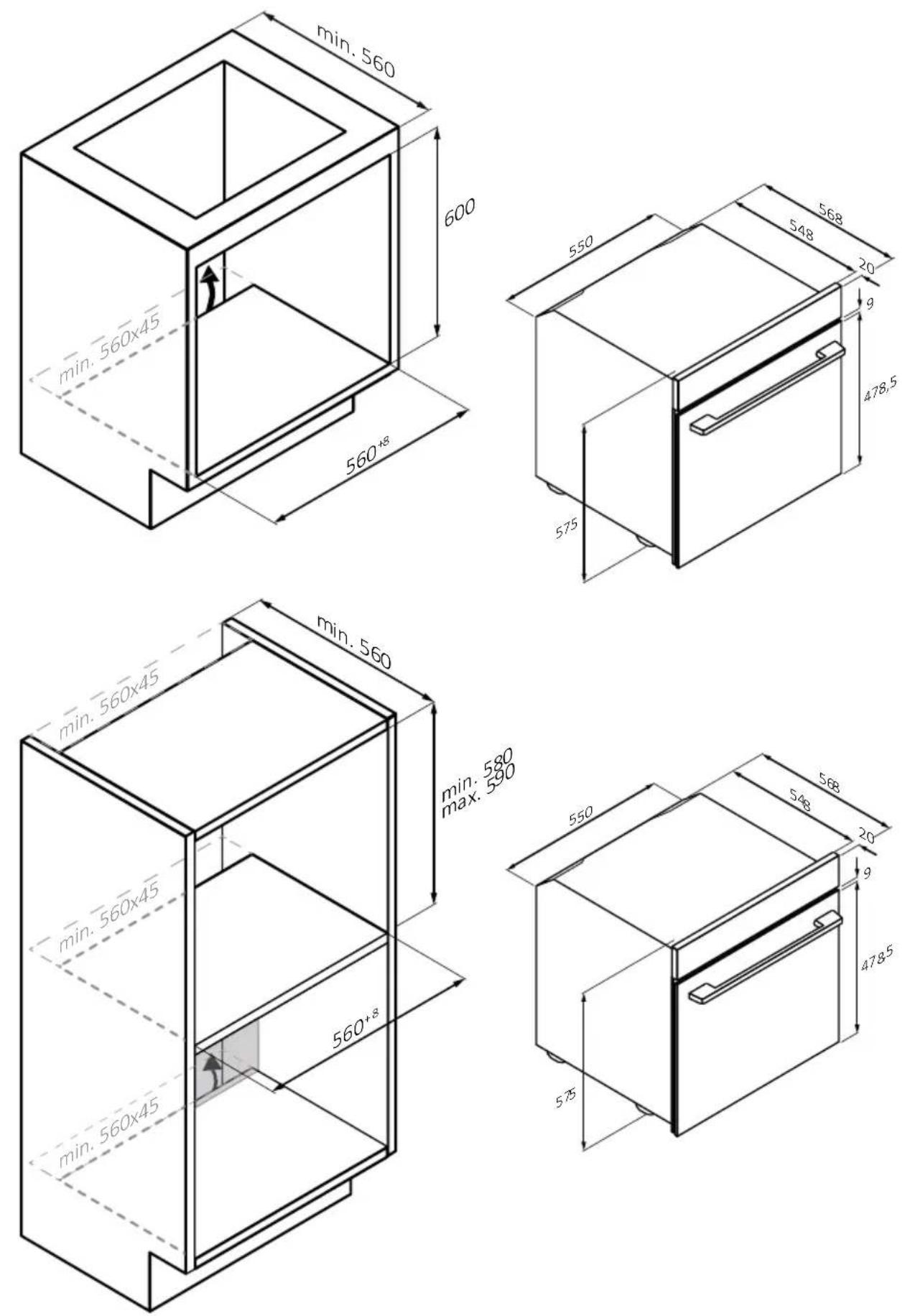

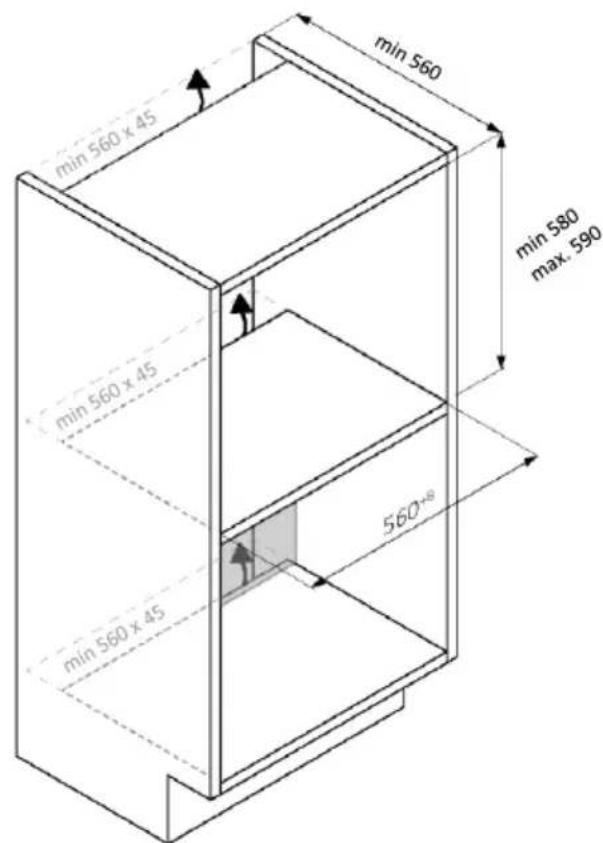

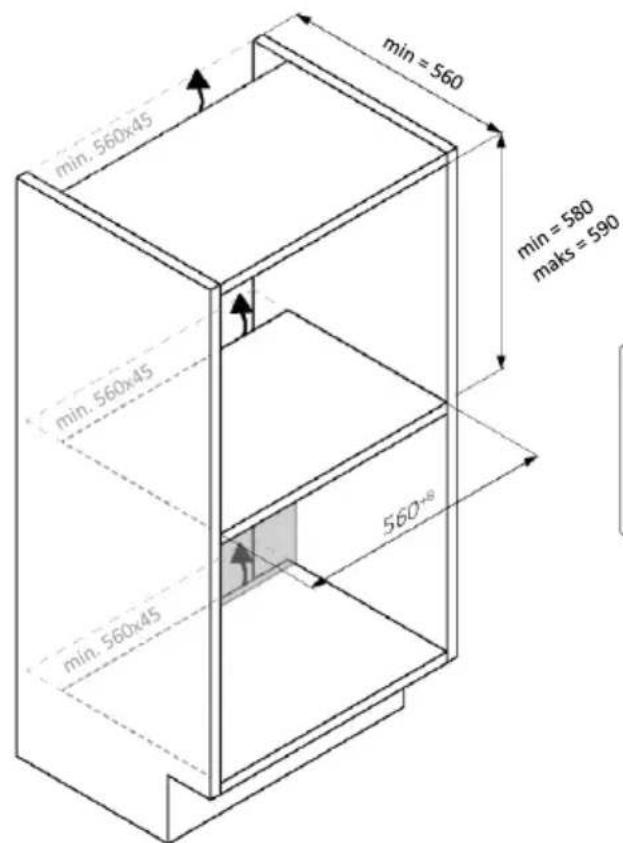

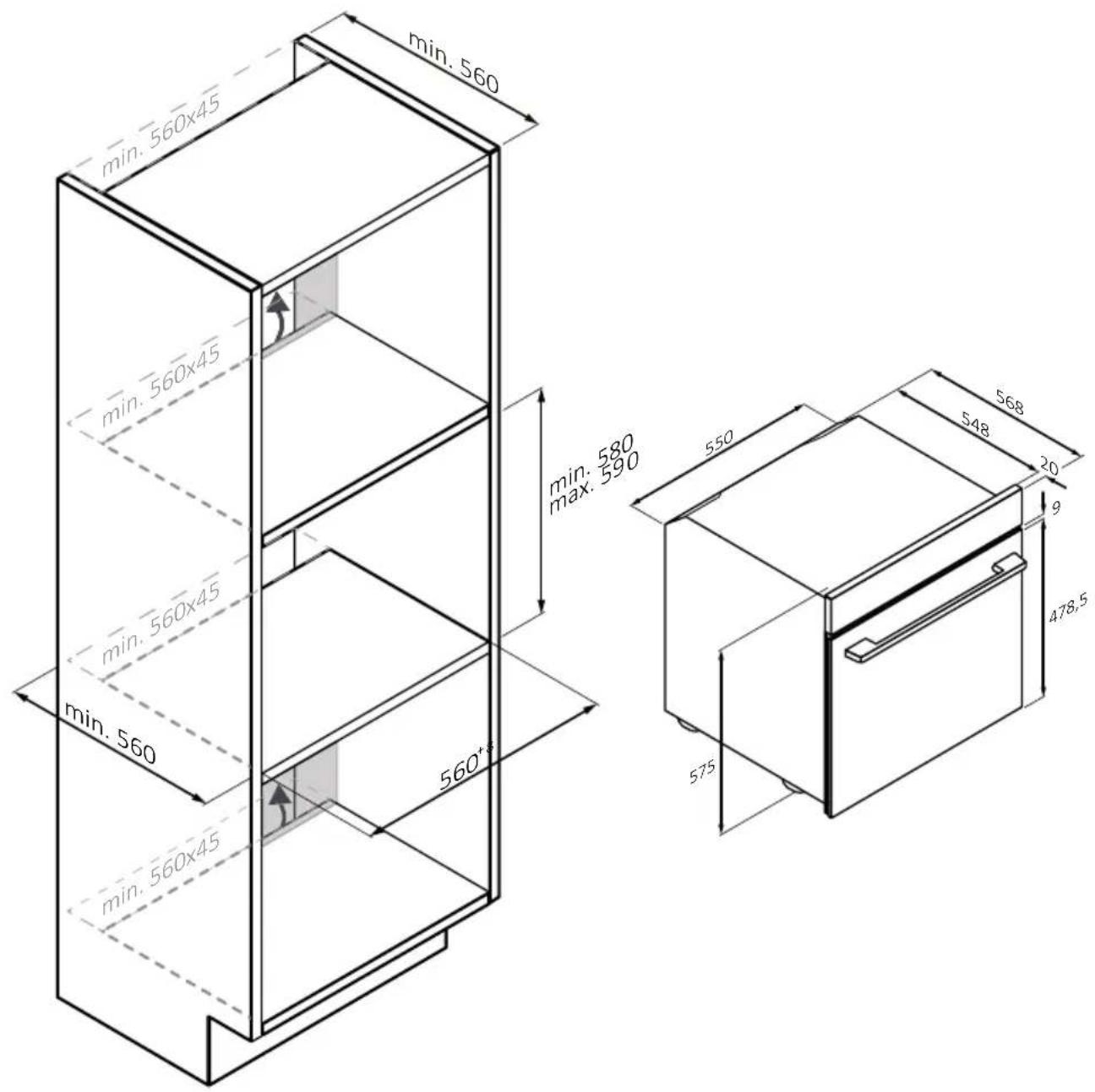

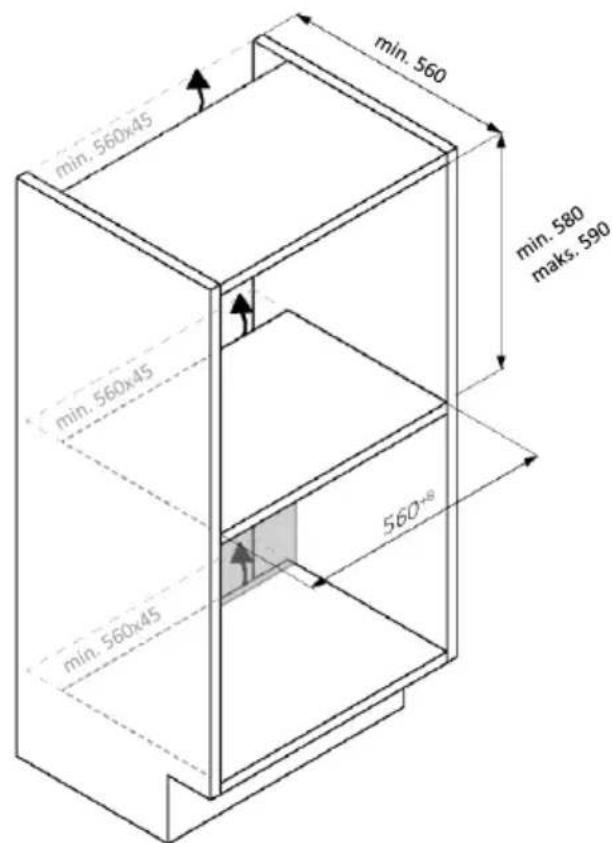

Built-in dimensions (min)	Height 560 mm, Width 560 mm, Depth 600 mm

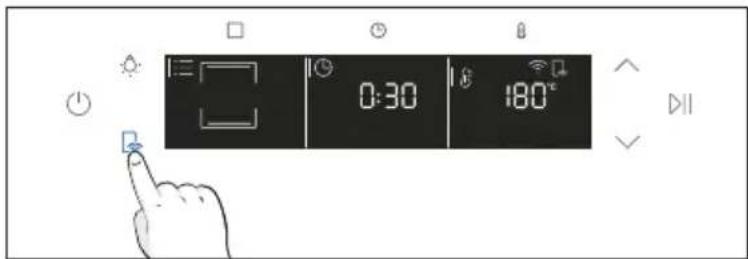

Remote control	Yes, via hOn app after Wi-Fi registration
Multi-Step function	Allows to chain several cooking modes without interrupting the cycle

Frequently Asked Questions - H6 ID66G3HTB HAIER

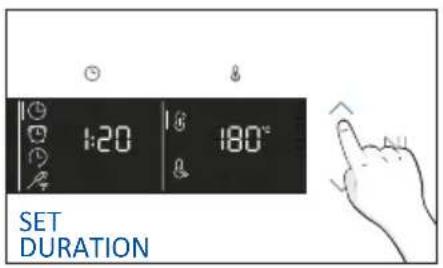

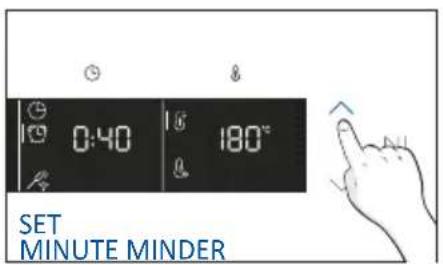

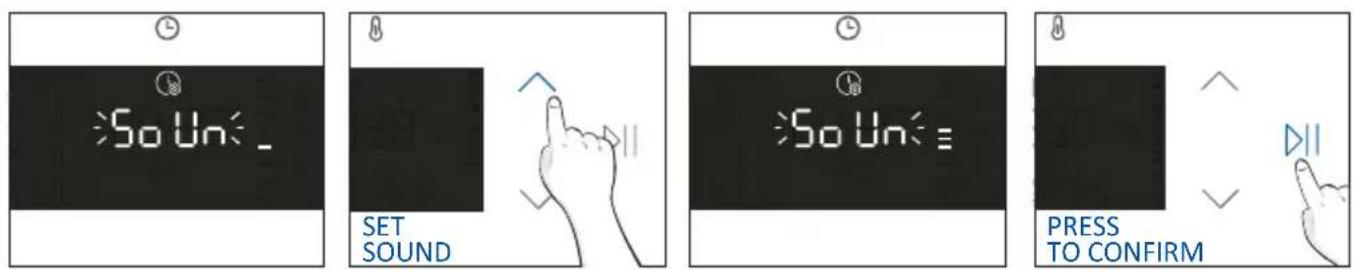

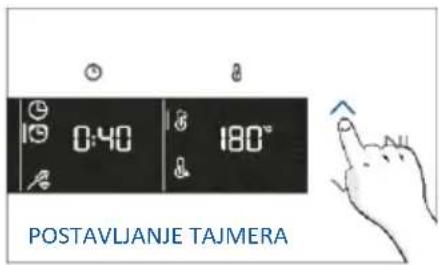

How to set the time on first use?

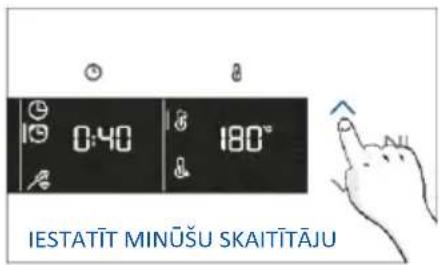

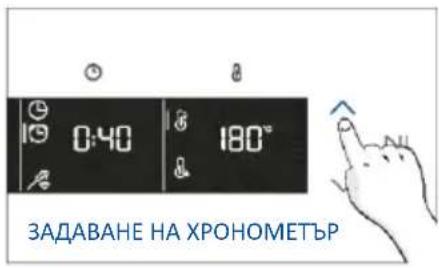

On first startup, the screen displays 12:00 blinking. Press and hold the 'Time' key, then use the arrows to set the time. Confirm with the 'Start/Pause' key. Follow the same procedure for minutes. The adjustment of amperage (13 or 16 A), brightness and sound follows.

How to use the Preci wireless probe?

Before use, charge the probe in its USB charger. Insert the metal rod fully into the food up to the black ceramic edge. Select manual cooking function (natural convection, etc.) then press the 'Time' key several times until you see the probe icon. Set the desired core temperature with the arrows and confirm. The oven stops when the temperature is reached.

How to activate child lock?

Simultaneously press the 'Lamp' and 'Remote' keys for 3 seconds. A key icon appears on the screen, indicating the control panel is locked. To deactivate, repeat the same operation.

How to clean the oven with the pyrolysis function?

Remove all accessories from the oven, including side racks. Select the pyrolysis function (symbol ♦) and let the cycle run (temperature up to 410°C). The door locks automatically. After cooling, wipe remaining ash with a damp cloth. Do not use detergents.

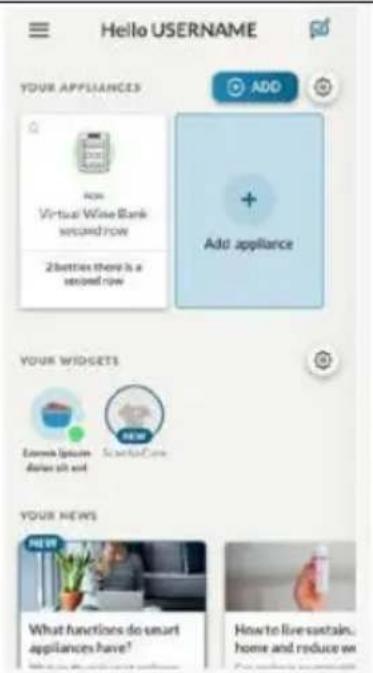

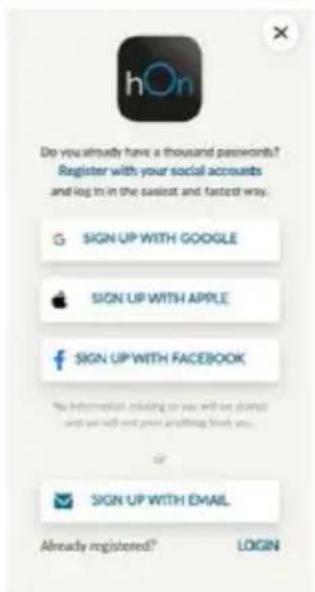

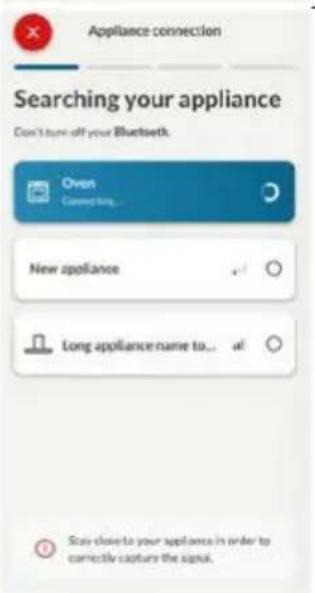

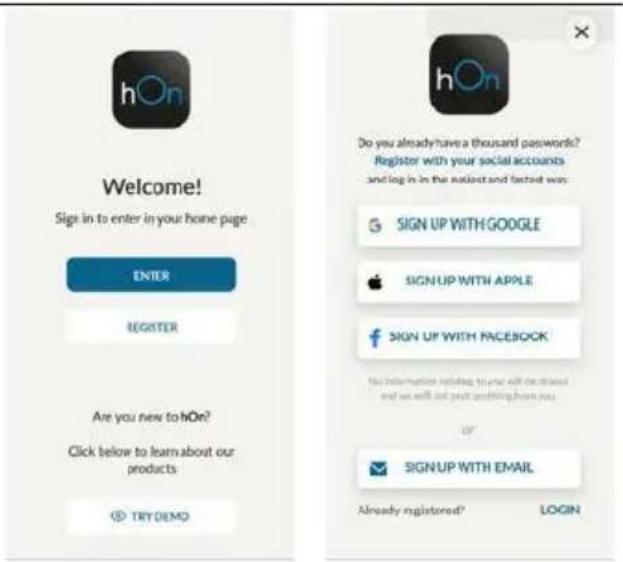

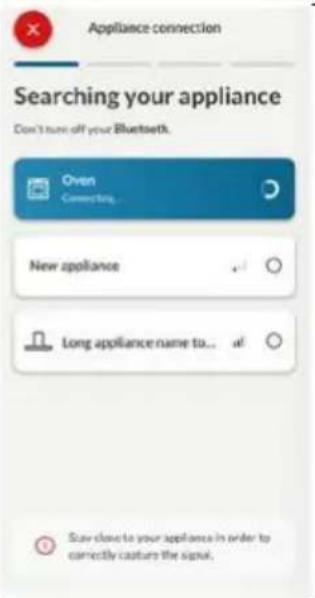

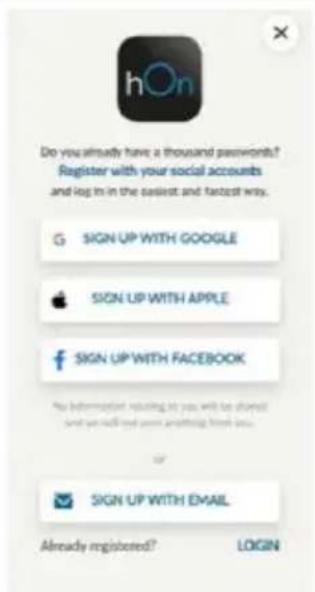

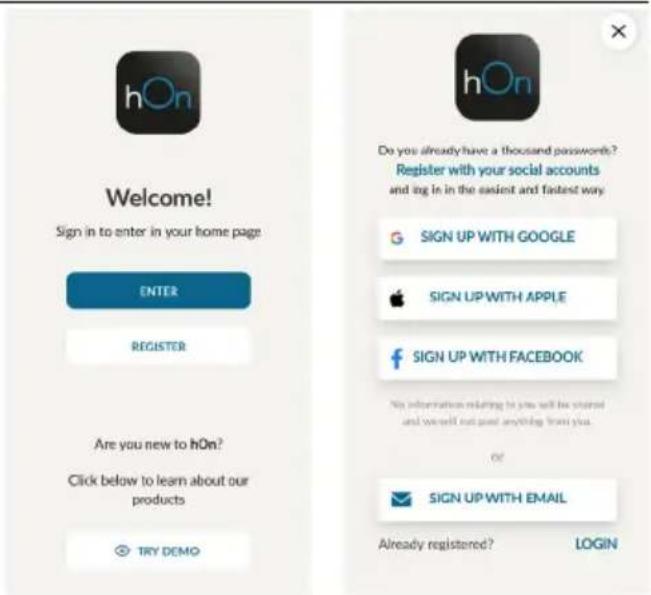

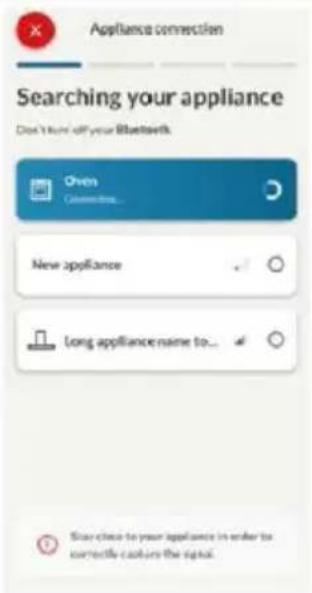

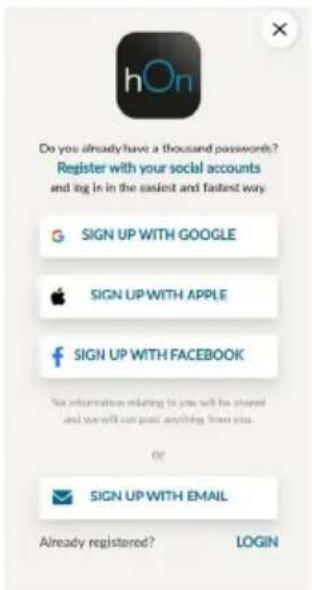

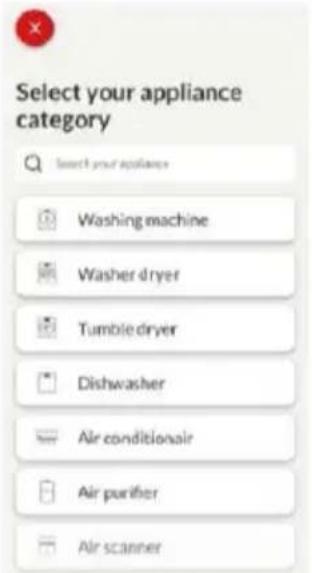

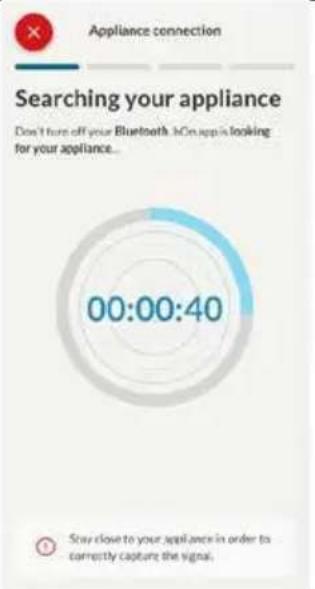

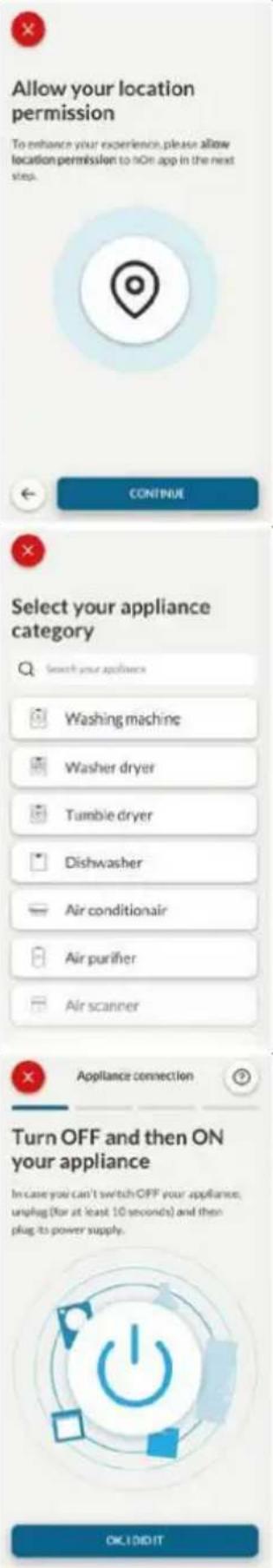

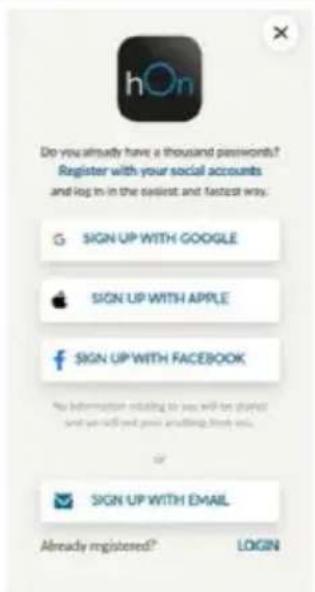

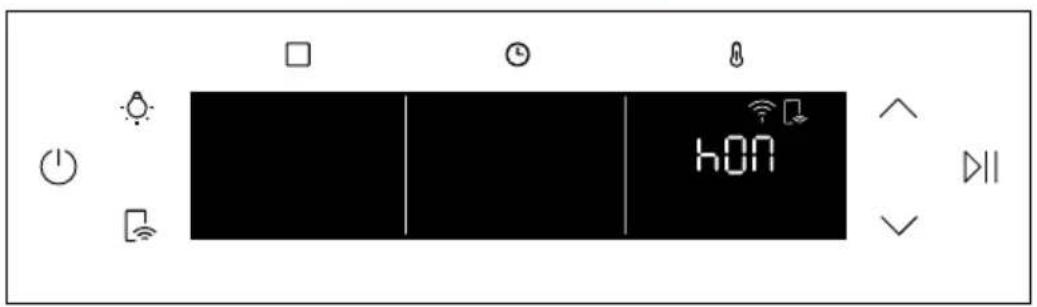

How to connect the oven to the hOn app?

Turn on the oven, the Wi-Fi icon blinks for 30 minutes. On the hOn app, select 'Add appliance' and allow location. Follow the instructions to pair the oven to your home Wi-Fi network. Once connected, the Wi-Fi icon stops blinking. You can then control the oven remotely.

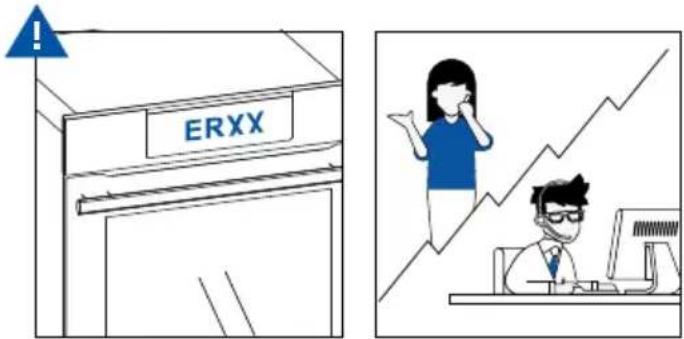

What to do if an error code ERXX appears?

Turn off the oven and unplug it. Wait a few minutes, then plug it back in. If the code disappears, you can reuse the oven. Otherwise, contact customer service with the ERXX code displayed.

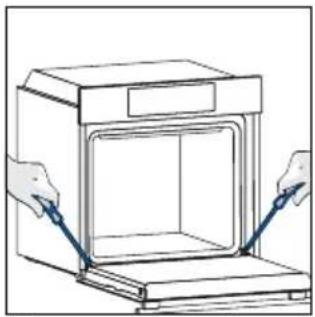

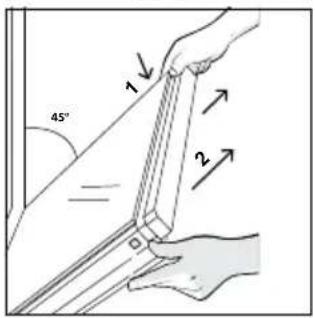

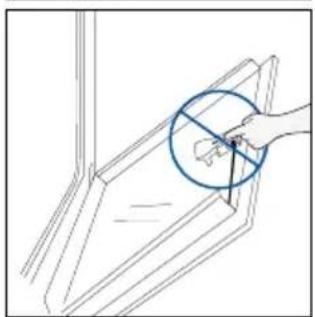

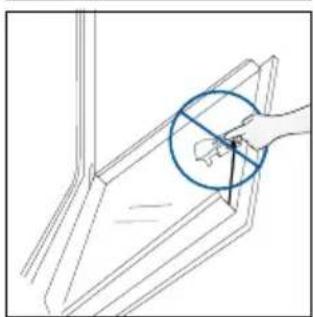

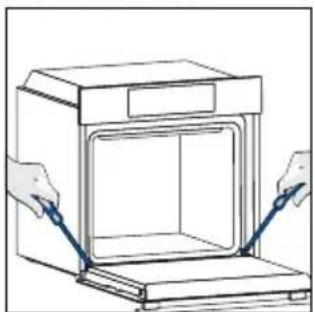

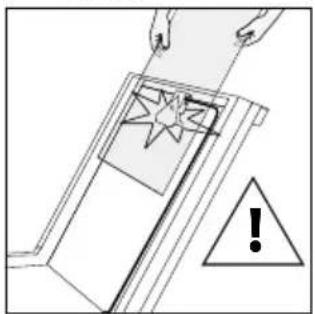

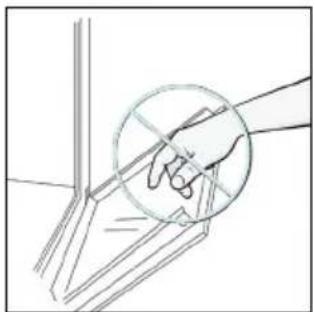

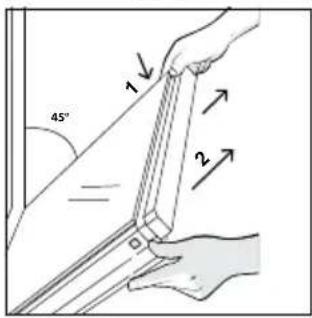

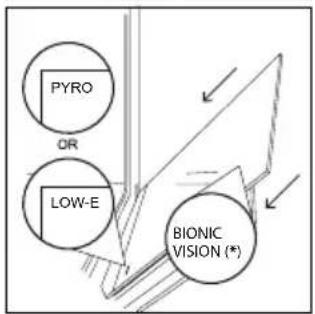

How to remove and clean the oven glass door?

Open the door to 90°, turn the hinge locking tabs outward. Close the door to 45° and press the side buttons to remove the top cover. Gently remove the inner glass panes. Clean with a soft cloth and non-abrasive product. Reassemble in reverse order ensuring the 'BOTTOM/PYRO' label is at the bottom left.

What accessories are included with the Haier H6 ID66G3HTB oven?

Depending on the model, accessories may include: a wire rack, an oven tray, a deeper tray, a drip tray, telescopic rails, a rotisserie, an air fry tray, and a double tray for BBQ or steam mode. Some accessories are optional depending on the version.

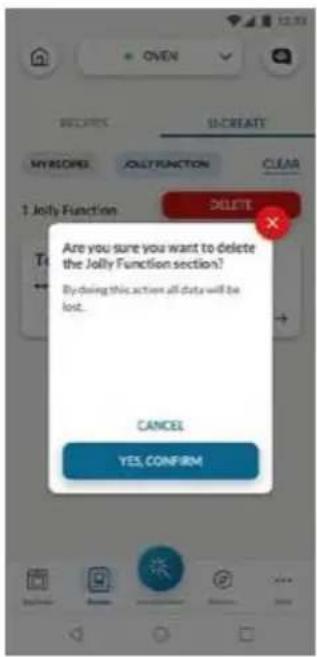

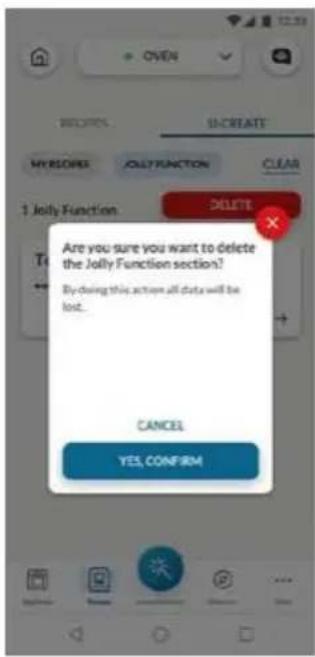

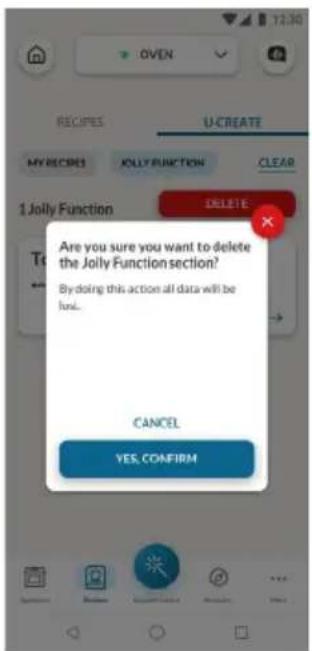

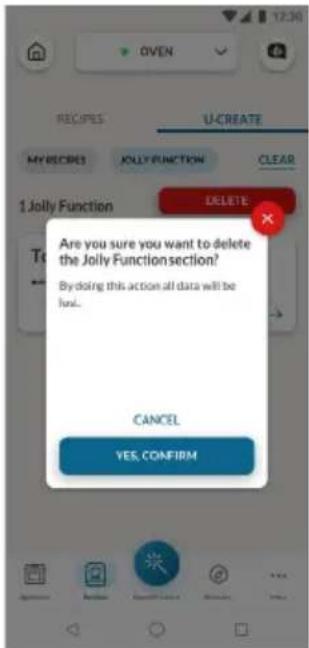

How does the Jolly function work?

The Jolly function allows you to customize a recipe via the hOn app and save it directly on the oven. In the app, select a recipe, then 'Use as Jolly function'. Then turn the function dial to the Jolly symbol to start cooking with the saved settings.

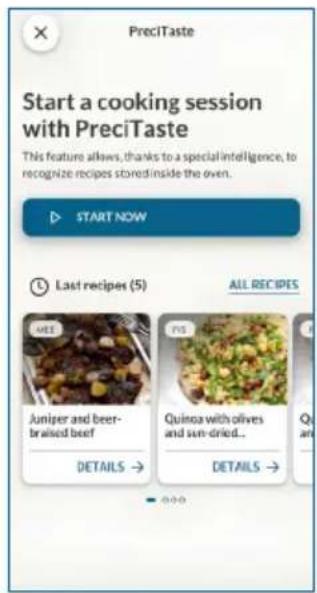

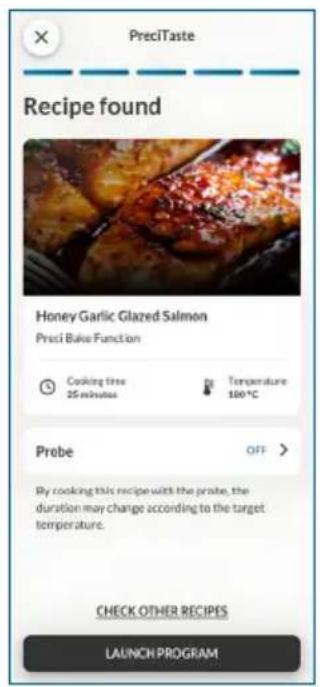

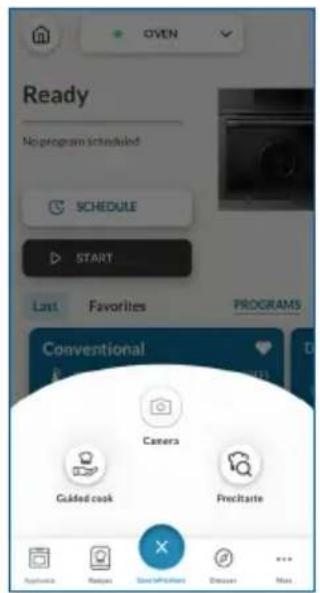

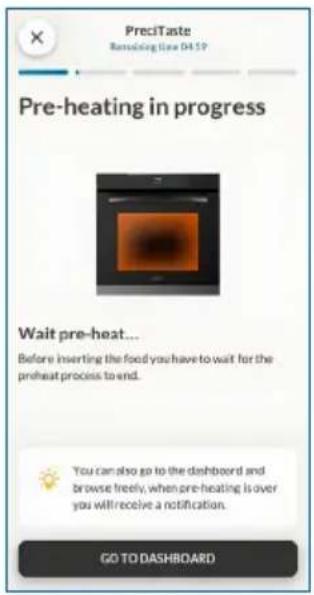

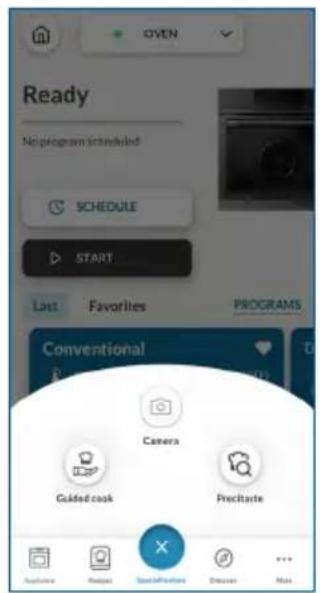

What is the integrated camera for and how to use it?

The bionic vision camera (Preci Taste) recognizes the food placed in the oven and automatically adjusts cooking parameters. To use it, activate remote control and start the Preci Taste function from the hOn app. After preheating, place the food in the empty cavity. The oven detects it and sets the optimal time and temperature.

USER MANUAL H6 ID66G3HTB HAIER

Haier.com

English
Français
Italiano
Deutsch
Ελληνικά
Español
Nederlands
Português
Slovenčina
Polski Čeština
Română
Magyar
Slovenščina
Srpski
Lietuvių Eesti
Latviešu
Български
Hrvatski
Dansk Suomi
Norsk
Svenska
Українська
Türkçe

WELCOME

Thank you for choosing our product. To ensure your safety and get the best results, please read this manual carefully, including the safety instructions, and keep it for future reference.

Before installing the oven note the serial number, which you might need for repairs. Check for any damage during transportation and consult a technician if you're unsure before using it. Keep packaging materials away from children.

NOTE: Please note that the oven's features and accessories may vary depending on the model you purchased.

SUMMARY

1. SAFETY INFORMATION

2. PRODUCT INTRODUCTION

2.1. Overview of the product
2.2. Accessories

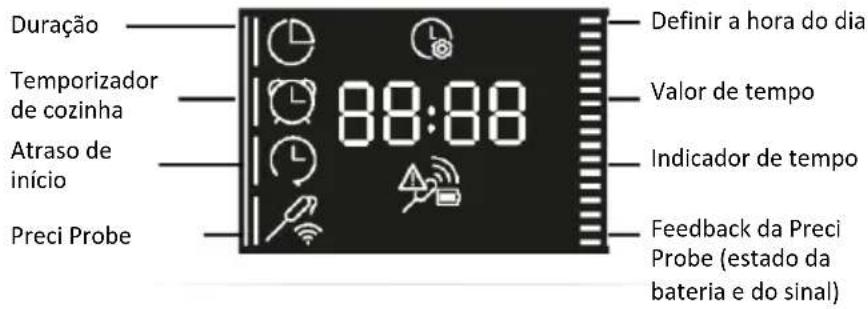

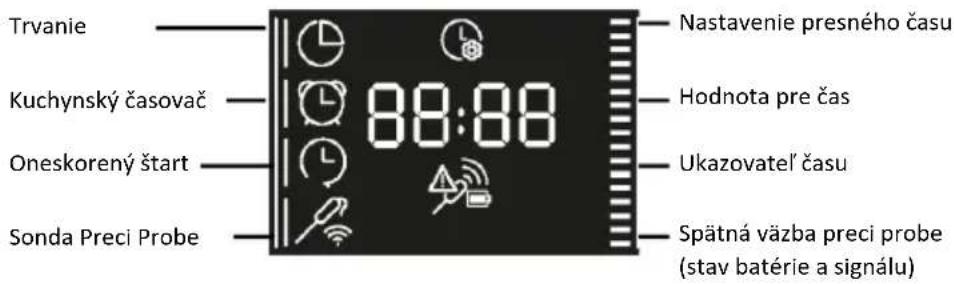

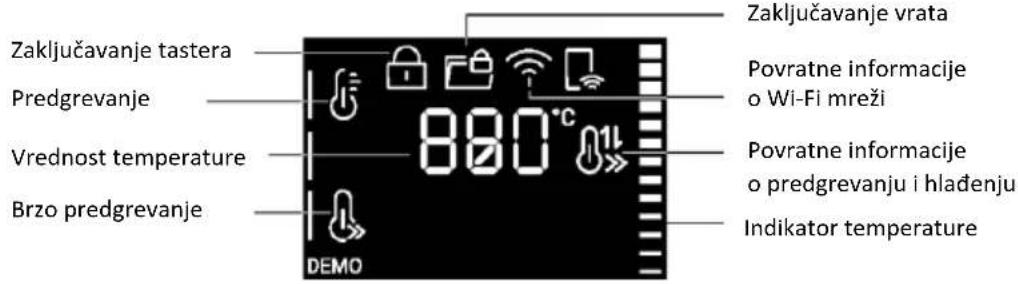

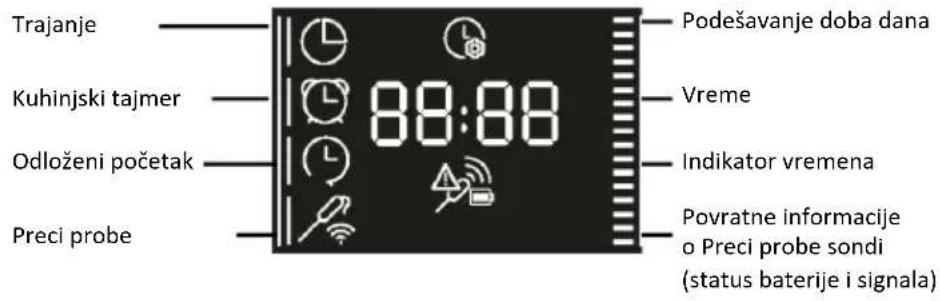

2.3. Control panel
2.4. Connectivity

3. BEFORE STARTING

3.1. Information to start

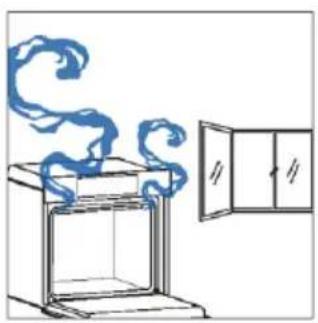

3.2. First usage

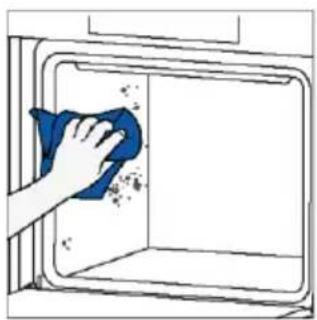

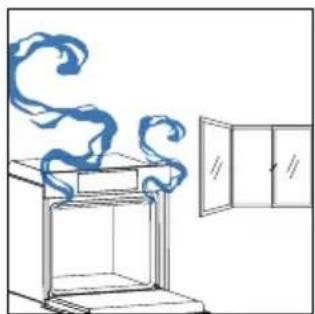

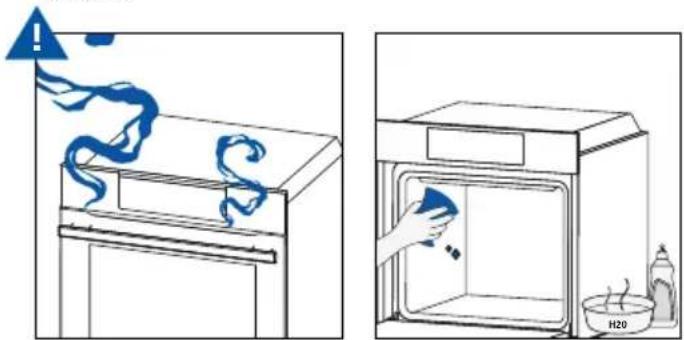

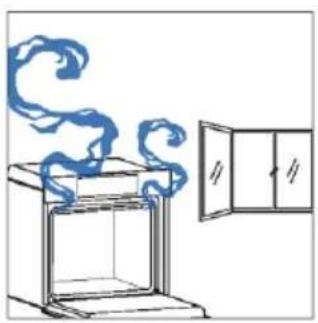

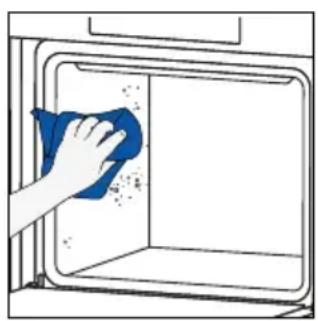

3.3. Preliminary cleaning

4. OPERATION OF PRODUCT

4.1. How the product works
4.2. Cooking functions
4.2.1. Standard functions
4.2.2. Special functions
4.2.3. Multi step feature

5. COOKING GUIDELINES

5.1. General Cooking tables
5.2. Everyday Cooking tables

6. CARE & CLEANING

6.1. General recommendations
6.2. Cleaning the oven
6.2.1. Inside the oven: cleaning functions
6.2.2. Outside the oven: removal and cleaning the glass door

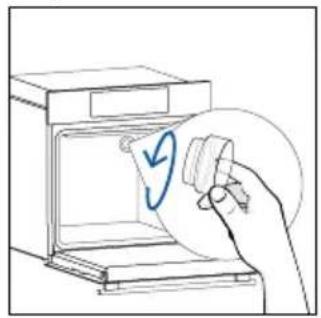

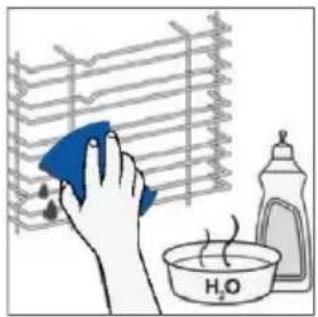

6.3. Cleaning of accessories
6.4. Maintenance

7. TROUBLESHOOTING

8. ENVIRONMENTAL PROTECTION & DISPOSAL

8.1. Appliance disposal
8.2. Saving and respecting the environment

9. INSTALLATION

GENERAL WARNINGS

• Do not use a steam cleaner for cleaning operations.
• During use the appliance become hot. Care should be taken to avoid touching heating elements inside the oven.

Use in accordance with attendend use

- Only use the oven for its intended purpose, that is only for the cooking of foods: any other use, for example as a heat source, is considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage resulting from improper, incorrect or unreasonable usage.

Use limitations

• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children without supervision.
• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• ⚠WARNING: the appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept at away unless continuously supervised.
• ⚠ WARNING: Accessible parts may become hot during use. Young children should be kept away.

INSTALLATION WARNINGS

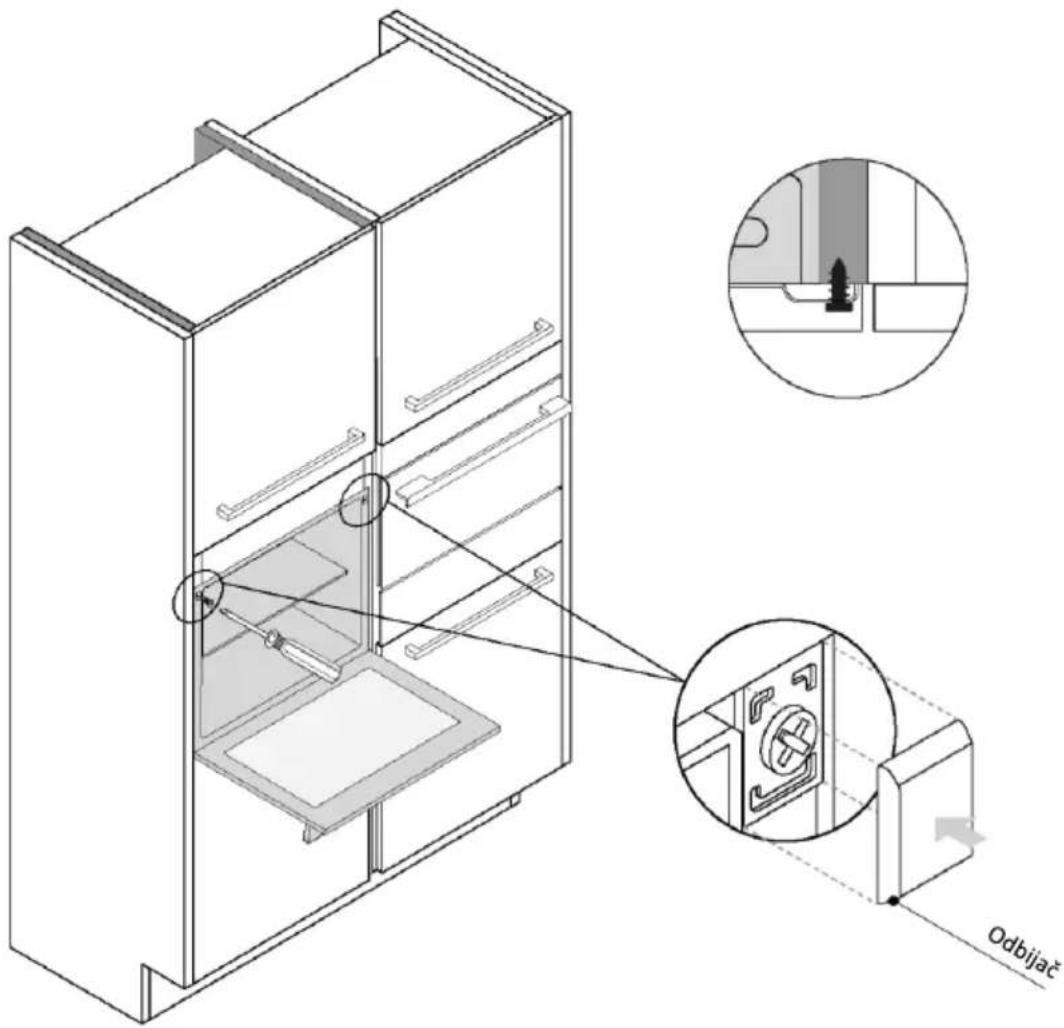

• The oven can be located high in a column or under a worktop.
• Before fixing, you must ensure good ventilation in the oven space to allow proper circulation of the fresh air required for cooling and protecting the internal parts. Make the openings specified on the illustrations according to the type of fitting. Always fix the oven to the furniture with screws provided with the appliance.
• No additional operation/setting is required in order to operate the appliance at the rated frequencies.
• The appliance must not be installed behind a decorative door in order to avoid overheating.
• During installation the oven should be disconnected from the mains to avoid overheating.
• If the assistance of the manufacturer is required to rectify faults arising from incorrect installation, this assistance is not covered by the guarantee. The installation instructions for professionally qualified personnel must be followed.
• Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury.
• Installation must be carried on by a qualified technician who must know and respect the laws in force in the country of installation and the manufacturer's instruction.
• After unboxing the appliance, always check it is not damaged, in case of issue contact the customer service before installing and do not connect to the power supply.
• Remove the packaging material before operating the appliance.
• During installation do not use the oven door's handle to lift and move the oven.
• The installation furniture and the adjacent ones must with stand temperatures of 95°C.
• It is recommended to wear protective gloves during installation to avoid cut injuries.
• Do not install the product in open environments exposed to atmospheric agents.
• This appliance is designed to be used at altitude lower than 2000m.

- To remove protective films and advertisement stickers on front surface of the oven before first usage

ELECTRICAL WARNINGS

• The socket must be suitable for the load indicated on the tag and must have ground contact connected and in operation. The earth conductor is yellow-green in colour. This operation should be carried out by a suitably qualified professional.
• Connection to the power source can be made by plug or by fixed wiring placing an omnipolar breaker, with contact separation compliant to the requirements for overvoltage category III, between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation.
• In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country.
• The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. For any repairs, refer only to the Customer Care Department and request the use of original spare parts.
• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.

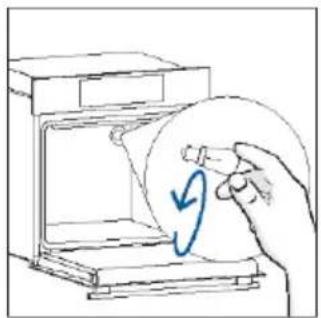

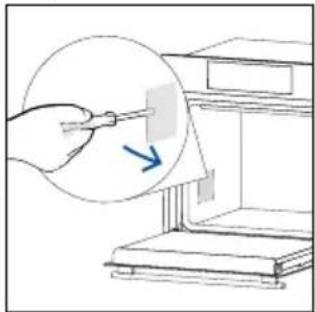

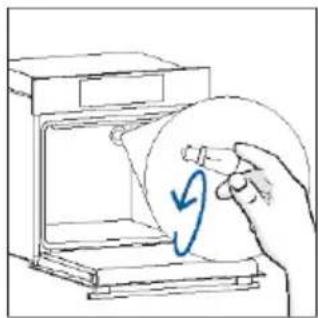

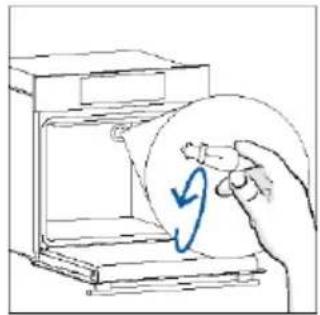

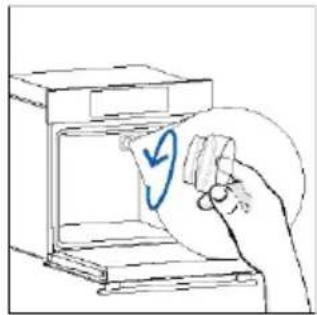

• ⚠ WARNING: ensure that the appliance is switched off before replacing the bulb, to avoid the possibility of electric shocks.
• The oven must be switched off before removing the removable parts. After cleaning, reassemble them according the instructions.
• The use of any electrical appliance implies the observance of some fundamental rules:

- do not pull on the power cable to disconnect the appliance from the power source;

- do not touch the appliance with wet or damp hands or feet;

– in general the use of adaptors, multiple sockets and extension cables is not recommended;

– in case of malfunction and/or poor operation, switch off the appliance and do not tamper with it.

NOTE: as the oven could require maintenance work, it is advisable to keep another wall socket available so that the oven can be connected to this if it is removed from the space in which it is installed.
- Any repair, installation and maintenance not carried out correctly can seriously endanger the user.
- The manufacturing company hereby states that it does not assume any responsibility for direct or indirect damages caused by incorrect installation, maintenance, or repair work. Furthermore, it is not liable for damages caused by the absence or interruption of the grounding system (e.g., electric shock).
- CAUTION: in order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplier through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
- The appliance is not designed to be activated by an external timer or separate remote control system.

USE & MANTEINANCE

• The dripping pan collects the residues that drip during cooking.

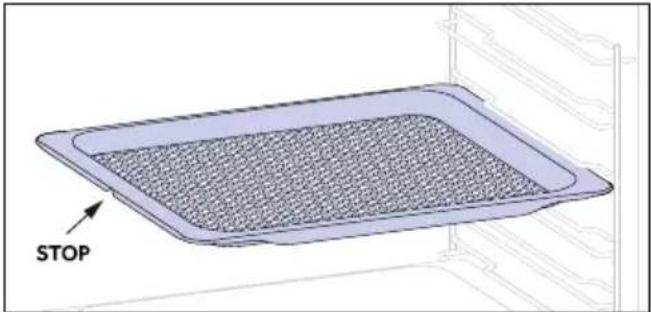

• When you place the Airfry tray or the grid on the side racks, make sure that the shorter section of the side (between the stop and the extremity) is directed towards the interior of the oven. If the grid has a decorative metal bar, pay attention to position it on the exterior of the oven so that the brand logo can be visible and readable. For the correct positioning refer also to the image in the Accessories section of this user manual.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glasses, since they can scratch the surface, which may result in shattering of the glass.
• Only use the temperature probe recommended for this oven.

• During cooking, moisture may condense inside the oven cavity or on the glass of the door. This is a normal condition. To reduce this effect, wait 10-15 minutes after turning on the power before putting food inside the oven. In any case, the condensation disappears when the oven reaches the cooking temperature.

• Cook the vegetables in a container with a lid instead of an open tray.

• Avoid leaving food inside the oven after cooking for more than 15/20 minutes.
• A long power supply failure during an occurring cooking phase may cause a malfunction of the monitor. In this case contact customer service.
• WARNING: Do not line the oven walls with aluminium foil or single-use protection available from stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risk melting and deteriorating the enamel of the insides.
• WARNING: Never remove the oven door seal.
• CAUTION: Do not refill the cavity bottom with water during cooking or when the oven is hot.
• Oven trays and grids are not suitable for direct contact with food. Please use suitable cookware or baking paper.
• Wash all accessories before first use with a solution of hot water and washing up liquid.

WARNINGS (\*FOR PYRO OVENS)

• Excess spillage must be removed before cleaning.
• WARNING: before initiating the automatic cleaning cycle:

- Clean the oven door;

- Remove large or coarse food residues from the inside of the oven using a damp sponge. Do not use detergents;

• Remove all accessories and the sliding rack kit (where present);

• Do not place tea towels.

• In ovens with meat probe it is necessary, before making the cleaning cycle, close the hole with the nut provided. Always close the hole with the nut when the meat probe is not used.

• During the pyrolytic cleaning process (if available), the surfaces may get hotter than usual and children should be kept away.
• If a hob has been fitted above the oven, never use the hob while the Pyrolizer is working, this will prevent the hob from overheating.

WARNINGS for WIRELESS TEMPERATURE PROBE

• This product is exclusive for oven appliances. It should only be used as described in this User Manual.
• DO NOT TOUCH Preci Probe WITH BARE HANDS JUST AFTER COOKING. Always wear oven gloves to remove Preci Probe from the food after cooking.
• To use the temperature probe correctly, it is essential to fully insert the metal bar of the probe into the food during cooking until it reaches the black-colored ceramic portion located at the tip of the probe.

Insert Preci Probe in the food up to there

Illustration of a blue-handled tool with a downward arrow pointing to it (no text or symbols)

• Do not expose the metal part of Preci Probe to the heat generated by oven directly.
• Do not use Preci Probe in another appliance except for the built-in oven.
• Do not use Preci Probe in a microwave oven.
• Preci Probe can be cleaned and washed but do not immerse it long in water.
• This product is not intended for use by persons with ages 12 and under.
• The supplier will not be liable for any damage of Preci Probe due to misuse of the device.
• Clean the Preci Probe before the use.
• Probe can work in this range of temperature: 10 °C to an internal maximum temperature of 100°C of the metal part. Ceramic part can reach 350°C.
• If the Preci Probe temperature exceeds 100^ C, cooking will stop and the Preci Probe must be removed from the oven as soon as possible, wearing gloves, to avoid damage to the probe.

2. PRODUCT INTRODUCTION

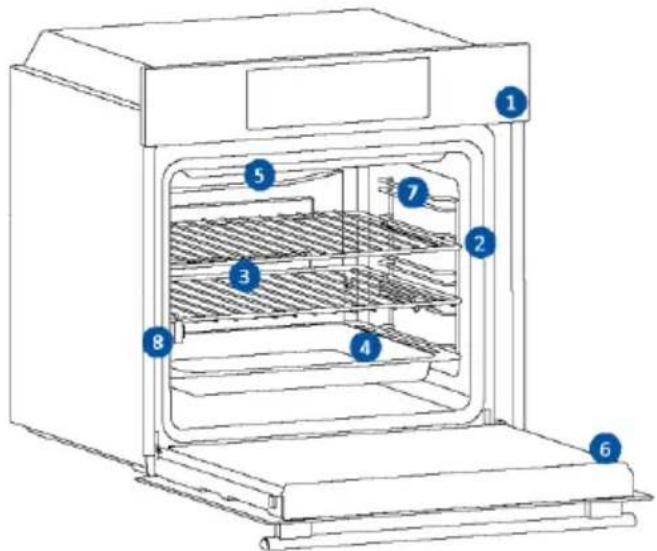

2.1. OVERVIEW OF THE PRODUCT

2.2 ACCESSORIES

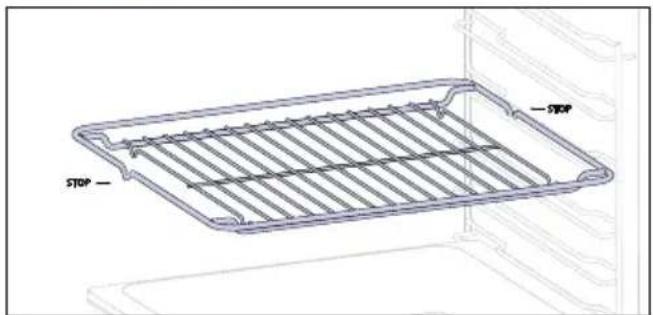

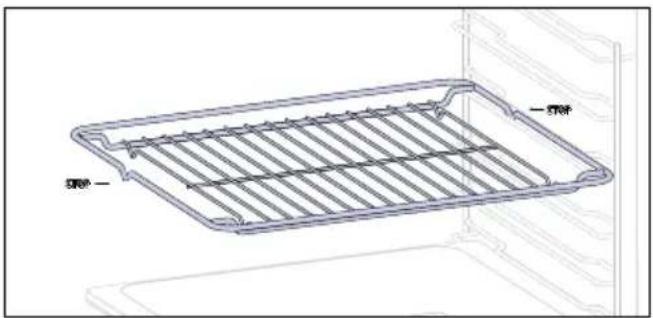

Metal grid

A metal grid in an oven is a removable, adjustable shelf that supports cookware, ensuring even cooking, and makes cleaning easy. It can be used to hold plates and pans at different heights for various cooking needs.

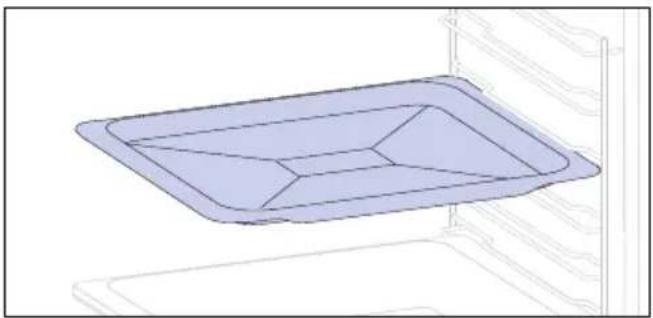

Baking tray (only if present\*)

3D diagram of a rectangular tray with internal geometric lines, placed inside an oven (no text or symbols)

A baking tray is ideal for achieving even bottom browning, making it perfect for cookies and pastries due to its shallow, flat design. Additionally, placing it under a cooking grid can help collect drips and prevent messes in the oven.

1. Control panel
2. Shelf positions numbers
3. Metal grids
4. Tray
5. Fan cover
6. Oven door
7. Lateral wire grids (if present: only for flat cavity)
8. Telescopic Guides
9. Camera (only if present)
10. Serial number & QR Code

Empty white rectangle with black border (no text or symbols)

Write here your serial number for future reference.

Deeper Tray

3D rendering of a rectangular tray or basin with internal partitioning, placed inside an open storage cabinet (no text or symbols visible)

The deeper tray is ideal for recipes with added liquids or layers, such as casseroles or roasts. Its depth is specifically designed to ensure the desired consistency of the food prepared in it.

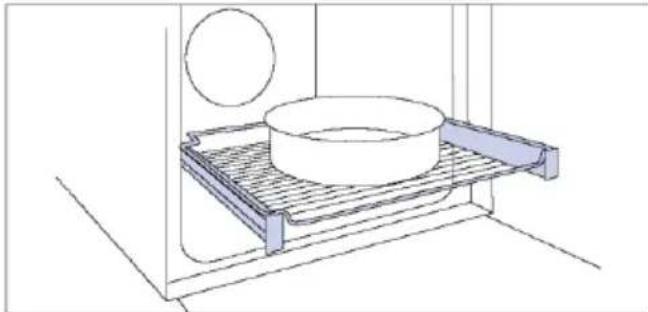

Telescopic Guides (only if present\*)

Line drawing of a kitchen sink with a bowl, a round head, and a mesh tray (no text or symbols)

Telescopic oven rails are shelves that can be extended, making it easier to place or remove items, without the need to reach deep inside a hot oven. They improve safety, stability, and can be adjusted at different level positions.

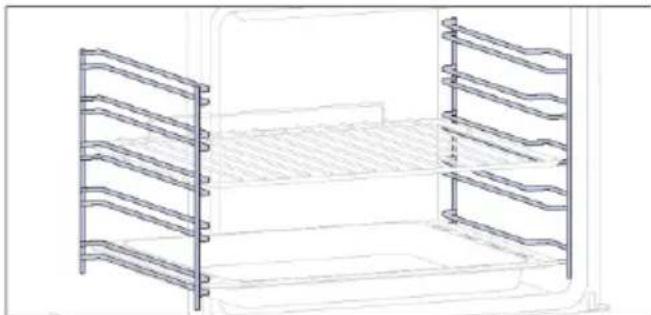

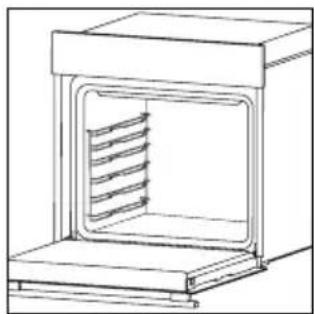

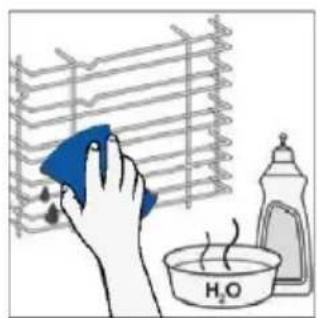

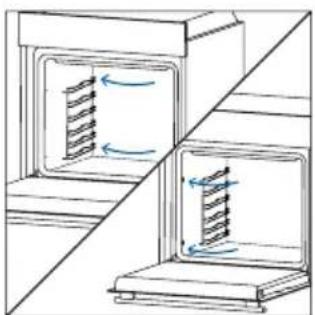

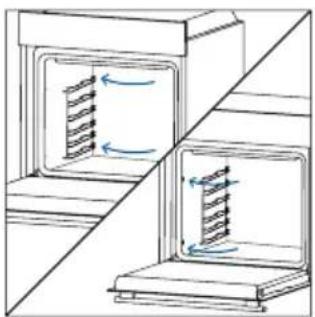

Lateral wire grids (only if present\*)

Line drawing of a two-tiered dormer bed with horizontal and vertical railings (no text or symbols)

Located on both sides of the oven cavity, the side racks are designed for placing baking tray and grids during the cooking.

NOTE: 6 or 7 levels depending on the model.

Dual tray – BBQ mode (only if present\*)

Diagram of a rectangular appliance with internal grating and ventilation slots, placed inside an oven (no text or symbols)

The convex shape is suitable for grilling in the oven at high temperature (220°) allowing a BBQ result even at home with little smoke thanks to the drainage action of the fats on the bottom of the tray.

Catalytic Panels (only if present\*)

Special panels coated with enamel, made with a microporous structure to turn fat into gaseous elements that are easy to remove. Replace after 3 years of use (at 2/3 cooking cycles per week).

Preci Probe (only if present\*)

Two medical or laboratory tools: a pen and a catheter, shown side by side with no visible text or symbols.

This Preci Probe is a temperature sensor that, inserted into the food and connected to the oven via cable, allows to control the inner temperature of the food during cooking. It is mainly used for fish and meat.

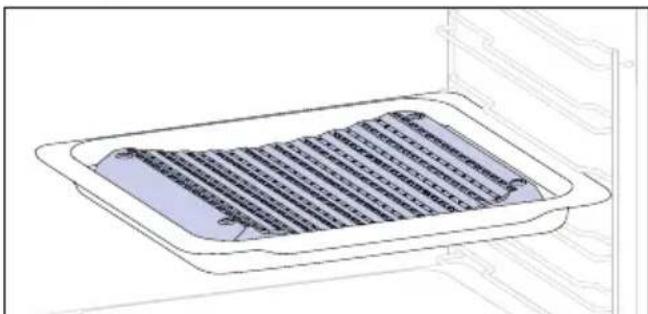

Dual tray – STEAM mode (only if present\*)

Technical line drawing of a rectangular tray with internal grid pattern, placed inside a rack (no text or symbols)

The concave shape allows a correct circulation of humidity generated in cooking, keeping the food humidity rate high. According to the quantity of water inserted in the tray, a drier or more "wet" cooking will be obtained.

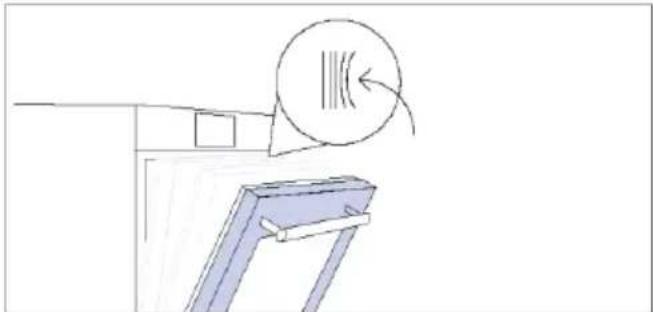

Softclose/Soft open hinges (only if present\*)

Simple line drawing of a door with a circular icon and arrow, no text or symbols present

Soft close and open hinges control the door's motion, ensuring smooth movement and preventing slamming.

Turnspit (only if present*)

Line drawing of a roasted chicken on a tray with dough and steam (no text or symbols)

The turnspit works together with the top heating element, by rotating the food can be cooked omogeniously. It is best used for medium-sized food. Ideal for rediscovering the taste of traditional roast.

Camera (only if present*)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

The bionic vision camera detects and recognizes the food, setting the most appropriate parameters to cook it.

Airfry tray (only if present*)

3D diagram of a rectangular kitchen tray with a mesh pattern and an arrow labeled 'STOP' pointing to the side (no other text or symbols)

The airfry tray ensures that hot air reaches the food evenly and tridimensionally, resulting in a crispier exterior while maintaining tenderness inside. A baking tray can be optionally placed at L1 to collect juices or breadings.

EN: Oven trays and grids are not suitable for direct contact with food. Please use suitable cookware or baking paper

2.3. CONTROL PANEL

Functions and function ranking can be changed depending on the model.

1. On/Off
2. Remote Control
3. Lamp
4. Functions
5. Time
6. Temperature
   7/8Navigation buttons
7. Start/Pause

MAIN FUNCTIONS

The control panel has the following main functions:

Symbol Function Description
	On/Off Press to turn on/off the oven.
	Remote Control ON/OFF	Press the button to activate remote control, after pairing the oven with the hOn app (through the application).
	Light Press to turn on/off the oven cavity light
	Functions	Press once to access Manual functions, twice for Everyday cooking programs, three times for Cleaning menu, and four times for WIFI menu.
	Time	Press once for cooking duration, twice for the minute minder (available in standby mode), three times for delay start. In standby mode are available the kitchen timer and, by pressing for 3 sec, the Time of day.
	Temperature	Press once to check the cavity temperature, twice to activate the fastpreheating option (only available during the oven's preheat phase).
	Navigation buttons	Press Navigation buttons to scroll between function and to adjust the parameters.
	Start/Pause	Press to Start/Pause cooking or to confirm the functions.

2.4. CONNECTIVITY

Wireless parameters

Technology Wi-Fi Bluetooth
Standard IEEE 802.11	b/g/n Bluetooth v4.2, BR/EDR, BLE
Frequency Band(s) [MHz]	2401 ÷2483 2402÷2480
Maximum Power [mW]	100 10

Preci probe model et180 wireless parameters

Technology Bluetooth
Standard Bluetooth v4.0 BLE
Frequency Band(s) [MHz]	2400÷2480
Maximum Power [mW]	2.5 - (4dBm)

PRODUCT INFORMATION FOR NETWORKED EQUIPMENT

Power consumption of the product in networked standby if all wired network ports are connected and all wireless network ports are activated: 2,0 W

How to activate wireless network port:

Wifi module switches on as soon as the user press the power on button.

How to deactivate wireless network port:

Wi-fi module deactivates as soon as the user presses the power off button. The wi-fi can also be deactivated when the oven is on by selecting "off" in the Wi-fi settings menu.

Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU and with the relevant statutory requirements for the UK market. The full text of the declaration of conformity is available at the following internet address: www.candy-group.com

HOW TO INTERACT WITH THE APP

Your appliance may be connected to your home wireless network and operated remotely using the app. Connect your appliance to ensure it stays up to date with the latest software and features.

NOTE

• Once the oven is turned on, the WIFI icons blinks for 30 minutes. During this period it's possible to enroll the product.
• Ensure your home Wi-Fi network is turned on.
• You will be given step by step guidance on both your appliance and mobile device.
• It may take up to 10 minutes to connect your oven.
• For further guidance and troubleshooting, please refer to the app.

Download on your smartphone.

NEW USER REGISTRATION

• Click on "Register"
• You can register through social accounts or sign up with your personal email

QUICK PAIR ENROLLMENT

Step 1

- Select "Add appliance".

Step 2

- Allow your location permission.

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

CONTINUE

Step 3

- Select oven from the appliance category.

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Step 4

- Turn on your appliance; if it is already on, turn it off and on again.

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch CFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button surrounded by abstract geometric shapes (no text or symbols)

OK, I DID IT

Step 5

• After turning on, the hOn app will start searching for your home appliance.

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. bOn app is looking for your appliance...

Stay close to your appliance in order to correctly capture the signal.

Step 6.1-6.2

- Select your home appliance, tap on "connect" and wait a few seconds.

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven

Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven Connecting

New appliance

Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

Step 7

- Your Oven will be found and you can control it through hOn.

Appliance connection

Your appliance has been correctly identified!

Brand Hoover

Model 31008486-7888-1821

Serial number 17345678-1234-1234

Is this your appliance?

YES ITS MY OVEN

NO IT'S NOT

HOW TO CHANGE WIFI SETTINGS

Once the appliance is connected, the user can change the WiFi settings between:

• WIFI ON: It is only possible to monitor the oven status by App.
• WIFI hOn: The oven can be used exclusively by App.
• WIFI OFF: The oven is not connected but still enrolled with network credentials saved.

• WIFI RESET: The connection is reset and a new enrollment is possible.

• Tap □ and enter in WIFI menu. On display appears "On".

• On display appears "On".
• Use the arrows until "Off" or reset setting "rSt" will be showed.

REMOTE CONTROL

The Remote Control offers numerous advantages for users, enhancing convenience, efficiency, and the overall cooking experience, by giving the capability to control the product directly from both the appliance and hOn App.

This function allows, through your device, to enjoy various features, such as: instant or scheduled start of recipes or cooking programs already available in the app; real-time monitoring of the progress of your recipes; adjustment of the cooking parameters in use; monitoring of the cooking process using the probe; managing saved recipes using the “Jolly function” on the product (see related section). Furthermore, it is possible to receive notifications once programs or recipes are completed. The Remote Control can be activated exclusively when the product is enrolled.

NOTE: It is available for all cooking functions on the product, except for Gratin, Grill and Supergrill programs.

How to activate Remote Control:

1. Tap □ to select the WIFI mode.
2. On display appears "connect". Tap ▷. "On" will start blinking.
3. Tap √ to select the "hOn" mode and tap ▷ to activate Remote Control.
4. Press □ to exit "hOn" mode.
5. Access to the App, select a program and let the cooking starts. During the process is possible to control and change the program parameters from both product and App.

It's also possible to activate Remote Control during cooking process by pressing related button

How to stop Remote Control:

While the cooking program is in progress, it can be stopped directly from the product itself by pressing the corresponding button of Remote Control that came with your appliance.

You can also stop the cooking program remotely using the app by clicking the 'STOP' Button on display device. The oven will automatically stop the cooking.

NOTE: If the user stops the cooking in progress from the oven, simultaneously the stopped cooking will be seen in the App.

3. BEFORE STARTING

3.1. INFORMATION TO START

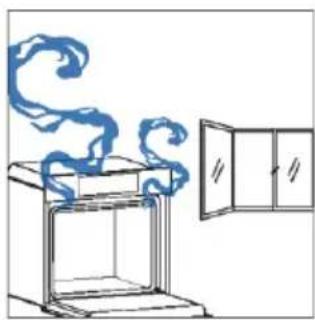

When you first turn on the oven, you might notice some smoke. Don't worry, just wait for the smoke to clear before using the oven.

How door works

During the pyrolytic cleaning process, the oven door remains locked at all times. If it's not locked, the oven will display error code 24 and pause the cleaning function.

How illumination works

The oven cavity is illuminated by one or more light bulbs, typically activated each time a cooking function begins.

For ovens equipped with a door switch (see below), the light automatically turns on when the door is opened.

For ovens equipped with lamp button, it can also be used to activate the lighting.

If the oven door remains open for more than 10 minutes, the lights will automatically turn off.

During pyrolytic cleaning process light remains off. *

How cooling fan works

The cooling fan is responsible for dissipating the heat, keeping the oven and its surroundings from getting too hot, as well as protecting kitchen appliances from the effects of high temperatures. For this reason, the cooling fan remains audible for a period of time even after the oven is turned off. It operates during and after cooking cycle in relation to the internal temperature of the oven.

When the cooling fan is operational, it usually generates a gentle humming or whirring noise. You may also notice a warm airflow emanating from the gap between the oven door and the control panel.

During pyrolytic cleaning and when door is locked, cooling fan is switched on. *

During ECO function the light will remain off.

(*only for pyro ovens)

3.2. FIRST USAGE

When the appliance is switched On for the first time, the initial step is to set time of day, choose between 13 ampere or 16 ampere, and select sound level.

- SET THE TIME: The display will show the blinking preset time '12:00'. To modify it, hold ⏻ and use the arrows to set the current hour. Press ⏱ to confirm hours. Follow the same procedure to set the minutes. To confirm press ▷II.

- AMPERAGE: By default, the oven is set to work with higher power suitable for households with more than 3 kW (16 A). If your home has lower power, you can change this setting to ▷II 13 A. This setting affects how quickly the oven heats up. Choosing the higher option (16A) means it heats up faster (because the power absorption is increased). On the display, you'll see two choices: 13A and 16A. Select your preferred one by using the arrows. To confirm press ▷II.

NOTE: The option to set the amperage is only available during the initial installation. To modify the set amperage, please refer to the post-installation instructions.

- BRIGHTNESS: The display shows the symbol "brig". The numbers represent the level of brightness intensity, editable using the arrows. To confirm press ▷II.

- SOUND: The display shows the symbol "Sound". The numbers represent the level of sound intensity, editable using the arrows. To confirm press ▷II.

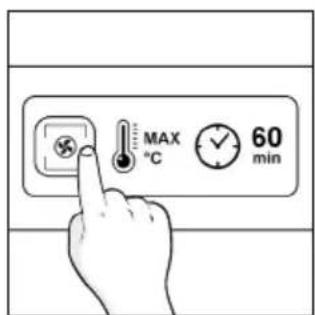

• POST INSTALLATION INSTRUCTION

It is possible to go back to initial settings by pressing Lamp button for 5 sec

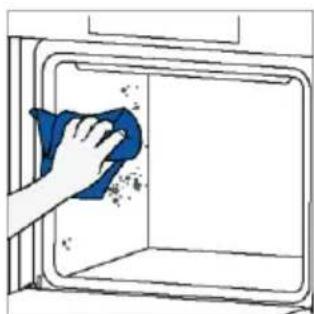

3.3. PRELIMINARY CLEANING

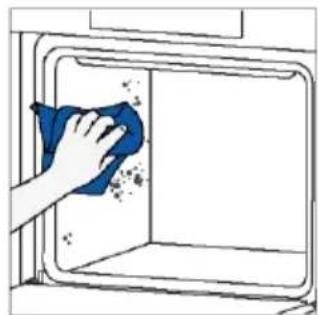

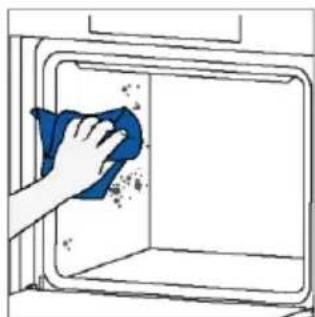

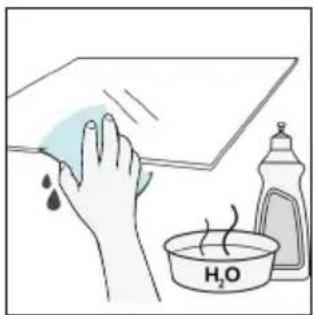

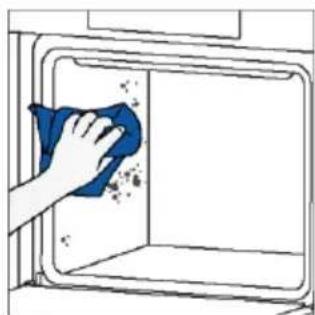

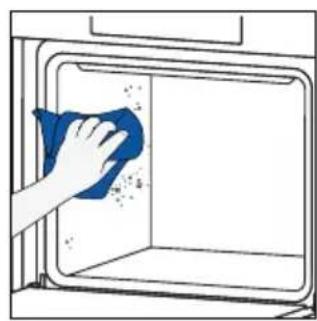

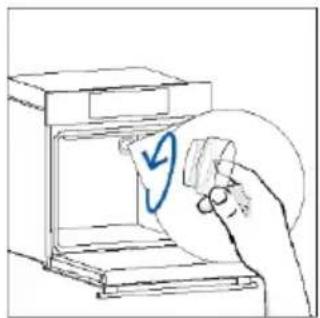

Clean the oven before using for the first time. Wipe over external surfaces with a damp soft cloth. Wash all accessories and wipe inside the oven with a solution of hot water and washing up liquid. Set the empty oven to the maximum temperature and leave on for about 1 hour, this will remove any lingering smells of newness.

Simple line drawing of a chimney with steam rising, next to an open door (no text or symbols)

4. OPERATION OF PRODUCT

4.1. HOW THE PRODUCT WORKS

SWITCHING ON/OFF THE OVEN

To turn ON/OFF the oven, hold ⏻

Hand icon pointing at a circular button with icons, next to a digital interface panel (no text or symbols on the hand)

FUNCTIONS MENU

Access the Function menu by pressing □.

To navigate into tap as many times as is needed to enter in the following settings:

Symbol Function Description
	MAIN FUNCTIONS	This function allows to select the desired cooking program by using arrows. Tap◎ and ⚠ to set time and temperature. Press ➤ to start the function. To pause the program, click again.
	FOOD CATEGORIES	In this menu you can access to 4 food cooking categories already integrated on your oven by using arrows. The display will show default time and temperature.
	WIFI	In this mode you can connect your oven to a network and enroll it with the hOn App.
	CLEANING FUNCTIONS	This function allows to choose a cleaning system available on your oven.

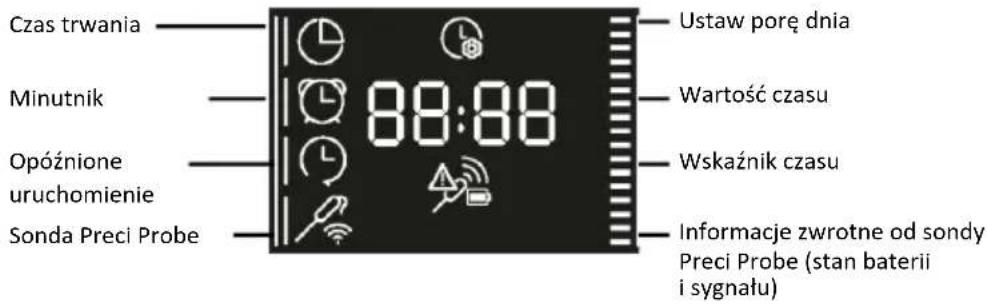

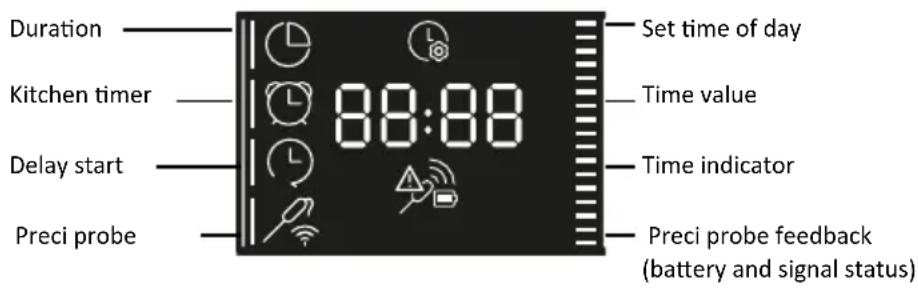

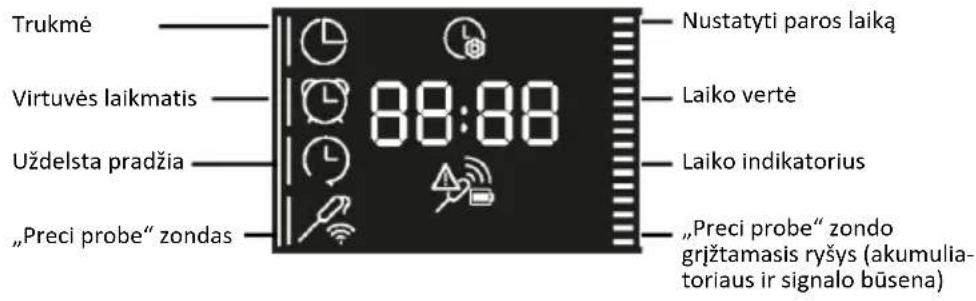

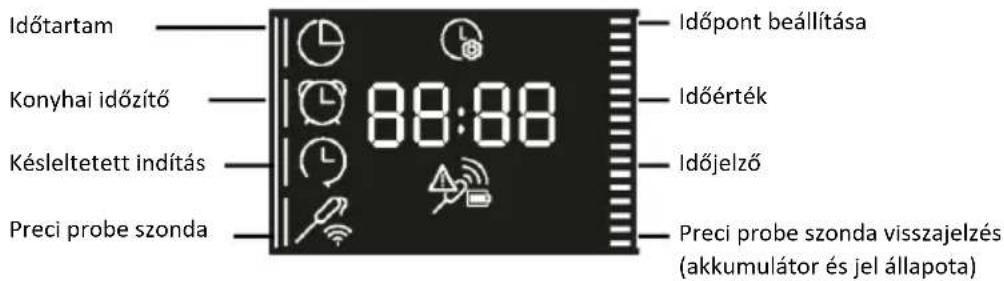

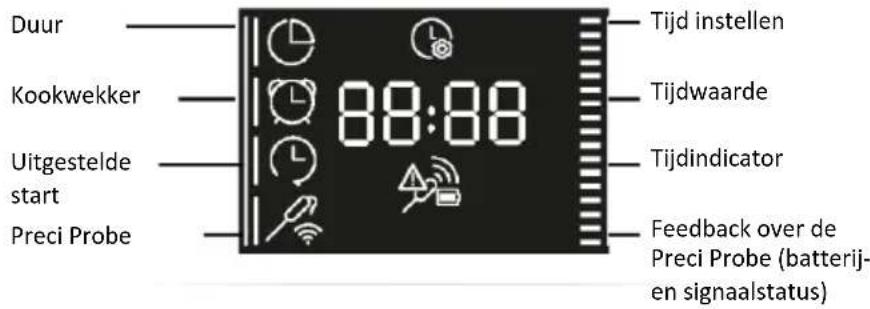

TIME MENU

After having selecting the cooking program, access Time menu by pressing Ⓤ. To navigate into tap Ⓤ as many times as is needed to enter in the following settings:

NOTE: several parameters cannot be set at the same time, therefore only the last set remains in the memory while the previous one is deleted.

Symbol Function Description
	a)COOKING DURATION	Allows to preset the cooking time required for the recipe chosen.Press Ⓞto enter in the Time menu. Tap Ⓞas many times as you need to select “Cooking duration” function. Then use the arrows to regulate the value and pressⓍto confirm.The countdown starts at the end of preheating (if present). Du-ring cooking phase is possible to change the duration value by pressing Ⓧand by using the arrows. When duration is elapsed the display shows “End” and the cooking stops.
	b)MINUTE MINDER	Allows to use the oven as alarm clock.Press Ⓞto enter in the Time menu. Tap Ⓞas many times as you need to select “Minute minder” function. Then use the arrows to regulate the value and pressⓍto confirm.During cooking phase is possible to change the duration value by pressing Ⓧand by using the arrows. Then press Ⓧto restart the cooking. When duration is elapsed, the cooking continues until manually interrupted.This function can be also set when the oven is in stand by mode by pressing ⓍWhen activated, the minute minder operates independently of the oven’s cooking functions.
	c)DELAY START	Allows to choose the cooking start time.Press Ⓞto enter in the Time menu. Tap Ⓞas many times as you need to select “Delay start” function. Then use the arrows to regulate the value and pressⓍto confirm.NOTE: Delay start is activable only after setting Cooking Duration and it is not available with grill’s functions

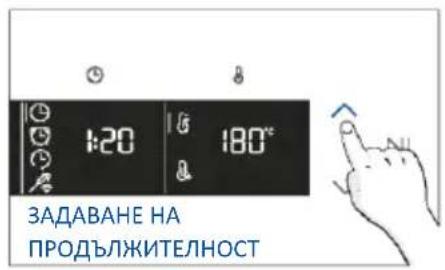

a. COOKING DURATION

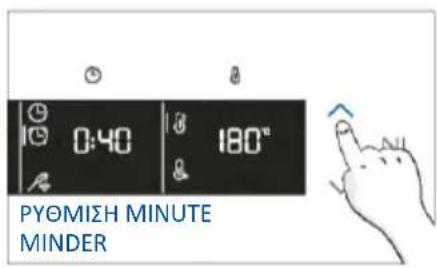

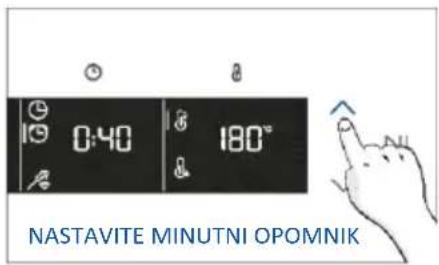

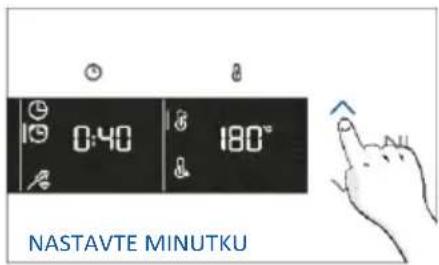

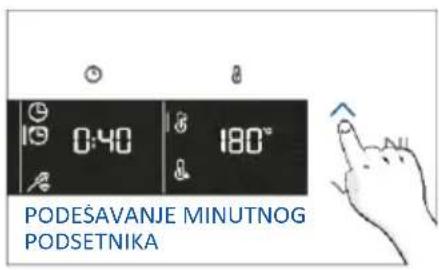

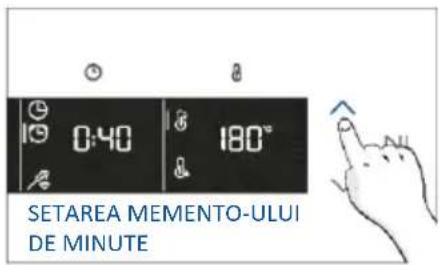

b. MINUTE MINDER

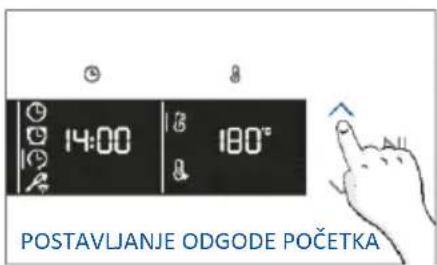

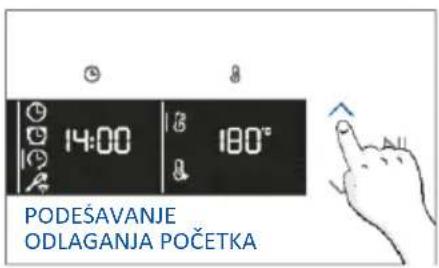

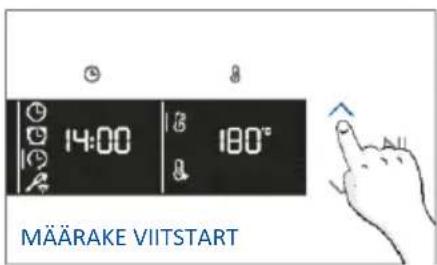

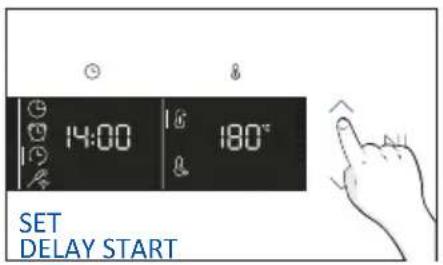

C. DELAY START

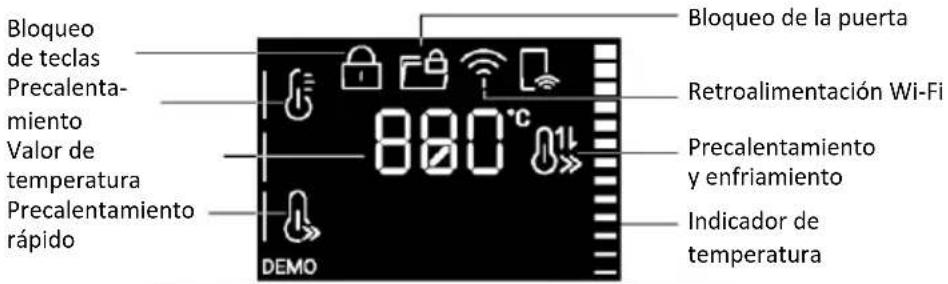

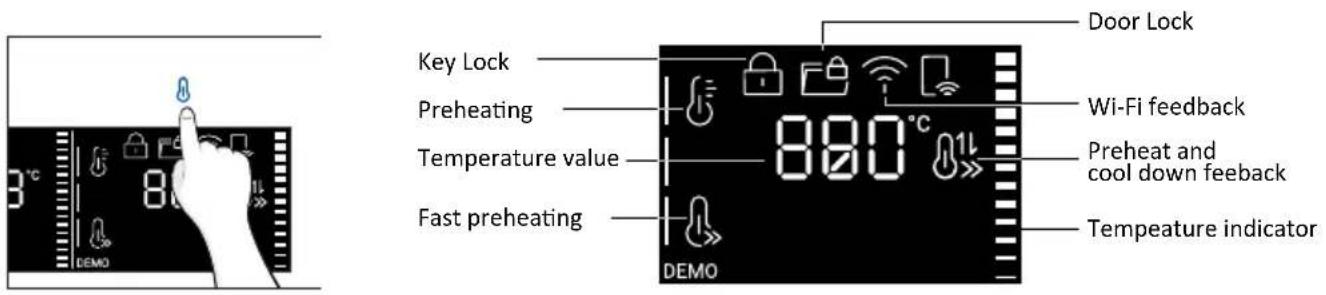

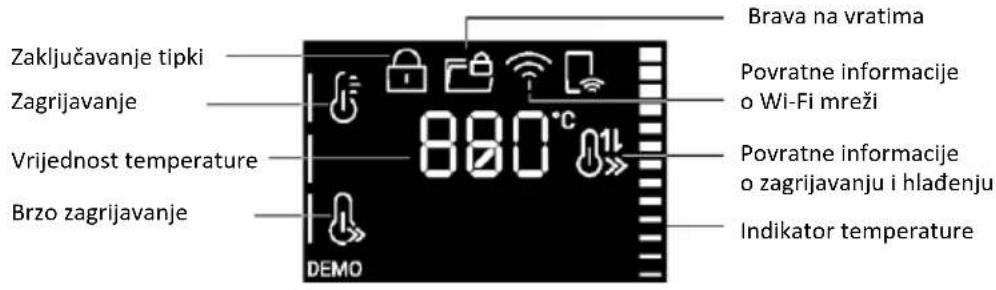

TEMPERATURE MENU

After having selecting the cooking program, access Temperature menu by pressing Ⓐ. To navigate into tap Ⓐ as many times as is needed to enter in the following settings:

Symbol Function Description
[xwxt]	TEMPERATURE	Press ⚠ to set the temperature and use arrows to regulate the value.
[cstc]	FAST PREHEATING	Press twice ⚠ to set the fast temper- rature.

ADDITIONAL FUNCTION

Symbol Function Description
	CHILD LOCK	This function allows you to lock the screen to prevent any unwanted use by minors. To activate it, simultaneously press the Lamp and Remote Control buttons for 3 seconds.An icon with a padlock will appear on the user interface. In this condition, the oven user interface is locked, and no changes in settings can be made. To deactivate the child lock, press the Lamp and Remote Control buttons again for 3 seconds (the icon with the key will disappear).

4.2. COOKING FUNCTIONS

FAST PREHEATING OPTION

In order to accelerate preheating phase, the fast-preheating option can be selected by pressing the temperature icon for 3s after having selected cooking program and temperature. This option will activate a combination of fan and heating elements regardless of the chosen cooking function.

To save energy, when fast preheating is activated the lamp will be turned OFF until the oven reaches the desired temperature

STANDARD FUNCTIONS

NOTE: for functions that require preheating, ensure all accessories are removed during this phase. Follow instructions in the table below for what regards preheating.

"YES/FAST PREHEAT" means that preheating is required and fast preheat option is available; "NO" means that preheat is not available and foods must be inserted with cold oven.

Symbol Function		T°C default T°C range	Suggested shelf position	Preheat	Suggestions
	*Conventional	200°C 30-250°C L2/L3		YES/FAST PREHEAT	IDEAL FOR: cakes, breads, biscuits, quiches on one level using both upper and lower heating.Can be used with Preci Probe.
	Convection + fan	175°C 50-250°C	L2/L3/L4	YES/FAST PREHEAT	IDEAL FOR: roasts, casseroles, vegetables and pies with moist fillings on one level. Ideal for cooking foods with high water content.Can be used with Preci Probe.
	Multi-Level	160°C 50-250°C	L4 for single level L2+L5 for double level L2+L4+L6 for triple level	YES/FAST PREHEAT	IDEAL FOR: cakes, biscuits and pizzas on one or more levels. Ideal to cook different foods.Can be used with Preci Probe.
	Bottom heating	170°C 50-230°C	L2	YES/FAST PREHEAT	IDEAL FOR: crème caramel, puddings and bain marie on one level. This function can be also used for finishing a preparation.Can be used with Preci Probe
	Bottom heating+fan	170°C 50-230°C	L2	YES/FAST PREHEAT	IDEAL FOR: pizzas, salty cakes, tarts and foods with liquid toppings on one level.Can be used with Preci Probe.
	Grill	L5 L1-L5	L6 for thin food L5 for thicker foods	NO	IDEAL FOR: gratin, grilled meat, fish, vegetables.This function uses only the inner top heating element. Use with the door closed. Place a tray underneath to collect juices.
	**Supergrill	L5 L1-L5	6 Levels:L6 7 Levels:L7	NO	IDEAL FOR: big quantities of sausages, steaks and toast bread.The entire area below the grill element becomes hot. Use with the door closed. Turn food two thirds of the way through cooking (If necessary).
	**Gratin	200°C 150-250°C	L4/L5	YES/FAST PREHEAT	IDEAL FOR: whole pieces of meat (roasts) or gratinated foods. Use with the door closed. Slide the drip tray under the shelf to collect juices. Turn food over halfway through cooking if needed.
	Multilevel +	200°C 150-250°C	6 Levels L1+L2+L3+L6 7 Levels L1+L3+L5+L7	YES/FAST PREHEAT	IDEAL FOR: complete menu cooking without odor mixing. Foods do not have to be extracted at the same cooking time
	*ECO	190°C 150-220°C	L3 NO		IDEAL FOR: cooking meat, fish or vegetablesThis function allows to save energy during cooking keeping the food moist and tender. Cavity lamp is switched off.
	Airfry	200°C 150-250°C	L4 NO		IDEAL FOR: preparing frozen foods or breaded par-cooked foods which are usually fried. Thanks to the dedicated tray, the hot air can flow evenly over the foods.
	Bread	210°C 190-220°C	L2/L3 NO		IDEAL FOR: cooking bread and bread loaves
	Jolly - - -				Special Function
	Pizza	300°C 200-300°C	L2/L3 NO		IDEAL FOR: all kind of pizzas without preheating the oven. Use lower temperatures for frozen items and 300°C for home-made recipes
	White meat	190°C 180-200°C	L3/L4 NO		IDEAL FOR: poultry and cuts of white meat
	Red meat	190°C 180-200°C	L3/L4 NO		IDEAL FOR: beef and cuts of red meat
	Fish	170°C 160-180°C	L3/L4 NO		IDEAL FOR: whole fish and fillets
	Veg	190°C 180-200°C	L3/L4 NO		IDEAL FOR: roasted vegetables and potatoes

4.2.2. SPECIAL FUNCTIONS

Symbol Function		T°C default T°C range	Suggested shelf position	Preheat	Suggestions
	Jolly ---				Add to the preset list of functions your favorite one that's not already present in your oven. You canconfigure it through the hOn app.

Jolly function

Thanks to the Jolly function, this product offers a fully customizable experience, allowing you to store your personalized recipes directly on the oven. You can execute these recipes as often as you like, even without the need to log into the app.

How to Set the Jolly Function:

To set the Jolly function on your oven, open the app's recipe section, select the recipe you want to use, and click 'Use As Jolly Function'.

From this point onward, you can launch it from the product even without interaction with the app. Simply turn the function knob to the Jolly function to start the cooking process.

The display will show the preset temperature.

How to edit the Jolly function:

To edit a Jolly function, go to the app's recipe section and select the card of the recipe designated as a Jolly function. Tap the "edit" button to customize the recipe and modify the previously set settings.

A pop-up message will inform you that to save the newly modified Jolly function, you must remove the previous one. If you confirm, the previous Jolly function will be deleted, and the new parameters will be saved on the product and will be visible in the app.

How to Delete the Jolly Function:

To remove the Jolly function from the oven's user interface, access the app's recipe section.

By tapping on the card of the recipe designated as a Jolly function, it's possible to delete it by clicking the red button 'delete button'.

A pop-up will confirm the operation, asking for your confirmation. If you proceed, the Jolly function saved on the oven will be removed, and it will no longer be available in the app.

PRECI PROBE

Before the use verify the charge of the Preci Probe:

1. Put Preci Probe into the charger and close the cover.
2. Connect the charger to a USB power source, such as USB adapter or USB socket of PC/ note - book with the USB cable. The charger may not be working properly with power bank because of its auto switch-off function.
3. LED of the charger will turn on and is flashing during charging. It will turn off when Preci Probe is fully charged.

Simple line drawing of a device with an open lid and a blue arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a curved cutout and an arrow pointing to it (no text or symbols)

How to enroll and use Preci Probe:

1. Insert the Probe in the food.
2. Tap □ to select the desired function and Tap Ⓞ as many times as you need to select Probe icon.
3. After a while, the oven will recognize the Probe code. Tap ▷, and use arrows to set the target temperature.
4. Tap ▶llto confirm. From this moment, the oven will use the Probe's data to monitor the internal temperature of your food.
5. Once the desired internal temperature is reached, the alarm sounds and the oven turns off. Carefully remove the Probe from the food.

Simple line drawing of a roasted chicken with a chimney and leaf (no text or symbols)

Cooking tips

The Probe is equipped with a single measuring point. Insert it entirely into the food with the metal tip positioned at the centre of the food. Place this point as close as possible to the thickest (coldest) part of the food to accurately monitor the cooking process.

Illustration showing a pen tip transforming into a whole chicken (no text or symbols)

The Probe can be used with manual functions (Conventional, Conventional + Fan, Grill, Super grill, Gratin and Multilevel), with FOOD COOKING CATEGORIES (Meat, Fish and Vegetables)

Food category Suggested core T°C Suggested positioning
Roast beef 45°C		Diagonally in the thickest part. For cylindrical shape foods (i.e. beef roasts) place the tip as close as possible to the geometric center
Roasted meats 55 °C / 60 °C / 65 °C
Poultry 83-85°C Into the thickest part of the breast
Fish (whole/steaks) 65°C Diagonally in the thickest part
Bread/casseroles 90°C		Close to the geometric center of the food

HOW TO USE THE CAMERA \*

The bionic vision camera works with the Preci Taste function available on the App. The camera can recognize the food and set the related parameters to cook it properly. You can monitor the status of the cooking process directly from the App.

The camera isn't available during pre-heating, Eco, and Pyrolysis functions.

To use the camera, the Remote Control must be active.

Step 1. On the App, press "Special Feature", then select "Preci Taste" and press "Start Now".

Step 2. Select the food category that you want to cook, then press "Next" to confirm.

* only if present

Step 3. After the Preci Taste recipe is launched from the App, pre-heating will start. To start this function, the oven cavity must be empty.

Step 4. After the pre-heating phase, the food can be placed in the cavity. Close the oven door to enable the food to be detected. The oven will recognize the food through the camera and set the appropriate parameters. During this process, "hOn" will be shown on the oven display. After receiving confirmation from the user, the cooking process starts automatically.

Step 5. When cooking ends, "End" will be shown on the display. The cooking time can be extended should you prefer your food more cooked.

NOTE: Before operating the camera, make sure that the glass in the camera's range is clean to guarantee a clear view.

4.2.3. MULTI STEP FEATURE

The Multi Step feature allows to maintain previously set cooking parameters (temperature and time) while changing function during cooking, by pressing the □ button.

The feature is available for all the MAIN FUNCTIONS ☐ except for ECO and JOLLY programs

5. COOKING GUIDELINES

5.1. GENERAL COOKING TABLE

Category Recipe		N°of levels	Cooking program	T°C	Preheat	Cooking accessory	Shelf position	Cooking time after preheating* (min)
Sweet bakery	Small cakes /Muffins	1	Conventional Multilevel	175°C 160°C	Y	Baking tray L3		20-30 30-40
		2 Multilevel 150°C				Baking + Deeper trays	L3+L6 30-40
		3 Multilevel 140°C Baking trays L2+L4+L6 40-50
	Sponge cakes (26 cm ∅)	1	Conventional 170°C		y	Metal grid + Cake tin	L2 30-40
			Multilevel 150°C			Metal grid + Cake tin	L3 40-50
		2 Multilevel 150°C				Metal grids + Cake tin	L3+L6 50-60
	Biscuits/Shortbreads	1	Conventional Multilevel	150°C 150°C	Y	Baking tray L3		25-30 30-40
		2 Multilevel 140°C Baking trays L3+L6 30-40
		3 Multilevel 140°C Baking trays L2+L4+L6 35-40
	Choquettes	1 Multilevel 190°C			Y	Baking tray L3	25-35
		2 Multilevel 170°C Baking tray L3+L6 25-35
	Yorkshire pudding	1	Conventional	200°C	Y	Baking tray	L3	20-30
	Meringues	1	Multilevel	90°C	Y	Baking tray	L3	90-160
	Macaron	1	Conventional	150°C	Y	Baking tray	L3	15-20
	Apple pie	1	Conventional 185°C		Y	Metal grid + Cake tin	L2 60-70
		1 Multilevel 170°C Y				Metal grid + Cake tin	L3 65-75
	Tarte tatin	1	Conventional	170°C	Y	Metal grid + Cake tin	L2 40-60
	Chocolate souffle	1	Conventional 200°C		Y	Baking tray + molds	L3 10-15
	Cheesecake 1	Conventional 150°C		Y		Metal grid + Cake tin	L2 50-65
	Frozen croissants	1	Conventional 180°C		L2+L5 Y5-35	Baking tray L3	20-25
		2 Multilevel 180°C Baking trays L2+L4+L6 30-40
		3 Multilevel 160°C Baking trays L2+L4+L6 30-40
	Strudel, frozen	1	Conventional	210°C	Y	Baking tray	L3	30-45
Breads and Flatbread	Toast bread	1	Supergrill	05	N	Metal grid	L7	4-6
	Focaccia	1	Conventional	200°C	Y	Baking tray	L2/L3	25-35
	Bread, whole	1	Conventional	200°C	Y	Baking tray	L3	35-50
Category Recipe		N° of levels	Cooking program	T°C Preheat		Cooking accessory	Shelf position	Cooking time after preheating* (min)
Savory pies and casseroles	Salty cakes / Quiches (26 cm ∅)	1 Convection + Fan 180°C Y				Metal grid + Quiche tin	L3 45-60
		2 Multilevel 180°C Y				Metal grid + Quiche tin	L2+L5 50-70
	Cheese souffle	1 Conventional 200°C Y				Baking tray + molds	L3 20-35
	Lasagna, fresh	1 Conventional 200°C Y				Metal grid + ovenproof dish	L3 40-60
	Lasagna, frozen	1 Convection + Fan 180°C Y				Metal grid + ovenproof dish	L3 50-60
	Cannelloni, frozen	1 Convection + Fan 180°C Y				Metal grid + ovenproof dish	L3 45-55
	Baked pasta 1	Gratin 200°C Y				Metal grid + ovenproof dish	L4 20-30
Pizza	Pizza, fresh (Tray)	1	Conventional Pizza	250°C 300°C	Y N	Baking tray L2/L3		15-20 18-25
		2 Multilevel 180°C Y				Baking + Deeper trays	L2+L5 25-35
	Pizza, fresh (Round)	1	Conventional Pizza	250°C 300°C	Y N	Baking tray L2/L3		8-10 15-20
		2 Multilevel 180°C Y				Baking + Deeper trays	L2+L5 30-40
	Pizza, frozen (thin crust)	1	Conventional Pizza	220°C 200°C	Y N	Metal grid L3		10-15
		2	Multilevel	200°C	Y	Metal grid	L2+L5	15-25
		3 Multilevel 180°C Y		Metal grid L2+L4		L6 25-35
Meat & Poultry	Roasted whole chicken (1-1.2kg)	1 Gratin 220°C Y				Metal grid Place baking tray at L1	L4 40-60
	Chicken thighs	1	AirFry	220°C	N	Air fry tray**	L4	30-50
	Roasted duck	1 Gratin 200°C Y				Metal grid + Ovenproof dish	L3 50-60
Category Recipe	N°of levels	Cooking program	T°C	Preheat	Cooking accessory	Shelf position	Cooking time after preheating* (min)
Meat & Poultry	Rooster 1 Gratin 220°C Y				Metal grid Place baking tray at L1	L4 20-40
	Roasted Turkey	1 Gratin 200°C Y			Metal grid + Ovenproof dish	L3 50-60
	Pork ribs (1000-1200g)	1 Conventional 200°C Y			Metal grid + Ovenproof dish	L3 80-100
	Sausages 1 Supergrill 04 Y Metal grid L5 40-50
	Beef fillet (1000-1500g)	1 Conventional 60°C N			Metal grid + Ovenproof dish	L3 60-80
	Roast beef (500g)	1 Gratin 220°C Y Baking tray		L3 20-40
	Meatloaf (1000-1500g)	1 Conventional 180°C Y Baking tray		L3 40-50
	Roasted chicken with potatoes	1 Gratin	200°C	Y	Deeper tray	L4	45-60
Fish and Seafood	Grilled seafood	1 Supergrill 04 N	Metal grid	L5 15-30
	Frozen fish sticks	1 AirFry	200°C	N	Air fry tray**	L4	20-25
	Baked fish	1 ECO	200°C	N	Metal grid Place baking tray at L1	L3 40-60
Vegetables	Vegetable gratin	1 ECO	200°C	N	Metal grid + Ovenproof dish	L3 80-90
	Frozen french fries (300-500g)	1 AirFry	220°C	N	Air fry tray**	L4	18-25
	Potato gratin	1 Gratin 200°C Y			Metal grid + Ovenproof dish	L4 15-25
	Roasted potatoes	1 Conventional 200°C Y Baking tray		L4 30-50

Cooking times may vary according to consumer's recipe and ingredients.

*if preheating required

** Depending on the oven model.

NOTE: For cooking cakes, quiches and other recipes that require a mold or a container on 2 levels, place the staggered: the upper tray on the left side and the lower tray on the right side.

5.2. EVERYDAY COOKING TABLE

Food category menu allows to cook a variety of recipes without preheating the oven, thanks to dedicated cooking programs tailored to each category needs.

After selecting the cooking program, the default time will be shown and can be edited by turning the right knob; cooking temperature can be changed by pressing the dedicated icon. Both parameters can be set within a limited range as shown in the table below.

Symbol	Description Preheat		Shelf position	Temperature range (°C)	Time Range (min)	Meat Probe temperature (if available)	Description
[AXCB]	White Meat	NO	L3/L4	180-200	40-80	70-85°C	For poultry and cuts of white meat
	Red Meat	NO	L3/L4	180-200	20-80	58-65°C	For beef and cuts of red meat
	Fish	NO	L3/L4	160-180	15-45	55-65°C	For whole fish and fillets.
	Vegetables	NO	L3/L4	180-200	30-80	70-90°C	For roasted vegetables and potatoes

NOTE: if, after turning off the oven, there is a need to continue cooking, it's recommended avoiding the use of everyday cooking programs and instead opting for standard functions.

Recipe Serving size		Cooking program	T°C	Cooking accessory	Shelf position	Cooking time (min)
Beef roast	500-800g	Red Meat	190°C	Metal grid	L3	30-40
Beef fillet	200g	Red Meat	200°C	Metal grid	L3	20-25
Meatloaf	1000-1500g	Red Meat	180°C	Metal grid	L3	40-50
Beef wellington	500g Red Meat	200°C Metal grid L3 50-80
Pot roast	800-1000g	White Meat	200°C	Metal grid	L3	40-70
Pork ribs	1000-1200g	White Meat	200°C	Metal grid	L3	80-100
Lamb rack	800-1000g	White Meat	200°C	Metal grid	L3	60-80
Lamb leg	1500-2000g	White Meat	190°C	Metal grid	L3	80-100
Salmon fillets	200-600g	Fish	170°C	Baking tray	L3	20-35
Tuna steaks	600g (app. 4 pcs)	Fish	180°C Metal grid L3 15-20
Swordfish steaks	700g (app. 4 pcs)	Fish	200°C	Baking tray	L3	15-20
Cod fillet	600g (app. 4 pcs)	Fish	150°C	Baking tray	L3	15-20
Seabream, whole	1	Fish	170°C	Baking tray	L3	35-45
Seabream, fillet	600g (app. 4 pcs)	Fish	150°C	Baking tray	L3	15-20
Seabass fillet	600g (app. 4 pcs)	Fish	150°C	Baking tray	L3	15-20
Salt baked fish	1	Fish	220°C	Baking tray	L3	30-40
Fish skewers	8 pieces	Fish	150°C	Metal grid	L3	20-30
Stuffed squid	4 pieces	Fish	180°C	Baking tray	L3	25-40
Whole bread	1	Bread	200°C	Metal grid	L3	35-50
Rye bread	1	Bread	190°C	Metal grid	L3	35-50
Sandwich loaf	1	Bread	200°C	Metal grid	L3	35-50
Frozen baguettes	1	Bread	200°C Metal grid L3 15-25
Frozen puff pastry snacks	1	Bread	190°C	Metal grid	L3	20-30
Fennels	1 tray	Vegetables	200°C	Metal grid	L3	30-40

Recipe Serving size	Cooking program	T°C	Cooking accessory	Shelf position	Cooking time (min)
Mixed vegetables	1 tray Vegetables 190°C Metal	grid L3 40-45
Cauliflowers	1 tray	Vegetables	190°C	Metal grid	L3
Pumpkins, cubed	1 tray Vegetables 200°C Metal	grid L3 30-40
Stuffed peppers	1 tray Vegetables 180°C Metal	grid L3 70-80
Stuffed zucchini	1 tray Vegetables 190°C Metal	grid L3 35-45
Carrot sticks	1 tray Vegetables 180°C Baking tray L3 35-40
Broccoli 1 tray Vegetables 190°C Baking tray L3 30-40
Ratatouille 1 tray Vegetables 190°C Metal grid L3 40-45
Vegetable flan	6 ramekins Vegetables 180°C		Baking tray + molds	L3 25-35

6.1. GENERAL RECOMMENDATIONS

Regular cleaning can extend the lifecycle of your appliance. Wait for the oven to cool before carrying out manual cleaning.

• After each use of the oven, a minimum of cleaning will help keep the oven perfectly clean.
- Do not line the oven walls with aluminum foil or single-use protection available from stores.
Aluminum foil or any other protection, in direct contact with the hot enamel, risks melting and deteriorating the enamel of the insides.
- In order to prevent excessive dirt of your oven and the resulting strong smokey smells, we recommend not using the oven at very high temperature. It is better to extend the cooking time and lower the temperature a little.
- In addition to the accessories supplied with the oven, we advise you only use dishes and baking molds resistant to very high temperatures.

6.2. CLEANING THE OVEN

6.2.1. INSIDE THE OVEN: cleaning functions

Pyrolytic cleaning (\*depending on the oven model)

This process relies on the chemical process bearing the same name, which involves the decomposition of complex substances through the application of heat treatment.

Once initiated, it automatically locks the oven door and swiftly elevates the temperature to a searing 410^ C.

At the end of the cleaning cycle, food residues will leave a white coating on the enamel surfaces.

To remove these particles, wipe with a cloth soaked in hot soapy water and use a brush or steel wool.

Suitable cleaning agents are hot soapy water or oven cleaner.

How does it work:

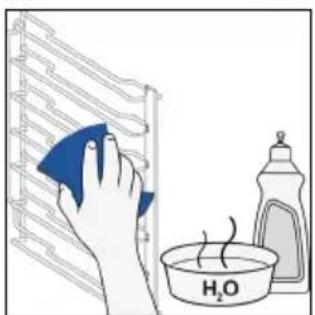

1. Remove any accessories from the oven, such as grids, side racks and side racks screw (*);

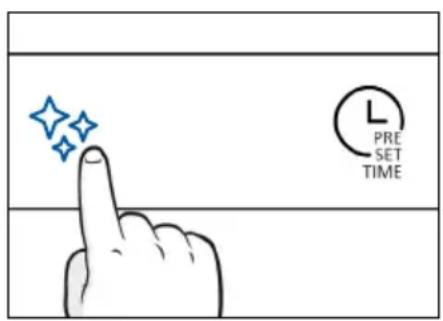

2. Turn function knob on ❖. Turn the dial control to set the Pyrolytic program;
   Allow the function to operate for the preset time. During this process and the following cooling phase, the oven door will remain locked.

3. When the appliance is cool, clean the inner surfaces of the oven with a cloth.

▲ WARNING: Make sure that the appliance is cool before you touch it. Care must be taken with all hot surfaces as there is a risk of burns. Use distilled or drinkable water.

(*) only for models with 7 levels.

Line drawing of an oven with a rack inside, showing internal structure and airflow direction (no text or symbols)

Illustration of a hand cleaning a window with a cloth (no text or symbols)

H_2O cleaning

The H_2O cleaning function is designed to effortlessly tackle light dirt and provide a quick and eco-friendly solution for cleaning your oven cavity using the power of steam.

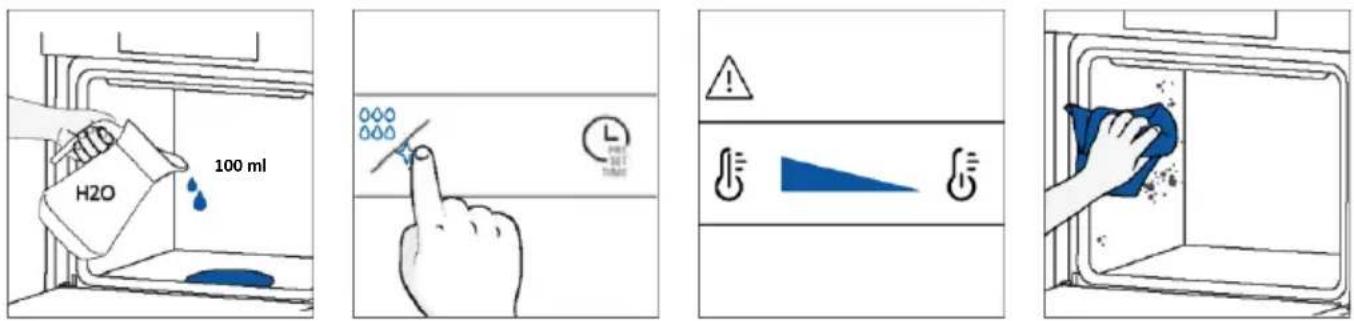

How does it work:

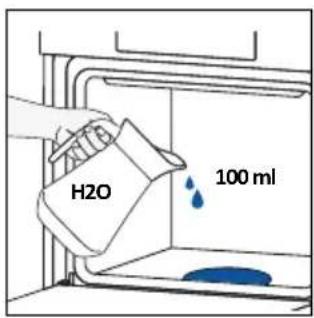

1. Pour 100 ml of water with a drop of washing-up liquid into the bottom embossment of the oven.
2. Turn the knob on 12 . If necessary, turn the dial control to set the Hydro clean program. Allow the function to operate for the preset time.
3. At the end of the cleaning process, allow the oven to cool down.

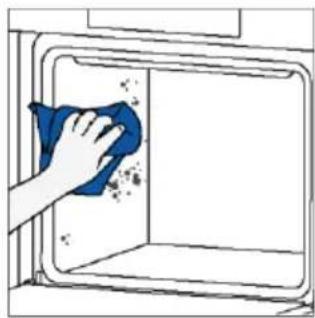

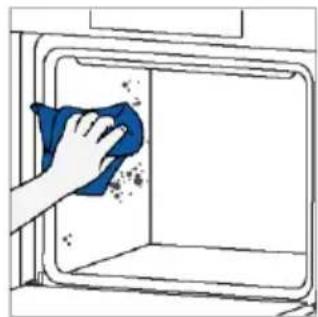

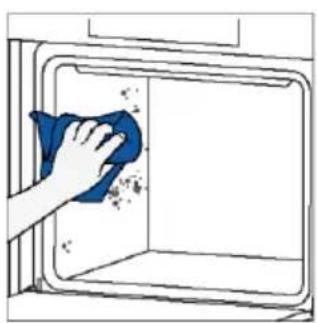

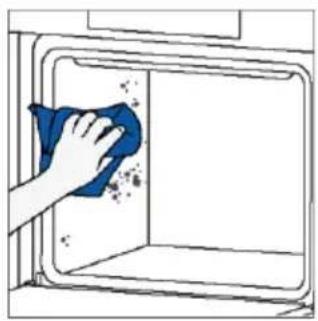

4. When the appliance is cool, clean the inner surfaces of the oven with a cloth.
5. ⚠ WARNING: Make sure that the appliance is cool before you touch it. Care must be taken with all hot surfaces as there is a risk of burns. Use distilled or drinkable water.
   Wipe the cooking compartment and allow it to dry completely to avoid possible corrosions.

Hand cleaning a window with a blue cloth (no text or symbols visible)

Catalytic cleaning (depending on the oven model)

The Catalytic panels line the oven cavity and grant you the luxury of never having to contend with a dirty oven.

The panels are coated with a specialized enamel that boasts a microporous structure, adept at absorbing absorbs grease from splashes.

Through a catalytic chemical reaction, they efficiently convert the absorbed grease into gaseous elements when exposed to high temperatures.

Recommendation: Consider replacing the catalytic panels after approximately three years of use, especially if you use your oven for two to three cooking cycles per week. This ensures optimal performance and cleanliness.

6.2.2. OUTSIDE THE OVEN: removal and cleaning the glass door

1. Position the door at 90°. Rotate the hinge locking tabs outward from the oven.

2. Position the door at 45°. Simultaneously press the two buttons on both the sides of the door's lateral shoulders and pull towards yourself to remove the upper glasses' door cover.

3. Very carefully remove the oven glass, starting with the inner one. During the procedure, firmly hold the glass with both hands and place them on a cushioned flat surface (e.g., on a fabric).

4. ⚠ WARNING: the inner and middle glasses must not hit the camera (*) during their removal or insertion.

5. ⚠ WARNING: The outer glass is not removable.

6. ⚠ WARNING: The camera (*) shall not be detached, forced, opened or removed during cleaning operations

Line drawing of a door opening with two hands inserting a blue tool (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a hand pressing a star-shaped object on a mechanical component with an exclamation mark (no text or symbols present)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

Line drawing of a hand holding a blue circle with a crossed-out object, no text or symbols present

1. ⚠ WARNING: the camera shall be prevented from coming into contact with any detergents during cleaning operations.
2. Clean the glass using a soft cloth and suitable cleaning products.
3. Insert the glass panels, making sure that the "LOW-E / PYRO" label is correctly readable and positioned on the lower left side of the door, near the left-side hinge. This way, the printed label on the first glass will remain on the inside of the door. Make sure that the "Bionic Vision" text appears as shown here, so that it is correctly readable when the oven door is open.
4. Reattach the upper glasses' door cover by pushing it inwards until you hear a click from the two side buttons.
5. Then, bring the door back to 90^ and rotate the hinge locking tabs inward towards the inside of the oven.
6. ⚠ WARNING: The camera (*) connectors shall not be disconnected during cleaning operations.

* only if present

Diagram showing a hand using a tool to adjust or install a component, with no visible text or symbols.

Pure diagram of a mechanical component with no text, numbers, or symbols

Illustration of a hand cleaning a surface with a water droplet and a bottle labeled H₂O (no text or symbols on the main subject)

Simple line drawing of a window frame with an openboard and directional arrows indicating movement (no text or symbols)

Line drawing of a door opening with two hands inserting a blue clip (no text or symbols)

Diagram showing a blue tool interacting with a mechanical component, no text or symbols present

Simple line drawing of a hand holding a tool, with a blue circle highlighting the tool area (no text or symbols)

Line drawing of a hand holding a tool near a vehicle or rail, with no visible text or symbols

6.3 CLEANING OF ACCESSORIES

Ensure that you clean the accessories thoroughly after every use and dry them using a towel. For persistent residues, consider soaking the accessories in a mixture of water and soap for approximately 30 minutes before giving them a second wash.

CLEANING OF SIDE RACKS:

- 6 levels model

1. Remove the side racks by pulling them in the direction of the arrows.
2. To clean the side racks either put them in the dishwasher or use a wet sponge, ensuring that they are dried afterwards.
3. After the cleaning process install the side racks in reverse order.

Line drawing of a laboratory oven with internal cooling ducts and airflow arrows (no text or labels)

Diagram showing two cross-sectional views of a cabinet or enclosure with internal airflow arrows (no text or symbols)

Illustration of a hand cleaning a rack with a cloth, next to a water bottle labeled H₂O (no text or symbols on the diagram itself)

Diagram showing two mechanical components with rotating arrows, no text or symbols present

Line drawing of a laboratory oven with internal cooling duct (no text or symbols)

- 7 levels model\*

1. Remove the side racks by first pulling the front part in the direction of the arrow and detaching the rear part from the screws.
2. To clean the side racks either put them in the dishwasher or use a wet sponge, ensuring that they are dried afterwards.
3. After the cleaning process install the side racks in reverse order: positioning the rear part between the screws and push the front part in the direction of the arrow.

Line drawing of a wall-mounted rack or shelf with two black connectors (no text or symbols)

Diagram of a wall-mounted rack with numbered components and directional arrows indicating rotation (no text or symbols)

Hand holding a wall-mounted device with a 90-degree angle indicator (no text or symbols on the device itself)

Hand holding a wall-mounted device with a 90-degree angle indicator (no text or symbols on the device itself)

Diagram of a wall-mounted rack with directional arrows indicating movement (no text or symbols)

* Depending on the oven model.

6.4 MAINTENANCE

COMPONENTS REPLACEMENT

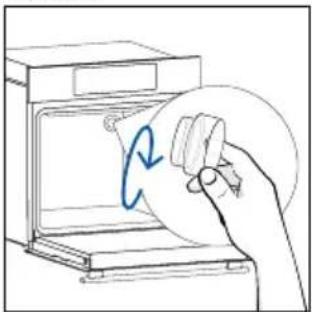

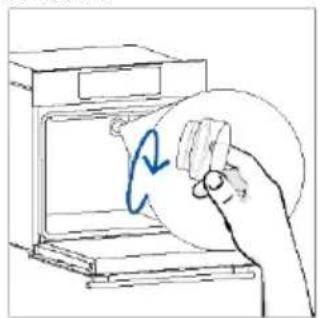

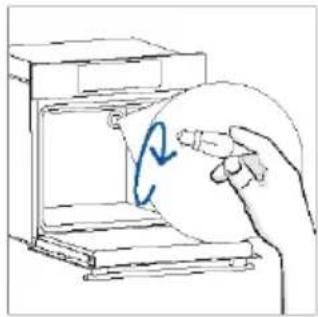

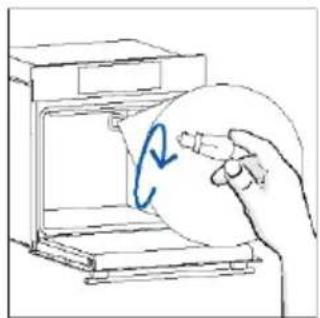

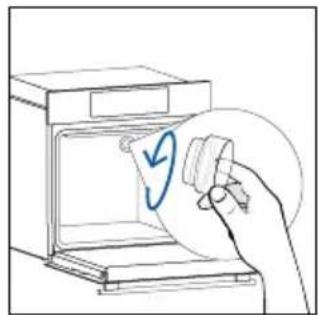

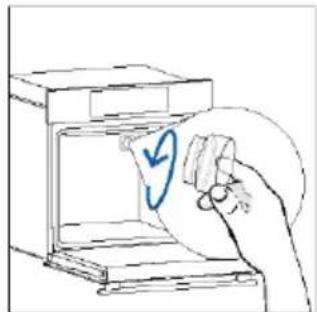

Changing the bulb on top:

1. Disconnect the oven from mains supply.
2. Remove the lamp's glass cover.

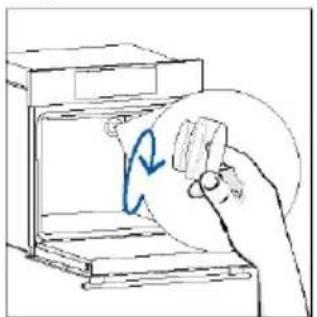

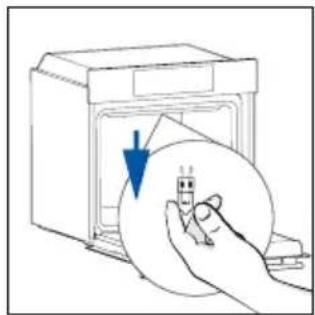

3. Disassemble the bulb.
4. Replace the bulb with a new one of the same type.
5. Relocate the lamp's glass cover.
6. Reconnect the oven from mains supply.

Step 1

Step 2

Hand holding a circular object with a blue checkmark inside an oven (no text or symbols visible)

Step 3

Illustration of a hand holding a circular device with a blue arrow pointing to it, next to an open appliance (no text or symbols present)

Step 4

Illustration of a hand holding a circular device with an arrow pointing upward, next to a washing machine (no text or symbols)

Step 5

Line drawing of a hand holding a circular object inside an oven (no text or symbols)

Step 6

Diagram of a washing machine with two circular components, one showing internal structure and the other with a handle (no text or symbols)

This product contains one or more light sources of energy efficiency class G (Lamp)

* In case of issues with this lamp, contact the customer service.

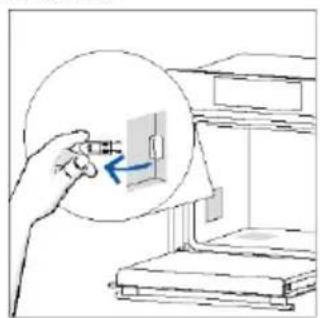

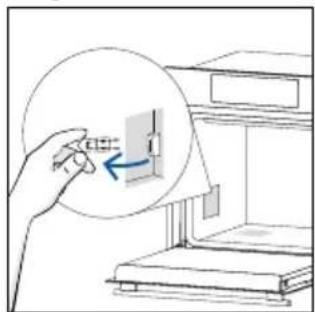

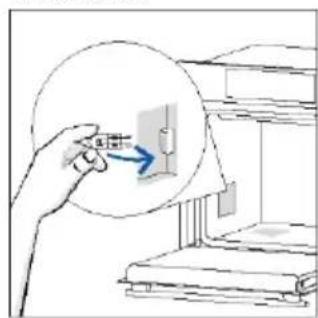

Changing the lateral bulb:

1. Disconnect the oven from mains supply.

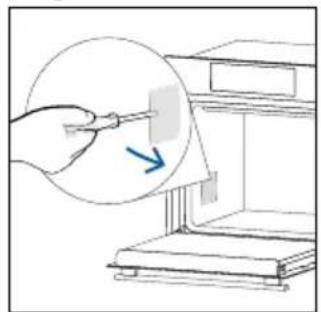

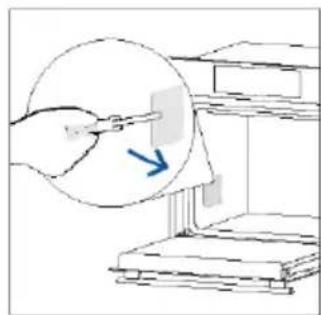

2. Use a flat-head screwdriver by positioning it to the side of the protective glass and gently apply pressure to remove it.

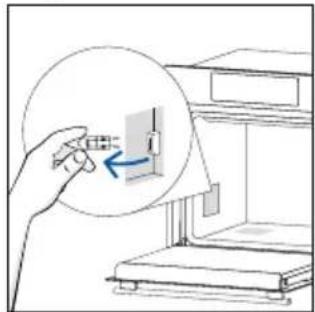

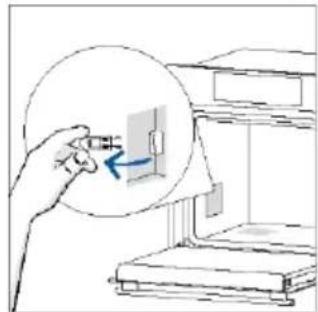

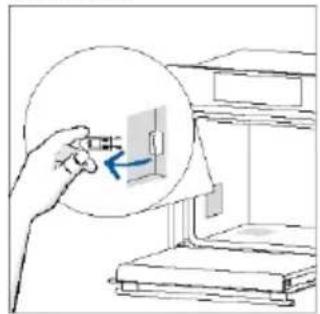

3. Carefully grasp the bulb from its base.

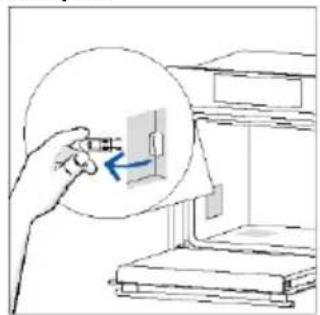

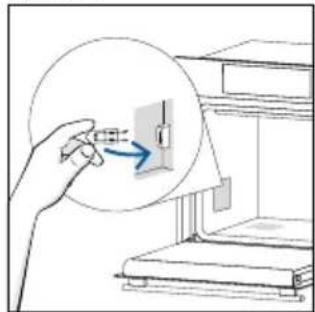

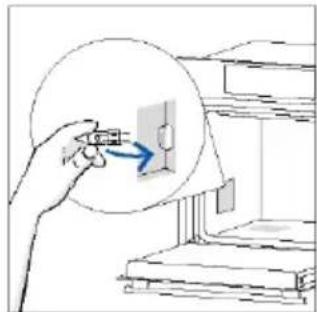

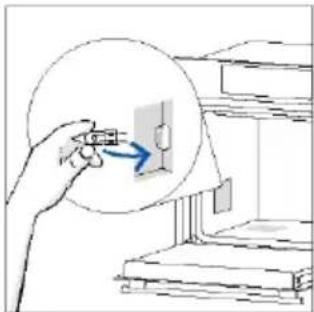

4. Insert the new one.

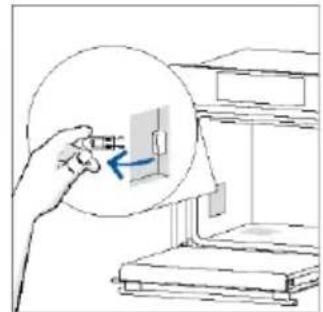

5. Reinstall the protective glass by pressing it gently until it's locked into position.
6. Reconnect the oven from mains supply.

Step 1

Step 2

Illustration of a hand using a tool to clean or store items, with a magnified inset showing the process (no text or symbols present)

Step 3

Illustration of a hand inserting a small component into a device, with no visible text or symbols.

Step 4

Illustration of a hand inserting a component into a device, with no visible text or symbols

Step 5

Diagram of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

Step 6

This product contains one or more light sources of energy efficiency class G (Lamp)

7. TROUBLESHOOTING

If, during oven use, an error occurs, the display will show the code "ER" followed by two digits, which will identify the error.

Proceed by turn off the oven and un-plug it, wait for a few minutes, and then reconnect it.

If the error disappears, you can resume using the oven. If it doesn't, call customer service and communicate the code (ERXX) you see on the display.

Error

Smoke

8. ENVIRONMENTAL PROTECTION & DISPOSAL

8.1. APPLIANCE DISPOSAL

This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials.

Individuals can play an important role in ensuring that the WEEE do not become an envi -

ronmental problem; it is essential to follow a few basic rules:

– the WEEE should not be treated as domestic waste;
– the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

8.2. SAVING AND RESPECTING THE ENVIRONMENT

Where possible, avoid pre-heating the oven and always try to fill it.

Open the oven door as infrequently as possible, because heat from the cavity disperses every time it is opened. For a significant energy saving, switch off the oven between 5 and 10 minutes before the planned end of the cooking time, and use the residual heat that the oven continues to generate.

Keep the seals clean and in order, to avoid any heat dispersal outside of the cavity. If you have an elec tric contract with an hourly tariff, the “delayed cooking” programme makes energy saving simpler, moving the cooking process to start at the reduced tariff time slot.

9. INSTALLATION

You can view the product installation video by scanning the Qr Code

Back view Side view

Isometric line drawing of a multi-level refrigerator with drawers, shelves, and a drawer (no text or symbols)

BIENVENUE

2.2. ACCESSOIRES

Grille métallique

3D diagram of a rectangular tray with internal geometric lines, placed inside an oven (no text or symbols)

Empty white rectangle with black border (no text or symbols)

Line drawing of a rectangular tray with internal geometric pattern, placed inside an oven (no text or symbols)

Technical line drawing of a kitchen sink with a round pan, plate, and side shelf (no text or symbols)

Line drawing of a two-tiered storage unit with horizontal and vertical metal racks (no text or symbols)

Diagram of a rectangular appliance with internal grating and ventilation slots, placed inside an oven (no text or symbols)

Two medical or laboratory tools: a pen and a catheter, shown side by side (no text or symbols present)

Diagram of a rectangular appliance with a grid-patterned lid and internal structure, no text or symbols present.

Simple line drawing of a door with a circular icon above it, no text or symbols present.

Line drawing of a rooster on a cutting board with dough and steam (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

COMMENT INTERAGIR AVEC L'APPLICATION

Download on your smartphone.

INSCRIPTION D'UN NOUVEL UTILISATEUR

- Cliquez sur "S'inscrire"

APPAIRAGE RAPIDE

Étape 1

Étape 2

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

CONTINUE

Étape 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Étape 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch CFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button surrounded by abstract geometric shapes (no text or symbols)

OK, I DID IT

Étape 5

Étape 6.1-6.2

Étape 7

COMMENT MODIFIER LES PARAMÈTRES DU WI-FI

CONTRÔLE À DISTANCE

3. AVANT DE COMMENCER

3.1. INFORMATIONS POUR COMMENCER

• INSTRUCTIONS D'APRÈS INSTALLATION

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle labeled H20 (no text or symbols on main objects)

Simple line drawing of a kitchen appliance with steam rising, next to an open refrigerator (no text or symbols)

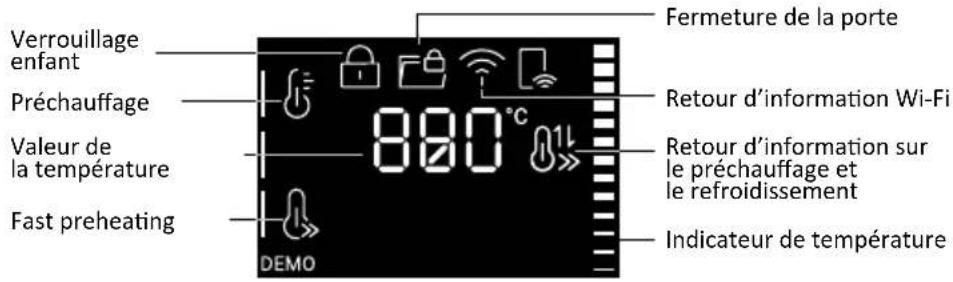

4. FONCTIONNEMENT DU PRODUIT

4.1. FONCTIONNEMENT DU PRODUIT

MISE EN MARCHE/ARRÊT DU FOUR

NOTE: several parameters cannot be set at the same time, therefore only the last set remains in the memory while the previous one is deleted.

Diagram of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a curved cutout and an arrow pointing to it (no text or symbols)

Simple line drawing of a steamed chicken with a fork (no text or symbols)

Astuces de cuisson

Line drawing of an oven with cooling rack and side panel (no text or symbols)

Illustration of a hand cleaning a window with a blue cloth (no text or symbols)

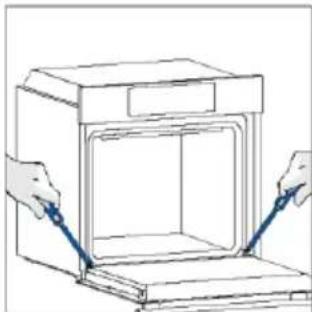

H2O-Clean

Illustration of a hand cleaning a window with a blue cloth (no text or symbols)

Line drawing of a door opening with two blue tool tips (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a hand pressing a star-shaped object on a tray, with an exclamation mark and warning triangle (no text or symbols)

Hand holding a diagonal line intersecting a vertical structure, enclosed in a circle (no text or symbols)

Line drawing of a window frame with a hand holding a tool, no text or symbols present

Diagram showing a hand using a tool to stop a cable, with no text or symbols present

Pure diagram of a rectangular object with internal lines and a curved line, no text or symbols present

Illustration of a hand cleaning a surface with a water bottle and a bowl labeled H₂O (no text or symbols on the main image)

Simple line drawing of a window frame with an openboard and directional arrows indicating movement (no text or symbols)

Line drawing of a kitchen oven with two hands inserting a blue clip into the opening (no text or symbols)

Diagram showing a blue tool interacting with a mechanical component, no text or symbols present

Line drawing of a hand holding a small object with a blue circle highlighting the object (no text or symbols present)

Line drawing of a hand holding a tool near a window frame (no text or symbols)

6.3. NETTOYAGE DES ACCESSOIRES

Line drawing of a laboratory oven with internal cooling ducts and airflow arrows (no text or symbols)

Diagram showing two cross-sectional views of a double door with internal heat exchanger (no text or symbols)

Illustration of a hand cleaning a rack with a cloth, next to a water bottle labeled H₂O (no text or symbols on the main subject)

Diagram showing two cross-sectional views of a furnace or oven with internal blades and airflow arrows (no text or symbols)

Line drawing of a laboratory oven with internal cooling ducts (no text or symbols)

Line drawing of a wall-mounted rack or shelf with two black clips, no text or symbols present

Diagram of a vertical ladder structure with directional arrows indicating movement (no text or symbols)

Hand holding a wall-mounted device with a 50-degree angle indicator (no text or symbols present)

Illustration of a hand cleaning a window with a blue cloth, next to a water bottle labeled H₂O (no text or symbols on the main image)

Hand holding a wall-mounted device with a 30-degree angle indicator (no text or symbols present)

Diagram of a vertical ladder structure with directional arrows indicating motion (no text or symbols)

Étape 2

Hand holding a circular object with a blue checkmark inside an oven (no text or symbols visible)

Étape 3

Illustration of a hand holding a circular object with a blue arrow pointing to it, next to an open refrigerator (no text or symbols)

Étape 4

Illustration of a hand holding a circular object with a blue arrow pointing upward, next to an open appliance (no text or symbols)

Étape 5

Line drawing of a hand holding a circular object inside an oven (no text or symbols)

Étape 6

Diagram of a washing machine with two circular components, one showing internal structure and the other with a pointer (no text or symbols)

Étape 2

Illustration of a hand using a tool to clean or store items, with a magnified inset showing the process (no text or symbols)

Étape 3

Illustration of a hand inserting a small electrical outlet into a cabinet (no text or symbols)

Étape 4

Illustration of a hand inserting a component into a device (no text or symbols visible)

Étape 5

Diagram showing a wall-mounted electrical outlet with an arrow pointing to it, next to a staircase (no text or symbols present)

Étape 6

8. PROTECTION DE L'ENVIRONNEMENT ET ÉLIMINATION

8.1. ÉLIMINATION DE L'APPAREIL

Isometric line drawing of a multi-level refrigerator with internal compartments and drawers (no text or symbols)

BENVENUTI

Illustration of a blue-handled tool with a downward arrow indicating compression or disassembly (no text or symbols)

2.2 ACCESSORI

Griglia metallica

3D diagram of a rectangular tray with internal geometric patterns, placed inside an oven (no text or symbols)

Empty white rectangle with black border (no text or symbols)

3D diagram of a rectangular tray with internal geometric pattern, placed on an inclined shelf (no text or symbols)

Technical line drawing of a kitchen sink with a round pan, plate, and side shelf (no text or symbols)

Line drawing of a two-tiered modular bed or rack structure (no text or symbols)

Diagram of a microwave oven with a grating tray and ventilation slots (no text or symbols)

Two line drawings of medical or laboratory instruments: a pen and a curved tube (no text or symbols)

Line drawing of a rectangular tray with a grid pattern inside, placed on an open shelf (no text or symbols)

Simple line drawing of a door with a circular icon and motion arrow, no text or symbols present

Line drawing of a roasted chicken on an induction tray (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Diagram of a rectangular kitchen tray with a mesh pattern and an arrow labeled 'STOP' pointing to the side (no other text or symbols)

Passo 2

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

CONTINUE

Passo 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Passo 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch CFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Circular icon with a blue 'Power' button surrounded by abstract geometric shapes (no text or symbols)

OK, I DID IT

Passo 5

Passo 6.1-6.2

Passo 7

CONTROLLO DA REMOTO

3. PRIMA DI COMINCIARE

Simple line drawing of a kitchen sink with a hand cleaning the window and a water bottle labeled H20 (no text or symbols on main elements)

Simple line drawing of a cabinet with swirling smoke and a cabinet door (no text or symbols)

Hand icon pointing at a circular button with a sun and Wi-Fi symbol, next to a digital interface panel (no text or symbols on the hand or screen)

MENU FUNZIONE

Hand interacting with a touchscreen device displaying icons (no text or symbols visible)

Diagram of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a curved cutout and an arrow pointing to it (no text or symbols)

Simple line drawing of a chef's hat and coat (no text or symbols)

Consigli di cottura

Illustration of a pen writing on a bone next to a cartoon dog (no text or symbols)

Line drawing of an oven with a rack inside, showing internal structure and airflow direction (no text or symbols)

Hand cleaning a window with a blue cloth (no text or symbols visible)

H2O Clean

Illustration of a hand cleaning a window with a blue cloth (no text or symbols)

Line drawing of hands operating a doorbell with a lid, no text or symbols present

Pure technical diagram showing a mechanical component with a blue arrow indicating direction (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing a hand pressing a star-shaped object on a mechanical component with an exclamation mark (no text or symbols present)

Line drawing of a hand holding a tool near a structural frame (no text or symbols)

Line drawing of a hand holding a blue circle with a diagonal line, pointing to a small object on a wooden panel (no text or symbols)

Diagram showing a hand using a tool to adjust or install a component, with no visible text or symbols.

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

Illustration of a hand cleaning a surface with a water bottle and a bowl labeled H₂O (no text or symbols on the main image)

Simple line drawing of a window frame with an openboard and directional arrows indicating movement (no text or symbols)

Line drawing of hands operating a door frame inside a oven (no text or symbols)

Diagram showing a blue tool interacting with a mechanical component, no text or symbols present

Simple line drawing of a hand holding a tool, with a blue circle highlighting the tool area (no text or symbols)

Line drawing of a hand holding a tool near a vehicle or rail, with no visible text or symbols

6.3. PULIZIA DEGLI ACCESSORI

Passo 2

Hand holding a circular object with a blue arrow inside an oven (no text or symbols)

Passo 3

Illustration of a hand holding a circular device with a blue arrow pointing to it, next to an open appliance (no text or symbols present)

Passo 4

Illustration of a hand holding a circular device with an arrow pointing upward, next to a washing machine (no text or symbols)

Passo 5

Line drawing of a hand holding a circular object with a blue arrow, next to an open oven (no text or symbols)

Passo 6

Line drawing of a washing machine with two circular components, one showing internal structure and the other with a crosshair symbol (no text or labels)

Passo 2

Illustration of a hand using a tool to clean or store items, with a magnified inset showing the process (no text or symbols present)

Passo 3

Illustration of a hand inserting a small component into a device, with no visible text or symbols.

Passo 4

Illustration of a hand inserting a component into a device (no text or symbols present)

Passo 5

Diagram of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

Passo 6

Isometric line drawing of a multi-level refrigerator with drawers, shelves, and a drawer (no text or symbols)

WILLKOMMEN

Simple illustration of a blue-handled tool with a downward arrow, no text or symbols present

Empty white rectangle with a thin gray border (no text or symbols)

Technical line drawing of a multi-tiered storage unit with horizontal and vertical metal racks (no text or symbols)

3D wireframe diagram of a rectangular tray or vent with internal compartments, placed inside an oven (no text or symbols)

3D wireframe diagram of a rectangular tray or container with internal compartments, placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a bowl and a round object on a grater (no text or symbols)

Line drawing of a rectangular tray with a grid pattern on the front face, placed inside a storage unit (no text or symbols)

Line drawing of a roasted chicken on a cutting board (no text or symbols)

Simple line drawing of a door with a circular arrow indicating airflow or motion (no text or symbols)

Line drawing of a rectangular appliance with a slatted lid and internal grating, placed inside an oven (no text or symbols)

Simple line drawing of a pen with a blue handle and pointed tip (no text or symbols)

3D rendering of a rectangular tray with a textured inner surface, placed on a shelf (no text or symbols visible)

Schritt 2

Schritt 3

Schritt 4

Schritt 5

FERNSTEUERUNG

3. VOR DEM START

3.1. INFORMATIONEN ZUM START

Simple line drawing of a kitchen sink with a hand cleaning the interior (no text or symbols)

Simple line drawing of a steam rising from a box to a cabinet (no text or symbols)

MENÜ FUNKTIONEN

Hand interacting with a touchscreen device displaying various icons (no text or symbols visible)

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a device with a blue arrow pointing to it (no text or symbols)

Simple line drawing of a steamed chicken with a fork (no text or symbols)

Tipps fürs Garen

Simple line drawing of a medical procedure with a tool and tubing (no text or symbols)

Line drawing of an oven with internal structure and airflow direction indicator (no text or symbols)

Hand cleaning a kitchen appliance with a blue cloth (no text or symbols visible)

H2O Clean

Illustration of a hand cleaning a window with a blue cloth (no text or symbols)

Line drawing of an oven with a blue arrow indicating a component or operation (no text or symbols present)

Simple line drawing of a hand cleaning a cleanstand with a cloth and a small bottle nearby (no text or symbols)

Line drawing of a box with two hands holding blue tools, no text or symbols present

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a diagonal line through a window frame, no text or symbols present

Illustration of a hand cleaning a blue cloth over a surface with a water bottle and beaker (no text or symbols)

Pure technical line drawing of a mechanical assembly with no text or symbols

Line drawing of a box with two hands inserting a blue tool into the opening (no text or symbols)

Simple line drawing of a hand holding a tool, with no text or symbols present

Schritt 2

Hand holding a paper with a blue checkmark inside an open box (no text or symbols visible)

Schritt 3

Line drawing of a hand holding a circular object with a blue arrow inside, next to an open device (no text or symbols)

Schritt 4

Hand holding a circular object inside an oven, with a blue arrow indicating rotation (no text or symbols)

Schritt 5

Hand holding a circular object inside an oven with a blue arrow indicating rotation (no text or symbols)

Schritt 6

Schritt 2

Illustration of a hand holding a magnifying glass over a stack of books, with a blue arrow pointing to the paper (no text or symbols present)

Schritt 3

Illustration of a hand holding a small electronic component inside a circular frame, with no visible text or symbols.

Schritt 4

Illustration of a hand holding a small electronic component with a blue arrow pointing to it, next to stacked books (no text or symbols)

Schritt 5

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Schritt 6

ΚΑΛΩΣΗΡΘΑΤΕ

Simple illustration of a blue-handled tool with a black downward arrow pointing to it (no text or symbols)

2.2. E≡APTHMATA

Line drawing of a two-tiered storage rack or shelf system (no text or symbols)

3D wireframe diagram of a rectangular tray or container with internal compartments, placed inside an open storage cabinet (no text or symbols)

Empty white rectangle with a thin gray border (no text or symbols)

3D wireframe diagram of a rectangular tray or container with internal compartments, placed inside a storage unit (no text or symbols)

Line drawing of a kitchen sink with a bowl, a round head, and a mesh rack (no text or symbols)

Line drawing of a rectangular tray with a striped pattern on the side, placed in a room with shelves and furniture (no text or symbols)

Line drawing of a roasted chicken on a cutting board (no text or symbols)

Simple line drawing of a door with a circular component and a hanging object, no text or symbols present.

Line drawing of a rectangular appliance with a grid-patterned lid and base, placed on an oven (no text or symbols)

Simple line drawing of a pen with a blue handle and pointed tip (no text or symbols)

3D rendering of a rectangular tray with a textured inner surface, placed inside a storage unit (no text or symbols visible)

ΕΓΓΡΑΦΗ ΝΕΟΥ ΧΡΗΣΤΗ

Βήμα 2

Βήμα 3

Βήμα 4

Βήμα 5

Βήμα 6.1-6.2

Βήμα 7

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle nearby (no text or symbols)

Simple line drawing of a cabinet with swirling smoke rising from the top, next to an open door (no text or symbols)

ΜΕΝΟΥ ΛΕΙΤΟΥΡΓΙΩΝ

Hand interacting with a touchscreen device displaying various icons (no text or symbols visible)

b. MINUTE MINDER

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a blue arrow pointing to it, no text or symbols present.

Simple line drawing of a stylized animal head with a fork (no text or symbols)

Illustration of a medical procedure with a tool and tubing, no text or symbols present

Line drawing of an oven with internal structure and airflow direction indicator (no text or symbols)

Hand cleaning a window with a cloth, showing surface dust and spray (no text or symbols)

H2O Clean

Hand cleaning a window with a cloth, showing dust and spray (no text or symbols)

Line drawing of an oven with a rack and vent, showing internal structure without any text or symbols

Simple line drawing of a kitchen sink with a hand cleaning the interior (no text or symbols)

Line drawing of a box with two hands operating it, no text or symbols present

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a diagonal line through a corner, with a blue circle highlighting the intersection area (no text or symbols present)

Illustration of a hand cleaning a surface with a blue cloth and a water bottle, no text or symbols present

Technical line drawing of a mechanical assembly with arrows indicating direction (no text or symbols)

Line drawing of a box with two hands inserting a blue tool into the opening (no text or symbols)

Simple line drawing of a hand holding a tool, with no text or symbols present

6.3. ΚΑΘΑΡΙΣΜΟΣ ΕΞΑΡΤΗΜΑΤΩΝ

Line drawing of an oven with a blue arrow indicating direction (no text or symbols)

Illustration of a hand cleaning a window with a blue cloth, a water bottle, and a bowl labeled H₂O (no text or symbols on main objects)

Line drawing of an oven with a vent and airflow direction arrow (no text or symbols)

Pure diagram of a vertical panel with horizontal bars, no text or symbols present

Diagram of a vertical ladder structure with a blue curved arrow indicating rotation (no text or symbols)

Hand holding a transparent panel with a 90-degree angle indicator (no text or symbols on the panel itself)

Illustration of a hand cleaning a window with a blue cloth, next to a water bottle and a bowl labeled H₂O (no text or symbols on main objects)

Hand holding a transparent panel with arrows indicating direction (no text or symbols)

Diagram of a vertical ladder structure with an arrow indicating direction (no text or symbols present)

6.4. ΣΥΝΤΗΡΗΣΗ

Βήμα 2

Hand holding a paper with a blue checkmark inside an open box (no text or symbols visible)

Βήμα 3

Line drawing of a hand holding a circular object with a blue arrow, next to an open device (no text or symbols)

Βήμα 4

Hand holding a circular object with a blue arrow inside, inside an open appliance (no text or symbols)

Βήμα 5

Hand cleaning a kitchen appliance with a circular brush (no text or symbols visible)

Βήμα 6

Βήμα 2

Illustration of a hand inserting a component into a paper airplane (no text or symbols)

Βήμα 3

Illustration of a hand holding a small object inside a circular frame, with a blue arrow indicating direction (no text or symbols present)

Βήμα 4

Illustration of a hand holding a small electronic component with an arrow pointing to it, next to stacked books (no text or symbols)

Βήμα 5

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Βήμα 6

Simple line drawing of a cabinet with blue smoke or vapor rising from the window (no text or symbols)

Simple line drawing of a hand cleaning a kitchen with a blue cloth and a small bottle nearby (no text or symbols)

BIENVENIDO/A

Simple illustration of a blue pen with a black downward arrow pointing to it (no text or symbols)

Empty white rectangle with a thin gray border (no text or symbols)

Line drawing of a two-tiered storage rack with horizontal and vertical metal supports (no text or symbols)

3D wireframe diagram of a rectangular tray or basin inside an oven (no text or symbols)

3D wireframe diagram of a rectangular tray or container with internal compartments, placed inside an appliance housing (no text or symbols)

Line drawing of a bathroom sink with a bowl and wall-mounted sink (no text or symbols)

Line drawing of a rectangular tray with a grid pattern on the front face, placed inside a storage unit (no text or symbols)

Line drawing of a roasted chicken on an open tray with steam rising (no text or symbols)

Simple line drawing of a door with a circular component and motion arrow, no text or symbols present

Line drawing of a rectangular appliance with a grid-patterned lid and base, placed on a shelf (no text or symbols)

Simple line drawing of a pen with a blue handle and pointed tip (no text or symbols)

3D rendering of a rectangular tray with a textured inner surface, placed inside a storage cabinet (no text or symbols visible)

REGISTRO RÁPIDO PARA EMPAREJAMIENTO

Paso 1

Paso 2

Paso 3

Paso 4

Paso 5

Paso 6.1-6.2

Paso 7

3. ANTES DE EMPEZAR

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle nearby (no text or symbols)

Simple line drawing of a steam rising from an open oven to a cabinet (no text or symbols)

MENÚ DE FUNCIONES

Hand interacting with a touchscreen device displaying various icons (no text or symbols visible)

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a blue arrow pointing to it, no text or symbols present.

Simple line drawing of a stylized animal head with a fork (no text or symbols)

Consejos de cocción

Simple line drawing of a medical procedure with a bulb, needle, and tubing (no text or symbols)

Line drawing of an oven with internal grating and cooling unit (no text or symbols)

Hand cleaning a window with a blue cloth, showing surface dust and debris (no text or symbols)

H2O Clean

Line drawing of an oven with a rack and vent, showing internal structure (no text or symbols)

Simple line drawing of a kitchen sink with a hand cleaning it, no text or symbols present

Line drawing of a box with two hands holding blue tools, no text or symbols present

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a diagonal line through a window frame, no text or symbols present

Illustration of a hand cleaning a tiled surface with a blue cloth and a small bowl labeled H₂O (no text or symbols present)

Technical line drawing of a mechanical assembly with arrows indicating direction (no text or symbols)

Line drawing of a box with two hands inserting a blue tool into the opening (no text or symbols)

Simple line drawing of a hand holding a tool, with no text or symbols present

6.3. LIMPIEZA DE ACCESORIOS

Line drawing of an oven with a blue arrow indicating direction (no text or symbols)

Illustration of a hand cleaning a window with a blue cloth, a water bottle, and a beaker labeled H₂O (no text or symbols on main objects)

Line drawing of an oven with a vent and airflow direction arrow (no text or symbols)

Line drawing of a wall-mounted rack or vent with multiple parallel slats, no text or symbols present

Diagram of a vertical panel with horizontal bands and a blue curved arrow indicating rotation (no text or symbols)

Hand holding a transparent panel with a blue arrow indicating direction (no text or symbols)

Illustration of a hand cleaning a window with a blue cloth, a water bottle, and a bowl labeled H₂O (no text or symbols on main objects)

Hand holding a wall-mounted device with a blue arrow pointing to it, no text or symbols present

Diagram of a vertical panel with arrows indicating direction, no text or symbols present

6.4. MANTENIMIENTO

Paso 2

Hand holding a paper with a blue checkmark inside an open box (no text or symbols visible)

Paso 3

Line drawing of a hand holding a circular object with a blue arrow inside, next to an open device (no text or symbols)

Paso 4

Hand holding a circular diagram with arrows inside an oven (no text or symbols)

Paso 5

Hand holding a circular object inside an oven, with a blue arrow indicating rotation (no text or symbols)

Paso 6

Paso 2

Illustration of a hand holding a magnifying glass over a stack of books, with a blue arrow pointing to the paper (no text or symbols present)

Paso 3

Illustration of a hand holding a small electronic component inside a circular frame, with no visible text or symbols.

Paso 4

Illustration of a hand holding a small object with a blue arrow pointing to it, next to stacked books (no text or symbols)

Paso 5

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Paso 6

en mm

WELKOM

2. PRODUCTINTRODUCTIE

4. WERKING VAN HET PRODUCT

ALGEMENE WAARSCHUWINGEN

INSTALLATIEWAARSCHUWINGEN

Simple illustration of a blue-handled tool with a downward arrow, no text or symbols present

2. PRODUCTINTRODUCTIE

2.1. OVERZICHT VAN HET PRODUCT

Empty white rectangle with a thin gray border (no text or symbols)

Technical line drawing of a two-tiered storage unit with horizontal metal racks (no text or symbols)

3D diagram of a rectangular tray with internal geometric cutouts, placed on an inclined shelf (no text or symbols)

3D technical line drawing of a rectangular tray or container with internal compartments (no text or symbols)

Technical line drawing of a kitchen sink with a bowl and a sphere on a tray (no text or symbols)

Line drawing of a rectangular tray with a striped pattern inside, placed on a shelf (no text or symbols)

Simple line drawing of a roasted chicken on a cutting board (no text or symbols)

Simple line drawing of a door with a circular arrow indicating airflow or motion (no text or symbols)

Diagram of a rectangular appliance with internal grating and lid, placed inside an oven (no text or symbols)

Simple line drawing of a pen with a blue handle and pointed tip (no text or symbols)

3D rendering of a rectangular tray with a textured inner surface, placed inside a rack (no text or symbols visible)

REGISTRATIE NIEUWE GEBRUIKER

SNELLE KOPPELING

Stap 1

Stap 2

Stap 3

- Selecteer 'Oven' in de apparaatcategorie.

Stap 4

Stap 5

Stap 6.1–6.2

Stap 7

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle nearby (no text or symbols)

Simple line drawing of a cabinet with swirling smoke rising from the top, next to an open cabinet (no text or symbols)

4. WERKING VAN HET PRODUCT

4.1. HOE HET PRODUCT WERKT

DE OVEN AAN-/UITZETTEN

FUNCTIEMENU

Hand interacting with a touchscreen device displaying various icons (no text or symbols visible)

b. MINUTENTELLER

c. UITGESTELDE START

TEMPERATUURMENU

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a curved cutout and a blue arrow pointing to it (no text or symbols)

Simple line drawing of a chicken with a chimney and a knife inserted (no text or symbols)

Kooktips

Simple line drawing of a medical procedure with a bulb, needle, and tubing (no text or symbols)

Line drawing of an oven with internal grating and cooling unit (no text or symbols)

Illustration of a hand cleaning a window with a cloth (no text or symbols)

H2O-clean

Hand cleaning a window with a blue cloth, showing surface dust and debris (no text or symbols)

Katalytisch reinigen

Line drawing of an oven with a blue arrow indicating a component, showing internal structure without any text or symbols.

Simple line drawing of a kitchen sink with a hand cleaning the interior (no text or symbols)

Line drawing of a box with two hands inserting a blue tool into the opening (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a diagonal line through a corner, with a blue circle highlighting the intersection area (no text or symbols present)

Illustration of a hand cleaning a surface with a blue cloth and a water bottle, no text or symbols present.

Technical line drawing of a mechanical assembly with arrows indicating direction (no text or symbols)

Line drawing of a box with two hands inserting a blue tool into the opening (no text or symbols)

Simple line drawing of a hand holding a tool, with no text or symbols present

6.3. SCHOONMAKEN VAN ACCESSOIRES

Line drawing of an oven with a vent and airflow direction arrow (no text or symbols)

Illustration of a hand cleaning a rack with a blue cloth, a water bottle, and a bowl labeled H₂O (no text or symbols on main objects)

Diagram of an oven with a vent and airflow direction arrow (no text or symbols)

Pure diagram of a vertical panel or rack structure without any text, numbers, or symbols

Diagram of a vertical panel with horizontal rows and a curved arrow indicating rotation (no text or symbols)

Hand holding a wall-mounted device with a blue arrow pointing to it (no text or symbols visible)

Illustration of a hand cleaning a window with a blue cloth, next to a water bottle and a bowl labeled H₂O (no text or symbols on main objects)

Diagram of a vertical panel with a blue arrow indicating rotation (no text or symbols present)

6.4. ONDERHOUD

VERVANGING VAN ONDERDELEN

Stap 2

Hand holding a paper with a blue checkmark inside an open kitchen appliance (no text or symbols visible)

Stap 3

Line drawing of a hand holding a circular object with a blue arrow inside, next to an open device (no text or symbols)

Stap 4

Hand holding a circular diagram with arrows inside an oven (no text or symbols)

Stap 5

Hand holding a circular object inside an oven with a blue arrow indicating rotation (no text or symbols)

Stap 6

Stap 2

Illustration of a hand holding a magnifying glass over a stack of books, with a blue arrow pointing to the paper (no text or symbols present)

Stap 3

Illustration of a hand holding a small electronic component inside a circular frame, with no visible text or symbols.

Stap 4

Illustration of a hand holding a small object with a blue arrow pointing to it, next to stacked books (no text or symbols)

Stap 5

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Stap 6

8.1. VERWIJDERING VAN APPARATEN

BEM-VINDO

Simple illustration of a blue pen with a black downward arrow pointing to it (no text or symbols)

Empty white rectangle with a thin gray border (no text or symbols)

Line drawing of a two-tiered storage rack or shelf unit (no text or symbols)

3D wireframe diagram of a rectangular tray or basin with internal grid pattern, placed inside an open storage cabinet (no text or symbols)

3D wireframe diagram of a rectangular tray or container with internal compartments, placed inside a storage unit (no text or symbols)

Line drawing of a kitchen sink with a bowl and a sphere on the shelf (no text or symbols)

Line drawing of a rectangular tray with a patterned lid and internal grid lines, placed on a shelf (no text or symbols)

Line drawing of a rolling pin on an open plate with steam rising (no text or symbols)

Simple line drawing of a door with a circular component and motion arrow, no text or symbols present

Diagram of a rectangular appliance with a mesh grille and internal structure, placed inside an oven (no text or symbols)

Simple line drawing of a pen with a blue handle and pointed tip (no text or symbols)

Illustration of a rectangular tray with a textured inner surface, placed inside a kitchen appliance (no text or symbols visible)

Passo 2

Passo 3

Passo 4

Passo 5

Passo 6.1-6.2

Passo 7

COMO ALTERAR AS DEFINIÇÕES DE WIFI

CONTROLO REMOTO

3. ANTES DE COMEÇAR

3.1. INFORMAÇÕES PARA COMEÇAR

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle nearby (no text or symbols)

Simple line drawing of a cabinet with swirling smoke rising from the top, next to an open cabinet (no text or symbols)

MENU FUNÇÕES

Hand interacting with a touchscreen device displaying various icons (no text or symbols visible)

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a curved cutout and a blue arrow pointing to it (no text or symbols)

Como registar e utilizar a Preci Probe:

Simple line drawing of a bread roll with a chimney (no text or symbols)

Dicas de cozinha

Simple line drawing of a medical device with a bulb, pen, and tubing (no text or symbols)

Line drawing of an oven with internal grating and cooling rack (no text or symbols)

Hand cleaning a kitchen appliance with a blue cloth (no text or symbols visible)

H2O Clean

Hand cleaning a window with a blue cloth, showing surface dust and debris (no text or symbols)

Limpeza catalítica

Line drawing of an oven with a blue arrow indicating a component (no text or symbols present)

Simple line drawing of a kitchen sink with a hand cleaning the interior (no text or symbols)

Line drawing of a box with two hands holding blue tools, no text or symbols present

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a diagonal line through a corner, with a blue circle highlighting the intersection area (no text or symbols present)

Illustration of a hand cleaning a surface with a blue cloth and a water bottle, no text or symbols present

Pure technical line drawing of a mechanical assembly with no text or symbols

Line drawing of a box with two hands inserting a blue tool into the opening (no text or symbols)

Simple line drawing of a hand holding a tool, with no text or symbols present

6.3. LIMPEZA DOS ACESSÓRIOS

Line drawing of an oven with a blue arrow indicating direction (no text or symbols)

Illustration of a hand cleaning a window with a blue cloth, a water bottle, and a beaker labeled H₂O (no text or symbols on main objects)

Line drawing of an oven with a vent and airflow direction arrow (no text or symbols)

Line drawing of a wall-mounted rack or vent with two black connectors (no text or symbols)

Diagram of a vertical panel with horizontal bars and a blue curved arrow indicating rotation (no text or symbols)

Hand holding a wall-mounted device with a blue arrow indicating direction (no text or symbols)

Illustration of a hand cleaning a window with a blue cloth, a water bottle, and a bowl labeled H₂O (no text or symbols on main objects)

Hand holding a wall-mounted device with a blue arrow indicating direction (no text or symbols)

Diagram of a vertical panel with a blue arrow indicating rotation or movement (no text or symbols present)

6.4. MANUTENÇÃO

Passo 2

Hand holding a paper with a blue checkmark inside an open box (no text or symbols visible)

Passo 3

Line drawing of a hand holding a circular object with a blue arrow inside, next to an open device (no text or symbols)

Passo 4

Hand holding a circular diagram with arrows inside an oven (no text or symbols)

Passo 5

Hand holding a circular object inside an oven, with a blue arrow indicating rotation (no text or symbols)

Passo 6

Passo 2

Illustration of a hand holding a magnifying glass over a stack of books, with a blue arrow pointing to the paper (no text or symbols present)

Passo 3

Illustration of a hand holding a small electronic component inside a circular frame, with no visible text or symbols.

Passo 4

Illustration of a hand holding a small object with a blue arrow pointing to it, next to stacked books (no text or symbols)

Passo 5

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Passo 6

Illustration showing a kitchen appliance with a blue smokestack emitting vapor, and a close-up of the oven with a hand cleaning it (no text or symbols)

VITAJTE

Simple illustration of a blue-handled tool with a downward arrow, no text or symbols present

2.2. PRÍSLUŠENSTVO

Technical line drawing of a two-tiered storage unit with horizontal supports (no text or symbols)

3D wireframe diagram of a rectangular tray or basin with internal partitioning, placed inside a rack (no text or symbols)

Empty white rectangle with a thin black border (no text or symbols)

3D diagram of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a bowl and a sphere on a grater (no text or symbols)

Technical line drawing of a rectangular tray with internal grating pattern (no text or symbols)

Line drawing of a rooster rolling out dough on a tray (no text or symbols)

Simple line drawing of a door with a circular arrow indicating airflow or motion (no text or symbols)

Line drawing of a rectangular appliance with internal grating and a side panel, placed on a shelf (no text or symbols)

Simple line drawing of a pen with a blue handle and pointed tip (no text or symbols)

3D rendering of a rectangular tray with a mesh pattern inside, placed on a shelf (no text or symbols visible)

AKO KOMUNIKOVAŤ S APLIKÁCIOU

REGISTRÁCIA NOVÉHO POUŽÍVATEL'A

RÝCHLE PÁROVANIE

Krok 1

Krok 2

• Povol'te lokalizáciu zariadenia.

Krok 3

• Vyberte rúru z kategórie spotrebičov.

Krok 4

- Zapnite spotrebič. Ak už je zapnutý, vypnite ho a znova zapnite.

Krok 5

Krok 7

AKO ZMENIŠ NASTAVENIA WI-FI

DIAL'KOVÉ OVLÁDANIE

3. PRED ZAČATÍM

3.1. INFORMÁCIE PRED SPUSTENÍM

Simple line drawing of a kitchen sink with a hand cleaning the interior and a bottle nearby (no text or symbols)

Simple line drawing of a steam rising from a chimney to a cabinet (no text or symbols)

4. OBSLUHA SPOTREBIČA

4.1. FUNGOVANIE SPOTREBIČA

ZAPNUTIE/VYPNUTIE RÚRY

PONUKA FUNKCIÍ

Hand interacting with a smartphone displaying a digital interface (no text or symbols visible)

Ako nastavit funkciu Jolly:

Diagram of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a curved cutout and an arrow pointing to it (no text or symbols)

Simple line drawing of a steamed chicken with a fork (no text or symbols)

Tipy na varenie

Illustration of a medical procedure with a tool and probe inserted into a patient's abdomen (no text or symbols)

Line drawing of a laboratory oven with cooling rack and side panel (no text or symbols)

Hand cleaning a window with a blue cloth, showing surface dust and debris (no text or symbols)

H2O Clean

Hand cleaning a window with a blue cloth, showing dust and spray (no text or symbols)

Line drawing of an oven with a blue arrow indicating airflow or movement (no text or symbols)

Simple line drawing of a kitchen sink with a hand cleaning the interior (no text or symbols)

Line drawing of a hand inserting a blue cable into a box (no text or symbols)

Simple line drawing of a mechanical component with a blue downward arrow indicating force or direction (no text or symbols)

Pure technical diagram of a mechanical component with directional arrows, no text or symbols present

1. VAROVANIE: Vonkajšie sklo sa nedá vybrat.

Hand holding a diagonal line with a blue circle highlighting the intersection of two lines (no text or symbols present)

Illustration of a hand cleaning a surface with a blue cloth and a water bottle labeled 'H2O' (no text or symbols on the main image)

Technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Line drawing of hands opening a small oven with a lid (no text or symbols)

Simple line drawing of a tool interacting with a mechanical component (no text or symbols)

6.3. ČISTENIE PRÍSLUŠENSTVA

Line drawing of an oven with a blue arrow indicating direction (no text or symbols)

Illustration of a hand cleaning a rack with a blue cloth, next to a washing bottle and a bowl labeled H₂O (no text or symbols on main objects)

Diagram of an oven with a blue arrow indicating direction, showing internal structure without any text or symbols.

— Model so 7 úrovňami

Line drawing of a door with horizontal ladders and black connectors (no text or symbols)

Diagram of a vertical ladder structure with directional arrows indicating movement (no text or symbols)

Hand holding a transparent panel with a blue arrow pointing to it, no text or symbols present

Illustration of a hand cleaning a window with a blue cloth, a water bottle, and a bowl labeled H₂O (no text or symbols on main objects)

Hand placing a wall-mounted device into a room with a blue arrow indicating direction (no text or symbols)

Diagram of a 3D panel with arrows indicating direction (no text or symbols)

6.4. ÚDRŽBA

VÝMENA KOMPONENTOV

Krok 2

Hand holding a paper with a blue checkmark inside an open oven (no text or symbols)

Krok 3

Hand holding a circular object with a blue arrow inside, next to an open box (no text or symbols visible)

Krok 4

Hand holding a circular diagram with arrow inside a device (no text or symbols)

Krok 5

Hand holding a circular object with a blue arrow, next to an open appliance (no text or symbols visible)

Krok 6

Krok 2

Illustration of a hand holding a tool interacting with a circular object, next to stacked books (no text or symbols visible)

Krok 3

Illustration of a hand inserting a component into a device (no text or symbols visible)

Krok 4

Illustration of a hand holding a device inside a circular frame, with no visible text or symbols.

Krok 5

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Krok 6

8. OCHRANA ŽIVOTNÉHO PROSTREDIA A LIKVIDÁCIA SPOTR

8.1. LIKVIDÁCIA SPOTREBIČA

Isometric line drawing of a rectangular box with a side clip and mounting feet (no text or symbols)

Isometric line drawing of a rectangular box with a side tab and handle (no text or symbols)

WITAMY

Simple illustration of a blue-handled knife with a downward arrow pointing to it (no text or symbols)

2.2. AKCESORIA

Line drawing of a multi-tiered storage rack unit with no text or symbols

3D line drawing of a rectangular tray or basin with internal compartments, placed inside an oven (no text or symbols)

3D wireframe diagram of a rectangular tray or container with internal compartments, placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a bowl and a sphere on a grater (no text or symbols)

Line drawing of a rectangular tray with a grid pattern on top, placed inside a kitchen appliance (no text or symbols)

Line drawing of a rolling pan with steam rising from it, no text or symbols present

Simple line drawing of a door with a circular component and a bracket, no text or symbols present

Line drawing of a rectangular appliance with a grating and lid, placed on an oven (no text or symbols)

Simple line drawing of a pen with a blue handle and pointed tip (no text or symbols)

3D rendering of a rectangular tray with a mesh pattern inside, placed inside a storage unit (no text or symbols visible)

INFORMACJE O PRODUKCIE DOT. URZĄDZEŃ SIECIOWYCH

SZYBKA REJESTRACJA PAROWANIA

Krok 1

Krok 2

Krok 5

Krok 7

JAK ZMIENIĆ USTAWIENIA WIFI

ZDALNE STEROWANIE

3. PRZED URUCHOMIENIEM

3.1. INFORMACJE NA START

Simple line drawing of a kitchen sink with a hand cleaning the interior and a small bowl with a bottle nearby (no text or symbols)

Simple line drawing of a steaming cabinet with a door open, no text or symbols present

4. DZIAŁANIE PRODUKTU

4.1. JAK DZIAŁA PRODUKT

WŁĄCZANIE/WYŁĄCZANIE PIEKARNIKA

MENU FUNKCJI

Hand interacting with a smartphone displaying a digital interface (no text or symbols visible)

b. MINUTNIK

c. OPÓŹNIENIE URUCHOMIENIA

TEMPERATURA

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a curved cutout and an arrow pointing to it (no text or symbols)

Simple line drawing of a chef's hat and coat (no text or symbols)

Illustration of a medical procedure with a tool and probe inserted into a patient's abdomen (no text or symbols)

Line drawing of an oven with cooling rack and heat exchanger (no text or symbols)

Hand cleaning a blue cloth inside a washing machine (no text or symbols visible)

H2O Clean

Line drawing of a hand inserting a blue cable into a box (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a diagonal line with a blue circle highlighting the intersection of two lines (no text or symbols present)

Illustration of a hand cleaning a surface with a blue cloth and a water bottle, no text or symbols present.

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of a hand inserting a blue tool into an open oven (no text or symbols)

Simple line drawing of a tool interacting with a mechanical component (no text or symbols)

6.3. CZYSZCZENIE AKCESORIÓW

Krok 2

Hand holding a circular object with a blue arrow inside, next to an open appliance (no text or symbols visible)

Krok 3

Hand holding a circular object inside a device (no text or symbols visible)

Krok 4

Hand holding a circular object with a blue spiral arrow inside, inside a technical diagram (no text or symbols)

Krok 5

Hand holding a circular object with a blue arrow, inside an open appliance (no text or symbols visible)

Krok 6

Krok 2

Simple line drawing of a hand holding a pen over a document, with no text or symbols present.

Krok 3

Illustration of a hand holding a magnifying glass over a wall-mounted device, with no visible text or symbols.

Krok 4

Illustration of a hand holding a device inside a circular frame, with no visible text or symbols.

Krok 5

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Krok 6

Illustration showing a kitchen cleaning setup with a blue smokestack and a hand cleaning a clean appliance (no text or symbols)

8. OCHRONA ŚRODOWISKA I UTYLIZACJA ODPADÓW

8.1. UTYLIZACJA URZĄDZENIA

Isometric line drawing of a rectangular box with a side clip and mounting feet (no text or symbols)

Isometric line drawing of a rectangular box with a side clip and mounting feet (no text or symbols)

VÍTEJTE

Simple illustration of a blue-handled pen with a downward arrow pointing to it (no text or symbols)

2.2. PŘÍSLUŠENSTVÍ

Technical line drawing of a two-tiered storage unit with horizontal supports and a central tray (no text or symbols)

3D wireframe diagram of a rectangular tray or container with internal compartments, placed inside an open storage cabinet (no text or symbols)

Empty white rectangle with a thin border (no text or symbols)

3D wireframe diagram of a rectangular tray or container placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a bowl and a round object on a grater (no text or symbols)

Line drawing of a rectangular tray with a grid pattern, placed inside a kitchen appliance (no text or symbols)

Line drawing of a rolling dough on a tray with steam rising (no text or symbols)

Simple line drawing of a door with a circular component and directional arrow, no text or symbols present

Diagram of a rectangular appliance with internal grating and ventilation slots, placed on a tray (no text or symbols)

Simple line drawing of a pen with a blue handle and pointed tip (no text or symbols)

3D rendering of a rectangular tray with a perforated interior, placed inside a kitchen appliance (no text or symbols visible)

REGISTRACE NOVÉHO UŽIVATELE

RYCHLÉ PÁROVÁNÍ S REGISTRACÍ

Krok 1

Krok 2

Krok 5

Kroky 6.1–6.2

Krok 7

JAK ZMĚNIT NASTAVENÍ WIFI

DÁLKOVÉ OVLÁDÁNÍ

3. NEŽ ZAČNETE

3.1. INFORMACE KE SPUŠTĚNÍ

Simple line drawing of a kitchen sink with a hand cleaning the interior and a bottle nearby (no text or symbols)

Simple line drawing of a steam rising from a chimney to a cabinet (no text or symbols)

4. OVLÁDÁNÍ SPOTŘEBIČE

4.1. JAK TENTO VÝROBEK FUNGUJE

Hand interacting with a touchscreen interface and a digital device displaying icons (no text or symbols)

NABÍDKA FUNKCÍ

Hand interacting with a touchscreen interface displaying icons (no text or symbols)

b. MINUTKA

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a curved cutout and an arrow pointing to it (no text or symbols)

Simple line drawing of a chef's hat and coat (no text or symbols)

Illustration of a medical procedure with a tool and tubing, no text or symbols present

Line drawing of a laboratory oven with cooling fins and a blue arrow indicating airflow direction (no text or symbols)

Hand cleaning a kitchen appliance with a blue cloth (no text or symbols visible)

H2O cleaning

Hand cleaning a window with a cloth, showing dust and spray (no text or symbols)

Katalytické čištění

Line drawing of an oven with cooling fins and a blue arrow indicating airflow direction (no text or symbols)

Simple line drawing of a hand cleaning a kitchen appliance with a cloth and a bottle nearby (no text or symbols)

Line drawing of a hand inserting a blue cable into a box (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

Pure technical diagram of a mechanical component with directional arrows, no text or symbols present

Hand holding a diagonal line with a blue circle highlighting the intersection of two lines (no text or symbols present)

Illustration of a hand cleaning a surface with a blue cloth and a water bottle, no text or symbols present.

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of hands opening a small oven with a lid (no text or symbols)

Simple line drawing of a tool interacting with a mechanical component (no text or symbols)

Line drawing of an oven with a blue arrow indicating direction (no text or symbols)

Line drawing of an oven with a vent and airflow direction arrow (no text or symbols)

Line drawing of a wall-mounted rack or shelf unit with mounting feet (no text or symbols)

Diagram of a door with horizontal bars and a curved arrow indicating rotation (no text or symbols)

Illustration of a hand cleaning a window with a blue cloth, a water bottle, and a bowl labeled H₂O (no text or symbols on main objects)

Hand placing a rectangular panel with a blue arrow indicating direction (no text or symbols)

Diagram of a door with horizontal bars and a blue curved arrow indicating rotation (no text or symbols)

6.4. ÚDRŽBA

VÝMĚNA SOUČÁSTÍ

Krok 2

Hand holding a paper with a blue checkmark inside an open oven (no text or symbols)

Krok 3

Hand holding a circular object with a blue arrow inside, next to an open device (no text or symbols visible)

Krok 4

Hand holding a circular object with a blue spiral arrow inside, inside a technical diagram (no text or symbols)

Krok 5

Hand holding a circular object with a blue arrow, next to an open appliance (no text or symbols visible)

Krok 6

Krok 2

Illustration of a hand holding a tool near a stack of books, with a blue arrow pointing to the paper (no text or symbols present)

Krok 3

Illustration of a hand inserting a component into a device (no text or symbols visible)

Krok 4

Illustration of a hand inserting a component into a device (no text or symbols present)

Krok 5

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Krok 6

8. OCHRANA ŽIVOTNÍHO PROSTŘEDÍ A LIKVIDACE

8.1. LIKVIDACE SPOTŘEBIČE

Isometric line drawing of a rectangular box with a side clip and mounting feet (no text or symbols)

Isometric line drawing of a rectangular box with a side clip and mounting holes (no text or symbols)

Simple illustration of a blue-handled tool with a downward arrow pointing to it (no text or symbols)

2.2. ACCESORII

Line drawing of a two-tiered storage unit with horizontal racks and a central shelf (no text or symbols)

3D wireframe diagram of a rectangular tray or basin with internal geometric cutouts, placed inside a rack (no text or symbols)

Blank white rectangle with a thin border (no text or symbols)

3D wireframe diagram of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a round bed and a white bowl on a grater (no text or symbols)

Technical line drawing of a rectangular tray with internal grid pattern (no text or symbols)

Line drawing of a rooster rolling out on a rectangular plate (no text or symbols)

Simple line drawing of a door with a circular component and a handle, no text or symbols present

Diagram of a rectangular appliance with internal grating and lid, placed inside an oven (no text or symbols)

Simple line drawing of a pen with a blue handle and pointed tip (no text or symbols)

3D rendering of a rectangular tray with a mesh pattern inside, placed inside an oven (no text or symbols visible)

ÎNREGISTRAREA UNUI NOU UTILIZATOR

ÎNREGISTRAREA RAPIDĂ A ASOCIERILOR

Pasul 1

Pasul 2

Pasul 5

Pasul 6.1-6.2

Pasul 7

CUM SE SCHIMBĂ SETĂRILE WI-FI

Simple line drawing of a kitchen sink with a hand cleaning the interior and a bottle nearby (no text or symbols)

Simple line drawing of a stove with steam rising from the chimney, next to a cabinet (no text or symbols)

4. UTILIZAREA PRODUSULUI

4.1. CUM FUNCȚIONEAZĂ PRODUSUL

PORNIREA/OPRIREA CUPTORULUI

MENIUL FUNCTIUNI

Hand interacting with a smartphone displaying a virtual interface (no text or symbols visible)

b. MEMENTO MINUTE

c. AMÂNARE PORNIRE

MENIUL DE TEMPERATURĂ

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a curved cutout and an arrow pointing to it (no text or symbols)

Simple line drawing of a chef's hat and coat (no text or symbols)

Illustration of a medical procedure with a tool and tubing, no text or symbols present

Line drawing of an oven with cooling rack and heat exchanger (no text or symbols)

Hand cleaning a window with a blue cloth, no text or symbols visible

H2O cleaning

Hand cleaning a window with a cloth, showing dust and spray (no text or symbols)

Curățare catalitică

Line drawing of an oven with cooling fins and a blue arrow indicating airflow direction (no text or symbols)

Simple line drawing of a kitchen sink with a hand cleaning it, and a bottle nearby (no text or symbols)

Line drawing of hands operating a small oven with blue tape, no text or symbols present

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical diagram of a mechanical component with directional arrows, no text or symbols present

Hand holding a hand with a blue circle highlighting the number 2 (no text or symbols present)

Illustration of a hand cleaning a surface with a blue cloth and a water bottle labeled 'H2O' (no text or symbols on the main image)

Technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Line drawing of hands operating a doorbell with a blue tool, no text or symbols present

Simple line drawing of a mechanical component with a blue tool and arrow indicating direction (no text or symbols)

6.3. CURĂȚAREA ACCESORIILOR

Line drawing of an oven with a blue arrow indicating direction (no text or symbols)

Line drawing of an oven with a vent and airflow direction arrow (no text or symbols)

— Model cu 7 niveluri

Line drawing of a door with multiple latches and a black clip, no text or symbols present

Diagram of a vertical ladder structure with a curved arrow indicating rotation (no text or symbols)

Hand holding a transparent panel with a blue arrow pointing to it, no text or symbols present

Illustration of a hand cleaning a window with a blue cloth, a water bottle, and a bowl labeled H₂O (no text or symbols on main objects)

Hand placing a wall-mounted device into a room with a blue arrow indicating direction (no text or symbols)

Diagram of a vertical panel with arrows indicating direction (no text or symbols)

6.4. ÎNTRETINEREA

ÎNLOCUIREA COMPONENTELOR

Pasul 2

Hand holding a paper airplane with a blue checkmark inside (no text or symbols)

Pasul 3

Line drawing of a hand holding a circular object inside a device (no text or symbols)

Pasul 4

Hand holding a circular object with a blue spiral arrow inside, inside a technical diagram (no text or symbols)

Pasul 5

Hand holding a circular object with a blue arrow, inside an open appliance (no text or symbols visible)

Pasul 6

Pasul 2

Simple line drawing of a hand holding a tool near a paper sheet, with no text or symbols present.

Pasul 3

Illustration of a hand inserting a small component into a device, with no visible text or symbols.

Pasul 4

Illustration of a hand holding a device with an arrow pointing to a component, next to a shelf (no text or symbols)

Pasul 5

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols present)

Pasul 6

8. PROTECTIA MEDIULUI ŞI ELIMINAREA PRODUSULUI

8.1. ELIMINAREA APARATULUI

Isometric line drawing of a rectangular box with a side clip and mounting feet (no text or symbols)

Isometric line drawing of a rectangular box with a side tab and handle (no text or symbols)

Simple illustration of a blue-handled tool with a black downward arrow pointing to it (no text or symbols)

2.2. TARTOZÉKOK

Technical line drawing of a two-tiered storage unit with horizontal and vertical metal racks (no text or symbols)

3D diagram of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Empty white rectangle with a thin border (no text or symbols)

3D wireframe diagram of a rectangular tray or container with internal compartments, placed inside an oven (no text or symbols)

Line drawing of a minimalist room interior with a circular object on a platform and a cylindrical bowl (no text or symbols)

Simple line drawing of a door with a circular component and a bracket, no text or symbols present

Diagram of a rectangular appliance with internal grid pattern and ventilation slots (no text or symbols)

Diagram of a rectangular appliance with internal grating and ventilation slots, placed inside an oven (no text or symbols)

Simple line drawing of a rooster on a tray with steam rising (no text or symbols)

Simple line drawing of a pen with a blue handle and pointed tip (no text or symbols)

3D rendering of a rectangular tray with a textured inner surface, placed inside a transparent housing (no text or symbols visible)

ÚJ FELHASZNÁLÓ REGISZTRÁLÁSA

GYORS PÁROSÍTÁS

1. lépés

2. lépés

5. lépés

7. lépés

TÁVVEZÉRLÉS

3. MIELÖTT ELKEZDENÉ

3.1. KEZDÉSHEZ SZÜKSÉGES INFORMÁCIÓK

Simple line drawing of a kitchen sink with a hand cleaning the interior and a bottle nearby (no text or symbols)

Simple line drawing of a steam rising from a chimney to a cabinet (no text or symbols)

4. A TERMÉK MÚKÖDÉSE

4.1. A TERMÉK MÜKÖDÉSE

A SÜTŐ BE- ÉS KIKAPCSOLÁSA

Hand interacting with a touchscreen interface and a digital security panel (no text or symbols visible)

FUNKCIÓK MENÜ

Hand interacting with a smartphone displaying a digital interface (no text or symbols visible)

b. PERCJELZÓ

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a curved cutout and an arrow pointing to it (no text or symbols)

Simple line drawing of a chef's hat and coat (no text or symbols)

Főzési tippek

Illustration of a medical procedure with a tool and tubing, no text or symbols present

Line drawing of an oven with cooling rack and side panel (no text or symbols)

Hand cleaning a window with a cloth, showing surface dust and spray (no text or symbols)

H2O cleaning

Hand cleaning a kitchen appliance with a blue cloth (no text or symbols visible)

Line drawing of an oven with cooling fins and a blue arrow indicating airflow direction (no text or symbols)

Simple line drawing of a hand cleaning a kitchen appliance with a cloth and a bowl (no text or symbols)

Line drawing of a hand inserting a blue cable into an open oven (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a diagonal line with a blue circle highlighting the intersection of two lines (no text or symbols present)

Illustration of a hand cleaning a tiled surface with a blue cloth and a water bath labeled 'H2O' (no text or symbols on the main image)

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of a hand inserting a blue tool into an open oven (no text or symbols)

Simple line drawing of a tool interacting with a mechanical component (no text or symbols)

Line drawing of an oven with a blue arrow indicating direction (no text or symbols)

Illustration of a hand cleaning a rack with a blue cloth, next to a washing bottle and a bowl labeled H₂O (no text or symbols on main objects)

Diagram of an oven with a blue arrow indicating direction, showing internal structure without any text or symbols.

- 7 szintes modell

Line drawing of a door with multiple latches and a black clip, no text or symbols present

Diagram of a door with horizontal ladders and a curved arrow indicating rotation (no text or symbols)

Hand holding a transparent panel with a blue arrow pointing to it, no text or symbols present

Illustration of a hand cleaning a window with a blue cloth, a water bottle, and a bowl labeled H₂O (no text or symbols on main objects)

Hand holding a transparent panel with arrows indicating direction (no text or symbols)

Diagram of a vertical panel with arrows indicating direction (no text or symbols)

6.4. KARBANTARTÁS

ALKATRÉSZEK CSERÉJE

1. lépés


Hand holding a paper with a blue checkmark inside an oven (no text or symbols)

1. lépés


Hand holding a circular object with a blue arrow, inside a device (no text or symbols visible)

1. lépés


Hand holding a circular object with a blue arrow inside, inside an open device (no text or symbols visible)

1. lépés


Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

1. lépés


1. lépés


Simple line drawing of a hand holding a tool near a paper sheet, with no text or symbols present.

1. lépés


Illustration of a hand inserting a small component into a device, with no visible text or symbols.

1. lépés


Illustration of a hand holding a device with an arrow pointing to a component, next to a shelf (no text or symbols)

1. lépés


Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols present)

1. lépés


Line drawing of a 3D rectangular box with a side panel and handle (no text or symbols)

Isometric line drawing of a rectangular box with a side clip and mounting feet (no text or symbols)

DOBRODOŠLI

Simple illustration of a blue-handled tool with a black downward arrow pointing to it (no text or symbols)

2.2. DODATKI

Stranske rešetke (samo, če so prisotne\*)

Line drawing of a two-tiered storage unit with horizontal supports and a central tray (no text or symbols)

3D diagram of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Empty white rectangle with a thin border (no text or symbols)

3D wireframe diagram of a rectangular tray or container with internal compartments, placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a bowl and a sphere on a grater (no text or symbols)

Technical line drawing of a rectangular tray with horizontal slats, no text or symbols present

Line drawing of a rooster on a tray with steam rising (no text or symbols)

Simple line drawing of a door with a circular component and a curved arrow indicating motion (no text or symbols)

Diagram of a rectangular appliance with internal grating and lid, placed on an oven (no text or symbols)

Simple line drawing of a pen with a blue handle and pointed tip (no text or symbols)

3D rendering of a rectangular tray with a textured inner surface, placed inside a transparent enclosure (no text or symbols visible)

REGISTRACIJA NOVEGA UPORABNIKA

VPIS S HITRO SEZNANITVIJO

1. korak

- Izberite »Dodaj aparat«.

2. korak

• Dajte dovoljenje za lokacijo.

3. korak

- Izberite pečico v kategorijah aparatov.

4. korak

5. korak

6.1-6.2 korak

7. korak

KAKO SPREMENITI NASTAVITVE WIFI

3. PRED ZAČETKOM

3.1. INFORMACIJE ZA ZAČETEK

Simple line drawing of a kitchen sink with a hand cleaning the interior and a bottle nearby (no text or symbols)

Simple line drawing of a steam rising from a cabinet to a door (no text or symbols)

4. DELOVANJE IZDELKA

4.1. KAKO IZDELEK DELUJE

VKLOP/IZKLOP PEČICE

MENI FUNKCIJ

Hand interacting with a touchscreen device displaying smart home icons (no text or symbols on the device)

b. MINUTNI OPOMNIK

c. ZAKASNITEV VKLOPA

MENI ZA TEMPERATURO

Kako nastaviti funkcijo Jolly:

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a curved cutout and an arrow pointing to it (no text or symbols)

Simple line drawing of a chef's hat and coat (no text or symbols)

Nasveti za kuhanje

Illustration of a medical procedure with a tool and tubing, no text or symbols present

Line drawing of a laboratory oven with cooling fins and a blue arrow indicating airflow direction (no text or symbols)

Hand cleaning a kitchen appliance with a blue cloth (no text or symbols visible)

H2O cleaning

Hand cleaning a window with a cloth, showing dust and spray (no text or symbols)

Čiščenje s katalizo

Line drawing of an oven with a blue arrow indicating airflow or movement (no text or symbols)

Simple line drawing of a hand cleaning a kitchen appliance with a cloth and a bottle nearby (no text or symbols)

Line drawing of a hand inserting a blue cable into a box (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

1. Vrata postavite pod kotom 45°. Hkrati pritisnite oba gumba na obeh straneh stranskih ramen vrat in jih povlecite proti sebi, da odstranite pokrov zgornjih stekel vrat.

Pure technical diagram of a mechanical component with arrows indicating direction (no text or symbols)

Hand holding a diagonal line with a blue circle highlighting the intersection of two lines (no text or symbols present)

1. Očistite steklo z mehko krpo in ustreznim čistilnim sredstvom.

Illustration of a hand cleaning a surface with a blue cloth and a water bottle labeled 'H2O' (no text or symbols on the main image)

Technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

1. Nato vrnite vrata v položaj 90° in zavrtite jezičke za zaklepanje tečajev navznoter proti notranjosti pečice.

Line drawing of hands operating a doorbell with a blue tool, no text or symbols present

Simple line drawing of a mechanical component with a blue tool and arrow indicating direction (no text or symbols)

6.3. ČIŠČENJE DODATKOV

Line drawing of an oven with a blue arrow indicating direction (no text or symbols)

Line drawing of an oven with a vent and airflow direction arrow (no text or symbols)

- Model s 7 nivoji

Line drawing of a door with horizontal louver and two black clips (no text or symbols)

Diagram of a door with horizontal ladders and a blue curved arrow indicating rotation (no text or symbols)

Hand holding a transparent panel with a blue arrow indicating direction (no text or symbols)

Illustration of a hand cleaning a window with a blue cloth, a water bottle, and a bowl labeled H₂O (no text or symbols on main objects)

Hand holding a wall-mounted device with a blue arrow pointing to it (no text or symbols visible)

Diagram of a vertical ladder structure with a blue arrow indicating rotation (no text or symbols)

6.4. VZDRŽEVANJE

ZAMENJAVA DELOV

1. korak


Hand holding a paper with a blue checkmark inside an open oven (no text or symbols)

1. korak


Line drawing of a hand holding a circular object inside a device (no text or symbols)

1. korak


Hand holding a circular object with a blue spiral arrow inside, inside a technical diagram of a device (no text or symbols)

1. korak


Hand holding a circular object with a blue arrow, inside an open appliance (no text or symbols visible)

1. korak


1. korak


Illustration of a hand holding a tool near a stack of books, with a blue arrow pointing to the book (no text or symbols present)

1. korak


Illustration of a hand inserting a component into a device (no text or symbols visible)

1. korak


Illustration of a hand inserting a component into a device (no text or symbols present)

1. korak


Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

1. korak


8. VAROVANJE OKOLJA IN ODSTRANJEVANJE

8.1. ODSTRANJEVANJE APARATA

Isometric line drawing of a rectangular box with a side clip and mounting feet (no text or symbols)

Isometric line drawing of a rectangular box with a side clip and mounting feet (no text or symbols)

DOBRO DOŠLI

Simple illustration of a blue-handled tool with a downward arrow pointing to it (no text or symbols)

- Ne izlažite metalni deo Preci Probe direktno toploti koju proizvodi pećnica.

- Nemojte koristiti Preci Probe u drugim uređajima već samo u ugrađenoj pećnici.

- Nemojte koristiti Preci Probe u mikrotalasnoj pećnici.

- Preci Probe može da se očisti i opere, ali ne sme dugo da se potapa u vodu.

- Ovaj proizvod nije namenjen za upotrebu od strane osoba uzrasta 12 i manje godina.

2.2. DODATNA OPREMA

Line drawing of a two-tiered storage unit with horizontal supports and a grid-patterned base (no text or symbols)

Postavljene na obe strane unutrašnjosti pećnice, bočne rešetke su dizajnirane za postavljanje pleha za pečenje i rešetki tokom kuvanja.

NAPOMENA: 6 ili 7 nivoa u zavisnosti od modela.

3D wireframe diagram of a rectangular tray or basin with internal partitioning, placed inside an open storage cabinet (no text or symbols)

Pleh za pečenje je idealan za postizanje ravnomernog potamnjivanja sa donje strane, što ga čini savršenim za kolače i peciva zbog svog plitkog, ravnog dizajna. Pored toga, ako se postavi ispod rešetke za kuvanje može pomoći u sakupljanju curenja i sprečava prljanje pećnice.

1. Kontrolni panel
2. Brojevi pozicija polica
3. Rešetke
4. Plehovi
5. Poklopac ventilatora
6. Vrata pećnice
7. Bočne žičane rešetke (ako su deo opreme: samo za ravnu šupljinu)
8. Serijski broj i QR kod

Empty white rectangle with a thin border (no text or symbols)

3D line drawing of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Dublji pleh je idealan za recepte prema kojima se dodaju tečnosti ili slojevi, kao što su duveči ili pečenja. Njegova dubina je posebno dizajnirana da osigura željenu ujednačenost hrane pripremljene u njemu.

Teleskopske vodice

(samo ako su deo opreme*)

Line drawing of a kitchen sink with a bowl and a sphere on a rack (no text or symbols)

Technical line drawing of a rectangular tray with internal grating pattern (no text or symbols)

Simple line drawing of a rooster on a tray with steam and dough (no text or symbols)

Ražanj funkcioniše zajedno sa gornjim grejnim elementom, a okretanjem se hrana može pripremati ujednačeno. Najbolje se koristi za hranu srednje veličine. Idealno za ponovno otkrivanje ukusa tradicionalnih pečenja.

Šarke za lagano zatvaranje/otvaranje

(samo ako su deo opreme*)

Simple line drawing of a door with a circular component and a bracket, no text or symbols present

Diagram of a rectangular appliance with internal grating and ventilation slots, placed on a tray (no text or symbols)

Konveksni oblik je pogodan za pravljenje roštilja u pećnici na visokoj temperaturi (220°), omogućavajući rezultat roštiljanja čak i kod kuće sa malo dima zahvaljujući dejstvu ceđenja masti na dno posude.

Preci probe sonda (samo ako je deo opreme\*)

Simple line drawing of a pen with a blue handle and pointed tip (no text or symbols)

3D rendering of a rectangular tray with a mesh pattern inside, placed in a kitchen or storage unit (no text or symbols visible)

Airfry pleh obezbeđuje da vruć vazduh ravnomerno i trodimenzionalno dođe do hrane, čime se dobija hrskavija spoljašnjost uz održavanje mekoće unutra. Da biste sakupljali sokove i mrvice, stavite ga na vrh pleha za pečenje.

2.3. KONTROLNI PANEL

REGISTRACIJA NOVOG KORISNIKA

• Kliknite na „Registrujte se“
• Registrujte se pomoću naloga na društvenim mrežama ili ličnom imejl adresom

PRIJAVLJIVANJE ZA BRZO UPARIVANJE

1. korak

2. korak

5. korak

- Nakon uključivanja, aplikacija hOn počinje da traži vaš kućni uređaj.

6.1-6.2. korak

7. korak

KAKO DA PROMENITE PODEŠAVANJA WI-FI MREŽE

Kada je uređaj povezan, korisnik može da promeni W-Fi podešavanja između:

DALJINSKO UPRAVLJANJE

3. PRE POČETKA

3.1. INFORMACIJE VEZANE ZA POČETAK

Kada prvi put uključite pećnicu, možda ćete primetiti dim. Ne brinite, pre upotrebe pećnice samo sačekajte da se dim raščisti.

Simple line drawing of a kitchen sink with a hand cleaning the interior and a bottle nearby (no text or symbols)

Simple line drawing of a steam rising from a chimney to a cabinet (no text or symbols)

4. RAD PROIZVODA

4.1. KAKO PROIZVOD RAD

UKLJUČIVANJE/ISKLJUČIVANJE PEĆNICE

MENI FUNKCIJA

Pristupite meniju Funkcija pritiskom na dugme □

b. MINUTNI PODSETNIK

c. ODLAGANJE POČETKA

MENI TEMPERATURE

Nakon odabira programa kuvanja, pristupite meniju Temperatura pritiskom na dugme & Da biste ušli dodirnite & onoliko puta koliko je potrebno da biste ušli u sledeća podešavanja:

Simbol	Funkcija	Opis
	TEMPERATURA	Pritisnite da biste podesili temperaturu i koristite strelice za regulisanje vrednosti.
	BRZO PREDGREVANJE	Pritisnite dva puta da biste podesili brzu temperaturu.

DODATNE FUNKCIJE

Simbol	Funkcija	Opis
	ZAKLJUČANO ZA DECU	Ova funkcija omogućava zaključavanje ekrana kako bi se sprečila bilo kakva neželjena upotreba od strane dece. Pritisnite i zadržite Lampu i Daljinsko upravljanje da biste aktivirali zaključavanje ekrana. Učinite isto da biste ga deaktivirali.
	OMILJENA FUNKCIJA	Da biste sačuvali omiljenu funkciju i prikazali je odmah kada se pećnica uključi, držite dugme Funkcija na 5 sekundi.

4.2. FUNKCIJE KUVANJA

OPCIJA BRZOG PREDGREVANJA

Kako da podesite funkciju Jolly:

Da biste podesili funkciju Jolly na pećnici, otvorite odeljak sa receptima u aplikaciji, izaberite recept koji želite da koristite i kliknite na „Koristi kao Jolly funkciju“.

Od tog trenutka, možete je pokrenuti iz proizvoda čak i bez interakcije sa aplikacijom. Jednostavno okrenite funkcijsko dugme na funkciju Jolly da biste započeli proces kuvanja.

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a curved cutout and an arrow pointing to it (no text or symbols)

Kako prijaviti i koristiti Preci Probe sondu:

1. Umetnite sondu u hranu.
2. Dodirnite □ da biste izabrali željenu funkciju i dodirnite Ⓜ onoliko puta koliko vam je potrebno da izaberete ikonu sonde.
3. Nakon nekog vremena, pećnica će prepoznati šifru sonde. Dodirnite ▶li pomoću strelica podesite željenu temperaturu.
4. Dodirnite ▶ da biste potvrdili. Od ovog trenutka, pećnica će koristiti podatke sonde za praćenje unutrašnje temperature vaše hrane.
5. Kada se dostigne željena unutrašnja temperatura, oglasava se alarm i pećnica se isključuje. Pažljivo uklonite sondu iz hrane.

Simple line drawing of a chef's hat and coat on a chicken (no text or symbols)

Saveti za kuvanje

Simple line drawing of a medical device with a bulb, pen, and probe (no text or symbols)

Sonda se može koristiti sa ručnim funkcijama (konvekcija, konvekcija + ventilator, roštilj, Super grill, gratiniranje i više nivoa), sa KATEGORIJAMA KUVANJA HRANE (meso, riba i povrće) i Gentle cooking.

Kategorija hrane	Predložena T °C sredine	Predloženo pozicioniranje
Pečena govedina	45 °C	Dijagonalno u najdebljem delu.Za namirnice cilindričnog oblika (kao što je goveđe pečenje), postavite vrh što bliže geometrijskom centru
Pečeno meso	55 °C / 60 °C / 65 °C
Živinsko meso	83-85 °C	U najdeblji deo grudi
Riba (cela/odresci)	65 °C	Dijagonalno u najdebljem delu
Hleb/musaka	90 °C	Blizu geometrijskog centra hrane

5. SMERNICE ZA KUVANJE

5.1. OPŠTA TABELA KUVANJA

Kategorija	Recept	Br. nivoa	Program kuvanja	T °C	Pred-grevanje	Pribor za kuvanje	Položaj police	Vreme kuvanja nakon predgrevanja* (min)
Slatka peciva	Sitni kolači /mafini	1	Konveksni višeslojni	175 °C160 °C	Da	Pleh za pečenjePleh za pečenje	L3L4	20-3030-40
		2	Više nivoa	150 °C		Pleh za pečenje + dublji pleh	L2+L5	30-40
		3	Više nivoa	140 °C		Plehovi za pečenje	L2+L4+L6	40-50
	Vazdušasti kolači (26 cm ∅)	1	Konvekcija	170 °C	Da	Metalna rešetka + kalup za kolače	L2	30-40
			Više nivoa	150 °C		Metalna rešetka + kalup za kolače	L4	40-50
		2	Više nivoa	150 °C		Metalne rešetke + kalup za kolače	L1+L4	50-60
	Keksi/kolačići	1	Konveksni višeslojni	150 °C150 °C	Da	Pleh za pečenjePleh za pečenje	L3L4	25-3030-40
		2	Više nivoa	140 °C		Pleh za pečenje + dublji pleh	L2+L5	30-40
		3	Više nivoa	140 °C		Plehovi za pečenje	L2+L4+L6	35-40
	Kroketi	1	Konvekcija	190 °C		Pleh za pečenje	L4	25-35
		2	Više nivoa	170 °C		Pleh za pečenje	L3	25-35
	Jorkširski puding	1	Konvekcija	200 °C	Da	Pleh za pečenje	L3	20-30
	Puslice	1	Više nivoa	90 °C	Da	Pleh za pečenje		90-160
	Makaronsi	1	Konvekcija	150 °C	Da	Pleh za pečenje	L3	15-20
	Pita od jabuka	1	Konvekcija	185 °C	Da	Metalna rešetka + kalup za kolače	L2	60-70
		1	Više nivoa	170 °C	Da	Metalna rešetka + kalup za kolače	L4	65-75
	Tart tatin	1	Konvekcija	170 °C	Da	Metalna rešetka + kalup za kolače	L2	40-60
	Čokoladni sufle	1	Konvekcija	200 °C	Da	Pleh za pečenje + kalupi	L3	10-15
	Čizkejk	1	Konvekcija	150 °C	Da	Metalna rešetka + kalup za kolače	L2	50-65
	Smrznuti kroasani	1	Konvekcija	180 °C	Da	Pleh za pečenje	L3	20-25
		2	Konvekcija	180 °C		Plehovi za pečenje	L2+L5	25-35
		3	Više nivoa	160 °C		Plehovi za pečenje	L2+L4+L6	30-40
	Štrudla, smrznuta	1	Konvekcija	210 °C	Da	Pleh za pečenje	L3	30-45
Hleb i lepinja	Tost hleb	1	Supergrill	5	Ne	Metalna rešetka	L6	4-6
	Fokača	1	Konvekcija	200 °C	Da	Pleh za pečenje	L2 ili L3	25-35
	Hleb, ceo	1	Konvekcija	200 °C	Da	Pleh za pečenje	L3	35-50
Slane pite i musake	Slani kolači / kiševi (26 cm ∅)	1	Konvekcija	200 °C	Da	Metalna rešetka + Pleh za kiš	L1 ili L2	30-50
		2	Više nivoa	180 °C	Da	Metalna rešetka + Pleh za kiš	L1+L4	50-70
	Sufle od sira	1	Konvekcija	200 °C	Da	Pleh za pečenje + kalupi	L3	20-35
	Lazanje, sveže	1	Konvekcija	200 °C	Da	Metalna rešetka + posuda za pečenje	L3	40-60
	Lazanje, smrznute	1	Konvekcija	180 °C	Da	Metalna rešetka + posuda za pečenje	L3	50-60
	Kaneloni, smrznuti	1	Konvekcija	180 °C	Da	Metalna rešetka + posuda za pečenje	L3	45-55
	Pečena testenina	1	Gratiniranje	200 °C	Da	Metalna rešetka + posuda za pečenje	L4	20-30
Pica	Pica, sveža (tacna)	1	Konvekcija	250 °C	Da	Pleh za pečenje	L2 ili L3	15-20
	Pica, sveža (tacna)	1	Pica	250 °C	Ne	Pleh za pečenje	L2 ili L3	18-25
		2	Više nivoa	180 °C	Da	Pleh za pečenje + dublji pleh	L2+L5	25-35
	Pica, sveža (okrugla)	1	Konvekcija	250 °C	Da	Pleh za pečenje	L2 ili L3	8-10
	Pica, sveža (okrugla)	1	Pica	300 °C	Ne	Pleh za pečenje	L2 ili L3	15-20
		2	Više nivoa	180 °C	Da	Pleh za pečenje + dublji pleh	L2+L5	30-40
	Pica, smrznuta (tanka kora)	1	Konvekcija	220 °C	Da	Metalna rešetka	L3	10-15
		2	Više nivoa	200 °C		Metalna rešetka	L2+L5	15-25
		3	Više nivoa	180 °C		Metalna rešetka	L2+L4+L6
	Pica, smrznuta (tanka kora)	1	Pica	200 °C	Ne	Metalna rešetka	L2	10-15
Meso i živina	Pečeno celo pile (1-1,2 kg)	1	Gratiniranje	220 °C	Da	Metalna rešetka/L4 Postavite pleh za pečenje na L1 sa 150 ml vode	L4	40-60
	Pileći batak i karabatak	1	AirFry**	220 °C	Ne	Air fry pleh**	L4	30-50
	Pečena patka	1	Gratiniranje	200 °C	Da	Metalna rešetka + posuda za pečenje	L3	50-60
Meso i živina	Petao	1	Gratiniranje	220 °C	Da	Metalna rešetka Postavite pleh za pečenje na L1	L4	20-40
	Pečena ćurka	1	Gratiniranje	200 °C	Da	Metalna rešetka + posuda za pečenje	L3	50-60
	Svinjska rebra (1000-1200g)	1	Konvekcija	200 °C	Da	Metalna rešetka + posuda za pečenje	L3	80-100
	Kobasice	1	Supergrill	4	Da	Metalna rešetka	L5	40-50
	Goveđi file (1000-1500g)	1	Gentle cooking**	60 °C	Ne	Metalna rešetka + posuda za pečenje	L3	60-80
	Pečena govedina (500g)	1	Gratiniranje	220 °C	Da	Pleh za pečenje	L3	20-40
	Mesna vekna (1000-1500g)	1	Konvekcija	180 °C	Da	Pleh za pečenje	L3	40-50
	Pečena piletina sa krompirom	1	Gratiniranje	200 °C	Da	Dublji pleh	L4	45-60
Riba i morski plodovi	Morski plodovi sa roštilja	1	Supergrill	4	Ne	Metalna rešetka	L5	15-30
	Smrznuti riblji štapići	1	Airfry**	200 °C	Ne	Air fry pleh**	L4	20-25
	Pečena riba	1	ECO	200 °C	Ne	Metalna rešetka Postavite pleh za pečenje na L1	L3	40-60
Povrće	Gratinirano povrće	1	ECO	200 °C	Ne	Metalna rešetka + posuda za pečenje	L3	80-90
	Zamrznuti pomfrit (300-500g)	1	Airfry**	220 °C	Ne	Air fry pleh**	L4	18-25
	Gratinirani krompir	1	Gratiniranje	200 °C	Da	Metalna rešetka + posuda za pečenje	L4	15-25
	Pečeni krompir	1	Konvekcija	200 °C	Da	Pleh za pečenje	L4	30-50

Line drawing of an oven with cooling rack and side panel (no text or symbols)

Hand cleaning a window with a cloth, showing surface dust and debris (no text or symbols)

H2O Clean

Funkcija H2O Clean je dizajnirana da se bez napora uhvati u koštac sa laganom zaprljanošću i pruži brzo i ekološki prihvatljivo rešenje za čišćenje unutrašnjosti pećnice pomoću snage pare.

Kako funkcioniše:

1. Sipajte 100 ml vode u donji utisnuti deo pećnice.
2. Uključite dugme 🚫/». Ako je potrebno, okrenite kontrolu brojčanika da biste podesili program Hydro Clean. Funkcija će raditi tokom unapred podešenog vremena.
3. Na kraju postupka čišćenja, pustite pećnicu da se ohladi.
4. Kada se uređaj ohladi, očistite unutrašnje površine pećnice krpom.
5. ▲ UPOZORENJE: Proverite da li je uređaj ohlađen pre nego što ga dodirnete. Vodite računa o svim vrućim površinama jer postoji rizik od opekotina. Koristite destilovanu ili pijaću vodu.

Katalitičko čišćenje

Katalitički paneli oblažu unutrašnjost pećnice i pružaju vam luksuz da se nikada ne borite sa prljavom pećnicom.

Paneli su obloženi specijalizovanim emajlom koji se može pohvaliti mikroporoznom strukturom koja dobro apsorbuje mast koja prska.

Katalitičkom hemijskom reakcijom oni efikasno pretvaraju apsorbovanu mast u gasovite elemente kada su izloženi visokim temperaturama.

Line drawing of a hand inserting a blue cable into a box (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

1. Postavite vrata na 45°. Istovremeno pritisnite dva dugmeta sa obe strane bočnih strana vrata i povucite prema sebi da biste uklonili poklopac gornjih stakala.

1. Veoma pažljivo uklonite staklo pećnice, počevš od unutrašnjeg stakla. Tokom postupka, čvrstod držite staklo obema rukama i stavite ga na mekanu ravnu površinu (npr. na tkaninu).

Pure technical diagram of a mechanical component with directional arrows, no text or symbols present

Hand holding a hand with a blue circle highlighting the crossed-out line (no text or symbols present)

1. Očistite staklo mekom krpom i odgovarajućim sredstvima za čišćenje.

Illustration of a hand cleaning a surface with a blue cloth and a water bottle, no text or symbols present.

1. Umetnite staklene ploče, vodeći računa da oznal „Low-E“ bude ispravno čitljiva i postavljena na donjoj levoj strani vrata, u blizini leve šarke. Na taj način će štampana etiketa na prvom stak ostati na unutrašnjoj strani vrata.

1. Ponovo pričvrstite poklopac vrata gornjeg stakla tako što ćete ga gurati prema unutra dok ne čujete klik dva bočna dugmeta.

Technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

1. Zatim vratite vrata na 90° i okrenite jezičke za zaključavanje šarki prema unutrašnjosti pećnice.

Line drawing of a hand inserting a blue tool into an open oven (no text or symbols)

Simple line drawing of a tool interacting with a mechanical component (no text or symbols)

6.3. ČIŠĆENJE DODATNE OPREME

Obavezno temeljno očistite dodatnu opremu nakon svake upotrebe i osušite je peškirom. Za tvrdokorne naslage, natopite dodatnu opremu u mešavini vode i sapuna oko 30 minuta pre nego što je ponovo operete.

ČIŠĆENJE BOČNIH NOSAČA:

- Model sa 6 nivoa

1. Uklonite bočne nosače povlačenjem u pravcu strelica.
2. Da biste očistili žičane nosače, stavite ih u mašinu za pranje sudova ili koristite vlažni suđer i obavezno ih posle osušite.
3. Nakon procesa čišćenja, postavite žičane nosače obrnutim redosledom.

Line drawing of an oven with a blue arrow indicating direction (no text or symbols)

Illustration of a hand cleaning a rack with a blue cloth, next to a washing bottle and a bowl labeled H₂O (no text or symbols on main objects)

Diagram of an oven with a blue arrow indicating direction, showing internal structure without any text or symbols.

— Model sa 7 nivoa

1. Uklonite bočne držače tako što ćete prvo povući prednji deo u smeru strelice i odvojiti zadnji deo od vijaka.
2. Da biste očistili žičane nosače, stavite ih u mašinu za pranje sudova ili koristite vlažni suđer i obavezno ih posle osušite.
3. Nakon postupka čišćenja postavite bočne nosače obrnutim redosledom: postavite zadnji deo između vijaka i gurnite prednji deo u smeru strelice.

Line drawing of a door with horizontal ladders and black connectors (no text or symbols)

Diagram of a vertical ladder structure with a curved arrow indicating rotation (no text or symbols)

Hand holding a transparent panel with a blue arrow pointing to it, no text or symbols present

Illustration of a hand cleaning a window with a blue cloth, a water bottle, and a bowl labeled H₂O (no text or symbols on main objects)

Hand placing a wall-mounted device into a room with a blue arrow indicating direction (no text or symbols)

Diagram of a vertical panel with arrows indicating direction (no text or symbols)

6.4. ODRŽAVANJE

ZAMENA KOMPONENTI

1. korak


Hand holding a paper with a blue checkmark inside an open oven (no text or symbols)

1. korak


Line drawing of a hand holding a circular object inside a device (no text or symbols)

1. korak


Hand holding a circular object with a blue spiral arrow inside, inside a technical diagram of a device (no text or symbols)

1. korak


Hand holding a circular object with a blue arrow, inside an open appliance (no text or symbols visible)

1. korak


1. korak


Simple line drawing of a hand holding a pen over a stack of books, with no text or symbols present.

1. korak


Illustration of a hand holding a small object inside a circular frame, with no visible text or symbols.

1. korak


Illustration of a hand holding a syringe inside a circular frame, with a blue arrow pointing to a device (no text or symbols present)

1. korak


Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols present)

1. korak


8. ZAŠTITA ŽIVOTNE SREDINE I ODLAGANJE NA OTPAD

8.1. ODLAGANJE UREĐAJA NA OTPAD

Isometric line drawing of a rectangular box with a side clip and mounting feet (no text or symbols)

Isometric line drawing of a rectangular box with a side clip and mounting feet (no text or symbols)

SVEIKI

Simple illustration of a blue-handled pen with a downward arrow pointing to it (no text or symbols)

2.2. PRIEDAI

Line drawing of a two-tiered storage unit with horizontal and vertical metal racks (no text or symbols)

3D wireframe diagram of a rectangular tray or basin inside an oven (no text or symbols)

Empty white rectangle with a thin gray border (no text or symbols)

Line drawing of a rectangular tray or container with internal compartments, placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a round bed, a white bowl, and a side shelf (no text or symbols)

Simple line drawing of a door with a circular component and directional arrow, no text or symbols present

Technical line drawing of a rectangular tray with internal grid pattern (no text or symbols)

Line drawing of a rectangular appliance with a grid pattern on top, placed inside an oven (no text or symbols)

Line drawing of a rooster on a tray with steam rising (no text or symbols)

Simple line drawing of a pen with a blue handle and pointed tip (no text or symbols)

3D rendering of a rectangular tray with a textured inner surface, placed inside a transparent housing (no text or symbols visible)

NAUJO NAUDOTOJO REGISTRACIJA

SPARČIOJO SUSIEJIMO REGISTRACIJA

1 veiksmas

2 veiksmas

5 veiksmas

7 veiksmas

KAIP PAKEISTI „WI-FI“ NUSTATYMUS

NUOTOLINIO VALDYMO PULTELIS

3. PRIEŠ PALEIDŽIANT

3.1. INFORMACIJA PRADEDANT

Simple line drawing of a kitchen sink with a hand cleaning the interior and a bottle nearby (no text or symbols)

Simple line drawing of a steam rising from a chimney to a cabinet (no text or symbols)

4. GAMINIO VEIKIMAS

4.1. KAIP GAMINYS VEIKIA

ORKAITĖS IJUNGIMAS / IŠJUNGIMAS

FUNKCIJŲ MENIU

Atidarykite funkciju meniu paspausdami □

b. LAIKMATIS

c. UŽDELSTA PRADŽIA

TEMPERATŪROS MENIU

Illustration of a medical procedure with a tool and probe inserted into a patient's abdomen (no text or symbols)

Line drawing of a laboratory oven with cooling fins and a blue arrow indicating airflow direction (no text or symbols)

Hand cleaning a window with a cloth, showing surface dust and spray (no text or symbols)

„H2O cleaning“

Hand cleaning a window with a blue cloth, showing surface dust and debris (no text or symbols)

Line drawing of an oven with a rack and vent, showing internal structure without any text or symbols

Simple line drawing of a hand cleaning a kitchen appliance with a blue cloth and a bowl nearby (no text or symbols)

Line drawing of a hand inserting a blue cable into a box (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical line drawing of a mechanical component with no text or symbols

Hand holding a diagonal line with a blue circle highlighting the intersection of two lines (no text or symbols present)

Illustration of a hand cleaning a tiled surface with a blue cloth and a water bottle, no text or symbols present.

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of hands operating a small oven with blue tool pins (no text or symbols)

Simple line drawing of a tool interacting with a mechanical component (no text or symbols)

6.3. PRIEDU VALYMAS

Line drawing of an oven with a blue arrow indicating direction (no text or symbols)

Line drawing of an oven with a vent and airflow direction arrow (no text or symbols)

- 7 lygių modelis

Line drawing of a door with horizontal ladders and a black clip (no text or symbols)

Diagram of a vertical ladder structure with a blue curved arrow indicating rotation (no text or symbols present)

Hand placing a transparent panel with a blue arrow indicating direction (no text or symbols)

Illustration of a hand cleaning a window with a blue cloth, a water bottle, and a bowl labeled H₂O (no text or symbols on main objects)

Hand holding a wall-mounted device with a blue arrow pointing to it (no text or symbols visible)

Diagram of a vertical panel with arrows indicating rotation or movement (no text or symbols)

6.4. PRIEŽIŪRA

KOMPONENTŲ KEITIMAS

2 veiksmas

Hand holding a paper airplane with a blue checkmark inside (no text or symbols)

3 veiksmas

Line drawing of a hand holding a circular object inside a device (no text or symbols)

4 veiksmas

Hand holding a circular diagram with arrow inside a device (no text or symbols)

5 veiksmas

Hand holding a circular object with a blue arrow inside, next to an open oven (no text or symbols visible)

6 veiksmas

2 veiksmas

Illustration of a hand holding a pen over a stack of books, with a blue arrow pointing to the paper (no text or symbols present)

3 veiksmas

Illustration of a hand holding a small object with an arrow pointing to a device inside a circular frame (no text or symbols)

4 veiksmas

Illustration of a hand inserting a component into a device (no text or symbols present)

5 veiksmas

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

6 veiksmas

8. APLINKOS APSAUGA IR ATLIEKŲ ŠALINIMAS

8.1. PRIETAISO ŠALINIMAS

Isometric line drawing of a rectangular box with a side panel and handle (no text or symbols)

Line drawing of a 3D box with a side panel and mounting feet (no text or symbols)

TERE TULEMAST!

Simple illustration of a blue-handled tool with a black downward arrow pointing to it (no text or symbols)

2.2. TARVIKUD

Line drawing of a two-tiered storage rack unit with no text or symbols

3D diagram of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Empty white rectangle with a thin gray border (no text or symbols)

3D line drawing of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a bowl and a sphere on a grater (no text or symbols)

Line drawing of a rectangular tray with a grid pattern on top, placed inside a rack (no text or symbols)

Line drawing of a rooster on a cutting board (no text or symbols)

Simple line drawing of a door with a circular component and a bracket, no text or symbols present

Technical line drawing of a rectangular tray with internal grating (no text or symbols)

Simple line drawing of a pen with a blue handle and pointed tip (no text or symbols)

3D rendering of a rectangular tray with a grid pattern inside, placed inside a kitchen appliance (no text or symbols visible)

UUE KASUTAJA REGISTREERIMINE

KIIRÜHENDAMINE

1. samm

2. samm

5. toiming

7. samm

KUIDAS WIFI-SEADEID MUUTA

KAUGJUHTIMISPULT

3. ENNE ALUSTAMIST

3.1. TEAVE ALUSTAMISEKS

Simple line drawing of a kitchen sink with a hand cleaning the interior and a bottle nearby (no text or symbols)

Simple line drawing of a steam rising from a chimney to a cabinet (no text or symbols)

4. TOOTE KASUTAMINE

4.1. KUIDAS TOODE TOIMIB

AHJU SISSE-/VÄLJALÜLITAMINE

FUNKTSIOONIDE MENÜÜ

Hand interacting with a touchscreen device displaying smart home icons (no text or symbols on the device)

b. MINUTILUGEJA

c. VIITSTART

TEMPERATUURI MENÜÜ

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a curved cutout and an arrow pointing to it (no text or symbols)

Simple line drawing of a steamed chicken with a fork (no text or symbols)

Illustration of a medical procedure with a tool and probe inserted into a patient's abdomen (no text or symbols)

Line drawing of a laboratory oven with cooling fins and a blue arrow indicating airflow direction (no text or symbols)

Hand cleaning a window with a cloth, showing dust and spray (no text or symbols)

H2O cleaning

Hand cleaning a window with a blue cloth, showing surface dust and spray (no text or symbols)

Line drawing of an oven with a rack and vent, showing internal structure without any text or symbols

Line drawing of a hand cleaning a small kitchen appliance with a blue cloth and a bowl nearby (no text or symbols)

Line drawing of a hand inserting a blue cable into a box (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

Pure technical diagram of a mechanical component with directional arrows, no text or symbols present

1. ⚠ HOIATUS: Välimine klaas ei ole eemaldatav.

Hand holding a diagonal line with a blue circle highlighting the intersection of two lines (no text or symbols present)

Illustration of a hand cleaning a surface with a blue cloth and a water bottle, no text or symbols present.

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of a hand inserting a blue tool into an open oven (no text or symbols)

Simple line drawing of a tool interacting with a mechanical component (no text or symbols)

6.3. TARVIKUTE PUHASTAMINE

Line drawing of an oven with a blue arrow indicating direction (no text or symbols)

Line drawing of an oven with a vent and airflow direction arrow (no text or symbols)

- 7 tasemega mudel

Line drawing of a door with horizontal ladders and a black clip (no text or symbols)

Diagram of a vertical ladder structure with a blue curved arrow indicating rotation (no text or symbols)

Hand placing a transparent panel with a blue arrow indicating direction (no text or symbols)

Illustration of a hand cleaning a window with a blue cloth, a water bottle, and a bowl labeled H₂O (no text or symbols on main objects)

Hand holding a wall-mounted device with a blue arrow pointing to it (no text or symbols visible)

Diagram of a vertical panel with arrows indicating rotation, no text or symbols present

6.4. HOOLDUS

KOMPONENTIDE VAHETAMINE

Lambipirni vahetamine:

1. samm


Hand holding a paper airplane with a blue checkmark inside (no text or symbols)

1. samm


Line drawing of a hand holding a circular object inside a device (no text or symbols)

1. samm


Hand holding a circular diagram with arrow inside a device (no text or symbols)

1. samm


Hand holding a circular object with a blue arrow, inside an open appliance (no text or symbols visible)

1. samm


1. samm


Simple line drawing of a hand holding a pen over a document, with no text or symbols present.

1. samm


Illustration of a hand holding a magnifying glass over a wall-mounted device, with no visible text or symbols.

1. samm


Illustration of a hand holding a syringe inside a circular device, with no visible text or symbols

1. samm


Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols present)

1. samm


8. KESKKONNAKAITSE JA KÖRVALDAMINE

8.1. SEADME KÖRVALDAMINE

Isometric line drawing of a rectangular box with a side tab and handle (no text or symbols)

Isometric line drawing of a rectangular box with a side clip and mounting holes (no text or symbols)

LAIPNI LÜDZAM

Simple illustration of a blue-handled tool with a downward arrow, no text or symbols present

2.1. PRODUKTA PÄRSKATS

2.2. PIEDERUMI

Technical line drawing of a multi-tiered storage unit with horizontal shelves and vertical supports (no text or symbols)

3D diagram of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Empty white rectangle with a thin border (no text or symbols)

3D wireframe diagram of a rectangular tray or container with internal compartments, placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a bowl and a sphere on the wall (no text or symbols)

Simple line drawing of a door with a circular component and directional arrow, no text or symbols present

Line drawing of a rectangular tray with a grid pattern inside, placed inside an oven (no text or symbols)

Line drawing of a rectangular tray with a grid pattern, placed on a shelf (no text or symbols)

Line drawing of a rooster on a cutting board with steam rising (no text or symbols)

Simple line drawing of a pen with a blue handle and pointed tip (no text or symbols)

3D technical line drawing of a rectangular tray with a mesh pattern inside, mounted on a shelf (no text or symbols)

JAUNA LIETOTĀJA REGISTRĀCIJA

ĀTRĀ PĀRA REGISTRĀCIJA

1. darbība

- Atlasiet "Pievienot ierīci".

2. darbība

5. darbība

7. darbība

WI-FI IESTATIJUMU MAINA

TĀLVADĪBA

3. PIRMS SĀKŠANAS

3.1. INFORMĀCIJA, LAI SĀKTU

Simple line drawing of a kitchen sink with a hand cleaning the interior and a water bottle nearby (no text or symbols)

Simple line drawing of a steaming stove next to a cabinet (no text or symbols)

4. PRODUKTA DARBIBA

4.1. KÄ PRODUKTS DARBOJAS

CEPEŠKRĀSNS IESLĒGŠANA/IZSLĒGŠANA

FUNKCIJU IZVĚLNE

Hand interacting with a smartphone displaying a digital interface (no text or symbols visible)

b. MINŪŠU SKAITĪTĀJS

c. UZSĀKŠANAS AIZKAVE

TEMPERATÜRAS IZVËLNE

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a curved cutout and an arrow pointing to it (no text or symbols)

Simple line drawing of a chef's hat and coat on a plate (no text or symbols)

Medical illustration of a surgical instrument with needle and probe inserted into a patient's abdomen (no text or labels)

Line drawing of an oven with a rack inside, showing internal structure and a blue arrow indicating motion (no text or symbols)

Hand cleaning a window with a blue cloth, showing surface dust and debris (no text or symbols)

H2O cleaning

Hand cleaning a window with a blue cloth, showing surface dust and spray (no text or symbols)

Line drawing of an oven with a rack and vent, showing internal structure without any text or symbols

Simple line drawing of a kitchen sink with a hand cleaning it, and a bowl with a spoon (no text or symbols)

Line drawing of a hand inserting a blue cable into a box (no text or symbols)

Simple line drawing of a mechanical component with a blue arrow indicating downward motion (no text or symbols)

Pure technical diagram of a mechanical component with directional arrows, no text or symbols present

Hand holding a diagonal line through a window frame, enclosed in a blue circle with a diagonal line crossing through the window (no text or symbols)

Illustration of a hand cleaning a surface with a blue cloth and a water bottle, no text or symbols present.

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of a hand inserting a blue tool into an open oven (no text or symbols)

Simple line drawing of a tool interacting with a mechanical component (no text or symbols)

6.3. PIEDERUMU TİRİŞANA

Line drawing of an oven with a blue arrow indicating direction (no text or symbols)

Illustration of a hand cleaning a rack with a blue cloth, next to a washing bottle and a bowl labeled H₂O (no text or symbols on main objects)

Line drawing of an oven with a blue arrow indicating direction (no text or symbols)

- 7 limenu modelis

Pure diagram of a vertical panel with horizontal bars, no text or symbols present

Diagram of a vertical panel with horizontal lines and a blue curved arrow indicating rotation (no text or symbols)

Hand holding a transparent panel with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a window with a blue cloth, a water bottle, and a bowl labeled H₂O (no text or symbols on main objects)

Hand holding a wall-mounted device with a blue arrow indicating direction (no text or symbols)

Diagram of a vertical panel with arrows indicating direction (no text or symbols)

6.4. APKOPE

KOMPONENTU NOMAINA

1. darbība


Hand holding a paper airplane with a blue checkmark inside (no text or symbols)

1. darbība


Line drawing of a hand holding a circular object inside a device (no text or symbols)

1. darbība


Hand holding a circular object with a blue spiral arrow inside, inside a technical diagram (no text or symbols)

1. darbība


Hand holding a circular object with a blue arrow, inside an open appliance (no text or symbols visible)

1. darbība


1. darbība


Simple line drawing of a hand holding a magnifying glass over a document, with no text or symbols present.

1. darbība


Illustration of a hand holding a small object inside a circular frame, with no visible text or symbols.

1. darbība


Illustration of a hand holding a small electronic component with an arrow pointing to it, next to a shelf (no text or symbols)

1. darbība


Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

1. darbība


8. VIDES AIZSARDZĪBA UN UTILIZĀCIJA

8.1. IERICES UTILIZACIJA

Isometric line drawing of a rectangular box with a side clip and mounting feet (no text or symbols)

Isometric line drawing of a rectangular box with a side clip and mounting feet (no text or symbols)

ДОБРЕ ДОШЛИ

Simple illustration of a blue-handled tool with a downward arrow, no text or symbols present

2.2. ПРИНАДЛЕЖНОСТИ

Line drawing of a two-tiered storage rack system (no text or symbols)

3D diagram of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Empty white rectangle with a thin gray border (no text or symbols)

3D wireframe diagram of a rectangular tray or container with internal compartments, placed inside an oven (no text or symbols)

Line drawing of a kitchen sink with a round pan and a sphere on the shelf (no text or symbols)

Line drawing of a rectangular tray with a slatted interior and grid pattern, placed inside a rack (no text or symbols)

Line drawing of a rooster rolling out dough on a cutting board (no text or symbols)

Simple line drawing of a door with a circular component and a hanging object, no text or symbols present.

Technical line drawing of a rectangular appliance with internal grating (no text or symbols)

Simple line drawing of a pen with a blue handle and pointed tip (no text or symbols)

3D rendering of a rectangular tray with a mesh pattern inside, placed in a kitchen or storage unit (no text or symbols visible)

Стъпка 2

Стъпка 5

Стъпка 6.1-6.2

Стъпка 7

КАК ДА ПРОМЕНЯ НАСТРОЙКИТЕ НА WIFI

3. ПРЕДИ ДА ЗАПОЧНЕТЕ

Simple line drawing of a kitchen sink with a hand cleaning the interior and a small dish nearby (no text or symbols)

Simple line drawing of a cabinet with steam rising from the chimney, next to an open cabinet (no text or symbols)

МЕНЮ С ФУНКЦИИ

b. ХРОНОМЕТЪР

с. ОТЛОЖЕН СТАРТ

МЕНЮ ЗА ТЕМПЕРАТУРА

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a curved cutout and an arrow pointing to it (no text or symbols)

Simple line drawing of a chef's hat and knife on a plate (no text or symbols)

Готварски съвети

Illustration of a medical procedure with a tool and tubing, no text or symbols present

Line drawing of a laboratory oven with cooling fins and a side panel (no text or symbols)

Hand cleaning a window with a blue cloth, showing surface dust and debris (no text or symbols)

H2O cleaning

Hand cleaning a window with a cloth, showing dust and spray (no text or symbols)

Line drawing of an oven with a rack and vent, showing internal structure without any text or symbols

Simple line drawing of a hand cleaning a kitchen appliance with a cloth and a bottle nearby (no text or symbols)

Line drawing of a hand inserting a blue cable into a box (no text or symbols)

Diagram showing a mechanical component with a blue arrow indicating downward motion (no text or symbols present)

Pure technical diagram of a mechanical component with directional arrows, no text or symbols present

Hand holding a diagonal line with a blue circle highlighting the intersection point (no text or symbols present)

Illustration of a hand cleaning a surface with a blue cloth and a water bottle, no text or symbols present.

Line drawing of an oven with a blue arrow indicating direction (no text or symbols)

Diagram of an oven with a vent and airflow direction arrow (no text or symbols)

- Модел на 7 нива

Line drawing of a wall-mounted rack or panel with two black connectors (no text or symbols)

Diagram of a vertical ladder structure with a blue curved arrow indicating rotation (no text or symbols)

Hand holding a transparent panel with a 50-degree angle indicator (no text or symbols on the panel itself)

Illustration of a hand cleaning a window with a blue cloth, a water bottle, and a bowl labeled H₂O (no text or symbols on main objects)

Hand placing a wall-mounted device into a room with a blue arrow indicating direction (no text or symbols)

Diagram of a vertical panel with arrows indicating rotation or movement (no text or symbols)

6.4. ПОДДРЪЖКА

ПОДМЯНА НА КОМПОНЕНТИ

Стъпка 2

Hand holding a paper with a blue checkmark inside an open box (no text or symbols visible)

Стъпка 3

Line drawing of a hand holding a circular object inside a device (no text or symbols)

Стъпка 4

Hand holding a circular object inside a device (no text or symbols visible)

Стъпка 5

Hand holding a circular object with a blue arrow, next to an open appliance (no text or symbols visible)

Стъпка 6

Стъпка 2

Illustration of a hand holding a tool near a paper sheet, with no visible text or symbols

Стъпка 3

Illustration of a hand inserting a small component into a device, with no visible text or symbols.

Стъпка 4

Illustration of a hand holding a small electrical component with an arrow pointing to it, next to stacked books (no text or symbols)

Стъпка 5

Diagram of a mechanical assembly with a magnified inset showing a component labeled 'K' (no text or symbols present)

Стъпка 6

8.1. ИЗХВЪРЛЯНЕ НА УРЕДА

Line drawing of a 3D rectangular box with a side panel and handle (no text or symbols)

Line drawing of a 3D box with a side panel and mounting holes (no text or symbols)

MM

DOBRO DOŠLI

Hvala što ste odabrali naš proizvod. Radi svoje sigurnosti i najboljih rezultata pažljivo pročitajte ovaj priručnik, uključujući upute u vezi sigurnosti i sačuvajte ga za buduću upotrebu.

Simple illustration of a blue-handled tool with a downward arrow pointing to it (no text or symbols)

• Metalni dio sonde Preci Probe nemojte izravno izlagati toplini koju stvara pećnica.
• Nemojte upotrebljavati sondu Preci Probe u drugom uređaju osim u ugradbenoj pećnici.
• Nemojte upotrebljavati sondu Preci Probe u mikrovalnoj pećnici.
• Sonda Preci Probe može se očistiti i oprati, ali nemojte je dugo ostaviti uronjenom u vodu.
• Ovaj proizvod nije namijenjen osobama od 12 ili manje godina.
• Dobavljač nije odgovoran ni za kakvo oštećenje sonde Preci Probe uslijed zlouporabe uređaja.
• Očistite sondu Preci Probe prije upotrebe.
• Sonda može raditi u sljedećem rasponu temperature: 10 °C do maksimalne unutarnje temperature metalnog dijela od 100 °C. Keramički dio može doseći 350 °C.
• Ako je temperatura sonde Preci Probe veća od 100 °C, kuhanje će se zaustaviti i morate ukloniti sondu Preci Probe iz pećnice što je prije moguće i pritom nosite rukavice kako se sonda ne bi oštetila.

2.1. PREGLED PROIZVODA

2.2. DODACI

Line drawing of a two-tiered storage rack or shelf unit (no text or symbols)

3D wireframe diagram of a rectangular tray with internal compartments, placed inside an oven (no text or symbols)

Empty white rectangle with a thin border (no text or symbols)

3D technical line drawing of a rectangular tray or basin with internal compartments, mounted on a shelf (no text or symbols)

Duboka ladica idealna je za recepte s dodanim tekućinama ili slojevima, kao što su složenci ili pečenja. Njena je dubina posebno dizajnirana kako bi hrana koja se u njenoj priprema imal željenu konzistentnost.

Teleskopske vodilice

Line drawing of a kitchen sink with a bowl and a round object on a metal rack (no text or symbols)

Teleskopske vodilice u pećnici police su koje se mogu produljiti, što olakšava postavljanje i uklanjanje predmeta, bez potrebe za posezanjer duboko u vruću pećnicu. Poboljšavaju sigurnost, stabilnost i mogu se postaviti na različite razine.

Dvostruki pladanj - način rada roštilja

Technical line drawing of a rectangular appliance with internal grid pattern (no text or symbols)

Line drawing of a rooster on a tray with steam rising (no text or symbols)

Ražanj radi zajedno s gornjim grijaćim elemen tom, hrana se okretanjem peče ravnomjerno. Najbolje ga je upotrebljavati za hranu srednje veličine. Idealno za ponovno otkrivanje okusa tradicionalnog pečenja.

Šarke za postupno zatvaranje / otvaranje

Simple line drawing of a door with a circular component and a curved arrow indicating motion (no text or symbols)

Šarke za postupno zatvaranje i otvaranje upravljanju kretanjem vrata koja se zbog njih zatvaraju glatko, bez lupanja.

Dvostruki pladanj – PARNI način rada

Diagram of a rectangular appliance with internal grating and a handle, placed on a tray (no text or symbols)

Konveksni oblik prikladan je za pečenje roštiljanje u pećnici na visokoj temperaturi (220°), omogućujući rezultate kao na roštilju čak i koc kuće, s malo dima zahvaljujući drenažnom djelovanju masti na dnu ladice.

Sonda Preci probe

Simple line drawing of a pen with a blue handle and pointed tip (no text or symbols)

Ova sonda je senzor temperature koji, kada je postavljena u hranu i povezana s pećnicom putem kabela Bluetooth veze, omogućuje upravljanje unutarnjom temperaturom hrane tijekom njene pripreme. Uglavnom se koristi za ribu i meso.

Airfry tava (samo ako je uređaj opremljen*)

3D rendering of a rectangular tray with a textured inner surface, placed inside a transparent housing (no text or symbols visible)

REGISTRACIJA NOVOG KORISNIKA

• Kliknite na „Register“ (Registriraj se)
• Možete se registrirati putem računa društvenih mreža ili se registrirati adresom osobne e-pošte

BRZA REGISTRACIJA ZA UPARIVANJE

1. korak

- Odaberite „Add appliance" (Dodaj uređaj).

2. korak

5. korak

7. korak

KAKO PROMIJENITI POSTAVKE WI-FI MREŽE

Nakon povezivanja uređaja, korisnik može odabrati sljedeće postavke Wi-Fi mreže:

• WIFI ON (UKLJUČI Wi-Fi): Stanje pećnice može se pratiti samo putem aplikacije.
• WIFI hOn: Pećnica se može koristiti isključivo putem aplikacije.
• WIFI OFF (ISKLJUČI Wi-Fi): Pećnica nije spojena, ali je i dalje registrirana sa spremljenim mrežnim vjerodajnicama.

• WIFI RESET (RESETIRAJ Wi-Fi): Veza je ponovno uspostavljena i moguća je nova registracija.

• Dodirnite □i uđi u izbornik Wi-Fi mreže. Na zaslonu se prikazuje „On” (Uključeno).

• Na zaslonu se prikazuje „On” (Uključeno).
• Koristite strelice dok se ne prikaže „Off“ (Isključeno) ili postavka za resetiranje „rSt”.

DALJINSKO UPRAVLJANJE

Daljinsko upravljanje nudi brojne prednosti za korisnike, povećava praktičnost, učinkovitost i cjelokupno iskustvo pripreme hrane i pružaj mogućnost upravljanja proizvodom izravno s uređaja i iz aplikacije hOn.

Ova funkcija omogućuje da putem uređaja uživate u raznim značajkama, kao što su: trenutno ili planirano pokretanje recepata ili programa kuhanja koji su već dostupni u aplikaciji; praćenje napretka vaših recepata u stvarnom vremenu; podešavanje korištenih parametara kuhanja; praćenje postupka kuhanja pomoću sonde; upravljanje spremljenim receptima pomoću „funkcije Jolly” na proizvodu (pogledajte odgovarajući odjeljak). Nadalje, moguće je primati obavijesti nakon završetka programa ili recepata. Daljinsko upravljanje možete aktivirati isključivo kada je proizvod registriran.

1 NAPOMENA: Dostupan je za sve funkcije kuhanja na proizvodu, osim za programe Gratiniranje, Roštilj i Supergrill.

3. PRIJE POKRETANJA

3.1. INFORMACIJE ZA POČETAK

Simple line drawing of a kitchen sink with a hand cleaning the interior and a bottle nearby (no text or symbols)

Simple line drawing of a steam rising from a chimney to a cabinet (no text or symbols)

4. UPOTREBA PROIZVODA

4.1. NAČIN RADA PROIZVODA

UKLJUČIVANJE/ISKLJUČIVANJE PEĆNICE

IZBORNIK FUNKCIJA

Pristupite izborniku Funkcija pritiskom gumba □

Za navigaciju dodirnite onoliko puta koliko je potrebno za unos sljedećih postavki:

Hand interacting with a touchscreen device displaying smart home icons (no text or symbols on the device)

Simbol		Funkcija	Opis
		GLAVNE FUNKCIJE	Ova funkcija omogućuje odabir željenog programa kuhanja strelicama. Dodirnite za postavljanje vremena i temperature. Pritisnite za pokretanje funkcije. Želite li pauzirati program, ponovno kliknite.
		KATEGORIJE HRANE	U ovom izborniku strelicama možete pristupiti 4 kategorije hrane za kuhanje koje su već integrirane u pećnicu. Na zaslon će se prikazati zadano vrijeme i temperatura.
		Wi-Fi	U ovom načinu rada možete spojiti pećnicu na mrežu i registrirati je pomoću aplikacije hOn.
		FUNKCIJE ČIŠĆENJA	Ova funkcija omogućuje odabir sustava čišćenja dostupnog na vašoj pećnici.

IZBORNIK VREMENA

1 NAPOMENA: nije moguće postaviti nekoliko parametara istovremeno, stoga u memoriji ostaje samo posljednji, a prethodni se briše.

Simbol	Funkcija	Opis
	a) TRAJANJE KUHANJA	Omogućuje se prethodno postavljanje vremena kuhanja za odabrani recept.Pritisnite 2a ulazak u izbornik Vrijeme. Dodirnite onoliko puta koliko je potrebno za odabir funkcije „Trajanje kuhanja”. Zatim strelicama postavite vrijednosti i pritisnite 2a potvrdu. Odbrojavanje počinje po završetku zagrijavanja (ako je uređaj opremljen). Tijekom faze kuhanja moguće je promijeniti trajanje pritiskom gumba 3 korištenjem strelica. Po isteku vremena, na se prikazuje „End” (Završetak) i kuhanje se zaustavlja.
	b) TAJMER	Omogućuje upotrebu pećnice kao budilice.Pritisnite 2a ulazak u izbornik Vrijeme. Dodirnite onoliko puta koliko vam je potrebno za odabir funkcije „Tajmer”. Zatim strelicama postavite vrijednosti i pritisnite 2a potvrdu. Tijekom faze kuhanja moguće je promijeniti trajanje pritiskom gumba 4 korištenjem strelica. Zatim pritisnite za ponovno pokretanje kuhanja. Po isteku vremena, kuhanje se nastavlja dok se ručno ne prekine.Ovu funkciju možete postaviti i kad je pećnica u stanju pripravnosti pritiskom gumba .Rad je uključena, tajmer radi neovisno o funkcijama kuhanja.
	c) ODGODA POČETKA	Omogućuje odabir vremena početka kuhanja.Pritisnite 2a ulazak u izbornik Vrijeme. Dodirni 3 voliko puta koliko ti je potrebno za odabir funkcije „Delay start” (Odgoda početka). Zatim strelicama postavite vrijednosti i pritisnite 3 za potvrdu.NAPOMENA: Odgoda početka moguća je tek nakon postavljanja trajanja kuhanja i nije dostupna zajedno s funkcijama roštilja

a. TRAJANJE KUHANJA

b. TAJMER

c. ODGODA POČETKA

IZBORNIK TEMPERATURE

Nakon odabira programa kuhanja, otvorite izbornik Time (Vrijem) pritiskom na ⚠. Za navigaciju dodirnite ♦ onoliko puta koliko je potrebno za unos sljedećih postavki:

Simbol	Funkcija	Opis
	TEMPERATURA	Pritisnite 0 za postavljanje temperature i strelicama odaberite vrijednost.
	BRZO ZAGRIJAVANJE	Pritisnite dvaput 0 za brzo podešavanje temperature.

DODATNA FUNKCIJA

Simbol	Funkcija	Opis
	ZAKLJUČAVANJE ZA ZAŠTITU DJECE	Ova funkcija omogućuje zaključavanje zaslona kako bi se maloljetnicima onemogućila neželjena uporaba uređaja. Pritisnite i zadržite ikonu žaruljice i daljinskog upravljanja kako biste aktivirali zaključavanje zaslona. Učinite isto za deaktiviranje.
	OMILJENA FUNKCIJA	Kako biste spremili omiljenu funkciju za koju želite da se prva prikaže kad je pećnica uključena, pritisnite tu funkciju i zadržite je 5 sekundi.

4.2. FUNKCIJE KUHANJA

OPCIJA BRZOG ZAGRIJAVANJA

Kako biste ubrzali fazu zagrijavanja, možete odabrati opciju brzog zagrijavanja pritiskom ikone temperature na 3 sekunde nakon odabira programa kuhanja i temperature. Ova opcija aktivirat će kombinaciju ventilatora i grijaćih elemenata bez obzira na odabranu funkciju kuhanja. Kako biste uštedjeli energiju, kada je aktivirano brzo zagrijavanje, ventilator u unutrašnjosti će se ISKLJUČITI dok pećnica ne dosegne željenu temperaturu

STANDARDNE FUNKCIJE

Kako podesiti funkciju Jolly:

Za podešavanje funkcije Jolly na pećnici otvorite odjeljak s receptima u aplikaciji, odaberite recept koji želite upotrijebiti i kliknite „Use as Jolly Function” (Koristi kao funkciju Jolly).

Od ovog trenutka pa nadalje, možete je pokrenuti s uređaja čak i bez interakcije s aplikacijom. Za početak kuhanja jednostavno okrenite birač funkcija na funkciju Jolly.

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular object with a curved cutout and an arrow pointing to it (no text or symbols)

Kako registrirati i koristiti sondu Preci Probe:

1. Umetnite sondu u hranu.
2. Dodirnite ☐ za odabir željene funkcije i dodirnite Ⓜ onoliko puta koliko vam je potrebno za odabir ikone sonde.
3. Nakon nekog vremena pećnica će prepoznati kôd sonde. Dodirnite Dli strelicama postavite ciljanu temperaturu.
4. Dodirnite ▶II za potvrdu. Od tog trenutka pećnica će koristiti podatke sonde za praćenje unutarnje temperature hrane.
5. Nakon postizanja željene unutarnje temperature oglašava se alarm i pećnica se isključuje. Pažljivo izvadite sondu iz hrane.

Simple line drawing of a chef's hat and coat on a chicken (no text or symbols)

Illustration of a medical procedure with a tool and probe inserted into a patient's abdomen (no text or symbols)

Sonda se može koristiti s ručnim funkcijama (Konvencionalna, Konvencionalan + ventilator, Roštilj, Supergrill, Gratiniranje i Više razina), s KATEGORIJAMA HRANE ZA KUHANJE (meso, riba i povrće) i s programom Gentle cooking.

Kategorija hrane	Predložena temperatura u središtu hrane T °C	Predloženi položaj
Pečena govedina	45 °C	Dijagonalno u najdebljem dijelu. Za namirnice cilindričnog oblika (npr. goveđe pečenje) postavite vrh što je moguće bliže geometrijskom središtu
Pečeno meso	55 °C / 60 °C / 65 °C
Perad	83 - 85 °C	U najdeblji dio prsa
Riba (cijela/odresci)	65 °C	Dijagonalno u najdebljem dijelu
Kruh/složenci	90 °C	Blizu geometrijskog središta namirnice

5. SMJERNICE ZA PRIPREMANJE HRANE

5.1. OPĆA TABLICA ZA PRIPREMU HRANE

Kategorija	Recept	Br. razina	Program kuhanja	T °C	Zagrijavanje	Pribor za kuhanje	Položaj police	Vrijeme kuhanja nakon zagrijavanja *(min)
Slatki pekarski proizvodi	Mali kolačići / mafini	1	Konvencionalna na više razina	175 °C160 °C	Y	Ladica za pečenjeLadica za pečenje	L3L4	20 - 3030 - 40
		2	Više razina	150 °C		Ladice za pečenje + dublje ladice	L2 + L5	30 - 40
		3	Više razina	140 °C		Ladice za pečenje	L2 + L4 + L6	40 - 50
	Biskviti (∅ 26 cm)	1	Konvencionalna	170 °C	Y	Metalna rešetka + kalup za kolače	L2	30 - 40
			Više razina	150 °C		Metalna rešetka + kalup za kolače	L4	40 - 50
		2	Više razina	150 °C		Metalne rešetke + kalup za kolače	L1 + L4	50 - 60
	Keksi / prhko pecivo	1	Konvencionalna na više razina	150 °C150 °C	Y	Ladica za pečenjeLadica za pečenje	L3L4	25 - 3030 - 40
		2	Više razina	140 °C		Ladice za pečenje + dublje ladice	L2 + L5	30 - 40
		3	Više razina	140 °C		Ladice za pečenje	L2 + L4 + L6	35 - 40
	Francuska peciva s punjenjem	1	Konvencionalna	190 °C		Ladica za pečenje	L4	25 - 35
		2	Više razina	170 °C		Ladica za pečenje	L3	25 - 35
	Jorkširski puding	1	Konvencionalna	200 °C	Y	Ladica za pečenje	L3	20 - 30
	Puslice	1	Više razina	90 °C	Y	Ladica za pečenje		90 - 160
	Macaron	1	Konvencionalna	150 °C	Y	Ladica za pečenje	L3	15 - 20
	Pita od jabuka	1	Konvencionalna	185 °C	Y	Metalna rešetka + kalup za kolače	L2	60 - 70
		1	Više razina	170 °C	Y	Metalna rešetka + kalup za kolače	L4	65 - 75
	Tarte tatin	1	Konvencionalna	170 °C	Y	Metalna rešetka + kalup za kolače	L2	40 - 60
	Čokoladni nabujak	1	Konvencionalna	200 °C	Y	Ladica za pečenje + kalupi	L3	10 - 15
	Torta sa sirom	1	Konvencionalna	150 °C	Y	Metalna rešetka + kalup za kolače	L2	50 - 65
	Smrznuti kroasani	1	Konvencionalna	180 °C	Y	Ladica za pečenje	L3	20 - 25
		2	Konvencionalna	180 °C		Ladice za pečenje	L2 + L5	25 - 35
		3	Više razina	160 °C		Ladice za pečenje	L2 + L4 + L6	30 - 40
