USER MANUAL SC-433 QSC
- Three-way selectable, bi or tri-amplified screen channel system
- MH-1075 provides 90^ horizontal by +20^ to -30^ vertical coverage
• LF-4315 is constructed of MDF and features single woofer chambers - Low-distortion waveguides provide highly articulate dialogue
- Shallow depth (20") facilitates installation
- THX™ approved for professional cinema applications


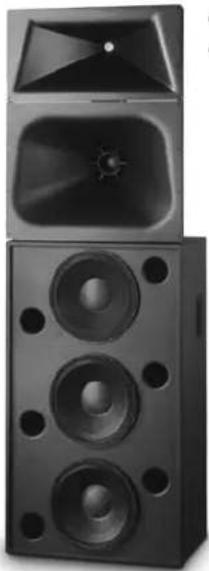

Exterior view of a black speaker tower with three speakers and a top panel (no text or symbols visible)THX
Developed specifically for the unique requirements of professional motion picture playback, the SC-433 extends QSC's commitment to the cinema market. As a member of the DCS Digital Cinema Speaker Series, the SC-433 is a three-way, selectable bi or tri-amplified screen channel loudspeaker system comprised of two main units—the MH-1075 high-frequency system and the LF-4315 low-frequency system.
The MH-1075 mid-high system features a high output, horn loaded 10" midrange cone driver and a 3" (75mm) titanium diaphragm compression driver mounted to an adjustable pan and tilt bracket. The MH-1075 includes a driver protection network and a passive crossover for bi-amp operation. Power limiter circuitry protects the high-frequency driver from overpowering. The MH-1075 provides extended frequency coverage for the critical midrange band. A high power 10" cone driver allows operation as low as 250 Hz and the advanced phase plug coupling permits a crossover point of up to 1800 Hz to the high-frequency horn. This ensures that most of the dialog range is reproduced by a single element, for unmatched intelligibility.
The LF-4315 triple 15" (381mm) low-frequency enclosure is designed specifically to address the extended low-frequency response required for cinema applications. The LF-4315 covers the frequency range from 35 Hz to 250 Hz. Close Coupled Woofers (CCW), with their tight spacing between woofers, improves coupling and keeps coverage angles wide over a greater frequency range than more widely spaced designs.
The SC-433 is designed for ease of installation. The MH-1075 components come pre-assembled to reduce field assembly time. Three bolts are all that are required to secure the MH-1075 to the top of the LF-4315 enclosure.
Specifications SC-433
| Nominal Coverage 90° horizontal x +20 to -30° vertical | |||
| Frequency Range 32 Hz - 16 kHz (-6 dB) | |||
| Crossover Frequency | 250 and 1700 Hz, 24 dB per octave | ||
| LF-4315 | MH-1075 | ||
| Impedance | 5.5Ω | 8Ω | |
| Sensitivity 1 watt/1 meter, half space | 99.5 dB | Bi-amp105 dB | Tri-ampMF 105 dB HF 107.5 dB |
| Maximum Input Power1 | |||
| 8 hours of 6 db crest factor IEC 268 noise spectrum | 1200 W RMS | 250 W RMS2passive mid-high | 275 W RMS 80 W RMS |
| 2 hours of 6 db crest factor pink noise, 50 Hz - 20 kHz, AES method | 1500 W RMS | 350 W RMS | |
| Recommended Amplifier Power | 2400 W RMS maximum | 800 W RMS maximum | |
| Recommended Processing | Subsonic filter below 30 Hz, >18 dB per octave | 4th order LR crossover at 200 and 1700 Hz via QSC DCM or QSControl.net | |
| Connectors | Barrier strip screw terminals accept up to #10 AWG stranded wire, four terminals; two inputs and two parallel outputs | Barrier strip screw terminals accept up to #10 AWG stranded wire | |
| Transducers | Three 15" (381mm) high efficiency, extended bass woofer featuring 4" copper voice coils | 10" high efficiency mid range, 1.5" (38mm) exit, 3" titanium diaphragm compression driver | |
| Enclosure | Quasi B4 alignment, ported enclosure with fully flared ports, symmetrical port design, tuned to 36 Hz, constructed of MDF and heavily braced. Features vandal resistant woofer mounting bolts | Tilt/Pan Bracket±10° vertical tilt±10° horizontal pan | |

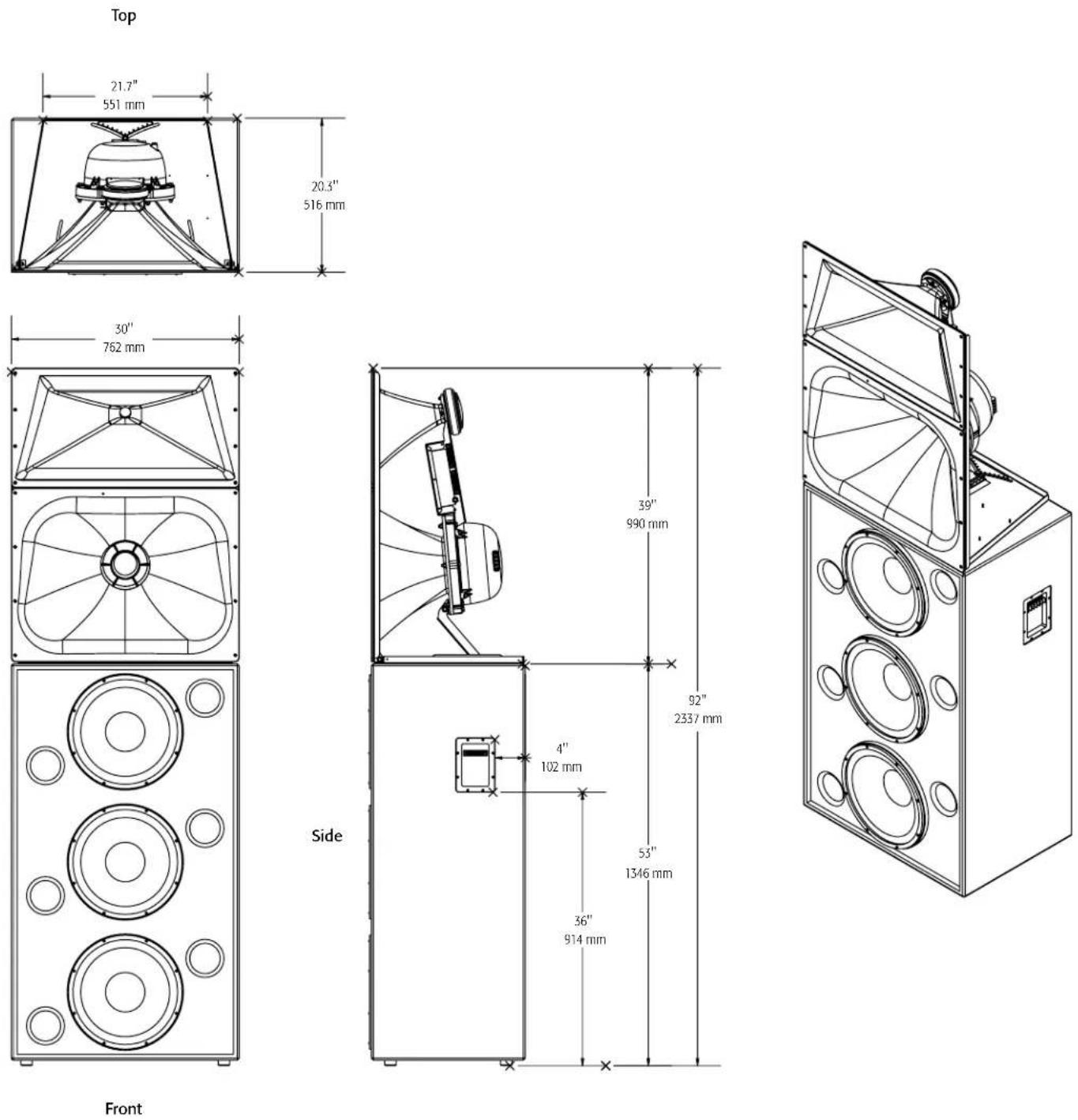

| Dimensions (HWD) | 53" x 30" x 20.3"(1344 mm x 762 mm x 516 mm) | 39" x 30" x 20"(990 mm x 762 mm x 508 mm) | |
| Weight - Net | 260 lbs (118 kg) | 85 lbs (39 kg) | |
| System Weight | 345 lbs (157 kg) | ||
| Baffle Cut-Out | 93" x 32" | ||
1) Maximum input power tested in accordance with IEC 268-5 recommendations, 50 Hz - 20 kHz band limiting, 6 dB signal crest factor. 2) Maximum input power tested in accordance with IEC 268-5 recommendations, 200 Hz - 2 kHz band limiting, 6 dB signal crest factor.

Specifications subject to change without notice.
Cinema Mid-High Loudspeaker System User Manual
MH-1063 10" (254mm) mid, 2.5" (63mm) compression driver
MH-1075 10" (254mm) mid, 3.0" (75mm) compression driver
Introduction
The MH-1063 and MH-1075 "mid-high packs" provide the mid and high frequency components of three-way screen channel loudspeaker systems for high performance cinema applications. They were designed to operate with and be directly mounted on QSC's cinema low frequency enclosures.
Mid frequencies are reproduced with a 10" (254mm) high-efficiency, phase-ring loaded driver mounted on a custom designed cinema horn. The high-frequency driver is a large format, 2.5" (63mm, MH-1063) or 3.0" (75mm, MH-1075) titanium diaphragm compression driver mounted on a custom high-frequency cinema horn. The high frequency horn is a low-distortion waveguide providing highly articulate dialogue without coloration associated with conventional horn loudspeakers. Both horns feature broad horizontal and vertical coverage angles to ensure coverage of every seat in the auditorium. The driver assemblies are mounted on an adjustable pan and tilt bracket that has an integral aiming sight, simplifying installation.
The MH-1063 and MH-1075 loudspeakers include a driver protection and crossover network to assure reliable operation. DC blocking capacitors protect against DC or low-frequency signals that could damage an unprotected driver. Power limiter circuitry protects the driver from over-powering and an 18dB/octave crossover seamlessly blends the high and mid frequency elements. Outboard processing is required to form the crossover between the LF and MH loudspeakers.
Bi-amp or tri-amp operation is possible using a selector switch mounted on the connections panel. The bi-amp setting provides a passive crossover network between mid and high drivers. Separate amplifiers and an active crossover are required for the low frequency channel and the mid-high channel. Tri-amp setting disables the internal mid-high crossover and each driver is driven independently by its own amplifier and active crossover; one for the low, one for the mid, and one for the high frequencies.
The MH-1063 and MH-1075 components come pre-assembled to reduce field assembly time. Three bolts are all that are required to secure the mid-high assembly to the top of a QSC low frequency enclosure.

Install in accordance with QSC Audio Product's instructions and a licensed, professional engineer. Only use attachments, mounts, accessories, or brackets specified by QSC Audio Products, Inc. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way.

WARNING! Before placing, installing, rigging, or suspending any speaker product, inspect all hardware, suspension, cabinets, transducers, brackets and associated equipment for damage. Any missing, corroded, deformed or non-load rated component could significantly reduce the strength of the installation, placement, or array. Any such condition severely reduces the safety of the installation and should be immediately corrected. Use only hardware which is rated for the loading conditions of the installation and any possible short-term unexpected overloading. Never exceed the rating of the hardware or equipment. Consult a licensed, professional engineer when any doubt or questions arise regarding a physical equipment installation.


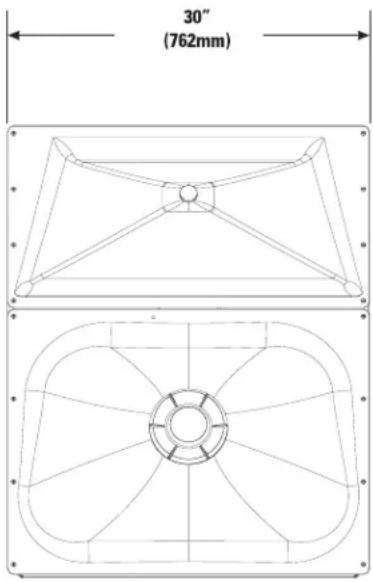

Technical line drawing of a mechanical device with tripod supports and a dome-shaped component (no text or symbols)


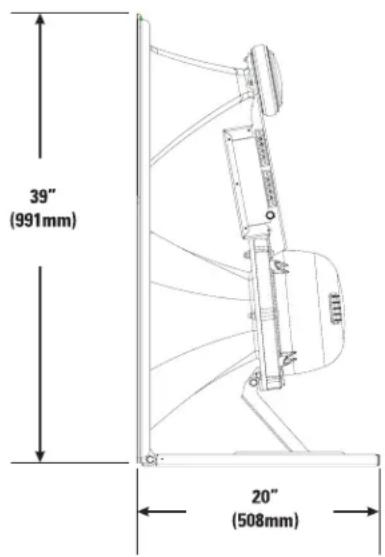

39" (991mm) 20" (508mm)
TD-000180-00 rev.A
© Copyright 2004, QSC Audio Products, Inc.
QSC® is a registered trademark of QSC Audio Products, Inc.
"QSC" and the QSC logo are registered with the U.S. Patent and Trademark Office
Mounting
Attaching to Low Frequency Enclosure
The mid-high loudspeaker assembly attaches to the top of the QSC low frequency cabinet with three 5/16-18 bolts, 0.75" long, with lock washers. This hardware ships installed on the low frequency cabinet. We recommend the use of serviceable thread locking compound when installing the bolts to prevent loosening due to vibration. Do not fully tighten the mounting hardware before aiming (see below).

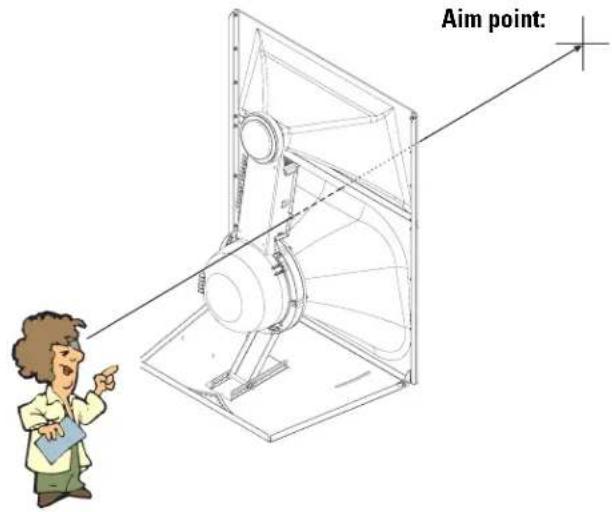

Aiming
Aim the horn in the horizontal plane (pan) before tightening the attachment hardware. Adjust the vertical tilt with the mid-high vertical adjustment bracket. The mid-high assembly is equipped with an aiming sight to assist in achieving desired coverage quickly and easily. For typical applications, the aim point should be the center seat in the back row of the auditorium. If the cinema screen has already been installed, a flashlight placed at the desired aiming point can be seen through the screen perforations in a darkened auditorium.

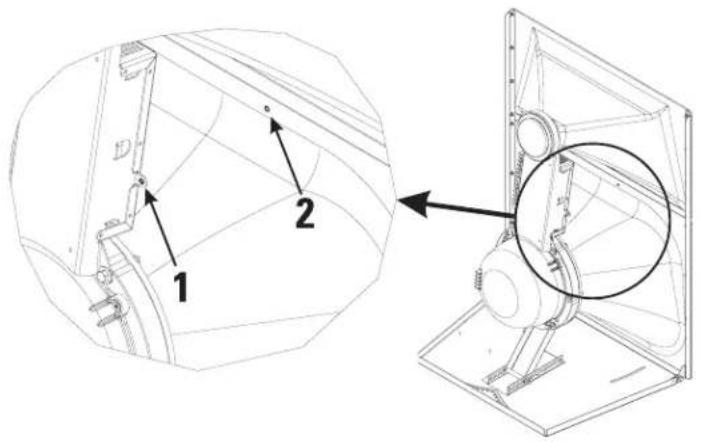

Where the sight holes are located:
BI-AMP / TRI-AMP Operating Mode Selection

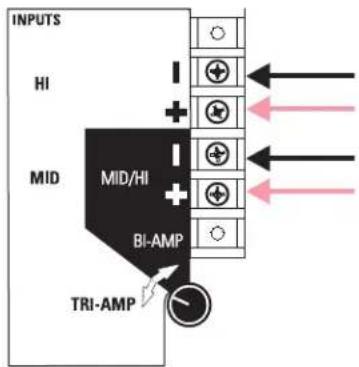

Set the operating mode selector switch to BI-AMP or TRI-AMP, depending on your application setup.

Do not connect amplifiers directly to the driver inputs! Always use the input terminal strip.
Connections
INPUT Terminals
The MH-1063 and MH-1075 have barrier strip screw terminals that accept up to #10 AWG (5.3mm ^2 ) stranded loudspeaker wire.
Observe proper polarity. Use the largest wire size and shortest wire length for the application.
OUTPUT Terminals
The OUTPUT terminals are factory-connected to the drivers. These terminals should ONLY be connected to their respective driver. Do not connect signals to these terminals as all protection and equalization circuitry will be bypassed.

NOTE! Maintain proper loudspeaker connection polarity throughout the entire system for maximum performance. Do not apply full range signal to the MH-1063 / MH-1075! There is a mid-high passive crossover for bi-amp mode only. There is no crossover connected when operating in tri-amp mode. A protection network is always active. All required signal processing must be done before the signal is applied to the loudspeaker. Do not connect any signal to the upper sets of OUTPUT terminals.

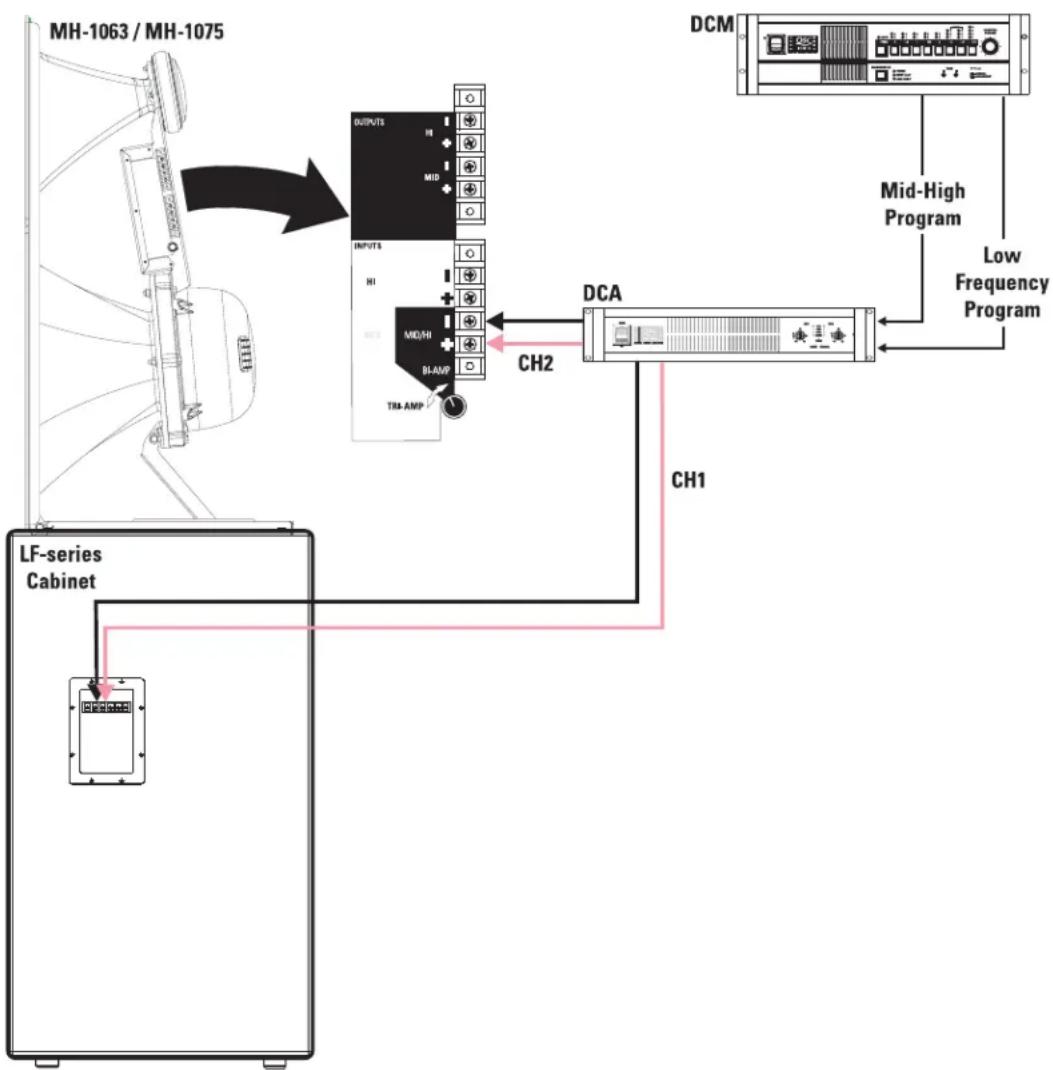

BI-AMP mode connections- Ensure the mode switch is set to BI-AMP, connect the input to the MH-1063 / MH-1075 to the lower set of input terminals marked "BI-AMP + -".
BI-AMP Mode- one amplifier channel is used for the low frequency cabinet and one amplifier channel for the mid-high assembly. The MH-1063/MH-1075 mode switch is set to BI-AMP. Active crossovers are used before amplification. The mid-high assembly provides a passive crossover between the mid and high frequency drivers.
Connections (continued)

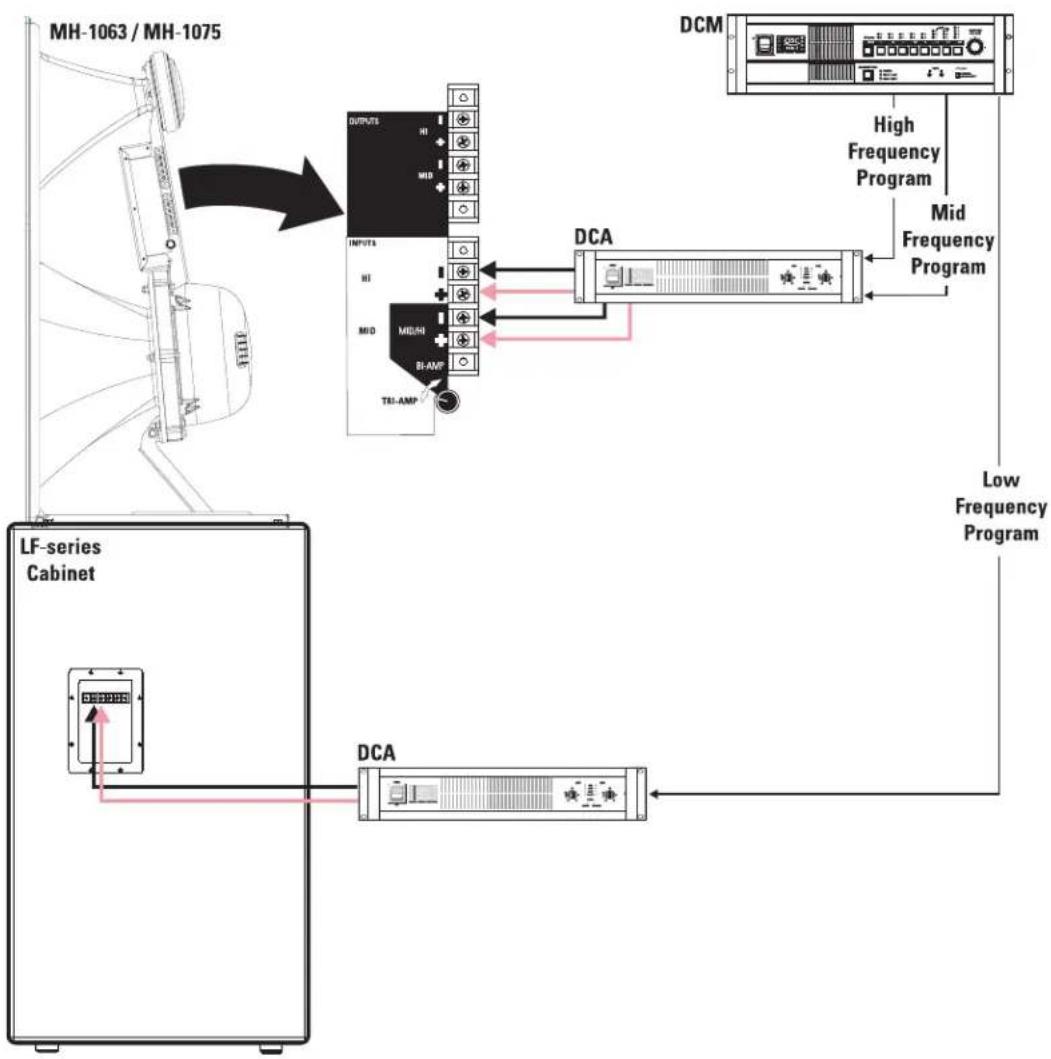

TRI-AMP mode connections- When the mode switch is set to TRI-AMP, connect the high frequency signal to the terminals marked "INPUT HI + -" and the mid frequency signal to the terminals marked "INPUT MID + -".
TRI-AMP Mode- one amplifier channel is used for the low frequency cabinet, one amplifier channel for the mids, and one amplifier channel for the high frequencies. The MH-1063 / MH-1075 mode switch is set to TRI-AMP, bypassing the internal mid-high passive crossover. Active or passive crossovers are used before amplification. Power limiter and DC blocking remain active.
MH-1063 Specifications (subject to change without notice)
Freq. Range 180 - 15k (-6dB, full space)
Nominal Coverage
90° horizontal X +20 to -30° vertical (50° total, adjustable mount provides for vertical plane adjustments. The horizontal plane can be adjusted by altering mounting position on the low frequency enclosure before tightening bolts.
DI: 9 dB (400 to 16k Hertz average)
Q: 8 (400 to 16k Hertz average)
Max. Output: [Tri-amp mode] Mid Freq. 135.5 dB SPL calculated peak, 1m, full space
[Tri-amp mode] High Freq. 131.5 dB SPL calculated peak, 1m, full space
[Bi-amp mode] 135 dB SPL calculated peak, 1m ,full space
Impedance: [Bi-amp mode] 8 ohms nominal
7.9 ohms minimum at 1500 Hertz
91 ohms maximum at 150 Hertz
Maximum Input Power [Tri-amp mode] Mid Freq. 275 W (AES method, 2 hrs.)
[Tri-amp mode] High Freq. 60 W (AES method, 2 hrs.)
[Bi-amp mode] 250 W (IEC method, 8 hrs.)
Sensitivity [Tri-amp mode] Mid Freq. 105 dB SPL, 1 watt, 1 meter
[Tri-amp mode] High Freq. 107.5 dB SPL, 1 watt, 1 meter
[Bi-amp mode] 135 dB SPL, 1 watt, 1 meter
Crossover Frequency
[Tri-amp mode] 250 Hertz or higher, 24dB/octave and 1.7k Hertz, 24dB/octave
[Bi-amp mode] 250 Hertz or higher, 24dB/octave
Crossover Network
1.7k Hertz, 18 dB/octave electrical slope, HF driver power limiting circuit (never disrupts continuity). Switchable operation between Bi-Amp and Tri-amp operation. Tri-amp setting removes crossover circuit from signal, leaving power limiter and DC blocking capacitors.
Connectors
Barrier strip screw terminals accept up to #10 AWG stranded wire. Four terminals, two HF input and two MF input (for Tri-amp mode operation).
Transducers MF: 10" high efficiency midrange, phase-ring loaded.
HF: 1.5" (38mm) exit, 2.5" (63.5mm) titanium diaphragm compression driver.
Mounting Hardware:
Attaches to top of the low frequency cabinet using three 5/16"-18 x 3/4" long bolts.
Size
39" high x 30" wide x 20" deep (991 x 762 x 508mm)
Weight
85 lb. (39 kg) net
MH-1075 Specifications (subject to change without notice
Freq. Range 180 - 15k (-6dB, full space)
Nominal Coverage
90° horizontal X +20 to -30° vertical (50° total, adjustable mount provides for vertical plane adjustments. The horizontal plane can be adjusted by altering mounting position on the low frequency enclosure before tightening bolts.
DI: 9 dB (400 to 16k Hertz average)
Q: 8 (400 to 16k Hertz average)
Max. Output: [Tri-amp mode] Mid Freq. 135.5 dB SPL calculated peak, 1m, full space
[Tri-amp mode] High Freq. 133 dB SPL calculated peak, 1m, full space
[Bi-amp mode] 135.5 dB SPL calculated peak, 1m ,full space
Impedance: [Bi-amp mode] 8 ohms nominal
6.4 ohms minimum at 1500 Hertz
91 ohms maximum at 150 Hertz
Maximum Input Power [Tri-amp mode] Mid Freq. 275 W (AES method, 2 hrs.)
[Tri-amp ode] High Freq. 80 W (AES method, 2 hrs.)
[Bi-amp mode] 250 W (IEC method, 8 hrs.)
Sensitivity [Tri-amp mode] Mid Freq. 105 dB SPL, 1 watt, 1 meter
[Tri-amp mode] High Freq. 108 dB SPL, 1 watt, 1 meter
[Bi-amp mode] 135.5 dB SPL, 1 watt, 1 meter
Crossover Frequencies
[Tri-amp mode] 250 Hertz or higher, 24dB/octave and 1.7k Hertz, 24dB/octave
[Bi-amp mode] 250 Hertz or higher, 24dB/octave
Crossover Network
1.7k Hertz, 18 dB/octave electrical slope, HF driver power limiting circuit (never disrupts continuity). Switchable operation between Bi-Amp and Tri-amp operation. Tri-amp setting removes crossover circuit from signal, leaving power limiter and DC blocking capacitors.
Connectors
Barrier strip screw terminals accept up to #10 AWG stranded wire. Four terminals, two HF input and two MF input (for Tri-amp mode operation).
Transducers MF: 10" high efficiency midrange, phase-ring loaded.
HF: 1.5" (38mm) exit, 3" (76mm) titanium diaphragm compression driver.
Mounting Hardware:
Attaches to top of the low frequency cabinet using three 5/16"-18 x 3/4" long bolts.
Size
39" high x 30" wide x 20" deep (991 x 762 x 508mm)
Weight
85 lb. (39 kg) net

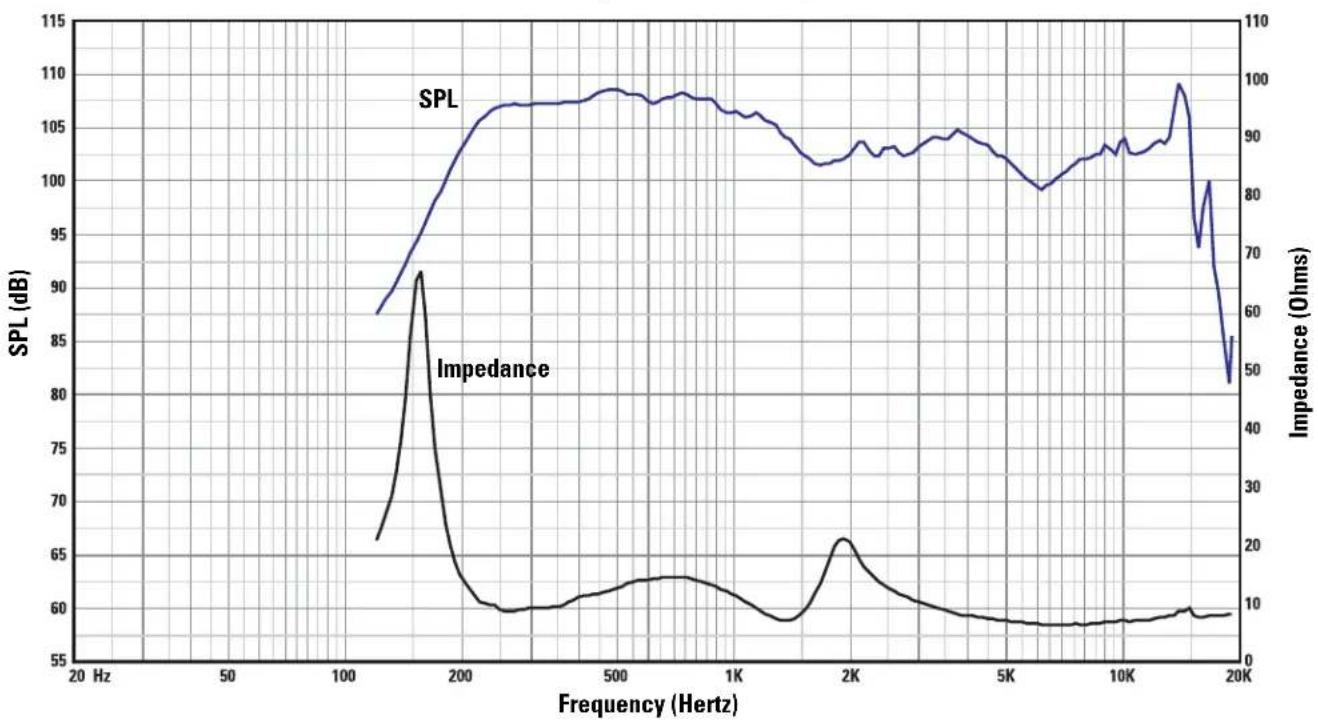

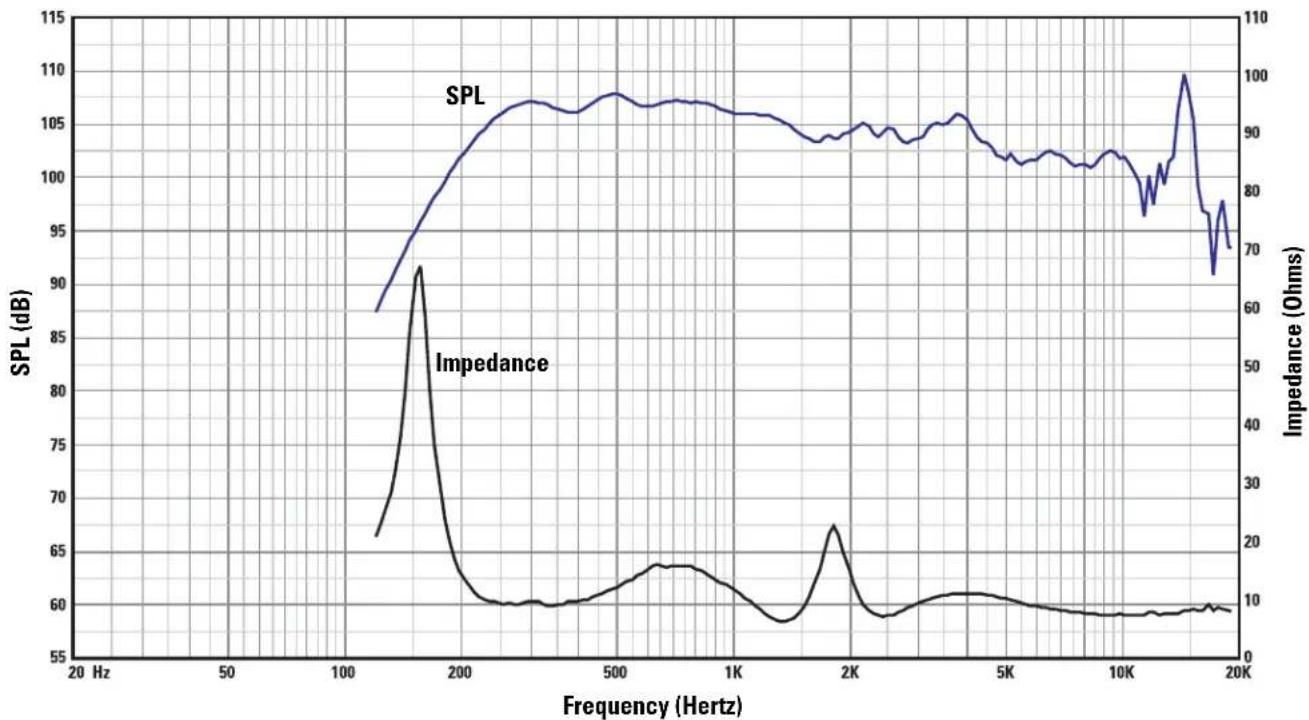

MH-1063 SPL and Impedance vs. Frequency

bar_line
| Frequency (Hz) | SPL (dB) | Impedance (Ohms) | | -------------- | -------- | ---------------- | | 20 | 87 | 0 | | 150 | 91 | 20 | | 100 | 107 | 10 | | 500 | 108 | 15 | | 1K | 107 | 10 | | 5K | 103 | 5 | | 10K | 104 | 5 | | 15K | 109 | 10 | | 20K | 82 | 5 |MH-1075 SPL and Impedance vs. Frequency

bar_line
| Frequency (Hz) | SPL (dB) | Impedance (Ohms) | | -------------- | -------- | ---------------- | | 20 | 67 | 10 | | 150 | 92 | 30 | | 100 | 60 | 10 | | 500 | 107 | 15 | | 1K | 106 | 10 | | 2K | 104 | 25 | | 5K | 103 | 10 | | 10K | 102 | 10 | | 15K | 100 | 100 | | 20K | 70 | 70 |Warranty (USA only; other countries, see your dealer or distributor)
Disclaimer
QSC Audio Products, Inc. is not liable for any damage to amplifiers, or any other equipment that is caused by negligence or improper installation and/or use of this loudspeaker product.
QSC Audio Products 3 Year Limited Warranty
QSC Audio Products, Inc. ("QSC") guarantees its products to be free from defective material and / or workmanship for a period of three (3) years from date of sale, and will replace defective parts and repair malfunctioning products under this warranty when the defect occurs under normal installation and use - provided the unit is returned to our factory or one of our authorized service stations via pre-paid transportation with a copy of proof of purchase (i.e., sales receipt). This warranty provides that the examination of the return product must indicate, in our judgment, a manufacturing defect. This warranty does not extend to any product which has been subjected to misuse, neglect, accident, improper installation, or where the date code has been removed or defaced. QSC shall not be liable for incidental and/or consequential damages. This warranty gives you specific legal rights. This limited warranty is freely transferable during the term of the warranty period.
Customer may have additional rights, which vary from state to state.
In the event that this product was manufactured for export and sale outside of the United States or its territories, then this limited warranty shall not apply. Removal of the serial number on this product, or purchase of this product from an unauthorized dealer, will void this limited warranty. Periodically, this warranty is updated. To obtain the most recent version of QSC's warranty statement, please visit www.qscaudio.com. Contact us at 800-854-4079 or visit our website at www.qscaudio.com.
Contacting QSC Audio Products
Mailing address: QSC Audio Products, Inc.
1675 MacArthur Boulevard
Costa Mesa, CA 92626-1468 USA
Telephone Numbers:
Main Number (714) 754-6175
Sales & Marketing (714) 957-7100 or toll free (USA only) (800) 854-4079
Customer Service(714) 957-7150 or toll free (USA only) (800) 772-2834
Facsimile Numbers:
Sales & Marketing Fax(714) 754-6174
Customer Service Fax(714) 754-6173
World Wide Web:www.qscaudio.com
E-mail:info@qscaudio.com
service@qscaudio.com
Cinema Loudspeaker Systems User Manual
LF-4315 Low Frequency Loudspeaker
Introduction
The LF-4315 15" (381mm) low frequency enclosure is designed specifically for cinema applications. Meeting cinema requirements for extended low frequency response differentiates the LF-4315 from more conventional "rock-and-roll" woofer systems. The LF-4315 covers the frequency range from 30 Hertz to 500 Hertz, depending upon the high frequency system requirements.
The three custom 400 watt, 15" transducers were developed specifically for cinema use. They feature 4" (100mm) voice coils, 120 oz.(3.4kg) ceramic magnets, and multi-vented pole pieces to ensure cool operation. Cooler temperatures increase transducer lifespan and decrease power compression at high power levels. Undercut pole pieces ensure the voice coils operate in symmetrical magnetic gaps, reducing second order harmonic distortion. The suspension and voice coils of the transducers have been designed to provide low distortion and high impact bass at high power.
The enclosure is constructed of high quality medium density fiberboard panels with stiffening braces on all panels. Both internal and external port openings are fully radiused ensuring smooth air flow at higher power levels, preventing audible port turbulence.
Bass ports are symmetrically spaced on each side of the transducers, making internal pressure more uniform across the back surface of the transducers. This prevents the cones from being displaced to one side or another by unbalanced forces, reducing the chance of driving the voice coils out of the center of the gaps at high power.
Three T-nuts in the top of the enclosure provide easy mounting of QSC's HF-75 high frequency system, or MH-1075 mid-high system.

Enclosure is not designed to be suspended, flown, or rigged. Do not suspend, fly, or rig this enclosure.
This product is capable of producing sound pressure levels that can permanently damage human hearing. Always keep sound pressure levels in the listening area below levels that can damage human hearing.
Install in accordance with QSC Audio Product's instructions and a licensed, professional engineer. Only use attachments, mounts, accessories, or brackets specified by QSC Audio Products, Inc. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way.

WARNING! Before placing, installing, rigging, or suspending any speaker product, inspect all hardware, suspension, cabinets, transducers, brackets and associated equipment for damage. Any missing, corroded, deformed or non-load rated component could significantly reduce the strength of the installation, placement, or array. Any such condition severely reduces the safety of the installation and should be immediately corrected. Use only hardware which is rated for the loading conditions of the installation and any possible short-term unexpected overloading. Never exceed the rating of the hardware or equipment. Consult a licensed, professional engineer when any doubt or questions arise regarding a physical equipment installation.


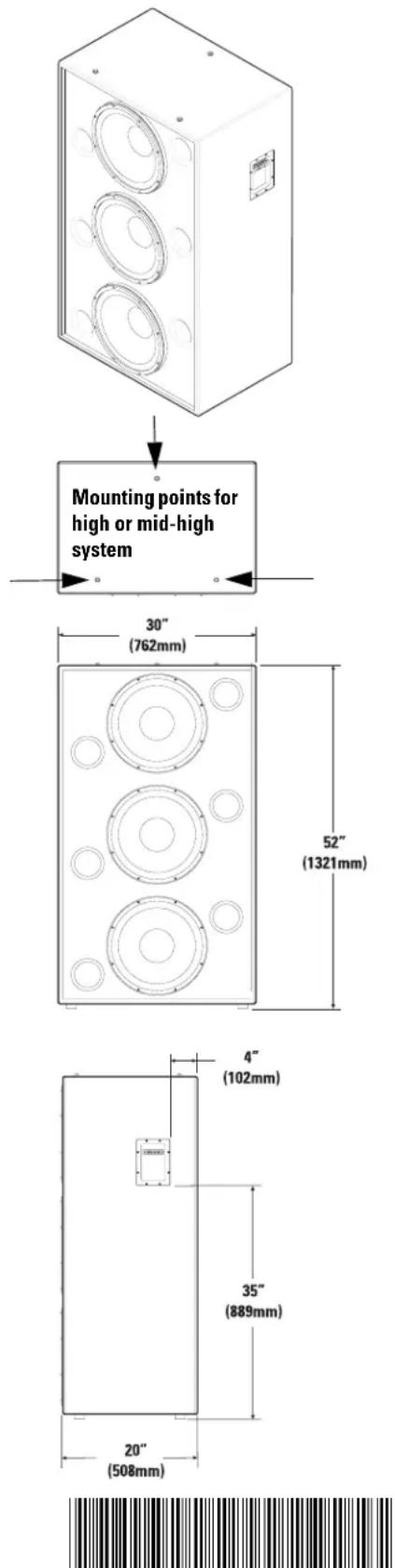

Mounting points for high or mid-high system 30" (762mm) 52" (1321mm) 4" (102mm) 35" (889mm) 20" (508mm)TD-000177-00 rev.C
© Copyright 2004, QSC Audio Products, Inc.
QSC® is a registered trademark of QSC Audio Products, Inc.
"QSC" and the QSC logo are registered with the U.S. Patent and Trademark Office
Connections

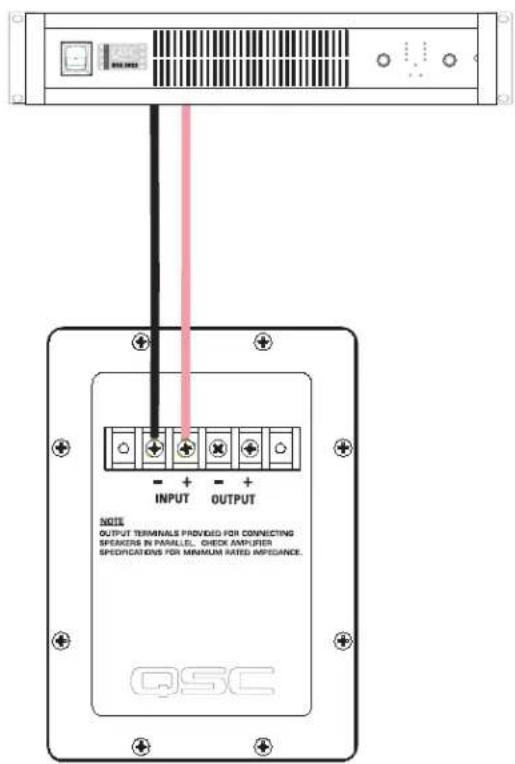

Normal Connection
The LF-4315 has barrier strip screw terminals for connection. The terminals accept up to #10 AWG (5.3mm ^2 ) stranded loudspeaker wiring. Use the largest wire size and shortest wire length possible for a given installation. Observe the polarity markings and keep polarity consistent throughout the system for best performance.
Normal Connection Example:


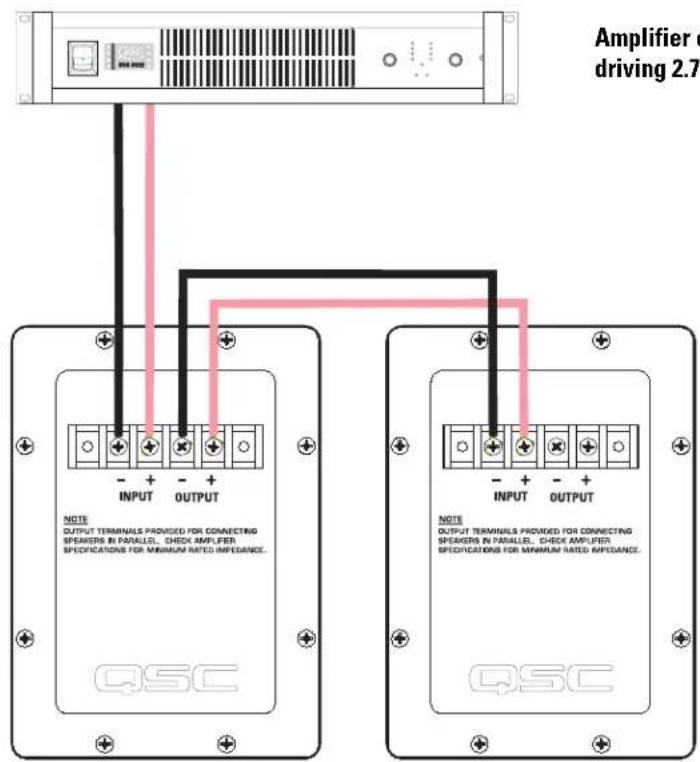

Parallel Connection of Second LF-4315
The terminals marked OUTPUT may be used to connect another LF-4315 in parallel. Connect the wires as shown in the illustration, at right.
Parallel Connection Example:
LF-4315 Specifications (subject to change without notice)
Frequency Range: 32 - 1200 Hertz (-6dB)
28 - 2800 Hertz useable range (-10dB)
Nominal Coverage: 125° horizontal X 60° vertical at 315 Hertz
Maximum Output:
136.0dB SPL calculated peak, 1 meter, half space, at rated rms power with 6 dB crest factor pink noise input, 35 - 1000 Hertz.
130.0dBA SPL calculated maximum continuous, 1 meter. The dBA scale is typically used to identify sound sources which can cause permanent hearing loss.
Impedance: 5.5 ohms nominal
4.5 ohms minimum, 150 Hertz
30 ohms maximum, 22 Hertz
Maximum Input Power:
1200 watts rms (8 hours of 6dB crest factor pink noise, 40 - 400 Hertz)
1500 watts rms (2 hours of 6dB crest factor pink noise, 40 - 400 Hertz)
recommended amplifier power capability- 2400 watts rms maximum into 4 ohms (per LF-4315)
Sensitivity: 99.0dB half space, 98.0dB full space, 35 - 1000 Hertz, 1 watt, 1 meter
Recommended Processing:
Subsonic filter below 25 Hertz, >18 dB per octave, maximum recommended crossover frequency is 500 Hertz. QSC DSP configurations are available at www.qscaudio.com. Parameters for alternative processing hardware are available upon request.
Connectors: Barrier strip screw terminals accept up to #10 AWG (5.3mm allel OUTPUT).
^2) stranded wire. Four terminals: (two INPUT and two par-
Transducers:
Three 15" (381mm) high efficiency low frequency transducer featuring vented 4" (100mm) copper voice coil on Kapton® formers. High excursion/low distortion design, with extremely high power handling, and low thermal compression.
Enclosure:
Quasi B4 alignment, ported enclosure with fully flared ports, low turbulence symmetrical port design, tuned to 34 Hertz, constructed of medium density fiberboard and heavily braced. Features vandal resistant woofer mounting bolts.
Size: 30" wide X 53" high X 20" deep (762mm X 1321mm X 508mm)
Weight: 290 lbs. shipping, 260 lbs. net (132/118 kg.)

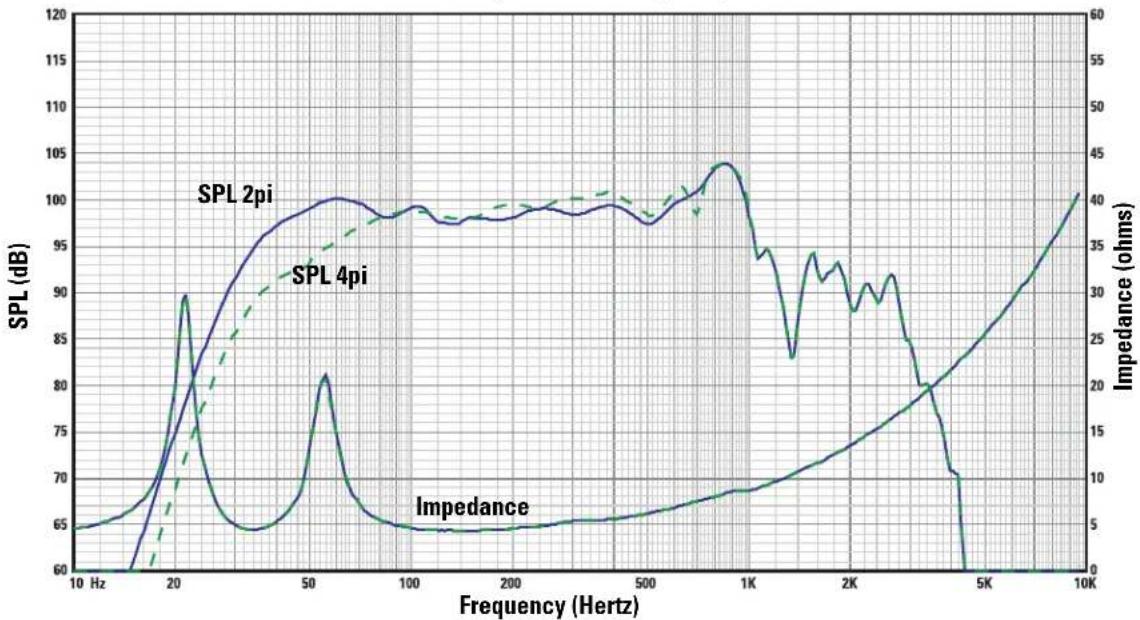

SPL and Impedance vs. Frequency

line
| Frequency (Hertz) | SPL 2pi (dB) | SPL 4pi (dB) | Impedance (ohms) | | ----------------- | ------------ | ------------ | ---------------- | | 10 Hz | 65 | 65 | 5 | | 20 | 85 | 75 | 10 | | 50 | 100 | 90 | 15 | | 100 | 98 | 98 | 20 | | 200 | 99 | 99 | 25 | | 500 | 98 | 98 | 30 | | 1K | 104 | 104 | 35 | | 2K | 90 | 90 | 40 | | 5K | 70 | 70 | 45 | | 10K | 100 | 100 | 50 |Warranty (USA only; other countries, see your dealer or distributor)
Disclaimer
QSC Audio Products, Inc. is not liable for any damage to amplifiers, or any other equipment that is caused by negligence or improper installation and/or use of this loudspeaker product.
QSC Audio Products 3 Year Limited Warranty
QSC Audio Products, Inc. ("QSC") guarantees its products to be free from defective material and / or workmanship for a period of three (3) years from date of sale, and will replace defective parts and repair malfunctioning products under this warranty when the defect occurs under normal installation and use - provided the unit is returned to our factory or one of our authorized service stations via pre-paid transportation with a copy of proof of purchase (i.e., sales receipt). This warranty provides that the examination of the return product must indicate, in our judgment, a manufacturing defect. This warranty does not extend to any product which has been subjected to misuse, neglect, accident, improper installation, or where the date code has been removed or defaced. QSC shall not be liable for incidental and/or consequential damages. This warranty gives you specific legal rights. This limited warranty is freely transferable during the term of the warranty period.
Customer may have additional rights, which vary from state to state.
In the event that this product was manufactured for export and sale outside of the United States or its territories, then this limited warranty shall not apply. Removal of the serial number on this product, or purchase of this product from an unauthorized dealer, will void this limited warranty. Periodically, this warranty is updated. To obtain the most recent version of QSC's warranty statement, please visit www.qscaudio.com. Contact us at 800-854-4079 or visit our website at www.qscaudio.com.
Contacting QSC Audio Products
Mailing address: QSC Audio Products, Inc.
1675 MacArthur Boulevard
Costa Mesa, CA 92626-1468 USA
Telephone Numbers:
Main Number (714) 754-6175
Sales & Marketing (714) 957-7100 or toll free (USA only) (800) 854-4079
Customer Service(714) 957-7150 or toll free (USA only) (800) 772-2834
Facsimile Numbers:
Sales & Marketing Fax(714) 754-6174
Customer Service Fax(714) 754-6173
World Wide Web:www.qscaudio.com
E-mail:info@qscaudio.com
service@qscaudio.com
service@qscaudio.com
Adresse postale : QSC Audio Products, Inc.
1675 MacArthur Boulevard
service@qscaudio.com

service@qscaudio.com
影院扬声器系统用户手册
LF-4315 低频扬声器
简介
service@qscaudio.com

QSC Audio Products, Inc. 1675 MacArthur Boulevard Costa Mesa, California 92626 USA
