USER MANUAL P604ILAGC1GN-20 LA GERMANIA

Thank you for having chosen our induction ceramic hob.

In order to make the best use of your appliance, we would advise you to read carefully the following notes and to keep them for a later consulting.

SUMMARY

SAFETY 4

PRECAUTIONS BEFORE USING 4

USING THE APPLIANCE 4

PRECAUTIONS NOT TO DAMAGE THE APPLIANCE 5

PRECAUTIONS IN CASE OF APPLIANCE FAILURE 6

OTHER PRECAUTIONS 6

DESCRIPTION OF THE APPLIANCE 6

TECHNICAL CHARACTERISTICS 7

CONTROL PANEL 8

USE OF THE APPLIANCE 8

DISPLAY 8

VENTILATION 8

STARTING-UP AND APPLIANCE MANAGEMENT 9

BEFORE THE FIRST USE 9

INDUCTION PRINCIPLE 9

SENSITIVE TOUCH 9

STARTING-UP 9

PAN DETECTION 10

RESIDUAL HEAT INDICATION 10

TIMER....10

CONTROL PANEL LOCKING 11

BOOSTER FUNCTION 11

BRIDGE FUNCTION 11

GRILL FUNCTION....12

POWER MANAGEMENT 12

MAINTENANCE AND CLEANING 14

WHAT TO DO IN CASE OF A PROBLEM 14

ENVIRONMENT PRESERVATION....16

INSTALLATION INSTRUCTIONS 16

ELECTRICAL CONNECTION 18

Precautions before using

• Unpack all the materials.
• The installation and connecting of the appliance have to be done by approved specialists. The manufacturer cannot be responsible for damage caused by building-in or connecting errors.
• To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface.
• This domestic appliance is exclusively for the cooking of food, to the exclusion of any other domestic, commercial or industrial use.
• Remove all labels and self-adhesives from the ceramic glass.
• Do not change or alter the appliance.
• The cooking plate cannot be used as freestanding or as working surface.
• The appliance must be grounded and connected conforming to local standards.
• Do not use any extension cable to connect it.
• The appliance cannot be used above a dishwasher or a tumble-dryer: steam may damage the electronic appliances.
• The appliance is not intended to be operated by means of external timer or separate remote control system.

Using the appliance

• Switch the heating zones off after using.
• Keep an eye on the cooking using grease or oils: that may quickly ignite.
• Be careful not to burn yourself while or after using the appliance.
• Make sure no cable of any fixed or moving appliance contacts with the glass or the hot saucepan.
• Magnetically objects (credit cards, floppy disks, calculators) should not be placed near to the engaged appliance.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• In general do not place any metallic object except heating containers on the glass surface. In case of untimely engaging or residual heat, this one may heat, melt or even burn.

• Never cover the appliance with a cloth or a protection sheet. This is supposed to become very hot and catch fire.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children shall be kept away unless continuously supervised.

Precautions not to damage the appliance

• Raw pan bottoms or damaged saucepans (not enamelled cast iro pots,) may damage the ceramic glass.
• Sand or other abrasive materials may damage ceramic glass.
• Avoid dropping objects, even little ones, on the vitroceramic.
• Do not hit the edges of the glass with saucepans.
• Make sure that the ventilation of the appliance works according to the manufacturer's instructions.
• Do not put or leave empty saucepans on the vitroceramic hobs.
• Sugar, synthetic materials or aluminium sheets must not contact with the heating zones. These may cause breaks or other alterations of the vitroceramic glass by cooling: switch on the appliance and take them immediately out of the hot heating zone (be careful: do not burn yourself).
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
• CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

• WARNING: Danger of fire: do not store items on the cooking surface.

• Never place any hot container over the control panel.

• If a drawer is situated under the embedded appliance, make sure the space between the content of the drawer and the inferior part of the appliance is large enough (2 cm). This is essential to guaranty a correct ventilation.
• Never put any inflammable object (ex. sprays) into the drawer situated under the vitroceramic hob. The eventual cutlery drawers must be resistant to heat.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass hob since they can scratch the surface, which may result in shattering of the glass.

Precautions in case of appliance failure

• If a defect is noticed, switch off the appliance and turn off the electrical supplying.
• If the ceramic glass is cracked or fissured, you must unplug the appliance and contact the after sales service.
• Repairing has to be done by specialists. Do not open the appliance by yourself.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

Other precautions

• Make sure that the cookware is always centred on the cooking zone. The bottom of the pot should cover as much as possible of the cooking zone.
• For the users of cardiac pacemakers, the magnetic field may influence the operation. We recommend getting information from the retailer or the doctor.
• Do not place aluminium or synthetic material containers on the hob: they could melt on residual hot cooking zones.
• NEVER try to extinguish a fire with water but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

THE USE OF EITHER POOR QUALITY POT OR ANY INDUCTION ADAPTOR PLATE FOR NON-MAGNETIC COOKWARE RESULTS IN A WARRANTY BREACH. IN THIS CASE, THE MANUFACTURER CANNOT BE HELD RESPONSIBLE FOR ANY DAMAGE CAUSED TO THE HOB AND/OR ITS ENVIRONMENT.

Technical characteristics

Type	P604ILAGC1GN-20
Total power	7400 W
Energy consumption for the hob EC_hob^**	172.8 Wh/kg
Front left heating zone	170x195 mm
Minimum detection	∅ 100 mm
Nominal power*	1400 W
Booster power*	1850 W
Standardised cookware category**	C
Energy consumption EC_cw^**	172.7 Wh/kg
Rear left heating zone	170x195 mm
Minimum detection	∅ 100 mm
Nominal power*	1400 W
Booster power*	1850 W
Standardised cookware category**	C
Energy consumption EC_cw^**	172.7 Wh/kg
Rear right heating zone	∅ 180 mm
Minimum detection	∅ 100 mm
Nominal power*	1400 W
Booster power*	1850 W
Standardised cookware category**	B
Energy consumption EC_cw^**	164.0 Wh/kg
Front right heating zone	∅ 180 mm
Minimum detection	∅ 100 mm
Nominal power*	1400 W
Booster power*	1850 W
Standardised cookware category**	A
Energy consumption EC_cw^**	181.6 Wh/kg

* The given power may change according to the dimensions and material of the pan.

** calculated according to the method of measuring performance (EN 60350-2).

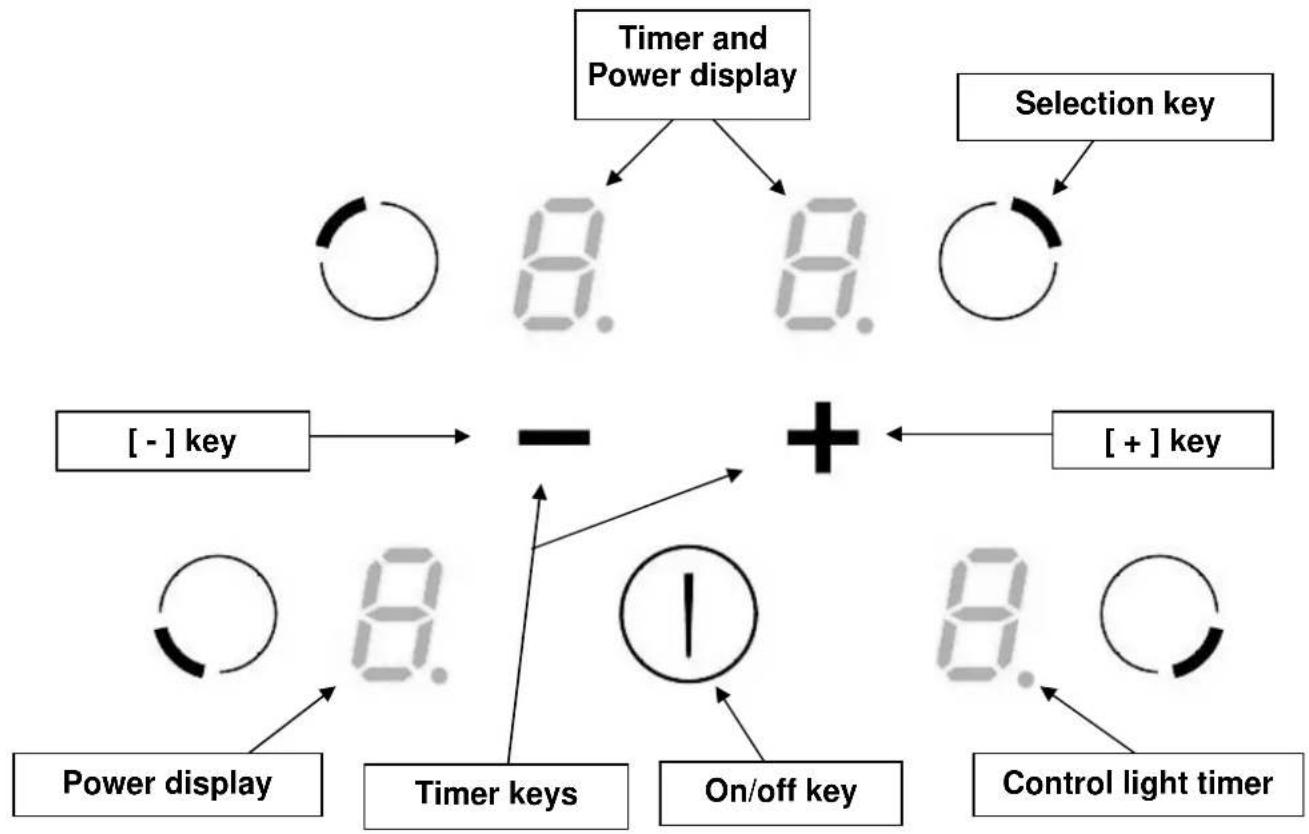

Control panel

USE OF THE APPLIANCE

Display

Display Designation Function
0 Zero The heating zone is activated.
1...9 Power level Selection of the cooking level.
U Pan detection No pan or inadequate pan.
E Error message Electronic failure.
H Residual heat The heating zone is hot.
L Locking Control panel locking.
P Booster The boosted power is activated.
☐ Bridge 2 cooking zones are combined.

Ventilation

The cooling system operates continuously. He starts when turning on the hob and speeds up when the hob is used intensively. The cooling fan reduces its speed and stops automatically when the electronic circuit is cooled enough.

Before the first use

Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent which risks causing blue-tinted colour on the glass surface.

Induction principle

An induction coil is located under each heating zone. When it is engaged, it produces a variable electromagnetic field which produces inductive currents in the ferromagnetic bottom plate of the pan. The result is a heating-up of the pan located on the heating zone.

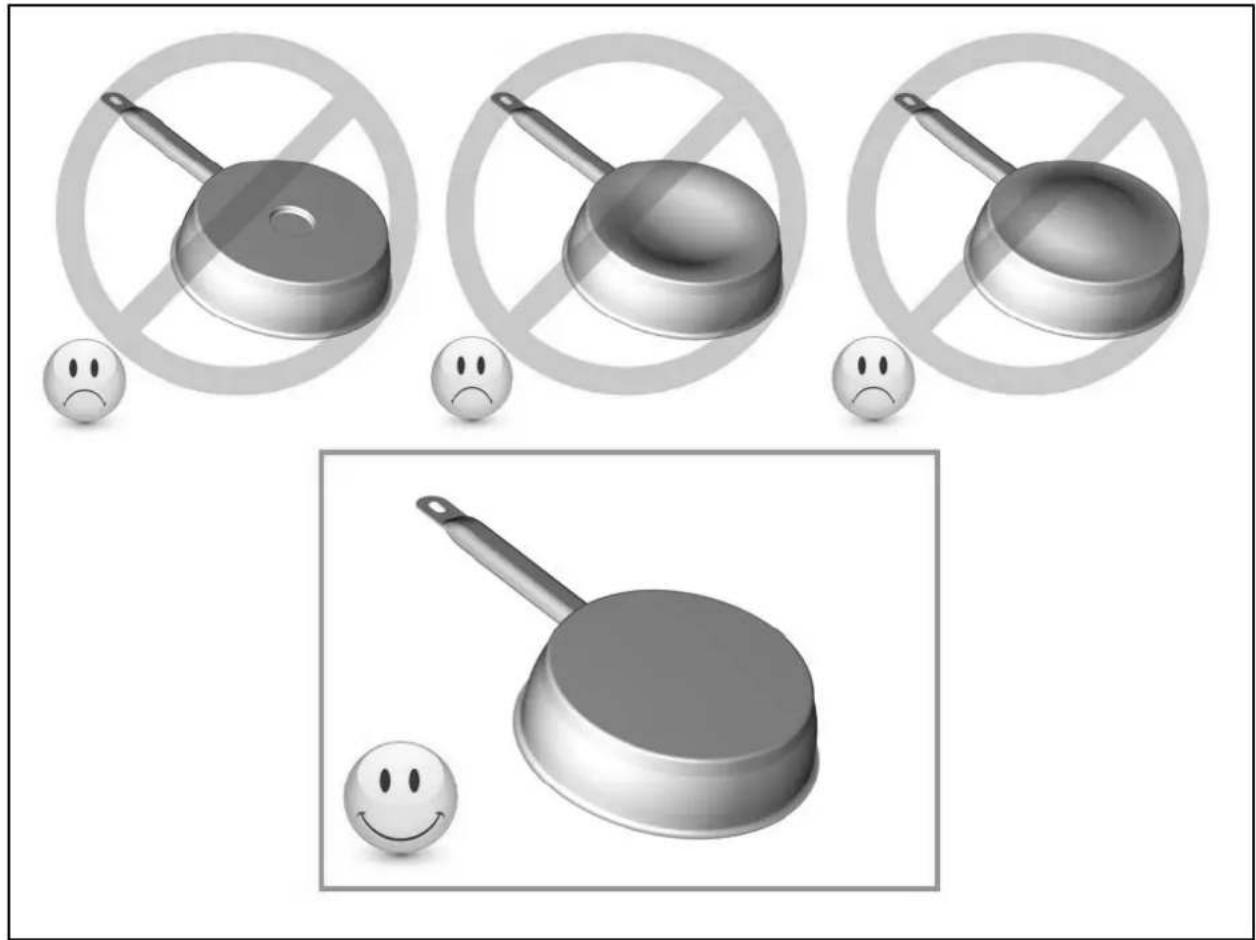

Of course the pan has to be adapted:

• All ferromagnetic pans are recommended (please verify it thanks a little magnet): cast iron and steel pans, enamelled pans, stainless-steel pans with ferromagnetic bottoms...
• Are excluded: cupper, pure stainless-steel, aluminium, glass, wood, ceramic, stoneware,...

The induction heating zone adapts automatically the size of the pan. With a too small diameter the pan doesn't work. This diameter is varying in function of the heating zone diameter. If the pan is not adapted to the induction hob the display will show [U].

Sensitive touch

Your ceramic hob is equipped with electronic controls with sensitive touch keys. When your finger presses the key, the corresponding command is activated. This activation is validated by a control light, a letter or a number in the display and/or a “beep” sound.

In the case of a general use press only one key at the same time.

Starting-up

You must first switching on the hob, then the heating zone:

• Start-up/ switch off the hob :

Action	Control panel	Display
To start	Press key [ ]	[0]	1
Touch the key	Press key [ ]	Nothing or [ H ]

• Start-up/ switch off a heating zone :

Action	Control panel	Display
Zone selection	Press selection zone key	[0]
Increase power	Press key [+]	[1] to [9]
Decrease power	Press key [-]	[9] to [1]
Stop	Press key [-]		[0] or [H]

If no action is made within 20 second the electronics returns in waiting position.

Pan detection

The pan detection ensures a perfect safety. The induction doesn't work: :

• If there is no pan on the heating zone or if this pan is not adapted to the induction. In this case it is impossible to increase the power and the display shows [U]. This symbol disappears when a pan is put on the heating zone.
• If the pan is removed from the heating zone the operation is stopped. The display shows [U]. The symbol [U] disappears when the pan is put back to the heating zone. The cooking continues with the power level set before.

After use, switch the heat element off: don't let the pan detection [U] active.

Residual heat indication

After the switch off of a heating zone or the complete stop of the hob, the heating zones are still hot and indicates [H] on the display.

The symbol [H] disappears when the heating zones may be touched without danger.

As far as the residual heat indicators are on light, don't touch the heating zones and don't put any heat sensitive object on them. There are risks of burn and fire.

Timer

The timer is able to be used simultaneous with all heating zones and this with different time settings (from 0 to 99 minutes) for each heating zone.

- Setting and modification of the cooking time :

Action	Control panel	Display
Zone selection	Press selection zone key [0]
Increase power	Press key [+] [1] to [9]
To select « Timer »	Press simultaneously [-] and [+] Timer [00] min
Decrease the time	Press key [-] [00] wents to 30,29...
Increase the time	Press key [+] time increase

After a few seconds the control light stops with blinking.

The time is confirmed and the cooking starts until the time reaches [00].

• To stop the cooking time :

Action

Control panel

Display

Zone selection Press selection zone key [0]

To select « Timer » Press simultaneously [- ] and [ + ] The remaining time

To stop the « Timer » Press key [- ] [00] then stops

If several timers are activated repeat the process.

• Automatic stop at the end of the cooking time :

As soon as the selected cooking time is finished the timer displays blinking [00] and a sound rings. To stop the sound and the blinking it is enough to press any key.

- Egg timer function :

Action

Control panel

Display

Activate the hob Press key [ ] [0] or ⓄH]

Select« Timer » Press simultaneously [- ] and [ + ] Timer [ 00 ] min

Decrease the time Press key [- ] [00] wents to 30,29....

Increase the time Press key [ + ] time increase

After a few seconds the control light stops with blinking.

As soon as the selected cooking time is finished the timer displays blinking [00] and a sound rings.

To stop the sound and the blinking it is enough to press any key.

Control panel locking

To avoid modifying a setting of cooking zones, in particular with within the framework of cleaning the control panel can be locked (with exception to the On/Off key [ ☐]).

- Locking :

Action Control panel Display

Start Press key [ ] [0] or [H] ①

Hob locking Press simultaneously [-] and

selection key from the front

right zone No modification

Repress selection key from

the front right zone [L]

- Unlocking :

Action Control panel Display

Start Press key [ ] [L] ①

In the 5 seconds after start :

Unlocking the hob Press simultaneously [-] and selection key from the front right zone [0] Repress key [-] No light on the displays

Booster function

The booster function [P] grants a boost of power to the selected heating zone.

If this function is activated the heating zones works during 5 minutes with an ultra-high power.

The booster is foreseen for example to heat up rapidly big quantities of water, like nuddles cooking.

- Start-up / Stop the booster function :

Action Control panel Display

Zone selection Press selection zone key [0] Increase power Press key [+] [1] to [9] Start up the booster Press key [+] Stop the booster Press key [-] [9]

Bridge function

This function allows to use the 2 cooking zones at same time with the same features as a single cooking zone.

Action Control panel Display

Activate the hob Press key [ ] [0] dr [H]

Activate the bridge Press simultaneously the two

selection keys [Π] appears on the

rear area and [0] on the front area

Increase bridge Press key [ + ] [ 1 to 9 ]

Stop the bridge Press simultaneously the two

selection keys [0] or [H]

Grill function

This function is a shortcut for the bridge function with a cooking level of 4.

Action Control panel Display

Activate the hob Press key [ ] [0] or ⒽH]

Activate the grill Press simultaneously the two

selection keys during 3 seconds [Π] appears on the

rear area and [4] on

the front area

Stop the grill Press simultaneously the two

selection keys during 3 seconds [0] or [H]

Power Management

The hob is equipped with a power limitation. If you reach the maximum power it will be impossible to increase the power on the different cooking zones and a beep signal will sound. This limitation is set at 7400 W by the factory but it is possible to change it to 3700 W, 4800 W, 5600 W or 7400 W.

Power limitation configuration

Before beginning the procedure:

• Make sure there is no more pot on the hob
- Disconnect the appliance from the grid by removing the fuse or turning the circuit breaker off.
- Reconnect the table to the grid
- Start the procedure within 2 minutes after reconnecting the hob to the grid
• Make sure all cooking zones are off.

Procedure:

To set the power limitation, you must:

1) Press simultaneously the two key of the bottom zones during 3 seconds. A beep will sound and the current power is displayed.

2) To set the power limitation use the [ + ] and [- ] . To exit the procedure without saving your changes, don't touch any key for 60 seconds.

3) To save the new power limitation, re-press the two key of the bottom zones during 3 seconds. Once the new limitation registered, a beep will sound.

Pan quality

Adapted materials : steel, enamelled steel, cast iron, ferromagnetic stainless-steel, aluminium with ferromagnetic bottom.

Not adapted materials : aluminium and stainless-steel without ferromagnetic bottom, cupper, brass, glass, ceramic, porcelain.

The manufacturers specify if their products are compatible induction.

To check if pans are compatibles :

• Put a little water in a pan placed on an induction heating zone set at level [9]. This water must heat in a few seconds.
  • A magnet stucks on the bottom of the pan.

Certain pans can make noise when they are placed on an induction cooking zone. This noise doesn't mean any failure on the appliance and doesn't influence the cooking operating.

Illustration of three frying panes with no stop sign, each accompanied by a sad face emoji (no text or symbols)

Pan dimension

The cooking zones are, until a certain limit, automatically adapted to the diameter of the pan. However the bottom of this pan must have a minimum of diameter according to the corresponding cooking zone.

To obtain the best efficiency of your hob, please place the pan well in the centre of the cooking zone.

Examples of cooking power setting

(the values below are indicative)

1 to 2 Melting	Reheating	Sauces, butter, chocolate, gelatineDishes prepared beforehand
2 to 3 Simmering	Defrosting	Rice, pudding, sugar syrupDried vegetables, fish, frozen products
3 to 4	Steam	Vegetables, fish, meat
4 to 5 Water Steamed potatoes, soups, pasta,	fresh vegetables
6 to 7 Medium cooking	Simmering	Meat, lever, eggs, sausagesGoulash, roulade, tripe
7 to 8	Cooking	Potatoes, fritters, wafers
9	Frying, roosting, boiling water	Steaks, omelettes, fried dishes, water
P Frying, roosting	Boiling water	scallops, steaksBoiling significant quantities of water

MAINTENANCE AND CLEANING

Switch-off the appliance before cleaning.

Do not clean the hob if the glass is too hot because they are risk of burn.

• Remove light marks with a damp cloth with washing up liquid diluted in a little water. Then rinse with cold water and dry the surface thoroughly.
• Highly corrosive or abrasive detergents and cleaning equipment likely to cause scratches must be absolutely avoided.
• Do not ever use any steam-cleaner or pressure washer.
• Do not use any object that may scratch the ceramic glass.
• Ensure that the pan is dry and clean. Ensure that there are no grains of dust on your ceramic hob or on the pan. Sliding rough saucepans will scratch the surface.
• Spillages of sugar, jam, jelly, etc. must be removed immediately. You will thus prevent the surface being damaged.

WHAT TO DO IN CASE OF A PROBLEM

The hob or the cooking zone doesn't start-up :

• The hob is badly connected on the electrical network.
  • The protection fuse cut-off.
• The locking function is activated.
• The sensitive keys are covered with grease or water.
• An object is put on a key.

The control panel displays [U]:

• There is no pan on the cooking zone.
- The pan is not compatible with induction.
- The bottom diameter of the pan is too small.

The control panel displays [ E ] :

• Disconnect and reconnect the hob.
• Call the After-sales Service.

One or all cooking zone cut-off :

• The safety system functioned.
- You forgot to cut-off the cooking zone for a long time.
• One or more sensitive keys are covered.
- The pan is empty and its bottom overheated.
- The hob also has an automatic reduction of power level and breaking Automatic overheating

Continuous ventilation after cutting off the hob :

• This is not a failure, the fan continuous to protect the electronic device.
• The fan cooling stops automatically.

The control panel displays [L]:

• Refer to the chapter control panel locking page.

The control panel displays [Er03]:

- An object or liquid covers the control keys. The symbol disappears as soon as the key is released or cleaned.

The control panel displays [E2] or [EH]:

- The hob is overheated, let it cool and then turn it on again.

The control panel displays [E3]:

- The pan is not adapted, change the pan.

The control panel displays [ E5 ] :

- Defective network. Control the voltage of the electrical network.

The control panel displays [E6]:

• Defective network. Control the frequency of the electrical network.

The control panel displays [ E8 ] :

- The air inlet of the ventilator is obstructed, release it.

The control panel displays [U400]:

- The hob is not connected to the network. Check the connection and reconnect the hob.

If one of the symbols above persists, call the SAV.

ENVIRONMENT PRESERVATION

• The materials of packing are ecological and recyclable.
- The electronic appliances are composed of recyclable, and sometimes harmful materials for the environment, but necessary to the good running and the safety of the appliance.

• Don't throw your appliance with the household refuses
• Get in touch with the waste collection centre of your commune that is adapted to the recycling of the household appliances.

Symbol of a trash bin crossed out by a diagonal line, representing no waste or discharge (no text or labels present)

INSTALLATION INSTRUCTIONS

The installation is the exclusive responsibility of specialists.

The user of this appliance is held to respect the legislation and the standards enforced in his home country.

How to stick the gasket:

2 mm 2 3

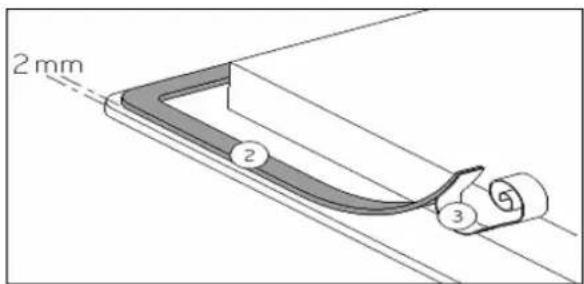

Stick the gasket (2) two millimetres from the external edge of the glass, after removing the protection sheet (3).

Fitting - installing:

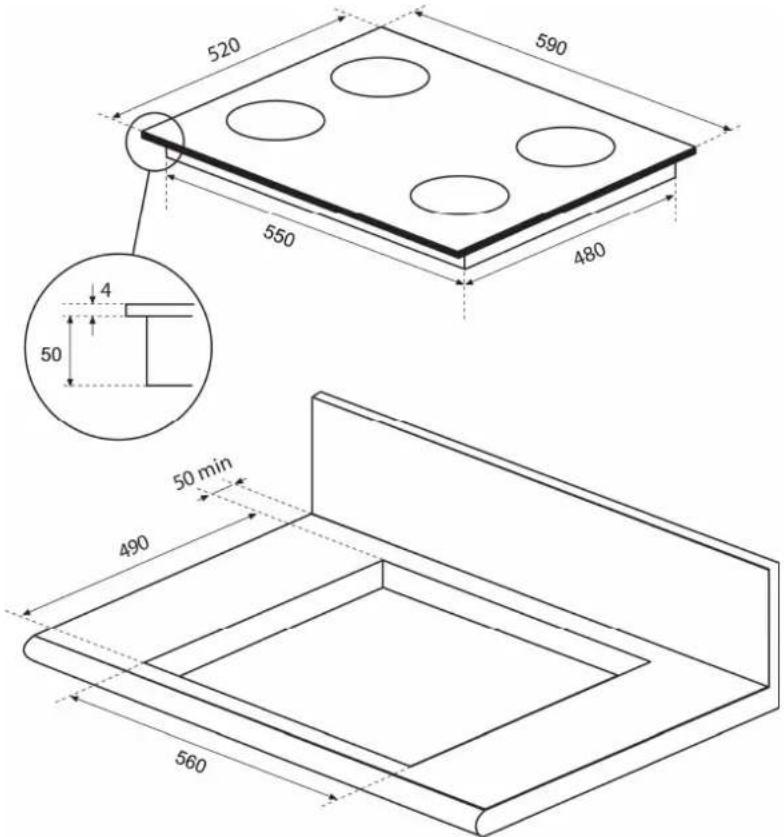

- The dimensions are:

520 590 550 480 4 50 50 min 490 560

	Cut size		Cut size flush mounting			Glass size
Ref.	Width	Depth	Width	Depth	Radius	Width	Depth	Thickness
P604ILAGC1GN -20	565	495	596	526	8	590	520	4

- Ensure that there is a distance of 50 mm between the hob and the wall or sides.

- The hobs are classified as "Y" class for heat protection. Ideally the hob should be installed with plenty of space on either side. There may be a wall at the rear and tall units or a wall at one side. On the other side, however, no unit or device can be higher than the hob.

- The piece of furniture or the support in which the hob is to be fitted, as well as the edges of furniture, the laminate coatings and the glue used to fix them, must be able to resist temperatures of up to 100 °C.

- The mural rods of edge must be heat-resisting.

- Do not install the hob to the top of a non-ventilated oven or a dishwasher.

- To ensure good air circulation of the electronic device, maintain a space of 20 mm under the bottom of the hob casing.

- If a drawer is placed under the work, avoid putting flammable objects in this drawer (for example: sprays) or non-heat-resistant objects.

- Materials which are often used to make worktops expand on contact with water. To protect the cut-out edge, apply a coat of varnish or special sealant. Particular care must be given when applying the adhesive joint supplied with the hob to prevent any leakage into the supporting furniture. This gasket guaranties a correct seal when used in conjunction with smooth work top surfaces.

- The safety gap between the hob and the cooker hood placed above must respect the indications of the hood manufacturer. Respect a distance of at least 760 mm if you do not have further instructions.

- The connecting cable cannot be subjected to mechanical constraint (e.g. a drawer) after construction.

- WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

• The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician perfectly to the fact of the normative regulations and which respects them scrupulously.
• Protection against the parts under tension must be ensured after the building-in.
• The data of connection necessary are on the stickers place on the hob casing near the connection box.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The connection to the main must be made using an earthed plug or via an omnipolar circuit breaking device with a contact opening of at least 3 mm.
• The electrical circuit must be separated from the network by adapted devices, for example: circuit breakers, fuses or contactors.
• If the appliance is not fitted with an accessible plug, disconnecting means must be incorporated in the fixed installation, in accordance with the wiring rules.
• The inlet hose must be positioned so that it does not touch any of the hot parts of the hob or even.

Caution!

This appliance has only to be connected to a network 230 V\~ 50/60 Hz.

Connect always the earth wire.

Respect the connection diagram.

The connection box is located underneath at the back of the hob casing. To open the cover use a medium screwdriver. Place it in the slits and open the cover.

Mains	Connection	Cable diameter	Cable	Protection calibre
230V~ 50/60Hz 1	Phase + N 3 x	2,5 mm ^2	H 05 VV - FH 05 RR - F	25 A *
400V~ 50/60Hz 2	Phases + N	4 x 1.5 mm ^2	H 05 VV - FH 05 RR - F	16 A *

* calculated with the simultaneous factor following the standard EN 60 335-2-6

Connection of the hob

Setting up the configurations:

For the various kinds of connection, use the brass bridges which are in the box next the terminal

Monophase 230V\~1P+N

Put a bridge between terminal L1 and L2.

Put a bridge between terminal N1 and N2.

Attach the earth to the terminate "earth".

Attach the neutral N to one of the terminals N1 or N2.

Attach the Phase L to one of the terminals L1 or L2.

Biphase 400V\~2P+N

Put a bridge between terminal N1 and N2.

Attach the earth to the terminate "earth",

Attach the neutral N to one of the terminals N1 or N2,

Attach the Phase L1 to the terminals L1

Attach the Phase L2 to the terminal L2.

We cannot be held responsible for any incident resulting from incorrect connection or which could arise from the use of an appliance which has not been earthed or has been equipped with a faulty earth connection.

Gentile Cliente,

Diagram showing symbols and directional arrows with circles, minus signs, and circled circle, likely representing a physics or logic concept.

Illustration of frying panes and a frying pan with no stop sign, accompanied by sad face emojis (no text or symbols)

Symbol of a trash bin crossed out by diagonal lines, representing no waste or discharge (no text or labels)

FONCTION BRIDGE....47

FONCTION GRILL 47

GESTION DE LA PUISSANCE 48

CONFIGURATION DE LA LIMITE DE PUISSANCE DE LA PLAQUE DE CUISSON 48

CONSEILS DE CUISSON....49

QUALITE DES CASSEROLES 49

DIMENSION DES CASSEROLES 49

EXEMPLES DE REGLAGE DES PUISSANCES DE CUISSON 50

ENTRETIEN ET NETTOYAGE 50

QUE FAIRE EN CAS DE PROBLEME 50

PROTECTION DE L'ENVIRONNEMENT 52

INSTRUCTIONS D'INSTALLATION....52

CONNEXION ELECTRIQUE 55

Diagram showing symbols for circles, crosses, and circles with directional arrows indicating relationships or transformations.

Illustration of frying panes and smiling faces with no visible text or symbols

Symbol of a trash bin crossed out by diagonal lines, representing no waste or discharge (no text or labels)

INSTRUCTIONS D'INSTALLATION

Diagram showing symbols and directional arrows with circles, plus signs, and circled numbers, likely representing a conceptual or logical puzzle.

Illustration of frying panes and a smiling face with expressive faces, set against crossed-out circular background (no text or symbols)

Symbol of a trash bin crossed out by diagonal lines, representing no waste or discharge (no text or labels)
