MODELS

FTXN25MV1B RXN25MV1B

FTXN35MV1B RXN35MV1B

FTXN50MV1B RXN50MV1B

FTXN60MV1B RXN60MV1B

Installation Manual R410A Split Series

OUTLINE AND DIMENSIONS

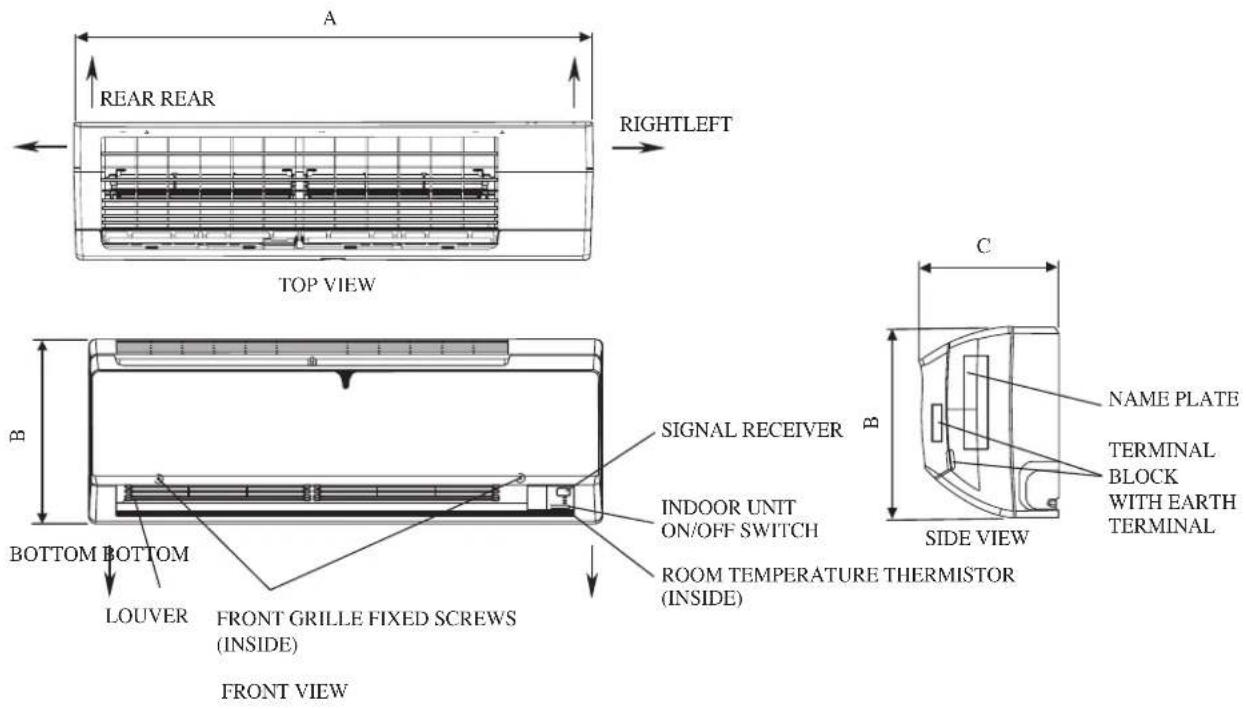

Indoor Unit

THE MARK (SHOWS)PIPING DIRECTION

Recommended mounting plate retention spots (5 spots in all) Use tape measure as shown. Position the end of a tape measure at ▶ D E F B G H J L M A Liquid pipe end Gas pipe end K I Through the wall hole Ø 65mm G Drain hose position

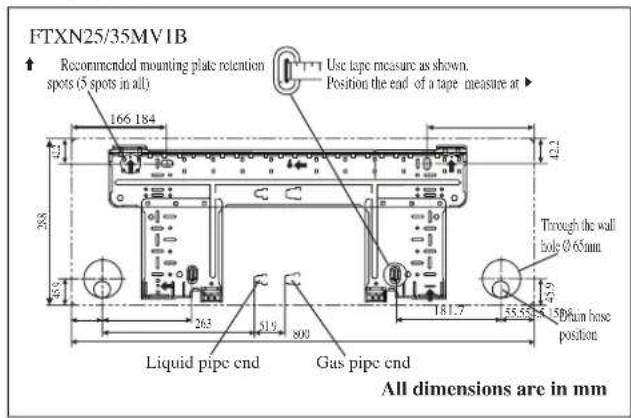

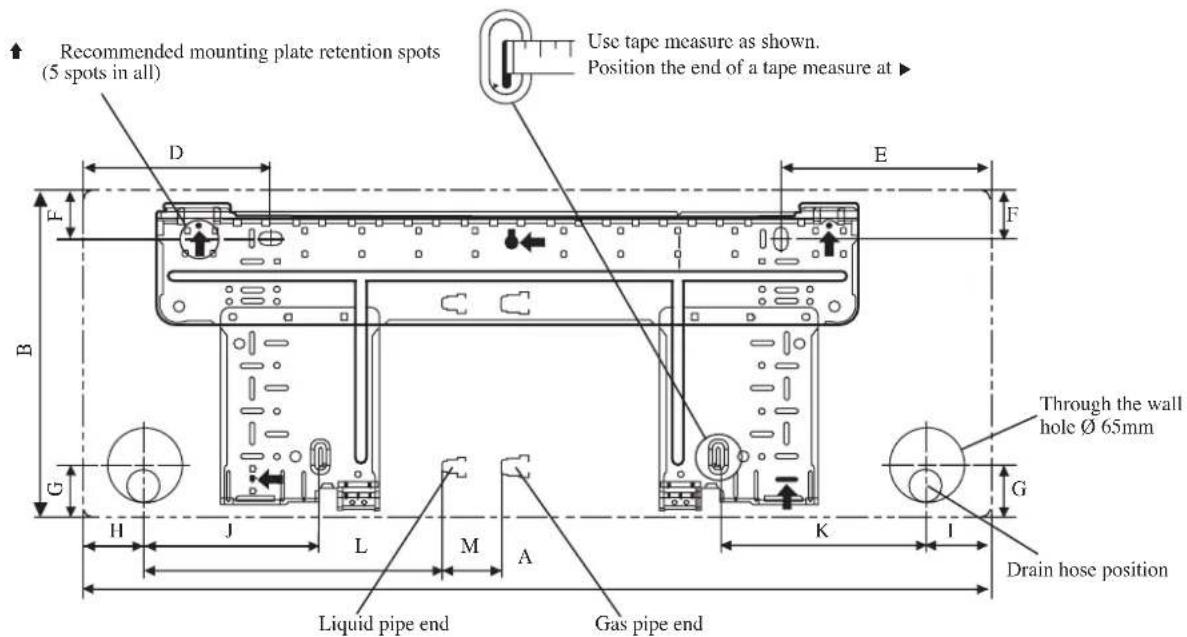

INSTALLATION PLATE FTXN25/35MV1B

All dimensions are in mm

↑ Recommended mounting plate retention spots (7 spots in all)

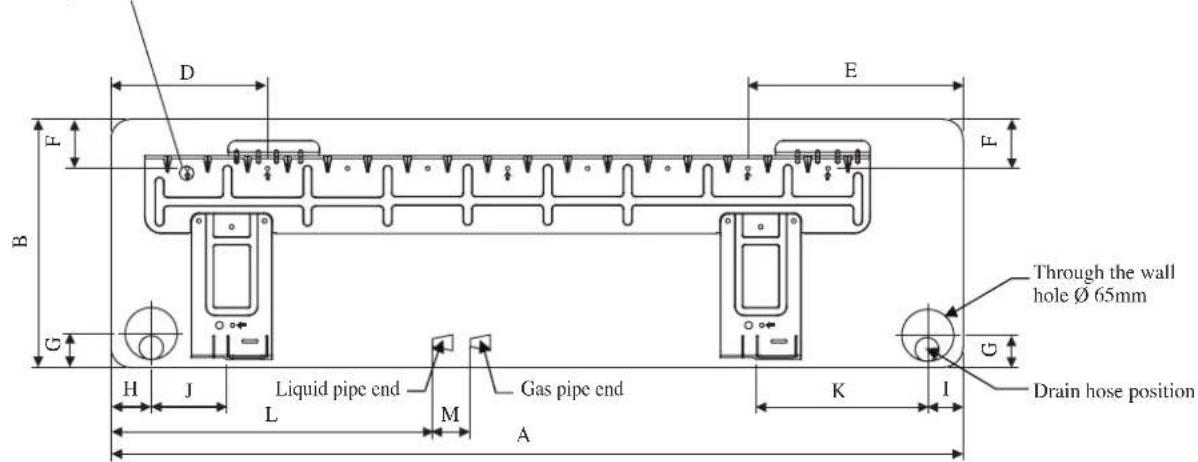

D E F B G H J Liquid pipe end L M A Gas pipe end K I Through the wall hole Ø 65mm Drain hose position

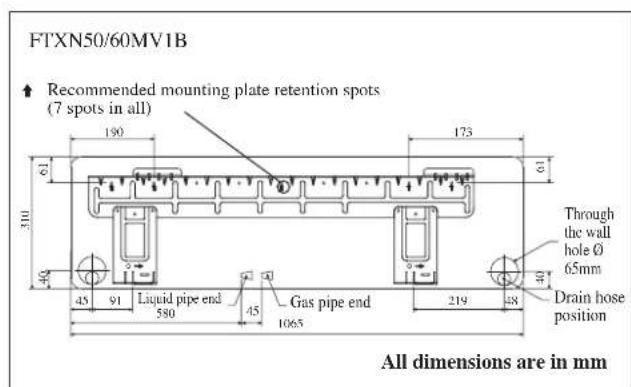

INSTALLATION PLATE FTXN50/60MV1B
All dimensions are in mm

Dimension Model	A	B	C	D	E	F	G	H	I		J	K	L	M
FTXN25/35MV1B	800 2	88 212	166 184	42 46	55 56 1	54 182	263 52
FTXN50/60MV1B	1065 3	10 229	190 173	61 40	45 48 9	1 219 5	80 45

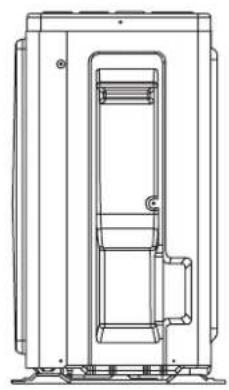

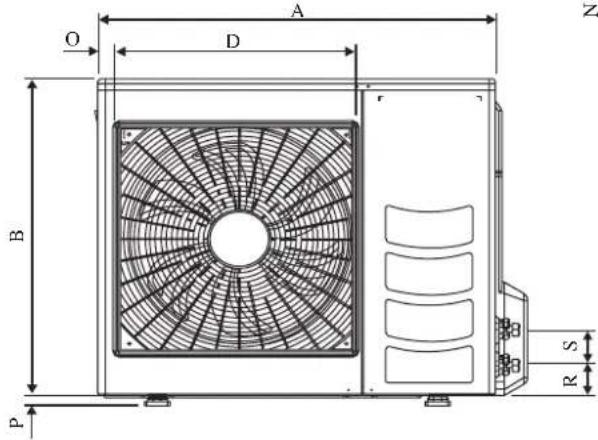

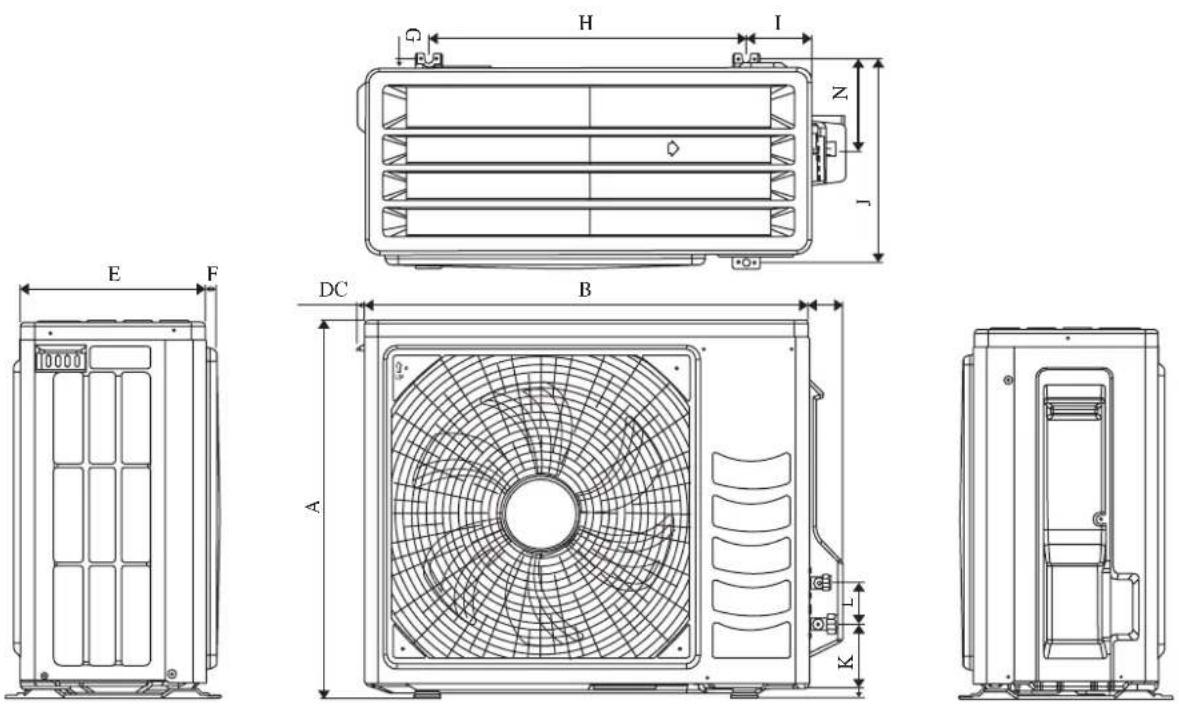

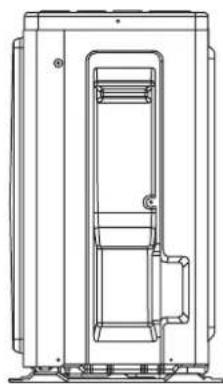

Outdoor Unit [RXN25/35MV1B]

All dimensions are in mm

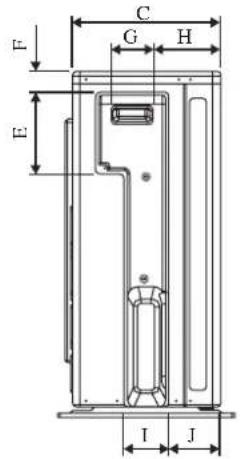

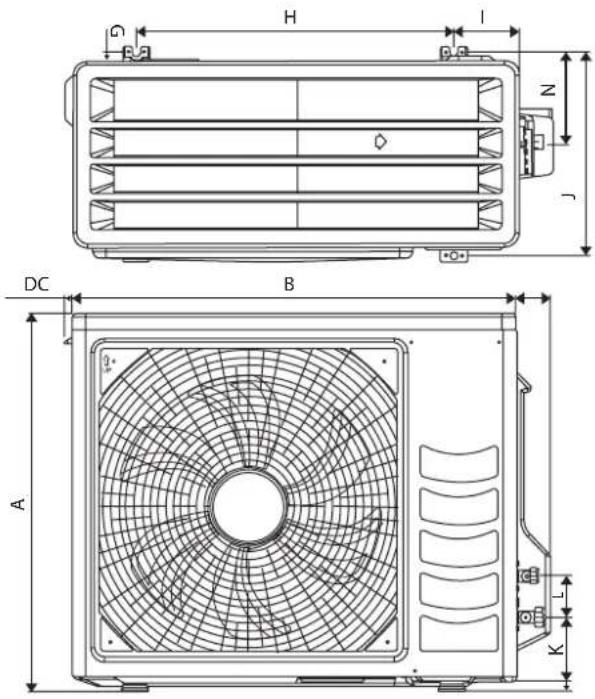

Dimension Model	A B	C D E	F G H I		J	K L	M N
RXN25/35MV1B	550	658	51	11	273	16	14	470	96	299	94	60	14	133

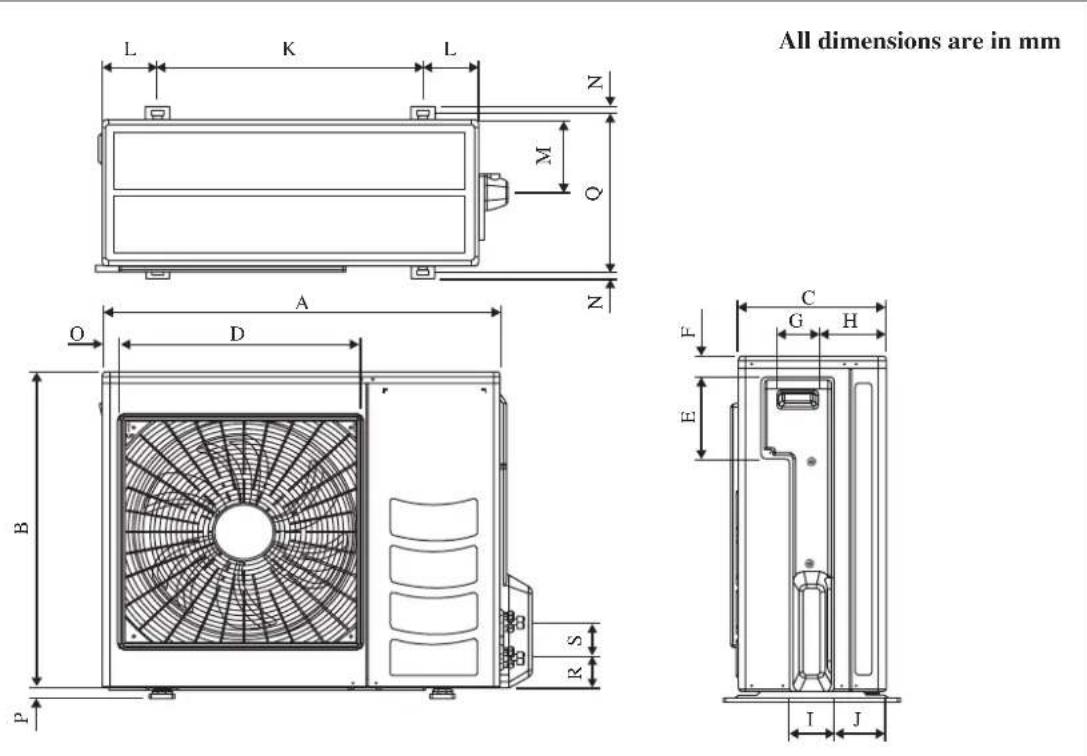

Dimension Model	A B	C D E	F G H	I J K L	M N
RXN50/60MV1B 855	730 328	8 520 1	79 46 9	3 149	101 113	603 1	26 164	15

Dimension Model	O P	Q R S
RXN50/60MV1B	34 23	362 73	75

INSTALLATION MANUAL

This manual provides the procedures of installation to ensure a safe and good standard of operation for the air conditioner unit.

Special adjustment may be necessary to suit local requirement.

Before using your air conditioner, please read this instruction manual carefully and keep it for future reference.

This appliance is intended to be used by expert or trained users in shops, in light industry and on farms, or for commercial use by lay persons.

This appliance is not intended for use by persons, including children, with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

SAFETY PRECAUTIONS

⚠ WARNING ⚠ CAUTION

• Installation and maintenance should be performed by qualified persons who are familiar with local code and regulation, and experienced with this type of appliance.
• All field wiring must be installed in accordance with the national wiring regulation.
• Ensure that the rated voltage of the unit corresponds to that of the name plate before commencing wiring work according to the wiring diagram.
• The unit must be GROUNDED to prevent possible hazard due to insulation failure.
• All electrical wiring must not touch the water piping or any moving parts of the fan motors.
• Confirm that the unit has been switched OFF before installing or servicing the unit.
• Disconnect from the main power supply before servicing the air conditioner unit.
• DO NOT pull out the power cord when the power is ON. This may cause serious electrical shocks which may result in the fire hazards.
• Keep the indoor and outdoor units, power cable and transmission wiring, at least 1m from TVs and radios, to prevent distorted pictures and static. {Depending on the type and source of the electrical waves, static may be heard even when more than 1m away}.

Please take note of the following important points when installing.

• Do not install the unit where leakage of fl ammable gas may occur.
  If gas leaks and accumulates around the unit, it may cause fire ignition.
• Ensure that drainage piping is connected properly.
  If the drainage piping is not connected properly, it may cause water leakage which will dampen the furniture.
• Do not overcharge the unit.
  This unit is factory pre-charged.
  Overcharge will cause over-current or damage to the compressor.
• Ensure that the unit's panel is closed after service or installation.
  Unfored panels will cause the unit to operate noisily.
• Sharp edges and coil surfaces are potential locations which may cause injury hazards. Avoid from being in contact with these places.
• Before turning off the power supply, set the remote controller's ON/OFF switch to the "OFF" position to prevent the nuisance tripping of the unit. If this is not done, the unit's fans will start turning automatically when power resumes, posing a hazard to service personnel or the user.
• Do not install the units at or near doorway.
• Do not operate any heating apparatus too close to the air conditioner unit or use in room where mineral oil, oil vapour or oil steam exist, this may cause plastic part to melt or deform as a result of excessive heat or chemical reaction.
• When the unit is used in kitchen, keep flour away from going into suction of the unit.
• This unit is not suitable for factory used where cutting oil mist or iron powder exist or voltage fluctuates greatly.
• Do not install the units at area like hot spring or oil refinery plant where sulphide gas exists.
• Ensure the color of wires of the outdoor unit and the terminal markings are same to the indoors respectively.
  • IMPORTANT: DO NOT INSTALL OR USE THE AIR CONDITIONER UNIT IN A LAUNDRY ROOM.
• Don't use joined and twisted wires for incoming power supply.
• The equipment is not intended for use in a potentially explosive atmosphere.

NOTICE

Disposal requirements

Your air conditioning product is marked with this symbol. This means that electrical and electronic products shall not be mixed with unsorted household waste.

Do not try to dismantle the system yourself: the dismantling of the air conditioning system, treatment of the refrigerant, of oil and of other parts must be done by a qualified installer in accordance with relevant local and national legislation.

Air conditioners must be treated at a specialized treatment facility for re-use, recycling and recovery. By ensuring this product is disposed of correctly, you will help to prevent potential negative consequences for the environment and human health. Please contact the installer or local authority for more information.

Batteries must be removed from the remote controller and disposed of separately in accordance with relevant local and national legislation.

IMPORTANT

Important information regarding the refrigerant used

This product contains fluorinated greenhouse gases covered by the Kyoto Protocol.

Do not vent gases into the atmosphere.

Refrigerant type: R410A

GWP ^(1) value: 1975

(1) GWP = Global Warming Potential

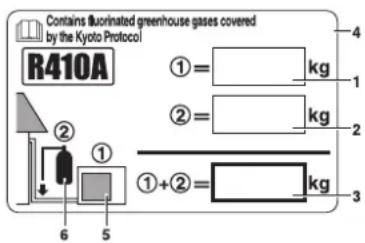

Please fill in with indelible ink,

■ ① the factory refrigerant charge of the product,
■ ② the additional refrigerant amount charged in the field and
■ ① + ② the total refrigerant charge

on the refrigerant charge label supplied with the product.

The filled out label must be adhered in the proximity of the product charging port (e.g. onto the inside of the service cover).

Contains fluorinated greenhouse gases covered by the Kyoto Protocol R410A ①= kg ②= kg ①+②= kg 6 5 4 1 2 3

1 factory refrigerant charge of the product: see unit name plate (2)
2 additional refrigerant amount charged in the field
3 total refrigerant charge
4 contains fluorinated greenhouse gases covered by the Kyoto Protocol
5 outdoor unit
6 refrigerant cylinder and manifold for charging

(2) In case of multiple indoor systems, only 1 label must be adhered*, mentioning the total factory refrigerant charge of all indoor units connected in the refrigerant system.

Periodical inspections for refrigerant leaks may be required depending on European or local legislation. Please contact your local dealer for more information.

* on the outdoor unit

INSTALLATION DIAGRAM

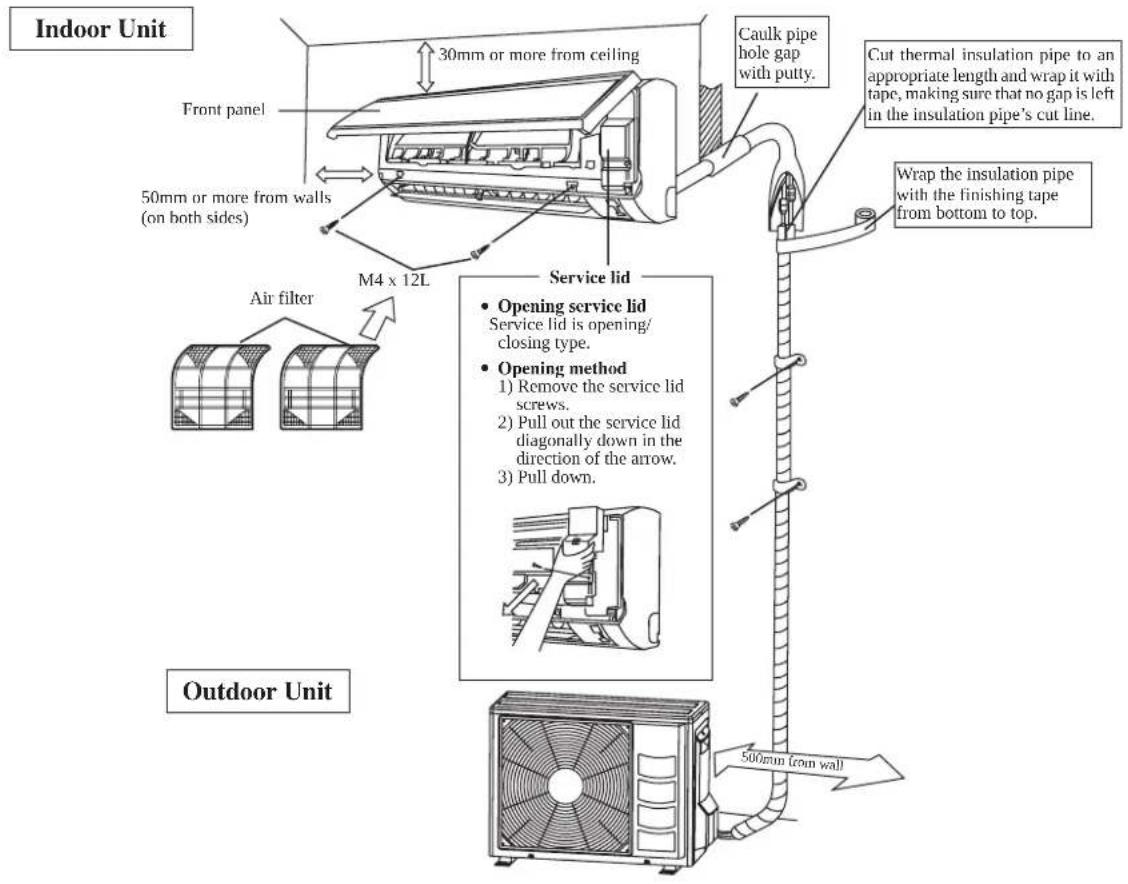

Indoor Unit 30mm or more from ceiling Front panel 50mm or more from walls (on both sides) M4 x 12L Air filter Service lid • Opening service lid Service lid is opening/ closing type. • Opening method 1) Remove the service lid screws. 2) Pull out the service lid diagonally down in the direction of the arrow. 3) Pull down. Caulk pipe hole gap with putty. Cut thermal insulation pipe to an appropriate length and wrap it with tape, making sure that no gap is left in the insulation pipe's cut line. Wrap the insulation pipe with the finishing tape from bottom to top. Outdoor Unit 500mm (corn wall)

INSTALLATION OF THE OUTDOOR UNIT (RXN25/35MV1B)

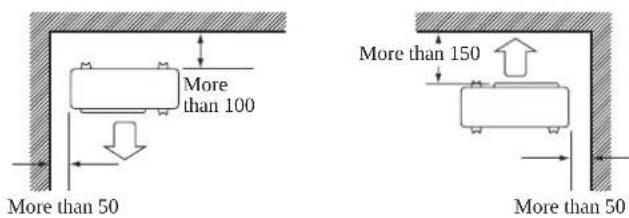

• Where a wall or other obstacle is in the path of outdoor unit's intake or exhaust airflow, follow the installation guidelines below.
• For any of the below installation patterns, the wall height on the exhaust side should be 1200mm or less.

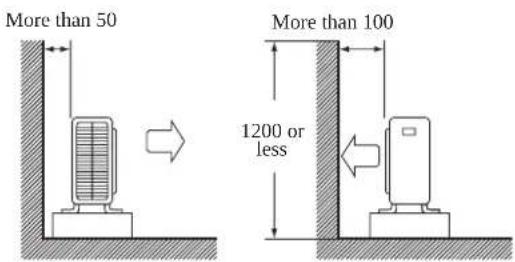

Wall facing one side

More than 50 More than 100 1200 or less

Side View

Wall facing two sides

More than 100 More than 50 More than 150 More than 50

Top View

Wall facing three sides

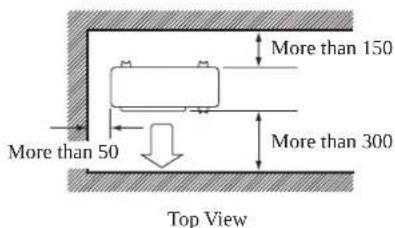

More than 150 More than 50 More than 300 Top View

Unit: mm

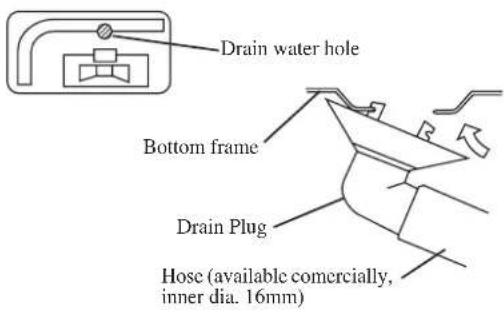

Drain work. (Heat Pump Unit Only)

1) Use drain plug for drainage.
2) If the drain port is covered by a mounting base or floor surface, place additional foot bases of at least 30mm in height under the outdoor unit's feet.
3) In cold areas, do not use a drain hose with the outdoor unit. (Otherwise, drain water may freeze, impairing heating performance.)

Drain water hole Bottom frame Drain Plug Hose (available commercially, inner dia. 16mm)

INSTALLATION OF THE OUTDOOR UNIT (RXN50/60MV1B)

The outdoor unit must be installed in such a way, so as to prevent short circuit of the hot discharged air or obstruction to the smooth air flow. Please follow the installation clearances shown in the figure. Select the coolest possible place where intake air temperature is not greater than the outside air temperature (Refer to operating range).

Installation clearances

Dimension	A	B	C	D
Minimum Distance, mm	300 100	0 300 500

Note: If there is any obstacle higher than 2m, or if there is any obstruction at the upper part of the unit, please allow more space than the figure indicated in the above table.

Condensed Water Disposal Of Outdoor Unit (Heat Pump Unit Only)

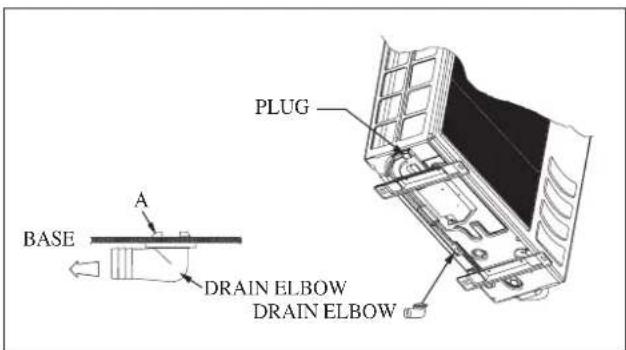

• There are 2 holes on the base of Outdoor Unit for condensed water to flow out. Insert the drain elbow to one of the holes.
• To install the drain elbow, first insert one portion of the hook to the base (portion A), then pull the drain elbow in the direction shown by the arrow while inserting the other portion to the base. After installation, check to ensure that the drain elbow clings to base firmly.
• If the unit is installed in a snowy and chilly area, condensed water may freeze in the base. In such case, please remove plug at the bottom of unit to smooth the drainage.

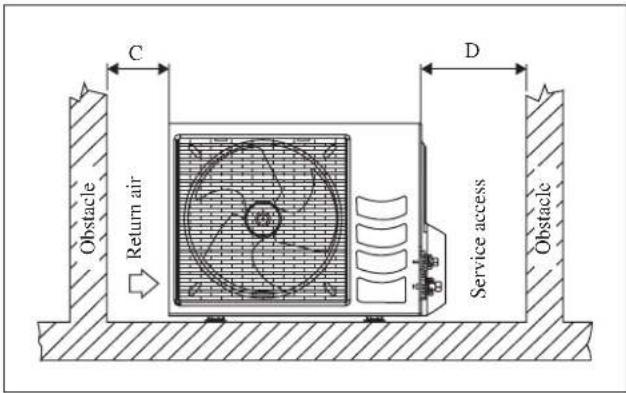

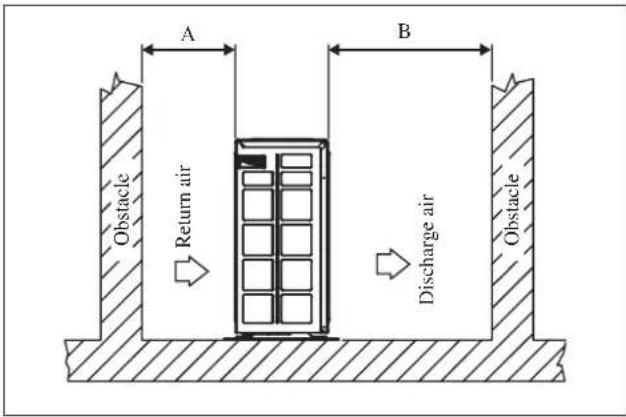

A B Obstacle Return air Discharge air Obstacle

C Return air D Service access Obstacle Obstacle

BASE A PLUG DRAIN ELBOW DRAIN ELBOW

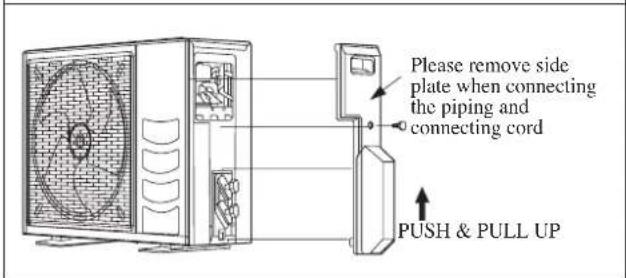

Please remove side plate when connecting the piping and connecting cord PUSH & PULL UP

INSTALLATION OF THE INDOOR UNIT

The indoor unit must be installed in such a way so as to prevent short circuit of the cool discharged air with the hot return air. Please follow the installation clearance shown in the figure. Do not place the indoor unit where there could be direct sunlight shining on it. Also, this location must be suitable for piping and drainage, and be away from doors or windows.

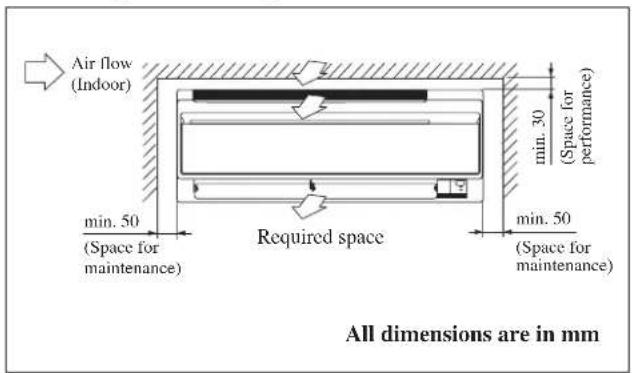

Air flow (Indoor) min. 50 (Space for maintenance) required space min. 50 (Space for maintenance) min. 30 (Space for performance) All dimensions are in mm

The refrigerant piping can be routed to the unit in a number of ways (left or right from the back of the unit), by using the cut-out holes on the casing of the unit. Bend the pipes carefully to the required position in order to align it with the holes. For the side and bottom out, hold the bottom of the piping and then position it to the required direction. The condensation drain hose can be taped to the pipes.

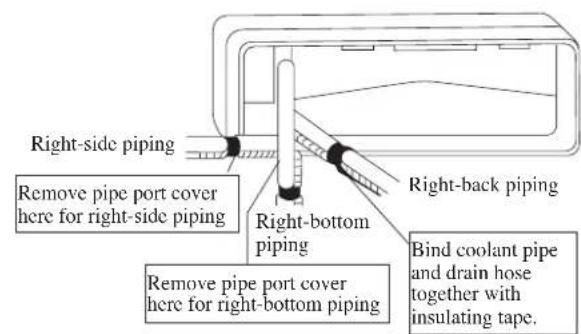

Right-side, right-back or right-bottom piping

Right-side piping Remove pipe port cover here for right-side piping Right-bottom piping Bind coolant pipe and drain hose together with insulating tape. Remove pipe port cover here for right-bottom piping

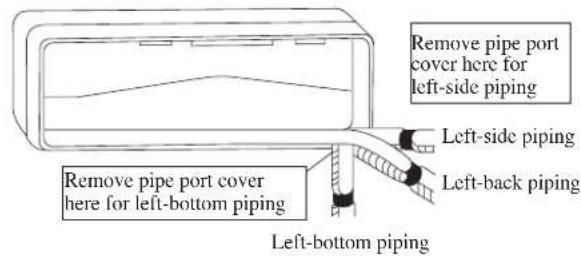

Left-side, left-back or left-bottom piping

Remove pipe port cover here for left-side piping Left-side piping Remove pipe port cover here for left-bottom piping Left-back piping Left-bottom piping

Mounting Installation Plate

Ensure that the wall is strong enough to withstand the weight of the unit. Otherwise, it is necessary to reinforce the wall with plates, beams or pillars.

Use the level gauge for horizontal mounting, and fix it with 5 suitable screws for FTXN25/35MV1B and 7 suitable screws for FTXN50/60MV1B.

In case the rear piping draws out, drill a hole 65mm in diameter with a cone drill, slightly lower on the outside wall (see figure).

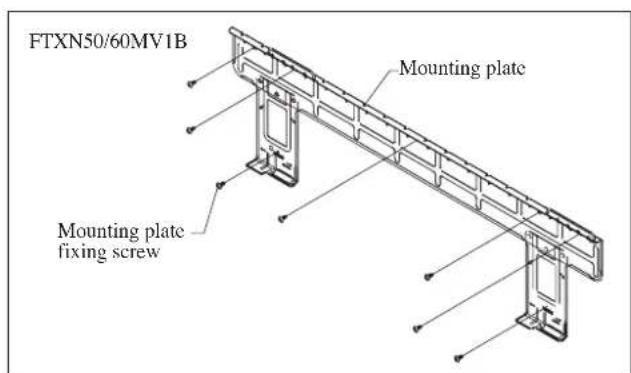

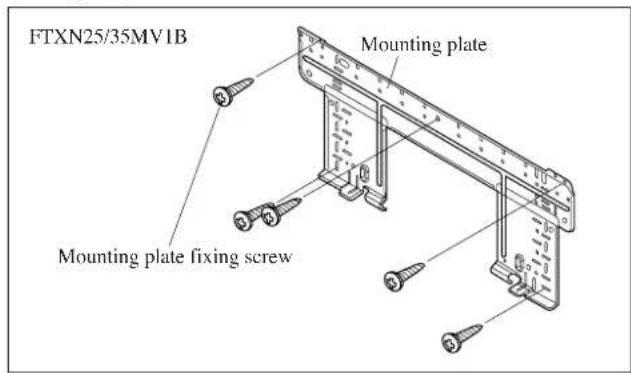

FTXN25/35MV1B Mounting plate Mounting plate fixing screw

FTXN50/60MV1B Mounting plate Mounting plate fixing screw

Recommended Mounting Plate Retention Spots And Dimensions

FTXN25/35MV1B Recommended mounting plate retention spots (5 spots in all) Use tape measure as shown. Position the end of a tape measure at ▶ 166 184 Through the wall hole Ø 65mm. Liquid pipe cnd Gas pipe cnd All dimensions are in mm

FTXN50/60MV1B Recommended mounting plate retention spots (7 spots in all) 190 173 61 310 45 91 Liquid pipe end 580 45 Gas pipe end 1065 219 -8 Through the wall hole Ø 65mm Drain hose position All dimensions are in mm

Hole with cone drill Inside ← Outside Wall embedded pipe (Field supply) Caulking Ø 65 Wall hole cover (Field supply) Wall embedded pipe (Field supply)

Mount The Unit Onto The Installation Plate

Hook the indoor unit onto the upper portion of the installation plate (Engage the two hooks at the rear top of the indoor unit with the upper edge of the installation plate). Ensure that the hooks are properly seated on the installation plate by moving it to the left and right.

How To Attach The Indoor Unit

Hook the claws of the bottom frame to the mounting plate.

How To Remove The Indoor Unit

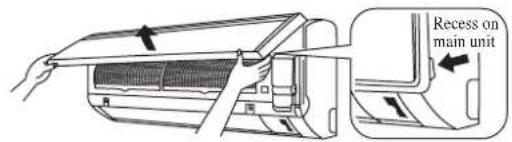

Push up the marked area (at the lower part of the front grille) to release the claws.

Mounting plate Clip Front grille Bottom frame Mark (Rear side)

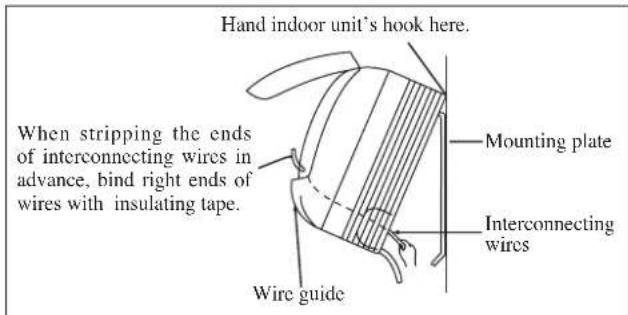

Hand indoor unit's hook here. When stripping the ends of interconnecting wires in advance, bind right ends of wires with insulating tape. Mounting plate Interconnecting wires Wire guide

Water Drainage Piping

The indoor drain pipe must be in a downward gradient for smooth drainage. Avoid situations that are likely to cause water to leak.

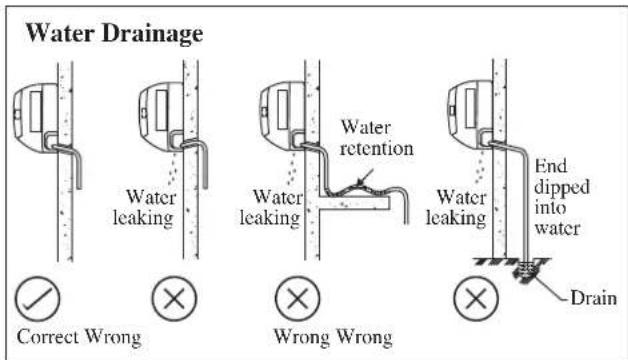

Water Drainage Water leaking Water leakage Water retention Water leaking End dipped into water Drain Correct Wrong Wrong Wrong

CAUTION • Do not install the unit at altitude over 2000m for both indoor & outdoor.

REFRIGERANT PIPING

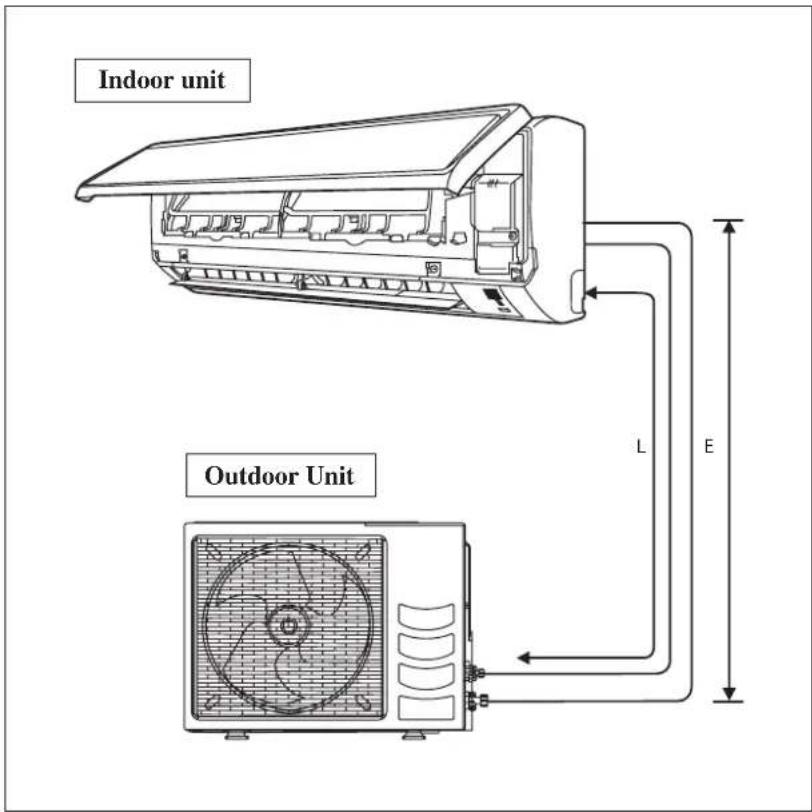

Allowable Piping Length

If the pipe is too long, both the capacity and reliability of the unit will drop. As the number of bends increases, resistance to the flow of refrigerant system increases, thus lowering cooling capacity. As a result, the compressor may become defective. Always choose the shortest path and follow the recommendations as tabulated below:

Indoor unit Outdoor Unit L E

Model FTXN25MV1B FTXN35MV1B	FTXN50MV1B	FTXN60MV1B
Min. Allowable Length (L), m 3	3
Max. Allowable Length (L), m 20 30
Max. Allowable Elevation (E), m 10 10
Gas Pipe Size, mm/(in) 9.52 (3/8") 12.70 (1/2") 15.88 (5/8")
Liquid Pipe Size, mm/(in) 6.35 (1/4") 6.35 (1/4")

*Be sure to add the proper amount of additional refrigerant. Failure to do so may result in reduced performance.
Remark: The refrigerant pre-charged in the outdoor unit is for piping length up to 7.5m.

Additional Charge

The refrigerant is pre-charged in the outdoor unit. If the piping length is less than 7.5m, then additional charge after vacuuming is not necessary. If the piping length is more than 7.5m, then use the additional charge value as indicated in the table.

Additional refrigerant charge [g] per additional 1m length as tabulated

Indoor FTXN25MV1B FTXN35MV1B	FTXN50MV1B	FTXN60MV1B
Outdoor RXN25MV1B RXN35MV1B	RXN50MV1B RXN60MV1B
Additional charge [g/m]	20	20	20	20

Example:

FTXN25MV1B & RXN25MV1B with 12m piping length, additional piping length is 4.5m. Thus,

Additional charge = 4.5[m] x 20[g/m]

$$ = 9 0. 0 [ \mathrm{g} ] $$

REFRIGERANT PIPING

Piping Works And Flaring Technique

• Do not use contaminated or damaged copper tubing. If any piping, evaporator or condenser had been exposed or had been opened for 15 seconds or more, the system must be vacuumed. Generally do not remove plastic, rubber plugs and brass nuts from the valves, fittings, tubing and coils until it is ready to connect suction or liquid line into valves or fittings.
• If any brazing work is required, ensure that nitrogen gas is passed through coil and joints while the brazing work is being done. This will eliminate soot formation on the inside wall of copper tubings.
• Cut the pipe stages by stages, advancing the blade of pipe cutter slowly. Extra force and a deep cut will cause more distortion of pipe and therefore extra burr. See Figure I.
• Remove burrs from cut edges of the pipes with remover. See Figure II. Hold the pipe on top position and burr remover at lower position to prevent metal chips from entering the pipe. This will avoid unevenness on the flare faces which will cause gas leak.
• Insert the flare nuts, mounted on the connection parts of both the indoor unit and outdoor unit, into the copper pipes.
• The exact length of pipe protruding from the top surface of the swaging block is determined by the flaring tool. See Figure III.
• Fix the pipe firmly on the swaging block. Match the centers of both the swaging block and the flaring punch, then tighten the flaring punch fully.
• The refrigerant pipe connection are insulated by closed cell polyurethane.

Piping Connection To The Units

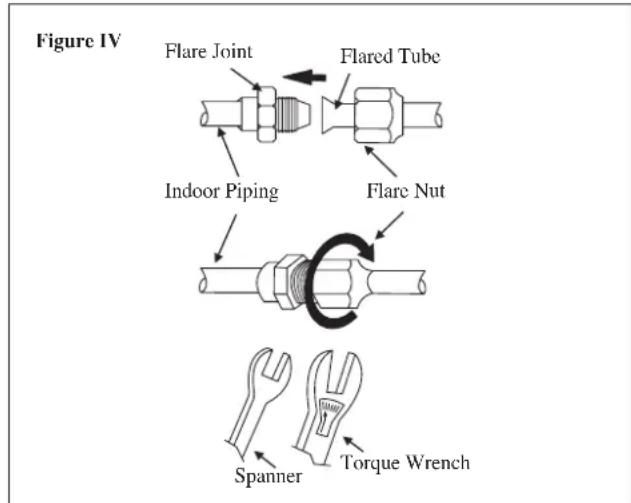

• Align the center of the piping and tighten the flare nut sufficiently with fingers. See Figure IV.
• Finally, tighten the flare nut with torque wrench until the wrench clicks.
• When tightening the flare nut with the torque wrench, ensure that the tightening direction follows the arrow indicated on the wrench.
• The refrigerant pipe connection are insulated by closed cell polyurethane.

Pipe Size, mm (in) Torque, Nm/(ft-lb)
6.35 (1/4") 18 (13.3)
9.52 (3/8") 42 (31.0)
12.70 (1/2") 55 (40.6)
15.88 (5/8") 65 (48.0)
19.05 (3/4") 78 (57.6)

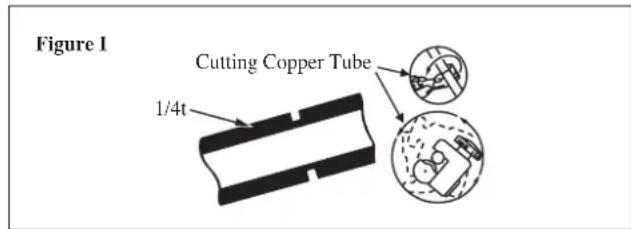

Figure I Cutting Copper Tube 1/4t

Figure II Remove Burr

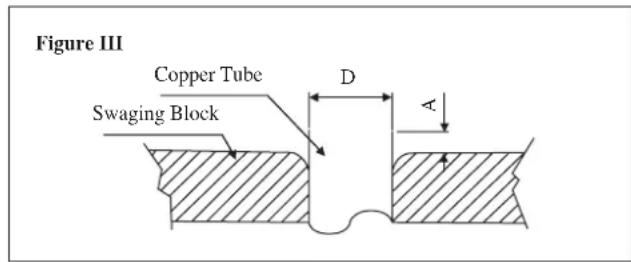

Figure III Copper Tube Swaging Block D A

∅ Tube, D A (mm)
Inch mm Imperial(Wing-nut Type)	Rigid(Clutch Type)
1/4" 6.35 1.3 0.7
3/8" 9.52 1.6 1.0
1/2" 12.70 1.9 1.3
5/8" 15.88 2.2 1.7
3/4" 19.05 2.5 2.0

Figure IV Flare Joint Flared Tube Indoor Piping Flare Nut Spanner Torque Wrench

ELECTRICAL WIRING CONNECTION

IMPORTANT : * The figures shown in the table are for information purpose only. They should be checked and selected to comply with the local/national codes of regulations. This is also subject to the type of installation and conductors used.

** The appropriate voltage range should be checked with label data on the unit.

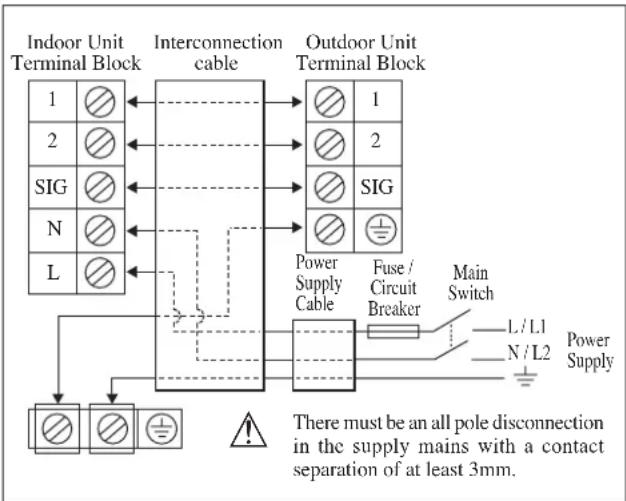

Indoor Unit Terminal Block Interconnection cable Outdoor Unit Terminal Block 1 2 SIG N L Power Supply Cable Fuse / Circuit Breaker Main Switch L / L1 N / L2 Power Supply There must be an all pole disconnection in the supply mains with a contact separation of at least 3mm.

Model		FTXN25/35MV1B RXN25/35MV1B RXN50/60MV1B
Voltage range**		220-240V/-/50Hz + ⊕
Power supply cable size*	mm2	1.5	2.5
Number of Conductors		3	3
Interconnection cable size*	mm2	1.5	2.5
Number of Conductors		4	4
Recommended fuse/circuit breaker rating A 15 20

* If the length of the cable is more than 2m, use cable with bigger size.

• All wires must be firmly connected.
• Make sure all the wire do not touch the refrigerant pipings, compressor or any moving parts.
• The connecting wire between the indoor unit and the outdoor unit must be clamped by using provided cord anchorage.
• The power supply cord must be equivalent to H07RN-F which is the minimum requirement.
• Make sure no external pressure is applied to the terminal connectors and wires.
• Make sure all the covers are properly fixed to avoid any gap.
• Use round crimp-style terminal for connecting wires to the power supply terminal block. Connect the wires by matching to the indication on terminal block. (Refer to the wiring diagram attached on the unit).

Attach insulation sleeve

Electric

Round crimp-style terminal

• Used the correct screwdriver for terminal screws tightening. Unsuitable screwdrivers can damage the screw head.
  • Over tightening can damage the terminal screws.
• Do not connect wire of different gauge to same terminal.
• Keep wiring in an orderly manner. Prevent the wiring from obstructing other parts and the terminal box cover.

Connect wires of the same gauge to both side.

Do not connect wires of the same gauge to one side.

Do not connect wires of different gauges.

SPECIAL PRECAUTIONS WHEN DEALING WITH R410A UNIT

R410A is a new HFC refrigerant which does not damage the ozone layer. The working pressure of this new refrigerant is 1.6 times higher than conventional refrigerant (R22), thus proper installation/servicing is essential.

• Never use refrigerant other than R410A in an air conditioner which is designed to operate with R410A.
• POE or PVE oil is used as lubricant for R410A compressor, which is different from the mineral oil used for R22 compressor. During installation or servicing, extra precaution must be taken not to expose the R410A system too long to moist air. Residual POE or PVE oil in the piping and components can absorb moisture from the air.

• To prevent mischarging, the diameter of the service port on the flare valve is different from that of R22.

• Use tools and materials exclusively for refrigerant R410A. Tools exclusively for R410A are manifold valve, charging hose, pressure gauge, gas leak detector, flare tools, torque wrench, vacuum pump and refrigerant cylinder.

• As an R410A air conditioner incurs higher pressure than R22 units, it is essential to choose the copper pipes correctly. Never use copper pipes thinner than 0.8mm even though they are available in the market.
• If the refrigerant gas leakage occurs during installation/servicing, be sure to ventilate fully. If the refrigerant gas comes into contact with fire, a poisonous gas may occur.
• When installing or removing an air conditioner, do not allow air or moisture to remain in the refrigerant cycle.

VACUUMING AND CHARGING

Vacuuming is necessary to eliminate all moisture and air from the system.

Vacuuming The Piping And The Indoor Unit

Except for the outdoor unit which is pre-charged with refrigerant, the indoor unit and the refrigerant connection pipes must be air-purged because the air containing moisture that remains in the refrigerant cycle may cause malfunction of the compressor.

• Remove the caps from the valve and the service port.
• Connect the center of the charging gauge to the vacuum pump.
• Connect the charging gauge to the service port of the 3-way valve.
• Start the vacuum pump. Evacuate for approximately 30 minutes. The evacuation time varies with different vacuum pump capacity. Confirm that the charging gauge needle has moved towards -760mmHg.

Caution

• If the gauge needle does not move to -760mmHg, be sure to check for gas leaks (using the refrigerant detector) at flare type connection of the indoor and outdoor unit and repair the leak before proceeding to the next step.
• Close the valve of the changing gauge and stop the vacuum pump.
• On the outdoor unit, open the suction valve (3 way) and liquid valve (2 way) (in anti-clockwise direction) with 4mm key for hexagon sacked screw.

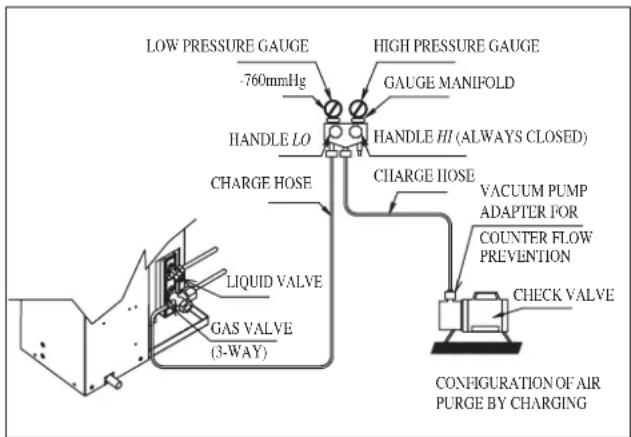

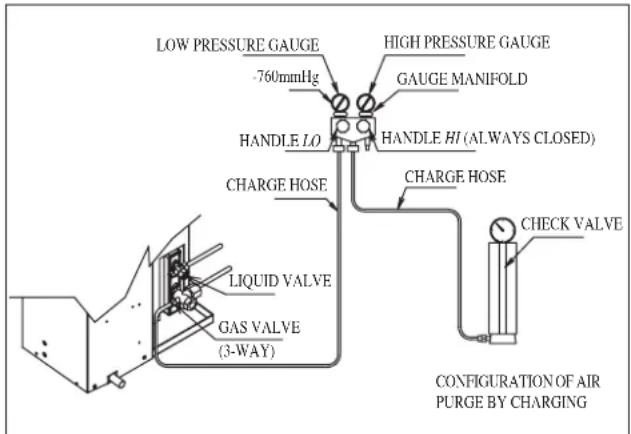

Charge Operation

This operation must be done by using a gas cylinder and a precise weighing machine. The additional charge is topped-up into the outdoor unit using the suction valve via the service port.

• Remove the service port cap.
• Connect the low pressure side of the charging gauge to the suction service port center of the cylinder tank and close the high pressure side of the gauge. Purge the air from the service hose.
• Start the air conditioner unit.
• Open the gas cylinder and low pressure charging valve.
• When the required refrigerant quantity is pumped into the unit, close the low pressure side and the gas cylinder valve.
• Disconnect the service hose from service port. Put back the service port cap.

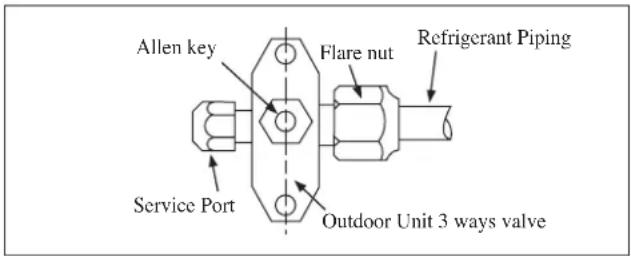

Allen key Flare nut Refrigerant Piping Service Port Outdoor Unit 3 ways valve

LOW PRESSURE GAUGE -760mmHg HANDLE LO CHARGE HOSE LIQUID VALVE GAS VALVE (3-WAY) HIGH PRESSURE GAUGE GAUGE MANIFOLD HANDLE HI (ALWAYS CLOSED) CHARGE IIHOSE VACUUM PUMP ADAPTER FOR COUNTER FLOW PREVENTION CHECK VALVE CONFIGURATION OF AIR PURGE BY CHARGING

LOW PRESSURE GAUGE -760mmHg HANDLE LO CHARGE HOSE LIQUID VALVE GAS VALVE (3-WAY) HIGH PRESSURE GAUGE GAUGE MANIFOLD HANDLE HI (ALWAYS CLOSED) CHARGE HOSE CHECK VALVE CONFIGURATION OF AIR PURGE BY CHARGING

INDICATOR LIGHTS

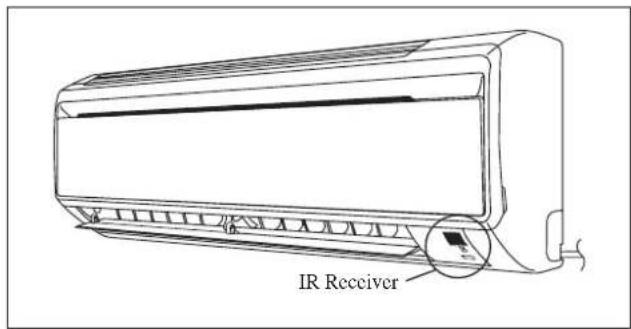

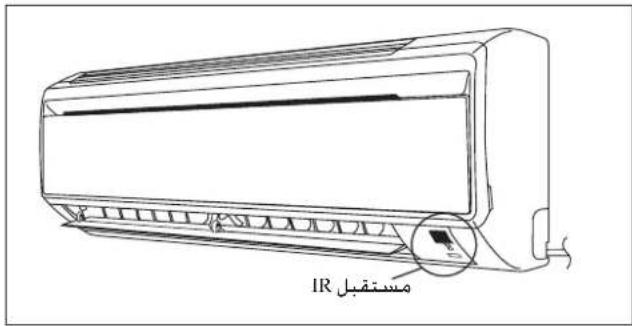

IR Signal Receiver

When an infrared remote control operating signal has been transmitted, the signal receiver on the indoor unit will respond as below to confirm acceptance of the signal transmission.

ON to OFF 1 Long Beep
OFF to ON Pump down / Cool force on	2 Short Beep
Others 1 Short Beep

Cooling Unit/Heat Pump Unit

The table shows the LED indicator lights for the air conditioner unit under normal operation and fault conditions. The LED indicator lights are located at the side of the air conditioner unit.

The heat pump units are equipped with an “auto” mode sensor whereby it will provide reasonable room temperature by switching automatically to either “cool” or “heat” mode according to the temperature set by the user.

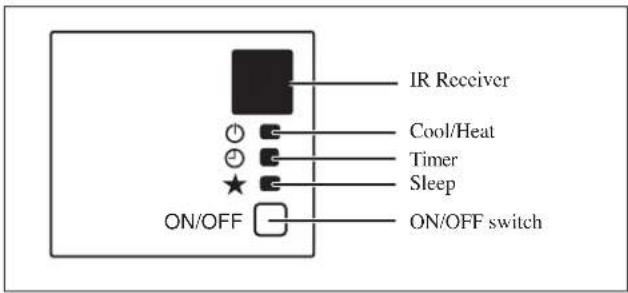

IR Receiver

LED Indicator Lights for Cooling Unit/Heat Pump Unit

IR Receiver Cool/Heat Timer Sleep ON/OFF switch

LED Indicator Lights: Normal Operation And Fault Conditions For Cooling/Heat Pump Unit

	COOL/HEAT(GREEN/RED)		Operation
	GREEN		Cool mode
	RED		Heat mode
	RED		Auto mode in Heating operation
	GREEN		Auto mode in Cooling operation
	O	O	Timer on
O	O		Sleep mode on
	GREEN		Fan mode on
	GREEN		Dry mode on
	RED		Defrost operation
	GREEN		Unit error

ON

Blinking

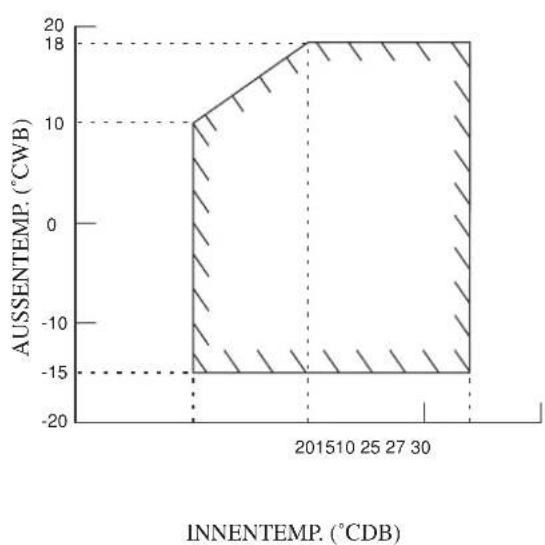

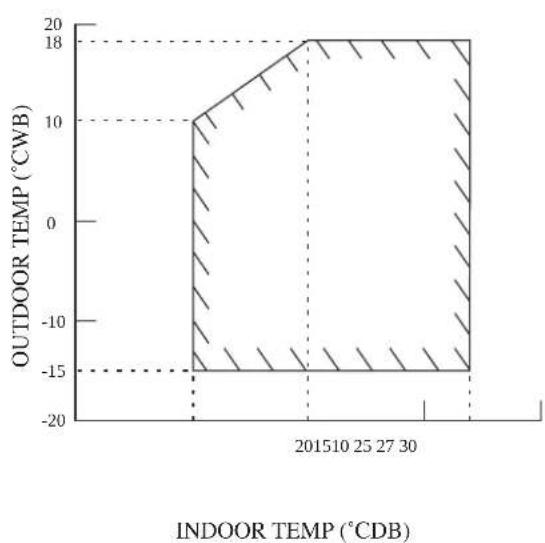

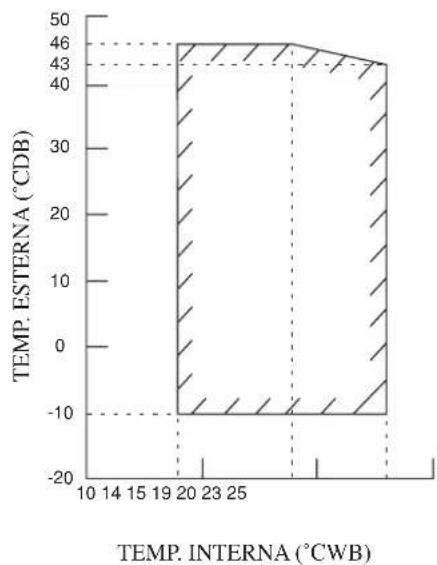

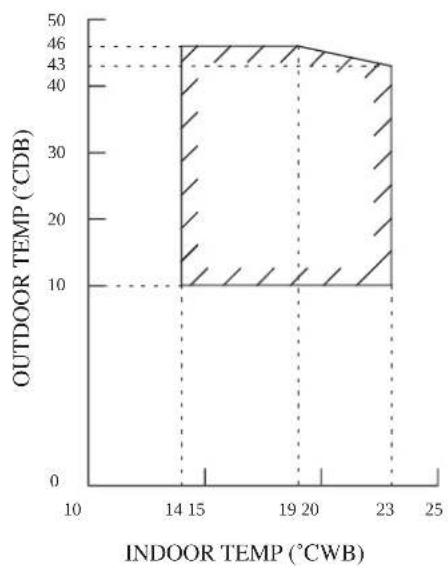

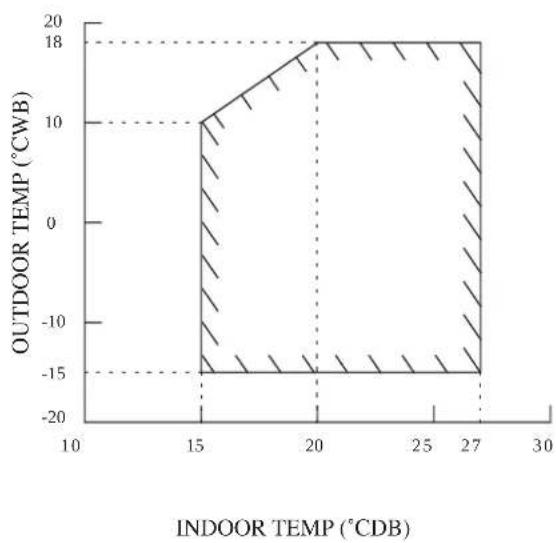

OPERATING RANGE

Model: FTXN25/35MV1B

RXN25/35MV1B

COOLING HEATING

DB: Dry bulb WB: Wet bulb

Model: FTXN50/60MV1B

RXN50/60MV1B

COOLING HEATING

DB: Dry bulb WB: Wet bulb

AIR FILTER

1. Open the front panel.

- Hold the panel at the recesses on the main unit (2 recesses on right and left sides) and lift it until it stops.

Recess on main unit

2. Pull out the air filters.

- Push a little upwards the tab at the center of each air filter, then pull it down.

3. Take off the Bio filter with bacteriostatic, virustatic functions.

- Hold the recessed parts of the frame and unhook the four claws.

Titanium Apatite Filter (Bio Filter) Attached Concept

Diagram of a car air conditioner unit with a handle and ventilation grille (no text or symbols)

Air Filter Heat exchanger Bio Filter attached part Titanium Aperture Filter

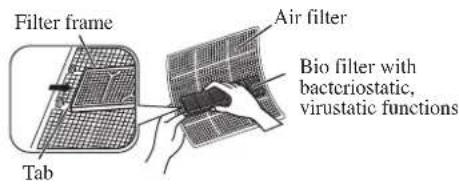

4. Clean or replace each filter.

See figure.

- When shaking off remaining water, do not wring the filter.

Filter frame Tab Air filter Bio filter with bacteriostatic, virustatic functions

5. Set the air filter and Bio filter with bacteriostatic, virustatic functions as they were and close the front panel.

- Insert claws of the filters into slots of the front panel. Close the front panel slowly and push the panel at the 3 points. (1 on each side and 1 in the middle.)

- The air filter and Bio filter with bacteriostatic, virustatic functions have a symmetrical form in the horizontal direction.

FRONT

* Bio Filter and Titanium Apatite Filter are optional accessories.

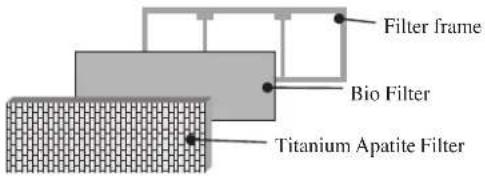

Installation Procedure for Bio Filter

Bio Filter packs in a hermetically-sealed bag.

Take it out at the time of installation.

Slip the Filter in between Filter frame and Titanium Apatite Filter.

Filter frame Bio Filter Titanium Apatite Filter

CAUTION

• Please use this Bio Filter during dry season such as winter.
  • Storage, handling and disposal methods.

• The lifetime of this Bio Filter is about a year after opening.
- In case you do not use this Bio Filter right away, please don't place the Bio Filter in any place where it will be subjected to direct sunlight, high temperatures and/or high humidity.
- There can be slight differences between Bio Filter color because of the manufacturing reasons, there is no effect on the unit performance.
- Please open this bag right before you use it. Bio Filter should remain unopened and sealed in its packaging until right before usage. (It may cause performance deterioration or quality change.)
- To avoid danger of suffocation and any unexpected accident, please dispose the plastic bag immediately after you remove the Bio Filter. Keep out of reach of babies and children.
- If you keep this Bio Filter for a long time, please keep it unopened and store in a cool place avoiding direct sunlight.

• Please dispose the old Bio Filter as nonflammable garbage after use.
  • Operation with dirty filters:

(1) cannot deodorize the air. (3) results in poor heating or cooling.

(2) cannot clean the air. (4) may cause odour.

• To order Bio Filter, contact the service shop where you bought the air conditioner.

SERVICE AND MAINTENANCE

Service Parts Maintenance Procedures Period
Indoor air filter	Remove any dust adhering to the filter by using a vacuum cleaner or wash in lukewarm water (below 40°C/104°F) with a neutral cleaning detergent.2. Rinse the filter well and dry before placing it back onto the unit.3. Do not use gasoline, volatile substances or chemicals to clean the filter.	At least once every 2 weeks.More frequently if necessary.
Indoor unit Clean	any dirt or dust on the grille or panel by wiping it with a soft cloth soaked in lukewarm water (below 40°C/104°F) and a neutral detergent solution.2. Do not use gasoline, volatile substances or chemicals to clean the indoor unit.	At least once every 2 weeks.More frequently if necessary.

CAUTION

- Avoid direct contact of any coil treatment cleaners on plastic part. This may cause plastic part to deform as a result of chemical reaction.

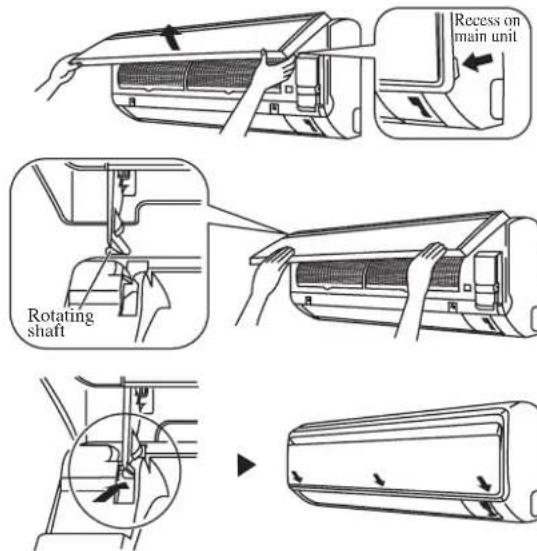

1. Open the front panel.

- Hold the panel at the recesses on the main unit (2 recesses on right and left sides) and lift it until it stops.

2. Remove the front panel.

- While lifting the front panel further, slide it to the right and pull it to the front side. The left rotating shaft is detached. Slide the right rotating shaft to the left and pull it to the front side to remove it.

3. Attach the front panel.

• Align the right and left rotating shafts of the front panel with the grooves and push them all the way in.
• Gently close the front panel. (Push both ends and the center on the front panel.)

Recess on main unit Rotating shaft

CAUTION

• Don't touch the metal parts of the indoor unit. It may cause an injury.
• When removing or attaching the front panel, support the panel securely with hand to prevent it from falling.
• For cleaning, do not use hot water above 40^ C, benzine, gasoline, thinner, nor other volatile oils, polishing compound, scrubbing brushes, nor other hand stuff.
  • After cleaning, make sure that the front panel is securely fixed.

When The Unit Is Not To Be Used For An Extended Long Period Of Time

Operate the unit for 2 hours with the following setting.Operating mode : coolTemperature : 30°C/86°F

Remove the power plug.If you are using an independent electric circuit for your unit, cut off the circuit.Remove the batteries in the remote control.

TROUBLESHOOTING

For any enquiries on spare part, please contact your authorized dealer. When any malfunction of the air conditioner unit is noted, immediately switch off the power supply to the unit. Check the following fault conditions and causes for some simple troubleshooting tips.

Fault Causes / Action
1. Fbectimpages instdoequott operting.3 Mainfite 3 after the unit's conditioner unit is started.	– for the compressor to start operating.
The air conditioner unit does not operate.2. Power failure,	or the fuse needs to be replaced.– The power plug is disconnected.– It is possible that your delay timer has been set incorrectly.– If the fault persist after all these verifications, please contact the air conditioner unit installer.
The air flow is too low.3. The air filter is dirty.	–– The doors or windows are open.– The air suction and discharge are clogged.– The regulated temperature is not high enough.
Discharge air flow has bad odour.4. Odours may be caused by cigarettes, smoke particles,perfume etc. which might have adhered onto the coil.
Condensation on the front air grille of the indoor unit.5. This is caused by air humidity after an extended long period of operation.– The set temperature is too low, increase the temperature setting and operate the unit at high fan speed.
Water flowing out from the air conditioner unit.6. Switch off unit and call dealer.-

If the fault persists, please call your local dealer / serviceman.

DISEGNI E DIMENSIONIS

Unità Interna

IL SEGNO MOSTRA LA DIREZIONE DEI TUBI

A

DIETRO DIETRO

SINISTRA

DESTRA

VISTA DALL'ALTO

C

图

RICEVITORE DI SEGNALE

B

PIASTRA

MORSETTIERA CONTERMINALE A TERRA

IN BASSO

IN BASSO

UNITÀ INTERNA INTERRUTTORE ON/OFF VISTA LATERALE TEMPERATURA AMBIENTE TERMOSTATO (ALL'INTERNO)

Contains fluorinated greenhouse gases covered by the Kyoto Protocol R410A ①= kg ②= kg ①+②= kg 6 5 4 1 2 3

Interna FTXN25MV1B FTXN35MV1	B FTXN50MV1B	FTXN60MV1B
Esterna	RXN25MV1B	RXN35MV1B	RXN50MV1B	RXN60MV1B
Ricarica addizionale [g/m]	20	20	20	20

Esempio:

RISCALDAMENTO

Modello: FTXN50/60MV1B

RXN50/60MV1B

RAFFREDDAMENTO

RISCALDAMENTO

Diagram of a car air conditioner unit with airflow direction indicated by arrows (no text or labels)

Filtr Area Spectrum Cable Pare intermedia filte Bc Fiber displace a frame

DC B A L K

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

Abmessung Modell

A

B

C

D

E

F

G

H

I

J

K

L

M

N

RXN25/35MV1B 550

658 51

11 273

16 14

470 96

299 94

60 14

33

(1) GWP = Treibhauspotential

Contains fluorinated greenhouse gases covered by the Kyoto Protocol R410A ①= kg ②= kg ①+②= kg 6 5 4

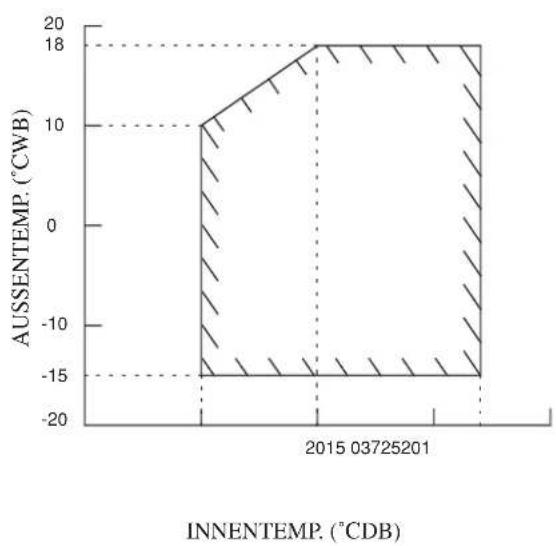

HEIZEN

HEIZEN

Line drawing of a car air conditioner unit with a hand inserting a fan into the air gap (no text or symbols)

Leflfilter Warm-taucker Carbon-Aperture-Filter Spectifer, Verfriger Trol

Contains fluorinated greenhouse gases covered by the Kyoto Protocol R410A ①= kg ②= kg ①+②= kg 6 5 4 1 2 3

Interior FTXN25MV1B FTXN35MV1B	FTXN50MV1B FTXN60MV1B
Exterior RXN25MV1B RXN35MV1B RXN50MV1B RXN60MV1B
Carga Adicional [g/m]	20	20	20

Ejemplo:

DB: Ampolla seca WB: Ampolla húmeda

Modelo: FTXN50/60MV1B

RXN50/60MV1B

Diagram of a car air conditioner unit with a hand inserting a component (no text or symbols)

Fibre chain Interconnect element Fibre fibre parts element Fibre fracture aggregate

MANUEL D'INSTALLATION

Contains fluorinated greenhouse gases covered by the Kyoto Protocol R410A ①= kg ②= kg ①+②= kg 6 5 4 1 2 3

Intérieure FTXN25MV1B FTXN35MV	V1B FTXN50MV1B	FTXN60MV1B
Extérieure	RXN25MV1B	RXN35MV1B	RXN50MV1B	RXN60MV1B
Charge additionnelle [g/m]	20	20	20	20

Exemple :

Charge additionnelle = 4,5[m] x 20[g/m]

$$ = 9 0, 0 [ \mathrm{g} ] $$

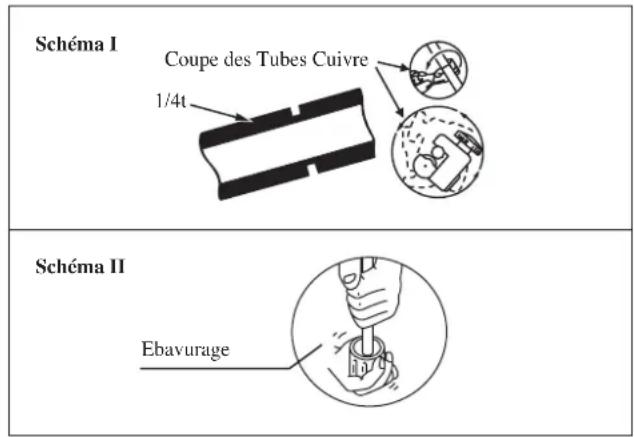

Travail Des Tuyauteries Et Technique Flare

Tuyau, mm (pouce) Couple, Nm / (ft-lb)
6,35 (1/4") 18 (13,3)
9,52 (3/8") 42 (31,0)
12,70 (1/2") 55 (40,6)
15,88 (5/8") 65 (48,0)
19,05 (3/4") 78 (57,6)

Diagram of a car air conditioner unit with airflow direction arrow (no text or symbols)

Figurlar Figurlar Pivatilion, Flute No Fiber Turban Aylt

Technical line drawing of a cabinet or enclosure with labeled dimensions E and F (no text or symbols beyond labels)

H I N J DC B A K L

Technical line drawing of a mechanical device with internal components (no text or symbols)

Modeller\Boyutlar

A

B

C

D

E

F

G

H

I

J

K

L

M

RXN25/35MV1B 550

658 51

11 273

16 14

470 96

299 94

60 14

133

N

Contains fluorinated greenhouse gases covered by the Kyoto Protocol R410A ①= kg ②= kg ①+②= kg 6 5 4 1 2 3

Modeller FTXN25MV1B FTXN35MV1B FTXN50MV1B FTXN60MV1B

İç Mekan FTXN25MV1B FTXN35MV1B FTXN50MV1B FTXN60MV1B

Dış Mekan	RXN25MV1B	RXN35MV1B	RXN50MV1B	RXN60MV1B
İlave gaz şarji [g/m]	20	20	20	20

Örnek:

Boru Büyüklüğü, mm (inç) Tork, Nm / (ft-lb)

6,35 (1/4")	18 (13,3)
9,52 (3/8")	42 (31,0)
12,70 (1/2")	55 (40,6)
15,88 (5/8")	65 (48,0)
19,05 (3/4")	78 (57,6)

Şekil I

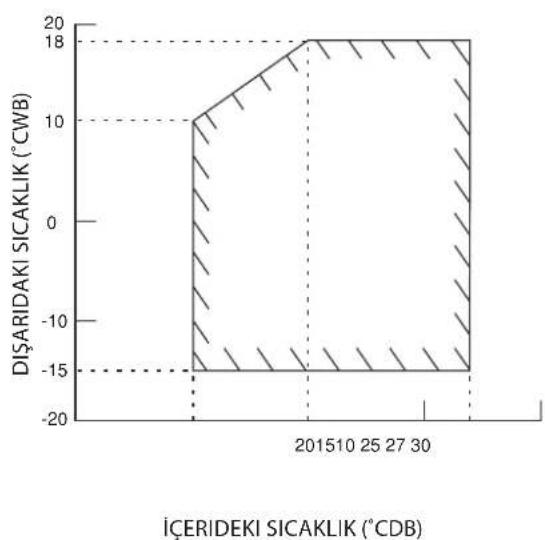

ISiTMA

DB: Kuru Hazneli Termometre
WB: Nemli hava

HAVA FILTRESI

1. Ön paneli açın.

Contains illuminated greenhouse gases covered by the Kyoto Protocol R410A ①= kg ②= kg ①+②= kg 6 5 4

$$ = 9 0, 0 [ r ] $$

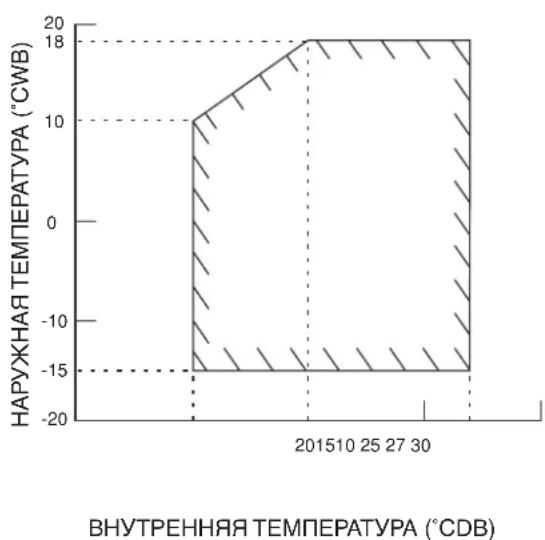

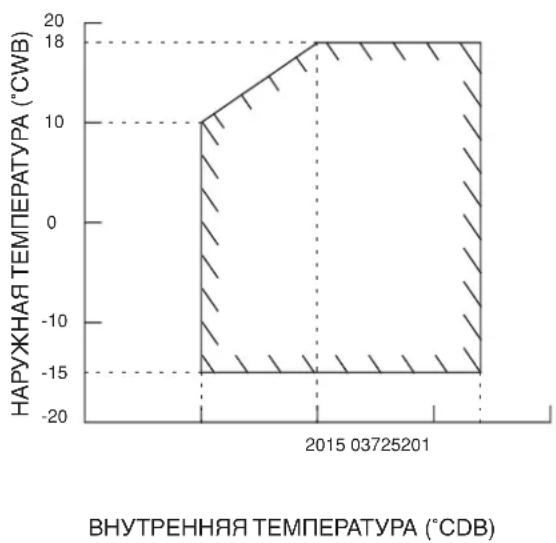

ОЪОГРЕВ

ОЪОГРЕВ

Technical diagram of a car air conditioner unit with labeled components and directional arrows indicating airflow or movement.

FTXN25LXV1B,FTXN25LV1B,FTXN25LV1B9,FTXN25LXV1B9,FTXN25MV1B,ATXN25LV1B,ATXN25MV1B,FTXN35LXV1B,FTXN35LV1B,FTXN35LV1B9,FTXN35LXV1B9,FTXN35MV1B,ATXN35LV1B,ATXN35MV1B,FTXN50LV1B9,FTXN50LV1B,FTXN50MV1B,ATXN50LV1B,ATXN50MV1B,FTXN60LV1B9,FTXN60LV1B,FTXN60MV1B,ATXN60LV1B,ATXN60MV1B,

01 are in conformity with the following standard(s) or other normative document(s), provided that these are used in accordance with our instructions:02 deriden folgenden Norm(er) oder einem anderen Nomdkument oder-dokumenten entsprichtentsprechen, unter der Voraussetzung, caš se gemäß unseren Anweisungen eingesetz werden;03 sont conforme de folgende norm(er) ou autre(s) document(s) normat(s), pour autant quils solenti utilisés conformément à nos instructions;04 conform de folgende norm(er) of een of meer andere bindende documenten zijn, op voorwaarde dat ze worden gebruik overeenkonsigst once instructions;05 están en conformidad con la(s) sigulente(s) norma(s) u otro(s) documento(s) normativo(s), siempre que sean utilizados de acuerdo con nuestras instrucciones;06 sono conformi all(i) seguente(i) standard(s) o atro(i) documento(i) a carattere normativo, a patto che vengano usati in conformità ale nostre istruzoni;07 évió oúpávou με τροϊ(ακόλουθοι) πρότυπο(ει) ι αλία (γεγαφορία) κανανομέν, οπό την προύπάθειοι όπ γαρομοσταντοι ούμανε νε τε τος οδημός μας;

08 estão em conformidade core a(s) seguinte(s) norma(s) ou outro(s) documento(s) normativo(s), desde que estas sejam utilizados de acordo as nossas instruções:09 составляют следующими стандартам или другим нормативным документам, при условии их использования согласно нашим инструкции:10 overholder folgende standard(er) eller andetandre retringsgivende dokument(er), forudsat at disse anvences i henhold ti vore instrukser;11 respective ultrusting är utfird i överensstämmelse med och följer föjande standard(er) eller andra normgivende dokument, under förutsättning act användning siker överensstämmrese med folgende standard(er) eller andre normgivende dokument(er), under forutsättning av at disse brukes i henhold ti vára hístukser;12 respective utsty er i överensstemmelse med folgende standard(er) eller andre normgivende dokument(er), under forutsättning av at disse brukes i henhold ti vára hístukser;13 vastaatat seuraaven standarden ja muiden chyeelisten dokumentien vastruksia edellytäen, etä niitä käytetään onjedentire nuikalesist;14 za předpoldacu. že jsou vydživány v souladu s našini pokyny, odovidajli následujlichni normam nebo normativnim dokumentim;15 u skladu sa eljedačin standarden(ημα) li drugim normativnim dokumenton(ημα), az ujet da se oni korista u skladu s našin uputama;

16 irregtelenek az árátol szabárylojknak vagy egyéb rányadó dokumentum(jaknak, na azokat előřás szerit hasznělják;17 spelnja tywnogi następujących norm i innych dokumentów normalizacyjnych, pod warunviem že używane są zgodnie z naszymi instrukcijani;18 sunt in conformitate cu umátoru (urnalbarele) standardjei sau at(je) document(e) normativje), cu conditja ca acestea sa fie utilizate în conformitate cu instructjanie noastre;19 skladni z naslednjimi standardi in drugimi normativi, pod popojem, da se uporabijajo v skladu z našmi navodii;20 on vastauves, árpíristje standard(iga) vő teste normativsete dokumentega, kiu neid kasulakase vastavat mee juhenditeles;21 cytoplastat на спріните стандарти или други нормативны документи, при условие, ча се каптосят съгласко нашите инструкции;22 atlhíka zenilau rucyotus standardis i (arbai) kitus nominus dokumentus su sąjgya, kad yra naudojami pagai māsą runodymus;23 tad, a leioti áltistósi razotija norádjiuním, ártist sekopjsém sancartiem un ctem normativem dokumentem;24 sú v zhoda s nasledovnoutjemi' normou(ami), álodo himý(m) normativnym(II) dokumentum(ami), za predpokladu, že sa použivaú y súlade s našin návocom;25 türünin, talmatismna póru kullanımasi kasulyula asačdaki standartlar ve norm batrian beperiera uyumludur;

EN60335-2-40.

01 following the provisions of:	10 under iagttagelve af bestemmelsene i:	19 ob upõštevanju colocih:	01 Directives, as amendat.	10 Direktiver, med senare andringer.	19 Direktive z vserni sorenambam.
02 genäß den Vorschriften der:	11 enligt vilkaren i:	20 vastavalt nõutele:	02 Direktiven, gemäß Änderung.	11 Direktiv, med förstagna ländringar.	20 Direktivid koos nuudau staga.
03 conformément aux stipulations des:	12 gilt i henhold til bestemmelsene i:	21 smedraikin klastykte na:	03 Directives, fêtes que modifies.	12 Direktiver, med foreatie andringer.	21 Direktiva, c technite emenemen.
04 overeenkomstig de bepalingen van:	13 noudattaan märdäjyksiä:	22 laikanis nuostaly, patzeklamu:	04 Richtlijnen, zoals geamendeerd.	13 Direktiveja, selasina kun ne ovai muuduina.	22 Direktyose su papildymais.
05 siguiendo las disposiciones de:	14 za dodrženi ustanoveni predpsic:	23 jevėropti prasības, kas noteiklas:	05 Directives, segun lo emendado.	14 v platném znešni.	23 Direktivas un to papildinajamos.
06 seccano le prescrizoni per:	15 prema odredaarna:	24 odžavančio ustanovania:	06 Directive, come da modifica.	15 Smitjenice, kako je izmijenyeno.	24 Smernica, v platnom znenl.
07 με τρηροπ των δασόμεν των:	16 követi arjç:	25 bunun koşulanna uygun clarak:	07 Öbýrov, čmug čypuv prstomotojří.	16 irányelvijek és módosításak rendelkezeser.	25 Değistilmiş haleriyle Yönermelikler.
08 de acordo com o previsto em:	17 zgodno z posanovteriami Dyreklyw:		08 Directives, conforme alteração em.	17 z poźniejszymi poprawkami.
09 e соответствия с положениями:	18 in urma prevedetior:		09 Direktive co всем� popraskami.	18 Directivelor, cu amendamenteze respective.

01 Note *	as sel tui in <A> and judged positively by <B> according to the Certificat <C>.	06 Nota *	darineato nel <A> e guidicato positivamentis da <B> secondo i Certificat <C>	11 Information *	enligt <A> och godkärnis av <B>enligt Certifikat <C>.	16 Megiegyzés *	a;|<A>anapjin, a;|<B>gezola a megfelelast, a;|<C>tanisifiványszontil.	21 3abelenxka *	* kanto e kompozeno<4> u ojevo no poomintelni o on <B>sultacno Cemnivkata <C>
02 Himweis *	wra in <A> aufgehri und von <B> positiv beurdeil gemás Certifikat <C>.	07 Ingustion *	óms: kococýtra o#> ka krkrota četnó pró to <B> ojuvou μ: Ptoromonjnd <C>.	12 Merik *	som cel lremkommer i <A> og gjennom positiv botammise av <B> ilsgaSertifikat <C>	17 Uwaga *	zgodná z dokumentacja <A>, pozytyma opinja <B> Švlaedectwem <C>	22 Pastaba *	kap nuslajyla <A> ir kaip leigamai nuspręsta <B> paga Sertifikatą <C>
03 Romarque *	tel que defini dons <A> et évalué positivement par <B> conformément au Certifikat <C>.	08 Nota *	la como estobecido em <A> e com o parecer positiva do <B> de aconce som a Certificado <C>.	13 Huom *	toksa on eseltity osakrjassu <A> ja jitka <B> on hyväksynyt Sertifikaitin <B>rukaiesti.	18 Notă *	aga cum este stabilir In <A> y apreciar pozitiv de <Din conformitate cu. Certificatul <C>	23 Piezimes *	ka noradits <A> un otlistosi <B> poztrivjam věříjumami saskaņy ar sertifikátu <C>
04 Bemerk *	zaals vermed in <A> en positiv beoordeeld door <B> overeentomsig Certifikat <C>.	09 Prinomchanne *	kaz. ukunimo<4> v costantstami c. posotkravným pešením <B> contaci- o Cevriderbtečny <C>	14 Poznámka *	jak byto uredano v <A> a pozitivná zjištino <B> v sociatu s osvedženim <C>.	19 Opomba *	kot je coločeno v <A> in odobreno s strani <B> v sísluči s osvedženim <C>.	24 Poznámka *	ako bolo uvećené <A> a pozitivne zisteré <B> v sílnce s osvedženim <C>.
05 Nota *	como sa osladnice en <A> y es várada postvranente por <B> de acuerdo con e Certificado <C>.	10 Bemerk *	som antart i <A> og positiv vurderel á <B> I henhold II Certifikat <C>.	15 Napomena *	kano je bloženo <A> i pozištvo oojlanjo od srane <B> prema Certifikatu <C>.	20 Márkus *	nago un nádlutok dokmunds <A>ja neaks údelud <B> jargi vastavahsertifikasidle <C>.	25 Not * <A>	ica barhídligihg ve< C> Sertifikasna gina <B> tarahnan oumu olarak dejerindirídigi glob.

WMY-J V1

DAIKIN EUROPE N.V. Zandvoordestraat 300, B-8400 Oostende, Belgium

CE - DECLARATION-OF-CONFORMITY	CE - DECLARATION-DE-CONFORMIDAD	CE - DECLARAÇÃO-DE-CONFORMIDADE	CE - ERKLÆRING OM-SAMSVAR	CE - IZJAVA-O-USKLADENOSTI	CE - IZJAVA O SKLADNOSTI	CE - ATITIKTIES-DEKLARACIJA
CE - KONFORMITÄTSEKRLÄRUNG	CE - DICHIARAZIONE-DI-CONFORMITA	CE - ЗАЯВЛЕНИЕ-O-COOTBETCTВИИ	CE - ILMOITUS-YHDNMUKAISUUDESTA	CE - MEGFELELŐSÉGI-NYILATKOZAT	CE - VASTAVUSDEKLARATSIÖON	CE - ATBILSTIBAS-DEKLARÁCIJA
CE - DECLARATION-DE-CONFORMITE	CE - ΔΗΛΩΣΗ ΣΥΜΜΟΡΦΩΣΗΣ	CE - OVERENSSTEMMELSESERKLÆRING	CE - PROHLÁŠENÍ-O-SHODĚ	CE - DEKLARACJA-ZGODNÓSCI	CE - ДЕКЛАРАЦИЯ-ЗА-СЪОТВЕТСТВИЕ	CE - VYHLÁSENIE-ZHODY
CE - CONFORMITEITSVERKLARING	CE - FÖRSÁKRAN-OM-ÖVERENSTÄMMELSE	CE - FÖRSÁKRAN-OM-ÖVERENSTÄMMELSE	CE - DECLARAȚIE-DE-CONFORMITATE	CE - DECLARAȚIE-DE-CONFORMITATE	CE - UYUMLULUK-BILDIRISI

Daikin Europe N.V.

17 (PL) deklaruje na wasnań wyciączną odpowiedzialność. że modele klimatyzatorów, których dołyczy niniejsza deklaracja. 18 (RO) declará po proprie răspundere că aparatele de aer condijonat la care se refera acesastă declaratie. 19 (SL) z vso odpowornostjo izjavla, da so modeli klimaskin naprav, na katere se izjava nanaša:
20 (EBT) kinnitab oma täletkul vastulosel, at käesclava deklaratsiconi alla kualuvad klimaseacmela mudaic: 21 (BG) декларира на съоя отговорност, че моделите климатична и instапация, за които се отнася таак декларация: 22 (LT) visika savo alsakomube skelia, kad pro kondicinavimo pialais undelai, kudiers yra takoma i declaracija:
23 (LV) ar pilhu atbildibu apiecina, ka talak uzskato modelu gasa kondicionataji, uz kuriem artecas ši deklaracija. 24 (SK) vyhlasuje na vlasinu zodpovednosť, že telo klimatiznačne modely, na kore sa vzfahuja loto vyhlásenie:

RXN25L5V1, RXN25LV1B, RXN25LV1B9, RXN25MV1B, RXN35L5V1, RXN35LV1B, RXN35LV1B9, RXN35MV1B, ARXN25LV1B, ARXN35LV1B, ARXN25MV1B, ARXN35MV1B.

01 are in conformity with the following standard(s) or other normative document(s), provided that these are used in accordance with our instructions:02 deriden fogenen Nom(ern) oder einem anderen Normdokument oder -documenten entspricht/entsprechen, unter der Voraussetzung, daß sie gemäß unseren Anwlemtes eingesetzt werden:03 sort conforme a /a/aux norm(s) ou autre(s) document(s) normal(s), pour autani qu'ils soient utilisés conformément à nos instructions:04 conform de voigende nom(ern) of één of meer andere bindende documenten zijn, op voorwaarde dat ze worden geraukt overeenkomstig onze instructees.05 están en conformidad con la(s) siguiente(s), norma(s) u oro(s) documento(s) normativo(s), siempre que sean utilizados de acuerdo con nuestras instrucciones:06 sono conformi elij) seguente(i) standard(s) o otro(i) document(i) a carallere normativo, a patlo che vergano usati in conformità alle nostre istruzioni:07 čevu ošipuwo je uč(og) okoloubo(o) προτυσο(oi) i čólo (yýyprop(o) kovovquiv, utó tvn προίπεδοια ὄni ypoćuotoprolvani cújupuva με τς ošpitys μος:EN60335-2-40

01 following the provisions of:02 gemäß den Vorschriften dar:03 conformément aux stipulations des:04 overeenkomstig de bepalingen van:05 siguiendo las disposiciones de:06 secondo le prescrizion per:07 με πηρογ των δασάρου νον:08 de acordo com o previsto em:09 w coontervestam s положениям:10 Note:as set our in <A> and judged positively by <B>06 Nota*:07 Izgutiwen*:08 Nota*:09 Prinamchanie*:10 Bemerk*:como sa aslabroce er<A> y es variado postbrante por <B> ce acuerco con el Certificado <C>.

10 under agtagelse af bestemmelseme i:19 do upoštevanju dolob:20 vastavall návatele:21 snodašakin klayatna na:22 laikanlis nustalu, petaikiam:23 levárajot prasbas, kas notelkaz:24 odžiavaču ustanovena:25 bunun koşulianna uygun clarak:17 zgodne z postanowienami Dyrektyv:18 In prima prevedolor:

Shigeki Monta Birgstar

Director

Ostenia, 06 of December 2013

[Non-Text]

CE - DECLARATION-OF-CONFORMITY	CE - DECLARACION-DE-CONFORMIDAD	CE - DECLARAÇÃO-DE-CONFORMIDADE	CE - ERKLÆRING OM-SAMSVAR	CE - IZJAVA-O-USKŁAĐENOSTI	CE - IZJAVA O SKLADNOSTI	CE - ATITIKTIES-DEKLARACIJA
CE - KONFORMITÄTSEKRLÄRUNG	CE - DICHIARAZIONE-DI-CONFORMITA	CE - ЗАЯВЛЕНИЕ-O-COOTBETCTВИИ	CE - ILMOITUŞ-YHĐENMUKAISUUDESTA	CE - MEGFELELŐSEGI-NYILATKOZAT	CE - VASTAVUSDEKLARATSIOUN	CE - ATBILSTÍBAS-DEKLARĆCIJA
CE - DECLARATION-DE-CONFORMITE	CE - ΔΗΛΩΣΗ ΣΥΜΜΟΡΦΩΣΗΣ	CE - OVERENSSTEMMELSESERKLÆRING	CE - PROHLAŠENÍ-O-SHODĚ	CE - DEKLARACJA-ZGODNOŚCI	CE - ДЕКПАРАЦИЯ-ЗА-СЪОТВЕТСТВИЕ	CE - VYHLÁSENIE-ZHODY
CE - CONFORMITEITSVERKLARING		CE - FÖRSÄKRAN-OM-ÖVERENSTÄMMELSE		CE - DECLARAȚIE-DE-CONFORMITATE		CE - UYUMLULUK-BÍLDIRÍSI

Daikin Europe N.V.

01 (GB) declares under its sole responsibility that the air conditioning models to which this declaration relates:

RXN50LV1B, RXN50LV1B9, RXN50MV1B, RXN60LV1B, RXN60LV1B9, RXN60MV1B,

ARXN50LV1B, ARXN60LV1B, ARXN50MV1B, ARXN60MV1B.

01 are in conformity with the following standard(s) or other normative document(s), provided that these are used in accordance with our

instructions:

01 Note * as set put in and javed positively by 06 Note * daineal nel e nudicato

01 ** Dakin Europe N.V. is authorised to compile the Technical Construction File.

Ostend, 06 of December 2013

DAIKIN EUROPE N.V.

P.O.Box 18674, Galleries 4, 11th Floor, Downtown Jebel Ali, Dubai, UAE.

Head offi ce: Umeda Center Bldg., 2-4-12, Nakazaki-Nishi, Kita-ku, Osaka, 530-8323 Japan

Tokyo offi ce: JR Shinagawa East Bldg., 2-18-1, Konan, Minato-ku, Tokyo, 108-0075 Japan http://www.daikin.com/global/

Importer for Turkey

JR Shinagawa East Bldg., 2-18-1, Konan,

Minato-ku, Tokyo, 108-0075 Japan

http://www.daikin.com/global/

DAIKIN EUROPE N.V.

P.O.Box 18674, Galleries 4, 11th Floor,

Downtown Jebel Ali, Dubai, UAE.

Importer for Turkey

DAIKIN ISITMA ve SOĞUTMA SISTEMLERI SAN TIC A.Ş.

Diagram of a car air conditioner unit with airflow path and ventilation cover (no text or labels)

اضواء المؤشر

Mirستقبل

			FTXN25MV1BFTXN35MV1BFTXN50MV1BFTXN60MV1B
			RXN25MV1BRXN35MV1BRXN50MV1BRXN60MV1B
			20202020 [الشحن الاضافي] [غم/م]

مثال:

(RXN50/60MV1B) retirement homogeneous

Contains fluorinated greenhouse gases covered by the Kyoto Protocol R410A ①= kg ②= kg ①+②= kg 6 5 4 1 2 3

L K L Z M O A Z

A D O B P Z R S

E C G H E I J

ABCDEFGHJKLMN

RXN50/60MV1B8557303285201

Front view of a white Daimin air conditioner unit (no visible text or symbols on body)

الموديل

FTXN25MV1BRXN25

FTXN35MV1BRXN35

FTXN50MV1BRXN50

FTXN60MV1BRXN60
