USER MANUAL Bonnie Lionelo

Two grayscale satellite or spacecraft components with visible structural details, no text or symbols present.

Two grayscale images of a bag with attached straps, shown from different angles (no text or symbols visible)

Five grayscale images showing different types of plastic or plastic meshing or folding, with arrows indicating movement or force direction (no text or symbols present)

Two grayscale photos showing a person's hand near a fabric with a small label and a close-up of the fabric interior (no visible text or symbols)

Two grayscale images showing a person in a storage box and another person lying on a bed, with an arrow indicating the motion direction (no text or symbols)

Two grayscale photos showing a person standing inside a transparent container, with no visible text or symbols.

Two black-and-white photos showing a person in a suit handling a large, folded garment or fabric item, with no visible text or symbols.

Two fabric puppets in grayscale, one with a long handle and the other with a long handle (no text or symbols visible)

Two grayscale images of a satellite or spacecraft module, one open and one closed, both with visible internal components (no text or symbols)

Dear Customer!

In case of any questions or comments on the purchased product, please contact

us: [e-mail]

IMPORTANT, KEEP FOR FUTURE REFERENCE: READ CAREFULLY

Producer:

BrandLine Group Sp. z o. o.

1. WARNING - Do not place the playpen close to an open fire or other heat source.
2. WARNING - Do not use the playpen without the base.
3. Do not leave anything in the playpen or place the playpen close to another product, which could provide a foothold or present a danger of suffocation or strangulation, e.g. strings, blind/curtain cords.
4. Do not use more than one mattress in the playpen.
5. The playpen is ready to use only when all the locking mechanisms are locked and carefully checked.
6. WARNING - Ensure that the playpen is fully erected and all the locking mechanisms engaged before placing your child in this playpen.
7. When assembling and disassembling, watch your fingers – you may trap them!
8. Do not repair or modify the product. Only the authorized service technicians are allowed to do so.
9. The product is intended for children from 0+ to 36 months.
10. Assemble and disassemble the product far away from children.

11. Always position the product on a smooth and flat surface. Always check surfaces under the product to make sure there are no items which may pose a threat to a child.

12. Do not cover the playpen with items which may hinder access of air or pose a threat to a child.

13. Do not use the playpen if your child is able to leave it.
14. Never leave your child unatt ended.
15. Before every use or assembly, make sure the playpen is not defective, has no loose connections, missing elements or sharp edges. Never use the product if any elements are missing or broken. In this case, contact the authorized service in order to receive replacement parts or seek advice.
16. Do not use a water matt ress.
17. Do not use a product outdoors if the wind is strong.
18. Do not use a product for other purposes than designed.
19. Accessories which are not approved by manufacturer shall not be used.
20. Do not leave any objects inside the playpen that could pose a threat of entrapment.
21. Check that all the elements are properly tightened before use.
22. Only use replacement parts that are recommended by the manufacturer.
23. The matt ress should be inserted with the Velcro down.

Simple line drawing of a rectangular frame with a horizontal bar at the bottom (no text or symbols)

Pure geometric diagram of a rectangular frame with diagonal lines intersecting at the center (no text or symbols)

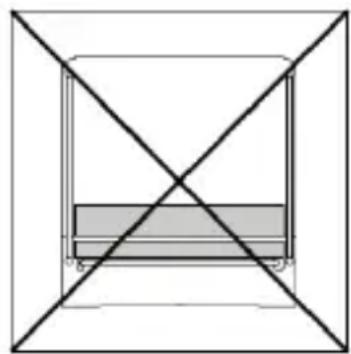

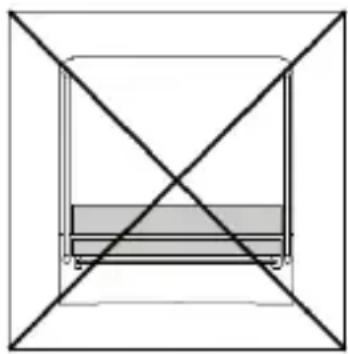

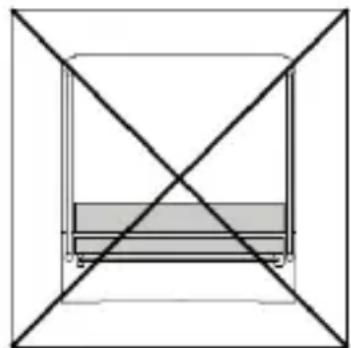

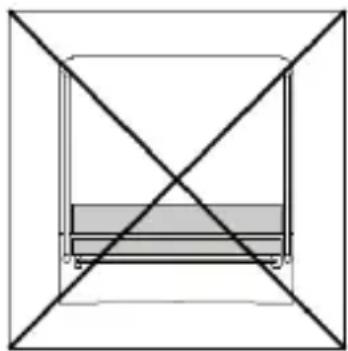

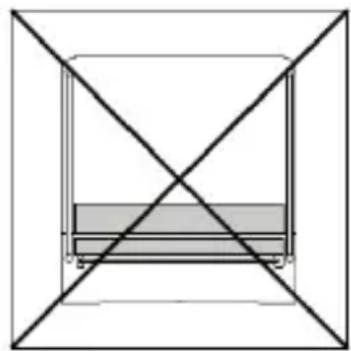

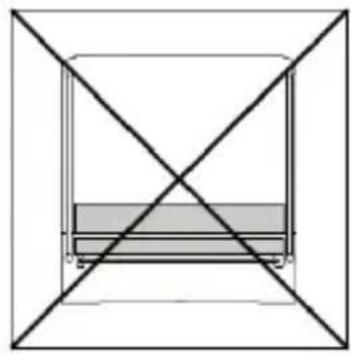

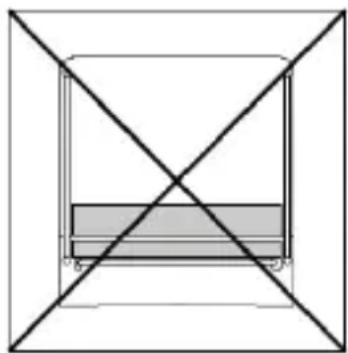

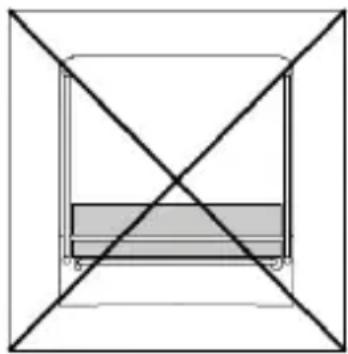

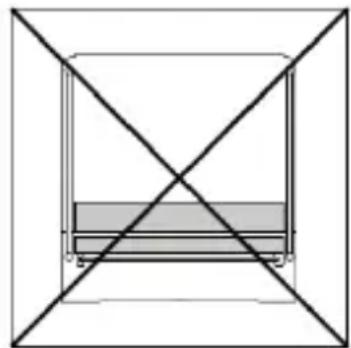

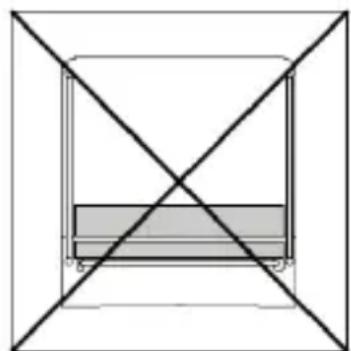

WARNING – Only use the matt ress sold with this playpen, do not add a second mattress on this one, suff ocati on hazards.

Assembly instruction

1. Take the travel baby playpen out of the bag and loosen the adhesive straps. Place the playpen on the floor and put the bag aside (see fig. 1).

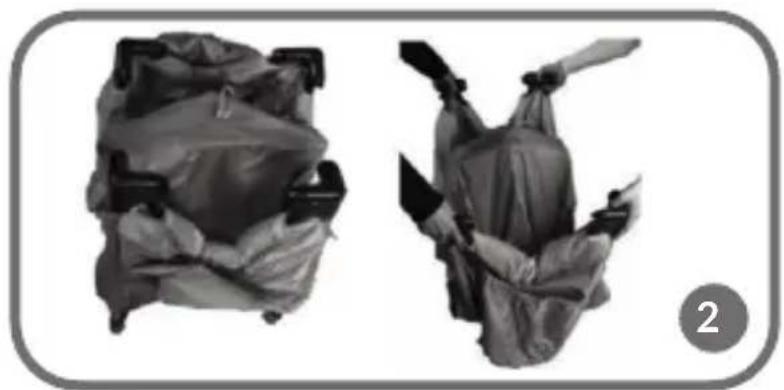

2. Separate the legs by pulling them apart. Keep the central lock up. Otherwise handrails will not fit in the right place (see fig. 2).

Note! In order to properly block the sides of the playpen/handrails, you must raise the central blockade of the floor to a maximum level. The baby rails will not lock when the floor is unfolded.

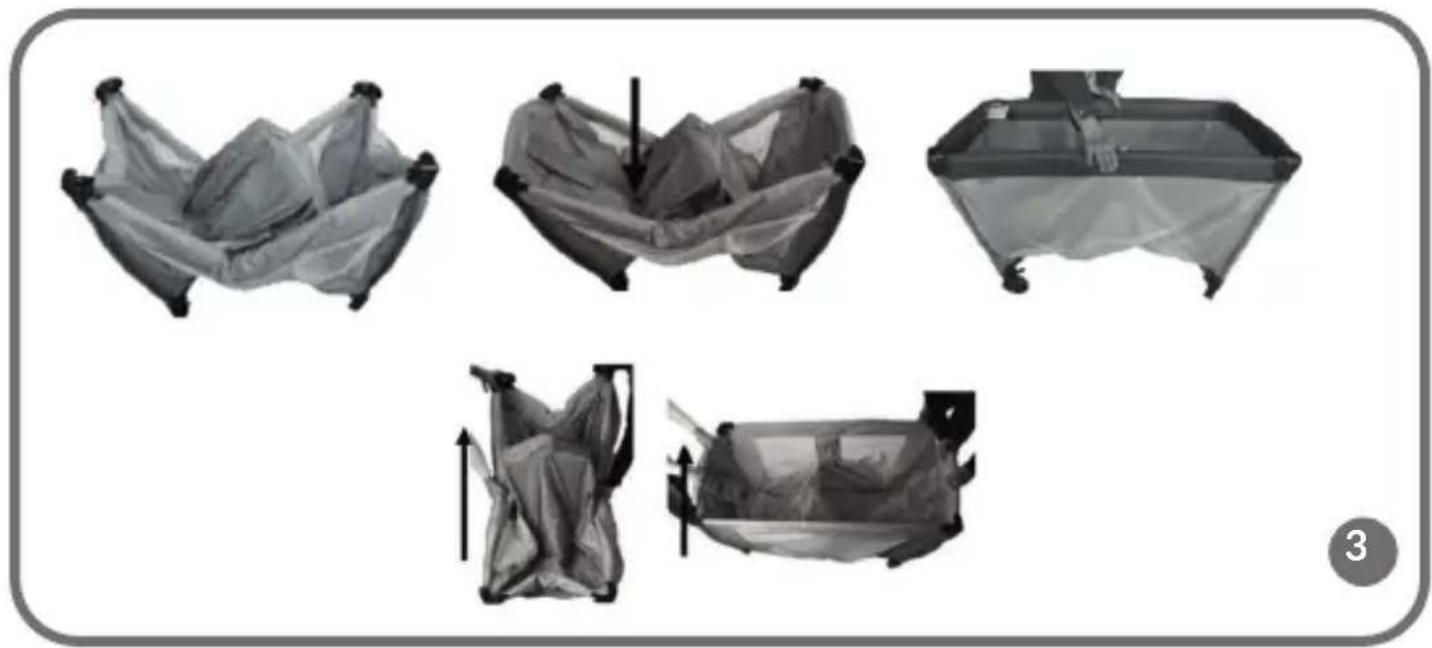

1. Pull the middle part of each top rail covered with material so that they fit into place.(see fig. 3).

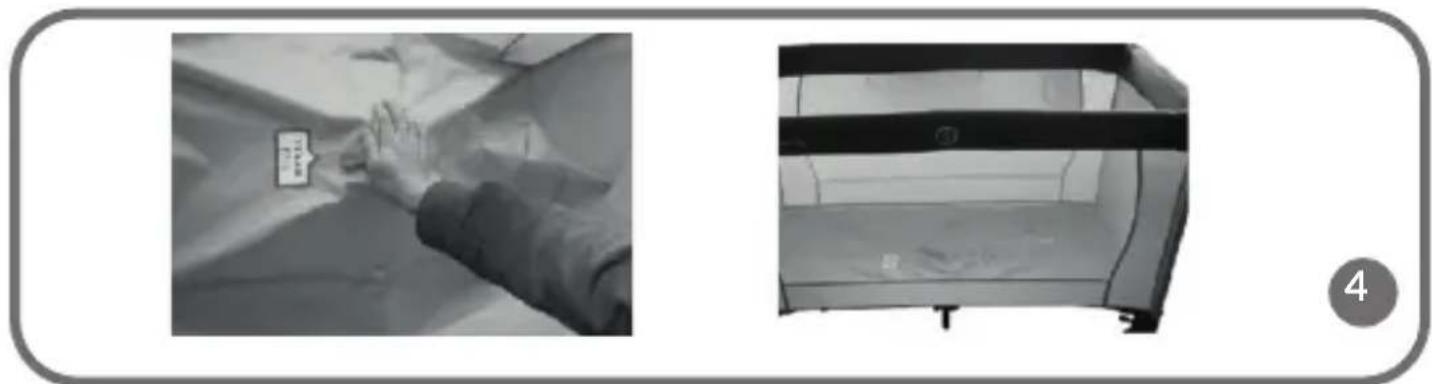

2. Push the middle lock until the surface is completely flat (see fig. 4).

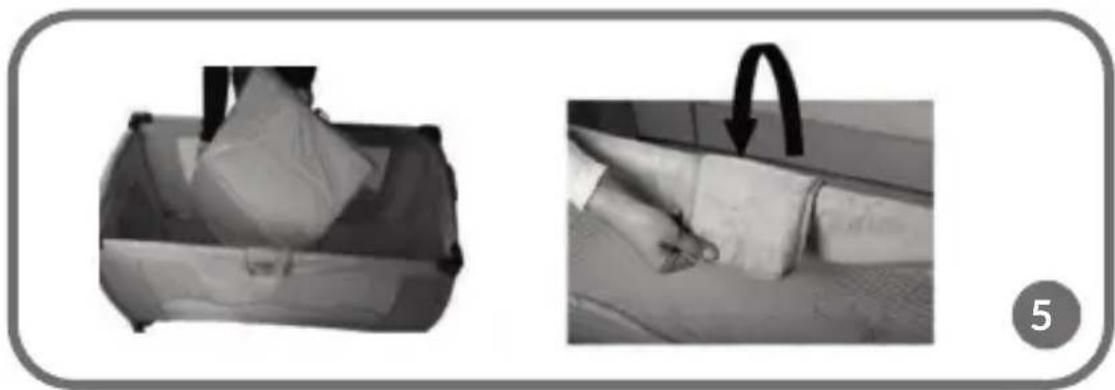

3. Place the mattress in the baby playpen (see fig. 5).

Baby playpen folding instruction

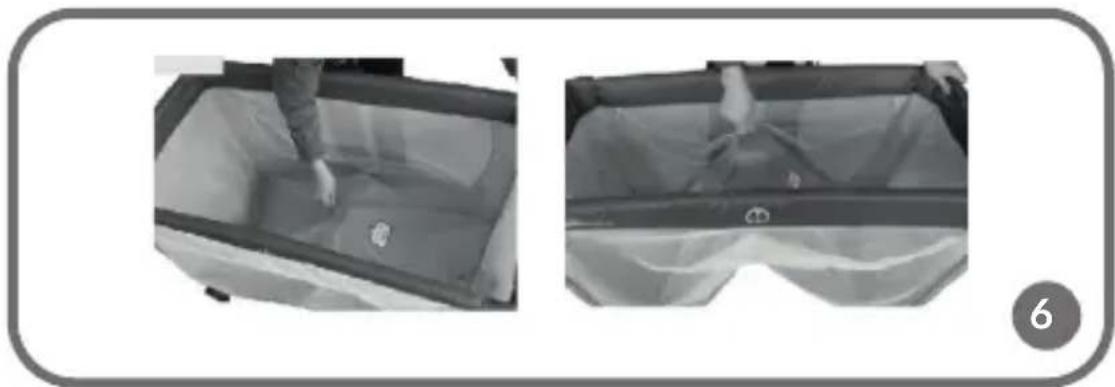

1. Remove all the playpen accessories. Grasp the center handle located in the middle of the floor and pull it up (see fig. 6).

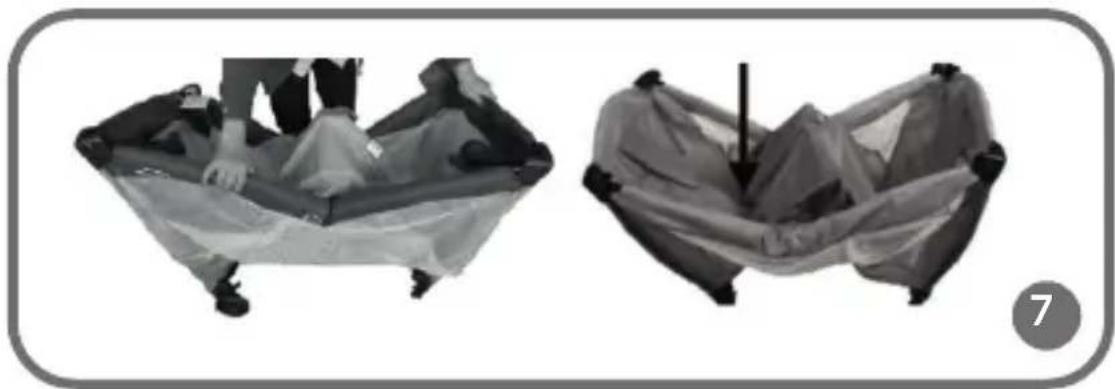

2. To unlock the upper rails, press the indicated buttons on each side of them. Pull it slightly up and then push it down (see fig. 7).

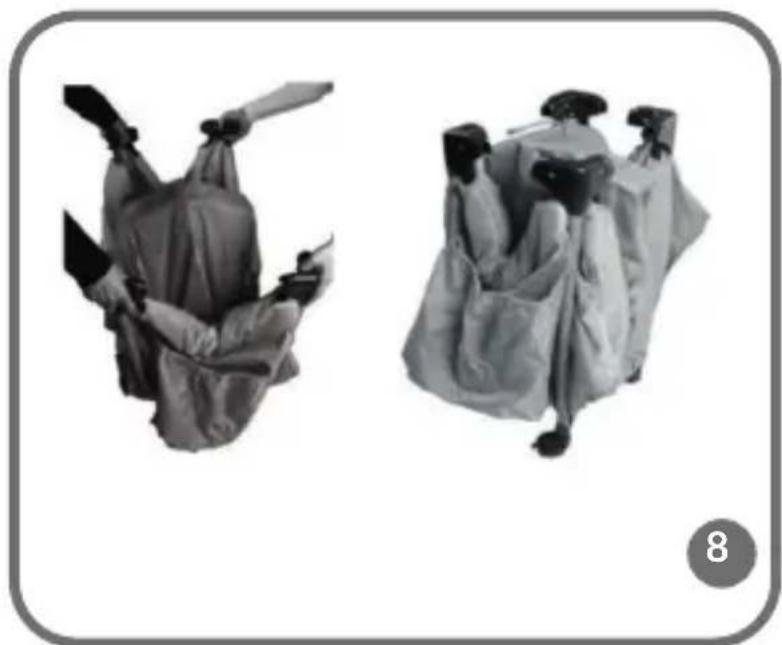

3. While still pulling up the handle, lift the floor of the baby playpen and fold the legs (see fig. 8).

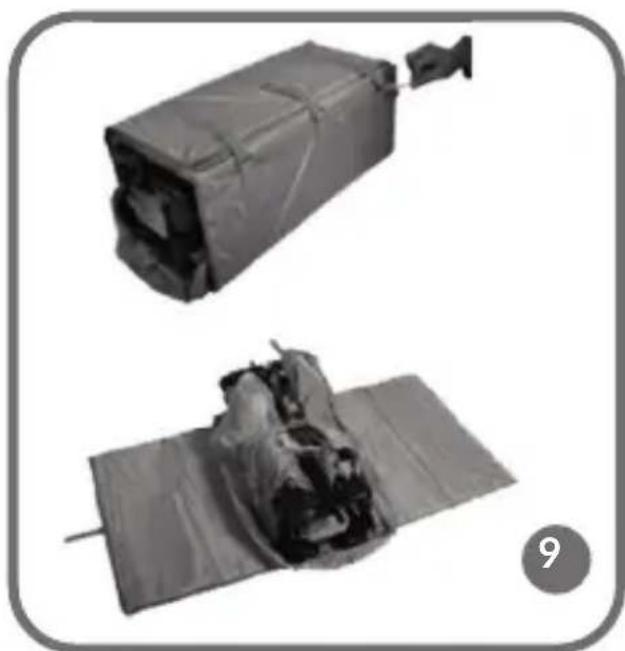

4. Wrap the folded playpen with the mattress and fasten it with Velcro straps. Put the folded baby playpen into the bag (see fig. 9).

Cleaning

Wash the product with a wet cloth and then allow to dry.

The product has been tested and meets all the requirements of the following standards: EN 12227:2010

The pictures in this manual are for illustrative purposes only. Therefore, they may differ from the actual product.

Drogi Kliencie!

Simple line drawing of a rectangular frame with a horizontal bar inside (no text or symbols)

Pure geometric diagram with intersecting lines forming a cross over a rectangle (no text or symbols)

Simple line drawing of a rectangular frame with a central horizontal bar (no text or symbols)

Pure geometric diagram of a rectangular frame with diagonal lines and a shaded central region (no text or symbols)

Two technical diagrams showing a rectangular frame with a shaded base and an X-shaped cross-section, both without any text or symbols.

ПРЕДУПРЕЖДЕНИЕ -

Simple line drawing of a rectangular frame with a shaded horizontal bar at the bottom (no text or symbols)

Pure geometric diagram with intersecting lines and a shaded rectangle inside a square frame (no text or symbols)

Simple line drawing of a rectangular frame with a central horizontal bar (no text or symbols)

Pure geometric diagram of a rectangular frame with diagonal lines and a shaded central region (no text or symbols)

Simple line drawing of a rectangular frame with a shaded bottom rectangle (no text or symbols)

Pure geometric diagram of a rectangular frame with diagonal lines and a shaded central region (no text or symbols)

ADVERTENCIA -

Simple line drawing of a rectangular frame with a central horizontal bar (no text or symbols)

Pure geometric diagram of a square frame with diagonal lines and a shaded horizontal band inside (no text or symbols)

Simple line drawing of a rectangular frame with a central horizontal bar (no text or symbols)

Pure geometric diagram of a rectangular frame with diagonal lines and a shaded central region, no text or symbols present.

JSPĖJIMAS -

Simple line drawing of a rectangular frame with a horizontal bar inside (no text or symbols)

Pure geometric diagram of a rectangular frame with diagonal lines and a shaded base, no text or symbols present.

Simple line drawing of a rectangular frame with a horizontal bar at the bottom (no text or symbols)

Pure geometric diagram of a rectangular frame with diagonal lines intersecting at the center (no text or symbols)

Simple line drawing of a rectangular frame with a horizontal bar inside (no text or symbols)

Pure geometric diagram of a square frame with diagonal lines and a shaded horizontal bar inside (no text or symbols)

Simple line drawing of a rectangular frame with a central horizontal bar (no text or symbols)

Pure geometric diagram with intersecting lines and a shaded rectangle inside a square frame (no text or symbols)

Simple line drawing of a rectangular frame with a central horizontal bar (no text or symbols)

Pure geometric diagram of a rectangular frame with diagonal lines and a shaded bottom section, no text or symbols present.

Simple line drawing of a rectangular frame with a shaded bottom rectangle (no text or symbols)

Pure geometric diagram with intersecting lines and a shaded rectangle inside a square frame (no text or symbols)

Detailed warranty conditions are available on the website:
