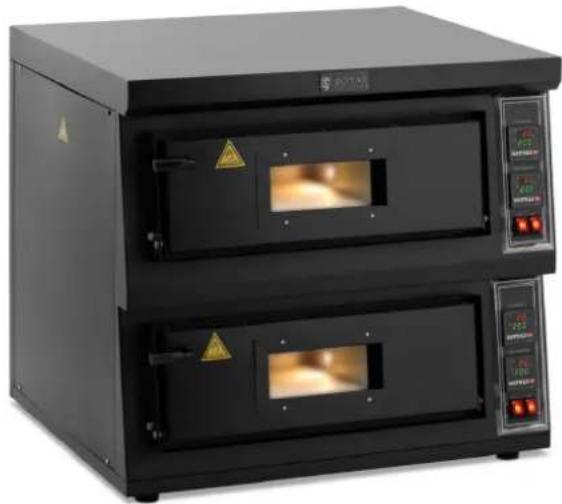

Exterior view of a black industrial oven with two doors and control panels (no visible text or symbols)

RCPO-8800-2D

Steuerung:

A Top Temperature 1 PV 8.8.8 OUT 2 SV 8.8.8 ON OFF 3 4 5 6 B Bottom Temperature 1 PV 8.8.8 OUT 2 SV 8.8.8 ON OFF 3 4 5 6 Power Light ON OFF C D

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Pizza oven
Model	RCPO-4200-1D	RCPO-8800-2D
Rated voltage [V~] / frequency [Hz]	400V3N/50
Rated power [W]	4200	8400
Max temperature [°C]	100-450
Protection rating IP	IPX4	IPX4
Dimensions [width x depth x height; mm]	750 x 900 x 460	750 x 900 x 830
Weight [kg]	63.2	111

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

CE ! !

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation. (general warning sign)

ATTENTION! Electric shock warning!

ATTENTION! Hot surface, risk of burns!

Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Pizza oven

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.
d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
f) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
g) ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids.
h) Do not use in very humid environments or in the direct vicinity of water tanks.
i) Prevent the device from getting wet. Risk of electric shock!

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust. The device generates sparks which may ignite dust or fumes.
c) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.
d) If you are unsure about whether the product is operating correctly or if you find damage, please contact the manufacturer's service centre.
e) Only the manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself!
f) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
g) Children or unauthorised persons are forbidden to enter a work station. (A distraction may result in loss of control over the device).
h) Use the device in a well-ventilated space.
i) Regularly inspect the condition of the safety labels. If the labels are illegible, they must be replaced.
j) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
k) Keep packaging elements and small assembly parts in a place not available to children.
I) Keep the device away from children and animals.
m) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) The device can be handled only by physically fit persons who are capable of handling it, properly trained, familiar with this manual and trained within the scope of occupational health and safety.
d) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
e) Use personal protective equipment as required for working with the device, specified in section 1 (Legend). The use of correct and approved personal protective equipment reduces the risk of injury.
f) Do not overestimate your abilities. When using the device, keep your balance and remain stable at all times. This will ensure better control over the device in unexpected situations.

2.4. Safe device use

a) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
b) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.
c) Keep the device out of the reach of children.
d) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
e) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
f) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
g) Do not move, adjust or rotate the device in the course of work.
h) Do not leave this appliance unattended while it is in use.
i) Clean the device regularly to prevent stubborn grime from accumulating.
j) Do not work on two workpieces at the same time.
k) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
I) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
m) Keep the device away from sources of fire and heat.
n) Do not cover the ventilation openings!

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

This pizza oven is designed for baking pizza, bread and other products made of flour dough (with any kind of flour), both fresh as well as frozen dough.

The user is liable for any damage resulting from unintended use of the device.

3.1. Device description

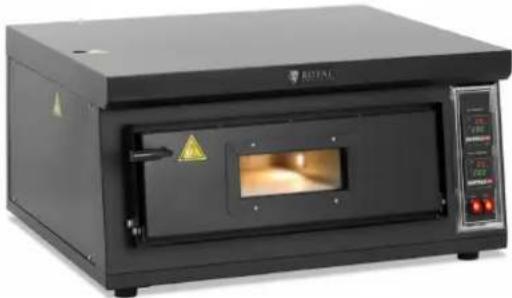

Exterior view of a black industrial oven with visible heat source and control panel (no text or symbols)

RCPO-4200-1D

Exterior view of a black industrial oven with two doors and heat sinks (no visible text or symbols)

RCPO-8800-2D

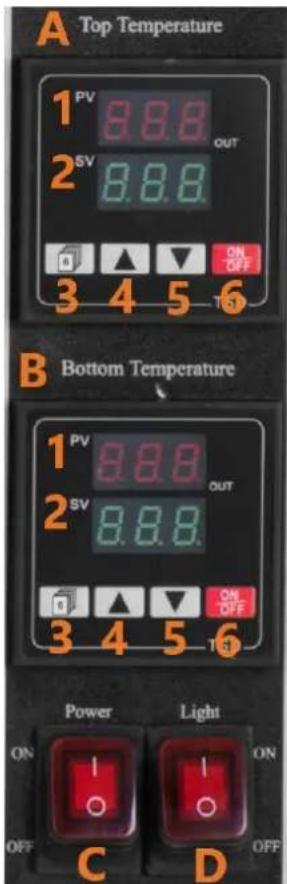

Control panel:

A Top Temperature 1 PV 8.8.8 OUT 2 SV 8.8.8 3 4 5 6 B Bottom Temperature 1 PV 8.8.8 OUT 2 SV 8.8.8 3 4 5 6 Power Light ON ON OFF OFF C D

A – Temperature of the upper heating element
B - Temperature of the lower heating element
C - Main ON/OFF switch
D - Light switch
1 – PV – real temperature display
2 - SV - Set temperature display
3 - Memory button
4 - Button for increasing set values/setting digits
5 - Button for decreasing set values/setting numbers
6 - ON/OFF button - press to switch on the power for one compartment, press again to switch off (OFF appears in the "SV" window).

NOTE: This appliance requires a voltage of 400 V; a corresponding plug is not included in the scope of delivery and must be purchased separately. The connection must be made by a qualified electrician.

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

Disassemble the device and all its components and clean them before the first use.

3.3. Device use

Connect the power, turn on the power switch and set the required temperature.

When the temperature reaches the set degree, open the door and insert the pizza into the compartment.

When the pizza is baked, switch off the power, open the door, remove the pizza outside.

When finished, switch off the appliance and disconnect the power.

Setting the temperature value:

Press buttons (4) / (5) to set the temperature value (a long press will rapidly increase/decrease the value).

When the button is released, the temperature will be set.

Memory selection:

Press the memory selection button (3) and P[X] will appear, where X stands for 1-6.

The temperature value will automatically be stored when the unit is started with the set temperature, and when P[X] is selected again using the button (3), the previously set temperature will automatically be displayed.

3.4. Cleaning and maintenance

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.
b) Use only non-corrosive cleaners to clean the surface.
c) Use only mild, food-safe detergents to wash the device.
d) After cleaning the device, all parts should be dried completely before using it again.
e) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
f) Do not spray the device with a water jet or submerge it in water.
g) Do not allow water to get inside the device through vents in the housing of the device.
h) Clean the vents with a brush and compressed air.
i) The device must be regularly inspected to check its technical efficiency and spot any damage.
j) Use a soft, damp cloth for cleaning.
k) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
I) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

DISPOSING OF USED DEVICES:

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

Exterior view of a black BOLTAM industrial oven with visible heat source and control panel (no text or symbols on main body)

RCPO-4200-1D

Exterior view of a black industrial oven with two doors and control panels (no visible text or symbols)

RCPO-8800-2D

Panel sterowania:

A Top Temperature 1 PV 8.8.8 OUT 2 SV 8.8.8 ON OFF 3 4 5 6 B Bottom Temperature 1 PV 8.8.8 OUT 2 SV 8.8.8 ON OFF 3 4 5 6 Power Light ON ON OFF OFF C D

Exterior view of a black industrial oven with visible heat source and control panel (no text or symbols)

RCPO-4200-1D

Exterior view of a black industrial oven with two doors and heat sinks (no visible text or symbols)

RCPO-8800-2D

Ovládací panel:

A Top Temperature 1 PV 8.8.8 OUT 2 SV 8.8.8 3 4 5 6 B Bottom Temperature 1 PV 8.8.8 OUT 2 SV 8.8.8 3 4 5 6 Power Light ON ON OFF OFF C D

Exterior view of a black BOYAC industrial stove with visible heat source and control panel (no text or symbols)

RCPO-4200-1D

Exterior view of a black industrial oven with two doors and control panels (no visible text or symbols)

RCPO-8800-2D

CE RECOCONOMATION WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Exception

Exterior view of a black square oven with visible heat source and control panel (no text or symbols)

RCPO-4200-1D

Exterior view of a black industrial oven with two doors and control panels (no visible text or symbols)

RCPO-8800-2D

Exterior view of a black Royal Kevlar oven with visible heat source and control panel (no text or symbols on main body)

RCPO-4200-1D

Exterior view of a black industrial oven with two doors and control panels (no visible text or symbols)

RCPO-8800-2D

Panel de mando:

A Top Temperature 1 PV 8.8.8 OUT 2 SV 8.8.8 ON OFF 3 4 5 6 B Bottom Temperature 1 PV 8.8.8 OUT 2 SV 8.8.8 ON OFF 3 4 5 6 Power Light ON ON OFF OFF C D

Exterior view of a black square oven with visible heat source and control panel (no text or symbols)

RCPO-4200-1D

Exterior view of a black industrial oven with two doors and control panels (no visible text or symbols)

RCPO-8800-2D

Kezelőpanel:

A Top Temperature 1 PV 6.8.6 OUT 2 SV 8.8.6 ON OFF 3 4 5 6 B Bottom Temperature 1 PV 9.8.6 OUT 2 SV 8.8.6 ON OFF 3 4 5 6 Power Light ON ON OFF C D OFF

Exterior view of a black industrial oven with visible heat source and control panel (no text or symbols)

RCPO-4200-1D

Exterior view of a black industrial oven with two doors and control panels (no visible text or symbols)

RCPO-8800-2D

Betjeningspanel:

A Top Temperature 1 PV 8.8.8 OUT 2 SV 8.8.8 3 4 5 6 B Bottom Temperature 1 PV 8.8.8 OUT 2 SV 8.8.8 3 4 5 6 Power Light ON ON OFF OFF C D

APPARATETS PLACERING

CE RECOCONOMATION WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Exception

Exterior view of a black ROYAL industrial stove with visible heat source and control panel (no text or symbols)

RCPO-4200-1D

Exterior view of a black industrial oven with two doors and control panels (no visible text or symbols)

RCPO-8800-2D

Bedieningspaneel

A Top Temperature 1 PV 8.8.8 OUT 2 SV 8.8.8 ON OFF 3 4 5 6 B Bottom Temperature 1 PV 8.8.8 OUT 2 SV 8.8.8 ON OFF 3 4 5 6 Power Light ON ON OFF OFF C D

PLAATS VAN HET APPARAAT

OBS! Varm overflate, fare for forbrenning!

Exterior view of a black industrial oven with visible heat source and control panel (no text or symbols)

RCPO-4200-1D

Exterior view of a black industrial oven with two doors and control panels (no visible text or symbols)

RCPO-8800-2D

Betjeningspanel:

A Top Temperature 1 PV 8.8.8 OUT 2 SV 8.8.8 3 4 5 6 B Bottom Temperature 1 PV 8.8.8 OUT 2 SV 8.8.8 3 4 5 6 Power Light ON ON OFF OFF C D

Exterior view of a black industrial oven with visible heat source and control panel (no text or symbols)

RCPO-4200-1D

Exterior view of a black industrial oven with two doors and control panels (no visible text or symbols)

RCPO-8800-2D

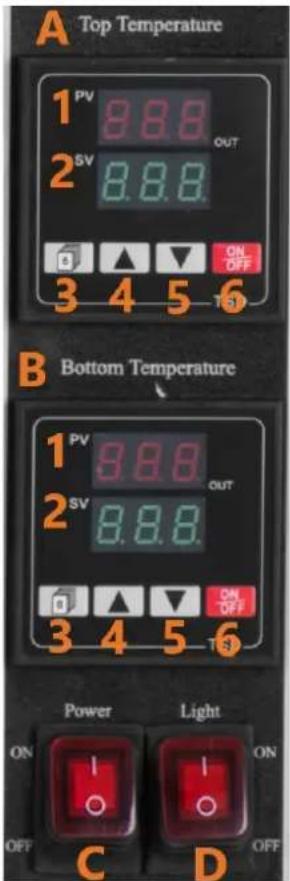

Kontrollpanel:

A Top Temperature 1 PV 8.8.8 OUT 2 SV 8.8.8 3 4 5 6 B Bottom Temperature 1 PV 8.8.8 OUT 2 SV 8.8.8 3 4 5 6 Power Light ON ON OFF OFF C D

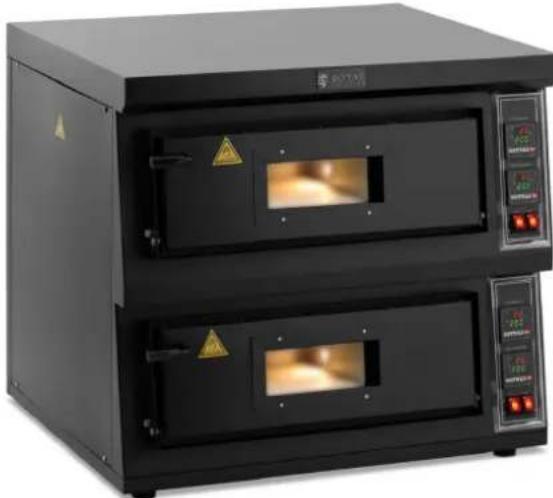

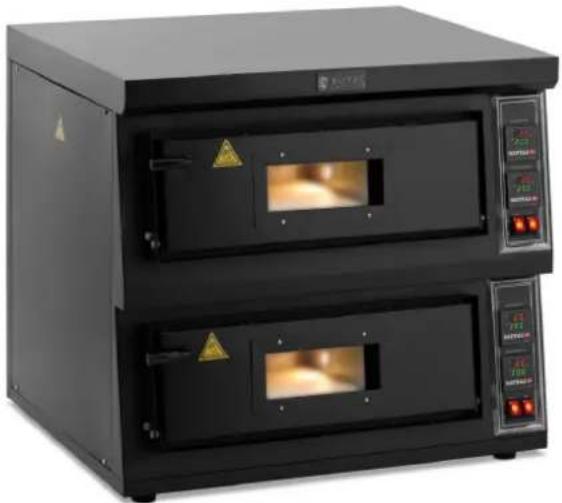

APPARATENS PLACERING

Exterior view of a black industrial oven with visible heat source and control panel (no text or symbols)

RCPO-4200-1D

Exterior view of a black industrial oven with two doors and control panels (no visible text or symbols)

RCPO-8800-2D

Painel de controle:

A Top Temperature 1 PV 8.8.8 OUT 2 SV 8.8.8 ON OFF 3 4 5 6 B Bottom Temperature 1 PV 8.8.8 OUT 2 SV 8.8.8 ON OFF 3 4 5 6 Power Light ON OFF C D

Exterior view of a black industrial oven with visible heat source and control panel (no text or symbols)

RCPO-4200-1D

Exterior view of a black industrial oven with two doors and heat sinks (no visible text or symbols)

RCPO-8800-2D

Ovládací panel:

A Top Temperature 1 PV 8.8.8 OUT 2 SV 8.8.8 3 4 5 6 B Bottom Temperature 1 PV 8.8.8 OUT 2 SV 8.8.8 3 4 5 6 Power Light ON ON OFF OFF C D

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
