USER MANUAL GDX 18V-285 Professional BOSCH
GDR | GDX Professional
18V-215|18V-285
Robert Bosch Power Tools GmbH
70538 Stuttgart
GERMANY
www.bosch-pt.com
1609 92A 9N7 (2024.10) TAG / B5


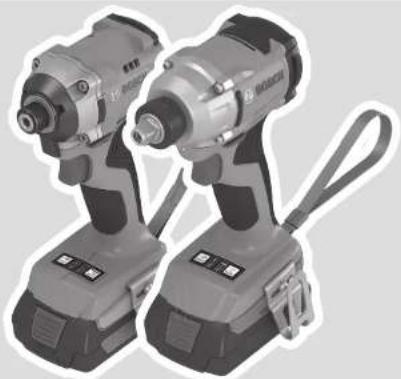

Two industrial electric drillers with attached control bands, shown from different angles (no text or symbols visible)en Original instructions
fr Notice originale
pt Manual original
zh 正本使用说明书
zh原始使用說明書
English ...... Page 7
Français Page 14
General Power Tool Safety Warnings
WARNING
Read all safety warnings, instructions, illustrations and specifica-
tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
Work area safety
▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents.
▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
Electrical safety
▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
▶ When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
Personal safety
▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inatten-
tion while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
▶ If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
Power tool use and care
▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
8 | English
▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
▶ Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
Battery tool use and care
▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
▶ Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
▶ Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ C may cause explosion.
▶ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
Service
▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
▶ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.
Safety Warnings for Impact Wrenches
▶ Hold the power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live"
wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
▶ Use suitable detectors to determine if there are hidden supply lines or contact the local utility company for assistance. Contact with electric cables can cause fire and electric shock. Damaging gas lines can lead to explosion. Breaking water pipes causes property damage.
▶ Only use impact-resistant bits and sockets as application tools. Only these application tools are suitable for impact screwdrivers.
▶ Hold the power tool securely. When tightening and loosening screws be prepared for temporarily high torque reactions.
- Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
▶ Always wait until the power tool has come to a complete stop before placing it down. The application tool can jam and cause you to lose control of the power tool.
In case of damage and improper use of the battery, vapours may be emitted. The battery can set alight or explode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system.
▶ Do not modify or open the battery. There is a risk of short-circuiting.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.
▶ Only use the battery in the manufacturer's products. This is the only way in which you can protect the battery against dangerous overload.


Protect the battery against heat, e.g. against continuous intense sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting.
Symbols
The following symbols may be important for the operation of your power tool. Please take note of these symbols and their meaning. Correctly interpreting the symbols will help you to operate the power tool more effectively and safely.
Symbols and their meaning

Tool data logging is enabled in this tool.
Product Description and Specifications

Read all the safety and general instructions.
Failure to observe the safety and general instructions may result in electric shock, fire and/or serious injury.
Please observe the illustrations at the beginning of this operating manual.
Intended Use
The machine is intended for driving in and loosening screws and bolts as well as for tightening and loosening nuts within the respective range of dimension.
Product Features
The numbering of the product features refers to the diagram of the power tool on the graphics page.
(1) Tool holder
(2) Locking sleeve
(3) Worklight
(4) Rotational direction switch
(5) Belt clip
(6) Rechargeable battery ^a)
(7) Battery release button ^a)
(8) User interface
(9) On/off switch
(10) Handle (insulated gripping surface)
(11) Screwdriver bit with ball catch ^a)
(12) Universal bit holder ^a)
(13) Screwdriver bit ^4
(14) Application tool (e.g. screw nut) (only for GDX 18V-285) ^a)
a) This accessory is not part of the standard scope of delivery.
User interface
(15) Speed button
(16) Speed preselection indicator
(17) Auto Slow-down mode indicator (wood) (only for GDR 18V-215)
(18) Auto Shut-off mode indicator (metal)
(19) Automatic shutdown (ABR) mode indicator (only for GDX 18V-285)
(20) Function button
Technical Data
| Cordless Impact Screwdriver GDR 18V-215 GDX 18V-285 | |||
| Article number | 3 601 JN2 0.. 3 601 JN2 1.. | ||
| Rated voltage V= 18 18 | |||
| No-load speed | |||
| - Setting 1 min | -1 | 2100^A) | 2000^B) |
| - Setting 2 min | -1 | 3300^A) | 2800^B) |
| Impact rate | |||
| - Setting 1 min | -1 | 3000^A) | 3000^B) |
| - Setting 2 min | -1 | 3800^A) | 3600^B) |
| Max. tightening torque Nm 215 | A) | 285^B) | |
| Max. loosening torque Nm - 500 | B) | ||
| Machine screw diameter mm M6-M16 M8-M18 | |||
| Tool holder 1⁄4" internal hexagon 1⁄2" external square | |||
| 1⁄4" internal hexagon | |||
| Weight ^c) | kg | 1.4-2.4 | 1.5-2.5 |
| Recommended ambient temperature during charging | °C | 0 to +35 | 0 to +35 |
| Permitted ambient temperature during operation ^D) and during storage | °C | -20 to +50 | -20 to +50 |
| Recommended rechargeable batteries | GBA 18V...ProCORE18V... | GBA 18V...ProCORE18V... | |
10 | English
Cordless Impact Screwdriver GDR 18V-215 GDX 18V-285
| Recommended battery chargers GAL 18... | GAL 18... | |
| GAX 18... | GAX 18... | |
| GAL 36... | GAL 36... |
A) Measured at 20–25 °C with rechargeable battery GBA 18V 4.0Ah
B) Measured at 20–25 °C with rechargeable battery ProCORE18V 12.0Ah
C) Depending on battery in use
D) Limited performance at temperatures < 0 °C
Values can vary depending on the product, scope of application and environmental conditions. To find out more, visit www.bosch-professional.com/wac.
Rechargeable battery
Bosch sells some cordless power tools without a rechargeable battery. You can tell whether a rechargeable battery is included with the power tool by looking at the packaging.
Charging the battery
▶ Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of your power tool.
Note: Lithium-ion rechargeable batteries are supplied partially charged according to international transport regulations. To ensure full rechargeable battery capacity, fully charge the rechargeable battery before using your tool for the first time.
Inserting the Battery
Push the charged battery into the battery holder until it clicks into place.
Removing the Battery
To remove the rechargeable battery, press the battery release button and pull the battery out. Do not use force to do this.
The rechargeable battery has two locking levels to prevent the battery from falling out if the battery release button is pressed unintentionally. The rechargeable battery is held in place by a spring when fitted in the power tool.
Battery charge indicator
Note: Not all battery types have a battery charge indicator. The green LEDs on the battery charge indicator indicate the state of charge of the battery. For safety reasons, it is only possible to check the state of charge when the power tool is not in operation.
Press the button for the battery charge indicator 📋 or 📋 show the state of charge. This is also possible when the battery is removed.
If no LED lights up after pressing the button for the battery charge indicator, then the battery is defective and must be replaced.
Battery model GBA 18V...
LED Capacity
| 3× continuous green light 60–100 % |
| 2× continuous green light 30–60 % |
| 1× continuous green light 5–30 % |
| 1× flashing green light 0–5 % |
Battery model ProCORE18V...
LED Capacity
| 5 × continuous green light 80–100 % |
| 4 × continuous green light 60–80 % |
| 3 × continuous green light 40–60 % |
| 2 × continuous green light 20–40 % |
| 1 × continuous green light 5–20 % |
| 1 × flashing green light 0–5 % |
Recommendations for Optimal Handling of the Battery
Protect the battery against moisture and water.
Only store the battery within a temperature range of -20 to 50 °C. Do not leave the battery in your car in the summer, for example.
Occasionally clean the ventilation slots on the battery using a soft brush that is clean and dry.
A significantly reduced operating time after charging indicates that the battery has deteriorated and must be replaced. Follow the instructions on correct disposal.
Assembly
▶ Before carrying out any work on the power tool (e.g. maintenance, tool change etc.), remove the battery from the power tool. There is risk of injury from unintentionally pressing the on/off switch.
Inserting the application tool (see figures A–B)
Inserting the Application Tool
GDR 18V-215:
NOTE: Depending on the article number, only certain types of bits can be used (see table below).
| GDR 18V-215: 3 601 JN2 0203 601 JN2 0E03 601 JN2 040 | 3 601 JN2 0L03 601 JN2 050 |
| Single end bit 9.5 mm 9.5 mm | |
| 14 mm | |
| Double end bit 9.8 mm 9.8 mm | |
| 17 mm |
Pull the locking sleeve (2) forward, guide the application tool (1) into the tool holder up to the stop and release the locking sleeve (2) to lock the application tool.
Screwdriver bits (13) can be inserted using a universal bit holder with ball catch (12).
GDX 18V-285:
▶ Observe the information on the safe use of application tools. Some application tools are not suitable for this power tool due to the high torque.
▶ When fitting an application tool, make sure that it is held securely in the tool holder. If the application tool is not held securely in the tool holder, it may become loose and consequently uncontrollable.
NOTE: Depending on the article number, only certain types of bits can be used (see table below).
| GDX 18V-285: 3 601 JN2 1203 601 JN2 1E0 | 3 601 JN2 1L03 601 JN2 150 | |
| Single end bit 9.5 mm 9.5 mm | 14 mm | |
| Double end bit 9.8 mm 9.8 mm | 17 mm | |
Slide the application tool (14) onto the square drive of the tool holder (1).
Due to the way the system operates, the application tool (14) will move around slightly in the tool holder (1); this has no influence on the function/safety.
Removing
Pull the locking sleeve (2) forward and remove the application tool.
Belt clip
You can use the belt clip to hang the power tool on a belt, for example. You then have both hands free and the power tool is always at hand.
Operation
▶ Only apply the power tool to the screw/nut when the tool is switched off. Rotating tool inserts can slip off.
Operating Principle
The tool holder (1) (with the application tool) is driven by an electric motor via a gear and impact mechanism. The working procedure is divided into two phases:
Screwing in and tightening (impact mechanism in action). The impact mechanism is activated as soon as the screwed connection runs tight and load is therefore put on the motor. The impact mechanism then converts the power of the motor to steady rotary impacts. When loosening screws or nuts, the process is reversed.
Set the rotational direction (see figure C)
The rotational direction switch (4) is used to change the rotational direction of the power tool. However, this is not possible while the on/off switch (9) is being pressed.
Right rotation: To drive in screws and tighten nuts, press the rotational direction switch (4) through to the left stop.
Left Rotation: To loosen and unscrew screws and nuts, press the rotational direction switch (4) through to the right stop.
Adjusting the Speed/Impact Rate
You can adjust the speed/impact rate of the power tool when it is on by pressing in the on/off switch (9) to varying extents.
Applying light pressure to the on/off switch (9) results in a low rotational speed/impact rate. Applying increasing pressure to the switch increases the speed/impact rate.
Switching on/off
To start the power tool, press and hold the on/off switch (9).
The worklight (3) lights up when the on/off switch (9) is lightly or fully pressed, allowing the work area to be illuminated in poor lighting conditions.
To switch off the power tool, release the on/off switch (9). The worklight (3) will remain lit for approx. 15 seconds after the on/off switch (9) has been released.
Practical advice
The torque depends on the impact duration. The maximum achieved torque results from the sum of all individual torques achieved through impact. Maximum torque is achieved after an impact duration of 6–10 seconds. After this duration, the tightening torque increases only minimally. The impact duration is to be determined for each required tightening torque. The tightening torque actually achieved should always be checked with a torque wrench.
Screw applications with hard, spring-loaded or soft joints When the achieved torques in an impact series are measured during a test and transferred into a diagram, the result is the curve of a torque characteristic. The height of the curve corresponds with the maximum reachable torque, and the steepness indicates the duration in which this is achieved.
A torque gradient depends on the following factors: - Strength properties of the screws/nuts
12 | English
- Type of backing (washer, disc spring, seal)
– Strength properties of the material being screwed/bolted together - Lubrication conditions at the screw/bolt connection
The following application cases result accordingly:
- A hard joint is a metal-to-metal screw application which uses washers. After a relatively short impact duration, the maximum torque is reached (steep characteristic curve). Unnecessary long impact duration only causes damage to the machine.
- A spring-loaded joint is also a metal-to-metal screw application but uses spring washers, disc springs, studs or screws/nuts with conical joints. It is also called a spring-loaded joint when extensions are used.
- A soft joint is a screw application of e.g. metal on wood or a screw application that uses lead washers or fibre washers as backing.
For a spring-loaded joint as well as for a soft joint, the maximum tightening torque is lower than for a hard joint. Also, a clearly longer impact duration is required.
Guide values for maximum screw tightening torques
Figures given in Nm; calculated from the tensional cross-section; utilisation of the yield point: 90% (with friction coefficient _total = 0.12 ). As a control measure, always check the tightening torque with a torque wrench.
| Property classes according to DIN 267 | Standard screws High-strength screws | ||||||||||
| 3.6 | 4.6 | 5.6 | 4.8 | 6.6 | 5.8 | 6.8 | 6.9 | 8.8 | 10.9 | 12.9 | |
| M6 | 2.71 | 3.61 | 4.52 | 4.8 | 5.42 | 6.02 | 7.22 | 8.13 | 9.7 | 13.6 | 16.2 |
| M8 | 6.57 | 8.7 | 11 | 11.6 | 13.1 | 14.6 | 17.5 | 19.7 | 23 | 33 | 39 |
| M10 | 13 | 17.5 | 22 | 23 | 26 | 29 | 35 | 39 | 47 | 65 | 78 |
| M12 | 22.6 | 30 | 37.6 | 40 | 45 | 50 | 60 | 67 | 80 | 113 | 135 |
| M14 | 36 | 48 | 60 | 65 | 72 | 79 | 95 | 107 | 130 | 180 | 215 |
| M16 | 55 | 73 | 92 | 98 | 110 | 122 | 147 | 165 | 196 | 275 | 330 |
| M18 | 75 | 101 | 126 | 135 | 151 | 168 | 202 | 227 | 270 | 380 | 450 |
Tips
Before screwing larger, longer screws into hard materials, it is advisable to pre-drill a pilot hole with the core diameter of the thread to approx. 2/3 of the screw length.
Note: Ensure that no metal particles enter the power tool.
After working at a low speed for an extended period, you should operate the power tool at the maximum speed for approximately three minutes without load to cool it down.
User interface
The user interface (8), see figures D–E, is used to preselect the speed and working mode.
Speed preselection
With the speed preselection button (15), you can preselect the required speed in two stages.
Keep pressing the speed preselection button (15) until the required setting is shown in the speed indicator (16). The selected setting will be saved.
The required speed depends on the material and the working conditions; it can be ascertained through practical tests. The information in the table below describes the recommended values.
| Basic speed setting at level | ||
| 1 | 2 | |
| [min-1] | [min-1] | |
| Number of speed settings | ||
| 2 (GDR 18V-215) | 0-2100 | 0-3300 |
| Basic speed setting at level | ||
| 1 | 2 | |
| [min-1] | [min-1] | |
| Number of speed settings | ||
| 2 (GDX 18V-285) | 0-2000 | 0-2800 |
You can use the button for speed preselection (15) to preselect the required speed, even during operation.
Selecting the working mode
The power tool has two preset working modes per model: GDR 18V-215: Auto Slow-down (wood) and Auto Shut-off (metal)
GDX 18V-285: Automatic shutdown (ABR) and Auto Shut-off (metal)
To switch between the two working modes, press the function button (20).
Predefined working mode Function Recommended application
ABR (GDX 18V-285)
The automatic shutdown (ABR) is a function for releasing
Screw size: M12
nuts: The power tool automatically shuts down when the bolt
Predefined working mode Function Recommended application
![]() | nut is released. The automatic shutdown prevents the bolt nut from falling down when released from the screw thread.Note: This working mode can only be activated if the power tool is set to anticlockwise. | |
Auto Shut-off (metal) (GDR 18V-215 and GDX 18V-285)![]() | When using the Auto Shut-off (metal) working mode, the power tool automatically stops as soon as the torque increases and the impact function is startedA). This working mode prevents the screw from being over-tightened.Note: The result may vary depending on the material, screws and the amount of force applied by the user. Carry out a test run before any work on the workpiece itself. | Material: Metal (2 mm)Self-tapping screw: 4.2 x 25 mm |
Auto Slow-down (wood) (GDR 18V-215)![]() | When using the Auto Slow-down (wood) working mode, the power tool reduces the speed when tightening (impact mechanism in action)A). This working mode prevents the screw from being over-tightened because the user has sufficient time to let go of the on/off switch (9).Note: It is not possible to preselect the speed in the Auto Slow-down (wood) working mode.Note: If screws with a length of < 50 mm are used in the Auto Slow-down (wood) working mode and no impact is detected, it is possible that the power tool may not reduce the speed in good time. | Material: WoodWood screw: 5 x 50 mm |
A) The Auto Shut-off (metal) and Auto Slow-down (wood) working modes can only be activated when the on/off switch (9) is fully pressed and the screws are being screwed in completely.
Maintenance and Service
Maintenance and Cleaning
Clean the air vents on your power tool regularly. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
▶ Clean the tool holder (1) and locking sleeve (2) from time to time.
Before carrying out any work on the power tool (e.g. maintenance, tool change etc.), remove the battery from the power tool. There is risk of injury from unintentionally pressing the on/off switch.
▶ To ensure safe and efficient operation, always keep the power tool and the ventilation slots clean.
After-Sales Service and Application Service
Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com
The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.
In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.
Malaysia
Robert Bosch Sdn. Bhd.(220975-V) PT/SMY
No. 8A, Jalan 13/6
46200 Petaling Jaya
Selangor
Tel.: (03) 79663194
Toll-Free: 1800 880188
Fax: (03) 79583838
E-Mail: kiathoe.chong@my.bosch.com
www.bosch-pt.com.my
You can find further service addresses at:
www.bosch-pt.com/serviceaddresses
Transport
The recommended lithium-ion batteries are subject to legislation on the transport of dangerous goods. The user can transport the batteries by road without further requirements.
When the batteries are shipped by third parties (e.g. air transport or forwarding agency), special requirements on packaging and labelling (e.g. ADR regulations) must be met. A dangerous goods expert must be consulted when preparing the items for shipping.
Dispatch battery packs only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more detailed national regulations.
14 | Français
Disposal

Power tools, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools and batteries/re-chargeable batteries into household waste!
Battery packs/batteries:
Li-ion:
Please observe the notes in the section on transport (see "Transport", page 13).
Français
Robert Bosch Morocco SARL
53, Rue Lieutenant Mahroud Mohamed
20300 Casablanca
Tel.: +212 5 29 31 43 27
E-Mail : sav.outillage@ma.bosch.com
www.bosch-pt.com/serviceaddresses
Transport
www.bosch-pt.com/serviceaddresses
Transporte
www.bosch-pt.com/serviceaddresses
搬运
www.bosch-pt.com/serviceaddresses
搬運
www.bosch-pt.com/serviceaddresses
การขนสง
www.bosch-pt.com/serviceaddresses
Transpor
www.bosch-pt.com/serviceaddresses
Vận chuyển
Robert Bosch Morocco SARL
www.bosch-pt.com/serviceaddresses
75 | فارسی
M62.713.614.524.85.4
M86.578.71111.613.1
M101317.52223262935
M1222.63037.6404550
M14364860657279951
M16557392981101221.
M18751011261351511
Legal Information and Licenses
Copyright (c) 2015, Infineon Technologies AG
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
- Neither the name of the copyright holders nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Warranty Disclaimer
This product contains Open Source Software components which underly Open Source Software Licenses. Please note that Open Source Licenses contain disclaimer clauses. The text of the Open Source Licenses that apply are included in this manual under "Legal Information and Licenses".
