USER MANUAL LK14S8000V LG

Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times.

LK14S8000*

2 TABLE OF CONTENTS

TABLE OF CONTENTS

3 PRODUCT FEATURES

4 SAFETY INSTRUCTIONS

4 IMPORTANT SAFETY INSTRUCTIONS

8 PRODUCT SPECIFICATIONS

9 PRODUCT OVERVIEW

9 Exterior

10 Interior

11 Kimchi Storage Containers

12 INSTALLATION

12 Installation Overview

13 Unpacking the Refrigerator

13 Choosing the Proper Location

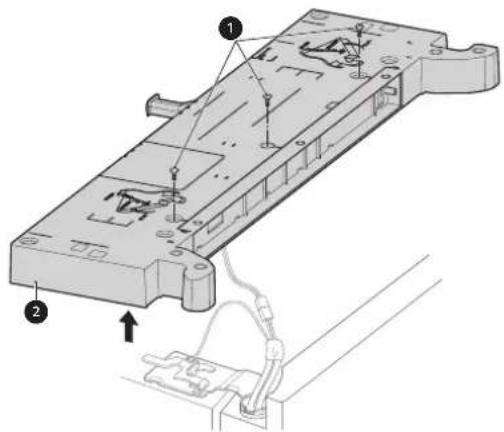

14 Removing/Assembling Doors and Drawers

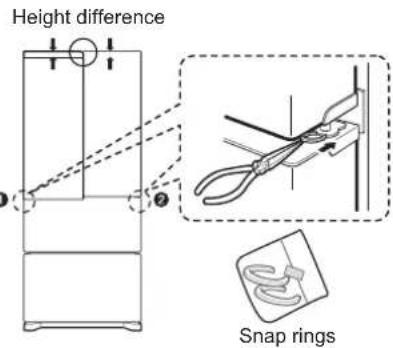

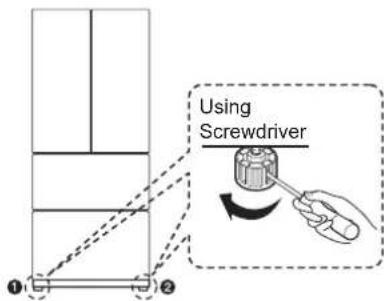

18 Leveling and Door Alignment

18 Turning on the Power

19 OPERATION

19 Before Use

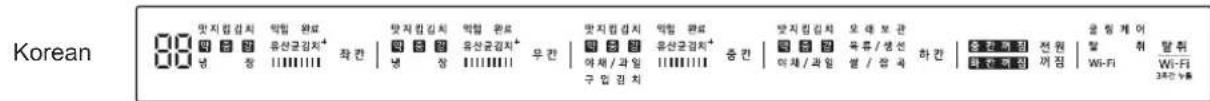

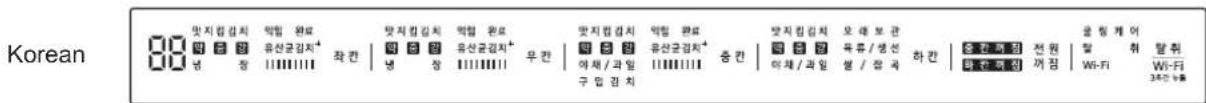

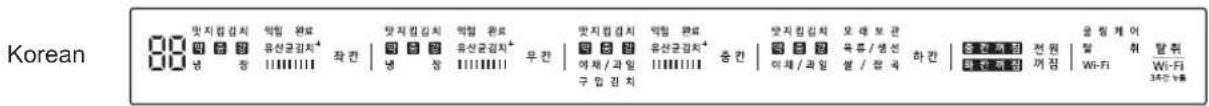

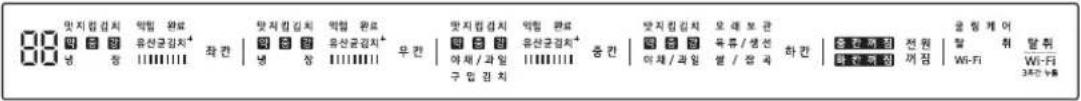

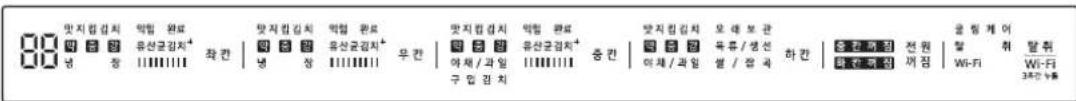

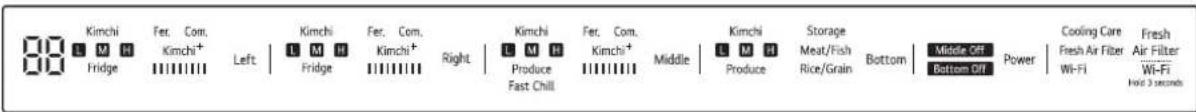

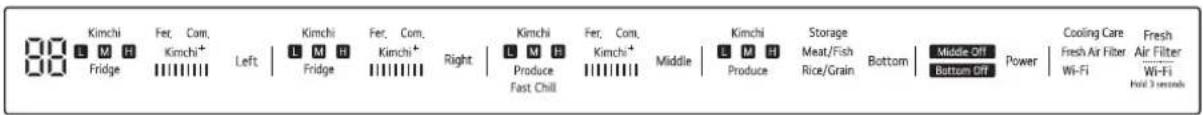

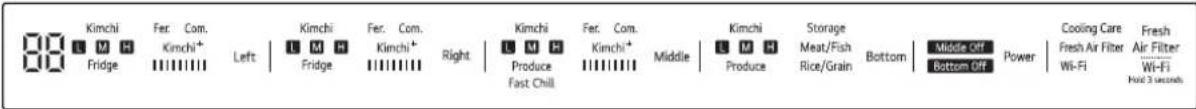

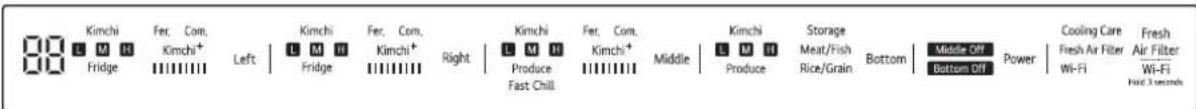

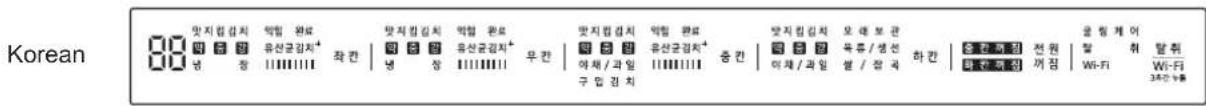

20 Control Panel
29 Storing Food

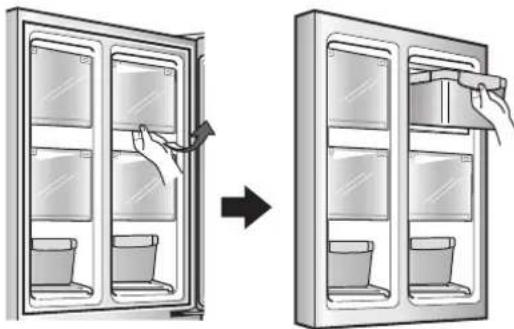

32 Left/Right Compartments

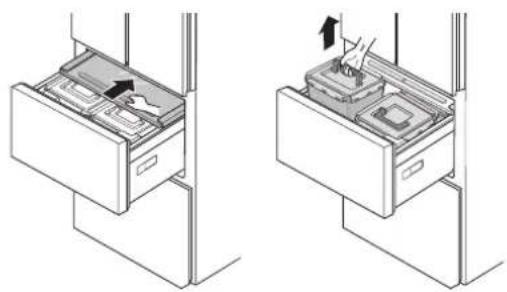

33 CustomChill Drawers
33 Adjusting the Refrigerator Shelves

34 SMART FUNCTIONS

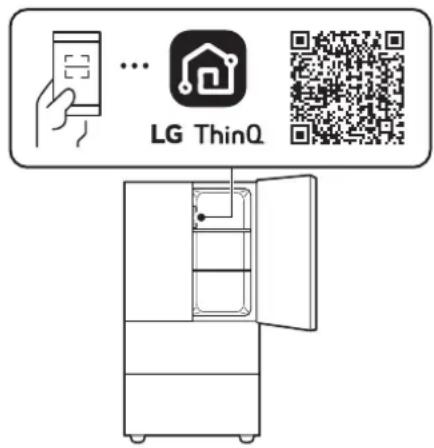

34 LG ThinQ Application

37 MAINTENANCE

37 Cleaning

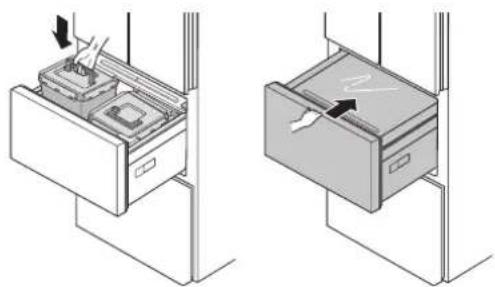

39 TROUBLESHOOTING

39 Before Calling for Service

45 LIMITED WARRANTY

PRODUCT FEATURES

Depending on the model, some of the following functions may not be available.

DOOR ALARM

The Door Alarm function is designed to prevent refrigerator malfunctioning that could occur if a refrigerator door or freezer drawer remains open. If a refrigerator door or freezer drawer is left open for more than 60 seconds, a warning alarm sounds at 30-second intervals.

AUTO-CLOSING HINGE

The refrigerator doors and freezer drawers close automatically with a slight push. (The door only closes automatically when it is open at an angle less than 30^ .)

CUSTOMCHILL™ DRAWERS

The CustomChill™ drawers provide storage space with a variable temperature control that keeps the compartment either colder or warmer than the refrigerator. Use them to store meat and seafood, produce, rice or grain.

CONVENIENT MULTIPURPOSE COMPARTMENTS

The temperatures of the drawers can be set for kimchi, produce, meat, fish, rice or grain. Use the left and right compartments at the top of the appliance to refrigerate fresh food or kimchi.

FERMENT AND STORE KIMCHI IN ONE APPLIANCE

The separate compartments have individual temperature controls that can be set for either fermenting or storing kimchi.

EASY-TO-USE KIMCHI CONTAINERS

The kimchi containers are easy to use and seal in air, to keep kimchi fresh for a long time.

SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages.

This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or injure you and others.
All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION.

These words mean:

WARNING

You may be killed or seriously injured if you do not follow instructions.

CAUTION

You may be injured or cause damage to the product if you do not follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what may happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of explosion, fire, death, electric shock, scalding or injury to persons when using this product, follow basic precautions, including the following:

INSTALLATION

• To reduce the risk of injury to persons, adhere to all industry recommended safety procedures including the use of long-sleeved gloves and safety glasses.
• Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.
• Only connect this product to a dedicated grounded electrical outlet rated for use with this product (115 V, 60 Hz, AC only). It is the user's responsibility to replace a standard 2-prong wall outlet with a standard 3-prong wall outlet.
• Do not use an outlet that can be turned off with a switch. Do not use an extension cord.
• The appliance must be positioned for easy access to a power source.
• When moving the refrigerator, be careful not to roll over or damage the power cord.
• Contact an authorized service center when installing or relocating the refrigerator.
• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
• Keep packing materials out of the reach of children. Packaging material can be dangerous for children. There is a risk of suffocation.
• Do not install the refrigerator in a damp or dusty place where insulation on electrical parts may deteriorate.
• Do not place the refrigerator in direct sunlight or expose it to the heat from heating appliances such as stoves or heaters.
• Do not bend or pinch the power cord excessively or place heavy objects on it.

OPERATION

• This appliance is intended to be used in household and similar applications such as:
  – staff kitchen areas in shops, offices and other working environments;
  – farm houses and by clients in hotels, motels and other residential type environments;
  – bed and breakfast type environments;
  – catering and similar non-retail applications.
• This product is not to be used for special purposes such as the storage of medicine or test materials or for use on ships, etc.
• DO NOT allow children to climb, stand, or hang on the refrigerator doors or on the shelves in the refrigerator. They could damage the refrigerator and seriously injure themselves.
• Do not allow children to climb into the refrigerator. They could be trapped and suffocated.
• Children should be supervised to ensure that they do not play with the refrigerator.
• Keep fingers out of pinch point areas; clearances between the doors and cabinets are necessarily small. Be careful closing doors when children are nearby.
• Do not touch frozen food or the metal parts in the freezer compartment with wet or damp hands. Doing so may cause frostbite.
• Do not refreeze frozen food that has thawed completely. Doing so may result in a serious health hazard.
• Do not use an adapter plug or plug the power plug into a multi-outlet extension cord.
• Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end. Immediately have all power cords that have become frayed or otherwise damaged repaired or replaced by qualified service personnel.
• Do not operate the refrigerator or touch the power cord with wet hands.
• Do not modify or extend the power cord.
• Do not use an uncertified power outlet. Do not plug appliance into a damaged wall outlet.
• Do not put hands, feet or other objects into the air vents or bottom of the refrigerator. Doing so could result in personal injury or electric shock.
• In the event of a gas leak (propane/LPG), ensure the area is adequately ventilated and contact an authorized service center before resuming use. Do not touch the refrigerator or power cord of the refrigerator.
• Disconnect the power cord immediately and contact an authorized service center if there is a strange noise, odor, or smoke coming from the appliance.
• Do not use any fuse (such as copper, steel wire, etc.) other than a standard fuse.
• Do not place or use an electrical appliance inside the refrigerator, unless it is of a type recommended by the manufacturer.
• Do not put live animals inside the appliance.
• Do not place heavy or fragile objects, liquid filled containers, combustible substances, or flammable objects (such as candles and lamps) on the appliance.
• If connected to a circuit protected by fuses, use time delay fuse.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

MAINTENANCE

• Do not use a hair dryer to dry the inside of the refrigerator.
• Do not light a candle to remove odors in the refrigerator.
• In the event of a refrigerant leak, move flammable objects away from the refrigerator. Ensure the area is adequately ventilated and contact an authorized service center.
• Keep flammable materials and vapors, such as gasoline, away from the refrigerator.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be performed by children without supervision.
• Unplug the power plug before cleaning or repairing the refrigerator.
• The refrigerator and freezer compartment lights are interior LED lighting, and service should be performed by a qualified technician.
• Unplug the power plug immediately in the event of a blackout or thunderstorm.
• Turn the power off if water or dust penetrates into the refrigerator. Call a service agent.
• Do not store, disassemble or repair the appliance yourself or allow unqualified personnel to do so.

DISPOSAL

• Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days. When disposing of the refrigerator, remove the packing materials from the door or take off the doors but leave the shelves in place so that children may not easily climb inside.
• If disposing of a refrigerator, make sure the refrigerant is removed for proper disposal by a qualified servicer. If you release the refrigerant, you may be fined or imprisoned in accordance with the relevant environmental law. Insulation foam contains flammable blowing gas.
• When discarding the appliance, remove the door gasket while leaving the shelves and bins in place, and keep children away from the appliance.

GROUNDING INSTRUCTIONS

• Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service personnel if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
• Have a qualified electrician check the wall outlet and wiring for proper grounding.
• Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet. Failure to do so may damage the power cord, resulting in a risk of fire and electric shock.

RISK OF FIRE AND FLAMMABLE MATERIALS

This appliance contains a small amount of isobutane refrigerant (R600a), which is combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air out the room in which the appliance is standing for several minutes.

In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 10.8 square feet (1 square meter) in size for every 8g of R600a refrigerant inside the appliance. The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance. Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.

CAUTION

To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following:

INSTALLATION

• Do not install the refrigerator where there may be a danger of the unit falling.
• The refrigerator must be properly installed in accordance with the Installation Instructions.

OPERATION

• Do not use aerosols near the refrigerator.
• This appliance is intended to be used only in domestic and similar applications.
• Do not strike or apply excessive force to any glass surface. Do not touch glass surfaces if they are cracked or broken.
• Do not overfill or pack items too tightly into door bins. Doing so may cause damage to the bin or personal injury if items are removed with excessive force.
• Do not overfill the appliance with food. Doing so may cause personal injury or property damage.

MAINTENANCE

• Do not use strong detergents like wax or thinners for cleaning. Clean with a soft cloth.
• Remove foreign objects (such as dust and water) off the prongs of the power plug and contact areas. Do not use a wet or damp cloth when cleaning the plug.
• Do not spray water directly on the inside or outside of the refrigerator.
• Do not clean glass shelves or covers with warm water when they are cold. They may break if exposed to sudden temperature changes.

SAVE THESE INSTRUCTIONS

PRODUCT SPECIFICATIONS

The appearance and specifications listed in this manual may vary due to constant product improvements.

Electrical requirements: 115 V, 60 Hz

Model LK14S8000*
Description Refrigerator
Net weight 268 lb (122 kg)

PRODUCT OVERVIEW

The images in this guide may be different from the actual components and accessories, which are subject to change by the manufacturer without prior notice for product improvement purposes.

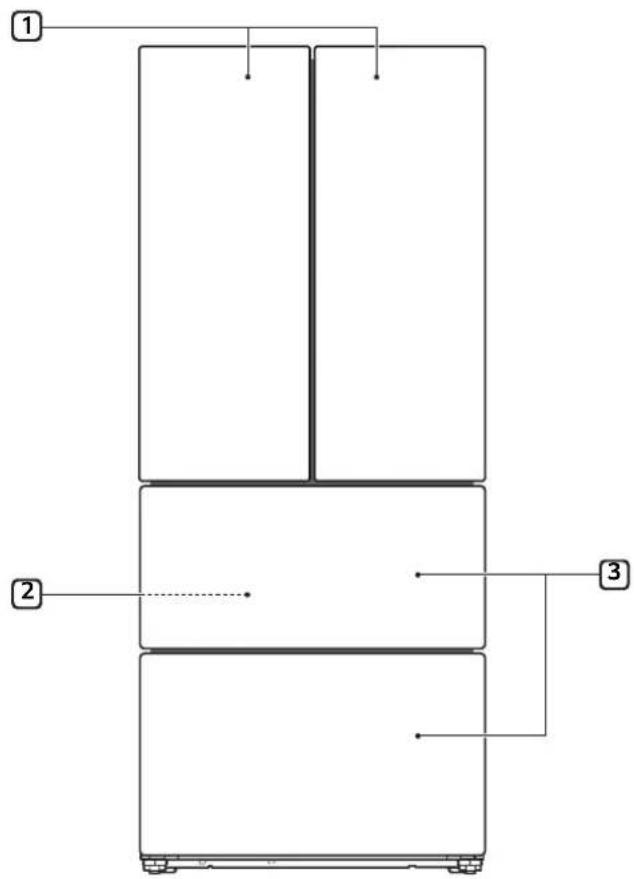

Exterior

Technical diagram of a refrigerator with labeled components and structural lines

① Left and right compartments

Refrigerate fresh food or store kimchi. See page 24 for more information on using the left and right compartments.

• Kimchi containers for left and right compartments only included on some models.
• Frost proof covers for left and right compartments only included on some models.

② Middle/bottom drawer switch

Detects the opening/closing of the middle/bottom drawers.

• An alarm sounds if the drawer is not completely closed.
• The door sensor is tilted to accommodate the different locations of the middle and lower drawers.

③ CustomChill™ drawers

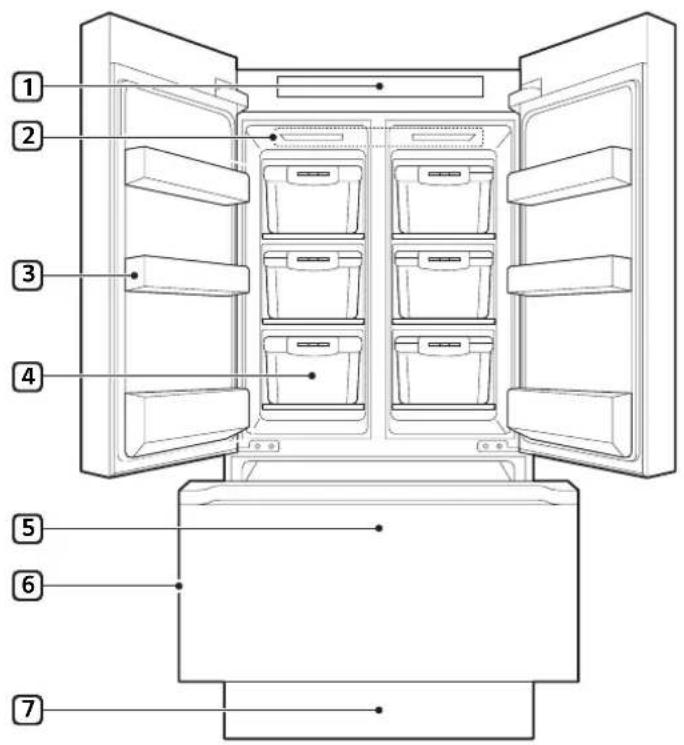

Interior

Diagram of an open refrigerator with numbered compartments and labeled parts in Chinese

① Control panel

Set controls using temperature or food type.

② Left and right compartment LED lighting

Lights up when doors are opened.

3 Door bin

4 Kimchi container

Place food in the kimchi container and close securely before storing.

5 Middle compartment

6 Middle/Bottom compartment door switch

7 Bottom compartment

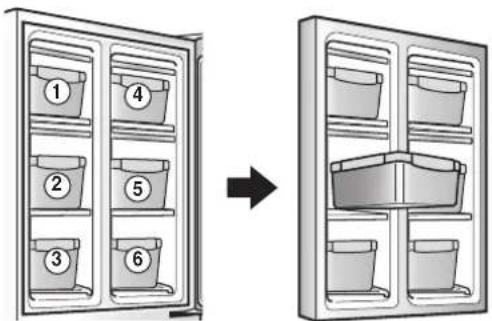

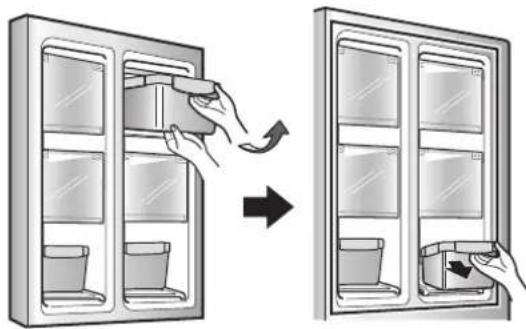

Kimchi Storage Containers

Kimchi storage container Container Capacity
Left/Right compartments		AKC67523421 : 6EA 2	3 gal (8.8 L)
Middle compartment		AKC67523727 : 4EA 3	gal (11.5 L)
Bottom compartment		AKC67523727 : 2EA	3 gal (11.5 L)
		AKC67523729 : 2EA	1.8 gal (6.7 L)

12 INSTALLATION

INSTALLATION

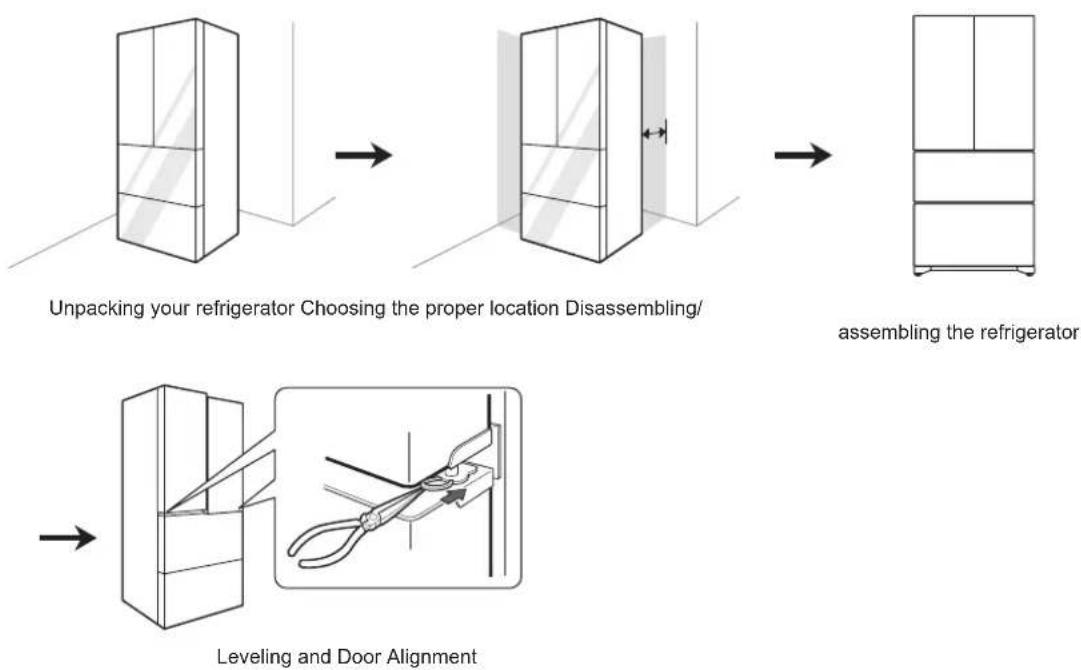

Installation Overview

Please read the following installation instructions first after purchasing this product or transporting it to another location.

Unpacking the Refrigerator

WARNING

• Use two or more people to move and install the refrigerator. Failure to do so can result in back injury or other injury.
• The refrigerator is heavy. Protect the floor when moving the refrigerator for cleaning or service. Always pull the refrigerator straight out when moving it. Do not wiggle or walk the refrigerator when trying to move it, as floor damage could occur.
• Keep flammable materials and vapors, such as gasoline, away from the refrigerator. Failure to do so can result in fire, explosion, or death.

NOTE

• Remove tape and any temporary labels from your refrigerator before using. Do not remove any warning labels, the model and serial number label, or the Tech Sheet that is located under the front of the refrigerator.
• To remove any remaining tape or glue, rub the area briskly with your thumb. Tape or glue residue can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.
• Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator.
• Reinstall or adjust shelves as needed. Refrigerator shelves are installed in the shipping position. Reinstall shelves according to your individual storage needs.

Choosing the Proper Location

Electricity

Use an individual, grounded outlet: 115 Volts, 60 Hz, AC, 15 Amps minimum.

WARNING

• Do not overload house wiring and cause a fire hazard by plugging in multiple appliances in the same outlet with the refrigerator.
• To reduce the risk of electric shock, do not install the refrigerator in a wet or damp area.

Flooring

To avoid noise and vibration, the unit must be installed and leveled on a solidly constructed floor. If required, adjust the leveling legs to compensate for the unevenness of the floor.

NOTE

- Installing on carpeting, soft tile surfaces, a platform or weakly supported structure is not recommended.

Ambient Temperature

Install this appliance in an area where the temperature is between 55 °F (13 °C) and 110 °F (43 °C).

If the temperature around the appliance is too low or high, cooling ability may be adversely affected.

1 Place your appliance where it is easy to use.
2 Avoid placing the unit near heat sources, direct sunlight or moisture.
3 To ensure proper air circulation around the refrigerator, allow for space at both sides and at the top. Allow for 2 inches (5 cm) of clearance from the real wall of the enclosure.
4 To avoid excessive vibration, the appliance must be leveled.
5 Don't install the appliance in a location where the temperature falls below 41^ (5°C). Doing so may affect product performance.

2" (5 cm)

14 INSTALLATION

Dimensions and Clearances

• Check the dimensions of the appliance and the installation path to ensure there is sufficient room to move the refrigerator through doors or narrow openings.
• If an opening is too narrow to fit the refrigerator through, remove the refrigerator doors. See Removing/Assembling the Doors and Drawers in this manual.
• The installation location chosen for the refrigerator should allow space behind the unit for connections and airflow and space in front to open the doors and drawers.
• Too small of a distance from adjacent items may result in lowered freezing capability and increased electricity consumption charges. Allow at least 22.6 inches (575 mm) in front of the refrigerator to open the doors, and at least 2 inches (50.8 mm) between the back of the refrigerator and the wall.

A B C

D E F G H

-	Dimensions/ Clearances	LK14S8000*
A Width 29 1/2" (750 mm)
B Height to Top of Case		68 3/5" (1743 mm)
C Height 70 7/20" (1787 mm)
D Back Clearance 2" (50 mm)
E Depth without Door 26 1/2" (673 mm)
F Depth 31 3/10" (795 mm)
G Depth (Total with Drawer Open)		47 19/20" (1218 mm)
H Depth (Total with Door Open 90°)		42 11/20" (1081 mm)

Removing/Assembling Doors and Drawers

If the entrance door is too narrow for the refrigerator to pass through, remove the refrigerator doors and move the refrigerator sideways through the doorway.

WARNING

• Use two or more people to remove and install the refrigerator doors and freezer drawer.
• Disconnect the electrical supply to the refrigerator before installing.
• Do not put hands, feet or other objects into the air vents or bottom of the refrigerator.
• Be careful when handling the hinge and hinge lever.
• Remove food and bins before detaching the doors and drawer.
• Do not hold the handle when removing or replacing the doors and drawer as the handle may come off.

Tools Needed

3/32 in. Allen wrench

1/8 in. Allen wrench

1/4 in. Allen wrench

Removing the Left Refrigerator Door

1 Remove the screw ① from the hinge cover at the top of the refrigerator. Lift the hook (not visible), located at the bottom of the front side of the cover ② with a flat-head screwdriver.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating assembly steps

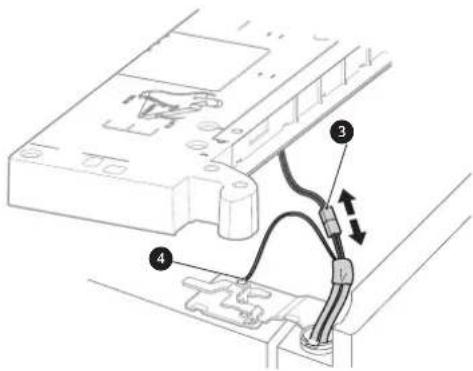

2 Remove the cover. Disconnect all wire harnesses ③. Unscrew the ground wire ④.

Technical diagram showing cable installation with numbered components and directional arrows indicating movement or flow.

NOTE

- The number of wire harnesses may vary depending on the model.

3 Rotate the hinge lever ⑤ counterclockwise. Lift the top hinge ⑥ free of the hinge lever latch ⑦.

CAUTION

- When lifting the hinge free of the latch, be careful that the door does not fall forward.

Diagram of a mechanical assembly with numbered components and directional arrows indicating motion or force

4 Lift the door from the middle hinge pin and remove the door.

CAUTION

- Place the door, inside facing up, on a nonscratching surface.

Technical line drawing of a mechanical bracket with an upward arrow indicating a component (no text or symbols present)

Removing the Right Refrigerator Door

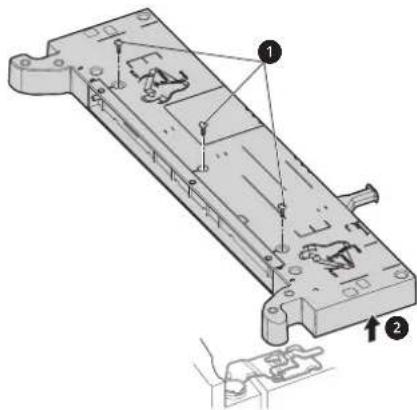

1 Remove the top hinge cover screw ①. Lift the hook (not visible), located at the bottom of the front side of the cover ②, with a flat-head screwdriver.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating assembly steps.

2 Rotate the hinge lever ④ clockwise. Lift the top hinge ⑤ free of the hinge lever latch ⑥.

CAUTION

- When lifting the hinge free of the latch, be careful that the door does not fall forward.

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

3 Lift the door from the middle hinge pin and remove the door.

CAUTION

- Place the door, inside facing up, on a nonscratching surface.

Pure technical diagram showing a bracket with a handle and arrow indicating direction (no text or symbols)

16 INSTALLATION

Assembling the Right Refrigerator Door

CAUTION

• Install the right-side door first.

1 Make sure that the plastic sleeve is inserted in the bottom of the door. Lower the door onto the middle hinge pin as shown in the figure.

Technical diagram showing a mechanical component with a downward arrow indicating a force or direction (no text or symbols present)

2 Fit the hinge ① over the hinge lever latch ② and slot it into place. Rotate the lever ③ counterclockwise to secure the hinge.

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

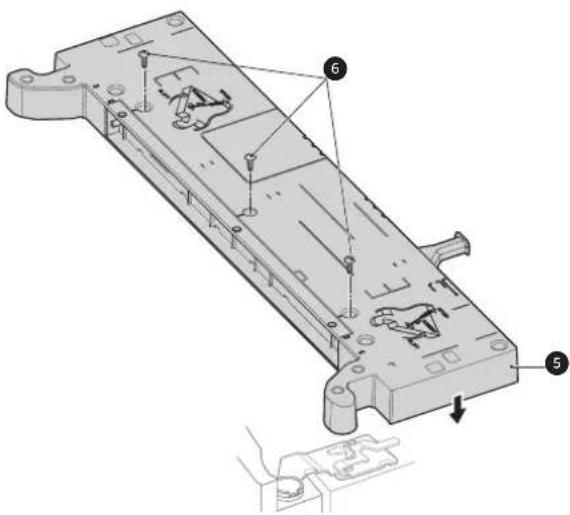

3 Set the hinge cover ⑤ in place. Insert and tighten the cover screw ⑥.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating parts of motion or assembly.

Assembling the Left Refrigerator Door

CAUTION

• Install the left refrigerator door after the right door is installed.

1 Make sure that the plastic sleeve is inserted in the bottom of the door. Install the refrigerator door onto the middle hinge.

Simple line drawing of a door handle with a downward arrow indicating a detail (no text or symbols)

2 Fit the hinge ① over the hinge lever latch ② and slot it into place. Rotate the lever ③ clockwise and fasten the hinge.

Diagram of a mechanical assembly with numbered components and directional arrows indicating motion or force

3 Connect all the wire harnesses and the ground screw.

Technical line drawing of a mechanical assembly with a clamping tool (no text or symbols)

NOTE

- The number of wire harnesses may vary depending on the model.

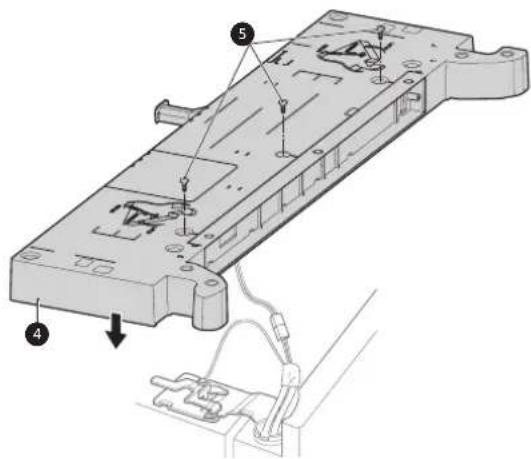

4 Set the cover ④ in place. Insert and tighten the cover screw ⑤.

Technical diagram of a mechanical assembly with numbered components and a cable connection detail

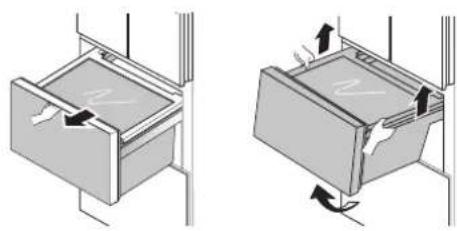

CustomChill Drawer Disassembly

1 Open the drawer completely.
2 Lift up the drawer and basket assembly slightly until it clears the rail safety stops and pull it forward until it stops.
3 Lift the basket and drawer assembly to remove it.

Two technical diagrams showing a box being lifted by a spring, with arrows indicating motion (no text or symbols present)

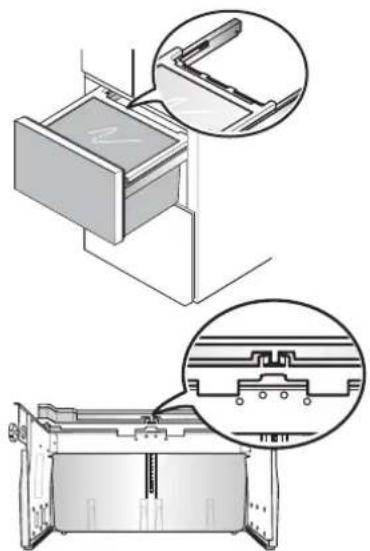

To reassemble the drawer, align it with the rails and insert it until it stops, lift it to clear the safety rail stops and push it in completely.

• Open the left and right doors before removing or assembling the middle drawer.
• The baskets cannot be removed separately from the lower or middle drawer. The entire basket and drawer assembly must be removed together.

CAUTION

• Take care when removing the lower drawer to avoid injuring your feet.
- The basket and drawer assemblies are heavy. Empty contents before removing or assembling drawers and use proper lifting techniques to avoid injury.

Technical illustration of a refrigerator internal structure with two views of the lid (no text or symbols present)

18 INSTALLATION

Leveling and Door Alignment

Aligning the doors may not be possible if the floor is not level, or is of weak or poor construction. The refrigerator is heavy and should be installed on a rigid and solid surface.

Wood flooring may cause leveling difficulties if it flexes excessively.

Leveling

- If the floor is uneven, level the refrigerator to avoid noise and vibration.

CAUTION

- Adjust the front leveling feet so they are lower than the wheels. The weight of the refrigerator must rest on the feet, not the wheels, to avoid risk of movement or tipover.

Using Screwdriver

To level the refrigerator, use a screwdriver to turn the leveling feet until they are in firm contact with the floor. The front of the refrigerator can be slightly higher than the rear to make shutting the doors easier.

Door Alignment

• If the left side door is lower, adjust the hinge on the left ①.
• If the right side door is lower, adjust the hinge on the right ②.
• Snap rings are provided with this unit. Open the door and lift it from the bottom. Insert snap ring(s) as shown until the doors are aligned.

Height difference Snap rings

Turning on the Power

- After installing, plug the refrigerator's power cord into a 3-prong grounded outlet and push the refrigerator into the final position.

Illustration of a wall socket connected to an electrical plug (no text or symbols)

CAUTION

• Connect to a rated power outlet.
• Have a certified electrician check the wall outlet and wiring for proper grounding.
• Do not damage or cut off the ground terminal of the power plug.

OPERATION

Before Use

Clean the refrigerator.

Clean the refrigerator thoroughly and wipe off all dust that accumulated during shipping.

CAUTION

• Do not scratch the refrigerator with a sharp object or use a detergent that contains alcohol, a flammable liquid or an abrasive when removing any tape or adhesive from the refrigerator. Remove adhesive residue by wiping it off with your thumb or dish detergent.
• Do not peel off the model or serial number label or the technical information on the rear surface of the refrigerator.

Open refrigerator doors and freezer drawers to ventilate the interior.

The inside of the refrigerator may smell like plastic at first. Remove any adhesive tape from inside the refrigerator and open the refrigerator doors and the drawers for ventilation.

Connect the power supply.

Check if the power supply is connected before use.

Wait for the refrigerator to cool.

Allow the refrigerator to run for at least two to three hours before putting food in it. Check the flow of cold air in the compartment to ensure proper cooling.

CAUTION

- Putting food in the refrigerator before it has cooled could cause the food to spoil, or a bad odor to remain inside the refrigerator.

The refrigerator makes a loud noise after initial operation.

This is normal. The volume will decrease as the temperature decreases.

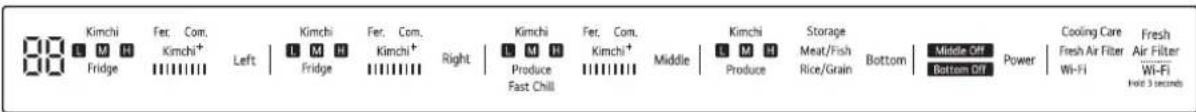

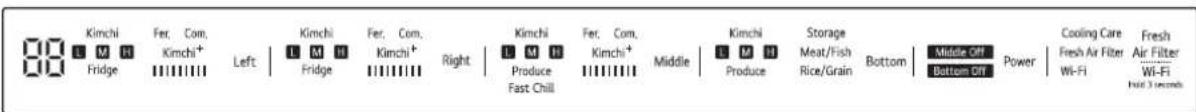

Control Panel

Control Panel Features

00 Kimchi L M H Fridge Fer. Com. Kimchi+ ||||||||| Left | Kimchi L M H Fridge Fer. Com. Kimchi+ ||||||||| Right | Kimchi L M H Produce Fast Chill Fer. Com. Kimchi+ ||||||||| Middle | Kimchi L M H Produce Storage Meat/Fish Rice/Grain Bottom | Middle Off Bottom Off Power | Cooling Care Fresh Air Filter Wi-Fi Fresh Air Filter Wi-Fi Hold 3 seconds

Using the Touch Buttons

• The touch panel operates in response to static electricity when it senses a body or a capacitive object nearby.
• To operate the buttons, touch the center of the text on each button with a fingertip.
• The buttons may activate unexpectedly if they come into contact with your skin during cleaning or at other times.
• If the control panel is dirty or you are wearing gloves, the buttons may not activate properly.
• When the refrigerator is connected to power, the display automatically turns on.

NOTE

- Depending on the model, the appearance of the display and the middle/bottom compartment doors may vary.

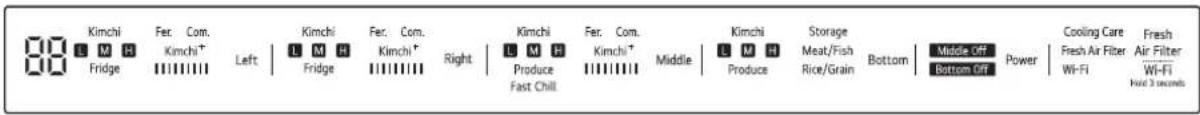

Turning Off Unused Compartments

- Press the Power button to turn off the middle compartment, the lower compartment, or both.

Power

Middle off → Bottom off → Middle and Bottom off

- Only English is supported on the display.

Before storing or fermenting kimchi, use this section to become more familiar with the parts and functions of the control panel.

Kimchi L M H Fridge Fer. Com. Kimchi+ Kimchi+ Left | Kimchi L M H Fridge Fer. Com. Kimchi+ Kimchi+ Right | Kimchi L M H Produce Fast Chill Fer. Com. Kimchi+ Kimchi+ Middle | Kimchi L M H Produce Storage Meat/Fish Rice/Grain Bottom | Middle Off Bottom Off Power | Cooling Care Fresh Air Filter Wi-Fi Air Filter Wi-Fi Hold 3 seconds

1 Press to set the mode or temperature for each compartment.

• Available settings for left and right compartments: Kimchi, Fridge, Fer., or Kimchi+
• Available settings for middle compartment: Kimchi, Produce, Fast Chill, Fer., or Kimchi+
• Available settings for bottom compartment: Kimchi, Produce, Storage, Meat/Fish, or Rice/Grain

NOTE

- Select settings based on food items being stored. (Refer to the Storing Kimchi section on page 22 for detailed instructions.)

2 Press to set the Fresh Air Filter mode.

Press and hold to connect to Wi-Fi.

NOTE

- Place items for storage in any compartment, and ferment kimchi in the left, right, or middle compartments.

- To ferment kimchi in the middle compartment, place the kimchi in the middle drawer and touch the Middle button repeatedly to select the Fermenting setting.

Korean

- Only English is supported on the display.

22 OPERATION

Storing Kimchi (All Compartments)

Kimchi Storage Tips

Kimchi can be made with many different ingredients.

The optimal storage temperature for kimchi depends on the main ingredients as well as the seasonings used. Use the Low setting for kimchi with a high water content. Use the Strong setting for very salty or highly seasoned kimchi.

88 Kimchi E M H Fer. Com. Kimchi+ Fridge Kimchi+ Left | Kimchi E M H Fer. Com. Fridge Kimchi+ Right | Kimchi E M H Fer. Com. Produce Fast Chill Kimchi+ Middle | Kimchi E M H Storage Produce Meat/Fish Rice/Grain Bottom Middle Off Power Middle Off Power Fresh Air Filter Fresh Air Filter Bottom Off Power Wi-Fi Wi-Fi Hirol 3 seconds

1 Press the Left, Right, Middle, or Bottom button to change settings for each compartment.

• Press each button repeatedly to cycle through the settings for that compartment.
• As the buttons are pressed, the settings change in the order shown.

Left and Right Compartments

Kimchi: M → H → L ☐ Fridge: M → H → L ☐ Kimchi+ ☐ Fer.

Middle Compartments

Kimchi: M → H → L □ Produce: M → H → L □ Fast chill □ Kimchi+ □ Fer.

Bottom Compartments

Kimchi: M → H → L ☐ Produce: M → H → L ☐ Rice/Grain ☐ Meat/Fish ☐ Storage

• Select the appropriate temperature for the type and salinity of kimchi.
• L=Low Cooling (cold) M=Medium Cooling (colder) H=High Cooling (coldest)

Korean

- Only English is supported on the display.

Fermenting Kimchi (Left/Right/Middle Compartment)

NOTE

- Kimchi ferments more quickly at the Fermentation setting than at the Storage setting.

Fermenting

The refrigerator senses the external temperature and automatically adjusts the fermentation settings seasonally for best results.

Fermentation Complete Indicator

Once fermentation is complete, the Fer. Com. indicator lights in the display. The fermentation time varies depending on season, room temperature, and the set temperature of the kimchi (low/medium/high).

Kimchi Fridge Fer. Com. Kimchi+ Left Kimchi Fridge Fer. Com. Kimchi+ Right Kimchi L M H Produce Fast Chill Fer. Com. Kimchi+ Middle Kimchi L M H Produce Storage Meat/Fish Rice/Grain Bottom Middle Off Bottom Off Power Cooling Care Fresh Air Filter Air Filter Wi-Fi Wi-Fi Hold 3 seconds

1 Press the desired compartment button to select Fermentation.

- Press Left, Right, or Middle repeatedly to select the Fermentation setting.

Canceling Fermentation

Press the compartment button to change the setting.

Storing Fermented Kimchi

When fermentation is complete, the "Fer. Com." indicator lights up and "Kimchi M" appears in the temperature display.

- Only English is supported on the display.

24 OPERATION

Refrigerating Food (Left/Right Compartment)

- Only the Left and Right compartments can be used for refrigeration.

NOTE

- If kimchi is stored at the Fridge setting, it may ferment too quickly.

Storing Other Food

After storing kimchi, the odor may linger inside of the refrigerator compartments.

Clean the compartments before using them to store other food. See the Maintenance section for instructions.

08 Kimchi L M H Fer. Com. Fridge Kimchi+ |||||||||| Left | Kimchi L M H Fer. Com. Fridge Kimchi+ |||||||||| Right | Kimchi L M H Fer. Com. Produce Kimchi+ |||||||||| Middle | Kimchi Storage Meat/Fish Rice/Grain Bottom | Middle Off Power | Cooling Care Fresh Air Filter Wi-Fi Air Filter Wi-Fi Hold 3 seconds

1 Press Left or Right repeatedly to cycle through the settings for that compartment.

• Press each button repeatedly to select Fridge.
• As the buttons are pressed, the settings change in the order shown.

Left and Right Compartments

Kimchi: M → H → L ➡ Fridge: M → H → L ➡ Kimchi+ ➡ Fer.

• L=Low Cooling (cold) M=Medium Cooling (colder) H=High Cooling (coldest)

- Only English is supported on the display.

Extended Food Storage Settings (Middle/Bottom Compartments)

- This setting is only available on the middle and bottom compartments.

Produce

- Use to keep vegetables and fruit fresh for a long time.

Meat/Fish

- Use to keep meat and fish fresh.

Rice/Grain

- Use to keep rice and grain fresh.

NOTE

- If kimchi is stored at the Meat/Fish setting, it may freeze.

88 Kimchi L M H Frge Kimchi* Fridge Left | Kimchi L M H Frge Kimchi* Fridge Right | Kimchi L M H Frge Fast Chill Fei Com. Kimchi* Produce Kimchi* Fer Com. Fer Com. Meat/Fish Rice/Grain Middle | Kimchi L M H Frge Produce Storage Bottom Middle Off Bottom Off Power | Cooling Care Fresh Air Filter Wi-Fi Fresh Air Filter Wi-Fi Hold 3 seconds

1 Press the Middle or Bottom button to change settings for each compartment.

• Press each button repeatedly to select the desired setting.
• As the buttons are pressed, the settings change in the order shown.

Middle Compartment

Kimchi: M → H → L ➡ Produce: M → H → L ➡ Fast chill ➡ Kimchi+ ➡ Fer.

- The Meat/Fish setting freezes meat or fish slightly in order to extend the storage time.

Bottom Compartment

Kimchi: M → H → L ➡ Produce: M → H → L ➡ Rice/Grain ➡ Meat/Fish ➡ Storage

• Select the appropriate temperature for the type of food being stored.
• L=Low Cooling (cold) M=Medium Cooling (colder) H=High Cooling (coldest)

Korean

- Only English is supported on the display.

Using the Kimchi+ and Storage Modes (Middle/Bottom Compartment)

Kimchi+

• Use this setting with cabbage kimchi. The rapid cooling slows fermentation and encourages lactic acid formation which keeps kimchi fresh longer.
• This setting is only available in the left, right and middle compartment.
• Use this setting only for cabbage kimchi. Less salty types of kimchi may freeze if stored at this setting.
• Use this setting only for freshly prepared kimchi.
• Using the setting twice may over-ferment the kimchi. Use it only once.
• The bars light in the display to indicate the fermentation process. The kimchi is ready to eat when all the bars are lit (approximately 6 days).

Storage

• This setting uses the Smart Cold Shock function to store kimchi at the lowest temperature and retain its taste for long periods.
• This setting is only available on the Bottom compartment.
  • Vegetables may freeze if stored at this setting.

88 Kimchi E M H Fridge Fer. Com. Kimchi+ Kimchi- Fridge Left Kimchi E M H Fridge Fer. Com. Kimchi+ Right Kimchi E M H Produce Fast Chill Kimchi+ Kimchi+ Middle Kimchi E M H Produce Storage Meat/Fish Rice/Grain Bottom Middle Off Bottom Off Power Cooling Care Fresh Air Filter Wi-Fi Air Filter Wi-Fi Hold 3 seconds

1 Press the Middle or Bottom button to change settings for each compartment.

• Press each button repeatedly to select a setting.
• As the buttons are pressed, the settings change in the order shown.

Middle Compartment (Kimchi+)

Kimchi: M → H → L ➡ Produce: M → H → L ➡ Fast chill ➡ Kimchi+ ➡ Fer.

Bottom Compartment (Storage)

Kimchi: M → H → L ➡ Produce: M → H → L ➡ Rice/Grain ➡ Meat/Fish ➡ Storage

• Select the appropriate temperature for the food being stored.
• When Storage is selected, Kimchi is automatically turned on. Vegetables and fruit may freeze if stored at this setting.

Korean

- Only English is supported on the display.

Using the Fast Chill Storage Method (Middle Compartment)

Fast Chill

- Use this setting to store commercially prepared kimchi. Kimchi purchased in a store has already been fermented, so it is best to cool it as rapidly as possible.

NOTE

- When using the Fast Chill function, be sure to separate purchased kimchi from kimchi already being stored. Using this setting with kimchi that has already been cooled may freeze the kimchi.

00 Kimchi Fridge Fer. Com. Kimchi+ Fridge Left Kimchi Fridge Fer. Com. Kimchi+ Right Kimchi Produce Fast Chill Fer. Com. Kimchi+ Middle Kimchi Produce Storage Meat/Fish Rice/Grain Bottom Middle Off Bottom Off Power Cooling Care Fresh Air Filter Wi-Fi Air Filter Wi-Fi Half 3 months

1 Press the Middle compartment button.

• Press Middle repeatedly to select Fast Chill.
• As the button is pressed, the settings change in the order shown.

Middle Compartments

Kimchi: M → H → L ➡ Produce: M → H → L ➡ Fast chill ➡ Kimchi+ ➡ Fer.

NOTE

- Allow 48 hours before resetting the Fast Chill setting. To prevent kimchi from freezing, the Fast Chill setting cannot be reset within 48 hours of first being set.

- Only English is supported on the display.

Using the Fresh Air Filter and Wi-Fi Functions

Fresh Air Filter

Use this function to improve air circulation and help remove odors inside the refrigerator.

Wi-Fi

Use this function to connect the product to a home Wi-Fi network and access smart functions through the LG ThinQ app.

Kimchi L M H Fridge Fer. Com. Kimchi+ ||||||||| Left | Kimchi L M H Fridge Fer. Com. Kimchi+ ||||||||| Right | Kimchi L M H Produce Fast Chill Fer. Com. Kimchi+ ||||||||| Middle | Kimchi L M H Produce Storage Meat/Fish Rice/Grain Bottom | Middle Off Bottom Off Power | Cooling Care Fresh Air Fiber Wi-Fi Air Filter Wi-Fi Hold 3 seconds

Setting the Fresh Air Filter Function

1 Press Fresh Air Filter/Wi-Fi.

- Press the Fresh Air Filter/Wi-Fi button. Deodorization begins and the LED stays lit until it is complete.

NOTE

• After repeated use, the filter may become saturated and less effective. See page 33 for instructions on cleaning and reusing the filter.

Setting the Wi-Fi Function

1 Press and hold the Fresh Air Filter/Wi-Fi button for 3 seconds.

• When the product is successfully connected to the internet, the Wi-Fi icon turns on.
• To disconnect the product from Wi-Fi, use the Settings menu in the app to delete it from the connected products.

Korean

- Only English is supported on the display.

Storing Food

Food Storage Tips

• Storing Vegetables and Fruit
  The moisture left on vegetables after washing can make them spoil faster. Wait to wash vegetables until just before use. Leafy greens like kale or lettuce have a limited storage life. Wrap them in newspaper or in sealed containers to help them stay fresh longer.
• Do not store tropical fruits in the refrigerator.
  Bananas or uncut pineapples are damaged by cold temperatures.
• To store dried seafood, select "Produce" for the middle compartment and adjust the storage temperature to "low".
• Store vegetables or fruit in the designated containers to prevent them from freezing in the middle or lower compartment.
• Store rice or grain in the bottom compartment using the Rice/Grain setting.
• To avoid freezing vegetables, do not store them using the Storage setting on the bottom compartment.
• To avoid freezing kimchi, do not store it using the Meat/Fish setting on the Bottom compartment.

Tips for Storing Kimchi

• Do not overfill the kimchi containers.
  Allow space for the kimchi to expand as it ferments or the contents may overflow the container. Close the container lids completely to prevent the kimchi from fermenting too quickly or developing yeast mold.
  Fill the container with kimchi up to the fill line and make sure the lid is tightly closed before storing. Cover the surface of the kimchi with plastic wrap to extend the storage time.

• Do not place kimchi directly into the refrigerator compartment or store it in a plastic bag.
  Use the kimchi container provided to store kimchi. Kimchi placed directly into the refrigerator compartment may freeze and taste off. Do not block the air outlet inside the refrigerator with food. Doing so could cause the food to freeze, affect product performance, or result in electric shock or injury.

• For best results, check on kimchi within 3 to 4 days of storing it.
  If the kimchi has overflowed from the container, it may ferment too quickly and not store well.

- Do not place foods that require different storage conditions in the same compartment.

Select the appropriate settings for the food being stored.

• Be sure to use enough salt when preparing kimchi for longer storage.
  The rate of fermentation is mostly determined by the amount of salt in the kimchi.
  Small batches of mild kimchi can be successfully stored for short periods, but add more salt if storing large amounts for use over an extended period.

- Use care when placing kimchi containers in the refrigerator.

Lift the container by the handles and avoid impacts to the bottom of the container.

(The appearance of kimchi containers may vary by model.)

A Guide to Kimchi

- The first step in fermenting kimchi is salt pickling.

The salt reacts with enzymes in the cabbage to break down proteins and begin fermentation immediately. This process continues even at cold temperatures. Traditionally, kimchi was allowed to ferment slowly during the cold winter weather.

- The taste of kimchi also depends on the seasonings used.

Typical seasonings include green onion, garlic, ginger, salted fish, and chili powder. The combination of spices chosen determines the overall taste of the kimchi.

• Fermentation Rates for Kimchi

Adding a lot of garlic, seafood, onions, chili powder, cucumber or green onions makes kimchi ferment more quickly. Adding salted oysters, salted shrimp or persimmon sauce really speeds up fermentation. On the other hand, adding leeks, mustard or ginseng slows down fermentation.

- Kimchi begins fermenting as soon as it is prepared.

Contact with air will make kimchi sour. If the kimchi is not covered in sauce or has too little salt, a thin skin of yeast will form on its surface.

Keep air away from the vegetables by covering them in sauce or placing the kimchi in a plastic bag or covering it with plastic wrap.

• How Temperature Affects Kimchi

Temperature affects the fermentation rate of kimchi. When preparing kimchi for long-term storage, keep the temperature below 50^ F ( 10^ C).

- Long-Term Storage of Kimchi

Like cheese, kimchi is a living organism and will change over time. To keep kimchi fresh for long periods, increase the salt content and store at a low temperature, near 32^ F ( 0^ C).

Press vegetables down so they are covered with sauce and cover the container with plastic wrap or a layer of cabbage leaves to keep air out and keep kimchi fresh longer.

- Choosing the Right Cabbage for Kimchi

There are many different kinds of cabbage available. For kimchi, choose a medium sized cabbage which is rounded rather than long and thin. The inner leaves should be sweet and paler than the outer leaves. Outer leaves should be thin and light green.

- Selecting Radishes for Kimchi

There are many types of radish kimchi, and different radishes are used for different types of kimchi. For radish kimchi, use Korean radishes that have pale green tops and well-spread leaves.

For chonggak (young radish) kimchi, use Seoul radishes that have round, thick bottoms. For kkakdugi (cubed radish kimchi), try to find radishes with white rather than green tops.

For dongchimi, use radishes with soft leaves and white rather than green tops.

Proper Food Storage Techniques

• Store kimchi in the kimchi container.
  Fill the container with kimchi only up to the fill line and make sure the lid is tightly closed before storing.
  If the lid is not closed properly, a thin film of yeast can form on the surface of the kimchi or the kimchi may ferment too quickly. Cover the surface of the kimchi with plastic wrap or a layer of cabbage leaves before storing it to prevent yeast from forming.

- Store vegetables or fruits in the designated container.

Some vegetables and fruits are damaged by cold air. Vegetables which are damp from being washed tend to spoil more quickly. For best results, don't wash vegetables before storing them.

Do not refrigerate tropical fruits like bananas or pineapples, which are damaged by cold temperatures.

- Allow hot food to cool to room temperature before refrigerating it.

Placing hot food directly into the refrigerator can raise the temperature of surrounding food items, leading to spoilage and higher utility bills.

• Long-Term Storage of Kimchi

Place newly prepared kimchi into the refrigerator and select the Kimchi setting.

Depending on the type and saltiness of the kimchi, select the Low, Medium, or High setting.

For best long-term storage, make sure the vegetables are completely submerged in the sauce and cover the kimchi with plastic wrap.

• Storing Purchased Kimchi

If kimchi will be consumed within a short time, select the Fast Chill setting. If kimchi will be stored for a long time, select the Storage setting.

- Before storing vegetable oils in the refrigerator, read the storage instructions on the container.

Vegetable oil bottles can become messy with use. Place oil bottles in disposable or left over plastic containers to avoid having to clean refrigerator shelves.

• Select the appropriate temperature for the food being stored.
  Storing kimchi at the Fermentation setting may cause it to spoil.
  Some types of kimchi may freeze if stored at the High setting. Check on kimchi often when using the High setting.
  Storing other food along with kimchi in a storage container may result in the other food freezing.

• Using the Different Containers

For best results when using the Fridge setting, store containers which are similar in size, smaller containers, or bottles.

• Storing kimchi in the provided kimchi container in the designated position makes the most delicious kimchi.
• Do not store kimchi in glass bottles. The kimchi will expand when frozen and the bottle may break, causing a risk of injury.
• Do not place containers near the air outlet in the refrigerator. The food may freeze.

- Fermenting Kimchi

Avoid opening the compartment door while kimchi is fermenting.

Allowing the warmer outside air in during fermentation can affect the taste of the kimchi.

• Getting Rid of Food Odors

Cover open food containers with plastic wrap before storing to prevent transfer of odors inside the refrigerator.

• After installation, allow the refrigerator to cool completely before storing food.

Food may spoil and cause odors to linger if it is stored before the refrigerator has been allowed to reach the set temperature.

Left/Right Compartments

Depending on need, set the compartment temperature for storing kimchi or refrigerating food.

- Kimchi containers can be purchased separately from an LG Electronics Service Center.

Kimchi Containers

A kimchi container fits on each shelf in the left and right compartments.

- Depending on the model, the kimchi containers may look different or may not be included.

Diagram showing a 3D layout transformation of a refrigerator with numbered compartments, illustrating the change from one to the other.

Removing Kimchi Containers from the Left and Right Compartments

1 Pull the flip-up cover forward to release it then slide it in under the shelf above.

Diagram showing a refrigerator interior with hand gestures, illustrating the change from front to side (no text or symbols present)

2 Use the handles to pull the kimchi container forward and remove it.

Illustration of a refrigerator interior showing hand positioning and lifting mechanism (no text or symbols)

CAUTION

• Take care when moving the kimchi containers. If they are very full, they can be heavy.

CustomChill Drawers

The CustomChill drawers provide storage space with a variable temperature control that can be adjusted to keep the compartment either colder or warmer than the refrigerator.

Use them to store meat and seafood, produce, rice or grain.

• The CustomChill drawers feature covers to lock in cold air.
• The covers stabilize the temperature and help maintain the humidity level inside the drawers.

Using CustomChill Drawers

1 Open the drawer and gently slide the cover back. Lift the kimchi containers by the handle to remove them.

Two technical line drawings showing a file drawer with arrows indicating movement or force, no text or symbols present.

2 Closing the drawer automatically closes the cover.

Two technical diagrams showing a file drawer and a file cabinet with arrows indicating movement or operation (no text or symbols present)

Adjusting the Refrigerator Shelves

The shelves in the refrigerator are adjustable to meet individual storage needs.

Adjusting the shelves to fit items of different heights will make finding the exact item you want easier.

Removing Flip-up Covers

- To remove the flip-up cover, open it and push it toward one side to release it from the rails, then pull it forward.

Diagram showing two labeled parts (① and ②) with arrows indicating direction of movement or force, possibly illustrating a physical or mechanical concept.

Removing Shelves

- To remove the shelf, lift it at the back and pull it forward.

Illustration showing a hand inserting a box into a refrigerator and a side view of the refrigerator with a handle (no text or symbols)

Removing the Fresh Air Filter

1 Remove the glass shelves in the left and right compartments.

Two-step diagram showing a table being held by hands, with no text or symbols present.

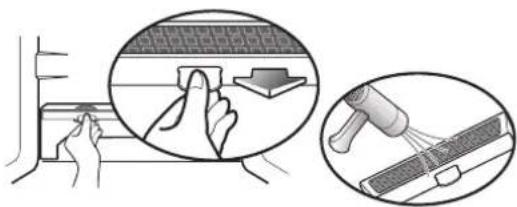

2 Pull the tab on the filter to slide it out of the holder. Dry it using a hair dryer or by exposing it to sunlight. The filter is reusable.

Illustration showing two steps of cleaning a tiled surface: one with a hand using a power tool, the other with a brush applying material (no text or symbols present)

NOTE

- To increase deodorizing performance, a natural palm wood material is attached to the filter. If residue falls off, it will not harm you and can be wiped off easily with a towel or cloth.

SMART FUNCTIONS

LG ThinQ Application

This feature is only available on models with Wi-Fi.

The LG ThinQ application allows you to communicate with the appliance using a smartphone.

LG ThinQ Application Features

Push Messages

If the door remains open for more than ten minutes, you will receive a push message.

Smart Diagnosis™

This function provides useful information for diagnosing and solving issues with the appliance based on the pattern of use.

Settings

Allows you to set various options on the refrigerator and in the application.

NOTE

• If you change your wireless router, Internet service provider, or password, delete the connected appliance from the LG ThinQ application and connect it again.
• This information is current at the time of publication. The application is subject to change for product improvement purposes without notice to users.

Installing LG ThinQ App and Connecting an LG Appliance

Models with QR Code

Scan the QR code attached to the product using the camera or a QR code reader app on your smartphone.

LG ThinQ

Models without QR Code

1 Search for and install the LG ThinQ app from the Google Play Store or Apple App Store on a smartphone.
2 Run the LG ThinQ app and sign in with your existing account or create an LG account to sign in.
3 Touch the add (+) button on the LG ThinQ app to connect your LG appliance. Follow the instructions in the app to complete the process.

NOTE

• To verify the Wi-Fi connection, check that the Wi-Fi indicator on the control panel is lit.
• The appliance supports 2.4 GHz Wi-Fi networks only. To check your network frequency, contact your Internet service provider or refer to your wireless router manual.
• LG ThinQ is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection.
• The surrounding wireless environment can make the wireless network service run slowly.

- If the distance between the appliance and the wireless router is too far, the signal becomes weak. It may take a long time to connect or fail to install the app.

- If the appliance is having trouble connecting to the Wi-Fi network, it may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength.

- The network connection may not work properly depending on the Internet service provider.

- The Wi-Fi may not connect or the connection may be interrupted because of the home network environment.

- If the appliance cannot be connected due to problems with the wireless signal transmission, unplug the appliance and wait about a minute before trying again.

- If the firewall on your wireless router is enabled, disable the firewall or add an exception to it.

- The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)

- Smartphone user interface (UI) may vary depending on the mobile operating system (OS) and the manufacturer.

- If the security protocol of the router is set to WEP, network setup may fail. Change the security protocol (WPA2 is recommended), and connect the product again.

• To disable the Wi-Fi function, press and hold the Wi-Fi button for 3 seconds. The Wi-Fi indicator will be turned off.
• To reconnect the appliance or add another user, press and hold the Wi-Fi button for 3 seconds to temporarily turn it off. Run the LG ThinQ app and follow the instructions in the app to connect the appliance.

RF Module Specifications

Type	Frequency Range	Output Power (Max.)
Wi-Fi 2412 - 2462 MHz < 30 dBm
Bluetooth 2402 - 2480 MHz < 30 dBm

FCC Notice

The following notice covers the transmitter module contained in this product.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference and
2) This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC RF Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This equipment should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the antenna and your body. Users must follow the specific operating instructions for satisfying RF exposure compliance.

Industry Canada Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

IC Radiation Exposure Statement

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the antenna and your body.

NOTE

- THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

Open Source Software Notice Information

To obtain the source code that is contained in this product, under GPL, LGPL, MPL, and other open source licenses that have the obligation to disclose source code, and to access all referred license terms, copyright notices and other relevant documents, please visit https://opensource.lge.com.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail]. This offer is valid to anyone in receipt of this information for a period of three years after our last shipment of this product.

MAINTENANCE

Cleaning

WARNING

- Use non-flammable cleaner. Failure to do so can result in fire, explosion, or death.

CAUTION

• Do not use an abrasive cloth or sponge when cleaning the interior and exterior of the refrigerator.
• Do not place your hand on the bottom surface of the refrigerator when opening and closing the doors.

General Cleaning Tips

• The refrigerator compartments defrost automatically; however, clean all sections once a month to prevent odors.
• Wipe up spills immediately.
• Unplug the refrigerator or disconnect power before cleaning.
• Remove all removable parts, such as shelves.
• Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners.
• Hand wash, rinse and dry all surfaces thoroughly.

Exterior

For products with black stainless steel exterior, spray glass cleaner on a clean, microfiber cloth and rub in direction of grain. Do not spray glass cleaner directly at the display panel. Do not use harsh or abrasive cleaners.

For products with a standard stainless steel exterior, use a damp microfiber cloth and rub in the direction of the grain. Dry with a paper towel to avoid streaks. For stubborn stains and fingerprints, use a few drops of liquid dish soap in water, and rinse with hot water before drying. Do not use abrasive or harsh cleaners.

Containers and Bins

• Containers and bins can easily become dirty from spilled food. Remove them occasionally and rinse them out to avoid odors.
  See page 17 for instructions on removing the middle and bottom drawers for cleaning.
• Shelves can become dirty from spilled food.
  Remove them occasionally and clean with a damp cloth. To remove the shelf, lift it at the back and pull it forward.
• Before cleaning the container lids, remove the rubber packing from inside the lid. Remember to replace the rubber packing once the lids are clean. Do not clean the containers and lids in water hotter than 122^ (50°C).
  Gently clean the containers with a soft sponge to avoid scratching the surface.

Cleaning Kimchi Containers

• Kimchi containers may emit a plastic odor when you first use them, so clean them using a soft sponge and neutral detergent.
• To remove lingering odor from kimchi containers, place some finely chopped leafy green vegetables in the container, close the lid and leave for 24 hours at room temperature. After 24 hours, open the lid and add about 1 gallon of rinse water from cleaning rice to the container and leave it open at room temperature for 30 minutes. After 30 minutes, rinse out the container and allow it to air dry.
• When used for a long period of time, the distinct color and odor of kimchi can permeate the container.

CAUTION

- Do not wash the lid of the kimchi container in the dishwasher. Hand-wash only.

Inside Walls

- Allow freezer to warm up so the cloth will not stick. To help remove odors, wash the inside of the refrigerator with a mixture of baking soda and warm water. Mix 2 tablespoons of baking soda to 1 quart of water (26 g soda to 1 liter water). Be sure the baking soda is completely dissolved so it does not scratch the surfaces of the refrigerator.

38 MAINTENANCE

Door Liners and Gaskets

Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use cleaning waxes, concentrated detergents, bleaches, or cleaners containing petroleum on plastic refrigerator parts.

Covers and Control Panel

Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use glass cleaners, abrasive cleansers, or flammable fluids. These can scratch or damage the material.

Condenser Coils

Use a vacuum cleaner with a brush or crevice attachment to clean the condenser cover and vents. Do not remove the panel covering the condenser coil area.

Hand inserting a plug into a computer monitor (no text or symbols visible)

TROUBLESHOOTING

Before Calling for Service

Review this section before calling for service; doing so will save you both time and money.

Cooling

Problem Possible Cause Solutions
Refrigerator is not cooling or has no power.	The refrigerator control is set to OFF (some models).	Turn the control ON. Refer to the Setting the Controls section for proper temperature settings.
	Refrigerator is in the defrost cycle.	During the defrost cycle, the temperature of each compartment may rise slightly. Wait 30 minutes and confirm the proper temperature has been restored once the defrost cycle has completed.
	Refrigerator was recently installed.	It may take up to 24 hours for each compartment to reach the desired temperature.
	Refrigerator was recently relocated.	If the refrigerator was stored for a long period of time or moved on its side, it is necessary for the refrigerator to stand upright for 24 hours before connecting it to power.
Cooling system runs too much.	Refrigerator is replacing an older model.	Modern refrigerators require more operating time but use less energy due to more efficient technology.
	Refrigerator was recently plugged in or power restored.	The refrigerator will take up to 24 hours to cool completely.
	The door is opened often or a large amount of food / hot food was added.	Adding food and opening the door warms the refrigerator, requiring the compressor to run longer in order to cool the refrigerator back down. In order to conserve energy, try to get everything you need out of the refrigerator at once, keep food organized so it is easy to find, and close the door as soon as the food is removed. (Refer to the Food Storage Guide.)
	Doors are not closed completely.	Firmly push the doors shut. If they will not shut all the way, the “Doors will not close correctly or pop open” section.
	Refrigerator is installed in a hot location.	The compressor will run longer under warm conditions. At normal room temperatures (70 °F) expect your compressor to run about 40 % to 80 % of the time. Under warmer conditions, expect it to run even more often. The refrigerator should not be operated above 110 °F.
	Condenser / back cover is clogged.	Use a vacuum cleaner with an attachment to clean the condenser cover and vents. Do not remove the panel covering the condenser coil area.

Cooling

Problem Possible Cause Solutions
Interior moisture buildup.	Doors are opened often or for long periods of time.	When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. To lessen the effect, reduce the frequency and duration of door openings.
	Doors are not closed correctly.	See the “Doors will not close correctly or pop open” section.
	Weather is humid.	Humid weather allows additional moisture to enter the compartments when the doors are opened leading to condensation or frost. Maintaining a reasonable level of humidity in the home will help to control the amount of moisture that can enter the compartments.
	Defrost cycle recently completed.	During the defrost cycle, the temperature of each compartment may rise slightly and condensation may form on the back wall. Wait 30 minutes and confirm that the proper temperature has been restored once the defrost cycle has completed.
	Food is not packaged correctly.	Food stored uncovered or unwrapped, and damp containers can lead to moisture accumulation within each compartment. Wipe all containers dry and store food in sealed packaging to prevent condensation and frost.
Food is freezing in the refrigerator compartment.	Food with high water content was placed near an air vent.	Rearrange items with high water content away from air vents.
	Refrigerator temperature control is set incorrectly.	If the temperature is too cold, adjust the control one increment at a time and wait for the temperature to stabilize. Refer to the Control Panel section for more information.
	Refrigerator is installed in a cold location.	When the refrigerator is operated in temperature below 41°F (5°C), food can freeze in the refrigerator compartment. The refrigerator should not be operated in temperature below 55°F (13°C).
Refrigerator or Freezer section is too warm.	Refrigerator was recently installed.	It may take up to 24 hours for each compartment to reach the desired temperature.
	The air vents are blocked. Cold air circulates from the freezer to the fresh food section and back again through air vents in the wall dividing the two sections.	Locate air vents by using your hand to sense airflow and move all packages that block vents and restrict airflow. Rearrange items to allow air to flow throughout the compartment.

Cooling

Problem Possible Cause Solutions
Refrigerator or Freezer section is too warm.	Doors are opened often or for long periods of time.	When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. To lessen the effect, reduce the frequency and duration of door openings.
	Unit is installed in a hot location.	The refrigerator should not be operated in temperatures above 110 °F.
	A large amount of food or hot food was added to either compartment.	Adding food warms the compartment requiring the cooling system to run. Allowing hot food to cool to room temperature before putting it in the refrigerator will reduce this effect.
	Doors not closed correctly.	See the Doors will not close correctly or pop open section in Parts & Features Troubleshooting.
	Temperature control is not set correctly.	If the temperature is too warm, adjust the control one increment at a time and wait for the temperature to stabilize.
	Defrost cycle has recently completed.	During the defrost cycle, the temperature of each compartment may rise slightly and condensation may form on the back wall. Wait 30 minutes and confirm the proper temperature has been restored once the defrost cycle has completed.
Refrigerator or Freezer section is too cold.	Incorrect temperature control settings.	If the temperature is too cold, adjust the control one increment at a time and wait for the temperature to stabilize. Refer to the Control Panel for more information.
Frost or ice crystals form on frozen food (inside of sealed package).	Condensation from food with a high water content has frozen inside of the food package.	This is normal for food items with a high water content.
	Food has been left in the freezer for a long period of time.	Do not store food items with high water content in the freezer for a long period of time.
Frost or ice crystals form on frozen food (outside of package).	Door is opened frequently or for long periods of time.	When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. Increased moisture will lead to frost and condensation. To lessen the effect, reduce the frequency and duration of door openings.
	Door is not closing properly.	Refer to the Doors will not close correctly or pop open section in the Troubleshooting section.

Parts & Features

Problem Possible Cause Solutions
Doors will not close correctly or pop open.	Food packages are blocking the door open.	Rearrange food containers to clear the door and door bins.
	Ice bin, crisper cover, pans, shelves, door bins, or baskets are out of position.	Push bins all the way in and put crisper cover, pans, shelves and baskets into their correct positions. See the Operation section for more information.
	The doors were removed during product installation and not properly replaced.	Remove and replace the doors according to the Removing and Replacing Refrigerator Handles and Doors section.
	Refrigerator is not leveled properly.	See Door Alignment in the Refrigeration Installation section to level refrigerator.
Doors are difficult to open.	The gaskets are dirty or sticky.	Clean the gaskets and the surfaces that they touch. Rub a thin coat of appliance polish or kitchen wax on the gaskets after cleaning.
	Door was recently closed.	When you open the door, warmer air enters the refrigerator. As the warm air cools, it can create a vacuum. If the door is hard to open, wait one minute to allow the air pressure to equalize, then see if it opens more easily.
Refrigerator wobbles or seems unstable	Leveling legs are not adjusted properly.	Refer to the Leveling and Door Alignment section.
	Floor is not level.	It may be necessary to add shims under the leveling legs or rollers to complete installation.
Lights do not work.	LED interior lighting failure.	The refrigerator uses LED interior lighting, and service should be performed by a qualified technician.
Refrigerator has an unusual odor.	The Air Filter may need to be set or replaced.	Set the Fresh Air Filter setting. If the odor does not go away within 24 hours, the filter may need to be replaced. See the Replacing the Air Filter section for replacement instructions.
The interior of the refrigerator is covered with dust or soot.	The refrigerator is located near a fire source, such as a fireplace, chimney, or candle.	Make sure that the refrigerator is not located near a fire source, such as a fireplace, chimney or candle

Noises

Problem Possible Cause Solutions
Clicking	The defrost control will click when the automatic defrost cycle begins and ends. The thermostat control (or refrigerator control on some models) will also click when cycling on and off.	Normal Operation
Rattling	Rattling noises may come from the flow of refrigerant, the water line on the back of the unit, or items stored on top of or around the refrigerator.	Normal Operation
	Refrigerator is not resting solidly on the floor.	Floor is weak or uneven or leveling legs need to be adjusted. See the Leveling and Door Alignment section.
	Refrigerator with linear compressor was jarred while running.	Normal Operation
Whooshing	Evaporator fan motor is circulating air through the refrigerator and freezer compartments.	Normal Operation
	Air is being forced over the condenser by the condenser fan.	Normal Operation
Gurgling	Refrigerant flowing through the cooling system.	Normal Operation
Popping	Contraction and expansion of the inside walls due to changes in temperature.	Normal Operation
Sizzling	Water dripping on the defrost heater during a defrost cycle.	Normal Operation
Vibrating	If the side or back of the refrigerator is touching a cabinet or wall, some of the normal vibrations may make an audible sound.	To eliminate the noise, make sure that the sides and back cannot vibrate against any wall or cabinet.
Dripping	Water running into the drain pan during the defrost cycle.	Normal Operation
Pulsating or high-pitched sound	Your refrigerator is designed to run more efficiently to keep your food items at the desired temperature. The high efficiency compressor may cause your new refrigerator to run longer than your old one, but it is still more energy efficient than previous models. While the refrigerator is running, it is normal to hear a pulsating or high-pitched sound.	Normal Operation

Wi-Fi

Problem Possible Cause Solutions

	The password for the Wi-Fi network was entered incorrectly.	Delete your home Wi-Fi network and begin the registration process again.
	Mobile data for your smartphone is turned on.	Turn off the Mobile data on your smartphone before registering the appliance.
Trouble connecting appliance and smartphone to Wi-Fi network	The wireless network name (SSID) is set incorrectly.	The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)
	The router frequency is not 2.4 GHz.	Only a 2.4 GHz router frequency is supported. Set the wireless router to 2.4 GHz and connect the appliance to the wireless router. To check the router frequency, check with your Internet service provider or the router manufacturer.
	The distance between the appliance and the router is too far.	If the appliance is too far from the router, the signal may be weak and the connection may not be configured correctly. Move the router closer to the appliance or purchase and install a Wi-Fi repeater.

LIMITED WARRANTY

USA

ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED "PROCEDURE FOR RESOLVING DISPUTES" BELOW.

Should your LG Refrigerator (“Product”) fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG Electronics (“LG”) will, at its option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the Product and applies only when purchased and used within the United States including U.S. Territories.

WARRANTY PERIOD
Refrigerator/ Freezer	Sealed System (Condenser, Dryer, Connecting Tube and Evaporator)	Compressor
One (1) year from the date of original retail purchase	Five (5) years from the date of original retail purchase	Five (5) years from the date of original retail purchase	Linear / Inverter Compressor Only : Parts Only for years 6-10 from the date of original retail purchase (You will be charged for labor)
Parts and Labor (internal/ functional parts only)	Parts and Labor Parts and Labor

• Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
• Replacement products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured.
• Replaced Product or part(s) will be the property of LG.
• Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this limited warranty.

EXCEPT TO THE EXTENT PROHIBTED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THE PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THE ABOVE LIMITED WARRANTY. UNDER NO CIRCUMSTANCES SHALL LG OR ITS U.S. DISTRIBUTORS/DEALERS BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL, SPECIAL, OR PUNITIVE DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST GOODWILL, LOST REVENUES OR PROFITS, WORK STOPPAGE, IMPAIRMENT OF OTHER GOODS, COST OF REMOVAL AND REINSTALLATION OF THE PRODUCT, LOSS OF USE, OR ANY OTHER DAMAGES WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. LG'S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you. This limited warranty gives you specific legal rights and you may also have other rights that vary from state to state.

THIS LIMITED WARRANTY DOES NOT COVER:

• Service trips to deliver, pick up, or install, educate how to operate, correct wiring, or correct unauthorized repairs.
• Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service.
• Damage or failure caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air.
• Damage resulting from operating the product in a corrosive atmosphere or contrary to the product owner's manual.

46 LIMITED WARRANTY

• Damage or failure to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts of God, or any other causes beyond the control of LG.
• Damage or failure of the Product caused by unauthorized modification or alteration, or if the Product is used for other than the intended purpose, or any water leakage where the Product was not properly installed.
• Damage or failure of the Product caused by incorrect electrical current, voltage, or plumbing codes.
• Damage or failure of the Product caused by transportation, storage, and/or handling, including scratches, dents, chips, and/or other damage to the finish of the Product, unless such damage is reported within one (1) week of delivery.
• Damage or failure of the Product resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair includes the use of parts not authorized by LG. Improper installation or maintenance includes installation or maintenance contrary to the Product owner's manual.
• Damage or failure of the Product caused by the use of parts, components, accessories, consumable cleaning products, or any other products or services that were not authorized by LG.
• Damage or missing items to any display or open box Product.
• Refurbished Product or any Product sold "As Is", "Where Is", "With all Faults", or similar disclaimer.
• Products with original serial numbers that have been removed, altered, or cannot be readily determined.
• Increases in utility costs and additional utility expenses.
• Any noises associated with normal operation.
• Products used for other than normal and proper household use (e.g., commercial or industrial use) or contrary to the Product owner's manual.
• Costs associated with removal and reinstallation of the Product for repairs, or the removal and reinstallation of the Product if it is installed in an inaccessible location or not installed in accordance with the Product Owner's manual.
• Accessories, removable components, or consumable parts (e.g. Shelves, door bins, drawers, water/air filters, racks, light bulbs, batteries, etc., as applicable), except for internal/functional parts covered under this limited warranty.

The cost of repair or replacement under these excluded circumstances shall be borne by You.

TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION

Call 1-800-243-0000 and select the appropriate option from the menu.

Or visit our website at http://www.lg.com.

Or by mail: LG Electronics Customer Service P.O. Box 240007 Huntsville, AL 35813 ATTN: CIC

PROCEDURE FOR RESOLVING DISPUTES:

ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. BINDING ARBITRATION MEANS THAT YOU AND LG ARE EACH WAIVING THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.

Definitions. For the purposes of this section, references to “LG” mean LG Electronics U.S.A., Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries, predecessors in interest, successors, assigns and suppliers; references to “dispute” or “claim” shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty.

Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LG at LG Electronics USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632. You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days, either party may proceed to file a claim for arbitration.

Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after sending written notice to LG, you and LG agree to resolve any claims between us only by binding arbitration on an individual basis, unless you opt out as provided below. Any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person's or entity's product or claim. More specifically, without limitation of the foregoing, any dispute between you and LG shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis.

Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be administered by the American Arbitration Association ("AAA") and will be conducted before a single arbitrator under the AAA's Consumer Arbitration Rules that are in effect at the time the arbitration is initiated (referred to as the "AAA Rules") and under the procedures set forth in this section. The AAA Rules are available online at www.adr.org/consumer. Send a copy of your written demand for arbitration, as well as a copy of this provision, to the AAA in the manner described in the AAA Rules. You must also send a copy of your written demand to LG at LG Electronics USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632. If there is a conflict between the AAA Rules and the rules set forth in this section, the rules set forth in this section will govern. This arbitration provision is governed by the Federal Arbitration Act. Judgment may be entered on the arbitrator's award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that issues relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision.

Governing Law. The law of the state of your residence shall govern this Limited Warranty and any disputes between us except to the extent that such law is preempted by or inconsistent with applicable federal law.

Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees to the AAA unless you seek more than \$25,000 in damages, in which case the payment of these fees will be governed by the AAA Rules. Except as otherwise provided for herein, LG will pay all AAA filing, administration and arbitrator fees for any arbitration initiated in accordance with the AAA Rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys' fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys' fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the standards set forth in Federal Rule of Civil Procedure 11(b)), then the payment of all arbitration fees will be governed by the AAA Rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the AAA Rules. Except as otherwise provided for, LG waives any rights it may have to seek attorneys' fees and expenses from you if LG prevails in the arbitration.

Hearings and Location. If your claim is for \25,000 or less, you may choose to have the arbitration conducted solely on the basis of (1) documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established by the AAA Rules. If your claim exceeds \25,000, the right to a hearing will be determined by the AAA Rules. Any in-person arbitration hearings will be held at a location within the federal judicial district in which you reside unless we both agree to another location or we agree to a telephonic arbitration.

Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser's purchase of the product by either: (i) sending an e-mail to [e-mail], with the subject line: "Arbitration Opt Out" or (ii) calling 1-800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https://www.lg.com/us/support/repair-service/schedule-repair-continued and clicking on "Find My Model & Serial Number").

You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above.

LIMITED WARRANTY

CANADA

ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS THE LAWS OF YOUR PROVINCE OR TERRITORY DO NOT PERMIT THAT, OR, IN OTHER JURISDICTIONS, IF YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED "PROCEDURE FOR RESOLVING DISPUTES" BELOW.

Should your LG Refrigerator (“Product”) fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG Electronics Canada, Inc. (“LGECI”) will, at its option, repair or replace the Product upon receipt of proof of the original retail purchase. This limited warranty is valid only to the original retail purchaser of the Product and applies only to a Product distributed, purchased and used within Canada, as determined at the sole discretion of LGECI.

WARRANTY PERIOD (Note: If the original date of purchase cannot be verified, the warranty will begin sixty (60) days from the date of manufacture)
Refrigerator	Sealed System (Condenser, Dryer, Connecting Tube and Evaporator)		Linear / Inverter Compressor
One (1) year from the date of original retail purchase	One (1) year from the date of original retail purchase	Seven (7) years from the date of original retail purchase	Ten (10) years from the date of original retail purchase
Parts and Labor (internal/functional parts only)	Parts and Labor	Parts only (Consumer will be charged for labor)	Part only (Consumer will be charged for labor)

• Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
• Replacement products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured, all at the sole discretion of LGECI.
• Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this Limited Warranty.

LGECI'S SOLE LIABILITY IS LIMITED TO THE LIMITED WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, LGECI MAKES NO, AND HEREBY DISCLAIMS, ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON LGECI. LGECI DOES NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE WARRANTY PERIOD SET OUT ABOVE. UNDER NO CIRCUMSTANCES SHALL LGECI, THE MANUFACTURER OR DISTRIBUTOR OF THE PRODUCT, BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT, INDIRECT, PUNITIVE OR EXEMPLARY DAMAGES, INCLUDING, WITHOUT LIMITATION, LOSS OF GOODWILL, LOST PROFITS, LOSS OF ANTICIPATED PROFITS, LOST REVENUE, LOSS OF USE, OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL BREACH, TORT OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS. LGECI'S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.

This Limited Warranty gives you specific legal rights. You may also have other rights that vary from province to province depending on applicable provincial laws. Any term of this Limited Warranty that negates or varies any implied condition or warranty under provincial law is severable where it conflicts with such provincial law without affecting the remainder of this warranty's terms.

THIS LIMITED WARRANTY DOES NOT COVER:

• Service trips to i) deliver, pick up, or install or; educate on how to operate the Product; ii) correct wiring or plumbing; or iii) correct unauthorized repairs or installations of the Product;
• Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service;
• Damage or failure caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air;
• Damage or failure resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product's owner's manual;
• Damage or failure to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts of God, or any other causes beyond the control of LGECI or the manufacturer;
• Damage or failure resulting from misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts not authorized or specified by LGECI. Improper installation or maintenance includes installation or maintenance contrary to the Product's owner's manual;
• Damage or failure caused by unauthorized modification or alteration of the Product, or if used for other than the intended household purpose/use of the Product, or damage or failure resulting from any water leakage due to improper installation of the Product;
• Damage or failure caused by incorrect electrical current, voltage or plumbing codes;
• Damage or failure caused by use that is other than normal household use, including, without limitation, commercial or industrial use, including use in commercial offices or recreational facilities, or as otherwise outlined in the Product's owner's manual;
• Damage or failure caused by the use of any accessories, components or cleaning products, including, without limitation, water filters, that are not approved/authorized by LGECI;
• Replacement of the water filter cartridge due to water pressure that is outside the specified operating range or due to excessive sediment in the water supply;
• Damage or failure caused by transportation and handling, including scratches, dents, chips and/or other damage to the finish of the Product, unless such damage results from defects in materials or workmanship and is reported to LGECI within one (1) week of delivery of the Products;
• Damage or missing items to any display, open box, refurbished or discounted Product;
• Refurbished Product or any Product sold "As Is", "Where Is", "With all Faults", or any similar disclaimer;
• Products with original serial numbers that have been removed, altered or cannot be readily determined at the discretion of LGECI;
• Increases in utility costs and additional utility expenses in any way associated with the Product;
• Any noises associated with normal operation of the Product;
• Replacement of light bulbs, filters, fuses or any other consumable parts;
• Replacement of any part that was not originally included with the Product;
• Costs associated with removal and/or reinstallation of the Product for repairs; and
• Shelves, door bins, drawers, handle and accessories to the Product, except for internal/functional parts covered under this Limited Warranty.
• Coverage for “in Home” repairs, for products in-warranty, will be provided if the Product is within a 150 km radius from the nearest authorized service center (ASC), as determined by LG Canada. If your Product is located outside a 150 km radius from a ASC, as determined by LG Canada, it will be your responsibility to bring the Product, at your sole expense, to the ASC for in-warranty repair.
• Service trips to i) deliver, pick up, or install or; educate on how to operate the Product; ii) correct wiring or plumbing; or iii) correct unauthorized repairs or installations of the Product;
• Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service;
• Damage or failure caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air;
• Damage or failure resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product's owner's manual;
• Damage or failure to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts of God, or any other causes beyond the control of LGECI or the manufacturer;
• Damage or failure resulting from misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts not authorized or specified by LGECI. Improper installation or maintenance includes installation or maintenance contrary to the Product's owner's manual;
• Damage or failure caused by unauthorized modification or alteration of the Product, or if used for other than the intended household purpose/use of the Product, or damage or failure resulting from any water leakage due to improper installation of the Product;
• Damage or failure caused by incorrect electrical current, voltage or plumbing codes;
• Damage or failure caused by use that is other than normal household use, including, without limitation, commercial or industrial use, including use in commercial offices or recreational facilities, or as otherwise outlined in the Product's owner's manual;
• Damage or failure caused by the use of any accessories, components or cleaning products, including, without limitation, water filters, that are not approved/authorized by LGECI;
• Damage or failure caused by transportation and handling, including scratches, dents, chips and/or other damage to the finish of the Product, unless such damage results from defects in materials or workmanship and is reported to LGECI within one (1) week of delivery of the Products;
• Damage or missing items to any display, open box, refurbished or discounted Product;
• Refurbished Product or any Product sold "As Is", "Where Is", "With all Faults", or any similar disclaimer;
• Products with original serial numbers that have been removed, altered or cannot be readily determined at the discretion of LGECI;
• Increases in utility costs and additional utility expenses in any way associated with the Product;
• Any noises associated with normal operation of the Product;
• Replacement of light bulbs, filters, fuses or any other consumable parts;
• Replacement of any part that was not originally included with the Product;
• Costs associated with removal and/or reinstallation of the Product for repairs; and
• Shelves, door bins, drawers, handle and accessories to the Product, except for internal/functional parts covered under this Limited Warranty.
• Coverage for “in Home” repairs, for products in-warranty, will be provided if the Product is within a 150 km radius from the nearest authorized service center (ASC), as determined by LG Canada. If your Product is located outside a 150 km radius from a ASC, as determined by LG Canada, it will be your responsibility to bring the Product, at your sole expense, to the ASC for in-warranty repair.

All costs and expenses associated with the above excluded circumstances, listed under the heading, This Limited Warranty Does Not Cover, shall be borne by the consumer.

TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION, PLEASE CALL OR VISIT OUR WEBSITE:

Call 1-888-542-2623 (7 A.M. to 12 A.M., 365 days a year) and select the appropriate option from the menu, or. Visit our website at http://www.lg.com

Call 1-888-542-2623 (7 A.M. to 12 A.M., 365 days a year) and select the appropriate option from the menu, or. Visit our website at http://www.lg.com

PROCEDURE FOR RESOLVING DISPUTES:

EXCEPT WHERE PROHIBITED AT LAW, ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. EXCEPT WHERE PROHIBITED AT LAW, YOU AND LG BOTH IRREVOCABLY AGREE TO WAIVE THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.

Definitions. For the purposes of this section, references to “LG” mean LG Electronics Canada, Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries, predecessors in interest, successors, assigns and suppliers; references to “dispute” or “claim” shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty.

Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LGECI Legal Team at 20 Norelco Drive, North York, Ontario, Canada M9L 2X6 (the "Notice of Dispute"). You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days of LG's receipt of the Notice of Dispute, the dispute shall be resolved by binding arbitration in accordance with the procedure set out herein. You and LG both agree that, during the arbitration proceeding, the terms (including any amount) of any settlement offer made by either you or LG will not be disclosed to the arbitrator until the arbitrator determines the dispute.

Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after LG's receipt of the Notice of Dispute, you and LG agree to resolve any claims between you and LG only by binding arbitration on an individual basis, unless you opt out as provided below, or you reside in a jurisdiction that prevents full application of this clause in the circumstances of the claims at issue (in which case if you are a consumer, this clause will only apply if you expressly agree to the arbitration). To the extent permitted by applicable law, any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person's or entity's product or claim. More specifically, without limitation of the foregoing, except to the extent such a prohibition is not permitted at law, any dispute between you and LG shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis except to the extent this prohibition is not permitted at law in your province or territory of jurisdiction as it relates to the claims at issue between you and LG.

Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be private and confidential, and conducted on a simplified and expedited basis before a single arbitrator chosen by the parties under the provincial or territorial commercial arbitration law and rules of the province or territory of your residence. You must also send a copy of your written demand to LG at LG Electronics, Canada, Inc., Attn: Legal Department- Arbitration, 20 Norelco Drive, North York, Ontario M9L 2X6. This arbitration provision is governed by your applicable provincial or territorial commercial arbitration legislation. Judgment may be entered on the arbitrator's award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that, issues relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision.

Governing Law. The law of the province or territory of your purchase shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG attorn to the exclusive jurisdiction of the courts of the province or territory of your purchase for the resolution of the claim, action, dispute or controversy between you and LG.

Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees unless you seek more than \$25,000 in damages, in which case the payment of these fees will be governed by the applicable arbitration rules. Except as otherwise provided for herein, LG will pay all filing, administration and arbitrator fees for any arbitration initiated in accordance with the applicable arbitration rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys' fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys' fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the applicable laws), then the payment of all arbitration fees will be governed by the applicable arbitration rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the applicable arbitration rules. Except as otherwise provided for, LG waives any rights it may have to seek attorneys' fees and expenses from you if LG prevails in the arbitration.

Hearings and Location. If your claim is for \25,000 or less, you may choose to have the arbitration conducted solely (1) on the basis of documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established by the applicable arbitration rules. If your claim exceeds \25,000, the right to a hearing will be determined by the applicable arbitration rules. Any in-person arbitration hearings will be held at the nearest, most mutually-convenient arbitration location available within the province or territory in which you reside unless you and LG both agree to another location or agree to a telephonic arbitration.

Severability and Waiver. If any portion of this Limited Warranty (including these arbitration procedures) is unenforceable, the remaining provisions will continue in full force and effect to the maximum extent permitted by applicable law. Should LG fail to enforce strict performance of any provision of this Limited Warranty (including these arbitration procedures), it does not mean that LG intends to waive or has waived any provision or part of this Limited Warranty.

Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser's purchase of the product by either (i) sending an e-mail to [e-mail], with the subject line: "Arbitration Opt Out;" or (ii) calling 1-800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and

(d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https://www. lg.com/ca_en/support/repair-service/schedule-repair and clicking on "Find My Model & Serial Number").

In the event that you “Opt Out”, the law of the province or territory of your residence shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG agree to attorn to the exclusive jurisdiction of the courts of the province or territory of your residence for the resolution of the claim, action, dispute or controversy between you and LG.

You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above.

Conflict of Terms. In the event of a conflict or inconsistency between the terms of this Limited Warranty and the End User License Agreement (“EULA”) in regards to dispute resolution, the terms of this Limited Warranty shall control and govern the rights and obligations of the parties and shall take precedence over the EULA.

52 MEMO

MANUEL DU PROPRIÉTAIRE

RÉFRIGÉRATEUR

CARACTÉRISTIQUES DU PRODUIT

CARACTÉRISTIQUES DU PRODUIT

Technical diagram of a refrigerator with labeled parts 1, 2, and 3

Diagram of an open refrigerator with numbered parts for identification

5 Compartment central

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating assembly steps

Technical diagram showing cable installation with labeled components and directional arrows indicating movement or connection.

REMARQUE

Diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical latch or bracket with an upward arrow indicating force or direction (no text or symbols present)

Technical diagram of a mechanical assembly with numbered components and labeled parts

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow

Pure technical diagram of a mechanical bracket with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with a downward arrow indicating a detail (no text or symbols present)

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow

Technical diagram of a mechanical assembly with numbered components and a directional arrow indicating movement or assembly.

Technical diagram showing a mechanical component with a downward arrow indicating a process or assembly (no text or symbols present)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical assembly with wires and components (no text or symbols)

REMARQUE

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating assembly steps

Two technical diagrams showing a door mechanism with arrows indicating motion (no text or symbols present)

Technical illustration of a mechanical assembly with two views: top shows a component being cut, bottom shows a close-up of a component (no text or symbols)

Illustration of a plug inserted into an electrical outlet with two socket switches (no text or symbols)

MISE EN GARDE

88 Kimchi LMH Fridge Fer. Com. Kimchi+ Kimchi+ Left | Kimchi LMH Fridge Fer. Com. Kimchi+ Kimchi+ Right | Kimchi LMH Produce Fast Chill Fer. Com. Kimchi+ Kimchi+ Middle | Kimchi LMH Produce Storage Meat/Fish Rice/Grain Bottom | Middle Off Bottom Off Power | Cooling Care Fresh Air Filter Wi-Fi Fresh Air Filter Wi-Fi Hard 3 seconds

Kimchi Fridge Fer. Com. Kimchi+ Fridge Left Kimchi Fridge Fer. Com. Kimchi+ Right Kimchi Fridge Fer. Com. Kimchi+ Right Kimchi Fridge Fer. Com. Kimchi+ Right Kimchi Fridge Fer. Com. Kimchi+ Right Kimchi Fridge Fer. Com. Kimchi+ Right Kimchi Fridge Fer. Com. Kimchi+ Right Kimchi Fridge Fer. Com. Kimchi+ Right Kimchi (Off) Fridge Fer. Com. Kimchi+ Right Kimchi (Off) Fridge Fer. Com. Kimchi+ Right Kimchi (Off) Fridge Fer. Com. Kimchi+ Right Kimchi (Off) Fridge Fer. Com. Kimchi+ Right Kimchi (Off) Fridge Fer. Com. Kimchi+ Right Kimchi (Off) Fridge Fer. Com. Kimachi Fridge Fer. Com. Kimachi+ Right Kimachi (Off) Fridge Fer. Com. Kimachi+ Right Kimachi (Off) Fridge Fer. Com. Kimachi+ Right Kimachi (Off) Fridge Fer. Com. Kimachi+ Right Kimachi (Off) Fridge Fer. Com. Kimachi+ Right Kimachi (Off) Fridge Fer. Com. Kimachi+ Right Kimachi (Off) Fridge Fer. Com. Kimichi Fridge Fer. Com. Kimichi+ Right Kimichi (Off) Fridge Fer. Com. Kimichi+ Right Kimichi (Off) Fridge Fer. Com. Kimichi+ Right Kimichi (Off) Fridge Fer. Com. Kimichi+ Right Kimichi (Off) Fridge Fer. Com. Kimichi+ Right Kimichi (Off) Fridge Fer. Com. Kimichi+ Right Kimichi (Off) Fridge Fer. Com. Kimuchi Fridge Fer. Com. Kimuchi+ Right Kimuchi (Off) Fridge Fer. Com. Kimuchi+ Right Kimuchi (Off) Fridge Fer. Com. Kimuchi+ Right Kimuchi (Off) Fridge Fer. Com. Kimuchi+ Right Kimuchi (Off) Fridge Fer. Com. Kimuchi+ Right

Korean Korean text image showing a 88-pin connector with labeled pins and functions, likely from a software interface.

REMARQUES

Kimchi E M H Fridge Fer. Com. Kimchi+ Kimchi+ Left | Kimchi L M H Fridge | Kimchi+ Right | Kimchi L M H Produce Fast Chill Fer. Com. Kimchi+ Kimchi+ Middle | Kimchi L M H Produce Storage Meat/Fish Rice/Grain Bottom | Middle Off Bottom Off Power | Cooling Care Fresh Air Filter Wi-Fi Air Filter Wi-Fi Hard 3 seconds

Compartiment central

Kimchi: M → H → L ➡ Produce(aliments frais): M → H → L ➡ Fast chill(froid rapide) ➡ Kimchi+ ➡ Fer. (Fermentation)

88 Kimchi Fridge Fer. Com. Kimchi+ Kimchi+ Fridge Left | Kimchi Kimchi+ Right | Kimchi Fridge Fer. Com. Kimchi+ Right Fast Chill Kimchi+ Middle | Kimchi Produce Kimchi+ Middle | Storage Meat/Fish Rice/Grain Bottom | Middle Off Bottom Off Power | Cooling Care Fresh Air Filter Wi-Fi Air Filter Wi-Fi Hold 3 seconds

Compartiment central

Kimchi: M → H → L ➡ Produce(aliments frais): M → H → L ➡ Fast chill(froid rapide) ➡ Kimchi+ ➡ Fer. (Fermentation)

88 Kimchi Fridge Fer. Com. Kimchi+ Fridge Left Kimchi Kimchi+ Right Kimchi Fridge Fer. Com. Kimchi+ Right Kimchi Fridge Fer. Com. Kimchi+ Right Kimchi Fridge Fer. Com. Kimchi+ Right Kimchi Fridge Fer. Com. Kimchi+ Right Kimchi Fridge Fer. Com. Kimchi+ Right Kimchi Fridge Fer. Com. Kimchi+ Right Kimchi Fridge Fer. Com. Kimchi+ Right Kimchi Fridge

Compartiment central (Kimchi+)

Kimchi: M → H → L ➤ Produce(aliments frais): M → H → L ➤ Fast chill(froid rapide) ➤ Kimchi+ ➤ Fer. (Fermentation)

Compartiment inférieur (Storage (stockage)

Kimchi: M → H → L ➕ Produce(aliments frais): M → H → L ➕ Rice/Grain(riz/céréales) ➕ Meat/Fish(viande/poisson) ➕ Storage(stockage)

Compartiment central

Kimchi: M → H → L ➡ Produce(aliments frais): M → H → L ➡ Fast chill(froid rapide) ➡ Kimchi+ ➡ Fer. (Fermentation)

REMARQUES

08 Kimchi L M H Fridge Fer. Com. Kimchi+ Kimchi+ Fridge Fer. Com. Right Kimchi L M H Produce Fast Chill Kimchi Kimchi+ Kimchi+ Middle Kimchi L M H Produce Storage Meat/Fish Rice/Grain Bottom Middle Off Bottom Off Power Cooling Care Fresh Air Filter Wi-Fi Air Filter Wi-Fi Fold 3 seconds

Diagram showing a 3D layout transformation of a refrigerator into a single unit, with numbered compartments labeled 1 to 6.

Diagram showing a refrigerator interior with hand gestures and a right-hand rule to open the refrigerator (no text or symbols present)

Diagram showing a hand inserting a device into a refrigerator, with no text or symbols present.

MISE EN GARDE

Two line drawings of a file drawer with arrows indicating movement or insertion, no text or symbols present.

Two technical illustrations of a file drawer with arrows indicating movement or force (no text or symbols present)

Diagram showing two labeled parts (① and ②) with arrows indicating rotation or movement, possibly illustrating a mechanical or electrical concept.

Illustration showing a hand opening a passenger seat into a vehicle cabin, with two views of the seat being lifted (no text or symbols present)

Two-step diagram showing a table with an arrow indicating direction, and hands holding a rectangular object (no text or symbols)

Illustration showing two steps of cleaning a textured surface: one with a hand applying material to a grid, the other with a brush applying material to a tool (no text or symbols present)

REMARQUES

Application LG ThinQ

Hand inserting a component into a device panel (no text or symbols visible)

DÉPANNAGE

Diagram of an open refrigerator with numbered parts for identification

1 Panel de control

2" (5 cm)

14 INSTALACIÓN

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating assembly steps

Technical diagram showing cable installation with labeled components and directional arrows indicating movement or connection.

NOTA

Diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical diagram showing a mechanical component with an upward arrow indicating a force or connection (no text or symbols present)

Technical diagram of a mechanical assembly with numbered components and labeled parts

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Pure technical diagram of a mechanical component with an arrow indicating direction (no text or symbols)

16 INSTALACIÓN

Technical line drawing of a mechanical component with a downward arrow indicating a detail (no text or symbols present)

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Technical diagram of a mechanical assembly with numbered components and a directional arrow indicating movement or force.

Simple line drawing of a door handle with a downward arrow indicating a detail (no text or symbols)

Diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or force

Technical line drawing of a mechanical assembly with no visible text or symbols

NOTA

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating parts of motion or assembly.

Two technical diagrams showing a door mechanism with arrows indicating motion (no text or symbols present)

Technical illustration of a mechanical device with cross-sectional views and component details (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and a close-up of a cutting tool mechanism.

Anillos elásticos

Encendido

Illustration of an electrical outlet with a plug inserted, showing two socket layouts (no text or symbols)

PRECAUCIÓN

88 Kimchi LMH Fridge Fer. Com. Kimchi+ Kimchi+ Left | Kimchi LMH Fridge Fer. Com. Kimchi+ Kimchi+ Right | Kimchi LMH Produce Fast Chill Fer. Com. Kimchi+ Kimchi+ Middle | Kimchi LMH Produce Storage Meat/Fish Rice/Grain Bottom | Middle Off Bottom Off Power | Cooling Care Fresh Air Filter Wi-Fi Fresh Air Filter Wi-Fi Hard 3 seconds

Meat/Fish Rice/Grain

[Non-Text]

Bottom

Power

Power

Cooling Care

Fresh Air Filter Air Filter Wi-Fi Wi-Fi

Air Filter Wi-Fi

Hold 3 seconds

Kimchi E M H Fridge Fer. Com. Kimchi+ Kimchi+ Left | Kimchi L M H Fridge | Kimchi+ Right | Kimchi L M H Produce Fast Chill Fer. Com. Kimchi+ Kimchi+ Middle | Kimchi L M H Produce Storage Meat/Fish Rice/Grain Bottom | Middle Off Bottom Off Power | Cooling Care Fresh Air Filter Wi-Fi Air Filter Wi-Fi Full 3 seconds

88 Kimchi L M S Fridge Fer. Com. Kimchi+ Kimchi+ Fridge Left Kimchi L M H Fridge Fer. Com. Kimchi+ Kimchi+ Right Kimchi L M H Produce Fast Chill Fer. Com. Kimchi+ Kimchi+ Middle Kimchi L M H Produce Storage Meat/Fish Rice/Grain Bottom Middle Off Bottom Off Power Cooling Care Fresh Air Filter Wii-Fi Fresh Air Filter Wii-Fi Fast 3 seconds

Kimchi Fridge Fer. Com. Kimchi+ Fridge Left Kimchi Fridge Fer. Com. Kimchi+ Fridge Right Kimchi L H Produce Fast Chill Fer. Com. Kimchi+ Fer. Com. Middle Kimchi L H Produce Storage Meat/Fish Rice/Grain Bottom Middle Off Bottom Off Power Cooling Care Fresh Air Filter Wi-Fi Air Filter Wi-Fi Half 3 seconds

88 Kimchi Fer Com, L M H Kimchi+ Fridge Fridge Left Kimchi Fer Com, L M H Kimchi+ Fridge Right Kimchi Fer Com, L M H Kimchi* Produce Middle | Kimchi Storage Fast Chill Meat/Fish Rice/Grain Bottom Middle Off Power Bottom Off Power Cooling Care Fresh Fresh Air Filter Air Filter Wi-Fi Wi-Fi Fold 3 seconds

08 Kimchi L M H Fridge Fer. Com. Kimchi+ Kimchi+ Fridge Fer. Com. Right Kimchi L M H Produce Fast Chill Kimchi Kimchi+ Kimchi+ Middle Kimchi L M H Produce Storage Meat/Fish Rice/Grain Bottom Middle Off Bottom Off Power Cooling Care Fresh Air Filter Wi-Fi Air Filter Wi-Fi Fold 3 seconds

Diagram showing a 3D box arrangement before and after transformation, with numbered compartments labeled 1 to 6.

Illustration of a refrigerator interior showing the door and shelf, with hand gestures indicating changes (no text or symbols present)

Illustration of a refrigerator interior showing hand placement and rotation (no text or symbols)

PRECAUCIÓN

Two technical line drawings showing a file drawer with an open drawer and a stack of papers, no text or symbols present.

Two technical diagrams showing a file drawer with an arrow indicating direction, and a filing cabinet with arrows indicating movement (no text or symbols present)

Diagram showing two labeled parts (① and ②) with arrows indicating direction of movement or force, possibly illustrating a physical or mechanical concept.

Illustration showing a hand placing a box into a refrigerator with another panel view of the refrigerator (no text or symbols present)

Illustration showing two hands performing a physical maneuver with a curved arrow indicating motion (no text or symbols)

Illustration showing hand cleaning a grid with a magnified close-up of the process.

NOTA

Hand inserting a button into a computer monitor (no text or symbols visible)

For inquiries or comments, visit www.lg.com or call:

1-800-243-0000 USA

1-888-542-2623 CANADA

Register your product Online!

www.lg.com
